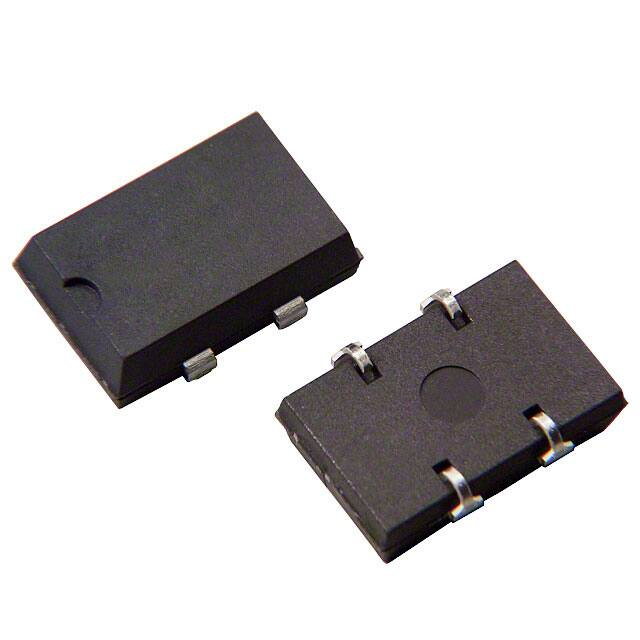

ASM-27.000MHZ-ET

HCMOS/ TTL COMPATIBLE, J LEADED, PLASTIC MOLDED SMD CRYSTAL CLOCK OSCILLATOR Pb in high temperature solder ASM SERIES RoHS (exempt per RoHS 2002/95/EC Annex (7)). 14.0 x 8.95 x 4.7 mm Compliant | | | | | | | | | | | | | | | The 14x9.8mm plastic package oscillator is not recommended for new designs. Please consider our reduced size ceramic or plastic molded SMD packages. Recommended series include ASL, ASV, ASVM, ASFL, ASFLM, ASE, ASEM . For 5.0V please use ASL series. Product Life Cycle: Declining, Planned EOL/Obsolescence pending 12/31/2011 FEATURES: • Industry standard J-Leaded terminals. • Plastic molded SMD • HCMOS and TTL compatible • Tristate Enable/ Disable. • Extended temperature -40°C to 85°C option • Suitable for RoHS compliant reflow APPLICATIONS: • Wide range of applications in dialing communication equipment, AV / OA equipment, Measuring equipment. STANDARD SPECIFICATIONS: Parameters Frequency Range: Operating Temperature: Storage Temperature: Overall Frequency Stability: Supply Voltage (Vdd): Supply Current (Idd): Output Load Output Voltage: VOH VOL Tri-state function : Aging: Symmetry: Start-up Time : Rise/Fall Time (Tr/Tf): Period jitter one sigma : Minimum 1.0 0 -55 -100 4.5 --------------------0.9*Vdd ----- Typical ----------------5.0 ----------------------------- Maximum 125.0 +70 +125 +100 5.5 20 40 80 50 10 ----0.1*Vdd Units MHz °C °C ppm V -5.0 40 ------------- --------------------- +5.0 60 10 10 25 ppm % ms ns ps "1" (VIH≥ 2.2V) or Open: Oscillation "0" (VIL
