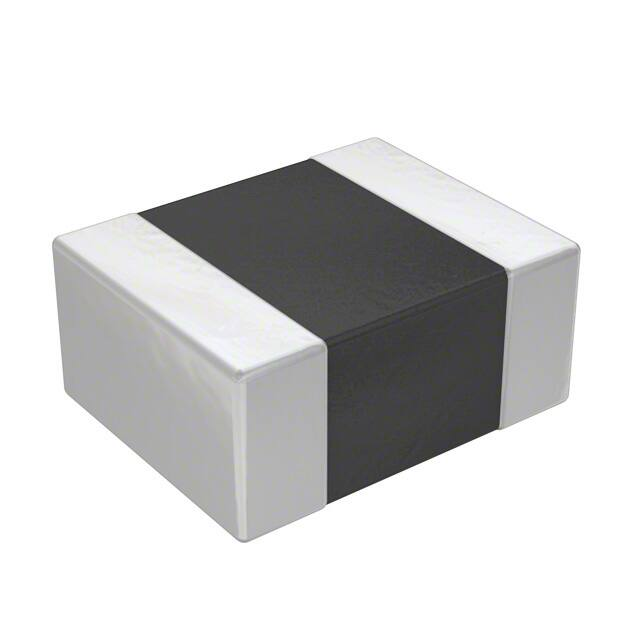

ASMPM-0806-3R3M-T

METAL ALLOY MULTILAYER HIGH POWER CHIP INDUCTOR ASMPM Pb FEATURES APPLICATIONS • • • • • • • • • • • • • • • • • • • Shielded construction reduces EMI 2.0 x 1.6 x 1.0 mm MSL = 2 RoHS/RoHS II Compliant Wearables Hand-held devices OPTIONS AND PART IDENTIFICATION ASMPM-0806 - - INDUCTANCE CODE Spec Table TOLERANCE M: ±20% PACKAGING ELECTRICAL SPECIFICATIONS OPERATING TEMPERATURE -40°C - 125°C (including self-temperature rise) PART NUMBER UNITS SYMBOL ASMPM-0806-R47 ASMPM-0806-1R0 ASMPM-0806-1R5 ASMPM-0806-2R2 ASMPM-0806-3R3 ASMPM-0806-4R7 INDUCTANCE 0.1MHz/0.1V µH L 0.47 1.0 1.5 2.2 3.3 4.7 TOLERANCE % M ±20% ±20% ±20% ±20% ±20% ±20% STORAGE CONDITION DC RESISTANCE max DCR 40 70 110 168 225 360 SATURATION CURRENT Typ Max A Isat 4.50 4.00 3.40 3.10 2.80 2.50 2.20 2.00 1.90 1.50 1.50 1.30 5101 Hidden Creek Lane Spicewood TX 78751 Phone: 512-371-6159 | Fax: 512-351-8858 For terms and conditions of sales visit: www.abracon.com TEMPERATURE RISE CURRENT Typ Max A Irms 3.60 3.10 2.60 2.20 2.10 1.80 1.60 1.40 1.40 1.20 1.10 0.95 REVISED: 05.26.2021 ABRACON IS ISO9001-2015 CERTIFIED METAL ALLOY MULTILAYER HIGH POWER CHIP INDUCTOR ASMPM Pb 2.0 x 1.6 x 1.0 mm MSL = 2 RoHS/RoHS II Compliant MECHANICAL DIMENSIONS Dimension: mm L W T 2.0 ± 0.2 1.6 ± 0.2 a 0.5 ± 0.3 REFLOW Zone Description 1 Preheat 2 3 Temperature TSMIN Times TL 230°C TP 260°C 5101 Hidden Creek Lane Spicewood TX 78751 Phone: 512-371-6159 | Fax: 512-351-8858 For terms and conditions of sales visit: www.abracon.com REVISED: 05.26.2021 ABRACON IS ISO9001-2015 CERTIFIED METAL ALLOY MULTILAYER HIGH POWER CHIP INDUCTOR ASMPM Pb 2.0 x 1.6 x 1.0 mm MSL = 2 RoHS/RoHS II Compliant PACKING (TAPE & REEL: 3000 PCS/REEL) Ao Bo Ko P W t E F 1.90 2.30 1.15 4.00 8.00 0.23 1.75 3.50 Dimension: mm 5101 Hidden Creek Lane Spicewood TX 78751 Phone: 512-371-6159 | Fax: 512-351-8858 For terms and conditions of sales visit: www.abracon.com REVISED: 05.26.2021 ABRACON IS ISO9001-2015 CERTIFIED
