ASPI-0310FS-6R8M-T2

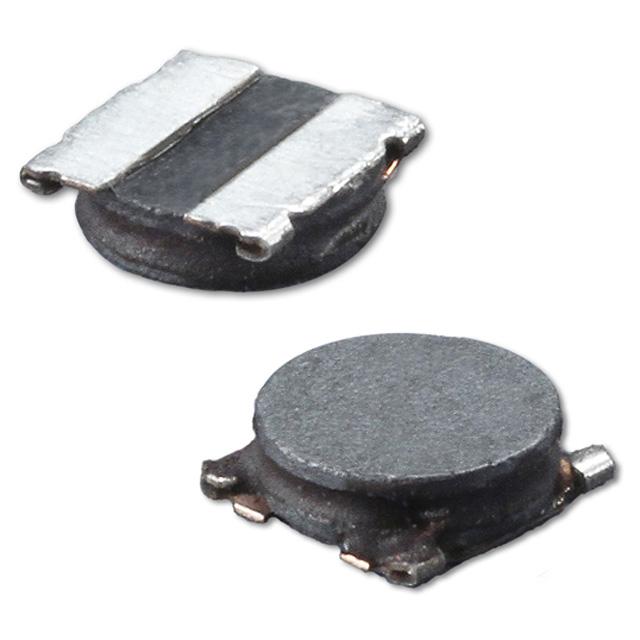

ULTRA LOW PROFILE SHIELDED SMD CHIP POWER INDUCTOR ASPI-0310FS 3.0 x 3.0 x 1.0mm Compliant APPLICATIONS: FEATURES: • • • • • RoHS Pb • Mobile phones • MP3 & 4 and other portable communication equipment • Digital cameras. Small size and low profile: 1.0mm Small DCR and high rated current High reliability to mechanical stress Magnetically shielded by magnetic powder molding Suitable for RoHS reflow profile ELECTRICAL SPECIFICATIONS: Abracon P/N: Operating Temperature & Humidity : Storage Temperature & Humidity: Part Number Inductance Units Symbol ASPI-0310FS-1R0 ASPI-0310FS-1R2 ASPI-0310FS-1R5 ASPI-0310FS-2R2 ASPI-0310FS-3R3 ASPI-0310FS-4R7 ASPI-0310FS-6R8 ASPI-0310FS-100 ASPI-0310FS-150 ASPI-0310FS-220 ASPI-0310FS-330 ASPI-0310FS-470 H L 1.0 1.2 1.5 2.2 3.3 4.7 6.8 10.0 15.0 22.0 33.0 47.0 ASPI-0310FS Series -40°C to +125°C (Including self generated heat) -40°C to +125°C Inductance Tolerance % M, N N N N M M M M M M M M M DCR m DCR 50 62 70 80 130 175 260 350 510 780 1100 1600 DCR Tolerance % ±30% ±20% Saturation Current A Isat 2.30 1.90 1.65 1.45 1.05 0.85 0.70 0.60 0.50 0.40 0.32 0.28 Temperature Rise Current A Irms 2.30 2.10 2.00 1.90 1.80 1.70 1.30 0.90 0.80 0.70 0.50 0.35 Test Conditions 1. Inductance is measured in HP-4285A Precision LCR Meter. 2. RDC is measured in DU-5011 milli ohm meter.(or equivalent). 3. Isat : Based on inductance change (Δ L/Lo : -30%) 4. Irms : Based on temperature rise (Δ T : 40oC TYP. ) 5. Test Freq: 100KHz, 1Vrms OPTIONS AND PART IDENTIFICATION ASPI-3010FSInductance Code Please refer to the Electrical Spec Table Tolerance N: ±30%* M: ±20%* Packaging T: Tape and Reel (2kpcs / reel) *N for L = 1.0 ~ 1.5µH *M for L = 2.2 ~ 47µH LLC 5101 Hidden Creek Ln Spicewood TX 78669 Phone: 512-371-6159 | Fax: 512-351-8858 For terms and conditions of sales, please visit: www.abracon.com ABRACON IS REVISED: 07-18-22 ISO9001-2015 CERTIFIED ULTRA LOW PROFILE SHIELDED SMD CHIP POWER INDUCTOR ASPI-0310FS Pb RoHS 3.0 x 3.0 x 1.0mm Compliant OUTLINE DRAWING: Circuit Schematic A B C Max. 3.0±0.1 3.0±0.1 1.0 Recommended Land Pattern No Polarity Dimension: mm Materials No 1 2 3 4 Part Name Ferrite core Terminals Coil Adhesive Magnetic Powder LLC Material Ni-Zn Ferrite Ag/Ni/Sn Cu/P180 Grd 1 Silicon Base Resin Ni-Zn Ferrite 5101 Hidden Creek Ln Spicewood TX 78669 Phone: 512-371-6159 | Fax: 512-351-8858 For terms and conditions of sales, please visit: www.abracon.com ABRACON IS REVISED: 07-18-22 ISO9001-2015 CERTIFIED ULTRA LOW PROFILE SHIELDED SMD CHIP POWER INDUCTOR ASPI-0310FS RoHS Pb 3.0 x 3.0 x 1.0mm Compliant TAPE & REEL: T: 2,000pcs / reel Item W A0 B0 K0 P E F D0 P0 P2 T Dim. 8.00±0.3 3.2±0.1 3.2±0.1 1.32±0.1 4.0±0.1 3.5±0.1 1.75±0.1 1.50±0.1 4.00±0.1 2.00±0.1 0.30±0.05 A B C W 180 ±0.5 100 ±0.5 13.5 ±0.5 8.5 ±0.5 Dimension: mm LLC 5101 Hidden Creek Ln Spicewood TX 78669 Phone: 512-371-6159 | Fax: 512-351-8858 For terms and conditions of sales, please visit: www.abracon.com ABRACON IS REVISED: 07-18-22 ISO9001-2015 CERTIFIED ULTRA LOW PROFILE SHIELDED SMD CHIP POWER INDUCTOR ASPI-0310FS Pb RoHS Compliant 3.0 x 3.0 x 1.0mm REFLOW PROFILE: 3 Tp Tp Critical Zone TL to Tp Ramp Up Temperature TL TSMAX TL TSMIN Ramp Down Preheat 2 1 25 t 25˚C to Peak Time Zone Description 1 Preheat / Soak 2 3 Peak heat Temperature T Time SMAX 60 ~ 100 sec. TL 200°C 20 sec. MAX TP 260°C 10 sec. MAX 150°C Dimension: mm ATTENTION: Abracon Corporation’s products are COTS – Commercial-Off-The-Shelf products; suitable for Commercial, Industrial and, where designated, Automotive Applications. Abracon’s products are not specifically designed for Military, Aviation, Aerospace, Life-dependant Medical applications or any application requiring high reliability where component failure could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme operating environment, written consent and authorization from Abracon Corporation is required. Please contact Abracon Corporation for more information. LLC 5101 Hidden Creek Ln Spicewood TX 78669 Phone: 512-371-6159 | Fax: 512-351-8858 For terms and conditions of sales, please visit: www.abracon.com ABRACON IS REVISED: 07-18-22 ISO9001-2015 CERTIFIED
