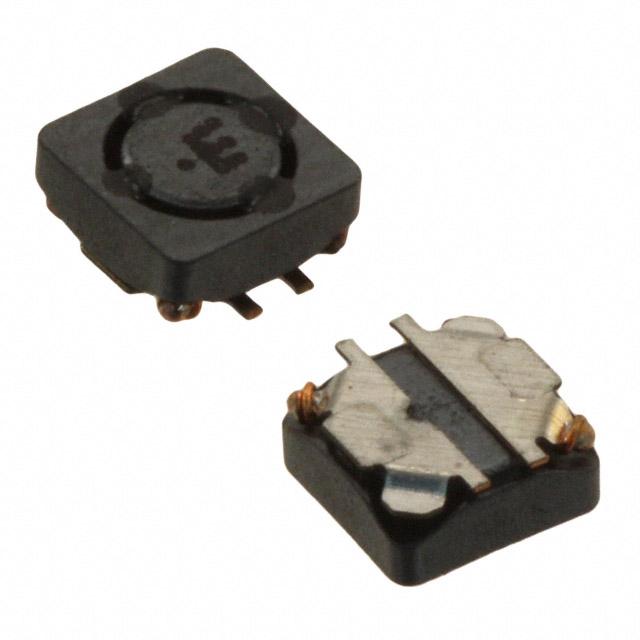

Low Profile Shielded SMD Chip Power Inductor ASPI-0312FS Pb 3.0 x 3.0 x 1.2mm RoHS/RoHS Compliant Features Applications • Small size and low profile: 1.2mm • Small DCR and high rated current • High reliability to mechanical stress • Magnetically shielded by magnetic powder molding • Suitable for RoHS reflow profile • Mobile phones • MP3 & 4 and other portable communication equipment • Digital cameras Electrical Specifications Operating Temperature & Humidity: Storage Temperature & Humidity: Part Number ASPI-0312FS Inductance Code Units Symbol ASPI-0312FS-R22 ASPI-0312FS-R82 ASPI-0312FS-1R0 ASPI-0312FS-1R2 ASPI-0312FS-1R5 ASPI-0312FS-1R8 ASPI-0312FS-2R2 ASPI-0312FS-2R4 ASPI-0312FS-2R7 ASPI-0312FS-3R3 ASPI-0312FS-3R6 ASPI-0312FS-3R9 ASPI-0312FS-4R7 ASPI-0312FS-6R8 ASPI-0312FS-100 ASPI-0312FS-120 ASPI-0312FS-150 ASPI-0312FS-180 ASPI-0312FS-220 -40˚C to +125˚C (Including self generated heat) -40˚C to +125˚C Inductance Inductance Tolerance μH L 0.22 0.82 1.0 1.2 1.5 1.8 2.2 2.4 2.7 3.3 3.6 3.9 4.7 6.8 10.0 12.0 15.0 18.0 22.0 % M, N N N N N N N N N M M M M M M M M M M M LLC DC Resistance Max Typ mΩ mΩ DCR 22 39 52 59 59 82 98 88 110 130 130 189 156 247 345 449 468 709 839 17 30 40 45 45 63 75 68 85 100 100 145 120 190 265 345 360 545 645 Saturation Current Temperature Rise Current Self-Resonant Frequency A Isat 5.3 2.05 1.87 2.22 1.62 1.30 1.20 1.15 1.14 1.05 1.05 1.00 0.90 0.75 0.60 0.48 0.45 0.43 0.42 A Irms 3.0 2.47 2.20 2.01 2.01 1.65 1.55 1.60 1.48 1.36 1.36 1.24 1.24 0.98 0.83 0.73 0.71 0.58 0.53 MHz SRF 321 180 120 120 110 90 84 100 65 64 36 61 61 61 42 32 27 25 23 5101 Hidden Creek Ln Spicewood TX 78669 Phone: 512-371-6159 | Fax: 512-351-8858 For terms and conditions of sales, please visit: www.abracon.com ABRACON IS REVISED: 04-14-20 ISO9001-2015 CERTIFIED Low Profile Shielded SMD Chip Power Inductor ASPI-0312FS Pb 3.0 x 3.0 x 1.2mm RoHS/RoHS Compliant Electrical Specifications cont. Part Number ASPI-0312FS Inductance Code Inductance Inductance Tolerance Units Symbol ASPI-0312FS-270 ASPI-0312FS-330 ASPI-0312FS-360 ASPI-0312FS-390 ASPI-0312FS-470 ASPI-0312FS-560 ASPI-0312FS-680 ASPI-0312FS-820 ASPI-0312FS-101 μH L 27.0 33.0 36.0 39.0 47.0 56.0 68.0 82.0 100.0 % M, N M M M M M M M M M DC Resistance Max Typ mΩ mΩ DCR 1131 1138 1235 1729 1885 1794 2171 3302 3718 870 875 950 1330 1450 1380 1670 2540 2860 Saturation Current Temperature Rise Current Self-Resonant Frequency A Isat 0.35 0.36 0.34 0.30 0.27 0.26 0.24 0.17 0.21 A Irms 0.47 0.46 0.44 0.37 0.35 0.28 0.33 0.27 0.25 MHz SRF 21 18 18 18 14 9 7 7 5 Test Conditions 1. Inductance is measured using a WK3260B LCR meter or equivalent. 2. DCR is measured using HIOKI 3540 or equivalent. 3. Isat : Based on inductance change (ΔL/Lo : ≤ -30%) 4. Irms : Based on temperature rise (ΔT : 40°C TYP. ) 5. SRF: Agilent E4991A+16197 or equivalent. 6. Test Freq: 100KHz, 1Vrms Part Number Identification ASPI-0312FSInductance Code Please refer to the Electrical Spec Table Tolerance N: ±30%* Packaging T2: Tape and Reel (2kpcs / reel) M: ±20%* *N for L = 0.22 ~ 2.7µH *M for L = 3.3 ~ 100µH LLC 5101 Hidden Creek Ln Spicewood TX 78669 Phone: 512-371-6159 | Fax: 512-351-8858 For terms and conditions of sales, please visit: www.abracon.com ABRACON IS REVISED: 04-14-20 ISO9001-2015 CERTIFIED Low Profile Shielded SMD Chip Power Inductor ASPI-0312FS Pb 3.0 x 3.0 x 1.2mm RoHS/RoHS Compliant Mechanical Information A B C D E F a Typ. b Typ. C Typ. 3.0 ± 0.2 3.0 ± 0.2 1.2 Max 2.50 ± 0.2 0.75 ± 0.2 1.5 ± 0.2 1.5 0.8 2.7 Recommended Land Pattern Circuit Schematic No Polarity Dimensions: mm LLC 5101 Hidden Creek Ln Spicewood TX 78669 Phone: 512-371-6159 | Fax: 512-351-8858 For terms and conditions of sales, please visit: www.abracon.com ABRACON IS REVISED: 04-14-20 ISO9001-2015 CERTIFIED Low Profile Shielded SMD Chip Power Inductor ASPI-0312FS Pb 3.0 x 3.0 x 1.2mm RoHS/RoHS Compliant Reflow Profile 3 Tp Tp Critical Zone TL to Tp Ramp Up Temperature TL TSMAX TL TSMIN Ramp Down Preheat 1 2 25 Time Zone Description Temperature Time 1 Preheat / Soak TSMIN ~ TSMAX 150°C ~ 200°C 60 ~ 120 sec. 2 Reflow TL 217°C 60 ~ 90 sec. 3 Peak heat TP 260°C 10 sec. MAX LLC 5101 Hidden Creek Ln Spicewood TX 78669 Phone: 512-371-6159 | Fax: 512-351-8858 For terms and conditions of sales, please visit: www.abracon.com ABRACON IS REVISED: 04-14-20 ISO9001-2015 CERTIFIED Low Profile Shielded SMD Chip Power Inductor ASPI-0312FS Pb 3.0 x 3.0 x 1.2mm RoHS/RoHS Compliant Packaging A0 B0 W E F P0 P1 P2 D0 T K0 3.3 ±0.1 3.3 ±0.1 8.0 ±0.3 1.75 ±0.1 3.5 ±0.05 4.0 ±0.1 4.0 ±0.1 2.0 ±0.1 1.5 +0.1/-0.0 0.25 ±0.03 1.6 ±0.1 Dimensions: mm ATTENTION: Abracon LLC’s products are COTS – Commercial-Off-The-Shelf products; suitable for Commercial, Industrial and, where designated, Automotive Applications. Abracon’s products are not specifically designed for Military, Aviation, Aerospace, Life-dependent Medical applications or any application requiring high reliability where component failure could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme operating environment, written consent and authorization from Abracon LLC is required. Please contact Abracon LLC for more information. LLC 5101 Hidden Creek Ln Spicewood TX 78669 Phone: 512-371-6159 | Fax: 512-351-8858 For terms and conditions of sales, please visit: www.abracon.com ABRACON IS REVISED: 04-14-20 ISO9001-2015 CERTIFIED
