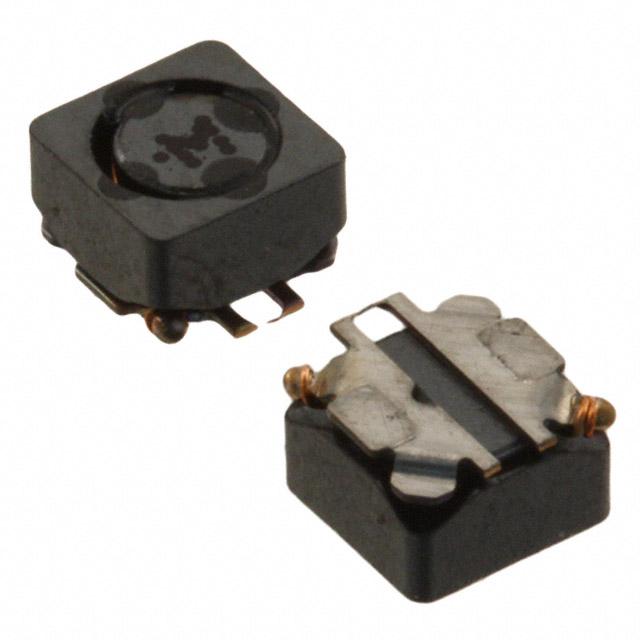

ASPI-0320S-330M-T3

ULTRA MINIATURE SHIELDED POWER INDUCTOR ASPI-0320S RoHS Pb 3.2 x 3.2 x 2.0mm Compliant FEATURES: APPLICATIONS: • • • • • • Mobile phones • MP3 & 4 and other portable communication equipment • Digital cameras. Small size and low profile: 2.0mm Small DCR and high rated current High reliability to mechanical stress Magnetically shielded by magnetic powder molding Suitable for RoHS reflow profile ELECTRICAL SPECIFICATIONS: Abracon P/N: Operating Temperature & Humidity Storage Temperature : & Humidity: ASPI-0320S -25˚C to +100˚C (Including self generated heat) -10˚C to +40˚C, 30% to 70% RH Part Number Inductance Tolerance DCR Max DCR Typ Units Symbol ASPI-0320S-1R5 ASPI-0320S-2R2 ASPI-0320S-3R3 ASPI-0320S-4R7 ASPI-0320S-5R6 ASPI-0320S-6R8 ASPI-0320S-100 ASPI-0320S-120 ASPI-0320S-150 ASPI-0320S-220 ASPI-0320S-330 ASPI-0320S-470 μH L 1.5 2.2 3.3 4.7 5.6 6.8 10 12 15 22 33 47 % M, N N N N N N N M M M M M M mΩ mΩ 95 106 125 157 180 193 241 322 344 495 740 1157 76 84 100 126 144 154 193 258 275 396 592 926 Saturation Current A Isat* 1.40 1.30 1.10 0.95 0.88 0.85 0.70 0.63 0.56 0.48 0.38 0.32 Temperature Rise Current A Irms* 1.45 1.33 1.24 1.10 1.00 0.94 0.77 0.68 0.66 0.57 0.45 0.36 Test Conditions 1. Inductance is measured in HP-4285A Precision LCR Meter. 2. RDC is measured in HP-4338B milli ohm meter.(or equivalent). 3. Isat : Based on inductance change (△L/Lo : ≤ -35%) 4. Irms : Based on temperature rise (△T : 40oC TYP. ) 5. Test Freq: 100KHz, 1Vrms OPTIONS AND PART IDENTIFICATION ASPI-0320SInductance Code Please refer to the Electrical Spec Table Tolerance N: ±30%* M: ±20%* Packaging T3: Tape and Reel (3kpcs / reel) *N for L = 1.5~6.8µH *M for L = 10 ~ 47µH ABRACON IS ISO9001:2008 CE RTIFIED Revised: 11.10.11 Visit www.abracon.com for Terms & Conditions of Sale 30332 E speranza , Rancho Santa Margarita, California 92688 tel 949-546-8000 | fax 949-546-8001 | www.abracon.com ULTRA MINIATURE SHIELDED POWER INDUCTOR ASPI-0320S Pb RoHS Compliant 3.2 x 3.2 x 2.0mm OUTLINE DRAWING: Mechanical Dimensions A B 3.2±0.1 3.2±0.1 Circuit Schematic C Max. 2.0 Recommended Land Pattern Avoid routing copper trace in the shaded region Dimension: mm ABRACON IS ISO9001:2008 CE RTIFIED Revised: 11.01.11 Visit www.abracon.com for Terms & Conditions of Sale 30332 E speranza , Rancho Santa Margarita, California 92688 tel 949-546-8000 | fax 949-546-8001 | www.abracon.com ULTRA MINIATURE SHIELDED POWER INDUCTOR ASPI-0320S Pb RoHS 3.2 x 3.2 x 2.0mm Compliant TAPE & REEL: T3: 3,000pcs / reel Ao 3.6 Bo 3.3 Ko 1.35 W 12 P 8 T 0.3 A 330 B 21.0±0.8 C 13.5±0.5 G 12.6 N 99.5 T 17.2 Dimension: mm REFLOW PROFILE: ATTENTION: Abracon Corporation’s products are COTS – Commercial-Off-The-Shelf products; suitable for Commercial, Industrial and, where designated, Automotive Applications. Abracon’s products are not specifically designed for Military, Aviation, Aerospace, Life-dependant Medical applications or any application requiring high reliability where component failure could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme operating environment, written consent and authorization from Abracon Corporation is required. Please contact Abracon Corporation for more information. ABRACON IS ISO9001:2008 CE RTIFIED Revised: 11.10.11 Visit www.abracon.com for Terms & Conditions of Sale 30332 E speranza , Rancho Santa Margarita, California 92688 tel 949-546-8000 | fax 949-546-8001 | www.abracon.com
