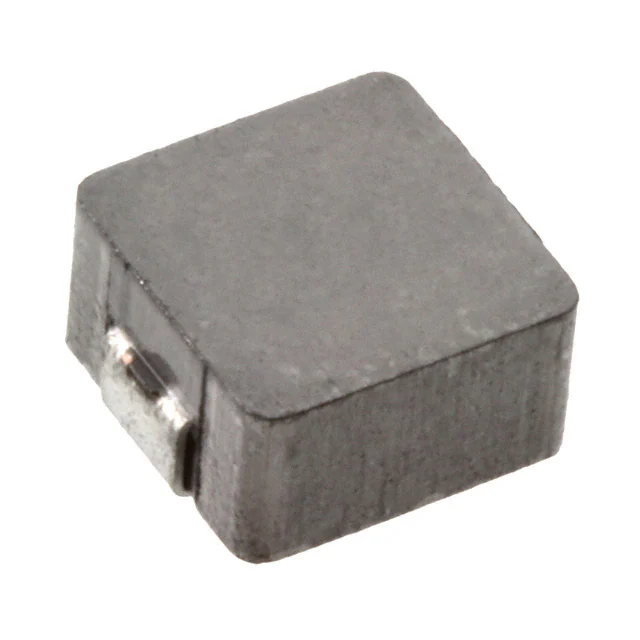

Molded Type Power Inductor
ASPI-0530HI Series
Request Samples
5.7 x 5.3 x 3.0 mm
RoHS/RoHS II Compliant
MSL Level = 1
Check Inventory
Applications
Features
• High saturation current.
• Low loss due to low DC resistance.
• Frequency application up to 3MHz.
• Low profile with max thickness 3.0mm.
• 100% lead free and RoHS compliant.
• Suitable for reflow soldering.
• High reliable SMD package
•
•
DC/DC converters in Notebook, Netbook,
desktop and server
Low profile, high current power supplies.
Electrical Specifications
Part Number
Inductance
Tolerance
DCR Typ
Units
Symbol
µH
L
%
M
mΩ
DCR
Max
mΩ
13.0
20.0
29.0
14.0
25.0
35.0
ASPI-0530HI-1R0
ASPI-0530HI-1R5
ASPI-0530HI-2R2
1.0
1.5
2.2
M
M
M
Saturation
Current
A
Isat*
11.0
10.0
9.0
Temperature
Rise Current
A
Irms*
7.0
6.0
5.5
Test Conditions
Inductance is measured in HP-4284A Precision LCR Meter.
RDC is measured in HP-4338B milli ohm meter.(or equivalent).
Isat: Based on inductance change (△L/Lo : ≤ -20%)
Irms: Based on temperature rise (△T : 40oC TYP. )
Operating Temperature & Humidity:
-55˚C to +125˚C (Including self generated heat)
Storage Temperature & Humidity:
+25˚C to +35˚C, 45% to 75% RH
5101 Hidden Creek Ln, Spicewood TX 78669
Phone: 512-371-6159 Fax: 512-351-8858
For terms and conditions of sales, please visit:
www.abracon.com
REVISION B : 4/29/2022
ABRACON IS
ISO9001-2015
CERTIFIED
Molded Type Power Inductor
ASPI-0530HI Series
Request Samples
Check Inventory
5.7 x 5.3 x 3.0 mm
RoHS/RoHS II Compliant
MSL Level = 1
Performance Graphs
ASPI-0530HI-1R0
ASPI-0530HI-1R5
ASPI-0530HI-2R2
5101 Hidden Creek Ln, Spicewood TX 78669
Phone: 512-371-6159 Fax: 512-351-8858
For terms and conditions of sales, please visit:
www.abracon.com
REVISION B : 4/29/2022
ABRACON IS
ISO9001-2015
CERTIFIED
Molded Type Power Inductor
ASPI-0530HI Series
Request Samples
5.7 x 5.3 x 3.0 mm
RoHS/RoHS II Compliant
MSL Level = 1
Check Inventory
Mechanical Specifications
A
B
C
D
E
5.7 ±0.30
5.3 ±0.40
3.0 MAX
2.2 ±0.5
1.2 ±0.50
Recommended Land Pattern
A
B
C
7.0 Typ
3.0 Typ
2.5 Typ
Dimensions: mm
Part Number Identification
ASPI-0530HI -
Inductance Code
Please refer to the
Electrical
Specifications Table
-
Tolerance
M: ±20%
Packaging
T2: Tape & Reel 2,000 units
5101 Hidden Creek Ln, Spicewood TX 78669
Phone: 512-371-6159 Fax: 512-351-8858
For terms and conditions of sales, please visit:
www.abracon.com
REVISION B : 4/29/2022
ABRACON IS
ISO9001-2015
CERTIFIED
Molded Type Power Inductor
ASPI-0530HI Series
Request Samples
5.7 x 5.3 x 3.0 mm
RoHS/RoHS II Compliant
MSL Level = 1
Check Inventory
Reflow Profile
Zone
Description
1
Preheat
2
Reflow
3
Peak heat
Temperature
TSMIN ~ TSMAX
150°C ~ 200°C
TL
200°C
TP
250°C
5101 Hidden Creek Ln, Spicewood TX 78669
Phone: 512-371-6159 Fax: 512-351-8858
For terms and conditions of sales, please visit:
www.abracon.com
Times
60 ~ 120 sec.
20 sec.
3 sec. MAX
REVISION B : 4/29/2022
ABRACON IS
ISO9001-2015
CERTIFIED
Molded Type Power Inductor
ASPI-0530HI Series
Request Samples
5.7 x 5.3 x 3.0 mm
RoHS/RoHS II Compliant
MSL Level = 1
Check Inventory
Packaging
T2: 2,000pcs / reel
A0
5.7 ±0.3
B0
5.9 ±0.3
K0
3.4 ±0.3
P
8.0 ±0.1
t
0.4 Typ
W
12 ±0.3
E
1.75 ±0.1
F
5.5 ±0.1
D
1.5 ±0.1
LLC’s products mm
are COTS – Commercial-Off-The-Shelf products; suitable for Commercial, Industrial and, where designated, Automotive Applications. Abracon’s products
ATTENTION: Abracon
Dimension:
are not specifically designed for Military, Aviation, Aerospace, Life-dependent Medical applications or any application requiring high reliability where component failure could result in loss of life
and/or property. For applications requiring high reliability and/or presenting an extreme operating environment, written consent and authorization from Abracon LLC is required. Please contact
Abracon LLC for more information.
5101 Hidden Creek Ln, Spicewood TX 78669
Phone: 512-371-6159 Fax: 512-351-8858
For terms and conditions of sales, please visit:
www.abracon.com
REVISION B : 4/29/2022
ABRACON IS
ISO9001-2015
CERTIFIED
