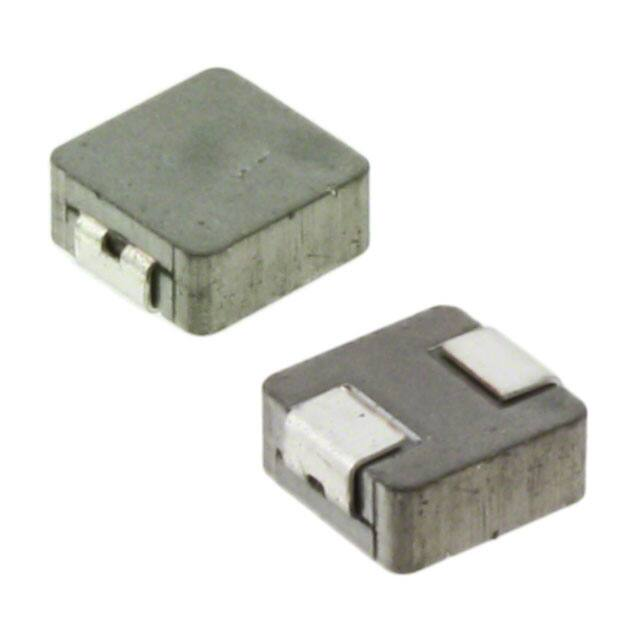

ASPI-0630HI-100M-T15

Molding Type Power Inductor ASPI-0630HI Pb RoHS Compliant 7.2 x 6.65 x 3.0 mm | | | | | | | | | | | | | | APPLICATIONS: FEATURES: • High saturation current. • Low loss due to low DC resistance. • Frequency application up to 3MHz. • Low profile with max thickness 3.0mm. •100% lead free and meeted RoHS standard. • Suitable for reflow soldering. • High reliable SMD package • DC/DC converters in Notebook, Netbook, desktop and server • Low profile, high current power supplies. STANDARD SPECIFICATIONS Abracon P/N: Operating Temperature & Humidity: Storage Temperature & Humidity: ASPI-0630HI Series -55˚C to +125˚C (Including self generated heat) +25˚C to +35˚C, 45% to 85% RH Part Number Inductance Tolerance DCR Typ DCR Max Units Symbol ASPI-0630HI-1R0 ASPI-0630HI-1R5 ASPI-0630HI-2R2 ASPI-0630HI-3R3 ASPI-0630HI-4R7 ASPI-0630HI-6R8 ASPI-0630HI-100 μH L 1.0 1.5 2.2 3.3 4.7 6.8 10.0 % M M M M M M M M mΩ mΩ 9.0 14.0 18.0 28.0 37.0 54.0 102.0 10.0 15.0 20.0 30.0 40.0 60.0 105.0 Saturation Current A Isat 20.5 17.0 14.0 13.5 10.0 8.0 7.0 Temperature Rise Current A Irms 11.0 9.0 8.0 6.8 5.5 4.5 3.0 Test Conditions Inductance is measured in HP-4285A Precision LCR Meter. RDC is measured in HP-4338B milli ohm meter.(or equivalent). Isat: Based on inductance change (△L/Lo : ≤ -20%) Irms: Based on temperature rise (△T : 40oC TYP. ) RVES ELECTRICAL CHARACTERISTIC CU ASPI-0630HI-1R0 ABRACON IS ISOISO 9001 9001:2008 / QS 9000 CE RTIFIED | Revised: 11.17.11 Visit www.abracon.com for Terms & Conditions of Sale 30332 Esperanza, Rancho Santa Margarita, California 92688 tel 949-546-8000 | fax 949-546-8001 | www.abracon.com Molding Type Power Inductor ASPI-0630HI Pb RoHS Compliant 7.2 x 6.65 x 3.0 mm | | | | | | | | | | | | | | ELECTRICAL CHARACTERISTIC CURVES ASPI-0630HI-1R5 ASPI-0630HI-2R2 ASPI-0630HI-3R3 ABRACON IS ISOISO 9001 9001:2008 / QS 9000 CE RTIFIED Revised: 11.17.11 Visit www.abracon.com for Terms & Conditions of Sale 30332 Esperanza, Rancho Santa Margarita, California 92688 tel 949-546-8000 | fax 949-546-8001 | www.abracon.com | Molding Type Power Inductor ASPI-0630HI Pb RoHS Compliant 7.2 x 6.65 x 3.0 mm | | | | | | | | | | | | | | ELECTRICAL CHARACTERISTIC CURVES ASPI-0630HI-4R7 ASPI-0630HI-6R8 ASPI-0630HI-100 ABRACON IS ISOISO 9001 9001:2008 / QS 9000 CE RTIFIED Revised: 11.17.11 Visit www.abracon.com for Terms & Conditions of Sale 30332 Esperanza, Rancho Santa Margarita, California 92688 tel 949-546-8000 | fax 949-546-8001 | www.abracon.com | Molding Type Power Inductor ASPI-0630HI Pb RoHS Compliant PART NUMBER IDENTIFICATION 7.2 x 6.65 x 3.0 mm | | | | | | | | | | | | | | RVES ASPI-0630HIInductance Code Please refer to the Electrical Spec Table Tolerance M: ±20% Packaging T15: Tape and Reel (1.5kpcs / reel) OUTLINE DRAWING: A 1.6 ±0.4 A' 2.0 ±0.1 B 3.0 ±0.3 B' 3.4 ±0.2 L 7.2 ±0.3 W 6.65 ±0.2 H max 3.0 Recommended Land Pattern A 8.4 B 3.7 C 3.4 Dimension: mm ABRACON IS ISOISO 9001 9001:2008 / QS 9000 CE RTIFIED Revised: 11.17.11 Visit www.abracon.com for Terms & Conditions of Sale 30332 Esperanza, Rancho Santa Margarita, California 92688 tel 949-546-8000 | fax 949-546-8001 | www.abracon.com | Molding Type Power Inductor ASPI-0630HI Pb RoHS Compliant 7.2 x 6.65 x 3.0 mm | | | | | | | | | | | | | | TAPE & REEL: T1: 1,500pcs / reel A0 7.2 B0 7.5 K0 3.6 P 12.0 t 0.3 W 16 E 1.75 F 7.5 D 1.5 Dimension: mm REFLOW PROFILE: ATTENTION: Abracon Corporation’s products are COTS – Commercial-Off-The-Shelf products; suitable for Commercial, Industrial and, where designated, Automotive Applications. Abracon’s products are not specifically designed for Military, Aviation, Aerospace, Life-dependant Medical applications or any application requiring high reliability where component failure could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme operating environment, written consent and authorization from Abracon Corporation is required. Please contact Abracon Corporation for more information. ABRACON IS ISOISO 9001 9001:2008 / QS 9000 CE RTIFIED Revised: 11.17.11 Visit www.abracon.com for Terms & Conditions of Sale 30332 Esperanza, Rancho Santa Margarita, California 92688 tel 949-546-8000 | fax 949-546-8001 | www.abracon.com |
