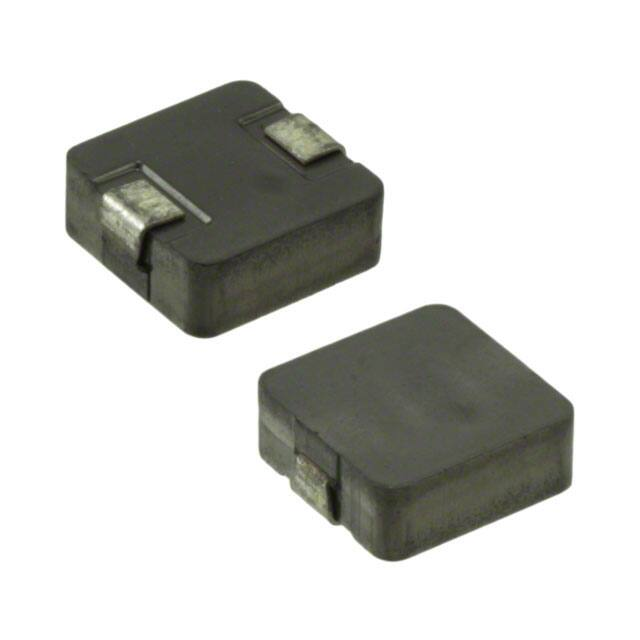

ASPI-1040HI-R16M

Molding Type Power Inductor ASPI-1040HI Pb RoHS Compliant 11.15 x 10.0 x 4.0 mm | | | | | | | | | | | | | | APPLICATIONS: FEATURES: • High saturation current. • Low loss due to low DC resistance. • Frequency application up to 3MHz. • Low profile with max thickness 4.0mm. •100% lead free and meeted RoHS standard. • Suitable for reflow soldering. • High reliable SMD package • DC/DC converters in Notebook, Netbook, desktop and server • Low profile, high current power supplies. STANDARD SPECIFICATIONS Abracon P/N: Operating Temperature & Humidity: Storage Temperature & Humidity: ASPI-1040HI Series -55˚C to +125˚C (Including self generated heat) +25˚C to +35˚C, 45% to 85% RH Part Number Inductance Tolerance DCR Typ DCR Max Units Symbol ASPI-1040HI-R16 ASPI-1040HI-R22 ASPI-1040HI-R47 ASPI-1040HI-1R0 ASPI-1040HI-4R7 ASPI-1040HI-100 μH L 0.16 0.22 0.47 1.00 4.70 10.00 % M M M M M M M mΩ mΩ 0.50 0.88 1.55 3.00 17.00 27.00 0.65 0.96 1.70 3.30 20.20 30.00 Saturation Current A Isat* 75.0 68.0 40.0 28.0 15.0 8.5 Temperature Rise Current A Irms* 40.0 35.0 30.0 18.0 8.5 7.5 Test Conditions Inductance is measured in HP-4284A Precision LCR Meter. RDC is measured in HP-4338B milli ohm meter.(or equivalent). . Isat: Based on inductance change (△L/Lo : ≤ -20%) . Irms: Based on temperature rise (△T : 40oC TYP. ) ELECTRICAL CHARACTERISTIC CURVES ASPI-1040HI-R16 ABRACON IS ISOISO 9001 9001:2008 / QS 9000 CE RTIFIED | ASPI-1040HI-R22 Revised: 11.19.11 Visit www.abracon.com for Terms & Conditions of Sale 30332 Esperanza, Rancho Santa Margarita, California 92688 tel 949-546-8000 | fax 949-546-8001 | www.abracon.com Molding Type Power Inductor ASPI-1040HI Pb RoHS Compliant 11.15 x 10.0 x 4.0 mm | | | | | | | | | | | | | | ELECTRICAL CHARACTERISTIC CURVES ASPI-1040HI-R47 ASPI-0630HI-4R7 ABRACON IS ISOISO 9001 9001:2008 / QS 9000 CE RTIFIED ASPI-1040HI-1R0 ASPI-1040HI-100 Revised: 11.19.11 Visit www.abracon.com for Terms & Conditions of Sale 30332 Esperanza, Rancho Santa Margarita, California 92688 tel 949-546-8000 | fax 949-546-8001 | www.abracon.com | Molding Type Power Inductor ASPI-1040HI Pb RoHS Compliant PART NUMBER IDENTIFICATION 11.15 x 10.0 x 4.0 mm | | | | | | | | | | | | | | RVES ASPI-1040HIInductance Code Please refer to the Electrical Spec Table Tolerance M: ±20% Packaging T05: Tape and Reel (500pcs / reel) OUTLINE DRAWING: A 2.0 ±0.5 A' 2.5 ±0.1 B 3.0 ±0.5 L 11.15 ±0.35 W 10 ±0.3 H 4 max (4.0 ±0.25 for R16) Recommended Land Pattern A 13.6 B 5.4 C 4.1 Dimension: mm ABRACON IS ISOISO 9001 9001:2008 / QS 9000 CE RTIFIED Revised: 11.19.11 Visit www.abracon.com for Terms & Conditions of Sale 30332 Esperanza, Rancho Santa Margarita, California 92688 tel 949-546-8000 | fax 949-546-8001 | www.abracon.com | Molding Type Power Inductor ASPI-1040HI Pb RoHS Compliant 11.15 x 10.0 x 4.0 mm | | | | | | | | | | | | | | TAPE & REEL: T05: 500pcs / reel A0 10.5 B0 11.5 K0 4.2 P 16.0 t 0.5 W 24 E 1.75 F 11.5 D 1.5 Dimension: mm REFLOW PROFILE: ATTENTION: Abracon Corporation’s products are COTS – Commercial-Off-The-Shelf products; suitable for Commercial, Industrial and, where designated, Automotive Applications. Abracon’s products are not specifically designed for Military, Aviation, Aerospace, Life-dependant Medical applications or any application requiring high reliability where component failure could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme operating environment, written consent and authorization from Abracon Corporation is required. Please contact Abracon Corporation for more information. ABRACON IS ISOISO 9001 9001:2008 / QS 9000 CE RTIFIED Revised: 11.19.11 Visit www.abracon.com for Terms & Conditions of Sale 30332 Esperanza, Rancho Santa Margarita, California 92688 tel 949-546-8000 | fax 949-546-8001 | www.abracon.com |
