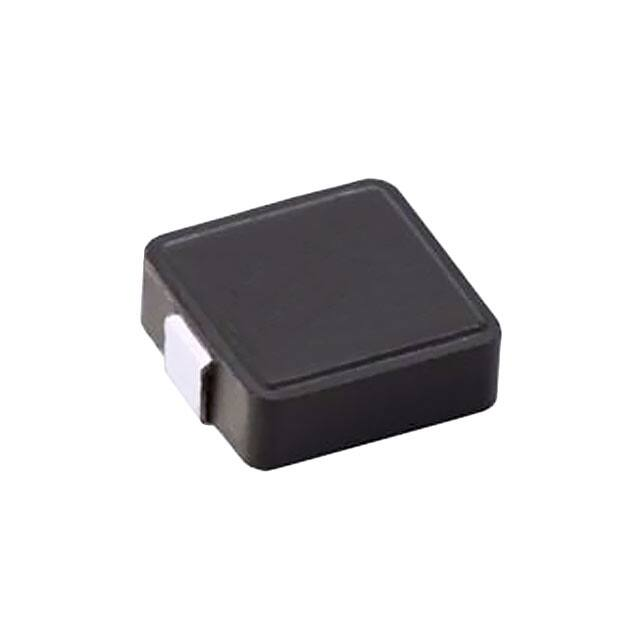

Shielded Power Inductor
ASPI-4020HI
Pb RoHS/RoHS II Compliant
MSL = 1
FEATURES:
4.4 x 4.2 x 2.0mm
| | | | | | | | | | | | | |
APPLICATIONS:
• DC/DC converters in LED driver, Notebook, Tablet,
Desktop and Server
• Low profile, high current power supplies
• High saturation current
• Low loss due to low DC resistance
• Low profile with max thickness 2.1mm
•100% lead free and meeted RoHS standard
• Suitable for reflow soldering
• Highly reliable SMD package
STANDARD SPECIFICATIONS
Abracon P/N:
Operating Temperature & Humidity:
Storage Temperature & Humidity:
Part Number
ASPI-4020HIInductance Code
ASPI-4020HI-R47
ASPI-4020HI-1R0
ASPI-4020HI-1R5
ASPI-4020HI-2R2
ASPI-4020HI-3R3
ASPI-4020HI-4R7
ASPI-4020HI-6R8
ASPI-4020HI Series
-55˚C to +125˚C
-10 to + 40 ˚C, 70% RH max (In tape and reel)
L(uH)
Tolerance
DCR (mΩ)
max.
Isat (A)
Typ.
Irms (A)
Typ.
0.47
1.0
1.5
2.2
3.3
4.7
6.8
M
M
M
M
M
M
M
14
27
46
58
87
105
175
9.5
7.0
6.0
5.0
4.0
3.0
2.5
7.5
6.0
5.0
4.5
3.3
2.8
2.4
I sat would cause inductance to drop by about 30%.
I rms would cause an Δ T of about 40°C .
PART NUMBER IDENTIFICATION
ASPI - 4020HI -
-
Inductance Tolerance
M: ±20%
Inductance Code
Please refer to the
table above
Packaging
T: Tape and Reel
( 3kpcs reel)
REVISED: 04/15/2020
LL C
5101 Hidden Creek Lane Spicewood TX 78669
Phone: 512-371-6159 | Fax: 512-351-8858
For terms and conditions of sale please visit:
www.abracon.com
ABRACON IS
ISO9001-2015
CERTIFIED
|
Shielded Power Inductor
ASPI-4020HI
Pb RoHS/RoHS II Compliant
MSL = 1
4.5 x 4.1 x 2.1mm
| | | | | | | | | | | | | |
OUTLINE DRAWING:
Recommende d Land Pattern
A
4.2 ± 0.3
B
4.4 ± 0.35
F typ
1.5
C max.
2.0
G typ
2.2
H typ
2.5
Dime nsion: mm
REFLOW PROFILE
3
Tp
Tp
Critical Zone
TL to Tp
Ramp Up
Temperature
TL
TSMAX
TL
TSMIN
Ramp Down
Preheat
1
2
25
Time
Zone
1
Description
Temperature
Time
Preheat / Soak
TSMIN ~ TSMAX
150°C ~ 200°C
60 ~ 120 sec.
TL
217°C
60 ~ 90 sec.
TP
255°C
10 sec. MAX
2
3
Peak heat
REVISED: 04/15/2020
LL C
5101 Hidden Creek Lane Spicewood TX 78669
Phone: 512-371-6159 | Fax: 512-351-8858
For terms and conditions of sale please visit:
www.abracon.com
ABRACON IS
ISO9001-2015
CERTIFIED
|
Shielded Power Inductor
ASPI-4020HI
Pb RoHS/RoHS II Compliant
MSL = 1
4.5 x 4.1 x 2.1mm
| | | | | | | | | | | | | |
TAPE & REEL
Packing
T= tape and reel (3,000pcsreel)
8
12
4.8
4.5
Dime nsion: mm
ATTENTION: Abracon LLC’s products are COTS – Commercial-Off-The-Shelf products; suitable for Commercial, Industrial and, where designated, Automotive Applications. Abracon’s products are not specifically designed for Military, Aviation, Aerospace, Life-dependent Medical applications or any application requiring high reliability
where component failure could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme operating environment,
written consent and authorization from Abracon LLC is required. Please contact Abracon LLC for more information.
REVISED: 04/15/2020
LL C
5101 Hidden Creek Lane Spicewood TX 78669
Phone: 512-371-6159 | Fax: 512-351-8858
For terms and conditions of sale please visit:
www.abracon.com
ABRACON IS
ISO9001-2015
CERTIFIED
|
