ASPIAIG-Q1513-330M-T

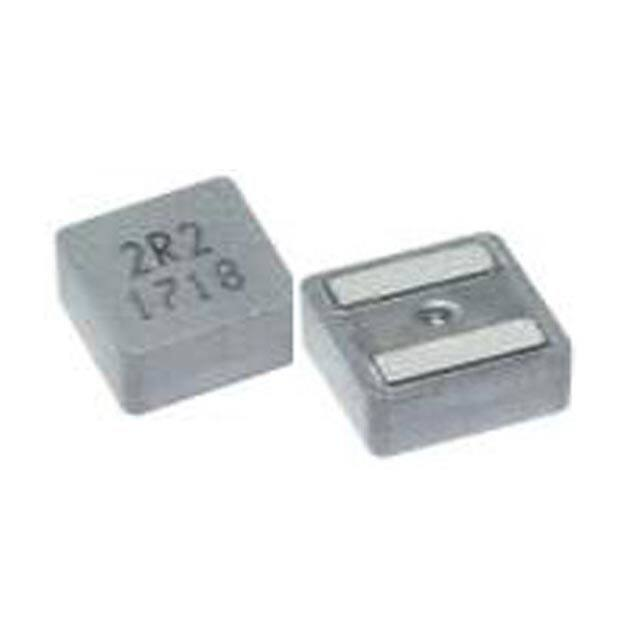

Molded SMD Power Inductor ASPIAIG-Q1513 Request Samples 17.5 x 16.5 x 12.7 mm RoHS/RoHS II Compliant MSL Level = 1 Applications Features • • • • • • Check Inventory PPAP ready and supported TS16949 certified production lines AEC-Q200 Grade 0 qualified (-55˚C ~ +155˚C) Shielded construction Soft saturation Low DCR, High Efficiency • • • • • • • Body electronics and comfort system Infotainment and entertainment Electric vehicles Lighting Solar inverters and power Industrial and robotics Medium and high power switch mode power supplies. Electrical Specifications Part Number Inductance Units 0.1MHz/0.1V μH Symbol L ASPIAIG-Q1513-4R7 ASPIAIG-Q1513-5R6 ASPIAIG-Q1513-6R8 ASPIAIG-Q1513-8R2 ASPIAIG-Q1513-100 ASPIAIG-Q1513-150 ASPIAIG-Q1513-220 ASPIAIG-Q1513-330 4.70 5.60 6.80 8.20 10.0 15.0 22.0 33.0 Tolerance % DC Resistance Max mΩ DCR M M M M M M M M Saturation Temperature Current Rise Current Max Max A A Irms Isat 3.30 3.90 4.20 5.70 7.00 7.50 13.86 22.20 40.0 35.0 32.0 29.0 27.0 21.0 19.0 16.0 31.0 29.0 27.0 26.0 25.0 22.0 17.0 14.0 Test Conditions Isat: DC current at which the inductance drops 30% from its value without current. Irms: DC current that causes the temperature rise (ΔT, approximate 40 ˚C) from 20°C ambient Operating Temperature: -55˚C ~ +155˚C (including self-temperature rise) Storage Condition: -55˚C ~ +155˚C (PCB mounted) and R.H. 60 max Operating Voltage: 40V (across inductor) ASPIAIG-Q1513 Series is RoHS Compliant and Pb free ASPIAIG-Q1513 is AEC-Q200 Grade 0 qualified (-55˚C ~ +155˚C) MSL level: 1 5101 Hidden Creek Ln Spicewood TX 78669 Phone: 512-371-6159 | Fax: 512-351-8858 For terms and conditions of sales, please visit: www.abracon.com REVISED: 02-08-21 ABRACON IS ISO9001-2015 CERTIFIED Molded SMD Power Inductor ASPIAIG-Q1513 Request Samples Check Inventory 17.5 x 16.5 x 12.7 mm RoHS/RoHS II Compliant MSL Level = 1 Part Number Identification ASPIAIG – Q1513 - Tolerance Inductance Code See Electrical Specification table M = ± 20% Packaging T: Tape and Reel (100 pcs / reel) Marking XXX YYWW Inductance Code e.g. 6R8 W: Week: E.g. 05 for the 5th week of the year. Y: Year: E.g. 20 for 2020 Marking Method = Ink Marking 5101 Hidden Creek Ln Spicewood TX 78669 Phone: 512-371-6159 | Fax: 512-351-8858 For terms and conditions of sales, please visit: www.abracon.com REVISED: 02-08-21 ABRACON IS ISO9001-2015 CERTIFIED Molded SMD Power Inductor ASPIAIG-Q1513 Request Samples 17.5 x 16.5 x 12.7 mm RoHS/RoHS II Compliant MSL Level = 1 Check Inventory Mechanical Dimensions Series A B C D E F ASPIAIG-Q1513 17.5 ± 0.3 16.5± 0.3 12.7 ± 0.3 13.2 ± 0.5 3.2 ± 0.2 7.0 ± 0.2 L 15.0 Ref. G 6.0 Ref. H 15.0 Ref. Dimensions: mm 5101 Hidden Creek Ln Spicewood TX 78669 Phone: 512-371-6159 | Fax: 512-351-8858 For terms and conditions of sales, please visit: www.abracon.com REVISED: 02-08-21 ABRACON IS ISO9001-2015 CERTIFIED Molded SMD Power Inductor ASPIAIG-Q1513 Request Samples Check Inventory 17.5 x 16.5 x 12.7 mm RoHS/RoHS II Compliant MSL Level = 1 Materials a b c d Components Core Wire Solder Ink Material Alloy powder 220 deg. C Flat Wire 100% Pb free solder Halogen-free ketone 5101 Hidden Creek Ln Spicewood TX 78669 Phone: 512-371-6159 | Fax: 512-351-8858 For terms and conditions of sales, please visit: www.abracon.com REVISED: 02-08-21 ABRACON IS ISO9001-2015 CERTIFIED Molded SMD Power Inductor ASPIAIG-Q1513 Request Samples Check Inventory 17.5 x 16.5 x 12.7 mm RoHS/RoHS II Compliant MSL Level = 1 Reflow Profile Zone Description 1 Preheat 2 Reflow 3 Peak heat Temperature TSMIN ~ TSMAX 150°C ~ 200°C TL 217°C TP 260°C 5101 Hidden Creek Ln Spicewood TX 78669 Phone: 512-371-6159 | Fax: 512-351-8858 For terms and conditions of sales, please visit: www.abracon.com Times 60 ~ 120 sec. 60 ~ 150 sec. < 30 sec. REVISED: 02-08-21 ABRACON IS ISO9001-2015 CERTIFIED Molded SMD Power Inductor ASPIAIG-Q1513 Request Samples Check Inventory 17.5 x 16.5 x 12.7 mm RoHS/RoHS II Compliant MSL Level = 1 Packaging Tape & Reel: 100 pcs/reel W 32.0±0.3 F 14.2±0.1 P 24.0±0.1 A 34.4+2/-0 D 1.5±0.1 B 100 ± 2 A0 18.0±0.1 B0 17.0±0.1 C 13.0+0.5/-0.2 T 0.5±0.05 K0 13.6±0.1 D 330 ATTENTION: Abracon LLC’s products are COTS – Commercial-Off-The-Shelf products; suitable for Commercial, Industrial and, where designated, Automotive Applications. Abracon’s products are not specifically designed for Military, Aviation, Aerospace, Life-dependent Medical applications or any application requiring high reliability where component failure could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme operating environment, written consent and authorization from Abracon LLC is required. Please contact Abracon LLC for more information. 5101 Hidden Creek Ln Spicewood TX 78669 Phone: 512-371-6159 | Fax: 512-351-8858 For terms and conditions of sales, please visit: www.abracon.com REVISED: 02-08-21 ABRACON IS ISO9001-2015 CERTIFIED
