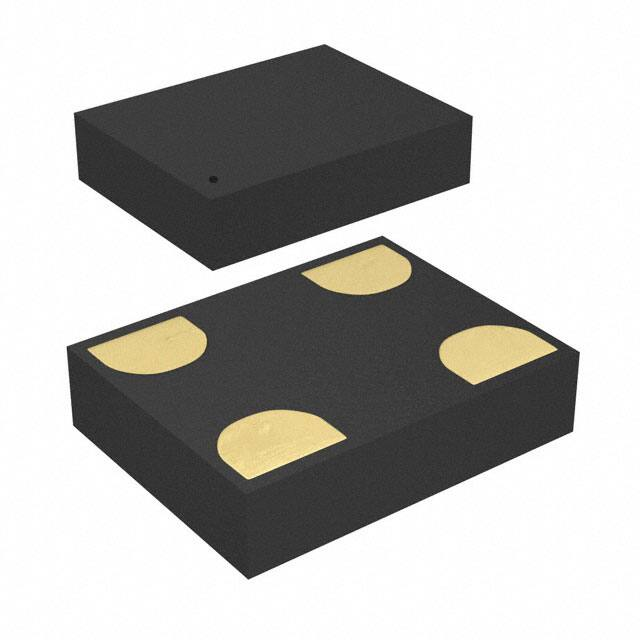

ASTMUPCE-33-75.000MHZ-EY-E-T

ASTMUPC High Performance, Programmable LVCMOS SMD MEMS Oscillator ASTMUPC ESD Sensitive Moisture Sensitivity Level (MSL) – 1 Pb FEATURES: RoHS/RoHS II compliant 2.7 x 2.4 x 0.75mm; 3.2 x 2.5 x 0.75mm; 5.0 x 3.2 x 0.75mm; 7.0 x 5.0 x 0.9mm APPLICATIONS: • Ethernet, SATA, SAS, PCI Express • Industry Standard package sizes: 2.7 x 2.4 x 0.75mm (compatible with 2520 package footprint), 3.2 x 2.5 x 0.75mm, 5 x 3.2 x 0.75mm, 7.0 x 5.0 x 0.9mm • WiFi • Video • Any frequency between 1MHz and 220MHz • Computing • Supply Voltage options: 3.3V, 2.8V, 2.5V, 1.8V • Storage • Ultra-low RMS phase jitter: 0.5ps typ. (@156.25MHz, • Networking integration bandwidth: 12kHz to 20MHz) • Telecom • Frequency Stability options: ±10ppm, ±20ppm, ±25ppm, • Industrial control ±50ppm over -20 to +70°C and -40 to +85°C • Harsh environment (vibration, shock-prone and humid) • Factory programmable drive strength (for 1MHz ~80MHz) for improved jitter, reduced EMI or higher capacitive output load STANDARD SPECIFICATIONS: All electrical specifications in this table are specified with 15pF output load and for all Vdd options unless otherwise stated. Parameters Min Output Frequency Range (F) Frequency Stability (Fstab) Operating Temperature Range (Tuse) Aging@25°C st 1 year 10 years Supply Voltage (Vdd) 1 -10 -20 -25 -50 -20 -40 -1.5 -5 1.71 2.25 2.52 2.97 Current Consumption ( Idd ) Typ Max Unit MHz 1.8 2.5 2.8 3.3 220 +10 +20 +25 +50 +70 +85 +1.5 +5 1.89 2.75 3.08 3.63 31 33 29 31 34 36 30 33 No load, F=20MHz, Vdd=2.5V, 2.8V, 3.3V No load, F=20MHz, Vdd=1.8V No load, F=100MHz, Vdd=2.5V, 2.8V, 3.3V No load, F=100MHz, Vdd=1.8V 31 Vdd=2.5V, 2.8V, 3.3V, OE=GND, output is weakly pulled down OE Disable Current (IOD) 30 70 Standby Current (Istd) 10 Startup Time (Tstart) 7 150 OE Enable/Disable Time (Toe) 115 Resume Time ( Tresume) 6 ABRACON IS CE RTIFIED 10 LLC 10 ppm °C Notes Inclusive of initial tolerance at 25°C, and variations over operating temperature, rated power supply voltage and load (15pF±10%) Option “E” Option “L” ppm Option “18” V Option “25” Option “28” Option “33” mA mA µA ms ns ms 5101 Hidden Creek Ln Spicewood TX 78669 Phone: 512-371-6159 | Fax: 512-351-8858 For terms and conditions of sales, please visit: www.abracon.com Vdd=1.8V, OE=GND, output is weakly pulled down Vdd=2.5V, 2.8V, 3.3V, ST =GND, output is weakly pulled down Vdd=1.8V, ST=GND, output is weakly pulled down Measured from the time Vdd reaches its rated minimum value F=80MHz. For other frequencies, Toe=100ns+3*cycles F=220MHz. For other frequencies, Toe=100ns+3*cycles In standby mode. Measured from the time ST pin crosses 50% threshold ABRACON IS REVISED: 12.14.2018 ISO9001-2015 CERTIFIED ASTMUPC High Performance, Programmable LVCMOS SMD MEMS Oscillator ASTMUPC Pb RoHS/RoHS II compliant 2.7 x 2.4 x 0.75mm; 3.2 x 2.5 x 0.75mm; 5.0 x 3.2 x 0.75mm; 7.0 x 5.0 x 0.9mm (Continued) Parameters Min Typ Output Type Max Unit Notes LVCMOS 45 40 Duty Cycle Rise/Fall Time ( Tr /Tf) 1.2 Output High Voltage (VOH) ns V 10%*Vdd V 30%*Vdd V V 250 kΩ 70%*Vdd 100 Input Pull-up Impedance ( Zin) F≤165MHz. All Vdd options F>165MHz. All Vdd options 15pF load, 10%-90% IOH=-6mA (Vdd=3.3V, 2.8V, 2.5V) IOH=-3mA (Vdd=1.8V) IOL=6mA (Vdd=3.3V, 2.8V, 2.5V) IOL=3mA (Vdd=1.8V) % 90%*Vdd Output Low Voltage (VOL) Input High Voltage(VIH) Input Low Voltage(VIL) 55 60 2 2 Pin 1 Pin 1 Pin 1, OE logic high or logic low, ST logic high MΩ RMS Period Jitter ( Tjitt) RMS Phase Jitter (random) ( Tphj) 1.5 2 2 3 0.5 1 Pin 1, ST logic low ps F=75MHz, 156.25MHz, Vdd=2.5V, 2.8V, 3.3V ps F=10MHz, 156.25MHz, integration bandwidth=12kHz to 20MHz F=75MHz, 156.25MHz, Vdd=1.8V Absolute Maximum Ratings Attempted operation outside the absolute maximum ratings may cause permanent damage to the part. Actual performance of the IC is only guaranteed within the operational specifications, not at absolute maximum ratings. Parameters Storage Te mperature VDD Electrostatic Discharge (HBM) Soldering Temperature (follow standard Pb free soldering guidelines) Junction Temperature Min. -65 -0 . 5 Max. 150 4 2000 Unit °C V V 260 °C 150 °C Thermal Consideration Package 7.0 x 5.0mm 5.0 x 3.2mm 3.2 x 2.5mm 2.7 x 2.4mm (1) θJA, 4 Layer Board (°C/W) 191 97 109 117 θJA, 2 Layer Board (°C/W) 263 199 212 222 θJC, Bottom (°C/W) 30 24 27 26 Note : 1. The 2.7 x 2.4mm Package is compatible with 2.5 x 2.0mm footprint. ABRACON IS CE RTIFIED LLC 5101 Hidden Creek Ln Spicewood TX 78669 Phone: 512-371-6159 | Fax: 512-351-8858 For terms and conditions of sales, please visit: www.abracon.com ABRACON IS REVISED: 12.14.2018 ISO9001-2015 CERTIFIED ASTMUPC High Performance, Programmable LVCMOS SMD MEMS Oscillator ASTMUPC Pb RoHS/RoHS II compliant 2.7 x 2.4 x 0.75mm; 3.2 x 2.5 x 0.75mm; 5.0 x 3.2 x 0.75mm; 7.0 x 5.0 x 0.9mm PART IDENTIFICATION: ASTMUPC - Package Size D: 2.7x2.4mm* E: 3.2x2.5mm FL: 5.0x3.2mm V: 7.0x5.0mm * Compatible with 2.5 x 2.0mm footprint - Output Frequency in MHz e.g. 7.3728, 125.000 MHz- Table 1: Vdd=1.8V Rise/Fall Times for Specific CLOAD Rise/Fall Time Typ. (ns) Drive CLOAD Strength 5pF 15pF 30pF 45pF 60pF Options 12.45 17.68 19.48 46.21 57.82 L 6.50 10.27 16.21 23.92 30.73 A 4.38 7.05 11.61 16.17 20.83 R 3.27 5.30 8.89 12.18 15.75 B 2.62 4.25 7.20 9.81 12.65 S 2.19 3.52 6.00 8.31 10.59 D 1.76 3.01 5.14 7.10 9.15 T 1.59 2.59 4.49 6.25 7.98 E 1.49 2.28 3.96 5.55 7.15 U 1.22 2.10 3.57 5.00 6.46 F 1.07 1.88 3.23 4.50 5.87 W 1.01 1.64 2.95 4.12 5.40 G 0.96 1.50 2.74 3.80 4.98 X 0.92 1.41 2.56 3.52 4.64 K 0.88 1.34 2.39 3.25 4.32 Y 0.86 1.29 2.24 3.04 4.06 Q Z or Blank 0.82 1.24 2.07 2.89 3.82 (default) 0.77 1.20 1.94 2.72 3.61 M 0.66 1.15 1.84 2.58 3.41 N 0.51 1.09 1.76 2.45 3.24 P LLC - Pin 1 Function E: Output Enable S: Standby Operating Temp. E: -20°C ~ +70°C L: -40°C ~ +85°C Freq. Stability Y: ±10ppm J: ±20ppm R: ±25 ppm C: ±50 ppm Supply Voltage 18: 1.8V±10% 25: 2.5V±10% 28: 2.8V±10% 33: 3.3V±10% - Packaging Blank: Bulk T: Tape & Reel (1kpcs / reel) T3: Tape & Reel (3kpcs / reel) Output Drive Strength (for 1MHz ~ 80MHz only)** Blank: Default W L G A X R K B Y S Q D Z T M E N U P F ** See Table 1 to 4 for the Rise/Fall times (10%~90%) at different drive strength and available options Table 2: Vdd=2.5V Rise/Fall Times for Specific CLOAD Rise/Fall Time Typ. (ns) Drive CLOAD Strength 5pF 15pF 30pF 45pF 60pF Options 8.68 13.59 18.36 32.70 42.06 L 4.42 7.18 11.93 16.60 21.38 A 2.93 4.78 8.15 11.19 14.59 R 2.21 3.57 6.19 8.55 11.04 B 1.67 2.87 4.94 6.85 8.80 S 1.50 2.33 4.11 5.68 7.33 D 1.06 2.04 3.50 4.84 6.26 T 0.98 1.69 3.03 4.20 5.51 E 0.93 1.48 2.69 3.73 4.92 U 0.90 1.37 2.44 3.34 4.42 F 0.87 1.29 2.21 3.04 4.02 W G or Blank 0.67 1.20 2.00 2.79 3.69 (default) 0.44 1.10 1.86 2.56 3.43 X 0.38 0.99 1.76 2.37 3.18 K 0.36 0.83 1.66 2.20 2.98 Y 0.34 0.71 1.58 2.07 2.80 Q 0.33 0.65 1.51 1.95 2.65 Z 0.32 0.62 1.44 1.85 2.50 M 0.31 0.59 1.37 1.77 2.39 N 0.30 0.57 1.29 1.70 2.28 P 5101 Hidden Creek Ln Spicewood TX 78669 Phone: 512-371-6159 | Fax: 512-351-8858 For terms and conditions of sales, please visit: www.abracon.com ABRACON IS REVISED: 12.14.2018 ISO9001-2015 CERTIFIED High Performance, Programmable LVCMOS SMD MEMS Oscillator ASTMUPC Pb RoHS/RoHS II compliant ASTMUPC 2.7 x 2.4 x 0.75mm; 3.2 x 2.5 x 0.75mm; 5.0 x 3.2 x 0.75mm; 7.0 x 5.0 x 0.9mm PART IDENTIFICATION: Table 3: Vdd=2.8V Rise/Fall Times for Specific CLOAD Rise/Fall Time Typ. (ns) Drive CLOAD Strength 5pF 15pF 30pF 45pF 60pF Options 7.93 12.69 17.94 30.10 38.89 L 4.06 6.66 11.04 15.31 19.80 A 2.68 4.40 7.53 10.29 13.37 R 2.00 3.25 5.66 7.84 10.11 B 1.59 2.57 4.54 6.27 8.07 S 1.19 2.14 3.76 5.21 6.72 D 1.00 1.79 3.20 4.43 5.77 T 0.94 1.51 2.78 3.84 5.06 E 0.90 1.38 2.48 3.40 4.50 U 0.87 1.29 2.21 3.03 4.05 F 0.62 1.19 1.99 2.76 3.68 W G or Blank 0.41 1.08 1.84 2.52 3.36 (default) 0.37 0.96 1.72 2.33 3.15 X 0.35 0.78 1.63 2.15 2.92 K 0.33 0.67 1.54 2.00 2.75 Y 0.32 0.63 1.46 1.89 2.57 Q 0.31 0.60 1.39 1.80 2.43 Z 0.30 0.57 1.31 1.72 2.30 M 0.30 0.56 1.22 1.63 2.22 N 0.29 0.54 1.13 1.55 2.13 P Table 4: Vdd=3.3V Rise/Fall Times for Specific CLOAD Rise/Fall Time Typ. (ns) Drive CLOAD Strength 5pF 15pF 30pF 45pF 60pF Options 7.18 11.59 17.24 27.57 35.57 L 3.61 6.02 10.19 13.98 18.10 A 2.31 3.95 6.88 9.42 12.24 R 1.65 2.92 5.12 7.10 9.17 B 1.43 2.26 4.09 5.66 7.34 S 1.01 1.91 3.38 4.69 6.14 D 0.94 1.51 2.86 3.97 5.25 T 0.90 1.36 2.50 3.46 4.58 E 0.86 1.25 2.21 3.03 4.07 U F or Blank 0.48 1.15 1.95 2.72 3.65 (default) 0.38 1.04 1.77 2.47 3.31 W 0.36 0.87 1.66 2.23 3.03 G 0.34 0.70 1.56 2.04 2.80 X 0.33 0.63 1.48 1.89 2.61 K 0.32 0.60 1.40 1.79 2.43 Y 0.32 0.58 1.31 1.69 2.28 Q 0.30 0.56 1.22 1.62 2.17 Z 0.30 0.55 1.12 1.54 2.07 M 0.30 0.54 1.02 1.47 1.97 N 0.29 0.52 0.95 1.41 1.90 P CALCULATING MAXIMUM FREQUENCY Based on the rise and fall time data given in Table 1 through 4, the maximum frequency the oscillator can operate with a guaranteed full swing of the output voltage over temperature is calculated as follows: 1 Example: Calculate Fmax of a 1MHz ~ 80MHz device with the following condition: • Vdd = 1.8V (Table 1) • Capacitive Load = 30pF • Desired Tr/f Time: = 3ns (rise/fall time option code “G”) The Fmax is 55.5000000MHz. LLC 5101 Hidden Creek Ln Spicewood TX 78669 Phone: 512-371-6159 | Fax: 512-351-8858 For terms and conditions of sales, please visit: www.abracon.com ABRACON IS REVISED: 12.14.2018 ISO9001-2015 CERTIFIED ASTMUPC High Performance, Programmable LVCMOS SMD MEMS Oscillator ASTMUPC Pb RoHS/RoHS II compliant 2.7 x 2.4 x 0.75mm; 3.2 x 2.5 x 0.75mm; 5.0 x 3.2 x 0.75mm; 7.0 x 5.0 x 0.9mm TYPICAL PHASE NOISE 10MHZ, 3.3V, LVCMOS Output 156.25MHZ, 3.3V, LVCMOS Output TYPICAL PERFORMANCE DATA All plots are measured with 15pF load at room temperature, unless otherwise stated. IDD vs. Frequency 1MHz-80MHz Devices 80.000001MHz -220MHz Devices RMS Period Jitter vs. Frequency 1MHz-80MHz Devices LLC 80.000001MHz -220MHz Devices 5101 Hidden Creek Ln Spicewood TX 78669 Phone: 512-371-6159 | Fax: 512-351-8858 For terms and conditions of sales, please visit: www.abracon.com ABRACON IS REVISED: 12.14.2018 ISO9001-2015 CERTIFIED ASTMUPC High Performance, Programmable LVCMOS SMD MEMS Oscillator ASTMUPC Pb RoHS/RoHS II compliant 2.7 x 2.4 x 0.75mm; 3.2 x 2.5 x 0.75mm; 5.0 x 3.2 x 0.75mm; 7.0 x 5.0 x 0.9mm TYPICAL PERFORMANCE DATA Duty Cycle vs. Frequency 1MHz-80MHz Devices 80.000001MHz -220MHz Devices RMS Phase Jitter vs. Frequency 1MHz-80MHz Devices LLC 80.000001MHz -220MHz Devices 5101 Hidden Creek Ln Spicewood TX 78669 Phone: 512-371-6159 | Fax: 512-351-8858 For terms and conditions of sales, please visit: www.abracon.com ABRACON IS REVISED: 12.14.2018 ISO9001-2015 CERTIFIED High Performance, Programmable LVCMOS SMD MEMS Oscillator ASTMUPC Pb RoHS/RoHS II compliant ASTMUPC 2.7 x 2.4 x 0.75mm; 3.2 x 2.5 x 0.75mm; 5.0 x 3.2 x 0.75mm; 7.0 x 5.0 x 0.9mm TYPICAL PERFORMANCE DATA IDD vs. Temperature 10MHz Devices 100MHz Devices Rise Time vs. Temperature 75MHz Devices 100MHz Devices LLC 5101 Hidden Creek Ln Spicewood TX 78669 Phone: 512-371-6159 | Fax: 512-351-8858 For terms and conditions of sales, please visit: www.abracon.com ABRACON IS REVISED: 12.14.2018 ISO9001-2015 CERTIFIED High Performance, Programmable LVCMOS SMD MEMS Oscillator ASTMUPC Pb RoHS/RoHS II compliant ASTMUPC 2.7 x 2.4 x 0.75mm; 3.2 x 2.5 x 0.75mm; 5.0 x 3.2 x 0.75mm; 7.0 x 5.0 x 0.9mm OUTLINE DIMENSION: 2.7 x 2.4mm Package (Option “D”, compatible with 2.5 x 2.0mm footprint) Recommended Land Pattern 3.2 x 2.5mm Package (Option “E”) Recommended Land Pattern 5.0 x 3.2mm Package (Option “FL”) Recommended Land Pattern Dimensions: mm LLC 5101 Hidden Creek Ln Spicewood TX 78669 Phone: 512-371-6159 | Fax: 512-351-8858 For terms and conditions of sales, please visit: www.abracon.com ABRACON IS REVISED: 12.14.2018 ISO9001-2015 CERTIFIED ASTMUPC High Performance, Programmable LVCMOS SMD MEMS Oscillator ASTMUPC Pb RoHS/RoHS II compliant 2.7 x 2.4 x 0.75mm; 3.2 x 2.5 x 0.75mm; 5.0 x 3.2 x 0.75mm; 7.0 x 5.0 x 0.9mm OUTLINE DIMENSION: 7.0 x 5.0mm Package (Option “V”) Recommended Land Pattern Pin Name Output Enable 1 OE/ST 2 3 4 GND Out Vdd Standby Power Output Power Functionality H or Open (1): specified frequency output L: output is high impedance. Only output driver is disabled H or Open (1): specified frequency output L: output is low (weak pull down). Device goes to sleep mode. Supply current reduces to Istd. Electrical ground (2) Oscillator clock output Power supply voltage (2) Notes: 1. A pull-up resistor of
