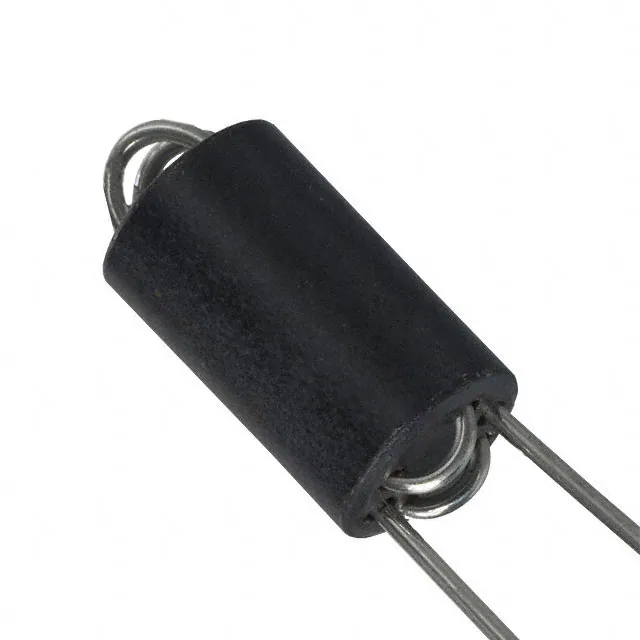

WIDE BAND CHOKE AWBC-05 Pb RoHS/RoHS II Compliant Φ6.00 x 10.00mm APPLICATIONS: FEATURES: • EMI suppression component with compact size, high impedance and medium current • Widely used in PC products to filter EMI from the outside • CE, FCC Compliant • Computer products, motherboard, TV card • Power supply cables, OA products, modem • Communication equipments KEY ELECTRICAL SPECIFICATIONS Operating Temperature -40˚C to +85˚C Impedance Ω min 355 790 550 Storage Temperature -40˚C to +85˚C Test Frequency MHz 10 50 100 Test Conditions Instrument: Agilent 4294A Precision Impedance Analyzer . OUTLINE DIMENSIONS: A B C D E 6.00±0.25 10.00±0.30 0.90±0.15 0.50±0.05 25.00±2.00 Dimension: mm Packing: 1500pcs/box ATTENTION: Abracon Corporation’s products are COTS – Commercial-Off-The-Shelf products; suitable for Commercial, Industrial and, where designated, Automotive Applications. Abracon’s products are not specifically designed for Military, Aviation, Aerospace, Life-dependant Medical applications or any application requiring high reliability where component failure could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme operating environment, written consent and authorization from Abracon Corporation is required. Please contact Abracon Corporation for more information. ABRACON IS ISO ISO 9001 9001:2008 / QS 9000 CERTIFIED Revised: 03.07.14 Visit www.abracon.com for Terms & Conditions of Sale 30332 Esperanza, Rancho Santa Margarita, California 92688 tel 949-546-8000 | fax 949-546-8001 |www.abracon.com
