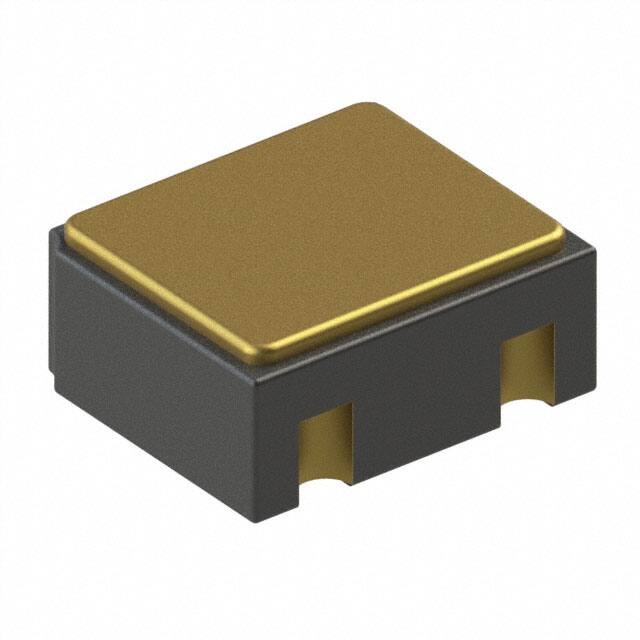

2N2907AUB

2N2907AUB

  • 厂商:

    ACTEL(微芯科技)

  • 封装:

    SMD3

  • 描述:

    TRANS PNP 60V 0.6A

  • 数据手册
  • 价格&库存
2N2907AUB 数据手册
Surface Mount PNP General Purpose Transistor 2N2907AUB, 2N2907AUBTX, 2N2907AUBTXV Features: • • • • • Ceramic surface mount package Miniature package to minimize circuit board area Hermetically sealed Footprint and pin-out matches SOT-23 packaged transistors Qualification per MIL-PRF-19500/291 The 2N2907AUB, 2N2907AUBTX and 2N2907AUBTXV are miniature, hermetically sealed, ceramic surface mount general purpose switching transistors. The miniature three pin ceramic package is ideal for upgrading commercial grade circuits to military reliability levels where plastic SOT-23 devices have been used. The “UB” suffix denotes the 3 terminal chip carrier package, type “B” per MIL-PRF-19500/291. Typical screening and lot acceptance tests are available. The burn-in condition is VCB = 30 V, PD = 200 mW, TA = 25°C, t = 80 hrs. Refer to MIL-PRF-19500/291 for complete requirements. In addition, the TX and TXV versions receive 100% thermal response testing. . 2 1 OPTEK reserves the right to make changes at any time in order to improve design and to supply the best product possible. OPTEK Technology Inc. — 1645 Wallace Drive, Carrollton, Texas 75006 Phone: (972) 323-2200 or (800) 341-4747 FAX: (972) 323-2396 sensors@optekinc.com www.optekinc.com Issue C 07/2012 Page 1 of 3 Surface Mount PNP General Purpose Transistor 2N2907AUB, 2N2907AUBTX, 2N2907AUBTXV Absolute Maximum Ratings (TA = 25o C unless otherwise noted) Collector-Base Voltage 60 V Collector-Emitter Voltage 60 V Emitter-Base Voltage 5.0V Collector Current-Continuous 600 mA Operating Junction Temperature (TJ) -65° C to +200° C Storage Junction Temperature (Tstg) -65° C to +200° C Power Dissipation @ TA = 25° C 0.4 W Power Dissipation @ TC = 25° C 1.16 W (1) Soldering Temperature (vapor phase reflow for 30 sec) 215° C Soldering Temperature (heated collet for 5 sec) 260° C NOTES: (1) Derate linearly 6.6 mW / °C above 25° C. Electrical Characteristics (TA = 25o C unless otherwise noted) PARAMETER SYMBOL MIN MAX UNITS CONDITIONS Off Characteristics: V(BR)CBO Collector-Base Breakdown Voltage 60 ---- V IC = 10 µA, IE = 0 V(BR)CEO Collector-Emitter Breakdown Voltage 60 ---- V IC = 10 mA, IB = 0(2) V(BR)EBO Emitter-Base Breakdown Voltage 5.0 ---- V IE = 10 µA, IC = 0 10 nA VCB = 50 V, IE = 0 10 µA VCB = 50 V, IE = 0, TA = 150° C ICBO Collector-Base Cutoff Current ICES Collector-Emitter Cutoff Current 50 nA VCE = 50 V IEBO Emitter-Base Cutoff Current 50 nA VEB = 4.0 V, IC = 0 ---- VCE = 10 V, IC = 0.1 mA ---- VCE = 10 V, IC = 1.0 mA ---- VCE = 10 V, IC = 10 mA ---- VCE = 10 V, IC = 150 mA(2) ---- VCE = 10 V, IC = 500 mA(2) ---- VCE = 10 V, IC = 1.0 mA, TA = 55° C On Characteristics 75 100 hFE Forward-Current Transfer Ratio 450 100 100 300 50 50 VCE(SAT) Collector-Emitter Saturation Voltage VBE(SAT) Base-Emitter Saturation Voltage 0.40 V IC = 150 mA, IB = 15 mA(2) 1.60 V IC = 500 mA, IB = 50 mA(2) 1.30 V IC = 150 mA, IB = 15 mA(2) 2.60 V IC = 500 mA, IB = 50 mA(2) Small-Signal Characteristics hFE Forward-Current Transfer Ratio 100 VCE = 10 V, IC = 1.0 mA, f = 1.0 kHZ IhfeI Forward-Current Transfer Ratio 2.0 VCE = 20 V, IC = 50 mA, f = 100 MHZ Cobo Open Circuit Output Capacitance 8.0 pF VCB = 10 V, 100 kHz ≤ f ≤ 1.0 MHz Cibo Input Capacitance (Output Open) 30 pF VEB = 2.0 V, 100 kHz ≤ f ≤ 1.0 MHz Switching Characteristics ton Turn-On Time 45 ns VCC = 30 V, IC = 150 mA, IB1 = 15 mA toff Turn-Off Time 300 ns VCC = 30 V, IC = 150 mA, IB1 = IB2 = 15 mA NOTES: (2) Pulse Width ≤ 300 µs, Duty Cycle ≤ 2.0 % OPTEK reserves the right to make changes at any time in order to improve design and to supply the best product possible. Issue C 07/2012 Page 2 of 3 OPTEK Technology Inc. — 1645 Wallace Drive, Carrollton, Texas 75006 Phone: (972) 323-2200 or (800) 341-4747 FAX: (972) 323-2396 sensors@optekinc.com www.optekinc.com Surface Mount PNP General Purpose Transistor 2N2907AUB, 2N2907AUBTX, 2N2907AUBTXV Standard Packaging: Waffle Pack This product is built, tested and shipped from the USA OPTEK reserves the right to make changes at any time in order to improve design and to supply the best product possible. OPTEK Technology Inc. — 1645 Wallace Drive, Carrollton, Texas 75006 Phone: (972) 323-2200 or (800) 341-4747 FAX: (972) 323-2396 sensors@optekinc.com www.optekinc.com Issue C 07/2012 Page 3 of 3
