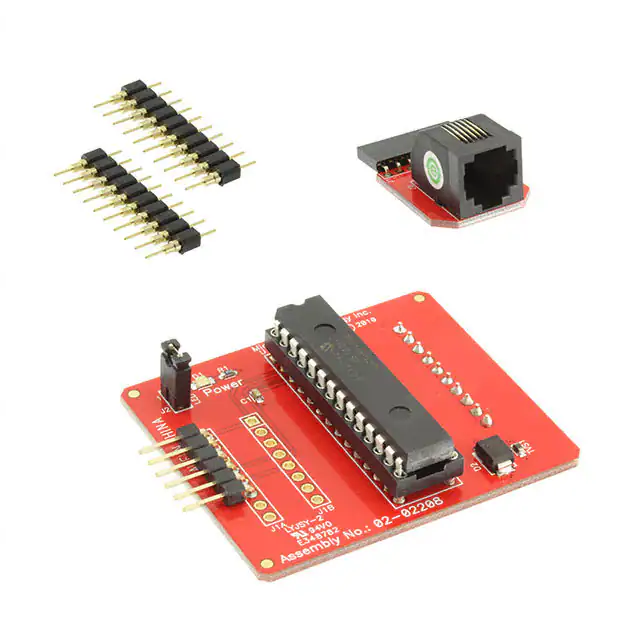

PEP and Debug Header Help AC244051, AC244052, AC244061 1/2 Required Debug Headers : AC244051, AC244052, AC244061 AC244051, AC244052, AC244061 Header Identification The AC number is used for ordering the Processor Extension Pak, which contains the debug header. However, this number is not on the header, as the board may be used for multiple headers by inserting different -ICE/-ICD devices. To identify these headers, use the following information. AC Number -ICE/-ICD Device AC244051 PIC16F1509-ICE AC244052 PIC16LF1509-ICE AC244061 PIC16F527-ICD Board Assembly Number 02-02208 Header Setup and Operation For these headers, there are no jumpers/switches.MPLAB X IDE will use its selected device to choose the correct device to emulate. These headers support 8-, 14- and 20-pin devices. For 8- and 14-pin devices, make sure device pin 1 is placed at the 20-pin connector pin 1. Header Limitations See the “Limitations” section in your debug tool online Help file for details. Header Dimensions The figure below lists the dimensions for the debug headers. Dimensions are design values in inches. If the length and/or width of the debug header is too large a footprint for the target board, consider using stand-offs, transition sockets or other extenders in the header connection socket to raise the header above the target. Figure: Dimensions - AC244051, AC244052, AC244061 AC244051, AC244052, AC244061 2/2 Microchip Support Help Updated: 2014-06-10 16:25:02Z Help Page: 25
