ADM00309

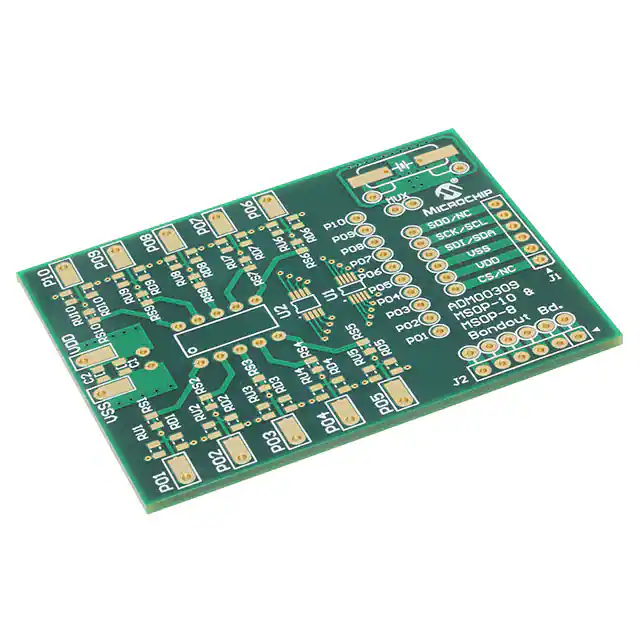

MSOP-10 and MSOP-8 Evaluation Board Part Number: ADM00309 The MSOP-10 and MSOP-8 Evaluation Board is a bond-out board that allows the system designer to quickly evaluate the operation of Microchip Technology’s devices in any of the following packages: •MSOP(8-and10-pin) •DIP (10pin) Note: The Evaluation Board can be used as a MSOP- to DIP- converter Features The MSOP-10 and MSOP-8 Evaluation Board has the following features: • Connection terminals may be either through-hole or surface-mount • Three types of footprints supported: 1. MSOP-10 2. MSOP-8 3. DIP-10 • Footprints for optional passive components (SMT [0805] footprint) for: - Power supply filtering - Device bypass capacitor - Filtering - Pull-up resistor - Pull-down resistor - Loading resistor - In-line resistor - Crystal oscillator capacitors • Silk-screen area to write specifics of implemented circuit (on back of PCB), such as MCP48FEB22-E/UN. • PICkit Serial Analyzer and/or PICkit Programming (ICSP) Header • Crystal / ceramic resonator circuit footprints, SMT and THT • Second 1x6 in-line connector header Package Contents This MSOP-10 and MSOP-8 Evaluation Board Kit includes: • 10 blank PCBs (MSOP-10 and MSOP-8 Evaluation Board) • Important Information sheet                                     ©Copyright 1998-2017 Microchip Technology Inc. All rights reserved. Shanghai ICP Recordal
