TYPICAL PERFORMANCE CURVES
APT25GT120BRDQ2(G)
1200V
APT25GT120BRDQ2
APT25GT120BRDQ2G*
®
*G Denotes RoHS Compliant, Pb Free Terminal Finish.

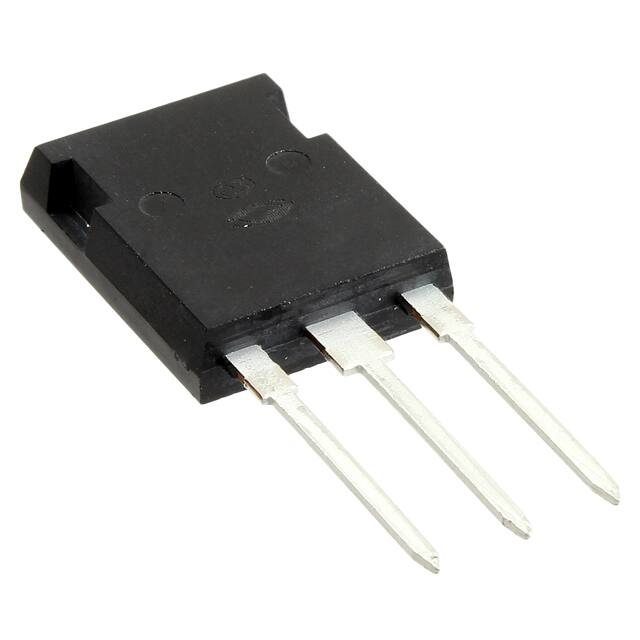

Thunderbolt IGBT®
TO
-2
4
7
The Thunderblot IGBT® is a new generation of high voltage power IGBTs. Using Non- Punch
Through Technology, the Thunderblot IGBT® offers superior ruggedness and ultrafast
switching speed.
• Low Forward Voltage Drop
• High Freq. Switching to 50KHz
• Low Tail Current
• Ultra Low Leakage Current
G
C
E
C
• RBSOA and SCSOA Rated
G
E
MAXIMUM RATINGS
Symbol
All Ratings: TC = 25°C unless otherwise specified.
Parameter
APT25GT120BRDQ2(G)
VCES
Collector-Emitter Voltage
1200
VGE
Gate-Emitter Voltage
±30
I C1
Continuous Collector Current @ TC = 25°C
54
I C2
Continuous Collector Current @ TC = 110°C
25
I CM
SSOA
PD
TJ,TSTG
TL
Pulsed Collector Current
1
UNIT
Volts
Amps
75
Switching Safe Operating Area @ TJ = 150°C
75A @ 1200V
Total Power Dissipation
Watts
347
Operating and Storage Junction Temperature Range
-55 to 150
Max. Lead Temp. for Soldering: 0.063" from Case for 10 Sec.
°C
300
STATIC ELECTRICAL CHARACTERISTICS
MIN
V(BR)CES
Collector-Emitter Breakdown Voltage (VGE = 0V, I C = 1.5mA)
1200
VGE(TH)
Gate Threshold Voltage
4.5
5.5
6.5
2.7
3.2
3.7
3.9
VCE(ON)
I CES
I GES
(VCE = VGE, I C = 1mA, Tj = 25°C)
Collector-Emitter On Voltage (VGE = 15V, I C = 25A, Tj = 25°C)
Collector-Emitter On Voltage (VGE = 15V, I C = 25A, Tj = 125°C)
Collector Cut-off Current (VCE = 1200V, VGE = 0V, Tj = 25°C)
2
Collector Cut-off Current (VCE = 1200V, VGE = 0V, Tj = 125°C)
2
Gate-Emitter Leakage Current (VGE = ±20V)
TYP
MAX
200
TBD
120
CAUTION: These Devices are Sensitive to Electrostatic Discharge. Proper Handling Procedures Should Be Followed.
APT Website - http://www.advancedpower.com
Units
Volts
µA
nA
Rev C 6-2008
Characteristic / Test Conditions
052-6269
Symbol
DYNAMIC CHARACTERISTICS
Symbol
APT25GT120BRDQ2(G)
Cies
Input Capacitance
Coes
Output Capacitance
Cres
Reverse Transfer Capacitance
VGEP
Gate-to-Emitter Plateau Voltage
Qg
Total Gate Charge
3
Qge
Gate-Emitter Charge
Qgc
Gate-Collector ("Miller ") Charge
SSOA
Switching Safe Operating Area
td(on)
Turn-on Delay Time
tr
Current Rise Time
td(off)
Turn-off Delay Time
tf
Eon1
Capacitance
1650
VGE = 0V, VCE = 25V
250
f = 1 MHz
110
Gate Charge
10.0
VGE = 15V
170
VCE = 600V
20
100
I C = 25A
I C = 25A
Current Fall Time
Turn-on Switching Energy
Turn-off Switching Energy
td(on)
Turn-on Delay Time
tr
Current Rise Time
RG = 5Ω
4
Eoff
TJ = +25°C
5
6
VGE = 15V
Turn-off Delay Time
I C = 25A
Current Fall Time
Turn-on Switching Energy
Eon2
Turn-on Switching Energy (Diode)
Eoff
Turn-off Switching Energy
RG = 5Ω
44
55
TJ = +125°C
6
UNIT
pF
V
nC
A
14
27
150
36
930
1860
720
Inductive Switching (125°C)
VCC = 800V
Eon1
MAX
TJ = 150°C, R G = 5Ω, VGE =
75
15V, L = 100µH,VCE = 1200V
VGE = 15V
Turn-on Switching Energy (Diode)
tf
TYP
Inductive Switching (25°C)
VCC = 800V
Eon2
td(off)
MIN
Test Conditions
Characteristic
ns
µJ
14
27
175
45
925
3265
965
TYP
ns
µJ
THERMAL AND MECHANICAL CHARACTERISTICS
Symbol
Characteristic
MIN
RθJC
Junction to Case (IGBT)
.36
RθJC
Junction to Case (DIODE)
5.9
.61
WT
Package Weight
MAX
UNIT
°C/W
gm
1 Repetitive Rating: Pulse width limited by maximum junction temperature.
2 For Combi devices, Ices includes both IGBT and FRED leakages
3 See MIL-STD-750 Method 3471.
4 Eon1 is the clamped inductive turn-on energy of the IGBT only, without the effect of a commutating diode reverse recovery current
adding to the IGBT turn-on loss. Tested in inductive switching test circuit shown in figure 21, but with a Silicon Carbide diode.
052-6269
Rev C
6-2008
5 Eon2 is the clamped inductive turn-on energy that includes a commutating diode reverse recovery current in the IGBT turn-on switching
loss. (See Figures 21, 22.)
6 Eoff is the clamped inductive turn-off energy measured in accordance with JEDEC standard JESD24-1. (See Figures 21, 23.)
APT Reserves the right to change, without notice, the specifications and information contained herein.
TYPICAL PERFORMANCE CURVES
GE
= 15V
15V
60
TJ = 25°C
50
TJ = 125°C
40
TJ = -55°C
30
20
10
0
FIGURE 1, Output Characteristics(TJ = 25°C)
80
50
40
30
TJ = 25°C
TJ = 125°C
10
0
0
9V
8V
7V
0
5
10
15
20
VCE, COLLECTER-TO-EMITTER VOLTAGE (V)
I = 25A
C
T = 25°C
J
14
VCE = 600V
10
VCE = 960V
8
6
4
2
0 20 40 60 80 100 120 140 160 180 200
GATE CHARGE (nC)
IC = 50A
5
TJ = 25°C.
250µs PULSE TEST
