APT45GP120B2DQ2(G)
1200V
TYPICAL PERFORMANCE CURVES
APT45GP120B2DQ2
APT45GP120B2DQ2G*
®
*G Denotes RoHS Compliant, Pb Free Terminal Finish.

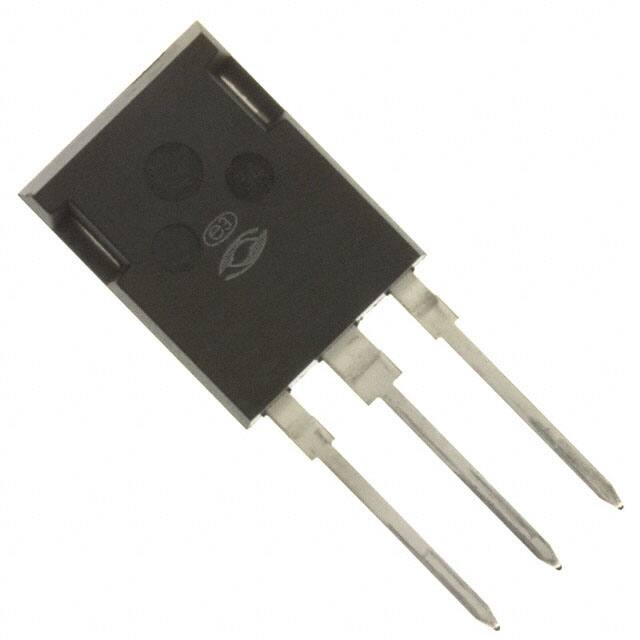

POWER MOS 7 IGBT
®
T-MaxTM
The POWER MOS 7® IGBT is a new generation of high voltage power IGBTs. Using Punch
Through Technology this IGBT is ideal for many high frequency, high voltage switching
applications and has been optimized for high frequency switchmode power supplies.
• Low Conduction Loss
• 100 kHz operation @ 800V, 16A
• Low Gate Charge
• 50 kHz operation @ 800V, 28A
• Ultrafast Tail Current shutoff
• RBSOA Rated
G
C
E
C
G
E
MAXIMUM RATINGS
Symbol
All Ratings: TC = 25°C unless otherwise specified.
Parameter
APT45GP120B2DQ2(G)
VCES
Collector-Emitter Voltage
1200
VGE
Gate-Emitter Voltage
±30
I C1
Continuous Collector Current
I C2
Continuous Collector Current @ TC = 110°C
I CM
RBSOA
PD
TJ,TSTG
TL
Pulsed Collector Current
1
7
@ TC = 25°C
UNIT
Volts
113
54
@ TC = 150°C
Amps
170
Reverse Biad Safe Operating Area @ TJ = 150°C
170A @ 960V
Total Power Dissipation
Watts
625
Operating and Storage Junction Temperature Range
-55 to 150
Max. Lead Temp. for Soldering: 0.063" from Case for 10 Sec.
°C
300
STATIC ELECTRICAL CHARACTERISTICS
Collector-Emitter Breakdown Voltage (VGE = 0V, I C = 750µA)
VGE(TH)
Gate Threshold Voltage
VCE(ON)
I CES
I GES
MAX
4.5
6
3.3
3.9
Units
1200
(VCE = VGE, I C = 1mA, Tj = 25°C)
3
Collector-Emitter On Voltage (VGE = 15V, I C = 45A, Tj = 25°C)
Collector-Emitter On Voltage (VGE = 15V, I C = 45A, Tj = 125°C)
Collector Cut-off Current (VCE = 1200V, VGE = 0V, Tj = 25°C)
TYP
3.0
2
Collector Cut-off Current (VCE = 1200V, VGE = 0V, Tj = 125°C)
Volts
750
2
Gate-Emitter Leakage Current (VGE = ±20V)
3000
±100
CAUTION: These Devices are Sensitive to Electrostatic Discharge. Proper Handling Procedures Should Be Followed.
APT Website - http://www.advancedpower.com
µA
nA
6-2005
V(BR)CES
MIN
Rev A
Characteristic / Test Conditions
050-7433
Symbol
DYNAMIC CHARACTERISTICS
Symbol
APT45GP120B2DQ2(G)
Test Conditions
Characteristic
Cies
Input Capacitance
Coes
Output Capacitance
Cres
Reverse Transfer Capacitance
VGEP
Gate-to-Emitter Plateau Voltage
3
Qg
Total Gate Charge
Qge
Gate-Emitter Charge
Qgc
Gate-Collector ("Miller ") Charge
RBSOA
td(on)
tr
td(off)
tf
Eon1
55
Gate Charge
7.5
VGE = 15V
185
900
905
Inductive Switching (125°C)
18
VCC =600V
29
VGE = 15V
150
RG = 5Ω
80
900
I C = 45A
Eon1
Turn-on Switching Energy
Eon2
Turn-on Switching Energy (Diode)
Eoff
Turn-off Switching Energy
44
55
µJ
1870
6
Current Fall Time
ns
38
TJ = +25°C
Turn-off Delay Time
nC
100
RG = 5Ω
Current Rise Time
V
A
29
I C = 45A
Turn-on Delay Time
pF
170
18
5
UNIT
80
VCC = 600V
4
MAX
25
Inductive Switching (25°C)
Current Fall Time
Turn-off Switching Energy
tf
f = 1 MHz
TJ = 150°C, R G = 5Ω, VGE =
Turn-off Delay Time
Eoff
td(off)
300
VGE = 15V
Turn-on Switching Energy (Diode)
tr
VGE = 0V, VCE = 25V
15V, L = 100µH,VCE = 960V
Current Rise Time
Eon2
td(on)
3995
I C = 45A
Turn-on Delay Time
TYP
Capacitance
VCE = 600V
Reverse Bias Safe Operating Area
Turn-on Switching Energy
MIN
TJ = +125°C
ns
µJ
3080
6
2255
THERMAL AND MECHANICAL CHARACTERISTICS
Symbol
Characteristic
MIN
TYP
MAX
RθJC
Junction to Case (IGBT)
.20
RθJC
Junction to Case (DIODE)
.61
WT
Package Weight
5.9
UNIT
°C/W
gm
1 Repetitive Rating: Pulse width limited by maximum junction temperature.
2 For Combi devices, Ices includes both IGBT and FRED leakages
3 See MIL-STD-750 Method 3471.
050-7433
Rev A
6-2005
4 Eon1 is the clam ped inductive turn-on-energy of the IGBT only, without the effect of a commutating diode reverse recovery current
adding to the IGBT turn-on loss. (See Figure 24.)
5 Eon2 is the clamped inductive turn-on energy that includes a commutating diode reverse recovery current in the IGBT turn-on switching
loss. (See Figures 21, 22.)
6 Eoff is the clamped inductive turn-off energy measured in accordance with JEDEC standard JESD24-1. (See Figures 21, 23.)
7 Continuous current limited by package lead temperature.
APT Reserves the right to change, without notice, the specifications and information contained herein.
90
90
80
80
IC, COLLECTOR CURRENT (A)
50
TJ = 25°C
40
TJ = 125°C
30
20
0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0
VCE, COLLECTER-TO-EMITTER VOLTAGE (V)
FIGURE 1, Output Characteristics(TJ = 25°C)
TJ = -55°C
100
80
TJ = 25°C
60
40
TJ = 125°C
20
0
5
2 3 4
5 6
7 8
9 10
VGE, GATE-TO-EMITTER VOLTAGE (V)
FIGURE 3, Transfer Characteristics
TJ = 25°C.
250µs PULSE TEST
