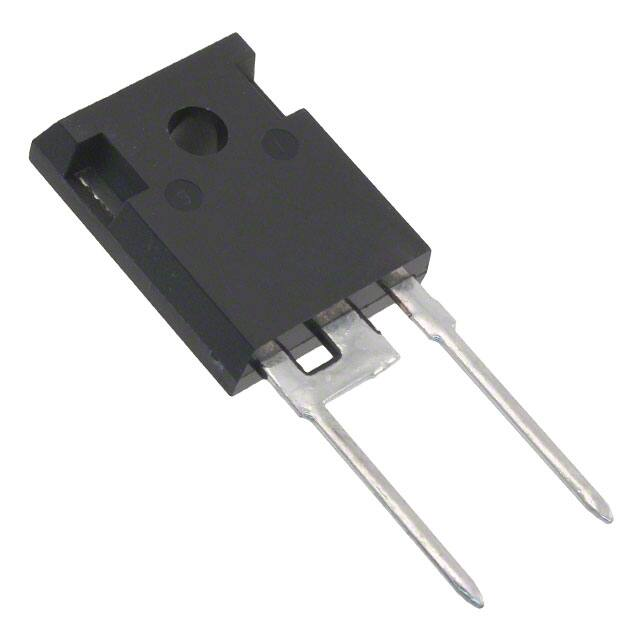

APT75DQ100BG

1000V 75A APT75DQ100B APT75DQ100S APT75DQ100BG* APT75DQ100SG* ® *G Denotes RoHS Compliant, Pb Free Terminal Finish. ULTRAFAST SOFT RECOVERY RECTIFIER DIODE (B) PRODUCT APPLICATIONS PRODUCT FEATURES PRODUCT BENEFITS • Anti-Parallel Diode -Switchmode Power Supply -Inverters • Free Wheeling Diode -Motor Controllers -Converters -Inverters • Snubber Diode • Ultrafast Recovery Times • Low Losses • Soft Recovery Characteristics • Low Noise Switching • PFC • Avalanche Energy Rated -24 7 D3PAK 1 2 • Cooler Operation • Popular TO-247 Package or Surface Mount D3PAK Package • Higher Reliability Systems • Low Forward Voltage • Low Leakage Current TO 2 1 (S) 2 1 • Increased System Power Density 1 - Cathode 2 - Anode Back of Case - Cathode MAXIMUM RATINGS Symbol VR All Ratings: TC = 25°C unless otherwise specified. Characteristic / Test Conditions UNIT 1000 Volts Maximum D.C. Reverse Voltage VRRM Maximum Peak Repetitive Reverse Voltage VRWM Maximum Working Peak Reverse Voltage IF(AV) Maximum Average Forward Current (TC = 130°C, Duty Cycle = 0.5) IF(RMS) APT75DQ100B(G)_S(G) 75 RMS Forward Current (Square wave, 50% duty) 152 IFSM Non-Repetitive Forward Surge Current (TJ = 45°C, 8.3ms) 540 EAVL Avalanche Energy (1A, 40mH) TJ,TSTG TL Amps 20 mJ -55 to 175 Operating and StorageTemperature Range °C 300 Lead Temperature for 10 Sec. STATIC ELECTRICAL CHARACTERISTICS Forward Voltage MIN TYP MAX IF = 75A 2.5 3.0 IF = 150A 3.1 IF = 75A, TJ = 125°C IRM Maximum Reverse Leakage Current CT Junction Capacitance, VR = 200V Volts 1.93 VR = 1000V 100 VR = 1000V, TJ = 125°C 500 APT Website - http://www.advancedpower.com UNIT 60 μA pF 6-2005 VF Characteristic / Test Conditions 053-4232 Rev A Symbol DYNAMIC CHARACTERISTICS Symbol APT75DQ100B(G)_S(G) Characteristic Test Conditions trr Reverse Recovery Time trr Reverse Recovery Time Qrr Reverse Recovery Charge IRRM IF = 1A, diF/dt = -100A/μs, VR = 30V, TJ = 25°C Reverse Recovery Time Qrr Reverse Recovery Charge trr Qrr IRRM VR = 667V, TC = 25°C Maximum Reverse Recovery Current trr IRRM IF = 75A, diF/dt = -200A/μs IF = 75A, diF/dt = -200A/μs VR = 667V, TC = 125°C Maximum Reverse Recovery Current Reverse Recovery Time IF = 75A, diF/dt = -1000A/μs Reverse Recovery Charge VR = 667V, TC = 125°C Maximum Reverse Recovery Current MIN TYP MAX UNIT - 33 - 250 - 465 - 4 - 310 ns - 2660 nC - 13 - 160 ns - 1675 nC - 45 Amps MIN TYP ns nC - - Amps Amps THERMAL AND MECHANICAL CHARACTERISTICS Symbol RθJC WT Torque Characteristic / Test Conditions MAX UNIT .21 °C/W Junction-to-Case Thermal Resistance Package Weight 0.22 oz 5.9 g Maximum Mounting Torque 10 lb•in 1.1 N•m APT Reserves the right to change, without notice, the specifications and information contained herein. 0.20 D = 0.9 0.15 0.7 Note: 0.5 0.10 PDM Z JC, THERMAL IMPEDANCE (°C/W) θ 0.25 0.3 t2 0.05 0 t 0.1 0.05 10 -5 Duty Factor D = 1/t2 Peak TJ = PDM x ZθJC + TC SINGLE PULSE 10 10-3 10-2 10-1 1.0 RECTANGULAR PULSE DURATION (seconds) FIGURE 1a. MAXIMUM EFFECTIVE TRANSIENT THERMAL IMPEDANCE, JUNCTION-TO-CASE vs. PULSE DURATION -4 RC MODEL 6-2005 Junction temp (°C) 053-4232 Rev A t1 Power (watts) 0.0152 0.00643 0.0833 0.0170 0.112 0.173 Case temperature (°C) FIGURE 1b, TRANSIENT THERMAL IMPEDANCE MODEL TYPICAL PERFORMANCE CURVES 250 APT75DQ100B(G)_S(G) 400 T = 125°C J V = 667V 200 150 TJ = 175°C 100 TJ = 25°C TJ = 125°C 50 trr, REVERSE RECOVERY TIME (ns) IF, FORWARD CURRENT (A) 150A 1.0 2.0 3.0 4.0 VF, ANODE-TO-CATHODE VOLTAGE (V) Figure 2. Forward Current vs. Forward Voltage Qrr, REVERSE RECOVERY CHARGE (nC) 7000 T = 125°C J V = 667V R 6000 150A 5000 4000 75A 3000 37.5A 2000 1000 0 0 200 400 600 800 1000 1200 -diF /dt, CURRENT RATE OF CHANGE (A/μs) Figure 4. Reverse Recovery Charge vs. Current Rate of Change 150 100 50 45 T = 125°C J V = 667V 40 35 30 25 75A 20 15 37.5A 10 5 0 200 400 600 800 1000 1200 -diF /dt, CURRENT RATE OF CHANGE (A/μs) Figure 5. Reverse Recovery Current vs. Current Rate of Change 180 1.2 trr Qrr J 140 120 trr IRRM 0.6 Duty cycle = 0.5 T = 175°C 160 1.0 0.8 150A R 0 IF(AV) (A) Kf, DYNAMIC PARAMETERS (Normalized to 1000A/μs) 37.5A 200 0 200 400 600 800 1000 1200 -diF /dt, CURRENT RATE OF CHANGE(A/μs) Figure 3. Reverse Recovery Time vs. Current Rate of Change 1.4 100 80 60 0.4 Qrr 0.2 0.0 250 0 IRRM, REVERSE RECOVERY CURRENT (A) 0 75A 300 50 TJ = -55°C 0 R 350 40 20 0 25 50 75 100 125 150 TJ, JUNCTION TEMPERATURE (°C) Figure 6. Dynamic Parameters vs. Junction Temperature 0 25 50 75 100 125 150 175 Case Temperature (°C) Figure 7. Maximum Average Forward Current vs. CaseTemperature 350 300 250 200 6-2005 150 100 50 0 1 10 100 200 VR, REVERSE VOLTAGE (V) Figure 8. Junction Capacitance vs. Reverse Voltage 053-4232 Rev A CJ, JUNCTION CAPACITANCE (pF) 400 APT75DQ100B(G)_S(G) Vr diF /dt Adjust +18V APT10035LLL 0V D.U.T. 30μH trr/Qrr Waveform PEARSON 2878 CURRENT TRANSFORMER Figure 9. Diode Test Circuit 1 IF - Forward Conduction Current 2 diF /dt - Rate of Diode Current Change Through Zero Crossing. 3 IRRM - Maximum Reverse Recovery Current. 4 trr - Reverse Recovery Time, measured from zero crossing where diode current goes from positive to negative, to the point at which the straight line through IRRM and 0.25 IRRM passes through zero. 5 1 4 Zero 5 0.25 IRRM 3 2 Qrr - Area Under the Curve Defined by IRRM and trr. Figure 10, Diode Reverse Recovery Waveform and Definitions 3 D PAK Package Outline TO-247 Package Outline 15.49 (.610) 16.26 (.640) 6.15 (.242) BSC 5.38 (.212) 6.20 (.244) 4.90 (.193) 5.10 (.201) 1.45 (.057) 1.60 (.063) 20.80 (.819) 21.46 (.845) Cathode 6-2005 053-4232 Rev A e3 100% Sn Cathode (Heat Sink) e1 SAC: Tin, Silver, Copper 4.69 (.185) 5.31 (.209) 1.49 (.059) 2.49 (.098) 0.40 (.016) 0.65 (.026) 4.50 (.177) Max. 19.81 (.780) 20.32 (.800) 1.65 (.065) 2.13 (.084) 1.01 (.040) 1.40 (.055) 1.00 (.039) 1.15(.045) 12.40 (.488) 12.70 (.500) 0.020 (.001) 0.250 (.010) 2.70 (.106) 2.90 (.114) 1.15 (.045) 1.45 (.057) 1.20 (.047) 1.90 (.075) 1.40 (.055) 2.10 (.083) 5.45 (.215) BSC (2 Plcs.) Anode 2.21 (.087) 2.59 (.102) 13.30 (.524) 13.60(.535) 18.70 (.736) 19.10 (.752) 3.50 (.138) 3.81 (.150) 0.40 (.016) 0.79 (.031) 15.85 (.624) 16.05(.632) Cathode 10.90 (.430) BSC Dimensions in Millimeters and (Inches) 2.40 (.094) 2.70 (.106) (Base of Lead) Heat Sink (Cathode) and Leads are Plated Anode Cathode Dimensions in Millimeters (Inches) APT’s products are covered by one or more of U.S.patents 4,895,810 5,045,903 5,089,434 5,182,234 5,019,522 5,262,336 6,503,786 5,256,583 4,748,103 5,283,202 5,231,474 5,434,095 5,528,058 and foreign patents. US and Foreign patents pending. All Rights Reserved.
