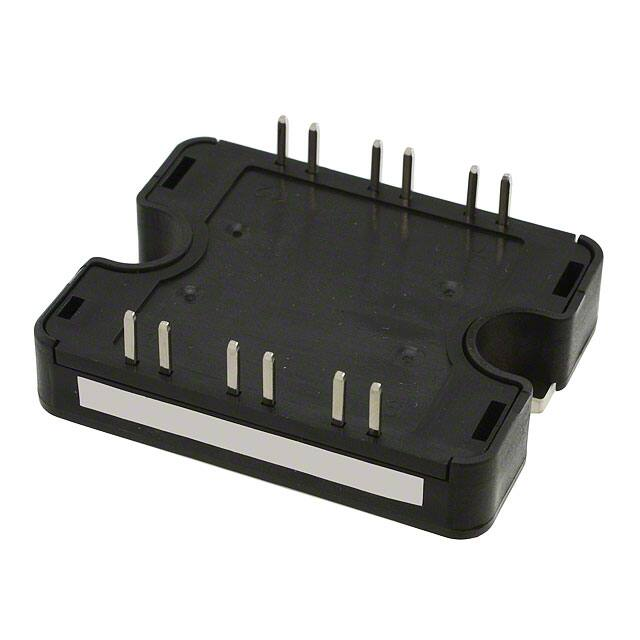

APTDF60H1201G Fast Diode Full Bridge Power Module 3 4 Application CR1 1 • • • • 2 Features CR3 5 6 CR2 7 VRRM = 1200V IC = 60A @ Tc = 80°C CR4 8 Uninterruptible Power Supply (UPS) Induction heating Welding equipment High speed rectifiers • • • • • • • 9 10 Ultra fast recovery times Soft recovery characteristics High blocking voltage High current Low leakage current Very low stray inductance High level of integration Benefits • • • • • • • Outstanding performance at high frequency operation Low losses Low noise switching Solderable terminals for easy PCB mounting Direct mounting to heatsink (isolated package) Low junction to case thermal resistance RoHS Compliant All multiple inputs and outputs must be shorted together 3/4 ; 5/6 ; 7/8 ; 1/2 ; 9/10 Parameter Maximum DC reverse Voltage Maximum Peak Repetitive Reverse Voltage IF(AV) Maximum Average Forward Current IFSM Non-Repetitive Forward Surge Current Duty cycle = 50% 8.3ms Max ratings Unit 1200 V TC = 25°C 82 TC = 80°C TJ = 45°C 60 A 500 These Devices are sensitive to Electrostatic Discharge. Proper Handling Procedures Should Be Followed. See application note APT0502 on www.microsemi.com www.microsemi.com 1-4 APTDF60H1201G – Rev 0 Symbol VR VRRM August, 2007 Absolute maximum ratings APTDF60H1201G All ratings @ Tj = 25°C unless otherwise specified Electrical Characteristics Symbol Characteristic VF Diode Forward Voltage IRM Maximum Reverse Leakage Current CT Junction Capacitance Test Conditions IF = 60A IF = 120A Tj = 125°C IF = 60A Tj = 25°C VR = 1200V Tj = 125°C Min Typ 2.5 3 1.8 Max 3 V 100 500 VR = 200V Unit 70 µA pF Dynamic Characteristics Symbol Characteristic trr Reverse Recovery Time Qrr Reverse Recovery Charge IRRM Reverse Recovery Current trr Reverse Recovery Time Qrr Reverse Recovery Charge IRRM Reverse Recovery Current Test Conditions IF = 60A VR = 800V di/dt = 200A/µs IF = 60A VR = 800V di/dt=1000A/µs Min Typ Tj = 25°C 265 Tj = 125°C 350 Tj = 25°C Tj = 125°C 560 2890 Tj = 25°C 5 Tj = 125°C 13 Tj = 125°C Max Unit ns nC A 150 ns 4700 nC 40 A Thermal and package characteristics Characteristic Junction to Case Thermal Resistance Min RMS Isolation Voltage, any terminal to case t =1 min, I isol
