AT24CM01
I²C-Compatible (Two-Wire)
Serial EEPROM 1‑Mbit (131,072 x 8)
Features
• Low-Voltage and Standard Voltage Operation:
– VCC = 1.7V to 5.5V
– VCC = 2.5V to 5.5V
• Internally Organized as 131,072 x 8 (1M)
• Industrial Temperature Range: -40°C to +85°C
• I2C-Compatible (Two-Wire) Serial Interface:
– 100 kHz Standard mode, 1.7V to 5.5V
– 400 kHz Fast mode, 1.7V to 5.5V
– 1 MHz Fast Mode Plus (FM+), 2.5V to 5.5V
• Schmitt Triggers, Filtered Inputs for Noise Suppression
• Bidirectional Data Transfer Protocol
• Write-Protect Pin for Full Array Hardware Data Protection
• Ultra Low Active Current (3 mA maximum) and Standby Current (6 µA maximum)
• 256-byte Page Write Mode:
– Byte write and partial page writes allowed
• Random and Sequential Read Modes
• Self-Timed Write Cycle:
– All Write operations complete within 5 ms maximum
• Built in Error Detection and Correction
• High Reliability:
– Endurance: 1,000,000 write cycles
– Data retention: 100 years
• Green Package Options (Lead-free/Halide-free/RoHS compliant)
• Die Sale Options: Wafer Form and Bumped Wafers
Packages

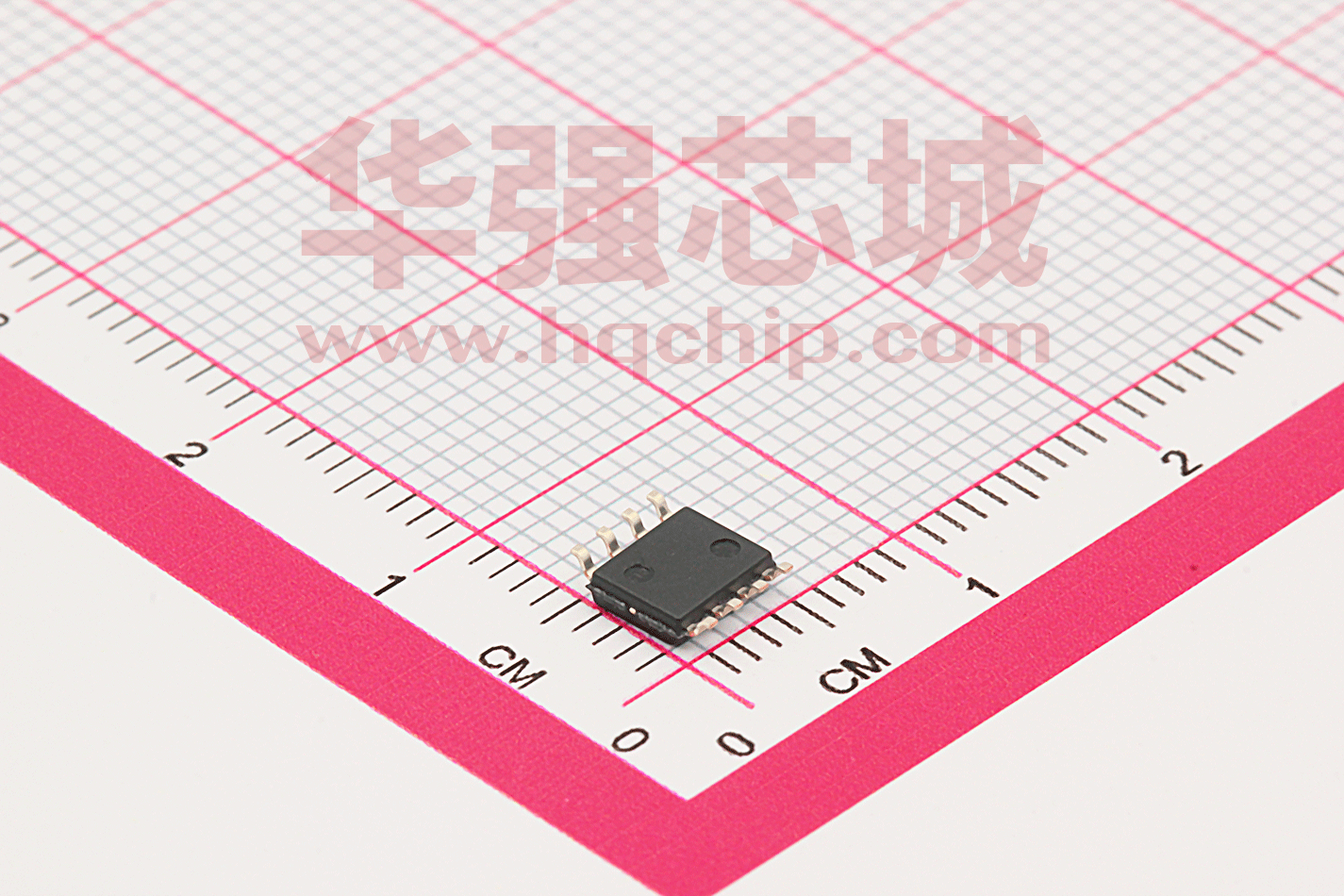

• 8-Lead SOIC, 8-Lead SOIJ, 8-Lead TSSOP and 8-Ball WLCSP
© 2019 Microchip Technology Inc.
Datasheet
20006170A-page 1
AT24CM01
Table of Contents
Features.......................................................................................................................... 1
Packages.........................................................................................................................1
1. Package Types (not to scale).................................................................................... 4
2. Pin Descriptions.........................................................................................................5
2.1.
2.2.
2.3.
2.4.
2.5.
2.6.
Device Address Inputs (A1, A2)................................................................................................... 5
Ground......................................................................................................................................... 5
Serial Data (SDA).........................................................................................................................5
Serial Clock (SCL)........................................................................................................................5
Write-Protect (WP)....................................................................................................................... 6
Device Power Supply................................................................................................................... 6
3. Description.................................................................................................................7
3.1.
3.2.
System Configuration Using Two-Wire Serial EEPROMs ........................................................... 7
Block Diagram.............................................................................................................................. 8
4. Electrical Characteristics........................................................................................... 9
4.1.
4.2.
4.3.
4.4.
4.5.
Absolute Maximum Ratings..........................................................................................................9
DC and AC Operating Range.......................................................................................................9
DC Characteristics....................................................................................................................... 9
AC Characteristics......................................................................................................................10
Electrical Specifications..............................................................................................................11
5. Device Operation and Communication....................................................................13
5.1.
5.2.
5.3.
5.4.
5.5.
Clock and Data Transition Requirements...................................................................................13
Start and Stop Conditions.......................................................................................................... 13
Acknowledge and No-Acknowledge...........................................................................................14
Standby Mode............................................................................................................................ 14
Software Reset...........................................................................................................................15
6. Memory Organization.............................................................................................. 16
6.1.
Device Addressing..................................................................................................................... 16
7. Write Operations......................................................................................................18
7.1.
7.2.
7.3.
7.4.
7.5.
Byte Write...................................................................................................................................18
Page Write..................................................................................................................................18
Acknowledge Polling.................................................................................................................. 19
Write Cycle Timing..................................................................................................................... 20
Write Protection..........................................................................................................................20
8. Read Operations..................................................................................................... 21
8.1.
8.2.
Current Address Read................................................................................................................21
Random Read............................................................................................................................ 21
© 2019 Microchip Technology Inc.
Datasheet
20006170A-page 2
AT24CM01
8.3.
Sequential Read.........................................................................................................................22
9. Device Default Condition from Microchip................................................................ 23
10. Packaging Information.............................................................................................24
10.1. Package Marking Information.....................................................................................................24
11. Revision History.......................................................................................................34
The Microchip Web Site................................................................................................ 35
Customer Change Notification Service..........................................................................35
Customer Support......................................................................................................... 35
Product Identification System........................................................................................ 36
Microchip Devices Code Protection Feature................................................................. 36
Legal Notice...................................................................................................................37
Trademarks................................................................................................................... 37
Quality Management System Certified by DNV.............................................................38
Worldwide Sales and Service........................................................................................39
© 2019 Microchip Technology Inc.
Datasheet
20006170A-page 3
AT24CM01
Package Types (not to scale)
1.
Package Types (not to scale)
8-Lead SOIC/SOIJ/TSSOP
(Top View)
NC
1
8
VCC
A1
2
7
WP
8-Ball WLCSP
(Top View)
VCC
WP
A1
SCL
A2
3
6
SCL
GND
4
5
SDA
© 2019 Microchip Technology Inc.
Datasheet
SDA
NC
A2
GND
20006170A-page 4
AT24CM01
Pin Descriptions
2.
Pin Descriptions
The descriptions of the pins are listed in Table 2-1.
Table 2-1. Pin Function Table
Name
8‑Lead SOIC
8‑Pad SOIJ
8‑Lead TSSOP
8‑Ball WLCSP
NC
A1(1)
1
1
1
E1
Not Connected
Function
2
2
2
D2
Device Address Input
A2(1)
3
3
3
C3
Device Address Input
GND
4
4
4
E3
Ground
SDA
5
5
5
A3
Serial Data
SCL
WP(1)
6
6
6
B2
Serial Clock
7
7
7
C1
Write-Protect
VCC
8
8
8
A1
Device Power Supply
Note:
1. If the A2, A1 or WP pins are not driven, they are internally pulled down to GND. In order to operate
in a wide variety of application environments, the pull-down mechanism is intentionally designed to
be somewhat strong. Once these pins are biased above the CMOS input buffer’s trip point
(~0.5 x VCC), the pull‑down mechanism disengages. Microchip recommends connecting these pins
to a known state whenever possible.
2.1
Device Address Inputs (A1, A2)
The A1 and A2 pins are device address inputs that are hardwired (directly to GND or to VCC) for
compatibility with other two-wire Serial EEPROM devices. When the pins are hardwired, as many as four
devices may be addressed on a single bus system. A device is selected when a corresponding hardware
and software match is true. If these pins are left floating, the A1 and A2 pins will be internally pulled down
to GND. However, due to capacitive coupling that may appear in customer applications, Microchip
recommends always connecting the address pins to a known state. When using a pull-up resistor,
Microchip recommends using 10 kΩ or less.
2.2
Ground
The ground reference for the power supply. GND should be connected to the system ground.
2.3
Serial Data (SDA)
The SDA pin is an open-drain bidirectional input/output pin used to serially transfer data to and from the
device. The SDA pin must be pulled high using an external pull-up resistor (not to exceed 10 kΩ in value)
and may be wire-ORed with any number of other open-drain or open-collector pins from other devices on
the same bus.
2.4
Serial Clock (SCL)
The SCL pin is used to provide a clock to the device and to control the flow of data to and from the
device. Command and input data present on the SDA pin is always latched in on the rising edge of SCL,
while output data on the SDA pin is clocked out on the falling edge of SCL. The SCL pin must either be
forced high when the serial bus is idle or pulled high using an external pull-up resistor.
© 2019 Microchip Technology Inc.
Datasheet
20006170A-page 5
AT24CM01
Pin Descriptions
2.5
Write-Protect (WP)
The write-protect input, when connected to GND, allows normal write operations. When the WP pin is
connected directly to VCC, all write operations to the protected memory are inhibited.
If the pin is left floating, the WP pin will be internally pulled down to GND. However, due to capacitive
coupling that may appear in customer applications, Microchip recommends always connecting the WP
pin to a known state. When using a pull‑up resistor, Microchip recommends using 10 kΩ or less.
Table 2-2. Write-Protect
2.6
WP Pin Status
Part of the Array Protected
At VCC
Full Array
At GND
Normal Write Operations
Device Power Supply
The VCC pin is used to supply the source voltage to the device. Operations at invalid VCC voltages may
produce spurious results and should not be attempted.
© 2019 Microchip Technology Inc.
Datasheet
20006170A-page 6
AT24CM01
Description
3.
Description
The AT24CM01 provides 1,048,576 bits of Serial Electrically Erasable and Programmable Read-Only
Memory (EEPROM) organized as 131,072 words of eight bits each. The device’s cascading feature
allows up to four devices to share a common two-wire bus. This device is optimized for use in many
industrial and commercial applications where low-power and low-voltage operations are essential. The
device is available in space-saving 8-lead SOIC, 8-Lead TSSOP, 8-Lead SOIJ and 8-ball WLCSP
packages. All packages operate from 1.7V to 5.5V.
3.1
System Configuration Using Two-Wire Serial EEPROMs
VCC
RPUP(max) =
tR(max)
0.8473 x CL
V - VOL(max)
RPUP(min) = CC
IOL
VCC
SCL
SDA
WP
I2C Bus Master:
Microcontroller
NC
VCC
NC
VCC
NC
Slave 0 WP
A2 AT24CXXX SDA
A1
Slave 1 WP
A2 AT24CXXX SDA
A1
GND
GND
GND
A1
GND
© 2019 Microchip Technology Inc.
SCL
Datasheet
SCL
VCC
Slave 3 WP
A2 AT24CXXX SDA
SCL
20006170A-page 7
AT24CM01
Description
Block Diagram
Hardware
Address
Comparator
Memory
System Control
Module
Power-on
Reset
Generator
VCC
High-Voltage
Generation Circuit
A1
Row Decoder
3.2
EEPROM Array
1 page
A2
© 2019 Microchip Technology Inc.
WP
Address Register
and Counter
Column Decoder
SCL
Data Register
DOUT
GND
Write
Protection
Control
Data & ACK
Input/Output Control
DIN
Start
Stop
Detector
SDA
Datasheet
20006170A-page 8
AT24CM01
Electrical Characteristics
4.
Electrical Characteristics
4.1
Absolute Maximum Ratings
Temperature under bias
-55°C to +125°C
Storage temperature
-65°C to +150°C
VCC
6.25V
Voltage on any pin with respect to ground
-1.0V to +7.0V
DC output current
5.0 mA
ESD protection
>3 kV
Note: Stresses above those listed under “Absolute Maximum Ratings” may cause permanent damage to
the device. This is a stress rating only and functional operation of the device at these or any other
conditions above those indicated in the operation listings of this specification is not implied. Exposure to
absolute maximum rating conditions for extended periods may affect device reliability.
4.2
DC and AC Operating Range
Table 4-1. DC and AC Operating Range
AT24CM01
4.3
Operating Temperature (Case)
Industrial Temperature Range
-40°C to +85°C
VCC Power Supply
Low-Voltage Grade
1.7V to 5.5V
DC Characteristics
Table 4-2. DC Characteristics
Symbol
Minimum
Typical(1)
Maximum
Units
Supply Voltage,
1.7V Option
VCC1
1.7
—
5.5
V
Supply Voltage,
2.5V Option
VCC2
2.5
—
5.5
V
Supply Current
ICC
—
—
2.0
mA
VCC = 5.0V, Read at
400 kHz
—
—
3.0
mA
VCC = 5.0V, Write at
400 kHz
Parameter
© 2019 Microchip Technology Inc.
Datasheet
Test Conditions
20006170A-page 9
AT24CM01
Electrical Characteristics
...........continued
Parameter
Symbol
Minimum
Typical(1)
Maximum
Units
ISB
—
—
1.0
μA
VCC = 1.7V, VIN = VCC
or VSS
—
—
2.0
μA
VCC = 2.5V, VIN = VCC
or VSS
—
—
3.0
μA
VCC = 3.6V, VIN = VCC
or VSS
—
—
6.0
μA
VCC = 5.5V, VIN = VCC
or VSS
Standby Current
Test Conditions
Input Leakage
Current
ILI
—
0.10
3.0
μA
VIN = VCC or VSS
Output Leakage
Current
ILO
—
0.05
3.0
μA
VOUT = VCC or VSS
Input Low Level
VIL
-0.6
—
VCC x 0.3
V
Note 2
Input High Level
VIH
VCC x 0.7
—
VCC + 0.5
V
Note 2
Output Low Level
VOL1
—
—
0.2
V
VCC = 1.7V, IOL =
0.15 mA
Output Low Level
VOL2
—
—
0.4
V
VCC = 3.0V, IOL =
2.1 mA
Note:
1.
2.
4.4
Typical values characterized at TA = +25°C unless otherwise noted.
This parameter is characterized but is not 100% tested in production.
AC Characteristics
Table 4-3. AC Characteristics(1)
Parameter
Symbol
Fast Mode
Fast Mode Plus
VCC = 1.7V to 5.5V
VCC = 2.5V to 5.5V
Min.
Max.
Min.
Max.
Units
Clock Frequency, SCL
fSCL
—
400
—
1000
kHz
Clock Pulse Width Low
tLOW
1,300
—
500
—
ns
Clock Pulse Width High
tHIGH
600
—
400
—
ns
tI
—
100
—
50
ns
Clock Low to Data Out Valid
tAA
50
900
50
450
ns
Bus Free Time between
Stop and Start(2)
tBUF
1,300
—
500
—
ns
Start Hold Time
tHD.STA
600
—
250
—
ns
Start Set-up Time
tSU.STA
600
—
250
—
ns
Input Filter Spike
Suppression (SCL,SDA)(2)
© 2019 Microchip Technology Inc.
Datasheet
20006170A-page 10
AT24CM01
Electrical Characteristics
...........continued
Parameter
Symbol
Fast Mode
Fast Mode Plus
VCC = 1.7V to 5.5V
VCC = 2.5V to 5.5V
Units
Min.
Max.
Min.
Max.
Data In Hold Time
tHD.DAT
0
—
0
—
ns
Data In Set-up Time
tSU.DAT
100
—
100
—
ns
tR
—
300
—
300
ns
tF
—
300
—
100
ns
tSU.STO
600
—
250
—
ns
Data Out Hold Time
tDH
50
—
50
—
ns
Write Cycle Time
tWR
—
5
—
5
ms
Inputs Rise
Inputs Fall
Time(2)
Time(2)
Stop Condition Set-up Time
Note:
1. AC measurement conditions:
– CL: 100 pF
– RPUP (SDA bus line pull-up resistor to VCC): 1.3 kΩ (1000 kHz), 4 kΩ (400 kHz)
– Input pulse voltages: 0.3 x VCC to 0.7 x VCC
– Input rise and fall times: ≤50 ns
– Input and output timing reference voltages: 0.5 x VCC
2. These parameters are determined through product characterization and are not 100% tested in
production.
Figure 4-1. Bus Timing
tF
tHIGH
tR
tLOW
SCL
tSU.STA
tHD.STA
tHD.DAT
tSU.DAT
tSU.STO
SDA In
tDH
tAA
tBUF
SDA Out
4.5
Electrical Specifications
4.5.1
Power-Up Requirements and Reset Behavior
During a power-up sequence, the VCC supplied to the AT24CM01 should monotonically rise from GND to
the minimum VCC level, as specified in Table 4-1, with a slew rate no faster than 0.1 V/µs.
4.5.1.1
Device Reset
To prevent inadvertent write operations or any other spurious events from occurring during a power-up
sequence, the AT24CM01 includes a Power-on Reset (POR) circuit. Upon power-up, the device will not
© 2019 Microchip Technology Inc.
Datasheet
20006170A-page 11
AT24CM01
Electrical Characteristics
respond to any commands until the VCC level crosses the internal voltage threshold (VPOR) that brings the
device out of Reset and into Standby mode.
The system designer must ensure the instructions are not sent to the device until the VCC supply has
reached a stable value greater than or equal to the minimum VCC level. Additionally, once the VCC is
greater than or equal to the minimum VCC level, the bus master must wait at least tPUP before sending the
first command to the device. See Table 4-4 for the values associated with these power-up parameters.
Table 4-4. Power-Up Conditions(1)
Symbol
Parameter
Min. Max. Units
tPUP
Time required after VCC is stable before the device can accept commands
VPOR
Power-on Reset Threshold Voltage
tPOFF
Minimum time at VCC = 0V between power cycles
100
-
µs
-
1.5
V
500
-
ms
Note:
1. These parameters are characterized but they are not 100% tested in production.
If an event occurs in the system where the VCC level supplied to the AT24CM01 drops below the
maximum VPOR level specified, it is recommended that a full-power cycle sequence be performed by first
driving the VCC pin to GND, waiting at least the minimum tPOFF time and then performing a new power-up
sequence in compliance with the requirements defined in this section.
4.5.2
Pin Capacitance
Table 4-5. Pin Capacitance(1)
Symbol
Test Condition
Max.
Units
Conditions
CI/O
Input/Output Capacitance (SDA)
8
pF
VI/O = 0V
CIN
Input Capacitance (A0, A1, A2 and SCL)
6
pF
VIN = 0V
Note:
1. This parameter is characterized but is not 100% tested in production.
4.5.3
EEPROM Cell Performance Characteristics
Table 4-6. EEPROM Cell Performance Characteristics
Operation
Test Condition
Write Endurance(1)
TA = 25°C, VCC = 3.3V,
Page Write mode
Data Retention(1)
TA = 55°C
Min.
Max.
Units
1,000,000
—
Write Cycles
100
—
Years
Note:
1. Performance is determined through characterization and the qualification process.
© 2019 Microchip Technology Inc.
Datasheet
20006170A-page 12
AT24CM01
Device Operation and Communication
5.
Device Operation and Communication
The AT24CM01 operates as a slave device and utilizes a simple I2C-compatible two-wire digital serial
interface to communicate with a host controller, commonly referred to as the bus master. The master
initiates and controls all read and write operations to the slave devices on the serial bus, and both the
master and the slave devices can transmit and receive data on the bus.
The serial interface is comprised of just two signal lines: Serial Clock (SCL) and Serial Data (SDA).
The SCL pin is used to receive the clock signal from the master, while the bidirectional SDA pin is used to
receive command and data information from the master as well as to send data back to the master.
Data is always latched into the AT24CM01 on the rising edge of SCL and always output from the device
on the falling edge of SCL. Both the SCL and SDA pins incorporate integrated spike suppression filters
and Schmitt Triggers to minimize the effects of input spikes and bus noise.
All command and data information is transferred with the Most Significant bit (MSb) first. During bus
communication, one data bit is transmitted every clock cycle, and after eight bits (one byte) of data have
been transferred, the receiving device must respond with either an Acknowledge (ACK) or a
No-Acknowledge (NACK) response bit during a ninth clock cycle (ACK/NACK clock cycle) generated by
the master. Therefore, nine clock cycles are required for every one byte of data transferred. There are no
unused clock cycles during any read or write operation, so there must not be any interruptions or breaks
in the data stream during each data byte transfer and ACK or NACK clock cycle.
During data transfers, data on the SDA pin must only change while SCL is low, and the data must remain
stable while SCL is high. If data on the SDA pin changes while SCL is high, then either a Start or a Stop
condition will occur. Start and Stop conditions are used to initiate and end all serial bus communication
between the master and the slave devices. The number of data bytes transferred between a Start and a
Stop condition is not limited and is determined by the master. In order for the serial bus to be idle, both
the SCL and SDA pins must be in the logic high state at the same time.
5.1
Clock and Data Transition Requirements
The SDA pin is an open-drain terminal and therefore must be pulled high with an external pull‑up resistor.
SCL is an input pin that can either be driven high or pulled high using an external pull‑up resistor. Data on
the SDA pin may change only during SCL low time periods. Data changes during SCL high periods will
indicate a Start or Stop condition as defined below. The relationship of the AC timing parameters with
respect to SCL and SDA for the AT24CM01 are shown in the timing waveform in Figure 4-1. The AC
timing characteristics and specifications are outlined in AC Characteristics.
5.2
Start and Stop Conditions
5.2.1
Start Condition
A Start condition occurs when there is a high-to-low transition on the SDA pin while the SCL pin is at a
stable logic ‘1’ state and will bring the device out of Standby mode. The master uses a Start condition to
initiate any data transfer sequence; therefore, every command must begin with a Start condition.
The device will continuously monitor the SDA and SCL pins for a Start condition but will not respond
unless one is detected. Refer to Figure 5-1 for more details.
5.2.2
Stop Condition
A Stop condition occurs when there is a low-to-high transition on the SDA pin while the SCL pin is stable
in the logic ‘1’ state.
© 2019 Microchip Technology Inc.
Datasheet
20006170A-page 13
AT24CM01
Device Operation and Communication
The master can use the Stop condition to end a data transfer sequence with the AT24CM01, which will
subsequently return to Standby mode. The master can also utilize a repeated Start condition instead of a
Stop condition to end the current data transfer if the master will perform another operation. Refer to
Figure 5-1 for more details.
5.3
Acknowledge and No-Acknowledge
After every byte of data is received, the receiving device must confirm to the transmitting device that it
has successfully received the data byte by responding with what is known as an Acknowledge (ACK).
An ACK is accomplished by the transmitting device first releasing the SDA line at the falling edge of the
eighth clock cycle followed by the receiving device responding with a logic ‘0’ during the entire high period
of the ninth clock cycle.
When the AT24CM01 is transmitting data to the master, the master can indicate that it is done receiving
data and wants to end the operation by sending a logic ‘1’ response to the AT24CM01 instead of an ACK
response during the ninth clock cycle. This is known as a No-Acknowledge (NACK) and is accomplished
by the master sending a logic ‘1’ during the ninth clock cycle, at which point the AT24CM01 will release
the SDA line so the master can then generate a Stop condition.
The transmitting device, which can be the bus master or the Serial EEPROM, must release the SDA line
at the falling edge of the eighth clock cycle to allow the receiving device to drive the SDA line to a logic ‘0’
to ACK the previous 8-bit word. The receiving device must release the SDA line at the end of the ninth
clock cycle to allow the transmitter to continue sending new data. A timing diagram has been provided in
Figure 5-1 to better illustrate these requirements.
Figure 5-1. Start Condition, Data Transitions, Stop Condition and Acknowledge
SCL
SDA
Must Be
Stable
SDA
Must Be
Stable
1
2
Acknowledge Window
8
9
SDA
Start
Condition
5.4
Acknowledge
Valid
SDA
Change
Allowed
SDA
Change
Allowed
The transmitting device (Master or Slave)
must release the SDA line at this point to allow
the receiving device (Master or Slave) to drive the
SDA line low to ACK the previous 8-bit word.
Stop
Condition
The receiver (Master or Slave)
must release the SDA line at
this point to allow the transmitter
to continue sending new data.
Standby Mode
The AT24CM01 features a low-power Standby mode that is enabled when any one of the following
occurs:
• A valid power-up sequence is performed (see Power-Up Requirements and Reset Behavior).
• A Stop condition is received by the device unless it initiates an internal write cycle (see Write
Operations).
• At the completion of an internal write cycle (see Write Operations).
© 2019 Microchip Technology Inc.
Datasheet
20006170A-page 14
AT24CM01
Device Operation and Communication
5.5
Software Reset
After an interruption in protocol, power loss or system Reset, any two‑wire device can be protocol reset
by clocking SCL until SDA is released by the EEPROM and goes high. The number of clock cycles until
SDA is released by the EEPROM will vary. The software Reset sequence should not take more than nine
dummy clock cycles. Once the software Reset sequence is complete, new protocol can be sent to the
device by sending a Start condition followed by the protocol. Refer to Figure 5-2 for an illustration.
Figure 5-2. Software Reset
Dummy Clock Cycles
SCL
1
2
3
8
SDA Released
by EEPROM
9
Device is
Software Reset
SDA
In the event that the device is still non-responsive or remains active on the SDA bus, a power cycle must
be used to reset the device (see Power-Up Requirements and Reset Behavior).
© 2019 Microchip Technology Inc.
Datasheet
20006170A-page 15
AT24CM01
Memory Organization
6.
Memory Organization
The AT24CM01 is internally organized as 512 pages of 256 bytes each.
6.1
Device Addressing
Accessing the device requires an 8-bit device address byte following a Start condition to enable the
device for a read or write operation. Since multiple slave devices can reside on the serial bus, each slave
device must have its own unique address so the master can access each device independently.
The Most Significant four bits of the device address byte is referred to as the device type identifier. The
device type identifier ‘1010’ (Ah) is required in bits 7 through 4 of the device address byte (see
Table 6‑1).
Following the 4-bit device type identifier are the hardware slave address bits, A2 and A1. These bits can
be used to expand the address space by allowing up to four Serial EEPROM devices on the same bus.
The A2 and A1 values must correlate with the voltage level on the corresponding hardwired device
address input pins A2 and A1. The A2 and A1 pins use an internal proprietary circuit that automatically
biases it to a logic ‘0’ state if the pin is allowed to float. In order to operate in a wide variety of application
environments, the pull‑down mechanism is intentionally designed to be somewhat strong. Once these
pins are biased above the CMOS input buffer’s trip point (~0.5 x VCC), the pull-down mechanism
disengages. Microchip recommends connecting the A2 and A1 pin to a known state whenever possible.
Following the A2 and A1 hardware slave address bits is bit A16 (bit 1 of the device address byte), which
is the Most Significant bit of the memory array word address. Refer to Table 6-1 to review the bit position.
The eighth bit (bit 0) of the device address byte is the Read/Write Select bit. A read operation is initiated if
this bit is high and a write operation is initiated if this bit is low.
Upon the successful comparison of the device address byte, the AT24CM01 will return an ACK. If a valid
comparison is not made, the device will NACK.
Table 6-1. Device Addressing
Package
Device Type Identifier
Bit 7 Bit 6 Bit 5 Bit 4
SOIC, SOIJ,
TSSOP,
WLCSP
1
0
1
0
Hardware Slave
Address Bits
Most Significant Bit R/W Select
of the Word
Address
Bit 3
Bit 2
Bit 1
Bit 0
A2
A1
A16
R/W
For all operations except the current address read, two 8‑bit word address bytes must be transmitted to
the device immediately following the device address byte. The word address bytes consist of the
remaining 16 bits of the 17-bit memory array word address, and are used to specify which byte location in
the EEPROM to start reading or writing.
The first word address byte contains the next eight bits of the word address (A15 through A8) in bit
positions seven through zero, as seen in Table 6-2. Upon completion of the first word address byte, the
AT24CM01 will return an ACK.
© 2019 Microchip Technology Inc.
Datasheet
20006170A-page 16
AT24CM01
Memory Organization
Table 6-2. First Word Address Byte
Bit 7
Bit 6
Bit 5
Bit 4
Bit 3
Bit 2
Bit 1
Bit 0
A15
A14
A13
A12
A11
A10
A9
A8
Next, the second word address byte is sent to the device which provides the remaining eight bits of the
word address (A7 through A0). Upon completion of the second word address byte, the AT24CM01 will
return an ACK. See Table 6-3 to review these bit positions.
Table 6-3. Second Word Address Byte
Bit 7
Bit 6
Bit 5
Bit 4
Bit 3
Bit 2
Bit 1
Bit 0
A7
A6
A5
A4
A3
A2
A1
A0
© 2019 Microchip Technology Inc.
Datasheet
20006170A-page 17
AT24CM01
Write Operations
7.
Write Operations
All write operations for the AT24CM01 begin with the master sending a Start condition, followed by a
device address byte with the R/W bit set to logic ‘0’, and then by the word address byte. The data
value(s) to be written to the device immediately follow the word address byte.
7.1
Byte Write
The AT24CM01 supports the writing of a single 8-bit byte. Selecting a data word in the AT24CM01
requires 17-bit word address.
Upon receipt of the proper device address and the word address bytes, the EEPROM will send an
Acknowledge. The device will then be ready to receive the 8-bit data word. Following receipt of the 8‑bit
data word, the EEPROM will respond with an ACK. The addressing device, such as a bus master, must
then terminate the write operation with a Stop condition. At that time, the EEPROM will enter an internally
self-timed write cycle, which will be completed within tWR, while the data word is being programmed into
the nonvolatile EEPROM. All inputs are disabled during this write cycle, and the EEPROM will not
respond until the write is complete.
Figure 7-1. Byte Write
SCL
1
2
3
4
5
6
7
8
9
1
2
Device Address Byte
SDA
1
0
1
0
A2
A1
3
4
5
6
7
8
9
A8
0
First Word Address Byte
A16
0
0
MSB
A15 A14 A13 A12 A11 A10
A9
MSB
Start Condition
by Master
ACK
from Slave
1
2
3
4
5
ACK
from Slave
6
7
8
9
1
2
3
A6
A5
A4
A3
A2
A1
A0
0
MSB
6
7
8
9
D7
D6
D5
D4
D3
D2
D1
D0
0
MSB
ACK
from Slave
7.2
5
Data Word
Second Word Address Byte
A7
4
Stop Condition
ACK
from Slave by Master
Page Write
A page write operation allows up to 256 bytes to be written in the same write cycle, provided all bytes are
in the same row of the memory array (where address bits A16 through A8 are the same). Partial page
writes of less than 256 bytes are also allowed.
A page write is initiated the same way as a byte write, but the bus master does not send a Stop condition
after the first data word is clocked in. Instead, after the EEPROM acknowledges receipt of the first data
word, the bus master can transmit up to 255 additional data words. The EEPROM will respond with an
ACK after each data word is received. Once all data to be written has been sent to the device, the bus
master must issue a Stop condition (see Figure 7-2) at which time the internally self-timed write cycle will
begin.
The lower eight bits of the word address are internally incremented following the receipt of each data
word. The higher order address bits are not incremented and retain the memory page row location. Page
© 2019 Microchip Technology Inc.
Datasheet
20006170A-page 18
AT24CM01
Write Operations
write operations are limited to writing bytes within a single physical page, regardless of the number of
bytes actually being written. When the incremented word address reaches the page boundary, the
address counter will rollover to the beginning of the same page. Nevertheless, creating a rollover event
should be avoided as previously loaded data in the page could become unintentionally altered.
Figure 7-2. Page Write
1
SCL
2
3
4
5
6
7
8
9
1
2
Device Address Byte
SDA
1
0
1
0
A2
A1
A16
0
0
A6
6
7
A15 A14 A13 A12 A11 A10
A9
ACK
from Slave
3
4
5
6
7
8
9
1
2
Second Word Address Byte
A7
5
9
A8
0
A5
A4
A3
A2
A1
ACK
from Slave
3
4
5
6
7
8
9
Data Word (n)
A0
0
MSB
D7
D6
D5
D4
D3
D2
1
2
3
4
5
6
7
8
9
Data Word (n+x), max of 256 without rollover
D1
D0
MSB
0
D7
D6
D5
D4
D3
D2
D1
D0
0
MSB
ACK
from Slave
7.3
8
MSB
Start Condition
by Master
2
4
First Word Address Byte
MSB
1
3
Stop Condition
ACK by Master
from Slave
ACK
from Slave
Acknowledge Polling
An Acknowledge Polling routine can be implemented to optimize time-sensitive applications that would
prefer not to wait the fixed maximum write cycle time (tWR). This method allows the application to know
immediately when the Serial EEPROM write cycle has completed, so a subsequent operation can be
started.
Once the internally self-timed write cycle has started, an Acknowledge Polling routine can be initiated.
This involves repeatedly sending a Start condition followed by a valid device address byte with the R/W
bit set at logic ‘0’. The device will not respond with an ACK while the write cycle is ongoing. Once the
internal write cycle has completed, the EEPROM will respond with an ACK, allowing a new read or write
operation to be immediately initiated. A flowchart has been included below in Figure 7-3 to better illustrate
this technique.
Figure 7-3. Acknowledge Polling Flowchart
Send any
Write
protocol.
Send
Stop
condition
to initiate the
Write cycle.
Send Start
condition followed
by a valid
Device Address
byte with R/W = 0.
Did
the device
ACK?
YES
Proceed to
next Read or
Write operation.
NO
© 2019 Microchip Technology Inc.
Datasheet
20006170A-page 19
AT24CM01
Write Operations
7.4
Write Cycle Timing
The length of the self-timed write cycle (tWR) is defined as the amount of time from the Stop condition that
begins the internal write cycle to the Start condition of the first device address byte sent to the AT24CM01
that it subsequently responds to with an ACK. Figure 7-4 has been included to show this measurement.
During the internally self-timed write cycle, any attempts to read from or write to the memory array will not
be processed.
Figure 7-4. Write Cycle Timing
SCL
8
9
9
ACK
ACK
Data Word n
SDA
D0
tWR
Stop
Condition
7.5
Start
Condition
First Acknowledge from the device
to a valid device address sequence after
write cycle is initiated. The minimum tWR
can only be determined through
the use of an ACK Polling routine.
Stop
Condition
Write Protection
The AT24CM01 utilizes a hardware data protection scheme that allows the user to write‑protect the entire
memory contents when the WP pin is at VCC (or a valid VIH). No write protection will be set if the WP pin
is at GND or left floating.
Table 7-1. AT24CM01 Write-Protect Behavior
WP Pin Voltage
Part of the Array Protected
VCC
Full Array
GND
None - Write Protection Not Enabled
The status of the WP pin is sampled at the Stop condition for every byte write or page write operation
prior to the start of an internally self‑timed write cycle. Changing the WP pin state after the Stop condition
has been sent will not alter or interrupt the execution of the write cycle.
If an attempt is made to write to the device while the WP pin has been asserted, the device will
acknowledge the device address, word address and data bytes, but no write cycle will occur when the
Stop condition is issued. The device will immediately be ready to accept a new read or write command.
© 2019 Microchip Technology Inc.
Datasheet
20006170A-page 20
AT24CM01
Read Operations
8.
Read Operations
Read operations are initiated the same way as write operations with the exception that the Read/Write
Select bit in the device address byte must be a logic ‘1’. There are three read operations:
• Current Address Read
• Random Address Read
• Sequential Read
8.1
Current Address Read
The internal data word address counter maintains the last address accessed during the last read or write
operation, incremented by one. This address stays valid between operations as long as the VCC is
maintained to the part. The address roll-over during a read is from the last byte of the last page to the first
byte of the first page of the memory.
A current address read operation will output data according to the location of the internal data word
address counter. This is initiated with a Start condition, followed by a valid device address byte with the
R/W bit set to logic ‘1’. The device will ACK this sequence and the current address data word is serially
clocked out on the SDA line. All types of read operations will be terminated if the bus master does not
respond with an ACK (it NACKs) during the ninth clock cycle. After the NACK response, the master may
send a Stop condition to complete the protocol, or it can send a Start condition to begin the next
sequence.
Figure 8-1. Current Address Read
1
SCL
2
3
4
5
6
7
8
9
1
2
Device Address Byte
SDA
1
1
0
A2
A1
4
5
6
7
8
9
D2
D1
D0
1
Data Word (n)
A16
1
0
MSB
Start
by
Master
8.2
0
3
D7
D6
D5
D4
D3
MSB
ACK
from
Slave
NACK
from
Master
Stop
by
Master
Random Read
A random read begins in the same way as a byte write operation does to load in a new data word
address. This is known as a “dummy write” sequence; however, the data byte and the Stop condition of
the byte write must be omitted to prevent the part from entering an internal write cycle. Once the device
address and word address are clocked in and acknowledged by the EEPROM, the bus master must
generate another Start condition. The bus master now initiates a current address read by sending a Start
condition, followed by a valid device address byte with the R/W bit set to logic ‘1’. The EEPROM will ACK
the device address and serially clock out the data word on the SDA line. All types of read operations will
be terminated if the bus master does not respond with an ACK (it NACKs) during the ninth clock cycle.
After the NACK response, the master may send a Stop condition to complete the protocol, or it can send
a Start condition to begin the next sequence.
© 2019 Microchip Technology Inc.
Datasheet
20006170A-page 21
AT24CM01
Read Operations
Figure 8-2. Random Read
1
SCL
2
3
4
5
6
7
8
9
1
2
Device Address Byte
SDA
1
0
1
0
A2
A1
3
4
5
6
7
8
9
1
2
First Word Address Byte
A16
0
A15 A14 A13 A12 A11 A10
0
MSB
4
5
6
7
8
9
A0
0
Second Word Address Byte
A9
A8
0
A7
MSB
Start Condition
by Master
3
A6
A5
A4
A3
A2
A1
MSB
ACK
from Slave
ACK
from Slave
ACK
from Slave
Dummy Write
1
2
3
4
5
6
7
8
9
1
2
3
0
1
0
A2
A16
A1
1
0
D7
MSB
6
7
8
9
D6
D5
D4
D3
D2
D1
D0
1
MSB
Start Condition
by Master
8.3
5
Data Word (n)
Device Address Byte
1
4
Stop Condition
NACK
from Master by Master
ACK
from Slave
Sequential Read
Sequential reads are initiated by either a current address read or a random read. After the bus master
receives a data word, it responds with an Acknowledge. As long as the EEPROM receives an ACK, it will
continue to increment the word address and serially clock out sequential data words. When the maximum
memory address is reached, the data word address will roll-over and the sequential read will continue
from the beginning of the memory array. All types of read operations will be terminated if the bus master
does not respond with an ACK (it NACKs) during the ninth clock cycle. After the NACK response, the
master may send a Stop condition to complete the protocol, or it can send a Start condition to begin the
next sequence.
Figure 8-3. Sequential Read
1
SCL
2
3
4
5
6
7
8
9
1
2
3
Device Address Byte
SDA
1
0
1
0
A2
A1
1
A16
6
7
8
9
0
D7
D6
D5
D4
D3
D2
D1
D0
0
MSB
Start
by
Master
ACK
from
Slave
2
3
4
5
6
7
8
9
1
2
Data Word (n+1)
D7
5
Data Word (n)
MSB
1
4
D6
D5
D4
D3
D2
ACK
from
Master
3
4
5
6
7
8
1
2
Data Word (n+2)
D1
D0
0
MSB
D7
D6
D5
D4
D3
D2
3
4
5
6
7
8
9
D1
D0
1
Data Word (n+x)
D1
D0
0
MSB
D7
D6
D5
D4
D3
D2
MSB
ACK
from
Master
© 2019 Microchip Technology Inc.
9
ACK
from
Master
Datasheet
NACK
from
Master
Stop
by
Master
20006170A-page 22
AT24CM01
Device Default Condition from Microchip
9.
Device Default Condition from Microchip
The AT24CM01 is delivered with the EEPROM array set to logic ‘1’, resulting in FFh data in all locations.
© 2019 Microchip Technology Inc.
Datasheet
20006170A-page 23
AT24CM01
Packaging Information
10.
Packaging Information
10.1
Package Marking Information
AT24CM01: Package Marking Information
8-lead SOIJ
8-lead SOIC
ATMLHYWW
###% CO
YYWWNNN
ATMLHYWW
###% CO
YYWWNNN
8-lead TSSOP
8-ball WLCSP
ATHYWW
###%CO
YYWWNNN
Note 1:
%U
###
NNN
designates pin 1
Note 2: Package drawings are not to scale
Catalog Number Truncation
AT24CM01
Truncation Code ###: 2G
Date Codes
Y = Year
4: 2014
5: 2015
6: 2016
7: 2017
Voltages
8: 2018
9: 2019
0: 2020
1: 2021
M = Month
A: January
B: February
...
L: December
WW = Work Week of Assembly
02: Week 2
04: Week 4
...
52: Week 52
Country of Assembly
Device Grade
CO = Country of Origin
H or U: Industrial Grade
% = Minimum Voltage
D: 2.5V min
M: 1.7V min
Atmel Truncation
AT: Atmel
ATM: Atmel
ATML: Atmel
Lot Number or Trace Code
NNN = Alphanumeric Trace Code (2 Characters for Small Packages)
© 2019 Microchip Technology Inc.
Datasheet
20006170A-page 24
AT24CM01
Packaging Information
8-Lead Plastic Small Outline (SN) - Narrow, 3.90 mm (.150 In.) Body [SOIC]
Note:
For the most current package drawings, please see the Microchip Packaging Specification located at
http://www.microchip.com/packaging
2X
0.10 C A–B
D
A
D
NOTE 5
N
E
2
E1
2
E1
E
NOTE 1
2
1
e
B
NX b
0.25
C A–B D
NOTE 5
TOP VIEW
0.10 C
C
A A2
SEATING
PLANE
8X
A1
SIDE VIEW
0.10 C
h
R0.13
h
R0.13
H
0.23
L
SEE VIEW C
(L1)
VIEW A–A
VIEW C
Microchip Technology Drawing No. C04-057-SN Rev D Sheet 1 of 2
© 2017 Microchip Technology Incorporated
© 2019 Microchip Technology Inc.
Datasheet
20006170A-page 25
AT24CM01
Packaging Information
8-Lead Plastic Small Outline (SN) - Narrow, 3.90 mm (.150 In.) Body [SOIC]
Note:
For the most current package drawings, please see the Microchip Packaging Specification located at
http://www.microchip.com/packaging
Units
Dimension Limits
Number of Pins
N
e
Pitch
Overall Height
A
Molded Package Thickness
A2
§
Standoff
A1
Overall Width
E
Molded Package Width
E1
Overall Length
D
Chamfer (Optional)
h
Foot Length
L
L1
Footprint
Foot Angle
c
Lead Thickness
b
Lead Width
Mold Draft Angle Top
Mold Draft Angle Bottom
MIN
1.25
0.10
0.25
0.40
0°
0.17
0.31
5°
5°
MILLIMETERS
NOM
8
1.27 BSC
6.00 BSC
3.90 BSC
4.90 BSC
1.04 REF
-
MAX
1.75
0.25
0.50
1.27
8°
0.25
0.51
15°
15°
Notes:
1. Pin 1 visual index feature may vary, but must be located within the hatched area.
2. § Significant Characteristic
3. Dimensions D and E1 do not include mold flash or protrusions. Mold flash or
protrusions shall not exceed 0.15mm per side.
4. Dimensioning and tolerancing per ASME Y14.5M
BSC: Basic Dimension. Theoretically exact value shown without tolerances.
REF: Reference Dimension, usually without tolerance, for information purposes only.
5. Datums A & B to be determined at Datum H.
Microchip Technology Drawing No. C04-057-SN Rev D Sheet 2 of 2
© 2017 Microchip Technology Incorporated
© 2019 Microchip Technology Inc.
Datasheet
20006170A-page 26
AT24CM01
Packaging Information
8-Lead Plastic Small Outline (SN) - Narrow, 3.90 mm Body [SOIC]
Note:
For the most current package drawings, please see the Microchip Packaging Specification located at
http://www.microchip.com/packaging
SILK SCREEN
C
Y1
X1
E
RECOMMENDED LAND PATTERN
Units
Dimension Limits
E
Contact Pitch
Contact Pad Spacing
C
Contact Pad Width (X8)
X1
Contact Pad Length (X8)
Y1
MIN
MILLIMETERS
NOM
1.27 BSC
5.40
MAX
0.60
1.55
Notes:
1. Dimensioning and tolerancing per ASME Y14.5M
BSC: Basic Dimension. Theoretically exact value shown without tolerances.
Microchip Technology Drawing C04-2057-SN Rev B
© 2017 Microchip Technology Incorporated
© 2019 Microchip Technology Inc.
Datasheet
20006170A-page 27
AT24CM01
Packaging Information
Note:
For the most current package drawings, please see the Microchip Packaging Specification located at
http://www.microchip.com/packaging
© 2017 Microchip Technology Incorporated
© 2019 Microchip Technology Inc.
Datasheet
20006170A-page 28
AT24CM01
Packaging Information
Note:
For the most current package drawings, please see the Microchip Packaging Specification located at
http://www.microchip.com/packaging
© 2017 Microchip Technology Incorporated
© 2019 Microchip Technology Inc.
Datasheet
20006170A-page 29
AT24CM01
Packaging Information
Note:
For the most current package drawings, please see the Microchip Packaging Specification located at
http://www.microchip.com/packaging
© 2017 Microchip Technology Incorporated
© 2019 Microchip Technology Inc.
Datasheet
20006170A-page 30
AT24CM01
Packaging Information
/HDG3ODVWLF7KLQ6KULQN6PDOO2XWOLQH67±PP%RG\>76623@
1RWH
)RUWKHPRVWFXUUHQWSDFNDJHGUDZLQJVSOHDVHVHHWKH0LFURFKLS3DFNDJLQJ6SHFLILFDWLRQORFDWHGDW
KWWSZZZPLFURFKLSFRPSDFNDJLQJ
D
N
E
E1
NOTE 1
1
2
b
e
c
A
φ
A2
A1
L
L1
8QLWV
'LPHQVLRQ/LPLWV
1XPEHURI3LQV
0,//,0(7(56
0,1
1
120
0$;
3LWFK
H
2YHUDOO+HLJKW
$
±
%6&
±
0ROGHG3DFNDJH7KLFNQHVV
$
6WDQGRII
$
±
2YHUDOO:LGWK
(
0ROGHG3DFNDJH:LGWK
(
%6&
0ROGHG3DFNDJH/HQJWK
'
)RRW/HQJWK
/
)RRWSULQW
/
5()
)RRW$QJOH
±
/HDG7KLFNQHVV
F
±
/HDG:LGWK
E
±
1RWHV
3LQYLVXDOLQGH[IHDWXUHPD\YDU\EXWPXVWEHORFDWHGZLWKLQWKHKDWFKHGDUHD
'LPHQVLRQV'DQG(GRQRWLQFOXGHPROGIODVKRUSURWUXVLRQV0ROGIODVKRUSURWUXVLRQVVKDOOQRWH[FHHGPPSHUVLGH
'LPHQVLRQLQJDQGWROHUDQFLQJSHU$60(
