AT91SAM
ARM-based Flash MCU
SAM7S512 SAM7S256 SAM7S128 SAM7S64
SAM7S321 SAM7S32 SAM7S161 SAM7S16
Summary
Features
• Incorporates the ARM7TDMI® ARM® Thumb® Processor
•
•
•
•
•
•
•
This is a summary document.
The complete document is
available on the Atmel website
at www.atmel.com.
– High-performance 32-bit RISC Architecture
– High-density 16-bit Instruction Set
– Leader in MIPS/Watt
– EmbeddedICE™ In-circuit Emulation, Debug Communication Channel Support
Internal High-speed Flash
– 512 Kbytes (SAM7S512) Organized in Two Contiguous Banks of 1024 Pages of 256
Bytes (Dual Plane)
– 256 Kbytes (SAM7S256) Organized in 1024 Pages of 256 Bytes (Single Plane)
– 128 Kbytes (SAM7S128) Organized in 512 Pages of 256 Bytes (Single Plane)
– 64 Kbytes (SAM7S64) Organized in 512 Pages of 128 Bytes (Single Plane)
– 32 Kbytes (SAM7S321/32) Organized in 256 Pages of 128 Bytes (Single Plane)
– 16 Kbytes (SAM7S161/16) Organized in 256 Pages of 64 Bytes (Single Plane)
– Single Cycle Access at Up to 30 MHz in Worst Case Conditions
– Prefetch Buffer Optimizing Thumb Instruction Execution at Maximum Speed
– Page Programming Time: 6 ms, Including Page Auto-erase, Full Erase Time: 15 ms
– 10,000 Write Cycles, 10-year Data Retention Capability, Sector Lock Capabilities, Flash
Security Bit
– Fast Flash Programming Interface for High Volume Production
Internal High-speed SRAM, Single-cycle Access at Maximum Speed
– 64 Kbytes (SAM7S512/256)
– 32 Kbytes (SAM7S128)
– 16 Kbytes (SAM7S64)
– 8 Kbytes (SAM7S321/32)
– 4 Kbytes (SAM7S161/16)
Memory Controller (MC)
– Embedded Flash Controller, Abort Status and Misalignment Detection
Reset Controller (RSTC)
– Based on Power-on Reset and Low-power Factory-calibrated Brown-out Detector
– Provides External Reset Signal Shaping and Reset Source Status
Clock Generator (CKGR)
– Low-power RC Oscillator, 3 to 20 MHz On-chip Oscillator and one PLL
Power Management Controller (PMC)
– Software Power Optimization Capabilities, Including Slow Clock Mode (Down to 500
Hz) and Idle Mode
– Three Programmable External Clock Signals
Advanced Interrupt Controller (AIC)
– Individually Maskable, Eight-level Priority, Vectored Interrupt Sources
– Two (SAM7S512/256/128/64/321/161) or One (SAM7S32/16) External Interrupt Source(s)
and One Fast Interrupt Source, Spurious Interrupt Protected
6175KS–ATARM–25-Oct-12
• Debug Unit (DBGU)
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
– 2-wire UART and Support for Debug Communication Channel interrupt, Programmable ICE Access Prevention
– Mode for General Purpose 2-wire UART Serial Communication
Periodic Interval Timer (PIT)
– 20-bit Programmable Counter plus 12-bit Interval Counter
Windowed Watchdog (WDT)
– 12-bit key-protected Programmable Counter
– Provides Reset or Interrupt Signals to the System
– Counter May Be Stopped While the Processor is in Debug State or in Idle Mode
Real-time Timer (RTT)
– 32-bit Free-running Counter with Alarm
– Runs Off the Internal RC Oscillator
One Parallel Input/Output Controller (PIOA)
– Thirty-two (SAM7S512/256/128/64/321/161) or twenty-one (SAM7S32/16) Programmable I/O Lines Multiplexed with up to
Two Peripheral I/Os
– Input Change Interrupt Capability on Each I/O Line
– Individually Programmable Open-drain, Pull-up resistor and Synchronous Output
Eleven (SAM7S512/256/128/64/321/161) or Nine (SAM7S32/16) Peripheral DMA Controller (PDC) Channels
One USB 2.0 Full Speed (12 Mbits per Second) Device Port (Except for the SAM7S32/16).
– On-chip Transceiver, 328-byte Configurable Integrated FIFOs
One Synchronous Serial Controller (SSC)
– Independent Clock and Frame Sync Signals for Each Receiver and Transmitter
– I²S Analog Interface Support, Time Division Multiplex Support
– High-speed Continuous Data Stream Capabilities with 32-bit Data Transfer
Two (SAM7S512/256/128/64/321/161) or One (SAM7S32/16) Universal Synchronous/Asynchronous Receiver Transmitters
(USART)
– Individual Baud Rate Generator, IrDA® Infrared Modulation/Demodulation
– Support for ISO7816 T0/T1 Smart Card, Hardware Handshaking, RS485 Support
– Full Modem Line Support on USART1 (SAM7S512/256/128/64/321/161)
One Master/Slave Serial Peripheral Interface (SPI)
– 8- to 16-bit Programmable Data Length, Four External Peripheral Chip Selects
One Three-channel 16-bit Timer/Counter (TC)
– Three External Clock Input and Two Multi-purpose I/O Pins per Channel (SAM7S512/256/128/64/321/161)
– One External Clock Input and Two Multi-purpose I/O Pins for the first Two Channels Only (SAM7S32/16)
– Double PWM Generation, Capture/Waveform Mode, Up/Down Capability
One Four-channel 16-bit PWM Controller (PWMC)
One Two-wire Interface (TWI)
– Master Mode Support Only, All Two-wire Atmel EEPROMs and I2C Compatible Devices Supported
(SAM7S512/256/128/64/321/32)
– Master, Multi-Master and Slave Mode Support, All Two-wire Atmel EEPROMs and I2C Compatible Devices Supported
(SAM7S161/16)
One 8-channel 10-bit Analog-to-Digital Converter, Four Channels Multiplexed with Digital I/Os
SAM-BA™ Boot Assistant
– Default Boot program
– Interface with SAM-BA Graphic User Interface
IEEE® 1149.1 JTAG Boundary Scan on All Digital Pins
5V-tolerant I/Os, including Four High-current Drive I/O lines, Up to 16 mA Each (SAM7S161/16 I/Os Not 5V-tolerant)
Power Supplies
– Embedded 1.8V Regulator, Drawing up to 100 mA for the Core and External Components
– 3.3V or 1.8V VDDIO I/O Lines Power Supply, Independent 3.3V VDDFLASH Flash Power Supply
– 1.8V VDDCORE Core Power Supply with Brown-out Detector
SAM7S Series [DATASHEET]
6175KS–ATARM–25-Oct-12
2
• Fully Static Operation: Up to 55 MHz at 1.65V and 85⋅ C Worst Case Conditions

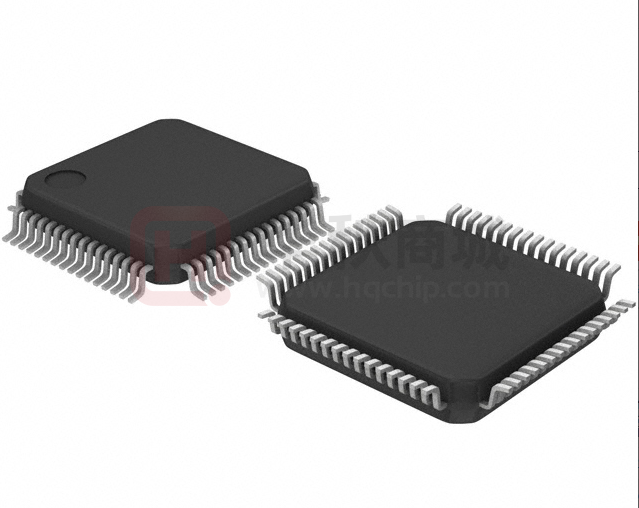

• Available in 64-lead LQFP Green or 64-pad QFN Green Package (SAM7S512/256/128/64/321/161) and 48-lead LQFP Green or
48-pad QFN Green Package (SAM7S32/16)
1.
Description
Atmel’s SAM7S is a series of low pincount Flash microcontrollers based on the 32-bit ARM RISC processor. It features a high-speed Flash and an SRAM, a large set of peripherals, including a USB 2.0 device (except for the
SAM7S32 and SAM7S16), and a complete set of system functions minimizing the number of external components.
The device is an ideal migration path for 8-bit microcontroller users looking for additional performance and
extended memory.
The embedded Flash memory can be programmed in-system via the JTAG-ICE interface or via a parallel interface
on a production programmer prior to mounting. Built-in lock bits and a security bit protect the firmware from accidental overwrite and preserves its confidentiality.
The SAM7S Series system controller includes a reset controller capable of managing the power-on sequence of
the microcontroller and the complete system. Correct device operation can be monitored by a built-in brownout
detector and a watchdog running off an integrated RC oscillator.
The SAM7S Series are general-purpose microcontrollers. Their integrated USB Device port makes them ideal devices
for peripheral applications requiring connectivity to a PC or cellular phone. Their aggressive price point and high level of
integration pushes their scope of use far into the cost-sensitive, high-volume consumer market.
1.1
Configuration Summary of the SAM7S512, SAM7S256, SAM7S128, SAM7S64, SAM7S321,
SAM7S32, SAM7S161 and SAM7S16
The SAM7S512, SAM7S256, SAM7S128, SAM7S64, SAM7S321, SAM7S32, SAM7S161 and SAM7S16 differ in
memory size, peripheral set and package. Table 1-1 summarizes the configuration of the six devices.
Except for the SAM7S32/16, all other SAM7S devices are package and pinout compatible.
Table 1-1.
Device
Configuration Summary
Flash
TWI
Flash
Organization SRAM
External
USB
Interrupt PDC
TC
I/O 5V
I/O
Device
Port
USART Source Channels Channels Tolerant Lines
Package
SAM7S512
512 Kbytes Master
dual plane
64 Kbytes 1
2(1) (2)
2
11
3
Yes
32
LQFP/
QFN 64
SAM7S256
256 Kbytes Master
single plane
64 Kbytes 1
2(1) (2)
2
11
3
Yes
32
LQFP/
QFN 64
SAM7S128
128 Kbytes Master
single plane
32 Kbytes 1
2(1) (2)
2
11
3
Yes
32
LQFP/
QFN 64
SAM7S64
64 Kbytes
Master
single plane
16 Kbytes 1
2(2)
2
11
3
Yes
32
LQFP/
QFN 64
SAM7S321
32 Kbytes
Master
single plane
8 Kbytes
1
2(2)
2
11
3
Yes
32
LQFP/
QFN 64
SAM7S32
32 Kbytes
Master
single plane
8 Kbytes
not
1
present
1
9
3(3)
Yes
21
LQFP/
QFN 48
SAM7S161
16 Kbytes
Master/
Slave
single plane
4 Kbytes
1
2
11
3
No
32
LQFP
SAM7S16
16 Kbytes
Master/
Slave
single plane
4 Kbytes
not
1
present
1
9
3(3)
No
21
LQFP/
QFN 48
2(2)
Notes: 1. Fractional Baud Rate.
2. Full modem line support on USART1.
3. Only two TC channels are accessible through the PIO.
SAM7S Series [DATASHEET]
6175KS–ATARM–25-Oct-12
3
2.
Block Diagram
Figure 2-1. SAM7S512/256/128/64/321/161 Block Diagram
TDI
TDO
TMS
TCK
ICE
JTAG
SCAN
ARM7TDMI
Processor
JTAGSEL
1.8 V
Voltage
Regulator
System Controller
TST
FIQ
VDDCORE
AIC
PCK0-PCK2
PLL
XIN
XOUT
OSC
SRAM
Embedded
Flash
Controller
Address
Decoder
Abort
Status
Misalignment
Detection
PMC
64/32/16/8/4 Kbytes
VDDFLASH
Flash
RCOSC
VDDCORE
VDDCORE
512/256/
128/64/32/16 Kbytes
BOD
POR
ROM
Peripheral Data
Controller
NRST
PIT
APB
WDT
SAM-BA
PIO
RTT
DBGU
PDC
FIFO
PDC
USB Device
PIOA
PDC
PWMC
USART0
PDC
SSC
PIO
PDC
PDC
PDC
USART1
Timer Counter
PDC
PIO
RXD0
TXD0
SCK0
RTS0
CTS0
RXD1
TXD1
SCK1
RTS1
CTS1
DCD1
DSR1
DTR1
RI1
NPCS0
NPCS1
NPCS2
NPCS3
MISO
MOSI
SPCK
ADTRG
AD0
AD1
AD2
AD3
AD4
AD5
AD6
AD7
PGMRDY
PGMNVALID
PGMNOE
PGMCK
PGMM0-PGMM3
PGMD0-PGMD15
PGMNCMD
PGMEN0-PGMEN2
Fast Flash
Programming
Interface
11 Channels
DRXD
DTXD
ERASE
Peripheral Bridge
Reset
Controller
Transceiver
PLLRC
VDDIO
Memory Controller
PIO
IRQ0-IRQ1
VDDIN
GND
VDDOUT
TC0
PDC
TC1
SPI
TC2
PDC
PDC
TWI
DDM
DDP
PWM0
PWM1
PWM2
PWM3
TF
TK
TD
RD
RK
RF
TCLK0
TCLK1
TCLK2
TIOA0
TIOB0
TIOA1
TIOB1
TIOA2
TIOB2
TWD
TWCK
ADC
ADVREF
SAM7S Series [DATASHEET]
6175KS–ATARM–25-Oct-12
4
Figure 2-2. SAM7S32/16 Block Diagram
TDI
TDO
TMS
TCK
ICE
JTAG
SCAN
ARM7TDMI
Processor
JTAGSEL
1.8 V
Voltage
Regulator
System Controller
TST
FIQ
PLL
XIN
XOUT
OSC
Embedded
Flash
Controller
Address
Decoder
Abort
Status
Misalignment
Detection
PMC
SRAM
8/4 Kbytes
VDDFLASH
Flash
32/16 Kbytes
RCOSC
VDDCORE
VDDCORE
BOD
POR
ERASE
Peripheral Bridge
Reset
Controller
Peripheral DMA
Controller
NRST
ROM
PGMRDY
PGMNVALID
PGMNOE
PGMCK
PGMM0-PGMM3
PGMD0-PGMD7
PGMNCMD
PGMEN0-PGMEN2
9 Channels
Fast Flash
Programming
Interface
PIT
APB
WDT
PIO
RTT
DRXD
DTXD
VDDOUT
VDDIO
Memory Controller
PCK0-PCK2
PLLRC
GND
VDDCORE
AIC
PIO
IRQ0
VDDIN
SAM-BA
PDC
DBGU
PDC
PIOA
PWMC
ADTRG
AD0
AD1
AD2
AD3
AD4
AD5
AD6
AD7
PDC
PDC
USART0
SSC
PDC
PIO
PDC
PDC
PIO
RXD0
TXD0
SCK0
RTS0
CTS0
NPCS0
NPCS1
NPCS2
NPCS3
MISO
MOSI
SPCK
SPI
PWM0
PWM1
PWM2
PWM3
TF
TK
TD
RD
RK
RF
TCLK0
Timer Counter
PDC
PDC
ADC
TC0
TIOA0
TIOB0
TC1
TIOA1
TIOB1
TC2
TWI
TWD
TWCK
ADVREF
SAM7S Series [DATASHEET]
6175KS–ATARM–25-Oct-12
5
3.
Signal Description
Table 3-1.
Signal Description List
Signal Name
Function
Type
Active
Level
Comments
Power
VDDIN
Voltage and ADC Regulator Power Supply
Input
Power
3.0 to 3.6V
VDDOUT
Voltage Regulator Output
Power
1.85V nominal
VDDFLASH
Flash Power Supply
Power
3.0V to 3.6V
VDDIO
I/O Lines Power Supply
Power
3.0V to 3.6V or 1.65V to 1.95V
VDDCORE
Core Power Supply
Power
1.65V to 1.95V
VDDPLL
PLL
Power
1.65V to 1.95V
GND
Ground
Ground
Clocks, Oscillators and PLLs
XIN
Main Oscillator Input
XOUT
Main Oscillator Output
PLLRC
PLL Filter
PCK0 - PCK2
Programmable Clock Output
Input
Output
Input
Output
ICE and JTAG
TCK
Test Clock
Input
No pull-up resistor
TDI
Test Data In
Input
No pull-up resistor
TDO
Test Data Out
TMS
Test Mode Select
Input
No pull-up resistor
JTAGSEL
JTAG Selection
Input
Pull-down resistor(1)
Output
Flash Memory
ERASE
Flash and NVM Configuration Bits Erase
Command
High
Pull-down resistor(1)
I/O
Low
Open-drain with pull-Up resistor
Input
High
Pull-down resistor(1)
Input
Reset/Test
NRST
Microcontroller Reset
TST
Test Mode Select
Debug Unit
DRXD
Debug Receive Data
Input
DTXD
Debug Transmit Data
Output
AIC
IRQ0 - IRQ1
External Interrupt Inputs
Input
FIQ
Fast Interrupt Input
Input
IRQ1 not present on SAM7S32/16
PIO
PA0 - PA31
Parallel IO Controller A
I/O
Pulled-up input at reset
PA0 - PA20 only on SAM7S32/16
SAM7S Series [DATASHEET]
6175KS–ATARM–25-Oct-12
6
Table 3-1.
Signal Description List (Continued)
Signal Name
Function
Type
Active
Level
Comments
USB Device Port
DDM
USB Device Port Data -
Analog
not present on SAM7S32/16
DDP
USB Device Port Data +
Analog
not present on SAM7S32/16
USART
SCK0 - SCK1
Serial Clock
I/O
SCK1 not present on SAM7S32/16
TXD0 - TXD1
Transmit Data
I/O
TXD1 not present on SAM7S32/16
RXD0 - RXD1
Receive Data
Input
RXD1 not present on SAM7S32/16
RTS0 - RTS1
Request To Send
Output
RTS1 not present on SAM7S32/16
CTS0 - CTS1
Clear To Send
Input
CTS1 not present on SAM7S32/16
DCD1
Data Carrier Detect
Input
not present on SAM7S32/16
DTR1
Data Terminal Ready
Output
not present on SAM7S32/16
DSR1
Data Set Ready
Input
not present on SAM7S32/16
RI1
Ring Indicator
Input
not present on SAM7S32/16
Synchronous Serial Controller
TD
Transmit Data
Output
RD
Receive Data
Input
TK
Transmit Clock
I/O
RK
Receive Clock
I/O
TF
Transmit Frame Sync
I/O
RF
Receive Frame Sync
I/O
Timer/Counter
Input
TCLK1 and TCLK2 not present on
SAM7S32/16
I/O Line A
I/O
TIOA2 not present on SAM7S32/16
I/O Line B
I/O
TIOB2 not present on SAM7S32/16
TCLK0 - TCLK2
External Clock Inputs
TIOA0 - TIOA2
TIOB0 - TIOB2
PWM Controller
PWM0 - PWM3
PWM Channels
Output
SPI
MISO
Master In Slave Out
I/O
MOSI
Master Out Slave In
I/O
SPCK
SPI Serial Clock
I/O
NPCS0
SPI Peripheral Chip Select 0
I/O
Low
NPCS1-NPCS3
SPI Peripheral Chip Select 1 to 3
Output
Low
SAM7S Series [DATASHEET]
6175KS–ATARM–25-Oct-12
7
Table 3-1.
Signal Description List (Continued)
Signal Name
Function
Type
Active
Level
Comments
Two-Wire Interface
TWD
Two-wire Serial Data
I/O
TWCK
Two-wire Serial Clock
I/O
Analog-to-Digital Converter
AD0-AD3
Analog Inputs
Analog
Digital pulled-up inputs at reset
AD4-AD7
Analog Inputs
Analog
Analog Inputs
ADTRG
ADC Trigger
Input
ADVREF
ADC Reference
Analog
Fast Flash Programming Interface
PGMEN0-PGMEN2
Programming Enabling
Input
PGMM0-PGMM3
Programming Mode
Input
PGMD0-PGMD15
Programming Data
I/O
PGMRDY
Programming Ready
Output
High
PGMNVALID
Data Direction
Output
Low
PGMNOE
Programming Read
Input
Low
PGMCK
Programming Clock
Input
PGMNCMD
Programming Command
Input
Note:
PGMD0-PGMD7 only on SAM7S32/16
Low
1. Refer to Section 6. “I/O Lines Considerations” on page 14.
SAM7S Series [DATASHEET]
6175KS–ATARM–25-Oct-12
8
4.
Package and Pinout
The SAM7S512/256/128/64/321 are available in a 64-lead LQFP or 64-pad QFN package.
The SAM7S161 is available in a 64-Lead LQFP package.
The SAM7S32/16 are available in a 48-lead LQFP or 48-pad QFN package.
4.1
64-lead LQFP and 64-pad QFN Package Outlines
Figure 4-1 and Figure 4-2 show the orientation of the 64-lead LQFP and the 64-pad QFN package. A detailed
mechanical description is given in the section Mechanical Characteristics of the full datasheet.
Figure 4-1. 64-lead LQFP Package (Top View)
48
33
49
32
64
17
1
16
Figure 4-2. 64-pad QFN Package (Top View)
48
33
49
32
64
17
1
16
SAM7S Series [DATASHEET]
6175KS–ATARM–25-Oct-12
9
4.2
64-lead LQFP and 64-pad QFN Pinout
Table 4-1.
SAM7S512/256/128/64/321/161 Pinout(1)
1
ADVREF
17
GND
33
TDI
49
TDO
2
GND
18
VDDIO
34
PA6/PGMNOE
50
JTAGSEL
3
AD4
19
PA16/PGMD4
35
PA5/PGMRDY
51
TMS
4
AD5
20
PA15/PGMD3
36
PA4/PGMNCMD
52
PA31
5
AD6
21
PA14/PGMD2
37
PA27/PGMD15
53
TCK
6
AD7
22
PA13/PGMD1
38
PA28
54
VDDCORE
7
VDDIN
23
PA24/PGMD12
39
NRST
55
ERASE
8
VDDOUT
24
VDDCORE
40
TST
56
DDM
9
PA17/PGMD5/AD0
25
PA25/PGMD13
41
PA29
57
DDP
10
PA18/PGMD6/AD1
26
PA26/PGMD14
42
PA30
58
VDDIO
11
PA21/PGMD9
27
PA12/PGMD0
43
PA3
59
VDDFLASH
12
VDDCORE
28
PA11/PGMM3
44
PA2/PGMEN2
60
GND
13
PA19/PGMD7/AD2
29
PA10/PGMM2
45
VDDIO
61
XOUT
14
PA22/PGMD10
30
PA9/PGMM1
46
GND
62
XIN/PGMCK
15
PA23/PGMD11
31
PA8/PGMM0
47
PA1/PGMEN1
63
PLLRC
16
PA20/PGMD8/AD3
32
PA7/PGMNVALID
48
PA0/PGMEN0
64
VDDPLL
Note:
1. The bottom pad of the QFN package must be connected to ground.
SAM7S Series [DATASHEET]
6175KS–ATARM–25-Oct-12
10
4.3
48-lead LQFP and 48-pad QFN Package Outlines
Figure 4-3 and Figure 4-4 show the orientation of the 48-lead LQFP and the 48-pad QFN package. A detailed
mechanical description is given in the section Mechanical Characteristics of the full datasheet.
Figure 4-3. 48-lead LQFP Package (Top View)
36
25
37
24
48
13
1
12
Figure 4-4. 48-pad QFN Package (Top View)
36
25
37
24
48
13
1
4.4
12
48-lead LQFP and 48-pad QFN Pinout
Table 4-2.
SAM7S32/16 Pinout(1)
1
ADVREF
13
VDDIO
25
TDI
37
TDO
2
GND
14
PA16/PGMD4
26
PA6/PGMNOE
38
JTAGSEL
3
AD4
15
PA15/PGMD3
27
PA5/PGMRDY
39
TMS
4
AD5
16
PA14/PGMD2
28
PA4/PGMNCMD
40
TCK
5
AD6
17
PA13/PGMD1
29
NRST
41
VDDCORE
6
AD7
18
VDDCORE
30
TST
42
ERASE
7
VDDIN
19
PA12/PGMD0
31
PA3
43
VDDFLASH
8
VDDOUT
20
PA11/PGMM3
32
PA2/PGMEN2
44
GND
9
PA17/PGMD5/AD0
21
PA10/PGMM2
33
VDDIO
45
XOUT
10
PA18/PGMD6/AD1
22
PA9/PGMM1
34
GND
46
XIN/PGMCK
11
PA19/PGMD7/AD2
23
PA8/PGMM0
35
PA1/PGMEN1
47
PLLRC
12
PA20/AD3
24
PA7/PGMNVALID
36
PA0/PGMEN0
48
VDDPLL
Note:
1. The bottom pad of the QFN package must be connected to ground.
SAM7S Series [DATASHEET]
6175KS–ATARM–25-Oct-12
11
5.
Power Considerations
5.1
Power Supplies
The SAM7S Series has six types of power supply pins and integrates a voltage regulator, allowing the device to be
supplied with only one voltage. The six power supply pin types are:
z
VDDIN pin. It powers the voltage regulator and the ADC; voltage ranges from 3.0V to 3.6V, 3.3V nominal.
z
VDDOUT pin. It is the output of the 1.8V voltage regulator.
z
VDDIO pin. It powers the I/O lines and the USB transceivers; dual voltage range is supported. Ranges from 3.0V
to 3.6V, 3.3V nominal or from 1.65V to 1.95V, 1.8V nominal. Note that supplying less than 3.0V to VDDIO prevents
any use of the USB transceivers.
z
VDDFLASH pin. It powers a part of the Flash and is required for the Flash to operate correctly; voltage ranges
from 3.0V to 3.6V, 3.3V nominal.
z
VDDCORE pins. They power the logic of the device; voltage ranges from 1.65V to 1.95V, 1.8V typical. It can be
connected to the VDDOUT pin with decoupling capacitor. VDDCORE is required for the device, including its
embedded Flash, to operate correctly.
During startup, core supply voltage (VDDCORE) slope must be superior or equal to 6V/ms.
z
VDDPLL pin. It powers the oscillator and the PLL. It can be connected directly to the VDDOUT pin.
No separate ground pins are provided for the different power supplies. Only GND pins are provided and should be
connected as shortly as possible to the system ground plane.
In order to decrease current consumption, if the voltage regulator and the ADC are not used, VDDIN, ADVREF, AD4,
AD5, AD6 and AD7 should be connected to GND. In this case VDDOUT should be left unconnected.
5.2
Power Consumption
The SAM7S Series has a static current of less than 60 µA on VDDCORE at 25°C, including the RC oscillator, the voltage
regulator and the power-on reset. When the brown-out detector is activated, 20 µA static current is added.
The dynamic power consumption on VDDCORE is less than 50 mA at full speed when running out of the Flash. Under
the same conditions, the power consumption on VDDFLASH does not exceed 10 mA.
5.3
Voltage Regulator
The SAM7S Series embeds a voltage regulator that is managed by the System Controller.
In Normal Mode, the voltage regulator consumes less than 100 µA static current and draws 100 mA of output current.
The voltage regulator also has a Low-power Mode. In this mode, it consumes less than 25 µA static current and draws 1
mA of output current.
Adequate output supply decoupling is mandatory for VDDOUT to reduce ripple and avoid oscillations. The best way to
achieve this is to use two capacitors in parallel: one external 470 pF (or 1 nF) NPO capacitor must be connected between
VDDOUT and GND as close to the chip as possible. One external 2.2 µF (or 3.3 µF) X7R capacitor must be connected
between VDDOUT and GND.
Adequate input supply decoupling is mandatory for VDDIN in order to improve startup stability and reduce source voltage
drop. The input decoupling capacitor should be placed close to the chip. For example, two capacitors can be used in
parallel: 100 nF NPO and 4.7 µF X7R.
5.4
Typical Powering Schematics
The SAM7S Series supports a 3.3V single supply mode. The internal regulator is connected to the 3.3V source and its
output feeds VDDCORE and the VDDPLL. Figure 5-1 shows the power schematics to be used for USB bus-powered
systems.
SAM7S Series [DATASHEET]
6175KS–ATARM–25-Oct-12
12
Figure 5-1.
3.3V System Single Power Supply Schematic
VDDFLASH
Power Source
ranges
from 4.5V (USB)
to 18V
DC/DC Converter
VDDIO
VDDIN
Voltage
Regulator
3.3V
VDDOUT
VDDCORE
VDDPLL
SAM7S Series [DATASHEET]
6175KS–ATARM–25-Oct-12
13
6.
I/O Lines Considerations
6.1
JTAG Port Pins
TMS, TDI and TCK are schmitt trigger inputs. TMS and TCK are 5-V tolerant, TDI is not. TMS, TDI and TCK do not
integrate a pull-up resistor.
TDO is an output, driven at up to VDDIO, and has no pull-up resistor.
The JTAGSEL pin is used to select the JTAG boundary scan when asserted at a high level. The JTAGSEL pin integrates
a permanent pull-down resistor of about 15 kΩ to GND, so that it can be left unconnected for normal operations.
6.2
Test Pin
The TST pin is used for manufacturing test, fast programming mode or SAM-BA Boot Recovery of the SAM7S Series
when asserted high. The TST pin integrates a permanent pull-down resistor of about 15 kΩ to GND, so that it can be left
unconnected for normal operations.
To enter fast programming mode, the TST pin and the PA0 and PA1 pins should be tied high and PA2 tied to low.
To enter SAM-BA Boot Recovery, the TST pin and the PA0, PA1 and PA2 pins should be tied high for at least 10
seconds. Then a power cycle of the board is mandatory.
Driving the TST pin at a high level while PA0 or PA1 is driven at 0 leads to unpredictable results.
6.3
Reset Pin
The NRST pin is bidirectional with an open drain output buffer. It is handled by the on-chip reset controller and can be
driven low to provide a reset signal to the external components or asserted low externally to reset the microcontroller.
There is no constraint on the length of the reset pulse, and the reset controller can guarantee a minimum pulse length.
This allows connection of a simple push-button on the pin NRST as system user reset, and the use of the signal NRST to
reset all the components of the system.
The NRST pin integrates a permanent pull-up resistor to VDDIO.
6.4
ERASE Pin
The ERASE pin is used to re-initialize the Flash content and some of its NVM bits. It integrates a permanent pull-down
resistor of about 15 kΩ to GND, so that it can be left unconnected for normal operations.
6.5
PIO Controller A Lines
z
All the I/O lines PA0 to PA31on SAM7S512/256/128/64/321 (PA0 to PA20 on SAM7S32) are 5V-tolerant and all
integrate a programmable pull-up resistor.
z
All the I/O lines PA0 to PA31 on SAM7S161 (PA0 to PA20 on SAM7S16) are not 5V-tolerant and all integrate a
programmable pull-up resistor.
Programming of this pull-up resistor is performed independently for each I/O line through the PIO controllers.
5V-tolerant means that the I/O lines can drive voltage level according to VDDIO, but can be driven with a voltage of up to
5.5V. However, driving an I/O line with a voltage over VDDIO while the programmable pull-up resistor is enabled will
create a current path through the pull-up resistor from the I/O line to VDDIO. Care should be taken, in particular at reset,
as all the I/O lines default to input with the pull-up resistor enabled at reset.
6.6
I/O Line Drive Levels
The PIO lines PA0 to PA3 are high-drive current capable. Each of these I/O lines can drive up to 16 mA permanently.
The remaining I/O lines can draw only 8 mA.
However, the total current drawn by all the I/O lines cannot exceed 150 mA (100 mA for SAM7S32/16).
SAM7S Series [DATASHEET]
6175KS–ATARM–25-Oct-12
14
SAM7S Series [DATASHEET]
6175KS–ATARM–25-Oct-12
15
7.
Processor and Architecture
7.1
ARM7TDMI Processor
z
RISC processor based on ARMv4T Von Neumann architecture
z
z
z
7.2
Two instruction sets
z
ARM® high-performance 32-bit instruction set
z
Thumb® high code density 16-bit instruction set
Three-stage pipeline architecture
z
Instruction Fetch (F)
z
Instruction Decode (D)
z
Execute (E)
Debug and Test Features
z
z
z
7.3
Runs at up to 55 MHz, providing 0.9 MIPS/MHz
Integrated EmbeddedICE™ (embedded in-circuit emulator)
z
Two watchpoint units
z
Test access port accessible through a JTAG protocol
z
Debug communication channel
Debug Unit
z
Two-pin UART
z
Debug communication channel interrupt handling
z
Chip ID Register
IEEE1149.1 JTAG Boundary-scan on all digital pins
Memory Controller
z
Bus Arbiter
z
z
z
z
z
z
Handles requests from the ARM7TDMI and the Peripheral DMA Controller
Address decoder provides selection signals for
z
Three internal 1 Mbyte memory areas
z
One 256 Mbyte embedded peripheral area
Abort Status Registers
z
Source, Type and all parameters of the access leading to an abort are saved
z
Facilitates debug by detection of bad pointers
Misalignment Detector
z
Alignment checking of all data accesses
z
Abort generation in case of misalignment
Remap Command
z
Remaps the SRAM in place of the embedded non-volatile memory
z
Allows handling of dynamic exception vectors
Embedded Flash Controller
z
Embedded Flash interface, up to three programmable wait states
z
Prefetch buffer, buffering and anticipating the 16-bit requests, reducing the required wait states
z
Key-protected program, erase and lock/unlock sequencer
z
Single command for erasing, programming and locking operations
z
Interrupt generation in case of forbidden operation
SAM7S Series [DATASHEET]
6175KS–ATARM–25-Oct-12
16
7.4
Peripheral DMA Controller
z
Handles data transfer between peripherals and memories
z
Eleven channels: SAM7S512/256/128/64/321/161
z
Nine channels: SAM7S32/16
z
z
Two for each USART
z
Two for the Debug Unit
z
Two for the Serial Synchronous Controller
z
Two for the Serial Peripheral Interface
z
One for the Analog-to-digital Converter
Low bus arbitration overhead
z
One Master Clock cycle needed for a transfer from memory to peripheral
z
Two Master Clock cycles needed for a transfer from peripheral to memory
z
Next Pointer management for reducing interrupt latency requirements
z
Peripheral DMA Controller (PDC) priority is as follows (from the highest priority to the lowest):
Receive
DBGU
Receive
USART0
Receive
USART1
Receive
SSC
Receive
ADC
Receive
SPI
Transmit
DBGU
Transmit
USART0
Transmit
USART1
Transmit
SSC
Transmit
SPI
SAM7S Series [DATASHEET]
6175KS–ATARM–25-Oct-12
17
8.
Memories
8.1
SAM7S512
z
z
512 Kbytes of Flash Memory, dual plane
z
2 contiguous banks of 1024 pages of 256 bytes
z
Fast access time, 30 MHz single-cycle access in Worst Case conditions
z
Page programming time: 6 ms, including page auto-erase
z
Page programming without auto-erase: 3 ms
z
Full chip erase time: 15 ms
z
10,000 write cycles, 10-year data retention capability
z
32 lock bits, protecting 32 sectors of 64 pages
z
Protection Mode to secure contents of the Flash
64 Kbytes of Fast SRAM
z
8.2
SAM7S256
z
z
256 Kbytes of Flash Memory, single plane
z
1024 pages of 256 bytes
z
Fast access time, 30 MHz single-cycle access in Worst Case conditions
z
Page programming time: 6 ms, including page auto-erase
z
Page programming without auto-erase: 3 ms
z
Full chip erase time: 15 ms
z
10,000 write cycles, 10-year data retention capability
z
16 lock bits, protecting 16 sectors of 64 pages
z
Protection Mode to secure contents of the Flash
64 Kbytes of Fast SRAM
z
8.3
Single-cycle access at full speed
SAM7S128
z
z
128 Kbytes of Flash Memory, single plane
z
512 pages of 256 bytes
z
Fast access time, 30 MHz single-cycle access in Worst Case conditions
z
Page programming time: 6 ms, including page auto-erase
z
Page programming without auto-erase: 3 ms
z
Full chip erase time: 15 ms
z
10,000 write cycles, 10-year data retention capability
z
8 lock bits, protecting 8 sectors of 64 pages
z
Protection Mode to secure contents of the Flash
32 Kbytes of Fast SRAM
z
8.4
Single-cycle access at full speed
Single-cycle access at full speed
SAM7S64
z
64 Kbytes of Flash Memory, single plane
z
512 pages of 128 bytes
SAM7S Series [DATASHEET]
6175KS–ATARM–25-Oct-12
18
z
z
Fast access time, 30 MHz single-cycle access in Worst Case conditions
z
Page programming time: 6 ms, including page auto-erase
z
Page programming without auto-erase: 3 ms
z
Full chip erase time: 15 ms
z
10,000 write cycles, 10-year data retention capability
z
16 lock bits, protecting 16 sectors of 32 pages
z
Protection Mode to secure contents of the Flash
16 Kbytes of Fast SRAM
z
8.5
SAM7S321/32
z
z
32 Kbytes of Flash Memory, single plane
z
256 pages of 128 bytes
z
Fast access time, 30 MHz single-cycle access in Worst Case conditions
z
Page programming time: 6 ms, including page auto-erase
z
Page programming without auto-erase: 3 ms
z
Full chip erase time: 15 ms
z
10,000 write cycles, 10-year data retention capability
z
8 lock bits, protecting 8 sectors of 32 pages
z
Protection Mode to secure contents of the Flash
8 Kbytes of Fast SRAM
z
8.6
Single-cycle access at full speed
Single-cycle access at full speed
SAM7S161/16
z
z
16 Kbytes of Flash Memory, single plane
z
256 pages of 64 bytes
z
Fast access time, 30 MHz single-cycle access in Worst Case conditions
z
Page programming time: 6 ms, including page auto-erase
z
Page programming without auto-erase: 3 ms
z
Full chip erase time: 15 ms
z
10,000 write cycles, 10-year data retention capability
z
8 lock bits, protecting 8 sectors of 32 pages
z
Protection Mode to secure contents of the Flash
4 Kbytes of Fast SRAM
z
Single-cycle access at full speed
SAM7S Series [DATASHEET]
6175KS–ATARM–25-Oct-12
19
Figure 8-1. SAM SAM7S512/256/128/64/321/32/161/16 Memory Mapping
Internal Memory Mapping
Note:
(1) Can be Flash or SRAM
depending on REMAP.
0x0000 0000
(1)
Flash before Remap 1 MBytes
SRAM after Remap
0x000F FFF
0x0010 0000
Internal Flash
1 MBytes
Internal SRAM
1 MBytes
0x001F FFF
0x0020 0000
0x002F FFF
0x0030 0000
Address Memory Space
0x0000 0000
Reserved
Internal Memories
253 MBytes
256 MBytes
0x0FFF FFFF
0x0FFF FFFF
0x1000 0000
System Controller Mapping
0xFFFF F000
Peripheral Mapping
0xF000 0000
Undefined
(Abort)
14 x 256 MBytes
3,584 MBytes
0xFFFA 3FFF
0xFFFA 4000
0xFFFA FFFF
0xFFFB 0000
TC0, TC1, TC2 16 Kbytes
Reserved
UDP
0xFFFB 3FFF
0xFFFB 4000
16 Kbytes
(Reserved on
SAM7S32/16)
Reserved
0xFFFB 7FFF
0xFFFB 8000
0xEFFF FFFF
0xF000 0000
0xFFFB BFFF
0xFFFB C000
0xFFFB FFFF
0xFFFC 0000
Internal Peripherals
0xFFFF FFFF
256M Bytes
0xFFFC 3FFF
0xFFFC 4000
TWI
0xFFFC FFFF
0xFFFD 0000
0xFFFD 3FFF
0xFFFD 4000
0xFFFD 7FFF
0xFFFD 8000
0xFFFD BFFF
0xFFFD C000
0xFFFD FFFF
0xFFFE 0000
0xFFFE 3FFF
0xFFFE 4000
16 Kbytes
Reserved
USART1
0xFFFF FCFF
0xFFFF FD00
0xFFFF FD0F
16 Kbytes
0xFFFF FD20
0xFFFF FC2F
0xFFFF FD30
0xFFFF FC3F
0xFFFF FD40
0xFFFF FFFF
PMC
256 Bytes/
64 registers
RSTC
16 Bytes/
4 registers
Reserved
Reserved
SSC
16 Kbytes
ADC
16 Kbytes
0xFFFF FD4F
SPI
Reserved
RTT
PIT
WDT
16 Kbytes
16 Bytes/
4 registers
16 Bytes/
4 registers
16 Bytes/
4 registers
Reserved
0xFFFF FD60
Reserved
0xFFFF FC6F
0xFFFF FD70
0xFFFF FEFF
0xFFFF FF00
0xFFFF EFFF
0xFFFF F000
512 Bytes/
128 registers
0xFFFF FBFF
0xFFFF FC00
16 Kbytes
PWMC
PIOA
0xFFFF F5FF
16 Kbytes
(Reserved on
SAM7S32/16)
Reserved
512 Bytes/
128 registers
0xFFFF F3FF
0xFFFF F400
USART0
0xFFFC BFFF
0xFFFC C000
DBGU
0xFFFF F600
Reserved
0xFFFC 7FFF
0xFFFC 8000
512 Bytes/
128 registers
0xFFFF F1FF
0xFFFF F200
Reserved
0xFFF9 FFFF
0xFFFA 0000
AIC
VREG
4 Bytes/
1 register
Reserved
MC
256 Bytes/
64 registers
SYSC
0xFFFF FFFF
SAM7S Series [DATASHEET]
6175KS–ATARM–25-Oct-12
20
8.7
Memory Mapping
8.7.1
Internal SRAM
z
The SAM7S512 embeds a high-speed 64-Kbyte SRAM bank.
z
The SAM7S256 embeds a high-speed 64-Kbyte SRAM bank.
z
The SAM7S128 embeds a high-speed 32-Kbyte SRAM bank.
z
The SAM7S64 embeds a high-speed 16-Kbyte SRAM bank.
z
The SAM7S321 embeds a high-speed 8-Kbyte SRAM bank.
z
The SAM7S32 embeds a high-speed 8-Kbyte SRAM bank.
z
The SAM7S161 embeds a high-speed 4-Kbyte SRAM bank.
z
The SAM7S16 embeds a high-speed 4-Kbyte SRAM bank
After reset and until the Remap Command is performed, the SRAM is only accessible at address 0x0020 0000. After
Remap, the SRAM also becomes available at address 0x0.
8.7.2
Internal ROM
The SAM7S Series embeds an Internal ROM. The ROM contains the FFPI and the SAM-BA program.
The internal ROM is not mapped by default.
8.7.3
Internal Flash
z
The SAM7S512 features two contiguous banks (dual plane) of 256 Kbytes of Flash.
z
The SAM7S256 features one bank (single plane) of 256 Kbytes of Flash.
z
The SAM7S128 features one bank (single plane) of 128 Kbytes of Flash.
z
The SAM7S64 features one bank (single plane) of 64 Kbytes of Flash.
z
The SAM7S321/32 features one bank (single plane) of 32 Kbytes of Flash.
z
The SAM7S161/16 features one bank (single plane) of 16 Kbytes of Flash.
At any time, the Flash is mapped to address 0x0010 0000. It is also accessible at address 0x0 after the reset and before
the Remap Command.
Figure 8-2. Internal Memory Mapping
0x0000 0000
0x000F FFFF
Flash Before Remap
SRAM After Remap
1 MBytes
0x0010 0000
Internal Flash
1 MBytes
Internal SRAM
1 MBytes
0x001F FFFF
0x0020 0000
256 MBytes
0x002F FFFF
0x0030 0000
Undefined Areas
(Abort)
253 MBytes
0x0FFF FFFF
SAM7S Series [DATASHEET]
6175KS–ATARM–25-Oct-12
21
8.8
Embedded Flash
8.8.1
Flash Overview
z
The Flash of the SAM7S512 is organized in two banks (dual plane) of 1024 pages of 256 bytes. The 524,288 bytes
are organized in 32-bit words.
z
The Flash of the SAM7S256 is organized in 1024 pages (single plane) of 256 bytes. The 262,144 bytes are
organized in 32-bit words.
z
The Flash of the SAM7S128 is organized in 512 pages (single plane) of 256 bytes. The 131,072 bytes are
organized in 32-bit words.
z
The Flash of the SAM7S64 is organized in 512 pages (single plane) of 128 bytes. The 65,536 bytes are organized
in 32-bit words.
z
The Flash of the SAM7S321/32 is organized in 256 pages (single plane) of 128 bytes. The 32,768 bytes are
organized in 32-bit words.
z
The Flash of the SAM7S161/16 is organized in 256 pages (single plane) of 64 bytes. The 16,384 bytes are
organized in 32-bit words.
z
The Flash of the SAM7S512/256/128 contains a 256-byte write buffer, accessible through a 32-bit interface.
z
The Flash of the SAM7S64/321/32/161/16 contains a 128-byte write buffer, accessible through a 32-bit interface.
The Flash benefits from the integration of a power reset cell and from the brownout detector. This prevents code
corruption during power supply changes, even in the worst conditions.
When Flash is not used (read or write access), it is automatically placed into standby mode.
8.8.2
Embedded Flash Controller
The Embedded Flash Controller (EFC) manages accesses performed by the masters of the system. It enables reading
the Flash and writing the write buffer. It also contains a User Interface, mapped within the Memory Controller on the APB.
The User Interface allows:
z
programming of the access parameters of the Flash (number of wait states, timings, etc.)
z
starting commands such as full erase, page erase, page program, NVM bit set, NVM bit clear, etc.
z
getting the end status of the last command
z
getting error status
z
programming interrupts on the end of the last commands or on errors
The Embedded Flash Controller also provides a dual 32-bit prefetch buffer that optimizes 16-bit access to the Flash. This
is particularly efficient when the processor is running in Thumb mode.
Two EFCs are embedded in the SAM7S512 to control each bank of 256 Kbytes. Dual plane organization allows
concurrent Read and Program. Read from one memory plane may be performed even while program or erase functions
are being executed in the other memory plane.
One EFC is embedded in the SAM7S256/128/64/32/321/161/16 to control the single plane 256/128/64/32/16 Kbytes.
SAM7S Series [DATASHEET]
6175KS–ATARM–25-Oct-12
22
8.8.3
Lock Regions
8.8.3.1 SAM7S512
Two Embedded Flash Controllers each manage 16 lock bits to protect 16 regions of the flash against inadvertent flash
erasing or programming commands. The SAM7S512 contains 32 lock regions and each lock region contains 64 pages of
256 bytes. Each lock region has a size of 16 Kbytes.
If a locked-region’s erase or program command occurs, the command is aborted and the LOCKE bit in the MC_FSR
register rises and the interrupt line rises if the LOCKE bit has been written at 1 in the MC_FMR register.
The 16 NVM bits (or 32 NVM bits) are software programmable through the corresponding EFC User Interface. The
command “Set Lock Bit” enables the protection. The command “Clear Lock Bit” unlocks the lock region.
Asserting the ERASE pin clears the lock bits, thus unlocking the entire Flash.
8.8.3.2 SAM7S256
The Embedded Flash Controller manages 16 lock bits to protect 16 regions of the flash against inadvertent flash erasing
or programming commands. The SAM7S256 contains 16 lock regions and each lock region contains 64 pages of 256
bytes. Each lock region has a size of 16 Kbytes.
If a locked-region’s erase or program command occurs, the command is aborted and the LOCKE bit in the MC_FSR
register rises and the interrupt line rises if the LOCKE bit has been written at 1 in the MC_FMR register.
The 16 NVM bits are software programmable through the EFC User Interface. The command “Set Lock Bit” enables the
protection. The command “Clear Lock Bit” unlocks the lock region.
Asserting the ERASE pin clears the lock bits, thus unlocking the entire Flash.
8.8.3.3 SAM7S128
The Embedded Flash Controller manages 8 lock bits to protect 8 regions of the flash against inadvertent flash erasing or
programming commands. The SAM7S128 contains 8 lock regions and each lock region contains 64 pages of 256 bytes.
Each lock region has a size of 16 Kbytes.
If a locked-region’s erase or program command occurs, the command is aborted and the LOCKE bit in the MC_FSR
register rises and the interrupt line rises if the LOCKE bit has been written at 1 in the MC_FMR register.
The 8 NVM bits are software programmable through the EFC User Interface. The command “Set Lock Bit” enables the
protection. The command “Clear Lock Bit” unlocks the lock region.
Asserting the ERASE pin clears the lock bits, thus unlocking the entire Flash.
8.8.3.4 SAM7S64
The Embedded Flash Controller manages 16 lock bits to protect 16 regions of the flash against inadvertent flash erasing
or programming commands. The SAM7S64 contains 16 lock regions and each lock region contains 32 pages of 128
bytes. Each lock region has a size of 4 Kbytes.
If a locked-region’s erase or program command occurs, the command is aborted and the LOCKE bit in the MC_FSR
register rises and the interrupt line rises if the LOCKE bit has been written at 1 in the MC_FMR register.
The 16 NVM bits are software programmable through the EFC User Interface. The command “Set Lock Bit” enables the
protection. The command “Clear Lock Bit” unlocks the lock region.
Asserting the ERASE pin clears the lock bits, thus unlocking the entire Flash.
8.8.3.5 SAM7S321/32
The Embedded Flash Controller manages 8 lock bits to protect 8 regions of the flash against inadvertent flash erasing or
programming commands. The SAM7S321/32 contains 8 lock regions and each lock region contains 32 pages of 128
bytes. Each lock region has a size of 4 Kbytes.
If a locked-region’s erase or program command occurs, the command is aborted and the LOCKE bit in the MC_FSR
register rises and the interrupt line rises if the LOCKE bit has been written at 1 in the MC_FMR register.
SAM7S Series [DATASHEET]
6175KS–ATARM–25-Oct-12
23
The 8 NVM bits are software programmable through the EFC User Interface. The command “Set Lock Bit” enables the
protection. The command “Clear Lock Bit” unlocks the lock region.
Asserting the ERASE pin clears the lock bits, thus unlocking the entire Flash.
8.8.3.6 SAM7S161/16
The Embedded Flash Controller manages 8 lock bits to protect 8 regions of the flash against inadvertent flash erasing or
programming commands. The SAM7S161/16 contains 8 lock regions and each lock region contains 32 pages of 64
bytes. Each lock region has a size of 2 Kbytes.
If a locked-region’s erase or program command occurs, the command is aborted and the LOCKE bit in the MC_FSR
register rises and the interrupt line rises if the LOCKE bit has been written at 1 in the MC_FMR register.
The 8 NVM bits are software programmable through the EFC User Interface. The command “Set Lock Bit” enables the
protection. The command “Clear Lock Bit” unlocks the lock region.
Asserting the ERASE pin clears the lock bits, thus unlocking the entire Flash.
Table 8-1 summarizes the configuration of the eight devices.
Table 8-1.
Flash Configuration Summary
Device
Number of Lock Bits
Number of Pages in the Lock Region
Page Size
SAM7S512
32
64
256 bytes
SAM7S256
16
64
256 bytes
SAM7S128
8
64
256 bytes
SAM7S64
16
32
128 bytes
SAM7S321/32
8
32
128 bytes
SAM7S161/16
8
32
64 bytes
8.8.4
Security Bit Feature
The SAM7S Series features a security bit, based on a specific NVM Bit. When the security is enabled, any access to the
Flash, either through the ICE interface or through the Fast Flash Programming Interface, is forbidden. This ensures the
confidentiality of the code programmed in the Flash.
This security bit can only be enabled, through the Command “Set Security Bit” of the EFC User Interface. Disabling the
security bit can only be achieved by asserting the ERASE pin at 1, and after a full flash erase is performed. When the
security bit is deactivated, all accesses to the flash are permitted.
It is important to note that the assertion of the ERASE pin should always be longer than 50 ms.
As the ERASE pin integrates a permanent pull-down, it can be left unconnected during normal operation. However, it is
safer to connect it directly to GND for the final application.
8.8.5
Non-volatile Brownout Detector Control
Two general purpose NVM (GPNVM) bits are used for controlling the brownout detector (BOD), so that even after a
power loss, the brownout detector operations remain in their state.
These two GPNVM bits can be cleared or set respectively through the commands “Clear General-purpose NVM Bit” and
“Set General-purpose NVM Bit” of the EFC User Interface.
z
GPNVM Bit 0 is used as a brownout detector enable bit. Setting the GPNVM Bit 0 enables the BOD, clearing it
disables the BOD. Asserting ERASE clears the GPNVM Bit 0 and thus disables the brownout detector by default.
z
The GPNVM Bit 1 is used as a brownout reset enable signal for the reset controller. Setting the GPNVM Bit 1
enables the brownout reset when a brownout is detected, Clearing the GPNVM Bit 1 disables the brownout reset.
Asserting ERASE disables the brownout reset by default.
SAM7S Series [DATASHEET]
6175KS–ATARM–25-Oct-12
24
8.8.6
Calibration Bits
Eight NVM bits are used to calibrate the brownout detector and the voltage regulator. These bits are factory configured
and cannot be changed by the user. The ERASE pin has no effect on the calibration bits.
8.9
Fast Flash Programming Interface
The Fast Flash Programming Interface allows programming the device through either a serial JTAG interface or through
a multiplexed fully-handshaked parallel port. It allows gang-programming with market-standard industrial programmers.
The FFPI supports read, page program, page erase, full erase, lock, unlock and protect commands.
The Fast Flash Programming Interface is enabled and the Fast Programming Mode is entered when the TST pin and the
PA0 and PA1 pins are all tied high and PA2 is tied low.
8.10
SAM-BA Boot Assistant
The SAM-BA® Boot Recovery restores the SAM-BA Boot in the first two sectors of the on-chip Flash memory. The
SAM-BA Boot recovery is performed when the TST pin and the PA0, PA1 and PA2 pins are all tied high for 10 seconds. Then, a power cycle of the board is mandatory.
The SAM-BA Boot Assistant is a default Boot Program that provides an easy way to program in situ the on-chip Flash
memory.
The SAM-BA Boot Assistant supports serial communication through the DBGU or through the USB Device Port. (The
SAM7S32/16 have no USB Device Port.)
z
Communication through the DBGU supports a wide range of crystals from 3 to 20 MHz via software autodetection.
z
Communication through the USB Device Port is limited to an 18.432 MHz crystal. (
The SAM-BA Boot provides an interface with SAM-BA Graphic User Interface (GUI).
9.
System Controller
The System Controller manages all vital blocks of the microcontroller: interrupts, clocks, power, time, debug and reset.
The System Controller peripherals are all mapped to the highest 4 Kbytes of address space, between addresses 0xFFFF
F000 and 0xFFFF FFFF.
Figure 9-1 on page 26 and Figure 9-2 on page 27 show the product specific System Controller Block Diagrams.
Figure 8-1 on page 20 shows the mapping of the of the User Interface of the System Controller peripherals. Note that the
memory controller configuration user interface is also mapped within this address space.
SAM7S Series [DATASHEET]
6175KS–ATARM–25-Oct-12
25
Figure 9-1. System Controller Block Diagram (SAM7S512/256/128/64/321/161)
wdt_irq
dbgu_irq
pmc_irq
rstc_irq
power_on_reset
force_ntrst
MCK
periph_nreset
dbgu_irq
Debug
Unit
force_ntrst
dbgu_txd
dbgu_rxd
security_bit
MCK
debug
periph_nreset
SLCK
periph_nreset
cal
gpnvm[0]
power_on_reset
jtag_nreset
POR
Real-Time
Timer
rtt_irq
Watchdog
Timer
wdt_irq
flash_poe
MCK
proc_nreset
Reset
Controller
periph_nreset
proc_nreset
rstc_irq
NRST
OSC
SLCK
MAINCK
XOUT
Voltage
Regulator
Mode
Controller
standby
cal
SLCK
XIN
gpnvm[0..1]
bod_rst_en
flash_poe
RCOSC
flash_wrdis
wdt_fault
WDRPROC
gpnvm[1]
flash_wrdis
BOD
pit_irq
cal
SLCK
debug
idle
proc_nreset
en
Periodic
Interval
Timer
periph_clk[2..14]
Power
Management
Controller
pck[0-2]
UDPCK
periph_clk[11]
PCK
periph_nreset
UDPCK
periph_irq[11]
MCK
usb_suspend
PLLRC
PLL
PLLCK
pmc_irq
int
idle
periph_nreset
periph_clk[4..14]
usb_suspend
periph_nreset
periph_irq{2]
periph_nreset
irq0-irq1
periph_clk[2]
dbgu_rxd
PIO
Controller
periph_irq[4..14]
fiq
dbgu_txd
in
PA0-PA31
out
enable
SAM7S Series [DATASHEET]
6175KS–ATARM–25-Oct-12
26
Figure 9-2. System Controller Block Diagram (SAM7S32/16)
Interrupt
Controller
periph_irq[2..14]
proc_nreset
ARM7TDM
PCK
int
debug
pit_irq
rtt_irq
wdt_irq
dbgu_irq
pmc_irq
rstc_irq
power_on_reset
force_ntrst
dbgu_irq
MCK
periph_nreset
Debug
Unit
force_ntrst
dbgu_txd
dbgu_rxd
security_bit
MCK
debug
periph_nreset
SLCK
periph_nreset
Periodic
Interval
Timer
pit_irq
Real-Time
Timer
rtt_irq
Watchdog
Timer
wdt_irq
flash_poe
flash_wrdis
cal
SLCK
debug
idle
proc_nreset
cal
gpnvm[0]
gpnvm[0..1]
wdt_fault
WDRPROC
gpnvm[1]
en
MCK
bod_rst_en
flash_wrdis
BOD
power_on_reset
jtag_nreset
POR
proc_nreset
Reset
Controller
Memory
Controlle
periph_nreset
proc_nreset
flash_poe
rstc_irq
NRST
Voltage
Regulator
Mode
Controller
standby
Voltage
Regulato
cal
SLCK
RCOSC
Embedde
Flash
SLCK
periph_clk[2..14]
pck[0-2]
XIN
OSC
MAINCK
XOUT
Power
Management
Controller
PCK
MCK
PLLRC
PLL
PLLCK
pmc_irq
int
idle
periph_nreset
periph_clk[4..14]
periph_nreset
irq0
periph_clk[2]
dbgu_rxd
Embedde
Periphera
periph_irq{2]
periph_nreset
PIO
Controller
fiq
periph_irq[4..14]
dbgu_txd
in
PA0-PA20
out
enable
SAM7S Series [DATASHEET]
6175KS–ATARM–25-Oct-12
27
9.1
Reset Controller
The Reset Controller is based on a power-on reset cell and one brownout detector. It gives the status of the last reset,
indicating whether it is a power-up reset, a software reset, a user reset, a watchdog reset or a brownout reset. In addition,
it controls the internal resets and the NRST pin open-drain output. It allows to shape a signal on the NRST line,
guaranteeing that the length of the pulse meets any requirement.
Note that if NRST is used as a reset output signal for external devices during power-off, the brownout detector must be
activated.
9.1.1
Brownout Detector and Power-on Reset
The SAM7S Series embeds a brownout detection circuit and a power-on reset cell. Both are supplied with and monitor
VDDCORE. Both signals are provided to the Flash to prevent any code corruption during power-up or power-down
sequences or if brownouts occur on the VDDCORE power supply.
The power-on reset cell has a limited-accuracy threshold at around 1.5V. Its output remains low during power-up until
VDDCORE goes over this voltage level. This signal goes to the reset controller and allows a full re-initialization of the
device.
The brownout detector monitors the VDDCORE level during operation by comparing it to a fixed trigger level. It secures
system operations in the most difficult environments and prevents code corruption in case of brownout on the
VDDCORE.
Only VDDCORE is monitored.
When the brownout detector is enabled and VDDCORE decreases to a value below the trigger level (Vbot-, defined as
Vbot - hyst/2), the brownout output is immediately activated.
When VDDCORE increases above the trigger level (Vbot+, defined as Vbot + hyst/2), the reset is released. The
brownout detector only detects a drop if the voltage on VDDCORE stays below the threshold voltage for longer than
about 1µs.
The threshold voltage has a hysteresis of about 50 mV, to ensure spike free brownout detection. The typical value of the
brownout detector threshold is 1.68V with an accuracy of ± 2% and is factory calibrated.
The brownout detector is low-power, as it consumes less than 20 µA static current. However, it can be deactivated to
save its static current. In this case, it consumes less than 1µA. The deactivation is configured through the GPNVM bit 0 of
the Flash.
SAM7S Series [DATASHEET]
6175KS–ATARM–25-Oct-12
28
9.2
Clock Generator
The Clock Generator embeds one low-power RC Oscillator, one Main Oscillator and one PLL with the following
characteristics:
z
RC Oscillator ranges between 22 kHz and 42 kHz
z
Main Oscillator frequency ranges between 3 and 20 MHz
z
Main Oscillator can be bypassed
z
PLL output ranges between 80 and 220 MHz
It provides SLCK, MAINCK and PLLCK.
Figure 9-3. Clock Generator Block Diagram
Clock Generator
XIN
Embedded
RC
Oscillator
Slow Clock
SLCK
Main
Oscillator
Main Clock
MAINCK
PLL and
Divider
PLL Clock
PLLCK
XOUT
PLLRC
Status
Control
Power
Management
Controller
9.3
Power Management Controller
The Power Management Controller uses the Clock Generator outputs to provide:
z
the Processor Clock PCK
z
the Master Clock MCK
z
the USB Clock UDPCK (not present on SAM7S32/16)
z
all the peripheral clocks, independently controllable
z
three programmable clock outputs
The Master Clock (MCK) is programmable from a few hundred Hz to the maximum operating frequency of the device.
The Processor Clock (PCK) switches off when entering processor idle mode, thus allowing reduced power consumption
while waiting for an interrupt.
SAM7S Series [DATASHEET]
6175KS–ATARM–25-Oct-12
29
Figure 9-4. Power Management Controller Block Diagram
Processor
Clock
Controller
Master Clock Controller
SLCK
MAINCK
PLLCK
PCK
int
Idle Mode
Prescaler
/1,/2,/4,...,/64
MCK
Peripherals
Clock Controller
periph_clk[2..14]
ON/OFF
Programmable Clock Controller
SLCK
MAINCK
PLLCK
Prescaler
/1,/2,/4,...,/64
USB Clock Controller
ON/OFF
PLLCK
9.4
usb_suspend
UDPCK
Advanced Interrupt Controller
z
Controls the interrupt lines (nIRQ and nFIQ) of an ARM Processor
z
Individually maskable and vectored interrupt sources
z
z
z
z
Source 0 is reserved for the Fast Interrupt Input (FIQ)
z
Source 1 is reserved for system peripherals RTT, PIT, EFC, PMC, DBGU, etc.)
z
Other sources control the peripheral interrupts or external interrupts
z
Programmable edge-triggered or level-sensitive internal sources
z
Programmable positive/negative edge-triggered or high/low level-sensitive external sources
8-level Priority Controller
z
Drives the normal interrupt of the processor
z
Handles priority of the interrupt sources
z
Higher priority interrupts can be served during service of lower priority interrupt
Vectoring
z
Optimizes interrupt service routine branch and execution
z
One 32-bit vector register per interrupt source
z
Interrupt vector register reads the corresponding current interrupt vector
Protect Mode
z
z
z
Easy debugging by preventing automatic operations
Fast Forcing
z
Permits redirecting any interrupt source on the fast interrupt
General Interrupt Mask
z
9.5
Divider
/1,/2,/4
pck[0..2]
Provides processor synchronization on events without triggering an interrupt
Debug Unit
z
Comprises:
z
One two-pin UART
z
One Interface for the Debug Communication Channel (DCC) support
SAM7S Series [DATASHEET]
6175KS–ATARM–25-Oct-12
30
z
z
z
One set of Chip ID Registers
z
One Interface providing ICE Access Prevention
Two-pin UART
z
Implemented features are compatible with the USART
z
Programmable Baud Rate Generator
z
Parity, Framing and Overrun Error
z
Automatic Echo, Local Loopback and Remote Loopback Channel Modes
Debug Communication Channel Support
z
z
Note:
9.6
9.8
Chip ID Registers
z
Identification of the device revision, sizes of the embedded memories, set of peripherals
z
Chip ID is 0x270B0A40 for AT91SAM7S512 Rev A
z
Chip ID is 0x270B0A4F for AT91SAM7S512 Rev B
z
Chip ID is 0x270D0940 for AT91SAM7S256 Rev A
z
Chip ID is 0x270B0941 for AT91SAM7S256 Rev B
z
Chip ID is 0x270B0942 for AT91SAM7S256 Rev C
z
Chip ID is TBD for AT91SAM7S256 Rev D
z
Chip ID is 0x270C0740 for AT91SAM7S128 Rev A
z
Chip ID is 0x270A0741 for AT91SAM7S128 Rev B
z
Chip ID is 0x270A0742 for AT91SAM7S128 Rev C
z
Chip ID is TBD for AT91SAM7S128 Rev D
z
Chip ID is 0x27090540 for AT91SAM7S64 Rev A
z
Chip ID is 0x27090543 for AT91SAM7S64 Rev B
z
Chip ID is 0x27090544 for AT91SAM7S64 Rev C
z
Chip ID is 0x27080342 for AT91SAM7S321 Rev A
z
Chip ID is 0x27080340 for AT91SAM7S32 Rev A
z
Chip ID is 0x27080341 for AT91SAM7S32 Rev B
z
Chip ID is 0x27050241 for AT9SAM7S161 Rev A
z
Chip ID is 0x27050240 for AT91SAM7S16 Rev A
Refer to the errata section of the datasheet for updates on chip ID.
Periodic Interval Timer
z
9.7
Offers visibility of COMMRX and COMMTX signals from the ARM Processor
20-bit programmable counter plus 12-bit interval counter
Watchdog Timer
z
12-bit key-protected Programmable Counter running on prescaled SCLK
z
Provides reset or interrupt signals to the system
z
Counter may be stopped while the processor is in debug state or in idle mode
Real-time Timer
z
32-bit free-running counter with alarm running on prescaled SCLK
z
Programmable 16-bit prescaler for SLCK accuracy compensation
SAM7S Series [DATASHEET]
6175KS–ATARM–25-Oct-12
31
9.9
PIO Controller
z
One PIO Controller, controlling 32 I/O lines (21 for SAM7S32/16)
z
Fully programmable through set/clear registers
z
Multiplexing of two peripheral functions per I/O line
z
For each I/O line (whether assigned to a peripheral or used as general-purpose I/O)
z
9.10
z
Input change interrupt
z
Half a clock period glitch filter
z
Multi-drive option enables driving in open drain
z
Programmable pull-up on each I/O line
z
Pin data status register, supplies visibility of the level on the pin at any time
Synchronous output, provides Set and Clear of several I/O lines in a single write
Voltage Regulator Controller
The aim of this controller is to select the Power Mode of the Voltage Regulator between Normal Mode (bit 0 is cleared) or
Standby Mode (bit 0 is set).
SAM7S Series [DATASHEET]
6175KS–ATARM–25-Oct-12
32
10.
Peripherals
10.1
User Interface
The User Peripherals are mapped in the 256 MBytes of address space between 0xF000 0000 and 0xFFFF EFFF. Each
peripheral is allocated 16 Kbytes of address space.
A complete memory map is provided in Figure 8-1 on page 20.
10.2
Peripheral Identifiers
The SAM7S Series embeds a wide range of peripherals. Table 10-1 defines the Peripheral Identifiers of the
SAM7S512/256/128/64/321/161. Table 10-2 defines the Peripheral Identifiers of the SAM7S32/16. A peripheral identifier
is required for the control of the peripheral interrupt with the Advanced Interrupt Controller and for the control of the
peripheral clock with the Power Management Controller.
Table 10-1. Peripheral Identifiers (SAM7S512/256/128/64/321/161)
Peripheral
ID
Peripheral
Mnemonic
Peripheral
Name
External
Interrupt
0
AIC
Advanced Interrupt Controller
FIQ
(1)
1
SYSC
System
2
PIOA
Parallel I/O Controller A
3
Reserved
4
ADC(1)
Analog-to Digital Converter
5
SPI
Serial Peripheral Interface
6
US0
USART 0
7
US1
USART 1
8
SSC
Synchronous Serial Controller
9
TWI
Two-wire Interface
10
PWMC
PWM Controller
11
UDP
USB Device Port
12
TC0
Timer/Counter 0
13
TC1
Timer/Counter 1
14
TC2
Timer/Counter 2
15 - 29
Reserved
30
AIC
Advanced Interrupt Controller
IRQ0
31
AIC
Advanced Interrupt Controller
IRQ1
Note:
1.
Setting SYSC and ADC bits in the clock set/clear registers of the PMC has no effect. The System Controller
is continuously clocked. The ADC clock is automatically started for the first conversion. In Sleep Mode the
ADC clock is automatically stopped after each conversion.
Note:
1.
Setting SYSC and ADC bits in the clock set/clear registers of the PMC has no effect. The System Controller
is continuously clocked. The ADC clock is automatically started for the first conversion. In Sleep Mode the
ADC clock is automatically stopped after each conversion.
SAM7S Series [DATASHEET]
6175KS–ATARM–25-Oct-12
33
Table 10-2. Peripheral Identifiers (SAM7S32/16)
10.3
Peripheral
ID
Peripheral
Mnemonic
Peripheral
Name
External
Interrupt
0
1
AIC
Advanced Interrupt Controller
FIQ
SYSC(1)
System
2
PIOA
Parallel I/O Controller A
3
Reserved
4
ADC(1)
Analog-to Digital Converter
5
SPI
Serial Peripheral Interface
6
US
USART
7
Reserved
8
SSC
Synchronous Serial Controller
9
TWI
Two-wire Interface
10
PWMC
PWM Controller
11
Reserved
12
TC0
Timer/Counter 0
13
TC1
Timer/Counter 1
14
TC2
Timer/Counter 2
15 - 29
Reserved
30
AIC
31
Reserved
Advanced Interrupt Controller
IRQ0
Peripheral Multiplexing on PIO Lines
The SAM7S Series features one PIO controller, PIOA, that multiplexes the I/O lines of the peripheral set.
PIO Controller A controls 32 lines (21 lines for SAM7S32/16). Each line can be assigned to one of two peripheral
functions, A or B. Some of them can also be multiplexed with the analog inputs of the ADC Controller.
Table 10-3, “Multiplexing on PIO Controller A (SAM7S512/256/128/64/321/161),” on page 35 and Table 10-4,
“Multiplexing on PIO Controller A (SAM7S32/16),” on page 36 define how the I/O lines of the peripherals A, B or the
analog inputs are multiplexed on the PIO Controller A. The two columns “Function” and “Comments” have been inserted
for the user’s own comments; they may be used to track how pins are defined in an application.
Note that some peripheral functions that are output only may be duplicated in the table.
All pins reset in their Parallel I/O lines function are configured as input with the programmable pull-up enabled, so that the
device is maintained in a static state as soon as a reset is detected.
SAM7S Series [DATASHEET]
6175KS–ATARM–25-Oct-12
34
10.4
PIO Controller A Multiplexing
Table 10-3. Multiplexing on PIO Controller A (SAM7S512/256/128/64/321/161)
PIO Controller A
Application Usage
I/O Line
Peripheral A
Peripheral B
Comments
PA0
PWM0
TIOA0
High-Drive
PA1
PWM1
TIOB0
High-Drive
PA2
PWM2
SCK0
High-Drive
PA3
TWD
NPCS3
High-Drive
PA4
TWCK
TCLK0
PA5
RXD0
NPCS3
PA6
TXD0
PCK0
PA7
RTS0
PWM3
PA8
CTS0
ADTRG
PA9
DRXD
NPCS1
PA10
DTXD
NPCS2
PA11
NPCS0
PWM0
PA12
MISO
PWM1
PA13
MOSI
PWM2
PA14
SPCK
PWM3
PA15
TF
TIOA1
PA16
TK
TIOB1
PA17
TD
PCK1
AD0
PA18
RD
PCK2
AD1
PA19
RK
FIQ
AD2
PA20
RF
IRQ0
AD3
PA21
RXD1
PCK1
PA22
TXD1
NPCS3
PA23
SCK1
PWM0
PA24
RTS1
PWM1
PA25
CTS1
PWM2
PA26
DCD1
TIOA2
PA27
DTR1
TIOB2
PA28
DSR1
TCLK1
PA29
RI1
TCLK2
PA30
IRQ1
NPCS2
PA31
NPCS1
PCK2
Function
Comments
SAM7S Series [DATASHEET]
6175KS–ATARM–25-Oct-12
35
Table 10-4. Multiplexing on PIO Controller A (SAM7S32/16)
PIO Controller A
Application Usage
I/O Line
Peripheral A
Peripheral B
Comments
PA0
PWM0
TIOA0
High-Drive
PA1
PWM1
TIOB0
High-Drive
PA2
PWM2
SCK0
High-Drive
PA3
TWD
NPCS3
High-Drive
PA4
TWCK
TCLK0
PA5
RXD0
NPCS3
PA6
TXD0
PCK0
PA7
RTS0
PWM3
PA8
CTS0
ADTRG
PA9
DRXD
NPCS1
PA10
DTXD
NPCS2
PA11
NPCS0
PWM0
PA12
MISO
PWM1
PA13
MOSI
PWM2
PA14
SPCK
PWM3
PA15
TF
TIOA1
PA16
TK
TIOB1
PA17
TD
PCK1
AD0
PA18
RD
PCK2
AD1
PA19
RK
FIQ
AD2
PA20
RF
IRQ0
AD3
Function
Comments
SAM7S Series [DATASHEET]
6175KS–ATARM–25-Oct-12
36
10.5
Serial Peripheral Interface
z
z
10.6
10.7
Supports communication with external serial devices
z
Four chip selects with external decoder allow communication with up to 15 peripherals
z
Serial memories, such as DataFlash® and 3-wire EEPROMs
z
Serial peripherals, such as ADCs, DACs, LCD Controllers, CAN Controllers and Sensors
z
External co-processors
Master or slave serial peripheral bus interface
z
8- to 16-bit programmable data length per chip select
z
Programmable phase and polarity per chip select
z
Programmable transfer delays between consecutive transfers and between clock and data per chip select
z
Programmable delay between consecutive transfers
z
Selectable mode fault detection
z
Maximum frequency at up to Master Clock
Two-wire Interface
z
Master Mode only (SAM7S512/256/128/64/321/32)
z
Master, Multi-Master and Slave Mode support (SAM7S161/16)
z
General Call supported in Slave Mode (SAM7S161/16)
z
Compatibility with I2C compatible devices (refer to the TWI sections of the datasheet)
z
One, two or three bytes internal address registers for easy Serial Memory access
z
7-bit or 10-bit slave addressing
z
Sequential read/write operations
USART
z
Programmable Baud Rate Generator
z
5- to 9-bit full-duplex synchronous or asynchronous serial communications
z
1, 1.5 or 2 stop bits in Asynchronous Mode
z
1 or 2 stop bits in Synchronous Mode
z
Parity generation and error detection
z
Framing error detection, overrun error detection
z
MSB or LSB first
z
Optional break generation and detection
z
By 8 or by 16 over-sampling receiver frequency
z
Hardware handshaking RTS - CTS
z
Modem Signals Management DTR-DSR-DCD-RI on USART1 (not present on SAM7S32/16)
z
Receiver time-out and transmitter timeguard
z
Multi-drop Mode with address generation and detection
z
RS485 with driver control signal
z
ISO7816, T = 0 or T = 1 Protocols for interfacing with smart cards
z
z
IrDA modulation and demodulation
z
z
NACK handling, error counter with repetition and iteration limit
Communication at up to 115.2 Kbps
Test Modes
z
Remote Loopback, Local Loopback, Automatic Echo
SAM7S Series [DATASHEET]
6175KS–ATARM–25-Oct-12
37
10.8
10.9
Serial Synchronous Controller
z
Provides serial synchronous communication links used in audio and telecom applications
z
Contains an independent receiver and transmitter and a common clock divider
z
Offers a configurable frame sync and data length
z
Receiver and transmitter can be programmed to start automatically or on detection of different event on the frame
sync signal
z
Receiver and transmitter include a data signal, a clock signal and a frame synchronization signal
Timer Counter
z
Three 16-bit Timer Counter Channels
z
z
z
Two output compare or one input capture per channel (except for SAM7S32/16 which have only two
channels connected to the PIO)
Wide range of functions including:
z
Frequency measurement
z
Event counting
z
Interval measurement
z
Pulse generation
z
Delay timing
z
Pulse Width Modulation
z
Up/down capabilities
Each channel is user-configurable and contains:
z
Three external clock inputs (The SAM7S32/16 have one)
z
Five internal clock inputs, as defined in Table 10-5
Table 10-5. Timer Counter Clocks Assignment
TC Clock Input
Clock
TIMER_CLOCK1
MCK/2
TIMER_CLOCK2
MCK/8
TIMER_CLOCK3
MCK/32
TIMER_CLOCK4
MCK/128
TIMER_CLOCK5
MCK/1024
z
Two multi-purpose input/output signals
z
Two global registers that act on all three TC channels
10.10 PWM Controller
z
Four channels, one 16-bit counter per channel
z
Common clock generator, providing thirteen different clocks
z
z
One Modulo n counter providing eleven clocks
z
Two independent linear dividers working on modulo n counter outputs
Independent channel programming
z
Independent enable/disable commands
z
Independent clock selection
z
Independent period and duty cycle, with double buffering
z
Programmable selection of the output waveform polarity
SAM7S Series [DATASHEET]
6175KS–ATARM–25-Oct-12
38
z
Programmable center or left aligned output waveform
10.11 USB Device Port (Does not pertain to SAM7S32/16)
z
USB V2.0 full-speed compliant, 12 Mbits per second.
z
Embedded USB V2.0 full-speed transceiver
z
Embedded 328-byte dual-port RAM for endpoints
z
Four endpoints
z
z
Endpoint 0: 8 bytes
z
Endpoint 1 and 2: 64 bytes ping-pong
z
Endpoint 3: 64 bytes
z
Ping-pong Mode (two memory banks) for isochronous and bulk endpoints
Suspend/resume logic
10.12 Analog-to-digital Converter
z
8-channel ADC
z
10-bit 384 Ksamples/sec. or 8-bit 583 Ksamples/sec. Successive Approximation Register ADC
z
±2 LSB Integral Non Linearity, ±1 LSB Differential Non Linearity
z
Integrated 8-to-1 multiplexer, offering eight independent 3.3V analog inputs
z
External voltage reference for better accuracy on low voltage inputs
z
Individual enable and disable of each channel
z
Multiple trigger source
z
Hardware or software trigger
z
External trigger pin
z
Timer Counter 0 to 2 outputs TIOA0 to TIOA2 trigger
z
Sleep Mode and conversion sequencer
z
Four of eight analog inputs shared with digital signals
z
Automatic wakeup on trigger and back to sleep mode after conversions of all enabled channels
SAM7S Series [DATASHEET]
6175KS–ATARM–25-Oct-12
39
11.
Package Drawings
The SAM7S series devices are available in LQFP and QFN package types.
11.1
LQFP Packages
Figure 11-1. 48-and 64-lead LQFP Package Drawing
SAM7S Series [DATASHEET]
6175KS–ATARM–25-Oct-12
40
Table 11-1. 48-lead LQFP Package Dimensions (in mm)
Symbol
Millimeter
Inch
Min
Nom
Max
Min
Nom
Max
A
–
–
1.60
–
–
0.063
A1
0.05
–
0.15
0.002
–
0.006
A2
1.35
1.40
1.45
0.053
0.055
0.057
D
9.00 BSC
0.354 BSC
D1
7.00 BSC
0.276 BSC
E
9.00 BSC
0.354 BSC
E1
7.00 BSC
0.276 BSC
R2
0.08
–
0.20
0.003
–
0.008
R1
0.08
–
–
0.003
–
–
q
0°
3.5°
7°
0°
3.5°
7°
θ1
0°
–
–
0°
–
–
θ2
11°
12°
13°
11°
12°
13°
θ3
11°
12°
13°
11°
12°
13°
c
0.09
–
0.20
0.004
–
0.008
L
0.45
0.60
0.75
0.018
0.024
0.030
L1
1.00 REF
0.039 REF
S
0.20
–
–
0.008
–
–
b
0.17
0.20
0.27
0.007
0.008
0.011
e
0.50 BSC.
0.020 BSC.
D2
5.50
0.217
E2
5.50
0.217
Tolerances of Form and Position
aaa
0.20
0.008
bbb
0.20
0.008
ccc
0.08
0.003
ddd
0.08
0.003
SAM7S Series [DATASHEET]
6175KS–ATARM–25-Oct-12
41
Table 11-2. 64-lead LQFP Package Dimensions (in mm)
Symbol
Millimeter
Inch
Min
Nom
Max
Min
Nom
Max
A
–
–
1.60
–
–
0.063
A1
0.05
–
0.15
0.002
–
0.006
A2
1.35
1.40
1.45
0.053
0.055
0.057
D
12.00 BSC
0.472 BSC
D1
10.00 BSC
0.383 BSC
E
12.00 BSC
0.472 BSC
E1
10.00 BSC
0.383 BSC
R2
0.08
–
0.20
0.003
–
0.008
R1
0.08
–
–
0.003
–
–
q
0°
3.5°
7°
0°
3.5°
7°
θ1
0°
–
–
0°
–
–
θ2
11°
12°
13°
11°
12°
13°
θ3
11°
12°
13°
11°
12°
13°
c
0.09
–
0.20
0.004
–
0.008
L
0.45
0.60
0.75
0.018
0.024
0.030
L1
1.00 REF
S
0.20
b
0.17
e
0.039 REF
–
–
0.008
0.20
0.27
0.007
–
–
0.008
0.011
0.50 BSC.
0.020 BSC.
D2
7.50
0.285
E2
7.50
0.285
Tolerances of Form and Position
aaa
0.20
0.008
bbb
0.20
0.008
ccc
0.08
0.003
ddd
0.08
0.003
SAM7S Series [DATASHEET]
6175KS–ATARM–25-Oct-12
42
11.2
QFN Packages
Figure 11-2. 48-pad QFN Package
SAM7S Series [DATASHEET]
6175KS–ATARM–25-Oct-12
43
Table 11-3. 48-pad QFN Package Dimensions (in mm)
Symbol
Millimeter
Inch
Min
Nom
Max
Min
Nom
Max
A
–
–
090
–
–
0.035
A1
–
–
0.050
–
–
0.002
A2
–
0.65
0.70
–
0.026
0.028
A3
b
0.20 REF
0.18
D
D2
0.20
0.008 REF
0.23
0.007
7.00 bsc
5.45
E
5.60
0.008
0.009
0.276 bsc
5.75
0.215
7.00 bsc
0.220
0.226
0.276 bsc
E2
5.45
5.60
5.75
0.215
0.220
0.226
L
0.35
0.40
0.45
0.014
0.016
0.018
e
R
0.50 bsc
0.09
–
0.020 bsc
–
0.004
–
–
Tolerances of Form and Position
aaa
0.10
0.004
bbb
0.10
0.004
ccc
0.05
0.002
SAM7S Series [DATASHEET]
6175KS–ATARM–25-Oct-12
44
Figure 11-3. 64-pad QFN Package Drawing
ll dimensions are in mm
eference : JEDEC Drawing MO-220
SAM7S Series [DATASHEET]
6175KS–ATARM–25-Oct-12
45
Table 11-4. 64-pad QFN Package Dimensions (in mm)
Symbol
A
Millimeter
Inch
Min
Nom
Max
Min
Nom
Max
–
–
090
–
–
0.035
A1
–
–
0.05
–
–
0.001
A2
–
0.65
0.70
–
0.026
0.028
0.28
0.009
A3
b
0.20 REF
0.23
D
D2
0.008 REF
9.00 bsc
6.95
E
7.10
6.95
L
0.35
e
7.25
0.274
7.10
7.25
0.274
0.40
0.45
0.014
–
0.011
0.280
0.285
0.354 bsc
0.50 bsc
0.125
0.010
0.354 bsc
9.00 bsc
E2
R
0.25
0.280
0.285
0.016
0.018
0.020 bsc
–
0.0005
–
–
Tolerances of Form and Position
aaa
0.10
0.004
bbb
0.10
0.004
ccc
0.05
0.002
SAM7S Series [DATASHEET]
6175KS–ATARM–25-Oct-12
46
12.
SAM7S Ordering Information
Table 12-1.
SAM7S Series Ordering Information
MLR B
Ordering Code
MLR C
Ordering Code
MLR D
Ordering Code
AT91SAM7S16-AU
AT91SAM7S16-MU
–
–
–
LQFP 48
QFN 48
Green
Industrial
(-40⋅ C to 85⋅ C)
AT91SAM7S161-AU
–
–
–
LQFP 64
Green
Industrial
(-40⋅ C to 85⋅ C)
AT91SAM7S32-AU-001
AT91SAM7S32-MU
AT91SAM7S32B-AU
AT91SAM7S32B-MU
LQFP 48
QFN 48
Green
Industrial
(-40⋅ C to 85⋅ C)
AT91SAM7S321-AU
AT91SAM7S321-MU
–
–
–
LQFP 64
QFN 64
Green
Industrial
(-40⋅ C to 85⋅ C)
–
AT91SAM7S64B-AU
AT91SAM7S64B-MU
AT91SAM7S64C-AU
AT91SAM7S64C-MU
–
LQFP 64
QFN 64
Green
Industrial
(-40⋅ C to 85⋅ C)
–
AT91SAM7S128-AU-001
AT91SAM7S128-MU
AT91SAM7S128C-AU
AT91SAM7S128C-MU
AT91SAM7S128D-AU
AT91SAM7S128D-MU
LQFP 64
QFN 64
Green
Industrial
(-40⋅ C to 85⋅ C)
–
AT91SAM7S256-AU-001
AT91SAM7S256-MU
AT91SAM7S256C-AU
AT91SAM7S256C-MU
AT91SAM7S256D-AU
AT91SAM7S256D-MU
LQFP 64
QFN 64
Green
Industrial
(-40⋅ C to 85⋅ C)
AT91SAM7S512-AU
AT91SAM7S512-MU
AT91SAM7S512B-AU
AT91SAM7S512B-MU
–
–
LQFP 64
QFN 64
Green
Industrial
(-40⋅ C to 85⋅ C)
Package
Package
Type
Temperature
Operating
Range
MLR A Ordering
Code
SAM7S Series [DATASHEET]
6175KS–ATARM–25-Oct-12
47
Revision History
Doc. Rev
Change
Request
Ref.
Comments
First issue - Unqualified on Intranet
6175AS
Corresponds to 6175A full datasheet approval loop.
Qualified on Intranet.
6175BS
Section 8. “Memories” on page 18 updated: 2 ms => 3 ms, 10 ms => 15 ms, 4 ms => 6 ms
CSR05-529
6175CS
Section 12. ”SAM7S Ordering Information” AT91SAM7S321 changed in Table 12-1 on page 47
#2342
6175DS
6175ES
“Features” , Table 1-1, “Configuration Summary,” on page 3, Section 4. ”Package and Pinout”
Section 12. ”SAM7S Ordering Information” QFN package information added
Section 10.11 on page 39 USB Device port, Ping-pong Mode includes Isochronous endpoints.
#2444
specs
“Features” on page 1, and global: AT91SAM7S512 added to series. Reference to Manchester Encoder
removed from USART.
Section 8. ”Memories” Reformatted Memories, Consolidated Memory Mapping in Figure 8-1 on page 20
#2748
Section 10. ”Peripherals” Reordered sub sections.
Section 11. ”Package Drawings” QFN, LQFP package drawings added.
“ice_nreset” signals changed to” power_on_reset” in System Controller block diagrams, Figure 9-1 on
page 26 and Figure 9-2 on page 27.
#2832
(DBGU IP)
Section 4. ”Package and Pinout” LQFP and QFN Package Outlines replace Mechanical Overview.
Section 10.1 ”User Interface”, User peripherals are mapped between 0xF000 0000 and 0xFFFF EFFF.
rfo review
SYSIRQ changed to SYSC in “Peripheral Identifiers” Table 10-1 and Table 10-2
6175FS
AT91SAM7S161 and AT91SAM7S16 added to product family
BDs
Features: Timer Counter, on page 2 product specific information rewritten, Table 1-1, “Configuration
Summary,” on page 3, footnote explains TC on AT91SAM7S32/16 has only two channels accessible via
PIO, and in Section 10.9 ”Timer Counter”, precisions added to “compare and capture” output/input.
4208
Section 10.6 ”Two-wire Interface”, updated reference to I2C compatibility, internal address registers,
slave addressing, Modes for AT91SAM7S161/16
rfo review
“One Two-wire Interface (TWI)” on page 2, updated in Features
Section 10.12 ”Analog-to-digital Converter”, updated Successive Approximation Register ADC and the
INL, DNL ± values of LSB.
Section 8.8.3 ”Lock Regions”, locked-region’s erase or program command updated
Section 9.5 ”Debug Unit”, Chip ID updated.
4325
Section 6. ”I/O Lines Considerations”, JTAG Port Pin, Test Pin, Erase Pin, updated.
5063
SAM7S Series [DATASHEET]
6175KS–ATARM–25-Oct-12
48
Doc. Rev
6175GS
Change
Request
Ref.
Comments
“Features” ,“Debug Unit (DBGU)” updated with “Mode for General Purpose 2-wire UART Serial
Communication”
5846
Section 7.4 ”Peripheral DMA Controller”, added list of PDC priorities.
5913
Section 9. ”System Controller”, Figure 9-1 and Figure 9-2 RTT is reset by “power_on_reset”.
5224
Section 9.1.1 ”Brownout Detector and Power-on Reset”, fourth paragraph reduced.
5685
Section 9.5 ”Debug Unit”, the list; Section l ”Chip ID Registers”, chip IDs updated, added SAM7S32 Rev
B and SAM7S64 Rev B to the list.
rfo
Section 12. ”SAM7S Ordering Information”, Updated product ordering information by MRL A and MRL B
versions.
6175HS
6175IS
Section 6.2 ”Test Pin”, added to SAM-BA Boot recovery procedure, a power cycle of the board is
mandatory.
Section 8.10 ”SAM-BA Boot Assistant”, added to SAM-BA Boot recovery procedure, a power cycle of the
board is mandatory.
Section 9.5 ”Debug Unit”, Chip ID Registers list updated.
7185
MRL C column added to Table 12-1, “SAM7S Series Ordering Information”.
Product Series Naming Convention
Except for part ordering and library references, AT91 prefix dropped from most nomenclature.
6175JS
rfo
AT91SAM7S becomes SAM7S.
Debug Unit:
7945
“Chip ID Registers” on page 31, Chip ID is 0x270B0A4F for AT91SAM7S512 Rev B
6175KS
6068
Section 9.5 ”Debug Unit”, Chip ID Registers list updated. Added Chip ID for SAM7S128 Rev D and
SAM7S256 Rev D
8380/8467
Table 12-1, “SAM7S Series Ordering Information”.Added SAM7S128 Rev D and SAM7S256 Rev D
SAM7S Series [DATASHEET]
6175KS–ATARM–25-Oct-12
49
Atmel Corporation
1600 Technology Drive
Atmel Asia Limited
Unit 01-5 & 16, 19F
Atmel Munich GmbH
Business Campus
Atmel Japan G.K.
16F Shin-Osaki Kangyo Bldg
San Jose, CA 95110
BEA Tower, Millennium City 5
Parkring 4
1-6-4 Osaki, Shinagawa-ku
USA
418 Kwun Tong Roa
D-85748 Garching b. Munich
Tokyo 141-0032
Tel: (+1) (408) 441-0311
Kwun Tong, Kowloon
GERMANY
JAPAN
Fax: (+1) (408) 487-2600
HONG KONG
Tel: (+49) 89-31970-0
Tel: (+81) (3) 6417-0300
www.atmel.com
Tel: (+852) 2245-6100
Fax: (+49) 89-3194621
Fax: (+81) (3) 6417-0370
Fax: (+852) 2722-1369
© 2012 Atmel Corporation. All rights reserved. / Rev.: 6175KS–ATARM–25-Oct-12
Atmel®, Atmel logo and combinations thereof, Enabling Unlimited Possibilities®, SAM-BA® and others, are registered trademarks or trademarks of Atmel
Corporation or its subsidiaries. Windows® and others are registered trademarks or trademarks of Microsoft Corporation in the US and/or in other countries. ARM®, the ARM Powered® logo, ARM7TDMI® , Thumb®, and others are registered trademarks or trademarks of ARM Limited. Other terms and
product names may be the trademarks of others.
Disclaimer: The information in this document is provided in connection with Atmel products. No license, express or implied, by estoppel or otherwise, to any intellectual property right is granted by this
document or in connection with the sale of Atmel products. EXCEPT AS SET FORTH IN THE ATMEL TERMS AND CONDITIONS OF SALES LOCATED ON THE ATMEL WEBSITE, ATMEL ASSUMES
NO LIABILITY WHATSOEVER AND DISCLAIMS ANY EXPRESS, IMPLIED OR STATUTORY WARRANTY RELATING TO ITS PRODUCTS INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, OR NON-INFRINGEMENT. IN NO EVENT SHALL ATMEL BE LIABLE FOR ANY DIRECT, INDIRECT,
CONSEQUENTIAL, PUNITIVE, SPECIAL OR INCIDENTAL DAMAGES (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS AND PROFITS, BUSINESS INTERRUPTION, OR LOSS OF
INFORMATION) ARISING OUT OF THE USE OR INABILITY TO USE THIS DOCUMENT, EVEN IF ATMEL HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Atmel makes no
representations or warranties with respect to the accuracy or completeness of the contents of this document and reserves the right to make changes to specifications and products descriptions at any time
without notice. Atmel does not make any commitment to update the information contained herein. Unless specifically provided otherwise, Atmel products are not suitable for, and shall not be used in,
automotive applications. Atmel products are not intended, authorized, or warranted for use as components in applications intended to support or sustain life.
工商网监
湘ICP备2023018690号
