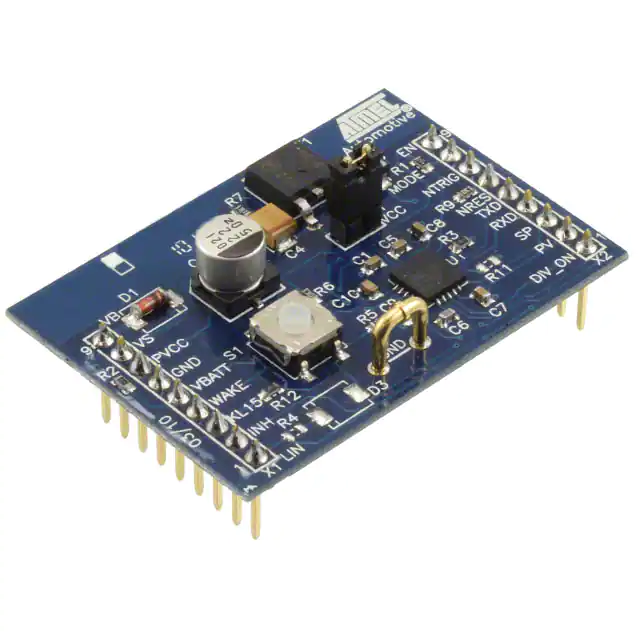

ATA6628/ATA6630
LIN Bus Transceiver with 3.3V (5V) Regulator and
Watchdog
DATASHEET
Features
● Master and slave operation possible
● Supply voltage up to 40V
● Operating voltage VS = 5V to 27V
● Typically 10µA supply current during Sleep Mode
● Typically 35µA supply current in Silent Mode
● Linear low-drop voltage regulator, 85mA current capability:
● Normal, Fail-safe, and Silent Mode
● Atmel® ATA6628 VCC = 3.3V ±2%
● Atmel ATA6630 VCC = 5.0V ±2%
● In Sleep Mode VCC is switched off
● VCC- undervoltage detection (4ms reset time) and watchdog reset logical
combined at open drain output NRES
● High-speed Mode for transmission rates up to 200kBaud
● Internal 1:6 voltage divider for VBattery Sensing
● Negative trigger input for watchdog
● Boosting the voltage regulator possible with an external NPN transistor
● LIN physical layer according to LIN 2.0, 2.1 and SAEJ2602-2
● Wake-up capability via LIN-bus, Wake pin, or Kl_15 pin
● INH output to control an external voltage regulator or to switch off the master pull
up resistor
● Bus pin is overtemperature and short-circuit protected versus GND and battery
● Adjustable watchdog time via external resistor
● Advanced EMC and ESD performance
● Fulfills the OEM “Hardware Requirements for LIN in Automotive Applications
Rev.1.1”
● Interference and damage protection according to ISO7637
● Qualified according to AEC-Q100
● Package: QFN 5mm × 5mm with 20 pins (Moisture Sensitivity Level 1)
9117I-AUTO-10/14
1.
Description
The Atmel® ATA6628 is a fully integrated LIN transceiver, which complies with the LIN 2.0, 2.1 and SAEJ2602-2
specifications. It has a low-drop voltage regulator for 3.3V/85mA output and a window watchdog. The Atmel ATA6630 has
the same functionality as the Atmel ATA6628; however, it uses a 5V/85mA regulator. The voltage regulator is able to source
up to 85mA, but the output current can be boosted by using an external NPN transistor. This chip combination makes it
possible to develop inexpensive, simple, yet powerful slave and master nodes for LIN-bus systems. Atmel
ATA6628/ATA6630 are designed to handle the low-speed data communication in vehicles, e.g., in convenience electronics.
Improved slope control at the LIN-driver ensures secure data communication up to 20kBaud. The bus output is designed to
withstand high voltage. Sleep Mode and Silent Mode guarantee minimized current consumption even in the case of a
floating or a short circuited LIN- bus.
Figure 1-1. Block Diagram
20
VS
11
INH
PVCC
5k
Normal and
Fail-safe
Mode
Normal and
Fail-safe
Mode
Receiver
7
RXD
6
RF Filter
LIN
4
WAKE
17
KL_15
PVCC
12
TXD
Edge
Detection
Wake-up
Bus Timer
Short Circuit and
Overtemperature
Protection
Slew Rate Control
TXD
Time-out
Timer
19
Normal/Silent/
Fail-safe Mode
3.3V/5V
Control Unit
2
EN
18
PVCC
13
Undervoltage
Reset
10
SP_MODE
NRES
High
Speed
Mode
Watchdog
Adjustable
Watchdog
Oscillator
8
PVCC
DIV_ON
Internal Testing
Unit
1
VBATT
9
5
PV
2
ATA6628/ATA6630 [DATASHEET]
9117I–AUTO–10/14
VCC
GND
3
NTRIG
16
MODE
15
TM
14
WD_OSC
Pin Configuration
Table 2-1.
VCC
PVCC
KL15
MODE
20
19
18
17
16
1
3
WAKE
4
GND
5
QFN 5mm x 5mm
0.65mm pitch
20 lead
6
7
8
9
10
SP_MODE
NTRIG
PV
2
DIV_ON
EN
Atmel
ATA6628/30
LIN
VBATT
VS
Figure 2-1. Pinning QFN20
RXD
2.
15
TM
14
WD_OSC
13
NRES
12
TXD
11
INH
Pin Description
Pin
Symbol
Function
1
VBATT
Battery supply for the voltage divider
2
EN
Enables the device into Normal Mode
3
NTRIG
Low-level watchdog trigger input from microcontroller; if not needed, connect to PVCC
4
WAKE
High-voltage input for local wake-up request; if not needed, connect to VS
5
GND
6
LIN
LIN-bus line input/output
7
RXD
Receive data output
8
DIV_ON
9
PV
10
SP_MODE
11
INH
Battery related High-side switch
12
TXD
Transmit data input; active low output (strong pull down) after a local wake up request
13
NRES
14
WD_OSC
15
TM
16
MODE
Low watchdog is on; high watchdog is off
17
KL_15
Ignition detection (edge sensitive); if not needed, connect to GND
18
PVCC
3.3V/5V regulator sense input pin, connect to VCC
19
VCC
20
VS
Backside
System ground
Input to switch on the internal voltage divider, active high; if not needed, connect to GND
Voltage divider output
Input to switch the transceiver in High-speed Mode, active high
Output undervoltage and watchdog reset (open drain)
External resistor for adjustable watchdog timing; if not needed, connect to GND
For factory testing only (tie to ground)
3.3V/5V regulator output/driver pin, connect to PVCC
Battery supply
Heat slug is connected to GND
ATA6628/ATA6630 [DATASHEET]
9117I–AUTO–10/14
3
3.
Functional Description
3.1
Physical Layer Compatibility
Since the LIN physical layer is independent from higher LIN layers (e.g., the LIN protocol layer), all nodes with a LIN physical
layer according to revision 2.x can be mixed with LIN physical layer nodes, which, according to older versions (i.e., LIN 1.0,
LIN 1.1, LIN 1.2, LIN 1.3), are without any restrictions.
3.2
Supply Pin (VS)
The LIN operating voltage is VS = 5V to 27V. An undervoltage detection is implemented to disable data transmission if VS
falls below VSth in order to avoid false bus messages. After switching on VS, the IC starts in Fail-safe Mode, and the voltage
regulator is switched on (i.e., 3.3V/5V/85mA output capability).
The supply current is typically 10µA in Sleep Mode and 35µA in Silent Mode.
3.3
Ground Pin (GND)
The Atmel® ATA6628/ATA6630 does not affect the LIN Bus in the event of GND disconnection. It is able to handle a ground
shift up to 11.5% of VS. The mandatory system ground is pin 5.
3.4
Voltage Regulator Output Pin (VCC)
The internal 3.3V/5V voltage regulator is capable of driving loads up to 85mA. It is able to supply the microcontroller and
other ICs on the PCB and is protected against overloads by means of current limitation and overtemperature shut-down.
Furthermore, the output voltage is monitored and will cause a reset signal at the NRES output pin if it drops below a defined
threshold Vthun. To boost up the maximum load current, an external NPN transistor may be used, with its base connected to
the VCC pin and its emitter connected to PVCC.
3.5
Voltage Regulator Sense Pin (PVCC)
The PVCC is the sense input pin of the 3.3V/5V voltage regulator. For normal applications (i.e., when only using the internal
output transistor), this pin must be connected to the VCC pin. If an external boosting transistor is used, the PVCC pin must
be connected to the output of this transistor, i.e., its emitter terminal.
3.6
Bus Pin (LIN)
A low-side driver with internal current limitation and thermal shutdown and an internal pull-up resistor compliant with the LIN
2.x specification are implemented. The allowed voltage range is between –27V and +40V. Reverse currents from the LIN
bus to VS are suppressed, even in the event of GND shifts or battery disconnection. LIN receiver thresholds are compatible
with the LIN protocol specification. The fall time from recessive to dominant bus state and the rise time from dominant to
recessive bus state are slope controlled.
3.7
Input/Output Pin (TXD)
In Normal Mode the TXD pin is the microcontroller interface used to control the state of the LIN output. TXD must be pulled
to ground in order to have a low LIN-bus. If TXD is high or not connected (internal pull-up resistor), the LIN output transistor
is turned off, and the bus is in recessive state. During Fail-safe Mode, this pin is used as output and is signalling the fail-safe
source. It is current-limited to < 8mA.
3.8
TXD Dominant Time-out Function
The TXD input has an internal pull-up resistor. An internal timer prevents the bus line from being driven permanently in
dominant state. If TXD is forced to low for longer than tDOM, the LIN-bus driver is switched to recessive state. Nevertheless,
when switching to Sleep Mode, the actual level at the TXD pin is relevant.
To reactivate the LIN bus driver after a TXD time-out has occurred, switch TXD to high (> 10µs).
4
ATA6628/ATA6630 [DATASHEET]
9117I–AUTO–10/14
3.9
Output Pin (RXD)
This output pin reports the state of the LIN-bus to the microcontroller. LIN high (recessive state) is reported by a high level at
RXD; LIN low (dominant state) is reported by a low level at RXD. The output has an internal pull-up resistor with typically
5kΩ to PVCC. The AC characteristics can be defined with an external load capacitor of 20pF.
The output is short-circuit protected. RXD is switched off in Unpowered Mode (i.e., VS = 0V).
During Fail-safe Mode it is signalling the fail-safe source.
3.10
Enable Input Pin (EN)
The Enable Input pin controls the operation mode of the device. If EN is high, the circuit is in Normal Mode, with transmission
paths from TXD to LIN and from LIN to RXD both active. The VCC voltage regulator operates with 3.3V/5V/85mA output
capability.
If EN is switched to low while TXD is still high, the device is forced to Silent Mode. No data transmission is then possible, and
the current consumption is reduced to IVS typ. 35µA. The VCC regulator has its full functionality.
If EN is switched to low while TXD is low, the device is forced to Sleep Mode. No data transmission is possible, and the
voltage regulator is switched off.
3.11
Wake Input Pin (WAKE)
The WAKE Input pin is a high-voltage input used to wake up the device from Sleep Mode or Silent Mode. It is usually
connected to an external switch in the application to generate a local wake-up. A pull-up current source, typically 10µA, is
implemented.
If a local wake-up is not needed in the application, connect the WAKE pin directly to the VS pin.
3.12
Mode Input Pin (MODE)
Connect the MODE pin directly or via an external resistor to GND for normal watchdog operation. To debug the software of
the connected microcontroller, connect MODE pin to PVCC and the watchdog is switched off.
Note:
3.13
If you do not use the watchdog, connect pin MODE directly to PVCC.
TM Input Pin
The TM pin is used for final production measurements at Atmel®. In all applications, it has to be connected to GND.
3.14
KL_15 Pin
The KL_15 pin is a high-voltage input used to wake up the device from Sleep or Silent Mode. It is an edge-sensitive pin (lowto-high transition). It is usually connected to ignition to generate a local wake-up in the application when the ignition is
switched on. Although KL_15 pin is at high voltage (VBatt), it is possible to switch the IC into Sleep or Silent Mode. Connect
the KL_15 pin directly to GND if you do not need it. A debounce timer with a typical TdbKl_15 of 160µs is implemented.
The input voltage threshold can be adjusted by varying the external resistor due to the input current IKL_15. To protect this pin
against voltage transients, a serial resistor of 47kΩ and a ceramic capacitor of 100nF are recommended. With this RC
combination you can increase the wake-up time TwKL_15 and, therefore, the sensitivity against transients on the ignition
KL_15.
You can also increase the wake-up time using external capacitors with higher values.
3.15
INH Output Pin
The INH Output pin is used to switch an external voltage regulator on during Normal and Fail-safe Mode. The INH Output is
a high-side switch, which is switched-off in Sleep and Silent Mode. It is possible to switch off the external 1kΩ master resistor
via the INH pin for master node applications.
3.16
Reset Output Pin (NRES)
The Reset Output pin, an open drain output, switches to low during VCC undervoltage or a watchdog failure.
ATA6628/ATA6630 [DATASHEET]
9117I–AUTO–10/14
5
3.17
WD_OSC Output Pin
The WD_OSC Output pin provides a typical voltage of 1.2V, which supplies an external resistor with values between 34kΩ
and 120kΩ to adjust the watchdog oscillator time.
If the watchdog is disabled, this voltage is switched off and you can either tie to GND or leave this pin open.
3.18
NTRIG Input Pin
The NTRIG Input pin is the trigger input for the window watchdog. A pull-up resistor is implemented. A negative edge
followed by a low phase longer than ttrigmin triggers the watchdog.
3.19
Wake-up Events from Sleep or Silent Mode
●
●
●
●
3.20
LIN-bus
WAKE pin
EN pin
KL_15
DIV_ON Input Pin
The DIV_ON pin is a low voltage input. It is used to switch on or off the internal voltage divider PV output directly with no time
limitation (see Table 3-1 on page 6). It is switched on if DIV_ON is high or it is switched off if DIV_ON is low. In Sleep Mode
the DIV_ON functionality is disabled and PV is off. An internal pull-down resistor is implemented.
3.21
VBATT Input Pin
The VBATT is a high voltage input pin to supply the internal voltage divider. In an application with battery voltage monitoring,
this pin is connected to VBattery via a 47Ω resistor in series and a 10nF capacitor to GND (see Figure 9-2 on page 31). The
divider ratio is 1:6.
3.22
PV Output Pin
For applications with battery monitoring, this pin is directly connected to the ADC of a microcontroller. For buffering the ADC
input an external capacitor might be needed. This pin guarantees a voltage and temperature stable output of a VBattery ratio.
The PV output pin is controlled by the DIV_ON input pin.
Table 3-1.
Table of Voltage Divider
Mode of Operation
Input DiV_ON
Voltage Divider Output PV
Fail-safe/Normal/
High-speed/Silent
0
Off
1
On
0
Off
1
Off
Sleep
3.23
SP_MODE Input Pin
The SP_MODE pin is a low-voltage input. High-speed Mode of the transceiver can be activated via a high level during
Normal Mode. Return to LIN 2.x Transceiver Mode with slope control is possible if you switch the SP_MODE pin to low.
6
ATA6628/ATA6630 [DATASHEET]
9117I–AUTO–10/14
4.
Modes of Operation
Figure 4-1. Modes of Operation
a: VS > VSthF
Unpowered Mode
(See Section 4.5)
b
b: VS < VSthU
c: Bus wake-up event
d: Wake up from WAKE or KL_15 pin
a
e: NRES switches to low
b
Fail-safe Mode
VCC: 3.3V/5V
with undervoltage monitoring
Communication: OFF
Watchdog: ON
b
e
EN = 1
b
c+d+e
EN = 1
c+d
Go to silent command
EN = 0
Normal Mode
VCC: 3.3V/5V
with undervoltage detection
watchdog: ON
High level at
pin SP_MODE:
High-speed Mode
Transceiver ≤ 200kBaud
Table 4-1.
4.1
Silent Mode
TXD = 1
VCC: 3.3V/5V
with undervoltage monitoring
Communication: OFF
Watchdog: OFF
Go to normal command
EN = 1
LIN 2.1
Transceiver
≤ 20kBaud
TXD time-out
timer on
Go to sleep command
EN = 0
Sleep Mode
VCC: switched off
Communication: OFF
Watchdog: OFF
TXD = 0
Table of Modes
Mode of
Operation
Transceiver
Pin LIN
VCC
Pin Mode
Watchdog
Pin
WD_OSC
Pin INH
Unpowered
Off
Recessive
On
GND
On
On
Off
Fail-safe
Off
Recessive
3.3V/5V
GND
On
1.23V
On
Normal/ Highspeed
On
TXD
depending
3.3V/5V
GND
On
1.23V
On
Silent
Off
Recessive
3.3V/5V
GND
Off
0V
Off
Sleep
Off
Recessive
0V
GND
Off
0V
Off
Normal Mode
This is the normal transmitting and receiving mode. The voltage regulator is active and can source up to 85mA. The
undervoltage detection is activated. The watchdog needs a trigger signal from NTRIG to avoid resets at NRES. If NRES is
switched to low, the IC changes its state to Fail-safe Mode.
ATA6628/ATA6630 [DATASHEET]
9117I–AUTO–10/14
7
4.2
Silent Mode
A falling edge at EN when TXD is high switches the IC into Silent Mode. The TXD Signal has to be logic high during the
Mode Select window (see Figure 4-2 on page 8). The transmission path is disabled in Silent Mode. The INH output is
switched off and the voltage divider can be activated by the DIV_ON pin. The overall supply current from VBatt is a
combination of the IVSsilent = 35µA plus the VCC regulator output current IVCC.
The internal slave termination between the LIN pin and the VS pin is disabled in Silent Mode to minimize the current
consumption in the event that the LIN pin is short-circuited to GND. Only a weak pull-up current (typically 10µA) between the
LIN pin and the VS pin is present. Silent Mode can be activated independently from the actual level on the LIN, WAKE, or
KL_15 pins. If an undervoltage condition occurs, NRES is switched to low, and the IC changes its state to Fail-safe Mode.
A voltage less than the LIN Pre_Wake detection VLINL at the LIN pin activates the internal LIN receiver and starts the wakeup detection timer.
Figure 4-2. Switch to Silent Mode
Normal Mode
Silent Mode
EN
TXD
Mode select window
td = 3.2μs
NRES
VCC
Delay time silent mode
td_silent = maximum 20μs
LIN
LIN switches directly to recessive mode
8
ATA6628/ATA6630 [DATASHEET]
9117I–AUTO–10/14
A falling edge at the LIN pin followed by a dominant bus level maintained for a certain time period (> tbus) and the following
rising edge at the LIN pin (see Figure 4-3 on page 9) result in a remote wake-up request which is only possible if TXD is high.
The device switches from Silent Mode to Fail-safe Mode. The internal LIN slave termination resistor is switched on. The
remote wake-up request is indicated by a low level at the RXD pin to interrupt the microcontroller (see Figure 4-3 on page 9).
EN high can be used to switch directly to Normal Mode.
Figure 4-3. LIN Wake-up from Silent Mode
Bus wake-up filtering time
tbus
Fail-safe mode
Normal mode
Don't care
LIN bus
Node in silent mode
RXD
High
Low
High
TXD
Watchdog
VCC
voltage
regulator
Watchdog off
Start watchdog lead time td
Silent mode 3.3V/5V
Fail safe mode 3.3V/5V
Normal mode
EN High
EN
NRES
Undervoltage detection active
ATA6628/ATA6630 [DATASHEET]
9117I–AUTO–10/14
9
4.3
Sleep Mode
A falling edge at EN when TXD is low switches the IC into Sleep Mode. The TXD Signal has to be logic low during the Mode
Select window (Figure 4-4 on page 10). In order to avoid any influence to the LIN-pin during switching into sleep mode it is
possible to switch the EN up to 3.2µs earlier to Low than the TXD. The best and easiest way are two falling edges at TXD
and EN at the same time. The transmission path is disabled in Sleep Mode. The supply current IVSsleep from VBatt is typically
10µA.
The INH output, the PV output and the VCC regulator are switched off. NRES and RXD are low. The internal slave
termination between the LIN pin and VS pin is disabled to minimize the current consumption in the event that the LIN pin is
short-circuited to GND. Only a weak pull-up current (typically 10µA) between the LIN pin and the VS pin is present. Sleep
Mode can be activated independently from the current level on the LIN, WAKE, or KL_15 pin.
A voltage less than the LIN Pre_Wake detection VLINL at the LIN pin activates the internal LIN receiver and starts the wakeup detection timer.
Figure 4-4. Switch to Sleep Mode
Normal Mode
Sleep Mode
EN
Mode select window
TXD
td = 3.2μs
NRES
VCC
Delay time sleep mode
td_sleep = maximum 20μs
LIN
LIN switches directly to recessive mode
10
ATA6628/ATA6630 [DATASHEET]
9117I–AUTO–10/14
A falling edge at the LIN pin followed by a dominant bus level maintained for a certain time period (> tbus) and a rising edge
at pin LIN result in a remote wake-up request. The device switches from Sleep Mode to Fail-safe Mode.
The VCC regulator is activated, and the internal LIN slave termination resistor is switched on. The remote wake-up request
is indicated by a low level at the RXD pin to interrupt the microcontroller (see Figure 4-5 on page 11).
EN high can be used to switch directly to Normal Mode. If EN is still high after VCC ramp up and undervoltage reset time, the
IC switches to the Normal Mode.
Figure 4-5. LIN Wake Up from Sleep Mode
Bus wake-up filtering time
tbus
Fail-safe Mode
Low
Low
Normal Mode
LIN bus
RXD
TXD
VCC
voltage
regulator
On state
Off state
Regulator wake-up time
EN High
EN
Reset
time
NRES
Low
Microcontroller
start-up time delay
Watchdog
Watchdog off
Start watchdog lead time td
ATA6628/ATA6630 [DATASHEET]
9117I–AUTO–10/14
11
4.4
Sleep or Silent Mode: Behavior at a Floating LIN-bus or a Short Circuited LIN to GND
In Sleep or in Silent Mode the device has a very low current consumption even during short-circuits or floating conditions on
the bus. A floating bus can arise if the Master pull-up resistor is missing, e.g., if it is switched off when the LIN- Master is in
sleep mode or even if the power supply of the Master node is switched off.
In order to minimize the current consumption IVS in sleep or silent mode during voltage levels at the LIN-pin below the LIN
pre-wake threshold, the receiver is activated only for a specific time tmon. If tmon elapses while the voltage at the bus is lower
than Pre-wake detection low (VLINL) and higher than the LIN dominant level, the receiver is switched off again and the circuit
changes back to sleep respectively Silent Mode. The current consumption is then IVSsleep_short or IVSsilent_short (typ. 10µA more
than IVSsleep respectively IVSsilent). If a dominant state is reached on the bus no wake-up will occur. Even if the voltage rises
above the Pre-wake detection high (VLINH), the IC will stay in sleep respectively silent mode (see Figure 4-6).
This means the LIN-bus must be above the Pre-wake detection threshold VLINH for a few microseconds before a new LIN
wake-up is possible.
Figure 4-6. Floating LIN-bus during Sleep or Silent Mode
LIN Pre-wake
VLINL
LIN BUS
LIN dominant state
VBUSdom
tmon
IVSfail
IVSsleep_short /
IVSsilent_short
IVS
IVSsleep/silent
Mode of
operation
Sleep/Silent Mode
Int. Pull-up
Resistor
RLIN
12
ATA6628/ATA6630 [DATASHEET]
9117I–AUTO–10/14
IVSsleep/silent
Wake-up Detection Phase
off (disabled)
Sleep/Silent Mode
If the ATA6628/ATA6630 is in Sleep or Silent Mode and the voltage level at the LIN-bus is in dominant state (VLIN < VBUSdom)
for a time period exceeding tmon (during a short circuit at LIN, for example), the IC switches back to Sleep Mode respectively
Silent Mode. The VS current consumption then is IVSsleep_short or IVSsilent_short (typ. 10µA more than IVSsleep respectively
IVSsilent). After a positive edge at pin LIN the IC switches directly to Fail-safe Mode (see Figure 4-7 on page 13).
Figure 4-7. Short Circuit to GND on the LIN bus During Sleep- or Silent Mode
LIN Pre-wake
LIN BUS
VLINL
LIN dominant state
VBUSdom
tmon
tmon
IVSfail
IVS
Mode of
operation
Int. Pull-up
Resistor
RLIN
IVSsleep_short /
IVSsilent_short
IVSsleep/silent
Sleep/Silent Mode
Wake-up Detection Phase
off (disabled)
Sleep/Silent
Mode
Fail-Safe Mode
on (enabled)
ATA6628/ATA6630 [DATASHEET]
9117I–AUTO–10/14
13
4.5
Fail-safe Mode
The device automatically switches to Fail-safe Mode at system power-up. The voltage regulator is switched on (see Figure
5-1 on page 18). The NRES output remains low for tres = 4ms and gives a reset to the microcontroller. LIN communication is
switched off. The IC stays in this mode until EN is switched to high. The IC then changes to Normal Mode. A power down of
VBatt (VS < VSthU) during Silent or Sleep Mode switches the IC into Fail-safe Mode after power up. A low at NRES switches
into Fail-safe Mode directly. During Fail-safe Mode, the TXD pin is an output and signals the fail-safe source. The watchdog
is switched on.
The LIN SBC can operate in different Modes, like Normal, Silent, or Sleep Mode. The functionality of these modes is
described in Table 4-2.
Table 4-2.
TXD, RXD Depending from Operation Modes
Different Modes
Fail-safe Mode
TXD
RXD
Signalling fail-safe sources (see Table 4-3 and Table 4-4)
Normal Mode
Follows data transmission
Silent Mode
High
High
Sleep Mode
Low
Low
A wake-up event from either Silent or Sleep Mode will be signalled to the microcontroller using the two pins RXD and TXD.
The coding is shown in Table 4-3.
A wake-up event will switch the IC to the Fail-safe Mode.
Table 4-3.
Fail-safe Sources
TXD
RXD
LIN wake-up (pin LIN)
Low
Low
Local wake-up (at pin Wake, pin KL15)
Low
High
VSth (battery) undervoltage detection
High
Low
Table 4-4.
14
Signalling Fail-safe Sources
Signalling in Fail-safe Mode after Reset (NRES was Low), Shows the Reset Source at TXD and RXD
Pins
Fail-safe Sources
TXD
RXD
VCC undervoltage at NRES
High
Low
Watchdog reset at NRES
High
High
ATA6628/ATA6630 [DATASHEET]
9117I–AUTO–10/14
4.6
Unpowered Mode
If you connect battery voltage to the application circuit, the voltage at the VS pin increases according to the block capacitor
(see Figure 5-1 on page 18). After VS is higher than the VS undervoltage threshold VSth, the IC mode changes from
Unpowered Mode to Fail-safe Mode. The VCC output voltage reaches its nominal value after tVCC. This time, tVCC, depends
on the VCC capacitor and the load.
The NRES is low for the reset time delay treset. During this time, treset, no mode change is possible.
IF VS drops below VSth, then the IC switches to Unpowered Mode. The behavior of VCC, NRES and LIN is shown in Figure
4-8. The watchdog needs to be triggered.
Figure 4-8. VCC versus VS for the VCC = 3.3V Regulator
6
5.5
5
Regulator drop voltage VD
4.5
LIN
V (V)
4
3.5
3
2.5
2
VS
NRES
1.5
VCC
1
0.5
0
0
0.5
1
1.5
2
2.5
3
3.5
4
4.5
5
5.5
6
VS (V)
4.7
High-speed Mode
If SP_MODE pin is high and the IC is in Normal Mode, the slew rate control is switched off. The slope time of the LIN falling
edge is tS_Fall < 2µs. The slope time of the LIN rising edge strongly depends on the LIN capacitive and resistive load. To
achieve a high baud rate it is recommended to use a small resistor (500Ω) and a low capacitor. This allows very fast data
transmission up to 200kBaud, e.g., for electronic control (ECU) tests and microcontroller program or data download. In this
mode superior EMC performance is not guaranteed.
ATA6628/ATA6630 [DATASHEET]
9117I–AUTO–10/14
15
5.
Wake-up Scenarios from Silent or Sleep Mode
5.1
Remote Wake-up via Dominant Bus State
A voltage less than the LIN Pre_Wake detection VLINL at the LIN pin activates the internal LIN receiver and starts the wakeup detection timer.
A falling edge at the LIN pin followed by a dominant bus level VBUSdom maintained for a certain time period (> tBUS) and a
rising edge at pin LIN result in a remote wake-up request. A remote wake-up from Silent Mode is only possible if TXD is high.
The device switches from Silent or Sleep Mode to Fail-safe Mode. The VCC voltage regulator is/remains activated, the INH
pin is switched to high, and the internal slave termination resistor is switched on. The remote wake-up request is indicated by
a low level at the RXD pin to generate an interrupt for the microcontroller and a strong pull down at TXD.
5.2
Local Wake-up via Pin WAKE
A falling edge at the WAKE pin followed by a low level maintained for a certain time period (> tWAKE) results in a local wakeup request. The device switches to Fail-safe Mode. The internal slave termination resistor is switched on. The local wake-up
request is indicated by a low level at the TXD pin to generate an interrupt for the microcontroller. When the Wake pin is low,
it is possible to switch to Silent or Sleep Mode via pin EN. In this case, the wake-up signal has to be switched to high > 10µs
before the negative edge at WAKE starts a new local wake-up request.
5.3
Local Wake-up via Pin KL_15
A positive edge at pin KL_15 followed by a high voltage level for a certain time period (> tKL_15) results in a local wake-up
request. The device switches into the Fail-safe Mode. The internal slave termination resistor is switched on. The extra long
wake-up time ensures that no transients at KL_15 create a wake-up. The local wake-up request is indicated by a low level at
the TXD pin to generate an interrupt for the microcontroller. During high-level voltage at pin KL_15, it is possible to switch to
Silent or Sleep Mode via pin EN. In this case, the wake-up signal has to be switched to low > 250µs before the positive edge
at KL_15 starts a new local wake-up request. With an external RC combination, the time can be increased.
5.4
Wake-up Source Recognition
The device can distinguish between different wake-up sources (see Table 4-4 on page 14).
The wake-up source can be read on the TXD and RXD pin in Fail-safe Mode. These flags are immediately reset if the
microcontroller sets the EN pin to high (see Figure 4-3 on page 9 and Figure 4-5 on page 11) and the IC is in Normal mode.
16
ATA6628/ATA6630 [DATASHEET]
9117I–AUTO–10/14
5.5
Fail-safe Features
●
During a short-circuit at LIN to VBattery, the output limits the output current to IBUS_lim. Due to the power dissipation, the
chip temperature exceeds TLINoff, and the LIN output is switched off. The chip cools down and after a hysteresis of
Thys, switches the output on again. RXD stays on high because LIN is high. During LIN overtemperature switch-off,
the VCC regulator works independently.
●
During a short-circuit from LIN to GND the IC can be switched into Sleep or Silent Mode and even in this case the
current consumption is lower than 30µA in Sleep Mode and lower than 70µA in Silent Mode. If the short-circuit
disappears, the IC starts with a remote wake-up.
●
Sleep or Silent Mode: During a floating condition on the bus the IC switches back to Sleep Mode/Silent Mode
automatically and thereby the current consumption is lower than 30µA/70µA.
●
The reverse current is < 2µA at the LIN pin during loss of VBatt. This is optimal behavior for bus systems where some
slave nodes are supplied from battery or ignition.
●
During a short circuit at VCC, the output limits the output current to IVCClim. Because of undervoltage, NRES switches
to low and sends a reset to the microcontroller. The IC switches into Fail-safe Mode. If the chip temperature exceeds
the value TVCCoff, the VCC output switches off. The chip cools down and after a hysteresis of Thys, switches the output
on again. Because of the Fail-safe Mode, the VCC voltage will switch on again and the microcontroller can start with
its normal operation.
●
●
●
●
●
EN pin provides a pull-down resistor to force the transceiver into recessive mode if EN is disconnected.
●
●
If the WD_OSC pin has a short-circuit to GND and the NTRIG Signal has a period time > 27ms a reset is guaranteed.
●
If there is no NTRIG signal and a short-circuit at WD_OSC to GND the NRES switches to low after 90ms. For an open
circuit (no resistor) at WD_OSC it switches to low after 390ms.
RXD pin is set floating if VBatt is disconnected.
TXD pin provides a pull-up resistor to force the transceiver into recessive mode if TXD is disconnected.
If TXD is short-circuited to GND, it is possible to switch to Sleep Mode via ENABLE
After switching the IC into Normal Mode the TXD pin must be pulled to high longer than 10µs in order to activate the
LIN driver. This feature prevents the bus from being driven into dominant state when the IC is switched into Normal
Mode and TXD is low.
If the resistor at the WD_OSC pin is disconnected and the NTRIG Signal has a period time < 46ms a reset is
guaranteed.
ATA6628/ATA6630 [DATASHEET]
9117I–AUTO–10/14
17
5.6
Voltage Regulator
The voltage regulator needs an external capacitor for compensation and for smoothing the disturbances from the
microcontroller. It is recommended to use an electrolythic capacitor with C > 1.8µF and a ceramic capacitor with C = 100nF.
The values of these capacitors can be varied by the customer, depending on the application.
The main power dissipation of the IC is created from the VCC output current IVCC, which is needed for the application. In
Figure 5-2 on page 18 the safe operating area of the Atmel® ATA6630 is shown.
Figure 5-1. VCC Voltage Regulator: Ramp-up and Undervoltage Detection
VS
12V
5.5V/3.8V
t
VCC
5V/3.3V
Vthun
TVCC
Tres_f
TReset
t
NRES
5V/3.3V
t
Figure 5-2. Power Dissipation: Safe Operating Area: VCC Output Current versus Supply Voltage VS at Different
Ambient Temperatures Due to Rthja = 35K/W
90
Tamb = 105°C
80
IVCC (mA)
70
Tamb = 115°C
60
50
Tamb = 125°C
40
30
20
10
0
5
6
7
8
9
10
11
12
13
14
15
16
17
18
VS (V)
For microcontroller programming, it may be necessary to supply the VCC output via an external power supply while the VS
Pin of the system basis chip is disconnected. This will not affect the system basis chip.
18
ATA6628/ATA6630 [DATASHEET]
9117I–AUTO–10/14
6.
Watchdog
The watchdog anticipates a trigger signal from the microcontroller at the NTRIG (negative edge) input within a time window
of Twd. The trigger signal must exceed a minimum time ttrigmin > 200ns. If a triggering signal is not received, a reset signal will
be generated at output NRES. The timing basis of the watchdog is provided by the internal oscillator. Its time period, Tosc, is
adjustable via the external resistor Rwd_osc (34kΩ to 120kΩ).
During Silent or Sleep Mode the watchdog is switched off to reduce current consumption.
The minimum time for the first watchdog pulse is required after the undervoltage reset at NRES disappears. It is defined as
lead time td. After wake up from Sleep or Silent Mode, the lead time td starts with the negative edge of the RXD output.
6.1
Typical Timing Sequence with RWD_OSC = 51kΩ
The trigger signal Twd is adjustable between 20ms and 64ms using the external resistor RWD_OSC.
For example, with an external resistor of RWD_OSC = 51kΩ ±1%, the typical parameters of the watchdog are as follows:
tosc = 0.405 × RWD_OSC – 0.0004 × (RWD_OSC)2 (RWD_OSC in kΩ ; tosc in µs)
tOSC = 19.6µs due to 51kΩ
td = 7895 × 19.6µs = 155ms
t1 = 1053 × 19.6µs = 20.6ms
t2 = 1105 × 19.6µs = 21.6ms
tnres = constant = 4ms
After ramping up the battery voltage, the 5V regulator is switched on. The reset output NRES stays low for the time treset
(typically 4ms), then it switches to high, and the watchdog waits for the trigger sequence from the microcontroller. The lead
time, td, follows the reset and is td = 155ms. In this time, the first watchdog pulse from the microcontroller is required. If the
trigger pulse NTRIG occurs during this time, the time t1 starts immediately. If no trigger signal occurs during the time td, a
watchdog reset with tNRES = 4 ms will reset the microcontroller after td = 155ms. The times t1 and t2 have a fixed relationship.
A triggering signal from the microcontroller is anticipated within the time frame of t2 = 21.6ms. To avoid false triggering from
glitches, the trigger pulse must be longer than tTRIG,min > 200ns. This slope serves to restart the watchdog sequence. If the
triggering signal fails in this open window t2, the NRES output will be drawn to ground. A triggering signal during the closed
window t1 immediately switches NRES to low.
Figure 6-1. Timing Sequence with RWD_OSC = 51kΩ
VCC
3.3V/5V
Undervoltage Reset
NRES
Watchdog Reset
tnres = 4ms
treset = 4ms
td = 155ms
t1
t1 = 20.6ms
t2
t2 = 21ms
twd
NTRIG
ttrig > 200ns
ATA6628/ATA6630 [DATASHEET]
9117I–AUTO–10/14
19
6.2
Worst Case Calculation with RWD_OSC = 51kΩ
The internal oscillator has a tolerance of 20%. This means that t1 and t2 can also vary by 20%. The worst case calculation for
the watchdog period twd is calculated as follows.
The ideal watchdog time twd is between the maximum t1 and the minimum t1 plus the minimum t2.
t1,min = 0.8 × t1 = 16.5ms, t1,max = 1.2 × t1 = 24.8ms
t2,min = 0.8 × t2 = 17.3ms, t2,max = 1.2 × t2 = 26ms
twdmax = t1min + t2min = 16.5ms + 17.3ms = 33.8ms
twdmin = t1max = 24.8ms
twd = 29.3ms ±4.5ms (±15%)
A microcontroller with an oscillator tolerance of ±15% is sufficient to supply the trigger inputs correctly.
Table 6-1.
20
Typical Watchdog Timings
RWD_OSC
kΩ
Oscillator
Period
tosc/µs
Lead
Time
td/ms
Closed
Window
t1/ms
Open Window
t2/ms
Trigger Period from
Microcontroller twd/ms
Reset Time
tnres/ms
34
13.3
105
14.0
14.7
19.9
4
51
19.61
154.8
20.64
21.67
29.32
4
91
33.54
264.80
35.32
37.06
50.14
4
120
42.84
338.22
45.11
47.34
64.05
4
ATA6628/ATA6630 [DATASHEET]
9117I–AUTO–10/14
7.
Absolute Maximum Ratings
Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress rating
only and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of this
specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
Parameters
Symbol
Min.
Supply voltage VS
VS
–0.3
Pulse time ≤ 500ms
Ta = 25°C
Output current IVCC ≤ 85mA
Pulse time ≤ 2min
Ta = 25°C
Output current IVCC ≤ 85mA
Max.
Unit
+40
V
VS
+40
V
VS
27
V
–1
–150
+40
+100
V
V
INH
- DC voltage
–0.3
VS + 0.3
V
LIN, VBATT
- DC voltage
–27
+40
V
–0.3
VCC + 0.5V
V
+2
mA
+5.5
+6.5
V
V
WAKE (with 2.7kΩ serial resistor)
KL_15 (with 47kΩ/100nF)
VBATT (with 47Ω/10nF)
DC voltage
Transient voltage due to ISO7637 (coupling
1nF)
Logic pins (RxD, TxD, EN, NRES, NTRIG,
WD_OSC, MODE, TM, DIV_ON,
SP_MODE, PV)
Output current NRES
INRES
PVCC DC voltage
VCC DC voltage
–0.3
–0.3
Typ.
ESD according to IBEE LIN EMC
Test Spec. 1.0 following IEC 61000-4-2
- Pin VS, LIN to GND
- Pin WAKE (2.7kΩ, serial resistor) to GND
- Pin KL_15 (47kΩ/100nF) to GND
- Pin VBATT (10nF) to GND
±8
KV
HBM ESD
ANSI/ESD-STM5.1
JESD22-A114
AEC-Q100 (002)
MIL-STD-883 (M3015.7)
±3
KV
CDM ESD STM 5.3.1
±750
V
MM ESD
EIA/JESD22-A115
ESD STM5.2
AEC-Q100 (002)
±200
V
±6
KV
ESD HBM following STM5.1 with 1.5kΩ
100pF
- Pin VS, LIN, KL_15, WAKE to GND
Junction temperature
Tj
–40
+150
°C
Storage temperature
Ts
–55
+150
°C
ATA6628/ATA6630 [DATASHEET]
9117I–AUTO–10/14
21
8.
Thermal Characteristics
Parameters
Symbol
Thermal resistance junction to heat slug
Rthjc
Thermal resistance junction to ambient,
where heat slug is soldered to PCB
according to Jedec
Rthja
Min.
Typ.
Max.
Unit
10
K/W
35
K/W
Thermal shutdown of VCC regulator
150
165
170
°C
Thermal shutdown of LIN output
150
165
170
°C
Thermal shutdown hysteresis
9.
10
°C
Electrical Characteristics
5V < VS < 27V, –40°C < Tj < 150°C, unless otherwise specified. All values refer to GND pins
No. Parameters
1
Test Conditions
Pin
Symbol
Min.
VS
VS
5
Sleep Mode
VLIN > VS – 0.5V
VS < 14V
VS
IVSsleep
2
Sleep Mode, VLIN = 0V
Bus shorted to GND
VS < 14V
VS
IVSsleep_short
Bus recessive
VS < 14V
Without load at VCC
VS
Max.
Unit
Type*
27
V
A
10
14
µA
A
3
20
30
µA
A
IVSsilent
20
35
50
µA
A
Silent Mode
VS < 14V
Bus shorted to GND
Without load at VCC
VS
IVSsilent_short
25
45
70
µA
A
VS Pin
1.1 Nominal DC voltage range
Supply current in Sleep
1.2
Mode
1.3
Typ.
Supply current in Silent
Mode
1.4
Supply current in Normal
Mode
Bus recessive
VS < 14V
Without load at VCC
VS
IVSrec
0.3
0.8
mA
A
1.5
Supply current in Normal
Mode
Bus recessive
VS < 14V
VCC load current 50mA
VS
IVSdom
50
53
mA
A
Supply current in Fail-safe
Mode
Bus recessive, RXD is low
VS < 14V
Without load at VCC
for ATA6628
for ATA6630
VS
VS
IVSfail
IVSfail
1.0
1.5
1.5
2.0
mA
mA
A
A
Switch to Unpowered
Mode
VS
VSthU
3.7
4.2
4.7
V
A
Switch to Fail-safe Mode
VS
VSthF
4.0
4.5
5.0
V
A
VS
VSth_hys
V
A
1.6
1.7 VS undervoltage threshold
VS undervoltage threshold
1.8
hysteresis
0.3
*) Type means: A = 100% tested, B = 100% correlation tested, C = Characterized on samples, D = Design parameter
22
ATA6628/ATA6630 [DATASHEET]
9117I–AUTO–10/14
9.
Electrical Characteristics (Continued)
5V < VS < 27V, –40°C < Tj < 150°C, unless otherwise specified. All values refer to GND pins
No. Parameters
Test Conditions
Pin
Symbol
Min.
Typ.
Max.
Unit
Type*
Normal Mode
VLIN = 0V
VRXD = 0.4V
RXD
IRXD
1.3
2.5
8
mA
A
IRXD = 1mA
RXD
VRXDL
0.4
V
A
RXD
RRXD
3
7
kΩ
A
3.1 Low-level voltage input
TXD
VTXDL
–0.3
+0.8
V
A
3.2 High-level voltage input
TXD
VTXDH
2
VCC +
0.3V
V
A
400
kΩ
A
+3
µA
A
8
mA
A
2
2.1
RXD Output Pin
Low-level output sink
current
2.2 Low-level output voltage
2.3 Internal resistor to PVCC
3
5
TXD Input/Output Pin
3.3 Pull-up resistor
VTXD = 0V
TXD
RTXD
125
3.4 High-level leakage current
VTXD = VCC
TXD
ITXD
–3
Low-level output sink
3.5
current
Fail-safe Mode, wake up
VLIN = VS
VWAKE = 0V
VTXD = 0.4V
TXD
ITXDwake
2
EN
VENL
–0.3
+0.8
V
A
VCC +
0.3V
V
A
200
kΩ
A
4
250
2.5
EN Input Pin
4.1 Low-level voltage input
4.2 High-level voltage input
EN
VENH
2
4.3 Pull-down resistor
VEN = VCC
EN
REN
50
4.4 Low-level input current
VEN = 0V
EN
IEN
–3
+3
µA
A
5.1 Low-level voltage input
NTRIG
VNTRIGL
–0.3
+0.8
V
A
5.2 High-level voltage input
NTRIG
VNTRIGH
2
VCC +
0.3V
V
A
400
kΩ
A
+3
µA
A
5
125
NTRIG Watchdog Input Pin
5.3 Pull-up resistor
VNTRIG = 0V
NTRIG
RNTRIG
125
5.4 High-level leakage current
VNTRIG = VCC
NTRIG
INTRIG
–3
MODE
VMODEL
–0.3
+0.8
V
A
V
A
6
Mode Input Pin
6.1 Low-level voltage input
6.2 High-level voltage input
6.3 High-level leakage current
7
VMODE = VCC or
VMODE = 0V
MODE
VMODEH
2
VCC +
0.3V
MODE
IMODE
–3
+3
µA
A
INH
VINHH
VS – 0.75
VS
V
A
INH
RINH
50
Ω
A
INH
IINHL
+3
µA
A
INH Output Pin
7.1 High-level voltage
7.2
250
IINH = –15mA
Switch-on resistance
between VS and INH
7.3 Leakage current
Sleep Mode
VINH = 0V/27V, VS = 27V
30
–3
*) Type means: A = 100% tested, B = 100% correlation tested, C = Characterized on samples, D = Design parameter
ATA6628/ATA6630 [DATASHEET]
9117I–AUTO–10/14
23
9.
Electrical Characteristics (Continued)
5V < VS < 27V, –40°C < Tj < 150°C, unless otherwise specified. All values refer to GND pins
No. Parameters
Test Conditions
Pin
Symbol
Min.
Max.
Unit
Type*
Load1/Load2
LIN
VBUSrec
0.9 × VS
VS
V
A
8.2 Driver dominant voltage
VVS = 7V
Rload = 500Ω
LIN
V_LoSUP
1.2
V
A
8.3 Driver dominant voltage
VVS = 18V
Rload = 500Ω
LIN
V_HiSUP
2
V
A
8.4 Driver dominant voltage
VVS = 7.0V
Rload = 1000Ω
LIN
V_LoSUP_1k
0.6
V
A
8.5 Driver dominant voltage
VVS = 18V
Rload = 1000Ω
LIN
V_HiSUP_1k
0.8
V
A
8.6 Pull-up resistor to VS
The serial diode is
mandatory
LIN
RLIN
20
47
kΩ
A
In pull-up path with Rslave
ISerDiode = 10mA
LIN
VSerDiode
0.4
1.0
V
D
LIN
IBUS_LIM
70
120
200
mA
A
LIN
IBUS_PAS_do
–1
–0.35
mA
A
8
8.1
LIN Bus Driver
Driver recessive output
voltage
8.7
Voltage drop at the serial
diodes
8.8
LIN current limitation
VBUS = VBatt_max
Input leakage current
Input leakage current at the
Driver off
8.9 receiver including pull-up
VBUS = 0V
resistor as specified
VBatt = 12V
LIN
IBUS_PAS_rec
Leakage current at GND
loss, control unit
GNDDevice = VS
disconnected from ground.
8.11
VBatt = 12V
Loss of local ground must
0V < VBUS < 18V
not affect communication in
the residual network.
LIN
IBUS_NO_gnd
Leakage current at loss of
battery. Node has to sustain
VBatt disconnected
the current that can flow
8.12
VSUP_Device = GND
under this condition. Bus
0V < VBUS < 18V
must remain operational
under this condition.
LIN
IBUS_NO_bat
LIN
CLIN
9
Capacitance on pin LIN to
GND
30
m
Driver off
8V < VBatt < 18V
8V < VBUS < 18V
VBUS ≥ VBatt
Leakage current LIN
8.10
recessive
8.13
Typ.
–10
10
20
µA
A
+0.5
+10
µA
A
0.1
2
µA
A
20
pF
D
0.525 ×
VS
V
A
0.4 × VS
V
A
LIN Bus Receiver
0.475 ×
VS
0.5 ×
VS
9.1 Center of receiver threshold
VBUS_CNT =
(Vth_dom + Vth_rec)/2
LIN
VBUS_CNT
9.2 Receiver dominant state
VEN = VCC
LIN
VBUSdom
9.3 Receiver recessive state
VEN = VCC
LIN
VBUSrec
0.6 × VS
V
A
9.4 Receiver input hysteresis
Vhys = Vth_rec – Vth_dom
LIN
VBUShys
0.028 ×
0.175 ×
0.1 × VS
VS
VS
V
A
*) Type means: A = 100% tested, B = 100% correlation tested, C = Characterized on samples, D = Design parameter
24
ATA6628/ATA6630 [DATASHEET]
9117I–AUTO–10/14
9.
Electrical Characteristics (Continued)
5V < VS < 27V, –40°C < Tj < 150°C, unless otherwise specified. All values refer to GND pins
No. Parameters
Max.
Unit
Type*
VS – 2V
VS +
0.3V
V
A
VLINL
–27
VS –
3.3V
V
A
LIN
tbus
30
90
150
µs
A
Time delay for mode change
10.2 from Fail-safe into Normal VEN = VCC
Mode via EN pin
EN
tnorm
5
15
20
µs
A
Time delay for mode change
10.3 from Normal Mode to Sleep VEN = 0V
Mode via EN pin
EN
tsleep
8
16
25
µs
A
10.4 TXD dominant time-out time VTXD = 0V
TXD
tdom
27
55
70
ms
A
Time delay for mode change
10.5 from Silent Mode into
VEN = VCC
Normal Mode via EN
EN
ts_n
5
15
40
µs
A
LIN
tmon
6
10
15
ms
A
9.5
Pre_Wake detection LIN
High-level input voltage
9.6
Pre_Wake detection LIN
Low-level input voltage
10
Internal Timers
10.1
10.6
Test Conditions
Activates the LIN receiver
Dominant time for wake-up
VLIN = 0V
via LIN bus
Monitoring time for wake-up
over LIN bus
Pin
Symbol
Min.
LIN
VLINH
LIN
Typ.
LIN Bus Driver AC Parameter with Different Bus Loads
Load 1 (small): 1nF, 1kΩ ; Load 2 (large): 10nF, 500Ω ; RRXD = 5kΩ; CRXD = 20pF;
Load 3 (medium): 6.8nF, 660Ω characterized on samples; 10.7 and 10.8 specifies the timing parameters for proper operation of
20Kbit/s, 10.9 and 10.10 at 10.4Kbit/s
10.7 Duty cycle 1
THRec(max) = 0.744 × VS
THDom(max) = 0.581 × VS
VS = 7.0V to 18V
tBit = 50µs
D1 = tbus_rec(min)/(2 × tBit)
LIN
D1
10.8 Duty cycle 2
THRec(min) = 0.422 × VS
THDom(min) = 0.284 × VS
VS = 7.6V to 18V
tBit = 50µs
D2 = tbus_rec(max)/(2 × tBit)
LIN
D2
10.9 Duty cycle 3
THRec(max) = 0.778 × VS
THDom(max) = 0.616 × VS
VS = 7.0V to 18V
tBit = 96µs
D3 = tbus_rec(min)/(2 × tBit)
LIN
D3
10.10 Duty cycle 4
THRec(min) = 0.389 × VS
THDom(min) = 0.251 × VS
VS = 7.6V to 18V
tBit = 96µs
D4 = tbus_rec(max)/(2 × tBit)
LIN
D4
LIN
tSLOPE_fall
tSLOPE_rise
10.11
Slope time falling and rising
VS = 7.0V to 18V
edge at LIN
0.396
A
0.581
A
0.417
A
0.590
3.5
22.5
A
µs
A
*) Type means: A = 100% tested, B = 100% correlation tested, C = Characterized on samples, D = Design parameter
ATA6628/ATA6630 [DATASHEET]
9117I–AUTO–10/14
25
9.
Electrical Characteristics (Continued)
5V < VS < 27V, –40°C < Tj < 150°C, unless otherwise specified. All values refer to GND pins
No. Parameters
11
11.1
Pin
Symbol
Min.
Typ.
Max.
Unit
Type*
6
µs
A
+2
µs
A
Receiver Electrical AC Parameters of the LIN Physical Layer, LIN Receiver, RXD Load Conditions (CRXD): 20pF
Propagation delay of
receiver (Figure 9-1)
Symmetry of receiver
11.2 propagation delay rising
edge minus falling edge
12
Test Conditions
VS = 7.0V to 18V
trx_pd = max(trx_pdr , trx_pdf)
RXD
trx_pd
VS = 7.0V to 18V
trx_sym = trx_pdr – trx_pdf
RXD
trx_sym
–2
NRES Open Drain Output Pin
12.1 Low-level output voltage
VS ≥ 5.5V
INRES = 1mA
NRES
VNRESL
0.14
V
A
12.2 Low-level output low
10kΩ to 5V
VCC = 0V
NRES
VNRESLL
0.14
V
A
12.3 Undervoltage reset time
VS ≥ 5.5V
CNRES = 20pF
NRES
treset
2
6
ms
A
Reset debounce time for
falling edge
VS ≥ 5.5V
CNRES = 20pF
NRES
tres_f
1.5
10
µs
A
VNRES = 5.5V
NRES
–3
+3
µA
A
1.33
V
A
120
kΩ
A
12.4
12.5 Switch off leakage current
13
4
Watchdog Oscillator
IWD_OSC = –200µA
VVS ≥ 4V
WD_OSC
VWD_OSC
1.13
13.2 Possible values of resistor
Resistor ±1%
WD_OSC
ROSC
34
13.3 Oscillator period
ROSC = 34kΩ
tOSC
10.65
13.3
15.97
µs
A
13.4 Oscillator period
ROSC = 51kΩ
tOSC
15.68
19.6
23.52
µs
A
13.5 Oscillator period
ROSC = 91kΩ
tOSC
26.83
33.5
40.24
µs
A
13.6 Oscillator period
ROSC = 120kΩ
tOSC
34.2
42.8
51.4
µs
A
13.1
14
Voltage at WD_OSC in
Normal or Fail-safe Mode
1.23
Watchdog Timing Relative to tOSC
Watchdog lead time after
Reset
td
7895
cycles
A
14.2 Watchdog closed window
t1
1053
cycles
A
14.3 Watchdog open window
t2
1105
cycles
A
4.8
ms
A
14.1
14.4 Watchdog reset time NRES
15
NRES
tnres
3.2
4
KL_15
VKL_15H
4
VS +
0.3V
V
A
KL_15
VKL_15L
–1
+2
V
A
50
60
µA
A
KL_15 Pin
15.1
High-level input voltage
RV = 47kΩ
15.2
Low-level input voltage
RV = 47kΩ
Positive edge initializes a
wake-up
15.3 KL_15 pull-down current
VS < 27V
VKL_15 = 27V
KL_15
IKL_15
15.4 Internal debounce time
Without external capacitor
KL_15
TdbKL_15
80
160
250
µs
A
15.5 KL_15 wake-up time
RV = 47kΩ, C = 100nF
KL_15
TwKL_15
0.4
2
4.5
ms
C
*) Type means: A = 100% tested, B = 100% correlation tested, C = Characterized on samples, D = Design parameter
26
ATA6628/ATA6630 [DATASHEET]
9117I–AUTO–10/14
9.
Electrical Characteristics (Continued)
5V < VS < 27V, –40°C < Tj < 150°C, unless otherwise specified. All values refer to GND pins
No. Parameters
16
Test Conditions
Pin
Symbol
Min.
WAKE
VWAKEH
Max.
Unit
Type*
VS – 1V
VS +
0.3V
V
A
VWAKEL
–1
VS –
3.3V
V
A
WAKE Pin
16.1 High-level input voltage
16.2 Low-level input voltage
Initializes a wake-up
signal
WAKE
16.3 WAKE pull-up current
VS < 27V, VWAKE = 0V
WAKE
IWAKE
–30
16.4 High-level leakage current
VS = 27V, VWAKE = 27V
WAKE
IWAKEL
–5
VWAKE = 0V
WAKE
IWAKEL
30
16.5
17
Time of low pulse for
wake-up via WAKE pin
–10
70
µA
A
+5
µA
A
150
µs
A
VCC Voltage Regulator ATA6628 in Normal/Fail-safe and Silent Mode, VCC and PVCC Short-circuited
17.1 Output voltage VCC
17.2
Typ.
Output voltage VCC at low
VS
4V < VS < 18V
(0mA to 50mA)
VCC
VCCnor
3.234
3.366
V
A
4.5V < VS < 18V
(0mA to 85mA)
VCC
VCCnor
3.234
3.366
V
C
3V < VS < 4V
VCC
VCClow
VS – VD
3.366
V
A
VD
200
mV
A
17.3 Regulator drop voltage
VS > 3V, IVCC = –15mA
VS, VCC
17.4 Regulator drop voltage
VS > 3V, IVCC = –50mA
VS, VCC
VD
500
700
mV
A
17.5 Line regulation
4V < VS < 18V
VCC
VCCline
0.1
0.2
%
A
17.6 Load regulation
5mA < IVCC < 50mA
VCC
VCCload
0.1
0.5
%
A
10Hz to 100kHz
CVCC = 10µF
VS = 14V, IVCC = –15mA
VCC
dB
D
17.8 Output current limitation
VS > 4V
VCC
IVCClim
–240
–160
mA
A
17.9 External load capacity
0.2Ω < ESR < 5Ω at
100kHz
for phase margin ≥ 60°
VCC
Cload
1.8
10
µF
D
Referred to VCC
VS > 4V
VCC
VthunN
2.8
V
A
mV
A
µs
A
17.7
Power supply ripple
rejection
50
–85
ESR < 0.2Ω at 100kHz
for phase margin ≥ 30°
17.10 VCC undervoltage threshold
3.2
17.11
Hysteresis of undervoltage
threshold
Referred to VCC
VS > 4V
VCC
Vhysthun
150
17.12
Ramp-up time VS > 4V to
VCC = 3.3V
CVCC = 2.2µF
Iload = –5mA at VCC
VCC
TVCC
320
18
VCC Voltage Regulator Atmel ATA6630 in Normal/Fail-safe and Silent Mode, VCC and PVCC Short-circuited
18.1 Output voltage VCC
18.2
500
Output voltage VCC at low
VS
5.5V < VS < 18V
(0mA to 50mA)
VCC
VCCnor
4.9
5.1
V
A
6V < VS < 18V
(0mA to 85mA)
VCC
VCCnor
4.9
5.1
V
C
4V < VS < 5.5V
VCC
VCClow
VS – VD
5.1
V
A
250
mV
A
600
mV
A
18.3 Regulator drop voltage
VS > 4V, IVCC = –20mA
VS, VCC
VD1
18.4 Regulator drop voltage
VS > 4V, IVCC = –50mA
VS, VCC
VD2
400
*) Type means: A = 100% tested, B = 100% correlation tested, C = Characterized on samples, D = Design parameter
ATA6628/ATA6630 [DATASHEET]
9117I–AUTO–10/14
27
9.
Electrical Characteristics (Continued)
5V < VS < 27V, –40°C < Tj < 150°C, unless otherwise specified. All values refer to GND pins
No. Parameters
Test Conditions
Pin
Symbol
18.5 Regulator drop voltage
VS > 3.3V, IVCC = –15mA
18.6 Line regulation
18.7 Load regulation
VS, VCC
VD3
5.5V < VS < 18V
VCC
VCCline
5mA < IVCC < 50mA
100kHz
VCC
VCCload
10Hz to 100kHz
CVCC = 10µF
VS = 14V, IVCC = –15mA
VCC
18.9 Output current limitation
VS > 5.5V
VCC
IVCClim
–240
–130
18.10 External load capacity
0.2Ω < ESR < 5Ω at
100kHz
for phase margin ≥ 60°
VCC
Cload
1.8
10
Referred to VCC
VS > 5.5V
VCC
VthunN
4.2
Referred to VCC
VS > 5.5V
VCC
Vhysthun
250
VCC
tVCC
370
DIV_ON
VDIV_ON
18.8
Power supply ripple
rejection
Min.
Typ.
Max.
Unit
Type*
200
mV
A
0.1
0.2
%
A
0.1
0.5
%
A
dB
D
mA
A
µF
D
V
A
mV
A
600
µs
A
+0.8
V
A
VCC + 0.3
V
A
400
kΩ
A
+3
µA
A
50
–85
ESR < 0.2Ω at 100kHz
for phase margin ≥ 30°
18.11 VCC undervoltage threshold
18.12
Hysteresis of undervoltage
threshold
18.13
Ramp-up time VS > 5.5V to CVCC = 2.2µF
VCC = 5V
Iload = –5mA at VCC
19
DIV_ON Input Pin
19.1 Low-level voltage input
19.2 High-level voltage input
–0.3
DIV_ON
VDIV_ON
2
19.3 Pull-down resistor
VDIV_ON = VCC
DIV_ON
RDIV_ON
125
19.4 Low-level input current
VDIV_ON = 0V
DIV_ON
IDIV_ON
–3
20
4.8
250
SP_MODE Input Pin
20.1 Low-level voltage input
SP_MODE VSP_MODE
–0.3
+0.8
V
A
20.2 High-level voltage input
SP_MODE VSP_MODE
2
VCC + 0.3
V
A
200
kΩ
A
+3
µA
A
kBaud
C
µs
A
µs
D
20.3 Pull-down resistor
VSP_MODE = VCC
SP_MODE RSP_MODE
50
20.4 Low-level input current
VSP_MODE = 0V
SP_MODE
ISP_MODE
–3
LIN
SP
200
LIN
tSL_fall
1
LIN
tSL_rise
1.3
21
LIN Driver in High-speed Mode (VSP_Mode = VCC)
21.1 Transmission Baud rate
VS = 7V to 18V
RLIN = 500Ω, CLIN = 600pF
21.2 Slope time LIN falling edge VS = 7V to 18V
21.3
125
Slope time LIN rising edge, VS = 14V
depending on RC-load
RLIN = 500Ω, CLIN = 600pF
2
*) Type means: A = 100% tested, B = 100% correlation tested, C = Characterized on samples, D = Design parameter
28
ATA6628/ATA6630 [DATASHEET]
9117I–AUTO–10/14
9.
Electrical Characteristics (Continued)
5V < VS < 27V, –40°C < Tj < 150°C, unless otherwise specified. All values refer to GND pins
No. Parameters
22
Test Conditions
Pin
VS = 5V to 15V
PV
Symbol
Min.
22.2 Divider ratio error
VBATT = 14V
Maximum output Voltage at
VBATT 15V to 40V
PV
22.7 Pin capacitance
Type*
%
A
ppm/°C
C
A
VBATT
6
15
V
A
VBATT
100
220
µA
A
VBATT
2.5
3.5
V
A
3.1
PV
2
PV
1:6
pF
ATA6630 Voltage Divider
23.1 Divider ratio
VS = 5V to 26V
23.2 Divider ratio error
–2
23.3 Divider temperature drift
23.5 VBATT input current
VBATT = 14V
Maximum output Voltage at
VBATT 26V to 40V
PV
23.7 Pin capacitance
A
+2
3
VBATT range of divider
23.4
linearity
23.6
+2
3
VBATT range of divider
linearity
22.5 VBATT input current
23
Unit
1:6
–2
22.3 Divider temperature drift
22.6
Max.
ATA6628 Voltage Divider
22.1 Divider ratio
22.4
Typ.
%
A
ppm/°C
C
VBATT
6
26
V
A
VBATT
100
220
µA
A
PV
4.4
5.2
V
A
PV
4.8
2
pF
*) Type means: A = 100% tested, B = 100% correlation tested, C = Characterized on samples, D = Design parameter
ATA6628/ATA6630 [DATASHEET]
9117I–AUTO–10/14
29
Figure 9-1. Definition of Bus Timing Characteristics
tBit
tBit
tBit
TXD
(Input to transmitting node)
tBus_dom(max)
tBus_rec(min)
Thresholds of
receiving node1
THRec(max)
VS
(Transceiver supply
of transmitting node)
THDom(max)
LIN Bus Signal
Thresholds of
receiving node2
THRec(min)
THDom(min)
tBus_dom(min)
tBus_rec(max)
RXD
(Output of receiving node1)
trx_pdf(1)
trx_pdr(1)
RXD
(Output of receiving node2)
trx_pdr(2)
30
ATA6628/ATA6630 [DATASHEET]
9117I–AUTO–10/14
trx_pdf(2)
Figure 9-2. Typical Application Circuit
Ignition
KL15
VBattery
debug
KL30
100nF
+
47kΩ
10nF
20
2.7kΩ
Wake
switch
WAKE
GND
MODE
KL_15
PVCC
1kΩ
16
15
Atmel
ATA6628
ATA6630
2
3
14
13
MLP 5mm x 5mm
0.65mm pitch
20 lead
4
12
5
11
LIN
6
Microcontroller
17
7
8
9
TM
WD_OSC
NRES
51kΩ
TXD
INH
10
SP_
NTRIG
NTRIG
1
18
10kΩ
MODE
EN
EN
19
PV
VBATT
DIV_ON
10kΩ
VCC
VCC
10kΩ
RXD
10μF
VS
+
100nF
Master node
pull-up
100nF
RXD
LIN sub bus
10μF
47Ω
220pF
TXD
RESET
ADC
DIV_ON
SP_MODE
GND
INH
ATA6628/ATA6630 [DATASHEET]
9117I–AUTO–10/14
31
Figure 9-3. Application Circuit with External NPN-Transistor
Ignition
KL15
VBattery
KL30
10μF
+
100nF
Debug
T1 *)
MJD31C
47Ω
22nF
47kΩ
+
Master node
pull-up
2.2μF
100nF
2.7kΩ
WAKE
GND
Wake
switch
MODE
15
Atmel
ATA6628/
ATA6630
2
3
14
13
QFN 5x5mm
0.65mm pitch
20 lead
4
12
5
11
LIN
6
Microcontroller
16
7
8
9
TM
WD_OSC
51kΩ
NRES
TXD
INH
10
SP_MODE
NTRIG
NTRIG
17
PV
EN
EN
1
18
DIV_ON
VBATT
VCC
19
1kΩ
10kΩ
LIN Sub Bus
20
10kΩ
KL_15
10kΩ
RXD
+
VCC
3.3Ω
PVCC
10μF
VS
100nF
RXD
220pF
TXD
RESET
ADC
DIV_ON
SP_MODE
GND
INH
*) Note that the output voltage PVCC is no longer short-ciruit protected when boosting the output current by an external NPN-transistor.
32
ATA6628/ATA6630 [DATASHEET]
9117I–AUTO–10/14
Figure 9-4. LIN Slave Application with Minimum External Devices
VBattery
KL30
VCC
22μF +
WAKE
GND
KL_15
Atmel
ATA6628/
ATA6630
2
3
4
15
TM
14
WD_OSC
13
QFN 5x5mm
0.65mm pitch
20 lead
12
5
11
6
LIN
Microcontroller
16
7
8
9
NRES
TXD
INH
10
SP_MODE
NTRIG
17
PV
VCC
18
DIV_ON
EN
EN
1
RXD
VBATT
VCC
19
10kΩ
LIN Sub Bus
20
PVCC
VS
100nF
VCC
10μF +
MODE
100nF
220pF
RXD
TXD
RESET
GND
Note: No watchdog, no Battery voltage measurement, no local wake up, INH output not used
ATA6628/ATA6630 [DATASHEET]
9117I–AUTO–10/14
33
10.
Ordering Information
Extended Type Number
Package
Remarks
ATA6628-GLQW
QFN20
3.3V LIN system-basis-chip, Pb-free, 6k, taped and reeled
ATA6630-GLQW
QFN20
5V LIN system-basis-chip, Pb-free, 6k, taped and reeled
11.
Package Information
Top View
D
20
1
technical drawings
according to DIN
specifications
E
PIN 1 ID
5
A
Side View
A3
A1
Dimensions in mm
Bottom View
D2
6
10
11
5
E2
COMMON DIMENSIONS
1
Z
(Unit of Measure = mm)
SYMBOL
MIN
NOM
MAX
A
0.8
0.85
0.9
A1
A3
0
0.16
0.035
0.21
0.05
0.26
15
20
16
e
L
Z 10:1
b
D
4.9
5
5.1
D2
3.0
3.1
3.2
E
4.9
5
5.1
E2
3.0
3.1
3.2
L
0.55
0.6
0.65
b
0.25
0.3
0.35
e
NOTE
0.65
10/18/13
TITLE
Package Drawing Contact:
packagedrawings@atmel.com
34
Package: VQFN_5x5_20L
Exposed pad 3.1x3.1
ATA6628/ATA6630 [DATASHEET]
9117I–AUTO–10/14
GPC
DRAWING NO.
REV.
6.543-5129.02-4
1
12.
Revision History
Please note that the following page numbers referred to in this section refer to the specific revision mentioned, not to this
document.
Revision No.
9117I-AUTO-10/14
9117H-AUTO-01/13
History
• Section 10 “Ordering Information” on page 34 updated
• Section 11 “Package Information” on page 34 updated
• Section 9 “Electrical Characteristics” numbers 22.1, 22.4 and 22.6 on pages 29 changed
• Features on page 1 changed
• Section 1 “Description” on pages 1 to 2 changed
• Table 2-1 “Pin Description” on page 3 changed
• Section 3 “Functional Description” on page 4 to 7 changed
9117G-AUTO-03/11
• Section 4 “Modes of Operation” on pages 8 to 16 changed
• Section 5 “Wake-up Scenarios from Silent or Sleep Mode” on pages 17 to 19 changed
• Section 7 “Absolute Maximum Ratings” on page 22 changed
• Section 9 “Electrical Characteristics” numbers 1.2, 1.3, 1.7, 1.8, 17.1, 17.9, 18.1, 18.10, 21.1,
21.2, 21.3, 23.1, 23.4 and 23.6 on pages 23 to 29 changed
9117F-AUTO-10/10
• Section 9 “Electrical Characteristics” numbers 1.6, 1.7, 10.3, 21.3, 22.4, 22.6, 23.4 on pages
23 to 29 changed
9117E-AUTO-07/10
• Section 6 “Watchdog” on pages 20 to 21 changed
• Features on page 1 changed
• Pin Description table: row Pin 16 changed
• Text under heading 3.3, 3.8, 3.11, 3.12, 4.2, 5.1, 5.5, 6 changed
• Figures 4-5, 6-1 changed
• Figure 9-1 heading changed
9117D-AUTO-05/10
• Figures 9-2 and 9-3 added
• Abs.Max.Rat.Table -> Parameter text in row “ESD according...” changed
• Abs.Max.Rat.Table -> Values in row “ESD HBM following....” changed
• El.Char.Table -> rows changed: 1.2, 1.3, 1.6, 1.7, 7.1,10.4, 17.12, 12.1, 12.2, 17.5, 17.6, 17.7,
17.8, 18.6, 18.7, 18.8, 18.9, 18.13, 11.5, 23.5
• El.Char.Table -> row 8.13 added
ATA6628/ATA6630 [DATASHEET]
9117I–AUTO–10/14
35
XXXXXX
Atmel Corporation
1600 Technology Drive, San Jose, CA 95110 USA
T: (+1)(408) 441.0311
F: (+1)(408) 436.4200
|
www.atmel.com
© 2014 Atmel Corporation. / Rev.: 9117I–AUTO–10/14
Atmel®, Atmel logo and combinations thereof, Enabling Unlimited Possibilities®, and others are registered trademarks or trademarks of Atmel Corporation in U.S. and
other countries. Other terms and product names may be trademarks of others.
DISCLAIMER: The information in this document is provided in connection with Atmel products. No license, express or implied, by estoppel or otherwise, to any intellectual property right
is granted by this document or in connection with the sale of Atmel products. EXCEPT AS SET FORTH IN THE ATMEL TERMS AND CONDITIONS OF SALES LOCATED ON THE
ATMEL WEBSITE, ATMEL ASSUMES NO LIABILITY WHATSOEVER AND DISCLAIMS ANY EXPRESS, IMPLIED OR STATUTORY WARRANTY RELATING TO ITS PRODUCTS
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, OR NON-INFRINGEMENT. IN NO EVENT
SHALL ATMEL BE LIABLE FOR ANY DIRECT, INDIRECT, CONSEQUENTIAL, PUNITIVE, SPECIAL OR INCIDENTAL DAMAGES (INCLUDING, WITHOUT LIMITATION, DAMAGES
FOR LOSS AND PROFITS, BUSINESS INTERRUPTION, OR LOSS OF INFORMATION) ARISING OUT OF THE USE OR INABILITY TO USE THIS DOCUMENT, EVEN IF ATMEL HAS
BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Atmel makes no representations or warranties with respect to the accuracy or completeness of the contents of this
document and reserves the right to make changes to specifications and products descriptions at any time without notice. Atmel does not make any commitment to update the information
contained herein. Unless specifically provided otherwise, Atmel products are not suitable for, and shall not be used in, automotive applications. Atmel products are not intended,
authorized, or warranted for use as components in applications intended to support or sustain life.
SAFETY-CRITICAL, MILITARY, AND AUTOMOTIVE APPLICATIONS DISCLAIMER: Atmel products are not designed for and will not be used in connection with any applications where
the failure of such products would reasonably be expected to result in significant personal injury or death (“Safety-Critical Applications”) without an Atmel officer's specific written
consent. Safety-Critical Applications include, without limitation, life support devices and systems, equipment or systems for the operation of nuclear facilities and weapons systems.
Atmel products are not designed nor intended for use in military or aerospace applications or environments unless specifically designated by Atmel as military-grade. Atmel products are
not designed nor intended for use in automotive applications unless specifically designated by Atmel as automotive-grade.
工商网监
湘ICP备2023018690号
