2N6051 and 2N6052
Available
PNP Darlington Power Silicon Transistor
Qualified per MIL-PRF-19500/501
Qualified Levels:
JAN, JANTX, and
JANTXV
DESCRIPTION
This high speed PNP transistor is rated at 12 amps and is military qualified up to a JANTXV
level. This TO-204AA isolated package features a 180 degree lead orientation.
Important: For the latest information, visit our website http://www.microsemi.com.

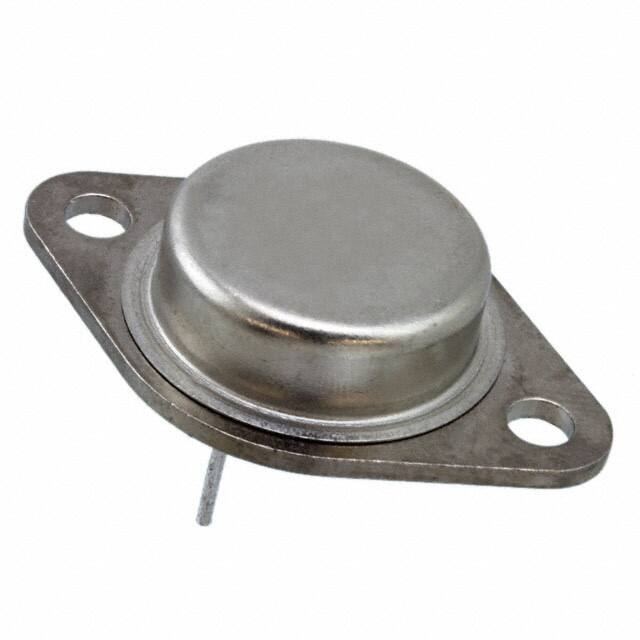

TO-204AA (TO-3)
Package
FEATURES
•
JEDEC registered 2N6051 and 2N6052
•
JAN, JANTX, and JANTXV qualifications are available per MIL-PRF-19500/501
•
RoHS compliant versions available (commercial grade only)
APPLICATIONS / BENEFITS
•
•
•
Military, space and other high reliability applications
High frequency response
TO-204AA case with isolated terminals
o
MAXIMUM RATINGS @ T C = +25 C unless otherwise noted
Parameters/Test Conditions
Junction and Storage Temperature
Thermal Resistance Junction-to-Case
Collector Current
Collector-Emitter Voltage
Collector-Base Voltage
Emitter-Base Voltage
Total Power Dissipation
2N6051
2N6052
2N6051
2N6052
o
@ TC = +25 C
o
@ TC = +100 C
(1)
Symbol
Value
TJ and TSTG
R ӨJC
IC
V CEO
-55 to +175
1.0
-12
-80
-100
-80
-100
-5
150
75
V CBO
V EBO
PT
Notes: 1. Derate linearly 1.0 W/oC above T C > +25 oC.
T4-LDS-0306, Rev. 1 (9/6/13)
Unit
o
C
C/W
A
V
o
MSC – Lawrence
6 Lake Street,
Lawrence, MA 01841
1-800-446-1158
(978) 620-2600
Fax: (978) 689-0803
V
V
W
MSC – Ireland
Gort Road Business Park,
Ennis, Co. Clare, Ireland
Tel: +353 (0) 65 6840044
Fax: +353 (0) 65 6822298
Website:
www.microsemi.com
©2013 Microsemi Corporation
Page 1 of 8
2N6051 and 2N6052
MECHANICAL and PACKAGING
•
•
•
•
•
•
CASE: Industry standard TO-204AA (TO-3), hermetically sealed, 0.040 inch diameter pins
FINISH: Solder dipped tin-lead over nickel plated alloy 52 or RoHS compliant matte-tin plating. Solderable per MIL-STD-750
method 2026.
POLARITY: PNP (see schematic)
MOUNTING HARDWARE: Consult factory for optional insulator and sheet metal screws
WEIGHT: Approximately 15 grams
See package dimensions on last page.
PART NOMENCLATURE
JAN
2N6051
(e3)
Reliability Level
JAN = JAN Level
JANTX = JANTX Level
JANTXV = JANTXV Level
Blank = Commercial
RoHS Compliance
e3 = RoHS Compliant (available
on commercial grade only)
Blank = non-RoHS Compliant
JEDEC type number
(see Electrical Characteristics
table)
Symbol
IB
IC
IE
TC
V CB
V CBO
V CC
V CE
SYMBOLS & DEFINITIONS
Definition
Base current: The value of the dc current into the base terminal.
Collector current: The value of the dc current into the collector terminal.
Emitter current: The value of the dc current into the emitter terminal.
Case temperature: The temperature measured at a specified location on the case of a device.
Collector-base voltage: The dc voltage between the collector and the base.
Collector-base voltage, base open: The voltage between the collector and base terminals when the emitter terminal is
open-circuited.
Collector-supply voltage: The supply voltage applied to a circuit connected to the collector.
Collector-emitter voltage: The dc voltage between the collector and the emitter.
V EB
Collector-emitter voltage, base open: The voltage between the collector and the emitter terminals when the base
terminal is open-circuited.
Emitter-base voltage: The dc voltage between the emitter and the base
V EBO
Emitter-base voltage, collector open: The voltage between the emitter and base terminals with the collector terminal
open-circuited.
V CEO
T4-LDS-0306, Rev. 1 (9/6/13)
©2013 Microsemi Corporation
Page 2 of 8
2N6051 and 2N6052
ELECTRICAL CHARACTERISTICS @ T A = +25 oC unless otherwise noted
Characteristics
Symbol
Min.
2N6051
2N6052
V (BR)CEO
-80
-100
Collector-Emitter Cutoff Current
V CE = -40 V
V CE = -50 V
2N6051
2N6052
I CEO
-1.0
-1.0
mA
Collector-Emitter Cutoff Current
V CE = -80 V, V BE = 1.5 V
V CE = -100 V, V BE = 1.5 V
2N6051
2N6052
I CEX
-0.01
-0.01
mA
I EBO
-2.0
mA
OFF CHARACTERISTICS
Collector-Emitter Breakdown Voltage
I C = -100 mA
Emitter-Base Cutoff Current
V BE = -5.0 V
ON CHARACTERISTICS
Forward-Current Transfer Ratio
I C = -1.0 A, V CE = 3.0 V
I C = -6.0 A, V CE = 3.0 V
I C = -12 A, V CE = 3.0 V
Collector-Emitter Saturation Voltage
I C = -12 A, I B = -120 mA
I C = -6.0 A, I B = -24 mA
h FE
Base-Emitter Saturation Voltage
I C = -12 A, I B = -120 mA
Base-Emitter Voltage Non-saturated
V CE = -3.0 V, I C = -6 A
Unit
V
18,000
V CE(sat)
-3.0
-2.0
V
V BE(sat)
-4.0
V
V BE
-2.8
V
DYNAMIC CHARACTERISTICS
Common Emitter Small-Signal Short-Circuit
Forward Current Transfer Ratio
I C = -5 A, V CE = -3.0 V, f = 1 kHz
Magnitude of Common Emitter Small-Signal Short-Circuit
Forward Current Transfer Ratio
I C = -5 A, V CE = -3.0 V, f = 1 MHz
Output Capacitance
V CB = 10 V, I E = 0, f = 100 kHz ≤ f ≤ 1 MHz
T4-LDS-0306, Rev. 1 (9/6/13)
1,000
1,000
150
Max.
©2013 Microsemi Corporation
hfe
1,000
|hfe|
10
C obo
250
300
pF
Page 3 of 8
2N6051 and 2N6052
ELECTRICAL CHARACTERISTICS @ T C = 25 oC unless otherwise noted. (continued)
SWITCHING CHARACTERISTICS
Turn-On Time
V CC = -30 V, I C = -5 A; I B1 = -20 mA
Turn-Off Time
V CC = -30 V, I C = -5 A; I B1 = I B2 = -20 mA
t on
2.0
µs
t off
10
µs
SAFE OPERATING AREA (See Figures 1 and 2 and MIL-STD-750,Test Method 3053)
DC Tests
T C = +25 °C, +10 ºC, -0 ºC, t ≥ 1 second, 1 Cycle
Test 1
V CE = -12.5 V, I C = -12 A
Test 2
V CE = -30 V, I C = -5 A
Test 3
V CE = -70 V, I C = -200 mA (2N6051)
V CE = -90 V, I C = -155 mA (2N6052)
T4-LDS-0306, Rev. 1 (9/6/13)
©2013 Microsemi Corporation
Page 4 of 8
2N6051 and 2N6052
IC = Collector Current (Amperes)
SAFE OPERATING AREA
V CE – Collector to Emitter Volatge (Volts)
FIGURE 1
Maximum Safe Operating Area
(continuous dc)
T4-LDS-0306, Rev. 1 (9/6/13)
©2013 Microsemi Corporation
Page 5 of 8
2N6051 and 2N6052
IC = Collector Current (Amperes)
SAFE OPERATING AREA (continued)
L – Inductance (Millihenries)
FIGURE 2
Safe Operating Area for Switching Between Saturation and Cutoff
(unclamped inductive load).
T4-LDS-0306, Rev. 1 (9/6/13)
©2013 Microsemi Corporation
Page 6 of 8
2N6051 and 2N6052
PACKAGE DIMENSIONS
Ltr
CD
CH
HR
HR1
HT
LD
LL
LL1
MHD
MHS
PS
PS1
S1
Dimensions
Inches
Millimeters
Min
Max
Min
Max
0.875
22.23
0.250 0.328
6.35
8.33
0.495 0.525 12.57 13.34
0.131 0.188
3.33
4.78
0.060 0.135
1.52
3.43
0.038 0.043
0.97
1.09
0.312 0.500
7.92
12.70
0.050
1.27
0.151 0.161
3.84
4.09
1.177 1.197 29.90 30.40
0.420 0.440 10.67 11.18
0.205 0.225
5.21
5.72
0.655 0.675 16.64 17.15
Notes
3
6
4, 5, 9
4, 5, 9
5, 9
7
5
NOTES:
1.
2.
3.
4.
Dimensions are in inches. Millimeters are given for information only.
Millimeters are given for information only.
Body contour is optional within zone defined by CD.
These dimensions shall be measured at points .050 inch (1.27 mm) to .055 inch (1.40 mm) below seating plane. When
gauge is not used, measurement shall be made at seating plane.
5. Both terminals.
6. At both ends.
7. Two holes.
8. The collector shall be electrically connected to the case.
9. LD applies between L1 and LL. Lead diameter shall not exceed twice LD within L1.
10. The seating plane of the header shall be flat within .001 inch (0.03 mm), concave to .004 inch (0.10 mm), convex inside a
.930 inch (23.62 mm) diameter circle on the center of the header, and flat within .001 inch (0.03 mm) concave to .006 inch
(0.15 mm), convex overall.
11. In accordance with ASME Y14.5M, diameters are equivalent to Φx symbology.
T4-LDS-0306, Rev. 1 (9/6/13)
©2013 Microsemi Corporation
Page 7 of 8
2N6051 and 2N6052
SCHEMATIC
T4-LDS-0306, Rev. 1 (9/6/13)
©2013 Microsemi Corporation
Page 8 of 8
