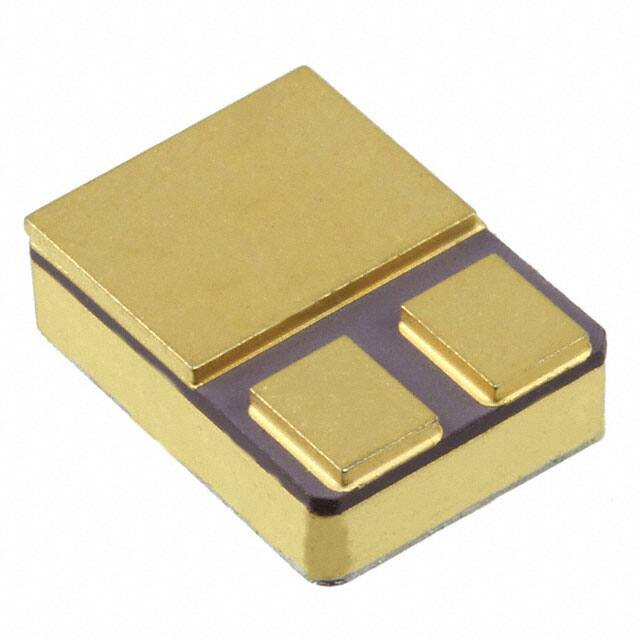

JANTXV1N6843CCU3

PD-94085D 30CLJQ100 JANS1N6843CCU3 JANTX1N6843CCU3 JANTXV1N6843CCU3 SCHOTTKY RECTIFIER HIGH EFFICIENCY SERIES 30 Amp, 100V Ref: MIL-PRF-19500/681 Major Ratings and Characteristics Characteristics IF(AV) Description/Features 1N6843CCU3 Units 30 A VRRM (Per Leg) 100 V IFSM @ tp = 8.3ms half-sine (Per Leg) 100 A 0.95 V VF @ 30Apk, TJ =125°C (Per Leg) TJ,Tstg Operating and storage -65 to 150 °C The 1N6843CCU3 center tap Schottky rectifier has been expressly designed to meet the rigorous requirements of high reliability environments. It is packaged in the hermetic surface mount SMD-0.5 ceramic package. The device's forward voltage drop and reverse leakage current are optimized for the lowest power loss and the highest circuit efficiency for typical high frequency switching power supplies and resonent power converters. Full MIL-PRF19500 quality conformance testing is available on source control drawings to TX, TXV and S quality levels. • • • • • Hermetically Sealed Center Tap Low Forward Voltage Drop High Frequency Operation Guard Ring for Enhanced Ruggedness and Long term Reliability • Surface Mount • Lightweight • ESD Rating: Class NS per MIL-STD-750, Method 1020 CASE STYLE ( ISOLATED BASE ) 2 1 3 ANODE COMMON ANODE CATHODE Case Outline and Dimensions - SMD-0.5 www.irf.com 1 10/19/12 30CLJQ100, 1N6843CCU3 Voltage Ratings Part number VR 1N6843CCU3 Max. DC Reverse Voltage (V) (Per Leg) 100 VRWM Max. Working Peak Reverse Voltage (V) (Per Leg) Absolute Maximum Ratings Parameters IF(AV) Max. Average Forward Current Limits Units Conditions 30 A 50% duty cycle @ TC = 83°C, square waveform 100 A @ tp = 8.3 ms half-sine Limits Units 0.86 V @ 5.0A 1.18 V @ 15A 1.43 V @ 30A (Per Package) See Fig. 5 IFSM Max. Peak One Cycle Non - Repetitive Surge Current (Per Leg) Electrical Specifications Parameters VFM Max. Forward Voltage Drop (Per Leg) See Fig. 1 I RM Conditions 0.77 V @ 5.0A 1.03 V @ 15A 1.27 V @ 30A TJ = -55°C TJ = 25°C 0.60 V @ 5.0A 0.77 V @ 15A 0.95 V @ 30A Max. Reverse Leakage Current 0.01 mA TJ = 25°C (Per Leg) See Fig. 2 1.19 mA TJ = 100°C 5.0 mA TJ = 125°C VR = 5VDC ( 1MHz, 25°C ) CT Max. Junction Capacitance (Per Leg) 275 pF LS Typical Series Inductance (Per Leg) 4.8 nH TJ = 125°C VR = rated VR Measured from center of cathode pad to center of anode pad Thermal-Mechanical Specifications Parameters Limits Units Conditions TJ Max.Junction Temperature Range -65 to 150 Tstg Max. Storage Temperature Range -65 to 150 °C 3.5 °C/W DC operation 1.75 °C/W DC operation RthJC Max. Thermal Resistance, Junction °C See Fig. 4 to Case (Per Leg) RthJC Max. Thermal Resistance, Junction to Case (Per Package) wt Weight (Typical) Die Size (Typical) Case Style 1.0 70X92 g mils SMD-0.5  Pulse Width < 300µs, Duty Cycle < 2% 2 www.irf.com 30CLJQ100, 1N6843CCU3 10 Reverse Current - I R ( mA ) 125°C Instantaneous Forward Current - I F (A) 100 1 100°C 75°C 0.1 0.01 25°C 0.001 0.0001 0 20 40 60 80 100 Reverse Voltage - V R (V) Fig. 2 - Typical Values of Reverse Current Vs. Reverse Voltage (Per Leg) 10 1000 Tj = 25°C Tj = -55°C 1 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 Forward Voltage Drop - V F (V) Fig. 1 - Max. Forward Voltage Drop Characteristics (Per Leg) Junction Capacitance - C T (pF) Tj = 125°C T J = 25°C 100 10 0 20 40 60 80 100 Reverse Voltage -V R (V) Fig. 3 - Typical Junction Capacitance Vs. Reverse Voltage (Per Leg) www.irf.com 3 30CLJQ100, 1N6843CCU3 Thermal Response ( Z thJC ) 10 D = 0.5 D = 0.4 1 D = 0.3 D = 0.2 D = 0.1 SINGLE PULSE ( THERMAL RESPONSE ) Notes: 1. Duty Factor D = t1/t2 2. Peak Tj = P dm x Zthjc + Tc 0.1 1E-005 0.0001 0.001 0.01 0.1 1 t1 , Rectangular Pulse Duration (sec) Fig. 4 - Max. Thermal Impedance ZthJC Characteristics (Per Leg) Allowable Case Temperature - (°C) 160 R thJC (DC) = 1.75°C/W 140 120 DC 100 80 % Square Wave (D=0.50) Rated V R applied 80 60 40 20 0 0 5 10 15 20 25 30 35 40 Average Forward Current - I F(AV) (A) Fig. 5 - Max. Allowable Case Temperature Vs. Average Forward Current (Per Package) IR WORLD HEADQUARTERS: 233 Kansas St., El Segundo, California 90245, USA Tel: (310) 252-7105 IR LEOMINSTER : 205 Crawford St., Leominster, Massachusetts 01453, USA Tel: (978) 534-5776 TAC Fax: (310) 252-7903 Visit us at www.irf.com for sales contact information. Data and specifications subject to change without notice. 10/2012 4 www.irf.com
