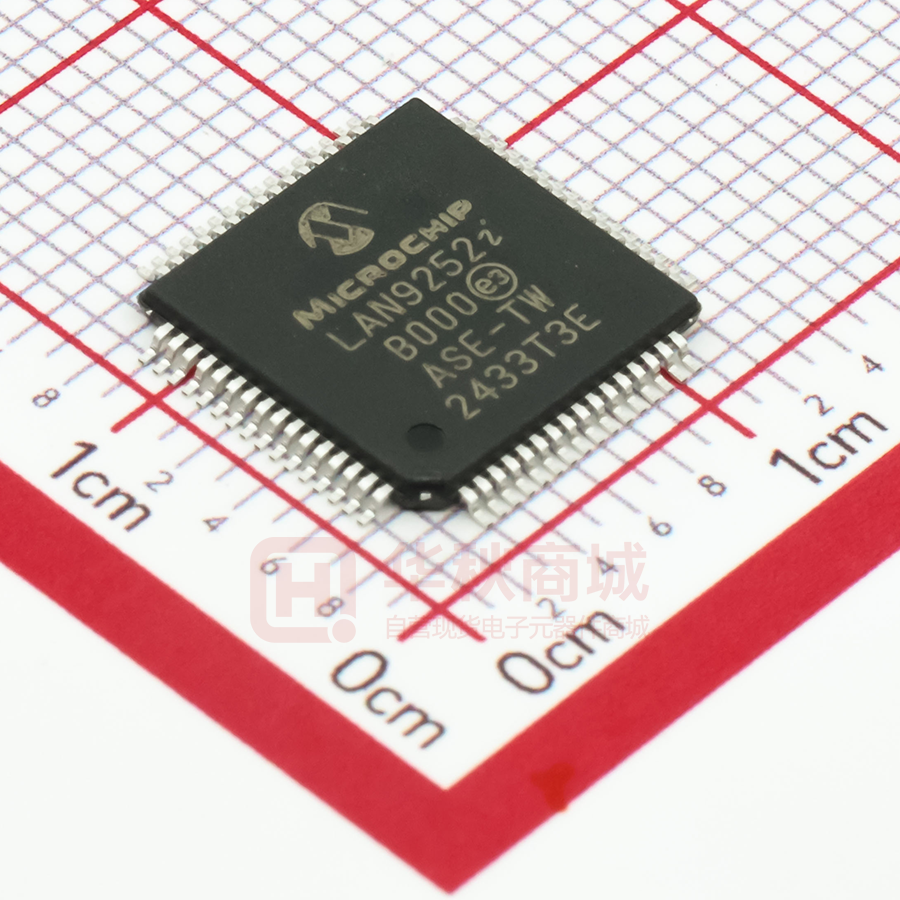

LAN9252
2/3-Port EtherCAT® Slave Controller with
Integrated Ethernet PHYs
Highlights
Key Benefits
• 2/3-port EtherCAT slave controller with 3 Fieldbus
Memory Management Units (FMMUs) and
4 SyncManagers
• Interfaces to most 8/16-bit embedded controllers
and 32-bit embedded controllers with an 8/16-bit
bus
• Integrated Ethernet PHYs with HP Auto-MDIX
• Wake on LAN (WoL) support
• Low power mode allows systems to enter sleep
mode until addressed by the Master
• Cable diagnostic support
• 1.8V to 3.3V variable voltage I/O
• Integrated 1.2V regulator for single 3.3V operation
• Low pin count and small body size package
• Integrated high-performance 100Mbps Ethernet
transceivers
Target Applications
•
•
•
•
•
•
Motor Motion Control
Process/Factory Automation
Communication Modules, Interface Cards
Sensors
Hydraulic & Pneumatic Valve Systems
Operator Interfaces
-
Compliant with IEEE 802.3/802.3u (Fast Ethernet)
100BASE-FX support via external fiber transceiver
Loop-back modes
Automatic polarity detection and correction
HP Auto-MDIX
• EtherCAT slave controller
- Supports 3 FMMUs
- Supports 4 SyncManagers
- Distributed clock support allows synchronization with
other EtherCAT devices
- 4K bytes of DPRAM
• 8/16-Bit Host Bus Interface
- Indexed register or multiplexed bus
- Allows local host to enter sleep mode until addressed by
EtherCAT Master
- SPI / Quad SPI support
• Digital I/O Mode for optimized system cost
• 3rd port for flexible network configurations
• Comprehensive power management features
- 3 power-down levels
- Wake on link status change (energy detect)
- Magic packet wakeup, Wake on LAN (WoL), wake on
broadcast, wake on perfect DA
- Wakeup indicator event signal
• Power and I/O
- Integrated power-on reset circuit
- Latch-up performance exceeds 150mA
per EIA/JESD78, Class II
- JEDEC Class 3A ESD performance
- Single 3.3V power supply
(integrated 1.2V regulator)
• Additional Features
- Multifunction GPIOs
- Ability to use low cost 25MHz crystal for reduced BOM
• Packaging
- Pb-free RoHS compliant 64-pin QFN or 64-pin TQFPEP
• Available in commercial, industrial, and extended
industrial* temp. ranges
*Extended temp. (105ºC) is supported only in the 64-QFN with an
external voltage regulator (internal regulator must be disabled) and
2.5V (typ) Ethernet magnetics.
2015 Microchip Technology Inc.
DS00001909A-page 1
LAN9252
TO OUR VALUED CUSTOMERS
It is our intention to provide our valued customers with the best documentation possible to ensure successful use of your Microchip
products. To this end, we will continue to improve our publications to better suit your needs. Our publications will be refined and
enhanced as new volumes and updates are introduced.
If you have any questions or comments regarding this publication, please contact the Marketing Communications Department via
E-mail at docerrors@microchip.com. We welcome your feedback.
Most Current Documentation
To obtain the most up-to-date version of this documentation, please register at our Worldwide Web site at:
http://www.microchip.com
You can determine the version of a data sheet by examining its literature number found on the bottom outside corner of any page.
The last character of the literature number is the version number, (e.g., DS30000000A is version A of document DS30000000).
Errata
An errata sheet, describing minor operational differences from the data sheet and recommended workarounds, may exist for current devices. As device/documentation issues become known to us, we will publish an errata sheet. The errata will specify the
revision of silicon and revision of document to which it applies.
To determine if an errata sheet exists for a particular device, please check with one of the following:
• Microchip’s Worldwide Web site; http://www.microchip.com
• Your local Microchip sales office (see last page)
When contacting a sales office, please specify which device, revision of silicon and data sheet (include -literature number) you are
using.
Customer Notification System
Register on our web site at www.microchip.com to receive the most current information on all of our products.
DS00001909A-page 2
2015 Microchip Technology Inc.
LAN9252
1.0 Preface ............................................................................................................................................................................................ 4
2.0 General Description ........................................................................................................................................................................ 8
3.0 Pin Descriptions and Configuration ............................................................................................................................................... 11
4.0 Power Connections ....................................................................................................................................................................... 29
5.0 Register Map ................................................................................................................................................................................. 32
6.0 Clocks, Resets, and Power Management ..................................................................................................................................... 37
7.0 Configuration Straps ..................................................................................................................................................................... 51
8.0 System Interrupts .......................................................................................................................................................................... 53
9.0 Host Bus Interface ........................................................................................................................................................................ 62
10.0 SPI/SQI Slave ........................................................................................................................................................................... 102
11.0 Ethernet PHYs .......................................................................................................................................................................... 120
12.0 EtherCAT .................................................................................................................................................................................. 196
13.0 EEPROM Interface ................................................................................................................................................................... 295
14.0 Chip Mode Configuration .......................................................................................................................................................... 296
15.0 General Purpose Timer & Free-Running Clock ........................................................................................................................ 297
16.0 Miscellaneous ........................................................................................................................................................................... 301
17.0 JTAG ......................................................................................................................................................................................... 305
18.0 Operational Characteristics ....................................................................................................................................................... 307
19.0 Package Outlines ...................................................................................................................................................................... 322
20.0 Revision History ........................................................................................................................................................................ 325
2015 Microchip Technology Inc.
DS00001909A-page 3
LAN9252
1.0
PREFACE
1.1
General Terms
TABLE 1-1:
GENERAL TERMS
Term
Description
10BASE-T
10 Mbps Ethernet, IEEE 802.3 compliant
100BASE-TX
100 Mbps Fast Ethernet, IEEE802.3u compliant
ADC
Analog-to-Digital Converter
ALR
Address Logic Resolution
AN
Auto-Negotiation
BLW
Baseline Wander
BM
Buffer Manager - Part of the switch fabric
BPDU
Bridge Protocol Data Unit - Messages which carry the Spanning Tree Protocol information
Byte
8 bits
CSMA/CD
Carrier Sense Multiple Access/Collision Detect
CSR
Control and Status Registers
CTR
Counter
DA
Destination Address
DWORD
32 bits
EPC
EEPROM Controller
FCS
Frame Check Sequence - The extra checksum characters added to the end of an
Ethernet frame, used for error detection and correction.
FIFO
First In First Out buffer
FSM
Finite State Machine
GPIO
General Purpose I/O
Host
External system (Includes processor, application software, etc.)
IGMP
Internet Group Management Protocol
Inbound
Refers to data input to the device from the host
Level-Triggered Sticky Bit
This type of status bit is set whenever the condition that it represents is asserted. The
bit remains set until the condition is no longer true and the status bit is cleared by writing a zero.
lsb
Least Significant Bit
LSB
Least Significant Byte
LVDS
Low Voltage Differential Signaling
MDI
Medium Dependent Interface
MDIX
Media Independent Interface with Crossover
MII
Media Independent Interface
MIIM
Media Independent Interface Management
MIL
MAC Interface Layer
MLD
Multicast Listening Discovery
MLT-3
Multi-Level Transmission Encoding (3-Levels). A tri-level encoding method where a
change in the logic level represents a code bit “1” and the logic output remaining at the
same level represents a code bit “0”.
msb
Most Significant Bit
MSB
Most Significant Byte
DS00001909A-page 4
2015 Microchip Technology Inc.
LAN9252
TABLE 1-1:
GENERAL TERMS (CONTINUED)
Term
Description
NRZI
Non Return to Zero Inverted. This encoding method inverts the signal for a “1” and
leaves the signal unchanged for a “0”
N/A
Not Applicable
NC
No Connect
OUI
Organizationally Unique Identifier
Outbound
Refers to data output from the device to the host
PISO
Parallel In Serial Out
PLL
Phase Locked Loop
PTP
Precision Time Protocol
RESERVED
Refers to a reserved bit field or address. Unless otherwise noted, reserved bits must
always be zero for write operations. Unless otherwise noted, values are not guaranteed when reading reserved bits. Unless otherwise noted, do not read or write to
reserved addresses.
RTC
Real-Time Clock
SA
Source Address
SFD
Start of Frame Delimiter - The 8-bit value indicating the end of the preamble of an
Ethernet frame.
SIPO
Serial In Parallel Out
SMI
Serial Management Interface
SQE
Signal Quality Error (also known as “heartbeat”)
SSD
Start of Stream Delimiter
UDP
User Datagram Protocol - A connectionless protocol run on top of IP networks
UUID
Universally Unique IDentifier
WORD
16 bits
2015 Microchip Technology Inc.
DS00001909A-page 5
LAN9252
1.2
Buffer Types
TABLE 1-2:
BUFFER TYPES
Buffer Type
IS
Description
Schmitt-triggered input
VIS
Variable voltage Schmitt-triggered input
VO8
Variable voltage output with 8 mA sink and 8 mA source
VOD8
Variable voltage open-drain output with 8 mA sink
VO12
Variable voltage output with 12 mA sink and 12 mA source
VOD12
Variable voltage open-drain output with 12 mA sink
VOS12
Variable voltage open-source output with 12 mA source
VO16
Variable voltage output with 16 mA sink and 16 mA source
PU
50 µA (typical) internal pull-up. Unless otherwise noted in the pin description, internal pullups are always enabled.
Internal pull-up resistors prevent unconnected inputs from floating. Do not rely on internal
resistors to drive signals external to the device. When connected to a load that must be
pulled high, an external resistor must be added.
PD
50 µA (typical) internal pull-down. Unless otherwise noted in the pin description, internal
pull-downs are always enabled.
Internal pull-down resistors prevent unconnected inputs from floating. Do not rely on internal
resistors to drive signals external to the device. When connected to a load that must be
pulled low, an external resistor must be added.
AI
Analog input
AIO
Analog bidirectional
ICLK
Crystal oscillator input pin
OCLK
Crystal oscillator output pin
ILVPECL
Low voltage PECL input pin
OLVPECL
Low voltage PECL output pin
P
DS00001909A-page 6
Power pin
2015 Microchip Technology Inc.
LAN9252
1.3
Register Nomenclature
TABLE 1-3:
REGISTER NOMENCLATURE
Register Bit Type Notation
R
Register Bit Description
Read: A register or bit with this attribute can be read.
W
Read: A register or bit with this attribute can be written.
RO
Read only: Read only. Writes have no effect.
WO
Write only: If a register or bit is write-only, reads will return unspecified data.
WC
Write One to Clear: Writing a one clears the value. Writing a zero has no effect
WAC
Write Anything to Clear: Writing anything clears the value.
RC
Read to Clear: Contents is cleared after the read. Writes have no effect.
LL
Latch Low: Clear on read of register.
LH
Latch High: Clear on read of register.
SC
Self-Clearing: Contents are self-cleared after the being set. Writes of zero have no
effect. Contents can be read.
SS
Self-Setting: Contents are self-setting after being cleared. Writes of one have no
effect. Contents can be read.
RO/LH
Read Only, Latch High: Bits with this attribute will stay high until the bit is read. After it
is read, the bit will either remain high if the high condition remains, or will go low if the
high condition has been removed. If the bit has not been read, the bit will remain high
regardless of a change to the high condition. This mode is used in some Ethernet PHY
registers.
NASR
Not Affected by Software Reset. The state of NASR bits do not change on assertion
of a software reset.
RESERVED
Reserved Field: Reserved fields must be written with zeros to ensure future compatibility. The value of reserved bits is not guaranteed on a read.
2015 Microchip Technology Inc.
DS00001909A-page 7
LAN9252
2.0
GENERAL DESCRIPTION
The LAN9252 is a 2/3-port EtherCAT slave controller with dual integrated Ethernet PHYs which each contain a fullduplex 100BASE-TX transceiver and support 100Mbps (100BASE-TX) operation. The LAN9252 supports HP AutoMDIX, allowing the use of direct connect or cross-over LAN cables. 100BASE-FX is supported via an external fiber
transceiver.
The LAN9252 includes an EtherCAT slave controller with 4K bytes of Dual Port memory (DPRAM) and 3 Fieldbus Memory Management Units (FMMUs). Each FMMU performs the task of mapping logical addresses to physical addresses.
The EtherCAT slave controller also includes 4 SyncManagers to allow the exchange of data between the EtherCAT master and the local application. Each SyncManager's direction and mode of operation is configured by the EtherCAT master. Two modes of operation are available: buffered mode or mailbox mode. In the buffered mode, both the local
microcontroller and EtherCAT master can write to the device concurrently. The buffer within the LAN9252 will always
contain the latest data. If newer data arrives before the old data can be read out, the old data will be dropped. In mailbox
mode, access to the buffer by the local microcontroller and the EtherCAT master is performed using handshakes, guaranteeing that no data will be dropped.
Two user selectable host bus interface options are available:
• Indexed register access
This implementation provides three index/data register banks, each with independent Byte/WORD to DWORD
conversion. Internal registers are accessed by first writing one of the three index registers, followed by reading or
writing the corresponding data register. Three index/data register banks support up to 3 independent driver
threads without access conflicts. Each thread can write its assigned index register without the issue of another
thread overwriting it. Two 16-bit cycles or four 8-bit cycles are required within the same 32-bit index/data register however, these access can be interleaved. Direct (non-indexed) read and write accesses are supported to the
process data FIFOs. The direct FIFO access provides independent Byte/WORD to DWORD conversion, supporting interleaved accesses with the index/data registers.
• Multiplexed address/data bus
This implementation provides a multiplexed address and data bus with both single phase and dual phase address
support. The address is loaded with an address strobe followed by data access using a read or write strobe. Two
back to back 16-bit data cycles or 4 back to back 8-bit data cycles are required within the same 32-bit DWORD.
These accesses must be sequential without any interleaved accesses to other registers. Burst read and write
accesses are supported to the process data FIFOs by performing one address cycle followed by multiple read or
write data cycles.
The HBI supports 8/16-bit operation with big, little, and mixed endian operations. Two process data RAM FIFOs interface the HBI to the EtherCAT slave controller and facilitate the transferring of process data information between the host
CPU and the EtherCAT slave. A configurable host interrupt pin allows the device to inform the host CPU of any internal
interrupts.
An SPI / Quad SPI slave controller provides a low pin count synchronous slave interface that facilitates communication
between the device and a host system. The SPI / Quad SPI slave allows access to the System CSRs, internal FIFOs
and memories. It supports single and multiple register read and write commands with incrementing, decrementing and
static addressing. Single, Dual and Quad bit lanes are supported with a clock rate of up to 80 MHz.
The LAN9252 supports numerous power management and wakeup features. The LAN9252 can be placed in a reduced
power mode and can be programmed to issue an external wake signal (IRQ) via several methods, including “Magic
Packet”, “Wake on LAN”, wake on broadcast, wake on perfect DA, and “Link Status Change”. This signal is ideal for
triggering system power-up using remote Ethernet wakeup events. The device can be removed from the low power state
via a host processor command or one of the wake events.
For simple digital modules without microcontrollers, the LAN9252 can also operate in Digital I/O Mode where 16 digital
signals can be controlled or monitored by the EtherCAT master.
To enable star or tree network topologies, the device can be configured as a 3-port slave, providing an additional MII
port. This port can be connected to an external PHY, forming a tap along the current daisy chain, or to another LAN9252
creating a 4-port solution. The MII port can point upstream (as Port 0) or downstream (as Port 2).
LED support consists of a standard RUN indicator and a LINK / Activity indicator per port. A 64-bit distributed clock is
included to enable high-precision synchronization and to provide accurate information about the local timing of data
acquisition.
The LAN9252 can be configured to operate via a single 3.3V supply utilizing an integrated 3.3V to 1.2V linear regulator.
The linear regulator may be optionally disabled, allowing usage of a high efficiency external regulator for lower system
power dissipation.
DS00001909A-page 8
2015 Microchip Technology Inc.
LAN9252
The LAN9252 is available in commercial, industrial, and extended industrial temperature ranges. Figure 2-1 details a
typical system application, while Figure 2-2 provides an internal block diagram of the LAN9252.
FIGURE 2-1:
SYSTEM BLOCK DIAGRAM
EtherCAT Slave
EtherCAT
Master
EEPROM
Microprocessor/
Microcontroller
Local
Bus
LAN9252
Magnetics
RJ45
Magnetics
RJ45
PHY
RJ45
EtherCAT
Slave
EtherCAT
Slave
25MHz
FIGURE 2-2:
EtherCAT
Slave
INTERNAL BLOCK DIAGRAM
LAN9252
Registers / RAM
ESC Address Space
Ethernet
SyncManager
100 PHY
w/ fiber
FMMU
Registers
Port 0
Ethernet
100 PHY
Auto
Fowarder
Loopback
Auto
Fowarder
Loopback
Auto
Fowarder
Loopback
To 8/16-bit
Host Bus,
MII, SPI,
Digital IOs,
GPIOs
w/ fiber
Port 2
Registers
Parallel Data
Interface
Port 1
EtherCAT Slave Controller
MII
LED
Controller
I2C
EEPROM
System
Interrupt
Controller
To optional LEDs
To I2C
IRQ
System Clocks/
Reset Controller
External
25MHz Crystal
The LAN9252 can operate in Microcontroller, Expansion, or Digital I/O mode:
2015 Microchip Technology Inc.
DS00001909A-page 9
LAN9252
Microcontroller Mode: The LAN9252 communicates with the microcontroller through an SRAM-like slave interface.
The simple, yet highly functional host bus interface provides a glue-less connection to most common 8 or 16-bit microprocessors and microcontrollers as well as 32-bit microprocessors with an 8 or 16-bit external bus.
Alternatively, the device can be accessed via SPI or Quad SPI, while also providing up to 16 inputs or outputs for general
purpose usage.
Expansion Mode: While the device is in SPI or Quad SPI mode, a third networking port can be enabled to provide an
additional MII port. This port can be connected to an external PHY, to enable star or tree network topologies, or to
another LAN9252 to create a four port solution. This port can be configured for the upstream or downstream direction.
Digital I/O Mode: For simple digital modules without microcontrollers, the LAN9252 can operate in Digital I/O Mode
where 16 digital signals can be controlled or monitored by the EtherCAT master. Six control signals are also provided.
Figure 2-3 provides a system level overview of each mode of operation.
FIGURE 2-3:
MODES OF OPERATION
Microcontroller Mode
Digital I/O Mode
(via Host Bus Interface)
Microprocessor/
Microcontroller
RJ45
Host Bus Interface
or Fiber
RJ45
or Fiber
Magnetics or
Fiber Xcvr
LAN9252
Magnetics or
Fiber Xcvr
Magnetics or
Fiber Xcvr
LAN9252
RJ45
Magnetics or
Fiber Xcvr
or Fiber
Magnetics or
Fiber Xcvr
or Fiber
RJ45
or Fiber
Digital I/Os
Microcontroller Mode
Expansion Mode
(via SPI)
Microprocessor/
Microcontroller
Microprocessor/
Microcontroller
SPI / Quad SPI
SPI / Quad SPI
RJ45
or Fiber
RJ45
or Fiber
Magnetics or
Fiber Xcvr
LAN9252
Magnetics or
Fiber Xcvr
Magnetics or
Fiber Xcvr
LAN9252
RJ45
RJ45
or Fiber
MII
PHY
GPIOs
DS00001909A-page 10
Magnetics or
Fiber Xcvr
RJ45
or Fiber
2015 Microchip Technology Inc.
LAN9252
3.0
PIN DESCRIPTIONS AND CONFIGURATION
3.1
64-QFN Pin Assignments
RXPA
RXNA
TXPA
TXNA
VDD33TXRX1
D5/AD5/OUTVALID/SCS#
D4/AD4/DIGIO3/GPI3/GPO3/MII_LINK
53
52
51
50
49
VDD33BIAS
54
VDD12TX2
58
55
RXPB
59
RBIAS
RXNB
60
VDD12TX1
TXPB
61
56
TXNB
62
57
VDD33TXRX2
63
64-QFN PIN ASSIGNMENTS (TOP VIEW)
64
FIGURE 3-1:
OSCI
1
48
LINKACTLED0/TDO/CHIP_MODE0
OSCO
2
47
VDDIO
OSCVDD12
3
46
LINKACTLED1/TDI/CHIP_MODE1
OSCVSS
4
45
RUNLED/E2PSIZE
VDD33
5
44
IRQ
VDDCR
6
43
EESCL/TCK
REG_EN
7
42
EESDA/TMS
41
TESTMODE
40
D8/AD8/DIGIO2/GPI2/GPO2/MII_MDIO
D7/AD7/DIGIO1/GPI1/GPO1/MII_MDC
LAN9252
FXLOSEN
8
FXSDA/FXLOSA/FXSDENA
9
FXSDB/FXLOSB/FXSDENB
10
39
RST#
11
38
VDDCR
D2/AD2/SOF/SIO2
12
37
VDDIO
D1/AD1/EOF/SO/SIO1
13
36
D6/AD6/DIGIO0/GPI0/GPO0/MII_RXCLK
VDDIO
14
35
D3/AD3/WD_TRIG/SIO3
D14/AD14/DIGIO8/GPI8/GPO8/MII_TXD3/TX_SHIFT1
15
34
SYNC0/LATCH0
D13/AD13/DIGIO7/GPI7/GPO7/MII_TXD2/TX_SHIFT0
16
33
A0/D15/AD15/DIGIO9/GPI9/GPO9/MII_RXER
64-QFN
( To p V i e w)
VSS
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
D9/AD9/LATCH_IN/SCK
VDDIO
D12/AD12/DIGIO6/GPI6/GPO6/MII_TXD1
D11/AD11/DIGIO5/GPI5/GPO5/MII_TXD0
D10/AD10/DIGIO4/GPI4/GPO4/MII_TXEN
VDDCR
A1/ALELO/OE_EXT/MII_CLK25
A3/DIGIO11/GPI11/GPO11/MII_RXDV
A4/DIGIO12/GPI12/GPO12/MII_RXD0
CS/DIGIO13/GPI13/GPO13/MII_RXD1
A2/ALEHI/DIGIO10/GPI10/GPO10/
LINKACTLED2/MII_LINKPOL
WR/ENB/DIGIO14/GPI14/GPO14/MII_RXD2
RD/RD_WR/DIGIO15/GPI15/GPO15/MII_RXD3
VDDIO
17
D0/AD0/WD_STATE/SI/SIO0
SYNC1/LATCH1
(Connect exposed pad to ground with a via field)
Note: Exposed pad (VSS) on bottom of package must be connected to ground with a via field.
Note:
When a “#” is used at the end of the signal name, it indicates that the signal is active low. For example,
RST# indicates that the reset signal is active low.
The buffer type for each signal is indicated in the “Buffer Type” column of the pin description tables in Section 3.3, "Pin Descriptions". A description of the buffer types is provided in Section 1.2, "Buffer Types".
2015 Microchip Technology Inc.
DS00001909A-page 11
LAN9252
Table 3-1 details the 64-QFN package pin assignments in table format. As shown, select pin functions may change
based on the device’s mode of operation. For modes where a specific pin has no function, the table cell will be marked
with “-”.
TABLE 3-1:
Pin
Number
64-QFN PACKAGE PIN ASSIGNMENTS
HBI Indexed
Mode Pin Name
HBI Multiplexed
Mode Pin Name
Digital I/O
Mode Pin Name
SPI with GPIO
Mode Pin Name
1
OSCI
2
OSCO
3
OSCVDD12
4
OSCVSS
5
VDD33
6
VDDCR
7
REG_EN
8
FXLOSEN
9
FXSDA/FXLOSA/FXSDENA
10
FXSDB/FXLOSB/FXSDENB
11
RST#
SPI with MII
Mode Pin Name
12
D2
AD2
SOF
SIO2
13
D1
AD1
EOF
SO/SIO1
14
VDDIO
15
D14
AD14
DIGIO8
GPI8/GPO8
MII_TXD3/
TX_SHIFT1
16
D13
AD13
DIGIO7
GPI7/GPO7
MII_TXD2/
TX_SHIFT0
17
D0
AD0
WD_STATE
18
SI/SIO0
SYNC1/LATCH1
19
D9
AD9
20
LATCH_IN
SCK
VDDIO
21
D12
AD12
DIGIO6
GPI6/GPO6
MII_TXD1
22
D11
AD11
DIGIO5
GPI5/GPO5
MII_TXD0
23
D10
AD10
DIGIO4
GPI4/GPO4
MII_TXEN
24
VDDCR
25
A1
ALELO
OE_EXT
-
MII_CLK25
26
A3
-
DIGIO11
GPI11/GPO11
MII_RXDV
27
A4
-
DIGIO12
GPI12/GPO12
MII_RXD0
DIGIO13
GPI13/GPO13
MII_RXD1
DIGIO10
GPI10/GPO10
LINKACTLED2/
MII_LINKPOL
DIGIO14
GPI14/GPO14
MII_RXD2
28
29
30
DS00001909A-page 12
CS
A2
ALEHI
WR/ENB
2015 Microchip Technology Inc.
LAN9252
TABLE 3-1:
Pin
Number
64-QFN PACKAGE PIN ASSIGNMENTS (CONTINUED)
HBI Indexed
Mode Pin Name
31
HBI Multiplexed
Mode Pin Name
RD/RD_WR
32
33
Digital I/O
Mode Pin Name
SPI with GPIO
Mode Pin Name
SPI with MII
Mode Pin Name
DIGIO15
GPI15/GPO15
MII_RXD3
GPI9/GPO9
MII_RXER
VDDIO
A0/D15
AD15
34
DIGIO9
SYNC0/LATCH0
35
D3
AD3
WD_TRIG
36
D6
AD6
DIGIO0
37
VDDIO
38
VDDCR
SIO3
GPI0/GPO0
MII_RXCLK
39
D7
AD7
DIGIO1
GPI1/GPO1
MII_MDC
40
D8
AD8
DIGIO2
GPI2/GPO2
MII_MDIO
41
TESTMODE
42
EESDA/TMS
43
EESCL/TCK
44
IRQ
45
RUNLED/E2PSIZE
46
LINKACTLED1/TDI/CHIP_MODE1
47
VDDIO
48
LINKACTLED0/TDO/CHIP_MODE0
49
D4
AD4
DIGIO3
50
D5
AD5
OUTVALID
51
VDD33TXRX1
52
TXNA
53
TXPA
54
RXNA
55
RXPA
56
VDD12TX1
57
RBIAS
58
VDD33BIAS
59
VDD12TX2
60
RXPB
61
RXNB
62
TXPB
63
TXNB
64
VDD33TXRX2
Exposed
Pad
VSS
2015 Microchip Technology Inc.
GPI3/GPO3
MII_LINK
SCS#
DS00001909A-page 13
LAN9252
64-TQFP-EP Pin Assignments
LINKACTLED0/TDO/CHIP_MODE0
VDDIO
LINKACTLED1/TDI/CHIP_MODE1
RUNLED/E2PSIZE
IRQ
EESCL/TCK
EESDA/TMS
TESTMODE
D8/AD8/DIGIO2/GPI2/GPO2/MII_MDIO
D7/AD7/DIGIO1/GPI1/GPO1/MII_MDC
VDDCR
VDDIO
D6/AD6/DIGIO0/GPI0/GPO0/MII_RXCLK
D3/AD3/WD_TRIG/SIO3
SYNC0/LATCH0
A0/D15/AD15/DIGIO9/GPI9/GPO9/MII_RXER
46
45
44
43
42
41
40
39
38
37
36
35
34
33
64-TQFP-EP PIN ASSIGNMENTS (TOP VIEW)
47
FIGURE 3-2:
48
3.2
D4/AD4/DIGIO3/GPI3/GPO3/MII_LINK
49
32
VDDIO
D5/AD5/OUTVALID/SCS#
50
31
RD/RD_WR/DIGIO15/GPI15/GPO15/MII_RXD3
VDD33TXRX1
51
30
WR/ENB/DIGIO14/GPI14/GPO14/MII_RXD2
TXNA
52
29
A2/ALEHI/DIGIO10/GPI10/GPO10/
LINKACTLED2/MII_LINKPOL
TXPA
53
28
CS/DIGIO13/GPI13/GPO13/MII_RXD1
RXNA
54
27
A4/DIGIO12/GPI12/GPO12/MII_RXD0
RXPA
55
26
A3/DIGIO11/GPI11/GPO11/MII_RXDV
VDD12TX1
56
25
A1/ALELO/OE_EXT/MII_CLK25
RBIAS
57
24
VDDCR
VDD33BIAS
58
23
D10/AD10/DIGIO4/GPI4/GPO4/MII_TXEN
VDD12TX2
59
22
D11/AD11/DIGIO5/GPI5/GPO5/MII_TXD0
RXPB
60
21
D12/AD12/DIGIO6/GPI6/GPO6/MII_TXD1
RXNB
61
20
VDDIO
TXPB
62
19
D9/AD9/LATCH_IN/SCK
TXNB
63
18
SYNC1/LATCH1
VDD33TXRX2
64
17
D0/AD0/WD_STATE/SI/SIO0
LAN9252
64-TQFP-EP
( T o p V i e w)
VSS
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
OSCVDD12
OSCVSS
VDD33
VDDCR
REG_EN
FXLOSEN
FXSDA/FXLOSA/FXSDENA
FXSDB/FXLOSB/FXSDENB
RST#
D2/AD2/SOF/SIO2
D1/AD1/EOF/SO/SIO1
VDDIO
D14/AD14/DIGIO8/GPI8/GPO8/MII_TXD3/TX_SHIFT1
D13/AD13/DIGIO7/GPI7/GPO7/MII_TXD2/TX_SHIFT0
1
OSCI
OSCO
(Connect exposed pad to ground with a via field)
Note: Exposed pad (VSS) on bottom of package must be connected to ground with a via field.
.
Note:
When an “#” is used at the end of the signal name, it indicates that the signal is active low. For example,
RST# indicates that the reset signal is active low.
The buffer type for each signal is indicated in the “Buffer Type” column of the pin description tables in Section 3.3, "Pin Descriptions". A description of the buffer types is provided in Section 1.2, "Buffer Types".
DS00001909A-page 14
2015 Microchip Technology Inc.
LAN9252
Table 3-2 details the 64-TQFP-EP package pin assignments in table format. As shown, select pin functions may change
based on the device’s mode of operation. For modes where a specific pin has no function, the table cell will be marked
with “-”.
TABLE 3-2:
Pin
Number
64-TQFP-EP PACKAGE PIN ASSIGNMENTS
HBI Indexed
Mode Pin Name
HBI Multiplexed
Mode Pin Name
Digital I/O
Mode Pin Name
SPI with GPIO
Mode Pin Name
1
OSCI
2
OSCO
3
OSCVDD12
4
OSCVSS
5
VDD33
6
VDDCR
7
REG_EN
8
FXLOSEN
9
FXSDA/FXLOSA/FXSDENA
10
FXSDB/FXLOSB/FXSDENB
11
RST#
SPI with MII
Mode Pin Name
12
D2
AD2
SOF
SIO2
13
D1
AD1
EOF
SO/SIO1
14
VDDIO
15
D14
AD14
DIGIO8
GPI8/GPO8
MII_TXD3/
TX_SHIFT1
16
D13
AD13
DIGIO7
GPI7/GPO7
MII_TXD2/
TX_SHIFT0
17
D0
AD0
WD_STATE
18
19
SI/SIO0
SYNC1/LATCH1
D9
AD9
20
LATCH_IN
SCK
VDDIO
21
D12
AD12
DIGIO6
GPI6/GPO6
MII_TXD1
22
D11
AD11
DIGIO5
GPI5/GPO5
MII_TXD0
23
D10
AD10
DIGIO4
GPI4/GPO4
MII_TXEN
24
VDDCR
25
A1
ALELO
OE_EXT
-
MII_CLK25
26
A3
-
DIGIO11
GPI11/GPO11
MII_RXDV
27
A4
-
DIGIO12
GPI12/GPO12
MII_RXD0
DIGIO13
GPI13/GPO13
MII_RXD1
DIGIO10
GPI10/GPO10
LINKACTLED2/
MII_LINKPOL
DIGIO14
GPI14/GPO14
MII_RXD2
28
29
30
CS
A2
ALEHI
WR/ENB
2015 Microchip Technology Inc.
DS00001909A-page 15
LAN9252
TABLE 3-2:
Pin
Number
64-TQFP-EP PACKAGE PIN ASSIGNMENTS (CONTINUED)
HBI Indexed
Mode Pin Name
31
HBI Multiplexed
Mode Pin Name
RD/RD_WR
32
33
Digital I/O
Mode Pin Name
SPI with GPIO
Mode Pin Name
SPI with MII
Mode Pin Name
DIGIO15
GPI15/GPO15
MII_RXD3
GPI9/GPO9
MII_RXER
VDDIO
A0/D15
AD15
34
DIGIO9
SYNC0/LATCH0
35
D3
AD3
WD_TRIG
36
D6
AD6
DIGIO0
37
VDDIO
38
VDDCR
SIO3
GPI0/GPO0
MII_RXCLK
39
D7
AD7
DIGIO1
GPI1/GPO1
MII_MDC
40
D8
AD8
DIGIO2
GPI2/GPO2
MII_MDIO
41
TESTMODE
42
EESDA/TMS
43
EESCL/TCK
44
IRQ
45
RUNLED/E2PSIZE
46
LINKACTLED1/TDI/CHIP_MODE1
47
VDDIO
48
LINKACTLED0/TDO/CHIP_MODE0
49
D4
AD4
DIGIO3
50
D5
AD5
OUTVALID
51
VDD33TXRX1
52
TXNA
53
TXPA
54
RXNA
55
RXPA
56
VDD12TX1
57
RBIAS
58
VDD33BIAS
59
VDD12TX2
60
RXPB
61
RXNB
62
TXPB
63
TXNB
64
VDD33TXRX2
Exposed
Pad
VSS
DS00001909A-page 16
GPI3/GPO3
MII_LINK
SCS#
2015 Microchip Technology Inc.
LAN9252
3.3
Pin Descriptions
This section contains descriptions of the various LAN9252 pins. The pin descriptions have been broken into functional
groups as follows:
•
•
•
•
•
•
•
•
•
•
•
•
•
LAN Port A Pin Descriptions
LAN Port B Pin Descriptions
LAN Port A & B Power and Common Pin Descriptions
EtherCAT MII Port & Configuration Strap Pin Descriptions
Host Bus Pin Descriptions
SPI/SQI Pin Descriptions
EtherCAT Distributed Clock Pin Descriptions
EtherCAT Digital I/O and GPIO Pin Descriptions
EEPROM Pin Descriptions
LED & Configuration Strap Pin Descriptions
Miscellaneous Pin Descriptions
JTAG Pin Descriptions
Core and I/O Power Pin Descriptions
TABLE 3-3:
Num
Pins
1
1
1
1
LAN PORT A PIN DESCRIPTIONS
Name
Port A TP TX/RX
Positive
Channel 1
Symbol
Buffer
Type
AIO
OLVPECL
Port A TP TX/RX
Negative
Channel 1
AIO
Port A Fiber Transmit Positive.
Port A Twisted Pair Transmit/Receive Negative
Channel 1. See Note 1.
TXNA
Port A FX TX
Negative
OLVPECL
Port A TP TX/RX
Positive
Channel 2
AIO
Port A Fiber Transmit Negative.
Port A Twisted Pair Transmit/Receive Positive
Channel 2. See Note 1.
RXPA
Port A FX RX
Positive
AI
Port A TP TX/RX
Negative
Channel 2
AIO
2015 Microchip Technology Inc.
Port A Twisted Pair Transmit/Receive Positive
Channel 1. See Note 1
TXPA
Port A FX TX
Positive
Port A FX RX
Negative
Description
Port A Fiber Receive Positive.
Port A Twisted Pair Transmit/Receive Negative
Channel 2. See Note 1.
RXNA
AI
Port A Fiber Receive Negative.
DS00001909A-page 17
LAN9252
TABLE 3-3:
Num
Pins
LAN PORT A PIN DESCRIPTIONS (CONTINUED)
Name
Port A FX
Signal Detect
(SD)
Symbol
FXSDA
Buffer
Type
ILVPECL
Description
Port A Fiber Signal Detect. When FX-LOS mode is
not selected, this pin functions as the Signal Detect
input from the external transceiver. A level above
2 V (typ.) indicates valid signal.
When FX-LOS mode is selected, the input buffer is
disabled.
Port A FX
Loss Of Signal
(LOS)
1
FXLOSA
IS
(PU)
Port A Fiber Loss of Signal. When FX-LOS mode is
selected (via fx_los_strap_1), this pin functions as
the Loss of Signal input from the external transceiver. A high indicates LOS while a low indicates
valid signal.
When FX-LOS mode is not selected, the input buffer
and pull-up are disabled.
Port A FX-SD
Enable Strap
Port A FX-SD Enable. When FX-LOS mode is not
selected, this strap input selects between FX-SD
and copper twisted pair mode. A level above 1 V
(typ.) selects FX-SD.
FXSDENA
AI
When FX-LOS mode is selected, the input buffer is
disabled.
See Note 2.
Note 1: In copper mode, either channel 1 or 2 may function as the transmit pair while the other channel functions as
the receive pair. The pin name symbols for the twisted pair pins apply to a normal connection. If HP AutoMDIX is enabled and a reverse connection is detected or manually selected, the RX and TX pins will be
swapped internally.
Note 2: Configuration strap pins are identified by an underlined symbol name. Configuration strap values are
latched on power-on reset or RST# de-assertion. Refer to Section 7.0, "Configuration Straps," on page 51
for more information.
Note:
Port A is connected to the EtherCAT port 0 or 2.
TABLE 3-4:
Num
Pins
1
1
LAN PORT B PIN DESCRIPTIONS
Name
Port B TP TX/RX
Positive
Channel 1
Symbol
Buffer
Type
AIO
OLVPECL
Port B TP TX/RX
Negative
Channel 1
AIO
DS00001909A-page 18
Port B Twisted Pair Transmit/Receive Positive
Channel 1. See Note 3
TXPB
Port B FX TX
Positive
Port B FX TX
Negative
Description
Port B Fiber Transmit Positive.
Port B Twisted Pair Transmit/Receive Negative
Channel 1. See Note 3.
TXNB
OLVPECL
Port B Fiber Transmit Negative.
2015 Microchip Technology Inc.
LAN9252
TABLE 3-4:
Num
Pins
1
1
LAN PORT B PIN DESCRIPTIONS (CONTINUED)
Name
Port BTP TX/RX
Positive
Channel 2
Symbol
Buffer
Type
AIO
Port B Twisted Pair Transmit/Receive Positive
Channel 2. See Note 3.
RXPB
Port B FX RX
Positive
AI
Port B TP TX/RX
Negative
Channel 2
AIO
Port B Fiber Receive Positive.
Port B Twisted Pair Transmit/Receive Negative
Channel 2. See Note 3.
RXNB
Port B FX RX
Negative
Port B FX
Signal Detect
(SD)
Description
AI
FXSDB
ILVPECL
Port B Fiber Receive Negative.
Port B Fiber Signal Detect. When FX-LOS mode is
not selected, this pin functions as the Signal Detect
input from the external transceiver. A level above
2 V (typ.) indicates valid signal.
When FX-LOS mode is selected, the input buffer is
disabled.
1
Port B FX
Loss Of Signal
(LOS)
FXLOSB
IS
(PU)
Port B Fiber Loss of Signal. When FX-LOS mode is
selected (via fx_los_strap_2), this pin functions as
the Loss of Signal input from the external transceiver. A high indicates LOS while a low indicates
valid signal.
When FX-LOS mode is not selected, the input buffer
and pull-up are disabled.
Port B FX-SD
Enable Strap
Port B FX-SD Enable. When FX-LOS mode is not
selected, this strap input selects between FX-SD
and copper twisted pair mode. A level above 1 V
(typ.) selects FX-SD.
FXSDENB
AI
When FX-LOS mode is selected, the input buffer is
disabled.
See Note 4.
Note 3: In copper mode, either channel 1 or 2 may function as the transmit pair while the other channel functions as
the receive pair. The pin name symbols for the twisted pair pins apply to a normal connection. If HP AutoMDIX is enabled and a reverse connection is detected or manually selected, the RX and TX pins will be
swapped internally.
Note 4: Configuration strap pins are identified by an underlined symbol name. Configuration strap values are
latched on power-on reset or RST# de-assertion. Refer to Section 7.0, "Configuration Straps," on page 51
for more information.
Note:
Port B is connected to EtherCAT port 1.
2015 Microchip Technology Inc.
DS00001909A-page 19
LAN9252
TABLE 3-5:
Num
Pins
LAN PORT A & B POWER AND COMMON PIN DESCRIPTIONS
Name
Symbol
Buffer
Type
Description
Used for internal bias circuits. Connect to an external 12.1 kΩ, 1% resistor to ground.
1
Bias Reference
RBIAS
AI
Refer to the device reference schematic for connection information.
Note:
The nominal voltage is 1.2 V and the
resistor will dissipate approximately
1 mW of power.
Port A and B FX-LOS Enable. This 3 level strap
input selects between FX-LOS and FX-SD / copper
twisted pair mode.
1
Port A and B
FX-LOS Enable
Strap
FXLOSEN
AI
A level below 1 V (typ.) selects FX-SD / copper
twisted pair for ports A and B, further determined by
FXSDENA and FXSDENB.
A level of 1.5 V selects FX-LOS for port A and FXSD / copper twisted pair for port B, further determined by FXSDENB.
A level above 2 V (typ.) selects FX-LOS for ports A
and B.
1
+3.3 V Port A
Analog Power
Supply
VDD33TXRX1
P
See Note 5.
1
+3.3 V Port B
Analog Power
Supply
VDD33TXRX2
P
1
+3.3 V Master
Bias Power
Supply
VDD33BIAS
P
1
Port A
Transmitter
+1.2 V Power
Supply
See Note 5.
See Note 5.
VDD12TX1
P
This pin is supplied from either an external 1.2 V
supply or from the device’s internal regulator via the
PCB. This pin must be tied to the VDD12TX2 pin for
proper operation.
See Note 5.
1
Port B
Transmitter
+1.2 V Power
Supply
VDD12TX2
P
This pin is supplied from either an external 1.2 V
supply or from the device’s internal regulator via the
PCB. This pin must be tied to the VDD12TX1 pin for
proper operation.
See Note 5.
Note 5: Refer to Section 4.0, "Power Connections," on page 29, the device reference schematics, and the device
LANCheck schematic checklist for additional connection information.
DS00001909A-page 20
2015 Microchip Technology Inc.
LAN9252
TABLE 3-6:
ETHERCAT MII PORT & CONFIGURATION STRAP PIN DESCRIPTIONS
Num
Pins
Name
Symbol
Buffer
Type
Description
1
25 MHz Clock
MII_CLK25
VO12
Note 6
This pin is a free-running 25 MHz clock that can be
used as the clock input to the PHY.
4
Receive Data
MII Port
MII_RXD[3:0]
VIS
(PD)
These pins are the receive data from the external
PHY.
1
Receive Data
Valid MII Port
MII_RXDV
VIS
(PD)
This pin is the receive data valid signal from the
external PHY.
1
Receive Error
MII Port
MII_RXER
VIS
(PD)
This pin is the receive error signal from the external
PHY.
1
Receive Clock
MII Port
MII_RXCLK
VIS
(PD)
This pin is the receive clock from the external PHY.
Transmit Data
MII Port
MII_TXD[3:0]
VO8
MII Transmit
Timing Shift
Configuration
Strap
TX_SHIFT[1:0]
VIS
(PU)
Note 7
1
Transmit Data
Enable MII Port
MII_TXEN
VO8
This pin is the transmit data enable signal to the
external PHY.
1
Link Status
MII Port
MII_LINK
VIS
This pin is the provided by the PHY to indicate that a
100 Mbit/s Full Duplex link is established. The polarity is configurable via the link_pol_strap_mii strap.
1
SMI Clock
MII_MDC
VO8
This pin is the serial management clock to the external PHY.
4
These pins are the transmit data to the external
PHY.
These straps configure the value of the external MII
Bus TX timing shift hard-strap. See Note 8.
TX_SHIFT[1] is on MII_TXD[3] and TX_SHIFT[0]
is on MII_TXD[2].
This pin is the serial management interface data
input/output to the external PHY.
1
SMI Data
MII_MDIO
VIS/VO8
Note:
An external pull-up is required to ensure
that the non-driven state of the MDIO
signal is a logic one.
Note 6: A series terminating resistor is recommended for the best PCB signal integrity.
Note 7: An external supplemental pull-up may be needed, depending upon the input current loading of the external
MAC/PHY device.
Note 8: Configuration strap pins are identified by an underlined symbol name. Configuration strap values are
latched on power-on reset or RST# de-assertion. Refer to Section 7.0, "Configuration Straps," on page 51
for more information.
2015 Microchip Technology Inc.
DS00001909A-page 21
LAN9252
TABLE 3-7:
Num
Pins
HOST BUS PIN DESCRIPTIONS
Name
Symbol
Buffer
Type
Description
This pin is the host bus read strobe.
Read
RD
VIS
Normally active low, the polarity can be changed via
the HBI Read, Read/Write Polarity bit of the PDI
Configuration Register (HBI Modes).
This pin is the host bus direction control. Used in
conjunction with the ENB pin, it indicates a read or
write operation.
1
Read or Write
RD_WR
VIS
The normal polarity is read when 1, write when 0 (R/
nW) but can be changed via the HBI Read, Read/
Write Polarity bit of the PDI Configuration Register
(HBI Modes).
This pin is the host bus write strobe.
Write
WR
VIS
Normally active low, the polarity can be changed via
the HBI Write, Enable Polarity bit of the PDI Configuration Register (HBI Modes).
This pin is the host bus data enable strobe. Used in
conjunction with the RD_WR pin it indicates the
data phase of the operation.
1
Enable
ENB
VIS
Normally active low, the polarity can be changed via
the HBI Write, Enable Polarity bit of the PDI Configuration Register (HBI Modes).
This pin is the host bus chip select and indicates
that the device is selected for the current transfer.
1
5
Chip Select
Address
CS
A[4:0]
VIS
VIS
Normally active low, the polarity can be changed via
the HBI Chip Select Polarity bit of the PDI Configuration Register (HBI Modes).
These pins provide the address for non-multiplexed
address mode.
In 16-bit data mode, bit 0 is not used.
DS00001909A-page 22
2015 Microchip Technology Inc.
LAN9252
TABLE 3-7:
Num
Pins
HOST BUS PIN DESCRIPTIONS (CONTINUED)
Name
Symbol
Buffer
Type
Description
These pins are the host bus data bus for non-multiplexed address mode.
Data
D[15:0]
VIS/VO8
In 8-bit data mode, bits 15-8 are not used and their
input and output drivers are disabled.
These pins are the host bus address / data bus for
multiplexed address mode.
Bits 15-8 provide the upper byte of address for single phase multiplexed address mode.
16
Address & Data
AD[15:0]
VIS/VO8
Bits 7-0 provide the lower byte of address for single
phase multiplexed address mode and both bytes of
address for dual phase multiplexed address mode.
In 8-bit data dual phase multiplexed address mode,
bits 15-8 are not used and their input and output
drivers are disabled.
1
1
Address Latch
Enable High
Address Latch
Enable Low
This pin indicates the address phase for multiplexed
address modes. It is used to load the higher
address byte in dual phase multiplexed address
mode.
ALEHI
VIS
Normally active low (address saved on rising edge),
the polarity can be changed via the HBI ALE Polarity bit of the PDI Configuration Register (HBI
Modes).
ALELO
VIS
This pin indicates the address phase for multiplexed
address modes. It is used to load both address
bytes in single phase multiplexed address mode
and the lower address byte in dual phase multiplexed address mode.
Normally active low (address saved on rising edge),
the polarity can be changed via the HBI ALE Polarity bit of the PDI Configuration Register (HBI
Modes).
2015 Microchip Technology Inc.
DS00001909A-page 23
LAN9252
TABLE 3-8:
SPI/SQI PIN DESCRIPTIONS
Num
Pins
Name
Symbol
Buffer
Type
Description
1
SPI/SQI Slave
Chip Select
SCS#
VIS
(PU)
This pin is the SPI/SQI slave chip select input.
When low, the SPI/SQI slave is selected for SPI/SQI
transfers. When high, the SPI/SQI serial data output(s) is(are) 3-stated.
1
SPI/SQI Slave
Serial Clock
SCK
VIS
(PU)
SPI/SQI Slave
Serial Data
Input/Output
SIO[3:0]
VIS/VO8
(PU)
SPI Slave Serial
Data Input
SI
VIS
(PU)
SPI Slave Serial
Data Output
SO
VO8
(PU)
Note 9
4
This pin is the SPI/SQI slave serial clock input.
These pins are the SPI/SQI slave data input and
output for multiple bit I/O.
This pin is the SPI slave serial data input. SI is
shared with the SIO0 pin.
This pin is the SPI slave serial data output. SO is
shared with the SIO1 pin.
Note 9: Although this pin is an output for SPI instructions, it includes a pull-up since it is also SIO bit 1.
TABLE 3-9:
Num
Pins
ETHERCAT DISTRIBUTED CLOCK PIN DESCRIPTIONS
Name
Symbol
Buffer
Type
Description
Sync
SYNC[1]
SYNC[0]
VO8
These pins are the Distributed Clock Sync (OUT) or
Latch (IN) signals. The direction is bitwise
configurable.
Latch
LATCH[1]
LATCH[0]
VIS
2
TABLE 3-10:
Num
Pins
Note:
These signals are not driven (high
impedance) until the EEPROM is
loaded.
ETHERCAT DIGITAL I/O AND GPIO PIN DESCRIPTIONS
Name
General
Purpose Input
Symbol
GPI[15:0]
Buffer
Type
Description
VIS
These pins are the general purpose inputs and are
directly mapped into the General Purpose Inputs
Register. Consistency of the general purpose
inputs is not provided.
16
General
Purpose Output
GPO[15:0]
VO8
These pins are the general purpose outputs and
reflect the values of the General Purpose Outputs
Register without watchdog protection.
Note:
These signals are not driven (high
impedance) until the EEPROM is
loaded.
These pins are the input/output or bidirectional data.
16
1
Digital I/O
Output Valid
DS00001909A-page 24
DIGIO[15:0]
OUTVALID
VIS/VO8
VO8
Note:
These signals are not driven (high
impedance) until the EEPROM is
loaded.
This pin indicates that the outputs are valid and can
be captured into external registers.
Note:
The signal is not driven (high impedance) until the EEPROM is loaded.
2015 Microchip Technology Inc.
LAN9252
TABLE 3-10:
ETHERCAT DIGITAL I/O AND GPIO PIN DESCRIPTIONS (CONTINUED)
Num
Pins
Name
Symbol
Buffer
Type
1
Latch In
LATCH_IN
VIS
1
Watchdog
Trigger
1
Watchdog
State
1
Start of Frame
VO8
WD_TRIG
VO8
WD_STATE
VO8
SOF
1
End of Frame
EOF
VO8
1
Output Enable
OE_EXT
VIS
TABLE 3-11:
Num
Pins
Description
This pin is the external data latch signal. The input
data is sampled each time a rising edge of
LATCH_IN is recognized.
This pin is the SyncManager Watchdog Trigger output.
Note:
The signal is not driven (high impedance) until the EEPROM is loaded.
This pin is the SyncManager Watchdog State output. A 0 indicates the watchdog has expired.
Note:
The signal is not driven (high impedance) until the EEPROM is loaded.
This pin is the Start of Frame output and indicates
the start of an Ethernet/EtherCAT frame.
Note:
The signal is not driven (high impedance) until the EEPROM is loaded.
This pin is the End of Frame output and indicates
the end of an Ethernet/EtherCAT frame.
Note:
The signal is not driven (high impedance) until the EEPROM is loaded.
This pin is the Output Enable input. When low, it
clears the output data.
EEPROM PIN DESCRIPTIONS
Name
Symbol
I2C
1
EEPROM
Serial Data
Input/Output
1
EEPROM I2C
Serial Clock
2015 Microchip Technology Inc.
EESDA
EESCL
Buffer
Type
Description
When the device is accessing an external EEPROM
this pin is the I2C serial data input/open-drain outVIS/VOD8 put.
Note:
This pin must be pulled-up by an external resistor at all times.
VOD8
When the device is accessing an external EEPROM
this pin is the I2C clock open-drain output.
Note:
This pin must be pulled-up by an external resistor at all times.
DS00001909A-page 25
LAN9252
TABLE 3-12:
Num
Pins
LED & CONFIGURATION STRAP PIN DESCRIPTIONS
Name
Symbol
Buffer
Type
Description
This pin is the Link/Activity LED output (off=no link,
on=link without activity, blinking=link and activity) for
port 2.
Link/Activity
LED Port 2
LINKACTLED2
VOD12/
VOS12
1
This pin is configured to be an open-drain/opensource output. The choice of open-drain vs. opensource as well as the polarity of this pin depends
upon the strap value sampled at reset.
Note:
MII Port
Link Polarity
Configuration
Strap
MII_LINKPOL
VIS
(PU)
Refer to Section 12.10, "LEDs," on
page 208 to additional information.
This strap configures the polarity of the MII_LINK
pin by setting the value of link_pol_strap_mii. See
Note 10.
This pin is the Run LED output and is controlled by
the AL Status Register.
Run LED
RUNLED
VOD12/
VOS12
This pin is configured to be open-drain/open-source
output. The choice of open-drain vs. open-source as
well as the polarity of this pin depends upon the
strap value sampled at reset.
Note:
1
Refer to Section 12.10, "LEDs," on
page 208 to additional information.
This strap configures the value of the EEPROM
size hard-strap. See Note 10.
EEPROM Size
Configuration
Strap
E2PSIZE
VIS
(PU)
A low selects 1K bits (128 x 8) through 16K bits (2K
x 8).
A high selects 32K bits (4K x 8) through 4Mbits
(512K x 8).
This pin is the Link/Activity LED output (off=no link,
on=link without activity, blinking=link and activity) for
port 1.
Link / Activity
LED Port 1
LINKACTLED1
VOD12/
VOS12
1
This pin is configured to be open-drain/open-source
output. The choice of open-drain vs. open-source as
well as the polarity of this pin depends upon the
strap value sampled at reset.
Note:
Chip Mode
Configuration
Strap 1
DS00001909A-page 26
CHIP_MODE1
VIS
(PU)
Refer to Section 12.10, "LEDs," on
page 208 to additional information.
This strap, along with CHIP_MODE0, configures
the value of the Chip Mode hard-strap. See
Note 10.
2015 Microchip Technology Inc.
LAN9252
TABLE 3-12:
Num
Pins
LED & CONFIGURATION STRAP PIN DESCRIPTIONS (CONTINUED)
Name
Symbol
Buffer
Type
Description
This pin is the Link/Activity LED output (off=no link,
on=link without activity, blinking=link and activity) for
port 0.
Link / Activity
LED Port 0
LINKACTLED0
VOD12/
VOS12
1
This pin is configured to be open-drain/open-source
output. The choice of open-drain vs. open-source as
well as the polarity of this pin depends upon the
strap value sampled at reset.
Note:
Chip Mode
Configuration
Strap 0
CHIP_MODE0
VIS
(PU)
Refer to Section 12.10, "LEDs," on
page 208 to additional information.
This strap, along with CHIP_MODE1, configures
the value of the Chip Mode hard-strap. See
Note 10.
Note 10: Configuration strap pins are identified by an underlined symbol name. Configuration strap values are
latched on power-on reset or RST# de-assertion. Refer to Section 7.0, "Configuration Straps," on page 51
for more information.
TABLE 3-13:
Num
Pins
1
1
MISCELLANEOUS PIN DESCRIPTIONS
Name
Interrupt Output
System Reset
Input
Symbol
IRQ
RST#
Buffer
Type
Description
Interrupt request output. The polarity, source and
buffer type of this signal is programmable via the
VO8/VOD8 Interrupt Configuration Register (IRQ_CFG). For
more information, refer to Section 8.0, "System
Interrupts," on page 53.
As an input, this active low signal allows external
hardware to reset the device. The device also contains an internal power-on reset circuit. Thus this
signal may be left unconnected if an external hardware reset is not needed. When used this signal
must adhere to the reset timing requirements as
VIS/VOD8
detailed in the Section 18.0, "Operational Character(PU)
istics," on page 307.
As an output, this signal is driven low during POR or
in response to an EtherCAT reset command
sequence from the Master Controller or Host interface.
1
Regulator
Enable
REG_EN
AI
1
Test Mode
TESTMODE
VIS
(PD)
When tied to 3.3 V, the internal 1.2 V regulators are
enabled.
This pin must be tied to VSS for proper operation.
1
Crystal Input
OSCI
ICLK
External 25 MHz crystal input. This signal can also
be driven by a single-ended clock oscillator. When
this method is used, OSCO should be left unconnected.
1
Crystal Output
OSCO
OCLK
External 25 MHz crystal output.
1
Crystal +1.2 V
Power Supply
OSCVDD12
P
Supplied by the on-chip regulator unless configured
for regulator off mode via REG_EN.
1
Crystal Ground
OSCVSS
P
Crystal ground.
2015 Microchip Technology Inc.
DS00001909A-page 27
LAN9252
TABLE 3-14:
JTAG PIN DESCRIPTIONS
Num
Pins
Name
Symbol
Buffer
Type
1
JTAG Test
Mux Select
TMS
VIS
1
JTAG Test
Clock
TCK
VIS
1
JTAG Test
Data Input
TDI
VIS
1
JTAG Test
Data Output
TDO
VO12
TABLE 3-15:
JTAG test mode select
JTAG test clock
JTAG data input
JTAG data output
CORE AND I/O POWER PIN DESCRIPTIONS
Num
Pins
Name
1
Regulator
+3.3 V Power
Supply
VDD33
P
5
+1.8 V to +3.3 V
Variable I/O
Power
VDDIO
P
3
+1.2 V Digital
Core Power
Supply
VDDCR
Ground
VSS
1
pad
Description
Symbol
Buffer
Type
Description
+3.3 V power supply for internal regulators. See
Note 11.
Note:
+3.3 V must be supplied to this pin even
if the internal regulators are disabled.
+1.8 V to +3.3 V variable I/O power. See Note 11.
Supplied by the on-chip regulator unless configured
for regulator off mode via REG_EN.
P
1 µF and 470 pF decoupling capacitors in parallel to
ground should be used on pin 6. See Note 11.
P
Common ground. This exposed pad must be connected to the ground plane with a via array.
Note 11: Refer to Section 4.0, "Power Connections," on page 29, the device reference schematic, and the device
LANCheck schematic checklist for additional connection information.
DS00001909A-page 28
2015 Microchip Technology Inc.
LAN9252
4.0
POWER CONNECTIONS
Figure 4-1 and Figure 4-2 illustrate the device power connections for regulator enabled and disabled cases, respectively. Refer to the device reference schematic and the device LANCheck schematic checklist for additional information.
Section 4.1 provides additional information on the devices internal voltage regulators.
FIGURE 4-1:
POWER CONNECTIONS - REGULATORS ENABLED
+1.8 V to
+3.3 V
VDDIO
IO Pads
VDDIO
VDDCR
VDDCR
VDDIO
VDDIO
VDDIO
Core Logic &
PHY digital
+3.3 V
VDD33
Internal 1.2 V Core
Regulator
+1.2 V
(OUT)
+3.3 V
(IN)
VDDCR
(Pin 6)
enable
470 pF
REG_EN
Internal 1.2 V Oscillator
Regulator
+1.2 V
(OUT)
+3.3 V
+3.3 V
(IN)
enable
1.0 µF
0.1 ESR
OSCVDD12
VSS
Crystal Oscillator
VSS
OSCVSS
To PHY1
Magnetics
(or separate 2.5V)
VDD33TXRX1
Ethernet PHY 1
Analog
VDD33BIAS
Ethernet Master
Bias
VDD33TXRX2
Ethernet PHY 2
Analog
VDD12TX1
To PHY2
Magnetics
(or separate 2.5V)
VSS
(exposed pad)
VDD12TX2
PLL
Note: Bypass and bulk caps as needed for PCB
2015 Microchip Technology Inc.
DS00001909A-page 29
LAN9252
FIGURE 4-2:
POWER CONNECTIONS - REGULATORS DISABLED
+1.2 V
+1.8 V to
+3.3 V
VDDIO
IO Pads
VDDIO
VDDCR
VDDCR
VDDIO
VDDIO
Core Logic &
PHY digital
VDDIO
+3.3 V
VDD33
Internal 1.2 V Core
Regulator
+1.2 V
(OUT)
+3.3 V
(IN)
VDDCR
(Pin 6)
enable
REG_EN
Internal 1.2 V Oscillator
Regulator
+1.2 V
(OUT)
+3.3 V
+3.3 V
(IN)
enable
OSCVDD12
VSS
Crystal Oscillator
VSS
OSCVSS
To PHY1
Magnetics
(or separate 2.5V)
VDD33TXRX1
Ethernet PHY 1
Analog
VDD33BIAS
Ethernet Master
Bias
VDD33TXRX2
Ethernet PHY 2
Analog
VDD12TX1
To PHY2
Magnetics
(or separate 2.5V)
VSS
(exposed pad)
VDD12TX2
PLL
Note: Bypass and bulk caps as needed for PCB
DS00001909A-page 30
2015 Microchip Technology Inc.
LAN9252
4.1
Internal Voltage Regulators
The device contains two internal 1.2 V regulators:
• 1.2 V Core Regulator
• 1.2 V Crystal Oscillator Regulator
4.1.1
1.2 V CORE REGULATOR
The core regulator supplies 1.2 V volts to the main core digital logic, the I/O pads, and the PHYs’ digital logic and can
be used to supply the 1.2 V power to the PHY analog sections (via an external connection).
When the REG_EN input pin is connected to 3.3 V, the core regulator is enabled and receives 3.3 V on the VDD33 pin.
A 1.0 uF 0.1 ESR capacitor must be connected to the VDDCR pin associated with the regulator.
When the REG_EN input pin is connected to VSS, the core regulator is disabled. However, 3.3 V must still be supplied
to the VDD33 pin. The 1.2 V core voltage must then be externally input into the VDDCR pins.
4.1.2
1.2 V CRYSTAL OSCILLATOR REGULATOR
The crystal oscillator regulator supplies 1.2 V volts to the crystal oscillator. When the REG_EN input pin is connected to
3.3 V, the crystal oscillator regulator is enabled and receives 3.3 V on the VDD33 pin. An external capacitor is not
required.
When the REG_EN input pin is connected to VSS, the crystal oscillator regulator is disabled. However, 3.3 V must still
be supplied to the VDD33 pin. The 1.2 V crystal oscillator voltage must then be externally input into the OSCVDD12 pin.
2015 Microchip Technology Inc.
DS00001909A-page 31
LAN9252
5.0
REGISTER MAP
This chapter details the device register map and summarizes the various directly addressable System Control and Status Registers (CSRs). Detailed descriptions of the System CSRs are provided in the chapters corresponding to their
function. Additional indirectly addressable registers are available in the various sub-blocks of the device. These registers are also detailed in their corresponding chapters.
Directly Addressable Registers
• Section 12.13, "EtherCAT CSR and Process Data RAM Access Registers (Directly Addressable)," on page 214
• Section 5.1, "System Control and Status Registers," on page 34
Indirectly Addressable Registers
• Section 11.2.16, "PHY Registers," on page 142
• Section 12.14, "EtherCAT Core CSR Registers (Indirectly Addressable)," on page 223
Figure 5-1 contains an overall base register memory map of the device. This memory map is not drawn to scale, and
should be used for general reference only. Table 5-1 provides a summary of all directly addressable CSRs and their
corresponding addresses.
Note:
Register bit type definitions are provided in Section 1.3, "Register Nomenclature," on page 7.
Not all device registers are memory mapped or directly addressable. For details on the accessibility of the
various device registers, refer the register sub-sections listed above.
DS00001909A-page 32
2015 Microchip Technology Inc.
LAN9252
FIGURE 5-1:
REGISTER ADDRESS MAP
3FFh
318h
314h
EtherCAT
300h
0FCh
Test
0E0h
09Ch
GP Timer and Free Run Counter
08Ch
05Ch
054h
Interrupts
03Ch
EtherCAT Process RAM Write FIFO
020h
01Ch
EtherCAT Process RAM Read FIFO
000h
Note: Not all registers are shown
2015 Microchip Technology Inc.
DS00001909A-page 33
LAN9252
5.1
System Control and Status Registers
The System CSRs are directly addressable memory mapped registers with a base address offset range of 050h to 314h.
These registers are addressable by the Host via the Host Bus Interface (HBI) or SPI/SQI. For more information on the
various device modes and their corresponding address configurations, see Section 2.0, "General Description," on
page 8.
Table 5-1 lists the System CSRs and their corresponding addresses in order. All system CSRs are reset to their default
value on the assertion of a chip-level reset.
The System CSRs can be divided into the following sub-categories. Each of these sub-categories is located in the corresponding chapter and contains the System CSR descriptions of the associated registers. The register descriptions
are categorized as follows:
•
•
•
•
•
Section 6.2.3, "Reset Registers," on page 42
Section 6.3.5, "Power Management Registers," on page 47
Section 8.3, "Interrupt Registers," on page 56
Section 12.13, "EtherCAT CSR and Process Data RAM Access Registers (Directly Addressable)," on page 214
Section 16.1, "Miscellaneous System Configuration & Status Registers," on page 301
Note:
Unlisted registers are reserved for future use.
TABLE 5-1:
SYSTEM CONTROL AND STATUS REGISTERS
Address
Register Name (Symbol)
000h-01Ch
EtherCAT Process RAM Read Data FIFO (ECAT_PRAM_RD_DATA)
020h-03Ch
EtherCAT Process RAM Write Data FIFO (ECAT_PRAM_WR_DATA)
050h
Chip ID and Revision (ID_REV)
054h
Interrupt Configuration Register (IRQ_CFG)
058h
Interrupt Status Register (INT_STS)
05Ch
Interrupt Enable Register (INT_EN)
064h
Byte Order Test Register (BYTE_TEST)
074h
Hardware Configuration Register (HW_CFG)
084h
Power Management Control Register (PMT_CTRL)
08Ch
General Purpose Timer Configuration Register (GPT_CFG)
090h
General Purpose Timer Count Register (GPT_CNT)
09Ch
Free Running 25MHz Counter Register (FREE_RUN)
1F8h
Reset Control Register (RESET_CTL)
300h
EtherCAT CSR Interface Data Register (ECAT_CSR_DATA)
304h
EtherCAT CSR Interface Command Register (ECAT_CSR_CMD)
308h
EtherCAT Process RAM Read Address and Length Register (ECAT_PRAM_RD_ADDR_LEN)
30Ch
EtherCAT Process RAM Read Command Register (ECAT_PRAM_RD_CMD)
310h
EtherCAT Process RAM Write Address and Length Register (ECAT_PRAM_WR_ADDR_LEN)
314h
EtherCAT Process RAM Write Command Register (ECAT_PRAM_WR_CMD)
Reset Register
EtherCAT Registers
DS00001909A-page 34
2015 Microchip Technology Inc.
LAN9252
5.2
Special Restrictions on Back-to-Back Cycles
5.2.1
BACK-TO-BACK WRITE-READ CYCLES
It is important to note that there are specific restrictions on the timing of back-to-back host write-read operations. These
restrictions concern reading registers after any write cycle that may affect the register. In all cases there is a delay
between writing to a register and the new value becoming available to be read. In other cases, there is a delay between
writing to a register and the subsequent side effect on other registers.
In order to prevent the host from reading stale data after a write operation, minimum wait periods have been established.
These periods are specified in Table 5-2. The host processor is required to wait the specified period of time after writing
to the indicated register before reading the resource specified in the table. Note that the required wait period is dependent upon the register being read after the write.
Performing “dummy” reads of the Byte Order Test Register (BYTE_TEST) register is a convenient way to guarantee that
the minimum write-to-read timing restriction is met. Table 5-2 shows the number of dummy reads that are required
before reading the register indicated. The number of BYTE_TEST reads in this table is based on the minimum cycle
timing of 45ns. For microprocessors with slower busses the number of reads may be reduced as long as the total time
is equal to, or greater than the time specified in the table. Note that dummy reads of the BYTE_TEST register are not
required as long as the minimum time period is met.
Note that depending on the host interface mode in use, the basic host interface cycle may naturally provide sufficient
time between writes and read. It is required of the system design and register access mechanisms to ensure the proper
timing. For example, a write and read to the same register may occur faster than a write and read to different registers.
For 8 and 16-bit write cycles, the wait time for the back-to-back write-read operation applies only to the writing of the
last BYTE or WORD of the register, which completes a single DWORD transfer.
For Indexed Address mode HBI operation, the wait time for the back-to-back write-read operation applies only to access
to the internal registers and FIFOs. It does not apply to the Host Bus Interface Index Registers or the Host Bus Interface
Configuration Register.
TABLE 5-2:
READ AFTER WRITE TIMING RULES
After Writing...
wait for this many
nanoseconds...
or Perform this many
Reads of BYTE_TEST…
(assuming Tcyc of 45ns)
any register
45
1
the same register
or any other register affected
by the write
Interrupt Configuration Register (IRQ_CFG)
60
2
Interrupt Configuration Register (IRQ_CFG)
Interrupt Enable Register
(INT_EN)
90
2
Interrupt Configuration Register (IRQ_CFG)
60
2
Interrupt Status Register
(INT_STS)
180
4
Interrupt Configuration Register (IRQ_CFG)
170
4
Interrupt Status Register
(INT_STS)
165
4
Power Management Control
Register (PMT_CTRL)
170
4
Interrupt Configuration Register (IRQ_CFG)
160
4
Interrupt Status Register
(INT_STS)
Interrupt Status Register
(INT_STS)
Power Management Control
Register (PMT_CTRL)
2015 Microchip Technology Inc.
before reading...
DS00001909A-page 35
LAN9252
TABLE 5-2:
READ AFTER WRITE TIMING RULES (CONTINUED)
After Writing...
General Purpose Timer Configuration Register
(GPT_CFG)
EtherCAT Process RAM Write
Data FIFO
(ECAT_PRAM_WR_DATA)
5.2.2
wait for this many
nanoseconds...
or Perform this many
Reads of BYTE_TEST…
(assuming Tcyc of 45ns)
55
2
General Purpose Timer Configuration Register
(GPT_CFG)
170
4
General Purpose Timer Count
Register (GPT_CNT)
50
2
EtherCAT Process RAM Write
Command Register
(ECAT_PRAM_WR_CMD)
before reading...
BACK-TO-BACK READ CYCLES
There are also restrictions on specific back-to-back host read operations. These restrictions concern reading specific
registers after reading a resource that has side effects. In many cases there is a delay between reading the device, and
the subsequent indication of the expected change in the control and status register values.
In order to prevent the host from reading stale data on back-to-back reads, minimum wait periods have been established. These periods are specified in Table 5-3. The host processor is required to wait the specified period of time
between read operations of specific combinations of resources. The wait period is dependent upon the combination of
registers being read.
Performing “dummy” reads of the Byte Order Test Register (BYTE_TEST) register is a convenient way to guarantee that
the minimum wait time restriction is met. Table 5-3 below also shows the number of dummy reads that are required for
back-to-back read operations. The number of BYTE_TEST reads in this table is based on the minimum timing for Tcyc
(45ns). For microprocessors with slower busses the number of reads may be reduced as long as the total time is equal
to, or greater than the time specified in the table. Dummy reads of the BYTE_TEST register are not required as long as
the minimum time period is met.
Note that depending on the host interface mode in use, the basic host interface cycle may naturally provide sufficient
time between reads. It is required of the system design and register access mechanisms to ensure the proper timing.
For example, multiple reads to the same register may occur faster than reads to different registers.
For 8 and 16-bit read cycles, the wait time for the back-to-back read operation is required only after the reading of the
last BYTE or WORD of the register, which completes a single DWORD transfer. There is no wait requirement between
the BYTE or WORD accesses within the DWORD transfer.
TABLE 5-3:
READ AFTER READ TIMING RULES
After reading...
EtherCAT Process RAM Read
Data FIFO
(ECAT_PRAM_RD_DATA)
DS00001909A-page 36
wait for this many
nanoseconds...
or Perform this many
Reads of BYTE_TEST…
(assuming Tcyc of 45ns)
50
2
before reading...
EtherCAT Process RAM Read
Command Register
(ECAT_PRAM_RD_CMD)
2015 Microchip Technology Inc.
LAN9252
6.0
CLOCKS, RESETS, AND POWER MANAGEMENT
6.1
Clocks
The device provides generation of all system clocks as required by the various sub-modules of the device. The clocking
sub-system is comprised of the following:
• Crystal Oscillator
• PHY PLL
6.1.1
CRYSTAL OSCILLATOR
The device requires a fixed-frequency 25 MHz clock source for use by the internal clock oscillator and PLL. This is typically provided by attaching a 25 MHz crystal to the OSCI and OSCO pins as specified in Section 18.7, "Clock Circuit,"
on page 320. Optionally, this clock can be provided by driving the OSCI input pin with a single-ended 25 MHz clock
source. If a single-ended source is selected, the clock input must run continuously for normal device operation. Power
savings modes allow for the oscillator or external clock input to be halted.
The crystal oscillator can be disabled as describe in Section 6.3.4, "Chip Level Power Management," on page 45.
For system level verification, the crystal oscillator output can be enabled onto the IRQ pin. See Section 8.2.7, "Clock
Output Test Mode," on page 56.
Power for the crystal oscillator is provided by a dedicated regulator or separate input pin. See Section 4.1.2, "1.2 V Crystal Oscillator Regulator," on page 31.
Note:
6.1.2
Crystal specifications are provided in Table 18-12, “Crystal Specifications,” on page 320.
PHY PLL
The PHY module receives the 25 MHz reference clock and, in addition to its internal clock usage, outputs a main system
clock that is used to derive device sub-system clocks.
The PHY PLL can be disabled as describe in Section 6.3.4, "Chip Level Power Management," on page 45. The PHY
PLL will be disabled only when requested and if the PHY ports are in a power down mode.
Power for PHY PLL is provided by an external input pin, usually sourced by the device’s 1.2V core regulator. See Section
4.0, "Power Connections," on page 29.
2015 Microchip Technology Inc.
DS00001909A-page 37
LAN9252
6.2
Resets
The device provides multiple hardware and software reset sources, which allow varying levels of the device to be reset.
All resets can be categorized into three reset types as described in the following sections:
• Chip-Level Resets
- Power-On Reset (POR)
- RST# Pin Reset
- EtherCAT System Reset
• Multi-Module Resets
- DIGITAL RESET (DIGITAL_RST)
• Single-Module Resets
- Port A PHY Reset
- Port B PHY Reset
- EtherCAT Controller Reset
The device supports the use of configuration straps to allow automatic custom configurations of various device parameters. These configuration strap values are set upon de-assertion of all chip-level resets and can be used to easily set
the default parameters of the chip at power-on or pin (RST#) reset. Refer to Section 6.3, "Power Management," on
page 43 for detailed information on the usage of these straps.
Table 6-1 summarizes the effect of the various reset sources on the device. Refer to the following sections for detailed
information on each of these reset types.
TABLE 6-1:
RESET SOURCES AND AFFECTED DEVICE FUNCTIONALITY
Module/
Functionality
POR
25 MHz Oscillator
Voltage Regulators
EtherCAT Core
PHY A
PHY B
PHY Common
Voltage Supervision
PLL
SPI/SQI Slave
Host Bus Interface
Power Management
General Purpose Timer
Free Running Counter
System CSR
Config. Straps Latched
EEPROM Loader Run
Tristate Output Pins(5)
RST# Pin Driven Low
(1)
(2)
X
X
X
(3)
(3)
(3)
X
X
X
X
X
X
YES
YES
YES
YES
Note
1:
2:
3:
4:
5:
RST#
Pin
EtherCAT
System Reset
Digital
Reset
EtherCAT
Module Reset
X
X
X
X
X
X
X
X
X
X
X
X
X
X
YES
YES
YES
X
X
X
X
X
X
YES
YES
YES
YES
X
X
X
X
X
X
NO(4)
YES
YES
POR is performed by the XTAL voltage regulator, not at the system level
POR is performed internal to the voltage regulators
POR is performed internal to the PHY
Strap inputs are not re-latched
Only those output pins that are used for straps
DS00001909A-page 38
2015 Microchip Technology Inc.
LAN9252
6.2.1
CHIP-LEVEL RESETS
A chip-level reset event activates all internal resets, effectively resetting the entire device. A chip-level reset is initiated
by assertion of any of the following input events:
• Power-On Reset (POR)
• RST# Pin Reset
• EtherCAT System Reset
Chip-level reset/configuration completion can be determined by first polling the Byte Order Test Register (BYTE_TEST).
The returned data will be invalid until the Host interface resets are complete. Once the returned data is the correct byte
ordering value, the Host interface resets have completed.
The completion of the entire chip-level reset must be determined by polling the READY bit of the Hardware Configuration Register (HW_CFG) or Power Management Control Register (PMT_CTRL) until it is set. When set, the READY bit
indicates that the reset has completed and the device is ready to be accessed.
With the exception of the Hardware Configuration Register (HW_CFG),Power Management Control Register (PMT_CTRL), Byte Order Test Register (BYTE_TEST), and Reset Control Register (RESET_CTL), read access to any internal
resources should not be done by S/W while the READY bit is cleared. Writes to any address are invalid until the READY
bit is set.
A chip-level reset involves tuning of the variable output level pads, latching of configuration straps and generation of the
master reset.
CONFIGURATION STRAPS LATCHING
During POR, EtherCAT reset or RST# pin reset, the latches for the straps are open. Following the release of POR, EtherCAT reset or RST# pin reset, the latches for the straps are closed.
VARIABLE LEVEL I/O PAD TUNING
Following the release of the EtherCAT, POR or RST# pin resets, a 1 uS pulse (active low), is sent into the VO tuning
circuit. 2 uS later, the output pins are enabled. The 2 uS delay allows time for the variable output level pins to tune before
enabling the outputs and also provides input hold time for strap pins that are shared with output pins.
MASTER RESET AND CLOCK GENERATION RESET
Following the enabling of the output pins, the reset is synchronized to the main system clock to become the master
reset. Master reset is used to generate the local resets and to reset the clocks generation.
6.2.1.1
Power-On Reset (POR)
A power-on reset occurs whenever power is initially applied to the device or if the power is removed and reapplied to
the device. This event resets all circuitry within the device. Configuration straps are latched and EEPROM loading is
performed as a result of this reset. The POR is used to trigger the tuning of the Variable Level I/O Pads as well as a
chip-level reset.
The POR can also used as a system level reset. RST# becomes an open-drain output and is asserted for the POR time.
Its purpose is to perform a complete reset of the EtherCAT slave and/or to hold an external PHY in reset while the EtherCAT core is in reset. As an open-drain output, RST is intended to be wired OR’d into the system reset.
Note:
The Ethernet PHY should be connected to the RST# pin so that the PHY is held in reset until the EtherCAT
Slave is ready. Otherwise, the far end Link Partner would detect valid link signals from the PHY and would
“open” its port assuming that the local EtherCAT Slave was ready.
The RST# pin is not driven until all voltages are operational. External, system level solutions are necessary
if the system needs to be held in reset during power ramp-up.
Following valid voltage levels, a POR reset typically takes approximately 21 ms.
6.2.1.2
RST# Pin Reset
Driving the RST# input pin low initiates a chip-level reset. This event resets all circuitry within the device. Use of this
reset input is optional, but when used, it must be driven for the period of time specified in Section 18.6.3, "Reset and
Configuration Strap Timing," on page 317. Configuration straps are latched, and EEPROM loading is performed as a
result of this reset.
2015 Microchip Technology Inc.
DS00001909A-page 39
LAN9252
A RST# pin reset typically takes approximately 760 s.
Note:
The RST# pin is pulled-high internally. If unused, this signal can be left unconnected. Do not rely on internal
pull-up resistors to drive signals external to the device.
Please refer to Table 3-13, “Miscellaneous Pin Descriptions,” on page 27 for a description of the RST# pin.
6.2.1.3
EtherCAT System Reset
An EtherCAT system reset, initiated by a special sequence of three independent and consecutive frames/commands,
is functionally identical to a RST# pin reset, except that during an EtherCAT system reset, the RST# pin becomes an
open-drain output and is asserted for the minimum required time of 80 ms.
The RST# is an open-drain output intended to be wired OR’d into the system reset.
Note:
6.2.2
The purpose of connecting the RST# pin into the system reset is to perform a complete reset of the EtherCAT slave. The EtherCAT master issues this reset in rare and extreme cases when the local microcontroller is seriously halted and can not be otherwise informed to reinitialize.
BLOCK-LEVEL RESETS
The block level resets contain an assortment of reset register bit inputs and generate resets for the various blocks. Block
level resets can affect one or multiple modules.
6.2.2.1
Multi-Module Resets
Multi-module resets activate multiple internal resets, but do not reset the entire chip. Configuration straps are not latched
upon multi-module resets. A multi-module reset is initiated by assertion of the following:
• DIGITAL RESET (DIGITAL_RST)
Multi-module reset/configuration completion can be determined by first polling the Byte Order Test Register
(BYTE_TEST). The returned data will be invalid until the Host interface resets are complete. Once the returned data is
the correct byte ordering value, the Host interface resets have completed.
The completion of the entire chip-level reset must be determined by polling the READY bit of the Hardware Configuration Register (HW_CFG) or Power Management Control Register (PMT_CTRL) until it is set. When set, the READY bit
indicates that the reset has completed and the device is ready to be accessed.
With the exception of the Hardware Configuration Register (HW_CFG),Power Management Control Register (PMT_CTRL), Byte Order Test Register (BYTE_TEST), and Reset Control Register (RESET_CTL), read access to any internal
resources should not be done by S/W while the READY bit is cleared. Writes to any address are invalid until the READY
bit is set.
Note:
The digital reset does not reset register bits designated as NASR.
DIGITAL RESET (DIGITAL_RST)
A digital reset is performed by setting the DIGITAL_RST bit of the Reset Control Register (RESET_CTL). A digital reset
will reset all device sub-modules except the Ethernet PHYs. EEPROM loading is performed following this reset. Configuration straps are not latched as a result of a digital reset.
A digital reset typically takes approximately 760 s.
6.2.2.2
Single-Module Resets
A single-module reset will reset only the specified module. Single-module resets do not latch the configuration straps.
A single-module reset is initiated by assertion of the following:
• Port A PHY Reset
• Port B PHY Reset
• EtherCAT Controller Reset
DS00001909A-page 40
2015 Microchip Technology Inc.
LAN9252
Port A PHY Reset
A Port A PHY reset is performed by setting the PHY_A_RST bit of the Reset Control Register (RESET_CTL) or the Soft
Reset bit in the PHY x Basic Control Register (PHY_BASIC_CONTROL_x). Upon completion of the Port A PHY reset,
the PHY_A_RST and Soft Reset bits are automatically cleared. No other modules of the device are affected by this
reset.
Port A PHY reset completion can be determined by polling the PHY_A_RST bit in the Reset Control Register
(RESET_CTL) or the Soft Reset bit in the PHY x Basic Control Register (PHY_BASIC_CONTROL_x) until it clears.
Under normal conditions, the PHY_A_RST and Soft Reset bit will clear approximately 102 uS after the Port A PHY reset
occurrence.
Note:
When using the Soft Reset bit to reset the Port A PHY, register bits designated as NASR are not reset.
In addition to the methods above, the Port A PHY is automatically reset after returning from a PHY power-down mode.
This reset differs in that the PHY power-down mode reset does not reload or reset any of the PHY registers. Refer to
Section 11.2.8, "PHY Power-Down Modes," on page 131 for additional information.
Refer to Section 11.2.10, "Resets," on page 135 for additional information on Port A PHY resets.
If Port A PHY is in 100BASE-FX mode, it is reset when the Enhanced link detection function detects errors on port 0 (2
port mode or 3 port downstream mode) or on port 2 (3 port upstream mode).
Port B PHY Reset
A Port B PHY reset is performed by setting the PHY_B_RST bit of the Reset Control Register (RESET_CTL) or the Soft
Reset bit in the PHY x Basic Control Register (PHY_BASIC_CONTROL_x). Upon completion of the Port B PHY reset,
the PHY_B_RST and Soft Reset bits are automatically cleared. No other modules of the device are affected by this
reset.
Port B PHY reset completion can be determined by polling the PHY_B_RST bit in the Reset Control Register
(RESET_CTL) or the Soft Reset bit in the PHY x Basic Control Register (PHY_BASIC_CONTROL_x) until it clears.
Under normal conditions, the PHY_B_RST and Soft Reset bit will clear approximately 102 us after the Port B PHY reset
occurrence.
Note:
When using the Soft Reset bit to reset the Port B PHY, register bits designated as NASR are not reset.
In addition to the methods above, the Port B PHY is automatically reset after returning from a PHY power-down mode.
This reset differs in that the PHY power-down mode reset does not reload or reset any of the PHY registers. Refer to
Section 11.2.8, "PHY Power-Down Modes," on page 131 for additional information.
Refer to Section 11.2.10, "Resets," on page 135 for additional information on Port B PHY resets.
If Port B PHY is in 100BASE-FX mode, it is reset when the Enhanced link detection function detects errors on port 1.
EtherCAT Controller Reset
A compete device and system reset can be initiated by either the EtherCAT master or by the local host by writing the
value sequence of 0x52 (‘R’), 0x45 (‘E’) and 0x53 (‘S’) into the ESC Reset ECAT Register (for the master) or the ESC
Reset PDI Register (for the local host). This will trigger the reset described in Section 6.2.1.3, "EtherCAT System Reset".
A reset of just the EtherCAT Controller may be performed by setting the ETHERCAT_RST bit in the Reset Control Register (RESET_CTL).
This will reset the EtherCAT Core and its registers. It will also reset the EtherCAT CSR and Process Data RAM Access
logic described in Section 12.11, on page 208 and will reset the registers described in Section 12.13, "EtherCAT CSR
and Process Data RAM Access Registers (Directly Addressable)," on page 214.
Since the EtherCAT module will reconfigure the device from the EEPROM, the Host interfaces will be disabled until reset
is complete. Completion of the reset must be determined by using the methods described in Section 9.4.2.2, on page 64
and Section 9.5.3.2, on page 85 for HBI and Section 10.2.1.1, on page 104 for SPI/SQI.
2015 Microchip Technology Inc.
DS00001909A-page 41
LAN9252
6.2.3
6.2.3.1
RESET REGISTERS
Reset Control Register (RESET_CTL)
Offset:
1F8h
Size:
32 bits
This register contains software controlled resets.
Note:
This register can be read while the device is in the reset or not ready / power savings states without leaving
the host interface in an intermediate state. If the host interface is in a reset state, returned data may be
invalid.
It is not necessary to read all four bytes of this register. DWORD access rules do not apply to this register.
Bits
Type
Default
RESERVED
RO
-
6
EtherCAT Reset (ETHERCAT_RST)
Setting this bit resets the EtherCAT core. When the EtherCAT core is
released from reset, this bit is automatically cleared. All writes to this bit are
ignored while this bit is set.
R/W
SC
0b
5
RESERVED
RO
-
4
RESERVED
RO
-
3
RESERVED
RO
-
2
Port B PHY Reset (PHY_B_RST)
Setting this bit resets the Port B PHY. The internal logic automatically holds
the PHY reset for a minimum of 102uS. When the Port B PHY is released
from reset, this bit is automatically cleared. All writes to this bit are ignored
while this bit is set.
R/W
SC
0b
1
Port A PHY Reset (PHY_A_RST)
Setting this bit resets the Port A PHY. The internal logic automatically holds
the PHY reset for a minimum of 102uS. When the Port A PHY is released
from reset, this bit is automatically cleared. All writes to this bit are ignored
while this bit is set.
R/W
SC
0b
0
Digital Reset (DIGITAL_RST)
Setting this bit resets the complete chip except the PLL, Port B PHY and Port
A PHY. All system CSRs are reset except for any NASR type bits.
R/W
SC
0b
31:7
Description
When the chip is released from reset, this bit is automatically cleared. All
writes to this bit are ignored while this bit is set.
DS00001909A-page 42
2015 Microchip Technology Inc.
LAN9252
6.3
Power Management
The device supports several block and chip level power management features as well as wake-up event detection and
notification.
6.3.1
6.3.1.1
WAKE-UP EVENT DETECTION
PHY A & B Energy Detect
Energy Detect Power Down mode reduces PHY power consumption. In energy-detect power-down mode, the PHY will
resume from power-down when energy is seen on the cable (typically from link pulses) and set the ENERGYON interrupt bit in the PHY x Interrupt Source Flags Register (PHY_INTERRUPT_SOURCE_x).
Refer to Section 11.2.8.2, "Energy Detect Power-Down," on page 131 for details on the operation and configuration of
the PHY energy-detect power-down mode.
Note:
If a carrier is present when Energy Detect Power Down is enabled, then detection will occur immediately.
If enabled, via the PHY x Interrupt Mask Register (PHY_INTERRUPT_MASK_x), the PHY will generate an interrupt.
This interrupt is reflected in the Interrupt Status Register (INT_STS), bit 26 (PHY_INT_A) for PHY A and bit 27
(PHY_INT_B) for PHY B. The INT_STS register bits will trigger the IRQ interrupt output pin if enabled, as described in
Section 8.2.1, "Ethernet PHY Interrupts," on page 54.
The energy-detect PHY interrupts will also set the appropriate Energy-Detect / WoL Status Port A (ED_WOL_STS_A)
or Energy-Detect / WoL Status Port B (ED_WOL_STS_B) bit of the Power Management Control Register (PMT_CTRL).
The Energy-Detect / WoL Enable Port A (ED_WOL_EN_A) and Energy-Detect / WoL Enable Port B (ED_WOL_EN_B)
bits will enable the corresponding status bits as a PME event.
Note:
6.3.1.2
Any PHY interrupt will set the above status bits. The Host should only enable the appropriate PHY interrupt
source in the PHY x Interrupt Mask Register (PHY_INTERRUPT_MASK_x).
PHY A & B Wake on LAN (WoL)
PHY A and B provide WoL event detection of Perfect DA, Broadcast, Magic Packet, and Wakeup frames.
When enabled, the PHY will detect WoL events and set the WoL interrupt bit in the PHY x Interrupt Source Flags Register (PHY_INTERRUPT_SOURCE_x). If enabled via the PHY x Interrupt Mask Register (PHY_INTERRUPT_MASK_x), the PHY will generate an interrupt. This interrupt is reflected in the Interrupt Status Register
(INT_STS), bit 26 (PHY_INT_A) for PHY A and bit 27 (PHY_INT_B) for PHY B. The INT_STS register bits will trigger
the IRQ interrupt output pin if enabled, as described in Section 8.2.1, "Ethernet PHY Interrupts," on page 54.
Refer to Section 11.2.9, "Wake on LAN (WoL)," on page 132 for details on the operation and configuration of the PHY
WoL.
The WoL PHY interrupts will also set the appropriate Energy-Detect / WoL Status Port A (ED_WOL_STS_A) or EnergyDetect / WoL Status Port B (ED_WOL_STS_B) bit of the Power Management Control Register (PMT_CTRL). The
Energy-Detect / WoL Enable Port A (ED_WOL_EN_A) and Energy-Detect / WoL Enable Port B (ED_WOL_EN_B) bits
enable the corresponding status bits as a PME event.
Note:
6.3.2
Any PHY interrupt will set the above status bits. The Host should only enable the appropriate PHY interrupt
source in the PHY x Interrupt Mask Register (PHY_INTERRUPT_MASK_x).
WAKE-UP (PME) NOTIFICATION
A simplified diagram of the logic that controls the PME interrupt can be seen in Figure 6-1.
The PME module handles the latching of the PHY B Energy-Detect / WoL Status Port B (ED_WOL_STS_B) bit and the
PHY A Energy-Detect / WoL Status Port A (ED_WOL_STS_A) bit in the Power Management Control Register (PMT_CTRL).
2015 Microchip Technology Inc.
DS00001909A-page 43
LAN9252
This module also masks the status bits with the corresponding enable bits (Energy-Detect / WoL Enable Port B
(ED_WOL_EN_B) and Energy-Detect / WoL Enable Port A (ED_WOL_EN_A)) and combines the results together to
generate the Power Management Interrupt Event (PME_INT) status bit in the Interrupt Status Register (INT_STS). The
PME_INT status bit is then masked with the Power Management Event Interrupt Enable (PME_INT_EN) bit and combined with the other interrupt sources to drive the IRQ output pin.
Note:
The PME interrupt status bit (PME_INT) in the INT_STS register is set regardless of the setting of
PME_INT_EN.
When the PM_WAKE bit of the Power Management Control Register (PMT_CTRL) is set, the PME event will automatically wake up the system in certain chip level power modes, as described in Section 6.3.4.2, "Exiting Low Power
Modes," on page 46.
FIGURE 6-1:
PME INTERRUPT SIGNAL GENERATION
ED_WOL_EN_A (bit
14) of PMT_CTRL
register
INT8 (bit 8) of
PHY_INTERRUPT_SOURCE_A register
INT8_MASK (bit 8) of
PHY_INTERRUPT_MASK_A register
PM_WAKE (bit 28) of
PMT_CTRL register
ED_WOL_STS_A (bit 16)
of PMT_CTRL register
PME wake-up
PHYs A & B
INT7 (bit 7) of
PHY_INTERRUPT_SOURCE_A register
INT7_MASK (bit 7) of
PHY_INTERRUPT_MASK_A register
Other PHY Interrupts
ED_WOL_EN_B (bit
15) of PMT_CTRL
register
INT8 (bit 8) of
PHY_INTERRUPT_SOURCE_B register
INT8_MASK (bit 8) of
PHY_INTERRUPT_MASK_B register
ED_WOL_STS_B (bit 17)
of PMT_CTRL register
INT7 (bit 7) of
PHY_INTERRUPT_SOURCE_B register
INT7_MASK (bit 7) of
PHY_INTERRUPT_MASK_B register
Other PHY Interrupts
PME_INT (bit 17)
of INT_STS register
Other System
Interrupts
Polarity &
Buffer Type
Logic
Denotes a level-triggered "sticky" status bit
PME_INT_EN (bit 17)
of INT_EN register
IRQ
IRQ_EN (bit 8)
of IRQ_CFG register
6.3.3
BLOCK LEVEL POWER MANAGEMENT
The device supports software controlled clock disabling of various modules in order to reduce power consumption.
Note:
6.3.3.1
Disabling individual blocks does not automatically reset the block, it only places it into a static non-operational state in order to reduce the power consumption of the device. If a block reset is not performed before
re-enabling the block, then care must be taken to ensure that the block is in a state where it can be disabled
and then re-enabled.
Disabling The EtherCAT Core
The entire EtherCAT Core may be disabled by setting the ECAT_DIS bit in the Power Management Control Register
(PMT_CTRL). As a safety precaution, in order for this bit to be set, it must be written as a 1 two consecutive times. A
write of a 0 will reset the count.
DS00001909A-page 44
2015 Microchip Technology Inc.
LAN9252
6.3.3.2
PHY Power Down
A PHY may be placed into power-down as described in Section 11.2.8, "PHY Power-Down Modes," on page 131.
6.3.3.3
LED Pins Power Down
All LED outputs may be disabled by setting the LED_DIS bit in the Power Management Control Register (PMT_CTRL)
Open-drain / open-source LEDs are un-driven. Push-pull LEDs are still driven but are set to their inactive state.
6.3.4
CHIP LEVEL POWER MANAGEMENT
The device supports power-down modes to allow applications to minimize power consumption.
Power is reduced by disabling the clocks as outlined in Table 6-2, "Power Management States". All configuration data
is saved when in any power state. Register contents are not affected unless specifically indicated in the register description.
There is one normal operating power state, D0, and three power saving states: D1, D2 and D3. Although appropriate
for various wake-up detection functions, the power states do not directly enable and are not enforced by these functions.
D0: Normal Mode - This is the normal mode of operation of this device. In this mode, all functionality is available.
This mode is entered automatically on any chip-level reset (POR, RST# pin reset, EtherCAT system reset).
D1: System Clocks Disabled, XTAL, PLL and network clocks enabled - In this low power mode, all clocks derived
from the PLL clock are disabled. The network clocks remain enabled if supplied by the PHYs or externally. The
crystal oscillator and the PLL remain enabled. Exit from this mode may be done manually or automatically.
This mode could be used for PHY General Power Down mode, PHY WoL mode and PHY Energy Detect Power
Down mode.
D2: System Clocks Disabled, PLL disable requested, XTAL enabled - In this low power mode, all clocks derived
from the PLL clock are disabled. The PLL is allowed to be disabled (and will disable if both of the PHYs are in
either Energy Detect or General Power Down). The network clocks remain enabled if supplied by the PHYs or
externally. The crystal oscillator remains enabled. Exit from this mode may be done manually or automatically.
This mode is useful for PHY Energy Detect Power Down mode and PHY WoL mode. This mode could be used
for PHY General Power Down mode.
D3: System Clocks Disabled, PLL disabled, XTAL disabled - In this low power mode, all clocks derived from the
PLL clock are disabled. The PLL will be disabled. External network clocks are gated off. The crystal oscillator is
disabled. Exit from this mode may be only be done manually.
This mode is useful for PHY General Power Down mode.
The Host must place the PHYs into General Power Down mode by setting the Power Down (PHY_PWR_DWN)
bit of the PHY x Basic Control Register (PHY_BASIC_CONTROL_x) before setting this power state.
TABLE 6-2:
POWER MANAGEMENT STATES
Clock Source
25 MHz Crystal Oscillator
PLL
system clocks (100 MHz, 50 MHz, 25 MHz and others)
network clocks
Note
1:
2:
3:
6.3.4.1
D0
ON
ON
ON
available(1)
D1
ON
ON
OFF
available(1)
D2
ON
OFF(2)
OFF
available(1)
D3
OFF
OFF
OFF
OFF(3)
If supplied by the PHYs or externally
PLL is requested to be turned off and will disable if both of the PHYs are in either Energy Detect or General Power Down
PHY clocks are off, external clocks are gated off
Entering Low Power Modes
To enter any of the low power modes (D1 - D3) from normal mode (D0), follow these steps:
1.
2.
3.
Write the PM_MODE and PM_WAKE fields in the Power Management Control Register (PMT_CTRL) to their
desired values
Set the wake-up detection desired per Section 6.3.1, "Wake-Up Event Detection".
Set the appropriate wake-up notification per Section 6.3.2, "Wake-Up (PME) Notification".
2015 Microchip Technology Inc.
DS00001909A-page 45
LAN9252
4.
5.
Ensure that the device is in a state where it can safely be placed into a low power mode (all packets transmitted,
receivers disabled, packets processed / flushed, etc.)
Set the PM_SLEEP_EN bit in the Power Management Control Register (PMT_CTRL).
Note:
The PM_MODE field cannot be changed at the same time as the PM_SLEEP_EN bit is set and the
PM_SLEEP_EN bit cannot be set at the same time that the PM_MODE field is changed.
Upon entering any low power mode, the Device Ready (READY) bit in the Hardware Configuration Register (HW_CFG)
and the Power Management Control Register (PMT_CTRL) is forced low.
Note:
6.3.4.2
Upon entry into any of the power saving states the host interfaces are not functional.
Exiting Low Power Modes
Exiting from a low power mode can be done manually or automatically.
An automatic wake-up will occur based on the events described in Section 6.3.2, "Wake-Up (PME) Notification". Automatic wake-up is enabled with the Power Management Wakeup (PM_WAKE) bit in the Power Management Control
Register (PMT_CTRL).
A manual wake-up is initiated by the host when:
• an HBI write (CS and WR or CS, RD_WR and ENB) is performed to the device. Although all writes are ignored
until the device has been woken and a read performed, the host should direct the write to the Byte Order Test
Register (BYTE_TEST). Writes to any other addresses should not be attempted until the device is awake.
• an SPI/SQI cycle (SCS# low and SCK high) is performed to the device. Although all reads and writes are ignored
until the device has been woken, the host should direct the use a read of the Byte Order Test Register
(BYTE_TEST) to wake the device. Reads and writes to any other addresses should not be attempted until the
device is awake.
To determine when the host interface is functional, the Byte Order Test Register (BYTE_TEST) should be polled. Once
the correct pattern is read, the interface can be considered functional. At this point, the Device Ready (READY) bit in
the Hardware Configuration Register (HW_CFG) or the Power Management Control Register (PMT_CTRL) can be
polled to determine when the device is fully awake.
For both automatic and manual wake-up, the Device Ready (READY) bit will go high once the device is returned to
power savings state D0 and the PLL has re-stabilized. The PM_MODE and PM_SLEEP_EN fields in the Power Management Control Register (PMT_CTRL) will also clear at this point.
Under normal conditions, the device will wake-up within 2 ms.
DS00001909A-page 46
2015 Microchip Technology Inc.
LAN9252
6.3.5
6.3.5.1
POWER MANAGEMENT REGISTERS
Power Management Control Register (PMT_CTRL)
Offset:
084h
Size:
32 bits
This read-write register controls the power management features of the device. The ready state of the device be determined via the Device Ready (READY) bit of this register.
Note:
This register can be read while the device is in the reset or not ready / power savings states without leaving
the host interface in an intermediate state. If the host interface is in a reset state, returned data may be
invalid.
It is not necessary to read all four bytes of this register. DWORD access rules do not apply to this register.
Bits
31:29
Description
Power Management Mode (PM_MODE)
This register field determines the chip level power management mode that
will be entered when the Power Management Sleep Enable
(PM_SLEEP_EN) bit is set.
Type
Default
R/W/SC
000b
R/W/SC
0b
000: D0
001: D1
010: D2
011: D3
100: Reserved
101: Reserved
110: Reserved
111: Reserved
Writes to this field are ignored if Power Management Sleep Enable
(PM_SLEEP_EN) is also being written with a 1.
This field is cleared when the device wakes up.
28
Power Management Sleep Enable (PM_SLEEP_EN)
Setting this bit enters the chip level power management mode specified with
the Power Management Mode (PM_MODE) field.
0: Device is not in a low power sleep state
1: Device is in a low power sleep state
This bit can not be written at the same time as the PM_MODE register field.
The PM_MODE field must be set, and then this bit must be set for proper
device operation.
Writes to this bit with a value of 1 are ignored if Power Management Mode
(PM_MODE) is being written with a new value.
Note:
Although not prevented by H/W, this bit should not be written with
a value of 1 while Power Management Mode (PM_MODE) has a
value of “D0”.
This field is cleared when the device wakes up.
2015 Microchip Technology Inc.
DS00001909A-page 47
LAN9252
Bits
27
Description
Type
Default
R/W
0b
R/W
0b
RESERVED
RO
-
EtherCAT Core Clock Disable (ECAT_DIS)
This bit disables the clocks for the EtherCAT core.
R/W
0b
Power Management Wakeup (PM_WAKE)
When set, this bit enables automatic wake-up based on PME events.
0: Manual Wakeup only
1: Auto Wakeup enabled
26
LED Disable (LED_DIS)
This bit disables LED outputs. Open-drain / open-source LEDs are un-driven.
Push-pull LEDs are still driven but are set to their inactive state.
0: LEDs are enabled
1: LEDs are disabled
25:22
21
0: Clocks are enabled
1: Clocks are disabled
In order for this bit to be set, it must be written as a 1 two consecutive times.
A write of a 0 will reset the count.
20
RESERVED
RO
-
19:18
RESERVED
RO
-
R/WC
0b
R/WC
0b
17
Energy-Detect / WoL Status Port B (ED_WOL_STS_B)
This bit indicates an energy detect or WoL event occurred on the Port B PHY.
In order to clear this bit, it is required that the event in the PHY be cleared as
well. The event sources are described in Section 6.3, "Power Management,"
on page 43.
16
Energy-Detect / WoL Status Port A (ED_WOL_STS_A)
This bit indicates an energy detect or WoL event occurred on the Port A PHY.
In order to clear this bit, it is required that the event in the PHY be cleared as
well. The event sources are described in Section 6.3, "Power Management,"
on page 43.
15
Energy-Detect / WoL Enable Port B (ED_WOL_EN_B)
When set, the PME_INT bit in the Interrupt Status Register (INT_STS) will be
asserted upon an energy-detect or WoL event from Port B.
R/W
0b
14
Energy-Detect / WoL Enable Port A (ED_WOL_EN_A)
When set, the PME_INT bit in the Interrupt Status Register (INT_STS) will be
asserted upon an energy-detect or WoL event from Port A.
R/W
0b
13:10
RESERVED
RO
-
9
RESERVED
RO
-
8:7
RESERVED
RO
-
6:5
RESERVED
RO
-
DS00001909A-page 48
2015 Microchip Technology Inc.
LAN9252
Bits
Description
Type
Default
4
RESERVED
RO
-
3:1
RESERVED
RO
-
Device Ready (READY)
When set, this bit indicates that the device is ready to be accessed. Upon
power-up, RST# reset, return from power savings states, EtherCAT chip level
or module level reset, or digital reset, the host processor may interrogate this
field as an indication that the device has stabilized and is fully active.
RO
0b
0
This rising edge of this bit will assert the Device Ready (READY) bit in
INT_STS and can cause an interrupt if enabled.
Note:
With the exception of the HW_CFG, PMT_CTRL, BYTE_TEST, and
RESET_CTL registers, read access to any internal resources is
forbidden while the READY bit is cleared. Writes to any address
are invalid until this bit is set.
Note:
This bit is identical to bit 27 of the Hardware Configuration Register
(HW_CFG).
2015 Microchip Technology Inc.
DS00001909A-page 49
LAN9252
6.4
Device Ready Operation
The device supports a Ready status register bit that indicates to the Host software when the device is fully ready for
operation. This bit may be read via the Power Management Control Register (PMT_CTRL) or the Hardware Configuration Register (HW_CFG).
Following power-up reset, RST# reset, EtherCAT chip level reset or digital reset (see Section 6.2, "Resets"), the Device
Ready (READY) bit indicates that the device has read, and is configured from, the contents of the EEPROM.
An EtherCAT reset via the Reset Control Register (RESET_CTL) will cause the EtherCAT core to reload from the
EEPROM, temporarily causing the Device Ready (READY) to be low.
Entry into any power savings state (see Section 6.3.4, "Chip Level Power Management") other than D0 will cause
Device Ready (READY) to be low. Upon wake-up, the Device Ready (READY) bit will go high once the device is
returned to power savings state D0 and the PLL has re-stabilized.
DS00001909A-page 50
2015 Microchip Technology Inc.
LAN9252
7.0
CONFIGURATION STRAPS
Configuration straps allow various features of the device to be automatically configured to user defined values. Hardstraps are latched upon Power-On Reset (POR), EtherCAT reset, or pin reset (RST#).
Configuration straps include internal resistors in order to prevent the signal from floating when unconnected. If a particular configuration strap is connected to a load, an external pull-up or pull-down resistor should be used to augment the
internal resistor to ensure that it reaches the required voltage level prior to latching. The internal resistor can also be
overridden by the addition of an external resistor.
Note:
7.1
The system designer must guarantee that configuration strap pins meet the timing requirements specified
in Section 18.6.3, "Reset and Configuration Strap Timing". If configuration strap pins are not at the correct
voltage level prior to being latched, the device may capture incorrect strap values.
Hard-Straps
Hard-straps are latched upon Power-On Reset (POR), EtherCAT reset, or pin reset (RST#) only. These straps are used
as either direct configuration values or as register defaults. Table 7-1 provides a list of all hard-straps and their associated pin. These straps, along with their pin assignments are also fully defined in Section 3.0, "Pin Descriptions and Configuration," on page 11.
TABLE 7-1:
HARD-STRAP CONFIGURATION STRAP DEFINITIONS
Strap Name
eeprom_size_strap
Description
EEPROM Size Strap: Configures the EEPROM size range.
Pins
E2PSIZE
A low selects 1K bits (128 x 8) through 16K bits (2K x 8).
A high selects 32K bits (4K x 8) through 4Mbits (512K x 8).
chip_mode_strap[1:0]
EtherCAT Chip Mode Strap: This strap determines the
number of active ports and port types.
CHIP_MODE1,
CHIP_MODE0
00 = 2 port mode. Ports 0 and 1 are connected to internal PHYs A and B.
01 = reserved
10 = 3 port downstream mode. Ports 0 and 1 are connected to internal PHYs A and B. Port 2 is connected to
the external MII pins.
11 = 3 port upstream mode. Ports 2 and 1 are connected
to internal PHYs A and B. Port 0 is connected to the
external MII pins.
link_pol_strap_mii
EtherCAT MII Port Link Polarity Strap: This strap determines the polarity of the MII_LINK pin.
MII_LINKPOL
0 = MII_LINK low means a 100 Mbit/s Full Duplex link is
established
1= MII_LINK high means a 100 Mbit/s Full Duplex link is
established
2015 Microchip Technology Inc.
DS00001909A-page 51
LAN9252
TABLE 7-1:
HARD-STRAP CONFIGURATION STRAP DEFINITIONS (CONTINUED)
Strap Name
tx_shift_strap[1:0]
Description
Pins
EtherCAT MII Port TX Timing Shift Strap: These straps
determine the value of the MII TX Timing Shift for the MII
port.
TX_SHIFT[1:0]
00 = 0ns
01 = 10ns
10 = 20ns
11 = 30ns
fx_mode_strap_1
PHY A FX Mode Strap: Selects FX mode for PHY A.
FXLOSEN :
FXSDENA
This strap is set high when FXLOSEN is above 1 V (typ.) or
FXSDENA is above 1 V (typ.).
fx_mode_strap_2
PHY B FX Mode Strap: Selects FX mode for PHY B.
FXLOSEN :
FXSDENB
This strap is set high when FXLOSEN is above 2 V (typ.) or
FXSDENB is above 1 V (typ.).
fx_los_strap_1
PHY A FX-LOS Select Strap: Selects Loss of Signal mode
for PHY A.
FXLOSEN
This strap is set high when FXLOSEN is above 1 V (typ.).
fx_los_strap_2
PHY B FX-LOS Select Strap: Selects Loss of Signal mode
for PHY B.
FXLOSEN
This strap is set high when FXLOSEN is above 2 V (typ.).
DS00001909A-page 52
2015 Microchip Technology Inc.
LAN9252
8.0
SYSTEM INTERRUPTS
8.1
Functional Overview
This chapter describes the system interrupt structure of the device. The device provides a multi-tier programmable interrupt structure which is controlled by the System Interrupt Controller. The programmable system interrupts are generated
internally by the various device sub-modules and can be configured to generate a single external host interrupt via the
IRQ interrupt output pin. The programmable nature of the host interrupt provides the user with the ability to optimize
performance dependent upon the application requirements. The IRQ interrupt buffer type, polarity and de-assertion
interval are modifiable. The IRQ interrupt can be configured as an open-drain output to facilitate the sharing of interrupts
with other devices. All internal interrupts are maskable and capable of triggering the IRQ interrupt.
8.2
Interrupt Sources
The device is capable of generating the following interrupt types:
•
•
•
•
•
•
•
Ethernet PHY Interrupts
Power Management Interrupts
General Purpose Timer Interrupt (GPT)
EtherCAT Interrupt
Software Interrupt (General Purpose)
Device Ready Interrupt
Clock Output Test Mode
All interrupts are accessed and configured via registers arranged into a multi-tier, branch-like structure, as shown in
Figure 8-1. At the top level of the device interrupt structure are the Interrupt Status Register (INT_STS), Interrupt Enable
Register (INT_EN) and Interrupt Configuration Register (IRQ_CFG).
The Interrupt Status Register (INT_STS) and Interrupt Enable Register (INT_EN) aggregate and enable/disable all interrupts from the various device sub-modules, combining them together to create the IRQ interrupt. These registers provide direct interrupt access/configuration to the General Purpose Timer, software and device ready interrupts. These
interrupts can be monitored, enabled/disabled and cleared, directly within these two registers. In addition, event indications are provided for the EtherCAT Slave, Power Management, and Ethernet PHY interrupts. These interrupts differ in
that the interrupt sources are generated and cleared in other sub-block registers. The INT_STS register does not provide details on what specific event within the sub-module caused the interrupt and requires the software to poll an additional sub-module interrupt register (as shown in Figure 8-1) to determine the exact interrupt source and clear it. For
interrupts which involve multiple registers, only after the interrupt has been serviced and cleared at its source will it be
cleared in the INT_STS register.
The Interrupt Configuration Register (IRQ_CFG) is responsible for enabling/disabling the IRQ interrupt output pin as
well as configuring its properties. The IRQ_CFG register allows the modification of the IRQ pin buffer type, polarity and
de-assertion interval. The de-assertion timer guarantees a minimum interrupt de-assertion period for the IRQ output
and is programmable via the Interrupt De-assertion Interval (INT_DEAS) field of the Interrupt Configuration Register
2015 Microchip Technology Inc.
DS00001909A-page 53
LAN9252
(IRQ_CFG). A setting of all zeros disables the de-assertion timer. The de-assertion interval starts when the IRQ pin deasserts, regardless of the reason.
FIGURE 8-1:
FUNCTIONAL INTERRUPT HIERARCHY
Top Level Interrupt Registers
(System CSRs)
INT_CFG
INT_STS
INT_EN
PHY B Interrupt Registers
Bit 27 (PHY_INT_B)
of INT_STS register
PHY_INTERRUPT_SOURCE_B
PHY_INTERRUPT_MASK_B
PHY A Interrupt Registers
Bit 26 (PHY_INT_A)
of INT_STS register
PHY_INTERRUPT_SOURCE_A
PHY_INTERRUPT_MASK_A
Bit 17 (PME_INT)
of INT_STS register
Power Management Control Register
PMT_CTRL
EtherCAT Interrupt Registers
Bit 0 (ECAT_INT)
of INT_STS register
ECAT_AL_EVENT_REQUEST
ECAT_AL_EVENT_MASK
The following sections detail each category of interrupts and their related registers. Refer to the corresponding function’s
chapter for bit-level definitions of all interrupt registers.
8.2.1
ETHERNET PHY INTERRUPTS
The Ethernet PHYs each provide a set of identical interrupt sources. The top-level PHY A Interrupt Event (PHY_INT_A)
and PHY B Interrupt Event (PHY_INT_B) bits of the Interrupt Status Register (INT_STS) provide indication that a PHY
interrupt event occurred in the PHY x Interrupt Source Flags Register (PHY_INTERRUPT_SOURCE_x).
PHY interrupts are enabled/disabled via their respective PHY x Interrupt Mask Register (PHY_INTERRUPT_MASK_x).
The source of a PHY interrupt can be determined and cleared via the PHY x Interrupt Source Flags Register (PHY_INTERRUPT_SOURCE_x). Unique interrupts are generated based on the following events:
•
•
•
•
•
•
•
•
•
ENERGYON Activated
Auto-Negotiation Complete
Remote Fault Detected
Link Down (Link Status Negated)
Link Up (Link Status Asserted)
Auto-Negotiation LP Acknowledge
Parallel Detection Fault
Auto-Negotiation Page Received
Wake-on-LAN Event Detected
DS00001909A-page 54
2015 Microchip Technology Inc.
LAN9252
In order for an interrupt event to trigger the external IRQ interrupt pin, the desired PHY interrupt event must be enabled
in the corresponding PHY x Interrupt Mask Register (PHY_INTERRUPT_MASK_x), the PHY A Interrupt Event Enable
(PHY_INT_A_EN) and/or PHY B Interrupt Event Enable (PHY_INT_B_EN) bits of the Interrupt Enable Register
(INT_EN) must be set and the IRQ output must be enabled via the IRQ Enable (IRQ_EN) bit of the Interrupt Configuration Register (IRQ_CFG).
For additional details on the Ethernet PHY interrupts, refer to Section 11.2.7, "PHY Interrupts," on page 128.
8.2.2
POWER MANAGEMENT INTERRUPTS
Multiple Power Management Event interrupt sources are provided by the device. The top-level Power Management
Interrupt Event (PME_INT) bit of the Interrupt Status Register (INT_STS) provides indication that a Power Management
interrupt event occurred in the Power Management Control Register (PMT_CTRL).
The Power Management Control Register (PMT_CTRL) provides enabling/disabling and status of all Power Management conditions. These include energy-detect on the PHYs and Wake-On-LAN (Perfect DA, Broadcast, Wake-up frame
or Magic Packet) detection by PHYs A&B.
In order for a Power Management interrupt event to trigger the external IRQ interrupt pin, the desired Power Management interrupt event must be enabled in the Power Management Control Register (PMT_CTRL), the Power Management Event Interrupt Enable (PME_INT_EN) bit of the Interrupt Enable Register (INT_EN) must be set and the IRQ
output must be enabled via the IRQ Enable (IRQ_EN) bit 8 of the Interrupt Configuration Register (IRQ_CFG).
The power management interrupts are only a portion of the power management features of the device. For additional
details on power management, refer to Section 6.3, "Power Management," on page 43.
8.2.3
GENERAL PURPOSE TIMER INTERRUPT
A GP Timer (GPT_INT) interrupt is provided in the top-level Interrupt Status Register (INT_STS) and Interrupt Enable
Register (INT_EN). This interrupt is issued when the General Purpose Timer Count Register (GPT_CNT) wraps past
zero to FFFFh and is cleared when the GP Timer (GPT_INT) bit of the Interrupt Status Register (INT_STS) is written
with 1.
In order for a General Purpose Timer interrupt event to trigger the external IRQ interrupt pin, the GPT must be enabled
via the General Purpose Timer Enable (TIMER_EN) bit in the General Purpose Timer Configuration Register
(GPT_CFG), the GP Timer Interrupt Enable (GPT_INT_EN) bit of the Interrupt Enable Register (INT_EN) must be set
and the IRQ output must be enabled via the IRQ Enable (IRQ_EN) bit of the Interrupt Configuration Register
(IRQ_CFG).
For additional details on the General Purpose Timer, refer to Section 15.1, "General Purpose Timer," on page 297.
8.2.4
ETHERCAT INTERRUPT
The top-level EtherCAT Interrupt Event (ECAT_INT) of the Interrupt Status Register (INT_STS) provides indication that
an EtherCAT interrupt event occurred in the AL Event Request Register. The AL Event Mask Register provides
enabling/disabling of all EtherCAT interrupt conditions. The AL Event Request Register provides the status of all EtherCAT interrupts.
In order for an EtherCAT interrupt event to trigger the external IRQ interrupt pin, the desired EtherCAT interrupt must
be enabled in the AL Event Mask Register, the EtherCAT Interrupt Event Enable (ECAT_INT_EN) bit of the Interrupt
Enable Register (INT_EN) must be set and the IRQ output must be enabled via the IRQ Enable (IRQ_EN) bit of the
Interrupt Configuration Register (IRQ_CFG).
For additional details on the EtherCAT interrupts, refer to Section 12.0, "EtherCAT," on page 196.
8.2.5
SOFTWARE INTERRUPT
A general purpose software interrupt is provided in the top level Interrupt Status Register (INT_STS) and Interrupt
Enable Register (INT_EN). The Software Interrupt (SW_INT) bit of the Interrupt Status Register (INT_STS) is generated
when the Software Interrupt Enable (SW_INT_EN) bit of the Interrupt Enable Register (INT_EN) changes from cleared
to set (i.e. on the rising edge of the enable). This interrupt provides an easy way for software to generate an interrupt
and is designed for general software usage.
In order for a Software interrupt event to trigger the external IRQ interrupt pin, the IRQ output must be enabled via the
IRQ Enable (IRQ_EN) bit of the Interrupt Configuration Register (IRQ_CFG).
2015 Microchip Technology Inc.
DS00001909A-page 55
LAN9252
8.2.6
DEVICE READY INTERRUPT
A device ready interrupt is provided in the top-level Interrupt Status Register (INT_STS) and Interrupt Enable Register
(INT_EN). The Device Ready (READY) bit of the Interrupt Status Register (INT_STS) indicates that the device is ready
to be accessed after a power-up or reset condition. Writing a 1 to this bit in the Interrupt Status Register (INT_STS) will
clear it.
In order for a device ready interrupt event to trigger the external IRQ interrupt pin, the Device Ready Enable
(READY_EN) bit of the Interrupt Enable Register (INT_EN) must be set and the IRQ output must be enabled via the
IRQ Enable (IRQ_EN) bit of the Interrupt Configuration Register (IRQ_CFG).
8.2.7
CLOCK OUTPUT TEST MODE
In order to facilitate system level debug, the crystal clock can be enabled onto the IRQ pin by setting the IRQ Clock
Select (IRQ_CLK_SELECT) bit of the Interrupt Configuration Register (IRQ_CFG).
The IRQ pin should be set to a push-pull driver by using the IRQ Buffer Type (IRQ_TYPE) bit for the best result.
8.3
Interrupt Registers
This section details the directly addressable interrupt related System CSRs. These registers control, configure and monitor the IRQ interrupt output pin and the various device interrupt sources. For an overview of the entire directly addressable register map, refer to Section 5.0, "Register Map," on page 32.
Table 0.1 Interrupt Registers
ADDRESS
REGISTER NAME (SYMBOL)
054h
Interrupt Configuration Register (IRQ_CFG)
058h
Interrupt Status Register (INT_STS)
05Ch
Interrupt Enable Register (INT_EN)
DS00001909A-page 56
2015 Microchip Technology Inc.
LAN9252
8.3.1
INTERRUPT CONFIGURATION REGISTER (IRQ_CFG)
Offset:
054h
Size:
32 bits
This read/write register configures and indicates the state of the IRQ signal.
Bits
Description
Type
Default
31:24
Interrupt De-assertion Interval (INT_DEAS)
This field determines the Interrupt Request De-assertion Interval in multiples
of 10 microseconds.
R/W
00h
RESERVED
RO
-
Interrupt De-assertion Interval Clear (INT_DEAS_CLR)
Writing a 1 to this register clears the de-assertion counter in the Interrupt
Controller, thus causing a new de-assertion interval to begin (regardless of
whether or not the Interrupt Controller is currently in an active de-assertion
interval).
R/W
SC
0h
RO
0b
RO
0b
RESERVED
RO
-
IRQ Enable (IRQ_EN)
This bit controls the final interrupt output to the IRQ pin. When clear, the IRQ
output is disabled and permanently de-asserted. This bit has no effect on any
internal interrupt status bits.
R/W
0b
RO
-
Setting this field to zero causes the device to disable the INT_DEAS Interval,
reset the interval counter and issue any pending interrupts. If a new, non-zero
value is written to this field, any subsequent interrupts will obey the new setting.
23:15
14
0: Normal operation
1: Clear de-assertion counter
13
Interrupt De-assertion Status (INT_DEAS_STS)
When set, this bit indicates that the interrupt controller is currently in a deassertion interval and potential interrupts will not be sent to the IRQ pin.
When this bit is clear, the interrupt controller is not currently in a de-assertion
interval and interrupts will be sent to the IRQ pin.
0: Interrupt controller not in de-assertion interval
1: Interrupt controller in de-assertion interval
12
Master Interrupt (IRQ_INT)
This read-only bit indicates the state of the internal IRQ line, regardless of the
setting of the IRQ_EN bit, or the state of the interrupt de-assertion function.
When this bit is set, one of the enabled interrupts is currently active.
0: No enabled interrupts active
1: One or more enabled interrupts active
11:9
8
0: Disable output on IRQ pin
1: Enable output on IRQ pin
7:5
RESERVED
2015 Microchip Technology Inc.
DS00001909A-page 57
LAN9252
Bits
Description
Type
Default
4
IRQ Polarity (IRQ_POL)
When cleared, this bit enables the IRQ line to function as an active low output. When set, the IRQ output is active high. When the IRQ is configured as
an open-drain output (via the IRQ_TYPE bit), this bit is ignored and the interrupt is always active low.
R/W
NASR
Note 1
0b
RESERVED
RO
-
IRQ Clock Select (IRQ_CLK_SELECT)
When this bit is set, the crystal clock may be output on the IRQ pin. This is
intended to be used for system debug purposes in order to observe the clock
and not for any functional purpose.
R/W
0b
R/W
NASR
Note 1
0b
0: IRQ active low output
1: IRQ active high output
3:2
1
Note:
0
When using this bit, the IRQ pin should be set to a push-pull driver.
IRQ Buffer Type (IRQ_TYPE)
When this bit is cleared, the IRQ pin functions as an open-drain output for
use in a wired-or interrupt configuration. When set, the IRQ is a push-pull
driver.
When configured as an open-drain output, the IRQ_POL bit is
ignored and the interrupt output is always active low.
0: IRQ pin open-drain output
1: IRQ pin push-pull driver
Note:
Note 1: Register bits designated as NASR are not reset when the DIGITAL_RST bit in the Reset Control Register
(RESET_CTL) is set.
DS00001909A-page 58
2015 Microchip Technology Inc.
LAN9252
8.3.2
INTERRUPT STATUS REGISTER (INT_STS)
Offset:
058h
Size:
32 bits
This register contains the current status of the generated interrupts. A value of 1 indicates the corresponding interrupt
conditions have been met, while a value of 0 indicates the interrupt conditions have not been met. The bits of this register
reflect the status of the interrupt source regardless of whether the source has been enabled as an interrupt in the Interrupt Enable Register (INT_EN). Where indicated as R/WC, writing a 1 to the corresponding bits acknowledges and
clears the interrupt.
Bits
Description
Type
Default
31
Software Interrupt (SW_INT)
This interrupt is generated when the Software Interrupt Enable
(SW_INT_EN) bit of the Interrupt Enable Register (INT_EN) is set high.
Writing a one clears this interrupt.
R/WC
0b
30
Device Ready (READY)
This interrupt indicates that the device is ready to be accessed after a
power-up or reset condition.
R/WC
0b
29
RESERVED
RO
-
28
RESERVED
RO
-
27
PHY B Interrupt Event (PHY_INT_B)
This bit indicates an interrupt event from PHY B. The source of the interrupt
can be determined by polling the PHY x Interrupt Source Flags Register
(PHY_INTERRUPT_SOURCE_x).
RO
0b
26
PHY A Interrupt Event (PHY_INT_A)
This bit indicates an interrupt event from PHY A. The source of the interrupt
can be determined by polling the PHY x Interrupt Source Flags Register
(PHY_INTERRUPT_SOURCE_x).
RO
0b
25:23
RESERVED
RO
-
22
RESERVED
RO
-
21:20
RESERVED
RO
-
R/WC
0b
RO
-
R/WC
0b
19
GP Timer (GPT_INT)
This interrupt is issued when the General Purpose Timer Count Register
(GPT_CNT) wraps past zero to FFFFh.
18
RESERVED
17
Power Management Interrupt Event (PME_INT)
This interrupt is issued when a Power Management Event is detected as
configured in the Power Management Control Register (PMT_CTRL). Writing a '1' clears this bit. In order to clear this bit, all unmasked bits in the
Power Management Control Register (PMT_CTRL) must first be cleared.
Note:
The Interrupt De-assertion interval does not apply to the PME
interrupt.
16:13
RESERVED
RO
-
12
RESERVED
RO
-
2015 Microchip Technology Inc.
DS00001909A-page 59
LAN9252
Bits
Description
Type
Default
11:3
RESERVED
RO
-
2:1
RESERVED
RO
-
EtherCAT Interrupt Event (ECAT_INT)
This bit indicates an EtherCAT interrupt event. The source of the interrupt
can be determined by polling the AL Event Request Register.
RO
0b
0
DS00001909A-page 60
2015 Microchip Technology Inc.
LAN9252
8.3.3
INTERRUPT ENABLE REGISTER (INT_EN)
Offset:
05Ch
Size:
32 bits
This register contains the interrupt enables for the IRQ output pin. Writing 1 to any of the bits enables the corresponding
interrupt as a source for IRQ. Bits in the Interrupt Status Register (INT_STS) register will still reflect the status of the
interrupt source regardless of whether the source is enabled as an interrupt in this register (with the exception of Software Interrupt Enable (SW_INT_EN). For descriptions of each interrupt, refer to the Interrupt Status Register (INT_STS)
bits, which mimic the layout of this register.
Bits
Description
Type
Default
31
Software Interrupt Enable (SW_INT_EN)
R/W
0b
30
Device Ready Enable (READY_EN)
R/W
0b
29
RESERVED
RO
-
28
RESERVED
RO
-
27
PHY B Interrupt Event Enable (PHY_INT_B_EN)
R/W
0b
26
PHY A Interrupt Event Enable (PHY_INT_A_EN)
R/W
0b
25:23
RESERVED
RO
-
22
RESERVED
RO
-
21:20
RESERVED
RO
-
19
GP Timer Interrupt Enable (GPT_INT_EN)
R/W
0b
18
RESERVED
RO
-
17
Power Management Event Interrupt Enable (PME_INT_EN)
R/W
0b
16:13
RESERVED
RO
-
12
RESERVED
RO
-
11:3
RESERVED
RO
-
2:1
RESERVED
RO
-
EtherCAT Interrupt Event Enable (ECAT_INT_EN)
R/W
0b
0
2015 Microchip Technology Inc.
DS00001909A-page 61
LAN9252
9.0
HOST BUS INTERFACE
9.1
Functional Overview
The Host Bus Interface (HBI) module provides a high-speed asynchronous slave interface that facilitates communication between the device and a host system. The HBI allows access to the System CSRs and internal FIFOs and memories and handles byte swapping based on the endianness select.
The following is an overview of the functions provided by the HBI:
• Address bus input: Two addressing modes are supported. These are a multiplexed address / data bus and a demultiplexed address bus with address index register accesses. The mode selection is done through a configuration input.
• Selectable data bus width: The host data bus width is selectable. 16 and 8-bit data modes are supported. This
selection is done through a configuration input. The HBI performs BYTE and WORD to DWORD assembly on
write data and keeps track of the BYTE / WORD count for reads. Individual BYTE access in 16-bit mode is not
supported.
• Selectable read / write control modes: Two control modes are available. Separate read and write pins or an
enable and direction pin. The mode selection is done through a configuration input.
• Selectable control line polarity: The polarity of the chip select, read / write and address latch signals is selectable through configuration inputs.
• Dynamic Endianness control: The HBI supports the selection of big and little endian host byte ordering based
on the endianness signal. This highly flexible interface provides mixed endian access for registers and memory.
Depending on the addressing mode of the device, this signal is either configuration register controlled or as part of
the strobed address input.
• Direct FIFO access: A FIFO direct select signal directs all host write operations to the EtherCAT Process RAM
Write Data FIFO (Multiplexed Address Mode only) and all host read operations from EtherCAT Process RAM
Read Data FIFO (Multiplexed Address Mode only). This signal is strobed as part of the address input.
9.2
Read / Write Control Signals
The device supports two distinct read / write signal methods:
• read (RD) and write (WR) strobes are input on separate pins.
• read and write signals are decoded from an enable input (ENB) and a direction input (RD_WR).
9.3
Control Line Polarity
The device supports polarity control on the following:
•
•
•
•
chip select input (CS)
read strobe (RD) / direction input (RD_WR)
write strobe (WR) / enable input (ENB)
address latch control (ALELO and ALEHI)
9.4
Multiplexed Address / Data Mode
In Multiplexed Address / Data mode, the address, FIFO Direct Select and endianness select inputs are shared with the
data bus. Two methods are supported, a single phase address, utilizing up to 16 address / data pins and a dual phase
address, utilizing only the lower 8 data bits.
9.4.1
9.4.1.1
ADDRESS LATCH CYCLES
Single Phase Address Latching
In Single Phase mode, all address bits, the FIFO Direct Select signal and the endianness select are strobed into the
device using the trailing edge of the ALELO signal. The address latch is implemented on all 16 address / data pins. In
8-bit data mode, where pins AD[15:8] are used exclusively for addressing, it is not necessary to drive these upper
address lines with a valid address continually through read and write operations. However, this operation, referred to as
Partial Address Multiplexing, is acceptable since the device will never drive these pins.
DS00001909A-page 62
2015 Microchip Technology Inc.
LAN9252
Qualification of the ALELO signal with the CS signal is selectable. When qualification is enabled, CS must be active
during ALELO in order to strobe the address inputs. When qualification is not enabled, CS is a don’t care during the
address phase.
The address is retained for all future read and write operations. It is retained until either a reset event occurs or a new
address is loaded. This allows multiple read and write requests to take place to the same address, without requiring
multiple address latching operations.
9.4.1.2
Dual Phase Address Latching
In Dual Phase mode, the lower 8 address bits are strobed into the device using the inactive going edge of the ALELO
signal and the remaining upper address bits, the FIFO Direct Select signals and the endianness select are strobed into
the device using the trailing edge of the ALEHI signal. The strobes can be in either order. In 8-bit data mode, pins
AD[15:8] are not used. In 16-bit data mode, pins D[15:8] are used only for data.
Qualification of the ALELO and ALEHI signals with the CS signal is selectable. When qualification is enabled, CS must
be active during ALELO and ALEHI in order to strobe the address inputs. When qualification is not enabled, CS is a
don’t care during the address phase.
The address is retained for all future read and write operations. It is retained until either a reset event occurs or a new
address is loaded. This allows multiple read and write requests to take place to the same address, without requiring
multiple address latching operations.
9.4.1.3
Address Bit to Address / Data Pin Mapping
In 8-bit data mode, address bit 0 is multiplexed onto pin AD[0], address bit 1 onto pin AD[1], etc. The highest address
bit is bit 9 and is multiplexed onto pin AD[9] (single phase) or AD[1] (dual phase). The address latched into the device
is considered a BYTE address and covers 1K bytes (0 to 3FFh).
In 16-bit data mode, address bit 1 is multiplexed onto pin AD[0], address bit 2 onto pin AD[1], etc. The highest address
bit is bit 9 and is multiplexed onto pin AD[8] (single phase) or AD[0] (dual phase). The address latched into the device
is considered a WORD address and covers 512 words (0 to 1FFh).
When the address is sent to the rest of the device, it is converted to a BYTE address.
9.4.1.4
Endianness Select to Address / Data Pin Mapping
The endianness select is included into the multiplexed address to allow the host system to dynamically select the endianness based on the memory address used. This allows for mixed endian access for registers and memory.
The endianness selection is multiplexed to the data pin one bit above the last address bit.
9.4.1.5
FIFO Direct Select to Address / Data Pin Mapping
The FIFO Direct Select signal is included into the multiplexed address to allow the host system to address the EtherCAT
Process RAM Data FIFOs as if they were a large flat address space.
The FIFO Direct Select signal is multiplexed to the data pin two bits above the last address bit.
9.4.2
DATA CYCLES
The host data bus can be 16 or 8-bits wide while all internal registers are 32 bits wide. The Host Bus Interface performs
the conversion from WORDs or BYTEs to DWORD, while in 8 or 16-bit data mode. Two or four contiguous accesses
within the same DWORD are required in order to perform a write or read.
9.4.2.1
Write Cycles
A write cycle occurs when CS and WR are active (or when ENB is active with RD_WR indicating write). The host address
and endianness were already captured during the address latch cycle.
On the trailing edge of the write cycle (either WR or CS or ENB going inactive), the host data is captured into registers
in the HBI. Depending on the bus width, either a WORD or a BYTE is captured. For 8 or 16-bit data modes, this functions
as the DWORD assembly with the affected WORD or BYTE determined by the lower address inputs. BYTE swapping
is also done at this point based on the endianness.
WRITES FOLLOWING INITIALIZATION
Following device initialization, writes from the Host Bus are ignored until after a read cycle is performed.
WRITES DURING AND FOLLOWING POWER MANAGEMENT
2015 Microchip Technology Inc.
DS00001909A-page 63
LAN9252
During and following any power management mode other than D0, writes from the Host Bus are ignored until after a
read cycle is performed.
8 AND 16-BIT ACCESS
While in 8 or 16-bit data mode, the host is required to perform two or four, 16 or 8-bit writes to complete a single DWORD
transfer. No ordering requirements exist. The host can access either the low or high WORD or BYTE first, as long as
the other write(s) is(are) performed to the remaining WORD or BYTEs.
Note:
Writing the same WORD or BYTEs in the same DWORD assemble cycle may cause undefined or undesirable operation. The HBI hardware does not protect against this operation.
A write BYTE / WORD counter keeps track of the number of writes. At the trailing edge of the write cycle, the counter is
incremented. Once all writes occur, a 32-bit write is performed to the internal register.
The write BYTE / WORD counter is reset if the power management mode is set to anything other than D0.
9.4.2.2
Read Cycles
A read cycle occurs when CS and RD are active (or when ENB is active with RD_WR indicating read). The host address
and endianness were already captured during the address latch cycle.
At the beginning of the read cycle, the appropriate register is selected and its data is driven onto the data pins. Depending on the bus width, either a WORD or a BYTE is read. For 8 or 16-bit data modes, the returned BYTE or WORD is
determined by the endianness and the lower address inputs.
POLLING FOR INITIALIZATION COMPLETE
Before device initialization, the HBI will not return valid data. To determine when the HBI is functional, the Byte Order
Test Register (BYTE_TEST) should be polled. Each poll should consist of an address latch cycle(s) and a data cycle.
Once the correct pattern is read, the interface can be considered functional. At this point, the Device Ready (READY)
bit in the Hardware Configuration Register (HW_CFG) can be polled to determine when the device is fully configured.
READS DURING AND FOLLOWING POWER MANAGEMENT
During any power management mode other than D0, reads from the Host Bus are ignored. If the power management
mode changes back to D0 during an active read cycle, the tail end of the read cycle is ignored. Internal registers are not
affected and the state of the HBI does not change.
8 AND 16-BIT ACCESS
For certain register accesses, the host is required to perform two or four consecutive 16 or 8-bit reads to complete a
single DWORD transfer. No ordering requirements exist. The host can access either the low or high WORD or BYTE
first, as long as the other read(s) is(are) performed from the remaining WORD or BYTEs.
Note:
Reading the same WORD or BYTEs from the same DWORD may cause undefined or undesirable operation. The HBI hardware does not protect against this operation. The HBI simply counts that four BYTEs
have been read.
A read BYTE / WORD counter keeps track of the number of reads. This counter is separate from the write counter
above. At the trailing edge of the read cycle, the counter is incremented. On the last read for the DWORD, an internal
read is performed to update any Change on Read CSRs.
The read BYTE / WORD counter is reset if the power management mode is set to anything other than D0.
SPECIAL CSR HANDLING
Live Bits
Any register bit that is updated by a H/W event is held at the beginning of the read cycle to prevent it from changing
during the read cycle.
Multiple BYTE / WORD Live Registers in 16 or 8-Bit Modes
Some registers have “live” fields or related fields that span across multiple BYTEs or WORDs. For 16 and 8-bit data
reads, it is possible for the value of these fields to change between host read cycles. In order to prevent reading intermediate values, these registers are locked when the first byte or word is read and unlocked when the last byte or word
is read.
The registers are unlocked if the power management mode is set to anything other than D0.
DS00001909A-page 64
2015 Microchip Technology Inc.
LAN9252
Change on Read Registers and FIFOs
FIFOs or “Change on Read” registers, are updated at the end of the read cycle.
For 16 and 8-bit modes, only one internal read cycle is indicated and occurs for the last byte or word.
Change on Read Live Register Bits
As described above, registers with live bits are held starting at the beginning of the read cycle and those that have multiple bits that span across BYTES or WORDS are also locked for 16 and 8-bit accesses. Although a H/W event that
occurs during the hold or lock time would still update the live bit(s), the live bit(s) will be affected (cleared, etc.) at the
end of the read cycle and the H/W event would be lost.
In order to prevent this, the individual CSRs defer the H/W event update until after the read or multiple reads.
Register Polling During Reset Or Initialization
Some registers support polling during reset or device initialization to determine when the device is accessible. For these
registers, only one read may be performed without the need to read the other WORD or BYTEs. The same BYTE or
WORD of the register may be re-read repeatedly.
A register that is 16 or 8-bit readable or readable during reset or device initialization, is noted in its register description.
9.4.2.3
Host Endianness
The device supports big and little endian host byte ordering based upon the endianness select that is latched during the
address latch cycle. When the endianness select is low, host access is little endian and when high, host access is big
endian. In a typical application the endianness select is connected to a high-order address line, making endian selection
address-based. This highly flexible interface provides mixed endian access for registers and memory for both PIO and
host DMA access.
All internal busses are 32-bit with little endian byte ordering. Logic within the Host Bus Interface re-orders bytes based
on the appropriate endianness bit, and the state of the least significant address bits.
Data path operations for the supported endian configurations and data bus sizes are illustrated in FIGURE 9-1: Little
Endian Ordering on page 66 and FIGURE 9-2: Big Endian Ordering on page 67.
2015 Microchip Technology Inc.
DS00001909A-page 65
LAN9252
FIGURE 9-1:
LITTLE ENDIAN ORDERING
8-BIT LITTLE ENDIAN
INTERNAL ORDER
MSB
31
LSB
24
23
3
16
15
2
8
7
1
A=3
3
A=2
2
A=1
1
A=0
0
7
0
0
0
HOST DATA BUS
16-BIT LITTLE ENDIAN
INTERNAL ORDER
MSB
31
LSB
24
23
16
15
8
3
2
1
A=1
3
2
A=0
1
0
15
8
7
7
0
0
0
HOST DATA BUS
DS00001909A-page 66
2015 Microchip Technology Inc.
LAN9252
FIGURE 9-2:
BIG ENDIAN ORDERING
8-BIT BIG ENDIAN
INTERNAL ORDER
MSB
31
LSB
24
23
3
16
15
2
8
7
1
A=3
0
A=2
1
A=1
2
A=0
3
7
0
0
0
HOST DATA BUS
16-BIT BIG ENDIAN
INTERNAL ORDER
MSB
31
LSB
24
23
16
15
8
3
2
1
A=1
0
1
A=0
2
3
15
8
7
7
0
0
0
HOST DATA BUS
2015 Microchip Technology Inc.
DS00001909A-page 67
LAN9252
9.4.3
9.4.3.1
ETHERCAT PROCESS RAM DATA FIFO ACCESS
FIFO Direct Select Access
A FIFO Direct Select signal is provided allows the host system to address the EtherCAT Process RAM Data FIFOs as
if they were a large flat address space. When the FIFO Direct Select signal, which was latched during the address latch
cycle, is active all host write operations are to the EtherCAT Process RAM Write Data FIFO and all host read operations
are from EtherCAT Process RAM Read Data FIFO. Only the lower latched address signals are decoded in order to
select the proper BYTE or WORD. All other address inputs are ignored in this mode. All other operations are the same
(DWORD assembly, FIFO popping, etc.).
The endianness of FIFO Direct Select accesses is determined by the endianness select that was latched during the
address latch cycle.
Burst access when reading EtherCAT Process RAM Read Data FIFO is not supported. However, since the FIFO Direct
Select signal is retained until either a reset event occurs or a new address is loaded, multiple read or write requests can
occur without requiring multiple address latching operations.
9.4.4
MULTIPLEXED ADDRESSING MODE FUNCTIONAL TIMING DIAGRAMS
The following timing diagrams illustrate example multiplexed addressing mode read and write cycles for various
address/data configurations and bus sizes. These diagrams do not cover every supported host bus permutation, but are
selected to detail the main configuration differences (bus size, dual/single phase address latching) within the multiplexed
addressing mode of operation.
The following should be noted for the timing diagrams in this section:
• The diagrams in this section depict active-high ALEHI/ALELO, CS, RD, and WR signals. The polarities of these
signals are selectable via the HBI ALE Polarity, HBI Chip Select Polarity, HBI Read, Read/Write Polarity, and HBI
Write, Enable Polarity bits of the PDI Configuration Register (HBI Modes), respectively. Refer to Section 9.3, "Control Line Polarity," on page 62 for additional details.
• The diagrams in this section depict little endian byte ordering. However, dynamic big and little endianess are supported via the endianess signal. Endianess changes only the order of the bytes involved, and not the overall timing requirements. Refer to Section 9.4.1.4, "Endianness Select to Address / Data Pin Mapping," on page 63 for
additional information.
• The diagrams in Section 9.4.4.1, "Dual Phase Address Latching" and Section 9.4.4.2, "Single Phase Address
Latching" utilize RD and WR signals. Alternative RD_WR and ENB signaling is also supported, as shown in Section 9.4.4.3, "RD_WR / ENB Control Mode Examples". The HBI read/write mode is selectable via the HBI Read/
Write Mode bit of the PDI Configuration Register (HBI Modes). The polarities of the RD_WR and ENB signals are
selectable via the HBI Read, Read/Write Polarity and HBI Write, Enable Polarity bits of the PDI Configuration Register (HBI Modes).
• Qualification of the ALELO and/or ALEHI with the CS signal is selectable via the HBI ALE Qualification bit of the
PDI Configuration Register (HBI Modes). Refer to Section 9.4.1.1, "Single Phase Address Latching," on page 62
and Section 9.4.1.2, "Dual Phase Address Latching," on page 63 for additional information.
• In dual phase address latching mode, the ALEHI and ALELO cycles can be in any order. Either or both ALELO
and ALEHI cycles maybe skipped and the device retains the last latched address.
• In single phase address latching mode, the ALELO cycle maybe skipped and the device retains the last latched
address.
Note:
In 8 and 16-bit modes, the ALELO cycle is normally not skipped since sequential BYTEs or WORDs are
accessed in order to satisfy a complete DWORD cycle. However, there are registers for which a single
BYTE or WORD access is allowed, in which case multiple accesses to these registers may be performed
without the need to re-latch the repeated address.
• For 16 and 8-bit modes, consecutive address cycles must be within the same DWORD until the DWORD is completely accessed (with the register exceptions noted above). Although BYTEs and WORDs can be accessed in
any order, the diagrams in this section depict accessing the lower address BYTE or WORD first.
DS00001909A-page 68
2015 Microchip Technology Inc.
LAN9252
9.4.4.1
Dual Phase Address Latching
The figures in this section detail read and write operations in multiplexed addressing mode with dual phase address
latching for 16 and 8-bit modes.
16-BIT READ
The address is latched sequentially from AD[7:0]. AD[15:8] is not used or driven for the address phase. A read on
AD[15:0] follows. The cycle is repeated for the other 16-bits of the DWORD.
FIGURE 9-3:
MULTIPLEXED ADDRESSING WITH DUAL PHASE LATCHING - 16-BIT READ
ALELO
ALEHI
Optional
CS
Optional
RD
WR
Data 15:8
AD[15:8]
AD[7:0]
Address Low
Address High
Data 7:0
Data 31:24
Address+1 Low Address High
Data 23:16
16-BIT READ WITH SUPPRESSED ALEHI
The address is latched sequentially from AD[7:0]. AD[15:8] is not used or driven for the address phase. A read on
AD[15:0] follows. The lower address is then updated to access the opposite WORD.
FIGURE 9-4:
MULTIPLEXED ADDRESSING WITH DUAL PHASE LATCHING - 16-BIT READ
WITHOUT ALEHI
ALELO
ALEHI
Optional
CS
Optional
RD
WR
Data 15:8
AD[15:8]
AD[7:0]
Address Low
2015 Microchip Technology Inc.
Address High
Data 7:0
Data 31:24
Address+1 Low
Data 23:16
DS00001909A-page 69
LAN9252
16-BIT WRITE
The address is latched sequentially from AD[7:0]. AD[15:8] is not used or driven for the address phase. A write on
AD[15:0] follows. The cycle is repeated for the other 16-bits of the DWORD.
FIGURE 9-5:
MULTIPLEXED ADDRESSING WITH DUAL PHASE LATCHING - 16-BIT WRITE
ALELO
ALEHI
Optional
CS
Optional
RD
WR
Data 15:8
AD[15:8]
AD[7:0]
Address Low
Address High
Data 7:0
Data 31:24
Address+1 Low Address High
Data 23:16
16-BIT WRITE WITH SUPPRESSED ALEHI
The address is latched sequentially from AD[7:0]. AD[15:8] is not used or driven for the address phase. A write on
AD[15:0] follows. The lower address is then updated to access the opposite WORD.
FIGURE 9-6:
MULTIPLEXED ADDRESSING WITH DUAL PHASE LATCHING - 16-BIT WRITE
WITHOUT ALEHI
ALELO
ALEHI
Optional
CS
Optional
RD
WR
Data 15:8
AD[15:8]
AD[7:0]
DS00001909A-page 70
Address Low
Address High
Data 7:0
Data 31:24
Address+1 Low
Data 23:16
2015 Microchip Technology Inc.
LAN9252
16-BIT READS AND WRITES TO CONSTANT ADDRESS
The address is latched sequentially from AD[7:0]. AD[15:8] is not used or driven for the address phase. A mix of reads
and writes on AD[15:0] follows.
Note:
Generally, two 16-bit reads to opposite WORDs of the same DWORD are required, with at least the lower
address changing using ALELO. 16-bit reads and writes to the same WORD is a special case.
FIGURE 9-7:
MULTIPLEXED ADDRESSING WITH DUAL PHASE LATCHING - 16-BIT READS
AND WRITES CONSTANT ADDRESS
ALELO
ALEHI
Optional
CS
RD
WR
AD[15:8]
AD[7:0]
Address Low
Address High
Data 15:8
Data 15:8
Data 15:8
Data 15:8
Data 15:8
Data 7:0
Data 7:0
Data 7:0
Data 7:0
Data 7:0
8-BIT READ
The address is latched sequentially from AD[7:0]. A read on AD[7:0] follows. AD[15:8] pins are not used or driven. The
cycle is repeated for the other BYTEs of the DWORD.
FIGURE 9-8:
MULTIPLEXED ADDRESSING WITH DUAL PHASE LATCHING - 8-BIT READS
ALELO
ALEHI
Optional
CS
Optional
Optional
Optional
RD
WR
Hi-Z
AD[15:8]
AD[7:0]
Address Low
Address High
Data 7:0
2015 Microchip Technology Inc.
Address+1 Low Address High
Data 15:8
Address+2 Low Address High
Data 23:16
Address+3 Low Address High
Data 31:24
DS00001909A-page 71
LAN9252
8-BIT READ WITH SUPPRESSED ALEHI
The address is latched sequentially from AD[7:0]. A read on AD[7:0] follows. AD[15:8] pins are not used or driven. The
lower address is then updated to access the other BYTEs.
FIGURE 9-9:
MULTIPLEXED ADDRESSING WITH DUAL PHASE LATCHING - 8-BIT READS
WITHOUT ALEHI
ALELO
ALEHI
Optional
CS
Optional
Optional
Optional
RD
WR
Hi-Z
AD[15:8]
AD[7:0]
Address Low
Address High
Data 7:0
Address+1 Low
Data 15:8
Address+2 Low
Data 23:16
Address+3 Low
Data 31:24
8-BIT WRITE
The address is latched sequentially from AD[7:0]. A write on AD[7:0] follows. AD[15:8] pins are not used or driven. The
cycle is repeated for the other BYTEs of the DWORD.
FIGURE 9-10:
MULTIPLEXED ADDRESSING WITH DUAL PHASE LATCHING - 8-BIT WRITE
ALELO
ALEHI
Optional
CS
Optional
Optional
Optional
RD
WR
Hi-Z
AD[15:8]
AD[7:0]
Address Low
Address High
DS00001909A-page 72
Data 7:0
Address+1 Low Address High
Data 15:8
Address+2 Low Address High
Data 23:16
Address+3 Low Address High
Data 31:24
2015 Microchip Technology Inc.
LAN9252
8-BIT WRITE WITH SUPPRESSED ALEHI
The address is latched sequentially from AD[7:0]. A write on AD[7:0] follows. AD[15:8] pins are not used or driven. The
lower address is then updated to access the other BYTEs.
FIGURE 9-11:
MULTIPLEXED ADDRESSING WITH DUAL PHASE LATCHING - 8-BIT WRITE
WITHOUT ALEHI
ALELO
ALEHI
Optional
CS
Optional
Optional
Optional
RD
WR
Hi-Z
AD[15:8]
AD[7:0]
Address Low
Address High
Data 7:0
Address+1 Low
Data 15:8
Address+2 Low
Data 23:16
Address+3 Low
Data 31:24
8-BIT READS AND WRITES TO CONSTANT ADDRESS
The address is latched sequentially from AD[7:0]. A mix of reads and writes on AD[7:0] follows. AD[15:8] pins are not
used or driven.
Note:
Generally, four 8-bit reads to opposite BYTEs of the same DWORD are required, with at least the lower
address changing using ALELO. 8-bit reads and writes to the same BYTE is a special case.
FIGURE 9-12:
MULTIPLEXED ADDRESSING WITH DUAL PHASE LATCHING - 8-BIT READS
AND WRITES CONSTANT ADDRESS
ALELO
ALEHI
Optional
CS
RD
WR
Hi-Z
AD[15:8]
AD[7:0]
Address Low
2015 Microchip Technology Inc.
Address High
Data 7:0
Data 7:0
Data 7:0
Data 7:0
Data 7:0
DS00001909A-page 73
LAN9252
9.4.4.2
Single Phase Address Latching
The figures in this section detail multiplexed addressing mode with single phase addressing for 16 and 8-bit modes of
operation.
16-BIT READ
The address is latched simultaneously from AD[7:0] and AD[15:8]. A read on AD[15:0] follows. The cycle is repeated
for the other 16-bits of the DWORD.
FIGURE 9-13:
MULTIPLEXED ADDRESSING WITH SINGLE PHASE LATCHING - 16-BIT READ
ALELO
ALEHI
CS
Optional
Optional
RD
WR
AD[15:8]
Address High
Data 15:8
Address High
Data 31:24
AD[7:0]
Address Low
Data 7:0
Address+1 Low
Data 23:16
16-BIT WRITE
The address is latched simultaneously from AD[7:0] and AD[15:8]. A write on AD[15:0] follows. The cycle is repeated
for the other 16-bits of the DWORD.
FIGURE 9-14:
MULTIPLEXED ADDRESSING WITH SINGLE PHASE LATCHING - 16-BIT WRITE
ALELO
ALEHI
CS
Optional
Optional
RD
WR
DS00001909A-page 74
AD[15:8]
Address High
Data 15:8
Address High
Data 31:24
AD[7:0]
Address Low
Data 7:0
Address+1 Low
Data 23:16
2015 Microchip Technology Inc.
LAN9252
16-BIT READS AND WRITES TO CONSTANT ADDRESS
The address is latched simultaneously from AD[7:0] and AD[15:8]. A mix of reads and writes on AD[15:0] follows.
Note:
Generally, two 16-bit reads to opposite WORDs of the same DWORD are required. 16-bit reads and writes
to the same WORD is a special case.
FIGURE 9-15:
MULTIPLEXED ADDRESSING WITH SINGLE PHASE LATCHING - 16-BIT READS
AND WRITES CONSTANT ADDRESS
ALELO
ALEHI
CS
Optional
RD
WR
AD[15:8]
Address High
Data 15:8
Data 15:8
Data 15:8
Data 15:8
Data 15:8
AD[7:0]
Address Low
Data 7:0
Data 7:0
Data 7:0
Data 7:0
Data 7:0
8-BIT READ
The address is latched simultaneously from AD[7:0] and AD[15:8]. A read on AD[7:0] follows. AD[15:8] pins are not
used or driven for the data phase as the host could potentially continue to drive the upper address on these signals. The
cycle is repeated for the other BYTEs of the DWORD.
FIGURE 9-16:
MULTIPLEXED ADDRESSING WITH SINGLE PHASE LATCHING - 8-BIT READ
ALELO
ALEHI
CS
Optional
Optional
Optional
Optional
RD
WR
AD[15:8]
Address High
AD[7:0]
Address Low
Address High
Data 7:0
2015 Microchip Technology Inc.
Address+1 Low
Address High
Data 15:8
Address+2 Low
Address High
Data 23:16
Address+3 Low
Data 31:24
DS00001909A-page 75
LAN9252
8-BIT WRITE
The address is latched simultaneously from AD[7:0] and AD[15:8]. A write on AD[7:0] follows. AD[15:8] pins are not
used or driven for the data phase as the host could potentially continue to drive the upper address on these signals. The
cycle is repeated for the other BYTEs of the DWORD.
FIGURE 9-17:
MULTIPLEXED ADDRESSING WITH SINGLE PHASE LATCHING - 8-BIT WRITE
ALELO
ALEHI
CS
Optional
Optional
Optional
Optional
RD
WR
AD[15:8]
Address High
AD[7:0]
Address Low
Address High
Data 7:0
Address+1 Low
Address High
Data 15:8
Address+2 Low
Address High
Data 23:16
Address+3 Low
Data 31:24
8-BIT READS AND WRITES TO CONSTANT ADDRESS
The address is latched simultaneously from AD[7:0] and AD[15:8]. A mix of reads and writes on AD[7:0] follows.
AD[15:8] pins are not used or driven for the data phase as the host could potentially continue to drive the upper address
on these signals.
Note:
Generally, four 8-bit reads to opposite BYTEs of the same DWORD are required. 8-bit reads and writes to
the same BYTE is a special case.
FIGURE 9-18:
MULTIPLEXED ADDRESSING WITH SINGLE PHASE LATCHING - 8-BIT READS
AND WRITES CONSTANT ADDRESS
ALELO
ALEHI
CS
Optional
RD
WR
AD[15:8]
Address High
AD[7:0]
Address Low
DS00001909A-page 76
Data 7:0
Data 7:0
Data 7:0
Data 7:0
Data 7:0
2015 Microchip Technology Inc.
LAN9252
9.4.4.3
RD_WR / ENB Control Mode Examples
The figures in this section detail read and write operations utilizing the alternative RD_WR and ENB signaling. The HBI
read/write mode is selectable via the HBI Read/Write Mode bit of the PDI Configuration Register (HBI Modes).
Note:
The examples in this section detail 16-bit mode with dual phase latching. However, the RD_WR and ENB
signaling can be used identically in all other multiplexed addressing modes of operation.
The examples in this section show the ENB signal active-high and the RD_WR signal low for read and high
for write. The polarities of the RD_WR and ENB signals are selectable via the HBI Read, Read/Write Polarity and HBI Write, Enable Polarity bits of the PDI Configuration Register (HBI Modes).
16-BIT
FIGURE 9-19:
MULTIPLEXED ADDRESSING RD_WR / ENB CONTROL MODE EXAMPLE - 16BIT READ
ALELO
ALEHI
Optional
CS
Optional
RD_WR
ENB
Data 15:8
AD[15:8]
AD[7:0]
FIGURE 9-20:
Address Low
Address High
Data 7:0
Data 31:24
Address+1 Low Address High
Data 23:16
MULTIPLEXED ADDRESSING RD_WR / ENB CONTROL MODE EXAMPLE - 16BIT WRITE
ALELO
ALEHI
Optional
CS
Optional
RD_WR
ENB
Data 15:8
AD[15:8]
AD[7:0]
Address Low
2015 Microchip Technology Inc.
Address High
Data 7:0
Data 31:24
Address+1 Low Address High
Data 23:16
DS00001909A-page 77
LAN9252
9.4.5
MULTIPLEXED ADDRESSING MODE TIMING REQUIREMENTS
The following figures and tables specify the timing requirements during Multiplexed Address / Data mode. Since timing
requirements are similar across the multitude of operations (e.g. dual vs. single phase, 8 vs. 16-bit), many timing
requirements are illustrated onto the same figures and do not necessarily represent any particular functional operation.
The following should be noted for the timing specifications in this section:
• The diagrams in this section depict active-high ALEHI/ALELO, CS, RD, WR, RD_WR and ENB signals. The
polarities of these signals are selectable via the HBI ALE Polarity, HBI Chip Select Polarity, HBI Read, Read/Write
Polarity, and HBI Write, Enable Polarity bits of the PDI Configuration Register (HBI Modes), respectively. Refer to
Section 9.3, "Control Line Polarity," on page 62 for additional details.
• Qualification of the ALELO and/or ALEHI with the CS signal is selectable via the HBI ALE Qualification bit of the
PDI Configuration Register (HBI Modes). This is shown as a dashed line. Timing requirements between ALELO /
ALEHI and CS only apply when this mode is active.
• In dual phase address latching mode, the ALEHI and ALELO cycles can be in any order. ALEHI first is depicted
in solid line. ALELO first is depicted in dashed line.
• A read cycle maybe followed by followed by an address cycle, a write cycle or another read cycle. A write cycle
maybe followed by followed by a read cycle or another write cycle. These are shown in dashed line.
9.4.5.1
Read Timing Requirements
If RD and WR signaling is used, a host read cycle begins when RD is asserted with CS active. The cycle ends when RD
is de-asserted. CS maybe asserted and de-asserted along with RD but not during RD active.
Alternatively, if RD_WR and ENB signaling is used, a host read cycle begins when ENB is asserted with CS active and
RD_WR indicating a read. The cycle ends when ENB is de-asserted. CS maybe asserted and de-asserted along with
ENB but not during ENB active.
Please refer to Section 9.4.4, "Multiplexed Addressing Mode Functional Timing Diagrams," on page 68 for functional
descriptions.
FIGURE 9-21:
MULTIPLEXED ADDRESSING READ CYCLE TIMING
tcsale
tcsrd
trdcs
CS
twale
trdale
ALEHI
taleale
trdale
ALELO
tadrs
tadrh
AD[7:0] input
AD[15:8] input
RD_WR
trdwrs
talerd
trdwrh
trd
trdcyc
trdrd
ENB, RD
trdwr
WR
taledv
trdon, tcson
trddv, tcsdv
trddh, tcsdh
trddz, tcsdz
AD[15:8] output
AD[7:0] output
DS00001909A-page 78
2015 Microchip Technology Inc.
LAN9252
TABLE 9-1:
MULTIPLEXED ADDRESSING READ CYCLE TIMING VALUES
Symbol
Description
Min
Typ
max
units
tcsale
CS Setup to ALELO, ALEHI Active
Note 3, Note 2
0
ns
tcsrd
CS Setup to RD or ENB Active
0
ns
trdcs
CS Hold from RD or ENB Inactive
0
ns
twale
ALELO, ALEHI Pulse Width
10
ns
tadrs
Address Setup to ALELO, ALEHI Inactive
10
ns
tadrh
Address Hold from ALELO, ALEHI Inactive
5
ns
taleale
ALELO Inactive to ALEHI Active
ALEHI Inactive to ALELO Active
Note 1, Note 2
0
ns
talerd
ALELO, ALEHI Inactive to RD or ENB Active
Note 2
5
ns
trdwrs
RD_WR Setup to ENB Active
Note 4
5
ns
trdwrh
RD_WR Hold from ENB Inactive
Note 4
5
ns
trdon
RD or ENB to Data Buffer Turn On
0
ns
trddv
RD or ENB Active to Data Valid
trddh
Data Output Hold Time from RD or ENB Inactive
trddz
Data Buffer Turn Off Time from RD or ENB Inactive
tcson
CS to Data Buffer Turn On
tcsdv
CS Active to Data Valid
tcsdh
Data Output Hold Time from CS Inactive
tcsdz
Data Buffer Turn Off Time from CS Inactive
9
ns
taledv
ALELO, ALEHI Inactive to Data Valid
Note 2
35
ns
30
0
ns
ns
9
0
ns
ns
30
0
ns
ns
trd
RD or ENB Active Time
32
ns
trdcyc
RD or ENB Cycle Time
45
ns
trdale
RD or ENB De-assertion Time before Address Phase
13
ns
trdrd
RD or ENB De-assertion Time before Next RD or ENB
Note 5
13
ns
trdwr
RD De-assertion Time before Next WR
Note 5, Note 6
13
ns
Note 1: Dual Phase Addressing
Note 2: Depends on ALEHI / ALELO order.
2015 Microchip Technology Inc.
DS00001909A-page 79
LAN9252
Note 3: ALELO and/or ALEHI qualified with the CS.
Note 4: RD_WR and ENB signaling.
Note 5: No interposed address phase.
Note 6: RD and WR signaling.
Note:
9.4.5.2
Timing values are with respect to an equivalent test load of 25 pF.
Write Timing Requirements
If RD and WR signaling is used, a host write cycle begins when WR is asserted with CS active. The cycle ends when
WR is de-asserted. CS maybe asserted and de-asserted along with WR but not during WR active.
Alternatively, if RD_WR and ENB signaling is used, a host write cycle begins when ENB is asserted with CS active and
RD_WR indicating a write. The cycle ends when ENB is de-asserted. CS maybe asserted and de-asserted along with
ENB but not during ENB active.
Please refer to Section 9.4.4, "Multiplexed Addressing Mode Functional Timing Diagrams," on page 68 for functional
descriptions.
FIGURE 9-22:
MULTIPLEXED ADDRESSING WRITE CYCLE TIMING
tcsale
tcswr
twrcs
CS
twale
twrale
ALEHI
taleale
twrale
ALELO
tadrs
tadrh
AD[7:0] input
AD[15:8] input
RD_WR
tds
tdh
trdwrh
trdwrs
talewr
twr
twrcyc
twrwr
ENB, WR
twrrd
RD
DS00001909A-page 80
2015 Microchip Technology Inc.
LAN9252
TABLE 9-2:
MULTIPLEXED ADDRESSING WRITE CYCLE TIMING VALUES
Symbol
Description
Min
Typ
Max
Units
tcsale
CS Setup to ALELO, ALEHI Active
Note 9, Note 8
0
ns
tcswr
CS Setup to WR or ENB Active
0
ns
twrcs
CS Hold from WR or ENB Inactive
0
ns
twale
ALELO, ALEHI Pulse Width
10
ns
tadrs
Address Setup to ALELO, ALEHI Inactive
10
ns
tadrh
Address Hold from ALELO, ALEHI Inactive
5
ns
taleale
ALELO Inactive to ALEHI Active
ALEHI Inactive to ALELO Active
Note 7, Note 8
0
ns
talewr
ALELO, ALEHI Inactive to WR or ENB Active
Note 8
5
ns
trdwrs
RD_WR Setup to ENB Active
Note 10
5
ns
trdwrh
RD_WR Hold from ENB Inactive
Note 10
5
ns
tds
Data Setup to WR or ENB Inactive
7
ns
tdh
Data Hold from WR or ENB Inactive
0
ns
twr
WR or ENB Active Time
32
ns
twrcyc
WR or ENB Cycle Time
45
ns
twrale
WR or ENB De-assertion Time before Address Phase
13
ns
twrwr
WR or ENB De-assertion Time before Next WR or ENB
Note 11
13
ns
twrrd
WR De-assertion Time before Next RD
Note 11, Note 12
13
ns
Note 7: Dual Phase Addressing
Note 8: Depends on ALEHI / ALELO order.
Note 9: ALELO and/or ALEHI qualified with the CS.
Note 10: RD_WR and ENB signaling.
Note 11: No interposed address phase.
Note 12: RD and WR signaling.
2015 Microchip Technology Inc.
DS00001909A-page 81
LAN9252
9.5
Indexed Address Mode
In Indexed Address mode, access to the internal registers and memory of the device are indirectly mapped using Index
and Data registers. The desired internal address is written into the device at a particular offset. The value written is then
used as the internal address when the associate Data register address is accessed. Three Index / Data register sets
are provided allowing for multi-threaded operation without the concern of one thread corrupting the Index set by another
thread. Endianness can be configured per Index / Data pair. Another Data register is provided for access to the FIFOs.
The host address register map is given below. In 8-bit data mode, the host address input (ADDR[4:0]) is a BYTE
address. In 16-bit data mode, ADDR0 is not provided and the host address input (ADDR[4:1]) is a WORD address.
As discussed below in Section 9.5.5.1, "Index Register Bypass FIFO Access", the EtherCAT Process RAM Data FIFOs
are accessed when reading or writing at address 18h-1Bh.
TABLE 9-3:
HOST BUS INTERFACE INDEXED ADDRESS MODE REGISTER MAP
BYTE
ADDRESS
SYMBOL
00h-03h
HBI_IDX_0
Host Bus Interface Index Register 0
04h-07h
HBI_DATA_0
Host Bus Interface Data Register 0
08h-0Bh
HBI_IDX_1
Host Bus Interface Index Register 1
0Ch-0Fh
HBI_DATA_1
Host Bus Interface Data Register 1
10h-13h
HBI_IDX_2
Host Bus Interface Index Register 2
14h-17h
HBI_DATA_2
Host Bus Interface Data Register 2
18h-1Bh
PROCESS_RAM_FIFO
1Ch-1Fh
HBI_CFG
DS00001909A-page 82
REGISTER NAME
Process RAM Write Data FIFO
Process RAM Read Data FIFO
Host Bus Interface Configuration Register
2015 Microchip Technology Inc.
LAN9252
9.5.1
HOST BUS INTERFACE INDEX REGISTER
The Index registers are writable as WORDs or as BYTEs, depending upon the data mode. There is no concern about
DWORD assembly rules when writing these registers. The Index registers are formatted as follows:
Bits
Description
Type
Default
31:16
RESERVED
RO
-
15:0
Internal Address
The address used when the corresponding Data register is accessed.
R/W
1234h
Note 13
Note:
The internal address provided by each Index register is always
considered to be a BYTE address.
Note 13: The default may be used to help determine the endianness of the register.
9.5.2
HOST BUS INTERFACE CONFIGURATION REGISTER
The HBI Configuration register is used to specify the endianness of the interface. Endianess for each Index / Data pair
and for FIFO accesses can be individually specified.
The endianness of this register is irrelevant since each byte is shadowed into 4 positions.
The HBI Configuration register is writable as WORDs or as BYTEs, depending upon the data mode. There is no concern
about DWORD assembly rules when writing this register. The Configuration register is formatted as follows:
Bits
Type
Default
RESERVED
RO
-
27
FIFO Endianness Shadow 3
This bit is a shadow of bit 3.
R/W
0b
26
Host Bus Interface Index / Data Register 2 Endianness Shadow 3
This bit is a shadow of bit 2.
R/W
0b
25
Host Bus Interface Index / Data Register 1 Endianness Shadow 3
This bit is a shadow of bit 1.
R/W
0b
24
Host Bus Interface Index / Data Register 0 Endianness Shadow 3
This bit is a shadow of bit 0.
R/W
0b
RESERVED
RO
-
19
FIFO Endianness Shadow 2
This bit is a shadow of bit 3.
R/W
0b
18
Host Bus Interface Index / Data Register 2 Endianness Shadow 2
This bit is a shadow of bit 2.
R/W
0b
17
Host Bus Interface Index / Data Register 1 Endianness Shadow 2
This bit is a shadow of bit 1.
R/W
0b
16
Host Bus Interface Index / Data Register 0 Endianness Shadow 2
This bit is a shadow of bit 0.
R/W
0b
RESERVED
RO
-
11
FIFO Endianness Shadow 1
This bit is a shadow of bit 3.
R/W
0b
10
Host Bus Interface Index / Data Register 2 Endianness Shadow 1
This bit is a shadow of bit 2.
R/W
0b
31:28
23:20
15:12
Description
2015 Microchip Technology Inc.
DS00001909A-page 83
LAN9252
Bits
Description
Type
Default
9
Host Bus Interface Index / Data Register 1 Endianness Shadow 1
This bit is a shadow of bit 1.
R/W
0b
8
Host Bus Interface Index / Data Register 0 Endianness Shadow 1
This bit is a shadow of bit 0.
R/W
0b
RESERVED
RO
-
FIFO Endianness
This bit specifies the endianness of FIFO accesses when they are accessed
by means other than the Index / Data Register method.
R/W
0b
R/W
0b
R/W
0b
R/W
0b
7:4
3
0 = Little Endian
1 = Big Endian
Note:
2
In order to avoid any ambiguity with the endianness of this
register, bits 3, 11, 19 and 27 are shadowed. If any of these bits
are set during a write, all of the bits will be set.
Host Bus Interface Index / Data Register 2 Endianness
This bit specifies the endianness of the Index and Data register set 2.
0 = Little Endian
1 = Big Endian
Note:
1
In order to avoid any ambiguity with the endianness of this
register, bits 2, 10, 18 and 26 are shadowed. If any of these bits
are set during a write, all of the bits will be set.
Host Bus Interface Index / Data Register 1 Endianness
This bit specifies the endianness of the Index and Data register set 1.
0 = Little Endian
1 = Big Endian
Note:
0
In order to avoid any ambiguity with the endianness of this
register, bits 1, 9, 17 and 25 are shadowed. If any of these bits
are set during a write, all of the bits will be set.
Host Bus Interface Index / Data Register 0 Endianness
This bit specifies the endianness of the Index and Data register set 0.
0 = Little Endian
1 = Big Endian
Note:
DS00001909A-page 84
In order to avoid any ambiguity with the endianness of this
register, bits 0, 8, 16 and 24 are shadowed. If any of these bits
are set during a write, all of the bits will be set.
2015 Microchip Technology Inc.
LAN9252
9.5.3
INDEX AND CONFIGURATION REGISTER DATA ACCESS
The host data bus can be 16 or 8-bits wide. The HBI Index registers and the HBI Configuration register are 32-bits wide
and are writable as WORDs or as BYTEs, depending upon the data mode. They do not have nor do they require
WORDs or BYTEs to DWORD conversion.
9.5.3.1
Write Cycles
A write cycle occurs when CS and WR are active (or when ENB is active with RD_WR indicating write).
On the trailing edge of the write cycle (either WR or CS or ENB going inactive), the host data is captured into the Configuration register or one for the Index registers.
Depending on the bus width, either a WORD or a BYTE is written. The affected WORD or BYTE is determined by the
endianness of the register (specified in the Host Bus Interface Configuration Register) and the lower address inputs.
Individual BYTE (in 16-bit data mode) access is not supported.
WRITES FOLLOWING INITIALIZATION
Following device initialization, writes from the Host Bus are ignored until after a read cycle is performed.
WRITES DURING AND FOLLOWING POWER MANAGEMENT
During and following any power management mode other than D0, writes from the Host Bus are ignored until after a
read cycle is performed.
9.5.3.2
Read Cycles
A read cycle occurs when CS and RD are active (or when ENB is active with RD_WR indicating read). The host address
is used directly from the Host Bus.
At the beginning of the read cycle, the appropriate register is selected and its data is driven onto the data pins. Depending on the bus width, either a WORD or a BYTE is read. For 8 or 16-bit data modes, the returned BYTE or WORD is
determined by the endianness of the register (specified in the Host Bus Interface Configuration Register) and the lower
host address inputs.
9.5.4
INTERNAL REGISTER DATA ACCESS
The host data bus can be 16 or 8-bits wide while all internal registers are 32 bits wide. The Host Bus Interface performs
the conversion from WORDs or BYTEs to DWORD, while in 8 or 16-bit data mode. Two or four accesses within the
same DWORD are required in order to perform a write or read.
Each Data register, along with the FIFO direct address access, has a separate WORD or BYTE to DWORD conversion.
Accesses may be mixed among these (and the HBI Index and Configuration registers) without concern of data corruption.
9.5.4.1
Write Cycles
A write cycle occurs when CS and WR are active (or when ENB is active with RD_WR indicating write). The host
address from the Host Bus selects the contents of one of the Index registers. The result of this operation is captured on
the leading edge of the write cycle.
The host address inputs from the Host Bus are also captured on the leading edge of the write cycle. These are used to
increment the appropriate write BYTE / WORD counter (for 8 or 16-bit data mode described below) as well as to select
the correct DWORD assembly register.
On the trailing edge of the write cycle (either WR or CS or ENB going inactive), the host data is captured into one of the
Data registers. Depending on the bus width, either a WORD or a BYTE is captured. For 8 or 16-bit data modes, this
functions as the DWORD assembly with the affected WORD or BYTE determined by the lower host address inputs.
BYTE swapping is also done at this point based on the endianness of the register (specified in the Host Bus Interface
Configuration Register).
Note:
There are separate write BYTE / WORD counters and DWORD assembly registers for each of the three
Data Registers as well as for FIFO access.
WRITES FOLLOWING INITIALIZATION
Following device initialization, writes from the Host Bus are ignored until after a read cycle is performed.
2015 Microchip Technology Inc.
DS00001909A-page 85
LAN9252
WRITES DURING AND FOLLOWING POWER MANAGEMENT
During and following any power management mode other than D0, writes from the Host Bus are ignored until after a
read cycle is performed.
8 AND 16-BIT ACCESS
While in 8 or 16-bit data mode, the host is required to perform two or four, 16 or 8-bit writes to complete a single DWORD
transfer. No ordering requirements exist. The host can access either the low or high WORD or BYTE first, as long as
the other write(s) is(are) performed to the remaining WORD or BYTEs.
Note:
Writing the same WORD or BYTEs into the same DWORD may cause undefined or undesirable operation.
The HBI hardware does not protect against this operation.
Accessing the same internal register using two Index / Data register pairs may cause undefined or undesirable operation. The HBI hardware does not protect against this operation.
Mixing reads and writes into the same Data register may cause undefined or undesirable operation. The
HBI hardware does not protect against this operation.
A write BYTE / WORD counter keeps track of the number of writes. Each Data Register has its own BYTE / WORD
counter. At the trailing edge of the write cycle, the appropriate counter (based on the captured host address from above)
is incremented. Once all writes occur, a 32-bit write is performed to the internal register selected by the captured address
from above. The data that is written is selected from one of the three DWORD assembly registers based on the captured
host address from above.
All of the write BYTE / WORD counters are reset if the power management mode is set to anything other than D0.
9.5.4.2
Read Cycles
A read cycle occurs when CS and RD are active (or when ENB is active with RD_WR indicating read). The host address
from the Host Bus selects the contents of one of the Index registers. The result of this operation is used to select the
internal register to be read and also is captured on the leading edge of the read cycle.
The host address inputs from the Host Bus are also captured on the leading edge of the read cycle. These are used to
increment the appropriate read BYTE / WORD counter (for 8 or 16-bit data mode described below).
At the beginning of the read cycle, the appropriate register is selected and its data is driven onto the data pins. Depending on the bus width, either a WORD or a BYTE is read. For 8 or 16-bit data modes, the returned BYTE or WORD is
determined by the endianness of the Data register (specified in the Host Bus Interface Configuration Register) and the
lower host address inputs.
Note:
There are separate read BYTE / WORD counters for each of the three Data Registers as well as for FIFO
access.
POLLING FOR INITIALIZATION COMPLETE
Before device initialization, the HBI will not return valid data. To determine when the HBI is functional, first the Host Bus
Interface Index Register 0 should be polled, then the Byte Order Test Register (BYTE_TEST) should be polled. Once
the correct pattern is read, the interface can be considered functional. At this point, the Device Ready (READY) bit in
the Hardware Configuration Register (HW_CFG) can be polled to determine when the device is fully configured.
READS DURING AND FOLLOWING POWER MANAGEMENT
During any power management mode other than D0, reads from the Host Bus are ignored. If the power management
mode changes back to D0 during an active read cycle, the tail end of the read cycle is ignored. Internal registers are not
affected and the state of the HBI does not change.
DS00001909A-page 86
2015 Microchip Technology Inc.
LAN9252
8 AND 16-BIT ACCESS
For certain register accesses, the host is required to perform two or four consecutive 16 or 8-bit reads to complete a
single DWORD transfer. No ordering requirements exist. The host can access either the low or high WORD or BYTE
first, as long as the other read(s) is(are) performed from the remaining WORD or BYTEs.
Note:
Reading the same WORD or BYTEs from the same DWORD may cause undefined or undesirable operation. The HBI hardware does not protect against this operation. The HBI simply counts that four BYTEs
have been read.
Accessing the same internal register using two Index / Data register pairs may cause undefined or undesirable operation. The HBI hardware does not protect against this operation.
Mixing reads and writes into the same Data register may cause undefined or undesirable operation. The
HBI hardware does not protect against this operation.
A read BYTE / WORD counter keeps track of the number of reads. Each Data Register has its own BYTE / WORD
counter. These counters are separate from the write counters above. At the trailing edge of the read cycle, the appropriate counter (based on the captured host address from above) is incremented. On the last read for the DWORD, an
internal read is performed to update any Change on Read CSRs.
All of the read BYTE / WORD counters are reset if the power management mode is set to anything other than D0.
SPECIAL CSR HANDLING
Live Bits
Any register bit that is updated by a H/W event is held at the beginning of the read cycle to prevent it from changing
during the read cycle.
Multiple BYTE / WORD Live Registers in 16 or 8-Bit Modes
Some internal registers have fields or related fields that span across multiple BYTEs or WORDs. For 16 and 8-bit data
reads, it is possible that the value of these fields change between host read cycles. In order to prevent reading intermediate values, these registers are locked when the first byte or word is read and unlocked when the last byte or word is
read.
The registers are unlocked if the power management mode is set to anything other than D0.
Change on Read Registers and FIFOs
FIFOs or “Change on Read” registers, are updated at the end of the read cycle.
For 16 and 8-bit modes, only one internal read cycle is indicated and occurs for the last byte or word.
Change on Read Live Register Bits
As described above, registers with live bits are held starting at the beginning of the read cycle and those that have multiple bits that span across BYTES or WORDS are also locked for 16 and 8-bit accesses. Although a H/W event that
occurs during the hold or lock time would still update the live bit(s), the live bit(s) will be affected (cleared, etc.) at the
end of the read cycle and the H/W event would be lost.
In order to prevent this, the individual CSRs defer the H/W event update until after the read or multiple reads.
Registers Polling During Reset or Initialization
Some registers support polling during reset or device initialization to determine when the device is accessible. For these
registers, only one read may be performed without the need to read the other WORD or BYTEs. The same BYTE or
WORD of the register may be re-read repeatedly.
A register that is 16 or 8-bit readable or readable during reset or device initialization, is noted in its register description.
9.5.4.3
Host Endianness
The device supports big and little endian host byte ordering based upon the endianness bits in the Host Bus Interface
Configuration Register. When the appropriate endianness bit is low, host access is little endian and when high, host
access is big endian. Endianness is specified for each Index / Data pair and for FIFO Direct Select accesses.
All internal busses are 32-bit with little endian byte ordering. Logic within the Host Bus Interface re-orders bytes based
on the appropriate endianness bit, and the state of the least significant address lines (ADDR[1:0]).
2015 Microchip Technology Inc.
DS00001909A-page 87
LAN9252
Data path operations for the supported endian configurations and data bus sizes are illustrated in FIGURE 9-23: Little
Endian Ordering on page 88 and FIGURE 9-24: Big Endian Ordering on page 89.
FIGURE 9-23:
LITTLE ENDIAN ORDERING
8-BIT LITTLE ENDIAN
INTERNAL ORDER
MSB
31
LSB
24
23
3
16
15
2
8
7
1
A=3
3
A=2
2
A=1
1
A=0
0
7
0
0
0
HOST DATA BUS
16-BIT LITTLE ENDIAN
INTERNAL ORDER
MSB
31
LSB
24
23
16
15
8
3
2
1
A=1
3
2
A=0
1
0
15
8
7
7
0
0
0
HOST DATA BUS
DS00001909A-page 88
2015 Microchip Technology Inc.
LAN9252
FIGURE 9-24:
BIG ENDIAN ORDERING
8-BIT BIG ENDIAN
INTERNAL ORDER
MSB
31
LSB
24
23
3
16
15
2
8
7
1
A=3
0
A=2
1
A=1
2
A=0
3
7
0
0
0
HOST DATA BUS
16-BIT BIG ENDIAN
INTERNAL ORDER
MSB
31
LSB
24
23
16
15
8
3
2
1
A=1
0
1
A=0
2
3
15
8
7
7
0
0
0
HOST DATA BUS
2015 Microchip Technology Inc.
DS00001909A-page 89
LAN9252
9.5.5
9.5.5.1
ETHERCAT PROCESS RAM DATA FIFO ACCESS
Index Register Bypass FIFO Access
In addition to the indexed access, the Index Registers can be bypassed and the FIFOs accessed at address 18h-1Bh.
At this address, host write operations are to the EtherCAT Process RAM Write Data FIFO and host read operations are
from EtherCAT Process RAM Read Data FIFO. There is no associated Index Register.
The endianness of FIFO accesses using this method is specified by the FIFO Endianness bit in the Host Bus Interface
Configuration Register.
9.5.6
INDEXED ADDRESS MODE FUNCTIONAL TIMING DIAGRAMS
The following timing diagrams illustrate example indexed (non-multiplexed) addressing mode read and write cycles for
various configurations and bus sizes. These diagrams do not cover every supported host bus permutation, but are
selected to detail the main configuration differences (bus size, Configuration/Index/Data/FIFO-Direct cycles) within the
indexed addressing mode of operation.
The following should be noted for the timing diagrams in this section:
• The diagrams in this section depict active-high CS, RD, and WR signals. The polarities of these signals are selectable via the HBI Chip Select Polarity, HBI Read, Read/Write Polarity, and HBI Write, Enable Polarity bits of the
PDI Configuration Register (HBI Modes), respectively. Refer to Section 9.3, "Control Line Polarity," on page 62 for
additional details.
• The diagrams in this section depict little endian byte ordering. However, configurable big and little endianess are
supported via the endianness bits in the Host Bus Interface Configuration Register. Endianess changes only the
order of the bytes involved, and not the overall timing requirements. Refer to Section 9.5.4.3, "Host Endianness,"
on page 87 for additional information.
• The diagrams in this section utilize RD and WR signals. Alternative RD_WR and ENB signaling is also supported,
similar to the multiplexed example in Section 9.4.4.3, "RD_WR / ENB Control Mode Examples". The HBI read/
write mode is selectable via the HBI Read/Write Mode bit of the PDI Configuration Register (HBI Modes). The
polarities of the RD_WR and ENB signals are selectable via the HBI Read, Read/Write Polarity, and HBI Write,
Enable Polarity bits of the PDI Configuration Register (HBI Modes).
• When accessing internal registers or FIFOs in 16 and 8-bit modes, consecutive address cycles must be within the
same DWORD until the DWORD is completely accessed (some internal registers are excluded from this requirement). Although BYTEs and WORDs can be accessed in any order, the diagrams in this section depict accessing
the lower address BYTE or WORD first.
9.5.6.1
Configuration Register Data Access
The figures in this section detail configuration register read and write operations in indexed address mode for 16 and 8bit modes.
DS00001909A-page 90
2015 Microchip Technology Inc.
LAN9252
16-BIT READ AND WRITE
For writes, the address is set to access the lower WORD of the Configuration Register. Data on D[15:0] is written on the
trailing edge of WR. The cycle repeats for the upper WORD of the Configuration Register, if desired by the host.
For reads, the address is set to access the lower WORD of the Configuration Register. Read data is driven on D[15:0]
during RD active. The cycle repeats for the upper WORD of the Configuration Register, if desired by the host.
FIGURE 9-25:
INDEXED ADDRESSING CONFIGURATION REGISTER ACCESS - 16-BIT WRITE/
READ
A[4:1]
CONFIG,1'b0
CONFIG,1'b1
CONFIG,1'b0
CONFIG,1'b1
CS
RD
WR
D[15:8]
Data 15:8
Data 31:24
Data 15:8
Data 31:24
D[7:0]
Data 7:0
Data 23:16
Data 7:0
Data 23:26
8-BIT READ AND WRITE
For writes, the address is set to access the lower BYTE of the Configuration Register. Data on D[7:0] is written on the
trailing edge of WR. D[15:8] pins are not used or driven. The cycle repeats for the remaining BYTEs of the Configuration
Register, if desired by the host.
For reads, the address is set to access the lower BYTE of the Configuration Register. Read data is driven on D[7:0]
during RD active. D[15:8] pins are not used or driven. The cycle repeats for the remaining BYTEs of the Configuration
Register, if desired by the host.
FIGURE 9-26:
A[4:0]
CONFIG,2'b00
INDEXED ADDRESSING CONFIGURATION REGISTER ACCESS - 8-BIT WRITE/
READ
CONFIG,2'b01
CONFIG,2'b10
CONFIG,2'b11
CONFIG,2'b00
CONFIG,2'b01
CONFIG,2'b10
CONFIG,2'b11
Data 7:0
Data 15:8
Data 23:16
Data 31:24
CS
RD
WR
Hi-Z
D[15:8]
D[7:0]
Data 7:0
Data 15:8
2015 Microchip Technology Inc.
Data 23:16
Data 31:24
DS00001909A-page 91
LAN9252
9.5.6.2
Index Register Data Access
The figures in this section detail index register read and write operations in indexed address mode for 16 and 8-bit
modes.
16-BIT READ AND WRITE
For writes, the address is set to access the lower WORD of one of the Index Registers. Data on D[15:0] is written on
the trailing edge of WR. The cycle repeats for the upper WORD of the Index Register, if desired by the host.
For reads, the address is set to access the lower WORD of one of the Index Registers. Read data is driven on D[15:0]
during RD active. The cycle repeats for the upper WORD of the Index Register, if desired by the host.
Note:
The upper WORD of Index Registers is reserved and don’t care. Therefore reads and writes to that WORD
are not useful.
FIGURE 9-27:
INDEXED ADDRESSING INDEX REGISTER ACCESS - 16-BIT WRITE/READ
A[4:1]
INDEX,1'b0
INDEX,1'b1
INDEX,1'b0
INDEX,1'b1
CS
RD
WR
D[15:8]
Index 15:8
8'hXX
Index 15:8
8'hXX
D[7:0]
Index 7:0
8'hXX
Index 7:0
8'hXX
8-BIT READ AND WRITE
For writes, the address is set to access the lower BYTE of one of the Index Registers. Data on D[7:0] is written on the
trailing edge of WR. D[15:8] pins are not used or driven. The cycle repeats for the remaining BYTEs of the Index Register, if desired by the host.
For reads, the address is set to access the lower BYTE of one of the Index Registers. Read data is driven on D[7:0]
during RD active. D[15:8] pins are not used or driven. The cycle repeats for the remaining BYTEs of the Index Register,
if desired by the host.
DS00001909A-page 92
2015 Microchip Technology Inc.
LAN9252
Note:
The upper WORD of Index Registers is reserved and don’t care. Therefore reads and writes to those
BYTEs are not useful.
FIGURE 9-28:
A[4:0]
INDEX,2'b00
INDEXED ADDRESSING INDEX REGISTER ACCESS - 8-BIT WRITE/READ
INDEX,2'b01
INDEX,2'b10
INDEX,2'b11
INDEX,2'b00
INDEX,2'b01
INDEX,2'b10
INDEX,2'b11
Index 7:0
Index 15:8
8'hXX
8'hXX
CS
RD
WR
Hi-Z
D[15:8]
D[7:0]
9.5.6.3
Index 7:0
Index 15:8
8'hXX
8'hXX
Internal Register Data Access
The figures in this section detail typical internal register data read and write cycles in indexed address mode for 16 and
8-bit modes. This includes an index register write followed by either a data read or write.
16-BIT READ
One of the Index Registers is set as described above. The address is then set to access the lower WORD of the corresponding Data Register. Read data is driven on D[15:0] during RD active. The cycle repeats for the upper WORD of the
Data Register.
FIGURE 9-29:
INDEXED ADDRESSING INTERNAL REGISTER DATA ACCESS - 16-BIT READ
A[4:1]
INDEX,1'b0
INDEX,1'b1
DATA,1'b0
DATA,1'b1
CS
RD
WR
D[15:8]
Index 15:8
8'hXX
Data 15:8
Data 31:24
D[7:0]
Index 7:0
8'hXX
Data 7:0
Data 23:16
2015 Microchip Technology Inc.
DS00001909A-page 93
LAN9252
16-BIT WRITE
One of the Index Registers is set as described above. The address is then set to access the corresponding Data Register. Data on D[15:0] is written on the trailing edge of WR. The cycle repeats for the upper WORD of the Data Register.
FIGURE 9-30:
INDEXED ADDRESSING INTERNAL REGISTER DATA ACCESS - 16-BIT WRITE
A[4:1]
INDEX,1'b0
INDEX,1'b1
DATA,1'b0
DATA,1'b1
CS
RD
WR
D[15:8]
Index 15:8
8'hXX
Data 15:8
Data 31:24
D[7:0]
Index 7:0
8'hXX
Data 7:0
Data 23:16
16-BIT READS AND WRITES TO CONSTANT INTERNAL ADDRESS
One of the Index Registers is set as described above. A mix of reads and writes on D[15:0] follows, with each read or
write consisting of an access to both the lower and upper WORDs of the corresponding Data Register.
FIGURE 9-31:
A[4:1]
INDEX,1'b0
INDEXED ADDRESSING INTERNAL REGISTER DATA ACCESS - 16-BIT READS/
WRITES CONSTANT ADDRESS
INDEX,1'b1
DATA,1'b0
DATA,1'b1
DATA,1'b0
DATA,1'b1
DATA,1'b0
DATA,1'b1
DATA,1'b0
DATA,1'b1
DATA,1'b0
DATA,1'b1
CS
RD
WR
D[15:8]
Index 15:8
8'hXX
Data 15:8
Data 31:24
Data 15:8
Data 31:24
Data 15:8
Data 31:24
Data 15:8
Data 31:24
Data 15:8
Data 31:24
D[7:0]
Index 7:0
8'hXX
Data 7:0
Data 23:16
Data 7:0
Data 23:16
Data 7:0
Data 23:16
Data 7:0
Data 23:16
Data 7:0
Data 23:16
DS00001909A-page 94
2015 Microchip Technology Inc.
LAN9252
8-BIT READ
One of the Index Registers is set as described above. The address is then set to access the lower BYTE of the corresponding Data Register. Read data is driven on D[7:0] during RD active. D[15:8] pins are not used or driven. The cycle
repeats for the remaining BYTEs of the Data Register.
FIGURE 9-32:
A[4:0]
INDEX,2'b00
INDEXED ADDRESSING INTERNAL REGISTER DATA ACCESS - 8-BIT READ
INDEX,2'b01
INDEX,2'b10
INDEX,2'b11
DATA,2'b00
DATA,2'b01
DATA,2'b10
DATA,2'b11
Data 7:0
Data 15:8
Data 23:16
Data 31:24
CS
RD
WR
Hi-Z
D[15:8]
D[7:0]
Index 7:0
Index 15:8
8'hXX
8'hXX
8-BIT WRITE
One of the Index Registers is set as described above. The address is then set to access the corresponding Data Register. Data on D[7:0] is written on the trailing edge of WR. D[15:8] pins are not used or driven. The cycle repeats for the
remaining BYTEs of the Data Register.
FIGURE 9-33:
A[4:0]
INDEX,2'b00
INDEXED ADDRESSING INTERNAL REGISTER DATA ACCESS - 8-BIT WRITE
INDEX,2'b01
INDEX,2'b10
INDEX,2'b11
DATA,2'b00
DATA,2'b01
DATA,2'b10
DATA,2'b11
CS
RD
WR
Hi-Z
D[15:8]
D[7:0]
Index 7:0
Index 15:8
2015 Microchip Technology Inc.
8'hXX
8'hXX
Data 7:0
Data 15:8
Data 23:16
Data 31:24
DS00001909A-page 95
LAN9252
8-BIT READS AND WRITES TO CONSTANT INTERNAL ADDRESS
One of the Index Registers is set as described above. A mix of reads and writes on D[7:0] follows, with each read or
write consisting of an access to all four BYTES of the corresponding Data Register.
FIGURE 9-34:
A[4:0]
INDEX,2'b00
INDEXED ADDRESSING INTERNAL REGISTER DATA ACCESS - 8-BIT READS/
WRITES CONSTANT ADDRESS
INDEX,2'b01
INDEX,2'b10
INDEX,2'b11
DATA,2'b00
DATA,2'b01
DATA,2'b10
DATA,2'b10
DATA,2'b11
Data 23:16
Data 31:24
DATA,2'b00
DATA,2'b01
DATA,2'b10
CS
RD
WR
Hi-Z
D[15:8]
D[7:0]
A[4:0]
Index 7:0
Index 15:8
DATA,2'b10
8'hXX
DATA,2'b11
8'hXX
Data 7:0
Data 15:8
Data 23:16
DATA,2'b00
DATA,2'b01
DATA,2'b10
DATA,2'b10
DATA,2'b11
Data 7:0
Data 15:8
Data 23:16
Data 23:16
Data 31:24
Data 7:0
Data 15:8
Data 23:16
CS
RD
WR
D[15:8]
D[7:0]
9.5.6.4
Data 23:16
Data 31:24
RD_WR / ENB Control Mode Examples
The figures in this section detail read and write operations utilizing the alternative RD_WR and ENB signaling. The HBI
read/write mode is selectable via the HBI Read/Write Mode bit of the PDI Configuration Register (HBI Modes).
Note:
The examples in this section detail 16-bit mode with access to an Index Register. However, the RD_WR
and ENB signaling can be used identically for all other accesses including FIFO Direct Select Access.
The examples in this section show the ENB signal active-high and the RD_WR signal low for read and high
for write. The polarities of the RD_WR and ENB signals are selectable via the HBI Read, Read/Write Polarity and HBI Write, Enable Polarity bits of the PDI Configuration Register (HBI Modes).
DS00001909A-page 96
2015 Microchip Technology Inc.
LAN9252
16-BIT
FIGURE 9-35:
INDEXED ADDRESSING RD_WR / ENB CONTROL MODE EXAMPLE - 16-BIT
WRITE/READ
A[4:1]
INDEX,1'b0
INDEX,1'b1
INDEX,1'b0
INDEX,1'b1
CS
RD_WR
ENB
D[15:8]
Index 15:8
8'hXX
Index 15:8
8'hXX
D[7:0]
Index 7:0
8'hXX
Index 7:0
8'hXX
2015 Microchip Technology Inc.
DS00001909A-page 97
LAN9252
9.5.7
INDEXED ADDRESSING MODE TIMING REQUIREMENTS
The following figures and tables specify the timing requirements during Indexed Address mode. Since timing requirements are similar across the multitude of operations (e.g. 8 vs. 16-bit, Index vs. Configuration vs. Data registers, FIFO
Direct Select), many timing requirements are illustrated in the same figures and do not necessarily represent any particular functional operation.
The following should be noted for the timing specifications in this section:
• The diagrams in this section depict active-high CS, RD, WR, RD_WR and ENB signals. The polarities of these signals are selectable via the HBI Chip Select Polarity, HBI Read, Read/Write Polarity, and HBI Write, Enable Polarity bits of the PDI Configuration Register (HBI Modes), respectively. Refer to Section 9.3, "Control Line Polarity,"
on page 62 for additional details.
• A read cycle maybe followed by followed by a write cycle or another read cycle. A write cycle maybe followed by
followed by a read cycle or another write cycle. These are shown in dashed line.
9.5.7.1
Read Timing Requirements
If RD and WR signaling is used, a host read cycle begins when RD is asserted with CS active. The cycle ends when RD
is de-asserted. CS maybe asserted and de-asserted along with RD but not during RD active.
Alternatively, if RD_WR and ENB signaling is used, a host read cycle begins when ENB is asserted with CS active and
RD_WR indicating a read. The cycle ends when ENB is de-asserted. CS maybe asserted and de-asserted along with
ENB but not during ENB active.
Please refer to Section 9.5.6, "Indexed Address Mode Functional Timing Diagrams," on page 90 for functional descriptions.
FIGURE 9-36:
INDEXED ADDRESSING READ CYCLE TIMING
tcsrd
trdcs
tas
tah
CS
A[4:0]
RD_WR
trdwrs
trdwrh
trd
trdcyc
trdrd
ENB, RD
trdwr
WR
tadv
trdon, tcson
trddv, tcsdv
trddh, tcsdh
trddz, tcsdz
D[15:8]
D[7:0]
DS00001909A-page 98
2015 Microchip Technology Inc.
LAN9252
TABLE 9-4:
INDEXED ADDRESSING READ CYCLE TIMING VALUES
Symbol
Description
Min
Typ
Max
Units
tcsrd
CS Setup to RD or ENB Active
0
ns
trdcs
CS Hold from RD or ENB Inactive
0
ns
tas
Address Setup to RD or ENB Active
0
ns
tah
Address Hold from to RD or ENB Inactive
0
ns
trdwrs
RD_WR Setup to ENB Active
Note 14
5
ns
trdwrh
RD_WR Hold from ENB Inactive
Note 14
5
ns
trdon
RD or ENB to Data Buffer Turn On
0
ns
trddv
RD or ENB Active to Data Valid
trddh
Data Output Hold Time from RD or ENB Inactive
trddz
Data Buffer Turn Off Time from RD or ENB Inactive
tcson
CS to Data Buffer Turn On
tcsdv
CS Active to Data Valid
tcsdh
Data Output Hold Time from CS Inactive
tcsdz
Data Buffer Turn Off Time from CS Inactive
9
ns
tadv
Address to Data Valid
30
ns
trd
RD or ENB Active Time
32
ns
trdcyc
RD or ENB Cycle Time
45
ns
trdrd
RD or ENB De-assertion Time before Next RD or ENB
13
ns
trdwr
RD De-assertion Time before Next WR
Note 15
13
ns
30
0
ns
ns
9
0
ns
ns
30
0
ns
ns
Note 14: RD_WR and ENB signaling.
Note 15: RD and WR signaling.
Note:
Timing values are with respect to an equivalent test load of 25 pF.
2015 Microchip Technology Inc.
DS00001909A-page 99
LAN9252
9.5.7.2
Write Timing Requirements
If RD and WR signaling is used, a host write cycle begins when WR is asserted with CS active. The cycle ends when
WR is de-asserted. CS maybe asserted and de-asserted along with WR but not during WR active.
Alternatively, if RD_WR and ENB signaling is used, a host write cycle begins when ENB is asserted with CS active and
RD_WR indicating a write. The cycle ends when ENB is de-asserted. CS maybe asserted and de-asserted along with
ENB but not during ENB active.
Please refer to Section 9.5.6, "Indexed Address Mode Functional Timing Diagrams," on page 90 for functional descriptions.
FIGURE 9-37:
INDEXED ADDRESSING WRITE CYCLE TIMING
tcswr
twrcs
tas
tah
CS
A[4:0]
D[15:8]
D[7:0]
RD_WR
tds
trdwrs
tdh
trdwrh
twr
twrcyc
twrwr
ENB, WR
twrrd
RD
TABLE 9-5:
INDEXED ADDRESSING WRITE CYCLE TIMING VALUES
Symbol
Description
Min
Typ
Max
Units
tcswr
CS Setup to WR or ENB Active
0
ns
twrcs
CS Hold from WR or ENB Inactive
0
ns
tas
Address Setup to WR or ENB Active
0
ns
tah
Address Hold from to WR or ENB Inactive
0
ns
trdwrs
RD_WR Setup to ENB Active
Note 16
5
ns
trdwrh
RD_WR Hold from ENB Inactive
Note 16
5
ns
tds
Data Setup to WR or ENB Inactive
7
ns
tdh
Data Hold from WR or ENB Inactive
0
ns
twr
WR or ENB Active Time
32
ns
DS00001909A-page 100
2015 Microchip Technology Inc.
LAN9252
TABLE 9-5:
INDEXED ADDRESSING WRITE CYCLE TIMING VALUES (CONTINUED)
Symbol
Description
Min
Typ
Max
Units
twrcyc
WR or ENB Cycle Time
45
ns
twrwr
WR or ENB De-assertion Time before Next WR or ENB
13
ns
twrrd
WR De-assertion Time before Next RD
Note 17
13
ns
Note 16: RD_WR and ENB signaling.
Note 17: RD and WR signaling.
2015 Microchip Technology Inc.
DS00001909A-page 101
LAN9252
10.0
SPI/SQI SLAVE
10.1
Functional Overview
The SPI/SQI Slave module provides a low pin count synchronous slave interface that facilitates communication between
the device and a host system. The SPI/SQI Slave allows access to the System CSRs and internal FIFOs and memories.
It supports single and multiple register read and write commands with incrementing, decrementing and static addressing. Single, Dual and Quad bit lanes are supported in SPI mode with a clock rate of up to 80 MHz. SQI mode always
uses four bit lanes and also operates at up to 80 MHz.
The following is an overview of the functions provided by the SPI/SQI Slave:
• Serial Read: 4-wire (clock, select, data in and data out) reads at up to 30 MHz. Serial command, address and
data. Single and multiple register reads with incrementing, decrementing or static addressing.
• Fast Read: 4-wire (clock, select, data in and data out) reads at up to 80 MHz. Serial command, address and data.
Dummy byte(s) for first access. Single and multiple register reads with incrementing, decrementing or static
addressing.
• Dual / Quad Output Read: 4 or 6-wire (clock, select, data in / out) reads at up to 80 MHz. Serial command and
address, parallel data. Dummy byte(s) for first access. Single and multiple register reads with incrementing, decrementing or static addressing.
• Dual / Quad I/O Read: 4 or 6-wire (clock, select, data in / out) reads at up to 80 MHz. Serial command, parallel
address and data. Dummy byte(s) for first access. Single and multiple register reads with incrementing, decrementing or static addressing.
• SQI Read: 6-wire (clock, select, data in / out) writes at up to 80 MHz. Parallel command, address and data.
Dummy byte(s) for first access. Single and multiple register reads with incrementing, decrementing or static
addressing.
• Write: 4-wire (clock, select, data in and data out) writes at up to 80 MHz. Serial command, address and data. Single and multiple register writes with incrementing, decrementing or static addressing.
• Dual / Quad Data Write: 4 or 6-wire (clock, select, data in / out) writes at up to 80 MHz. Serial command and
address, parallel data. Single and multiple register writes with incrementing, decrementing or static addressing.
• Dual / Quad Address / Data Write: 4 or 6-wire (clock, select, data in / out) writes at up to 80 MHz. Serial command, parallel address and data. Single and multiple register writes with incrementing, decrementing or static
addressing.
• SQI Write: 6-wire (clock, select, data in / out) writes at up to 80 MHz. Parallel command, address and data. Single
and multiple register writes with incrementing, decrementing or static addressing.
10.2
SPI/SQI Slave Operation
Input data on the SIO[3:0] pins is sampled on the rising edge of the SCK input clock. Output data is sourced on the
SIO[3:0] pins with the falling edge of the clock. The SCK input clock can be either an active high pulse or an active low
pulse. When the SCS# chip select input is high, the SIO[3:0] inputs are ignored and the SIO[3:0] outputs are threestated.
In SPI mode, the 8-bit instruction is started on the first rising edge of the input clock after SCS# goes active. The instruction is always input serially on SI/SIO0.
For read and write instructions, two address bytes follow the instruction byte. Depending on the instruction, the address
bytes are input either serially, or 2 or 4 bits per clock. Although all registers are accessed as DWORDs, the address field
is considered a byte address. Fourteen address bits specify the address. Bits 15 and 14 of the address field specifies
that the address is auto-decremented (10b) or auto-incremented (01b) for continuous accesses.
For some read instructions, dummy byte cycles follow the address bytes. The device does not drive the outputs during
the dummy byte cycles. The dummy byte(s) are input either serially, or 2 or 4 bits per clock.
For read and write instructions, one or more 32-bit data fields follow the dummy bytes (if present, else they follow the
address bytes). The data is input either serially, or 2 or 4 bits per clock.
SQI mode is entered from SPI with the Enable Quad I/O (EQIO) instruction. Once in SQI mode, all further command,
addresses, dummy bytes and data bytes are 4 bits per clock. SQI mode can be exited using the Reset Quad I/O
(RSTQIO) instruction.
DS00001909A-page 102
2015 Microchip Technology Inc.
LAN9252
All instructions, addresses and data are transferred with the most-significant bit (msb) or di-bit (msd) or nibble (msn)
first. Addresses are transferred with the most-significant byte (MSB) first. Data is transferred with the least-significant
byte (LSB) first (little endian).
The SPI interface supports up to a 80 MHz input clock. Normal (non-high speed) reads instructions are limited to 30
MHz.
The SPI interface supports a minimum time of 50 ns between successive commands (a minimum SCS# inactive time of
50 ns).
The instructions supported in SPI mode are listed in Table 10-1. SQI instructions are listed in Table 10-2. Unsupported
instructions are must not be used.
TABLE 10-1:
SPI INSTRUCTIONS
Description
Bit width
Note 1
Inst.
code
Addr.
Bytes
Dummy
Bytes
Data
bytes
Max
Freq.
EQIO
Enable SQI
1-0-0
38h
0
0
0
80 MHz
RSTQIO
Reset SQI
1-0-0
FFh
0
0
0
80 MHz
READ
Read
1-1-1
03h
2
0
4 to
30 MHz
FASTREAD
Read at higher
speed
1-1-1
0Bh
2
1
4 to
80 MHz
SDOR
SPI Dual Output
Read
1-1-2
3Bh
2
1
4 to
80 MHz
SDIOR
SPI Dual I/O
Read
1-2-2
BBh
2
2
4 to
80 MHz
SQOR
SPI Quad Output Read
1-1-4
6Bh
2
1
4 to
80 MHz
SQIOR
SPI Quad I/O
Read
1-4-4
EBh
2
4
4 to
80 MHz
WRITE
Write
1-1-1
02h
2
0
4 to
80 MHz
SDDW
SPI Dual Data
Write
1-1-2
32h
2
0
4 to
80 MHz
SDADW
SPI Dual
Address / Data
Write
1-2-2
B2h
2
0
4 to
80 MHz
SQDW
SPI Quad Data
Write
1-1-4
62h
2
0
4 to
80 MHz
SQADW
SPI Quad
Address / Data
Write
1-4-4
E2h
2
0
4 to
80 MHz
Instruction
Configuration
Read
Write
Note 1: The bit width format is: command bit width, address / dummy bit width, data bit width.
2015 Microchip Technology Inc.
DS00001909A-page 103
LAN9252
TABLE 10-2:
SQI INSTRUCTIONS
Instruction
Description
Bit width
Note 2
Inst.
code
Addr.
Bytes
Dummy
Bytes
Data
bytes
Max
Freq.
Reset SQI
4-0-0
FFh
0
0
0
80 MHz
Read at higher
speed
4-4-4
0Bh
2
3
4 to
80 MHz
Write
4-4-4
02h
2
0
4 to
80 MHz
Configuration
RSTQIO
Read
FASTREAD
Write
WRITE
Note 2: The bit width format is: command bit width, address / dummy bit width, data bit width.
10.2.1
DEVICE INITIALIZATION
Until the device has been initialized to the point where the various configuration inputs are valid, the SPI/SQI interface
does not respond to and is not affected by any external pin activity.
Once device initialization completes, the SPI/SQI interface will ignore the pins until a rising edge of SCS# is detected.
10.2.1.1
SPI/SQI Slave Read Polling for Initialization Complete
Before device initialization, the SPI/SQI interface will not return valid data. To determine when the SPI/SQI interface is
functional, the Byte Order Test Register (BYTE_TEST) should be polled. Once the correct pattern is read, the interface
can be considered functional. At this point, the Device Ready (READY) bit in the Hardware Configuration Register
(HW_CFG) can be polled to determine when the device is fully configured.
Note:
10.2.2
The Host should only use single register reads (one data cycle per SCS# low) while polling the BYTE_TEST
register.
ACCESS DURING AND FOLLOWING POWER MANAGEMENT
During any power management mode other than D0, reads and writes are ignored and the SPI/SQI interface does not
respond to and is not affected by any external pin activity.
Once the power management mode changes back to D0, the SPI/SQI interface will ignore the pins until a rising edge
of SCS# is detected.
To determine when the SPI/SQI interface is functional, the Byte Order Test Register (BYTE_TEST) should be polled.
Once the correct pattern is read, the interface can be considered functional. At this point, the Device Ready (READY)
bit in the Hardware Configuration Register (HW_CFG) can be polled to determine when the device is fully configured.
Note:
10.2.3
10.2.3.1
The Host should only use single register reads (one data cycle per SCS# low) while polling the BYTE_TEST
register.
SPI CONFIGURATION COMMANDS
Enable SQI
The Enable SQI instruction changes the mode of operation to SQI. This instruction is supported in SPI bus protocol only
with clock frequencies up to 80 MHz. This instruction is not supported in SQI bus protocol.
The SPI slave interface is selected by first bringing SCS# active. The 8-bit EQIO instruction, 38h, is input into the SI/
SIO[0] pin one bit per clock. The SCS# input is brought inactive to conclude the cycle.
DS00001909A-page 104
2015 Microchip Technology Inc.
LAN9252
Figure 10-1 illustrates the Enable SQI instruction.
FIGURE 10-1:
ENABLE SQI
SCS#
SCK (active low)
X
SCK (active high)
X
1
2
1
3
2
4
3
5
4
6
5
7
6
8
7
X
8
X
Instruction
SI
X
0
0
1
1
1
0
0
0
X
Z
SO
SPI Enable SQI
10.2.3.2
Reset SQI
The Reset SQI instruction changes the mode of operation to SPI. This instruction is supported in SPI and SQI bus protocols with clock frequencies up to 80 MHz.
The SPI/SQI slave interface is selected by first bringing SCS# active. The 8-bit RSTQIO instruction, FFh, is input into
the SI/SIO[0] pin, one bit per clock, in SPI mode and into the SIO[3:0] pins, four bits per clock, in SQI mode. The SCS#
input is brought inactive to conclude the cycle.
Figure 10-2 illustrates the Reset SQI instruction for SPI mode. Figure 10-3 illustrates the Reset SQI instruction for SQI
mode.
FIGURE 10-2:
SPI MODE RESET SQI
SCS#
SCK (active low)
X
SCK (active high)
X
1
2
1
3
2
4
3
5
4
6
5
7
6
8
7
X
8
X
Instruction
SI
SO
X
1
1
1
1
1
1
1
1
X
Z
SPI Mode Reset SQI
2015 Microchip Technology Inc.
DS00001909A-page 105
LAN9252
FIGURE 10-3:
SQI MODE RESET SQI
SCS#
SCK (active low)
X
SCK (active high)
X
1
2
1
X
2
X
Inst
SIO[3:0]
X
F
F
X
SQI Mode Reset SQI
10.2.4
SPI READ COMMANDS
Various read commands are support by the SPI/SQI slave. The following applies to all read commands.
MULTIPLE READS
Additional reads, beyond the first, are performed by continuing the clock pulses while SCS# is active. The upper two bits
of the address specify auto-incrementing (address[15:14]=01b) or auto-decrementing (address[15:14]=10b). The internal DWORD address is incremented, decremented, or maintained based on these bits. Maintaining a fixed internal
address is useful for register polling.
SPECIAL CSR HANDLING
Live Bits
Since data is read serially, the selected register’s value is saved at the beginning of each 32-bit read to prevent the host
from reading an intermediate value. The saving occurs multiple times in a multiple read sequence.
Change on Read Registers and FIFOs
Any register that is affected by a read operation (e.g. a clear on read bit or FIFO) is updated once the current data output
shift has started. In the event that 32-bits are not read when the SCS# is returned high, the register is still affected and
any prior data is lost.
Change on Read Live Register Bits
As described above, the current value from a register with live bits (as is the case of any register) is saved before the
data is shifted out. Although a H/W event that occurs following the data capture would still update the live bit(s), the live
bit(s) will be affected (cleared, etc.) once the output shift has started and the H/W event would be lost. In order to prevent
this, the individual CSRs defer the H/W event update until after the read indication.
10.2.4.1
Read
The Read instruction inputs the instruction code and address bytes one bit per clock and outputs the data one bit per
clock. This instruction is supported in SPI bus protocol only with clock frequencies up to 30 MHz. This instruction is not
supported in SQI bus protocol.
The SPI slave interface is selected by first bringing SCS# active. The 8-bit READ instruction, 03h, is input into the SI/
SIO[0] pin, followed by the two address bytes. The address bytes specify a BYTE address within the device.
On the falling clock edge following the rising edge of the last address bit, the SO/SIO[1] pin is driven starting with the
msb of the LSB of the selected register. The remaining register bits are shifted out on subsequent falling clock edges.
The SCS# input is brought inactive to conclude the cycle. The SO/SIO[1] pin is three-stated at this time.
DS00001909A-page 106
2015 Microchip Technology Inc.
LAN9252
Figure 10-4 illustrates a typical single and multiple register read.
FIGURE 10-4:
SPI READ
SCS#
SCK (active low)
X
SCK (active high)
X
1
2
1
3
2
4
3
5
4
6
5
7
6
8
7
1
0
9
8
1
1
1
0
9
1
2
1
3
1
1
1
2
1
4
1
3
1
5
1
4
1
5
Instruction
SI
X
0
0
0
0
0
0
1
6
1
7
1
6
1
8
1
7
1
9
1
8
2
0
1
9
2
1
2
0
2
2
2
1
2
3
2
2
2
4
2
3
2
5
2
4
2
6
2
5
2
7
2
6
...
2
7
Address
1
1
d
e
c
i
n
c
A
1
3
A
1
2
A
1
1
A
1
0
A
9
A
8
A
7
A
6
A
5
A
4
A
3
A
2
A
1
A
0
5
3
...
5
4
5
3
5
5
5
4
5
6
5
5
...
X
X
5
6
X
X
Data
D
7
Z
SO
D
6
D
5
...
D
2
6
D
2
5
D
2
4
X Z
SPI Read Single Register
SCS#
SCK (active low)
X
SCK (active high)
X
1
2
1
3
2
4
3
5
4
6
5
7
6
8
7
1
0
9
8
9
1
1
1
0
1
2
1
3
1
1
1
2
1
4
1
3
X
0
0
0
0
0
0
1
6
1
4
Instruction
SI
1
5
1
5
1
7
1
6
1
8
1
7
1
9
1
8
2
0
1
9
2
1
2
0
2
2
2
1
2
3
2
2
2
4
2
3
2
5
2
4
2
6
2
5
2
7
2
6
...
2
7
Address
1
1
d
e
c
i
n
c
A
1
3
A
1
2
A
1
1
A
1
0
A
9
A
8
A
7
A
6
A
5
A
4
A
3
A
2
A
1
A
0
...
Z
D
7
D
6
D
5
...
X
...
...
X
Data 1...
SO
...
...
X
Data m
D
2
6
D
2
5
D
2
4
X
X
Data m+1... Data n
D
7
D
6
D
5
...
D
2
6
D
2
5
D
2
4
X Z
SPI Read Multiple Registers
10.2.4.2
Fast Read
The Read at higher speed instruction inputs the instruction code and the address and dummy bytes one bit per clock
and outputs the data one bit per clock. In SQI mode, the instruction code and the address and dummy bytes are input
four bits per clock and the data is output four bits per clock. This instruction is supported in SPI and SQI bus protocols
with clock frequencies up to 80 MHz.
The SPI/SQI slave interface is selected by first bringing SCS# active. For SPI mode, the 8-bit FASTREAD instruction,
0Bh, is input into the SI/SIO[0] pin, followed by the two address bytes and 1 dummy byte. For SQI mode, the 8-bit FASTREAD instruction is input into the SIO[3:0] pins, followed by the two address bytes and 3 dummy bytes. The address
bytes specify a BYTE address within the device.
On the falling clock edge following the rising edge of the last dummy bit (or nibble), the SO/SIO[1] pin is driven starting
with the msb of the LSB of the selected register. For SQI mode, SIO[3:0] are driven starting with the msn of the LSB of
the selected register. The remaining register bits are shifted out on subsequent falling clock edges.
The SCS# input is brought inactive to conclude the cycle. The SO/SIO[3:0] pins are three-stated at this time.
2015 Microchip Technology Inc.
DS00001909A-page 107
LAN9252
Figure 10-5 illustrates a typical single and multiple register fast read for SPI mode. Figure 10-6 illustrates a typical single
and multiple register fast read for SQI mode.
FIGURE 10-5:
SPI FAST READ
SCS#
SCK (active low)
X
SCK (active high)
X
1
2
1
3
2
4
3
5
4
6
5
7
6
8
7
1
0
9
8
1
1
1
2
1
0
9
1
1
1
3
1
2
1
4
1
5
1
3
1
4
1
5
Instruction
SI
X
0
0
0
0
1
0
1
6
1
7
1
6
1
8
1
9
1
7
1
8
2
0
1
9
2
1
2
0
2
2
2
1
2
3
2
2
2
4
2
3
2
5
2
4
2
6
2
5
2
7
2
6
2
7
Address
1
1
d
e
c
i
n
c
A
1
3
A
1
2
A
1
1
A
1
0
A
9
A
8
A
7
2
8
2
9
2
8
3
0
2
9
3
1
3
2
3
0
3
1
3
3
3
2
3
4
3
3
3
5
3
4
...
3
5
Dummy
A
6
A
5
A
4
A
3
A
2
A
1
A
0
x
x
x
x
x
x
x
...
6
2
6
1
6
3
6
2
6
4
6
3
...
X
x
6
1
X
6
4
X
X
Data
D
7
Z
SO
D
6
...
D
5
D
2
6
D
2
5
D
2
4
X Z
SPI Fast Read Single Register
SCS#
SCK (active low)
X
SCK (active high)
X
1
2
1
3
2
4
3
5
4
6
5
7
6
8
7
1
0
9
8
1
1
1
2
1
0
9
1
1
1
3
1
2
1
4
1
5
1
3
1
4
1
5
Instruction
SI
X
0
0
0
0
1
0
1
6
1
7
1
6
1
8
1
9
1
7
1
8
2
0
1
9
2
1
2
0
2
2
2
1
2
3
2
2
2
4
2
3
2
5
2
4
2
6
2
5
2
7
2
6
2
7
Address
1
1
d
e
c
i
n
c
A
1
3
A
1
2
A
1
1
A
1
0
A
9
A
8
A
7
2
8
2
9
2
8
3
0
2
9
3
1
3
2
3
0
3
1
3
3
3
2
3
4
3
3
3
5
3
4
...
...
3
5
Dummy
A
6
A
5
A
4
A
3
A
2
A
1
A
0
x
x
x
x
x
x
x
...
X
x
Data 1...
D
7
Z
SO
D
6
...
...
D
5
...
D
2
6
D
2
5
D
2
4
X
...
X
Data m
X
X
Data m+1... Data n
D
7
D
6
D
5
...
D
2
6
D
2
5
D
2
4
X Z
SPI Fast Read Multiple Registers
FIGURE 10-6:
SQI FAST READ
SCS#
SCK (active low)
X
SCK (active high)
X
1
2
1
3
2
4
3
5
4
6
5
7
6
8
7
8
Inst Address
SIO[3:0]
X
0
B
H
1
L
1
H
0
1
0
9
1
1
1
0
9
1
2
1
1
1
3
1
2
1
4
1
3
1
5
1
4
1
6
1
5
Dummy
L
0
x
x
x
x
1
7
1
6
1
8
1
7
1
9
1
8
2
0
1
9
X
2
0
X
Data
x
H
0
x
L
0
H
1
L
1
H
2
L
2
H
3
L
3
X
SQI Fast Read Single Register
SCS#
SCK (active low)
X
SCK (active high)
X
1
2
1
3
2
4
3
5
4
6
5
7
6
X
0
B
H
1
L
1
H
0
L
0
1
0
9
7
Inst Address
SIO[3:0]
8
8
1
1
1
0
9
1
2
1
1
1
2
Dummy
x
x
x
x
x
1
3
1
4
1
3
1
5
1
4
...
1
5
...
Data 1...
x
H
0
L
0
H
1
...
...
X
...
Data m
L
2
H
3
X
Data m+1... Data n
L
3
H
0
L
0
H
1
...
L
2
H
3
L
3
X
SQI Fast Read Multiple Registers
DS00001909A-page 108
2015 Microchip Technology Inc.
LAN9252
10.2.4.3
Dual Output Read
The SPI Dual Output Read instruction inputs the instruction code and the address and dummy bytes one bit per clock
and outputs the data two bits per clock. This instruction is supported in SPI bus protocol only with clock frequencies up
to 80 MHz. This instruction is not supported in SQI bus protocol.
The SPI slave interface is selected by first bringing SCS# active. The 8-bit SDOR instruction, 3Bh, is input into the SIO[0]
pin, followed by the two address bytes and 1 dummy byte. The address bytes specify a BYTE address within the device.
On the falling clock edge following the rising edge of the last dummy di-bit, the SIO[1:0] pins are driven starting with the
msbs of the LSB of the selected register. The remaining register di-bits are shifted out on subsequent falling clock edges.
The SCS# input is brought inactive to conclude the cycle. The SIO[1:0] pins are three-stated at this time.
Figure 10-7 illustrates a typical single and multiple register dual output read.
FIGURE 10-7:
SPI DUAL OUTPUT READ
SCS#
SCK (active low)
X
SCK (active high)
X
1
2
1
3
2
4
3
5
4
6
5
7
6
8
7
1
0
9
8
1
1
1
0
9
1
2
1
1
1
3
1
2
1
4
1
3
1
5
1
4
1
5
Instruction
SIO0
X
0
0
1
1
1
0
1
6
1
7
1
6
1
8
1
7
1
9
1
8
2
0
1
9
2
1
2
0
2
2
2
1
2
3
2
2
2
4
2
3
2
5
2
4
2
6
2
5
2
7
2
6
2
7
Address
1
1
d
e
c
i
n
c
A
1
3
A
1
2
A
1
1
A
1
0
A
9
A
8
A
7
2
8
2
9
2
8
3
0
2
9
3
1
3
0
3
2
3
1
3
3
3
2
3
4
3
3
3
5
3
4
...
3
5
Dummy
A
6
A
5
A
4
A
3
A
2
A
1
A
0
x
x
x
x
x
4
5
...
4
6
4
5
4
7
4
6
4
8
4
7
X
4
8
X
Data
x
x
D
6
x
D
4
D
2
...
D
2
8
D
2
6
D
2
4
X
D
2
9
D
2
7
D
2
5
X Z
Data
D
7
Z
SIO1
D
5
D
3
...
SPI Dual Output Read Single Register
SCS#
SCK (active low)
X
SCK (active high)
X
1
2
1
3
2
4
3
5
4
6
5
7
6
8
7
1
0
9
8
9
1
1
1
0
1
2
1
1
1
3
1
2
1
4
1
3
1
4
Instruction
SIO0
X
0
0
1
1
1
0
1
5
1
6
1
5
1
7
1
6
1
8
1
7
1
9
1
8
2
0
1
9
2
1
2
0
2
2
2
1
2
3
2
2
2
4
2
3
2
5
2
4
2
6
2
5
1
d
e
c
i
n
c
A
1
3
A
1
2
A
1
1
A
1
0
A
9
A
8
A
7
A
6
2
8
2
6
Address
1
2
7
2
7
2
9
2
8
3
0
2
9
3
1
3
0
3
2
3
1
3
2
Dummy
A
5
A
4
A
3
A
2
A
1
A
0
x
x
x
x
x
x
3
3
3
4
3
3
3
5
3
4
...
...
3
5
Data 1...
x
x
D
6
D
4
D
2
...
Data 1...
SIO1
Z
D
7
D
5
...
...
D
3
...
Data m
D
2
8
D
2
6
D
2
4
Data m
D
2
9
D
2
7
D
2
5
X
X
Data m+1... Data n
D
6
D
4
D
2
...
D
2
8
D
2
6
D
2
4
X
Data m+1... Data n
D
7
D
5
D
3
...
D
2
9
D
2
7
D
2
5
X Z
SPI Dual Output Read Multiple Registers
2015 Microchip Technology Inc.
DS00001909A-page 109
LAN9252
10.2.5
QUAD OUTPUT READ
The SPI Quad Output Read instruction inputs the instruction code and the address and dummy bytes one bit per clock
and outputs the data four bits per clock. This instruction is supported in SPI bus protocol only with clock frequencies up
to 80 MHz. This instruction is not supported in SQI bus protocol.
The SPI slave interface is selected by first bringing SCS# active. The 8-bit SQOR instruction, 6Bh, is input into the SIO[0]
pin, followed by the two address bytes and 1 dummy byte. The address bytes specify a BYTE address within the device.
On the falling clock edge following the rising edge of the last dummy bit, the SIO[3:0] pins are driven starting with the
msn of the LSB of the selected register. The remaining register nibbles are shifted out.
The SCS# input is brought inactive to conclude the cycle. The SIO[3:0] pins are three-stated at this time.
Figure 10-8 illustrates a typical single and multiple register quad output read.
FIGURE 10-8:
SPI QUAD OUTPUT READ
SCS#
SCK (active low)
X
SCK (active high)
X
1
2
1
3
2
4
3
5
4
6
5
7
6
8
7
1
0
9
8
1
1
1
0
9
1
2
1
1
1
3
1
2
1
4
1
5
1
3
1
4
1
5
Instruction
SIO0
X
0
1
1 0
1
0
1
6
1
7
1
6
1
8
1
7
1
9
1
8
2
0
1
9
2
1
2
0
2
2
2
1
2
3
2
2
2
4
2
3
2
5
2
4
2
6
2
5
2
7
2
6
2
7
Address
1
1
d
e
c
i
n
c
A
1
3
A
1
2
A
1
1
A
1
0
A
9
A
8
A
7
2
8
2
9
2
8
3
0
2
9
3
1
3
0
3
2
3
1
3
3
3
2
3
4
3
3
3
5
3
4
3
6
3
5
Dummy
A
6
A
5
A
4
A
3
A
2
A
1
A
0
x
x
x
x
x
3
7
3
6
3
8
3
7
3
9
3
8
4
0
3
9
X
4
0
X
Data
x
x
D
4
x
D
0
D
1
2
D
8
D
2
0
D
1
6
D
2
8
D
2
4
X
D
1
7
D
2
9
D
2
5
X Z
D
1
8
D
3
0
D
2
6
X Z
D
1
9
D
3
1
D
2
7
X Z
Data
D
5
Z
SIO1
D
1
D
1
3
D
9
D
2
1
Data
D
6
Z
SIO2
D
2
D
1
4
D
1
0
D
2
2
Data
D
7
Z
SIO3
D
3
D
1
5
D
1
1
D
2
3
SPI Quad Output Read Single Register
SCS#
SCK (active low)
X
SCK (active high)
X
1
2
1
3
2
4
3
5
4
6
5
7
6
8
7
1
0
9
8
9
1
1
1
0
1
2
1
1
1
3
1
2
1
4
1
3
1
4
Instruction
SIO0
X
0
1
1 0
1
0
1
5
1
6
1
5
1
7
1
6
1
8
1
7
1
9
1
8
2
0
1
9
2
1
2
0
2
2
2
1
2
3
2
2
2
4
2
3
2
5
2
4
2
6
2
5
1
d
e
c
i
n
c
A
1
3
A
1
2
A
1
1
A
1
0
A
9
A
8
A
7
A
6
2
8
2
6
Address
1
2
7
2
7
2
9
2
8
3
0
2
9
3
1
3
0
3
2
3
1
3
2
Dummy
A
5
A
4
A
3
A
2
A
1
A
0
x
x
x
x
x
x
3
3
3
4
3
3
3
5
3
4
...
...
3
5
Data 1...
x
x
D
4
D
0
D
1
2
...
Data 1...
SIO1
Z
D
5
D
1
D
1
3
...
Data 1...
SIO2
Z
D
6
D
2
D
1
4
...
Data 1...
SIO3
Z
D
7
D
3
...
...
D
1
5
...
Data m
D
1
6
D
2
8
D
2
4
Data m
D
1
7
D
2
9
D
2
5
Data m
D
1
8
D
3
0
D
2
6
Data m
D
1
9
D
3
1
D
2
7
X
X
Data m+1... Data n
D
4
D
0
D
1
2
...
D
1
6
D
2
8
D
2
4
X
Data m+1... Data n
D
5
D
1
D
1
3
...
D
1
7
D
2
9
D
2
5
X Z
Data m+1... Data n
D
6
D
2
D
1
4
...
D
1
8
D
3
0
D
2
6
X Z
Data m+1... Data n
D
7
D
3
D
1
5
...
D
1
9
D
3
1
D
2
7
X Z
SPI Quad Output Read Multiple Registers
DS00001909A-page 110
2015 Microchip Technology Inc.
LAN9252
10.2.5.1
Dual I/O Read
The SPI Dual I/O Read instruction inputs the instruction code one bit per clock and the address and dummy bytes two
bits per clock and outputs the data two bits per clock. This instruction is supported in SPI bus protocol only with clock
frequencies up to 80 MHz. This instruction is not supported in SQI bus protocol.
The SPI slave interface is selected by first bringing SCS# active. The 8-bit SDIOR instruction, BBh, is input into the
SIO[0] pin, followed by the two address bytes and 2 dummy bytes into the SIO[1:0] pins. The address bytes specify a
BYTE address within the device.
On the falling clock edge following the rising edge of the last dummy di-bit, the SIO[1:0] pins are driven starting with the
msbs of the LSB of the selected register. The remaining register di-bits are shifted out on subsequent falling clock edges.
The SCS# input is brought inactive to conclude the cycle. The SIO[1:0] pins are three-stated at this time.
Figure 10-9 illustrates a typical single and multiple register dual I/O read.
FIGURE 10-9:
SPI DUAL I/O READ
SCS#
SCK (active low)
X
SCK (active high)
X
1
2
1
3
2
4
3
5
4
6
5
7
6
8
7
1
0
9
8
1
1
1
0
9
1
1
Instruction
SIO0
X
1
0
1
1
1
0
1
2
1
3
1
2
1
4
1
3
1
5
1
4
1
6
1
5
1
7
1
6
1
8
1
7
1
9
1
8
1
9
Address
1
1
i
n
c
A
1
2
A
1
0
d
e
c
A
1
3
A
1
1
A
8
A
6
A
9
A
7
2
1
2
0
2
2
2
1
2
3
2
2
2
4
2
3
2
5
2
4
2
6
2
5
2
7
2
6
...
2
7
Dummy
A
4
A
2
A
0
x
x
x
A
3
A
1
x
x
x
Address
Z
SIO1
2
0
x
x
x
x
...
3
8
3
7
3
9
3
8
4
0
3
9
X
4
0
X
Data
x
x
x
D
6
D
4
D
2
x
x
D
7
D
5
D
3
Dummy
A
5
3
7
...
D
2
8
D
2
6
D
2
4
X
D
2
9
D
2
7
D
2
5
X Z
Data
x
...
SPI Dual I/O Read Single Register
SCS#
SCK (active low)
X
SCK (active high)
X
1
2
1
3
2
4
3
5
4
6
5
7
6
8
7
1
0
9
8
9
1
1
1
0
Instruction
SIO0
X
1
0
1
1
1
0
1
2
1
1
1
3
1
2
1
4
1
3
1
5
1
4
1
6
1
5
1
7
1
6
1
8
1
7
1
i
n
c
A
1
2
A
1
0
A
8
A
6
A
4
Z
d
e
c
A
1
3
A
1
1
A
9
A
7
A
5
1
9
2
1
2
0
2
2
2
1
2
3
2
2
2
4
2
3
2
5
2
4
Dummy
A
2
A
0
x
x
Address
SIO1
2
0
1
8
Address
1
1
9
x
x
x
x
A
1
x
x
x
x
x
x
2
5
2
7
2
6
...
...
x
x
D
6
D
4
D
2
...
Data 1...
x
x
D
7
D
5
...
...
2
7
Data 1...
Dummy
A
3
2
6
D
3
...
Data m
D
2
8
D
2
6
D
2
4
Data m
D
2
9
D
2
7
D
2
5
X
X
Data m+1... Data n
D
6
D
4
D
2
...
D
2
8
D
2
6
D
2
4
X
Data m+1... Data n
D
7
D
5
D
3
...
D
2
9
D
2
7
D
2
5
X Z
SPI Dual I/O Read Multiple Registers
2015 Microchip Technology Inc.
DS00001909A-page 111
LAN9252
10.2.5.2
Quad I/O Read
The SPI Quad I/O Read instruction inputs the instruction code one bit per clock and the address and dummy bytes four
bits per clock and outputs the data four bits per clock. This instruction is supported in SPI bus protocol only with clock
frequencies up to 80 MHz. This instruction is not supported in SQI bus protocol.
The SPI slave interface is selected by first bringing SCS# active. The 8-bit SQIOR instruction, EBh, is input into the
SIO[0] pin, followed by the two address bytes and 4 dummy bytes into the SIO[3:0] pins. The address bytes specify a
BYTE address within the device.
On the falling clock edge following the rising edge of the last dummy nibble, the SIO[3:0] pins are driven starting with
the msn of the LSB of the selected register. The remaining register nibbles are shifted out on subsequent falling clock
edges.
The SCS# input is brought inactive to conclude the cycle. The SIO[3:0] pins are three-stated at this time.
Figure 10-10 illustrates a typical single and multiple register quad I/O read.
FIGURE 10-10:
SPI QUAD I/O READ
SCS#
SCK (active low)
X
SCK (active high)
X
1
2
1
3
2
4
3
5
4
6
5
7
6
8
7
8
X
1
1
1
0
1
0
1
1
1
0
9
Instruction
SIO0
1
0
9
1
2
1
1
1
3
1
2
1
4
1
3
1
5
1
4
1
5
Address
1
1
A
1
2
A
8
A
4
1
6
1
7
1
6
1
8
1
7
1
9
1
8
2
0
1
9
2
1
2
0
2
2
2
1
2
3
2
2
2
4
2
3
Dummy
A
0
x
x
x
x
x
A
1
3
Z
A
9
A
5
A
1
x
x
x
x
x
x
2
4
2
6
2
5
2
7
2
6
2
8
2
7
X
2
8
X
Data
x
D
4
x
D
0
D
1
2
D
8
D
2
0
D
1
6
D
2
8
D
2
4
X
Data
Dummy
SIO1
2
5
x
x
x
D
5
D
1
D
1
3
D
9
D
2
1
D
1
7
D
2
9
D
2
5
X Z
x
x
D
6
D
2
D
1
4
D
1
0
D
2
2
D
1
8
D
3
0
D
2
6
X Z
x
x
D
7
D
3
D
1
5
D
1
1
D
2
3
D
1
9
D
3
1
D
2
7
X Z
Dummy
i
n
c
Z
SIO2
A
1
0
A
6
A
2
x
x
x
x
x
x
Dummy
d
e
c
Z
SIO3
A
1
1
A
7
A
3
x
x
x
x
x
x
SPI Quad I/O Read Single Register
SCS#
SCK (active low)
X
SCK (active high)
X
1
2
1
3
2
4
3
5
4
6
5
7
6
8
7
8
Instruction
SIO0
X
1
1
1
0
1
0
1
0
9
9
1
1
1
0
1
2
1
1
1
3
1
2
1
4
1
3
1
A
1
2
A
8
A
4
A
0
1
6
1
4
Address
1
1
5
1
5
1
7
1
6
1
8
1
7
1
9
1
8
2
0
1
9
2
0
Dummy
x
x
x
x
x
x
Z
A
1
3
A
9
A
5
A
1
x
x
x
x
x
x
x
Z
i
n
c
A
1
0
A
6
A
2
x
x
x
x
x
x
x
x
Z
d
e
c
A
1
1
A
7
A
3
x
x
x
x
x
x
2
2
...
...
D
4
D
0
D
5
D
1
x
x
D
6
D
2
D
1
2
...
D
1
3
...
D
1
4
...
Data 1...
x
x
D
7
D
3
...
...
2
3
Data 1...
Dummy
SIO3
2
1
2
3
Data 1...
Dummy
SIO2
2
2
Data 1...
x
Dummy
SIO1
2
1
D
1
5
...
Data m
D
1
6
D
2
8
D
2
4
Data m
D
1
7
D
2
9
D
2
5
Data m
D
1
8
D
3
0
D
2
6
Data m
D
1
9
D
3
1
D
2
7
X
X
Data m+1... Data n
D
4
D
0
D
1
2
...
D
1
6
D
2
8
D
2
4
X
Data m+1... Data n
D
5
D
1
D
1
3
...
D
1
7
D
2
9
D
2
5
X Z
Data m+1... Data n
D
6
D
2
D
1
4
...
D
1
8
D
3
0
D
2
6
X Z
Data m+1... Data n
D
7
D
3
D
1
5
...
D
1
9
D
3
1
D
2
7
X Z
SPI Quad I/O Read Multiple Registers
DS00001909A-page 112
2015 Microchip Technology Inc.
LAN9252
10.2.6
SPI WRITE COMMANDS
Multiple write commands are support by the SPI/SQI slave. The following applies to all write commands.
MULTIPLE WRITES
Multiple reads are performed by continuing the clock pulses and input data while SCS# is active. The upper two bits of
the address specify auto-incrementing (address[15:14]=01b) or auto-decrementing (address[15:14]=10b). The internal
DWORD address is incremented, decremented, or maintained based on these bits. Maintaining a fixed internal address
may be useful for register “bit-banging” or other repeated writes.
10.2.6.1
Write
The Write instruction inputs the instruction code and address and data bytes one bit per clock. In SQI mode, the instruction code and the address and data bytes are input four bits per clock. This instruction is supported in SPI and SQI bus
protocols with clock frequencies up to 80 MHz.
The SPI/SQI slave interface is selected by first bringing SCS# active. For SPI mode, the 8-bit WRITE instruction, 02h,
is input into the SI/SIO[0] pin, followed by the two address bytes. For SQI mode, the 8-bit WRITE instruction, 02h, is
input into the SIO[3:0] pins, followed by the two address bytes. The address bytes specify a BYTE address within the
device.
The data follows the address bytes. For SPI mode, the data is input into the SI/SIO[0] pin starting with the msb of the
LSB. For SQI mode the data is input nibble wide using SIO[3:0] starting with the msn of the LSB. The remaining bits/
nibbles are shifted in on subsequent clock edges. The data write to the register occurs after the 32-bits are input. In the
event that 32-bits are not written when the SCS# is returned high, the write is considered invalid and the register is not
affected.
The SCS# input is brought inactive to conclude the cycle.
Figure 10-11 illustrates a typical single and multiple register write for SPI mode. Figure 10-12 illustrates a typical single
and multiple register write for SQI mode.
FIGURE 10-11:
SPI WRITE
SCS#
SCK (active low)
X
SCK (active high)
X
1
2
1
3
2
4
3
5
4
6
5
7
6
8
7
1
0
9
8
1
1
1
0
9
1
2
1
3
1
1
1
2
1
4
1
3
1
5
1
4
1
5
Instruction
SI
X
0
0
0
0
0
0
1
6
1
7
1
6
1
8
1
7
1
9
1
8
2
0
1
9
2
1
2
0
2
2
2
1
2
3
2
2
2
4
2
3
2
5
2
4
2
6
2
5
2
7
2
6
...
2
7
Address
1
0
d
e
c
i
n
c
A
1
3
A
1
2
A
1
1
A
1
0
A
9
A
8
A
7
5
3
...
5
4
5
3
5
5
5
4
5
6
5
5
X
5
6
X
Data
A
6
A
5
A
4
A
3
A
2
A
1
A
0
D
7
D
6
D
5
...
D
2
6
D
2
5
D
2
4
X
Z
SO
SPI Write Single Register
SCS#
SCK (active low)
X
SCK (active high)
X
1
2
1
3
2
4
3
5
4
6
5
7
6
8
7
1
0
9
8
9
1
1
1
0
1
2
1
3
1
1
1
2
1
4
1
3
1
5
1
4
Instruction
SI
X
0
0
0
SO
0
0
0
1
6
1
5
1
7
1
6
1
8
1
7
1
9
1
8
2
0
1
9
2
1
2
0
2
2
2
1
2
3
2
2
2
4
2
3
2
4
Address
1
0
d
e
c
i
n
c
A
1
3
A
1
2
A
1
1
A
1
0
A
9
A
8
A
7
A
6
2
5
2
6
2
5
2
7
2
6
...
...
2
7
Data 1...
A
5
A
4
A
3
A
2
A
1
A
0
D
7
D
6
...
...
D
5
...
Data m
D
2
6
D
2
5
D
2
4
X
X
Data m+1... Data n
D
7
D
6
D
5
...
D
2
6
D
2
5
D
2
4
X
Z
SPI Write Multiple Registers
2015 Microchip Technology Inc.
DS00001909A-page 113
LAN9252
FIGURE 10-12:
SQI WRITE
SCS#
SCK (active low)
X
SCK (active high)
X
1
2
1
3
2
4
3
5
4
6
5
7
6
8
7
1
0
9
8
SIO[3:0]
X
0
2
H
1
L
1
H
0
1
0
9
Inst Address
1
1
1
2
1
1
1
3
1
2
1
4
1
3
X
1
4
X
Data
L
0
H
0
L
0
H
1
L
1
H
2
L
2
H
3
L
3
X
SQI Write Single Register
SCS#
SCK (active low)
X
SCK (active high)
X
1
2
1
3
2
4
3
5
4
6
5
6
Inst Address
SIO[3:0]
X
0
2
H
1
L
1
H
0
7
L
0
8
7
9
8
...
9
...
Data 1...
H
0
L
0
H
1
...
...
X
...
Data m
L
2
H
3
X
Data m+1... Data n
L
3
H
0
L
0
H
1
...
L
2
H
3
L
3
X
SQI Write Multiple Registers
DS00001909A-page 114
2015 Microchip Technology Inc.
LAN9252
10.2.6.2
Dual Data Write
The SPI Dual Data Write instruction inputs the instruction code and address bytes one bit per clock and inputs the data
two bits per clock. This instruction is supported in SPI bus protocol only with clock frequencies up to 80 MHz. This
instruction is not supported in SQI bus protocol.
The SPI slave interface is selected by first bringing SCS# active. The 8-bit SDDW instruction, 32h, is input into the SIO[0]
pin, followed by the two address bytes. The address bytes specify a BYTE address within the device.
The data follows the address bytes. The data is input into the SIO[1:0] pins starting with the msbs of the LSB. The
remaining di-bits are shifted in on subsequent clock edges. The data write to the register occurs after the 32-bits are
input. In the event that 32-bits are not written when the SCS# is returned high, the write is considered invalid and the
register is not affected.
The SCS# input is brought inactive to conclude the cycle.
Figure 10-13 illustrates a typical single and multiple register dual data write.
FIGURE 10-13:
SPI DUAL DATA WRITE
SCS#
SCK (active low)
X
SCK (active high)
X
1
2
1
3
2
4
3
5
4
6
5
7
6
8
7
1
0
9
8
1
1
1
0
9
1
2
1
3
1
1
1
2
1
4
1
3
1
5
1
4
1
5
Instruction
SIO0
X
0
0
1
1
0
0
1
6
1
7
1
6
1
8
1
7
1
9
1
8
2
0
1
9
2
1
2
0
2
2
2
1
2
3
2
2
2
4
2
3
2
5
2
4
2
6
2
5
2
7
2
6
...
2
7
Address
1
0
d
e
c
i
n
c
A
1
3
A
1
2
A
1
1
A
1
0
A
9
A
8
A
7
3
7
...
3
8
3
7
3
9
3
8
4
0
3
9
X
4
0
X
Data
A
6
A
5
A
4
A
3
A
2
A
1
A
0
D
6
D
4
D
2
...
D
2
8
D
2
6
D
2
4
X
D
2
9
D
2
7
D
2
5
X Z
Data
D
7
Z
SIO1
D
5
D
3
...
SPI Dual Data Write Single Register
SCS#
SCK (active low)
X
SCK (active high)
X
1
2
1
3
2
4
3
5
4
6
5
7
6
8
7
1
0
9
8
9
1
1
1
0
1
2
1
3
1
1
1
2
1
4
1
3
1
5
1
4
Instruction
SIO0
X
0
0
1
1
0
0
1
6
1
5
1
7
1
6
1
8
1
7
1
9
1
8
2
0
1
9
2
1
2
0
2
2
2
1
2
3
2
2
2
4
2
3
2
5
2
4
Address
1
0
d
e
c
i
n
c
A
1
3
A
1
2
A
1
1
A
1
0
A
9
A
8
A
7
A
6
2
6
2
5
2
7
2
6
...
...
2
7
Data 1...
A
5
A
4
A
3
A
2
A
1
A
0
D
6
D
4
D
2
...
Data 1...
SIO1
Z
D
7
D
5
...
...
D
3
...
Data m
D
2
8
D
2
6
D
2
4
Data m
D
2
9
D
2
7
D
2
5
X
X
Data m+1... Data n
D
6
D
4
D
2
...
D
2
8
D
2
6
D
2
4
X
Data m+1... Data n
D
7
D
5
D
3
...
D
2
9
D
2
7
D
2
5
X Z
SPI Dual Data Write Multiple Registers
2015 Microchip Technology Inc.
DS00001909A-page 115
LAN9252
10.2.6.3
Quad Data Write
The SPI Quad Data Write instruction inputs the instruction code and address bytes one bit per clock and inputs the data
four bits per clock. This instruction is supported in SPI bus protocol only with clock frequencies up to 80 MHz. This
instruction is not supported in SQI bus protocol.
The SPI slave interface is selected by first bringing SCS# active. The 8-bit SQDW instruction, 62h, is input into the SIO[0]
pin, followed by the two address bytes. The address bytes specify a BYTE address within the device.
The data follows the address bytes. The data is input into the SIO[3:0] pins starting with the msn of the LSB. The remaining nibbles are shifted in on subsequent clock edges. The data write to the register occurs after the 32-bits are input. In
the event that 32-bits are not written when the SCS# is returned high, the write is considered invalid and the register is
not affected.
The SCS# input is brought inactive to conclude the cycle.
Figure 10-14 illustrates a typical single and multiple register quad data write.
FIGURE 10-14:
SPI QUAD DATA WRITE
SCS#
SCK (active low)
X
SCK (active high)
X
1
2
1
3
2
4
3
5
4
6
5
7
6
8
7
1
0
9
8
1
1
1
0
9
1
2
1
3
1
1
1
2
1
4
1
3
1
5
1
4
1
5
Instruction
SIO0
X
0
1
1
0 0
0
1
6
1
7
1
6
1
8
1
7
1
9
1
8
2
0
1
9
2
1
2
0
2
2
2
1
2
3
2
2
2
4
2
3
2
5
2
4
2
6
2
5
2
7
2
6
2
8
2
7
Address
1
0
d
e
c
i
n
c
A
1
3
A
1
2
A
1
1
A
1
0
A
9
A
8
A
7
2
9
2
8
3
0
2
9
3
1
3
0
3
2
3
1
X
3
2
X
Data
A
6
A
5
A
4
A
3
A
2
A
1
A
0
D
4
D
0
D
1
2
D
8
D
2
0
D
1
6
D
2
8
D
2
4
X
D
1
7
D
2
9
D
2
5
X Z
D
1
8
D
3
0
D
2
6
X Z
D
1
9
D
3
1
D
2
7
X Z
Data
D
5
Z
SIO1
D
1
D
1
3
D
9
D
2
1
Data
D
6
Z
SIO2
D
2
D
1
4
D
1
0
D
2
2
Data
D
7
Z
SIO3
D
3
D
1
5
D
1
1
D
2
3
SPI Quad Data Write Single Register
SCS#
SCK (active low)
X
SCK (active high)
X
1
2
1
3
2
4
3
5
4
6
5
7
6
8
7
1
0
9
8
9
1
1
1
0
1
2
1
3
1
1
1
2
1
4
1
3
1
5
1
4
Instruction
SIO0
X
0
1
1
0 0
0
1
6
1
5
1
7
1
6
1
8
1
7
1
9
1
8
2
0
1
9
2
1
2
0
2
2
2
1
2
3
2
2
2
4
2
3
2
5
2
4
Address
1
0
d
e
c
i
n
c
A
1
3
A
1
2
A
1
1
A
1
0
A
9
A
8
A
7
A
6
2
6
2
5
2
7
2
6
...
...
2
7
Data 1...
A
5
A
4
A
3
A
2
A
1
A
0
D
4
D
0
D
1
2
...
Data 1...
SIO1
Z
D
5
D
1
D
1
3
...
Data 1...
SIO2
Z
D
6
D
2
D
1
4
...
Data 1...
SIO3
Z
D
7
D
3
...
...
D
1
5
...
Data m
D
1
6
D
2
8
D
2
4
Data m
D
1
7
D
2
9
D
2
5
Data m
D
1
8
D
3
0
D
2
6
Data m
D
1
9
D
3
1
D
2
7
X
X
Data m+1... Data n
D
4
D
0
D
1
2
...
D
1
6
D
2
8
D
2
4
X
Data m+1... Data n
D
5
D
1
D
1
3
...
D
1
7
D
2
9
D
2
5
X Z
Data m+1... Data n
D
6
D
2
D
1
4
...
D
1
8
D
3
0
D
2
6
X Z
Data m+1... Data n
D
7
D
3
D
1
5
...
D
1
9
D
3
1
D
2
7
X Z
SPI Quad Data Write Multiple Registers
DS00001909A-page 116
2015 Microchip Technology Inc.
LAN9252
10.2.6.4
Dual Address / Data Write
The SPI Dual Address / Data Write instruction inputs the instruction code one bit per clock and the address and data
bytes two bits per clock. This instruction is supported in SPI bus protocol only with clock frequencies up to 80 MHz. This
instruction is not supported in SQI bus protocol.
The SPI slave interface is selected by first bringing SCS# active. The 8-bit SDADW instruction, B2h, is input into the
SIO[0] pin, followed by the two address bytes into the SIO[1:0] pins. The address bytes specify a BYTE address within
the device.
The data follows the address bytes. The data is input into the SIO[1:0] pins starting with the msbs of the LSB. The
remaining di-bits are shifted in on subsequent clock edges. The data write to the register occurs after the 32-bits are
input. In the event that 32-bits are not written when the SCS# is returned high, the write is considered invalid and the
register is not affected.
The SCS# input is brought inactive to conclude the cycle.
Figure 10-15 illustrates a typical single and multiple register dual address / data write.
FIGURE 10-15:
SPI DUAL ADDRESS / DATA WRITE
SCS#
SCK (active low)
X
SCK (active high)
X
1
2
1
3
2
4
3
5
4
6
5
7
6
8
7
1
0
9
8
1
1
1
0
9
1
1
Instruction
SIO0
X
1
0
1
1
0
0
1
2
1
3
1
2
1
4
1
3
1
5
1
4
1
6
1
5
1
7
1
6
1
8
1
7
1
9
1
8
...
1
9
0
i
n
c
A
1
2
A
1
0
A
8
A
6
A
4
A
2
A
0
D
6
D
4
D
2
Address
d
e
c
Z
SIO1
A
1
3
A
1
1
A
9
A
7
...
3
0
2
9
3
1
3
0
3
2
3
1
X
3
2
X
Data
Address
1
2
9
...
D
2
8
D
2
6
D
2
4
X
D
2
9
D
2
7
D
2
5
X Z
Data
A
5
A
3
A
1
D
7
D
5
D
3
...
SPI Dual Address / Data Write Single Register
SCS#
SCK (active low)
X
SCK (active high)
X
1
2
1
3
2
4
3
5
4
6
5
7
6
8
7
1
0
9
8
1
0
9
Instruction
SIO0
X
1
0
1
1
0
0
1
1
1
2
1
1
1
3
1
2
1
4
1
3
1
5
1
4
1
6
1
5
1
7
1
6
Address
1
0
i
n
c
A
1
2
A
1
0
A
8
A
6
A
4
Z
d
e
c
A
1
3
A
1
1
A
9
A
7
A
5
1
7
1
9
1
8
...
...
A
2
A
0
D
6
D
4
D
2
...
Data 1...
A
3
A
1
D
7
D
5
...
...
1
9
Data 1...
Address
SIO1
1
8
D
3
...
Data m
D
2
8
D
2
6
D
2
4
Data m
D
2
9
D
2
7
D
2
5
X
X
Data m+1... Data n
D
6
D
4
D
2
...
D
2
8
D
2
6
D
2
4
X
Data m+1... Data n
D
7
D
5
D
3
...
D
2
9
D
2
7
D
2
5
X Z
SPI Dual Address / Data Write Multiple Registers
2015 Microchip Technology Inc.
DS00001909A-page 117
LAN9252
10.2.6.5
Quad Address / Data Write
The SPI Quad Address / Data Write instruction inputs the instruction code one bit per clock and the address and data
bytes four bits per clock. This instruction is supported in SPI bus protocol only with clock frequencies up to 80 MHz. This
instruction is not supported in SQI bus protocol.
The SPI slave interface is selected by first bringing SCS# active. The 8-bit SQADW instruction, E2h, is input into the
SIO[0] pin, followed by the two address bytes into the SIO[3:0] pins. The address bytes specify a BYTE address within
the device.
The data follows the address bytes. The data is input into the SIO[3:0] pins starting with the msn of the LSB. The remaining nibbles are shifted in on subsequent clock edges. The data write to the register occurs after the 32-bits are input. In
the event that 32-bits are not written when the SCS# is returned high, the write is considered invalid and the register is
not affected.
The SCS# input is brought inactive to conclude the cycle.
Figure 10-16 illustrates a typical single and multiple register dual address / data write.
FIGURE 10-16:
SPI QUAD ADDRESS / DATA WRITE
SCS#
SCK (active low)
X
SCK (active high)
X
1
2
1
3
2
4
3
5
4
6
5
7
6
8
7
8
X
1
1
1
0 0
0
1
1
1
0
9
Instruction
SIO0
1
0
9
1
2
1
1
1
3
1
2
1
4
1
3
1
5
1
4
1
6
1
5
Address
1
0
A
1
2
A
8
A
4
1
7
1
6
1
8
1
7
1
9
1
8
2
0
1
9
X
2
0
X
Data
A
0
D
4
D
0
D
1
2
D
8
D
2
0
D
1
6
D
2
8
D
2
4
X
D
1
7
D
2
9
D
2
5
X Z
D
1
8
D
3
0
D
2
6
X Z
D
1
9
D
3
1
D
2
7
X Z
Data
A
1
3
Z
SIO1
A
9
A
5
A
1
D
5
D
1
D
1
3
D
9
D
2
1
Data
i
n
c
Z
SIO2
A
1
0
A
6
A
2
D
6
D
2
D
1
4
D
1
0
D
2
2
Data
d
e
c
Z
SIO3
A
1
1
A
7
A
3
D
7
D
3
D
1
5
D
1
1
D
2
3
SPI Quad Address / Data Write Single Register
SCS#
SCK (active low)
X
SCK (active high)
X
1
2
1
3
2
4
3
5
4
6
5
7
6
8
7
8
Instruction
SIO0
X
1
1
1
0 0
0
1
0
9
9
1
1
1
0
1
2
1
1
1
3
1
2
Address
1
0
A
1
2
A
8
A
4
A
0
1
4
1
3
1
5
1
4
...
...
1
5
Data 1...
D
4
D
0
D
1
2
...
Data 1...
SIO1
Z
A
1
3
A
9
A
5
A
1
D
5
SIO2
Z
i
n
c
A
1
0
A
6
A
2
D
6
SIO3
Z
d
e
c
A
1
1
A
7
A
3
D
7
D
1
D
1
3
...
Data 1...
D
2
D
1
4
...
Data 1...
D
3
...
...
D
1
5
...
Data m
D
1
6
D
2
8
D
2
4
Data m
D
1
7
D
2
9
D
2
5
Data m
D
1
8
D
3
0
D
2
6
Data m
D
1
9
D
3
1
D
2
7
X
X
Data m+1... Data n
D
4
D
0
D
1
2
...
D
1
6
D
2
8
D
2
4
X
Data m+1... Data n
D
5
D
1
D
1
3
...
D
1
7
D
2
9
D
2
5
X Z
Data m+1... Data n
D
6
D
2
D
1
4
...
D
1
8
D
3
0
D
2
6
X Z
Data m+1... Data n
D
7
D
3
D
1
5
...
D
1
9
D
3
1
D
2
7
X Z
SPI Quad Address / Data Write Multiple Registers
DS00001909A-page 118
2015 Microchip Technology Inc.
LAN9252
10.3
SPI/SQI Timing Requirements
FIGURE 10-17:
SPI/SQI INPUT TIMING
tscshl
SCS#
tscss
tscsh
thigh
tlow
SCK
tsu
thd
SI/SIO[3:0]
FIGURE 10-18:
SPI/SQI OUTPUT TIMING
SCS#
thigh
tlow
SCK
ton
tv
tho
tdis
SO/SIO[3:0]
TABLE 10-3:
SPI/SQI TIMING VALUES
Symbol
Description
Min
Typ
Max
Units
30 / 80
MHz
fsck
SCK clock frequency Note 3
thigh
SCK high time
5.5
ns
tlow
SCK low time
5.5
ns
tscss
SCS# setup time to SCK
5
ns
tscsh
SCS# hold time from SCK
5
ns
tscshl
SCS# inactive time
50
ns
tsu
Data input setup time to SCK
3
ns
thd
Data input hold time from SCK
4
ns
ton
Data output turn on time from SCK
0
ns
tv
Data output valid time from SCK Note 4, Note 5
tho
Data output hold time from SCK
tdis
Data output disable time from SCS# inactive
11.0/9.0
0
ns
ns
20
ns
Note 3: The Read instruction is limited to 30 MHz maximum
Note 4: Depends on loading of 30 pF or 10 pF
Note 5: Depending on the clock frequency and pulse width, data may not be valid until following the next rising edge
of SCK. The host SPI controller may need to delay the sampling of the data by either a fixed time or by using
the falling edge of SCK.
2015 Microchip Technology Inc.
DS00001909A-page 119
LAN9252
11.0
ETHERNET PHYS
11.1
Functional Overview
The device contains PHYs A and B.
The A and B PHYs are identical in functionality. PHY A connects to the EtherCAT Core port 0 or 2. PHY B connects to
EtherCAT core port 1. These PHYs interface with their respective MAC via an internal MII interface.
The PHYs comply with the IEEE 802.3 Physical Layer for Twisted Pair Ethernet and can be configured for full duplex
100 Mbps (100BASE-TX / 100BASE-FX) Ethernet operation. All PHY registers follow the IEEE 802.3 (clause 22.2.4)
specified MII management register set and are fully configurable.
11.1.1
PHY ADDRESSING
The address for PHY A is set to 0 or 2, based on the device mode, and the address for PHY B is fixed to 1.
In addition, the addresses for PHY A and B can be changed via the PHY Address (PHYADD) field in the PHY x Special
Modes Register (PHY_SPECIAL_MODES_x). For proper operation, the addresses for PHYs A and B must be unique.
No check is performed to assure each PHY is set to a different address.
11.2
PHYs A & B
The device integrates two IEEE 802.3 PHY functions. The PHYs can be configured for either 100 Mbps copper
(100BASE-TX) or 100 Mbps fiber (100BASE-FX) Ethernet operation and include Auto-Negotiation and HP Auto-MDIX.
Note:
11.2.1
Because PHYs A and B are functionally identical, this section will describe them as the “PHY x”, or simply
“PHY”. Wherever a lowercase “x” has been appended to a port or signal name, it can be replaced with “A”
or “B” to indicate the PHY A or PHY B respectively. In some instances, a “1” or a “2” may be appropriate
instead. All references to “PHY” in this section can be used interchangeably for both the PHYs A and B.
FUNCTIONAL DESCRIPTION
Functionally, each PHY can be divided into the following sections:
•
•
•
•
•
•
•
•
•
•
•
100BASE-TX Transmit and 100BASE-TX Receive
Auto-Negotiation
HP Auto-MDIX
PHY Management Control and PHY Interrupts
PHY Power-Down Modes
Wake on LAN (WoL)
Resets
Link Integrity Test
Cable Diagnostics
Loopback Operation
100BASE-FX Far End Fault Indication
DS00001909A-page 120
2015 Microchip Technology Inc.
LAN9252
A block diagram of the main components of each PHY can be seen in Figure 11-1.
FIGURE 11-1:
PHY BLOCK DIAGRAM
AutoNegotiation
100
Transmitter
MII
To Port x
EtherCAT MAC
TXPx/TXNx
MII
MAC
Interface
HP Auto-MDIX
RXPx/RXNx
To External
Port x Ethernet Pins
100
Reciever
To EtherCAT
core
MDIO
PHY Management
Control
Registers
PLL
Interrupts
To System
Interrupt Controller
11.2.2
From
System Clocks Controller
100BASE-TX TRANSMIT
The 100BASE-TX transmit data path is shown in Figure 11-2. Shaded blocks are those which are internal to the PHY.
Each major block is explained in the following sections.
FIGURE 11-2:
100BASE-TX TRANSMIT DATA PATH
Internal
MII Transmit Clock
100M
PLL
Internal
MII 25 MHz by 4 bits
MII MAC
Interface
Port x
MAC
25MHz
by 4 bits
4B/5B
Encoder
25MHz by
5 bits
Scrambler
and PISO
125 Mbps Serial
NRZI
Converter
MLT-3
Converter
NRZI
MLT-3
100M
TX Driver
MLT-3
Magnetics
MLT-3
RJ45
11.2.2.1
MLT-3
CAT-5
100BASE-TX Transmit Data Across the Internal MII Interface
For a transmission, the EtherCAT Core MAC drives the transmit data onto the internal MII TXD bus and asserts the internal MII TXEN to indicate valid data. The data is in the form of 4-bit wide 25 MHz data.
2015 Microchip Technology Inc.
DS00001909A-page 121
LAN9252
11.2.2.2
4B/5B Encoder
The transmit data passes from the MII block to the 4B/5B Encoder. This block encodes the data from 4-bit nibbles to 5bit symbols (known as “code-groups”) according to Table 11-1. Each 4-bit data-nibble is mapped to 16 of the 32 possible
code-groups. The remaining 16 code-groups are either used for control information or are not valid.
The first 16 code-groups are referred to by the hexadecimal values of their corresponding data nibbles, 0 through F. The
remaining code-groups are given letter designations with slashes on either side. For example, an IDLE code-group is /
I/, a transmit error code-group is /H/, etc.
TABLE 11-1:
4B/5B CODE TABLE
Code Group
Sym
Receiver Interpretation
11110
0
0
0000
01001
1
1
10100
2
10101
0
0000
0001
1
0001
2
0010
2
0010
3
3
0011
3
0011
01010
4
4
0100
4
0100
01011
5
5
0101
5
0101
01110
6
6
0110
6
0110
01111
7
7
0111
7
0111
10010
8
8
1000
8
1000
10011
9
9
1001
9
1001
10110
A
A
1010
A
1010
10111
B
B
1011
B
1011
11010
C
C
1100
C
1100
11011
D
D
1101
D
1101
11100
E
E
1110
E
1110
11101
F
F
1111
F
1111
11111
/I/
IDLE
Sent after /T/R/ until the MII Transmitter
Enable signal (TXEN) is received
11000
/J/
First nibble of SSD, translated to “0101”
following IDLE, else MII Receive Error
(RXER)
Sent for rising MII Transmitter Enable
signal (TXEN)
10001
/K/
Second nibble of SSD, translated to
“0101” following J, else MII Receive Error
(RXER)
Sent for rising MII Transmitter Enable
signal (TXEN)
01101
/T/
First nibble of ESD, causes de-assertion
of CRS if followed by /R/, else assertion
of MII Receive Error (RXER)
Sent for falling MII Transmitter Enable
signal (TXEN)
00111
/R/
Second nibble of ESD, causes de-assertion of CRS if following /T/, else assertion
of MII Receive Error (RXER)
Sent for falling MII Transmitter Enable
signal (TXEN)
00100
/H/
Transmit Error Symbol
Sent for rising MII Transmit Error (TXER)
DS00001909A-page 122
DATA
Transmitter Interpretation
DATA
2015 Microchip Technology Inc.
LAN9252
TABLE 11-1:
4B/5B CODE TABLE (CONTINUED)
Code Group
Sym
00110
/V/
INVALID, MII Receive Error (RXER) if
during MII Receive Data Valid (RXDV)
INVALID
11001
/V/
INVALID, MII Receive Error (RXER) if
during MII Receive Data Valid (RXDV)
INVALID
00000
/P/
INVALID
INVALID
00001
/V/
INVALID, MII Receive Error (RXER) if
during MII Receive Data Valid (RXDV)
INVALID
00010
/V/
INVALID, MII Receive Error (RXER) if
during MII Receive Data Valid (RXDV)
INVALID
00011
/V/
INVALID, MII Receive Error (RXER) if
during MII Receive Data Valid (RXDV)
INVALID
00101
/V/
INVALID, MII Receive Error (RXER) if
during MII Receive Data Valid (RXDV)
INVALID
01000
/V/
INVALID, MII Receive Error (RXER) if
during MII Receive Data Valid (RXDV)
INVALID
01100
/V/
INVALID, MII Receive Error (RXER) if
during MII Receive Data Valid (RXDV)
INVALID
10000
/V/
INVALID, MII Receive Error (RXER) if
during MII Receive Data Valid (RXDV)
INVALID
11.2.2.3
Receiver Interpretation
Transmitter Interpretation
Scrambler and PISO
Repeated data patterns (especially the IDLE code-group) can have power spectral densities with large narrow-band
peaks. Scrambling the data helps eliminate these peaks and spread the signal power more uniformly over the entire
channel bandwidth. This uniform spectral density is required by FCC regulations to prevent excessive EMI from being
radiated by the physical wiring.
The seed for the scrambler is generated from the PHY address, ensuring that each PHY will have its own scrambler
sequence. For more information on PHY addressing, refer to Section 11.1.1, "PHY Addressing".
The scrambler also performs the Parallel In Serial Out conversion (PISO) of the data.
11.2.2.4
NRZI and MLT-3 Encoding
The scrambler block passes the 5-bit wide parallel data to the NRZI converter where it becomes a serial 125MHz NRZI
data stream. The NRZI is then encoded to MLT-3. MLT-3 is a tri-level code where a change in the logic level represents
a code bit “1” and the logic output remaining at the same level represents a code bit “0”.
11.2.2.5
100M Transmit Driver
The MLT-3 data is then passed to the analog transmitter, which drives the differential MLT-3 signal on output pins TXPx
and TXNx, to the twisted pair media across a 1:1 ratio isolation transformer. The transmitter drives into the 100 impedance of the CAT-5 cable. Cable termination and impedance matching require external components.
11.2.2.6
100M Phase Lock Loop (PLL)
The 100M PLL locks onto the reference clock and generates the 125 MHz clock used to drive the 125 MHz logic and
the 100BASE-TX Transmitter.
2015 Microchip Technology Inc.
DS00001909A-page 123
LAN9252
11.2.3
100BASE-TX RECEIVE
The 100BASE-TX receive data path is shown in Figure 11-3. Shaded blocks are those which are internal to the PHY.
Each major block is explained in the following sections.
FIGURE 11-3:
100BASE-TX RECEIVE DATA PATH
100M
PLL
Internal
MII Receive Clock
Port x
MAC
MII MAC
Interface
Internal
MII 25MHz by 4 bits
25MHz
by 4 bits
4B/5B
Decoder
25MHz by
5 bits
Descrambler
and SIPO
125 Mbps Serial
NRZI
Converter
A/D
Converter
MLT-3
Converter
NRZI
MLT-3
Magnetics
MLT-3
MLT-3
RJ45
DSP: Timing
recovery, Equalizer
and BLW Correction
MLT-3
CAT-5
6 bit Data
11.2.3.1
100M Receive Input
The MLT-3 data from the cable is fed into the PHY on inputs RXPx and RXNx via a 1:1 ratio transformer. The ADC samples the incoming differential signal at a rate of 125M samples per second. Using a 64-level quantizer, 6 digital bits are
generated to represent each sample. The DSP adjusts the gain of the ADC according to the observed signal levels such
that the full dynamic range of the ADC can be used.
11.2.3.2
Equalizer, BLW Correction and Clock/Data Recovery
The 6 bits from the ADC are fed into the DSP block. The equalizer in the DSP section compensates for phase and amplitude distortion caused by the physical channel consisting of magnetics, connectors, and CAT- 5 cable. The equalizer
can restore the signal for any good-quality CAT-5 cable between 1m and 100m.
If the DC content of the signal is such that the low-frequency components fall below the low frequency pole of the isolation transformer, then the droop characteristics of the transformer will become significant and Baseline Wander (BLW)
on the received signal will result. To prevent corruption of the received data, the PHY corrects for BLW and can receive
the ANSI X3.263-1995 FDDI TP-PMD defined “killer packet” with no bit errors.
The 100M PLL generates multiple phases of the 125MHz clock. A multiplexer, controlled by the timing unit of the DSP,
selects the optimum phase for sampling the data. This is used as the received recovered clock. This clock is used to
extract the serial data from the received signal.
11.2.3.3
NRZI and MLT-3 Decoding
The DSP generates the MLT-3 recovered levels that are fed to the MLT-3 converter. The MLT-3 is then converted to an
NRZI data stream.
11.2.3.4
Descrambler
The descrambler performs an inverse function to the scrambler in the transmitter and also performs the Serial In Parallel
Out (SIPO) conversion of the data.
DS00001909A-page 124
2015 Microchip Technology Inc.
LAN9252
During reception of IDLE (/I/) symbols. the descrambler synchronizes its descrambler key to the incoming stream. Once
synchronization is achieved, the descrambler locks on this key and is able to descramble incoming data.
Special logic in the descrambler ensures synchronization with the remote transceiver by searching for IDLE symbols
within a window of 4000 bytes (40 us). This window ensures that a maximum packet size of 1514 bytes, allowed by the
IEEE 802.3 standard, can be received with no interference. If no IDLE-symbols are detected within this time-period,
receive operation is aborted and the descrambler re-starts the synchronization process.
The de-scrambled signal is then aligned into 5-bit code-groups by recognizing the /J/K/ Start-of-Stream Delimiter (SSD)
pair at the start of a packet. Once the code-word alignment is determined, it is stored and utilized until the next start of
frame.
11.2.3.5
5B/4B Decoding
The 5-bit code-groups are translated into 4-bit data nibbles according to the 4B/5B table. The translated data is presented on the internal MII RXD[3:0] signal lines. The SSD, /J/K/, is translated to “0101 0101” as the first 2 nibbles of the
MAC preamble. Reception of the SSD causes the transceiver to assert the receive data valid signal, indicating that valid
data is available on the RXD bus. Successive valid code-groups are translated to data nibbles. Reception of either the
End of Stream Delimiter (ESD) consisting of the /T/R/ symbols, or at least two /I/ symbols causes the transceiver to deassert carrier sense and receive data valid signal.
Note:
11.2.3.6
These symbols are not translated into data.
Receive Data Valid Signal
The internal MII’s Receive Data Valid signal (RXDV) indicates that recovered and decoded nibbles are being presented
on the RXD[3:0] outputs synchronous to RXCLK. RXDV becomes active after the /J/K/ delimiter has been recognized
and RXD is aligned to nibble boundaries. It remains active until either the /T/R/ delimiter is recognized or link test indicates failure or SIGDET becomes false.
RXDV is asserted when the first nibble of translated /J/K/ is ready for transfer over the Media Independent Interface.
11.2.3.7
Receiver Errors
During a frame, unexpected code-groups are considered receive errors. Expected code groups are the DATA set (0
through F), and the /T/R/ (ESD) symbol pair. When a receive error occurs, the internal MII’s RXER signal is asserted
and arbitrary data is driven onto the internal MII’s RXD[3:0] lines. Should an error be detected during the time that the /
J/K/ delimiter is being decoded (bad SSD error), RXER is asserted true and the value 1110b is driven onto the RXD[3:0]
lines. Note that the internal MII’s data valid signal (RXDV) is not yet asserted when the bad SSD occurs.
11.2.3.8
100M Receive Data Across the Internal MII Interface
For reception, the 4-bit data nibbles are sent to the MII MAC Interface block. These data nibbles are clocked to the controller at a rate of 25 MHz. RXCLK is the output clock for the internal MII bus. It is recovered from the received data to
clock the RXD bus. If there is no received signal, it is derived from the system reference clock.
11.2.4
AUTO-NEGOTIATION
The purpose of the Auto-Negotiation function is to automatically configure the transceiver to the optimum link parameters based on the capabilities of its link partner. Auto-Negotiation is a mechanism for exchanging configuration information between two link-partners and automatically selecting the highest performance mode of operation supported by
both sides. Auto-Negotiation is fully defined in clause 28 of the IEEE 802.3 specification and is enabled by setting the
Auto-Negotiation Enable (PHY_AN) of the PHY x Basic Control Register (PHY_BASIC_CONTROL_x).
Note:
Auto-Negotiation is not used for 100BASE-FX mode.
The advertised capabilities of the PHY are stored in the PHY x Auto-Negotiation Advertisement Register (PHY_AN_ADV_x). The PHY contains the ability to advertise 100BASE-TX and 10BASE-T in both full or half-duplex modes. Besides
the connection speed, the PHY can advertise remote fault indication and symmetric or asymmetric pause flow control
as defined in the IEEE 802.3 specification. The transceiver supports “Next Page” capability which is used to negotiate
Energy Efficient Ethernet functionality as well as to support software controlled pages. Many of the default advertised
capabilities of the PHY are determined via configuration straps as shown in Section 11.2.16.5, "PHY x Auto-Negotiation
Advertisement Register (PHY_AN_ADV_x)," on page 150. Refer to Section 7.0, "Configuration Straps," on page 51 for
additional details on how to use the device configuration straps.
2015 Microchip Technology Inc.
DS00001909A-page 125
LAN9252
Once Auto-Negotiation has completed, information about the resolved link and the results of the negotiation process
are reflected in the Speed Indication bits in the PHY x Special Control/Status Register (PHY_SPECIAL_CONTROL_STATUS_x), as well as the PHY x Auto-Negotiation Link Partner Base Page Ability Register
(PHY_AN_LP_BASE_ABILITY_x). The Auto-Negotiation protocol is a purely physical layer activity and proceeds independently of the MAC controller.
The following blocks are activated during an Auto-Negotiation session:
•
•
•
•
•
•
•
Auto-Negotiation (digital)
100M ADC (analog)
100M PLL (analog)
100M equalizer/BLW/clock recovery (DSP)
10M SQUELCH (analog)
10M PLL (analog)
10M Transmitter (analog)
When enabled, Auto-Negotiation is started by the occurrence of any of the following events:
• Power-On Reset (POR)
• Hardware reset (RST#)
• PHY Software reset (via Reset Control Register (RESET_CTL), or bit 15 of the PHY x Basic Control Register
(PHY_BASIC_CONTROL_x))
• PHY Power-down reset (Section 11.2.8, "PHY Power-Down Modes," on page 131)
• PHY Link status down (bit 2 of the PHY x Basic Status Register (PHY_BASIC_STATUS_x) is cleared)
• Setting the PHY x Basic Control Register (PHY_BASIC_CONTROL_x), bit 9 high (auto-neg restart)
• EtherCAT System Reset
Note:
Refer to Section 6.2, "Resets," on page 38 for information on these and other system resets.
On detection of one of these events, the transceiver begins Auto-Negotiation by transmitting bursts of Fast Link Pulses
(FLP). These are bursts of link pulses from the 10M TX Driver. They are shaped as Normal Link Pulses and can pass
uncorrupted down CAT-3 or CAT-5 cable. A Fast Link Pulse Burst consists of up to 33 pulses. The 17 odd-numbered
pulses, which are always present, frame the FLP burst. The 16 even-numbered pulses, which may be present or absent,
contain the data word being transmitted. Presence of a data pulse represents a “1”, while absence represents a “0”.
The data transmitted by an FLP burst is known as a “Link Code Word.” These are defined fully in IEEE 802.3 clause 28.
In summary, the transceiver advertises 802.3 compliance in its selector field (the first 5 bits of the Link Code Word). It
advertises its technology ability according to the bits set in the PHY x Auto-Negotiation Advertisement Register
(PHY_AN_ADV_x).
There are 4 possible matches of the technology abilities. In the order of priority these are:
•
•
•
•
100M Full Duplex (Highest priority)
100M Half Duplex
10M Full Duplex
10M Half Duplex (Lowest priority)
If the full capabilities of the transceiver are advertised (100M, full-duplex), and if the link partner is capable of 10M and
100M, then Auto-Negotiation selects 100M as the highest performance mode. If the link partner is capable of half and
full-duplex modes, then Auto-Negotiation selects full-duplex as the highest performance mode.
Once a capability match has been determined, the link code words are repeated with the acknowledge bit set. Any difference in the main content of the link code words at this time will cause Auto-Negotiation to re-start. Auto-Negotiation
will also re-start if not all of the required FLP bursts are received.
Writing the PHY x Auto-Negotiation Advertisement Register (PHY_AN_ADV_x) bits [8:5] allows software control of the
capabilities advertised by the transceiver. Writing the PHY x Auto-Negotiation Advertisement Register (PHY_AN_ADV_x) does not automatically re-start Auto-Negotiation. The Restart Auto-Negotiation (PHY_RST_AN) bit of the PHY x
Basic Control Register (PHY_BASIC_CONTROL_x) must be set before the new abilities will be advertised. Auto-Negotiation can also be disabled via software by clearing the Auto-Negotiation Enable (PHY_AN) bit of the PHY x Basic Control Register (PHY_BASIC_CONTROL_x).
DS00001909A-page 126
2015 Microchip Technology Inc.
LAN9252
11.2.4.1
Parallel Detection
If the device is connected to a device lacking the ability to Auto-Negotiate (i.e. no FLPs are detected), it is able to determine the speed of the link based on either 100M MLT-3 symbols or 10M Normal Link Pulses. In this case the link is
presumed to be half-duplex per the IEEE 802.3 standard. This ability is known as “Parallel Detection.” This feature
ensures interoperability with legacy link partners. If a link is formed via parallel detection, then the Link Partner AutoNegotiation Able bit of the PHY x Auto-Negotiation Expansion Register (PHY_AN_EXP_x) is cleared to indicate that the
link partner is not capable of Auto-Negotiation. If a fault occurs during parallel detection, the Parallel Detection Fault bit
of the PHY x Auto-Negotiation Expansion Register (PHY_AN_EXP_x) is set.
The PHY x Auto-Negotiation Link Partner Base Page Ability Register (PHY_AN_LP_BASE_ABILITY_x) is used to store
the Link Partner Ability information, which is coded in the received FLPs. If the link partner is not Auto-Negotiation capable, then this register is updated after completion of parallel detection to reflect the speed capability of the link partner.
11.2.4.2
Restarting Auto-Negotiation
Auto-Negotiation can be re-started at any time by setting the Restart Auto-Negotiation (PHY_RST_AN) bit of the PHY
x Basic Control Register (PHY_BASIC_CONTROL_x). Auto-Negotiation will also re-start if the link is broken at any time.
A broken link is caused by signal loss. This may occur because of a cable break, or because of an interruption in the
signal transmitted by the Link Partner. Auto-Negotiation resumes in an attempt to determine the new link configuration.
If the management entity re-starts Auto-Negotiation by setting the Restart Auto-Negotiation (PHY_RST_AN) bit of the
PHY x Basic Control Register (PHY_BASIC_CONTROL_x), the device will respond by stopping all transmission/receiving operations. Once the internal break_link_time is completed in the Auto-Negotiation state-machine (approximately
1200ms), Auto-Negotiation will re-start. In this case, the link partner will have also dropped the link due to lack of a
received signal, so it too will resume Auto-Negotiation.
11.2.4.3
Disabling Auto-Negotiation
Auto-Negotiation can be disabled by clearing the Auto-Negotiation Enable (PHY_AN) bit of the PHY x Basic Control
Register (PHY_BASIC_CONTROL_x). The transceiver will then force its speed of operation to reflect the information in
the PHY x Basic Control Register (PHY_BASIC_CONTROL_x) (Speed Select LSB (PHY_SPEED_SEL_LSB) and
Duplex Mode (PHY_DUPLEX)). These bits are ignored when Auto-Negotiation is enabled.
11.2.4.4
Half Vs. Full-Duplex
Half-duplex operation relies on the CSMA/CD (Carrier Sense Multiple Access / Collision Detect) protocol to handle network traffic and collisions. In this mode, the carrier sense signal, CRS, responds to both transmit and receive activity. If
data is received while the transceiver is transmitting, a collision results.
In full-duplex mode, the transceiver is able to transmit and receive data simultaneously. In this mode, CRS responds
only to receive activity. The CSMA/CD protocol does not apply and collision detection is disabled.
11.2.5
HP AUTO-MDIX
HP Auto-MDIX facilitates the use of CAT-3 (10 BASE-T) or CAT-5 (100 BASE-T) media UTP interconnect cable without
consideration of interface wiring scheme. If a user plugs in either a direct connect LAN cable or a cross-over patch cable,
as shown in Figure 11-4, the transceiver is capable of configuring the TXPx/TXNx and RXPx/RXNx twisted pair pins for
correct transceiver operation.
Note:
Auto-MDIX is not used for 100BASE-FX mode.
The internal logic of the device detects the TX and RX pins of the connecting device. Since the RX and TX line pairs
are interchangeable, special PCB design considerations are needed to accommodate the symmetrical magnetics and
termination of an Auto-MDIX design.
Software based control of the Auto-MDIX function may be performed using the Auto-MDIX Control (AMDIXCTRL) bit of
the PHY x Special Control/Status Indication Register (PHY_SPECIAL_CONTROL_STAT_IND_x). When AMDIXCTRL
is set to 1, the Auto-MDIX capability is determined by the Auto-MDIX Enable (AMDIXEN) and Auto-MDIX State (AMDIXSTATE) bits of the PHY x Special Control/Status Indication Register (PHY_SPECIAL_CONTROL_STAT_IND_x).
2015 Microchip Technology Inc.
DS00001909A-page 127
LAN9252
Note:
When operating in 10BASE-T or 100BASE-TX manual modes, the Auto-MDIX crossover time can be
extended via the Extend Manual 10/100 Auto-MDIX Crossover Time bit of the PHY x EDPD NLP / Crossover Time / EEE Configuration Register (PHY_EDPD_CFG_x). Refer to Section 11.2.16.12, on page 159
for additional information.
When Energy Detect Power-Down is enabled, the Auto-MDIX crossover time can be extended via the
EDPD Extend Crossover bit of the PHY x EDPD NLP / Crossover Time / EEE Configuration Register
(PHY_EDPD_CFG_x). Refer to Section 11.2.16.12, on page 159 for additional information
FIGURE 11-4:
DIRECT CABLE CONNECTION VS. CROSS-OVER CABLE CONNECTION
RJ-45 8-pin straight-through
for 10BASE-T/100BASE-TX
signaling
TXPx
RJ-45 8-pin cross-over for
10BASE-T/100BASE-TX
signaling
1
TXPx
TXPx
1
1
TXPx
2
2
TXNx
TXNx
2
2
TXNx
RXPx
3
3
RXPx
RXPx
3
3
RXPx
Not Used
4
4
Not Used
Not Used
4
4
Not Used
Not Used
5
5
Not Used
Not Used
5
5
Not Used
RXNx
6
6
RXNx
RXNx
6
6
RXNx
Not Used
7
7
Not Used
Not Used
8
8
Not Used
TXNx
1
Not Used
7
7
Not Used
Not Used
8
8
Not Used
Direct Connect Cable
11.2.6
Cross-Over Cable
PHY MANAGEMENT CONTROL
The PHY Management Control block is responsible for the management functions of the PHY, including register access
and interrupt generation. A Serial Management Interface (SMI) is used to support registers as required by the IEEE
802.3 (Clause 22), as well as the vendor specific registers allowed by the specification. The SMI interface consists of
the MII Management Data (MDIO) signal and the MII Management Clock (MDC) signal. These signals allow access to
all PHY registers. Refer to Section 11.2.16, "PHY Registers," on page 142 for a list of all supported registers and register
descriptions. Non-supported registers will be read as FFFFh.
11.2.7
PHY INTERRUPTS
The PHY contains the ability to generate various interrupt events. Reading the PHY x Interrupt Source Flags Register
(PHY_INTERRUPT_SOURCE_x) shows the source of the interrupt. The PHY x Interrupt Mask Register (PHY_INTERRUPT_MASK_x) enables or disables each PHY interrupt.
The PHY Management Control block aggregates the enabled interrupts status into an internal signal which is sent to
the System Interrupt Controller and is reflected via the PHY A Interrupt Event (PHY_INT_A) and PHY B Interrupt Event
(PHY_INT_B) bits of the Interrupt Status Register (INT_STS). For more information on the device interrupts, refer to
Section 8.0, "System Interrupts," on page 53.
The PHY interrupt system provides two modes, a Primary interrupt mode and an Alternative interrupt mode. Both modes
will assert the internal interrupt signal sent to the System Interrupt Controller when the corresponding mask bit is set.
These modes differ only in how they de-assert the internal interrupt signal. These modes are detailed in the following
subsections.
Note:
The Primary interrupt mode is the default interrupt mode after a power-up or hard reset. The Alternative
interrupt mode requires setup after a power-up or hard reset.
DS00001909A-page 128
2015 Microchip Technology Inc.
LAN9252
11.2.7.1
Primary Interrupt Mode
The Primary interrupt mode is the default interrupt mode. The Primary interrupt mode is always selected after power-up
or hard reset. In this mode, to enable an interrupt, set the corresponding mask bit in the PHY x Interrupt Mask Register
(PHY_INTERRUPT_MASK_x) (see Table 11-2). When the event to assert an interrupt is true, the internal interrupt signal will be asserted. When the corresponding event to de-assert the interrupt is true, the internal interrupt signal will be
de-asserted.
TABLE 11-2:
Mask
INTERRUPT MANAGEMENT TABLE
Interrupt Source Flag
Interrupt Source
Event to Assert
interrupt
Event to
De-assert interrupt
30.9
29.9
Link Up
LINKSTAT
See Note 1
Link Status
Rising LINKSTAT
Falling LINKSAT or
Reading register 29
30.8
29.8
Wake on LAN
WOL_INT
See Note 2
Enabled
WOL event
Rising WOL_INT
Falling WOL_INT or
Reading register 29
30.7
29.7
ENERGYON
17.1
ENERGYON
Rising 17.1
(Note 3)
Falling 17.1 or
Reading register 29
30.6
29.6
Auto-Negotiation complete
1.5
Auto-Negotiate Complete
Rising 1.5
Falling 1.5 or
Reading register 29
30.5
29.5
Remote Fault
Detected
1.4
Remote
Fault
Rising 1.4
Falling 1.4, or
Reading register 1 or
Reading register 29
30.4
29.4
Link Down
1.2
Link Status
Falling 1.2
Reading register 1 or
Reading register 29
30.3
29.3
Auto-Negotiation LP Acknowledge
5.14
Acknowledge
Rising 5.14
Falling 5.14 or
Reading register 29
30.2
29.2
Parallel Detection Fault
6.4
Parallel
Detection
Fault
Rising 6.4
Falling 6.4 or
Reading register 6, or
Reading register 29, or
Re-Auto Negotiate or
Link down
30.1
29.1
Auto-Negotiation Page
Received
6.1
Page
Received
Rising 6.1
Falling 6.1 or
Reading register 6, or
Reading register 29, or
Re-Auto Negotiate, or
Link down.
Note 1: LINKSTAT is the internal link status and is not directly available in any register bit.
Note 2: WOL_INT is defined as bits 7:4 in the PHY x Wakeup Control and Status Register (PHY_WUCSR_x) ANDed
with bits 3:0 of the same register, with the resultant 4 bits OR’ed together.
2015 Microchip Technology Inc.
DS00001909A-page 129
LAN9252
Note 3: If the mask bit is enabled and the internal interrupt signal has been de-asserted while ENERGYON is still
high, the internal interrupt signal will assert for 256 ms, approximately one second after ENERGYON goes
low when the Cable is unplugged. To prevent an unexpected assertion of the internal interrupt signal, the
ENERGYON interrupt mask should always be cleared as part of the ENERGYON interrupt service routine.
Note:
11.2.7.2
The Energy On (ENERGYON) bit in the PHY x Mode Control/Status Register (PHY_MODE_CONTROL_STATUS_x) is defaulted to a ‘1’ at the start of the signal acquisition process, therefore the INT7 bit
in the PHY x Interrupt Source Flags Register (PHY_INTERRUPT_SOURCE_x) will also read as a ‘1’ at
power-up. If no signal is present, then both Energy On (ENERGYON) and INT7 will clear within a few milliseconds.
Alternate Interrupt Mode
The Alternate interrupt mode is enabled by setting the ALTINT bit of the PHY x Mode Control/Status Register (PHY_MODE_CONTROL_STATUS_x) to “1”. In this mode, to enable an interrupt, set the corresponding bit of the in the PHY
x Interrupt Mask Register (PHY_INTERRUPT_MASK_x) (see Table 11-3). To clear an interrupt, clear the interrupt
source and write a ‘1’ to the corresponding Interrupt Source Flag. Writing a ‘1’ to the Interrupt Source Flag will cause
the state machine to check the Interrupt Source to determine if the Interrupt Source Flag should clear or stay as a ‘1’. If
the condition to de-assert is true, then the Interrupt Source Flag is cleared and the internal interrupt signal is also deasserted. If the condition to de-assert is false, then the Interrupt Source Flag remains set, and the internal interrupt signal
remains asserted.
TABLE 11-3:
Mask
ALTERNATIVE INTERRUPT MODE MANAGEMENT TABLE
Interrupt Source Flag
Interrupt Source
Event to
Assert
interrupt
Condition
to
De-assert
Bit to Clear
interrupt
30.9
29.9
Link Up
LINKSTAT
See
Note 4
Link Status
Rising LINKSTAT
LINKSTAT
low
29.9
30.8
29.8
Wake on LAN
WOL_INT
See
Note 5
Enabled
WOL event
Rising
WOL_INT
WOL_INT
low
29.8
30.7
29.7
ENERGYON
17.1
ENERGYON
Rising 17.1
17.1 low
29.7
30.6
29.6
Auto-Negotiation complete
1.5
Auto-Negotiate Complete
Rising 1.5
1.5 low
29.6
30.5
29.5
Remote Fault
Detected
1.4
Remote
Fault
Rising 1.4
1.4 low
29.5
30.4
29.4
Link Down
1.2
Link Status
Falling 1.2
1.2 high
29.4
30.3
29.3
Auto-Negotiation LP Acknowledge
5.14
Acknowledge
Rising 5.14
5.14 low
29.3
30.2
29.2
Parallel Detection Fault
6.4
Parallel
Detection
Fault
Rising 6.4
6.4 low
29.2
30.1
29.1
Auto-Negotiation Page
Received
6.1
Page
Received
Rising 6.1
6.1 low
29.1
Note 4: LINKSTAT is the internal link status and is not directly available in any register bit.
DS00001909A-page 130
2015 Microchip Technology Inc.
LAN9252
Note 5: WOL_INT is defined as bits 7:4 in the PHY x Wakeup Control and Status Register (PHY_WUCSR_x) ANDed
with bits 3:0 of the same register, with the resultant 4 bits OR’ed together.
Note:
11.2.8
The Energy On (ENERGYON) bit in the PHY x Mode Control/Status Register (PHY_MODE_CONTROL_STATUS_x) is defaulted to a ‘1’ at the start of the signal acquisition process, therefore the INT7 bit
in the PHY x Interrupt Source Flags Register (PHY_INTERRUPT_SOURCE_x) will also read as a ‘1’ at
power-up. If no signal is present, then both Energy On (ENERGYON) and INT7 will clear within a few milliseconds.
PHY POWER-DOWN MODES
There are two PHY power-down modes: General Power-Down Mode and Energy Detect Power-Down Mode. These
modes are described in the following subsections.
Note:
For more information on the various power management features of the device, refer to Section 6.3,
"Power Management," on page 43.
The power-down modes of each PHY are controlled independently.
The PHY power-down modes do not reload or reset the PHY registers.
11.2.8.1
General Power-Down
This power-down mode is controlled by the Power Down (PHY_PWR_DWN) bit of the PHY x Basic Control Register
(PHY_BASIC_CONTROL_x). In this mode the entire transceiver, except the PHY management control interface, is
powered down. The transceiver will remain in this power-down state as long as the Power Down (PHY_PWR_DWN) bit
is set. When the Power Down (PHY_PWR_DWN) bit is cleared, the transceiver powers up and is automatically reset.
11.2.8.2
Energy Detect Power-Down
This power-down mode is enabled by setting the Energy Detect Power-Down (EDPWRDOWN) bit of the PHY x Mode
Control/Status Register (PHY_MODE_CONTROL_STATUS_x). In this mode, when no energy is present on the line, the
entire transceiver is powered down (except for the PHY management control interface, the SQUELCH circuit and the
ENERGYON logic). The ENERGYON logic is used to detect the presence of valid energy from 100BASE-TX, 10BASET, or Auto-Negotiation signals.
In this mode, when the Energy On (ENERGYON) bit in the PHY x Mode Control/Status Register (PHY_MODE_CONTROL_STATUS_x) signal is low, the transceiver is powered down and nothing is transmitted. When energy is received,
via link pulses or packets, the Energy On (ENERGYON) bit goes high, and the transceiver powers up. The transceiver
automatically resets itself into the state prior to power-down, and asserts the INT7 bit of the PHY x Interrupt Source
Flags Register (PHY_INTERRUPT_SOURCE_x). The first and possibly second packet to activate ENERGYON may be
lost.
When the Energy Detect Power-Down (EDPWRDOWN) bit of the PHY x Mode Control/Status Register (PHY_MODE_CONTROL_STATUS_x) is low, energy detect power-down is disabled.
When in EDPD mode, the device’s NLP characteristics may be modified. The device can be configured to transmit NLPs
in EDPD via the EDPD TX NLP Enable bit of the PHY x EDPD NLP / Crossover Time / EEE Configuration Register
(PHY_EDPD_CFG_x). When enabled, the TX NLP time interval is configurable via the EDPD TX NLP Interval Timer
Select field of the PHY x EDPD NLP / Crossover Time / EEE Configuration Register (PHY_EDPD_CFG_x). When in
EDPD mode, the device can also be configured to wake on the reception of one or two NLPs. Setting the EDPD RX
Single NLP Wake Enable bit of the PHY x EDPD NLP / Crossover Time / EEE Configuration Register (PHY_EDPD_CFG_x) will enable the device to wake on reception of a single NLP. If the EDPD RX Single NLP Wake Enable bit is cleared,
the maximum interval for detecting reception of two NLPs to wake from EDPD is configurable via the EDPD RX NLP
Max Interval Detect Select field of the PHY x EDPD NLP / Crossover Time / EEE Configuration Register (PHY_EDPD_CFG_x).
The energy detect power down feature is part of the broader power management features of the device and can be used
to trigger the power management event or general interrupt request pin (IRQ). This is accomplished by enabling the
energy detect power-down feature of the PHY as described above, and setting the corresponding energy detect enable
(bit 14 for PHY A, bit 15 for PHY B) of the Power Management Control Register (PMT_CTRL). Refer to Power Management for additional information.
2015 Microchip Technology Inc.
DS00001909A-page 131
LAN9252
11.2.9
WAKE ON LAN (WOL)
The PHY supports layer WoL event detection of Perfect DA, Broadcast, Magic Packet, and Wakeup frames.
Each type of supported wake event (Perfect DA, Broadcast, Magic Packet, or Wakeup frames) may be individually
enabled via Perfect DA Wakeup Enable (PFDA_EN), Broadcast Wakeup Enable (BCST_EN), Magic Packet Enable
(MPEN), and Wakeup Frame Enable (WUEN) bits of the PHY x Wakeup Control and Status Register (PHY_WUCSR_x),
respectively. The WoL event is indicated via the INT8 bit of the PHY x Interrupt Source Flags Register (PHY_INTERRUPT_SOURCE_x).
The WoL feature is part of the broader power management features of the device and can be used to trigger the power
management event or general interrupt request pin (IRQ). This is accomplished by enabling the WoL feature of the PHY
as described above, and setting the corresponding WoL enable (bit 14 for PHY A, bit 15 for PHY B) of the Power Management Control Register (PMT_CTRL). Refer to Section 6.3, "Power Management," on page 43 for additional information.
The PHY x Wakeup Control and Status Register (PHY_WUCSR_x) also provides a WoL Configured bit, which may be
set by software after all WoL registers are configured. Because all WoL related registers are not affected by software
resets, software can poll the WoL Configured bit to ensure all WoL registers are fully configured. This allows the software
to skip reprogramming of the WoL registers after reboot due to a WoL event.
The following subsections detail each type of WoL event. For additional information on the main system interrupts, refer
to Section 8.0, "System Interrupts," on page 53.
11.2.9.1
Perfect DA (Destination Address) Detection
When enabled, the Perfect DA detection mode allows the detection of a frame with the destination address matching
the address stored in the PHY x MAC Receive Address A Register (PHY_RX_ADDRA_x), PHY x MAC Receive Address
B Register (PHY_RX_ADDRB_x), and PHY x MAC Receive Address C Register (PHY_RX_ADDRC_x). The frame
must also pass the FCS and packet length check.
As an example, the Host system must perform the following steps to enable the device to detect a Perfect DA WoL
event:
1.
2.
3.
Set the desired MAC address to cause the wake event in the PHY x MAC Receive Address A Register (PHY_RX_ADDRA_x), PHY x MAC Receive Address B Register (PHY_RX_ADDRB_x), and PHY x MAC Receive Address
C Register (PHY_RX_ADDRC_x).
Set the Perfect DA Wakeup Enable (PFDA_EN) bit of the PHY x Wakeup Control and Status Register
(PHY_WUCSR_x) to enable Perfect DA detection.
Set bit 8 (WoL event indicator) in the PHY x Interrupt Mask Register (PHY_INTERRUPT_MASK_x) to enable
WoL events.
When a match is triggered, bit 8 of the PHY x Interrupt Source Flags Register (PHY_INTERRUPT_SOURCE_x) will be
set, and the Perfect DA Frame Received (PFDA_FR) bit of the PHY x Wakeup Control and Status Register
(PHY_WUCSR_x) will be set.
11.2.9.2
Broadcast Detection
When enabled, the Broadcast detection mode allows the detection of a frame with the destination address value of FF
FF FF FF FF FF. The frame must also pass the FCS and packet length check.
As an example, the Host system must perform the following steps to enable the device to detect a Broadcast WoL event:
1.
2.
Set the Broadcast Wakeup Enable (BCST_EN) bit of the PHY x Wakeup Control and Status Register
(PHY_WUCSR_x) to enable Broadcast detection.
Set bit 8 (WoL event indicator) in the PHY x Interrupt Mask Register (PHY_INTERRUPT_MASK_x) to enable
WoL events.
When a match is triggered, bit 8 of the PHY x Interrupt Source Flags Register (PHY_INTERRUPT_SOURCE_x) will be
set, and the Broadcast Frame Received (BCAST_FR) bit of the PHY x Wakeup Control and Status Register
(PHY_WUCSR_x) will be set.
11.2.9.3
Magic Packet Detection
When enabled, the Magic Packet detection mode allows the detection of a Magic Packet frame. A Magic Packet is a
frame addressed to the device - either a unicast to the programmed address, or a broadcast - which contains the pattern
48’h FF_FF_FF_FF_FF_FF after the destination and source address field, followed by 16 repetitions of the desired MAC
address (loaded into the PHY x MAC Receive Address A Register (PHY_RX_ADDRA_x), PHY x MAC Receive Address
DS00001909A-page 132
2015 Microchip Technology Inc.
LAN9252
B Register (PHY_RX_ADDRB_x), and PHY x MAC Receive Address C Register (PHY_RX_ADDRC_x)) without any
breaks or interruptions. In case of a break in the 16 address repetitions, the logic scans for the 48’h
FF_FF_FF_FF_FF_FF pattern again in the incoming frame. The 16 repetitions may be anywhere in the frame but must
be preceded by the synchronization stream. The frame must also pass the FCS check and packet length checking.
As an example, if the desired address is 00h 11h 22h 33h 44h 55h, then the logic scans for the following data sequence
in an Ethernet frame:
Destination Address Source Address ……………FF FF FF FF FF FF
00 11 22 33 44 55 00 11 22 33 44 55 00 11 22 33 44 55 00 11 22 33 44 55
00 11 22 33 44 55 00 11 22 33 44 55 00 11 22 33 44 55 00 11 22 33 44 55
00 11 22 33 44 55 00 11 22 33 44 55 00 11 22 33 44 55 00 11 22 33 44 55
00 11 22 33 44 55 00 11 22 33 44 55 00 11 22 33 44 55 00 11 22 33 44 55
…FCS
As an example, the Host system must perform the following steps to enable the device to detect a Magic Packet WoL
event:
Set the desired MAC address to cause the wake event in the PHY x MAC Receive Address A Register (PHY_RX_ADDRA_x), PHY x MAC Receive Address B Register (PHY_RX_ADDRB_x), and PHY x MAC Receive Address C Register
(PHY_RX_ADDRC_x).
Set the Magic Packet Enable (MPEN) bit of the PHY x Wakeup Control and Status Register (PHY_WUCSR_x) to enable
Magic Packet detection.
Set bit 8 (WoL event indicator) in the PHY x Interrupt Mask Register (PHY_INTERRUPT_MASK_x) to enable WoL
events.
When a match is triggered, bit 8 of the PHY x Interrupt Source Flags Register (PHY_INTERRUPT_SOURCE_x) will be
set, and the Magic Packet Received (MPR) bit of the PHY x Wakeup Control and Status Register (PHY_WUCSR_x) will
be set.
11.2.9.4
Wakeup Frame Detection
When enabled, the Wakeup Frame detection mode allows the detection of a pre-programmed Wakeup Frame. Wakeup
Frame detection provides a way for system designers to detect a customized pattern within a packet via a programmable wake-up frame filter. The filter has a 128-bit byte mask that indicates which bytes of the frame should be compared
by the detection logic. A CRC-16 is calculated over these bytes. The result is then compared with the filter’s respective
CRC-16 to determine if a match exists. When a wake-up pattern is received, the Remote Wakeup Frame Received
(WUFR) bit of the PHY x Wakeup Control and Status Register (PHY_WUCSR_x) is set.
If enabled, the filter can also include a comparison between the frame’s destination address and the address specified
in the PHY x MAC Receive Address A Register (PHY_RX_ADDRA_x), PHY x MAC Receive Address B Register
(PHY_RX_ADDRB_x), and PHY x MAC Receive Address C Register (PHY_RX_ADDRC_x). The specified address can
be a unicast or a multicast. If address matching is enabled, only the programmed unicast or multicast address will be
considered a match. Non-specific multicast addresses and the broadcast address can be separately enabled. The
address matching results are logically OR’d (i.e., specific address match result OR any multicast result OR broadcast
result).
Whether or not the filter is enabled and whether the destination address is checked is determined by configuring the
PHY x Wakeup Filter Configuration Register A (PHY_WUF_CFGA_x). Before enabling the filter, the application program
must provide the detection logic with the sample frame and corresponding byte mask. This information is provided by
writing the PHY x Wakeup Filter Configuration Register A (PHY_WUF_CFGA_x), PHY x Wakeup Filter Configuration
Register B (PHY_WUF_CFGB_x), and PHY x Wakeup Filter Byte Mask Registers (PHY_WUF_MASK_x). The starting
offset within the frame and the expected CRC-16 for the filter is determined by the Filter Pattern Offset and Filter CRC16 fields, respectively.
If remote wakeup mode is enabled, the remote wakeup function checks each frame against the filter and recognizes the
frame as a remote wakeup frame if it passes the filter’s address filtering and CRC value match.
The pattern offset defines the location of the first byte that should be checked in the frame. The byte mask is a 128-bit
field that specifies whether or not each of the 128 contiguous bytes within the frame, beginning with the pattern offset,
should be checked. If bit j in the byte mask is set, the detection logic checks the byte (pattern offset + j) in the frame,
otherwise byte (pattern offset + j) is ignored.
2015 Microchip Technology Inc.
DS00001909A-page 133
LAN9252
At the completion of the CRC-16 checking process, the CRC-16 calculated using the pattern offset and byte mask is
compared to the expected CRC-16 value associated with the filter. If a match occurs, a remote wake-up event is signaled. The frame must also pass the FCS check and packet length checking.
Table 11-4 indicates the cases that produce a wake-up event. All other cases do not generate a wake-up event.
TABLE 11-4:
WAKEUP GENERATION CASES
Filter
Enabled
Frame
Type
CRC
Matches
Address
Match
Enabled
Any
Mcast
Enabled
Bcast
Enabled
Frame
Address
Matches
Yes
Unicast
Yes
No
X
X
X
Yes
Unicast
Yes
Yes
X
X
Yes
Yes
Multicast
Yes
X
Yes
X
X
Yes
Multicast
Yes
Yes
No
X
Yes
Yes
Broadcast
Yes
X
X
Yes
X
As an example, the Host system must perform the following steps to enable the device to detect a Wakeup Frame WoL
event:
Declare Pattern:
1.
2.
Update the PHY x Wakeup Filter Byte Mask Registers (PHY_WUF_MASK_x) to indicate the valid bytes to match.
Calculate the CRC-16 value of valid bytes offline and update the PHY x Wakeup Filter Configuration Register B
(PHY_WUF_CFGB_x). CRC-16 is calculated as follows:
At the start of a frame, CRC-16 is initialized with the value FFFFh. CRC-16 is updated when the pattern offset
and mask indicate the received byte is part of the checksum calculation. The following algorithm is used to update
the CRC-16 at that time:
Let:
^ denote the exclusive or operator.
Data [7:0] be the received data byte to be included in the checksum.
CRC[15:0] contain the calculated CRC-16 checksum.
F0 … F7 be intermediate results, calculated when a data byte is determined to be part of the CRC-16.
Calculate:
F0 = CRC[15] ^ Data[0]
F1 = CRC[14] ^ F0 ^ Data[1]
F2 = CRC[13] ^ F1 ^ Data[2]
F3 = CRC[12] ^ F2 ^ Data[3]
F4 = CRC[11] ^ F3 ^ Data[4]
F5 = CRC[10] ^ F4 ^ Data[5]
F6 = CRC[09] ^ F5 ^ Data[6]
F7 = CRC[08] ^ F6 ^ Data[7]
The CRC-32 is updated as follows:
CRC[15] = CRC[7] ^ F7
CRC[14] = CRC[6]
CRC[13] = CRC[5]
CRC[12] = CRC[4]
CRC[11] = CRC[3]
DS00001909A-page 134
2015 Microchip Technology Inc.
LAN9252
CRC[10] = CRC[2]
CRC[9] = CRC[1] ^ F0
CRC[8] = CRC[0] ^ F1
CRC[7] = F0 ^ F2
CRC[6] = F1 ^ F3
CRC[5] = F2 ^ F4
CRC[4] = F3 ^ F5
CRC[3] = F4 ^ F6
CRC[2] = F5 ^ F7
CRC[1] = F6
CRC[0] = F7
3.
Determine the offset pattern with offset 0 being the first byte of the destination address. Update the offset in the
Filter Pattern Offset field of the PHY x Wakeup Filter Configuration Register A (PHY_WUF_CFGA_x).
Determine Address Matching Conditions:
4.
5.
6.
Determine the address matching scheme based on Table 11-4 and update the Filter Broadcast Enable, Filter Any
Multicast Enable, and Address Match Enable bits of the PHY x Wakeup Filter Configuration Register A
(PHY_WUF_CFGA_x) accordingly.
If necessary (see step 4), set the desired MAC address to cause the wake event in the PHY x MAC Receive
Address A Register (PHY_RX_ADDRA_x), PHY x MAC Receive Address B Register (PHY_RX_ADDRB_x), and
PHY x MAC Receive Address C Register (PHY_RX_ADDRC_x).
Set the Filter Enable bit of the PHY x Wakeup Filter Configuration Register A (PHY_WUF_CFGA_x) to enable
the filter.
Enable Wakeup Frame Detection:
7.
8.
Set the Wakeup Frame Enable (WUEN) bit of the PHY x Wakeup Control and Status Register (PHY_WUCSR_x)
to enable Wakeup Frame detection.
Set bit 8 (WoL event indicator) in the PHY x Interrupt Mask Register (PHY_INTERRUPT_MASK_x) to enable
WoL events.
When a match is triggered, the Remote Wakeup Frame Received (WUFR) bit of the PHY x Wakeup Control and Status
Register (PHY_WUCSR_x) will be set. To provide additional visibility to software, the Filter Triggered bit of the PHY x
Wakeup Filter Configuration Register A (PHY_WUF_CFGA_x) will be set.
11.2.10
RESETS
In addition to the chip-level hardware reset (RST#), EtherCAT system reset, and Power-On Reset (POR), the PHY supports three block specific resets. These are discussed in the following sections. For detailed information on all device
resets and the reset sequence refer to Section 6.2, "Resets," on page 38.
Note:
Only a hardware reset (RST#), Power-On Reset (POR) or EtherCAT system reset will automatically reload
the configuration strap values into the PHY registers.
The Digital Reset (DIGITAL_RST) bit in the Reset Control Register (RESET_CTL) does not reset the
PHYs.
For all other PHY resets, PHY registers will need to be manually configured via software.
11.2.10.1
PHY Software Reset via RESET_CTL
The PHYs can be reset via the Reset Control Register (RESET_CTL). These bits are self clearing after approximately
102 us. This reset does not reload the configuration strap values into the PHY registers.
11.2.10.2
PHY Software Reset via PHY_BASIC_CTRL_x
The PHY can also be reset by setting the Soft Reset (PHY_SRST) bit of the PHY x Basic Control Register (PHY_BASIC_CONTROL_x). This bit is self clearing and will return to 0 after the reset is complete. This reset does not reload the
configuration strap values into the PHY registers.
2015 Microchip Technology Inc.
DS00001909A-page 135
LAN9252
11.2.10.3
PHY Power-Down Reset
After the PHY has returned from a power-down state, a reset of the PHY is automatically generated. The PHY powerdown modes do not reload or reset the PHY registers. Refer to Section 11.2.8, "PHY Power-Down Modes," on page 131
for additional information.
11.2.11
LINK INTEGRITY TEST
The device performs the link integrity test as outlined in the IEEE 802.3u (clause 24-15) Link Monitor state diagram. The
link status is multiplexed with the 10 Mbps link status to form the Link Status bit in the PHY x Basic Status Register
(PHY_BASIC_STATUS_x) and to drive the LINK LED functions.
The DSP indicates a valid MLT-3 waveform present on the RXPx and RXNx signals as defined by the ANSI X3.263 TPPMD standard, to the Link Monitor state-machine, using the internal DATA_VALID signal. When DATA_VALID is
asserted, the control logic moves into a Link-Ready state and waits for an enable from the auto-negotiation block. When
received, the Link-Up state is entered, and the Transmit and Receive logic blocks become active. Should auto-negotiation be disabled, the link integrity logic moves immediately to the Link-Up state when the DATA_VALID is asserted.
To allow the line to stabilize, the link integrity logic will wait a minimum of 330 ms from the time DATA_VALID is asserted
until the Link-Ready state is entered. Should the DATA_VALID input be negated at any time, this logic will immediately
negate the Link signal and enter the Link-Down state.
11.2.12
CABLE DIAGNOSTICS
The PHYs provide cable diagnostics which allow for open/short and length detection of the Ethernet cable. The cable
diagnostics consist of two primary modes of operation:
• Time Domain Reflectometry (TDR) Cable Diagnostics
TDR cable diagnostics enable the detection of open or shorted cabling on the TX or RX pair, as well as cable
length estimation to the open/short fault.
• Matched Cable Diagnostics
Matched cable diagnostics enable cable length estimation on 100 Mbps-linked cables.
Refer to the following sub-sections for details on proper operation of each cable diagnostics mode.
Note:
11.2.12.1
Cable diagnostics are not used for 100BASE-FX mode.
Time Domain Reflectometry (TDR) Cable Diagnostics
The PHYs provide TDR cable diagnostics which enable the detection of open or shorted cabling on the TX or RX pair,
as well as cable length estimation to the open/short fault. To utilize the TDR cable diagnostics, Auto-MDIX and Auto
Negotiation must be disabled, and the PHY must be forced to 100 Mbps full-duplex mode. These actions must be performed before setting the TDR Enable bit in the PHY x TDR Control/Status Register (PHY_TDR_CONTROL_STAT_x).
With Auto-MDIX disabled, the TDR will test the TX or RX pair selected by register bit 27.13 (Auto-MDIX State (AMDIXSTATE)). Proper cable testing should include a test of each pair. TDR cable diagnostics is not appropriate for 100BASEFX mode. When TDR testing is complete, prior register settings may be restored. Figure 11-5 provides a flow diagram
of proper TDR usage.
DS00001909A-page 136
2015 Microchip Technology Inc.
LAN9252
FIGURE 11-5:
TDR USAGE FLOW DIAGRAM
Start
Disable ANEG and Force 100Mb FullDuplex
Write PHY Reg 0: 0x2100
Disable AMDIX and Force MDI (or MDIX)
Write PHY Reg 27: 0x8000 (MDI)
- OR Write PHY Reg 27: 0xA000 (MDIX)
Enable TDR
Write PHY Reg 25: 0x8000
Check TDR Control/Status Register
Read PHY Reg 25
NO
Reg 25.8 == 0
TDR Channel Status Complete?
YES
Reg 25.8 == 1
Save:
TDR Channel Type (Reg 25.10:9)
TDR Channel Length (Reg 25.7:0)
Repeat Testing
in MDIX Mode
MDIX Case Tested?
YES
Done
The TDR operates by transmitting pulses on the selected twisted pair within the Ethernet cable (TX in MDI mode, RX
in MDIX mode). If the pair being tested is open or shorted, the resulting impedance discontinuity results in a reflected
signal that can be detected by the PHY. The PHY measures the time between the transmitted signal and received reflection and indicates the results in the TDR Channel Length field of the PHY x TDR Control/Status Register (PHY_TDR_CONTROL_STAT_x). The TDR Channel Length field indicates the “electrical” length of the cable, and can be multiplied
by the appropriate propagation constant in Table 11-5 to determine the approximate physical distance to the fault.
Note:
The TDR function is typically used when the link is inoperable. However, an active link will drop when operating the TDR.
2015 Microchip Technology Inc.
DS00001909A-page 137
LAN9252
Since the TDR relies on the reflected signal of an improperly terminated cable, there are several factors that can affect
the accuracy of the physical length estimate. These include:
1.
2.
3.
4.
Cable Type (CAT 5, CAT5e, CAT6): The electrical length of each cable type is slightly different due to the twistsper-meter of the internal signal pairs and differences in signal propagation speeds. If the cable type is known, the
length estimate can be calculated more accurately by using the propagation constant appropriate for the cable
type (see Table 11-5). In many real-world applications the cable type is unknown, or may be a mix of different
cable types and lengths. In this case, use the propagation constant for the “unknown” cable type.
TX and RX Pair: For each cable type, the EIA standards specify different twist rates (twists-per-meter) for each
signal pair within the Ethernet cable. This results in different measurements for the RX and TX pair.
Actual Cable Length: The difference between the estimated cable length and actual cable length grows as the
physical cable length increases, with the most accurate results at less than approximately 100 m.
Open/Short Case: The Open and Shorted cases will return different TDR Channel Length values (electrical
lengths) for the same physical distance to the fault. Compensation for this is achieved by using different propagation constants to calculate the physical length of the cable.
For the Open case, the estimated distance to the fault can be calculated as follows:
Distance to Open fault in meters TDR Channel Length * POPEN
Where: POPEN is the propagation constant selected from Table 11-5
For the Shorted case, the estimated distance to the fault can be calculated as follows:
Distance to Open fault in meters TDR Channel Length * PSHORT
Where: PSHORT is the propagation constant selected from Table 11-5
TABLE 11-5:
TDR PROPAGATION CONSTANTS
TDR Propagation
Constant
Cable Type
Unknown
CAT 6
CAT 5E
CAT 5
POPEN
0.769
0.745
0.76
0.85
PSHORT
0.793
0.759
0.788
0.873
The typical cable length measurement margin of error for Open and Shorted cases is dependent on the selected cable
type and the distance of the open/short from the device. Table 11-6 and Table 11-7 detail the typical measurement error
for Open and Shorted cases, respectively.
TABLE 11-6:
TYPICAL MEASUREMENT ERROR FOR OPEN CABLE (+/- METERS)
Selected Propagation Constant
Physical Distance
to Fault
POPEN =
Unknown
POPEN =
CAT 6
CAT 6 Cable, 0-100 m
9
6
CAT 5E Cable, 0-100 m
5
CAT 5 Cable, 0-100 m
13
CAT 6 Cable, 101-160 m
14
CAT 5E Cable, 101-160 m
8
CAT 5 Cable, 101-160 m
20
DS00001909A-page 138
POPEN =
CAT 5E
POPEN =
CAT 5
5
3
6
6
6
2015 Microchip Technology Inc.
LAN9252
TABLE 11-7:
TYPICAL MEASUREMENT ERROR FOR SHORTED CABLE (+/- METERS)
SELECTED PROPAGATION CONSTANT
PHYSICAL DISTANCE
TO FAULT
11.2.12.2
PSHORT =
Unknown
PSHORT =
CAT 6
CAT 6 Cable, 0-100 m
8
5
CAT 5E Cable, 0-100 m
5
CAT 5 Cable, 0-100 m
11
CAT 6 Cable, 101-160 m
14
CAT 5E Cable, 101-160 m
7
CAT 5 Cable, 101-160 m
11
PSHORT =
CAT 5E
PSHORT =
CAT 5
5
2
6
6
3
Matched Cable Diagnostics
Matched cable diagnostics enable cable length estimation on 100 Mbps-linked cables of up to 120 meters. If there is an
active 100 Mb link, the approximate distance to the link partner can be estimated using the PHY x Cable Length Register
(PHY_CABLE_LEN_x). If the cable is properly terminated, but there is no active 100 Mb link (the link partner is disabled,
nonfunctional, the link is at 10 Mb, etc.), the cable length cannot be estimated and the PHY x Cable Length Register
(PHY_CABLE_LEN_x) should be ignored. The estimated distance to the link partner can be determined via the Cable
Length (CBLN) field of the PHY x Cable Length Register (PHY_CABLE_LEN_x) using the lookup table provided in
Table 11-8. The typical cable length measurement margin of error for a matched cable case is +/- 20 m. The matched
cable length margin of error is consistent for all cable types from 0 to 120 m.
TABLE 11-8:
MATCH CASE ESTIMATED CABLE LENGTH (CBLN) LOOKUP
CBLN Field Value
Estimated Cable Length
0-3
0
4
6
5
17
6
27
7
38
8
49
9
59
10
70
11
81
12
91
13
102
14
113
15
123
2015 Microchip Technology Inc.
DS00001909A-page 139
LAN9252
Note:
11.2.13
For a properly terminated cable (Match case), there is no reflected signal. In this case, the TDR Channel
Length field is invalid and should be ignored.
LOOPBACK OPERATION
The PHYs may be configured for near-end loopback and connector loopback. These loopback modes are detailed in
the following subsections.
11.2.13.1
Near-end Loopback
Near-end loopback mode sends the digital transmit data back out the receive data signals for testing purposes, as indicated by the blue arrows in Figure 11-6. The near-end loopback mode is enabled by setting the Loopback (PHY_LOOPBACK) bit of the PHY x Basic Control Register (PHY_BASIC_CONTROL_x) to “1”. A large percentage of the digital
circuitry is operational in near-end loopback mode because data is routed through the PCS and PMA layers into the
PMD sublayer before it is looped back. The COL signal will be inactive in this mode, unless Collision Test Mode
(PHY_COL_TEST) is enabled in the PHY x Basic Control Register (PHY_BASIC_CONTROL_x). The transmitters are
powered down regardless of the state of the internal MII TXEN signal.
FIGURE 11-6:
NEAR-END LOOPBACK BLOCK DIAGRAM
10/100
Ethernet
MAC
TXD
X
RXD
Digital
11.2.13.2
Analog
X
TX
RX
XFMR
CAT-5
Connector Loopback
The device maintains reliable transmission over very short cables and can be tested in a connector loopback as shown
in Figure 11-7. An RJ45 loopback cable can be used to route the transmit signals from the output of the transformer
back to the receiver inputs. The loopback works at both 10 and 100 Mbps.
FIGURE 11-7:
10/100
Ethernet
MAC
CONNECTION LOOPBACK BLOCK DIAGRAM
TXD
TX
RXD
RX
Digital
Analog
XFMR
1
2
3
4
5
6
7
8
RJ45 Loopback Cable.
Created by connecting pin 1 to pin 3
and connecting pin 2 to pin 6.
DS00001909A-page 140
2015 Microchip Technology Inc.
LAN9252
11.2.14
100BASE-FX OPERATION
When set for 100BASE-FX operation, the scrambler and MTL-3 blocks are disable and the analog RX and TX pins are
changed to differential LVPECL pins and connect through external terminations to the external Fiber transceiver. The
differential LVPECL pins support a signal voltage range compatible with SFF (LVPECL) and SFP (reduced LVPECL)
type transceivers.
While in 100BASE-FX operation, the quality of the receive signal is provided by the external transceiver as either an
open-drain, CMOS level, Loss of Signal (SFP) or a LVPECL Signal Detect (SFF).
11.2.14.1
100BASE-FX Far End Fault Indication
Since Auto-Negotiation is not specified for 100BASE-FX, its Remote Fault capability is unavailable. Instead, 100BASEFX provides an optional Far-End Fault function.
When no signal is being received, the Far-End Fault feature transmits a special Far-End Fault Indication to its far-end
peer. The Far-End Fault Indication is sent only when a physical error condition is sensed on the receive channel.
The Far-End Fault Indication is comprised of three or more repeating cycles, each of 84 ONEs followed by a single
ZERO. This signal is sent in-band and is readily detectable but is constructed so as to not satisfy the 100BASE-X carrier
sense criterion.
Far-End Fault is implemented through the Far-End Fault Generate, Far-End Fault Detect, and the Link Monitor processes. The Far-End Fault Generate process is responsible for sensing a receive channel failure (signal_status=OFF)
and transmitting the Far-End Fault Indication in response. The transmission of the Far-End Fault Indication may start or
stop at any time depending only on signal_status. The Far-End Fault Detect process continuously monitors the RX process for the Far-End Fault Indication. Detection of the Far-End Fault Indication disables the station by causing the Link
Monitor process to de-assert link_status, which in turn causes the station to source IDLEs.
Far-End Fault is enabled by default while in 100BASE-FX mode via the Far End Fault Indication Enable (FEFI_EN) of
the PHY x Special Control/Status Indication Register (PHY_SPECIAL_CONTROL_STAT_IND_x).
11.2.14.2
100BASE-FX Enable and LOS/SD Selection
100BASE-FX operation is enabled by the use of the FX mode straps (fx_mode_strap_1 and fx_mode_strap_2) and is
reflected in the 100BASE-FX Mode (FX_MODE) bit in the PHY x Special Modes Register (PHY_SPECIAL_MODES_x).
Loss of Signal mode is selected for both PHYs by the three level FXLOSEN strap input pin. The three levels correspond
to Loss of Signal mode for a) neither PHY (less than 1 V (typ.)), b) PHY A (greater than 1 V (typ.) but less than 2 V (typ.))
or c) both PHYs (greater than 2 V (typ.)). It is not possible to select Loss of Signal mode for only PHY B.
If Loss of Signal mode is not selected, then Signal Detect mode is selected, independently, by the FXSDENA or FXSDENB strap input pin. When greater than 1 V (typ.), Signal Detect mode is enabled, when less than 1 V (typ.), copper
twisted pair is enabled.
Note:
The FXSDENA strap input pin is shared with the FXSDA pin and the FXSDENB strap input pin is shared
with the FXSDB pin. As such, the LVPECL levels ensure that the input is greater than 1 V (typ.) and that
Signal Detect mode is selected. When TP copper is desired, the Signal Detect input function is not required
and the pin should be set to 0 V.
Care must be taken such that an non-powered or disabled transceiver does not load the Signal Detect input
below the valid LVPECL level.
Table 11-9 and Table 11-10 summarize the selections.
TABLE 11-9:
100BASE-FX LOS, SD AND TP COPPER SELECTION PHY A
FXLOSEN
FXSDENA
PHY Mode
1 V (typ.)
2015 Microchip Technology Inc.
DS00001909A-page 141
LAN9252
TABLE 11-10: 100BASE-FX LOS, SD AND TP COPPER SELECTION PHY B
FXLOSEN
FXSDENB
PHY Mode
2 V (typ.)
11.2.15
REQUIRED ETHERNET MAGNETICS (100BASE-TX)
The magnetics selected for use with the device should be an Auto-MDIX style magnetic, which is widely available from
several vendors. Please review the SMSC/Microchip Application note 8.13 “Suggested Magnetics” for the latest qualified and suggested magnetics. A list of vendors and part numbers are provided within the application note.
11.2.16
PHY REGISTERS
PHYs A and B are comparable in functionality and have an identical set of non-memory mapped registers. These registers are indirectly accessed through the MII Management Control/Status Register, PHY Address Register, PHY Register Address Register, PHY DATA Register, MII Management ECAT Access State Register, and MII Management ECAT
Access State Register.
Because PHY A and B registers are functionally identical, their register descriptions have been consolidated. A lowercase “x” has been appended to the end of each PHY register name in this section, where “x” hold be replaced with “A”
or “B” for the PHY A or PHY B registers respectively. In some instances, a “1” or a “2” may be appropriate instead.
A list of the MII serial accessible Control and Status registers and their corresponding register index numbers is included
in Table 11-11. Each individual PHY is assigned a unique PHY address as detailed in Section 11.1.1, "PHY Addressing,"
on page 120.
In addition to the MII serial accessible Control and Status registers, a set of indirectly accessible registers provides support for the IEEE 802.3 Section 45.2 MDIO Manageable Device (MMD) Registers. A list of these registers and their corresponding register index numbers is included in Table 11-14.
Control and Status Registers
Table 11-11 provides a list of supported registers. Register details, including bit definitions, are provided in the following
subsections.
Unless otherwise specified, reserved fields must be written with zeros if the register is written.
TABLE 11-11: PHY A AND B MII SERIALLY ACCESSIBLE CONTROL AND STATUS REGISTERS
Index
Register Name (SYMBOL)
Group
0
PHY x Basic Control Register (PHY_BASIC_CONTROL_x)
Basic
1
PHY x Basic Status Register (PHY_BASIC_STATUS_x)
Basic
2
PHY x Identification MSB Register (PHY_ID_MSB_x)
Extended
3
PHY x Identification LSB Register (PHY_ID_LSB_x)
Extended
4
PHY x Auto-Negotiation Advertisement Register (PHY_AN_ADV_x)
Extended
5
PHY x Auto-Negotiation Link Partner Base Page Ability Register
(PHY_AN_LP_BASE_ABILITY_x)
Extended
6
PHY x Auto-Negotiation Expansion Register (PHY_AN_EXP_x)
Extended
7
PHY x Auto Negotiation Next Page TX Register (PHY_AN_NP_TX_x)
Extended
8
PHY x Auto Negotiation Next Page RX Register (PHY_AN_NP_RX_x)
Extended
DS00001909A-page 142
2015 Microchip Technology Inc.
LAN9252
TABLE 11-11: PHY A AND B MII SERIALLY ACCESSIBLE CONTROL AND STATUS REGISTERS
Index
Register Name (SYMBOL)
Group
13
PHY x MMD Access Control Register (PHY_MMD_ACCESS)
Extended
14
PHY x MMD Access Address/Data Register (PHY_MMD_ADDR_DATA)
Extended
16
PHY x EDPD NLP / Crossover Time / EEE Configuration Register (PHY_EDPD_CFG_x)
Vendorspecific
17
PHY x Mode Control/Status Register (PHY_MODE_CONTROL_STATUS_x)
Vendorspecific
18
PHY x Special Modes Register (PHY_SPECIAL_MODES_x)
Vendorspecific
24
PHY x TDR Patterns/Delay Control Register (PHY_TDR_PAT_DELAY_x)
Vendorspecific
25
PHY x TDR Control/Status Register (PHY_TDR_CONTROL_STAT_x)
Vendorspecific
26
PHY x Symbol Error Counter Register
Vendorspecific
27
PHY x Special Control/Status Indication Register (PHY_SPECIAL_CONTROL_STAT_IND_x)
Vendorspecific
28
PHY x Cable Length Register (PHY_CABLE_LEN_x)
Vendorspecific
29
PHY x Interrupt Source Flags Register (PHY_INTERRUPT_SOURCE_x)
Vendorspecific
30
PHY x Interrupt Mask Register (PHY_INTERRUPT_MASK_x)
Vendorspecific
31
PHY x Special Control/Status Register (PHY_SPECIAL_CONTROL_STATUS_x)
Vendorspecific
2015 Microchip Technology Inc.
DS00001909A-page 143
LAN9252
11.2.16.1
PHY x Basic Control Register (PHY_BASIC_CONTROL_x)
Index (decimal):
0
Size:
16 bits
This read/write register is used to configure the PHY.
Bits
15
Description
Soft Reset (PHY_SRST)
When set, this bit resets all the PHY registers to their default state, except
those marked as NASR type. This bit is self clearing.
Type
Default
R/W
SC
0b
R/W
0b
R/W
1b
R/W
Note 6
R/W
0b
0: Normal operation
1: Reset
14
Loopback (PHY_LOOPBACK)
This bit enables/disables the loopback mode. When enabled, transmissions
are not sent to network. Instead, they are looped back into the PHY.
0: Loopback mode disabled (normal operation)
1: Loopback mode enabled
13
Speed Select LSB (PHY_SPEED_SEL_LSB)
This bit is used to set the speed of the PHY when the Auto-Negotiation
Enable (PHY_AN) bit is disabled.
0: 10 Mbps
1: 100 Mbps
12
Auto-Negotiation Enable (PHY_AN)
This bit enables/disables Auto-Negotiation. When enabled, the Speed Select
LSB (PHY_SPEED_SEL_LSB) and Duplex Mode (PHY_DUPLEX) bits are
overridden.
This bit is forced to a 0 if the 100BASE-FX Mode (FX_MODE) bit of the PHY
x Special Modes Register (PHY_SPECIAL_MODES_x) is a high.
0: Auto-Negotiation disabled
1: Auto-Negotiation enabled
11
Power Down (PHY_PWR_DWN)
This bit controls the power down mode of the PHY.
0: Normal operation
1: General power down mode
10
RESERVED
RO
-
9
Restart Auto-Negotiation (PHY_RST_AN)
When set, this bit restarts the Auto-Negotiation process.
R/W
SC
0b
0: Normal operation
1: Auto-Negotiation restarted
DS00001909A-page 144
2015 Microchip Technology Inc.
LAN9252
Bits
8
Description
Duplex Mode (PHY_DUPLEX)
This bit is used to set the duplex when the Auto-Negotiation Enable
(PHY_AN) bit is disabled.
Type
Default
R/W
1b
R/W
0b
RO
-
0: Half Duplex
1: Full Duplex
7
Collision Test Mode (PHY_COL_TEST)
This bit enables/disables the collision test mode of the PHY. When set, the
collision signal is active during transmission. It is recommended that this feature be used only in loopback mode.
0: Collision test mode disabled
1: Collision test mode enabled
6:0
RESERVED
Note 6: This field defaults to a 0 if in 100BASE-FX mode or to a 1 otherwise. EtherCAT always uses Auto-Negotiate,
100 Mbps, Full-Duplex.
2015 Microchip Technology Inc.
DS00001909A-page 145
LAN9252
11.2.16.2
PHY x Basic Status Register (PHY_BASIC_STATUS_x)
Index (decimal):
1
Size:
16 bits
This register is used to monitor the status of the PHY.
Bits
15
Description
100BASE-T4
This bit displays the status of 100BASE-T4 compatibility.
Type
Default
RO
0b
RO
1b
RO
1b
RO
1b
RO
1b
RO
0b
RO
0b
RO
0b
0: PHY not able to perform 100BASE-T4
1: PHY able to perform 100BASE-T4
14
100BASE-X Full Duplex
This bit displays the status of 100BASE-X full duplex compatibility.
0: PHY not able to perform 100BASE-X full duplex
1: PHY able to perform 100BASE-X full duplex
13
100BASE-X Half Duplex
This bit displays the status of 100BASE-X half duplex compatibility.
0: PHY not able to perform 100BASE-X half duplex
1: PHY able to perform 100BASE-X half duplex
12
10BASE-T Full Duplex
This bit displays the status of 10BASE-T full duplex compatibility.
0: PHY not able to perform 10BASE-T full duplex
1: PHY able to perform 10BASE-T full duplex
11
10BASE-T Half Duplex (typ.)
This bit displays the status of 10BASE-T half duplex compatibility.
0: PHY not able to perform 10BASE-T half duplex
1: PHY able to perform 10BASE-T half duplex
10
100BASE-T2 Full Duplex
This bit displays the status of 100BASE-T2 full duplex compatibility.
0: PHY not able to perform 100BASE-T2 full duplex
1: PHY able to perform 100BASE-T2 full duplex
9
100BASE-T2 Half Duplex
This bit displays the status of 100BASE-T2 half duplex compatibility.
0: PHY not able to perform 100BASE-T2 half duplex
1: PHY able to perform 100BASE-T2 half duplex
8
Extended Status
This bit displays whether extended status information is in register 15 (per
IEEE 802.3 clause 22.2.4).
0: No extended status information in Register 15
1: Extended status information in Register 15
DS00001909A-page 146
2015 Microchip Technology Inc.
LAN9252
Bits
7
Description
Unidirectional Ability
This bit indicates whether the PHY is able to transmit regardless of whether
the PHY has determined that a valid link has been established.
Type
Default
RO
0b
RO
0b
RO
0b
RO/LH
0b
RO
1b
RO/LL
0b
RO/LH
0b
RO
1b
0: Can only transmit when a valid link has been established
1: Can transmit regardless
6
MF Preamble Suppression
This bit indicates whether the PHY accepts management frames with the preamble suppressed.
0: Management frames with preamble suppressed not accepted
1: Management frames with preamble suppressed accepted
5
Auto-Negotiation Complete
This bit indicates the status of the Auto-Negotiation process.
0: Auto-Negotiation process not completed
1: Auto-Negotiation process completed
4
Remote Fault
This bit indicates if a remote fault condition has been detected.
0: No remote fault condition detected
1: Remote fault condition detected
3
Auto-Negotiation Ability
This bit indicates the PHY’s Auto-Negotiation ability.
0: PHY is unable to perform Auto-Negotiation
1: PHY is able to perform Auto-Negotiation
2
Link Status
This bit indicates the status of the link.
0: Link is down
1: Link is up
1
Jabber Detect
This bit indicates the status of the jabber condition.
0: No jabber condition detected
1: Jabber condition detected
0
Extended Capability
This bit indicates whether extended register capability is supported.
0: Basic register set capabilities only
1: Extended register set capabilities
2015 Microchip Technology Inc.
DS00001909A-page 147
LAN9252
11.2.16.3
PHY x Identification MSB Register (PHY_ID_MSB_x)
Index (decimal):
2
Size:
16 bits
This read/write register contains the MSB of the Organizationally Unique Identifier (OUI) for the PHY. The LSB of the
PHY OUI is contained in the PHY x Identification LSB Register (PHY_ID_LSB_x).
Bits
15:0
Description
PHY ID
This field is assigned to the 3rd through 18th bits of the OUI, respectively
(OUI = 00800Fh).
DS00001909A-page 148
Type
Default
R/W
0007h
2015 Microchip Technology Inc.
LAN9252
11.2.16.4
PHY x Identification LSB Register (PHY_ID_LSB_x)
Index (decimal):
3
Size:
16 bits
This read/write register contains the LSB of the Organizationally Unique Identifier (OUI) for the PHY. The MSB of the
PHY OUI is contained in the PHY x Identification MSB Register (PHY_ID_MSB_x).
Bits
15:10
Description
Type
PHY ID
This field is assigned to the 19th through 24th bits of the PHY OUI, respectively. (OUI = 00800Fh).
R/W
9:4
Model Number
This field contains the 6-bit manufacturer’s model number of the PHY.
R/W
3:0
Revision Number
This field contain the 4-bit manufacturer’s revision number of the PHY.
R/W
Note:
Default
C140h
The default value of the Revision Number field may vary dependent on the silicon revision number.
2015 Microchip Technology Inc.
DS00001909A-page 149
LAN9252
11.2.16.5
PHY x Auto-Negotiation Advertisement Register (PHY_AN_ADV_x)
Index (decimal):
4
Size:
16 bits
This read/write register contains the advertised ability of the PHY and is used in the Auto-Negotiation process with the
link partner.
Bits
15
Description
Next Page
Type
Default
R/W
0b
0 = No next page ability
1 = Next page capable
14
RESERVED
RO
-
13
Remote Fault
This bit determines if remote fault indication will be advertised to the link partner.
R/W
0b
R/W
0b
R/W
0b
R/W
0b
0: Remote fault indication not advertised
1: Remote fault indication advertised
12
Extended Next Page
Note:
11
This bit should be written as 0.
Asymmetric Pause
This bit determines the advertised asymmetric pause capability.
0: No Asymmetric PAUSE toward link partner advertised
1: Asymmetric PAUSE toward link partner advertised
10
Symmetric Pause
This bit determines the advertised symmetric pause capability.
0: No Symmetric PAUSE toward link partner advertised
1: Symmetric PAUSE toward link partner advertised
9
RESERVED
RO
-
8
100BASE-X Full Duplex
This bit determines the advertised 100BASE-X full duplex capability.
R/W
1b
R/W
0b
R/W
0b
0: 100BASE-X full duplex ability not advertised
1: 100BASE-X full duplex ability advertised
7
100BASE-X Half Duplex
This bit determines the advertised 100BASE-X half duplex capability.
0: 100BASE-X half duplex ability not advertised
1: 100BASE-X half duplex ability advertised
6
10BASE-T Full Duplex
This bit determines the advertised 10BASE-T full duplex capability.
0: 10BASE-T full duplex ability not advertised
1: 10BASE-T full duplex ability advertised
DS00001909A-page 150
2015 Microchip Technology Inc.
LAN9252
Bits
5
Description
10BASE-T Half Duplex
This bit determines the advertised 10BASE-T half duplex capability.
Type
Default
R/W
0b
R/W
00001b
0: 10BASE-T half duplex ability not advertised
1: 10BASE-T half duplex ability advertised
4:0
Selector Field
This field identifies the type of message being sent by Auto-Negotiation.
00001: IEEE 802.3
2015 Microchip Technology Inc.
DS00001909A-page 151
LAN9252
11.2.16.6
PHY x Auto-Negotiation Link Partner Base Page Ability Register
(PHY_AN_LP_BASE_ABILITY_x)
Index (decimal):
5
Size:
16 bits
This read-only register contains the advertised ability of the link partner’s PHY and is used in the Auto-Negotiation process between the link partner and the PHY.
Bits
15
Description
Next Page
This bit indicates the link partner PHY page capability.
Type
Default
RO
0b
RO
0b
RO
0b
RO
0b
RO
0b
RO
0b
RO
0b
RO
0b
0: Link partner PHY does not advertise next page capability
1: Link partner PHY advertises next page capability
14
Acknowledge
This bit indicates whether the link code word has been received from the
partner.
0: Link code word not yet received from partner
1: Link code word received from partner
13
Remote Fault
This bit indicates whether a remote fault has been detected.
0: No remote fault
1: Remote fault detected
12
Extended Next Page
0: Link partner PHY does not advertise extended next page capability
1: Link partner PHY advertises extended next page capability
11
Asymmetric Pause
This bit indicates the link partner PHY asymmetric pause capability.
0: No Asymmetric PAUSE toward link partner
1: Asymmetric PAUSE toward link partner
10
Pause
This bit indicates the link partner PHY symmetric pause capability.
0: No Symmetric PAUSE toward link partner
1: Symmetric PAUSE toward link partner
9
100BASE-T4
This bit indicates the link partner PHY 100BASE-T4 capability.
0: 100BASE-T4 ability not supported
1: 100BASE-T4 ability supported
8
100BASE-X Full Duplex
This bit indicates the link partner PHY 100BASE-X full duplex capability.
0: 100BASE-X full duplex ability not supported
1: 100BASE-X full duplex ability supported
DS00001909A-page 152
2015 Microchip Technology Inc.
LAN9252
Bits
7
Description
100BASE-X Half Duplex
This bit indicates the link partner PHY 100BASE-X half duplex capability.
Type
Default
RO
0b
RO
0b
RO
0b
RO
00001b
0: 100BASE-X half duplex ability not supported
1: 100BASE-X half duplex ability supported
6
10BASE-T Full Duplex
This bit indicates the link partner PHY 10BASE-T full duplex capability.
0: 10BASE-T full duplex ability not supported
1: 10BASE-T full duplex ability supported
5
10BASE-T Half Duplex
This bit indicates the link partner PHY 10BASE-T half duplex capability.
0: 10BASE-T half duplex ability not supported
1: 10BASE-T half duplex ability supported
4:0
Selector Field
This field identifies the type of message being sent by Auto-Negotiation.
00001: IEEE 802.3
2015 Microchip Technology Inc.
DS00001909A-page 153
LAN9252
11.2.16.7
PHY x Auto-Negotiation Expansion Register (PHY_AN_EXP_x)
Index (decimal):
6
Size:
16 bits
This read/write register is used in the Auto-Negotiation process between the link partner and the PHY.
Bits
15:7
6
Description
Type
Default
RESERVED
RO
-
Receive Next Page Location Able
RO
1b
RO
1b
RO/LH
0b
RO
0b
RO
1b
RO/LH
0b
RO
0b
0 = Received next page storage location is not specified by bit 6.5
1 = Received next page storage location is specified by bit 6.5
5
Received Next Page Storage Location
0 = Link partner next pages are stored in the PHY x Auto-Negotiation Link
Partner Base Page Ability Register (PHY_AN_LP_BASE_ABILITY_x) (PHY
register 5)
1 = Link partner next pages are stored in the PHY x Auto Negotiation Next
Page RX Register (PHY_AN_NP_RX_x) (PHY register 8)
4
Parallel Detection Fault
This bit indicates whether a Parallel Detection Fault has been detected.
0: A fault hasn’t been detected via the Parallel Detection function
1: A fault has been detected via the Parallel Detection function
3
Link Partner Next Page Able
This bit indicates whether the link partner has next page ability.
0: Link partner does not contain next page capability
1: Link partner contains next page capability
2
Next Page Able
This bit indicates whether the local device has next page ability.
0: Local device does not contain next page capability
1: Local device contains next page capability
1
Page Received
This bit indicates the reception of a new page.
0: A new page has not been received
1: A new page has been received
0
Link Partner Auto-Negotiation Able
This bit indicates the Auto-Negotiation ability of the link partner.
0: Link partner is not Auto-Negotiation able
1: Link partner is Auto-Negotiation able
DS00001909A-page 154
2015 Microchip Technology Inc.
LAN9252
11.2.16.8
PHY x Auto Negotiation Next Page TX Register (PHY_AN_NP_TX_x)
Index (In Decimal):
Bits
7
Description
Size:
16 bits
Type
Default
15
Next Page
0 = No next page ability
1 = Next page capable
R/W
0b
14
RESERVED
RO
-
13
Message Page
0 = Unformatted page
1 = Message page
R/W
1b
12
Acknowledge 2
0 = Device cannot comply with message.
1 = Device will comply with message.
R/W
0b
11
Toggle
0 = Previous value was HIGH.
1 = Previous value was LOW.
RO
0b
Message Code
Message/Unformatted Code Field
R/W
000
0000
0001b
10:0
2015 Microchip Technology Inc.
DS00001909A-page 155
LAN9252
11.2.16.9
PHY x Auto Negotiation Next Page RX Register (PHY_AN_NP_RX_x)
Index (In Decimal):
BITS
15
8
Size:
DESCRIPTION
Next Page
16 bits
TYPE
DEFAULT
RO
0b
RO
0b
RO
0b
RO
0b
RO
0b
RO
000
0000
0000b
0 = No next page ability
1 = Next page capable
14
Acknowledge
0 = Link code word not yet received from partner
1 = Link code word received from partner
13
Message Page
0 = Unformatted page
1 = Message page
12
Acknowledge 2
0 = Device cannot comply with message.
1 = Device will comply with message.
11
Toggle
0 = Previous value was HIGH.
1 = Previous value was LOW.
10:0
Message Code
Message/Unformatted Code Field
DS00001909A-page 156
2015 Microchip Technology Inc.
LAN9252
11.2.16.10 PHY x MMD Access Control Register (PHY_MMD_ACCESS)
Index (In Decimal):
13
Size:
16 bits
This register in conjunction with the PHY x MMD Access Address/Data Register (PHY_MMD_ADDR_DATA) provides
indirect access to the MDIO Manageable Device (MMD) registers. Refer to the MDIO Manageable Device (MMD) Registers on page 175 for additional details.
Bits
15:14
Description
MMD Function
This field is used to select the desired MMD function:
Type
Default
R/W
00b
00 = Address
01 = Data, no post increment
10 = RESERVED
11 = RESERVED
13:5
RESERVED
RO
-
4:0
MMD Device Address (DEVAD)
This field is used to select the desired MMD device address.
(3 = PCS, 7 = auto-negotiation)
R/W
0h
2015 Microchip Technology Inc.
DS00001909A-page 157
LAN9252
11.2.16.11 PHY x MMD Access Address/Data Register (PHY_MMD_ADDR_DATA)
Index (In Decimal):
14
Size:
16 bits
This register in conjunction with the PHY x MMD Access Control Register (PHY_MMD_ACCESS) provides indirect
access to the MDIO Manageable Device (MMD) registers. Refer to the MDIO Manageable Device (MMD) Registers on
page 175 for additional details.
Bits
Description
Type
Default
15:0
MMD Register Address/Data
If the MMD Function field of the PHY x MMD Access Control Register
(PHY_MMD_ACCESS) is “00”, this field is used to indicate the MMD register
address to read/write of the device specified in the MMD Device Address
(DEVAD) field. Otherwise, this register is used to read/write data from/to the
previously specified MMD address.
R/W
0000h
DS00001909A-page 158
2015 Microchip Technology Inc.
LAN9252
11.2.16.12 PHY x EDPD NLP / Crossover Time / EEE Configuration Register (PHY_EDPD_CFG_x)
Index (decimal):
16
Size:
16 bits
This register is used to Enable EEE functionality and control NLP pulse generation and the Auto-MDIX Crossover Time
of the PHY.
Bits
Description
Type
Default
15
EDPD TX NLP Enable
Enables the generation of a Normal Link Pulse (NLP) with a selectable interval while in Energy Detect Power-Down. 0=disabled, 1=enabled.
R/W
NASR
Note 7
0b
R/W
NASR
Note 7
00b
R/W
NASR
Note 7
0b
R/W
NASR
Note 7
00b
RO
-
R/W
NASR
Note 7
0b
The Energy Detect Power-Down (EDPWRDOWN) bit in the PHY x Mode
Control/Status Register (PHY_MODE_CONTROL_STATUS_x) needs to be
set in order to enter Energy Detect Power-Down mode and the PHY needs to
be in the Energy Detect Power-Down state in order for this bit to generate the
NLP.
The EDPD TX NLP Independent Mode bit of this register also needs to be set
when setting this bit.
14:13
EDPD TX NLP Interval Timer Select
Specifies how often a NLP is transmitted while in the Energy Detect PowerDown state.
00b: 1 s
01b: 768 ms
10b: 512 ms
11b: 256 ms
12
EDPD RX Single NLP Wake Enable
When set, the PHY will wake upon the reception of a single Normal Link
Pulse. When clear, the PHY requires two link pluses, within the interval specified below, in order to wake up.
Single NLP Wake Mode is recommended when connecting to “Green” network devices.
11:10
EDPD RX NLP Max Interval Detect Select
These bits specify the maximum time between two consecutive Normal Link
Pulses in order for them to be considered a valid wake up signal.
00b: 64 ms
01b: 256 ms
10b: 512 ms
11b: 1 s
9:4
3
RESERVED
EDPD TX NLP Independent Mode
When set, each PHY port independently detects power down for purposes of
the EDPD TX NLP function (via the EDPD TX NLP Enable bit of this register).
When cleared, both ports need to be in a power-down state in order to generate TX NLPs during energy detect power-down.
Normally set this bit when setting EDPD TX NLP Enable.
2015 Microchip Technology Inc.
DS00001909A-page 159
LAN9252
Bits
Description
2
RESERVED
1
EDPD Extend Crossover
When in Energy Detect Power-Down (EDPD) mode (Energy Detect PowerDown (EDPWRDOWN) = 1), setting this bit to 1 extends the crossover time
by 2976 ms.
Type
Default
RO
-
R/W
NASR
Note 7
0b
R/W
NASR
Note 7
1b
0 = Crossover time extension disabled
1 = Crossover time extension enabled (2976 ms)
0
Extend Manual 10/100 Auto-MDIX Crossover Time
When Auto-Negotiation is disabled, setting this bit extends the Auto-MDIX
crossover time by 32 sample times (32 * 62 ms = 1984 ms). This allows the
link to be established with a partner PHY that has Auto-Negotiation enabled.
When Auto-Negotiation is enabled, this bit has no affect.
It is recommended that this bit is set when disabling AN with Auto-MDIX
enabled.
Note 7: Register bits designated as NASR are reset when the PHY Reset is generated via the Reset Control Register (RESET_CTL). The NASR designation is only applicable when the Soft Reset (PHY_SRST) bit of the
PHY x Basic Control Register (PHY_BASIC_CONTROL_x) is set.
DS00001909A-page 160
2015 Microchip Technology Inc.
LAN9252
11.2.16.13 PHY x Mode Control/Status Register (PHY_MODE_CONTROL_STATUS_x)
Index (decimal):
17
Size:
16 bits
This read/write register is used to control and monitor various PHY configuration options.
Bits
Type
Default
RESERVED
RO
-
Energy Detect Power-Down (EDPWRDOWN)
This bit controls the Energy Detect Power-Down mode.
R/W
0b
RO
-
R/W
NASR
Note 8
0b
RESERVED
RO
-
1
Energy On (ENERGYON)
Indicates whether energy is detected. This bit transitions to “0” if no valid
energy is detected within 256 ms (1500 ms if auto-negotiation is enabled). It
is reset to “1” by a hardware reset and by a software reset if auto-negotiation
was enabled or will be enabled via strapping. Refer to Section 11.2.8.2,
"Energy Detect Power-Down," on page 131 for additional information.
RO
1b
0
RESERVED
RO
-
15:14
13
Description
0: Energy Detect Power-Down is disabled
1: Energy Detect Power-Down is enabled
Note:
12:7
6
5:2
When in EDPD mode, the device’s NLP characteristics can be
modified via the PHY x EDPD NLP / Crossover Time / EEE
Configuration Register (PHY_EDPD_CFG_x).
RESERVED
ALTINT
Alternate Interrupt Mode:
0 = Primary interrupt system enabled (Default)
1 = Alternate interrupt system enabled
Refer to Section 11.2.7, "PHY Interrupts," on page 128 for additional information.
Note 8: Register bits designated as NASR are reset when the PHY Reset is generated via the Reset Control Register (RESET_CTL). The NASR designation is only applicable when the Soft Reset (PHY_SRST) bit of the
PHY x Basic Control Register (PHY_BASIC_CONTROL_x) is set.
2015 Microchip Technology Inc.
DS00001909A-page 161
LAN9252
11.2.16.14 PHY x Special Modes Register (PHY_SPECIAL_MODES_x)
Index (decimal):
18
Size:
16 bits
This read/write register is used to control the special modes of the PHY.
Bits
Description
15:11
10
RESERVED
100BASE-FX Mode (FX_MODE)
This bit enables 100BASE-FX Mode
Note:
FX_MODE cannot properly be changed with this bit. This bit must
always be written with its current value. Device strapping must be
used to set the desired mode.
9:8
RESERVED
7:5
PHY Mode (MODE[2:0])
This field controls the PHY mode of operation. Refer to Table 11-12 for a definition of each mode.
Note:
4:0
Default
RO
-
R/W
NASR
Note 9
Note 10
RO
-
R/W
NASR
Note 9
Note 11
R/W
NASR
Note 9
Note 12
This field should be written with its read value.
PHY Address (PHYADD)
The PHY Address field determines the MMI address to which the PHY will
respond and is also used for initialization of the cipher (scrambler) key. Each
PHY must have a unique address. Refer to Section 11.1.1, "PHY Addressing," on page 120 for additional information.
Note:
Type
No check is performed to ensure that this address is unique from
the other PHY addresses (PHY A, PHY B).
Note 9: Register bits designated as NASR are reset when the PHY Reset is generated via the Reset Control Register (RESET_CTL). The NASR designation is only applicable when the Soft Reset (PHY_SRST) bit of the
PHY x Basic Control Register (PHY_BASIC_CONTROL_x) is set.
Note 10: The default value of this bit is determined by the Fiber Enable strap (fx_mode_strap_1 for PHY A, fx_mode_strap_2 for PHY B).
Note 11: This field defaults to 100b when in 100BASE-TX mode (since EtherCAT only uses Auto-Negotiate, 100
Mbps, Full-Duplex) or to 011b when in 100BASE-FX mode (since EtherCAT only uses 100 Mbps, FullDuplex).
Note 12: The default value of this field is determined per Section 11.1.1, "PHY Addressing," on page 120.
TABLE 11-12: MODE[2:0] DEFINITIONS
MODE[2:0]
Mode Definitions
000
10BASE-T Half Duplex. Auto-Negotiation disabled.
001
10BASE-T Full Duplex. Auto-Negotiation disabled.
010
100BASE-TX or 100BASE-FX Half Duplex. Auto-Negotiation disabled. CRS is active
during Transmit & Receive.
011
100BASE-TX or 100BASE-FX Full Duplex. Auto-Negotiation disabled. CRS is active
during Receive.
DS00001909A-page 162
2015 Microchip Technology Inc.
LAN9252
TABLE 11-12: MODE[2:0] DEFINITIONS (CONTINUED)
MODE[2:0]
Mode Definitions
100
100BASE-TX Full Duplex is advertised. Auto-Negotiation enabled. CRS is active during
Receive.
101
RESERVED
110
Power Down mode.
111
All capable. Auto-Negotiation enabled.
2015 Microchip Technology Inc.
DS00001909A-page 163
LAN9252
11.2.16.15 PHY x TDR Patterns/Delay Control Register (PHY_TDR_PAT_DELAY_x)
Index (In Decimal):
Bits
24
Size:
16 bits
Type
Default
R/W
NASR
Note 13
1b
TDR Line Break Counter
When TDR Delay In is 1, this field specifies the increase in line break time in
increments of 256 ms, up to 2 seconds.
R/W
NASR
Note 13
001b
11:6
TDR Pattern High
This field specifies the data pattern sent in TDR mode for the high cycle.
R/W
NASR
Note 13
101110b
5:0
TDR Pattern Low
This field specifies the data pattern sent in TDR mode for the low cycle.
R/W
NASR
Note 13
011101b
15
Description
TDR Delay In
0 = Line break time is 2 ms.
1 = The device uses TDR Line Break Counter to increase the line break
time before starting TDR.
14:12
Note 13: Register bits designated as NASR are reset when the PHY Reset is generated via the Reset Control Register (RESET_CTL). The NASR designation is only applicable when the Soft Reset (PHY_SRST) bit of the
PHY x Basic Control Register (PHY_BASIC_CONTROL_x) is set.
DS00001909A-page 164
2015 Microchip Technology Inc.
LAN9252
11.2.16.16 PHY x TDR Control/Status Register (PHY_TDR_CONTROL_STAT_x)
Index (In Decimal):
Bits
15
25
Size:
16 bits
Description
TDR Enable
0 = TDR mode disabled
1 = TDR mode enabled
Note:
14
Type
Default
R/W
NASR
SC
Note 14
0b
R/W
NASR
Note 14
0b
RO
-
This bit self clears when TDR completes
(TDR Channel Status goes high)
TDR Analog to Digital Filter Enable
0 = TDR analog to digital filter disabled
1 = TDR analog to digital filter enabled (reduces noise spikes during
TDR pulses)
13:11
RESERVED
10:9
TDR Channel Cable Type
Indicates the cable type determined by the TDR test.
00 = Default
01 = Shorted cable condition
10 = Open cable condition
11 = Match cable condition
R/W
NASR
Note 14
00b
8
TDR Channel Status
When high, this bit indicates that the TDR operation has completed. This bit
will stay high until reset or the TDR operation is restarted (TDR Enable = 1)
R/W
NASR
Note 14
0b
7:0
TDR Channel Length
This eight bit value indicates the TDR channel length during a short or open
cable condition. Refer to Section 11.2.12.1, "Time Domain Reflectometry
(TDR) Cable Diagnostics," on page 136 for additional information on the
usage of this field.
R/W
NASR
Note 14
00h
Note:
This field is not valid during a match cable condition. The PHY x
Cable Length Register (PHY_CABLE_LEN_x) must be used to
determine cable length during a non-open/short (match) condition.
Refer to Section 11.2.12, "Cable Diagnostics," on page 136 for
additional information.
Note 14: Register bits designated as NASR are reset when the PHY Reset is generated via the Reset Control Register (RESET_CTL). The NASR designation is only applicable when the Soft Reset (PHY_SRST) bit of the
PHY x Basic Control Register (PHY_BASIC_CONTROL_x) is set.
2015 Microchip Technology Inc.
DS00001909A-page 165
LAN9252
11.2.16.17 PHY x Symbol Error Counter Register
Index (In Decimal):
26
Size:
16 bits
Bits
Description
Type
Default
15:0
Symbol Error Counter (SYM_ERR_CNT)
This 100BASE-TX receiver-based error counter increments when an invalid
code symbol is received, including IDLE symbols. The counter is incremented only once per packet, even when the received packet contains more
than one symbol error. This field counts up to 65,536 and rolls over to 0 if
incremented beyond its maximum value.
RO
0000h
Note:
This register is cleared on reset, but is not cleared by reading the
register. It does not increment in 10BASE-T mode.
DS00001909A-page 166
2015 Microchip Technology Inc.
LAN9252
11.2.16.18 PHY x Special Control/Status Indication Register (PHY_SPECIAL_CONTROL_STAT_IND_x)
Index (decimal):
27
Size:
16 bits
This read/write register is used to control various options of the PHY.
Bits
Type
Default
R/W
NASR
Note 15
0b
R/W
NASR
Note 15
0b
R/W
NASR
Note 15
0b
RO
-
R/W
NASR
Note 15
0b
RESERVED
RO
-
5
Far End Fault Indication Enable (FEFI_EN)
This bit enables Far End Fault Generation and Detection. See Section
11.2.14.1, "100BASE-FX Far End Fault Indication," on page 141 for more
information.
R/W
Note 16
4
10Base-T Polarity State (XPOL)
This bit shows the polarity state of the 10Base-T.
RO
0b
RO
-
15
Description
Auto-MDIX Control (AMDIXCTRL)
This bit is responsible for determining the source of Auto-MDIX control for
Port x.
0: Port x Auto-MDIX enabled
1: Port x Auto-MDIX determined by bits 14 and 13
14
Auto-MDIX Enable (AMDIXEN)
When the AMDIXCTRL bit of this register is set, this bit is used in conjunction
with the AMDIXSTATE bit to control the Port Auto-MDIX functionality as
shown in Table 11-13.
Auto-MDIX is not appropriate and should not be enabled for 100BASE-FX
mode.
13
Auto-MDIX State (AMDIXSTATE)
When the AMDIXCTRL bit of this register is set, this bit is used in conjunction
with the AMDIXEN bit to control the Port Auto-MDIX functionality as shown in
Table 11-13.
12
RESERVED
11
SQE Test Disable (SQEOFF)
This bit controls the disabling of the SQE test (Heartbeat). SQE test is
enabled by default.
0: SQE test enabled
1: SQE test disabled
10:6
0: Normal Polarity
1: Reversed Polarity
3:0
RESERVED
Note 15: Register bits designated as NASR are reset when the PHY Reset is generated via the Reset Control Register (RESET_CTL). The NASR designation is only applicable when the Soft Reset (PHY_SRST) bit of the
PHY x Basic Control Register (PHY_BASIC_CONTROL_x) is set.
Note 16: The default value of this bit is a 1 if in 100BASE-FX mode, otherwise the default is a 0.
2015 Microchip Technology Inc.
DS00001909A-page 167
LAN9252
TABLE 11-13: AUTO-MDIX ENABLE AND AUTO-MDIX STATE BIT FUNCTIONALITY
Auto-MDIX Enable
Auto-MDIX State
Mode
0
0
Manual mode, no crossover
0
1
Manual mode, crossover
1
0
Auto-MDIX mode
1
1
RESERVED (do not use this state)
DS00001909A-page 168
2015 Microchip Technology Inc.
LAN9252
11.2.16.19 PHY x Cable Length Register (PHY_CABLE_LEN_x)
Index (In Decimal):
Bits
15:12
Size:
16 bits
Description
Cable Length (CBLN)
This four bit value indicates the cable length. Refer to Section 11.2.12.2,
"Matched Cable Diagnostics," on page 139 for additional information on the
usage of this field.
Note:
11:0
28
Type
Default
RO
0000b
R/W
-
This field indicates cable length for 100BASE-TX linked devices
that do not have an open/short on the cable. To determine the
open/short status of the cable, the PHY x TDR Patterns/Delay
Control Register (PHY_TDR_PAT_DELAY_x) and PHY x TDR
Control/Status Register (PHY_TDR_CONTROL_STAT_x) must be
used. Cable length is not supported for 10BASE-T links. Refer to
Section 11.2.12, "Cable Diagnostics," on page 136 for additional
information.
RESERVED - Write as 100000000000b, ignore on read
2015 Microchip Technology Inc.
DS00001909A-page 169
LAN9252
11.2.16.20 PHY x Interrupt Source Flags Register (PHY_INTERRUPT_SOURCE_x)
Index (decimal):
29
Size:
16 bits
This read-only register is used to determine to source of various PHY interrupts. All interrupt source bits in this register
are read-only and latch high upon detection of the corresponding interrupt (if enabled). A read of this register clears the
interrupts. These interrupts are enabled or masked via the PHY x Interrupt Mask Register (PHY_INTERRUPT_MASK_x).
Bits
15:9
9
Description
RESERVED
INT9
This interrupt source bit indicates a Link Up (link status asserted).
Type
Default
RO
-
RO/LH
0b
RO/LH
0b
RO/LH
0b
RO/LH
0b
RO/LH
0b
RO/LH
0b
RO/LH
0b
0: Not source of interrupt
1: Link Up (link status asserted)
8
INT8
0: Not source of interrupt
1: Wake on LAN (WoL) event detected
7
INT7
This interrupt source bit indicates when the Energy On (ENERGYON) bit of
the PHY x Mode Control/Status Register (PHY_MODE_CONTROL_STATUS_x) has been set.
0: Not source of interrupt
1: ENERGYON generated
6
INT6
This interrupt source bit indicates Auto-Negotiation is complete.
0: Not source of interrupt
1: Auto-Negotiation complete
5
INT5
This interrupt source bit indicates a remote fault has been detected.
0: Not source of interrupt
1: Remote fault detected
4
INT4
This interrupt source bit indicates a Link Down (link status negated).
0: Not source of interrupt
1: Link Down (link status negated)
3
INT3
This interrupt source bit indicates an Auto-Negotiation LP acknowledge.
0: Not source of interrupt
1: Auto-Negotiation LP acknowledge
DS00001909A-page 170
2015 Microchip Technology Inc.
LAN9252
Bits
2
Description
INT2
This interrupt source bit indicates a Parallel Detection fault.
Type
Default
RO/LH
0b
RO/LH
0b
RO
-
0: Not source of interrupt
1: Parallel Detection fault
1
INT1
This interrupt source bit indicates an Auto-Negotiation page received.
0: Not source of interrupt
1: Auto-Negotiation page received
0
RESERVED
2015 Microchip Technology Inc.
DS00001909A-page 171
LAN9252
11.2.16.21 PHY x Interrupt Mask Register (PHY_INTERRUPT_MASK_x)
Index (decimal):
30
Size:
16 bits
This read/write register is used to enable or mask the various PHY interrupts and is used in conjunction with the PHY x
Interrupt Source Flags Register (PHY_INTERRUPT_SOURCE_x).
Bits
15:10
9
Description
Type
Default
RESERVED
RO
-
INT9_MASK
This interrupt mask bit enables/masks the Link Up (link status asserted) interrupt.
R/W
0b
R/W
0b
R/W
0b
R/W
0b
R/W
0b
R/W
0b
R/W
0b
0: Interrupt source is masked
1: Interrupt source is enabled
8
INT8_MASK
This interrupt mask bit enables/masks the WoL interrupt.
0: Interrupt source is masked
1: Interrupt source is enabled
7
INT7_MASK
This interrupt mask bit enables/masks the ENERGYON interrupt.
0: Interrupt source is masked
1: Interrupt source is enabled
6
INT6_MASK
This interrupt mask bit enables/masks the Auto-Negotiation interrupt.
0: Interrupt source is masked
1: Interrupt source is enabled
5
INT5_MASK
This interrupt mask bit enables/masks the remote fault interrupt.
0: Interrupt source is masked
1: Interrupt source is enabled
4
INT4_MASK
This interrupt mask bit enables/masks the Link Down (link status negated)
interrupt.
0: Interrupt source is masked
1: Interrupt source is enabled
3
INT3_MASK
This interrupt mask bit enables/masks the Auto-Negotiation LP acknowledge
interrupt.
0: Interrupt source is masked
1: Interrupt source is enabled
DS00001909A-page 172
2015 Microchip Technology Inc.
LAN9252
Bits
2
Description
INT2_MASK
This interrupt mask bit enables/masks the Parallel Detection fault interrupt.
Type
Default
R/W
0b
R/W
0b
RO
-
0: Interrupt source is masked
1: Interrupt source is enabled
1
INT1_MASK
This interrupt mask bit enables/masks the Auto-Negotiation page received
interrupt.
0: Interrupt source is masked
1: Interrupt source is enabled
0
RESERVED
2015 Microchip Technology Inc.
DS00001909A-page 173
LAN9252
11.2.16.22 PHY x Special Control/Status Register (PHY_SPECIAL_CONTROL_STATUS_x)
Index (decimal):
31
Size:
16 bits
This read/write register is used to control and monitor various options of the PHY.
Bits
15:13
12
Description
Type
Default
RESERVED
RO
-
Autodone
This bit indicates the status of the Auto-Negotiation on the PHY.
RO
0b
0: Auto-Negotiation is not completed, is disabled, or is not active
1: Auto-Negotiation is completed
11:5
RESERVED - Write as 0000010b, ignore on read
R/W
0000010b
4:2
Speed Indication
This field indicates the current PHY speed configuration.
RO
XXXb
RO
0b
STATE
1:0
DESCRIPTION
000
RESERVED
001
10BASE-T Half-duplex
010
100BASE-TX Half-duplex
011
RESERVED
100
RESERVED
101
10BASE-T Full-duplex
110
100BASE-TX Full-duplex
111
RESERVED
RESERVED
DS00001909A-page 174
2015 Microchip Technology Inc.
LAN9252
MDIO Manageable Device (MMD) Registers
The device MMD registers adhere to the IEEE 802.3-2008 45.2 MDIO Interface Registers specification. The MMD registers are not memory mapped. These registers are accessed indirectly via the PHY x MMD Access Control Register
(PHY_MMD_ACCESS) and PHY x MMD Access Address/Data Register (PHY_MMD_ADDR_DATA). The supported
MMD device addresses are 3 (PCS), 7 (Auto-Negotiation), and 30 (Vendor Specific). Table 11-14, "MMD Registers"
details the supported registers within each MMD device.
TABLE 11-14: MMD REGISTERS
MMD DEVICE
ADDRESS
(IN DECIMAL)
INDEX
(IN DECIMAL)
REGISTER NAME
5
PHY x PCS MMD Devices Present 1 Register (PHY_PCS_MMD_PRESENT1_x)
6
PHY x PCS MMD Devices Present 2 Register (PHY_PCS_MMD_PRESENT2_x)
32784
PHY x Wakeup Control and Status Register (PHY_WUCSR_x)
32785
PHY x Wakeup Filter Configuration Register A (PHY_WUF_CFGA_x)
32786
PHY x Wakeup Filter Configuration Register B (PHY_WUF_CFGB_x)
32801
32802
3
(PCS)
32803
32804
32805
PHY x Wakeup Filter Byte Mask Registers (PHY_WUF_MASK_x)
32806
32807
32808
32865
PHY x MAC Receive Address A Register (PHY_RX_ADDRA_x)
32866
PHY x MAC Receive Address B Register (PHY_RX_ADDRB_x)
32867
PHY x MAC Receive Address C Register (PHY_RX_ADDRC_x)
7
(Auto-Negotiation)
2015 Microchip Technology Inc.
5
PHY x Auto-Negotiation MMD Devices Present 1 Register
(PHY_AN_MMD_PRESENT1_x)
6
PHY x Auto-Negotiation MMD Devices Present 2 Register
(PHY_AN_MMD_PRESENT2_x)
DS00001909A-page 175
LAN9252
TABLE 11-14: MMD REGISTERS (CONTINUED)
MMD DEVICE
ADDRESS
(IN DECIMAL)
30
(Vendor Specific)
INDEX
(IN DECIMAL)
REGISTER NAME
2
PHY x Vendor Specific MMD 1 Device ID 1 Register
(PHY_VEND_SPEC_MMD1_DEVID1_x)
3
PHY x Vendor Specific MMD 1 Device ID 2 Register
(PHY_VEND_SPEC_MMD1_DEVID2_x)
5
PHY x Vendor Specific MMD 1 Devices Present 1 Register
(PHY_VEND_SPEC_MMD1_PRESENT1_x)
6
PHY x Vendor Specific MMD 1 Devices Present 2 Register
(PHY_VEND_SPEC_MMD1_PRESENT2_x)
8
PHY x Vendor Specific MMD 1 Status Register
(PHY_VEND_SPEC_MMD1_STAT_x)
14
PHY x Vendor Specific MMD 1 Package ID 1 Register
(PHY_VEND_SPEC_MMD1_PKG_ID1_x)
15
PHY x Vendor Specific MMD 1 package ID 2 Register
(PHY_VEND_SPEC_MMD1_PKG_ID2_x)
To read or write an MMD register, the following procedure must be observed:
1.
2.
3.
4.
Write the PHY x MMD Access Control Register (PHY_MMD_ACCESS) with 00b (address) for the MMD Function
field and the desired MMD device (3 for PCS, 7 for Auto-Negotiation) for the MMD Device Address (DEVAD) field.
Write the PHY x MMD Access Address/Data Register (PHY_MMD_ADDR_DATA) with the 16-bit address of the
desired MMD register to read/write within the previously selected MMD device (PCS or Auto-Negotiation).
Write the PHY x MMD Access Control Register (PHY_MMD_ACCESS) with 01b (data) for the MMD Function
field and choose the previously selected MMD device (3 for PCS, 7 for Auto-Negotiation) for the MMD Device
Address (DEVAD) field.
If reading, read the PHY x MMD Access Address/Data Register (PHY_MMD_ADDR_DATA), which contains the
selected MMD register contents. If writing, write the PHY x MMD Access Address/Data Register (PHY_MMD_ADDR_DATA) with the register contents intended for the previously selected MMD register.
Unless otherwise specified, reserved fields must be written with zeros if the register is written.
DS00001909A-page 176
2015 Microchip Technology Inc.
LAN9252
11.2.16.23 PHY x PCS MMD Devices Present 1 Register (PHY_PCS_MMD_PRESENT1_x)
Index (In Decimal):
3.5
Bits
15:8
7
Description
Size:
16 bits
Type
Default
RESERVED
RO
-
Auto-Negotiation Present
RO
1b
RO
0b
RO
0b
RO
0b
RO
1b
RO
0b
RO
0b
RO
0b
0 = Auto-negotiation not present in package
1 = Auto-negotiation present in package
6
TC Present
0 = TC not present in package
1 = TC present in package
5
DTE XS Present
0 = DTE XS not present in package
1 = DTE XS present in package
4
PHY XS Present
0 = PHY XS not present in package
1 = PHY XS present in package
3
PCS Present
0 = PCS not present in package
1 = PCS present in package
2
WIS Present
0 = WIS not present in package
1 = WIS present in package
1
PMD/PMA Present
0 = PMD/PMA not present in package
1 = PMD/PMA present in package
0
Clause 22 Registers Present
0 = Clause 22 registers not present in package
1 = Clause 22 registers present in package
2015 Microchip Technology Inc.
DS00001909A-page 177
LAN9252
11.2.16.24 PHY x PCS MMD Devices Present 2 Register (PHY_PCS_MMD_PRESENT2_x)
Index (In Decimal):
3.6
Bits
15
Size:
Description
Vendor Specific Device 2 Present
16 bits
Type
Default
RO
0b
RO
1b
RO
0b
RO
-
0 = Vendor specific device 2 not present in package
1 = Vendor specific device 2 present in package
14
Vendor Specific Device 1 Present
0 = Vendor specific device 1 not present in package
1 = Vendor specific device 1 present in package
13
Clause 22 Extension Present
0 = Clause 22 extension not present in package
1 = Clause 22 extension present in package
12:0
RESERVED
DS00001909A-page 178
2015 Microchip Technology Inc.
LAN9252
11.2.16.25 PHY x Wakeup Control and Status Register (PHY_WUCSR_x)
Index (In Decimal):
Bits
15:9
8
3.32784
Size:
16 bits
Description
RESERVED
WoL Configured
This bit may be set by software after the WoL registers are configured. This
sticky bit (and all other WoL related register bits) is reset only via a power
cycle or a pin reset, allowing software to skip programming of the WoL registers in response to a WoL event.
Note:
Type
Default
RO
-
R/W/
NASR
Note 17
0b
Refer to Section 11.2.9, "Wake on LAN (WoL)," on page 132 for
additional information.
7
Perfect DA Frame Received (PFDA_FR)
The MAC sets this bit upon receiving a valid frame with a destination address
that matches the physical address.
R/WC/
NASR
Note 17
0b
6
Remote Wakeup Frame Received (WUFR)
The MAC sets this bit upon receiving a valid remote Wakeup Frame.
R/WC/
NASR
Note 17
0b
5
Magic Packet Received (MPR)
The MAC sets this bit upon receiving a valid Magic Packet.
R/WC/
NASR
Note 17
0b
4
Broadcast Frame Received (BCAST_FR)
The MAC Sets this bit upon receiving a valid broadcast frame.
R/WC/
NASR
Note 17
0b
3
Perfect DA Wakeup Enable (PFDA_EN)
When set, remote wakeup mode is enabled and the MAC is capable of waking up on receipt of a frame with a destination address that matches the
physical address of the device. The physical address is stored in the PHY x
MAC Receive Address A Register (PHY_RX_ADDRA_x), PHY x MAC
Receive Address B Register (PHY_RX_ADDRB_x) and PHY x MAC Receive
Address C Register (PHY_RX_ADDRC_x).
R/W/
NASR
Note 17
0b
2
Wakeup Frame Enable (WUEN)
When set, remote wakeup mode is enabled and the MAC is capable of
detecting Wakeup Frames as programmed in the Wakeup Filter.
R/W/
NASR
Note 17
0b
1
Magic Packet Enable (MPEN)
When set, Magic Packet wakeup mode is enabled.
R/W/
NASR
Note 17
0b
0
Broadcast Wakeup Enable (BCST_EN)
When set, remote wakeup mode is enabled and the MAC is capable of waking up from a broadcast frame.
R/W/
NASR
Note 17
0b
Note 17: Register bits designated as NASR are reset when the PHY Reset is generated via the Reset Control Register (RESET_CTL). The NASR designation is only applicable when the Soft Reset (PHY_SRST) bit of the
PHY x Basic Control Register (PHY_BASIC_CONTROL_x) is set.
2015 Microchip Technology Inc.
DS00001909A-page 179
LAN9252
11.2.16.26 PHY x Wakeup Filter Configuration Register A (PHY_WUF_CFGA_x)
Index (In Decimal):
Bits
15
3.32785
Size:
16 bits
Description
Filter Enable
0 = Filter disabled
1 = Filter enabled
14
Filter Triggered
0 = Filter not triggered
1 = Filter triggered
13:11
RESERVED
Type
Default
R/W/
NASR
Note 18
0b
R/WC/
NASR
Note 18
0b
RO
-
10
Address Match Enable
When set, the destination address must match the programmed address.
When cleared, any unicast packet is accepted. Refer to Section 11.2.9.4,
"Wakeup Frame Detection," on page 133 for additional information.
R/W/
NASR
Note 18
0b
9
Filter Any Multicast Enable
When set, any multicast packet other than a broadcast will cause an address
match. Refer to Section 11.2.9.4, "Wakeup Frame Detection," on page 133
for additional information.
R/W/
NASR
Note 18
0b
R/W/
NASR
Note 18
0b
R/W/
NASR
Note 18
00h
Note:
8
Filter Broadcast Enable
When set, any broadcast frame will cause an address match. Refer to Section 11.2.9.4, "Wakeup Frame Detection," on page 133 for additional information.
Note:
7:0
This bit has priority over bit 10 of this register.
This bit has priority over bit 10 of this register.
Filter Pattern Offset
Specifies the offset of the first byte in the frame on which CRC checking
begins for Wakeup Frame recognition. Offset 0 is the first byte of the incoming frame’s destination address.
Note 18: Register bits designated as NASR are reset when the PHY Reset is generated via the Reset Control Register (RESET_CTL). The NASR designation is only applicable when the Soft Reset (PHY_SRST) bit of the
PHY x Basic Control Register (PHY_BASIC_CONTROL_x) is set.
DS00001909A-page 180
2015 Microchip Technology Inc.
LAN9252
11.2.16.27 PHY x Wakeup Filter Configuration Register B (PHY_WUF_CFGB_x)
Index (In Decimal):
3.32786
Size:
16 bits
Bits
Description
Type
Default
15:0
Filter CRC-16
This field specifies the expected 16-bit CRC value for the filter that should be
obtained by using the pattern offset and the byte mask programmed for the filter. This value is compared against the CRC calculated on the incoming
frame, and a match indicates the reception of a Wakeup Frame.
R/W/
NASR
Note 19
0000h
Note 19: Register bits designated as NASR are reset when the PHY Reset is generated via the Reset Control Register (RESET_CTL). The NASR designation is only applicable when the Soft Reset (PHY_SRST) bit of the
PHY x Basic Control Register (PHY_BASIC_CONTROL_x) is set.
2015 Microchip Technology Inc.
DS00001909A-page 181
LAN9252
11.2.16.28 PHY x Wakeup Filter Byte Mask Registers (PHY_WUF_MASK_x)
Index (In Decimal):
Bits
15:0
3.32802
Size:
Wakeup Filter Byte Mask [111:96]
Bits
3.32803
Size:
Wakeup Filter Byte Mask [95:80]
Bits
3.32804
Description
Wakeup Filter Byte Mask [79:64]
DS00001909A-page 182
Size:
Default
R/W/
NASR
Note 20
0000h
Type
Default
R/W/
NASR
Note 20
0000h
Type
Default
R/W/
NASR
Note 20
0000h
Type
Default
R/W/
NASR
Note 20
0000h
16 bits
Description
Index (In Decimal):
Type
16 bits
Description
Index (In Decimal):
15:0
16 bits
Wakeup Filter Byte Mask [127:112]
Bits
15:0
Size:
Description
Index (In Decimal):
15:0
3.32801
16 bits
2015 Microchip Technology Inc.
LAN9252
Index (In Decimal):
Bits
15:0
3.32806
Size:
Wakeup Filter Byte Mask [47:32]
Bits
3.32807
Size:
Wakeup Filter Byte Mask [31:16]
Bits
3.32808
Description
Wakeup Filter Byte Mask [15:0]
Size:
Default
R/W/
NASR
Note 20
0000h
Type
Default
R/W/
NASR
Note 20
0000h
Type
Default
R/W/
NASR
Note 20
0000h
Type
Default
R/W/
NASR
Note 20
0000h
16 bits
Description
Index (In Decimal):
Type
16 bits
Description
Index (In Decimal):
15:0
16 bits
Wakeup Filter Byte Mask [63:48]
Bits
15:0
Size:
Description
Index (In Decimal):
15:0
3.32805
16 bits
Note 20: Register bits designated as NASR are reset when the PHY Reset is generated via the Reset Control Register (RESET_CTL). The NASR designation is only applicable when the Soft Reset (PHY_SRST) bit of the
PHY x Basic Control Register (PHY_BASIC_CONTROL_x) is set.
2015 Microchip Technology Inc.
DS00001909A-page 183
LAN9252
11.2.16.29 PHY x MAC Receive Address A Register (PHY_RX_ADDRA_x)
Index (In Decimal):
Bits
15:0
3.32865
Description
Physical Address [47:32]
Size:
16 bits
Type
Default
R/W/
NASR
Note 21
FFFFh
Note 21: Register bits designated as NASR are reset when the PHY Reset is generated via the Reset Control Register (RESET_CTL). The NASR designation is only applicable when the Soft Reset (PHY_SRST) bit of the
PHY x Basic Control Register (PHY_BASIC_CONTROL_x) is set.
DS00001909A-page 184
2015 Microchip Technology Inc.
LAN9252
11.2.16.30 PHY x MAC Receive Address B Register (PHY_RX_ADDRB_x)
Index (In Decimal):
Bits
15:0
3.32866
Description
Physical Address [31:16]
Size:
16 bits
Type
Default
R/W/
NASR
Note 22
FFFFh
Note 22: Register bits designated as NASR are reset when the PHY Reset is generated via the Reset Control Register (RESET_CTL). The NASR designation is only applicable when the Soft Reset (PHY_SRST) bit of the
PHY x Basic Control Register (PHY_BASIC_CONTROL_x) is set.
2015 Microchip Technology Inc.
DS00001909A-page 185
LAN9252
11.2.16.31 PHY x MAC Receive Address C Register (PHY_RX_ADDRC_x)
Index (In Decimal):
Bits
15:0
3.32867
Description
Physical Address [15:0]
Size:
16 bits
Type
Default
R/W/
NASR
Note 23
FFFFh
Note 23: Register bits designated as NASR are reset when the PHY Reset is generated via the Reset Control Register (RESET_CTL). The NASR designation is only applicable when the Soft Reset (PHY_SRST) bit of the
PHY x Basic Control Register (PHY_BASIC_CONTROL_x) is set.
DS00001909A-page 186
2015 Microchip Technology Inc.
LAN9252
11.2.16.32 PHY x Auto-Negotiation MMD Devices Present 1 Register (PHY_AN_MMD_PRESENT1_x)
Index (In Decimal):
7.5
Bits
15:8
7
Description
Size:
16 bits
Type
Default
RESERVED
RO
-
Auto-Negotiation Present
RO
1b
RO
0b
RO
0b
RO
0b
RO
1b
RO
0b
RO
0b
RO
0b
0 = Auto-negotiation not present in package
1 = Auto-negotiation present in package
6
TC Present
0 = TC not present in package
1 = TC present in package
5
DTE XS Present
0 = DTE XS not present in package
1 = DTE XS present in package
4
PHY XS Present
0 = PHY XS not present in package
1 = PHY XS present in package
3
PCS Present
0 = PCS not present in package
1 = PCS present in package
2
WIS Present
0 = WIS not present in package
1 = WIS present in package
1
PMD/PMA Present
0 = PMD/PMA not present in package
1 = PMD/PMA present in package
0
Clause 22 Registers Present
0 = Clause 22 registers not present in package
1 = Clause 22 registers present in package
2015 Microchip Technology Inc.
DS00001909A-page 187
LAN9252
11.2.16.33 PHY x Auto-Negotiation MMD Devices Present 2 Register (PHY_AN_MMD_PRESENT2_x)
Index (In Decimal):
7.6
Bits
15
Size:
Description
Vendor Specific Device 2 Present
16 bits
Type
Default
RO
0b
RO
1b
RO
0b
RO
-
0 = Vendor specific device 2 not present in package
1 = Vendor specific device 2 present in package
14
Vendor Specific Device 1 Present
0 = Vendor specific device 1 not present in package
1 = Vendor specific device 1 present in package
13
Clause 22 Extension Present
0 = Clause 22 extension not present in package
1 = Clause 22 extension present in package
12:0
RESERVED
DS00001909A-page 188
2015 Microchip Technology Inc.
LAN9252
11.2.16.34 PHY x Vendor Specific MMD 1 Device ID 1 Register (PHY_VEND_SPEC_MMD1_DEVID1_x)
Index (In Decimal):
Bits
15:0
30.2
Description
RESERVED
2015 Microchip Technology Inc.
Size:
16 bits
Type
Default
RO
0000h
DS00001909A-page 189
LAN9252
11.2.16.35 PHY x Vendor Specific MMD 1 Device ID 2 Register (PHY_VEND_SPEC_MMD1_DEVID2_x)
Index (In Decimal):
Bits
15:0
30.3
Description
RESERVED
DS00001909A-page 190
Size:
16 bits
Type
Default
RO
0000h
2015 Microchip Technology Inc.
LAN9252
11.2.16.36 PHY x Vendor Specific MMD 1 Devices Present 1 Register
(PHY_VEND_SPEC_MMD1_PRESENT1_x)
Index (In Decimal):
30.5
Bits
15:8
7
Description
Size:
16 bits
Type
Default
RESERVED
RO
-
Auto-Negotiation Present
RO
1b
RO
0b
RO
0b
RO
0b
RO
1b
RO
0b
RO
0b
RO
0b
0 = Auto-negotiation not present in package
1 = Auto-negotiation present in package
6
TC Present
0 = TC not present in package
1 = TC present in package
5
DTE XS Present
0 = DTE XS not present in package
1 = DTE XS present in package
4
PHY XS Present
0 = PHY XS not present in package
1 = PHY XS present in package
3
PCS Present
0 = PCS not present in package
1 = PCS present in package
2
WIS Present
0 = WIS not present in package
1 = WIS present in package
1
PMD/PMA Present
0 = PMD/PMA not present in package
1 = PMD/PMA present in package
0
Clause 22 Registers Present
0 = Clause 22 registers not present in package
1 = Clause 22 registers present in package
2015 Microchip Technology Inc.
DS00001909A-page 191
LAN9252
11.2.16.37 PHY x Vendor Specific MMD 1 Devices Present 2 Register
(PHY_VEND_SPEC_MMD1_PRESENT2_x)
Index (In Decimal):
30.6
Bits
15
Size:
Description
Vendor Specific Device 2 Present
16 bits
Type
Default
RO
0b
RO
1b
RO
0b
RO
-
0 = Vendor specific device 2 not present in package
1 = Vendor specific device 2 present in package
14
Vendor Specific Device 1 Present
0 = Vendor specific device 1 not present in package
1 = Vendor specific device 1 present in package
13
Clause 22 Extension Present
0 = Clause 22 extension not present in package
1 = Clause 22 extension present in package
12:0
RESERVED
DS00001909A-page 192
2015 Microchip Technology Inc.
LAN9252
11.2.16.38 PHY x Vendor Specific MMD 1 Status Register (PHY_VEND_SPEC_MMD1_STAT_x)
Index (In Decimal):
Bits
15:14
30.8
Description
Device Present
Size:
16 bits
Type
Default
RO
10b
RO
-
00 = No device responding at this address
01 = No device responding at this address
10 = Device responding at this address
11 = No device responding at this address
13:0
RESERVED
2015 Microchip Technology Inc.
DS00001909A-page 193
LAN9252
11.2.16.39 PHY x Vendor Specific MMD 1 Package ID 1 Register
(PHY_VEND_SPEC_MMD1_PKG_ID1_x)
Index (In Decimal):
Bits
15:0
30.14
Description
RESERVED
DS00001909A-page 194
Size:
16 bits
Type
Default
RO
0000h
2015 Microchip Technology Inc.
LAN9252
11.2.16.40 PHY x Vendor Specific MMD 1 package ID 2 Register
(PHY_VEND_SPEC_MMD1_PKG_ID2_x)
Index (In Decimal):
Bits
15:0
30.15
Description
RESERVED
Size:
16 bits
Type
Default
RO
0000h
.
2015 Microchip Technology Inc.
DS00001909A-page 195
LAN9252
12.0
ETHERCAT
12.1
EtherCAT Functional Overview
The EtherCAT module implements a 3 port EtherCAT slave controller with 4K bytes of Dual Port memory (DPRAM), 4
SyncManagers, 3 Fieldbus Memory Management Units (FMMUs) and a 64-bit Distributed Clock.
Each port receives an Ethernet frame, performs frame checking and forwards it to the next port. Time stamps of received
frames are generated when they are received. The Loop-back function of each port forwards Ethernet frames to the
next logical port if there is either no link at a port, or if the port is not available, or if the loop is closed for that port. The
Loop-back function of port 0 forwards the frames to the EtherCAT Processing Unit. The loop settings can be controlled
by the EtherCAT master.
Packets are forwarded in the following order: Port 0->EtherCAT Processing Unit->Port 1->Port 2.
The EtherCAT Processing Unit (EPU) receives, analyses and processes the EtherCAT data stream. The main purpose
of the EtherCAT Processing unit is to enable and coordinate access to the internal registers and the memory space of
the ESC, which can be addressed both from the EtherCAT master and from the local application. Data exchange
between master and slave application is comparable to a dual-ported memory (process memory), enhanced by special
functions e.g. for consistency checking (SyncManager) and data mapping (FMMU).
Each FMMU performs the task of bitwise mapping of logical EtherCAT system addresses to physical addresses of the
device.
SyncManagers are responsible for consistent data exchange and mailbox communication between EtherCAT master
and slaves. Each SyncManager's direction and mode of operation is configured by the EtherCAT master. Two modes
of operation are available: buffered mode or mailbox mode. In the buffered mode, both the local microcontroller and
EtherCAT master can write to the device concurrently. The buffer within the LAN9252 will always contain the latest data.
If newer data arrives before the old data can be read out, the old data will be dropped. In mailbox mode, access to the
buffer by the local microcontroller and the EtherCAT master is performed using handshakes, guaranteeing that no data
will be dropped.
Distributed Clocks (DC) allow for precisely synchronized generation of output signals and input sampling, as well as
time stamp generation of events.
The EtherCAT chapter consists of the following main sections:
•
•
•
•
•
•
•
•
•
•
•
•
•
Section 12.2, "Distributed Clocks," on page 197
Section 12.3, "PDI Selection and Configuration," on page 198
Section 12.4, "Digital I/O PDI," on page 198
Section 12.5, "Host Interface PDI," on page 200
Section 12.6, "GPIOs," on page 201
Section 12.7, "User RAM," on page 201
Section 12.8, "EEPROM Configurable Registers," on page 201
Section 12.9, "Port Interfaces," on page 202
Section 12.10, "LEDs," on page 208
Section 12.11, "EtherCAT CSR and Process Data RAM Access," on page 208
Section 12.12, "EtherCAT Reset," on page 213
Section 12.13, "EtherCAT CSR and Process Data RAM Access Registers (Directly Addressable)," on page 214
Section 12.14, "EtherCAT Core CSR Registers (Indirectly Addressable)," on page 223
Refer to FIGURE 2-2: Internal Block Diagram on page 9 for an overview of the interconnection of the EtherCAT module
within the device.
DS00001909A-page 196
2015 Microchip Technology Inc.
LAN9252
12.2
Distributed Clocks
The device supports 64-bit distributed clocks as detailed in the following sub-sections.
12.2.1
SYNC/LATCH PIN MULTIPLEXING
The EtherCAT Core provides two input pins (LATCH0 and LATCH1) which are used for time stamping of external
events. Both rising edge and falling edge time stamps are recorded. These pins are shared with the SYNC0 and SYNC1
output pins, respectively, which are used to indicate the occurrence of time events. The functions of the SYNC0/LATCH0
and SYNC1/LATCH1 pins are determined by the SYNC0/LATCH0 Configuration and SYNC1/LATCH1 Configuration
bits of the Sync/Latch PDI Configuration Register, respectively.
When set for SYNC0/SYNC1 functionality, the output type (Push-Pull vs. Open Drain/Source) and output polarity are
determined by the SYNC0 Output Driver/Polarity and SYNC1 Output Driver/Polarity bits of the Sync/Latch PDI Configuration Register.
Note:
12.2.2
The Sync/Latch PDI Configuration Register is initialized from the contents of EEPROM. Refer to Section
12.8, "EEPROM Configurable Registers," on page 201 for additional information.
SYNC IRQ MAPPING
The SYNC0 and SYNC1 states can be mapped into the State of DC SYNC0 and State of DC SYNC1 bits of the AL Event
Request Register, respectively. The mapping of the SYNC0 and SYNC1 states is enabled by the SYNC0 Map and
SYNC1 Map bits of the Sync/Latch PDI Configuration Register, respectively.
Note:
12.2.3
The Sync/Latch PDI Configuration Register is initialized from the contents of EEPROM. Refer to Section
12.8, "EEPROM Configurable Registers," on page 201 for additional information.
SYNC PULSE LENGTH
The SYNC0 and SYNC1 pulse length is controlled via the Pulse Length of SyncSignals Register. The Pulse Length of
SyncSignals Register is initialized from the contents of EEPROM. Refer to Section 12.8, "EEPROM Configurable Registers," on page 201 for additional information.
12.2.4
SYNC/LATCH I/O TIMING REQUIREMENTS
This section specifies the SYNC0/LATCH0 and SYNC1/LATCH1 input and output timings.
FIGURE 12-1:
ETHERCAT SYNC/LATCH TIMING DIAGRAM
tdc_latch
tdc_latch
LATCH0/1
tdc_sync_jitter
tdc_sync_jitter
SYNC0/1
output event time
TABLE 12-1:
ETHERCAT SYNC/LATCH TIMING VALUES
Symbol
tdc_latch
Description
Time between LATCH0 or LATCH1 events
tdc_sync_jitter SYNC0 or SYNC1 output jitter
2015 Microchip Technology Inc.
Min
Typ
Max
Units
15
-
-
ns
-
-
15
ns
DS00001909A-page 197
LAN9252
12.3
PDI Selection and Configuration
The Process Data Interface (PDI) used by the device is indicated via the PDI Control Register. The available PDIs are:
• 04h: Digital I/O PDI
• 80h-8Dh: Host Interface PDI (SPI, HBI Multiplexed/Indexed 1/2 Phase 8/16-bit)
Note:
The PDI Control Register can be configured via EEPROM. Refer to Section 12.8, "EEPROM Configurable
Registers," on page 201 for additional information.
The Host Interface PDI is used to support HBI and SPI modes, as described in Section 14.0, "Chip Mode Configuration,"
on page 296.
The configuration of the enabled PDI is controlled via the PDI Configuration Register and Extended PDI Configuration
Register. The definition of these registers depends on the selected mode of operation. However, only one register set
exists.
12.4
Digital I/O PDI
The Digital I/O PDI provides 16 configurable digital I/Os (DIGIO[15:0]) to be used for simple systems without a host
controller. The Digital I/O Output Data Register is used to control the output values, while the Digital I/O Input Data Register is used to read the input values. Each 2-bit pair of the digital I/Os is configurable as an input or output. The direction
is selected by the Extended PDI Configuration Register, which is configured via EEPROM (Refer to Section 12.8,
"EEPROM Configurable Registers," on page 201 for additional information). The Digital I/Os can also be configured to
bi-directional mode, where the outputs are driven and latched externally and then released so that the input data can
be sampled. Bi-directional operation is selected via the Unidirectional/Bidirectional Mode bit of the PDI Configuration
Register. The PDI Configuration Register is initialized from the contents of EEPROM.
12.4.1
OUTPUT WATCHDOG BEHAVIOR
The watchdog control of the digital outputs can be configured to specify if the expiration of the SyncManager Watchdog
will have an immediate effect on the I/O signals (output reset immediately after watchdog timeout) or if the effect is
delayed until the next output event (output reset with next output event). The choice is determined by the Watchdog
Behavior bit of the PDI Configuration Register. The PDI Configuration Register is initialized from the contents of
EEPROM. Refer to Section 12.8, "EEPROM Configurable Registers," on page 201 for additional information.
12.4.2
OE_EXT OUTPUT WATCHDOG BEHAVIOR
For external watchdog implementations, the WD_TRIG (watchdog trigger) pin can be used. A pulse is generated if the
SyncManager Watchdog is triggered. In this case, the internal SyncManager Watchdog should be disabled, and the
external watchdog may use the OE_EXT pin to reset the I/O signals if the watchdog is expired.
The OUTVALID Mode bit of the PDI Configuration Register controls if WD_TRIG is mapped onto the OUTVALID pin.
The PDI Configuration Register is initialized from the contents of EEPROM. Since there is a dedicated WD_TRIG pin,
this bit is normally set to 0 in the EEPROM.
12.4.3
INPUT DATA SAMPLING
Digital inputs can be configured to be sampled in four ways, at the start of each Ethernet frame, at the rising edge of the
LATCH_IN pin, at Distributed Clocks SYNC0 events or at Distributed Clocks SYNC1 events. The choice of sampling
mode is determined by the Input Data Sample Selection bits of the PDI Configuration Register. The PDI Configuration
Register is initialized from the contents of EEPROM.
12.4.4
OUTPUT DATA UPDATING
Digital outputs can be configured to be update four ways, at the end of each Ethernet frame, with Distributed Clocks
SYNC0 events, with Distributed Clocks SYNC1 events or at the end of an EtherCAT frame which triggered the Process
Data Watchdog. The choice of sampling mode is determined by the Output Data Sample Selection bits of the PDI Configuration Register. The PDI Configuration Register is initialized from the contents of EEPROM.
12.4.5
OUTVALID POLARITY
The output polarity of the OUTVALID pin is determined by the OUTVALID Polarity bit of the PDI Configuration Register.
The PDI Configuration Register is initialized from the contents of EEPROM.
DS00001909A-page 198
2015 Microchip Technology Inc.
LAN9252
12.4.6
DIGITAL I/O TIMING REQUIREMENTS
This section specifies the DIGIO[15:0], LATCH_IN and SOF input and output timings.
FIGURE 12-2:
ETHERCAT DIGITAL I/O INPUT TIMING DIAGRAM
SYNC0/1
tlatchindelay
tlatchin
LATCH_IN
tsof
SOF
tsofdatah
tindatalatchs
tsofdatav
tindatasyncs
tindatalatchh
tindatasynch
DIGIO[15:0]
FIGURE 12-3:
ETHERCAT DIGITAL I/O OUTPUT TIMING DIAGRAM
toutvaliddelay
toutvalid
OUTVALID
toutdatas
DIGIO[15:0]
twd_trigdata
toe_extdata
teofdata
tsyncdata
twd_trig
WD_TRIG
teof
EOF
SYNC0/1
OE_EXT
2015 Microchip Technology Inc.
DS00001909A-page 199
LAN9252
FIGURE 12-4:
ETHERCAT DIGITAL I/O BI-DIRECTIONAL TIMING DIAGRAM
toutvalid
OUTVALID
toutdatas
DIGIO[15:0]
Input Data
input events
input events
allowed
toutdatah
Output Data
Input Data
tbidirdelay
TABLE 12-2:
tbidirdelay
no input events
allowed
input events
allowed
ETHERCAT DIGITAL I/O TIMING VALUES
Symbol
Description
Min
Typ
Max
Units
tindatasyncs
Input data setup to SYNC0/1 rising
10
-
-
ns
tindatasynch
Input data hold from SYNC0/1 rising
0
-
-
ns
tindatalatchs
Input data setup to LATCH_IN rising
8
-
-
ns
tindatalatchh
Input data hold from LATCH_IN rising
4
-
-
ns
tlatchin
tlatchindelay
LATCH_IN high time
8
-
-
ns
time between consecutive input events
440
-
-
ns
SOF high time
35
-
45
ns
tsofdatav
Input data valid after SOF active, so that input data can be read
in the same frame
-
-
1.2
s
tsofdatah
Input data hold after SOF active, so that input data can be read
in the same frame
1.6
-
-
s
tsof
toutdatas
Output data setup to OUTVALID rising
65
-
-
ns
toutdatah
Output data hold from OUTVALID falling
65
-
-
ns
toutvalid
OUTVALID high time
75
-
85
ns
320
-
-
ns
toutvaliddelay time between consecutive output events
teof
EOF high time
teofdata
Output data valid after EOF
twd_trig
WD_TRIG high time
twd_trigdata
tsyncdata
Output data valid after WD_TRIG
35
-
45
ns
-
-
35
ns
35
-
45
ns
-
-
35
ns
Output data valid after SYNC0/1
-
-
25
ns
toe_extdata
OE_EXT to data low
0
-
15
ns
tbidirdelay
time between consecutive input or output events
440
-
-
ns
12.5
Host Interface PDI
The Host Interface PDI is used for systems with a host controller that use either a HBI or SPI chip-level host interface.
The values in the PDI Configuration Register and the Extended PDI Configuration Register reflect the value from
EEPROM. The value in the PDI Configuration Register is used for Host Interface modes to configure the HBI. The value
in the Extended PDI Configuration Register is used if GPIOs are enabled (SPI w/GPIO).
The PDI Configuration Register and Extended PDI Configuration Register are initialized from the contents of the
EEPROM. Refer to Section 12.8, "EEPROM Configurable Registers," on page 201 for additional information.
DS00001909A-page 200
2015 Microchip Technology Inc.
LAN9252
12.6
GPIOs
The EtherCAT Core provides 16 General Purpose Inputs (GPI[15:0]) and 16 General Purpose Outputs (GPO[15:0]) The
General Purpose Output Register is used to control the output value. The General Purpose Input Register is used to
read the input value.
Note:
When GPIOs are not available due to chip configuration, the General Purpose Output Register remains R/
W, but has no effect. When GPIOs are not available due to chip configuration, the General Purpose Input
Register will return zeros.
Each 2-bit pair is configurable as input, push-pull output or open-drain output. The direction and buffer type are determined by the Extended PDI Configuration Register. Bits 7:0 control the direction of the pairs (bit 0 for GPIO[1:0], bit 1
for GPIO[3:2], etc.). A value of 1 selects the output direction. Bits 15:8 control the output type (bit 8 for GPIO[1:0], bit 9
for GPIO[3:2], etc.). A value of 1 selects the open-drain. The Extended PDI Configuration Register is initialized from the
contents of the EEPROM. Refer to Section 12.8, "EEPROM Configurable Registers," on page 201 for additional information.
Note:
12.7
The Extended PDI Configuration Register is also used for the Digital I/O PDI direction. However, GPIOs
are not used during Digital I/O mode.
User RAM
A 128 byte user RAM is located at 0F80h-0FFFh. The default values within this RAM are undefined for all addresses.
12.8
EEPROM Configurable Registers
The following registers are configurable via EEPROM. Refer to the corresponding register definition for details on each
bit function.
Note:
Reserved bits must be written as 0 unless otherwise noted.
TABLE 12-3:
ETHERCAT CORE EEPROM CONFIGURABLE REGISTERS
Register
PDI Control Register
(0140h)
ESC Configuration Register
(0141h)
Bits
[7:0] Process Data Interface
0 / [7:0]
[7] (unused)
0 / [15]
[6] Enhanced Link Port 2
0 / [14]
[5] Enhanced Link Port 1
0 / [13]
[4] Enhanced Link Port 0
0 / [12]
[3] Distributed Clocks Latch In Unit
Note:
Bit 3 is NOT set by EEPROM
[2] Distributed Clocks SYNC Out Unit
Note:
2015 Microchip Technology Inc.
EEPROM
Word / [Bits]
Bit 2 is NOT set by EEPROM
-
[1] Enhanced Link Detection All Ports
0 / [9]
[0] Device Emulation
(control of AL Status Register)
0 / [8]
DS00001909A-page 201
LAN9252
TABLE 12-3:
ETHERCAT CORE EEPROM CONFIGURABLE REGISTERS
Register
PDI Configuration Register
(0150h)
Digital I/O Mode
PDI Configuration Register
(0150h)
HBI Mode
EEPROM
Word / [Bits]
Bits
[7:6] Output Data Sample Selection
1 / [7:6]
[5:4] Input Data Sample Selection
1 / [5:4]
[3] Watchdog Behavior
1 / [3]
[2] Unidirectional/Bidirectional Mode
1 / [2]
[1] OUTVALID Mode
1 / [1]
[0] OUTVALID Polarity
1 / [0]
[7] HBI ALE Qualification
1 / [7]
[6] HBI Read/Write Mode
1 / [6]
[5] HBI Chip Select Polarity
1 / [5]
[4] HBI Read, Read/Write Polarity
1 / [4]
[3] HBI Write, Enable Polarity
1 / [3]
[2] HBI ALE Polarity
Sync/Latch PDI Configuration Register
(0151h)
Pulse Length of SyncSignals Register
(0982h-0983h)
Extended PDI Configuration Register
(0152h-0153h)
Digital I/O Mode
Extended PDI Configuration Register
(0152h-0153h)
SPI Mode
Configured Station Alias Register
(0012h-0013h)
MII Management Control/Status Register
(0510h-0511h)
1 / [2]
[1:0] RESERVED (unused)
1 / [1:0]
[7] SYNC1 Map
1 / [15]
[6] SYNC1/LATCH1 Configuration
1 / [14]
[5:4] SYNC1 Output Driver/Polarity
1 / [13:12]
[3] SYNC0 Map
1 / [11]
[2] SYNC0/LATCH0 Configuration
1 / [10]
[1:0] SYNC0 Output Driver/Polarity
1 / [9:8]
[15:0] Pulse length of SyncSignals
2 / [15:0]
[15:8] RESERVED
3 / [15:8]
[7:0] I/O 15-0 Direction
3 / [7:0]
[15:8] I/O 15-0 Buffer Type
3 / [15:8]
[7:0] I/O 15-0 Direction
3 / [7:0]
[15:0] Configured Station Alias Address
4 / [15:0]
[2] MI Link Detection
5 / [15]
[15] MI Link Detection
ASIC Configuration Register (0142h-0143h)
RESERVED Register (0144h-0145h)
12.9
12.9.1
[14:8] RESERVED
5 / [14:8]
[7] MI Write Gigabit Register 9 Enable
5 / [7]
[6:0] RESERVED
5 / [6:0]
[15:0] RESERVED
6 / [15:0]
Port Interfaces
PORTS 0 AND 2 (INTERNAL PHY A OR EXTERNAL MII)
Port 0 of the EtherCAT Slave is connected to internal PHY A when chip_mode_strap[1:0] is not equal to 11b (2 port
mode or 3 port downstream mode). Port 0 is connected to the MII pins when chip_mode_strap[1:0] is equal to 11b (3
port upstream mode).
Port 2 of the EtherCAT Slave is connected to internal PHY A when chip_mode_strap[1:0] is equal to 11b (3 port
upstream mode). Port 2 is connected to the MII pins when chip_mode_strap[1:0] is equal to 10b (3 port downstream
mode).
DS00001909A-page 202
2015 Microchip Technology Inc.
LAN9252
12.9.1.1
EXTERNAL MII PHY CONNECTION
An external PHY is connected to the MII port as shown in Figure 12-5. The clock source for the Ethernet PHY and the
EtherCAT Slave must be the same. A 25 MHz output (MII_CLK25) is provided to be used as the reference clock for the
PHY. TX_CLK from the PHY is not connected since the EtherCAT Slave does not incorporate a TX FIFO. The TX signals
from the EtherCAT Slave may be delayed with respect to the CLK25 output by using TX shift compensation so that they
align properly as if they were driven by the PHY’s TX_CLK. MII timing is described in Section 12.9.7, "External PHY
Timing".
The Ethernet PHY should be connected to the EtherCAT Slave RST# pin so that the PHY is held in reset until the EtherCAT Slave is ready. Otherwise, the far end Link Partner would detect valid link signals from the PHY and would “open”
its port assuming that the local EtherCAT Slave was ready.
The MII_MDC and MII_MDIO signals are connected between the EtherCAT slave and the PHY. MII_MDIO requires
an external pull-up. The management address of the external PHY must be set to 0 when chip_mode_strap[1:0] is equal
to 11b (3 port upstream mode) and to 2 when chip_mode_strap[1:0] is equal to 10b (3 port downstream mode).
LINK_STATUS from the PHY is an LED output which indicates that a 100 Mbit/s, Full Duplex link is active. The polarity
of the MII_LINK input of the EtherCAT slave is configurable.
The COL and CRS outputs from the PHY are not connected since EtherCAT operates in full-duplex mode.
The TX_ER input to the PHY is tied to system ground since the EtherCAT Slave never generates transmit errors.
FIGURE 12-5:
ETHERCAT EXTERNAL PHY CONNECTION
25 MHz
LAN9252
OSCI
OSCO
PHY
CLK25
MII_CLK25
LINK_STATUS
MII_LINK
RX_CLK
RX_DV
RX_D[3:0]
RX_ER
MII_RXCLK
MII_RXDV
MII_RXD[3:0]
MII_RXER
MII_TXEN
MII_TXD[3:0]
0 ns
10 ns
20 ns
30 ns
VDDIO
TX shift
configuration
MII_MDIO
MII_MDC
RST#
12.9.1.2
TX_CLK
TX_EN
TX_D[3:0]
COL
CRS
TX_ER
MDIO
MDC
PHY_ADDR
0 or 2
RESET#
BACK-TO-BACK CONNECTION
Two EtherCAT Slave devices can be connected using a back-to-back MII connection as shown in Figure 12-6. One
device is placed in 3 port upstream mode and the other in 3 port downstream mode.
The clock sources of each EtherCAT Slave may be different. The 25 MHz output (MII_CLK25) is provided to be used
as the RX_CLK input to the other device. The TX signals from each EtherCAT Slave may be delayed with respect to
the CLK25 output by using TX shift compensation so that they align properly to meet the RX timing requirement of the
other device. Back-to-back MII timing is described in Section 12.9.7, "External PHY Timing".
The MII_RXER signals are not used since the EtherCAT Slaves never generate errors.
The MII_MDIO and MII_MDC signals are not used since neither device contains a PHY register set. The MII_MDIO
pins require (separate) pull-ups so that a high value is returned when PHY register reads are attempted.
2015 Microchip Technology Inc.
DS00001909A-page 203
LAN9252
MII_LINK may be tied active, if the two EtherCAT slaves are released from reset at about the same time. Otherwise,
MII_LINK can be used to indicate to the partner that the device is not ready.
FIGURE 12-6:
ETHERCAT BACK-TO-BACK MII CONNECTION
VDDIO
OSCI
OSCO
MII_CLK25
MII_LINK
MII_LINK
MII_RXCLK
MII_RXDV
MII_RXD[3:0]
MII_RXER
towards
Master
(downstream mode)
MII_MDIO
MII_MDC
RST#
12.9.1.3
OSCO
towards
other
salves
(upstream mode)
VDDIO
TX shift
configuration
OSCI
MII_CLK25
MII_TXEN
MII_TXD[3:0]
MII_TXEN
MII_TXD[3:0]
10 ns
20 ns
LAN9252
MII_RXCLK
25 MHz
25 MHz
LAN9252
MII_RXDV
MII_RXD[3:0]
MII_RXER
TX shift
configuration
10 ns
20 ns
MII_MDIO
MII_MDC
RST#
2 PORT OPERATION
When configured for two port mode (chip_mode_strap[1:0] equal to 00b), port 2 is disabled. The port status is also
shown in the Port 2 Configuration bits of the Port Descriptor Register and is set to a 01b (Not configured) when the
device is configured for two port operation.
12.9.2
PORT 1 (INTERNAL PHY B)
Port 1 of the EtherCAT core is always connected to internal PHY B.
12.9.3
PHY CONFIGURATION
By default, the internal PHYs are configured for 100Mbps, full-duplex operation. Auto-Negotiation is enable for
100BASE-TX mode and disable for 100BASE-FX mode. The EtherCAT Core will also check and update the configuration if necessary.
By default, the external PHY is configured for 100Mbps, full-duplex operation with Auto-Negotiation enabled. The EtherCAT Core will check and update the configuration if necessary.
12.9.4
PHY LINK STATUS
The link status originates from the PHY’s link signal (internal or external). The EtherCAT Core also checks the PHY status to determine a proper link. By cyclically polling the PHYs, it checks that Auto-negotiation registers are configure
properly, if a link is established, if Auto-Negotiation has finished successfully and if the link partner also used Auto-Negotiation.
Link checking through the MII Management Interface (MI) is enabled via EEPROM and reflected in the MII Management
Control/Status Register.
Note:
MI link detection is disabled until the device is successfully configured from the EEPROM.
The EEPROM setting for MI link detection is only taken at the first EEPROM loading after power-on or
reset. Changing the EEPROM and manually reloading it will not affect the MI link detection enable status,
even if the EEPROM could not be read initially.
DS00001909A-page 204
2015 Microchip Technology Inc.
LAN9252
As shown in Table 12-3, "EtherCAT Core EEPROM Configurable Registers", bit 7 of the ASIC Configuration Register is
used to enable writes to PHY register 9 for PHYs which use this register per IEEE 802.3.
12.9.4.1
MI LINK DETECTION AND CONFIGURATION STATE MACHINE
The MI Link Detection and Configuration state machine operates as follows:
•
•
•
•
•
•
Check that auto-negotiation is enabled
Check that only 100BASE-X full-duplex is advertised
Check that 1000BASE-T is not advertised
Check that auto-negotiation is completed
Check that link partner is 100BASE-X full-duplex
Otherwise, set the registers as needed and restart auto-negotiation
12.9.5
ENHANCED LINK DETECTION
The EtherCAT Core supports the enhanced link detection feature with the enable is controlled by the EEPROM. With
this, the EtherCAT Core will disconnect a link if at least 32 RX errors (RX_ER) occur in a fixed interval of time (~10 us).
Refer to Section 12.8, "EEPROM Configurable Registers," on page 201 for additional information.
12.9.6
100BASE-FX SUPPORT
Since 100BASE-FX operation does not provide support for Auto-Negotiation, special consideration is required for MI
and Enhanced link detection operation.
MII LINK DETECTION
When any port is set for 100BASE-FX operation, MI link detection must be disabled by maintaining bit 2 of the MII Management Control/Status Register low.
ENHANCED LINK DETECTION
Enhanced link detection may still be enabled. If enhanced link detection detects an error condition, it will still attempt to
restart Auto-Negotiation. Since this would have no effect, the internal PHY is also reset.
A system that uses an external 100BASE-FX PHY must implement the logic described in the Enhanced FX Link Detection section of the Beckhoff PHY Selection guide to detect the restart Auto-Negotiation command and reset the external
PHY and reset / disable the external transceiver.
2015 Microchip Technology Inc.
DS00001909A-page 205
LAN9252
12.9.7
EXTERNAL PHY TIMING
Since the EtherCAT Core does not use the PHY transmit clock, proper timing must be ensured based on the common
25 MHz reference clock (which is output to the external PHY via the MII_CLK25 pin). To aid in this, the EtherCAT Core
has the TX shift feature enabled. This feature can delay the generation of the transmit signals from the EtherCAT Core
by 0ns, 10ns, 20ns or 30ns. This value is manually set using tx_shift_strap[1:0].
12.9.7.1
MII Connection Timing
The MII interface TX and RX timing is as follows:
FIGURE 12-7:
MII TX TIMING
tclkp
tclkh
MII_CLK25
tval
(output)
tclkl
tval
thold
MII_TXD[3:0]
thold
tval
MII_TXEN
TABLE 12-4:
MII TX TIMING VALUES
Symbol
Description
Min
Max
Units
40
-
ns
Notes
tclkp
MII_CLK25 period
tclkh
MII_CLK25 high time
tclkp * 0.45 tclkp * 0.55
ns
tclkl
MII_CLK25 low time
tclkp * 0.45 tclkp * 0.55
ns
tval
MII_TXD[3:0], MII_TXEN output valid from rising edge
of MII_CLK25 Note 2
-
10.0
ns
Note 1
thold
MII_TXD[3:0], MII_TXEN output hold from rising edge
of MII_CLK25 Note 2
0
-
ns
Note 1
Note 1: Timing is designed for a system load between 10 pF and 25 pF.
Note 2: Assumes TX shift value of 2, add 10 ns for each increment of TX shift (shift values of 3, 0, and 1 in order).
DS00001909A-page 206
2015 Microchip Technology Inc.
LAN9252
FIGURE 12-8:
MII RX TIMING
tclkp
tclkh tclkl
MII_RXCLK
(input)
tsu thold
MII_RXD[3:0],
MII_RXER
tsu thold
thold
thold
tsu
MII_RXDV
TABLE 12-5:
MII RX TIMING VALUES
Symbol
Description
Min
Max
Units
Notes
tclkp
MII_RXCLK period
40
-
ns
tclkh
MII_RXCLK high time
tclkp * 0.4
tclkp * 0.6
ns
tclkl
MII_RXCLK low time
tclkp * 0.4
tclkp * 0.6
ns
tsu
MII_RXD[3:0], MII_RXER, MII_RXDV setup time to
rising edge of MII_RXCLK
5.0
-
ns
Note 3
thold
MII_RXD[3:0], MII_RXER, MII_RXDV hold time after
rising edge of MII_RXCLK
6.0
-
ns
Note 3
Note 3: Timing is designed for a system load between 10 pF and 25 pF.
12.9.7.2
Back-to-Back MII Connection Timing
With the previously listed MII TX and RX timings, back-to-back connections should use a TX shift value of 3 or 0.
2015 Microchip Technology Inc.
DS00001909A-page 207
LAN9252
12.9.7.3
Management Interface Timing
The MII_MDIO and MII_MDC timing is follows:
FIGURE 12-9:
MANAGEMENT ACCESS TIMING
tclkp
tclkh tclkl
MII_MDC
tval
tohold
tohold
MII_MDIO
(Data-Out)
tsu tihold
MII_MDIO
(Data-In)
TABLE 12-6:
MANAGEMENT ACCESS TIMING VALUES
Symbol
Description
Min
Max
Units
400
-
ns
tclkp
MII_MDC period
tclkh
MII_MDC high time
180 (90%)
-
ns
tclkl
MII_MDC low time
180 (90%)
-
ns
tval
MII_MDIO output valid from rising edge of MII_MDC
-
250
ns
tohold
MII_MDIO output hold from rising edge of MII_MDC
150
-
ns
tsu
MII_MDIO input setup time to rising edge of MII_MDC
70
-
ns
tihold
MII_MDIO input hold time after rising edge of MII_MDC
0
-
ns
Notes
12.10 LEDs
The device includes one run LED (RUNLED) and a link / activity LED per port (LINKACTLED[0:2]). The LED pin polarity is determined based on the corresponding LED polarity strap. The pin outputs are open drain or open source.
Note:
The LED pins for Port 0 and Port 2 are not swapped based on the chip mode.
The EtherCAT Core configuration provides for direct control of the RUN LED via the RUN LED Override Register.
All LED outputs may be disabled (un-driven) by setting the LED_DIS bit in the Power Management Control Register
(PMT_CTRL).
12.11 EtherCAT CSR and Process Data RAM Access
The EtherCAT CSRs provide register level access to the various parameters of the EtherCAT Core. EtherCAT related
registers can be classified into two main categories based upon their method of access: direct and indirect.
The directly accessible EtherCAT registers are part of the main system CSRs and are detailed in Section 12.13, "EtherCAT CSR and Process Data RAM Access Registers (Directly Addressable)," on page 214. These registers provide
data/command registers (for access to the indirect EtherCAT Core registers).
The indirectly accessible EtherCAT Core registers reside within the EtherCAT Core and must be accessed indirectly via
the EtherCAT CSR Interface Data Register (ECAT_CSR_DATA) and EtherCAT CSR Interface Command Register
(ECAT_CSR_CMD). The indirectly accessible EtherCAT Core CSRs provide full access to the many configurable
parameters of the EtherCAT Core. The indirectly accessible EtherCAT Core CSRs are accessed at address 0h through
0FFFh and are detailed in Section 12.14, "EtherCAT Core CSR Registers (Indirectly Addressable)," on page 223.
DS00001909A-page 208
2015 Microchip Technology Inc.
LAN9252
The EtherCAT Core Process Data RAM can be accessed indirectly via the EtherCAT CSR Interface Data Register
(ECAT_CSR_DATA) and EtherCAT CSR Interface Command Register (ECAT_CSR_CMD), starting at 1000h. The EtherCAT Core Process Data RAM can also be accessed more efficiently using the EtherCAT Process RAM Read Data
FIFO (ECAT_PRAM_RD_DATA) and EtherCAT Process RAM Write Data FIFO (ECAT_PRAM_WR_DATA). This
method provides for multiple DWORDS to be transferred via a FIFO mechanism using a single command and fewer
status reads.
12.11.1
ETHERCAT CSR READS
To perform a read of an individual EtherCAT Core register, the read cycle must be initiated by performing a single write
to the EtherCAT CSR Interface Command Register (ECAT_CSR_CMD) with the CSR Busy (CSR_BUSY) bit set, the
CSR Address (CSR_ADDR) field set to the desired register address, the Read/Write (R_nW) bit set and the CSR Size
(CSR_SIZE) field set to the desired size.
Valid data is available for reading when the CSR Busy (CSR_BUSY) bit is cleared, indicating that the data can be read
from the EtherCAT CSR Interface Data Register (ECAT_CSR_DATA).
Valid data is always aligned into the lowest bits of the EtherCAT CSR Interface Data Register (ECAT_CSR_DATA).
Note:
All bytes of the EtherCAT CSR Interface Data Register (ECAT_CSR_DATA) are updated regardless of the
value of CSR Size (CSR_SIZE).
Figure 12-10 illustrates the process required to perform a EtherCAT Core CSR read. Minimum wait periods are required
where noted. The minimum wait periods as specified in Table 5-2, “Read After Write Timing Rules,” on page 35 are
required where noted.
FIGURE 12-10:
ETHERCAT CSR READ ACCESS FLOW DIAGRAM
CSR Read
Idle
Write
Command
Register
min wait period
CSR_ BUSY = 1
Read
Command
Register
CSR_ BUSY = 0
Read Data
Register
2015 Microchip Technology Inc.
DS00001909A-page 209
LAN9252
12.11.2
ETHERCAT CSR WRITES
To perform a write to an individual EtherCAT Core register, the desired data must first be written into the EtherCAT CSR
Interface Data Register (ECAT_CSR_DATA). Valid data is always aligned into the lowest bits of the EtherCAT CSR Interface Data Register (ECAT_CSR_DATA).
The write cycle is initiated by performing a single write to the EtherCAT CSR Interface Command Register (ECAT_CSR_CMD) with the CSR Busy (CSR_BUSY) bit set, the CSR Address (CSR_ADDR) field set to the desired register
address, the Read/Write (R_nW) bit cleared and the CSR Size (CSR_SIZE) field set to the desired size. The completion
of the write cycle is indicated by the clearing of the CSR Busy (CSR_BUSY) bit.
Figure 12-11 illustrates the process required to perform a EtherCAT Core CSR write. Minimum wait periods are required
where noted. Minimum wait periods are required where noted. The minimum wait periods as specified in Table 5-2,
“Read After Write Timing Rules,” on page 35 are required where noted.
FIGURE 12-11:
ETHERCAT CSR WRITE ACCESS FLOW DIAGRAM
CSR Write
Idle
Write Data
Register
Write
Command
Register
min wait period
Read
Command
CSR_ BUSY = 0 Register
12.11.3
CSR_ BUSY = 1
ETHERCAT PROCESS RAM READS
Process data is transferred from the EtherCAT Core through a 16 deep 32-bit wide FIFO. The FIFO has the base
address of 00h, however, it is also accessible at seven additional contiguous memory locations. The Host may access
the FIFO at any of these alias port locations, as they all function identically and contain the same data. This alias port
addressing is implemented to allow hosts to burst through sequential addresses.
For HBI access, the Process RAM Read Data FIFO may also be accessed using FIFO Direct Selection mode. In this
mode, the address input is ignored and all read accesses are directed to the Process RAM Read Data FIFO. See Section 9.4.3.1, "FIFO Direct Select Access," on page 68.
DS00001909A-page 210
2015 Microchip Technology Inc.
LAN9252
To perform a read of the EtherCAT Process RAM, the read cycle is initiated by first writing the EtherCAT Process RAM
Read Address and Length Register (ECAT_PRAM_RD_ADDR_LEN) with the starting byte address and length (in
bytes) of the desired transfer followed by a write to the EtherCAT Process RAM Read Command Register
(ECAT_PRAM_RD_CMD) with the PRAM Read Busy (PRAM_READ_BUSY) bit set.
Note:
The starting byte address and length must be programmed with valid values such that all transfers are
within the bounds of the Process RAM address range of 1000h to 1FFFh.
Valid data, as indicated by the PRAM Read Data Available (PRAM_READ_AVAIL) bit in the EtherCAT Process RAM
Read Command Register (ECAT_PRAM_RD_CMD) is read from the FIFO through the EtherCAT Process RAM Read
Data FIFO (ECAT_PRAM_RD_DATA). The PRAM Read Data Available Count (PRAM_READ_AVAIL_CNT) field indicates how many reads can be performed without needing to check the status again. Following the final read of the EtherCAT Process RAM Read Data FIFO (ECAT_PRAM_RD_DATA), the PRAM Read Busy (PRAM_READ_BUSY) selfclears.
Note:
The final read of the EtherCAT Process RAM Read Data FIFO (ECAT_PRAM_RD_DATA) implies that all
four bytes have been read, even if not all bytes are required.
As the data is transferred from the EtherCAT Core into the FIFO the PRAM Read Length (PRAM_READ_LEN) and
PRAM Read Address (PRAM_READ_ADDR) are updated to show the progress.
Based on the starting address, the valid bytes in the first FIFO read are as follows:
TABLE 12-7:
ETHERCAT PROCESS RAM VALID FIRST READ BYTES
Starting Address[1:0]
00b
bytes 3, 2, 1 and 0
01b
bytes 3, 2 and 1
10b
bytes 3 and 2
11b
byte 3
Based on the starting address and length, the valid bytes in the last FIFO read are as follows:
TABLE 12-8:
ETHERCAT PROCESS RAM VALID LAST READ BYTES
Starting Length[1:0]
Starting
Address[1:0]
01b (e.g. 5, 9, etc.)
10b (e.g. 6, 10, etc.)
11b (e.g. 7, 11, etc.)
00b (e.g. 8, 12, etc.)
00b
byte 0
bytes 1 and 0
bytes 2, 1 and 0
bytes 3, 2, 1 and 0
01b
bytes 1 and 0
bytes 2, 1 and 0
bytes 3, 2, 1 and 0
byte 0
10b
bytes 2, 1 and 0
bytes 3, 2, 1 and 0
byte 0
bytes 1 and 0
11b
bytes 3, 2, 1 and 0
byte 0
bytes 1 and 0
bytes 2, 1 and 0
2015 Microchip Technology Inc.
DS00001909A-page 211
LAN9252
If the initial length is 4 bytes of less and all bytes fit into one read, the valid bytes in the only FIFO read are as follows:
TABLE 12-9:
ETHERCAT PROCESS RAM VALID BYTES ONE READ
Starting Length
Starting
Address[1:0]
4
1
2
3
00b
bytes 3, 2, 1 and 0
byte 0
bytes 1 and 0
bytes 2, 1 and 0
01b
na
byte 1
bytes 2 and 1
bytes 3, 2 and 1
10b
na
byte 2
bytes 3 and 2
na
11b
na
byte 3
na
na
12.11.3.1
Aborting a Read
If necessary, a read command can be aborted by setting the PRAM Read Abort (PRAM_READ_ABORT) bit in the EtherCAT Process RAM Read Command Register (ECAT_PRAM_RD_CMD).
12.11.4
ETHERCAT PROCESS RAM WRITES
Process data is transferred to the EtherCAT Core through a 16 deep 32-bit wide FIFO. The FIFO has the base address
of 20h, however, it is also accessible at seven additional contiguous memory locations. The Host may access the FIFO
at any of these alias port locations, as they all function identically and contain the same data. This alias port addressing
is implemented to allow hosts to burst through sequential addresses.
For HBI access, the Process RAM Write Data FIFO may also be accessed using FIFO Direct Selection mode. In this
mode, the address input is ignored and all write accesses are directed to the Process RAM Write Data FIFO. See Section 9.4.3.1, "FIFO Direct Select Access," on page 68.
To perform a write to the EtherCAT Process RAM, the write cycle is initiated by first writing the EtherCAT Process RAM
Write Address and Length Register (ECAT_PRAM_WR_ADDR_LEN) with the starting byte address and length (in
bytes) of the desired transfer followed by a write to the EtherCAT Process RAM Write Command Register
(ECAT_PRAM_WR_CMD) with the PRAM Write Busy (PRAM_WRITE_BUSY) bit set.
.
Note:
The starting byte address and length must be programmed with valid values such that all transfers are
within the bounds of the Process RAM address range of 1000h to 1FFFh.
Data is transferred into the EtherCAT Core through a 16 deep 32-bit wide FIFO. The host may write data to the FIFO
through the EtherCAT Process RAM Write Data FIFO (ECAT_PRAM_WR_DATA) when space is available as indicated
by the PRAM Write Space Available (PRAM_WRITE_AVAIL) bit in the EtherCAT Process RAM Write Command Register (ECAT_PRAM_WR_CMD). The PRAM Write Space Available Count (PRAM_WRITE_AVAIL_CNT) field indicates
how many writes can be performed without needing to check the status again. Following the final write of the data into
the EtherCAT Core, the PRAM Write Busy (PRAM_WRITE_BUSY) self-clears.
Note:
The final write of the EtherCAT Process RAM Write Data FIFO (ECAT_PRAM_WR_DATA) implies that all
four bytes have been written, even if not all bytes are required.
As the data is transferred to the EtherCAT Core from the FIFO the PRAM Write Length (PRAM_WRITE_LEN) and
PRAM Write Address (PRAM_WRITE_ADDR) are updated to show the progress.
Based on the starting address, the valid bytes in the first FIFO write are as follows:
DS00001909A-page 212
2015 Microchip Technology Inc.
LAN9252
TABLE 12-10: ETHERCAT PROCESS RAM VALID FIRST WRITE BYTES
Starting Address[1:0]
00b
bytes 3, 2, 1 and 0
01b
bytes 3, 2 and 1
10b
bytes 3 and 2
11b
byte 3
Based on the starting address and length, the valid bytes in the last FIFO write are as follows:
TABLE 12-11: ETHERCAT PROCESS RAM VALID LAST WRITE BYTES
Starting Length[1:0]
Starting
address[1:0]
01b (e.g. 5, 9, etc.)
10b (e.g. 6, 10, etc.)
11b (e.g. 7, 11, etc.)
00b (e.g. 8, 12, etc.)
00b
byte 0
bytes 1 and 0
bytes 2, 1 and 0
bytes 3, 2, 1 and 0
01b
bytes 1 and 0
bytes 2, 1 and 0
bytes 3, 2, 1 and 0
byte 0
10b
bytes 2, 1 and 0
bytes 3, 2, 1 and 0
byte 0
bytes 1 and 0
11b
bytes 3, 2, 1 and 0
byte 0
bytes 1 and 0
bytes 2, 1 and 0
If the initial length is 4 bytes of less and all bytes fit into one write, the valid bytes in the only FIFO write are as follows:
TABLE 12-12: ETHERCAT PROCESS RAM VALID BYTES ONE WRITE
Starting Length
starting
address[1:0]
4
1
2
3
00b
bytes 3, 2, 1 and 0
byte 0
bytes 1 and 0
bytes 2, 1 and 0
01b
na
byte 1
bytes 2 and 1
bytes 3, 2 and 1
10b
na
byte 2
bytes 3 and 2
na
11b
na
byte 3
na
na
12.11.4.1
Aborting a Write
If necessary, a write command can be aborted by setting the PRAM Write Abort (PRAM_WRITE_ABORT) bit in the EtherCAT Process RAM Write Command Register (ECAT_PRAM_WR_CMD).
12.12 EtherCAT Reset
After writing 0x52 (R), 0x45 (E) and 0x53 (S) into the ESC Reset ECAT Register with 3 consecutive frames or after writing 0x52 (R), 0x45 (E) and 0x53 (S) into the ESC Reset PDI Register with 3 consecutive writes, a device reset (and
optional system reset) will occur, as defined in Section 6.2.1.3, "EtherCAT System Reset," on page 40.
Note:
It is likely that the last frame of the sequence will not return to the master (depending on the topology),
because the links to and from the slave which is reset will go down.
2015 Microchip Technology Inc.
DS00001909A-page 213
LAN9252
12.13 EtherCAT CSR and Process Data RAM Access Registers (Directly Addressable)
This section details the directly addressable System CSRs, outside of the EtherCAT Core, which are related to the EtherCAT Core. For information on how to access EtherCAT registers, refer to Section 12.11, "EtherCAT CSR and Process
Data RAM Access," on page 208. The EtherCAT Core registers are detailed in Section 12.14, "EtherCAT Core CSR
Registers (Indirectly Addressable)," on page 223.
TABLE 12-13: ETHERCAT PROCESS RAM AND CSR ACCESS REGISTERS
Address
Register Name (Symbol)
000h-01Ch
EtherCAT Process RAM Read Data FIFO (ECAT_PRAM_RD_DATA)
020h-03Ch
EtherCAT Process RAM Write Data FIFO (ECAT_PRAM_WR_DATA)
300h
EtherCAT CSR Interface Data Register (ECAT_CSR_DATA)
304h
EtherCAT CSR Interface Command Register (ECAT_CSR_CMD)
308h
EtherCAT Process RAM Read Address and Length Register (ECAT_PRAM_RD_ADDR_LEN)
30Ch
EtherCAT Process RAM Read Command Register (ECAT_PRAM_RD_CMD)
310h
EtherCAT Process RAM Write Address and Length Register (ECAT_PRAM_WR_ADDR_LEN)
314h
EtherCAT Process RAM Write Command Register (ECAT_PRAM_WR_CMD)
DS00001909A-page 214
2015 Microchip Technology Inc.
LAN9252
12.13.1
ETHERCAT PROCESS RAM READ DATA FIFO (ECAT_PRAM_RD_DATA)
Offset:
000h-01Ch
Size:
32 bits
This read only register is used in conjunction with the EtherCAT Process RAM Read Command Register
(ECAT_PRAM_RD_CMD) and the EtherCAT Process RAM Read Address and Length Register
(ECAT_PRAM_RD_ADDR_LEN) to perform read operations of the EtherCAT Core Process RAM.
Data read from this register is only valid if the PRAM Read Data Available (PRAM_READ_AVAIL) bit in the EtherCAT
Process RAM Read Command Register (ECAT_PRAM_RD_CMD) is a 1. The host should not read this register unless
there is valid data available.
Bits
31:0
Description
EtherCAT Process RAM Read Data (PRAM_RD_DATA)
This field contains the value read from the EtherCAT Core Process RAM.
Note:
Type
Default
RO
-
Some bytes maybe invalid based on the starting address and
transfer length.
2015 Microchip Technology Inc.
DS00001909A-page 215
LAN9252
12.13.2
ETHERCAT PROCESS RAM WRITE DATA FIFO (ECAT_PRAM_WR_DATA)
Offset:
020h-03Ch
Size:
32 bits
This write only register is used in conjunction with the EtherCAT Process RAM Write Command Register
(ECAT_PRAM_WR_CMD) and the EtherCAT Process RAM Write Address and Length Register
(ECAT_PRAM_WR_ADDR_LEN) to perform write operations to the EtherCAT Core Process RAM.
The host should not write this register unless there is available space as indicated by the PRAM Write Space Available
(PRAM_WRITE_AVAIL) bit in the EtherCAT Process RAM Write Command Register (ECAT_PRAM_WR_CMD).
Bits
31:0
Description
EtherCAT Process RAM Write Data (PRAM_WR_DATA)
This field contains the value written to the EtherCAT Core Process RAM.
Note:
DS00001909A-page 216
Type
Default
WO
-
Some bytes maybe invalid based on the starting address and
transfer length.
2015 Microchip Technology Inc.
LAN9252
12.13.3
ETHERCAT CSR INTERFACE DATA REGISTER (ECAT_CSR_DATA)
Offset:
300h
Size:
32 bits
This read/write register is used in conjunction with the EtherCAT CSR Interface Command Register (ECAT_CSR_CMD)
to perform read and write operations with the EtherCAT Core CSRs.
Bits
Description
Type
Default
31:0
EtherCAT CSR Data (CSR_DATA)
This field contains the value read from or written to the EtherCAT Core CSR.
The EtherCAT Core CSR is selected via the CSR Address (CSR_ADDR) bits
of the EtherCAT CSR Interface Command Register (ECAT_CSR_CMD).
R/W
00000000h
Valid data is always written to or read from the lower bits of this field. The H/
W handles any required byte alignment.
Upon a read, the value returned depends on the Read/Write (R_nW) bit in
the EtherCAT CSR Interface Command Register (ECAT_CSR_CMD). If
Read/Write (R_nW) is set, the data is from the EtherCAT Core. If Read/Write
(R_nW) is cleared, the data is the value that was last written into this register.
2015 Microchip Technology Inc.
DS00001909A-page 217
LAN9252
12.13.4
ETHERCAT CSR INTERFACE COMMAND REGISTER (ECAT_CSR_CMD)
Offset:
304h
Size:
32 bits
This read/write register is used in conjunction with the EtherCAT CSR Interface Data Register (ECAT_CSR_DATA) to
perform read and write operations with the EtherCAT Core CSRs.
Bits
31
Description
Type
Default
R/W
SC
0b
R/W
0b
CSR Busy (CSR_BUSY)
When a 1 is written to this bit, the read or write operation (as determined by
the R_nW bit) is performed to the specified EtherCAT Core CSR in CSR
Address (CSR_ADDR).
This bit will remain set until the operation is complete, at which time the bit
will self-clear. In the case of a read, the clearing of this bit indicates to the
Host that valid data can be read from the EtherCAT CSR Interface Data Register (ECAT_CSR_DATA).
Writing a 0 to this bit has no affect.
The host should not modify the ETHERCAT_CSR_CMD and ETHERCAT_CSR_DATA registers unless this bit is a 0.
30
Read/Write (R_nW)
This bit determines whether a read or write operation is performed by the
Host to the specified EtherCAT Core CSR.
0: Write
1: Read
29:19
RESERVED
RO
-
18:16
CSR Size (CSR_SIZE)
This field specifies the size of the EtherCAT Core CSR in bytes.
R/W
0h
R/W
00h
Valid values are 1, 2 and 4. The host should not use invalid values. Note 4.
15:0
CSR Address (CSR_ADDR)
This field selects the EtherCAT Core CSR that will be accessed with a read
or write operation. This is a byte address which is the format used to specify
the offsets of the EtherCAT Core CSRs.
Note 4.
Note 4: WORD and DWORD accesses must be aligned on the proper address boundary according to the following
table.
TABLE 12-14: ETHERCAT CSR ADDRESS VS. SIZE
DS00001909A-page 218
CSR_SIZE[2:0]
CSR_ADDR[1:0]
1
00b, 01b, 10b, 11b
2
00b, 10b
4
00b
2015 Microchip Technology Inc.
LAN9252
12.13.5
ETHERCAT PROCESS RAM READ ADDRESS AND LENGTH REGISTER
(ECAT_PRAM_RD_ADDR_LEN)
Offset:
308h
Size:
32 bits
This read/write register is used in conjunction with the EtherCAT Process RAM Read Data FIFO (ECAT_PRAM_RD_DATA) and the EtherCAT Process RAM Read Command Register (ECAT_PRAM_RD_CMD) to perform read operations
from the EtherCAT Core Process RAM.
Note:
The starting byte address and length must be programmed with valid values such that all transfers are
within the bounds of the Process RAM address range of 1000h to 1FFFh.
Bits
Description
Type
Default
31:16
PRAM Read Length (PRAM_READ_LEN)
This field indicates the number of bytes to be read from the EtherCAT Core
Process RAM. It is decremented as data is read from the EtherCAT Core and
placed into the FIFO.
R/W
0000h
R/W
0000h
The host should not modify this field unless the PRAM Read Busy
(PRAM_READ_BUSY) bit is a low.
15:0
PRAM Read Address (PRAM_READ_ADDR)
This field indicates the EtherCAT Core byte address to be read. It is incremented as data is read from the EtherCAT Core and placed into the FIFO.
Note:
The Process RAM starts at address 1000h.
The host should not modify this field unless the PRAM Read Busy
(PRAM_READ_BUSY) bit is a 0.
2015 Microchip Technology Inc.
DS00001909A-page 219
LAN9252
12.13.6
ETHERCAT PROCESS RAM READ COMMAND REGISTER (ECAT_PRAM_RD_CMD)
Offset:
30Ch
Size:
32 bits
This read/write register is used in conjunction with the EtherCAT Process RAM Read Data FIFO (ECAT_PRAM_RD_DATA) and the EtherCAT Process RAM Read Address and Length Register (ECAT_PRAM_RD_ADDR_LEN) to perform read operations from the EtherCAT Core Process RAM.
Bits
Description
Type
Default
31
PRAM Read Busy (PRAM_READ_BUSY)
When a 1 is written to this bit, the read operation is started beginning at the
EtherCAT Core Process RAM location specified in PRAM Read Address
(PRAM_READ_ADDR) for the length specified in PRAM Read Length
(PRAM_READ_LEN). This bit will remain set until the entire read operation is
complete, at which time the bit will self-clear.
R/W
SC
0b
R/W
SC
0b
Writing a 0 to this bit has no affect.
30
PRAM Read Abort (PRAM_READ_ABORT)
Writing a 1 to this bit will cause the read operation in process to be canceled.
The PRAM Read Busy (PRAM_READ_BUSY) will be cleared and the Read
Data FIFO, along with the status bits, will be reset. This bit will self-clear.
Writing a 0 to this bit has no affect.
29:13
RESERVED
RO
-
12:8
PRAM Read Data Available Count (PRAM_READ_AVAIL_CNT)
This field indicates the number of times that the EtherCAT Process RAM
Read Data FIFO (ECAT_PRAM_RD_DATA) can be read without further need
to check the status.
RO
00000b
RESERVED
RO
-
PRAM Read Data Available (PRAM_READ_AVAIL)
This field indicates that the EtherCAT Process RAM Read Data FIFO
(ECAT_PRAM_RD_DATA) has valid data to be read.
RO
0b
This field increments as data is read from the EtherCAT Core and placed into
the FIFO. This field is decremented when the a entire DWORD of data is
read from the EtherCAT Process RAM Read Data FIFO (ECAT_PRAM_RD_DATA).
7:1
0
DS00001909A-page 220
2015 Microchip Technology Inc.
LAN9252
12.13.7
ETHERCAT PROCESS RAM WRITE ADDRESS AND LENGTH REGISTER
(ECAT_PRAM_WR_ADDR_LEN)
Offset:
310h
Size:
32 bits
This read/write register is used in conjunction with the EtherCAT Process RAM Write Data FIFO (ECAT_PRAM_WR_DATA) and the EtherCAT Process RAM Write Command Register (ECAT_PRAM_WR_CMD) to perform write operations to the EtherCAT Core Process RAM.
Note:
The starting byte address and length must be programmed with valid values such that all transfers are
within the bounds of the Process RAM address range of 1000h to 1FFFh.
Bits
Description
Type
Default
31:16
PRAM Write Length (PRAM_WRITE_LEN)
This field indicates the number of bytes to be written to the EtherCAT Core
Process RAM. It is decremented as data is written to the EtherCAT Core from
the FIFO.
R/W
0000h
R/W
0000h
The host should not modify this field unless the PRAM Write Busy
(PRAM_WRITE_BUSY) bit is a low.
15:0
PRAM Write Address (PRAM_WRITE_ADDR)
This field indicates the EtherCAT Core byte address to be written. It is incremented as data is written to the EtherCAT Core from the FIFO.
Note:
The Process RAM starts at address 1000h.
The host should not modify this field unless the PRAM Write Busy
(PRAM_WRITE_BUSY) bit is a 0.
2015 Microchip Technology Inc.
DS00001909A-page 221
LAN9252
12.13.8
ETHERCAT PROCESS RAM WRITE COMMAND REGISTER (ECAT_PRAM_WR_CMD)
Offset:
314h
Size:
32 bits
This read/write register is used in conjunction with the EtherCAT Process RAM Write Data FIFO (ECAT_PRAM_WR_DATA) and the EtherCAT Process RAM Write Address and Length Register (ECAT_PRAM_WR_ADDR_LEN) to perform write operations to the EtherCAT Core Process RAM.
Bits
Description
Type
Default
31
PRAM Write Busy (PRAM_WRITE_BUSY)
When a 1 is written to this bit, the write operation is started beginning at the
EtherCAT Core Process RAM location specified in PRAM Write Address
(PRAM_WRITE_ADDR) for the length specified in PRAM Write Length
(PRAM_WRITE_LEN). This bit will remain set until the entire write operation
is complete, at which time the bit will self-clear.
R/W
SC
0b
R/W
SC
0b
Writing a 0 to this bit has no affect.
30
PRAM Write Abort (PRAM_WRITE_ABORT)
Writing a 1 to this bit will cause the write operation in process to be canceled.
The PRAM Write Busy (PRAM_WRITE_BUSY) will be cleared and the Write
Data FIFO, along with the status bits, will be reset. This bit will self-clear.
Writing a 0 to this bit has no affect.
29:13
RESERVED
RO
-
12:8
PRAM Write Space Available Count (PRAM_WRITE_AVAIL_CNT)
This field indicates the number of times that the EtherCAT Process RAM
Write Data FIFO (ECAT_PRAM_WR_DATA) can be written without further
need to check the status.
RO
10000b
RESERVED
RO
-
PRAM Write Space Available (PRAM_WRITE_AVAIL)
This field indicates that the EtherCAT Process RAM Write Data FIFO
(ECAT_PRAM_WR_DATA) has available space for data to be written.
RO
1b
This field is decremented when the a entire DWORD of data is written into
the EtherCAT Process RAM Write Data FIFO (ECAT_PRAM_WR_DATA).
This field increments as data is read from the FIFO and placed into the EtherCAT Core.
7:1
0
DS00001909A-page 222
2015 Microchip Technology Inc.
LAN9252
12.14 EtherCAT Core CSR Registers (Indirectly Addressable)
This section details the indirectly addressable EtherCAT Core CSRs, which are accessed via the directly addressable
EtherCAT CSR Interface Data Register (ECAT_CSR_DATA) and EtherCAT CSR Interface Command Register
(ECAT_CSR_CMD). For information on how to access EtherCAT registers, refer to Section 12.11, "EtherCAT CSR and
Process Data RAM Access," on page 208. The directly addressable EtherCAT registers are detailed in Section 12.13,
"EtherCAT CSR and Process Data RAM Access Registers (Directly Addressable)," on page 214.
Note:
For EtherCAT Core CSR registers longer than one byte, the LSB has the lowest address and the MSB the
highest address.
The read/write behavior of specific EtherCAT Core register bits may differ depending on how the register
is accessed. Each EtherCAT Core register includes “ECAT Type” and “PDI Type” columns, which provide
the bit/field type for register accesses via an EtherCAT Master Node or Process Data Interface (SPI / Host
Bus), respectively.
TABLE 12-15: ETHERCAT CORE CSR REGISTERS
Address
Register Name (Symbol)
ESC Information
0000h
Type Register
0001h
Revision Register
0002h-0003h Build Register
0004h
FMMUs Supported Register
0005h
SyncManagers Supported Register
0006h
RAM Size Register
0007h
Port Descriptor Register
0008h-0009h ESC Features Supported Register
Station Address
0010h-0011h Configured Station Register
0012h-0013h Configured Station Alias Register
Write Protection
0020h
Write Register Enable Register
0021h
Write Register Protection Register
0030h
ESC Write Register Enable Register
0031h
ESC Write Register Protection Register
Data Link Layer
0040h
ESC Reset ECAT Register
0041h
ESC Reset PDI Register
0100h-0103h ESC DL Control Register
0108h-0109h Physical Read/Write Offset Register
0110h-0111h
ESC DL Status Register
Application Layer
0120h-0121h AL Control Register
0130h-0131h AL Status Register
0134h-0135h AL Status Code Register
0138h
RUN LED Override Register
0139h
Reserved
PDI (Process Data Interface)
0140h
PDI Control Register
2015 Microchip Technology Inc.
DS00001909A-page 223
LAN9252
TABLE 12-15: ETHERCAT CORE CSR REGISTERS
Address
0141h
Register Name (Symbol)
ESC Configuration Register
0142h-0143h ASIC Configuration Register
0144h-0145h RESERVED Register
0150h
PDI Configuration Register
0151h
Sync/Latch PDI Configuration Register
0152h-0153h Extended PDI Configuration Register
Interrupts
0200h-0201h ECAT Event Mask Register
0204h-0207h AL Event Mask Register
0210h-0211h ECAT Event Request Register
0220h-0223h AL Event Request Register
Error Counters
0300h-0307h RX Error Counter Registers
0308h-030Bh Forwarded RX Error Counter Registers
030Ch
ECAT Processing Unit Error Counter Register
030Dh
PDI Error Counter Register
030Eh
PDI Error Code Register
0310h-0313h Lost Link Counter Registers
Watchdogs
0400h-0401h Watchdog Divider Register
0410h-0411h Watchdog Time PDI Register
0420h-0421h Watchdog Time Process Data Register
0440h-0441h Watchdog Status Process Data Register
0442h
Watchdog Counter Process Data Register
0443h
Watchdog Counter PDI Register
0500h
EEPROM Configuration Register
0501h
EEPROM PDI Access State Register
EEPROM Interface
0502h-0503h EEPROM Control/Status Register
0504h-0507h EEPROM Address Register
0508h-050Bh EEPROM Data Register
MII Management Interface
0510h-0511h MII Management Control/Status Register
0512h
PHY Address Register
0513h
PHY Register Address Register
0514h-0515h PHY DATA Register
0516h
MII Management ECAT Access State Register
0517h
MII Management PDI Access State Register
0518h-051Bh PHY Port Status Registers
0600h-062Fh FMMU[2:0] Registers (3x16 bytes)
+0h-3h
FMMUx Logical Start Address Register
+4h-5h
FMMUx Length Register
+6h
FMMUx Logical Start Bit Register
+7h
FMMUx Logical Stop Bit Register
DS00001909A-page 224
2015 Microchip Technology Inc.
LAN9252
TABLE 12-15: ETHERCAT CORE CSR REGISTERS
Address
+8h-9h
Register Name (Symbol)
FMMUx Physical Start Address Register
+Ah
FMMUx Physical Start Bit Register
+Bh
FMMUx Type Register
+Ch
FMMUx Activate Register
+Dh-Fh
FMMUx Reserved Register
0630h-06FFh Reserved
0800h-081Fh SyncManager[3:0] Registers (4x8 bytes)
+0h-1h
SyncManager x Physical Start Address Register
+2h-3h
SyncManager x Length Register
+4h
SyncManager x Control Register
+5h
SyncManager x Status Register
+6h
SyncManager x Activate Register
+7h
SyncManager x PDI Control Register
0820h-087Fh Reserved
0900h-09FFh Distributed Clocks (DC)
Distributed Clocks - Receive Times
0900h-0903h Receive Time Port 0 Register
0904h-0907h Receive Time Port 1 Register
0908h-090Bh Receive Time Port 2 Register
090Ch-090Fh Reserved
Distributed Clocks - Time Loop Control Unit
0910h-0917h System Time Register
0918h-091Fh Receive Time ECAT Processing Unit Register
0920h-0927h System Time Offset Register
0928h-092Bh System Time Delay Register
092Ch-092Fh System Time Difference Register
0930h-0931h Speed Counter Start Register
0932h-0933h Speed Counter Diff Register
0934h
System Time Difference Filter Depth Register
0935h
Speed Counter Filter Depth Register
Distributed Clocks - Cyclic Unit Control
0980h
Cyclic Unit Control Register
Distributed Clocks - SYNC Out Unit
0981h
Activation Register
0982h-0983h Pulse Length of SyncSignals Register
0984h
Activation Status Register
098Eh
SYNC0 Status Register
098Fh
SYNC1 Status Register
0990h-0997h Start Time Cyclic Operation Register
0998h-099Fh Next SYNC1 Pulse Register
09A0h-09A3h SYNC0 Cycle Time Register
09A4h-09A7h SYNC1 Cycle Time Register
Distributed Clocks - Latch In Unit
09A8h
LATCH0 Control Register
2015 Microchip Technology Inc.
DS00001909A-page 225
LAN9252
TABLE 12-15: ETHERCAT CORE CSR REGISTERS
Address
Register Name (Symbol)
09A9h
LATCH1 Control Register
09AEh
LATCH0 Status Register
09AFh
LATCH1 Status Register
09B0h-09B7h LATCH0 Time Positive Edge Register
09B8h-09BFh LATCH0 Time Negative Edge Register
09C0h-09C7h LATCH1 Time Positive Edge Register
09C8h-09CFh LATCH1 Time Negative Edge Register
Distributed Clocks - SyncManager Event Times
09F0h-09F3h EtherCAT Buffer Change Event Time Register
09F8h-09FBh PDI Buffer Start Time Event Register
09FCh-09FFh PDI Buffer Change Event Time Register
ESC Specific
0E00h-0E07h Product ID Register
0E08h-0E0Fh Vendor ID Register
Digital Input/Output
0F00h-0F01h Digital I/O Output Data Register
0F10h-0F11h General Purpose Output Register
0F18h-0F19h General Purpose Input Register
User RAM
0F80h-0FFFh User RAM
Process Data RAM
1000h-1001h Digital I/O Input Data Register
1000h-1FFFh Process Data RAM
DS00001909A-page 226
2015 Microchip Technology Inc.
LAN9252
12.14.1
TYPE REGISTER
Offset:
Bits
7:0
12.14.2
0000h
Description
EtherCAT Controller Type
C0h = Microchip.
Bits
12.14.3
0001h
EtherCAT Controller Revision
ECAT
Type
PDI
Type
Default
RO
RO
C0h
ECAT
Type
PDI
Type
Default
RO
RO
02h
ECAT
Type
PDI
Type
Default
RO
RO
0000h
8 bits
BUILD REGISTER
Bits
Note:
Size:
Description
Offset:
15:0
8 bits
REVISION REGISTER
Offset:
7:0
Size:
0002h-0003h
Description
EtherCAT Controller Build
[7:4] = minor version
[3:0] = Maintenance version
Size:
16 bits
For EtherCAT Core CSR registers longer than one byte, the LSB has the lowest address and the MSB the
highest address.
2015 Microchip Technology Inc.
DS00001909A-page 227
LAN9252
12.14.4
FMMUS SUPPORTED REGISTER
Offset:
0004h
Size:
Bits
Description
7:0
Supported FMMUs
This field details the number of supported FMMU channels (or
entities) of the EtherCAT slave controller. The device provides 3.
12.14.5
Bits
12.14.6
ECAT
Type
PDI
Type
Default
RO
RO
03h
ECAT
Type
PDI
Type
Default
RO
RO
04h
ECAT
Type
PDI
Type
Default
RO
RO
04h
SYNCMANAGERS SUPPORTED REGISTER
Offset:
7:0
8 bits
0005h
Size:
Description
Supported SyncManagers
This field details the number of supported SyncManager channels (or entities) of the EtherCAT slave controller. The device
provides 4.
8 bits
RAM SIZE REGISTER
Offset:
0006h
Size:
Bits
Description
7:0
Process Data RAM Size
This field details the process data RAM size included in the EtherCAT slave controller. The device provides 4KB.
DS00001909A-page 228
8 bits
2015 Microchip Technology Inc.
LAN9252
12.14.7
PORT DESCRIPTOR REGISTER
Offset:
Bits
0007h
Description
Size:
8 bits
ECAT
Type
PDI
Type
Default
00b
7:6
Port 3 Configuration
This field details the Port 3 configuration.
00: Not implemented
01: Not configured
10: EBUS
11: MII/RMII
RO
RO
5:4
Port 2 Configuration
This field details the Port 2 configuration.
00: Not implemented
01: Not configured
10: EBUS
11: MII/RMII
RO
RO
3:2
Port 1 Configuration
This field details the Port 1 configuration.
00: Not implemented
01: Not configured
10: EBUS
11: MII/RMII
RO
RO
11b
1:0
Port 0 Configuration
This field details the Port 0 configuration.
00: Not implemented
01: Not configured
10: EBUS
11: MII/RMII
RO
RO
11b
2015 Microchip Technology Inc.
11b
(3-port operation)
01b
(2-port operation)
See Section 14.0
“Chip Mode
Configuration”
DS00001909A-page 229
LAN9252
12.14.8
ESC FEATURES SUPPORTED REGISTER
Offset:
0008h-0009h
Size:
16 bits
ECAT
Type
PDI
Type
Default
RESERVED
RO
RO
0h
11
Fixed FMMU/SyncManager Configuration
0: Variable configuration
1: Fixed configuration
RO
RO
0b
10
EtherCAT Read/Write Command Support
0: Supported
1: Not supported
RO
RO
0b
9
EtherCAT LRW Command Support
0: Supported
1: Not supported
RO
RO
0b
8
Enhanced DC SYNC Activation
0: Not available
1: Available
RO
RO
1b
Bits
15:12
Description
Note:
This feature refers to the Activation Register and Activation Status Register
7
Separate Handling of FCS Errors
0: Not supported
1: Supported, frame with wrong FCS and additional nibble will be
counted separately in Forwarded RX Counter
RO
RO
1b
6
Enhanced Link Detection MII
0: Not available
1: Available
RO
RO
1b
5
Enhanced Link Detection EBUS
0: Not available
1: Available
RO
RO
0b
4
Low Jitter EBUS
0: Not available, standard jitter
1: Available, jitter minimized
RO
RO
0b
3
Distributed Clocks (width)
0: 32-bit
1: 64-bit
RO
RO
1b
2
Distributed Clock
0: Not available
1: Available
RO
RO
1b
1
RESERVED
RO
RO
0b
0
FMMU Operation
0: Bit oriented
1: Byte oriented
RO
RO
0b
DS00001909A-page 230
2015 Microchip Technology Inc.
LAN9252
Note:
12.14.9
For EtherCAT Core CSR registers longer than one byte, the LSB has the lowest address and the MSB the
highest address.
CONFIGURED STATION REGISTER
Offset:
0010h-0011h
Size:
Bits
Description
15:0
Configured Station Address
This field contains the address used for node addressing (FPxx
commands)
Note:
16 bits
ECAT
Type
PDI
Type
Default
R/W
RO
0000h
For EtherCAT Core CSR registers longer than one byte, the LSB has the lowest address and the MSB the
highest address.
12.14.10 CONFIGURED STATION ALIAS REGISTER
Offset:
Bits
15:0
0012h-0013h
Size:
Description
Configured Station Alias Address
This field contains the alias address used for node addressing
(FPxx commands). The use of this alias is activated by the Station Alias bit of the ESC DL Control Register.
Note:
16 bits
ECAT
Type
PDI
Type
RO
R/W
Default
0000h
Note 5
EEPROM value is only taken over at first EEPROM
load after lower-on reset.
Note 5: The default value of this field can be configured via EEPROM. Refer to Section 12.8, "EEPROM Configurable Registers," on page 201 for additional information.
Note:
For EtherCAT Core CSR registers longer than one byte, the LSB has the lowest address and the MSB the
highest address.
12.14.11 WRITE REGISTER ENABLE REGISTER
Offset:
2015 Microchip Technology Inc.
0020h
Size:
8 bits
DS00001909A-page 231
LAN9252
ECAT
Type
PDI
Type
Default
RESERVED
Write 0.
RO
RO
0000000b
Write Register Enable
If write protection is enabled, this register must be written in the
same Ethernet frame (value is a don’t care) before other writes
to this station are allowed. Write protection is still active after this
frame (if the Write Register Protection Register is not changed)
R/W
RO
0b
Bits
7:1
0
Description
DS00001909A-page 232
2015 Microchip Technology Inc.
LAN9252
12.14.12 WRITE REGISTER PROTECTION REGISTER
Offset:
0
Size:
8 bits
ECAT
Type
PDI
Type
Default
RESERVED
Write 0.
RO
RO
0000000b
Write Register Protection
0: Protection disabled
1: Protection enabled
R/W
RO
0b
ECAT
Type
PDI
Type
Default
RESERVED
Write 0.
RO
RO
0000000b
ESC Write Register Enable
If ESC write protection is enabled, this register must be written in
the same Ethernet frame (value is a don’t care) before other
writes to this station are allowed. ESC write protection is still
active after this frame (if the ESC Write Register Protection Register is not changed)
R/W
RO
0b
Bits
7:1
0021h
Description
Note:
Registers 0000h-0F0Fh are write protected, except
for 0030h.
12.14.13 ESC WRITE REGISTER ENABLE REGISTER
Offset:
Bits
7:1
0
0030h
Size:
Description
2015 Microchip Technology Inc.
8 bits
DS00001909A-page 233
LAN9252
12.14.14 ESC WRITE REGISTER PROTECTION REGISTER
Offset:
0031h
Size:
8 bits
ECAT
Type
PDI
Type
Default
RESERVED
Write 0.
RO
RO
0000000b
ESC Write Register Protection
0: Protection disabled
1: Protection enabled
R/W
RO
0b
ECAT
Type
PDI
Type
Default
ESC Reset ECAT
A reset is asserted after writing 52h (”R”), 45h (“E”), and 53h
(“S”) in this register with 3 consecutive commands.
R/W
RO
00h
7:2
RESERVED
RO
RO
000000b
1:0
Reset Procedure Progress
01: After writing 52h
10: After writing 45h (if 52h previously written)
00: Else
R/W
RO
00b
Bits
7:1
0
Description
Note:
All areas are write protected, except for 0030h.
12.14.15 ESC RESET ECAT REGISTER
Offset:
Bits
0040h
Size:
Description
8 bits
Write
7:0
Read
DS00001909A-page 234
2015 Microchip Technology Inc.
LAN9252
12.14.16 ESC RESET PDI REGISTER
Offset:
0041h
Size:
8 bits
ECAT
Type
PDI
Type
Default
ESC Reset PDI
A reset is asserted after writing 52h (”R”), 45h (“E”), and 53h
(“S”) in this register with 3 consecutive commands.
RO
R/W
00h
7:2
RESERVED
RO
RO
000000b
1:0
Reset Procedure Progress
01: After writing 52h
10: After writing 45h (if 52h previously written)
00: Else
RO
R/W
00b
Bits
Description
Write
7:0
Read
2015 Microchip Technology Inc.
DS00001909A-page 235
LAN9252
12.14.17 ESC DL CONTROL REGISTER
Offset:
24
23:20
19
18:16
Size:
32 bits
ECAT
Type
PDI
Type
Default
RESERVED
Write 0.
RO
RO
0000000b
Station Alias
0: Ignore station alias
1: Alias can be used for all configured address command types
(FPRD, FPWR, etc.)
R/W
RO
0b
RESERVED
Write 0.
RO
RO
0000b
EBUS Low Jitter
0: Normal jitter
1: Reduced jitter
R/W
RO
0b
RX FIFO Size/RX Delay Reduction
(ESC delays start of forwarding until FIFO is at least half full)
See Note 6.
R/W
RO
111b
RO
RO
00b
Bits
31:25
0100h-0103h
Description
000:
001:
010:
011:
100:
101:
110:
111:
EBUS
-50 ns
-40 ns
-30 ns
-20 ns
-10 ns
No change
No change
Default
MII
-40 ns
-40 ns
-40 ns
-40 ns
No change
No change
No change
Default
15:14
RESERVED
Write 0.
13:12
Loop Port 2
00: Auto.
01: Auto Close.
10: Open.
11: Closed.
R/W
Note 7
RO
00b
11:10
Loop Port 1
00: Auto.
01: Auto Close.
10: Open.
11: Closed.
R/W
Note 7
RO
00b
9:8
Loop Port 0
00: Auto.
01: Auto Close.
10: Open.
11: Closed.
R/W
Note 7
RO
00b
7:2
RESERVED
Write 0.
RO
RO
000000b
DS00001909A-page 236
2015 Microchip Technology Inc.
LAN9252
Bits
Description
ECAT
Type
PDI
Type
Default
1
Temporary Use of Register 0101h Settings
0: Permanent Use
1: Temporarily use for ~1 s, then revert to previous settings.
R/W
RO
0b
0
Forwarding Rule
0: EtherCAT frames are processed, Non-EtherCAT frames are
forwarded without processing
1: EtherCAT frame are processed, Non-EtherCAT frames are
destroyed.
R/W
RO
1b
The source MAC address is changed for every frame
(SOURCE_MAC[1] is set to 1 - locally administered address)
regardless of the forwarding rule.
Note 6: The possibility of RX FIFO Size reduction depends on the clock source accuracy of the ESC and of every
connected EtherCAT/Ethernet device (master, slave, etc.). RX FIFO Size of 111b is sufficient for 100ppm
accuracy, RX FIFO Size 000b is possible with 25ppm accuracy (frame size of 1518/1522 Byte).
Note 7: Loop configuration changes are delayed until the end of a currently received or transmitted frame at the port.
Note:
For EtherCAT Core CSR registers longer than one byte, the LSB has the lowest address and the MSB the
highest address.
12.14.18 PHYSICAL READ/WRITE OFFSET REGISTER
Offset:
Bits
15:0
Note:
0108h-0109h
Size:
Description
Physical Read/Write Offset
Offset of R/W commands (FPRW, APRW) between Read
address and Write address. RD_ADR - ADR and WR_ADR =
ADR + R/W-offset.
16 bits
ECAT
Type
PDI
Type
Default
R/W
RO
0b
For EtherCAT Core CSR registers longer than one byte, the LSB has the lowest address and the MSB the
highest address.
2015 Microchip Technology Inc.
DS00001909A-page 237
LAN9252
12.14.19 ESC DL STATUS REGISTER
Offset:
0110h-0111h
Size:
16 bits
ECAT
Type
PDI
Type
Default
RESERVED
RO
RO
00b
13
Communication on Port 2
0: No stable communication
1: Communication established
RO
RO
0b
12
Loop Port 2
0: Open.
1: Closed.
RO
RO
0b
11
Communication on Port 1
0: No stable communication
1: Communication established
RO
RO
0b
10
Loop Port 1
0: Open.
1: Closed.
RO
RO
0b
9
Communication on Port 0
0: No stable communication
1: Communication established
RO
RO
0b
8
Loop Port 0
0: Open.
1: Closed.
RO
RO
0b
7
RESERVED
RO
RO
0b
6
Physical Link on Port 2
0: No link
1: Link detected
RO
RO
0b
5
Physical Link on Port 1
0: No link
1: Link detected
RO
RO
0b
4
Physical Link on Port 0
0: No link
1: Link detected
RO
RO
0b
3
RESERVED
RO
RO
0b
2
Enhanced Link Detection
0: Deactivated for all ports
1: Activated for at least one port
RO
RO
Bits
15:14
Description
Note:
1
EEPROM value is only taken over at first EEPROM
load after power-on reset.
PDI Watchdog Status
0: Watchdog expired
1: Watchdog reloaded
DS00001909A-page 238
0b
(until first
EEPROM load,
then EEPROM
ADR 0000h bit 9
or 0000h[15:12])
RO
RO
0b
2015 Microchip Technology Inc.
LAN9252
Bits
Description
0
PDI Operational/EEPROM Loaded Correctly
0: EEPROM not loaded, PDI not operational (no access to Process Data RAM)
1: EEPROM loaded correctly, PDI operational (access to Process Data RAM)
Note:
ECAT
Type
PDI
Type
Default
RO
RO
0b
Reading this register from ECAT clears the DL Status Event bit in the ECAT Event Request Register.
For EtherCAT Core CSR registers longer than one byte, the LSB has the lowest address and the MSB the
highest address.
12.14.20 AL CONTROL REGISTER
Offset:
4
3:0
Size:
16 bits
ECAT
Type
PDI
Type
Default
RESERVED
Write as 0.
R/W
Note 8
R/WC
000h
Error Ind Ack
0: No Ack of Error Ind in AL status register
1: Ack of Error Ind in AL status register
R/W
Note 8
R/WC
0b
Initiate State Transition of Device State Machine
1h: Request Init State
2h: Request Pre-Operational State
3h: Request Bootstrap State
4h: Request Safe-Operational State
8h: Request Operational State
R/W
Note 8
R/WC
1h
Bits
15:5
0120h-0121h
Description
Note 8: This register behaves like a mailbox if Device Emulation is off (Device Emulation bit of ESC Configuration
Register is 0). The PDI must read this register after ECAT has written it. Otherwise, ECAT can not write
again to this register. After rest, this register can be written by ECAT. Regarding mailbox functionality, both
registers 0120h and 0121h are equivalent, e.g., reading 0121h is sufficient to make this register writable
again. If Device Emulation is on, this register can always be written and it contents are copied to the AL
Status Register. Reading this register from PDI clears all Event Requests (register 0220h bit 0).
Note:
For EtherCAT Core CSR registers longer than one byte, the LSB has the lowest address and the MSB the
highest address.
2015 Microchip Technology Inc.
DS00001909A-page 239
LAN9252
12.14.21 AL STATUS REGISTER
Offset:
4
3:0
Size:
16 bits
ECAT
Type
PDI
Type
RESERVED
Write as 0.
RO
R/W
Note 9
000h
Error Ind
0: Device is in state as requested or Flag cleared by command
1: Device has not entered requested state or changed state as a
result of a local action
RO
R/W
Note 9
0b
Actual State of the Device State Machine
1h: Init State
2h: Pre-Operational State
3h: Bootstrap State
4h: Safe-Operational State
8h: Operational State
RO
R/W
Note 9
1h
Bits
15:5
0130h-0131h
Description
Default
Note 9: This register is only writable if Device Emulation is off (Device Emulation bit of ESC Configuration Register
is 0). Otherwise, this register will reflect the AL Control Register values. Reading this register from ECAT
clears the AL Status Event bit in the ECAT Event Request Register.
Note:
For EtherCAT Core CSR registers longer than one byte, the LSB has the lowest address and the MSB the
highest address.
12.14.22 AL STATUS CODE REGISTER
Offset:
Bits
15:0
Note:
0134h-0135h
Description
AL Status Code
Size:
16 bits
ECAT
Type
PDI
Type
Default
RO
R/W
0000h
For EtherCAT Core CSR registers longer than one byte, the LSB has the lowest address and the MSB the
highest address.
DS00001909A-page 240
2015 Microchip Technology Inc.
LAN9252
12.14.23 RUN LED OVERRIDE REGISTER
Offset:
4
3:0
8 bits
PDI
Type
Default
RESERVED
Write 0.
R/W
R/W
000b
RUN Override
0: Override disabled
1: Override enabled
R/W
R/W
0b
RUN LED Code
R/W
R/W
0h
Description
0h:
1h-Ch:
Dh:
Eh:
Fh:
Note:
Size:
ECAT
Type
Bits
7:5
0138h
Code
Off
Flash 1x-12x
Blinking
Flickering
On
FSM State
1 - Init
4 - SafeOp 1x
2 - PreOp
3 - Bootstrap
8 - Op
Changes to AL Status Register with valid values will disable RUN Override (bit 4 = 0). The value read in
this register always reflects the current LED output.
2015 Microchip Technology Inc.
DS00001909A-page 241
LAN9252
12.14.24 PDI CONTROL REGISTER
Offset:
Bits
7:0
0140h
Description
Process Data Interface
04h: Digital I/O
80h: SPI
88h: HBI Multiplexed 1 Phase 8-bit
89h: HBI Multiplexed 1 Phase 16-bit
8Ah: HBI Multiplexed 2 Phase 8-bit
8Bh: HBI Multiplexed 2 Phase 16-bit
8Ch: HBI Indexed 8-bit
8Dh: HBI Indexed 16-bit
Others: RESERVED
Size:
8 bits
ECAT
Type
PDI
Type
RO
RO
Default
00h
Note 10
Note 10: The default value of this field can be configured via EEPROM. Refer to Section 12.8, "EEPROM Configurable Registers," on page 201 for additional information.
DS00001909A-page 242
2015 Microchip Technology Inc.
LAN9252
12.14.25 ESC CONFIGURATION REGISTER
Offset:
Bits
0141h
Size:
Description
8 bits
ECAT
Type
PDI
Type
Default
7
RESERVED
RO
RO
0b
6
Enhanced Link Port 2
0: Disabled (if bit 1 = 0)
1: Enabled
RO
RO
0b
Note 11
5
Enhanced Link Port 1
0: Disabled (if bit 1 = 0)
1: Enabled
RO
RO
0b
Note 11
4
Enhanced Link Port 0
0: Disabled (if bit 1 = 0)
1: Enabled
RO
RO
0b
Note 11
3
Distributed Clocks Latch In Unit
0: Disabled (power saving)
1: Enabled
RO
RO
0b
RO
RO
0b
Note:
2
This bit has no affect.
Distributed Clocks SYNC Out Unit
0: Disabled (power saving)
1: Enabled
Note:
This bit has no affect.
1
Enhanced Link Detection All Ports
0: Disabled (if bits [7:4] = 0)
1: Enabled all ports
RO
RO
0b
Note 11
0
Device Emulation
(control of AL Status Register)
0: AL Status Register must be set by PDI
1: AL Status Register set to value written to AL Control Register
RO
RO
0b
Note 11
Note:
The value programmed should be 1 for Digital I/O
mode and 0 for applications with a host controller.
Note 11: The default value of this field can be configured via EEPROM. Refer to Section 12.8, "EEPROM Configurable Registers," on page 201 for additional information.
Note:
This register is initialized from the contents of the EEPROM. The EEPROM settings for Enhanced Link
detection (bits 6,5,4,1) are only taken at the first EEPROM loading after power-on reset. Changing the
EEPROM and manually reloading it will not affect the Enhanced link detection enable status, even if the
EEPROM could not be read initially.
2015 Microchip Technology Inc.
DS00001909A-page 243
LAN9252
12.14.26 ASIC CONFIGURATION REGISTER
Offset:
14:6
7
6:0
Size:
16 bits
ECAT
Type
PDI
Type
MI Link Detection
(Link configuration, link detection, registers PHY Port Status
Registers)
0: Not available
1: MI Link Detection Active
RO
RO
0b
Note 12
RESERVED
RO
RO
0000000b
Note 12
MI Write Gigabit Register 9 Enable
Enables writes to PHY register 9 for PHYs which use this register per IEEE 802.3
0: MI writes to Gigabit register 9 disabled
1: MI writes to Gigabit register 9 enabled
RO
RO
0b
Note 12
RESERVED
RO
RO
0000000b
Note 12
Bits
15
0142h-0143h
Description
Default
Note 12: The default value of this field can be configured via EEPROM. Refer to Section 12.8, "EEPROM Configurable Registers," on page 201 for additional information.
Note:
For EtherCAT Core CSR registers longer than one byte, the LSB has the lowest address and the MSB the
highest address.
12.14.27 RESERVED REGISTER
Offset:
Bits
15:0
0144h-0145h
Description
RESERVED
Size:
16 bits
ECAT
Type
PDI
Type
RO
RO
Default
0000h
Note 13
Note 13: The default value of this field can be configured via EEPROM. Refer to Section 12.8, "EEPROM Configurable Registers," on page 201 for additional information.
Note:
For EtherCAT Core CSR registers longer than one byte, the LSB has the lowest address and the MSB the
highest address.
DS00001909A-page 244
2015 Microchip Technology Inc.
LAN9252
12.14.28 PDI CONFIGURATION REGISTER
Offset:
0150h
Size:
8 bits
The bit definitions of this register are dependent on the selected PDI mode (Process Data Interface field in the PDI Control Register): Digital I/O Mode or HBI Modes.
PDI Configuration Register: Digital I/O Mode
ECAT
Type
PDI
Type
RO
RO
00b
Note 14
Input Data Sample Selection
00: End of Frame
01: Rising edge of LATCH_IN
10: DC SYNC0 event
11: DC SYNC1 event
RO
RO
00b
Note 14
3
Watchdog Behavior
0: Outputs are reset immediately after watchdog expires
1: Outputs are reset with next output event that follows watchdog
expiration
RO
RO
0b
Note 14
2
Unidirectional/Bidirectional Mode
0: Unidirectional Mode: input/output direction of pins configured
individually
1: Bidirectional Mode: all I/O pins are bidirectional, direction configuration is ignored
RO
RO
0b
Note 14
1
OUTVALID Mode
0: Output event signaling
1: Process Data Watchdog trigger (WD_TRIG) signaling on
OUTVALID. Output data is updated if watchdog is triggered.
Overrides Output Data Sample Selection bit.
RO
RO
0b
Note 14
0
OUTVALID Polarity
0: Active high
1: Active low
RO
RO
0b
Note 14
Bits
7:6
Description
Output Data Sample Selection
00: End of Frame
01: RESERVED
10: DC SYNC0 event
11: DC SYNC1 event
Note:
5:4
Default
If OUTVALID Mode = 1, output DATA is updated at
Process Data Watchdog trigger event (Output Data
Sample Selection bit ignored)
Note 14: The default value of this field can be configured via EEPROM. Refer to Section 12.8, "EEPROM Configurable Registers," on page 201 for additional information.
2015 Microchip Technology Inc.
DS00001909A-page 245
LAN9252
PDI Configuration Register: HBI Modes
Bits
Description
ECAT
Type
PDI
Type
Default
7
HBI ALE Qualification
Configures the HBI interface to qualify the ALEHI and ALELO
signals with the CS signal.
0: Address input is latched with ALEHI and ALELO
1: Address input is latched with ALEHI and ALELO only when
CS is active.
RO
RO
0b
Note 15
6
HBI Read/Write Mode
Configures the HBI interface for separate read and write signals
or direction and enable signals.
0: Read and Write
1: Direction and Enable
RO
RO
0b
Note 15
5
HBI Chip Select Polarity
Configures the polarity of the HBI interface chip select signal.
0: Active Low
1: Active High
RO
RO
0b
Note 15
4
HBI Read, Read/Write Polarity
Configures the polarity of the HBI interface read signal.
0: Active Low Read
1: Active High Read
RO
RO
0b
Note 15
RO
RO
0b
Note 15
HBI ALE Polarity
Configures the polarity of the HBI interface ALEHI and ALELO
signals.
0: Active Low Strobe (Address saved on rising edge)
1: Active High Strobe (Address saved on falling edge)
RO
RO
0b
Note 15
RESERVED
RO
RO
00b
Note 15
Configures the polarity of the HBI interface read/write signal.
0: Read when 1, write when 0 (R/nW)
1: Write when 1, read when 0 (W/nR)
3
HBI Write, Enable Polarity
Configures the polarity of the HBI interface write signal.
0: Active Low Write
1: Active High Write
Configures the polarity of the HBI interface read/write signal.
0: Active Low Enable
1: Active High Enable
2
1:0
Note 15: The default value of this field can be configured via EEPROM. Refer to Section 12.8, "EEPROM Configurable Registers," on page 201 for additional information.
DS00001909A-page 246
2015 Microchip Technology Inc.
LAN9252
12.14.29 SYNC/LATCH PDI CONFIGURATION REGISTER
Offset:
Bits
0151h
Size:
Description
8 bits
ECAT
Type
PDI
Type
Default
7
SYNC1 Map
SYNC1 mapped to AL Event Request Register (0220h bit 3)
0: Disabled
1: Enabled
RO
RO
0b
Note 16
6
SYNC1/LATCH1 Configuration
0: LATCH1 Input
1: SYNC1 Output
RO
RO
0b
Note 16
5:4
SYNC1 Output Driver/Polarity
00: Push-Pull Active Low
01: Open Drain (Active Low)
10: Push-Pull Active High
11: Open Source (Active High)
RO
RO
00b
Note 16
3
SYNC0 Map
SYNC0 mapped to AL Event Request Register (0220h bit 2)
0: Disabled
1: Enabled
RO
RO
0b
Note 16
2
SYNC0/LATCH0 Configuration
0: LATCH0 Input
1: SYNC0 Output
RO
RO
0b
Note 16
1:0
SYNC0 Output Driver/Polarity
00: Push-Pull Active Low
01: Open Drain (Active Low)
10: Push-Pull Active High
11: Open Source (Active High)
RO
RO
00b
Note 16
Note 16: The default value of this field can be configured via EEPROM. Refer to Section 12.8, "EEPROM Configurable Registers," on page 201 for additional information.
2015 Microchip Technology Inc.
DS00001909A-page 247
LAN9252
12.14.30 EXTENDED PDI CONFIGURATION REGISTER
Offset:
0152h-0153h
Size:
16 bits
The bit definitions of this register are dependent on the selected PDI mode (Process Data Interface field in the PDI Control Register): Digital I/O Mode or SPI Mode.
Extended PDI Configuration Register: Digital I/O Mode
ECAT
Type
PDI
Type
Default
RESERVED
RO
RO
0000h
I/O[15:14] Direction
0: Input
1: Output
RO
RO
0b
Note 17
RO
RO
0b
Note 17
RO
RO
0b
Note 17
RO
RO
0b
Note 17
RO
RO
0b
Note 17
RO
RO
0b
Note 17
RO
RO
0b
Note 17
RO
RO
0b
Note 17
Bits
15:8
7
Description
Note:
6
I/O[13:12] Direction
0: Input
1: Output
Note:
5
Reserved in bidirectional mode (0b).
I/O[3:2] Direction
0: Input
1: Output
Note:
0
Reserved in bidirectional mode (0b).
I/O[5:4] Direction
0: Input
1: Output
Note:
1
Reserved in bidirectional mode (0b).
I/O[7:6] Direction
0: Input
1: Output
Note:
2
Reserved in bidirectional mode (0b).
I/O[9:8] Direction
0: Input
1: Output
Note:
3
Reserved in bidirectional mode (0b).
I/O[11:10] Direction
0: Input
1: Output
Note:
4
Reserved in bidirectional mode (0b).
Reserved in bidirectional mode (0b).
I/O[1:0] Direction
0: Input
1: Output
Note:
Reserved in bidirectional mode (0b).
Note 17: The default value of this field can be configured via EEPROM. Refer to Section 12.8, "EEPROM Configurable Registers," on page 201 for additional information.
Note:
For EtherCAT Core CSR registers longer than one byte, the LSB has the lowest address and the MSB the
highest address.
DS00001909A-page 248
2015 Microchip Technology Inc.
LAN9252
PDI Configuration Register: SPI Mode
Bits
Description
ECAT
Type
PDI
Type
Default
15
I/O[15:14] Buffer Type
0: Push-Pull
1: Open Drain
RO
RO
0b
Note 18
14
I/O[13:12] Buffer Type
0: Push-Pull
1: Open Drain
RO
RO
0b
Note 18
13
I/O[11:10] Buffer Type
0: Push-Pull
1: Open Drain
RO
RO
0b
Note 18
12
I/O[9:8] Buffer Type
0: Push-Pull
1: Open Drain
RO
RO
0b
Note 18
11
I/O[7:6] Buffer Type
0: Push-Pull
1: Open Drain
RO
RO
0b
Note 18
10
I/O[5:4] Buffer Type
0: Push-Pull
1: Open Drain
RO
RO
0b
Note 18
9
I/O[3:2] Buffer Type
0: Push-Pull
1: Open Drain
RO
RO
0b
Note 18
8
I/O[1:0] Buffer Type
0: Push-Pull
1: Open Drain
RO
RO
0b
Note 18
7
I/O[15:14] Direction
0: Input
1: Output
RO
RO
0b
Note 18
6
I/O[13:12] Direction
0: Input
1: Output
RO
RO
0b
Note 18
5
I/O[11:10] Direction
0: Input
1: Output
RO
RO
0b
Note 18
4
I/O[9:8] Direction
0: Input
1: Output
RO
RO
0b
Note 18
3
I/O[7:6] Direction
0: Input
1: Output
RO
RO
0b
Note 18
2
I/O[5:4] Direction
0: Input
1: Output
RO
RO
0b
Note 18
1
I/O[3:2] Direction
0: Input
1: Output
RO
RO
0b
Note 18
2015 Microchip Technology Inc.
DS00001909A-page 249
LAN9252
Bits
0
Description
I/O[1:0] Direction
0: Input
1: Output
ECAT
Type
PDI
Type
RO
RO
Default
0b
Note 18
Note 18: The default value of this field can be configured via EEPROM. Refer to Section 12.8, "EEPROM Configurable Registers," on page 201 for additional information.
Note:
For EtherCAT Core CSR registers longer than one byte, the LSB has the lowest address and the MSB the
highest address.
12.14.31 ECAT EVENT MASK REGISTER
Offset:
0200h-0201h
Size:
Bits
Description
15:0
ECAT Event Mask
ECAT event masking of the ECAT Event Request register Events
for mapping into the ECAT event fields of EtherCAT frames.
0: Corresponding ECAT Event Request register bit is not
mapped
1: Corresponding ECAT Event Request register bit is mapped
Note:
16 bits
ECAT
Type
PDI
Type
Default
R/W
RO
0000h
For EtherCAT Core CSR registers longer than one byte, the LSB has the lowest address and the MSB the
highest address.
12.14.32 AL EVENT MASK REGISTER
Offset:
Bits
31:0
Note:
0204h-0207h
Size:
Description
AL Event Mask
AL event masking of the AL Event Request register Events for
mapping to the PDI IRQ signal.
0: Corresponding AL Event Request register bit is not mapped
1: Corresponding AL Event Request register bit is mapped
32 bits
ECAT
Type
PDI
Type
Default
RO
R/W
00FFFF0Fh
For EtherCAT Core CSR registers longer than one byte, the LSB has the lowest address and the MSB the
highest address.
DS00001909A-page 250
2015 Microchip Technology Inc.
LAN9252
12.14.33 ECAT EVENT REQUEST REGISTER
Offset:
0210h-0211h
Size:
16 bits
ECAT
Type
PDI
Type
Default
RESERVED
RO
RO
00h
7
SyncManager Status Mirror
This bit mirrors the value of the SyncManager Channel 3 Status.
0: No Sync Channel 3 Event
1: Sync Channel 3 Event Pending
RO
RO
0b
6
SyncManager Status Mirror
This bit mirrors the value of the SyncManager Channel 2 Status.
0: No Sync Channel 2 Event
1: Sync Channel 2 Event Pending
RO
RO
0b
5
SyncManager Status Mirror
This bit mirrors the value of the SyncManager Channel 1 Status.
0: No Sync Channel 1 Event
1: Sync Channel 1 Event Pending
RO
RO
0b
4
SyncManager Status Mirror
This bit mirrors the value of the SyncManager Channel 0 Status.
0: No Sync Channel 0 Event
1: Sync Channel 0 Event Pending
RO
RO
0b
3
AL Status Event
0: No change in AL Status
1: AL Status Change
RO
RO
0b
RO
RO
0b
Bits
15:8
Description
Note:
2
This bit is cleared by reading the AL Status Register
from ECAT.
DL Status Event
0: No change in DL Status
1: DL Status Change
Note:
This bit is cleared by reading the ESC DL Status Register from ECAT.
1
RESERVED
RO
RO
0b
0
DC Latch Event
0: No change on DC Latch Inputs
1: At least one change on DC Latch Inputs
RO
RO
0b
Note:
Note:
This bit is cleared by reading the DC Latch event
times from ECAT for ECAT controlled Latch Units, so
that the LATCH0 Status Register/LATCH1 Status
Register indicates no event.
For EtherCAT Core CSR registers longer than one byte, the LSB has the lowest address and the MSB the
highest address.
2015 Microchip Technology Inc.
DS00001909A-page 251
LAN9252
12.14.34 AL EVENT REQUEST REGISTER
Offset:
0220h-0223h
Size:
32 bits
ECAT
Type
PDI
Type
Default
RESERVED
RO
RO
000h
11
SyncManager 3 Interrupts
(SyncManager register offset 5h, bit 0 or 1)
0: No SyncManager 3 Interrupt
1: SyncManager 3 Interrupt pending
RO
RO
0b
10
SyncManager 2 Interrupts
(SyncManager register offset 5h, bit 0 or 1)
0: No SyncManager 2 Interrupt
1: SyncManager 2 Interrupt pending
RO
RO
0b
9
SyncManager 1 Interrupts
(SyncManager register offset 5h, bit 0 or 1)
0: No SyncManager 1 Interrupt
1: SyncManager 1 Interrupt
RO
RO
0b
8
SyncManager 0 Interrupts
(SyncManager register offset 5h, bit 0 or 1)
0: No SyncManager 0 Interrupt
1: SyncManager 0 Interrupt pending
RO
RO
0b
7
RESERVED
RO
RO
0b
6
Watchdog Process Data
0: Has not expired
1: Has expired
RO
RO
0b
RO
RO
0b
Bits
31:12
Description
Note:
5
This bit is cleared by reading the Watchdog Status
Process Data Register.
EEPROM Emulation
0: No command pending
1: EEPROM command pending
Note:
This bit is cleared by acknowledging the command in
EEPROM Control/Status Register from PDI.
4
SyncManager x Activation Register Changed
(SyncManager x Activate Register)
0: No change in any SyncManager
1: At least one SyncManager changed
Note:
This bit is cleared by reading the corresponding SyncManager x Activate Register from PDI.
RO
RO
0b
3
State of DC SYNC1
(If Sync/Latch PDI Configuration Register bit 7 = 1)
RO
RO
0b
RO
RO
0b
Note:
2
Bit is cleared by reading SYNC1 status 0x098F.
State of DC SYNC0
(If Sync/Latch PDI Configuration Register bit 3 = 1)
Note:
DS00001909A-page 252
Bit is cleared by reading SYNC0 status 0x098E.
2015 Microchip Technology Inc.
LAN9252
ECAT
Type
PDI
Type
Default
DC Latch Event
0: No change on DC Latch Inputs
1: At least one change on DC Latch Inputs
Note:
This bit is cleared by reading the DC Latch event
times from PDI for PDI controlled Latch Units, so that
the LATCH0 Status Register/LATCH1 Status Register
indicates no event.
RO
RO
0b
AL Control Event
0: No AL Control Register change
1: AL Control Register has been written (AL control event is only
generated if PDI emulation is turned off (ESC Configuration
Register bit 8 = 0).
Note:
This bit is cleared by reading the AL Control Register
from PDI.
RO
RO
0b
Bits
Description
1
0
Note:
For EtherCAT Core CSR registers longer than one byte, the LSB has the lowest address and the MSB the
highest address.
2015 Microchip Technology Inc.
DS00001909A-page 253
LAN9252
12.14.35 RX ERROR COUNTER REGISTERS
Offset:
0300h-0307h
Size:
Port 0: 0300h-0301h
Port 1: 0302h-0303h
Port 2: 0304h-0305h
Port 3: 0306h-0307h
16 bits
There are 4 16-bit RX Error Counter registers, each with unique address offsets as shown above. The variable “x” is
used in the following bit descriptions to represent ports 0-3.
Bits
Description
ECAT
Type
PDI
Type
Default
00h
15:8
Port x RX Error Counter
Counting is stopped when FFh is reached. This is coupled
directly to RX ERR of the MII/EBUS interfaces.
R/WC
RO
7:0
Port x Invalid Frame Counter
Counting is stopped when FFh is reached.
R/WC
RO
Note:
This register is cleared if any one of the RX Error Counter Registers is written.
Note:
For EtherCAT Core CSR registers longer than one byte, the LSB has the lowest address and the MSB the
highest address.
Note:
Port 3 is not used.
DS00001909A-page 254
2015 Microchip Technology Inc.
LAN9252
12.14.36 FORWARDED RX ERROR COUNTER REGISTERS
Offset:
0308h-030Bh
Port 0: 0308h
Port 1: 0309h
Port 2: 030Ah
Port 3: 030Bh
Size:
8 bits
There are 4 8-bit Forwarded RX Error Counter registers, each with unique address offsets as shown above. The variable
“x” is used in the following bit descriptions to represent ports 0-3.
Bits
7:0
Description
Port x Forwarded RX Error Counter
Counting is stopped when FFh is reached. This is coupled
directly to RX ERR of the MII/EBUS interfaces.
ECAT
Type
PDI
Type
Default
R/WC
RO
00h
ECAT
Type
PDI
Type
Default
R/WC
RO
00h
ECAT
Type
PDI
Type
Default
R/WC
RO
00h
Note:
This register is cleared if any one of the RX Error Counter Registers is written.
Note:
Port 3 is not used.
12.14.37 ECAT PROCESSING UNIT ERROR COUNTER REGISTER
Offset:
030Ch
Size:
Bits
Description
7:0
ECAT Processing Unit Error Counter
Counting is stopped when FFh is reached. This field counts the
errors of frames passing the Processing Unit (e.g., FCS error or
datagram structure error).
8 bits
12.14.38 PDI ERROR COUNTER REGISTER
Offset:
Bits
7:0
030Dh
Size:
Description
PDI Error Counter
Counting is stopped when FFh is reached. This field counts if a
PDI access has an interface error.
2015 Microchip Technology Inc.
8 bits
DS00001909A-page 255
LAN9252
12.14.39 PDI ERROR CODE REGISTER
Offset:
030Eh
Size:
8 bits
The bit definitions of this register are dependent on the selected PDI mode (Process Data Interface field in the PDI Control Register): SPI Mode or HBI Modes.
Note:
This register is cleared when the PDI Error Counter Register is written.
PDI Error Codes: SPI Mode
Bits
7:0
Description
RESERVED
ECAT
Type
PDI
Type
Default
RO
RO
00h
ECAT
Type
PDI
Type
Default
RO
RO
00h
PDI Error Codes: HBI Modes
Bits
7:0
Description
RESERVED
DS00001909A-page 256
2015 Microchip Technology Inc.
LAN9252
12.14.40 LOST LINK COUNTER REGISTERS
Offset:
0310h-0313h
Port 0: 0310h
Port 1: 0311h
Port 2: 0312h
Port 3: 0313h
Size:
8 bits
There are 4 8-bit Lost Link Counter registers, each with unique address offsets as shown above. The variable “x” is used
in the following bit descriptions to represent ports 0-3.
Bits
7:0
Description
Port x Lost Link Counter
Counting is stopped when FFh is reached. This counter only
counts if port loop is Auto or Auto-Close.
Note:
ECAT
Type
PDI
Type
Default
R/WC
RO
00h
ECAT
Type
PDI
Type
Default
R/W
RO
09C2h
Only lost links at open ports are counted.
Note:
This register is cleared if any one of the Lost Link Counter Registers is written.
Note:
Port 3 is not used.
12.14.41 WATCHDOG DIVIDER REGISTER
Offset:
Bits
15:0
Note:
0400h-0401h
Size:
Description
Watchdog Divider
Number of 25MHz ticks (minus 2) that represents the basic
watchdog increment. (default value is 100 us = 2498)
16 bits
For EtherCAT Core CSR registers longer than one byte, the LSB has the lowest address and the MSB the
highest address.
2015 Microchip Technology Inc.
DS00001909A-page 257
LAN9252
12.14.42 WATCHDOG TIME PDI REGISTER
Offset:
0410h-0411h
Size:
Bits
Description
15:0
Watchdog Time PDI
Number of basic watchdog increments.
(default value with Watchdog Divider of 100 us results in 100 ms
watchdog.)
16 bits
ECAT
Type
PDI
Type
Default
R/W
RO
03E8h
Note:
The watchdog is disabled if Watchdog Time PDI is set to 0000h. Watchdog is restarted with every PDI
access.
Note:
For EtherCAT Core CSR registers longer than one byte, the LSB has the lowest address and the MSB the
highest address.
12.14.43 WATCHDOG TIME PROCESS DATA REGISTER
Offset:
0420h-0421h
Size:
Bits
Description
15:0
Watchdog Time Process Data
Number of basic watchdog increments.
(default value with Watchdog Divider of 100 us results in 100 ms
watchdog.)
16 bits
ECAT
Type
PDI
Type
Default
R/W
RO
03E8h
Note:
There is one watchdog for all SyncManagers. The watchdog is disabled if Watchdog Time PDI is set to
0000h. The watchdog is restarted with every write access to the SyncManagers with the Watchdog Trigger
Enable bit set.
Note:
For EtherCAT Core CSR registers longer than one byte, the LSB has the lowest address and the MSB the
highest address.
DS00001909A-page 258
2015 Microchip Technology Inc.
LAN9252
12.14.44 WATCHDOG STATUS PROCESS DATA REGISTER
Offset:
0
Size:
16 bits
ECAT
Type
PDI
Type
Default
RESERVED
RO
RO
0000h
Watchdog Status of Process Data
(triggered by SyncManagers)
0: Watchdog Process Data expired
1: Watchdog Process Data is active or disabled
RO
RO
0b
Bits
15:1
0440h-0441h
Description
Note:
Reading this register clears the Watchdog Process Data bit of the AL Event Request Register.
Note:
The Watchdog Status for the PDI can be read in the PDI Watchdog Status bit of the ESC DL Status Register.
Note:
For EtherCAT Core CSR registers longer than one byte, the LSB has the lowest address and the MSB the
highest address.
12.14.45 WATCHDOG COUNTER PROCESS DATA REGISTER
Offset:
0442h
Size:
Bits
Description
7:0
Watchdog Counter Process Data
Counting is stopped when FFh is reached. Counts if Process
Data Watchdog expires. This field is cleared if one of the Watchdog counters (0442h-0443h) is written.
8 bits
ECAT
Type
PDI
Type
Default
R/WC
RO
00h
ECAT
Type
PDI
Type
Default
R/WC
RO
00h
12.14.46 WATCHDOG COUNTER PDI REGISTER
Offset:
0443h
Size:
Bits
Description
7:0
Watchdog PDI Counter
Counting is stopped when FFh is reached. Counts if PDI Watchdog expires. This field is cleared if one of the Watchdog counters
(0442h-0443h) is written.
2015 Microchip Technology Inc.
8 bits
DS00001909A-page 259
LAN9252
12.14.47 EEPROM CONFIGURATION REGISTER
Offset:
0500h
Size:
8 bits
ECAT
Type
PDI
Type
Default
RESERVED
Write 0.
RO
RO
000000b
1
Force ECAT Access
0: Do not change
1: Reset
R/W
RO
0b
0
PDI EEPROM Control
0: No
1: Yes (PDI has EEPROM control)
R/W
RO
0b
Bits
7:2
Note:
Description
EtherCAT controls the SII EEPROM interface if the PDI EEPROM Control bit of the EEPROM Configuration
Register is 0 and the Access to EEPROM bit of the EEPROM PDI Access State Register is 0. Otherwise,
PDI controls the EEPROM interface.
DS00001909A-page 260
2015 Microchip Technology Inc.
LAN9252
12.14.48 EEPROM PDI ACCESS STATE REGISTER
Offset:
0
Size:
8 bits
ECAT
Type
PDI
Type
Default
RESERVED
Write 0.
RO
RO
0000000b
Access to EEPROM
0: Do not change
1: Reset
RO
R/W
Note 19
0b
Bits
7:1
0501h
Description
Note 19: Write access only possible if the PDI EEPROM Control bit of the EEPROM Configuration Register is 1 and
Force ECAT Access bit is 0.
Note:
EtherCAT controls the SII EEPROM interface if the PDI EEPROM Control bit of the EEPROM Configuration
Register is 0 and the Access to EEPROM bit of the EEPROM PDI Access State Register is 0. Otherwise,
PDI controls the EEPROM interface.
12.14.49 EEPROM CONTROL/STATUS REGISTER
Offset:
Bits
0502h-0503h
Size:
Description
16 bits
ECAT
Type
PDI
Type
Default
15
Busy
0: EEPROM interface is idle
1: EEPROM interface is busy
RO
RO
0b
14
Error Write Enable
0: No error
1: Write Command without Write enable
(See Note 20)
RO
RO
0b
13
Error Acknowledge/Command
0: No error
1: Missing EEPROM acknowledge or invalid command
(See Note 20)
RO
R/[W]
Note 21
0b
Note:
EEPROM emulation only: PDI writes 1 if a temporary
failure has occurred.
12
EEPROM Loading Status
0: EEPROM loaded, device information okay
1: EEPROM not loaded, device information not available
(EEPROM loading in-progress or finished with a failure)
RO
RO
0b
11
Checksum Error in ESC Configuration Area
0: Checksum okay
1: Checksum error
RO
R/[W]
Note 21
0b
2015 Microchip Technology Inc.
DS00001909A-page 261
LAN9252
ECAT
Type
PDI
Type
Command Register
Write: Initiate command
Read: Currently executed command
000: No command/EEPROM idle (clear error bits)
001: Read
010: Write
100: Reload
Others: RESERVED / invalid commands (no not issue)
(See Note 22)
R/W
R/[W]
Note 21
000b
7
Selected EEPROM Algorithm
0: 1 address byte (1Kbit - 16Kbit EEPROMs)
1: 2 address bytes (32Kbit - 4Mbit EEPROMs)
RO
RO
Note 23
6
Supported Number of EEPROM Bytes
0: 4 Bytes
1: 8 Bytes
RO
RO
0b
5
EEPROM Emulation
0: Normal operation (I2C interface used)
1: PDI emulates EEPROM (I2C not used)
RO
RO
0b
RESERVED
RO
RO
0b
ECAT Write Enable
0: Write requests are disabled
1: Write requests are enabled
(See Note 24)
R/W
RO
0b
Bits
10:8
Description
Note:
4:1
0
Default
Must be written as 0.
Note 20: Error bits are cleared by writing “000” (or any valid command) to Command Register bits.
Note 21: Write access is possible if EEPROM interface is busy (Busy bit = 1). PDI acknowledges pending commands
by writing a 1 into the corresponding command register bits 10:8. Errors can be indicated by writing a 1 into
the error bits (11 and 13). Acknowledging clears bit 5 of the AL Event Request Register.
Note 22: The Command Register bits are self clearing after the command is executed (EEPROM Busy ends). Writing
“000” to the Command Register bits will also clear the error bits 14:13. The Command Register bits are
ignored if the Error Acknowledge/Command is pending.
Note 23: The default of this bit is dependent on the eeprom_size_strap.
Note 24: The ECAT Write Enable bit is self clearing at the SOF of the next frame.
Note:
EtherCAT controls the SII EEPROM interface if the PDI EEPROM Control bit of the EEPROM Configuration
Register is 0 and the Access to EEPROM bit of the EEPROM PDI Access State Register is 0. Otherwise,
PDI controls the EEPROM interface.
Note:
For EtherCAT Core CSR registers longer than one byte, the LSB has the lowest address and the MSB the
highest address.
DS00001909A-page 262
2015 Microchip Technology Inc.
LAN9252
12.14.50 EEPROM ADDRESS REGISTER
Offset:
Bits
31:0
0504h-0507h
Size:
Description
EEPROM Address
Bit 0: First word (16-bit)
Bit 1: Second word
.....
Note:
32 bits
ECAT
Type
PDI
Type
Default
R/W
R/W
00000000h
Actually used EEPROM address bits:
[9:0]: EEPROM size up to 16Kbit
[17:0]: EEPROM size 32Kbit - 4Mbit
[31:0]: EEPROM Emulation
Note:
Write access depends upon the assignment of the EEPROM interface (ECAT/PDI). Write access is generally blocked if the EEPROM interface is busy (Busy bit of EEPROM Control/Status Register = 1)
Note:
EtherCAT controls the SII EEPROM interface if the PDI EEPROM Control bit of the EEPROM Configuration
Register is 0 and the Access to EEPROM bit of the EEPROM PDI Access State Register is 0. Otherwise,
PDI controls the EEPROM interface.
Note:
For EtherCAT Core CSR registers longer than one byte, the LSB has the lowest address and the MSB the
highest address.
12.14.51 EEPROM DATA REGISTER
Offset:
Bits
0508h-050Bh
Size:
Description
32 bits
ECAT
Type
PDI
Type
Default
31:16
EEPROM Read Data
Data to be read from EEPROM, higher bytes
RO
RO
0000h
15:0
EEPROM Read/Write Data
Data to be read from EEPROM, lower bytes or data to be written
to EEPROM.
R/W
R/W
0000h
Note:
Write access depends upon the assignment of the EEPROM interface (ECAT/PDI). Write access is generally blocked if the EEPROM interface is busy (Busy bit of EEPROM Control/Status Register = 1)
Note:
EtherCAT controls the SII EEPROM interface if the PDI EEPROM Control bit of the EEPROM Configuration
Register is 0 and the Access to EEPROM bit of the EEPROM PDI Access State Register is 0. Otherwise,
PDI controls the EEPROM interface.
Note:
For EtherCAT Core CSR registers longer than one byte, the LSB has the lowest address and the MSB the
highest address.
2015 Microchip Technology Inc.
DS00001909A-page 263
LAN9252
12.14.52 MII MANAGEMENT CONTROL/STATUS REGISTER
Offset:
Bits
0510h-0511h
Size:
Description
16 bits
ECAT
Type
PDI
Type
Default
15
Busy
0: MI control state machine is idle
1: MI control state machine is active
RO
RO
0b
14
Command Error
0: Last command was successful
1: Invalid command or write command without write enable
RO
RO
0b
R/W
Note 25
R/W
Note 25
0b
RO
RO
0b
R/W
Note 25
R/W
Note 25
00b
PHY Address Offset
RO
RO
00000b
2
MI Link Detection
(Link configuration, link detection, registers PHY Port Status
Registers)
0: Not available
1: MI Link Detection Active
RO
RO
0b
Note 27
1
Management Interface Control
0: ECAT control only
1: MPDI control possible (MII Management ECAT Access State
Register and MII Management PDI Access State Register)
RO
RO
1b
0
Write Enable
0: Write Disabled
1: Write Enabled
R/W
Note 25
RO
0b
Note:
13
Read Error
0: No read error
1: Read error occurred (PHY or register bi available)
Note:
12:10
9:8
Cleared with a valid command or by writing “00” to
Command Register.
Cleared by writing this register.
RESERVED
Command Register
Write: Initiate command.
Read: Currently executed command
See Note 26.
Commands:
00: No command / MI Idle (clear error bits)
01: Read
10: Write
11: RESERVED (do not issue)
7:3
Note:
This bit is always 1 if PDI has MI control. (See
Note 28)
Note 25: Write access depends upon the assignment of the MI interface (ECAT/PDI). Write access is generally
blocked if the MII interface is busy (Busy bit of MII Management Control/Status Register = 1)
DS00001909A-page 264
2015 Microchip Technology Inc.
LAN9252
Note 26: Command Register bits (9:8) are self-clearing after the command is executed (Busy ends). Writing “00” to
the Command Register bits will also clear the error bits 14:13 of this register. The Command Register bits
(9:8) are cleared after the command is executed.
Note 27: The default value of this field can be configured via EEPROM. This bit will be 0 and MI link detection disabled
until the device is successfully configured from EEPROM. The EEPROM setting for MI link detection is only
taken at the first EEPROM loading after power-on reset. Changing the EEPROM and manually reloading it
will not affect the MI link detection enable status, even if the EEPROM could not be read initially. Refer to
Section 12.8, "EEPROM Configurable Registers," on page 201 for additional information.
Note 28: Write enable bit 0 is self-clearing at the SOF of the next frame (or end of the PDI access).
Note:
For EtherCAT Core CSR registers longer than one byte, the LSB has the lowest address and the MSB the
highest address.
12.14.53 PHY ADDRESS REGISTER
Offset:
Bits
0512h
Size:
Description
7:5
RESERVED
Write 0.
4:0
PHY Address
8 bits
ECAT
Type
PDI
Type
Default
RO
RO
000b
R/W
Note 29
R/W
Note 29
00000b
Note 29: Write access depends upon the assignment of the MI interface (ECAT/PDI). Write access is generally
blocked if the MII interface is busy (Busy bit of MII Management Control/Status Register = 1)
12.14.54 PHY REGISTER ADDRESS REGISTER
Offset:
Bits
0513h
Description
7:5
RESERVED
Write 0.
4:0
Address of PHY Register to be Read/Written
Size:
8 bits
ECAT
Type
PDI
Type
Default
RO
RO
000b
R/W
Note 30
R/W
Note 30
00000b
Note 30: Write access depends upon the assignment of the MI interface (ECAT/PDI). Write access is generally
blocked if the MII interface is busy (Busy bit of MII Management Control/Status Register = 1)
2015 Microchip Technology Inc.
DS00001909A-page 265
LAN9252
12.14.55 PHY DATA REGISTER
Offset:
Bits
15:0
0514h-0515h
Size:
Description
PHY Read/Write Data
16 bits
ECAT
Type
PDI
Type
R/W
Note 31
R/W
Note 31
Default
0000h
Note 31: Write access depends upon the assignment of the MI interface (ECAT/PDI). Write access is generally
blocked if the MII interface is busy (Busy bit of MII Management Control/Status Register = 1)
Note:
For EtherCAT Core CSR registers longer than one byte, the LSB has the lowest address and the MSB the
highest address.
12.14.56 MII MANAGEMENT ECAT ACCESS STATE REGISTER
Offset:
Bits
7:1
0
0516h
Size:
Description
RESERVED
Write 0.
Access to MII Management (ECAT)
0: ECAT enables PDI takeover of MII management control
1: ECAT claims exclusive access to MII management
8 bits
ECAT
Type
PDI
Type
Default
RO
RO
0000000b
R/W
Note 32
RO
0b
Note 32: Write access only possible if the Access to MII Management (PDI) bit of the MII Management PDI Access
State Register is 0.
DS00001909A-page 266
2015 Microchip Technology Inc.
LAN9252
12.14.57 MII MANAGEMENT PDI ACCESS STATE REGISTER
Offset:
0517h
Size:
8 bits
ECAT
Type
PDI
Type
Default
RESERVED
Write 0.
RO
RO
000000b
1
Force PDI Access State
0: Do not change Access to MII Management (PDI) bit
1: Reset Access to MII Management (PDI) bit
R/W
RO
0b
0
Access to MII Management (PDI)
0: ECAT has access to MII management
1: PDI has access to MII management
RO
R/W
Note 33
0b
Bits
7:2
Description
Note 33: Write access to the Access to MII Management (PDI) bit of this register is only possible if the Force PDI
Access State bit of this register is 0 and the Access to MII Management (ECAT) bit of the MII Management
ECAT Access State Register is 0.
12.14.58 PHY PORT STATUS REGISTERS
Offset:
0518h-051Bh
Port 0: 0518h
Port 1: 0519h
Port 2: 051Ah
Port 3: 051Bh
Size:
8 bits
There are 4 8-bit PHY Port Status registers, each with unique address offsets as shown above. The variable “x” is used
in the following bit descriptions to represent ports 0-3.
Bits
7:6
5
Description
RESERVED
Write as 0.
Port x Lost Link Counter
0: No Update
1: PHY Configuration was Updated
Note:
ECAT
Type
PDI
Type
Default
RO
RO
00b
R/WC
Note 34
R/WC
Note 34
0b
Cleared by writing any value to at least one of the
PHY Port Status Registers.
4
Port x Link Partner Error
0: No Error Detected
1: Link Partner Error
RO
RO
0b
3
Port x Read Error
0: No Read Error Detected
1: Read Error has Occurred
R/WC
Note 34
R/WC
Note 34
0b
Note:
Cleared by writing any value to at least one of the
PHY Port Status Registers.
2015 Microchip Technology Inc.
DS00001909A-page 267
LAN9252
Bits
Description
ECAT
Type
PDI
Type
Default
2
Port x Link Status Error
0: No Error
1: Link Error, Link Inhibited
RO
RO
0b
1
Port x Link Status
(100 Mbit/s, Full-Duplex, Auto-negotiation)
0: No Link
1: Link Detected
RO
RO
0b
0
Port x Physical Link
(PHY Status Register 1.2)
0: No Physical Link
1: Physical Link Detected
RO
RO
0b
Note 34: Write access depends upon the assignment of the MI interface (ECAT/PDI).
Port 3 is not used.
Note:
12.14.59 FMMU[2:0] REGISTERS
The device includes 3 FMMUs. Each FMMU is described in 16 Bytes, starting at 0600h. Table 12-16 details the base
address for each FMMU. The subsequent FMMU registers will be referenced as an offset from these various base
addresses. The variable “x” is used in the following descriptions to represent FMMUs 0 through 2.
TABLE 12-16: FMMU X BASE ADDRESSES
FMMU
Base Address
0
0600h
1
0610h
2
0620h
12.14.59.1 FMMUx Logical Start Address Register
Offset:
Bits
31:0
Note:
FMMUx Base Address +0h-3h
Description
Logical Start Address
Logical start address within the EtherCAT address space.
Size:
32 bits
ECAT
Type
PDI
Type
Default
R/W
RO
00000000h
For EtherCAT Core CSR registers longer than one byte, the LSB has the lowest address and the MSB the
highest address.
DS00001909A-page 268
2015 Microchip Technology Inc.
LAN9252
12.14.59.2 FMMUx Length Register
Offset:
FMMUx Base Address +4h-5h
Size:
Bits
Description
15:0
Length
Offset from the first logical FMMU byte to the last FMMU Byte +
1 (e.g., if two bytes are used, then this parameter shall contain
2).
Note:
16 bits
ECAT
Type
PDI
Type
Default
R/W
RO
0000h
For EtherCAT Core CSR registers longer than one byte, the LSB has the lowest address and the MSB the
highest address.
12.14.59.3 FMMUx Logical Start Bit Register
Offset:
Bits
FMMUx Base Address +6h
Size:
Description
8 bits
ECAT
Type
PDI
Type
Default
7:3
RESERVED
Write as 0.
RO
RO
00000b
2:0
Logical Start Bit
Logical starting bit that shall be mapped (bits are counted from
least significant bit (0) to most significant bit (7)).
R/W
RO
000b
12.14.59.4 FMMUx Logical Stop Bit Register
Offset:
Bits
FMMUx Base Address +7h
Size:
Description
8 bits
ECAT
Type
PDI
Type
Default
7:3
RESERVED
Write as 0.
RO
RO
00000b
2:0
Logical Stop Bit
Last logical bit that shall be mapped (bits are counted from least
significant bit (0) to most significant bit (7)).
R/W
RO
000b
2015 Microchip Technology Inc.
DS00001909A-page 269
LAN9252
12.14.59.5 FMMUx Physical Start Address Register
Offset:
Bits
15:0
Note:
FMMUx Base Address +8h-9h
Size:
Description
Physical Start Address
(Mapped to logical start address)
16 bits
ECAT
Type
PDI
Type
Default
R/W
RO
0000h
For EtherCAT Core CSR registers longer than one byte, the LSB has the lowest address and the MSB the
highest address.
12.14.59.6 FMMUx Physical Start Bit Register
Offset:
Bits
FMMUx Base Address +Ah
Size:
Description
8 bits
ECAT
Type
PDI
Type
Default
7:3
RESERVED
Write as 0.
RO
RO
00000b
2:0
Physical Start Bit
Physical starting bit as target of logical start bit mapping (bits are
counted from least significant bit (0) to most significant bit (7)).
R/W
RO
000b
12.14.59.7 FMMUx Type Register
Offset:
FMMUx Base Address +Bh
Size:
8 bits
ECAT
Type
PDI
Type
Default
RESERVED
Write as 0.
RO
RO
000000b
1
Write Access Mapping
0: Ignore mapping for write accesses
1: Use mapping for write accesses
R/W
RO
0b
0
Read Access Mapping
0: Ignore mapping for read accesses
1: Use mapping for read accesses
R/W
RO
0b
Bits
7:2
Description
DS00001909A-page 270
2015 Microchip Technology Inc.
LAN9252
12.14.59.8 FMMUx Activate Register
Offset:
0
Size:
8 bits
ECAT
Type
PDI
Type
Default
RESERVED
Write as 0.
RO
RO
0000000b
FMMU Activation
0: FMMUx Deactivated
1: FMMUx Activated. FMMUx checks logical addressed blocks
to be mapped according to the configured mapping.
R/W
RO
0b
Bits
7:1
FMMUx Base Address +Ch
Description
12.14.59.9 FMMUx Reserved Register
Offset:
Bits
23:0
Note:
FMMUx Base Address +Dh-Fh
Description
RESERVED
Write as 0.
Size:
24 bits
ECAT
Type
PDI
Type
Default
RO
RO
000000h
For EtherCAT Core CSR registers longer than one byte, the LSB has the lowest address and the MSB the
highest address.
2015 Microchip Technology Inc.
DS00001909A-page 271
LAN9252
12.14.60 SYNCMANAGER[3:0] REGISTERS
The device includes 4 SyncManagers. Each SyncManager is described in 8 Bytes, starting at 0800h. Table 12-17 details
the base address for each SyncManager. The subsequent SyncManager registers will be referenced as an offset from
these various base addresses. The variable “x” is used in the following descriptions to represent SyncManagers 0
through 3.
TABLE 12-17: SYNCMANAGER X BASE ADDRESSES
SyncManager
Base Address
0
0800h
1
0808h
2
0810h
3
0818h
12.14.60.1 SyncManager x Physical Start Address Register
Offset:
Bits
15:0
SyncManager x Base Address +0h-1h
Size:
Description
Physical Start Address
Specifies the first byte that will be handled by SyncManager x.
16 bits
ECAT
Type
PDI
Type
Default
R/W
Note 35
RO
0000h
Note 35: This register can only be written if the corresponding SyncManager is disabled via the SyncManager
Enable/Disable bit of the SyncManager x Activate Register.
Note:
For EtherCAT Core CSR registers longer than one byte, the LSB has the lowest address and the MSB the
highest address.
12.14.60.2 SyncManager x Length Register
Offset:
SyncManager x Base Address +2h-3h
Size:
Bits
Description
15:0
Length
Number of bytes assigned to SyncManager x. (This field shall be
greater than 1, otherwise the SyncManager is not activated. If
set to 1, only Watchdog Trigger is generated, if configured.)
16 bits
ECAT
Type
PDI
Type
Default
R/W
Note 36
RO
0000h
Note 36: This register can only be written if SyncManager x is disabled via the SyncManager Enable/Disable bit of
the SyncManager x Activate Register.
Note:
For EtherCAT Core CSR registers longer than one byte, the LSB has the lowest address and the MSB the
highest address.
DS00001909A-page 272
2015 Microchip Technology Inc.
LAN9252
12.14.60.3 SyncManager x Control Register
Offset:
Bits
SyncManager x Base Address +4h
Description
Size:
8 bits
ECAT
Type
PDI
Type
Default
RO
RO
0b
7
RESERVED
Write as 0.
6
Watchdog Trigger Enable
0: Disabled
1: Enabled
R/W
Note 37
RO
0b
5
Interrupt in PDI Event Request Register
0: Disabled
1: Enabled
R/W
Note 37
RO
0b
4
Interrupt in ECAT Event Request Register
0: Disabled
1: Enabled
R/W
Note 37
RO
0b
3:2
Direction
00: Read: ECAT read access, PDI write access
01: Write: ECAT write access, PDI read access
10: RESERVED
11: RESERVED
R/W
Note 37
RO
00b
1:0
Operation Mode
00: Buffered (3 buffer mode)
01: RESERVED
10: Mailbox (single buffer mode)
11: RESERVED
R/W
Note 37
RO
00b
Note 37: This register can only be written if SyncManager x is disabled via the SyncManager Enable/Disable bit of
the SyncManager x Activate Register.
2015 Microchip Technology Inc.
DS00001909A-page 273
LAN9252
12.14.60.4 SyncManager x Status Register
Offset:
SyncManager x Base Address +5h
Bits
Size:
Description
8 bits
ECAT
Type
PDI
Type
Default
7
Write Buffer in Use
(opened)
RO
RO
0b
6
Read Buffer in Use
(opened)
RO
RO
0b
Buffer Status (Last Written Buffer)
RO
RO
11b
RO
RO
0b
5:4
Buffered Mode:
00: 1. buffer
01: 2. buffer
10: 3. buffer
11: No buffer written
Mailbox Mode: RESERVED
3
Mailbox Status
Mailbox Mode:
0: Mailbox Empty
1: Mailbox Full
Buffered Mode: RESERVED
2
RESERVED
Write as 0.
RO
RO
0b
1
Interrupt Read
0: Interrupt cleared after first byte of buffer was written
1: Interrupt after buffer was completely and successfully read
RO
RO
0b
0
Interrupt Write
0: Interrupt cleared after first byte of buffer was read
1: Interrupt after buffer was completely and successfully written
RO
RO
0b
DS00001909A-page 274
2015 Microchip Technology Inc.
LAN9252
12.14.60.5 SyncManager x Activate Register
Offset:
Bits
SyncManager x Base Address +6h
Size:
Description
8 bits
ECAT
Type
PDI
Type
Default
7
Latch Event PDI
0: No
1: Generate latch events if PDI issues a buffer exchange or if
PDI accesses buffer start address.
R/W
RO
0b
6
Latch Event ECAT
0: No
1: Generate latch event if EtherCAT master issues a buffer
exchange.
R/W
RO
0b
RESERVED
Write as 0.
RO
RO
0000b
1
Repeat Request
A toggle of Repeat Request indicates that a mailbox retry is
needed (primarily used in conjunction with ECAT Read Mailbox)
R/W
RO
0b
0
SyncManager Enable/Disable
0: Disable: Access to memory without SyncManager control
1: Enable: SyncManager is active and controls memory area set
in configuration.
R/W
RO
0b
5:2
Note:
Reading this register from PDI in all SyncManagers which have changed activation clears the “SyncManager x Activation Register Changed” bit in the AL Event Request Register.
2015 Microchip Technology Inc.
DS00001909A-page 275
LAN9252
12.14.60.6 SyncManager x PDI Control Register
Offset:
SyncManager x Base Address +7h
Size:
8 bits
ECAT
Type
PDI
Type
Default
RESERVED
Write as 0.
RO
RO
000000b
1
Repeat Ack
If this is set to the same value as Repeat Request, the PDI
acknowledges the execution of a previous set repeat request.
RO
R/W
0b
0
Deactivate SyncManager x
RO
R/W
0b
ECAT
Type
PDI
Type
Default
R/W
RO
Undefined
Bits
7:2
Description
Read:
0: Normal operation, SyncManager x activated
1: SyncManager x deactivated and reset SyncManager x locks
access to memory area
Write:
0: Activate SyncManager
1: Request SyncManager Deactivation
12.14.61 RECEIVE TIME PORT 0 REGISTER
Offset:
0900h-0903h
Size:
Bits
Description
31:0
Write:
A write access to register 0900h with BWR, APWR (any
address) or FPWR (configured address) latches the local time of
the beginning of the receive frame (start first bit of preamble) at
each port.
Read:
Local time of the beginning of the last receive frame containing a
write access to this register.
Note:
Note:
32 bits
The time stamps cannot be read in the same frame in
which this register was written.
For EtherCAT Core CSR registers longer than one byte, the LSB has the lowest address and the MSB the
highest address.
DS00001909A-page 276
2015 Microchip Technology Inc.
LAN9252
12.14.62 RECEIVE TIME PORT 1 REGISTER
Offset:
0904h-0907h
Size:
Bits
Description
31:0
Local time of the beginning of a frame (start first bit of preamble)
received at port 1 containing a BWR/APWR or FPWR to the
Receive Time Port 0 Register.
Note:
32 bits
ECAT
Type
PDI
Type
Default
RO
RO
Undefined
For EtherCAT Core CSR registers longer than one byte, the LSB has the lowest address and the MSB the
highest address.
12.14.63 RECEIVE TIME PORT 2 REGISTER
Offset:
0908h-090Bh
Size:
Bits
Description
31:0
Local time of the beginning of a frame (start first bit of preamble)
received at port 2 containing a BWR/APWR or FPWR to the
Receive Time Port 0 Register.
Note:
32 bits
ECAT
Type
PDI
Type
Default
RO
RO
Undefined
For EtherCAT Core CSR registers longer than one byte, the LSB has the lowest address and the MSB the
highest address.
2015 Microchip Technology Inc.
DS00001909A-page 277
LAN9252
12.14.64 SYSTEM TIME REGISTER
Offset:
0910h-0917h
Size:
64 bits
ECAT
Type
PDI
Type
ECAT Read Access:
Local copy of the System Time when the frame passed the reference clock (i.e., including System Time Delay). Time latched at
beginning of the frame (Ethernet SOF delimiter).
PDI Read Access:
Local copy of the System Time. Time latched when reading first
byte (0910h).
RO
RO
00000000h
00000000h
Write Access:
Written value will be compared with the local copy of the system
time. The result is an input to the time control loop.
W
Note 38
RO
00000000h
Bits
Description
63:0
31:0
Note:
Default
Written value will be compared at the end of the frame
with the latched (SOF) local copy of the system time
if at least the first byte (0910h) was written.
Note 38: When writing via ECAT, the control loop is triggered to process the new value.
Note:
For EtherCAT Core CSR registers longer than one byte, the LSB has the lowest address and the MSB the
highest address.
12.14.65 RECEIVE TIME ECAT PROCESSING UNIT REGISTER
Offset:
0918h-091Fh
Size:
Bits
Description
63:0
Local time of the beginning of a frame (start first bit of preamble)
received at the ECAT Processing Unit containing a write access
to Receive Time Port 0 Register (0900h).
Note:
Note:
64 bits
ECAT
Type
PDI
Type
RO
RO
Default
00000000h
00000000h
If port 0 is open, this register reflects the Receive
Time Port 0 Register as a 64-bit value.
For EtherCAT Core CSR registers longer than one byte, the LSB has the lowest address and the MSB the
highest address.
DS00001909A-page 278
2015 Microchip Technology Inc.
LAN9252
12.14.66 SYSTEM TIME OFFSET REGISTER
Offset:
0920h-0927h
Size:
Bits
Description
63:0
Difference between local time and System Time. Offset is added
to local time. Local time of the beginning of a frame (start first bit
of preamble) received at the ECAT Processing Unit containing a
write access to Receive Time Port 0 Register (0900h).
Note:
Note:
64 bits
ECAT
Type
PDI
Type
R/W
RO
Default
00000000h
00000000h
If port 0 is open, this register reflects the Receive
Time Port 0 Register as a 64-bit value.
For EtherCAT Core CSR registers longer than one byte, the LSB has the lowest address and the MSB the
highest address.
12.14.67 SYSTEM TIME DELAY REGISTER
Offset:
Bits
31:0
Note:
0928h-092Bh
Size:
Description
Delay between Reference Clock and the ESC.
32 bits
ECAT
Type
PDI
Type
Default
R/W
RO
00000000h
For EtherCAT Core CSR registers longer than one byte, the LSB has the lowest address and the MSB the
highest address.
12.14.68 SYSTEM TIME DIFFERENCE REGISTER
Offset:
30:0
Note:
Size:
32 bits
ECAT
Type
PDI
Type
Default
0: Local copy of System Time greater than or equal to received
System Time
1: Local copy of System Time smaller than received System
Time
RO
RO
0b
Mean difference between local copy of System Time and
received System Time values.
RO
RO
00000000h
Bits
31
092Ch-092Fh
Description
For EtherCAT Core CSR registers longer than one byte, the LSB has the lowest address and the MSB the
highest address.
2015 Microchip Technology Inc.
DS00001909A-page 279
LAN9252
12.14.69 SPEED COUNTER START REGISTER
Offset:
14:0
Note:
Size:
16 bits
ECAT
Type
PDI
Type
Default
RESERVED
Write as 0.
RO
RO
0b
Bandwidth for adjustment of local copy of System Time (larger
values -> smaller bandwidth and smoother adjustment). A write
access resets the System Time Difference Register and Speed
Counter Diff Register.
Valid range: 0080h-3FFFh.
R/W
RO
1000h
Bits
15
0930h-0931h
Description
For EtherCAT Core CSR registers longer than one byte, the LSB has the lowest address and the MSB the
highest address.
12.14.70 SPEED COUNTER DIFF REGISTER
Offset:
Bits
15:0
0932h-0933h
Size:
Description
Representation of the deviation between local clock period and
Reference Clock’s clock period (representation: two’s compliment).
Valid Range: +/-(Speed Counter Start Register-7Fh).
16 bits
ECAT
Type
PDI
Type
Default
RO
RO
0000h
Note:
The clock deviation after System Time Difference has settled at a low value can be calculated as follows:
Deviation = Speed Counter Diff / 5(Speed Counter Start + Speed Counter Diff + 2)(Speed Counter Start Speed Counter Diff + 2)
Note:
For EtherCAT Core CSR registers longer than one byte, the LSB has the lowest address and the MSB the
highest address.
DS00001909A-page 280
2015 Microchip Technology Inc.
LAN9252
12.14.71 SYSTEM TIME DIFFERENCE FILTER DEPTH REGISTER
Offset:
Bits
0934h
Size:
Description
8 bits
ECAT
Type
PDI
Type
Default
7:4
RESERVED
RO
RO
0h
3:0
Filter depth for averaging the received System Time deviation.
R/W
RO
4h
ECAT
Type
PDI
Type
Default
Note:
A write access resets the System Time Difference
Register.
12.14.72 SPEED COUNTER FILTER DEPTH REGISTER
Offset:
Bits
0935h
Size:
Description
8 bits
7:4
RESERVED
RO
RO
0h
3:0
Filter depth for averaging the clock period deviation.
R/W
RO
Ch
Note:
A write access resets the internal speed counter filter.
2015 Microchip Technology Inc.
DS00001909A-page 281
LAN9252
12.14.73 CYCLIC UNIT CONTROL REGISTER
Offset:
5
Default
RESERVED
Write as 0.
RO
RO
00b
Latch In Unit 1
0: ECAT Controlled
1: PDI Controlled
R/W
RO
0b
R/W
RO
0b
RESERVED
Write as 0.
RO
RO
000b
0
Sync Out Unit Control
0: ECAT Controlled
1: PDI Controlled
R/W
RO
0b
Latch interrupt is routed to ECAT/PDI depending on
this setting.
Latch In Unit 0
0: ECAT Controlled
1: PDI Controlled
Note:
3:1
8 bits
PDI
Type
Description
Note:
4
Size:
ECAT
Type
Bits
7:6
0980h
DS00001909A-page 282
Always 1 (PDI controlled) is System Time is PDI controlled. Latch interrupt is routed to ECAT/PDI depending on this setting.
2015 Microchip Technology Inc.
LAN9252
12.14.74 ACTIVATION REGISTER
Offset:
Bits
0981h
Size:
Description
8 bits
ECAT
Type
PDI
Type
Default
7
SyncSignal Debug Pulse (Vasili Bit)
0: Deactivated
1: Immediately generate a single debug ping on SYNC0 and
SYNC1 according to bits 2 and 1 of this register.
R/W
R/W
0b
6
Near Future Configuration (approx.)
0: 1/2 DC width future (231 ns or 263 ns)
1: 2.1 sec future (231 ns)
R/W
R/W
0b
5
Start Time Plausibility Check
0: Disabled. SyncSignal generation if Start Time is reached.
1: Immediate SyncSignal generation if Start Time is outside Near
Future Configuration (approx.).
R/W
R/W
0b
4
Extension of Start Time Cyclic Operation
(Start Time Cyclic Operation Register)
0: No extension
1: Extend 32-bit written Start Time to 64-bit
R/W
R/W
0b
3
Auto-activation
(By writing Start Time Cyclic Operation Register)
0: Disabled
1: Auto-activation enabled. Sync Out Unit Activation is set automatically after Start Time is written.
R/W
R/W
0b
2
SYNC1 Generation
0: Deactivated
1: SYNC1 pulse is generated
R/W
R/W
0b
1
SYNC0 Generation
0: Deactivated
1: SYNC0 pulse is generated
R/W
R/W
0b
0
Sync Out Unit Activation
0: Deactivated
1: Activated
R/W
R/W
0b
Note:
Note:
Write 1 after Start Time is written
Writes to this register depend on the Sync Out Unit Control bit of the Cyclic Unit Control Register.
2015 Microchip Technology Inc.
DS00001909A-page 283
LAN9252
12.14.75 PULSE LENGTH OF SYNCSIGNALS REGISTER
Offset:
Bits
15:0
0982h-0983h
Size:
Description
Pulse length of SyncSignals
(in units of 10ns)
A value of 0 is used for Acknowledge Mode: SyncSignal will be
cleared by reading the SYNC0 Status Register/SYNC1 Status
Register.
16 bits
ECAT
Type
PDI
Type
RO
RO
Default
0000h
Note 39
Note 39: The default value of this field can be configured via EEPROM. Refer to Section 12.8, "EEPROM Configurable Registers," on page 201 for additional information.
Note:
For EtherCAT Core CSR registers longer than one byte, the LSB has the lowest address and the MSB the
highest address.
12.14.76 ACTIVATION STATUS REGISTER
Offset:
0984h
Size:
8 bits
ECAT
Type
PDI
Type
Default
RESERVED
RO
RO
00000b
2
Start Time Cyclic Operation (Start Time Cyclic Operation Register) plausibility check result when Sync Out Unit was activated.
0: Start Time was within near future
1: Start Time was out of near future
RO
RO
0b
1
SYNC1 Activation State
0: First SYNC1 pulse is not pending
1: First SYNC1 pulse is pending
RO
RO
0b
0
SYNC0 Activation State
0: First SYNC0 pulse is not pending
1: First SYNC0 pulse is pending
RO
RO
0b
Bits
7:3
Description
DS00001909A-page 284
2015 Microchip Technology Inc.
LAN9252
12.14.77 SYNC0 STATUS REGISTER
Offset:
0
Size:
8 bits
ECAT
Type
PDI
Type
Default
RESERVED
RO
RO
0000000b
SYNC0 State for Acknowledge Mode
SYNC0, in Acknowledge Mode, is cleared by reading this register from PDI. Use only in Acknowledge Mode.
RO
RO
0b
ECAT
Type
PDI
Type
Default
RESERVED
RO
RO
0000000b
SYNC1 State for Acknowledge Mode
SYNC1, in Acknowledge Mode, is cleared by reading this register from PDI. Use only in Acknowledge Mode.
RO
RO
0b
ECAT
Type
PDI
Type
Default
R/W
R/W
Bits
7:1
098Eh
Description
12.14.78 SYNC1 STATUS REGISTER
Offset:
Bits
7:1
0
098Fh
Size:
Description
8 bits
12.14.79 START TIME CYCLIC OPERATION REGISTER
Offset:
Bits
63:0
0990h-0997h
Description
Write:
Start time (System Time) of cyclic operation in ns.
Read:
System time of next SYNC0 pulse in ns.
Size:
64 bits
00000000h
00000000h
Note:
Writes to this register depend on the Sync Out Unit Control bit of the Cyclic Unit Control Register. It is only
writable if Sync Out Unit Control is 0.
Note:
When the Auto-activation bit of the Activation Register is 1: The upper 32 bits are automatically extended if
only the lower 32 bits are written within one frame.
Note:
For EtherCAT Core CSR registers longer than one byte, the LSB has the lowest address and the MSB the
highest address.
2015 Microchip Technology Inc.
DS00001909A-page 285
LAN9252
12.14.80 NEXT SYNC1 PULSE REGISTER
Offset:
Bits
63:0
Note:
0998h-099Fh
Size:
Description
System time of next SYNC1 pulse in ns.
64 bits
ECAT
Type
PDI
Type
RO
RO
Default
00000000h
00000000h
For EtherCAT Core CSR registers longer than one byte, the LSB has the lowest address and the MSB the
highest address.
12.14.81 SYNC0 CYCLE TIME REGISTER
Offset:
Bits
31:0
09A0h-09A3h
Size:
Description
Time between two consecutive SYNC0 pulses in ns.
A value of 0 indicates Single shot mode - generate only one
SYNC0 pulse.
32 bits
ECAT
Type
PDI
Type
Default
R/W
R/W
00000000h
Note:
Writes to this register depend on the Sync Out Unit Control bit of the Cyclic Unit Control Register.
Note:
For EtherCAT Core CSR registers longer than one byte, the LSB has the lowest address and the MSB the
highest address.
12.14.82 SYNC1 CYCLE TIME REGISTER
Offset:
Bits
31:0
09A4h-09A7h
Size:
Description
Time between SYNC1 pulses and SYNC0 pulse in ns.
32 bits
ECAT
Type
PDI
Type
Default
R/W
R/W
00000000h
Note:
Writes to this register depend on the Sync Out Unit Control bit of the Cyclic Unit Control Register.
Note:
For EtherCAT Core CSR registers longer than one byte, the LSB has the lowest address and the MSB the
highest address.
DS00001909A-page 286
2015 Microchip Technology Inc.
LAN9252
12.14.83 LATCH0 CONTROL REGISTER
Offset:
09A8h
Size:
8 bits
ECAT
Type
PDI
Type
Default
RESERVED
Write as 0.
RO
RO
000000b
1
LATCH0 Negative Edge
0: Continuous Latch active
1: Single Event (only first event active)
R/W
R/W
0b
0
LATCH0 Positive Edge
0: Continuous Latch active
1: Single Event (only first event active)
R/W
R/W
0b
Bits
7:2
Note:
Description
Writes to this register depend on the Latch In Unit 0 bit of the Cyclic Unit Control Register.
12.14.84 LATCH1 CONTROL REGISTER
Offset:
09A9h
Size:
8 bits
ECAT
Type
PDI
Type
Default
RESERVED
Write as 0.
RO
RO
000000b
1
LATCH1 Negative Edge
0: Continuous Latch active
1: Single Event (only first event active)
R/W
R/W
0b
0
LATCH1 Positive Edge
0: Continuous Latch active
1: Single Event (only first event active)
R/W
R/W
0b
Bits
7:2
Note:
Description
Writes to this register depend on the Latch In Unit 1 bit of the Cyclic Unit Control Register.
2015 Microchip Technology Inc.
DS00001909A-page 287
LAN9252
12.14.85 LATCH0 STATUS REGISTER
Offset:
09AEh
Size:
8 bits
ECAT
Type
PDI
Type
Default
RESERVED
Write as 0.
RO
RO
00000b
2
LATCH0 Pin State
RO
RO
0b
1
Event LATCH0 Negative Edge
0: Negative edge not detected or continuous mode
1: Negative edge detected in single event mode only.
RO
RO
0b
RO
RO
0b
ECAT
Type
PDI
Type
Default
RESERVED
Write as 0.
RO
RO
00000b
2
LATCH1 Pin State
RO
RO
0b
1
Event LATCH1 Negative Edge
0: Negative edge not detected or continuous mode
1: Negative edge detected in single event mode only.
RO
RO
0b
RO
RO
0b
Bits
7:3
Description
Note:
0
Flag cleared by reading the LATCH0 Time Negative
Edge Register.
Event LATCH0 Positive Edge
0: Positive edge not detected or continuous mode
1: Positive edge detected in single event mode only.
Note:
Flag cleared by reading the LATCH0 Time Positive
Edge Register.
12.14.86 LATCH1 STATUS REGISTER
Offset:
Bits
7:3
Size:
Description
Note:
0
09AFh
Flag cleared by reading the LATCH1 Time Negative
Edge Register.
Event LATCH1 Positive Edge
0: Positive edge not detected or continuous mode
1: Positive edge detected in single event mode only.
Note:
DS00001909A-page 288
8 bits
Flag cleared by reading the LATCH1 Time Positive
Edge Register.
2015 Microchip Technology Inc.
LAN9252
12.14.87 LATCH0 TIME POSITIVE EDGE REGISTER
Offset:
Bits
63:0
09B0h-09B7h
Size:
Description
This register captures the System Time at the positive edge of
the LATCH0 signal.
Note:
64 bits
ECAT
Type
PDI
Type
RO
RO
Default
00000000h
00000000h
Reading this register clears the Event LATCH0 Positive Edge bit of the LATCH0 Status Register
Note:
Register bits [63:8] are internally latched (ECAT/PDI independently) when bits [7:0] are read, which guarantees reading a consistent value. Clearing the Event LATCH0 Positive Edge bit of the LATCH0 Status Register depends upon setting of the Latch In Unit 0 bit of the Cyclic Unit Control Register.
Note:
For EtherCAT Core CSR registers longer than one byte, the LSB has the lowest address and the MSB the
highest address.
12.14.88 LATCH0 TIME NEGATIVE EDGE REGISTER
Offset:
Bits
63:0
09B8h-09BFh
Size:
Description
This register captures the System Time at the negative edge of
the LACTH0 signal.
Note:
64 bits
ECAT
Type
PDI
Type
RO
RO
Default
00000000h
00000000h
Reading this register clears the Event LATCH0 Negative Edge bit of the LATCH0 Status Register
Note:
Register bits [63:8] are internally latched (ECAT/PDI independently) when bits [7:0] are read, which guarantees reading a consistent value. Clearing the Event LATCH0 Negative Edge bit of the LATCH0 Status Register depends upon setting of the Latch In Unit 0 bit of the Cyclic Unit Control Register.
Note:
For EtherCAT Core CSR registers longer than one byte, the LSB has the lowest address and the MSB the
highest address.
2015 Microchip Technology Inc.
DS00001909A-page 289
LAN9252
12.14.89 LATCH1 TIME POSITIVE EDGE REGISTER
Offset:
Bits
63:0
09C0h-09C7h
Size:
Description
This register captures the System Time at the positive edge of
the LATCH1 signal.
Note:
64 bits
ECAT
Type
PDI
Type
RO
RO
Default
00000000h
00000000h
Reading this register clears the Event LATCH1 Positive Edge bit of the LATCH1 Status Register
Note:
Register bits [63:8] are internally latched (ECAT/PDI independently) when bits [7:0] are read, which guarantees reading a consistent value. Clearing the Event LATCH1 Positive Edge bit of the LATCH1 Status Register depends upon setting of the Latch In Unit 1 bit of the Cyclic Unit Control Register.
Note:
For EtherCAT Core CSR registers longer than one byte, the LSB has the lowest address and the MSB the
highest address.
12.14.90 LATCH1 TIME NEGATIVE EDGE REGISTER
Offset:
Bits
63:0
09C8h-09CFh
Size:
Description
This register captures the System Time at the negative edge of
the LATCH1 signal.
Note:
64 bits
ECAT
Type
PDI
Type
RO
RO
Default
00000000h
00000000h
Reading this register clears the Event LATCH1 Negative Edge bit of the LATCH1 Status Register
Note:
Register bits [63:8] are internally latched (ECAT/PDI independently) when bits [7:0] are read, which guarantees reading a consistent value. Clearing the Event LATCH1 Negative Edge bit of the LATCH1 Status Register depends upon setting of the Latch In Unit 1 bit of the Cyclic Unit Control Register.
Note:
For EtherCAT Core CSR registers longer than one byte, the LSB has the lowest address and the MSB the
highest address.
DS00001909A-page 290
2015 Microchip Technology Inc.
LAN9252
12.14.91 ETHERCAT BUFFER CHANGE EVENT TIME REGISTER
Offset:
09F0h-09F3h
Size:
Bits
Description
31:0
This register captures the local time of the beginning of the frame
which causes at least one SyncManager to assert an ECAT
event.
32 bits
ECAT
Type
PDI
Type
Default
RO
RO
00000000h
Note:
Register bits [31:8] are internally latched (ECAT/PDI independently) when bits [7:0] are read, which guarantees reading a consistent value.
Note:
For EtherCAT Core CSR registers longer than one byte, the LSB has the lowest address and the MSB the
highest address.
12.14.92 PDI BUFFER START TIME EVENT REGISTER
Offset:
09F8h-09FBh
Size:
Bits
Description
31:0
This register captures the local time when at least one SyncManager asserts a PDI buffer start event.
32 bits
ECAT
Type
PDI
Type
Default
RO
RO
00000000h
Note:
Register bits [31:8] are internally latched (ECAT/PDI independently) when bits [7:0] are read, which guarantees reading a consistent value.
Note:
For EtherCAT Core CSR registers longer than one byte, the LSB has the lowest address and the MSB the
highest address.
12.14.93 PDI BUFFER CHANGE EVENT TIME REGISTER
Offset:
09FCh-09FFh
Size:
Bits
Description
31:0
This register captures the local time when at least one SyncManager asserts a PDI buffer change event.
32 bits
ECAT
Type
PDI
Type
Default
RO
RO
00000000h
Note:
Register bits [31:8] are internally latched (ECAT/PDI independently) when bits [7:0] are read, which guarantees reading a consistent value.
Note:
For EtherCAT Core CSR registers longer than one byte, the LSB has the lowest address and the MSB the
highest address.
2015 Microchip Technology Inc.
DS00001909A-page 291
LAN9252
12.14.94 PRODUCT ID REGISTER
Offset:
Bits
63:0
0E00h-0E07h
Size:
Description
Product ID
64 bits
ECAT
Type
PDI
Type
RO
RO
Default
0000h
00ssh
9252h
rrrrh
Note 40
Note 40: The value of “ss” is 0, 0, link_pol_strap_mii, tx_shift_strap[1:0], eeprom_size_strap, chip_mode_strap[1:0].
The value of “rrrr” is the current silicon revision.
Note:
For EtherCAT Core CSR registers longer than one byte, the LSB has the lowest address and the MSB the
highest address.
12.14.95 VENDOR ID REGISTER
Offset:
Bits
0E08h-0E0Fh
Size:
Description
64 bits
ECAT
Type
PDI
Type
Default
63:32
RESERVED
RO
RO
00000000h
31:0
Vendor ID
RO
RO
000004D8h
(Microchip)
Note:
For EtherCAT Core CSR registers longer than one byte, the LSB has the lowest address and the MSB the
highest address.
12.14.96 DIGITAL I/O OUTPUT DATA REGISTER
Offset:
Bits
15:0
0F00h-0F01h
Size:
Description
Output Data
16 bits
ECAT
Type
PDI
Type
Default
R/W
RO
0000h
Note:
This register is bit-writable (using logical addressing).
Note:
For EtherCAT Core CSR registers longer than one byte, the LSB has the lowest address and the MSB the
highest address.
DS00001909A-page 292
2015 Microchip Technology Inc.
LAN9252
12.14.97 GENERAL PURPOSE OUTPUT REGISTER
Offset:
Bits
15:0
Note:
0F10h-0F11h
Size:
Description
General Purpose Output Data
16 bits
ECAT
Type
PDI
Type
Default
R/W
R/W
0000h
For EtherCAT Core CSR registers longer than one byte, the LSB has the lowest address and the MSB the
highest address.
12.14.98 GENERAL PURPOSE INPUT REGISTER
Offset:
Bits
15:0
Note:
0F18h-0F19h
Size:
Description
General Purpose Input Data
16 bits
ECAT
Type
PDI
Type
Default
RO
RO
0000h
For EtherCAT Core CSR registers longer than one byte, the LSB has the lowest address and the MSB the
highest address.
12.14.99 USER RAM
Offset:
Bits
Note:
0F80h-0FFFh
Description
User RAM (128 Bytes)
Size:
128 Bytes
ECAT
Type
PDI
Type
Default
R/W
R/W
Undefined
For EtherCAT Core CSR registers longer than one byte, the LSB has the lowest address and the MSB the
highest address.
2015 Microchip Technology Inc.
DS00001909A-page 293
LAN9252
12.14.100 DIGITAL I/O INPUT DATA REGISTER
Offset:
Bits
15:0
1000h-1001h
Size:
Description
Input Data
16 bits
ECAT
Type
PDI
Type
Default
R/W
R/W
Undefined
Note:
This register is part of the Process RAM address space. The Process RAM is also directly addressable via
the EtherCAT Process RAM Read Data FIFO (ECAT_PRAM_RD_DATA) and EtherCAT Process RAM Write
Data FIFO (ECAT_PRAM_WR_DATA).
Note:
Process Data RAM is only accessible if EEPROM was correctly loaded (PDI Operational/EEPROM Loaded
Correctly bit of ESC DL Status Register = 1)
Note:
Digital I/O Input Data is written into the Process Data RAM at these addresses if a Digital I/O PDI with inputs
is configured.
Note:
For EtherCAT Core CSR registers longer than one byte, the LSB has the lowest address and the MSB the
highest address.
12.14.101 PROCESS DATA RAM
Offset:
Bits
-
1000h-1FFFh
Description
Process Data RAM (4 KBytes)
Size:
4 KBytes
ECAT
Type
PDI
Type
Default
R/W
R/W
Undefined
Note:
Process Data RAM is only accessible if EEPROM was correctly loaded (PDI Operational/EEPROM Loaded
Correctly bit of ESC DL Status Register = 1)
Note:
For EtherCAT Core CSR registers longer than one byte, the LSB has the lowest address and the MSB the
highest address.
DS00001909A-page 294
2015 Microchip Technology Inc.
LAN9252
13.0
EEPROM INTERFACE
The device contains an I2C master controller, which uses the EESCL and EESDA pins. EESCL and EESDA require an
external pull-up resistor. Both 1 byte and 2 byte addressed EEPROMs are supported. The size is determined by the
eeprom_size_strap.
I2C Interface Timing Requirements
13.1
This section specifies the I2C master interface input and output timings. The I2C master interface runs in fast-mode with
a rate of 148.8 kHz.
FIGURE 13-1:
I2C MASTER TIMING DIAGRAM
EESDA
(in)
thd;dat;in
tsu;dat;in
tsu;dat;out
thd;dat;out
EESDA
(out)
S
tlow
tf
tr
Sr
P
EESCL
thd;sta
TABLE 13-1:
thigh
tsu;sta
tsu;sto
I2C MASTER TIMING VALUES
Symbol
Description
Min
Typ
Max
Units
fscl
EESCL clock frequency
-
148.8
-
kHz
thigh
EESCL high time
3.0
-
-
s
tlow
EESCL low time
3.0
-
-
s
-
300
ns
tr
Rise time of EESDA and EESCL
tf
Fall time of EESDA and EESCL
-
300
ns
tsu;sta
Setup time (provided to slave) of EESCL high before EESDA
output falling for repeated start condition
1000
Note 41
-
-
ns
thd;sta
Hold time (provided to slave) of EESCL after EESDA output fall- 1000
ing for start or repeated start condition
Note 41
-
-
ns
tsu;dat;in
Setup time (from slave) EESDA input before EESCL rising
200
Note 42
-
-
ns
thd;dat;in
Hold time (from slave) of EESDA input after EESCL falling
0
-
-
ns
tsu;dat;out
Setup time (provided to slave) EESDA output before EESCL
rising
400
Note 42
-
-
ns
thd;dat;out
Hold time (provided to slave) of EESDA output after EESCL fall400
ing
Note 42
-
-
ns
Setup time (provided to slave) of EESCL high before EESDA
output rising for stop condition
-
-
ns
tsu;sto
1000
Note 41
Note 41: These values provide 400 ns of margin compared to the I2C fast-mode specification.
Note 42: These values provide ~2100 ns of margin compared to the I2C fast-mode specification.
Note 43: These values provide 300 ns of setup margin and 400 ns of hold margin compared to the I2C fast-mode
specification.
2015 Microchip Technology Inc.
DS00001909A-page 295
LAN9252
14.0
CHIP MODE CONFIGURATION
The mode of the chip is controlled by the chip_mode_strap[1:0] (CHIP_MODE1/CHIP_MODE0) hard-strap as follows:
TABLE 14-1:
CHIP MODE SELECTION
CHIP_MODE[1:0]
Mode
00
2 port mode. Port 0 = PHY A, Port 1 = PHY B
01
RESERVED
10
3 port downstream mode. Port 0 = PHY A, Port 1 = PHY B, Port 2 = MII
11
3 port upstream mode. Port 0 = MII, Port 1 = PHY B, Port 2 = PHY A
Once the mode of the chip is selected, the Process Data Interface (PDI) in use is selected by the PDI Control Register
(0x0140). The valid choices are as follows:
TABLE 14-2:
PDI MODE SELECTION
PDI_SELECT
PDI MODE
0x04
DIG I/O
0x80
SPI
0x88
HBI Multiplexed 1 Phase 8-bit
0x89
HBI Multiplexed 1 Phase 16-bit
0x8A
HBI Multiplexed 2 Phase 8-bit
0x8B
HBI Multiplexed 2 Phase 16-bit
0x8C
HBI Indexed 8-bit
0x8D
HBI Indexed 16-bit
others
RESERVED
Note:
The mode of the chip as selected by the chip_mode_strap[1:0] hard-strap is not affected by the PDI selection.
Note:
Due to pin sharing, when the device is in 3 port mode, the only usable interface is SPI.
14.1
HBI Sub-Configuration
The PDI Configuration Register (0x0150) is used for the HBI configuration straps as shown in Table 123, "EtherCAT Core EEPROM Configurable Registers".
The PDI Configuration Register (0x0150) is initialized from the contents of the EEPROM.
DS00001909A-page 296
2015 Microchip Technology Inc.
LAN9252
15.0
GENERAL PURPOSE TIMER & FREE-RUNNING CLOCK
This chapter details the General Purpose Timer (GPT) and the Free-Running Clock.
15.1
General Purpose Timer
The device provides a 16-bit programmable General Purpose Timer that can be used to generate periodic system interrupts. The resolution of this timer is 100 µs.
The GPT loads the General Purpose Timer Count Register (GPT_CNT) with the value in the General Purpose Timer
Pre-Load (GPT_LOAD) field of the General Purpose Timer Configuration Register (GPT_CFG) when the General Purpose Timer Enable (TIMER_EN) bit of the General Purpose Timer Configuration Register (GPT_CFG) is asserted (1).
On a chip-level reset or when the General Purpose Timer Enable (TIMER_EN) bit changes from asserted (1) to deasserted (0), the General Purpose Timer Pre-Load (GPT_LOAD) field is initialized to FFFFh. The General Purpose
Timer Count Register (GPT_CNT) is also initialized to FFFFh on reset.
Once enabled, the GPT counts down until it reaches 0000h. At 0000h, the counter wraps around to FFFFh, asserts the
GP Timer (GPT_INT) interrupt status bit in the Interrupt Status Register (INT_STS), asserts the IRQ interrupt (if GP
Timer Interrupt Enable (GPT_INT_EN) is set in the Interrupt Enable Register (INT_EN)) and continues counting. GP
Timer (GPT_INT) is a sticky bit. Once this bit is asserted, it can only be cleared by writing a 1 to the bit. Refer to Section
8.2.3, "General Purpose Timer Interrupt," on page 55 for additional information on the GPT interrupt.
Software can write a pre-load value into the General Purpose Timer Pre-Load (GPT_LOAD) field at any time (e.g.,
before or after the General Purpose Timer Enable (TIMER_EN) bit is asserted). The General Purpose Timer Count Register (GPT_CNT) will immediately be set to the new value and continue to count down (if enabled) from that value.
15.2
Free-Running Clock
The Free-Running Clock (FRC) is a simple 32-bit up-counter that operates from a fixed 25 MHz clock. The current FRC
value can be read via the Free Running 25MHz Counter Register (FREE_RUN). On assertion of a chip-level reset, this
counter is cleared to zero. On de-assertion of a reset, the counter is incremented once for every 25 MHz clock cycle.
When the maximum count has been reached, the counter rolls over to zeros. The FRC does not generate interrupts.
The free running counter can take up to 160 ns to clear after a reset event.
Note:
15.3
General Purpose Timer and Free-Running Clock Registers
This section details the directly addressable general purpose timer and free-running clock related System CSRs. For
an overview of the entire directly addressable register map, refer to Section 5.0, "Register Map," on page 32.
TABLE 15-1:
MISCELLANEOUS REGISTERS
ADDRESS
Register Name (SYMBOL)
08Ch
General Purpose Timer Configuration Register (GPT_CFG)
090h
General Purpose Timer Count Register (GPT_CNT)
09Ch
Free Running 25MHz Counter Register (FREE_RUN)
2015 Microchip Technology Inc.
DS00001909A-page 297
LAN9252
15.3.1
GENERAL PURPOSE TIMER CONFIGURATION REGISTER (GPT_CFG)
Offset:
08Ch
Size:
32 bits
This read/write register configures the device’s General Purpose Timer (GPT). The GPT can be configured to generate
host interrupts at the interval defined in this register. The current value of the GPT can be monitored via the General
Purpose Timer Count Register (GPT_CNT). Refer to Section 15.1, "General Purpose Timer," on page 297 for additional
information.
Bits
31:30
29
Description
Type
Default
RESERVED
RO
-
General Purpose Timer Enable (TIMER_EN)
This bit enables the GPT. When set, the GPT enters the run state. When
cleared, the GPT is halted. On the 1 to 0 transition of this bit, the GPT_LOAD
field of this register will be preset to FFFFh.
R/W
0b
0: GPT Disabled
1: GPT Enabled
28:16
RESERVED
RO
-
15:0
General Purpose Timer Pre-Load (GPT_LOAD)
This value is pre-loaded into the GPT. This is the starting value of the GPT.
The timer will begin decrementing from this value when enabled.
R/W
FFFFh
DS00001909A-page 298
2015 Microchip Technology Inc.
LAN9252
15.3.2
GENERAL PURPOSE TIMER COUNT REGISTER (GPT_CNT)
Offset:
090h
Size:
32 bits
This read-only register reflects the current general purpose timer (GPT) value. The register should be used in conjunction with the General Purpose Timer Configuration Register (GPT_CFG) to configure and monitor the GPT. Refer to
Section 15.1, "General Purpose Timer," on page 297 for additional information.
Bits
Description
Type
Default
31:16
RESERVED
RO
-
15:0
General Purpose Timer Current Count (GPT_CNT)
This 16-bit field represents the current value of the GPT.
RO
FFFFh
2015 Microchip Technology Inc.
DS00001909A-page 299
LAN9252
15.3.3
FREE RUNNING 25MHZ COUNTER REGISTER (FREE_RUN)
Offset:
09Ch
Size:
32 bits
This read-only register reflects the current value of the free-running 25MHz counter. Refer to Section 15.2, "Free-Running Clock," on page 297 for additional information.
Bits
Description
Type
Default
31:0
Free Running Counter (FR_CNT)
This field reflects the current value of the free-running 32-bit counter. At
reset, the counter starts at zero and is incremented by one every 25 MHz
cycle. When the maximum count has been reached, the counter will rollover
to zero and continue counting.
RO
00000000h
Note:
The free running counter can take up to 160nS to clear after a reset
event.
DS00001909A-page 300
2015 Microchip Technology Inc.
LAN9252
16.0
MISCELLANEOUS
This chapter describes miscellaneous functions and registers that are present in the device.
16.1
Miscellaneous System Configuration & Status Registers
This section details the remainder of the directly addressable System CSRs. These registers allow for monitoring and
configuration of various device functions such as the Chip ID/revision, byte order testing, and hardware configuration.
For an overview of the entire directly addressable register map, refer to Section 5.0, "Register Map," on page 32.
TABLE 16-1:
MISCELLANEOUS REGISTERS
ADDRESS
Register Name (SYMBOL)
050h
Chip ID and Revision (ID_REV)
064h
Byte Order Test Register (BYTE_TEST)
074h
Hardware Configuration Register (HW_CFG)
2015 Microchip Technology Inc.
DS00001909A-page 301
LAN9252
16.1.1
CHIP ID AND REVISION (ID_REV)
Offset:
050h
Size:
32 bits
This read-only register contains the ID and Revision fields for the device.
Bits
Description
Type
Default
31:16
Chip ID
This field indicates the chip ID.
RO
9252
15:0
Chip Revision
This field indicates the design revision.
RO
Note 1
Note 1: Default value is dependent on device revision.
DS00001909A-page 302
2015 Microchip Technology Inc.
LAN9252
16.1.2
BYTE ORDER TEST REGISTER (BYTE_TEST)
Offset:
064h
Size:
32 bits
This read-only register can be used to determine the byte ordering of the current configuration. Byte ordering is a function of the host data bus width and endianess. Refer to Section 9.0, "Host Bus Interface," on page 62 for additional information on byte ordering.
The BYTE_TEST register can optionally be used as a dummy read register when assuring minimum write-to-read or
read-to-read timing. Refer to Section 9.0, "Host Bus Interface," on page 62 for additional information.
For host interfaces that are disabled during the reset state, the BYTE_TEST register can be used to determine when
the device has exited the reset state.
Note:
This register can be read while the device is in the reset or not ready / power savings states without leaving
the host interface in an intermediate state. If the host interface is in a reset state, returned data may be
invalid. However, during reset, the returned data will not match the normal valid data pattern.
Note:
It is not necessary to read all fours BYTEs of this register. DWORD access rules do not apply to this register.
Bits
31:0
Description
Byte Test (BYTE_TEST)
This field reflects the current byte ordering
2015 Microchip Technology Inc.
Type
Default
RO
87654321h
DS00001909A-page 303
LAN9252
16.1.3
HARDWARE CONFIGURATION REGISTER (HW_CFG)
Offset:
074h
Size:
32 bits
This register allows the configuration of various hardware features.
Note:
This register can be read while the device is in the reset or not ready / power savings states without leaving
the host interface in an intermediate state. If the host interface is in a reset state, returned data may be
invalid.
Note:
It is not necessary to read all fours BYTEs of this register. DWORD access rules do not apply to this register.
Bits
31:28
27
Description
Type
Default
RESERVED
RO
-
Device Ready (READY)
When set, this bit indicates that the device is ready to be accessed. Upon
power-up, RST# reset, return from power savings states, EtherCAT chip level
or module level reset, or digital reset, the host processor may interrogate this
field as an indication that the device has stabilized and is fully active.
RO
0b
This rising edge of this bit will assert the Device Ready (READY) bit in the
Interrupt Status Register (INT_STS) and can cause an interrupt if enabled.
Note:
With the exception of the HW_CFG, PMT_CTRL, BYTE_TEST, and
RESET_CTL registers, read access to any internal resources is
forbidden while the READY bit is cleared. Writes to any address
are invalid until this bit is set.
Note:
This bit is identical to bit 0 of the Power Management Control
Register (PMT_CTRL).
26
RESERVED
RO
-
25
RESERVED
RO
-
24:22
RESERVED
RO
-
21:16
RESERVED
RO
-
15:14
RESERVED
RO
-
13:12
RESERVED
RO
-
11:0
RESERVED
RO
-
DS00001909A-page 304
2015 Microchip Technology Inc.
LAN9252
17.0
JTAG
17.1
JTAG
A IEEE 1149.1 compliant TAP Controller supports boundary scan and various test modes.
The device includes an integrated JTAG boundary-scan test port for board-level testing. The interface consists of four
pins (TDO, TDI, TCK and TMS) and includes a state machine, data register array, and an instruction register. The JTAG
pins are described in Table 3-14, “JTAG Pin Descriptions,” on page 28. The JTAG interface conforms to the IEEE Standard 1149.1 - 2001 Standard Test Access Port (TAP) and Boundary-Scan Architecture.
All input and output data is synchronous to the TCK test clock input. TAP input signals TMS and TDI are clocked into
the test logic on the rising edge of TCK, while the output signal TDO is clocked on the falling edge.
JTAG pins are multiplexed with the GPIO/LED and EEPROM pins. The JTAG functionality is selected when the TESTMODE pin is asserted.
The implemented IEEE 1149.1 instructions and their op codes are shown in Table 17-1.
TABLE 17-1:
IEEE 1149.1 OP CODES
INSTRUCTION
OP CODE
COMMENT
BYPASS 0
16'h0000
Mandatory Instruction
BYPASS 1
16'hFFFF
Mandatory Instruction
SAMPLE/PRELOAD
16'hFFF8
Mandatory Instruction
EXTEST
16'hFFE8
Mandatory Instruction
CLAMP
16'hFFEF
Optional Instruction
ID_CODE
16'hFFFE
Optional Instruction
HIGHZ
16'hFFCF
Optional Instruction
INT_DR_SEL
16'hFFFD
Private Instruction
Note:
The JTAG device ID is 00101445h
Note:
All digital I/O pins support IEEE 1149.1 operation. Analog pins and the OSCI / OSCO pins do not support
IEEE 1149.1 operation.
2015 Microchip Technology Inc.
DS00001909A-page 305
LAN9252
17.1.1
JTAG TIMING REQUIREMENTS
This section specifies the JTAG timing of the device.
FIGURE 17-1:
JTAG TIMING
ttckp
ttckhl
ttckhl
TCK (Input)
tsu
th
TDI, TMS (Inputs)
tdov
tdoinvld
TDO (Output)
TABLE 17-2:
JTAG TIMING VALUES
Symbol
Description
ttckp
TCK clock period
ttckhl
TCK clock high/low time
Min
Max
40
ttckp*0.4
Units
ns
ttckp*0.6
ns
tsu
TDI, TMS setup to TCK rising edge
5
ns
th
TDI, TMS hold from TCK rising edge
5
ns
tdov
tdoinvld
Note:
TDO output valid from TCK falling edge
TDO output invalid from TCK falling edge
15
0
Notes
ns
ns
Timing values are with respect to an equivalent test load of 25 pF.
DS00001909A-page 306
2015 Microchip Technology Inc.
LAN9252
18.0
OPERATIONAL CHARACTERISTICS
18.1
Absolute Maximum Ratings*
Supply Voltage (VDD12TX1, VDD12TX2, OSCVDD12, VDDCR) (Note 1) . . . . . . . . . . . . . . . . . . . . . . . . 0 V to +1.5 V
Supply Voltage (VDD33TXRX1, VDD33TXRX2, VDD33BIAS, VDD33, VDDIO) (Note 1) . . . . . . . . . . . . . 0 V to +3.6 V
Ethernet Magnetics Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.5 V to +3.6 V
Positive voltage on input signal pins, with respect to ground (Note 2) . . . . . . . . . . . . . . . . . . . . . . . . . . VDDIO + 2.0 V
Negative voltage on input signal pins, with respect to ground (Note 3) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.5 V
Positive voltage on OSCI, with respect to ground. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .+3.6 V
Storage Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .-55oC to +150oC
Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +150oC
Lead Temperature Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Refer to JEDEC Spec. J-STD-020
HBM ESD Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . JEDEC Class 3A
Note 1: When powering this device from laboratory or system power supplies, it is important that the absolute maximum ratings not be exceeded or device failure can result. Some power supplies exhibit voltage spikes on
their outputs when AC power is switched on or off. In addition, voltage transients on the AC power line may
appear on the DC output. If this possibility exists, it is suggested to use a clamp circuit.
Note 2: This rating does not apply to the following pins: OSCI, RBIAS
Note 3: This rating does not apply to the following pins: RBIAS
*Stresses exceeding those listed in this section could cause permanent damage to the device. This is a stress rating
only. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Functional
operation of the device at any condition exceeding those indicated in Section 18.2, "Operating Conditions**", Section
18.5, "DC Specifications", or any other applicable section of this specification is not implied. Note, device signals are
NOT 5 volt tolerant.
18.2
Operating Conditions**
Supply Voltage (VDD12TX1, VDD12TX2, OSCVDD12, VDDCR) . . . . . . . . . . . . . . . . . . . . . . . . . . . +1.14 V to +1.26 V
Analog Port Supply Voltage (VDD33TXRX1, VDD33TXRX2, VDD33BIAS, VDD33) . . . . . . . . . . . . . . . +3.0 V to +3.6 V
I/O Supply Voltage (VDDIO) (Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +1.62 V to +3.6 V
Ethernet Magnetics Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +2.25 V to +3.6 V
Ambient Operating Temperature in Still Air (TA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Note 4
Note 4: 0oC to +70oC for commercial version, -40oC to +85oC for industrial version, -40oC to +105oC for extended
industrial version.
Extended industrial temperature range is supported with the following restrictions:
- 64-QFN package: External regulator required (Internal regulator disabled)
and 2.5 V (typ) Ethernet magnetics voltage.
**Proper operation of the device is guaranteed only within the ranges specified in this section. After the device has completed power-up, VDDIO and the magnetics power supply must maintain their voltage level with ±10%. Varying the voltage greater than ±10% after the device has completed power-up can cause errors in device operation.
Note:
Do not drive input signals without power supplied to the device.
2015 Microchip Technology Inc.
DS00001909A-page 307
LAN9252
18.3
Package Thermal Specifications
TABLE 18-1:
64-PIN QFN PACKAGE THERMAL PARAMETERS
Parameter
Symbol
Value
Units
Thermal Resistance Junction to Ambient
JA
23.6
°C/W
Thermal Resistance Junction to Bottom of Case
JT
JC
0.1
°C/W
Measured in still air
1.8
°C/W
Airflow 1 m/s
Thermal Resistance Junction to Top of Case
TABLE 18-2:
Comments
Measured in still air
64-PIN TQFP-EP PACKAGE THERMAL PARAMETERS
Parameter
Symbol
Value
Units
Thermal Resistance Junction to Ambient
JA
29.0
°C/W
Measured in still air
Thermal Resistance Junction to Bottom of Case
JT
JC
0.3
°C/W
Measured in still air
12.8
°C/W
Airflow 1 m/s
Thermal Resistance Junction to Top of Case
Note:
Comments
Thermal parameters are measured or estimated for devices in a multi-layer 2S2P PCB per JESD51.
TABLE 18-3:
MAXIMUM POWER DISSIPATION
Mode
Maximum Power (mW)
Internal Regulator Disabled, 2.5 V Ethernet Magnetics
568
Internal Regulator Disabled, 3.3 V Ethernet Magnetics
640
Internal Regulator Enabled, 2.5 V Ethernet Magnetics
749
Internal Regulator Enabled, 3.3 V Ethernet Magnetics
821
DS00001909A-page 308
2015 Microchip Technology Inc.
LAN9252
18.4
Current Consumption and Power Consumption
This section details the device’s typical supply current consumption and power dissipation for 100BASE-TX and power
management modes of operation with the internal regulator enabled and disabled.
18.4.1
INTERNAL REGULATOR DISABLED
TABLE 18-4: CURRENT CONSUMPTION AND POWER DISSIPATION (REGS. DISABLED)
3.3 V
Device
Current
(mA)
1.2 V
Device
Current
(mA)
TX
Magnetics
Current
(mA)
(A)
(B)
(C)
Note 5,
Note 7
Note 6,
Note 7
Note 8
Device
Power
with 2.5 V
Magnetics
(mW)
Note 9,
Note 10
Device
Power
with 3.3 V
Magnetics
(mW)
Note 9,
Note 11
Reset (RST#)
Typ.
23.6
28.3
0.0
112
112
D0, 100BASE-TX
with Traffic
Typ.
58.7
51.0
82.0
461
526
D0, 100BASE-TX
Idle
Typ.
63.4
49.9
82.0
475
540
D0, PHY Energy Detect
Power Down (both PHYs)
Typ.
7.9
30.8
0.0
64
63
D0, PHY General
Power Down (both PHYs)
Typ.
1.5
30.6
0.0
42
42
D1, 100BASE-TX
Idle
Typ.
63.4
37.5
82.0
460
525
D1, PHY Energy Detect
Power Down (both PHYs)
Typ.
7.8
17.6
0.0
47
47
D1, PHY General
Power Down (both PHYs)
Typ.
1.5
17.7
0.0
27
27
D2, 100BASE-TX
Idle
Typ.
63.4
37.5
82.0
460
525
D2, PHY Energy Detect
Power Down (both PHYs)
Typ.
7.8
6.3
0.0
34
34
D2, PHY General
Power Down (both PHYs)
Typ.
1.5
6.1
0.0
13
13
D3, PHY General
Power Down (both PHYs)
Typ.
1.5
2.7
0.0
9
9
Note 5: VDD33TXRX1, VDD33TXRX2, VDD33BIAS, VDD33, VDDIO
Note 6: VDD12TX1, VDD12TX2, OSCVDD12, VDDCR
Note 7: Current measurements do not include power applied to the magnetics or the optional external LEDs.
Note 8: The Ethernet component current is independent of the supply rail voltage (2.5V or 3.3V) of the transformer.
Two copper TP operation is assumed. Current is half if one PHY is using 100BASE-FX mode. Current is
zero if both PHYs are using 100BASE-FX mode.
Note 9: This includes the power dissipated by the transmitter by way of the current through the transformer.
Note 10: 3.3*(A) + 1.2*(B) + (2.5)*(C) @ Typ
Note 11: 3.3*(A) + 1.2*(B) + (3.3)*(C) @ Typ
2015 Microchip Technology Inc.
DS00001909A-page 309
LAN9252
18.4.2
INTERNAL REGULATOR ENABLED
TABLE 18-5:
CURRENT CONSUMPTION AND POWER DISSIPATION (REGS. ENABLED)
3.3 V
Device
Current
(mA)
TX
Magnetics
Current
(mA)
(A)
(C)
Note 12,
Note 13,
Note 14
Note 15
Device
Power
with 2.5 V
Magnetics
(mW)
Note 16,
Note 17
Device
Power
with 3.3 V
Magnetics
(mW)
Note 16,
Note 18
Reset (RST#)
Typ.
51.2
0.0
169
169
D0, 100BASE-TX
with Traffic
Typ.
112.0
82.0
576
642
D0, 100BASE-TX
Idle
Typ.
113.5
82.0
580
646
D0, PHY Energy Detect
Power Down (both PHYs)
Typ.
39.7
0.0
132
132
D0, PHY General
Power Down (both PHYs)
Typ.
33.0
0.0
109
109
D1, 100BASE-TX
Idle
Typ.
100.5
82.0
537
603
D1, PHY Energy Detect
Power Down (both PHYs)
Typ.
26.0
0.0
86
86
D1, PHY General
Power Down (both PHYs)
Typ.
19.4
0.0
65
65
D2, 100BASE-TX
Idle
Typ.
100.5
82.0
537
603
D2, PHY Energy Detect
Power Down (both PHYs)
Typ.
14.8
0.0
49
49
D2, PHY General
Power Down (both PHYs)
Typ.
7.8
0.0
26
26
D3, PHY General
Power Down (both PHYs)
Typ.
4.3
0.0
15
15
Note 12: VDD33TXRX1, VDD33TXRX2, VDD33BIAS, VDD33, VDDIO
Note 13: VDD12TX1 and VDD12TX2, are driven by the internal regulator via the PCB. The current is accounted for
via VDD33.
Note 14: Current measurements do not include power applied to the magnetics or the optional external LEDs.
Note 15: The Ethernet component current is independent of the supply rail voltage (2.5V or 3.3V) of the transformer.
Two copper TP operation is assumed. Current is half if one PHY is using 100BASE-FX mode. Current is
zero if both PHYs are using 100BASE-FX mode.
Note 16: This includes the power dissipated by the transmitter by way of the current through the transformer.
Note 17: 3.3*(A) + (2.5)*(C) @ Typ
Note 18: 3.3*(A) + (3.3)*(C) @ Typ
DS00001909A-page 310
2015 Microchip Technology Inc.
LAN9252
18.5
DC Specifications
TABLE 18-6:
NON-VARIABLE I/O DC ELECTRICAL CHARACTERISTICS
Parameter
Symbol
Min
Low Input Level
VILI
High Input Level
Typ
Max
Units
-0.3
0.8
V
VIHI
2.0
3.6
V
VHYS
121
151
mV
Input Leakage
(VIN = VSS or VDD33)
IIH
-10
10
µA
Input Capacitance
CIN
3
pF
Pull-Up Impedance
(VIN = VSS)
RDPU
6
8.9
KΩ
Pull-Down Impedance
(VIN = VDD33)
RDPD
52
79
KΩ
Low Input Level
VIL
-0.3
0.8
V
High Input Level
VIH
1.2
VDD33+0.3
V
Differential Input Level
VIN-DIFF
0.1
VDD33TXRXx
V
Common Mode Voltage
VCM
1.0
Input Capacitance
CIN
Notes
IS Type Input Buffer
Schmitt Trigger Hysteresis
(VIHT - VILT)
Note 19
AI Type Input Buffer
(FXSDENA/FXSDENB)
AI Type Input Buffer
(RXPA/RXNA/RXPB/RXNB)
VDD33TXRXx-1.3
V
5
pF
AI Type Input Buffer
(FXLOSEN Input)
State A Threshold
VTHA
-0.3
0.8
V
State B Threshold
VTHB
1.2
1.7
V
State C Threshold
VTHC
2.3
VDD33+0.3
V
Note 20
ICLK Type Input Buffer
(OSCI Input)
Low Input Level
VILI
-0.3
0.35
V
High Input Level
VIHI
OSCVDD12-0.35
3.6
V
Input Leakage
IILCK
-10
10
µA
2015 Microchip Technology Inc.
DS00001909A-page 311
LAN9252
TABLE 18-6:
NON-VARIABLE I/O DC ELECTRICAL CHARACTERISTICS (CONTINUED)
Parameter
Symbol
Min
Low Input Level
VIL-VDD33TXRXx
High Input Level
VIH-VDD33TXRXx
Typ
Max
Units
Notes
VDD33TXRXx+0.3
-1.48
V
Note 21
-1.14
0.3
V
Note 21
VDD33TXRXx-1.62
V
ILVPECL Input Buffer
OLVPECL Output Buffer
Low Output Level
VOL
High Output Level
VOH
VDD33TXRXx-1.025
Peak-to-Peak Differential
(SFF mode)
VDIFF-SFF
1.2
1.6
2.0
V
Peak-to-Peak Differential
(SFP mode)
VDIFF-SFP
0.6
0.8
1.0
V
VCM
1.0
VDD33TXRXx-1.3
V
40
mV
Common Mode Voltage
Offset Voltage
VOFFSET
Load Capacitance
V
CLOAD
10
Note 22
pF
Note 19: This specification applies to all inputs and tri-stated bi-directional pins. Internal pull-down and pull-up resistors add +/- 50 µA per-pin (typical).
Note 20: OSCI can optionally be driven from a 25 MHz singled-ended clock oscillator.
Note 21: LVPECL compatible.
Note 22: VOFFSET is a function of the external resistor network configuration. The listed value is recommended to prevent issues due to crosstalk.
DS00001909A-page 312
2015 Microchip Technology Inc.
LAN9252
TABLE 18-7:
VARIABLE I/O DC ELECTRICAL CHARACTERISTICS
Parameter
1.8 V
Typ
3.3 V
Typ
Symbol
Min
Max
Units
Low Input Level
VILI
-0.3
High Input Level
VIHI
Negative-Going Threshold
VILT
0.64
0.83
Positive-Going Threshold
VIHT
0.81
Schmitt Trigger Hysteresis
(VIHT - VILT)
VHYS
102
Input Leakage
(VIN = VSS or VDDIO)
IIH
-10
Input Capacitance
CIN
Pull-Up Impedance
(VIN = VSS)
RDPU
54
68
82
KΩ
Pull-Up Current
(VIN = VSS)
IDPU
20
27
67
µA
Pull-Down Impedance
(VIN = VDD33)
RDPD
54
68
85
KΩ
Pull-Down Current
(VIN = VDD33)
IDPD
19
26
66
µA
Notes
VIS Type Input Buffer
V
3.6
V
1.41
1.76
V
Schmitt trigger
0.99
1.65
1.90
V
Schmitt trigger
158
138
288
mV
10
µA
2
pF
Note 23
VO8 Type Buffers
Low Output Level
VOL
High Output Level
VOH
0.4
VDDIO - 0.4
V
IOL = 8 mA
V
IOH = -8 mA
VOD8 Type Buffer
Low Output Level
VOL
0.4
V
IOL = 8 mA
Low Output Level
VOL
0.4
V
IOL = 12 mA
High Output Level
VOH
V
IOH = -12 mA
V
IOL = 12 mA
V
IOH = -12 mA
V
IOL = 16 mA
V
IOH = -16 mA
VO12 Type Buffers
VDDIO - 0.4
VOD12 Type Buffer
Low Output Level
VOL
0.4
VOS12 Type Buffers
High Output Level
VOH
VDDIO - 0.4
VO16 Type Buffers
Low Output Level
VOL
High Output Level
VOH
2015 Microchip Technology Inc.
0.4
VDDIO - 0.4
DS00001909A-page 313
LAN9252
Note 23: This specification applies to all inputs and tri-stated bi-directional pins. Internal pull-down and pull-up resistors add ±50 µA per-pin (typical).
TABLE 18-8:
100BASE-TX TRANSCEIVER CHARACTERISTICS
Parameter
Symbol
Min
Typ
Max
Units
Notes
Peak Differential Output Voltage High
VPPH
950
-
1050
mVpk
Note 24
Peak Differential Output Voltage Low
VPPL
-950
-
-1050
mVpk
Note 24
Signal Amplitude Symmetry
VSS
98
-
102
%
Note 24
Signal Rise and Fall Time
TRF
3.0
-
5.0
ns
Note 24
Rise and Fall Symmetry
TRFS
-
-
0.5
ns
Note 24
Duty Cycle Distortion
DCD
35
50
65
%
Note 25
Overshoot and Undershoot
VOS
-
-
5
%
-
-
-
1.4
ns
Jitter
Note 26
Note 24: Measured at line side of transformer, line replaced by 100 Ω (+/- 1%) resistor.
Note 25: Offset from 16 ns pulse width at 50% of pulse peak.
Note 26: Measured differentially.
DS00001909A-page 314
2015 Microchip Technology Inc.
LAN9252
18.6
AC Specifications
This section details the various AC timing specifications of the device.
Note:
The I2C timing adheres to the NXP I2C-Bus Specification. Refer to the NXP I2C-Bus Specification for
detailed I2C timing information.
Note:
The MII/SMI timing adheres to the IEEE 802.3 Specification.
Note:
The RMII timing adheres to the RMII Consortium RMII Specification R1.2.
18.6.1
EQUIVALENT TEST LOAD
Output timing specifications assume the 25 pF equivalent test load, unless otherwise noted, as illustrated in Figure 18-1.
FIGURE 18-1:
OUTPUT EQUIVALENT TEST LOAD
OUTPUT
25 pF
2015 Microchip Technology Inc.
DS00001909A-page 315
LAN9252
18.6.2
POWER SEQUENCING TIMING
These diagrams illustrates the device power sequencing requirements. The VDDIO, VDD33, VDD33TXRX1,
VDD33TXRX2, VDD33BIAS and magnetics power supplies must all reach operational levels within the specified time
period tpon. When operating with the internal regulators disabled, VDDCR, OSCVDD12, VDD12TX1 and VDD12TX2 are
also included into this requirement.
In addition, once the VDDIO power supply reaches 1.0 V, it must reach 80% of its operating voltage level (1.44 V when
operating at 1.8 V, 2.0 V when operating at 2.5 V, 2.64 V when operating at 3.3 V) within an additional 15ms. This
requirement can be safely ignored if using an external reset as shown in Section 18.6.3, "Reset and Configuration Strap
Timing".
Device power supplies can turn off in any order provided they all reach 0 volts within the specified time period tpoff.
FIGURE 18-2:
POWER SEQUENCE TIMING - INTERNAL REGULATORS
tpon
tpoff
VDDIO
Magnetics
Power
VDD33, VDD33BIAS,
VDD33TXRX1, VDD33TXRX2
FIGURE 18-3:
POWER SEQUENCE TIMING - EXTERNAL REGULATORS
tpon
tpoff
VDDIO
Magnetics
Power
VDD33, VDD33BIAS,
VDD33TXRX1, VDD33TXRX2
VDDCR, OSCVDD12,
VDD12TX1, VDD12TX2
TABLE 18-9:
POWER SEQUENCING TIMING VALUES
Symbol
Description
Min
Typ
Max
Units
tpon
Power supply turn on time
-
-
50
ms
tpoff
Power supply turn off time
-
-
500
ms
DS00001909A-page 316
2015 Microchip Technology Inc.
LAN9252
18.6.3
RESET AND CONFIGURATION STRAP TIMING
This diagram illustrates the RST# pin timing requirements and its relation to the configuration strap pins and output
drive. Assertion of RST# is not a requirement. However, if used, it must be asserted for the minimum period specified.
The RST# pin can be asserted at any time, but must not be deasserted until tpurstd after all external power supplies have
reached operational levels. Refer to Section 6.2, "Resets," on page 38 for additional information.
FIGURE 18-4:
All External
Power Supplies
RST# PIN CONFIGURATION STRAP LATCHING TIMING
Vopp
tpurstd
trstia
RST#
tcss
tcsh
Configuration
Strap Pins
todad
Output Drive
TABLE 18-10: RST# PIN CONFIGURATION STRAP LATCHING TIMING VALUES
Symbol
tpurstd
Description
External power supplies at operational level to RST# deassertion
Min
Typ
Max
25
Units
ms
trstia
RST# input assertion time
200
-
-
s
tcss
Configuration strap pins setup to RST# deassertion
200
-
-
ns
tcsh
Configuration strap pins hold after RST# deassertion
10
-
-
ns
todad
Output drive after deassertion
3
-
-
us
Note:
The clock input must be stable prior to RST# deassertion.
Note:
Device configuration straps are latched as a result of RST# assertion. Refer to Section 6.2.1, "Chip-Level
Resets," on page 39 for details.
Note:
Configuration strap latching and output drive timings shown assume that the Power-On reset has finished
first otherwise the timings in Section 18.6.4, "Power-On and Configuration Strap Timing" apply.
2015 Microchip Technology Inc.
DS00001909A-page 317
LAN9252
18.6.4
POWER-ON AND CONFIGURATION STRAP TIMING
This diagram illustrates the configuration strap valid timing requirements in relation to power-on. In order for valid configuration strap values to be read at power-on, the following timing requirements must be met.
FIGURE 18-5:
POWER-ON CONFIGURATION STRAP LATCHING TIMING
All External
Power Supplies
Vopp
tcfg
Configuration Straps
TABLE 18-11: POWER-ON CONFIGURATION STRAP LATCHING TIMING VALUES
Symbol
tcfg
Note:
Description
Configuration strap valid time
Min
Typ
Max
Units
-
-
15
ms
Configuration straps must only be pulled high or low. Configuration straps must not be driven as inputs.
Device configuration straps are also latched as a result of RST# assertion. Refer to Section 18.6.3, "Reset and Configuration Strap Timing" and Section 6.2.1, "Chip-Level Resets," on page 39 for additional details.
DS00001909A-page 318
2015 Microchip Technology Inc.
LAN9252
18.6.5
HOST BUS INTERFACE I/O TIMING
Timing specifications for the Host Bus Interface are given in Section 9.4.5, "Multiplexed Addressing Mode Timing
Requirements," on page 78 and Section 9.5.7, "Indexed Addressing Mode Timing Requirements," on page 98.
18.6.6
SPI/SQI SLAVE INTERFACE I/O TIMING
Timing specifications for the SPI/SQI Slave Bus Interface are given in Section 10.3, "SPI/SQI Timing Requirements," on
page 119.
18.6.7
I2C EEPROM I/O TIMING
Timing specifications for I2C EEPROM access are given in Section 13.1, "I2C Interface Timing Requirements," on
page 295.
18.6.8
ETHERCAT MII PORT MANAGEMENT ACCESS I/O TIMING
Timing specifications for the MII Port Management access are given in Section 12.9.7, "External PHY Timing," on
page 206.
18.6.9
MII I/O TIMING
Timing specifications for the MII Port interface are given in Section 12.9.7, "External PHY Timing," on page 206.
18.6.10
JTAG TIMING
Timing specifications for the JTAG interface are given in Table 17.1.1, “JTAG Timing Requirements,” on page 306.
2015 Microchip Technology Inc.
DS00001909A-page 319
LAN9252
18.7
Clock Circuit
The device can accept either a 25 MHz crystal or a 25 MHz single-ended clock oscillator (±50 ppm) input. If the singleended clock oscillator method is implemented, OSCO should be left unconnected and OSCI should be driven with a
clock signal that adheres to the specifications outlined throughout Section 18.0, "Operational Characteristics". See
Table 18-12 for the recommended crystal specifications.
TABLE 18-12: CRYSTAL SPECIFICATIONS
PARAMETER
SYMBOL
MIN
NOM
Crystal Cut
UNITS
NOTES
AT, typ
Crystal Oscillation Mode
Fundamental Mode
Crystal Calibration Mode
Parallel Resonant Mode
Frequency
MAX
Ffund
-
25.000
-
MHz
802.3 Frequency Tolerance at
25oC
Ftol
-
-
±40
ppm
Note 27
802.3 Frequency Stability Over
Temp
Ftemp
-
-
±40
ppm
Note 27
802.3 Frequency Deviation Over
Time
Fage
-
±3 to 5
-
ppm
Note 28
-
-
±50
ppm
Note 29
Ftol
-
-
±15
ppm
Note 30
EtherCAT Frequency Stability
Over Temp
Ftemp
-
-
±15
ppm
Note 30
EtherCAT Frequency Deviation
Over Time
Fage
-
±3 to 5
-
ppm
Note 28
-
-
±25
ppm
Note 31
802.3 Total Allowable PPM Budget
EtherCAT Frequency Tolerance
at 25oC
EtherCAT Total Allowable PPM
Budget
Shunt Capacitance
CO
-
-
7
pF
Load Capacitance
CL
-
-
18
pF
Drive Level
PW
300
Note 32
-
-
µW
Equivalent Series Resistance
R1
-
-
100
Ω
Note 33
-
Note 34
oC
OSCI Pin Capacitance
-
3 typ
-
pF
Note 35
OSCO Pin Capacitance
-
3 typ
-
pF
Note 35
Operating Temperature Range
Note 27: The maximum allowable values for frequency tolerance and frequency stability are application dependent.
Since any particular application must meet the IEEE ±50 ppm Total PPM Budget, the combination of these
two values must be approximately ±45 ppm (allowing for aging).
Note 28: Frequency Deviation Over Time is also referred to as Aging.
Note 29: The total deviation for 100BASE-TX is ±50 ppm.
Note 30: The maximum allowable values for frequency tolerance and frequency stability are application dependent.
Since any particular application must meet the EtherCAT ±25 ppm Total PPM Budget, the combination of
these two values must be approximately ±15 ppm (allowing for aging).
DS00001909A-page 320
2015 Microchip Technology Inc.
LAN9252
Note 31: The total deviation for EtherCAT is ±25 ppm.
Note 32: The minimum drive level requirement PW is reduced to 100 uW with the addition of a 500 Ω series resistor,
if CO 5 pF, CL 12 pF and R180 Ω
Note 33: 0 °C for commercial version, -40 °C for industrial and extended industrial versions
Note 34: +70 °C for commercial version, +85 °C for industrial version, +105 °C for extended industrial version
Note 35: This number includes the pad, the bond wire and the lead frame. PCB capacitance is not included in this
value. The OSCI pin, OSCO pin and PCB capacitance values are required to accurately calculate the value
of the two external load capacitors. The total load capacitance must be equivalent to what the crystal
expects to see in the circuit so that the crystal oscillator will operate at 25.000 MHz.
2015 Microchip Technology Inc.
DS00001909A-page 321
LAN9252
19.0
PACKAGE OUTLINES
19.1
64-QFN
FIGURE 19-1:
DS00001909A-page 322
64-QFN PACKAGE
2015 Microchip Technology Inc.
LAN9252
FIGURE 19-2:
64-QFN PACKAGE DIMENSIONS
2015 Microchip Technology Inc.
DS00001909A-page 323
LAN9252
19.2
64-TQFP-EP
FIGURE 19-3:
DS00001909A-page 324
64-TQFP-EP PACKAGE
2015 Microchip Technology Inc.
LAN9252
20.0
REVISION HISTORY
TABLE 20-1:
REVISION HISTORY
Revision Level
DS00001909A
(04-08-15)
2015 Microchip Technology Inc.
Section/Figure/Entry
Correction
Initial Release
DS00001909A-page 325
LAN9252
THE MICROCHIP WEB SITE
Microchip provides online support via our WWW site at www.microchip.com. This web site is used as a means to make
files and information easily available to customers. Accessible by using your favorite Internet browser, the web site contains the following information:
• Product Support – Data sheets and errata, application notes and sample programs, design resources, user’s
guides and hardware support documents, latest software releases and archived software
• General Technical Support – Frequently Asked Questions (FAQ), technical support requests, online discussion
groups, Microchip consultant program member listing
• Business of Microchip – Product selector and ordering guides, latest Microchip press releases, listing of seminars and events, listings of Microchip sales offices, distributors and factory representatives
CUSTOMER CHANGE NOTIFICATION SERVICE
Microchip’s customer notification service helps keep customers current on Microchip products. Subscribers will receive
e-mail notification whenever there are changes, updates, revisions or errata related to a specified product family or
development tool of interest.
To register, access the Microchip web site at www.microchip.com. Under “Support”, click on “Customer Change Notification” and follow the registration instructions.
CUSTOMER SUPPORT
Users of Microchip products can receive assistance through several channels:
•
•
•
•
Distributor or Representative
Local Sales Office
Field Application Engineer (FAE)
Technical Support
Customers should contact their distributor, representative or field application engineer (FAE) for support. Local sales
offices are also available to help customers. A listing of sales offices and locations is included in the back of this document.
Technical support is available through the web site at: http://microchip.com/support
DS00001909A-page 326
2015 Microchip Technology Inc.
LAN9252
PRODUCT IDENTIFICATION SYSTEM
To order or obtain information, e.g., on pricing or delivery, refer to the factory or the listed sales office.
[X]
PART NO.
Device
/
[X]
Tape and Reel Temperature
Option
Range
Device:
LAN9252
Tape and Reel
Option:
Blank
T
= Standard packaging (tray)
= Tape and Reel(Note 1)
Temperature
Range:
Blank
I
V
=
0C to +70C
= -40C to +85C
= -40C to +105C
Package:
ML
PT
=
=
64-pin QFN
64-pin TQFP-EP
XX
Package
Examples:
a)
LAN9252/ML
Standard Packaging (Tray),
Commercial Temperature,
64-pin QFN
b)
LAN9252TI/PT
Tape and Reel
Industrial Temperature,
64-pin TQFP-EP
(Commercial)
(Industrial)
(Extended Industrial)(Note 2)
Note
1:
2:
2015 Microchip Technology Inc.
Tape and Reel identifier only appears in
the catalog part number description. This
identifier is used for ordering purposes and
is not printed on the device package.
Check with your Microchip Sales Office for
package availability with the Tape and Reel
option.
Extended industrial temp. support (105ºC)
in the 64-QFN only
DS00001909A-page 327
LAN9252
Note the following details of the code protection feature on Microchip devices:
•
Microchip products meet the specification contained in their particular Microchip Data Sheet.
•
Microchip believes that its family of products is one of the most secure families of its kind on the market today, when used in the
intended manner and under normal conditions.
•
There are dishonest and possibly illegal methods used to breach the code protection feature. All of these methods, to our
knowledge, require using the Microchip products in a manner outside the operating specifications contained in Microchip’s Data
Sheets. Most likely, the person doing so is engaged in theft of intellectual property.
•
Microchip is willing to work with the customer who is concerned about the integrity of their code.
•
Neither Microchip nor any other semiconductor manufacturer can guarantee the security of their code. Code protection does not
mean that we are guaranteeing the product as “unbreakable.”
Code protection is constantly evolving. We at Microchip are committed to continuously improving the code protection features of our
products. Attempts to break Microchip’s code protection feature may be a violation of the Digital Millennium Copyright Act. If such acts
allow unauthorized access to your software or other copyrighted work, you may have a right to sue for relief under that Act.
Information contained in this publication regarding device applications and the like is provided only for your convenience and may be
superseded by updates. It is your responsibility to ensure that your application meets with your specifications. MICROCHIP MAKES NO
REPRESENTATIONS OR WARRANTIES OF ANY KIND WHETHER EXPRESS OR IMPLIED, WRITTEN OR ORAL, STATUTORY OR
OTHERWISE, RELATED TO THE INFORMATION, INCLUDING BUT NOT LIMITED TO ITS CONDITION, QUALITY, PERFORMANCE,
MERCHANTABILITY OR FITNESS FOR PURPOSE. Microchip disclaims all liability arising from this information and its use. Use of
Microchip devices in life support and/or safety applications is entirely at the buyer’s risk, and the buyer agrees to defend, indemnify and
hold harmless Microchip from any and all damages, claims, suits, or expenses resulting from such use. No licenses are conveyed, implicitly or otherwise, under any Microchip intellectual property rights.
Trademarks
The Microchip name and logo, the Microchip logo, dsPIC, FlashFlex, flexPWR, JukeBlox, KEELOQ, KEELOQ logo, Kleer, LANCheck,
MediaLB, MOST, MOST logo, MPLAB, OptoLyzer, PIC, PICSTART, PIC32 logo, RightTouch, SpyNIC, SST, SST Logo, SuperFlash and
UNI/O are registered trademarks of Microchip Technology Incorporated in the U.S.A. and other countries.
The Embedded Control Solutions Company and mTouch are registered trademarks of Microchip Technology Incorporated in the U.S.A.
Analog-for-the-Digital Age, BodyCom, chipKIT, chipKIT logo, CodeGuard, dsPICDEM, dsPICDEM.net, ECAN, In-Circuit Serial
Programming, ICSP, Inter-Chip Connectivity, KleerNet, KleerNet logo, MiWi, MPASM, MPF, MPLAB Certified logo, MPLIB, MPLINK,
MultiTRAK, NetDetach, Omniscient Code Generation, PICDEM, PICDEM.net, PICkit, PICtail, RightTouch logo, REAL ICE, SQI, Serial
Quad I/O, Total Endurance, TSHARC, USBCheck, VariSense, ViewSpan, WiperLock, Wireless DNA, and ZENA are trademarks of
Microchip Technology Incorporated in the U.S.A. and other countries.
SQTP is a service mark of Microchip Technology Incorporated in the U.S.A.
Silicon Storage Technology is a registered trademark of Microchip Technology Inc. in other countries.
GestIC is a registered trademarks of Microchip Technology Germany II GmbH & Co. KG, a subsidiary of Microchip Technology Inc., in
other countries.
All other trademarks mentioned herein are property of their respective companies.
© 2015, Microchip Technology Incorporated, Printed in the U.S.A., All Rights Reserved.
ISBN:9781632771957
QUALITY MANAGEMENT SYSTEM
CERTIFIED BY DNV
== ISO/TS 16949 ==
DS00001909A-page 328
Microchip received ISO/TS-16949:2009 certification for its worldwide
headquarters, design and wafer fabrication facilities in Chandler and
Tempe, Arizona; Gresham, Oregon and design centers in California
and India. The Company’s quality system processes and procedures
are for its PIC® MCUs and dsPIC® DSCs, KEELOQ® code hopping
devices, Serial EEPROMs, microperipherals, nonvolatile memory and
analog products. In addition, Microchip’s quality system for the design
and manufacture of development systems is ISO 9001:2000 certified.
2015 Microchip Technology Inc.
Worldwide Sales and Service
AMERICAS
ASIA/PACIFIC
ASIA/PACIFIC
EUROPE
Corporate Office
2355 West Chandler Blvd.
Chandler, AZ 85224-6199
Tel: 480-792-7200
Fax: 480-792-7277
Technical Support:
http://www.microchip.com/
support
Web Address:
www.microchip.com
Asia Pacific Office
Suites 3707-14, 37th Floor
Tower 6, The Gateway
Harbour City, Kowloon
China - Xiamen
Tel: 86-592-2388138
Fax: 86-592-2388130
Austria - Wels
Tel: 43-7242-2244-39
Fax: 43-7242-2244-393
China - Zhuhai
Tel: 86-756-3210040
Fax: 86-756-3210049
Denmark - Copenhagen
Tel: 45-4450-2828
Fax: 45-4485-2829
India - Bangalore
Tel: 91-80-3090-4444
Fax: 91-80-3090-4123
France - Paris
Tel: 33-1-69-53-63-20
Fax: 33-1-69-30-90-79
India - New Delhi
Tel: 91-11-4160-8631
Fax: 91-11-4160-8632
Germany - Dusseldorf
Tel: 49-2129-3766400
Atlanta
Duluth, GA
Tel: 678-957-9614
Fax: 678-957-1455
Hong Kong
Tel: 852-2943-5100
Fax: 852-2401-3431
Australia - Sydney
Tel: 61-2-9868-6733
Fax: 61-2-9868-6755
China - Beijing
Tel: 86-10-8569-7000
Fax: 86-10-8528-2104
Austin, TX
Tel: 512-257-3370
China - Chengdu
Tel: 86-28-8665-5511
Fax: 86-28-8665-7889
Boston
Westborough, MA
Tel: 774-760-0087
Fax: 774-760-0088
China - Chongqing
Tel: 86-23-8980-9588
Fax: 86-23-8980-9500
Chicago
Itasca, IL
Tel: 630-285-0071
Fax: 630-285-0075
Cleveland
Independence, OH
Tel: 216-447-0464
Fax: 216-447-0643
Dallas
Addison, TX
Tel: 972-818-7423
Fax: 972-818-2924
Detroit
Novi, MI
Tel: 248-848-4000
Houston, TX
Tel: 281-894-5983
Indianapolis
Noblesville, IN
Tel: 317-773-8323
Fax: 317-773-5453
Los Angeles
Mission Viejo, CA
Tel: 949-462-9523
Fax: 949-462-9608
New York, NY
Tel: 631-435-6000
San Jose, CA
Tel: 408-735-9110
China - Dongguan
Tel: 86-769-8702-9880
China - Hangzhou
Tel: 86-571-8792-8115
Fax: 86-571-8792-8116
India - Pune
Tel: 91-20-3019-1500
Japan - Osaka
Tel: 81-6-6152-7160
Fax: 81-6-6152-9310
Japan - Tokyo
Tel: 81-3-6880- 3770
Fax: 81-3-6880-3771
Korea - Daegu
Tel: 82-53-744-4301
Fax: 82-53-744-4302
China - Hong Kong SAR
Tel: 852-2943-5100
Fax: 852-2401-3431
Korea - Seoul
Tel: 82-2-554-7200
Fax: 82-2-558-5932 or
82-2-558-5934
China - Nanjing
Tel: 86-25-8473-2460
Fax: 86-25-8473-2470
Malaysia - Kuala Lumpur
Tel: 60-3-6201-9857
Fax: 60-3-6201-9859
China - Qingdao
Tel: 86-532-8502-7355
Fax: 86-532-8502-7205
Malaysia - Penang
Tel: 60-4-227-8870
Fax: 60-4-227-4068
China - Shanghai
Tel: 86-21-5407-5533
Fax: 86-21-5407-5066
Philippines - Manila
Tel: 63-2-634-9065
Fax: 63-2-634-9069
China - Shenyang
Tel: 86-24-2334-2829
Fax: 86-24-2334-2393
Singapore
Tel: 65-6334-8870
Fax: 65-6334-8850
China - Shenzhen
Tel: 86-755-8864-2200
Fax: 86-755-8203-1760
Taiwan - Hsin Chu
Tel: 886-3-5778-366
Fax: 886-3-5770-955
China - Wuhan
Tel: 86-27-5980-5300
Fax: 86-27-5980-5118
Taiwan - Kaohsiung
Tel: 886-7-213-7828
China - Xian
Tel: 86-29-8833-7252
Fax: 86-29-8833-7256
Canada - Toronto
Tel: 905-673-0699
Fax: 905-673-6509
Germany - Munich
Tel: 49-89-627-144-0
Fax: 49-89-627-144-44
Germany - Pforzheim
Tel: 49-7231-424750
Italy - Milan
Tel: 39-0331-742611
Fax: 39-0331-466781
Italy - Venice
Tel: 39-049-7625286
Netherlands - Drunen
Tel: 31-416-690399
Fax: 31-416-690340
Poland - Warsaw
Tel: 48-22-3325737
Spain - Madrid
Tel: 34-91-708-08-90
Fax: 34-91-708-08-91
Sweden - Stockholm
Tel: 46-8-5090-4654
UK - Wokingham
Tel: 44-118-921-5800
Fax: 44-118-921-5820
Taiwan - Taipei
Tel: 886-2-2508-8600
Fax: 886-2-2508-0102
Thailand - Bangkok
Tel: 66-2-694-1351
Fax: 66-2-694-1350
01/27/15
