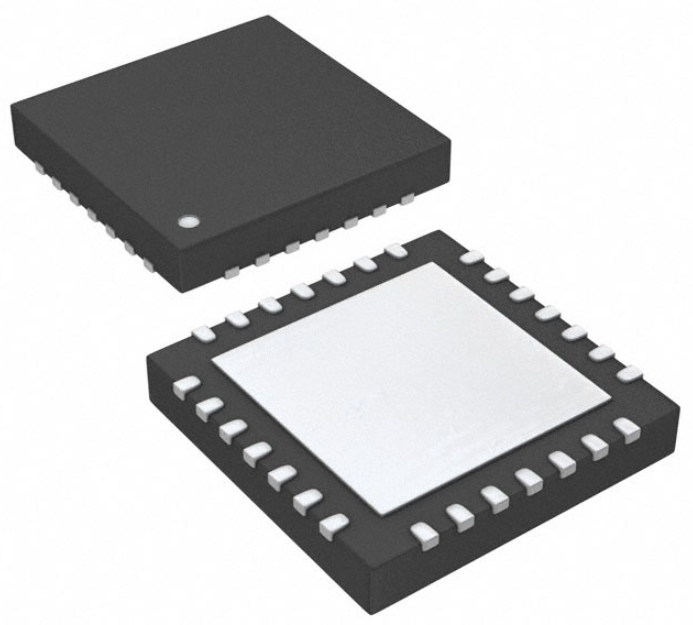

MCP23017-E/ML

MCP23017/MCP23S17 16-Bit I/O Expander with Serial Interface • Configurable Interrupt Source: - Interrupt-on-change from configured register defaults or pin changes • Polarity Inversion Register to Configure the Polarity of the Input Port Data • External Reset Input • Low Standby Current: 1 µA (max.) • Operating Voltage: - 1.8V to 5.5V @ -40°C to +85°C - 2.7V to 5.5V @ -40°C to +85°C - 4.5V to 5.5V @ -40°C to +125°C Features • 16-Bit Remote Bidirectional I/O Port: - I/O pins default to input • High-Speed I2C Interface (MCP23017): - 100 kHz - 400 kHz - 1.7 MHz • High-Speed SPI Interface (MCP23S17): - 10 MHz (maximum) • Three Hardware Address Pins to Allow Up to Eight Devices On the Bus • Configurable Interrupt Output Pins: - Configurable as active-high, active-low or open-drain • INTA and INTB Can Be Configured to Operate Independently or Together Packages • • • • 28-pin QFN, 6 x 6 mm Body 28-pin SOIC, Wide, 7.50 mm Body 28-pin SPDIP, 300 mil Body 28-pin SSOP, 5.30 mm Body Package Types MCP23017 SOIC SPDIP SSOP •1 2 3 4 5 6 7 8 9 10 11 12 13 14 GPB0 GPB1 GPB2 GPB3 GPB4 GPB5 GPB6 GPB7 VDD VSS CS SCK SI SO GPB4 GPB5 GPB6 GPB7 VDD VSS 28 2726 2524 2322 21 20 19 EP 18 29 * 17 16 15 8 9 1011 121314 SCK SDA NC A0 A1 A2 RESET NC 1 2 3 4 5 6 7  2005-2016 Microchip Technology Inc. 28 27 26 25 24 23 22 21 20 19 18 17 16 15 GPA7 GPA6 GPA5 GPA4 GPA3 GPA2 GPA1 GPA0 INTA INTB RESET A2 A1 A0 GPB3 GPB2 GPB1 GPB0 GPA7 GPA6 GPA5 GPA7 GPA6 GPA5 GPA4 GPA3 GPA2 GPA1 GPA0 INTA INTB RESET A2 A1 A0 GPB3 GPB2 GPB1 GPB0 GPA7 GPA6 GPA5 28 27 26 25 24 23 22 21 20 19 18 17 16 15 GPA4 GPA3 GPA2 GPA1 GPA0 INTA INTB QFN GPB4 GPB5 GPB6 GPB7 VDD VSS CS * Includes Exposed Thermal Pad; see Table 2-1. 1 2 3 4 5 6 7 28 2726 25 24 23 22 21 20 19 EP 18 29 * 17 16 15 8 9 10 11 121314 GPA4 GPA3 GPA2 GPA1 GPA0 INTA INTB SCK SI SO A0 A1 A2 RESET •1 2 3 4 5 6 7 8 9 10 11 12 13 14 GPB0 GPB1 GPB2 GPB3 GPB4 GPB5 GPB6 GPB7 VDD VSS NC SCK SDA NC MCP23S17 DS20001952C-page 1 MCP23017/MCP23S17 Functional Block Diagram MCP23S17 CS SCK SI SO SPI MCP23017 SCL SDA 2 I C 3 A2:A0 GPIO GPA7 GPA6 GPA5 GPA4 GPA3 GPA2 GPA1 GPA0 Decode RESET INTA INTB GPIO GPB7 GPB6 GPB5 GPB4 GPB3 GPB2 GPB1 GPB0 Serializer/ Deserializer Control 16 Interrupt Logic 8 Configuration/ Control Registers DS20001952C-page 2  2005-2016 Microchip Technology Inc. MCP23017/MCP23S17 1.0 ELECTRICAL CHARACTERISTICS Absolute Maximum Ratings † Ambient temperature under bias.............................................................................................................-40°C to +125°C Storage temperature ...............................................................................................................................-65°C to +150°C Voltage on VDD with respect to VSS .......................................................................................................... -0.3V to +5.5V Voltage on all other pins with respect to VSS (except VDD)............................................................. -0.6V to (VDD + 0.6V) Total power dissipation.........................................................................................................................................700 mW Maximum current out of VSS pin ...........................................................................................................................150 mA Maximum current into VDD pin ..............................................................................................................................125 mA Input clamp current, IIK (VI < 0 or VI > VDD).......................................................................................................... ±20 mA Output clamp current, IOK (VO < 0 or VO > VDD)...................................................................................................±20 mA Maximum output current sunk by any output pin ....................................................................................................25 mA Maximum output current sourced by any output pin ...............................................................................................25 mA ESD protection on all pins (HBM:MM) ..............................................................................................................4 kV:400V † Notice: Stresses above those listed under “Maximum Ratings” may cause permanent damage to the device. This is a stress rating only and functional operation of the device at those or any other conditions above those indicated in the operational listings of this specification is not implied. Exposure to maximum rating conditions for extended periods may affect device reliability.  2005-2016 Microchip Technology Inc. DS20001952C-page 3 MCP23017/MCP23S17 1.1 DC Characteristics TABLE 1-1: DC CHARACTERISTICS Electrical Specifications: Unless otherwise noted, 1.8V VDD  5.5V at -40C  TA  +125C Param. No. Characteristic Sym. Min. Typ.(1) Max. Units Conditions D001 Supply Voltage VDD 1.8 — 5.5 V D002 VDD Start Voltage to ensure Power-on Reset VPOR — VSS — V D003 VDD Rise Rate to ensure Power-on Reset SVDD 0.05 — — V/ms D004 Supply Current IDD — — 1 mA SCL/SCK = 1 MHz D005 Standby current IDDS8 — — 1 µA -40°C  TA  +85°C — — 3 µA 4.5V VDD 5.5V +85°C  TA +125C (Note 1) Design guidance only. Not tested. Input Low Voltage D030 A0, A1, A2 (TTL buffer) VIL VSS — 0.15 VDD V D031 CS, GPIO, SCL/SCK, SDA, RESET (Schmitt Trigger) VIL VSS — 0.2 VDD V Input High Voltage D040 A0, A1, A2 (TTL buffer) VIH 0.25 VDD + 0.8 — VDD V D041 CS, GPIO, SCL/SCK, SDA, RESET (Schmitt Trigger) VIH 0.8 VDD — VDD V For entire VDD range IIL — — ±1 µA VSS VPIN VDD Input Leakage Current D060 I/O port pins Output Leakage Current D065 I/O port pins ILO — — ±1 µA VSS VPIN VDD D070 GPIO weak pull-up current IPU 40 75 115 µA VDD = 5V GP pins = VSS GPIO VOL — — 0.6 V IOL = 8.0 mA VDD = 4.5V INT VOL — — 0.6 V IOL = 1.6 mA VDD = 4.5V SO, SDA VOL — — 0.6 V IOL = 3.0 mA VDD = 1.8V SDA VOL — — 0.8 V IOL = 3.0 mA VDD = 4.5V VOH VDD – 0.7 — — V IOH = -3.0 mA VDD = 4.5V VDD – 0.7 — — Output Low-Voltage D080 Output High-Voltage D090 GPIO, INT, SO IOH = -400 µA VDD = 1.8V Capacitive Loading Specs on Output Pins D101 GPIO, SO, INT CIO — — 50 pF D102 SDA CB — — 400 pF Note 1: This parameter is characterized, not 100% tested. DS20001952C-page 4  2005-2016 Microchip Technology Inc. MCP23017/MCP23S17 1.2 AC Characteristics FIGURE 1-1: LOAD CONDITIONS FOR DEVICE TIMING SPECIFICATIONS VDD Pin 1 k SCL and SDA pin MCP23017 50 pF 135 pF FIGURE 1-2: RESET AND DEVICE RESET TIMER TIMING VDD RESET 30 32 Internal RESET 34 Output pin TABLE 1-2: DEVICE RESET SPECIFICATIONS AC Characteristics: Unless otherwise noted, 1.8V VDD  5.5V at -40C  TA  +125C Param. No. Characteristic Sym. Min. Typ. (1) Max. Units 30 RESET Pulse Width (Low) TRSTL 1 — — µs 32 Device Active After Reset high THLD — 0 — ns 34 Output High-Impedance From RESET Low TIOZ — — 1 µs Note 1: Conditions VDD = 5.0V This parameter is characterized, not 100% tested.  2005-2016 Microchip Technology Inc. DS20001952C-page 5 MCP23017/MCP23S17 I2C BUS START/STOP BITS TIMING FIGURE 1-3: SCL 93 91 90 92 SDA Stop Condition Start Condition I2C BUS DATA TIMING FIGURE 1-4: 103 102 100 101 SCL 90 106 91 92 107 SDA In 110 109 109 SDA Out TABLE 1-3: I2C BUS DATA REQUIREMENTS I2C Interface AC Characteristics: Unless otherwise noted, 1.8V VDD  5.5V at -40C  TA  +125C, RPU (SCL, SDA) = 1 k, CL (SCL, SDA) = 135 pF Param. No. 100 Characteristic Clock High Time: Sym. — µs 1.8V – 5.5V 0.6 — — µs 2.7V – 5.5V 0.12 — — µs 4.5V – 5.5V 4.7 — — µs 1.8V – 5.5V Clock Low Time: TLOW 400 kHz mode 1.3 — — µs 2.7V – 5.5V 1.7 MHz mode 0.32 — — µs 4.5V – 5.5V — 1000 ns 1.8V – 5.5V SDA and SCL Rise Time: TR (1) — 400 kHz mode 20 + 0.1 CB 1.7 MHz mode SDA and SCL Fall Time: 100 kHz mode 400 kHz mode 1.7 MHz mode Note 1: 2: — Conditions 1.7 MHz mode 100 kHz mode 103 4.0 Max. Units 400 kHz mode 100 kHz mode 102 Typ. THIGH 100 kHz mode 101 Min. (2) 20 — 300 ns 2.7V – 5.5V — 160 ns 4.5V – 5.5V — 300 ns 1.8V – 5.5V — 300 ns 2.7V – 5.5V — 80 ns 4.5V – 5.5V TF (1) — 20 + 0.1 CB 20 (2) This parameter is characterized, not 100% tested. CB is specified to be from 10 to 400 pF. DS20001952C-page 6  2005-2016 Microchip Technology Inc. MCP23017/MCP23S17 TABLE 1-3: I2C BUS DATA REQUIREMENTS (CONTINUED) I2C Interface AC Characteristics: Unless otherwise noted, 1.8V VDD  5.5V at -40C  TA  +125C, RPU (SCL, SDA) = 1 k, CL (SCL, SDA) = 135 pF Param. No. Characteristic Sym. 90 START Condition Setup Time: TSU:STA Min. Typ. 100 kHz mode 4.7 — — µs 1.8V – 5.5V 400 kHz mode 0.6 — — µs 2.7V – 5.5V 0.16 — — µs 4.5V – 5.5V 100 kHz mode 4.0 — — µs 1.8V – 5.5V 400 kHz mode 0.6 — — µs 2.7V – 5.5V 0.16 — — µs 4.5V – 5.5V 100 kHz mode 0 — 3.45 µs 1.8V – 5.5V 400 kHz mode 0 — 0.9 µs 2.7V – 5.5V 0 — 0.15 µs 4.5V – 5.5V 100 kHz mode 250 — — ns 1.8V – 5.5V 400 kHz mode 100 — — ns 2.7V – 5.5V 0.01 — — µs 4.5V – 5.5V 100 kHz mode 4.0 — — µs 1.8V – 5.5V 400 kHz mode 0.6 — — µs 2.7V – 5.5V 0.16 — — µs 4.5V–5.5V 100 kHz mode — — 3.45 µs 1.8V – 5.5V 400 kHz mode — — 0.9 µs 2.7V – 5.5V — — 0.18 µs 4.5V – 5.5V 100 kHz mode 4.7 — — µs 1.8V – 5.5V 400 kHz mode 1.3 — — µs 2.7V – 5.5V N/A — N/A µs 4.5V – 5.5V 100 kHz and 400 kHz — — 400 pF Note 1 1.7 MHz — — 100 pF Note 1 100 kHz and 400 kHz — — 50 ns 1.7 MHz — — 10 ns 1.7 MHz mode 91 START Condition Hold Time: Data Input Hold Time: THD:DAT 1.7 MHz mode 107 Data Input Setup Time: TSU:DAT 1.7 MHz mode 92 Stop Condition Setup Time: TSU:STO 1.7 MHz mode 109 Output Valid From Clock: TAA 1.7 MHz mode 110 Bus Free Time: TBUF 1.7 MHz mode 111 112 Note 1: 2: Bus Capacitive Loading: Input Filter Spike Suppression (SDA and SCL): Conditions THD:STA 1.7 MHz mode 106 Max. Units CB TSP Spike suppression off This parameter is characterized, not 100% tested. CB is specified to be from 10 to 400 pF.  2005-2016 Microchip Technology Inc. DS20001952C-page 7 MCP23017/MCP23S17 FIGURE 1-5: SPI INPUT TIMING 3 CS (1) 11 10 6 1 2 7 Mode 1,1 SCK Mode 0,0 4 5 SI MSB in LSB in High-Impedance SO Note 1: When using SPI Mode 1,1 the CS pin needs to be toggled once before the first communication after power-up. FIGURE 1-6: SPI OUTPUT TIMING CS 8 2 9 SCK Mode 1,1 Mode 0,0 12 14 13 SO MSB out LSB out Don’t Care SI TABLE 1-4: SPI INTERFACE REQUIREMENTS SPI Interface AC Characteristics: Unless otherwise noted, 1.8V VDD  5.5V at -40C  TA  +125C Param. No. — Characteristic Clock Frequency Sym. Min. Typ. Max. Units Conditions FCLK — — 5 MHz 1.8V – 5.5V — — 10 MHz 2.7V – 5.5V — — 10 MHz 4.5V – 5.5V 1 CS Setup Time TCSS 50 — — ns 2 CS Hold Time TCSH 100 — — ns 1.8V – 5.5V 50 — — ns 2.7V – 5.5V 100 — — ns 1.8V – 5.5V 50 — — ns 2.7V – 5.5V 20 — — ns 1.8V – 5.5V 10 — — ns 2.7V – 5.5V 3 4 Note 1: CS Disable Time Data Setup Time TCSD TSU This parameter is characterized, not 100% tested. DS20001952C-page 8  2005-2016 Microchip Technology Inc. MCP23017/MCP23S17 TABLE 1-4: SPI INTERFACE REQUIREMENTS (CONTINUED) SPI Interface AC Characteristics: Unless otherwise noted, 1.8V VDD  5.5V at -40C  TA  +125C Param. No. 5 Characteristic Data Hold Time Sym. Min. Typ. Max. Units Conditions THD 20 — — ns 1.8V – 5.5V 10 — — ns 2.7V – 5.5V — 2 µs Note 1 6 CLK Rise Time TR — 7 CLK Fall Time TF — — 2 µs Note 1 8 Clock High Time THI 90 — — ns 1.8V – 5.5V 45 — — ns 2.7V – 5.5V 90 — — ns 1.8V – 5.5V 45 — — ns 2.7V – 5.5V — — ns 9 Clock Low Time TLO 10 Clock Delay Time TCLD 50 11 Clock Enable Time TCLE 50 — — ns 12 Output Valid from Clock Low TV — — 90 ns 1.8V – 5.5V — — 45 ns 2.7V – 5.5V 13 Output Hold Time THO 0 — — ns 14 Output Disable Time TDIS — — 100 ns Note 1: This parameter is characterized, not 100% tested. FIGURE 1-7: GPIO AND INT TIMING SCL/SCK SDA/SI In D1 D0 LSb of data byte zero during a write or read command, depending on parameter 50 GPn Output Pin 51 INT Pin INT Pin Active GPn Input Pin Inactive 53 52 Register Loaded  2005-2016 Microchip Technology Inc. DS20001952C-page 9 MCP23017/MCP23S17 TABLE 1-5: GP AND INT PINS REQUIREMENTS GP and INT Pins AC Characteristics: Unless otherwise noted, 1.8V VDD  5.5V at -40C  TA  +125C Param. No. Characteristic Sym. Min. Typ. Max. Units 50 Serial Data to Output Valid TGPOV — — 500 ns 51 Interrupt Pin Disable Time TINTD — — 600 ns 52 GP Input Change to Register Valid TGPIV — — 450 ns 53 IOC Event to INT Active TGPINT — — 600 ns Glitch Filter on GP Pins TGLITCH — — 150 ns Note 1: Conditions Note 1 This parameter is characterized, not 100% tested. DS20001952C-page 10  2005-2016 Microchip Technology Inc. MCP23017/MCP23S17 2.0 PIN DESCRIPTIONS The descriptions of the pins are listed in Table 2-1. TABLE 2-1: PINOUT DESCRIPTION QFN SOIC SPDIP SSOP Pin Type Function GPB0 25 1 I/O Bidirectional I/O pin. Can be enabled for interrupt-on-change and/or internal weak pull-up resistor. GPB1 26 2 I/O Bidirectional I/O pin. Can be enabled for interrupt-on-change and/or internal weak pull-up resistor. GPB2 27 3 I/O Bidirectional I/O pin. Can be enabled for interrupt-on-change and/or internal weak pull-up resistor. GPB3 28 4 I/O Bidirectional I/O pin. Can be enabled for interrupt-on-change and/or internal weak pull-up resistor. GPB4 1 5 I/O Bidirectional I/O pin. Can be enabled for interrupt-on-change and/or internal weak pull-up resistor. GPB5 2 6 I/O Bidirectional I/O pin. Can be enabled for interrupt-on-change and/or internal weak pull-up resistor. GPB6 3 7 I/O Bidirectional I/O pin. Can be enabled for interrupt-on-change and/or internal weak pull-up resistor. GPB7 4 8 I/O Bidirectional I/O pin. Can be enabled for interrupt-on-change and/or internal weak pull-up resistor. VDD 5 9 P Power VSS 6 10 P Ground NC/CS 7 11 I NC (MCP23017)/Chip Select (MCP23S17) SCK 8 12 I Serial clock input SDA/SI 9 13 I/O Serial data I/O (MCP23017)/Serial data input (MCP23S17) NC/SO 10 14 O NC (MCP23017)/Serial data out (MCP23S17) A0 11 15 I Hardware address pin. Must be externally biased. A1 12 16 I Hardware address pin. Must be externally biased. A2 13 17 I Hardware address pin. Must be externally biased. RESET 14 18 I Hardware reset. Must be externally biased. INTB 15 19 O Interrupt output for PORTB. Can be configured as active-high, active-low or open-drain. INTA 16 20 O Interrupt output for PORTA. Can be configured as active-high, active-low or open-drain. GPA0 17 21 I/O Bidirectional I/O pin. Can be enabled for interrupt-on-change and/or internal weak pull-up resistor. GPA1 18 22 I/O Bidirectional I/O pin. Can be enabled for interrupt-on-change and/or internal weak pull-up resistor. GPA2 19 23 I/O Bidirectional I/O pin. Can be enabled for interrupt-on-change and/or internal weak pull-up resistor. GPA3 20 24 I/O Bidirectional I/O pin. Can be enabled for interrupt-on-change and/or internal weak pull-up resistor. GPA4 21 25 I/O Bidirectional I/O pin. Can be enabled for interrupt-on-change and/or internal weak pull-up resistor. GPA5 22 26 I/O Bidirectional I/O pin. Can be enabled for interrupt-on-change and/or internal weak pull-up resistor. GPA6 23 27 I/O Bidirectional I/O pin. Can be enabled for interrupt-on-change and/or internal weak pull-up resistor. GPA7 24 28 I/O Bidirectional I/O pin. Can be enabled for interrupt-on-change and/or internal weak pull-up resistor. EP 29 — — Exposed Thermal Pad. Either connect to VSS, or leave unconnected. Pin Name  2005-2016 Microchip Technology Inc. DS20001952C-page 11 MCP23017/MCP23S17 3.0 DEVICE OVERVIEW The MCP23017/MCP23S17 (MCP23X17) device family provides 16-bit, general purpose parallel I/O expansion for I2C bus or SPI applications. The two devices differ only in the serial interface: • MCP23017 – I2C interface • MCP23S17 – SPI interface The MCP23X17 consists of multiple 8-bit configuration registers for input, output and polarity selection. The system master can enable the I/Os as either inputs or outputs by writing the I/O configuration bits (IODIRA/B). The data for each input or output is kept in the corresponding input or output register. The polarity of the Input Port register can be inverted with the Polarity Inversion register. All registers can be read by the system master. The 16-bit I/O port functionally consists of two 8-bit ports (PORTA and PORTB). The MCP23X17 can be configured to operate in the 8-bit or 16-bit modes via IOCON.BANK. There are two interrupt pins, INTA and INTB, that can be associated with their respective ports, or can be logically OR’ed together so that both pins will activate if either port causes an interrupt. The interrupt output can be configured to activate under two conditions (mutually exclusive): 1. 2. When any input state differs from its corresponding Input Port register state. This is used to indicate to the system master that an input state has changed. When an input state differs from a preconfigured register value (DEFVAL register). The Interrupt Capture register captures port values at the time of the interrupt, thereby saving the condition that caused the interrupt. 3.2 Serial Interface This block handles the functionality of the I2C (MCP23017) or SPI (MCP23S17) interface protocol. The MCP23X17 contains 22 individual registers (11 register pairs) that can be addressed through the Serial Interface block, as shown in Table 3-1. TABLE 3-1: REGISTER ADDRESSES Address Address IOCON.BANK = 1 IOCON.BANK = 0 00h 10h 01h 11h 02h 12h 03h 13h 04h 14h 05h 15h 06h 16h 07h 17h 08h 18h 09h 19h 0Ah 1Ah 00h 01h 02h 03h 04h 05h 06h 07h 08h 09h 0Ah 0Bh 0Ch 0Dh 0Eh 0Fh 10h 11h 12h 13h 14h 15h Access to: IODIRA IODIRB IPOLA IPOLB GPINTENA GPINTENB DEFVALA DEFVALB INTCONA INTCONB IOCON IOCON GPPUA GPPUB INTFA INTFB INTCAPA INTCAPB GPIOA GPIOB OLATA OLATB The Power-on Reset (POR) sets the registers to their default values and initializes the device state machine. The hardware address pins are used to determine the device address. 3.1 Power-on Reset (POR) The on-chip POR circuit holds the device in reset until VDD has reached a high enough voltage to deactivate the POR circuit (i.e., release the device from reset). The maximum VDD rise time is specified in Section 1.0 “Electrical Characteristics”. When the device exits the POR condition (releases reset), device operating parameters (i.e., voltage, temperature, serial bus frequency, etc.) must be met to ensure proper operation. DS20001952C-page 12  2005-2016 Microchip Technology Inc. MCP23017/MCP23S17 3.2.1 BYTE MODE AND SEQUENTIAL MODE These two modes are not to be confused with single writes/reads and continuous writes/reads that are serial protocol sequences. For example, the device may be configured for Byte mode and the master may perform a continuous read. In this case, the MCP23X17 would not increment the Address Pointer and would repeatedly drive data from the same location. The MCP23X17 family has the ability to operate in Byte mode or Sequential mode (IOCON.SEQOP). Byte mode disables automatic Address Pointer incrementing. When operating in Byte mode, the MCP23X17 family does not increment its internal address counter after each byte during the data transfer. This gives the ability to continually access the same address by providing extra clocks (without additional control bytes). This is useful for polling the GPIO register for data changes or for continually writing to the output latches. 3.2.2 3.2.2.1 I2C Write Operation The I2C write operation includes the control byte and register address sequence, as shown in Figure 3-1. This sequence is followed by eight bits of data from the master and an Acknowledge (ACK) from the MCP23017. The operation is ended with a Stop (P) or Restart (SR) condition being generated by the master. A special mode (Byte mode with IOCON.BANK = 0) causes the address pointer to toggle between associated A/B register pairs. For example, if the BANK bit is cleared and the Address Pointer is initially set to address 12h (GPIOA) or 13h (GPIOB), the pointer will toggle between GPIOA and GPIOB. Note that the Address Pointer can initially point to either address in the register pair. Data is written to the MCP23017 after every byte transfer. If a Stop or Restart condition is generated during a data transfer, the data will not be written to the MCP23017. Sequential mode enables automatic address pointer incrementing. When operating in Sequential mode, the MCP23X17 family increments its address counter after each byte during the data transfer. The Address Pointer automatically rolls over to address 00h after accessing the last register. FIGURE 3-1: I2C INTERFACE Both “byte writes” and “sequential writes” are supported by the MCP23017. If Sequential mode is enabled (IOCON, SEQOP = 0) (default), the MCP23017 increments its address counter after each ACK during the data transfer. BYTE AND SEQUENTIAL WRITE S - Start SR - Restart Byte S OP W ADDR DIN Sequential S OP W ADDR DIN P .... DIN P P - Stop W - Write R - Read OP - Device opcode ADDR - Device register address DOUT - Data out from MCP23017 DIN - Data in to MCP23017  2005-2016 Microchip Technology Inc. DS20001952C-page 13 MCP23017/MCP23S17 3.2.2.2 I2C Read Operation I2C Read operations include the control byte sequence, as shown in Figure 3-2. This sequence is followed by another control byte (including the Start condition and ACK) with the R/W bit set (R/W = 1). The MCP23017 then transmits the data contained in the addressed register. The sequence is ended with the master generating a Stop or Restart condition. FIGURE 3-2: 3.2.2.3 BYTE AND SEQUENTIAL READ Byte S OP W SR OP R DOUT Sequential S OP W SR OP R DOUT I2C Sequential Write/Read P DOUT .... P The sequence ends with the master sending a Stop or Restart condition. For sequential operations (Write or Read), instead of transmitting a Stop or Restart condition after the data transfer, the master clocks the next byte pointed to by the address pointer (see Section 3.2.1 “Byte Mode and Sequential Mode” for details regarding sequential operation control). The MCP23017 Address Pointer will roll over to address zero after reaching the last register address. Refer to Figure 3-3. MCP23017 I2C DEVICE PROTOCOL FIGURE 3-3: S OP DIN W ADDR DIN .... P SR OP R DOUT .... D OUT P SR OP W DIN DIN P .... P S OP DOUT R SR SR OP OP W DOUT .... R ADDR P DOUT .... DOUT P DIN .... DIN P P DS20001952C-page 14  2005-2016 Microchip Technology Inc. MCP23017/MCP23S17 3.2.3 SPI INTERFACE 3.2.3.1 four fixed bits and three user-defined hardware address bits (pins A2, A1 and A0). Figure 3-4 shows the control byte format. SPI Write Operation The SPI write operation is started by lowering CS. The Write command (slave address with R/W bit cleared) is then clocked into the device. The opcode is followed by an address and at least one data byte. 3.2.3.2 3.3.2 ADDRESSING SPI DEVICES (MCP23S17) The MCP23S17 is a slave SPI device. The slave address contains four fixed bits and three user-defined hardware address bits (if enabled via IOCON.HAEN) (pins A2, A1 and A0) with the read/write bit filling out the control byte. Figure 3-5 shows the control byte format. The address pins should be externally biased even if disabled (IOCON.HAEN = 0). SPI Read Operation The SPI read operation is started by lowering CS. The SPI read command (slave address with R/W bit set) is then clocked into the device. The opcode is followed by an address, with at least one data byte being clocked out of the device. I2C CONTROL BYTE FORMAT FIGURE 3-4: 3.2.3.3 SPI Sequential Write/Read For sequential operations, instead of deselecting the device by raising CS, the master clocks the next byte pointed to by the Address Pointer. (see Section 3.2.1 “Byte Mode and Sequential Mode” for details regarding sequential operation control). Control Byte S 1 0 0 A2 A1 A0 R/W ACK Slave Address The sequence ends by the raising of CS. Start bit The MCP23S17 Address Pointer will roll over to address zero after reaching the last register address. 3.3 0 R/W bit ACK bit R/W = 0 = write R/W = 1 = read Hardware Address Decoder FIGURE 3-5: The hardware address pins are used to determine the device address. To address a device, the corresponding address bits in the control byte must match the pin state. The pins must be biased externally. 3.3.1 SPI CONTROL BYTE FORMAT CS ADDRESSING I2C DEVICES (MCP23017) Control Byte 0 1 The MCP23017 is a slave I2C interface device that supports 7-bit slave addressing, with the read/write bit filling out the control byte. The slave address contains 0 0 A2 A1 A0 R/W Slave Address R/W bit R/W = 0 = write R/W = 1 = read I2C ADDRESSING REGISTERS FIGURE 3-6: S 0 1 0 0 A2 A1 A0 0 ACK * A7 A6 A5 A4 A3 A2 A1 A0 ACK * R/W = 0 Device Opcode Register Address *The ACKs are provided by the MCP23017.  2005-2016 Microchip Technology Inc. DS20001952C-page 15 MCP23017/MCP23S17 FIGURE 3-7: SPI ADDRESSING REGISTERS CS 0 1 0 0 A2 * A1 * A0 * R/W A7 A6 A5 Device Opcode A4 A3 A2 A1 A0 Register Address * Address pins are enabled/disabled via IOCON.HAEN. 3.4 GPIO Port Reading the GPIOn register reads the value on the port. Reading the OLATn register only reads the latches, not the actual value on the port. The GPIO module is a general purpose, 16-bit wide, bidirectional port that is functionally split into two 8-bit wide ports. Writing to the GPIOn register actually causes a write to the latches (OLATn). Writing to the OLATn register forces the associated output drivers to drive to the level in OLATn. Pins configured as inputs turn off the associated output driver and put it in high-impedance. The GPIO module contains the data ports (GPIOn), internal pull-up resistors and the output latches (OLATn). TABLE 3-2: Register Name SUMMARY OF REGISTERS ASSOCIATED WITH THE GPIO PORTS (BANK = 1) Address (hex) bit 7 bit 6 bit 5 bit 4 bit 3 bit 2 bit 1 bit 0 POR/RST value IODIRA 00 IO7 IO6 IO5 IO4 IO3 IO2 IO1 IO0 1111 1111 IPOLA 01 IP7 IP6 IP5 IP4 IP3 IP2 IP1 IP0 0000 0000 GPINTENA 02 GPINT7 GPINT6 GPINT5 GPINT4 GPINT3 GPINT2 GPINT1 GPINT0 0000 0000 GPPUA 06 PU7 PU6 PU5 PU4 PU3 PU2 PU1 PU0 0000 0000 GPIOA 09 GP7 GP6 GP5 GP4 GP3 GP2 GP1 GP0 0000 0000 OLATA 0A OL7 OL6 OL5 OL4 OL3 OL2 OL1 OL0 0000 0000 IODIRB 10 IO7 IO6 IO5 IO4 IO3 IO2 IO1 IO0 1111 1111 IPOLB 11 IP7 IP6 IP5 IP4 IP3 IP2 IP1 IP0 0000 0000 GPINTENB 12 GPINT7 GPINT6 GPINT5 GPINT4 GPINT3 GPINT2 GPINT1 GPINT0 0000 0000 GPPUB 16 PU7 PU6 PU5 PU4 PU3 PU2 PU1 PU0 0000 0000 GPIOB 19 GP7 GP6 GP5 GP4 GP3 GP2 GP1 GP0 0000 0000 OLATB 1A OL7 OL6 OL5 OL4 OL3 OL2 OL1 OL0 0000 0000 TABLE 3-3: Register Name SUMMARY OF REGISTERS ASSOCIATED WITH THE GPIO PORTS (BANK = 0) Address (hex) bit 7 bit 6 bit 5 bit 4 bit 3 bit 2 bit 1 bit 0 POR/RST value IODIRA 00 IO7 IO6 IO5 IO4 IO3 IO2 IO1 IO0 1111 1111 IODIRB 01 IO7 IO6 IO5 IO4 IO3 IO2 IO1 IO0 1111 1111 IPOLA 02 IP7 IP6 IP5 IP4 IP3 IP2 IP1 IP0 0000 0000 IPOLB 03 IP7 IP6 IP5 IP4 IP3 IP2 IP1 IP0 0000 0000 GPINTENA 04 GPINT7 GPINT6 GPINT5 GPINT4 GPINT3 GPINT2 GPINT1 GPINT0 0000 0000 GPINTENB 05 GPINT7 GPINT6 GPINT5 GPINT4 GPINT3 GPINT2 GPINT1 GPINT0 0000 0000 GPPUA 0C PU7 PU6 PU5 PU4 PU3 PU2 PU1 PU0 0000 0000 GPPUB 0D PU7 PU6 PU5 PU4 PU3 PU2 PU1 PU0 0000 0000 GPIOA 12 GP7 GP6 GP5 GP4 GP3 GP2 GP1 GP0 0000 0000 GPIOB 13 GP7 GP6 GP5 GP4 GP3 GP2 GP1 GP0 0000 0000 OLATA 14 OL7 OL6 OL5 OL4 OL3 OL2 OL1 OL0 0000 0000 OLATB 15 OL7 OL6 OL5 OL4 OL3 OL2 OL1 OL0 0000 0000 DS20001952C-page 16  2005-2016 Microchip Technology Inc. MCP23017/MCP23S17 3.5 Configuration and Control Registers associated with PORTB. One register (IOCON) is shared between the two ports. The PORTA registers are identical to the PORTB registers, therefore, they will be referred to without differentiating between the port designation (i.e., they will not have the “A” or “B” designator assigned) in the register tables. There are 21 registers associated with the MCP23X17, as shown in Tables 3-4 and3-5. The two tables show the register mapping with the two BANK bit values. Ten registers are associated with PORTA and ten are TABLE 3-4: Register Name CONTROL REGISTER SUMMARY (IOCON.BANK = 1) Address (hex) bit 7 bit 6 bit 5 bit 4 bit 3 bit 2 bit 1 bit 0 POR/RST value 00 IO7 IO6 IO5 IO4 IO3 IO2 IO1 IO0 1111 1111 IODIRA IPOLA 01 IP7 IP6 IP5 IP4 IP3 IP2 IP1 IP0 0000 0000 GPINTENA 02 GPINT7 GPINT6 GPINT5 GPINT4 GPINT3 GPINT2 GPINT1 GPINT0 0000 0000 DEFVALA 03 DEF7 DEF6 DEF5 DEF4 DEF3 DEF2 DEF1 DEF0 0000 0000 INTCONA 04 IOC7 IOC6 IOC5 IOC4 IOC3 IOC2 IOC1 IOC0 0000 0000 IOCON 05 BANK MIRROR SEQOP DISSLW HAEN ODR INTPOL — 0000 0000 GPPUA 06 PU7 PU6 PU5 PU4 PU3 PU2 PU1 PU0 0000 0000 INTFA 07 INT7 INT6 INT5 INT4 INT3 INT2 INT1 INTO 0000 0000 INTCAPA 08 ICP7 ICP6 ICP5 ICP4 ICP3 ICP2 ICP1 ICP0 0000 0000 GPIOA 09 GP7 GP6 GP5 GP4 GP3 GP2 GP1 GP0 0000 0000 OLATA 0A OL7 OL6 OL5 OL4 OL3 OL2 OL1 OL0 0000 0000 IODIRB 10 IO7 IO6 IO5 IO4 IO3 IO2 IO1 IO0 1111 1111 IPOLB 11 IP7 IP6 IP5 IP4 IP3 IP2 IP1 IP0 0000 0000 GPINTENB 12 GPINT7 GPINT6 GPINT5 GPINT4 GPINT3 GPINT2 GPINT1 GPINT0 0000 0000 DEFVALB 13 DEF7 DEF6 DEF5 DEF4 DEF3 DEF2 DEF1 DEF0 0000 0000 INTCONB 14 IOC7 IOC6 IOC5 IOC4 IOC3 IOC2 IOC1 IOC0 0000 0000 IOCON 15 BANK MIRROR SEQOP DISSLW HAEN ODR INTPOL — 0000 0000 GPPUB 16 PU7 PU6 PU5 PU4 PU3 PU2 PU1 PU0 0000 0000 INTFB 17 INT7 INT6 INT5 INT4 INT3 INT2 INT1 INTO 0000 0000 INTCAPB 18 ICP7 ICP6 ICP5 ICP4 ICP3 ICP2 ICP1 ICP0 0000 0000 GPIOB 19 GP7 GP6 GP5 GP4 GP3 GP2 GP1 GP0 0000 0000 OLATB 1A OL7 OL6 OL5 OL4 OL3 OL2 OL1 OL0 0000 0000 bit 1 bit 0 POR/RST value TABLE 3-5: Register Name CONTROL REGISTER SUMMARY (IOCON.BANK = 0) Address (hex) bit 7 bit 6 bit 5 bit 4 bit 3 bit 2 IODIRA 00 IO7 IO6 IO5 IO4 IO3 IO2 IO1 IO0 1111 1111 IODIRB 01 IO7 IO6 IO5 IO4 IO3 IO2 IO1 IO0 1111 1111 IPOLA 02 IP7 IP6 IP5 IP4 IP3 IP2 IP1 IP0 0000 0000 IPOLB 03 IP7 IP6 IP5 IP4 IP3 IP2 IP1 IP0 0000 0000 GPINTENA 04 GPINT7 GPINT6 GPINT5 GPINT4 GPINT3 GPINT2 GPINT1 GPINT0 0000 0000 GPINTENB 05 GPINT7 GPINT6 GPINT5 GPINT4 GPINT3 GPINT2 GPINT1 GPINT0 0000 0000 DEFVALA 06 DEF7 DEF6 DEF5 DEF4 DEF3 DEF2 DEF1 DEF0 0000 0000 DEFVALB 07 DEF7 DEF6 DEF5 DEF4 DEF3 DEF2 DEF1 DEF0 0000 0000 INTCONA 08 IOC7 IOC6 IOC5 IOC4 IOC3 IOC2 IOC1 IOC0 0000 0000 INTCONB 09 IOC7 IOC6 IOC5 IOC4 IOC3 IOC2 IOC1 IOC0 0000 0000 IOCON 0A BANK MIRROR SEQOP DISSLW HAEN ODR INTPOL — 0000 0000 IOCON 0B BANK MIRROR SEQOP DISSLW HAEN ODR INTPOL — 0000 0000 GPPUA 0C PU7 PU6 PU5 PU4 PU3 PU2 PU1 PU0 0000 0000 GPPUB 0D PU7 PU6 PU5 PU4 PU3 PU2 PU1 PU0 0000 0000  2005-2016 Microchip Technology Inc. DS20001952C-page 17 MCP23017/MCP23S17 TABLE 3-5: CONTROL REGISTER SUMMARY (IOCON.BANK = 0) (CONTINUED) Address (hex) bit 7 bit 6 bit 5 bit 4 bit 3 bit 2 bit 1 bit 0 POR/RST value INTFA 0E INT7 INT6 INT5 INT4 INT3 INT2 INT1 INTO 0000 0000 INTFB 0F INT7 INT6 INT5 INT4 INT3 INT2 INT1 INTO 0000 0000 INTCAPA 10 ICP7 ICP6 ICP5 ICP4 ICP3 ICP2 ICP1 ICP0 0000 0000 INTCAPB 11 ICP7 ICP6 ICP5 ICP4 ICP3 ICP2 ICP1 ICP0 0000 0000 GPIOA 12 GP7 GP6 GP5 GP4 GP3 GP2 GP1 GP0 0000 0000 GPIOB 13 GP7 GP6 GP5 GP4 GP3 GP2 GP1 GP0 0000 0000 OLATA 14 OL7 OL6 OL5 OL4 OL3 OL2 OL1 OL0 0000 0000 OLATB 15 OL7 OL6 OL5 OL4 OL3 OL2 OL1 OL0 0000 0000 Register Name 3.5.1 I/O DIRECTION REGISTER Controls the direction of the data I/O. When a bit is set, the corresponding pin becomes an input. When a bit is clear, the corresponding pin becomes an output. REGISTER 3-1: IODIR: I/O DIRECTION REGISTER (ADDR 0x00) R/W-1 R/W-1 R/W-1 R/W-1 R/W-1 R/W-1 R/W-1 R/W-1 IO7 IO6 IO5 IO4 IO3 IO2 IO1 IO0 bit 7 bit 0 Legend: R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’ -n = Value at POR ‘1’ = Bit is set ‘0’ = Bit is cleared bit 7-0 3.5.2 x = Bit is unknown IO: Controls the direction of data I/O 1 = Pin is configured as an input. 0 = Pin is configured as an output. INPUT POLARITY REGISTER This register allows the user to configure the polarity on the corresponding GPIO port bits. If a bit is set, the corresponding GPIO register bit will reflect the inverted value on the pin. REGISTER 3-2: IPOL: INPUT POLARITY PORT REGISTER (ADDR 0x01) R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 IP7 IP6 IP5 IP4 IP3 IP2 IP1 IP0 bit 7 bit 0 Legend: R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’ -n = Value at POR ‘1’ = Bit is set ‘0’ = Bit is cleared bit 7-0 x = Bit is unknown IP: Controls the polarity inversion of the input pins 1 = GPIO register bit reflects the opposite logic state of the input pin. 0 = GPIO register bit reflects the same logic state of the input pin. DS20001952C-page 18  2005-2016 Microchip Technology Inc. MCP23017/MCP23S17 3.5.3 INTERRUPT-ON-CHANGE CONTROL REGISTER The GPINTEN register controls interrupt-on-change feature for each pin. the If a bit is set, the corresponding pin is enabled for interrupt-on-change. The DEFVAL and INTCON registers must also be configured if any pins are enabled for interrupt-on-change. REGISTER 3-3: GPINTEN: INTERRUPT-ON-CHANGE PINS (ADDR 0x02) (Note 1) R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 GPINT7 GPINT6 GPINT5 GPINT4 GPINT3 GPINT2 GPINT1 GPINT0 bit 7 bit 0 Legend: R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’ -n = Value at POR ‘1’ = Bit is set ‘0’ = Bit is cleared bit 7-0 Note 1: 3.5.4 x = Bit is unknown GPINT: General purpose I/O interrupt-on-change bits 1 = Enables GPIO input pin for interrupt-on-change event. 0 = Disables GPIO input pin for interrupt-on-change event. Refer to INTCON. DEFAULT COMPARE REGISTER FOR INTERRUPT-ON-CHANGE The default comparison value is configured in the DEFVAL register. If enabled (via GPINTEN and INTCON) to compare against the DEFVAL register, an opposite value on the associated pin will cause an interrupt to occur. REGISTER 3-4: DEFVAL: DEFAULT VALUE REGISTER (ADDR 0x03) R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 DEF7 DEF6 DEF5 DEF4 DEF3 DEF2 DEF1 DEF0 bit 7 bit 0 Legend: R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’ -n = Value at POR ‘1’ = Bit is set ‘0’ = Bit is cleared bit 7-0 Note 1: 2: x = Bit is unknown DEF: Sets the compare value for pins configured for interrupt-on-change from defaults (Note 1) If the associated pin level is the opposite from the register bit, an interrupt occurs. (Note 2) Refer to INTCON. Refer to INTCON and GPINTEN.  2005-2016 Microchip Technology Inc. DS20001952C-page 19 MCP23017/MCP23S17 3.5.5 INTERRUPT CONTROL REGISTER The INTCON register controls how the associated pin value is compared for the interrupt-on-change feature. If a bit is set, the corresponding I/O pin is compared against the associated bit in the DEFVAL register. If a bit value is clear, the corresponding I/O pin is compared against the previous value. REGISTER 3-5: INTCON: INTERRUPT-ON-CHANGE CONTROL REGISTER (ADDR 0x04) (Note 1) R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 IOC7 IOC6 IOC5 IOC4 IOC3 IOC2 IOC1 IOC0 bit 7 bit 0 Legend: R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’ -n = Value at POR ‘1’ = Bit is set ‘0’ = Bit is cleared bit 7-0 Note 1: 3.5.6 x = Bit is unknown IOC: Controls how the associated pin value is compared for interrupt-on-change 1 = Pin value is compared against the associated bit in the DEFVAL register. 0 = Pin value is compared against the previous pin value. Refer to INTCON and GPINTEN. CONFIGURATION REGISTER The IOCON register configuring the device: contains several bits for The BANK bit changes how the registers are mapped (see Tables 3-4 and3-5 for more details). • If BANK = 1, the registers associated with each port are segregated. Registers associated with PORTA are mapped from address 00h - 0Ah and registers associated with PORTB are mapped from 10h - 1Ah. • If BANK = 0, the A/B registers are paired. For example, IODIRA is mapped to address 00h and IODIRB is mapped to the next address (address 01h). The mapping for all registers is from 00h -15h. It is important to take care when changing the BANK bit as the address mapping changes after the byte is clocked into the device. The address pointer may point to an invalid location after the bit is modified. For example, if the device is configured to automatically increment its internal Address Pointer, the following scenario would occur: • BANK = 0 • Write 80h to address 0Ah (IOCON) to set the BANK bit • Once the write completes, the internal address now points to 0Bh which is an invalid address when the BANK bit is set. DS20001952C-page 20 For this reason, when changing the BANK bit, it is advised to only perform byte writes to this register. The MIRROR bit controls how the INTA and INTB pins function with respect to each other. • When MIRROR = 1, the INTn pins are functionally OR’ed so that an interrupt on either port will cause both pins to activate. • When MIRROR = 0, the INT pins are separated. Interrupt conditions on a port will cause its respective INT pin to activate. The Sequential Operation (SEQOP) controls the incrementing function of the Address Pointer. If the address pointer is disabled, the Address Pointer does not automatically increment after each byte is clocked during a serial transfer. This feature is useful when it is desired to continuously poll (read) or modify (write) a register. The Slew Rate (DISSLW) bit controls the slew rate function on the SDA pin. If enabled, the SDA slew rate will be controlled when driving from a high to low. The Hardware Address Enable (HAEN) bit enables/disables hardware addressing on the MCP23S17 only. The address pins (A2, A1 and A0) must be externally biased, regardless of the HAEN bit value. If enabled (HAEN = 1), the device’s hardware address matches the address pins. If disabled (HAEN = 0), the device’s hardware address is A2 = A1 = A0 = 0.  2005-2016 Microchip Technology Inc. MCP23017/MCP23S17 The Open-Drain (ODR) control bit enables/disables the INT pin for open-drain configuration. Setting this bit overrides the INTPOL bit. REGISTER 3-6: The Interrupt Polarity (INTPOL) sets the polarity of the INT pin. This bit is functional only when the ODR bit is cleared, configuring the INT pin as active push-pull. IOCON: I/O EXPANDER CONFIGURATION REGISTER (ADDR 0x05) R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 U-0 BANK MIRROR SEQOP DISSLW HAEN ODR INTPOL — bit 7 bit 0 Legend: R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’ -n = Value at POR ‘1’ = Bit is set ‘0’ = Bit is cleared x = Bit is unknown bit 7 BANK: Controls how the registers are addressed 1 = The registers associated with each port are separated into different banks. 0 = The registers are in the same bank (addresses are sequential). bit 6 MIRROR: INT Pins Mirror bit 1 = The INT pins are internally connected 0 = The INT pins are not connected. INTA is associated with PORTA and INTB is associated with PORTB bit 5 SEQOP: Sequential Operation mode bit 1 = Sequential operation disabled, address pointer does not increment. 0 = Sequential operation enabled, address pointer increments. bit 4 DISSLW: Slew Rate control bit for SDA output 1 = Slew rate disabled 0 = Slew rate enabled bit 3 HAEN: Hardware Address Enable bit (MCP23S17 only) (Note 1) 1 = Enables the MCP23S17 address pins. 0 = Disables the MCP23S17 address pins. bit 2 ODR: Configures the INT pin as an open-drain output 1 = Open-drain output (overrides the INTPOL bit.) 0 = Active driver output (INTPOL bit sets the polarity.) bit 1 INTPOL: This bit sets the polarity of the INT output pin 1 = Active-high 0 = Active-low bit 0 Unimplemented: Read as ‘0’ Note 1: Address pins are always enabled on the MCP23017.  2005-2016 Microchip Technology Inc. DS20001952C-page 21 MCP23017/MCP23S17 3.5.7 PULL-UP RESISTOR CONFIGURATION REGISTER The GPPU register controls the pull-up resistors for the port pins. If a bit is set and the corresponding pin is configured as an input, the corresponding port pin is internally pulled up with a 100 k resistor. REGISTER 3-7: GPPU: GPIO PULL-UP RESISTOR REGISTER (ADDR 0x06) R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 PU7 PU6 PU5 PU4 PU3 PU2 PU1 PU0 bit 7 bit 0 Legend: R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’ -n = Value at POR ‘1’ = Bit is set ‘0’ = Bit is cleared bit 7-0 3.5.8 x = Bit is unknown PU Controls the weak pull-up resistors on each pin (when configured as an input) 1 = Pull-up enabled 0 = Pull-up disabled INTERRUPT FLAG REGISTER The INTF register reflects the interrupt condition on the port pins of any pin that is enabled for interrupts via the GPINTEN register. A set bit indicates that the associated pin caused the interrupt. This register is read-only. Writes to this register will be ignored. REGISTER 3-8: INTF: INTERRUPT FLAG REGISTER (ADDR 0x07) R-0 R-0 R-0 R-0 R-0 R-0 R-0 R-0 INT7 INT6 INT5 INT4 INT3 INT2 INT1 INT0 bit 7 bit 0 Legend: R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’ -n = Value at POR ‘1’ = Bit is set ‘0’ = Bit is cleared bit 7-0 x = Bit is unknown INT: Reflects the interrupt condition on the port. It reflects the change only if interrupts are enabled per GPINTEN. 1 = Pin caused interrupt. 0 = Interrupt not pending DS20001952C-page 22  2005-2016 Microchip Technology Inc. MCP23017/MCP23S17 3.5.9 INTERRUPT CAPTURED REGISTER The INTCAP register captures the GPIO port value at the time the interrupt occurred. The register is read-only and is updated only when an interrupt occurs. The register remains unchanged until the interrupt is cleared via a read of INTCAP or GPIO. REGISTER 3-9: INTCAP: INTERRUPT CAPTURED VALUE FOR PORT REGISTER (ADDR 0x08) R-x R-x R-x R-x R-x R-x R-x R-x ICP7 ICP6 ICP5 ICP4 ICP3 ICP2 ICP1 ICP0 bit 7 bit 0 Legend: R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’ -n = Value at POR ‘1’ = Bit is set ‘0’ = Bit is cleared bit 7-0 3.5.10 x = Bit is unknown ICP: Reflects the logic level on the port pins at the time of interrupt due to pin change 1 = Logic-high 0 = Logic-low PORT REGISTER The GPIO register reflects the value on the port. Reading from this register reads the port. Writing to this register modifies the Output Latch (OLAT) register. REGISTER 3-10: GPIO: GENERAL PURPOSE I/O PORT REGISTER (ADDR 0x09) R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 GP7 GP6 GP5 GP4 GP3 GP2 GP1 GP0 bit 7 bit 0 Legend: R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’ -n = Value at POR ‘1’ = Bit is set ‘0’ = Bit is cleared bit 7-0 x = Bit is unknown GP: Reflects the logic level on the pins 1 = Logic-high 0 = Logic-low  2005-2016 Microchip Technology Inc. DS20001952C-page 23 MCP23017/MCP23S17 3.5.11 OUTPUT LATCH REGISTER (OLAT) The OLAT register provides access to the output latches. A read from this register results in a read of the OLAT and not the port itself. A write to this register modifies the output latches that modifies the pins configured as outputs. REGISTER 3-11: OLAT: OUTPUT LATCH REGISTER 0 (ADDR 0x0A) R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 OL7 OL6 OL5 OL4 OL3 OL2 OL1 OL0 bit 7 bit 0 Legend: R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’ -n = Value at POR ‘1’ = Bit is set ‘0’ = Bit is cleared bit 7-0 3.6 x = Bit is unknown OL: Reflects the logic level on the output latch 1 = Logic-high 0 = Logic-low Interrupt Logic If enabled, the MCP23X17 activates the INTn interrupt output when one of the port pins changes state or when a pin does not match the preconfigured default. Each pin is individually configurable as follows: • Enable/disable interrupt via GPINTEN • Can interrupt on either pin change or change from default as configured in DEFVAL Both conditions are referred to as Interrupt-on-Change (IOC). The interrupt control module uses the following registers/bits: If IOCON.MIRROR = 1, the internal signals are OR’ed together and routed to the INTn pads. In this case, the interrupt will only be cleared if the associated GPIO or INTCAP is read (see Table 3-6). TABLE 3-6: Interrupt Condition GPIOA GPIOB INTERRUPT OPERATION (IOCON.MIRROR = 1) Interrupt Result Read PORTn (1) PORTA Clear PORTB Unchanged PORTA Unchanged PORTB Clear • IOCON.MIRROR – controls if the two interrupt pins mirror each other • GPINTEN – Interrupt enable register • INTCON – controls the source for the IOC • DEFVAL – contains the register default for IOC operation Note 1: PORTn = GPIOn or INTCAPn 3.6.1 3.6.2 IOC FROM PIN CHANGE INTA AND INTB There are two interrupt pins: INTA and INTB. By default, INTA is associated with GPAn pins (PORTA) and INTB is associated with GPBn pins (PORTB). Each port has an independent signal which is cleared if its associated GPIO or INTCAP register is read. 3.6.1.1 Mirroring the INT pins Additionally, the INTn pins can be configured to mirror each other so that any interrupt will cause both pins to go active. This is controlled via IOCON.MIRROR. GPIOA and GPIOB PORTA Unchanged PORTB Unchanged Both PORTA and PORTB Clear If enabled, the MCP23X17 generates an interrupt if a mismatch condition exists between the current port value and the previous port value. Only IOC-enabled pins will be compared. Refer to Registers 3-3 and 3-5. 3.6.3 IOC FROM REGISTER DEFAULT If enabled, the MCP23X17 generates an interrupt if a mismatch occurs between the DEFVAL register and the port. Only IOC enabled pins are compared. Refer to Registers 3-3, 3-4 and 3-5. If IOCON.MIRROR = 0, the internal signals are routed independently to the INTA and INTB pads. DS20001952C-page 24  2005-2016 Microchip Technology Inc. MCP23017/MCP23S17 3.6.4 INTERRUPT OPERATION The INTn interrupt output can be configured as active-low, active-high or open-drain via the IOCON register. Only those pins that are configured as an input (IODIR register) with Interrupt-On-Change (IOC) enabled (IOINTEN register) can cause an interrupt. Pins defined as an output have no effect on the interrupt output pin. Input change activity on a port input pin that is enabled for IOC generates an internal device interrupt and the device captures the value of the port and copies it into INTCAP. The interrupt remains active until the INTCAP or GPIO register is read. Writing to these registers does not affect the interrupt. The interrupt condition is cleared after the LSb of the data is clocked out during a read command of GPIO or INTCAP. The first interrupt event causes the port contents to be copied into the INTCAP register. Subsequent interrupt conditions on the port will not cause an interrupt to occur as long as the interrupt is not cleared by a read of INTCAP or GPIO. Note: 3.6.5 The value in INTCAP can be lost if GPIO is read before INTCAP while another IOC is pending. After reading GPIO, the interrupt will clear and then set due to the pending IOC, causing the INTCAP register to update. 2. INTERRUPT-ON-PIN CHANGE GPx INT ACTIVE Port value is captured into INTCAP ACTIVE Read GPIO or INTCAP FIGURE 3-9: Port value is captured into INTCAP INTERRUPT-ON-CHANGE FROM REGISTER DEFAULT DEFVAL REGISTER GPx 7 6 5 4 3 2 1 0 X X X X X 0 X X GP2 Pin INT Pin ACTIVE ACTIVE INTERRUPT CONDITIONS There are two possible configurations that cause interrupts (configured via INTCON): 1. FIGURE 3-8: Pins configured for interrupt-on-pin change will cause an interrupt to occur if a pin changes to the opposite state. The default state is reset after an interrupt occurs and after clearing the interrupt condition (i.e., after reading GPIO or INTCAP). For example, an interrupt occurs by an input changing from ‘1’ to ‘0’. The new initial state for the pin is a logic ‘0’ after the interrupt is cleared. Pins configured for interrupt-on-change from register value will cause an interrupt to occur if the corresponding input pin differs from the register bit. The interrupt condition will remain as long as the condition exists, regardless if the INTCAP or GPIO is read. Port value is captured into INTCAP Read GPIO or INTCAP (INT clears only if interrupt condition does not exist.) See Figures 3-8 and 3-9 for more information on interrupt operations.  2005-2016 Microchip Technology Inc. DS20001952C-page 25 MCP23017/MCP23S17 4.0 PACKAGING INFORMATION 4.1 Package Marking Information 28-Lead QFN Example: 23017 E/ML e3 1628256 28-Lead SOIC Example: MCP23017-E/SO e3 1628256 28-Lead SPDIP Example: XXXXXXXXXXXXXXXXX XXXXXXXXXXXXXXXXX YYWWNN 28-Lead SSOP Example: XXXXXXXXXXXX XXXXXXXXXXXX YYWWNNN Legend: XX...X Y YY WW NNN e3 * Note: DS20001952C-page 26 MCP23017-E/SP e3 1628256 MCP23017 E/SS e3 1628256 Customer-specific information Year code (last digit of calendar year) Year code (last 2 digits of calendar year) Week code (week of January 1 is week ‘01’) Alphanumeric traceability code Pb-free JEDEC designator for Matte Tin (Sn) This package is Pb-free. The Pb-free JEDEC designator ( e3 ) can be found on the outer packaging for this package. In the event the full Microchip part number cannot be marked on one line, it will be carried over to the next line, thus limiting the number of available characters for customer-specific information.  2005-2016 Microchip Technology Inc. MCP23017/MCP23S17  2005-2016 Microchip Technology Inc. DS20001952C-page 27 MCP23017/MCP23S17 DS20001952C-page 28  2005-2016 Microchip Technology Inc. MCP23017/MCP23S17 /HDG3ODVWLF4XDG)ODW1R/HDG3DFNDJH0/±[PP%RG\>4)1@ ZLWKPP&RQWDFW/HQJWK 1RWH )RUWKHPRVWFXUUHQWSDFNDJHGUDZLQJVSOHDVHVHHWKH0LFURFKLS3DFNDJLQJ6SHFLILFDWLRQORFDWHGDW KWWSZZZPLFURFKLSFRPSDFNDJLQJ  2005-2016 Microchip Technology Inc. DS20001952C-page 29 MCP23017/MCP23S17 Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging DS20001952C-page 30  2005-2016 Microchip Technology Inc. MCP23017/MCP23S17 Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging  2005-2016 Microchip Technology Inc. DS20001952C-page 31 MCP23017/MCP23S17 Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging DS20001952C-page 32  2005-2016 Microchip Technology Inc. MCP23017/MCP23S17 /HDG6NLQQ\3ODVWLF'XDO,Q/LQH63±PLO%RG\>63',3@ 1RWH )RUWKHPRVWFXUUHQWSDFNDJHGUDZLQJVSOHDVHVHHWKH0LFURFKLS3DFNDJLQJ6SHFLILFDWLRQORFDWHGDW KWWSZZZPLFURFKLSFRPSDFNDJLQJ N NOTE 1 E1 1 2 3 D E A2 A L c b1 A1 b e eB 8QLWV 'LPHQVLRQ/LPLWV 1XPEHURI3LQV ,1&+(6 0,1 1 120 0$;  3LWFK H 7RSWR6HDWLQJ3ODQH $ ± ±  0ROGHG3DFNDJH7KLFNQHVV $    %DVHWR6HDWLQJ3ODQH $  ± ± 6KRXOGHUWR6KRXOGHU:LGWK (    0ROGHG3DFNDJH:LGWK (    2YHUDOO/HQJWK '    7LSWR6HDWLQJ3ODQH /    /HDG7KLFNQHVV F    E    E    H% ± ± 8SSHU/HDG:LGWK /RZHU/HDG:LGWK 2YHUDOO5RZ6SDFLQJ† %6&  1RWHV  3LQYLVXDOLQGH[IHDWXUHPD\YDU\EXWPXVWEHORFDWHGZLWKLQWKHKDWFKHGDUHD  †6LJQLILFDQW&KDUDFWHULVWLF  'LPHQVLRQV'DQG(GRQRWLQFOXGHPROGIODVKRUSURWUXVLRQV0ROGIODVKRUSURWUXVLRQVVKDOOQRWH[FHHGSHUVLGH  'LPHQVLRQLQJDQGWROHUDQFLQJSHU$60(6623@ 1RWH )RUWKHPRVWFXUUHQWSDFNDJHGUDZLQJVSOHDVHVHHWKH0LFURFKLS3DFNDJLQJ6SHFLILFDWLRQORFDWHGDW KWWSZZZPLFURFKLSFRPSDFNDJLQJ D N E E1 1 2 NOTE 1 b e c A2 A φ A1 L L1 8QLWV 'LPHQVLRQ/LPLWV 1XPEHURI3LQV 0,//,0(7(56 0,1 1 120 0$;  3LWFK H 2YHUDOO+HLJKW $ ± %6& ±  0ROGHG3DFNDJH7KLFNQHVV $    6WDQGRII $  ± ± 2YHUDOO:LGWK (    0ROGHG3DFNDJH:LGWK (    2YHUDOO/HQJWK '    )RRW/HQJWK /    )RRWSULQW / 5() /HDG7KLFNQHVV F  ± )RRW$QJOH  ƒ ƒ  ƒ /HDG:LGWK E  ±  1RWHV  3LQYLVXDOLQGH[IHDWXUHPD\YDU\EXWPXVWEHORFDWHGZLWKLQWKHKDWFKHGDUHD  'LPHQVLRQV'DQG(GRQRWLQFOXGHPROGIODVKRUSURWUXVLRQV0ROGIODVKRUSURWUXVLRQVVKDOOQRWH[FHHGPPSHUVLGH  'LPHQVLRQLQJDQGWROHUDQFLQJSHU$60(
