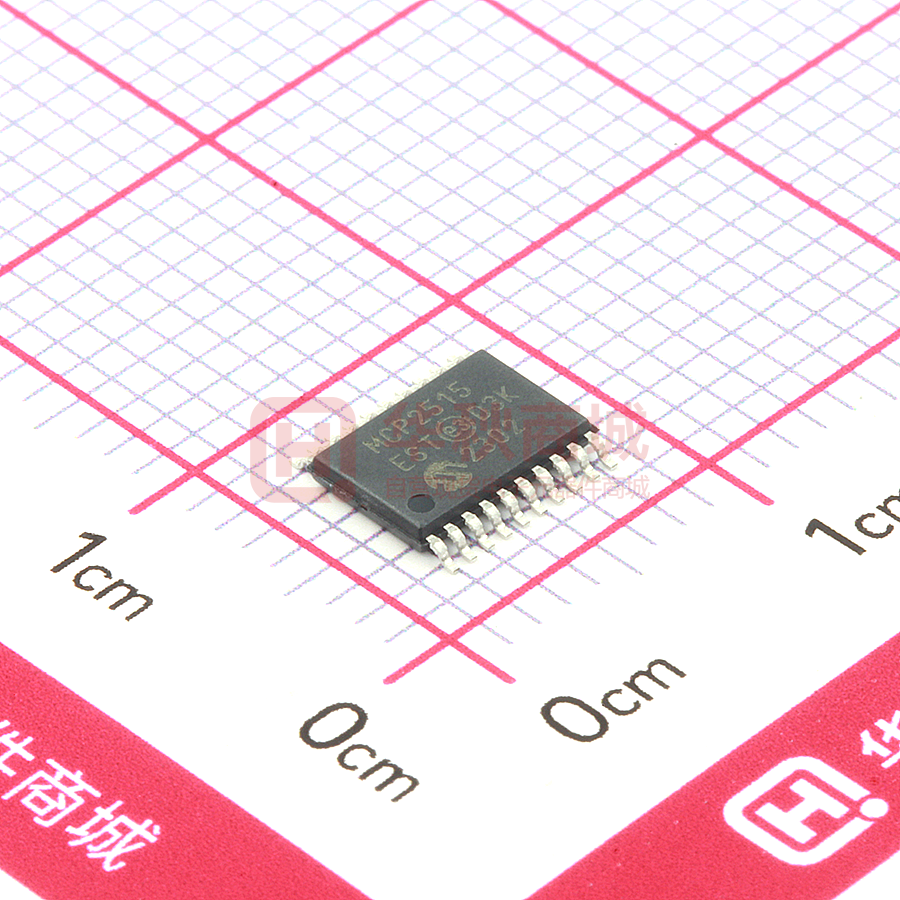

MCP2515T-E/ST

MCP2515 Stand-Alone CAN Controller with SPI Interface Features Description • Implements CAN V2.0B at 1 Mb/s: - 0 to 8-byte length in the data field - Standard and extended data and remote frames • Receive Buffers, Masks and Filters: - Two receive buffers with prioritized message storage - Six 29-bit filters - Two 29-bit masks • Data Byte Filtering on the First Two Data Bytes (applies to standard data frames) • Three Transmit Buffers with Prioritization and Abort Features • High-Speed SPI Interface (10 MHz): - SPI modes 0,0 and 1,1 • One-Shot mode Ensures Message Transmission is Attempted Only One Time • Clock Out Pin with Programmable Prescaler: - Can be used as a clock source for other device(s) • Start-of-Frame (SOF) Signal is Available for Monitoring the SOF Signal: - Can be used for time slot-based protocols and/or bus diagnostics to detect early bus degradation • Interrupt Output Pin with Selectable Enables • Buffer Full Output Pins Configurable as: - Interrupt output for each receive buffer - General purpose output • Request-to-Send (RTS) Input Pins Individually Configurable as: - Control pins to request transmission for each transmit buffer - General purpose inputs • Low-Power CMOS Technology: - Operates from 2.7V-5.5V - 5 mA active current (typical) - 1 μA standby current (typical) (Sleep mode) • Temperature Ranges Supported: - Industrial (I): -40°C to +85°C - Extended (E): -40°C to +125°C Microchip Technology’s MCP2515 is a stand-alone Controller Area Network (CAN) controller that implements the CAN specification, Version 2.0B. It is capable of transmitting and receiving both standard and extended data and remote frames. The MCP2515 has two acceptance masks and six acceptance filters that are used to filter out unwanted messages, thereby reducing the host MCU’s overhead. The MCP2515 interfaces with microcontrollers (MCUs) via an industry standard Serial Peripheral Interface (SPI). Package Types 18-Lead PDIP/SOIC TXCAN 1 18 VDD 2 17 RESET 3 16 CS TX0RTS 4 15 SO TX1RTS 5 14 SI TX2RTS 6 13 SCK OSC2 7 12 INT OSC1 8 11 RX0BF VSS 9 10 RX1BF 1 2 3 4 5 6 7 8 9 10 20 19 18 17 16 15 14 13 12 11 VDD RESET CS SO SI NC SCK INT RX0BF RX1BF MCP2515 RXCAN CLKOUT/SOF RESET CS MCP2515 VDD 20-Lead QFN* TXCAN TXCAN RXCAN CLKOUT/SOF TX0RTS TX1RTS NC TX2RTS OSC2 OSC1 VSS RXCAN 20-Lead TSSOP 20 19 18 17 16 CLKOUT 1 15 SO TX0RTS 2 14 SI EP 21 TX1RTS 3 13 NC 12 SCK NC 4 8 9 10 GND RX1BF RX0BF 7 OSC1 11 INT 6 OSC2 TX2RTS 5 * Includes Exposed Thermal Pad (EP); see Table 1-1.  2003-2019 Microchip Technology Inc. DS20001801J-page 1 MCP2515 NOTES: DS20001801J-page 2  2003-2019 Microchip Technology Inc. MCP2515 1.0 DEVICE OVERVIEW 1.2 The control logic block controls the setup and operation of the MCP2515 by interfacing to the other blocks in order to pass information and control. The MCP2515 is a stand-alone CAN controller developed to simplify applications that require interfacing with a CAN bus. A simple block diagram of the MCP2515 is shown in Figure 1-1. The device consists of three main blocks: 1. 2. 3. 1.1 Interrupt pins are provided to allow greater system flexibility. There is one multipurpose interrupt pin (as well as specific interrupt pins) for each of the receive registers that can be used to indicate a valid message has been received and loaded into one of the receive buffers. Use of the specific interrupt pins is optional. The general purpose interrupt pin, as well as status registers (accessed via the SPI interface), can also be used to determine when a valid message has been received. The CAN module, which includes the CAN protocol engine, masks, filters, transmit and receive buffers. The control logic and registers that are used to configure the device and its operation. The SPI protocol block. An example system implementation using the device is shown in Figure 1-2. CAN Module The CAN module handles all functions for receiving and transmitting messages on the CAN bus. Messages are transmitted by first loading the appropriate message buffer and control registers. Transmission is initiated by using control register bits via the SPI interface or by using the transmit enable pins. Status and errors can be checked by reading the appropriate registers. Any message detected on the CAN bus is checked for errors and then matched against the user-defined filters to see if it should be moved into one of the two receive buffers. FIGURE 1-1: Control Logic Additionally, there are three pins available to initiate immediate transmission of a message that has been loaded into one of the three transmit registers. Use of these pins is optional, as initiating message transmissions can also be accomplished by utilizing control registers accessed via the SPI interface. 1.3 SPI Protocol Block The MCU interfaces to the device via the SPI interface. Writing to, and reading from, all registers is accomplished using standard SPI read and write commands, in addition to specialized SPI commands. BLOCK DIAGRAM CAN Module RXCAN CAN Protocol Engine TX and RX Buffers Masks and Filters SPI Interface Logic CS SCK SPI Bus SI SO TXCAN Control Logic OSC1 OSC2 CLKOUT Timing Generation INT RX0BF RX1BF Control and Interrupt Registers  2003-2019 Microchip Technology Inc. TX0RTS TX1RTS TX2RTS RESET DS20001801J-page 3 MCP2515 FIGURE 1-2: EXAMPLE SYSTEM IMPLEMENTATION Node Controller Node Controller Node Controller SPI SPI SPI MCP2515 MCP2515 MCP2515 TX TX TX RX XCVR RX RX XCVR XCVR CANH CANL TABLE 1-1: Name PINOUT DESCRIPTION PDIP/ SOIC Pin # TSSOP QFN I/O/P Pin # Pin # Type Description Alternate Pin Function TXCAN 1 1 19 O Transmit output pin to CAN bus — RXCAN 2 2 20 I Receive input pin from CAN bus — CLKOUT 3 3 1 O Clock output pin with programmable prescaler TX0RTS 4 4 2 I Transmit buffer TXB0 Request-to-Send; General purpose digital input, 100 kinternal pull-up to VDD 100 kinternal pull-up to VDD TX1RTS 5 5 3 I Transmit buffer TXB1 Request-to-Send; General purpose digital input, 100 kinternal pull-up to VDD 100 kinternal pull-up to VDD TX2RTS 6 7 5 I Transmit buffer TXB2 Request-to-Send; General purpose digital input, 100 kinternal pull-up to VDD 100 kinternal pull-up to VDD OSC2 7 8 6 O Oscillator output OSC1 8 9 7 I Oscillator input VSS 9 10 8 P Ground reference for logic and I/O pins RX1BF 10 11 9 O Receive buffer RXB1 interrupt pin or general purpose digital output General purpose digital output RX0BF 11 12 10 O Receive buffer RXB0 interrupt pin or general purpose digital output General purpose digital output INT 12 13 11 O Interrupt output pin — SCK 13 14 12 I Clock input pin for SPI interface — SI 14 16 14 I Data input pin for SPI interface — Start-of-Frame signal — External clock input — SO 15 17 15 O Data output pin for SPI interface — CS 16 18 16 I Chip select input pin for SPI interface — RESET 17 19 17 I Active-low device Reset input — VDD 18 20 18 P Positive supply for logic and I/O pins — NC — 6,15 4,13 — No internal connection — EP — — 21 — Exposed Thermal Pad, connect to VSS. — Legend: I = Input; O = Output; P = Power DS20001801J-page 4  2003-2019 Microchip Technology Inc. MCP2515 1.4 Transmit/Receive Buffers/Masks/ Filters The MCP2515 has three transmit and two receive buffers, two acceptance masks (one for each receive buffer) and a total of six acceptance filters. Figure 1-3 shows a block diagram of these buffers and their connection to the protocol engine. FIGURE 1-3: CAN BUFFERS AND PROTOCOL ENGINE BLOCK DIAGRAM BUFFERS Acceptance Mask RXM1 Acceptance Filter RXF2 Message Queue Control MESSAGE TXREQ ABTF MLOA TXERR TXB2 MESSAGE TXREQ ABTF MLOA TXERR TXB1 MESSAGE TXREQ ABTF MLOA TXERR TXB0 A c c e p t R X B 0 Transmit Byte Sequencer Acceptance Mask RXM0 Acceptance Filter RXF3 Acceptance Filter RXF0 Acceptance Filter RXF4 Acceptance Filter RXF1 Acceptance Filter RXF5 M A B Identifier Data Field A c c e p t R X B 1 Identifier Data Field PROTOCOL ENGINE Receive Error Counter Transmit]7:0] Receive[7:0] REC TEC Transmit Error Counter ErrPas BusOff Protocol Finite State Machine SOF Shift[14:0] {Transmit[5:0], Receive[8:0]} Comparator CRC[14:0] Transmit Logic Bit Timing Logic TX RX  2003-2019 Microchip Technology Inc. Clock Generator Configuration Registers DS20001801J-page 5 MCP2515 1.5 CAN Protocol Engine 1.5.3 The CAN protocol engine combines several functional blocks, shown in Figure 1-4 and described below. 1.5.1 PROTOCOL FINITE STATE MACHINE The heart of the engine is the Finite State Machine (FSM). The FSM is a sequencer that controls the sequential data stream between the TX/RX Shift register, the CRC register and the bus line. The FSM also controls the Error Management Logic (EML) and the parallel data stream between the TX/RX Shift registers and the buffers. The FSM ensures that the processes of reception, arbitration, transmission and error signaling are performed according to the CAN protocol. The automatic retransmission of messages on the bus line is also handled by the FSM. 1.5.2 CYCLIC REDUNDANCY CHECK The Cyclic Redundancy Check register generates the Cyclic Redundancy Check (CRC) code, which is transmitted after either the Control Field (for messages with 0 data bytes) or the Data Field and is used to check the CRC field of incoming messages. FIGURE 1-4: ERROR MANAGEMENT LOGIC The Error Management Logic (EML) is responsible for the Fault confinement of the CAN device. Its two counters, the Receive Error Counter (REC) and the Transmit Error Counter (TEC), are incremented and decremented by commands from the bit stream processor. Based on the values of the error counters, the CAN controller is set into the states: error-active, error-passive or bus-off. 1.5.4 BIT TIMING LOGIC The Bit Timing Logic (BTL) monitors the bus line input and handles the bus related bit timing according to the CAN protocol. The BTL synchronizes on a recessiveto-dominant bus transition at the Start-of-Frame (hard synchronization) and on any further recessive-todominant bus line transition if the CAN controller itself does not transmit a dominant bit (resynchronization). The BTL also provides programmable Time Segments to compensate for the propagation delay time, phase shifts and to define the position of the sample point within the bit time. The programming of the BTL depends on the baud rate and external physical delay times. CAN PROTOCOL ENGINE BLOCK DIAGRAM Transmit Logic Bit Timing Logic RX TX SAM Receive Sample[2:0] Error Counter StuffReg[5:0] Transmit Majority Decision Error Counter REC TEC ErrPas BusOff BusMon Comparator CRC[14:0] Protocol FSM SOF Comparator Shift[14:0] (Transmit[5:0], Receive[7:0]) Receive[7:0] Transmit[7:0] RecData[7:0] TrmData[7:0] Interface to Standard Buffer DS20001801J-page 6 Rec/Trm Addr.  2003-2019 Microchip Technology Inc. MCP2515 2.0 CAN MESSAGE FRAMES The MCP2515 supports standard data frames, extended data frames and remote frames (standard and extended), as defined in the CAN 2.0B specification. 2.1 Standard Data Frame The CAN standard data frame is shown in Figure 2-1. As with all other frames, the frame begins with a Startof-Frame (SOF) bit, which is of the dominant state and allows hard synchronization of all nodes. The SOF is followed by the arbitration field, consisting of 12 bits: the 11-bit identifier and the Remote Transmission Request (RTR) bit. The RTR bit is used to distinguish a data frame (RTR bit dominant) from a remote frame (RTR bit recessive). Following the arbitration field is the control field, consisting of six bits. The first bit of this field is the Identifier Extension (IDE) bit, which must be dominant to specify a standard frame. The following bit, Reserved Bit Zero (RB0), is reserved and is defined as a dominant bit by the CAN protocol. The remaining four bits of the control field are the Data Length Code (DLC), which specifies the number of bytes of data (0-8 bytes) contained in the message. After the control field, is the data field, which contains any data bytes that are being sent, and is of the length defined by the DLC (0-8 bytes). The Cyclic Redundancy Check (CRC) field follows the data field and is used to detect transmission errors. The CRC field consists of a 15-bit CRC sequence, followed by the recessive CRC Delimiter bit. The final field is the two-bit Acknowledge (ACK) field. During the ACK Slot bit, the transmitting node sends out a recessive bit. Any node that has received an error-free frame Acknowledges the correct reception of the frame by sending back a dominant bit (regardless of whether the node is configured to accept that specific message or not). The recessive Acknowledge delimiter completes the Acknowledge field and may not be overwritten by a dominant bit. 2.2 Extended Data Frame In the extended CAN data frame, shown in Figure 2-2, the SOF bit is followed by the arbitration field, which consists of 32 bits. The first 11 bits are the Most Significant bits (MSb) (Base-lD) of the 29-bit identifier. These 11 bits are followed by the Substitute Remote Request (SRR) bit, which is defined to be recessive. The SRR bit is followed by the lDE bit, which is recessive to denote an extended CAN frame. It should be noted that if arbitration remains unresolved after transmission of the first 11 bits of the identifier, and one of the nodes involved in the arbitration is sending  2003-2019 Microchip Technology Inc. a standard CAN frame (11-bit identifier), the standard CAN frame will win arbitration due to the assertion of a dominant lDE bit. Also, the SRR bit in an extended CAN frame must be recessive to allow the assertion of a dominant RTR bit by a node that is sending a standard CAN remote frame. The SRR and lDE bits are followed by the remaining 18 bits of the identifier (Extended lD) and the Remote Transmission Request bit. To enable standard and extended frames to be sent across a shared network, the 29-bit extended message identifier is split into 11-bit (Most Significant) and 18-bit (Least Significant) sections. This split ensures that the lDE bit can remain at the same bit position in both the standard and extended frames. Following the arbitration field is the six-bit control field. The first two bits of this field are reserved and must be dominant. The remaining four bits of the control field are the DLC, which specifies the number of data bytes contained in the message. The remaining portion of the frame (data field, CRC field, Acknowledge field, End-of-Frame and intermission) is constructed in the same way as a standard data frame (see Section 2.1 “Standard Data Frame”). 2.3 Remote Frame Normally, data transmission is performed on an autonomous basis by the data source node (e.g., a sensor sending out a data frame). It is possible, however, for a destination node to request data from the source. To accomplish this, the destination node sends a remote frame with an identifier that matches the identifier of the required data frame. The appropriate data source node will then send a data frame in response to the remote frame request. There are two differences between a remote frame (shown in Figure 2-3) and a data frame. First, the RTR bit is at the recessive state, and second, there is no data field. In the event of a data frame and a remote frame with the same identifier being transmitted at the same time, the data frame wins arbitration due to the dominant RTR bit following the identifier. In this way, the node that transmitted the remote frame receives the desired data immediately. 2.4 Error Frame An error frame is generated by any node that detects a bus error. An error frame, shown in Figure 2-4, consists of two fields: an error flag field followed by an error delimiter field. There are two types of error flag fields. The type of error flag field sent depends upon the error status of the node that detects and generates the error flag field. DS20001801J-page 7 MCP2515 2.4.1 ACTIVE ERRORS If an error-active node detects a bus error, the node interrupts transmission of the current message by generating an active error flag. The active error flag is composed of six consecutive dominant bits. This bit sequence actively violates the bit-stuffing rule. All other stations recognize the resulting bit-stuffing error, and in turn, generate error frames themselves, called error echo flags. The error flag field, therefore, consists of between six and twelve consecutive dominant bits (generated by one or more nodes). The error delimiter field (eight recessive bits) completes the error frame. Upon completion of the error frame, bus activity returns to normal and the interrupted node attempts to resend the aborted message. Note: 2.4.2 Error echo flags typically occur when a localized disturbance causes one or more (but not all) nodes to send an error flag. The remaining nodes generate error flags in response (echo) to the original error flag. 2.5 An overload frame, shown in Figure 2-5, has the same format as an active-error frame. An overload frame, however, can only be generated during an interframe space. In this way, an overload frame can be differentiated from an error frame (an error frame is sent during the transmission of a message). The overload frame consists of two fields: an overload flag followed by an overload delimiter. The overload flag consists of six dominant bits followed by overload flags generated by other nodes (and, as for an active error flag, giving a maximum of twelve dominant bits). The overload delimiter consists of eight recessive bits. An overload frame can be generated by a node as a result of two conditions: 1. The node detects a dominant bit during the interframe space, an illegal condition. Exception: The dominant bit is detected during the third bit of IFS. In this case, the receivers will interpret this as a SOF. Due to internal conditions, the node is not yet able to begin reception of the next message. A node may generate a maximum of two sequential overload frames to delay the start of the next message. 2. PASSIVE ERRORS If an error-passive node detects a bus error, the node transmits an error-passive flag followed by the error delimiter field. The error-passive flag consists of six consecutive recessive bits. The error frame for an errorpassive node consists of 14 recessive bits. From this, it follows that unless the bus error is detected by an erroractive node or the transmitting node, the message will continue transmission because the error-passive flag does not interfere with the bus. If the transmitting node generates an error-passive flag, it will cause other nodes to generate error frames due to the resulting bit-stuffing violation. After transmission of an error frame, an error-passive node must wait for six consecutive recessive bits on the bus before attempting to rejoin bus communications. Overload Frame Note: 2.6 Case 2 should never occur with the MCP2515 due to very short internal delays. Interframe Space The interframe space separates a preceding frame (of any type) from a subsequent data or remote frame. The interframe space is composed of at least three recessive bits, called the ‘Intermission’. This allows nodes time for internal processing before the start of the next message frame. After the intermission, the bus line remains in the recessive state (Bus Idle) until the next transmission starts. The error delimiter consists of eight recessive bits, and allows the bus nodes to restart bus communications cleanly after an error has occurred. DS20001801J-page 8  2003-2019 Microchip Technology Inc. Start-of-Frame ID 10 0 Stored in Buffers Message Filtering Identifier 11 12 Arbitration Field ID3  2003-2019 Microchip Technology Inc. 6 Control Field 4 0 0 0 8 8N (0N8) Data Field Bit-Stuffing Stored in Transmit/Receive Buffers DLC0 Data Length Code ID0 RTR IDE RB0 DLC3 8 15 CRC 16 CRC Field IFS 1 1 1 1 1 1 1 1 1 1 1 CRC Del Ack Slot Bit ACK Del 1 End-ofFrame 7 FIGURE 2-1: Reserved Bit Data Frame (number of bits = 44 + 8N) MCP2515 STANDARD DATA FRAME DS20001801J-page 9 Start-of-Frame ID10 0 ID3 Message Filtering Identifier 11 Stored in Buffers 11 18 Extended Identifier Arbitration Field ID0 SRR IDE EID17 000 Bit-Stuffing 8 Stored in Transmit/Receive Buffers Data Length Code 4 8N (0 N 8) Data Field 8 Data Frame (number of bits = 64 + 8N) 6 Control Field EID0 RTR RB1 RB0 DLC3 DS20001801J-page 10 Reserved Bits CRC 15 16 CRC Field IFS 11111111111 CRC Del Ack Slot Bit ACK Del 1 End-ofFrame 7 FIGURE 2-2: DLC0 32 MCP2515 EXTENDED DATA FRAME  2003-2019 Microchip Technology Inc. ID3 Message Filtering Identifier 11 ID0 SRR IDE EID17 18 Extended Identifier Remote Frame with Extended Identifier Start-of-Frame ID10 0 11 32 100 Data Length Code 4 6 Control Field EID0 RTR RB1 RB0 DLC3 Reserved Bits  2003-2019 Microchip Technology Inc. DLC0 No Data Field CRC 15 16 CRC Field IFS 11111111111 CRC Del Ack Slot Bit ACK Del 1 End-ofFrame 7 FIGURE 2-3: Arbitration Field MCP2515 REMOTE FRAME DS20001801J-page 11 Start-of-Frame ID 10 0 Message Filtering Identifier 11 ID3 12 Arbitration Field 6 Control Field 4 0 0 0 Bit-Stuffing Data Length Code ID0 RTR IDE RB0 DLC3 DS20001801J-page 12 Reserved Bit 8 Data Frame or Remote Frame 8N (0 N 8) Data Field 8 Inter-Frame Space or Overload Frame 0 0 1 1 1 1 1 1 1 1 0 Error Delimiter Echo Error Flag Error Flag 0 0 0 0 0 0 0 8 £6 6 Error Frame FIGURE 2-4: DLC0 Interrupted Data Frame MCP2515 ACTIVE ERROR FRAME  2003-2019 Microchip Technology Inc.  2003-2019 Microchip Technology Inc. Start-of-Frame ID 10 0 11 12 Arbitration Field 6 Control Field 4 1 0 0 ID0 RTR IDE RB0 DLC3 16 15 CRC CRC Field End-of-Frame or Error Delimiter or Overload Delimiter 1 1 1 1 1 1 1 1 CRC Del Ack Slot Bit ACK Del 1 End-ofFrame 7 Overload Delimiter Overload Flag 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 8 6 Overload Frame Inter-Frame Space or Error Frame FIGURE 2-5: DLC0 Remote Frame (number of bits = 44) MCP2515 OVERLOAD FRAME DS20001801J-page 13 MCP2515 NOTES: DS20001801J-page 14  2003-2019 Microchip Technology Inc. MCP2515 3.0 MESSAGE TRANSMISSION 3.3 3.1 Transmit Buffers In order to initiate message transmission, the TXREQ bit (TXBnCTRL[3]) must be set for each buffer to be transmitted. This can be accomplished by: The MCP2515 implements three transmit buffers. Each of these buffers occupies 14 bytes of SRAM and are mapped into the device memory map. The first byte, TXBnCTRL, is a control register associated with the message buffer. The information in this register determines the conditions under which the message will be transmitted and indicates the status of the message transmission (see Register 3-1). Five bytes are used to hold the Standard and Extended Identifiers, as well as other message arbitration information (see Register 3-3 through Register 3-6). The last eight bytes are for the eight possible data bytes of the message to be transmitted (see Register 3-8). At a minimum, the TXBnSIDH, TXBnSIDL and TXBnDLC registers must be loaded. If data bytes are present in the message, the TXBnDm registers must also be loaded. If the message is to use Extended Identifiers, the TXBnEIDm registers must also be loaded and the EXIDE (TXBnSIDL[3]) bit set. Prior to sending the message, the MCU must initialize the TXnIE bit in the CANINTE register to enable or disable the generation of an interrupt when the message is sent. Note: 3.2 The TXREQ bit (TXBnCTRL[3]) must be clear (indicating the transmit buffer is not pending transmission) before writing to the transmit buffer. Transmit Priority Transmit priority is a prioritization within the MCP2515 of the pending transmittable messages. This is independent from, and not necessarily related to, any prioritization implicit in the message arbitration scheme built into the CAN protocol. Prior to sending the SOF, the priority of all buffers that are queued for transmission is compared. The transmit buffer with the highest priority will be sent first. For example, if Transmit Buffer 0 has a higher priority setting than Transmit Buffer 1, Transmit Buffer 0 will be sent first. If two buffers have the same priority setting, the buffer with the highest buffer number will be sent first. For example, if Transmit Buffer 1 has the same priority setting as Transmit Buffer 0, Transmit Buffer 1 will be sent first. There are four levels of transmit priority. If the TXP[1:0] bits (TXBnCTRL[1:0]) for a particular message buffer are set to ‘11’, that buffer has the highest possible priority. If the TXP[1:0] bits for a particular message buffer are ‘00’, that buffer has the lowest possible priority.  2003-2019 Microchip Technology Inc. Initiating Transmission • Writing to the register via the SPI write command • Sending the SPI RTS command • Setting the TXnRTS pin low for the particular transmit buffer(s) that are to be transmitted If transmission is initiated via the SPI interface, the TXREQ bit can be set at the same time as the TXPx priority bits. When TXREQ is set, the ABTF, MLOA and TXERR bits (TXBnCTRL[5:4]) will be cleared automatically. Note: Setting the TXREQ bit (TXBnCTRL[3]) does not initiate a message transmission. It merely flags a message buffer as being ready for transmission. Transmission will start when the device detects that the bus is available. Once the transmission has completed successfully, the TXREQ bit will be cleared, the TXnIF bit (CANINTF) will be set and an interrupt will be generated if the TXnIE bit (CANINTE) is set. If the message transmission fails, the TXREQ bit will remain set. This indicates that the message is still pending for transmission and one of the following condition flags will be set: • If the message started to transmit but encountered an error condition, the TXERR (TXBnCTRL[4]) and MERRF bits (CANINTF[7]) will be set, and an interrupt will be generated on the INT pin if the MERRE bit (CANINTE[7]) is set • If the message is lost, arbitration at the MLOA bit (TXBnCTRL[5]) will be set Note: 3.4 If One-Shot mode is enabled (OSM bit (CANCTRL[3])), the above conditions will still exist. However, the TXREQ bit will be cleared and the message will not attempt transmission a second time. One-Shot Mode One-Shot mode ensures that a message will only attempt to transmit one time. Normally, if a CAN message loses arbitration, or is destroyed by an error frame, the message is retransmitted. With One-Shot mode enabled, a message will only attempt to transmit one time, regardless of arbitration loss or error frame. One-Shot mode is required to maintain time slots in deterministic systems, such as TTCAN. DS20001801J-page 15 MCP2515 3.5 TXnRTS Pins 3.6 Aborting Transmission The TXnRTS pins are input pins that can be configured as: The MCU can request to abort a message in a specific message buffer by clearing the associated TXREQ bit. • Request-to-Send inputs, which provide an alternative means of initiating the transmission of a message from any of the transmit buffers • Standard digital inputs In addition, all pending messages can be requested to be aborted by setting the ABAT bit (CANCTRL[4]). This bit MUST be reset (typically after the TXREQ bits have been verified to be cleared) to continue transmitting messages. The ABTF flag (TXBnCTRL[6]) will only be set if the abort was requested via the ABAT bit. Aborting a message by resetting the TXREQ bit does NOT cause the ABTF bit to be set. Configuration and control of these pins is accomplished using the TXRTSCTRL register (see Register 3-2). The TXRTSCTRL register can only be modified when the MCP2515 is in Configuration mode (see Section 10.0 “Modes of Operation”). If configured to operate as a Request-to-Send pin, the pin is mapped into the respective TXREQ bit (TXBnCTRL[3]) for the transmit buffer. The TXREQ bit is latched by the falling edge of the TXnRTS pin. The TXnRTS pins are designed to allow them to be tied directly to the RXnBF pins to automatically initiate a message transmission when the RXnBF pin goes low. The TXnRTS pins have internal pull-up resistors of 100 k (nominal). DS20001801J-page 16 Note 1: Messages that were transmitting when the abort was requested will continue to transmit. If the message does not successfully complete transmission (i.e., lost arbitration or was interrupted by an error frame), it will then be aborted. 2: When One-Shot mode is enabled, if the message is interrupted due to an error frame or loss of arbitration, the ABTF bit will set.  2003-2019 Microchip Technology Inc. MCP2515 FIGURE 3-1: TRANSMIT MESSAGE FLOWCHART Start No The message transmission sequence begins when the device determines that the TXREQ bit (TXBnCTRL[3]) for any of the transmit registers has been set. Are any TXREQ (TXBnCTRL[3]) bits = 1? Yes Clearing the TXREQ bit while it is set, or setting the ABAT bit (CANCTRL[4]) before the message has started transmission, will abort the message. Clear: ABTF (TXBnCTRL[6]) MLOA (TXBnCTRL[5]) TXERR (TXBnCTRL[4]) Is CAN bus available to start transmission? Is TXREQ = 0 or ABAT = 1? No Yes No Yes Examine TXP[1:0] (TXBnCTRL[1:0]) to Determine Highest Priority Message Transmit Message Was Message Transmitted Successfully? Yes Clear TXREQ bit No Message error or lost arbitration ? Message Error Set TXERR (TXBnCTRL[4]) Lost Arbitration Yes MERRE (CANINTE)? Yes Generate Interrupt TXnIE (CANINTE) = 1? Set MLOA (TXBnCTRL[5]) No Generate Interrupt No Set TXnIF (CANTINF) Set MERRF (CANTINF) The TXnIE bit determines if an interrupt should be generated when a message is successfully transmitted. GOTO START  2003-2019 Microchip Technology Inc. DS20001801J-page 17 MCP2515 REGISTER 3-1: TXBnCTRL: TRANSMIT BUFFER n CONTROL REGISTER (ADDRESS: 30h, 40h, 50h) U-0 R-0 R-0 R-0 R/W-0 U-0 R/W-0 R/W-0 — ABTF MLOA TXERR TXREQ — TXP1 TXP0 bit 7 bit 0 Legend: R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’ -n = Value at POR ‘1’ = Bit is set ‘0’ = Bit is cleared x = Bit is unknown bit 7 Unimplemented: Read as ‘0’ bit 6 ABTF: Message Aborted Flag bit 1 = Message was aborted 0 = Message completed transmission successfully bit 5 MLOA: Message Lost Arbitration bit 1 = Message lost arbitration while being sent 0 = Message did not lose arbitration while being sent bit 4 TXERR: Transmission Error Detected bit 1 = A bus error occurred while the message was being transmitted 0 = No bus error occurred while the message was being transmitted bit 3 TXREQ: Message Transmit Request bit 1 = Buffer is currently pending transmission (MCU sets this bit to request message be transmitted – bit is automatically cleared when the message is sent) 0 = Buffer is not currently pending transmission (MCU can clear this bit to request a message abort) bit 2 Unimplemented: Read as ‘0’ bit 1-0 TXP[1:0]: Transmit Buffer Priority bits 11 = Highest message priority 10 = High intermediate message priority 01 = Low intermediate message priority 00 = Lowest message priority DS20001801J-page 18  2003-2019 Microchip Technology Inc. MCP2515 REGISTER 3-2: TXRTSCTRL: TXnRTS PIN CONTROL AND STATUS REGISTER (ADDRESS: 0Dh) U-0 U-0 R-x R-x R-x R/W-0 R/W-0 R/W-0 — — B2RTS B1RTS B0RTS B2RTSM B1RTSM B0RTSM bit 7 bit 0 Legend: R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’ -n = Value at POR ‘1’ = Bit is set ‘0’ = Bit is cleared x = Bit is unknown bit 7-6 Unimplemented: Read as ‘0’ bit 5 B2RTS: TX2RTS Pin State bit - Reads state of TX2RTS pin when in Digital Input mode - Reads as ‘0’ when pin is in Request-to-Send mode bit 4 B1RTS: TX1RTS Pin State bit - Reads state of TX1RTS pin when in Digital Input mode - Reads as ‘0’ when pin is in Request-to-Send mode bit 3 B0RTS: TX0RTS Pin State bit - Reads state of TX0RTS pin when in Digital Input mode - Reads as ‘0’ when pin is in Request-to-Send mode bit 2 B2RTSM: TX2RTS Pin mode bit 1 = Pin is used to request message transmission of TXB2 buffer (on falling edge) 0 = Digital input bit 1 B1RTSM: TX1RTS Pin mode bit 1 = Pin is used to request message transmission of TXB1 buffer (on falling edge) 0 = Digital input bit 0 B0RTSM: TX0RTS Pin mode bit 1 = Pin is used to request message transmission of TXB0 buffer (on falling edge) 0 = Digital input  2003-2019 Microchip Technology Inc. DS20001801J-page 19 MCP2515 REGISTER 3-3: TXBnSIDH: TRANSMIT BUFFER n STANDARD IDENTIFIER REGISTER HIGH (ADDRESS: 31h, 41h, 51h) R/W-x R/W-x R/W-x R/W-x R/W-x R/W-x R/W-x R/W-x SID10 SID9 SID8 SID7 SID6 SID5 SID4 SID3 bit 7 bit 0 Legend: R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’ -n = Value at POR ‘1’ = Bit is set ‘0’ = Bit is cleared bit 7-0 x = Bit is unknown SID[10:3]: Standard Identifier bits REGISTER 3-4: TXBnSIDL: TRANSMIT BUFFER n STANDARD IDENTIFIER REGISTER LOW (ADDRESS: 32h, 42h, 52h) R/W-x R/W-x R/W-x U-0 R/W-x U-0 R/W-x R/W-x SID2 SID1 SID0 — EXIDE — EID17 EID16 bit 7 bit 0 Legend: R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’ -n = Value at POR ‘1’ = Bit is set ‘0’ = Bit is cleared bit 7-5 SID[2:0]: Standard Identifier bits bit 4 Unimplemented: Read as ‘0’ bit 3 EXIDE: Extended Identifier Enable bit 1 = Message will transmit Extended Identifier 0 = Message will transmit Standard Identifier bit 2 Unimplemented: Read as ‘0’ bit 1-0 EID[17:16]: Extended Identifier bits DS20001801J-page 20 x = Bit is unknown  2003-2019 Microchip Technology Inc. MCP2515 REGISTER 3-5: TXBnEID8: TRANSMIT BUFFER n EXTENDED IDENTIFIER 8 REGISTER HIGH (ADDRESS: 33h, 43h, 53h) R/W-x R/W-x R/W-x R/W-x R/W-x R/W-x R/W-x R/W-x EID15 EID14 EID13 EID12 EID11 EID10 EID9 EID8 bit 7 bit 0 Legend: R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’ -n = Value at POR ‘1’ = Bit is set ‘0’ = Bit is cleared bit 7-0 x = Bit is unknown EID[15:8]: Extended Identifier bits REGISTER 3-6: TXBnEID0: TRANSMIT BUFFER n EXTENDED IDENTIFIER 0 REGISTER LOW (ADDRESS: 34h, 44h, 54h) R/W-x R/W-x R/W-x R/W-x R/W-x R/W-x R/W-x R/W-x EID7 EID6 EID5 EID4 EID3 EID2 EID1 EID0 bit 7 bit 0 Legend: R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’ -n = Value at POR ‘1’ = Bit is set ‘0’ = Bit is cleared bit 7-0 x = Bit is unknown EID[7:0]: Extended Identifier bits  2003-2019 Microchip Technology Inc. DS20001801J-page 21 MCP2515 REGISTER 3-7: U-0 TXBnDLC: TRANSMIT BUFFER n DATA LENGTH CODE REGISTER (ADDRESS: 35h, 45h, 55h) R/W-x — RTR U-0 U-0 — — R/W-x R/W-x (1) DLC3 DLC2 (1) R/W-x (1) DLC1 R/W-x DLC0(1) bit 7 bit 0 Legend: R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’ -n = Value at POR ‘1’ = Bit is set ‘0’ = Bit is cleared x = Bit is unknown bit 7 Unimplemented: Read as ‘0’ bit 6 RTR: Remote Transmission Request bit 1 = Transmitted message will be a remote transmit request 0 = Transmitted message will be a data frame bit 5-4 Unimplemented: Reads as ‘0’ bit 3-0 DLC[3:0]: Data Length Code bits(1) Sets the number of data bytes to be transmitted (0 to 8 bytes). Note 1: It is possible to set the DLC[3:0] bits to a value greater than eight; however, only eight bytes are transmitted. REGISTER 3-8: TXBnDm: TRANSMIT BUFFER n DATA BYTE m REGISTER (ADDRESS: 36h-3Dh, 46h-4Dh, 56h-5Dh) R/W-x R/W-x R/W-x R/W-x R/W-x R/W-x R/W-x R/W-x TXBnDm7 TXBnDm6 TXBnDm5 TXBnDm4 TXBnDm3 TXBnDm2 TXBnDm1 TXBnDm0 bit 7 bit 0 Legend: R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’ -n = Value at POR ‘1’ = Bit is set ‘0’ = Bit is cleared bit 7-0 x = Bit is unknown TXBnDm[7:0]: Transmit Buffer n Data Field Byte m bits DS20001801J-page 22  2003-2019 Microchip Technology Inc. MCP2515 4.0 MESSAGE RECEPTION 4.1 Receive Message Buffering The MCP2515 includes two full receive buffers with multiple acceptance filters for each. There is also a separate Message Assembly Buffer (MAB) that acts as a third receive buffer (see Figure 4-2). 4.1.1 MESSAGE ASSEMBLY BUFFER Of the three receive buffers, the MAB is always committed to receiving the next message from the bus. The MAB assembles all messages received. These messages will be transferred to the RXBn buffers (see Register 4-4 to Register 4-9) only if the acceptance filter criteria is met. 4.1.2 RXB0 AND RXB1 The remaining two receive buffers, called RXB0 and RXB1, can receive a complete message from the protocol engine via the MAB. The MCU can access one buffer, while the other buffer is available for message reception, or for holding a previously received message. Note: 4.1.3 The entire content of the MAB is moved into the receive buffer once a message is accepted. This means, that regardless of the type of identifier (Standard or Extended) and the number of data bytes received, the entire receive buffer is overwritten with the MAB contents. Therefore, the contents of all registers in the buffer must be assumed to have been modified when any message is received. RECEIVE FLAGS/INTERRUPTS When a message is moved into either of the receive buffers, the appropriate RXnIF bit (CANINTF) is set. This bit must be cleared by the MCU in order to allow a new message to be received into the buffer. This bit provides a positive lockout to ensure that the MCU has finished with the message before the MCP2515 attempts to load a new message into the receive buffer. 4.2 Receive Priority RXB0, the higher priority buffer, has one mask and two message acceptance filters associated with it. The received message is applied to the mask and filters for RXB0 first. RXB1 is the lower priority buffer, with one mask and four acceptance filters associated with it. In addition to the message being applied to the RXB0 mask and filters first, the lower number of acceptance filters makes the match on RXB0 more restrictive and implies a higher priority for that buffer. When a message is received, the RXBnCTRL[3:0] register bits will indicate the acceptance filter number that enabled reception and whether the received message is a Remote Transfer Request. 4.2.1 ROLLOVER Additionally, the RXB0CTRL register can be configured such that, if RXB0 contains a valid message and another valid message is received, an overflow error will not occur and the new message will be moved into RXB1, regardless of the acceptance criteria of RXB1. 4.2.2 RXM BITS The RXM[1:0] bits (RXBnCTRL[6:5]) set special Receive modes. Normally, these bits are cleared to ‘00’ to enable reception of all valid messages as determined by the appropriate acceptance filters. In this case, the determination of whether or not to receive standard or extended messages is determined by the EXIDE bit (RFXnSIDL[3]) in the Filter n Standard Identifier Low register. If the RXM[1:0] bits are set to ‘11’, the buffer will receive all messages, regardless of the values of the acceptance filters. Also, if a message has an error before the EOF, that portion of the message assembled in the MAB, before the error frame, will be loaded into the buffer. This mode has some value in debugging a CAN system and would not be used in an actual system environment. Setting the RXM[1:0] bits to ‘01’ or ‘10’ is not recommended. If the RXnIE bit (CANINTE) is set, an interrupt will be generated on the INT pin to indicate that a valid message has been received. In addition, the associated RXnBF pin will drive low if configured as a receive buffer full pin. See Section 4.4 “RX0BF and RX1BF Pins” for details.  2003-2019 Microchip Technology Inc. DS20001801J-page 23 MCP2515 4.3 Start-of-Frame Signal 4.4.1 The RXnBF pins can be disabled to the high-impedance state by clearing the BnBFE bits (BFPCTRL[3:2]). If enabled, the Start-of-Frame signal is generated on the SOF pin at the beginning of each CAN message detected on the RXCAN pin. 4.4.2 The RXCAN pin monitors an Idle bus for a recessiveto-dominant edge. If the dominant condition remains until the sample point, the MCP2515 interprets this as a SOF and a SOF pulse is generated. If the dominant condition does not remain until the sample point, the MCP2515 interprets this as a glitch on the bus and no SOF signal is generated. Figure 4-1 illustrates SOF signaling and glitch filtering. CONFIGURED AS BUFFER FULL The RXnBF pins can be configured to act as either buffer full interrupt pins or as standard digital outputs. Configuration and status of these pins are available via the BFPCTRL register (Register 4-3). When set to operate in Interrupt mode, by setting the BnBFE and BnBFM bits (BFPCTRL[3:0]), these pins are active-low and are mapped to the RXnIF bit (CANINTF) for each receive buffer. When this bit goes high for one of the receive buffers (indicating that a valid message has been loaded into the buffer), the corresponding RXnBF pin will go low. When the RXnIF bit is cleared by the MCU, the corresponding interrupt pin will go to the logic high state until the next message is loaded into the receive buffer. As with One-Shot mode, one use for SOF signaling is for TTCAN-type systems. In addition, by monitoring both the RXCAN pin and the SOF pin, an MCU can detect early physical bus problems by detecting small glitches before they affect the CAN communications. 4.4 DISABLED RX0BF and RX1BF Pins In addition to the INT pin, which provides an interrupt signal to the MCU for many different conditions, the Receive Buffer Full pins (RX0BF and RX1BF) can be used to indicate that a valid message has been loaded into RXB0 or RXB1, respectively. The pins have three different configurations (Table 4-1): 1. 2. 3. Disabled Buffer Full Interrupt Digital Output FIGURE 4-1: START-OF-FRAME SIGNALING Normal SOF Signaling ID Bit START-OF-FRAME BIT Sample Point RXCAN SOF Glitch Filtering EXPECTED START-OF-FRAME BIT Expected Sample Point Bus Idle RXCAN SOF DS20001801J-page 24  2003-2019 Microchip Technology Inc. MCP2515 4.4.3 CONFIGURED AS DIGITAL OUTPUT When used as digital outputs, the BnBFM bits (BFPCTRL[1:0]) must be cleared and the BnBFE bits (BFPCTRL[3:2]) must be set for the associated buffer. In this mode, the state of the pin is controlled by the BnBFS bits (BFPCTRL[5:4]). Writing a ‘1’ to a BnBFS bit will cause a high level to be driven on the associated buffer full pin, while a ‘0’ will cause the pin to drive low. When using the pins in this mode, the state of the pin should be modified only by using the SPI BIT MODIFY command to prevent glitches from occurring on either of the buffer full pins. FIGURE 4-2: Note: TABLE 4-1: CONFIGURING RXnBF PINS BnBFE BnBFM BnBFS Pin Status 0 X X Disabled, high-impedance 1 1 X Receive buffer interrupt 1 0 0 Digital output = 0 1 0 1 Digital output = 1 RECEIVE BUFFER BLOCK DIAGRAM Messages received in the MAB are initially applied to the mask and filters of RXB0. In addition, only one filter match occurs (e.g., if the message matches both RXF0 and RXF2, the match will be for RXF0 and the message will be moved into RXB0). Acceptance Mask RXM1 Acceptance Filter RXF2 Acceptance Mask RXM0 A c c e p t R X B 0 Acceptance Filter RXF0 Acceptance Filter RXF4 Acceptance Filter RXF1 Acceptance Filter RXF5 Identifier Data Field  2003-2019 Microchip Technology Inc. Acceptance Filter RXF3 M A B Identifier A c c e p t R X B 1 Data Field DS20001801J-page 25 MCP2515 FIGURE 4-3: RECEIVE FLOWCHART Start Detect Start of Message? No Yes Begin Loading Message into Message Assembly Buffer (MAB) Generate Error Frame Valid Message Received? No Yes Meets a Filter Criteria for RXB0? Yes No Meets a Filter Criteria for RXB1? Yes No Go to Start Determines if the Receive register is empty and able to accept a new message. Determines if RXB0 can roll over into RXB1 if it is full. Is RX0IF (CANINTF) = 0? Is BUKT (RXB0CTRL[2]) = 1? No Yes No Yes Generate Overflow Error: Set RX0OVR (EFLG[6]) Move Message into RXB0 Generate Overflow Error: Set RX1OVR (EFLG[7]) Is RX1IF (CANINTF[3]) = 0? No Yes Set RX0IF (CANINTF[0]) = 1 Move Message into RXB1 No Is ERRIE (CANINTE[5]) = 1? Set FILHIT0 (RXB0CTRL[0]) According to Which Filter Criteria Set RX1IF (CANINTF[3]) = 1 Yes Generate Interrupt on INT RX0IE (CANINTE[0]) Yes = 1? Are B0BFM (BFPCTRL[0]) = 1 and B0BFE (BFPCTRL[2]) = 1? No DS20001801J-page 26 Yes Yes Generate Interrupt on INT RXB0 No Set CANSTAT[3:0] according to which receive buffer the message was loaded into Set RXBF0 Pin = 0 Set FILHIT[2:0] (RXB1CTRL[2:0]) According to which Filter Criteria was Met Go to Start RXB1 Set RXBF1 Pin = 0 RX1IE (CANINTE[1]) = 1? No Yes Are B1BFM (BFPCTRL[1]) = 1 and B1BFE (BF1CTRL[3]) = 1? No  2003-2019 Microchip Technology Inc. MCP2515 REGISTER 4-1: RXB0CTRL: RECEIVE BUFFER 0 CONTROL REGISTER (ADDRESS: 60h) U-0 R/W-0 R/W-0 U-0 R-0 R/W-0 R-0 R-0 — RXM1 RXM0 — RXRTR BUKT BUKT1 FILHIT0(1) bit 7 bit 0 Legend: R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’ -n = Value at POR ‘1’ = Bit is set ‘0’ = Bit is cleared x = Bit is unknown bit 7 Unimplemented: Read as ‘0’ bit 6-5 RXM[1:0]: Receive Buffer Operating mode bits 11 = Turns mask/filters off; receives any message 10 = Reserved 01 = Reserved 00 = Receives all valid messages using either Standard or Extended Identifiers that meet filter criteria; Extended ID Filter registers, RXFnEID8:RXFnEID0, are applied to the first two bytes of data in the messages with standard IDs bit 4 Unimplemented: Read as ‘0’ bit 3 RXRTR: Received Remote Transfer Request bit 1 = Remote Transfer Request received 0 = No Remote Transfer Request received bit 2 BUKT: Rollover Enable bit 1 = RXB0 message will roll over and be written to RXB1 if RXB0 is full 0 = Rollover is disabled bit 1 BUKT1: Read-Only Copy of BUKT bit (used internally by the MCP2515) bit 0 FILHIT0: Filter Hit bit (indicates which acceptance filter enabled reception of message)(1) 1 = Acceptance Filter 1 (RXF1) 0 = Acceptance Filter 0 (RXF0) Note 1: If a rollover from RXB0 to RXB1 occurs, the FILHIT0 bit will reflect the filter that accepted the message that rolled over.  2003-2019 Microchip Technology Inc. DS20001801J-page 27 MCP2515 REGISTER 4-2: RXB1CTRL: RECEIVE BUFFER 1 CONTROL REGISTER (ADDRESS: 70h) U-0 R/W-0 R/W-0 U-0 R-0 R-0 R-0 R-0 — RXM1 RXM0 — RXRTR FILHIT2 FILHIT1 FILHIT0 bit 7 bit 0 Legend: R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’ -n = Value at POR ‘1’ = Bit is set ‘0’ = Bit is cleared x = Bit is unknown bit 7 Unimplemented: Read as ‘0’ bit 6-5 RXM[1:0]: Receive Buffer Operating mode bits 11 = Turns mask/filters off; receives any message 10 = Reserved 01 = Reserved 00 = Receives all valid messages using either Standard or Extended Identifiers that meet filter criteria bit 4 Unimplemented: Read as ‘0’ bit 3 RXRTR: Received Remote Transfer Request bit 1 = Remote Transfer Request received 0 = No Remote Transfer Request received bit 2-0 FILHIT[2:0]: Filter Hit bits (indicates which acceptance filter enabled reception of message) 101 = Acceptance Filter 5 (RXF5) 100 = Acceptance Filter 4 (RXF4) 011 = Acceptance Filter 3 (RXF3) 010 = Acceptance Filter 2 (RXF2) 001 = Acceptance Filter 1 (RXF1) (only if the BUKT bit is set in RXB0CTRL) 000 = Acceptance Filter 0 (RXF0) (only if the BUKT bit is set in RXB0CTRL) DS20001801J-page 28  2003-2019 Microchip Technology Inc. MCP2515 REGISTER 4-3: BFPCTRL: RXnBF PIN CONTROL AND STATUS REGISTER (ADDRESS: 0Ch) U-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 — — B1BFS B0BFS B1BFE B0BFE B1BFM B0BFM bit 7 bit 0 Legend: R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’ -n = Value at POR ‘1’ = Bit is set ‘0’ = Bit is cleared x = Bit is unknown bit 7-6 Unimplemented: Read as ‘0’ bit 5 B1BFS: RX1BF Pin State bit (Digital Output mode only) - Reads as ‘0’ when RX1BF is configured as an interrupt pin bit 4 B0BFS: RX0BF Pin State bit (Digital Output mode only) - Reads as ‘0’ when RX0BF is configured as an interrupt pin bit 3 B1BFE: RX1BF Pin Function Enable bit 1 = Pin function is enabled, operation mode is determined by the B1BFM bit 0 = Pin function is disabled, pin goes to a high-impedance state bit 2 B0BFE: RX0BF Pin Function Enable bit 1 = Pin function is enabled, operation mode is determined by the B0BFM bit 0 = Pin function is disabled, pin goes to a high-impedance state bit 1 B1BFM: RX1BF Pin Operation mode bit 1 = Pin is used as an interrupt when a valid message is loaded into RXB1 0 = Digital Output mode bit 0 B0BFM: RX0BF Pin Operation mode bit 1 = Pin is used as an interrupt when a valid message is loaded into RXB0 0 = Digital Output mode  2003-2019 Microchip Technology Inc. DS20001801J-page 29 MCP2515 REGISTER 4-4: RXBnSIDH: RECEIVE BUFFER n STANDARD IDENTIFIER REGISTER HIGH (ADDRESS: 61h, 71h) R-x R-x R-x R-x R-x R-x R-x R-x SID10 SID9 SID8 SID7 SID6 SID5 SID4 SID3 bit 7 bit 0 Legend: R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’ -n = Value at POR ‘1’ = Bit is set ‘0’ = Bit is cleared bit 7-0 x = Bit is unknown SID[10:3]: Standard Identifier bits These bits contain the eight Most Significant bits of the Standard Identifier for the received message. REGISTER 4-5: RXBnSIDL: RECEIVE BUFFER n STANDARD IDENTIFIER REGISTER LOW (ADDRESS: 62h, 72h) R-x R-x R-x R-x R-x U-0 R-x R-x SID2 SID1 SID0 SRR IDE — EID17 EID16 bit 7 bit 0 Legend: R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’ -n = Value at POR ‘1’ = Bit is set ‘0’ = Bit is cleared x = Bit is unknown bit 7-5 SID[2:0]: Standard Identifier bits These bits contain the three Least Significant bits of the Standard Identifier for the received message. bit 4 SRR: Standard Frame Remote Transmit Request bit (valid only if IDE bit = 0) 1 = Standard frame Remote Transmit Request received 0 = Standard data frame received bit 3 IDE: Extended Identifier Flag bit This bit indicates whether the received message was a standard or an extended frame. 1 = Received message was an extended frame 0 = Received message was a standard frame bit 2 Unimplemented: Read as ‘0’ bit 1-0 EID[17:16]: Extended Identifier bits These bits contain the two Most Significant bits of the Extended Identifier for the received message. DS20001801J-page 30  2003-2019 Microchip Technology Inc. MCP2515 REGISTER 4-6: RXBnEID8: RECEIVE BUFFER n EXTENDED IDENTIFIER REGISTER HIGH (ADDRESS: 63h, 73h) R-x R-x R-x R-x R-x R-x R-x R-x EID15 EID14 EID13 EID12 EID11 EID10 EID9 EID8 bit 7 bit 0 Legend: R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’ -n = Value at POR ‘1’ = Bit is set ‘0’ = Bit is cleared bit 7-0 x = Bit is unknown EID[15:8]: Extended Identifier bits These bits hold bits 15 through 8 of the Extended Identifier for the received message REGISTER 4-7: RXBnEID0: RECEIVE BUFFER n EXTENDED IDENTIFIER REGISTER LOW (ADDRESS: 64h, 74h) R-x R-x R-x R-x R-x R-x R-x R-x EID7 EID6 EID5 EID4 EID3 EID2 EID1 EID0 bit 7 bit 0 Legend: R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’ -n = Value at POR ‘1’ = Bit is set ‘0’ = Bit is cleared bit 7-0 x = Bit is unknown EID[7:0]: Extended Identifier bits These bits hold the Least Significant eight bits of the Extended Identifier for the received message.  2003-2019 Microchip Technology Inc. DS20001801J-page 31 MCP2515 REGISTER 4-8: RXBnDLC: RECEIVE BUFFER n DATA LENGTH CODE REGISTER (ADDRESS: 65h, 75h) U-0 R-x R-x R-x R-x R-x R-x R-x — RTR RB1 RB0 DLC3 DLC2 DLC1 DLC0 bit 7 bit 0 Legend: R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’ -n = Value at POR ‘1’ = Bit is set ‘0’ = Bit is cleared x = Bit is unknown bit 7 Unimplemented: Read as ‘0’ bit 6 RTR: Extended Frame Remote Transmission Request bit (valid only when IDE (RXBnSIDL[3]) = 1) 1 = Extended frame Remote Transmit Request received 0 = Extended data frame received bit 5 RB1: Reserved Bit 1 bit 4 RB0: Reserved Bit 0 bit 3-0 DLC[3:0]: Data Length Code bits Indicates the number of data bytes that were received. REGISTER 4-9: RXBnDm: RECEIVE BUFFER n DATA BYTE m REGISTER (ADDRESS: 66h-6Dh, 76h-7Dh) R-x R-x R-x R-x R-x R-x R-x R-x RBnD7 RBnD6 RBnD5 RBnD4 RBnD3 RBnD2 RBnD1 RBnD0 bit 7 bit 0 Legend: R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’ -n = Value at POR ‘1’ = Bit is set ‘0’ = Bit is cleared bit 7-0 x = Bit is unknown RBnD[7:0]: Receive Buffer n Data Field Bytes m bits Eight bytes containing the data bytes for the received message. DS20001801J-page 32  2003-2019 Microchip Technology Inc. MCP2515 4.5 Message Acceptance Filters and Masks The message acceptance filters and masks are used to determine if a message in the Message Assembly Buffer should be loaded into either of the receive buffers (see Figure 4-5). Once a valid message has been received into the MAB, the identifier fields of the message are compared to the filter values. If there is a match, that message will be loaded into the appropriate receive buffer. identifier is compared to the masks and filters to determine if the message should be loaded into a receive buffer. The mask essentially determines which bits to apply the acceptance filters to. If any mask bit is set to a zero, that bit will automatically be accepted, regardless of the filter bit. TABLE 4-2: FILTER/MASK TRUTH TABLE Mask Bit n Filter Bit n Message Identifier Bit Accept or Reject Bit n When receiving standard data frames (11-bit identifier), the MCP2515 automatically applies 16 bits of masks and filters, normally associated with Extended Identifiers, to the first 16 bits of the data field (Data Bytes 0 and 1). Figure 4-4 illustrates how masks and filters apply to extended and standard data frames. 0 x x Accept 1 0 0 Accept 1 0 1 Reject 1 1 0 Reject 1 1 Accept Data byte filtering reduces the load on the MCU when implementing Higher Layer Protocols (HLPs) that filter on the first data byte (e.g., DeviceNet™). Note: 4.5.1 4.5.2 DATA BYTE FILTERING FILTER MATCHING The filter masks (see Register 4-14 through Register 4-17) are used to determine which bits in the identifier are examined with the filters. A truth table is shown in Table 4-2 that indicates how each bit in the FIGURE 4-4: 1 x = don’t care As shown in the Receive Buffer Block Diagram (Figure 4-2), acceptance filters, RXF0 and RXF1 (and filter mask, RXM0), are associated with RXB0. The filters, RXF2, RXF3, RXF4, RXF5 and mask RXM1, are associated with RXB1. MASKS AND FILTERS APPLY TO CAN FRAMES Extended Frame ID10 ID0 EID17 EID0 Masks and Filters Apply to the Entire 29-Bit ID Field Standard Data Frame ID10 ID0 * 11-Bit ID Standard Frame Data Byte 0 Data Byte 1 16-Bit Data Filtering* *The two MSbs’ (EID17 and EID16) mask and filter bits are not used.  2003-2019 Microchip Technology Inc. DS20001801J-page 33 MCP2515 4.5.3 FILHIT BITS If the BUKT bit is clear, there are six codes corresponding to the six filters. If the BUKT bit is set, there are six codes corresponding to the six filters, plus two additional codes corresponding to the RXF0 and RXF1 filters that roll over into RXB1. Filter matches on received messages can be determined by the FILHIT bits in the associated RXBnCTRL register; FILHIT0 (RXB0CTRL[0]) for Buffer 0 and FILHIT[2:0] (RXB1CTRL[2:0]) for Buffer 1. 4.5.4 The three FILHITn bits for Receive Buffer 1 (RXB1) are coded as follows: • • • • • • If more than one acceptance filter matches, the FILHITn bits will encode the binary value of the lowest numbered filter that matched. For example, if filters, RXF2 and RXF4, match, the FILHITn bits will be loaded with the value for RXF2. This essentially prioritizes the acceptance filters with a lower numbered filter having higher priority. Messages are compared to filters in ascending order of filter number. This also ensures that the message will only be received into one buffer. This implies that RXB0 has a higher priority than RXB1. 101 = Acceptance Filter 5 (RXF5) 100 = Acceptance Filter 4 (RXF4) 011 = Acceptance Filter 3 (RXF3) 010 = Acceptance Filter 2 (RXF2) 001 = Acceptance Filter 1 (RXF1) 000 = Acceptance Filter 0 (RXF0) Note: ‘000’ and ‘001’ can only occur if the BUKT bit in RXB0CTRL is set, allowing RXB0 messages to roll over into RXB1. 4.5.5 RXB0CTRL contains two copies of the BUKT bit and a copy of the FILHIT0 bit. Note: 111 = Acceptance Filter 1 (RXB1) 110 = Acceptance Filter 0 (RXB1) 001 = Acceptance Filter 1 (RXB0) 000 = Acceptance Filter 0 (RXB0) FIGURE 4-5: CONFIGURING THE MASKS AND FILTERS The Mask and Filter registers can only be modified when the MCP2515 is in Configuration mode (see Section 10.0 “Modes of Operation”). The coding of the BUKT bit enables these three bits to be used similarly to the FILHIT[2:0] (RXB1CTRL[2:0]) bits and to distinguish a hit on filters, RXF0 and RXF1, in either RXB0 or after a rollover into RXB1. • • • • MULTIPLE FILTER MATCHES The Mask and Filter registers read all ‘0’s when in any mode except Configuration mode. MESSAGE ACCEPTANCE MASK AND FILTER OPERATION Acceptance Filter Register RXFn0 Acceptance Mask Register RXMn0 RXMn1 RXFn1 RXFnn RxRqst RXMnn Message Assembly Buffer Identifier DS20001801J-page 34  2003-2019 Microchip Technology Inc. MCP2515 REGISTER 4-10: RXFnSIDH: FILTER n STANDARD IDENTIFIER REGISTER HIGH (ADDRESS: 00h, 04h, 08h, 10h, 14h, 18h)(1) R/W-x R/W-x R/W-x R/W-x R/W-x R/W-x R/W-x R/W-x SID10 SID9 SID8 SID7 SID6 SID5 SID4 SID3 bit 7 bit 0 Legend: R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’ -n = Value at POR ‘1’ = Bit is set ‘0’ = Bit is cleared bit 7-0 Note 1: x = Bit is unknown SID[10:3]: Standard Identifier Filter bits These bits hold the filter bits to be applied to bits[10:3] of the Standard Identifier portion of a received message. The Mask and Filter registers read all ‘0’s when in any mode except Configuration mode. REGISTER 4-11: RXFnSIDL: FILTER n STANDARD IDENTIFIER REGISTER LOW (ADDRESS: 01h, 05h, 09h, 11h, 15h, 19h)(1) R/W-x R/W-x R/W-x U-0 R/W-x U-0 R/W-x R/W-x SID2 SID1 SID0 — EXIDE — EID17 EID16 bit 7 bit 0 Legend: R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’ -n = Value at POR ‘1’ = Bit is set ‘0’ = Bit is cleared x = Bit is unknown bit 7-5 SID[2:0]: Standard Identifier Filter bits These bits hold the filter bits to be applied to bits[2:0] of the Standard Identifier portion of a received message. bit 4 Unimplemented: Read as ‘0’ bit 3 EXIDE: Extended Identifier Enable bit 1 = Filter is applied only to extended frames 0 = Filter is applied only to standard frames bit 2 Unimplemented: Read as ‘0’ bit 1-0 EID[17:16]: Extended Identifier Filter bits These bits hold the filter bits to be applied to bits[17:16] of the Extended Identifier portion of a received message. Note 1: The Mask and Filter registers read all ‘0’s when in any mode except Configuration mode.  2003-2019 Microchip Technology Inc. DS20001801J-page 35 MCP2515 REGISTER 4-12: RXFnEID8: FILTER n EXTENDED IDENTIFIER REGISTER HIGH (ADDRESS: 02h, 06h, 0Ah, 12h, 16h, 1Ah)(1) R/W-x R/W-x R/W-x R/W-x R/W-x R/W-x R/W-x R/W-x EID15 EID14 EID13 EID12 EID11 EID10 EID9 EID8 bit 7 bit 0 Legend: R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’ -n = Value at POR ‘1’ = Bit is set ‘0’ = Bit is cleared bit 7-0 Note 1: x = Bit is unknown EID[15:8]: Extended Identifier bits These bits hold the filter bits to be applied to bits[15:8] of the Extended Identifier portion of a received message or to Byte 0 in received data if the corresponding RXM[1:0] bits = 00 and EXIDE = 0. The Mask and Filter registers read all ‘0’s when in any mode except Configuration mode. REGISTER 4-13: RXFnEID0: FILTER n EXTENDED 1 REGISTER LOW (ADDRESS: 03h, 07h, 0Bh, 13h, 17h, 1Bh)(1) R/W-x R/W-x R/W-x R/W-x R/W-x R/W-x R/W-x R/W-x EID7 EID6 EID5 EID4 EID3 EID2 EID1 EID0 bit 7 bit 0 Legend: R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’ -n = Value at POR ‘1’ = Bit is set ‘0’ = Bit is cleared bit 7-0 Note 1: x = Bit is unknown EID[7:0]: Extended Identifier bits These bits hold the filter bits to be applied to bits[7:0] of the Extended Identifier portion of a received message or to Byte 1 in received data if the corresponding RXM[1:0] bits = 00 and EXIDE = 0. The Mask and Filter registers read all ‘0’s when in any mode except Configuration mode. DS20001801J-page 36  2003-2019 Microchip Technology Inc. MCP2515 REGISTER 4-14: RXMnSIDH: MASK n STANDARD IDENTIFIER REGISTER HIGH (ADDRESS: 20h, 24h)(1) R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 SID10 SID9 SID8 SID7 SID6 SID5 SID4 SID3 bit 7 bit 0 Legend: R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’ -n = Value at POR ‘1’ = Bit is set ‘0’ = Bit is cleared bit 7-0 Note 1: x = Bit is unknown SID[10:3]: Standard Identifier Mask bits These bits hold the mask bits to be applied to bits[10:3] of the Standard Identifier portion of a received message. The Mask and Filter registers read all ‘0’s when in any mode except Configuration mode. REGISTER 4-15: RXMnSIDL: MASK n STANDARD IDENTIFIER REGISTER LOW (ADDRESS: 21h, 25h)(1) R/W-0 R/W-0 R/W-0 U-0 U-0 U-0 R/W-0 R/W-0 SID2 SID1 SID0 — — — EID17 EID16 bit 7 bit 0 Legend: R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’ -n = Value at POR ‘1’ = Bit is set ‘0’ = Bit is cleared x = Bit is unknown bit 7-5 SID[2:0]: Standard Identifier Mask bits These bits hold the mask bits to be applied to bits[2:0] of the Standard Identifier portion of a received message. bit 4-2 Unimplemented: Reads as ‘0’ bit 1-0 EID[17:16]: Extended Identifier Mask bits These bits hold the mask bits to be applied to bits[17:16] of the Extended Identifier portion of a received message. Note 1: The Mask and Filter registers read all ‘0’s when in any mode except Configuration mode.  2003-2019 Microchip Technology Inc. DS20001801J-page 37 MCP2515 \ REGISTER 4-16: RXMnEID8: MASK n EXTENDED IDENTIFIER REGISTER HIGH (ADDRESS: 22h, 26h)(1) R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 EID15 EID14 EID13 EID12 EID11 EID10 EID9 EID8 bit 7 bit 0 Legend: R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’ -n = Value at POR ‘1’ = Bit is set ‘0’ = Bit is cleared bit 7-0 Note 1: x = Bit is unknown EID[15:8]: Extended Identifier bits These bits hold the filter bits to be applied to bits[15:8] of the Extended Identifier portion of a received message. If the corresponding RXM[1:0] bits = 00 and EXIDE = 0, these bits are applied to Byte 0 in received data. The Mask and Filter registers read all ‘0’s when in any mode except Configuration mode. REGISTER 4-17: RXMnEID0: MASK n EXTENDED IDENTIFIER REGISTER LOW (ADDRESS: 23h, 27h)(1) R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 EID7 EID6 EID5 EID4 EID3 EID2 EID1 EID0 bit 7 bit 0 Legend: R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’ -n = Value at POR ‘1’ = Bit is set ‘0’ = Bit is cleared bit 7-0 Note 1: x = Bit is unknown EID[7:0]: Extended Identifier Mask bits These bits hold the filter bits to be applied to bits[7:0] of the Extended Identifier portion of a received message. If the corresponding RXM[1:0] bits = 00 and EXIDE = 0, these bits are applied to Byte 1 in received data. The Mask and Filter registers read all ‘0’s when in any mode except Configuration mode. DS20001801J-page 38  2003-2019 Microchip Technology Inc. MCP2515 5.0 BIT TIMING 5.1 All nodes on a given CAN bus must have the same Nominal Bit Rate (NBR). The CAN protocol uses NonReturn-to-Zero (NRZ) coding, which does not encode a clock within the data stream. Therefore, the receive clock must be recovered by the receiving nodes and synchronized to the transmitter’s clock. As oscillators and transmission times may vary from node to node, the receiver must have some type of Phase-Locked Loop (PLL) synchronized to data transmission edges to synchronize and maintain the receiver clock. Since the data is NRZ coded, it is necessary to include bit-stuffing to ensure that an edge occurs, at least every six bit times, to maintain the Digital Phase-Locked Loop (DPLL) synchronization. The bit timing of the MCP2515 is implemented using a DPLL that is configured to synchronize to the incoming data, as well as provide the nominal timing for the transmitted data. The DPLL breaks each bit time into multiple segments made up of minimal periods of time, called the Time Quanta (TQ). Bus timing functions executed within the bit time frame (such as synchronization to the local oscillator, network transmission delay compensation and sample point positioning) are defined by the programmable Bit Timing Logic (BTL) of the DPLL. The CAN Bit Time All devices on the CAN bus must use the same bit rate. However, all devices are not required to have the same master oscillator clock frequency. For the different clock frequencies of the individual devices, the bit rate has to be adjusted by appropriately setting the Baud Rate Prescaler and number of Time Quanta in each segment. The CAN bit time is made up of non-overlapping segments. Each of these segments is made up of integer units, called Time Quanta (TQ), explained later in this data sheet. The Nominal Bit Rate (NBR) is defined in the CAN specification as the number of bits per second, transmitted by an ideal transmitter, with no resynchronization. It can be described with the equation: EQUATION 5-1: 1 NBR = f bit = ------t bit 5.2 Nominal Bit Time The Nominal Bit Time (NBT) (tbit) is made up of nonoverlapping segments (Figure 5-1). Therefore, the NBT is the summation of the following segments: t bit = t SyncSeg + t PropSeg + t PS 1 + t PS 2 Associated with the NBT are the sample point, Synchronization Jump Width (SJW) and Information Processing Time (IPT), which are explained later. 5.2.1 SYNCHRONIZATION SEGMENT The Synchronization Segment (SyncSeg) is the first segment in the NBT and is used to synchronize the nodes on the bus. Bit edges are expected to occur within the SyncSeg. This segment is fixed at 1 TQ. FIGURE 5-1: SyncSeg CAN BIT TIME SEGMENTS PropSeg PhaseSeg1 (PS1) Nominal Bit Time (NBT), tbit  2003-2019 Microchip Technology Inc. PhaseSeg2 (PS2) Sample Point DS20001801J-page 39 MCP2515 5.2.2 PROPAGATION SEGMENT The Propagation Segment (PropSeg) exists to compensate for physical delays between nodes. The propagation delay is defined as twice the sum of the signal’s propagation time on the bus line, including the delays associated with the bus driver. The PropSeg is programmable from 1-8 TQs. 5.2.3 PHASE SEGMENT 1 (PS1) AND PHASE SEGMENT 2 (PS2) The two Phase Segments, PS1 and PS2, are used to compensate for edge phase errors on the bus. PS1 can be lengthened (or PS2 shortened) by resynchronization. PS1 is programmable from 1-8 TQs and PS2 is programmable from 2-8 TQs. 5.2.4 SAMPLE POINT The sample point is the point in the bit time at which the logic level is read and interpreted. The sample point is located at the end of PS1. The exception to this rule is if the Sample mode is configured to sample three times per bit. In this case, while the bit is still sampled at the end of PS1, two additional samples are taken at onehalf TQ intervals prior to the end of PS1, with the value of the bit being determined by a majority decision. 5.2.5 Therefore: PS2min = IPT = 2 TQs 5.2.6 SYNCHRONIZATION JUMP WIDTH The Synchronization Jump Width (SJW) adjusts the bit clock, as necessary, by 1-4 TQs (as configured) to maintain synchronization with the transmitted message. Synchronization is covered in more detail later in this data sheet. 5.3 Time Quantum Each of the segments that make up a bit time are made up of integer units, called Time Quanta (TQ). The length of each Time Quantum is based on the oscillator period (TOSC). The base TQ equals twice the oscillator period. Figure 5-2 shows how the bit period is derived from TOSC and TQ. The TQ length equals one TQ clock period (tBRPCLK), which is programmable using a programmable prescaler, called the Baud Rate Prescaler (BRP). This is illustrated in the following equation: EQUATION 5-2: TQ = 2 • BRP • TOSC = INFORMATION PROCESSING TIME The Information Processing Time (IPT) is the time required for the logic to determine the bit level of a sampled bit. The IPT begins at the sample point, is measured in TQ and is fixed at 2 TQs for the Microchip CAN module. Since PS2 also begins at the sample point and is the last segment in the bit time, it is required that the PS2 minimum is not less than the IPT. FIGURE 5-2: 2 • BRP FOSC Where: BRP equals the configuration as shown in Register 5-1. TQ AND THE BIT PERIOD TOSC TBRPCLK tbit Sync (fixed) PropSeg (Programmable) PS1 (Programmable) PS2 (Programmable) TQ (tTQ) CAN Bit Time DS20001801J-page 40  2003-2019 Microchip Technology Inc. MCP2515 5.4 Synchronization To compensate for phase shifts between the oscillator frequencies of each of the nodes on the bus, each CAN controller must be able to synchronize to the relevant signal edge of the incoming signal. Synchronization is the process by which the DPLL function is implemented. When an edge in the transmitted data is detected, the logic will compare the location of the edge to the expected time (SyncSeg). The circuit will then adjust the values of PS1 and PS2 as necessary. There are two mechanisms used for synchronization: 1. 2. Hard synchronization Resynchronization 5.4.1 HARD SYNCHRONIZATION The phase error of an edge is given by the position of the edge relative to SyncSeg, measured in TQ. The phase error is defined in a magnitude of TQ as follows: • e = 0 if the edge lies within SyncSeg • e > 0 if the edge lies before the sample point (TQ is added to PS1) • e < 0 if the edge lies after the sample point of the previous bit (TQ is subtracted from PS2) 5.4.2.2 No Phase Error (e = 0) If the magnitude of the phase error is less than or equal to the programmed value of the SJW, the effect of a resynchronization is the same as that of a hard synchronization. 5.4.2.3 Positive Phase Error (e > 0) Hard synchronization is only performed when there is a recessive-to-dominant edge during a Bus Idle condition, indicating the start of a message. After hard synchronization, the bit time counters are restarted with SyncSeg. If the magnitude of the phase error is larger than the SJW, and if the phase error is positive, PS1 is lengthened by an amount equal to the SJW. Hard synchronization forces the edge that has occurred to lie within the Synchronization Segment of the restarted bit time. Due to the rules of synchronization, if a hard synchronization occurs, there will not be a resynchronization within that bit time. If the magnitude of the phase error is larger than the resynchronization jump width, and the phase error is negative, PS2 is shortened by an amount equal to the SJW. 5.4.2 RESYNCHRONIZATION As a result of resynchronization, PS1 may be lengthened or PS2 may be shortened. The amount of lengthening or shortening of the Phase Buffer Segments has an upper bound, given by the Synchronization Jump Width (SJW). The value of the SJW will be added to PS1 or subtracted from PS2 (see Figure 5-3). The SJW represents the loop filtering of the DPLL. The SJW is programmable between 1 TQ and 4 TQs. 5.4.2.1 Phase Errors The NRZ bit coding method does not encode a clock into the message. Clocking information will only be derived from recessive-to-dominant transitions. The property which states that only a fixed maximum number of successive bits have the same value (bitstuffing) ensures resynchronization to the bit stream during a frame.  2003-2019 Microchip Technology Inc. 5.4.2.4 5.4.3 1. 2. 3. 4. 5. Negative Phase Error (e < 0) SYNCHRONIZATION RULES Only recessive-to-dominant edges will be used for synchronization. Only one synchronization within one bit time is allowed. An edge will be used for synchronization only if the value detected at the previous sample point (previously read bus value) differs from the bus value immediately after the edge. A transmitting node will not resynchronize on a positive phase error (e > 0). If the absolute magnitude of the phase error is greater than the SJW, the appropriate Phase Segment will adjust by an amount equal to the SJW. DS20001801J-page 41 MCP2515 FIGURE 5-3: SYNCHRONIZING THE BIT TIME Input Signal (e = 0) SyncSeg PropSeg PhaseSeg2 (PS2) PhaseSeg1 (PS1) SJW (PS2) SJW (PS1) Sample Point Nominal Bit Time (NBT) No Resynchronization (e = 0) Input Signal (e > 0) SyncSeg PropSeg PhaseSeg2 (PS2) PhaseSeg1 (PS1) SJW (PS2) SJW (PS1) Sample Point Nominal Bit Time (NBT) Actual Bit Time Resynchronization to a Slower Transmitter (e > 0) Input Signal (e < 0) SyncSeg PropSeg PhaseSeg1 (PS1) SJW (PS1) PhaseSeg2 (PS2) SJW (PS2) Sample Point Nominal Bit Time (NBT) Actual Bit Time Resynchronization to a Faster Transmitter (e < 0) DS20001801J-page 42  2003-2019 Microchip Technology Inc. MCP2515 5.5 Programming Time Segments Some requirements for programming of the Time Segments: • PropSeg + PS1  PS2 • PropSeg + PS1  TDELAY • PS2 > SJW For example, assuming that a 125 kHz CAN baud rate with FOSC = 20 MHz is desired: TOSC = 50 ns, choose BRP[5:0] = 04h, then TQ = 500 ns. To obtain 125 kHz, the bit time must be 16 TQs. Typically, the sampling of the bit should take place at about 60-70% of the bit time, depending on the system parameters. Also, typically, the TDELAY is 1-2 TQs. SyncSeg = 1 TQ and PropSeg = 2 TQs. So setting PS1 = 7 TQs would place the sample at 10 TQs after the transition. This would leave 6 TQs for PS2. Since PS2 is 6, according to the rules, SJW could be a maximum of 4 TQs. However, a large SJW is typically only necessary when the clock generation of the different nodes is inaccurate or unstable, such as using ceramic resonators. So a SJW of 1 is usually enough. 5.6 Oscillator Tolerance The bit timing requirements allow ceramic resonators to be used in applications with transmission rates of up to 125 kbit/sec as a rule of thumb. For the full bus speed range of the CAN protocol, a quartz oscillator is required. A maximum node-to-node oscillator variation of 1.7% is allowed. 5.7 Bit Timing Configuration Registers The Configuration registers (CNF1, CNF2, CNF3) control the bit timing for the CAN bus interface. These registers can only be modified when the MCP2515 is in Configuration mode (see Section 10.0 “Modes of Operation”). 5.7.1 CNF1 The BRP[5:0] bits control the Baud Rate Prescaler. These bits set the length of TQ relative to the OSC1 input frequency, with the minimum TQ length being 2 TOSC (when BRP[5:0] = b000000). The SJW[1:0] bits select the SJW in terms of number of TQs. 5.7.2 CNF2 The PRSEG[2:0] bits set the length (in TQs) of the Propagation Segment. The PHSEG1[2:0] bits set the length (in TQs) of PS1. The SAM bit controls how many times the RXCAN pin is sampled. Setting this bit to a ‘1’ causes the bus to be sampled three times: twice at TQ/2 before the sample point and once at the normal sample point (which is at the end of PS1). The value of the bus is determined to be the majority sampled. If the SAM bit is set to a ‘0’, the RXCAN pin is sampled only once at the sample point. The BTLMODE bit controls how the length of PS2 is determined. If this bit is set to a ‘1’, the length of PS2 is determined by the PHSEG2[2:0] bits of CNF3 (see Section 5.7.3 “CNF3”). If the BTLMODE bit is set to a ‘0’, the length of PS2 is greater than that of PS1 and the Information Processing Time (which is fixed at 2 TQs for the MCP2515). 5.7.3 CNF3 The PHSEG2[2:0] bits set the length (in TQs) of PS2 if the BTLMODE bit (CNF2[7]) is set to a ‘1’. If the BTLMODE bit is set to a ‘0’, the PHSEG2[2:0] bits have no effect.  2003-2019 Microchip Technology Inc. DS20001801J-page 43 MCP2515 REGISTER 5-1: CNF1: CONFIGURATION REGISTER 1 (ADDRESS: 2Ah) R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 SJW1 SJW0 BRP5 BRP4 BRP3 BRP2 BRP1 BRP0 bit 7 bit 0 Legend: R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’ -n = Value at POR ‘1’ = Bit is set ‘0’ = Bit is cleared bit 7-6 SJW[1:0]: Synchronization Jump Width Length bits 11 = Length = 4 x TQ 10 = Length = 3 x TQ 01 = Length = 2 x TQ 00 = Length = 1 x TQ bit 5-0 BRP[5:0]: Baud Rate Prescaler bits TQ = 2 x (BRP[5:0] + 1)/FOSC. REGISTER 5-2: x = Bit is unknown CNF2: CONFIGURATION REGISTER 2 (ADDRESS: 29h) R/W-0 R/W-0 BTLMODE SAM R/W-0 R/W-0 R/W-0 PHSEG1[2:0] R/W-0 R/W-0 R/W-0 PRSEG2 PRSEG1 PRSEG0 bit 7 bit 0 Legend: R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’ -n = Value at POR ‘1’ = Bit is set ‘0’ = Bit is cleared x = Bit is unknown bit 7 BTLMODE: PS2 Bit Time Length bit 1 = Length of PS2 is determined by the PHSEG2[2:0] bits of CNF3 0 = Length of PS2 is the greater of PS1 and IPT (2 TQs) bit 6 SAM: Sample Point Configuration bit 1 = Bus line is sampled three times at the sample point 0 = Bus line is sampled once at the sample point bit 5-3 PHSEG1[2:0]: PS1 Length bits (PHSEG1[2:0] + 1) x TQ. bit 2-0 PRSEG[2:0]: Propagation Segment Length bits (PRSEG[2:0] + 1) x TQ. DS20001801J-page 44  2003-2019 Microchip Technology Inc. MCP2515 REGISTER 5-3: CNF3: CONFIGURATION REGISTER 3 (ADDRESS: 28h) R/W-0 R/W-0 U-0 U-0 U-0 SOF WAKFIL — — — R/W-0 R/W-0 R/W-0 PHSEG2[2:0] bit 7 bit 0 Legend: R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’ -n = Value at POR ‘1’ = Bit is set ‘0’ = Bit is cleared bit 7 SOF: Start-of-Frame signal bit If CLKEN (CANCTRL[2]) = 1: 1 = CLKOUT pin is enabled for SOF signal 0 = CLKOUT pin is enabled for clock out function If CLKEN (CANCTRL[2]) = 0: Bit is don’t care. bit 6 WAKFIL: Wake-up Filter bit 1 = Wake-up filter is enabled 0 = Wake-up filter is disabled bit 5-3 Unimplemented: Reads as ‘0’ bit 2-0 PHSEG2[2:0]: PS2 Length bits (PHSEG2[2:0] + 1) x TQ. Minimum valid setting for PS2 is 2 TQs.  2003-2019 Microchip Technology Inc. x = Bit is unknown DS20001801J-page 45 MCP2515 NOTES: DS20001801J-page 46  2003-2019 Microchip Technology Inc. MCP2515 6.0 ERROR DETECTION The CAN protocol provides sophisticated error detection mechanisms. The following errors can be detected. 6.1 CRC Error With the Cyclic Redundancy Check (CRC), the transmitter calculates special check bits for the bit sequence from the Start-of-Frame until the end of the data field. This CRC sequence is transmitted in the CRC field. The receiving node also calculates the CRC sequence using the same formula and performs a comparison to the received sequence. If a mismatch is detected, a CRC error has occurred and an error frame is generated. The message is repeated. 6.2 Acknowledge Error In the Acknowledge field of a message, the transmitter checks if the Acknowledge Slot bit (which has been sent out as a recessive bit) contains a dominant bit. If not, no other node has received the frame correctly. An Acknowledge error has occurred, an error frame is generated and the message will have to be repeated. 6.3 Form Error If a node detects a dominant bit in one of the four segments (including End-of-Frame, interframe space, Acknowledge delimiter or CRC delimiter), a form error has occurred and an error frame is generated. The message is repeated. 6.4 Bit Error A bit error occurs if a transmitter detects the opposite bit level to what it transmitted (i.e., transmitted a dominant and detected a recessive, or transmitted a recessive and detected a dominant). Exception: In the case where the transmitter sends a recessive bit, and a dominant bit is detected during the arbitration field and the Acknowledge Slot, no bit error is generated because normal arbitration is occurring. 6.5 Stuff Error lf, between the Start-of-Frame and the CRC delimiter, six consecutive bits with the same polarity are detected, the bit-stuffing rule has been violated. A stuff error occurs and an error frame is generated. The message is repeated.  2003-2019 Microchip Technology Inc. 6.6 Error States Detected errors are made known to all other nodes via error frames. The transmission of the erroneous message is aborted and the frame is repeated as soon as possible. Furthermore, each CAN node is in one of the three error states according to the value of the internal error counters: 1. 2. 3. Error-active Error-passive Bus-off (transmitter only) The error-active state is the usual state where the node can transmit messages and active error frames (made of dominant bits) without any restrictions. In the error-passive state, messages and passive error frames (made of recessive bits) may be transmitted. The bus-off state makes it temporarily impossible for the station to participate in the bus communication. During this state, messages can neither be received or transmitted. Only transmitters can go bus-off. 6.7 Error Modes and Error Counters The MCP2515 contains two error counters: the Receive Error Counter (REC) (see Register 6-2) and the Transmit Error Counter (TEC) (see Register 6-1). The values of both counters can be read by the MCU. These counters are incremented/decremented in accordance with the CAN bus specification. The MCP2515 is error-active if both error counters are below the error-passive limit of 128. It is error-passive if at least one of the error counters equals or exceeds 128. It goes to bus-off if the TEC exceeds the bus-off limit of 255. The device remains in this state until the bus-off recovery sequence is received. The bus-off recovery sequence consists of 128 occurrences of 11 consecutive recessive bits (see Figure 6-1). Note: The MCP2515, after going bus-off, will recover back to error-active without any intervention by the MCU if the bus remains idle for 128 x 11 bit times. If this is not desired, the error Interrupt Service Routine (ISR) should address this. The current Error mode of the MCP2515 can be read by the MCU via the EFLG register (see Register 6-3). Additionally, there is an error state warning flag bit, EWARN (EFLG[0]), which is set if at least one of the error counters equals or exceeds the error warning limit of 96. EWARN is reset if both error counters are less than the error warning limit. DS20001801J-page 47 MCP2515 FIGURE 6-1: ERROR MODES STATE DIAGRAM Reset REC < 127 or TEC < 127 Error-Active 128 Occurrences of 11 Consecutive “Recessive” Bits REC > 127 or TEC > 127 Error-Passive TEC > 255 Bus-Off DS20001801J-page 48  2003-2019 Microchip Technology Inc. MCP2515 REGISTER 6-1: TEC: TRANSMIT ERROR COUNTER REGISTER (ADDRESS: 1Ch) R-0 R-0 R-0 R-0 R-0 R-0 R-0 R-0 TEC7 TEC6 TEC5 TEC4 TEC3 TEC2 TEC1 TEC0 bit 7 bit 0 Legend: R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’ -n = Value at POR ‘1’ = Bit is set ‘0’ = Bit is cleared bit 7-0 x = Bit is unknown TEC[7:0]: Transmit Error Count bits REGISTER 6-2: REC: RECEIVE ERROR COUNTER REGISTER (ADDRESS: 1Dh) R-0 R-0 R-0 R-0 R-0 R-0 R-0 R-0 REC7 REC6 REC5 REC4 REC3 REC2 REC1 REC0 bit 7 bit 0 Legend: R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’ -n = Value at POR ‘1’ = Bit is set ‘0’ = Bit is cleared bit 7-0 x = Bit is unknown REC[7:0]: Receive Error Count bits  2003-2019 Microchip Technology Inc. DS20001801J-page 49 MCP2515 REGISTER 6-3: EFLG: ERROR FLAG REGISTER (ADDRESS: 2Dh) R/W-0 R/W-0 R-0 R-0 R-0 R-0 R-0 R-0 RX1OVR RX0OVR TXBO TXEP RXEP TXWAR RXWAR EWARN bit 7 bit 0 Legend: R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’ -n = Value at POR ‘1’ = Bit is set ‘0’ = Bit is cleared x = Bit is unknown bit 7 RX1OVR: Receive Buffer 1 Overflow Flag bit - Sets when a valid message is received for RXB1 and RX1IF (CANINTF[1]) = 1 - Must be reset by MCU bit 6 RX0OVR: Receive Buffer 0 Overflow Flag bit - Sets when a valid message is received for RXB0 and RX0IF (CANINTF[0]) = 1 - Must be reset by MCU bit 5 TXBO: Bus-Off Error Flag bit - Sets when TEC reaches 255 - Resets after a successful bus recovery sequence bit 4 TXEP: Transmit Error-Passive Flag bit - Sets when TEC is equal to or greater than 128 - Resets when TEC is less than 128 bit 3 RXEP: Receive Error-Passive Flag bit - Sets when REC is equal to or greater than 128 - Resets when REC is less than 128 bit 2 TXWAR: Transmit Error Warning Flag bit - Sets when TEC is equal to or greater than 96 - Resets when TEC is less than 96 bit 1 RXWAR: Receive Error Warning Flag bit - Sets when REC is equal to or greater than 96 - Resets when REC is less than 96 bit 0 EWARN: Error Warning Flag bit - Sets when TEC or REC is equal to or greater than 96 (TXWAR or RXWAR = 1) - Resets when both REC and TEC are less than 96 DS20001801J-page 50  2003-2019 Microchip Technology Inc. MCP2515 7.0 INTERRUPTS 7.2 Transmit Interrupt The MCP2515 has eight sources of interrupts. The CANINTE register contains the individual interrupt enable bits for each interrupt source. The CANINTF register contains the corresponding interrupt flag bit for each interrupt source. When an interrupt occurs, the INT pin is driven low by the MCP2515 and will remain low until the interrupt is cleared by the MCU. An interrupt can not be cleared if the respective condition still prevails. When the Transmit Interrupt is enabled, TXnIE (CANINTE) = 1, an interrupt will be generated on the INT pin once the associated transmit buffer becomes empty and is ready to be loaded with a new message. The TXnIF bit (CANINTF) will be set to indicate the source of the interrupt. The interrupt is cleared by clearing the TXnIF bit. It is recommended that the BIT MODIFY command be used to reset flag bits in the CANINTF register rather than normal write operations. This is done to prevent unintentionally changing a flag that changes during the WRITE command, potentially causing an interrupt to be missed. When the Receive Interrupt is enabled, RXnIE (CANINTE) = 1, an interrupt will be generated on the INT pin once a message has been successfully received and loaded into the associated receive buffer. This interrupt is activated immediately after receiving the EOF field. The RXnIF bit (CANINTF) will be set to indicate the source of the interrupt. The interrupt is cleared by clearing the RXnIF bit. It should be noted that the CANINTF flags are read/write and an interrupt can be generated by the MCU setting any of these bits, provided the associated CANINTE bit is also set. 7.1 Interrupt Code Bits The source of a pending interrupt is indicated in the Interrupt Code bits, ICOD[2:0] (CANSTAT[3:1]), as shown in Register 10-2. In the event that multiple interrupts occur, the INT pin will remain low until all interrupts have been reset by the MCU. The ICOD[2:0] bits will reflect the code for the highest priority interrupt that is currently pending. Interrupts are internally prioritized, such that the lower the ICODn bits value, the higher the interrupt priority. Once the highest priority interrupt condition has been cleared, the code for the next highest priority interrupt that is pending (if any) will be reflected by the ICODn bits (see Table 7-1). Only those interrupt sources that have their associated CANINTE enable bit set will be reflected in the ICODn bits. TABLE 7-1: ICOD[2:0] DECODE ICOD[2:0] Boolean Expression 000 ERR•WAK•TX0•TX1•TX2•RX0•RX1 001 ERR 010 ERR•WAK 011 ERR•WAK•TX0 100 ERR•WAK•TX0•TX1 101 ERR•WAK•TX0•TX1•TX2 110 ERR•WAK•TX0•TX1•TX2•RX0 111 ERR•WAK•TX0•TX1•TX2•RX0•RX1 Note: 7.3 7.4 Receive Interrupt Message Error Interrupt When an error occurs during the transmission or reception of a message, the Message Error Flag, MERRF (CANINTF[7]), will be set, and if the MERRE bit (CANINTE[7]) is set, an interrupt will be generated on the INT pin. This is intended to be used to facilitate baud rate determination when used in conjunction with Listen-Only mode. 7.5 Bus Activity Wake-up Interrupt When the MCP2515 is in Sleep mode and the bus activity wake-up interrupt is enabled (WAKIE (CANINTE[6]) = 1), an interrupt will be generated on the INT pin and the WAKIF bit (CANINTF[6]) will be set when activity is detected on the CAN bus. This interrupt causes the MCP2515 to exit Sleep mode. The interrupt is reset by clearing the WAKIF bit. Note: 7.6 The MCP2515 wakes up into Listen-Only mode. Error Interrupt When the error interrupt is enabled (ERRIE (CANINTE[5]) = 1), an interrupt is generated on the INT pin if an overflow condition occurs, or if the error state of the transmitter or receiver has changed. The Error Flag (EFLG) register will indicate one of the following conditions. ERR is associated with the ERRIE bit (CANINTE[5]).  2003-2019 Microchip Technology Inc. DS20001801J-page 51 MCP2515 7.6.1 RECEIVER OVERFLOW An overflow condition occurs when the MAB has assembled a valid receive message (the message meets the criteria of the acceptance filters) and the receive buffer associated with the filter is not available for loading of a new message. The associated RXnOVR bit (EFLG) will be set to indicate the overflow condition. This bit must be cleared by the MCU. 7.6.2 RECEIVER WARNING The REC has reached the MCU warning limit of 96. 7.6.3 TRANSMITTER WARNING The TEC has reached the MCU warning limit of 96. 7.6.4 RECEIVER ERROR-PASSIVE 7.6.5 TRANSMITTER ERROR-PASSIVE The TEC has exceeded the error-passive limit of 127 and the device has gone to the error-passive state. 7.6.6 BUS-OFF The TEC has exceeded 255 and the device has gone to the bus-off state. 7.7 Interrupt Acknowledge Interrupts are directly associated with one or more status flags in the CANINTF register. Interrupts are pending as long as one of the flags is set. Once an interrupt flag is set by the device, the flag can not be reset by the MCU until the interrupt condition is removed. The REC has exceeded the error-passive limit of 127 and the device has gone to the error-passive state. DS20001801J-page 52  2003-2019 Microchip Technology Inc. MCP2515 REGISTER 7-1: CANINTE: CAN INTERRUPT ENABLE REGISTER (ADDRESS: 2Bh) R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 MERRE WAKIE ERRIE TX2IE TX1IE TX0IE RX1IE RX0IE bit 7 bit 0 Legend: R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’ -n = Value at POR ‘1’ = Bit is set ‘0’ = Bit is cleared bit 7 MERRE: Message Error Interrupt Enable bit 1 = Interrupt on error during message reception or transmission 0 = Disabled bit 6 WAKIE: Wake-up Interrupt Enable bit 1 = Interrupt on CAN bus activity 0 = Disabled bit 5 ERRIE: Error Interrupt Enable bit (multiple sources in EFLG register) 1 = Interrupt on EFLG error condition change 0 = Disabled bit 4 TX2IE: Transmit Buffer 2 Empty Interrupt Enable bit 1 = Interrupt on TXB2 becoming empty 0 = Disabled bit 3 TX1IE: Transmit Buffer 1 Empty Interrupt Enable bit 1 = Interrupt on TXB1 becoming empty 0 = Disabled bit 2 TX0IE: Transmit Buffer 0 Empty Interrupt Enable bit 1 = Interrupt on TXB0 becoming empty 0 = Disabled bit 1 RX1IE: Receive Buffer 1 Full Interrupt Enable bit 1 = Interrupt when message was received in RXB1 0 = Disabled bit 0 RX0IE: Receive Buffer 0 Full Interrupt Enable bit 1 = Interrupt when message was received in RXB0 0 = Disabled  2003-2019 Microchip Technology Inc. x = Bit is unknown DS20001801J-page 53 MCP2515 REGISTER 7-2: CANINTF: CAN INTERRUPT FLAG REGISTER (ADDRESS: 2Ch) R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 MERRF WAKIF ERRIF TX2IF TX1IF TX0IF RX1IF RX0IF bit 7 bit 0 Legend: R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’ -n = Value at POR ‘1’ = Bit is set ‘0’ = Bit is cleared x = Bit is unknown bit 7 MERRF: Message Error Interrupt Flag bit 1 = Interrupt is pending (must be cleared by MCU to reset the interrupt condition) 0 = No interrupt is pending bit 6 WAKIF: Wake-up Interrupt Flag bit 1 = Interrupt is pending (must be cleared by MCU to reset the interrupt condition) 0 = No interrupt is pending bit 5 ERRIF: Error Interrupt Flag bit (multiple sources in EFLG register) 1 = Interrupt is pending (must be cleared by MCU to reset the interrupt condition) 0 = No interrupt is pending bit 4 TX2IF: Transmit Buffer 2 Empty Interrupt Flag bit 1 = Interrupt is pending (must be cleared by MCU to reset the interrupt condition) 0 = No interrupt is pending bit 3 TX1IF: Transmit Buffer 1 Empty Interrupt Flag bit 1 = Interrupt is pending (must be cleared by MCU to reset the interrupt condition) 0 = No interrupt is pending bit 2 TX0IF: Transmit Buffer 0 Empty Interrupt Flag bit 1 = Interrupt is pending (must be cleared by MCU to reset the interrupt condition) 0 = No interrupt is pending bit 1 RX1IF: Receive Buffer 1 Full Interrupt Flag bit 1 = Interrupt is pending (must be cleared by MCU to reset the interrupt condition) 0 = No interrupt is pending bit 0 RX0IF: Receive Buffer 0 Full Interrupt Flag bit 1 = Interrupt is pending (must be cleared by MCU to reset the interrupt condition) 0 = No interrupt is pending DS20001801J-page 54  2003-2019 Microchip Technology Inc. MCP2515 8.0 OSCILLATOR 8.2 The CLKOUT pin is provided to the system designer for use as the main system clock or as a clock input for other devices in the system. The CLKOUT has an internal prescaler which can divide FOSC by 1, 2, 4 and 8. The CLKOUT function is enabled and the prescaler is selected via the CANCTRL register (see Register 10-1). The MCP2515 is designed to operate with a crystal or ceramic resonator connected to the OSC1 and OSC2 pins. The MCP2515 oscillator design requires the use of a parallel cut crystal. Use of a series cut crystal may give a frequency out of the crystal manufacturer’s specifications. A typical oscillator circuit is shown in Figure 8-1. The MCP2515 may also be driven by an external clock source connected to the OSC1 pin, as shown in Figure 8-2 and Figure 8-3. 8.1 Note: The maximum frequency on CLKOUT is specified as 25 MHz (See Table 13-5). The CLKOUT pin will be active upon system Reset and default to the slowest speed (divide-by-8) so that it can be used as the MCU clock. Oscillator Start-up Timer The MCP2515 utilizes an Oscillator Start-up Timer (OST) that holds the MCP2515 in Reset to ensure that the oscillator has stabilized before the internal state machine begins to operate. The OST keeps the device in a Reset state for 128 OSC1 clock cycles after the occurrence of a Power-on Reset, SPI Reset, after the assertion of the RESET pin, and after a wake-up from Sleep mode. It should be noted that no SPI protocol operations should be attempted until after the OST has expired. FIGURE 8-1: CLKOUT Pin When Sleep mode is requested, the MCP2515 will drive sixteen additional clock cycles on the CLKOUT pin before entering Sleep mode. The Idle state of the CLKOUT pin in Sleep mode is low. When the CLKOUT function is disabled (CLKEN (CANCTRL[2]) = 0), the CLKOUT pin is in a high-impedance state. The CLKOUT function is designed to ensure that thCLKOUT and tlCLKOUT timings are preserved when the CLKOUT pin function is enabled, disabled or the prescaler value is changed. CRYSTAL/CERAMIC RESONATOR OPERATION OSC1 C1 To Internal Logic XTAL C2 Note 1: 2: FIGURE 8-2: Note 1: 2: RF(2) Sleep RS(1) OSC2 A Series Resistor (RS) may be required for AT strip cut crystals. The Feedback Resistor (RF ) is typically in the range of 2 to 10 M. EXTERNAL CLOCK SOURCE(2) Clock from External System OSC1 Open(1) OSC2 A resistor to ground may be used to reduce system noise; this may increase system current. Duty cycle restrictions must be observed (see Table 13-2).  2003-2019 Microchip Technology Inc. DS20001801J-page 55 MCP2515 EXTERNAL SERIES RESONANT CRYSTAL OSCILLATOR CIRCUIT(1) FIGURE 8-3: 330 k 330 k 74AS04 74AS04 To Other Devices MCP2510 74AS04 OSC1 0.1 mF XTAL Note 1: TABLE 8-1: Duty cycle restrictions must be observed (see Table 13-2). CAPACITOR SELECTION FOR CERAMIC RESONATORS Typical Capacitor Values Used: Mode Freq. OSC1 OSC2 8.0 MHz 27 pF 27 pF 16.0 MHz 22 pF 22 pF Capacitor values are for design guidance only: These capacitors were tested with the resonators listed below for basic start-up and operation. These values are not optimized. Different capacitor values may be required to produce acceptable oscillator operation. The user should test the performance of the oscillator over the expected VDD and temperature range for the application. See the notes following Table 8-2 for additional information. TABLE 8-2: Osc Type(1,4) HS Resonators Used: Crystal Freq.(2) Typical Capacitor Values Tested: C1 C2 HS 4 MHz 27 pF 27 pF 8 MHz 22 pF 22 pF 20 MHz 15 pF 15 pF Capacitor values are for design guidance only: These capacitors were tested with the crystals listed below for basic start-up and operation. These values are not optimized. Different capacitor values may be required to produce acceptable oscillator operation. The user should test the performance of the oscillator over the expected VDD and temperature range for the application. See the notes following this table for additional information. Crystals Used:(3) 4.0 MHz 8.0 MHz 16.0 MHz Note 1: 2: 3: 4: DS20001801J-page 56 CAPACITOR SELECTION FOR CRYSTAL OSCILLATOR 4.0 MHz 8.0 MHz 20.0 MHz While higher capacitance increases the stability of the oscillator, it also increases the start-up time. Since each resonator/crystal has its own characteristics, the user should consult the resonator/crystal manufacturer for appropriate values of external components. RS may be required to avoid overdriving crystals with a low drive level specification. Always verify oscillator performance over the VDD and temperature range that is expected for the application.  2003-2019 Microchip Technology Inc. MCP2515 9.0 RESET Both of these Resets are functionally equivalent. It is important to provide one of these two Resets after power-up to ensure that the logic and registers are in their default state. A hardware Reset can be achieved automatically by placing an RC on the RESET pin (see Figure 9-1). The values must be such that the device is held in Reset for a minimum of 2 μs after VDD reaches the operating voltage, as indicated in the electrical specification (tRL). The MCP2515 differentiates between two kinds of Resets: 1. 2. Hardware Reset – Low on RESET pin. SPI Reset – Reset via SPI command. FIGURE 9-1: RESET PIN CONFIGURATION EXAMPLE VDD VDD D(1) R R1(2) RESET C Note 1: The diode, D, helps discharge the capacitor quickly when VDD powers down. 2: R1 = 1 k to 10 k will limit any current flowing into RESET from the external capacitor, C, in the event of RESET pin breakdown due to Electrostatic Discharge (ESD) or Electrical Overstress (EOS).  2003-2019 Microchip Technology Inc. DS20001801J-page 57 MCP2515 NOTES: DS20001801J-page 58  2003-2019 Microchip Technology Inc. MCP2515 10.0 MODES OF OPERATION The MCP2515 has five modes of operation. These modes are: 1. 2. 3. 4. 5. Configuration mode Normal mode Sleep mode Listen-Only mode Loopback mode The operational mode is selected via the REQOP[2:0] bits (CANCTRL[7:5]); see Register 10-1). When changing modes, the mode will not actually change until all pending message transmissions are complete. The requested mode must be verified by reading the OPMODE[2:0] bits (CANSTAT[7:5]); see Register 10-2. 10.1 Configuration Mode The MCP2515 must be initialized before activation. This is only possible if the device is in the Configuration mode. Configuration mode is automatically selected after power-up, a Reset or can be entered from any other mode by setting the REQOP[2:0] bits to ‘100’. When Configuration mode is entered, all error counters are cleared. Configuration mode is the only mode where the following registers are modifiable: • • • • CNF1, CNF2, CNF3 registers TXRTSCTRL register Filter registers Mask registers 10.2 Sleep Mode The MCP2515 has an internal Sleep mode that is used to minimize the current consumption of the device. The SPI interface remains active for reading even when the MCP2515 is in Sleep mode, allowing access to all registers. To enter Sleep mode, the Request Operation Mode bits are set in the CANCTRL register (REQOP[2:0]). The OPMODE[2:0] bits (CANSTAT[7:5]) indicate the operation mode. These bits should be read after sending the SLEEP command to the MCP2515. The MCP2515 is active and has not yet entered Sleep mode until these bits indicate that Sleep mode has been entered. When in internal Sleep mode, the wake-up interrupt is still active (if enabled). This is done so that the MCU can also be placed into a Sleep mode and use the MCP2515 to wake it up upon detecting activity on the bus.  2003-2019 Microchip Technology Inc. When in Sleep mode, the MCP2515 stops its internal oscillator. The MCP2515 will wake-up when bus activity occurs or when the MCU sets, via the SPI interface, the WAKIF bit (CANINTF[6]). To ‘generate’ a wake-up attempt, the WAKIE bit (CANINTE[6]) must also be set in order for the wake-up interrupt to occur. The TXCAN pin will remain in the recessive state while the MCP2515 is in Sleep mode. 10.2.1 WAKE-UP FUNCTIONS The device will monitor the RXCAN pin for activity while it is in Sleep mode. If the WAKIE bit is set, the device will wake-up and generate an interrupt. Since the internal oscillator is shut down while in Sleep mode, it will take some amount of time for the oscillator to start-up and the device to enable itself to receive messages. This Oscillator Start-up Timer (OST) is defined as 128 TOSC. The device will ignore the message that caused the wake-up from Sleep mode, as well as any messages that occur while the device is ‘waking up’. The device will wake-up in Listen-Only mode. The MCU must set Normal mode before the MCP2515 will be able to communicate on the bus. The device can be programmed to apply a low-pass filter function to the RXCAN input line while in internal Sleep mode. This feature can be used to prevent the device from waking up due to short glitches on the CAN bus lines. The WAKFIL bit (CNF3[6]) enables or disables the filter. 10.3 Listen-Only Mode Listen-Only mode provides a means for the MCP2515 to receive all messages (including messages with errors) by configuring the RXM[1:0] bits (RXBnCTRL[6:5]). This mode can be used for bus monitor applications or for detecting the baud rate in ‘hot plugging’ situations. For Auto-Baud Detection (ABD), it is necessary that at least two other nodes are communicating with each other. The baud rate can be detected empirically by testing different values until valid messages are received. Listen-Only mode is a silent mode, meaning no messages will be transmitted while in this mode (including error flags or Acknowledge signals). In Listen-Only mode, both valid and invalid messages will be received, regardless of filters and masks or the Receive Buffer Operating Mode bits, RXMn. The error counters are reset and deactivated in this state. The Listen-Only mode is activated by setting the Request Operation Mode bits (REQOP[2:0]) in the CANCTRL register. DS20001801J-page 59 MCP2515 10.4 Loopback Mode The filters and masks can be used to allow only particular messages to be loaded into the Receive registers. The masks can be set to all zeros to provide a mode that accepts all messages. The Loopback mode is activated by setting the Request Operation Mode bits in the CANCTRL register. Loopback mode will allow internal transmission of messages from the transmit buffers to the receive buffers without actually transmitting messages on the CAN bus. This mode can be used in system development and testing. 10.5 In this mode, the ACK bit is ignored and the device will allow incoming messages from itself, just as if they were coming from another node. The Loopback mode is a silent mode, meaning no messages will be transmitted while in this state (including error flags or Acknowledge signals). The TXCAN pin will be in a recessive state. REGISTER 10-1: Normal Mode Normal mode is the standard operating mode of the MCP2515. In this mode, the device actively monitors all bus messages and generates Acknowledge bits, error frames, etc. This is also the only mode in which the MCP2515 will transmit messages over the CAN bus. CANCTRL: CAN CONTROL REGISTER (ADDRESS: XFh) R/W-1 R/W-0 R/W-0 R/W-0 R/W-0 R/W-1 R/W-1 R/W-1 REQOP2 REQOP1 REQOP0 ABAT OSM CLKEN CLKPRE1 CLKPRE0 bit 7 bit 0 Legend: R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’ -n = Value at POR ‘1’ = Bit is set ‘0’ = Bit is cleared x = Bit is unknown bit 7-5 REQOP[2:0]: Request Operation Mode bits 000 = Sets Normal Operation mode 001 = Sets Sleep mode 010 = Sets Loopback mode 011 = Sets Listen-Only mode 100 = Sets Configuration mode All other values for the REQOPn bits are invalid and should not be used. On power-up, REQOP[2:0] = b’100’. bit 4 ABAT: Abort All Pending Transmissions bit 1 = Requests abort of all pending transmit buffers 0 = Terminates request to abort all transmissions bit 3 OSM: One-Shot Mode bit 1 = Enabled; messages will only attempt to transmit one time 0 = Disabled; messages will reattempt transmission if required bit 2 CLKEN: CLKOUT Pin Enable bit 1 = CLKOUT pin is enabled 0 = CLKOUT pin is disabled (pin is in high-impedance state) bit 1-0 CLKPRE[1:0]: CLKOUT Pin Prescaler bits 00 = FCLKOUT = System Clock/1 01 = FCLKOUT = System Clock/2 10 = FCLKOUT = System Clock/4 11 = FCLKOUT = System Clock/8 DS20001801J-page 60  2003-2019 Microchip Technology Inc. MCP2515 REGISTER 10-2: CANSTAT: CAN STATUS REGISTER (ADDRESS: XEh) R-1 R-0 R-0 U-0 R-0 R-0 R-0 U-0 OPMOD2 OPMOD1 OPMOD0 — ICOD2 ICOD1 ICOD0 — bit 7 bit 0 Legend: R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’ -n = Value at POR ‘1’ = Bit is set ‘0’ = Bit is cleared bit 7-5 x = Bit is unknown OPMOD[2:0]: Operation Mode bits 000 = Device is in Normal Operation mode 001 = Device is in Sleep mode 010 = Device is in Loopback mode 011 = Device is in Listen-Only mode 100 = Device is in Configuration mode bit 4 Unimplemented: Read as ‘0’ bit 3-1 ICOD[2:0]: Interrupt Flag Code bits 000 = No interrupt 001 = Error interrupt 010 = Wake-up interrupt 011 = TXB0 interrupt 100 = TXB1 interrupt 101 = TXB2 interrupt 110 = RXB0 interrupt 111 = RXB1 interrupt bit 0 Unimplemented: Read as ‘0’  2003-2019 Microchip Technology Inc. DS20001801J-page 61 MCP2515 NOTES: DS20001801J-page 62  2003-2019 Microchip Technology Inc. MCP2515 11.0 REGISTER MAP reading and writing of data. Some specific control and status registers allow individual bit modification using the SPI BIT MODIFY command. The registers that allow this command are shown as shaded locations in Table 11-1. A summary of the MCP2515 control registers is shown in Table 11-2. The register map for the MCP2515 is shown in Table 11-1. Address locations for each register are determined by using the column (higher order four bits) and row (lower order four bits) values. The registers have been arranged to optimize the sequential TABLE 11-1: CAN CONTROLLER REGISTER MAP Lower Address Bits Higher Order Address Bits 0000 xxxx 0001 xxxx 0010 xxxx 0011 xxxx 0100 xxxx 0101 xxxx 0110 xxxx 0111 xxxx 0000 RXF0SIDH RXF3SIDH RXM0SIDH TXB0CTRL TXB1CTRL TXB2CTRL RXB0CTRL RXB1CTRL 0001 RXF0SIDL RXF3SIDL RXM0SIDL TXB0SIDH TXB1SIDH TXB2SIDH RXB0SIDH RXB1SIDH 0010 RXF0EID8 RXF3EID8 RXM0EID8 TXB0SIDL TXB1SIDL TXB2SIDL RXB0SIDL RXB1SIDL 0011 RXF0EID0 RXF3EID0 RXM0EID0 TXB0EID8 TXB1EID8 TXB2EID8 RXB0EID8 RXB1EID8 0100 RXF1SIDH RXF4SIDH RXM1SIDH TXB0EID0 TXB1EID0 TXB2EID0 RXB0EID0 RXB1EID0 0101 RXF1SIDL RXF4SIDL RXM1SIDL TXB0DLC TXB1DLC TXB2DLC RXB0DLC RXB1DLC 0110 RXF1EID8 RXF4EID8 RXM1EID8 TXB0D0 TXB1D0 TXB2D0 RXB0D0 RXB1D0 0111 RXF1EID0 RXF4EID0 RXM1EID0 TXB0D1 TXB1D1 TXB2D1 RXB0D1 RXB1D1 1000 RXF2SIDH RXF5SIDH CNF3 TXB0D2 TXB1D2 TXB2D2 RXB0D2 RXB1D2 1001 RXF2SIDL RXF5SIDL CNF2 TXB0D3 TXB1D3 TXB2D3 RXB0D3 RXB1D3 1010 RXF2EID8 RXF5EID8 CNF1 TXB0D4 TXB1D4 TXB2D4 RXB0D4 RXB1D4 1011 RXF2EID0 RXF5EID0 CANINTE TXB0D5 TXB1D5 TXB2D5 RXB0D5 RXB1D5 1100 BFPCTRL TEC CANINTF TXB0D6 TXB1D6 TXB2D6 RXB0D6 RXB1D6 1101 TXRTSCTRL REC EFLG TXB0D7 TXB1D7 TXB2D7 RXB0D7 RXB1D7 1110 CANSTAT CANSTAT CANSTAT CANSTAT CANSTAT CANSTAT CANSTAT CANSTAT CANCTRL CANCTRL CANCTRL CANCTRL CANCTRL CANCTRL CANCTRL CANCTRL 1111 Note: Shaded register locations indicate that the user is allowed to manipulate individual bits using the BIT MODIFY command. TABLE 11-2: Register Name BFPCTRL CONTROL REGISTER SUMMARY Address (Hex) Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 POR/Reset Value 0C — — B1BFS B0BFS B1BFE B0BFE B1BFM B0BFM --00 0000 — — B2RTS TXRTSCTRL 0D B1RTS B0RTS B2RTSM B1RTSM CANSTAT XE OPMOD2 OPMOD1 OPMOD0 — ICOD2 ICOD1 ICOD0 CANCTRL XF REQOP2 REQOP1 REQOP0 ABAT OSM CLKEN TEC 1C REC 1D CNF3 28 SOF CNF2 29 BTLMODE SAM CNF1 2A SJW1 SJW0 BRP5 BRP4 BRP3 BRP2 BRP1 BRP0 0000 0000 CANINTE 2B MERRE WAKIE ERRIE TX2IE TX1IE TX0IE RX1IE RX0IE 0000 0000 CANINTF 2C MERRF WAKIF ERRIF TX2IF TX1IF TX0IF RX1IF RX0IF 0000 0000 EFLG 2D RX1OVR RX0OVR TXBO TXEP RXEP TXWAR RXWAR EWARN 0000 0000 TXB0CTRL 30 — ABTF MLOA TXERR TXREQ — TXP1 TXP0 -000 0-00 TXB1CTRL 40 — ABTF MLOA TXERR TXREQ — TXP1 TXP0 -000 0-00 TXB2CTRL 50 — ABTF MLOA TXERR TXREQ — TXP1 TXP0 -000 0-00 RXB0CTRL 60 — RXM1 RXM0 — RXRTR BUKT BUKT1 FILHIT0 -00- 0000 RXB1CTRL 70 — RXM1 RXM0 — RXRTR FILHIT2 FILHIT1 FILHIT0 -00- 0000 WAKFIL  2003-2019 Microchip Technology Inc. B0RTSM --xx x000 — 100- 000- CLKPRE1 CLKPRE0 1000 0111 Transmit Error Counter (TEC) 0000 0000 Receive Error Counter (REC) 0000 0000 — — — PHSEG22 PHSEG21 PHSEG20 00-- -000 PHSEG12 PHSEG11 PHSEG10 PRSEG2 PRSEG1 PRSEG0 0000 0000 DS20001801J-page 63 MCP2515 NOTES: DS20001801J-page 64  2003-2019 Microchip Technology Inc. MCP2515 12.0 SPI INTERFACE 12.4 12.1 Overview The READ RX BUFFER instruction (Figure 12-3) provides a means to quickly address a receive buffer for reading. This instruction reduces the SPI overhead by one byte, the address byte. The command byte actually has four possible values that determine the Address Pointer location. Once the command byte is sent, the controller clocks out the data at the address location, the same as the READ instruction (i.e., sequential reads are possible). This instruction further reduces the SPI overhead by automatically clearing the associated receive flag, RXnIF (CANINTF), when CS is raised at the end of the command. The MCP2515 is designed to interface directly with the Serial Peripheral Interface (SPI) port available on many microcontrollers and supports Mode 0,0 and Mode 1,1. Commands and data are sent to the device via the SI pin, with data being clocked in on the rising edge of SCK. Data is driven out by the MCP2515 (on the SO line) on the falling edge of SCK. The CS pin must be held low while any operation is performed. Table 12-1 shows the instruction bytes for all operations. Refer to Figure 12-10 and Figure 12-11 for detailed input and output timing diagrams for both Mode 0,0 and Mode 1,1 operation. Note: 12.2 The MCP2515 expects the first byte after lowering CS to be the instruction/command byte. This implies that CS must be raised and then lowered again to invoke another command. RESET Instruction The RESET instruction can be used to reinitialize the internal registers of the MCP2515 and set the Configuration mode. This command provides the same functionality, via the SPI interface, as the RESET pin. The RESET instruction is a single byte instruction that requires selecting the device by pulling the CS pin low, sending the instruction byte and then raising the CS pin. It is highly recommended that the RESET command be sent (or the RESET pin be lowered) as part of the power-on initialization sequence. 12.3 READ Instruction The READ instruction is started by lowering the CS pin. The READ instruction is then sent to the MCP2515, followed by the 8-bit address (A7 through A0). Next, the data stored in the register at the selected address will be shifted out on the SO pin. The internal Address Pointer is automatically incremented to the next address once each byte of data is shifted out. Therefore, it is possible to read the next consecutive register address by continuing to provide clock pulses. Any number of consecutive register locations can be read sequentially using this method. The READ operation is terminated by raising the CS pin (Figure 12-2).  2003-2019 Microchip Technology Inc. 12.5 READ RX BUFFER Instruction WRITE Instruction The WRITE instruction is started by lowering the CS pin. The WRITE instruction is then sent to the MCP2515, followed by the address and at least one byte of data. It is possible to write to sequential registers by continuing to clock in data bytes as long as CS is held low. Data will actually be written to the register on the rising edge of the SCK line for the D0 bit. If the CS line is brought high before eight bits are loaded, the write will be aborted for that data byte and previous bytes in the command will have been written. Refer to the timing diagram in Figure 12-4 for a more detailed illustration of the byte write sequence. 12.6 LOAD TX BUFFER Instruction The LOAD TX BUFFER instruction (Figure 12-5) eliminates the eight-bit address required by a normal WRITE command. The eight-bit instruction sets the Address Pointer to one of six addresses to quickly write to a transmit buffer that points to the “ID” or “data” address of any of the three transmit buffers. 12.7 Request-to-Send (RTS) Instruction The RTS command can be used to initiate message transmission for one or more of the transmit buffers. The MCP2515 is selected by lowering the CS pin. The RTS command byte is then sent. As shown in Figure 12-6, the last 3 bits of this command indicate which transmit buffer(s) are enabled to send. This command will set the TXREQ bit (TXBnCTRL[3]) for the respective buffer(s). Any or all of the last three bits can be set in a single command. If the RTS command is sent with nnn = 000, the command will be ignored. DS20001801J-page 65 MCP2515 12.8 READ STATUS Instruction The READ STATUS instruction allows single instruction access to some of the often used status bits for message reception and transmission. The MCP2515 is selected by lowering the CS pin and the READ STATUS command byte, shown in Figure 12-8, is sent to the MCP2515. Once the command byte is sent, the MCP2515 will return eight bits of data that contain the status. If additional clocks are sent after the first eight bits are transmitted, the MCP2515 will continue to output the status bits as long as the CS pin is held low and clocks are provided on SCK. Each status bit returned in this command may also be read by using the standard READ command with the appropriate register address. 12.9 The part is selected by lowering the CS pin and the BIT MODIFY command byte is then sent to the MCP2515. The command is followed by the address of the register, the mask byte and finally, the data byte. The mask byte determines which bits in the register will be allowed to change. A ‘1’ in the mask byte will allow a bit in the register to change, while a ‘0’ will not. The data byte determines what value the modified bits in the register will be changed to. A ‘1’ in the data byte will set the bit and a ‘0’ will clear the bit, provided that the mask for that bit is set to a ‘1’ (see Figure 12-7). FIGURE 12-1: BIT MODIFY Mask Byte 0 0 1 1 0 1 0 1 Data Byte x x 1 0 x 0 x 1 Previous Register Contents 0 1 0 1 0 0 0 1 Resulting Register Contents 0 1 1 0 0 0 0 1 RX STATUS Instruction The RX STATUS instruction (Figure 12-9) is used to quickly determine which filter matched the message and message type (standard, extended, remote). After the command byte is sent, the controller will return 8 bits of data that contain the status data. If more clocks are sent after the eight bits are transmitted, the controller will continue to output the same status bits as long as the CS pin stays low and clocks are provided. 12.10 BIT MODIFY Instruction The BIT MODIFY instruction provides a means for setting or clearing individual bits in specific status and control registers. This command is not available for all registers. See Section 11.0 “Register Map” to determine which registers allow the use of this command. Note: Executing the BIT MODIFY command on registers that are not bit-modifiable will force the mask to FFh. This will allow byte writes to the registers, not BIT MODIFY. DS20001801J-page 66  2003-2019 Microchip Technology Inc. MCP2515 TABLE 12-1: SPI INSTRUCTION SET Instruction Name Instruction Format Description 1100 0000 Resets internal registers to the default state, sets Configuration mode. READ 0000 0011 Reads data from the register beginning at selected address. READ RX BUFFER 1001 0nm0 When reading a receive buffer, reduces the overhead of a normal READ command by placing the Address Pointer at one of four locations, as indicated by ‘n,m’. RESET Note: The associated RX flag bit, RXnIF (CANINTF), will be cleared after bringing CS high. WRITE 0000 0010 Writes data to the register beginning at the selected address. LOAD TX BUFFER 0100 0abc When loading a transmit buffer, reduces the overhead of a normal WRITE command by placing the Address Pointer at one of six locations, as indicated by ‘a,b,c’. RTS (Message Request-to-Send) 1000 0nnn Instructs controller to begin message transmission sequence for any of the transmit buffers. 1000 0nnn Request-to-Send for TXB2 Request-to-Send for TXBO Request-to-Send for TXB1 READ STATUS 1010 0000 Quick polling command that reads several status bits for transmit and receive functions. RX STATUS 1011 0000 Quick polling command that indicates filter match and message type (standard, extended and/or remote) of received message. BIT MODIFY 0000 0101 Allows the user to set or clear individual bits in a particular register. Note:  2003-2019 Microchip Technology Inc. Not all registers can be bit modified with this command. Executing this command on registers that are not bit modifiable will force the mask to FFh. See the register map in Section 11.0 “Register Map” for a list of the registers that apply. DS20001801J-page 67 MCP2515 FIGURE 12-2: READ INSTRUCTION CS 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 SCK Instruction SI 0 0 0 0 0 Address Byte 0 1 A7 1 6 5 3 4 2 1 A0 Don’t Care Data Out High-Impedance 7 SO FIGURE 12-3: 5 n m 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 SCK Instruction 1 4 3 2 1 0 READ RX BUFFER INSTRUCTION CS SI 6 0 0 1 0 n m Data Out High-Impedance SO FIGURE 12-4: Don’t Care 0 7 6 5 4 3 2 1 0 Address Points to Address 0 0 Receive Buffer 0, Start at RXB0SIDH 0x61 0 1 Receive Buffer 0, Start at RXB0D0 0x66 1 0 Receive Buffer 1, Start at RXB1SIDH 0x71 1 1 Receive Buffer 1, Start at RXB1D0 0x76 BYTE WRITE INSTRUCTION CS 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 SCK Instruction SI 0 0 0 0 0 Address Byte 0 1 0 A7 6 5 4 3 2 Data Byte 1 A0 7 6 5 4 3 2 1 0 High-Impedance SO DS20001801J-page 68  2003-2019 Microchip Technology Inc. MCP2515 FIGURE 12-5: LOAD TX BUFFER INSTRUCTION a b c CS 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 SCK Instruction SI 0 1 0 0 Data In a 0 b c 7 6 5 4 3 2 1 0 High-Impedance SO FIGURE 12-6: Address Points to Addr 0 0 0 TX Buffer 0, Start at TXB0SIDH 0x31 0 0 1 TX Buffer 0, Start at TXB0D0 0x36 0 1 0 TX Buffer 1, Start at TXB1SIDH 0x41 0 1 1 TX Buffer 1, Start at TXB1D0 0x46 1 0 0 TX Buffer 2, Start at TXB2SIDH 0x51 1 0 1 TX Buffer 2, Start at TXB2D0 0x56 REQUEST-TO-SEND (RTS) INSTRUCTION CS 0 1 2 3 4 5 6 7 T2 T1 T0 SCK Instruction 1 SI 0 0 0 0 High-Impedance SO FIGURE 12-7: BIT MODIFY INSTRUCTION CS 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 SCK Instruction SI Address Byte Mask Byte Data Byte 0 0 0 0 0 1 0 1 A7 6 5 4 3 2 1 A0 7 6 5 4 3 2 1 0 7 6 5 4 3 2 1 0 High-Impedance SO Note: Not all registers can be accessed with this command. See the register map for a list of the registers that apply.  2003-2019 Microchip Technology Inc. DS20001801J-page 69 MCP2515 FIGURE 12-8: READ STATUS INSTRUCTION CS 0 1 2 3 4 5 6 7 0 0 0 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 SCK Instruction 1 SI 0 1 0 0 Don’t Care SO Repeat Data Out Data Out High-Impedance 7 6 5 4 3 2 1 0 7 6 5 4 3 2 1 0 RX0IF (CANINTF[0]) RX1IF (CANINTF[1]) TXREQ (TXB0CNTRL[3]) TX0IF (CANINTF[2]) TXREQ (TXB1CNTRL[3]) TX1IF (CANINTF[3]) TXREQ (TXB2CNTRL[3]) TX2IF (CANINTF[4]) FIGURE 12-9: RX STATUS INSTRUCTION CS 0 1 2 3 4 5 6 7 0 0 0 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 SCK Instruction 1 SI 0 1 1 0 Don’t Care SO 7 6 4 3 0 No RX message 0 0 1 Message in RXB0 1 0 Message in RXB1 1 1 Messages in both buffers* 7 6 0 Received Message RXnIF (CANINTF) bits are mapped to bits 7 and 6. Repeat Data Out Data Out High-Impedance 5 4 3 2 1 0 7 Msg Type Received 6 5 4 3 2 1 0 2 1 0 0 Standard data frame 0 0 0 RXF0 0 1 Standard remote frame 0 0 1 RXF1 1 0 Extended data frame 0 1 0 RXF2 1 1 Extended remote frame 0 1 1 RXF3 1 0 0 RXF4 1 0 1 RXF5 1 1 0 RXF0 (rollover to RXB1) 1 1 1 RXF1 (rollover to RXB1) The extended ID bit is mapped to bit 4. The RTR bit is mapped to bit 3. Filter Match *Buffer 0 has higher priority; therefore, RXB0 status is reflected in bits[4:0]. DS20001801J-page 70  2003-2019 Microchip Technology Inc. MCP2515 FIGURE 12-10: SPI INPUT TIMING 3 CS 11 Mode 1,1 6 1 7 10 2 SCK Mode 0,0 4 SI 5 MSB In LSB In High-Impedance SO FIGURE 12-11: SPI OUTPUT TIMING CS 8 9 2 Mode 1,1 SCK Mode 0,0 12 SO 14 13 MSB Out LSB Out Don’t Care SI  2003-2019 Microchip Technology Inc. DS20001801J-page 71 MCP2515 NOTES: DS20001801J-page 72  2003-2019 Microchip Technology Inc. MCP2515 13.0 ELECTRICAL CHARACTERISTICS 13.1 Absolute Maximum Ratings† VDD.............................................................................................................................................................................7.0V All Inputs and Outputs w.r.t. VSS ....................................................................................................... -0.6V to VDD + 1.0V Storage Temperature ..............................................................................................................................-65°C to +150°C Ambient Temperature with Power Applied...............................................................................................-65°C to +125°C Soldering Temperature of Leads (10 seconds) .....................................................................................................+300°C † Notice: Stresses above those listed under “Maximum Ratings” may cause permanent damage to the device. This is a stress rating only and functional operation of the device at those or any other conditions above those indicated in the operational listings of this specification is not implied. Exposure to maximum rating conditions for extended periods may affect device reliability.  2003-2019 Microchip Technology Inc. DS20001801J-page 73 MCP2515 TABLE 13-1: DC CHARACTERISTICS DC Characteristics Param. No. Sym VDD = 2.7V to 5.5V Characteristic Min Max Industrial (I): TAMB = -40°C to +85°C Extended (E): TAMB = -40°C to +125°C Units Conditions VDD Supply Voltage 2.7 5.5 V VRET Register Retention Voltage 2.4 — V 2 VDD + 1 V SCK, CS, SI, TXnRTS Pins 0.7 VDD VDD + 1 V OSC1 Pin 0.85 VDD VDD V RESET Pin 0.85 VDD VDD V RXCAN, TXnRTS Pins -0.3 0.15 * VDD V SCK, CS, SI Pins -0.3 0.4 * VDD V OSC1 Pin VSS 0.3 * VDD V RESET Pin VSS 0.15 * VDD V TXCAN Pin — 0.6 V IOL = +6.0 mA, VDD = 4.5V RXnBF Pin — 0.6 V IOL = +8.5 mA, VDD = 4.5V High-Level Input Voltage VIH RXCAN Pin Low-Level Input Voltage VIL Low-Level Output Voltage VOL SO, CLKOUT Pins — 0.6 V IOL = +2.1 mA, VDD = 4.5V INT Pin — 0.6 V IOL = +1.6 mA, VDD = 4.5V High-Level Output Voltage V TXCAN, RXnBF Pins VDD – 0.7 — V IOH = -3.0 mA, VDD = 4.5V SO, CLKOUT Pins VDD – 0.5 — V IOH = -400 μA, VDD = 4.5V INT Pin VDD – 0.7 — V IOH = -1.0 mA, VDD = 4.5V All I/Os except OSC1 and TXnRTS Pins -1 +1 μA CS = RESET = VDD, VIN = VSS to VDD OSC1 Pin -5 +5 μA CINT Internal Capacitance (all inputs and outputs) — 7 pF TAMB = +25°C, fC = 1.0 MHz, VDD = 0V (Note 1) IDD Operating Current — 10 mA VDD = 5.5V, FOSC = 25 MHz, FCLK = 1 MHz, SO = Open IDDS Standby Current (Sleep mode) — 5 μA CS, TXnRTS = VDD, inputs tied to VDD or VSS, -40°C TO +85°C — 8 μA CS, TXnRTS = VDD, inputs tied to VDD or VSS, -40°C TO +125°C VOH Input Leakage Current ILI Note 1: This parameter is periodically sampled and not 100% tested. DS20001801J-page 74  2003-2019 Microchip Technology Inc. MCP2515 TABLE 13-2: OSCILLATOR TIMING CHARACTERISTICS Oscillator Timing Characteristics(1) Param. No. Note 1: Sym Characteristic Min Max Units Conditions Clock In Frequency 1 1 40 25 MHz MHz VDD = 4.5V to 5.5V VDD = 2.7V to 5.5V TOSC Clock In Period 25 40 1000 1000 ns ns VDD = 4.5V to 5.5V VDD = 2.7V to 5.5V TDUTY Duty Cycle (external clock input) 0.45 0.55 — TOSH/(TOSH + TOSL) This parameter is periodically sampled and not 100% tested. CAN INTERFACE AC CHARACTERISTICS CAN Interface AC Characteristics Sym TWF TABLE 13-4: Characteristic Wake-up Noise Filter Sym tRL VDD = 2.7V to 5.5V Industrial (I): TAMB = -40°C to +85°C Extended (E): TAMB = -40°C to +125°C Min Max Units 100 — ns Conditions RESET AC CHARACTERISTICS Reset AC Characteristics Param. No. Industrial (I): TAMB = -40°C to +85°C Extended (E): TAMB = -40°C to +125°C FOSC TABLE 13-3: Param. No. VDD = 2.7V to 5.5V VDD = 2.7V to 5.5V Characteristic RESET Pin Low Time  2003-2019 Microchip Technology Inc. Industrial (I): TAMB = -40°C to +85°C Extended (E): TAMB = -40°C to +125°C Min Max Units 2 — μs Conditions DS20001801J-page 75 MCP2515 TABLE 13-5: CLKOUT PIN AC CHARACTERISTICS CLKOUT Pin AC/DC Characteristics Param. No. Sym Characteristic Industrial (I): TAMB = -40°C to +85°C Extended (E): TAMB = -40°C to +125°C VDD = 2.7V to 5.5V Min Max Units Conditions thCLKOUT CLKOUT Pin High Time 15 — ns TOSC = 40 ns (Note 1) tlCLKOUT CLKOUT Pin Low Time 15 — ns TOSC = 40 ns (Note 1) trCLKOUT CLKOUT Pin Rise Time — 5 ns Measured from 0.3 VDD to 0.7 VDD (Note 1) tfCLKOUT CLKOUT Pin Fall Time — 5 ns Measured from 0.7 VDD to 0.3 VDD (Note 1) tdCLKOUT CLKOUT Propagation Delay — 100 ns (Note 1) 15 thSOF Start-of-Frame High Time — 2 TOSC ns (Note 1) 16 tdSOF Start-of-Frame Propagation Delay — 2 TOSC + 0.5 TQ ns Measured from CAN bit sample point; device is a receiver, BRP[5:0] (CNF1[5:0]) = 0 (Note 2) Note 1: 2: All CLKOUT mode functionality and output frequency are tested at device frequency limits; however, the CLKOUT prescaler is set to divide by one. This parameter is periodically sampled and not 100% tested. Design guidance only, not tested. FIGURE 13-1: RXCAN START-OF-FRAME PIN AC CHARACTERISTICS Sample Point 16 15 DS20001801J-page 76  2003-2019 Microchip Technology Inc. MCP2515 TABLE 13-6: SPI INTERFACE AC CHARACTERISTICS SPI Interface AC Characteristics Param. No. Sym Characteristic VDD = 2.7V to 5.5V Industrial (I): TAMB = -40°C to +85°C Extended (E): TAMB = -40°C to +125°C Min Max Units Conditions FCLK Clock Frequency — 10 MHz 1 TCSS CS Setup Time 50 — ns 2 TCSH CS Hold Time 50 — ns 3 TCSD CS Disable Time 50 — ns 4 TSU Data Setup Time 10 — ns 5 THD Data Hold Time 10 — ns 6 TR Clock Rise Time — 2 μs (Note 1) 7 TF Clock Fall Time — 2 μs (Note 1) 8 THI Clock High Time 45 — ns 9 TLO Clock Low Time 45 — ns 10 TCLD Clock Delay Time 50 — ns 11 TCLE Clock Enable Time 50 — ns 12 TV Output Valid from Clock Low — 45 ns 13 THO Output Hold Time 0 — ns 14 TDIS Output Disable Time — 100 ns Note 1: This parameter is not 100% tested.  2003-2019 Microchip Technology Inc. DS20001801J-page 77 MCP2515 NOTES: DS20001801J-page 78  2003-2019 Microchip Technology Inc. MCP2515 14.0 PACKAGING INFORMATION 14.1 Package Marking Information 18-Lead PDIP (300 mil) Example: XXXXXXXXXXXXXXXXX XXXXXXXXXXXXXXXXX YYWWNNN 18-Lead SOIC (7.50 mm) 1850256 Example: MCP2515-E/ e3 SO^^ XXXXXXXXXXXX XXXXXXXXXXXX XXXXXXXXXXXX YYWWNNN 1850256 20-Lead TSSOP (4.4 mm) XXXXXXXX XXXXXNNN YYWW Example: MCP2515I/ST e3 256 1850 20-Lead QFN (4x4x0.9 mm) XXXXX XXXXXX XXXXXX YWWNNN Example: MCP 2515E/ML e3 850256 Legend: XX...X Y YY WW NNN e3 * Note: MCP2515-I/P^^ e3 Customer-specific information Year code (last digit of calendar year) Year code (last 2 digits of calendar year) Week code (week of January 1 is week ‘01’) Alphanumeric traceability code Pb-free JEDEC designator for Matte Tin (Sn) This package is Pb-free. The Pb-free JEDEC designator ( e3 ) can be found on the outer packaging for this package. In the event the full Microchip part number cannot be marked on one line, it will be carried over to the next line, thus limiting the number of available characters for customer-specific information.  2003-2019 Microchip Technology Inc. DS20001801J-page 79 MCP2515 /HDG3ODVWLF'XDO,Q/LQH3±PLO%RG\>3',3@ 1RWH )RUWKHPRVWFXUUHQWSDFNDJHGUDZLQJVSOHDVHVHHWKH0LFURFKLS3DFNDJLQJ6SHFLILFDWLRQORFDWHGDW KWWSZZZPLFURFKLSFRPSDFNDJLQJ  N NOTE 1 E1 1 2 3 D E A2 A L c A1 b1 b e eB 8QLWV 'LPHQVLRQ/LPLWV 1XPEHURI3LQV ,1&+(6 0,1 1 120 0$;  3LWFK H 7RSWR6HDWLQJ3ODQH $ ± ±  0ROGHG3DFNDJH7KLFNQHVV $    %DVHWR6HDWLQJ3ODQH $  ± ± 6KRXOGHUWR6KRXOGHU:LGWK (    0ROGHG3DFNDJH:LGWK (    2YHUDOO/HQJWK '    7LSWR6HDWLQJ3ODQH /    /HDG7KLFNQHVV F    E    E    H% ± ± 8SSHU/HDG:LGWK /RZHU/HDG:LGWK 2YHUDOO5RZ6SDFLQJ† %6&  1RWHV  3LQYLVXDOLQGH[IHDWXUHPD\YDU\EXWPXVWEHORFDWHGZLWKLQWKHKDWFKHGDUHD  †6LJQLILFDQW&KDUDFWHULVWLF  'LPHQVLRQV'DQG(GRQRWLQFOXGHPROGIODVKRUSURWUXVLRQV0ROGIODVKRUSURWUXVLRQVVKDOOQRWH[FHHGSHUVLGH  'LPHQVLRQLQJDQGWROHUDQFLQJSHU$60(4)1@ 1RWH )RUWKHPRVWFXUUHQWSDFNDJHGUDZLQJVSOHDVHVHHWKH0LFURFKLS3DFNDJLQJ6SHFLILFDWLRQORFDWHGDW KWWSZZZPLFURFKLSFRPSDFNDJLQJ  D D2 EXPOSED PAD e E2 2 E b 2 1 1 K N N NOTE 1 TOP VIEW L BOTTOM VIEW A A1 A3 8QLWV 'LPHQVLRQ/LPLWV 1XPEHURI3LQV 0,//,0(7(56 0,1 1 120 0$;  3LWFK H 2YHUDOO+HLJKW $    6WDQGRII $    &RQWDFW7KLFNQHVV $ 2YHUDOO:LGWK ( ([SRVHG3DG:LGWK ( 2YHUDOO/HQJWK ' ([SRVHG3DG/HQJWK %6& 5() %6&    %6& '    &RQWDFW:LGWK E    &RQWDFW/HQJWK /    &RQWDFWWR([SRVHG3DG .  ± ± 1RWHV  3LQYLVXDOLQGH[IHDWXUHPD\YDU\EXWPXVWEHORFDWHGZLWKLQWKHKDWFKHGDUHD  3DFNDJHLVVDZVLQJXODWHG  'LPHQVLRQLQJDQGWROHUDQFLQJSHU$60(
