MCP2515
Stand-Alone CAN Controller with SPI Interface
Features
Description
• Implements CAN V2.0B at 1 Mb/s:
- 0 to 8-byte length in the data field
- Standard and extended data and remote
frames
• Receive Buffers, Masks and Filters:
- Two receive buffers with prioritized message
storage
- Six 29-bit filters
- Two 29-bit masks
• Data Byte Filtering on the First Two Data Bytes
(applies to standard data frames)
• Three Transmit Buffers with Prioritization and
Abort Features
• High-Speed SPI Interface (10 MHz):
- SPI modes 0,0 and 1,1
• One-Shot mode Ensures Message Transmission
is Attempted Only One Time
• Clock Out Pin with Programmable Prescaler:
- Can be used as a clock source for other
device(s)
• Start-of-Frame (SOF) Signal is Available for
Monitoring the SOF Signal:
- Can be used for time slot-based protocols
and/or bus diagnostics to detect early bus
degradation
• Interrupt Output Pin with Selectable Enables
• Buffer Full Output Pins Configurable as:
- Interrupt output for each receive buffer
- General purpose output
• Request-to-Send (RTS) Input Pins Individually
Configurable as:
- Control pins to request transmission for each
transmit buffer
- General purpose inputs
• Low-Power CMOS Technology:
- Operates from 2.7V-5.5V
- 5 mA active current (typical)
- 1 μA standby current (typical) (Sleep mode)
• Temperature Ranges Supported:
- Industrial (I): -40°C to +85°C
- Extended (E): -40°C to +125°C
Microchip Technology’s MCP2515 is a stand-alone
Controller Area Network (CAN) controller that implements the CAN specification, Version 2.0B. It is capable
of transmitting and receiving both standard and
extended data and remote frames. The MCP2515 has
two acceptance masks and six acceptance filters that
are used to filter out unwanted messages, thereby
reducing the host MCU’s overhead. The MCP2515
interfaces with microcontrollers (MCUs) via an industry
standard Serial Peripheral Interface (SPI).

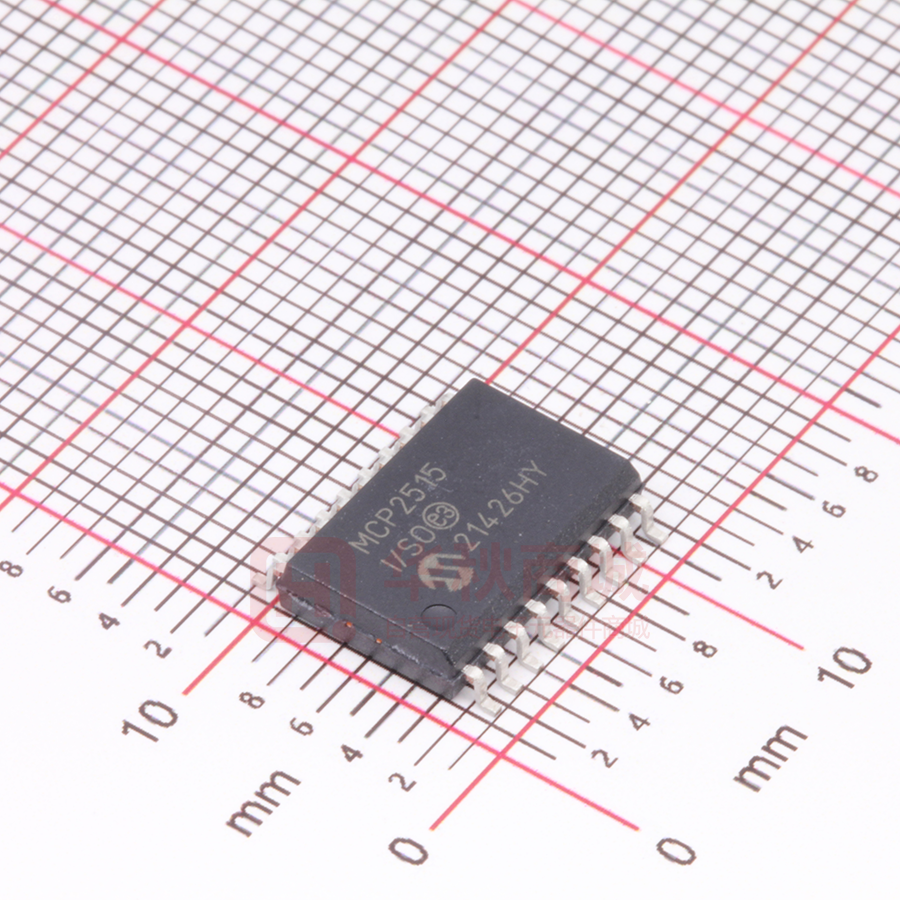

Package Types
18-Lead PDIP/SOIC
TXCAN
1
18
VDD
2
17
RESET
3
16
CS
TX0RTS
4
15
SO
TX1RTS
5
14
SI
TX2RTS
6
13
SCK
OSC2
7
12
INT
OSC1
8
11
RX0BF
VSS
9
10
RX1BF
1
2
3
4
5
6
7
8
9
10
20
19
18
17
16
15
14
13
12
11
VDD
RESET
CS
SO
SI
NC
SCK
INT
RX0BF
RX1BF
MCP2515
RXCAN
CLKOUT/SOF
RESET
CS
MCP2515
VDD
20-Lead QFN*
TXCAN
TXCAN
RXCAN
CLKOUT/SOF
TX0RTS
TX1RTS
NC
TX2RTS
OSC2
OSC1
VSS
RXCAN
20-Lead TSSOP
20 19 18 17 16
CLKOUT 1
15 SO
TX0RTS 2
14 SI
EP
21
TX1RTS 3
13 NC
12 SCK
NC 4
8
9 10
GND
RX1BF
RX0BF
7
OSC1
11 INT
6
OSC2
TX2RTS 5
* Includes Exposed Thermal Pad (EP); see Table 1-1.
2003-2019 Microchip Technology Inc.
DS20001801J-page 1
MCP2515
NOTES:
DS20001801J-page 2
2003-2019 Microchip Technology Inc.
MCP2515
1.0
DEVICE OVERVIEW
1.2
The control logic block controls the setup and operation
of the MCP2515 by interfacing to the other blocks in
order to pass information and control.
The MCP2515 is a stand-alone CAN controller developed to simplify applications that require interfacing
with a CAN bus. A simple block diagram of the
MCP2515 is shown in Figure 1-1. The device consists
of three main blocks:
1.
2.
3.
1.1
Interrupt pins are provided to allow greater system
flexibility. There is one multipurpose interrupt pin (as
well as specific interrupt pins) for each of the receive
registers that can be used to indicate a valid message
has been received and loaded into one of the receive
buffers. Use of the specific interrupt pins is optional.
The general purpose interrupt pin, as well as status
registers (accessed via the SPI interface), can also be
used to determine when a valid message has been
received.
The CAN module, which includes the CAN
protocol engine, masks, filters, transmit and
receive buffers.
The control logic and registers that are used to
configure the device and its operation.
The SPI protocol block.
An example system implementation using the device is
shown in Figure 1-2.
CAN Module
The CAN module handles all functions for receiving and
transmitting messages on the CAN bus. Messages are
transmitted by first loading the appropriate message buffer and control registers. Transmission is initiated by
using control register bits via the SPI interface or by
using the transmit enable pins. Status and errors can be
checked by reading the appropriate registers. Any
message detected on the CAN bus is checked for errors
and then matched against the user-defined filters to see
if it should be moved into one of the two receive buffers.
FIGURE 1-1:
Control Logic
Additionally, there are three pins available to initiate
immediate transmission of a message that has been
loaded into one of the three transmit registers. Use of
these pins is optional, as initiating message transmissions can also be accomplished by utilizing control
registers accessed via the SPI interface.
1.3
SPI Protocol Block
The MCU interfaces to the device via the SPI interface.
Writing to, and reading from, all registers is
accomplished using standard SPI read and write
commands, in addition to specialized SPI commands.
BLOCK DIAGRAM
CAN Module
RXCAN
CAN
Protocol
Engine
TX and RX Buffers
Masks and Filters
SPI
Interface
Logic
CS
SCK SPI
Bus
SI
SO
TXCAN
Control Logic
OSC1
OSC2
CLKOUT
Timing
Generation
INT
RX0BF
RX1BF
Control
and
Interrupt
Registers
2003-2019 Microchip Technology Inc.
TX0RTS
TX1RTS
TX2RTS
RESET
DS20001801J-page 3
MCP2515
FIGURE 1-2:
EXAMPLE SYSTEM IMPLEMENTATION
Node
Controller
Node
Controller
Node
Controller
SPI
SPI
SPI
MCP2515
MCP2515
MCP2515
TX
TX
TX
RX
XCVR
RX
RX
XCVR
XCVR
CANH
CANL
TABLE 1-1:
Name
PINOUT DESCRIPTION
PDIP/
SOIC
Pin #
TSSOP QFN I/O/P
Pin # Pin # Type
Description
Alternate Pin Function
TXCAN
1
1
19
O
Transmit output pin to CAN bus
—
RXCAN
2
2
20
I
Receive input pin from CAN bus
—
CLKOUT
3
3
1
O
Clock output pin with programmable
prescaler
TX0RTS
4
4
2
I
Transmit buffer TXB0 Request-to-Send; General purpose digital input,
100 kinternal pull-up to VDD
100 kinternal pull-up to VDD
TX1RTS
5
5
3
I
Transmit buffer TXB1 Request-to-Send; General purpose digital input,
100 kinternal pull-up to VDD
100 kinternal pull-up to VDD
TX2RTS
6
7
5
I
Transmit buffer TXB2 Request-to-Send; General purpose digital input,
100 kinternal pull-up to VDD
100 kinternal pull-up to VDD
OSC2
7
8
6
O
Oscillator output
OSC1
8
9
7
I
Oscillator input
VSS
9
10
8
P
Ground reference for logic and I/O
pins
RX1BF
10
11
9
O
Receive buffer RXB1 interrupt pin or
general purpose digital output
General purpose digital output
RX0BF
11
12
10
O
Receive buffer RXB0 interrupt pin or
general purpose digital output
General purpose digital output
INT
12
13
11
O
Interrupt output pin
—
SCK
13
14
12
I
Clock input pin for SPI interface
—
SI
14
16
14
I
Data input pin for SPI interface
—
Start-of-Frame signal
—
External clock input
—
SO
15
17
15
O
Data output pin for SPI interface
—
CS
16
18
16
I
Chip select input pin for SPI interface
—
RESET
17
19
17
I
Active-low device Reset input
—
VDD
18
20
18
P
Positive supply for logic and I/O pins
—
NC
—
6,15
4,13
—
No internal connection
—
EP
—
—
21
—
Exposed Thermal Pad, connect to
VSS.
—
Legend: I = Input; O = Output; P = Power
DS20001801J-page 4
2003-2019 Microchip Technology Inc.
MCP2515
1.4
Transmit/Receive Buffers/Masks/
Filters
The MCP2515 has three transmit and two receive
buffers, two acceptance masks (one for each receive
buffer) and a total of six acceptance filters. Figure 1-3
shows a block diagram of these buffers and their
connection to the protocol engine.
FIGURE 1-3:
CAN BUFFERS AND PROTOCOL ENGINE BLOCK DIAGRAM
BUFFERS
Acceptance Mask
RXM1
Acceptance Filter
RXF2
Message
Queue
Control
MESSAGE
TXREQ
ABTF
MLOA
TXERR
TXB2
MESSAGE
TXREQ
ABTF
MLOA
TXERR
TXB1
MESSAGE
TXREQ
ABTF
MLOA
TXERR
TXB0
A
c
c
e
p
t
R
X
B
0
Transmit Byte Sequencer
Acceptance Mask
RXM0
Acceptance Filter
RXF3
Acceptance Filter
RXF0
Acceptance Filter
RXF4
Acceptance Filter
RXF1
Acceptance Filter
RXF5
M
A
B
Identifier
Data Field
A
c
c
e
p
t
R
X
B
1
Identifier
Data Field
PROTOCOL
ENGINE
Receive
Error
Counter
Transmit]7:0]
Receive[7:0]
REC
TEC
Transmit
Error
Counter
ErrPas
BusOff
Protocol
Finite
State
Machine
SOF
Shift[14:0]
{Transmit[5:0], Receive[8:0]}
Comparator
CRC[14:0]
Transmit
Logic
Bit
Timing
Logic
TX
RX
2003-2019 Microchip Technology Inc.
Clock
Generator
Configuration
Registers
DS20001801J-page 5
MCP2515
1.5
CAN Protocol Engine
1.5.3
The CAN protocol engine combines several functional
blocks, shown in Figure 1-4 and described below.
1.5.1
PROTOCOL FINITE STATE MACHINE
The heart of the engine is the Finite State Machine
(FSM). The FSM is a sequencer that controls the
sequential data stream between the TX/RX Shift
register, the CRC register and the bus line. The FSM
also controls the Error Management Logic (EML) and
the parallel data stream between the TX/RX Shift
registers and the buffers. The FSM ensures that the
processes of reception, arbitration, transmission and
error signaling are performed according to the CAN
protocol. The automatic retransmission of messages
on the bus line is also handled by the FSM.
1.5.2
CYCLIC REDUNDANCY CHECK
The Cyclic Redundancy Check register generates the
Cyclic Redundancy Check (CRC) code, which is
transmitted after either the Control Field (for messages
with 0 data bytes) or the Data Field and is used to
check the CRC field of incoming messages.
FIGURE 1-4:
ERROR MANAGEMENT LOGIC
The Error Management Logic (EML) is responsible for
the Fault confinement of the CAN device. Its two counters, the Receive Error Counter (REC) and the Transmit
Error Counter (TEC), are incremented and decremented
by commands from the bit stream processor. Based on
the values of the error counters, the CAN controller is set
into the states: error-active, error-passive or bus-off.
1.5.4
BIT TIMING LOGIC
The Bit Timing Logic (BTL) monitors the bus line input
and handles the bus related bit timing according to the
CAN protocol. The BTL synchronizes on a recessiveto-dominant bus transition at the Start-of-Frame (hard
synchronization) and on any further recessive-todominant bus line transition if the CAN controller itself
does not transmit a dominant bit (resynchronization).
The BTL also provides programmable Time Segments
to compensate for the propagation delay time, phase
shifts and to define the position of the sample point
within the bit time. The programming of the BTL
depends on the baud rate and external physical delay
times.
CAN PROTOCOL ENGINE BLOCK DIAGRAM
Transmit Logic
Bit Timing Logic
RX
TX
SAM
Receive
Sample[2:0]
Error Counter
StuffReg[5:0]
Transmit
Majority
Decision
Error Counter
REC
TEC
ErrPas
BusOff
BusMon
Comparator
CRC[14:0]
Protocol
FSM
SOF
Comparator
Shift[14:0]
(Transmit[5:0], Receive[7:0])
Receive[7:0]
Transmit[7:0]
RecData[7:0]
TrmData[7:0]
Interface to Standard Buffer
DS20001801J-page 6
Rec/Trm Addr.
2003-2019 Microchip Technology Inc.
MCP2515
2.0
CAN MESSAGE FRAMES
The MCP2515 supports standard data frames, extended
data frames and remote frames (standard and
extended), as defined in the CAN 2.0B specification.
2.1
Standard Data Frame
The CAN standard data frame is shown in Figure 2-1.
As with all other frames, the frame begins with a Startof-Frame (SOF) bit, which is of the dominant state and
allows hard synchronization of all nodes.
The SOF is followed by the arbitration field, consisting
of 12 bits: the 11-bit identifier and the Remote
Transmission Request (RTR) bit. The RTR bit is used
to distinguish a data frame (RTR bit dominant) from a
remote frame (RTR bit recessive).
Following the arbitration field is the control field,
consisting of six bits. The first bit of this field is the
Identifier Extension (IDE) bit, which must be dominant
to specify a standard frame. The following bit, Reserved
Bit Zero (RB0), is reserved and is defined as a dominant
bit by the CAN protocol. The remaining four bits of the
control field are the Data Length Code (DLC), which
specifies the number of bytes of data (0-8 bytes)
contained in the message.
After the control field, is the data field, which contains
any data bytes that are being sent, and is of the length
defined by the DLC (0-8 bytes).
The Cyclic Redundancy Check (CRC) field follows the
data field and is used to detect transmission errors. The
CRC field consists of a 15-bit CRC sequence, followed
by the recessive CRC Delimiter bit.
The final field is the two-bit Acknowledge (ACK) field.
During the ACK Slot bit, the transmitting node sends
out a recessive bit. Any node that has received an
error-free frame Acknowledges the correct reception of
the frame by sending back a dominant bit (regardless
of whether the node is configured to accept that
specific message or not). The recessive Acknowledge
delimiter completes the Acknowledge field and may not
be overwritten by a dominant bit.
2.2
Extended Data Frame
In the extended CAN data frame, shown in Figure 2-2,
the SOF bit is followed by the arbitration field, which
consists of 32 bits. The first 11 bits are the Most
Significant bits (MSb) (Base-lD) of the 29-bit identifier.
These 11 bits are followed by the Substitute Remote
Request (SRR) bit, which is defined to be recessive.
The SRR bit is followed by the lDE bit, which is
recessive to denote an extended CAN frame.
It should be noted that if arbitration remains unresolved
after transmission of the first 11 bits of the identifier, and
one of the nodes involved in the arbitration is sending
2003-2019 Microchip Technology Inc.
a standard CAN frame (11-bit identifier), the standard
CAN frame will win arbitration due to the assertion of a
dominant lDE bit. Also, the SRR bit in an extended
CAN frame must be recessive to allow the assertion of
a dominant RTR bit by a node that is sending a
standard CAN remote frame.
The SRR and lDE bits are followed by the remaining
18 bits of the identifier (Extended lD) and the Remote
Transmission Request bit.
To enable standard and extended frames to be sent
across a shared network, the 29-bit extended message
identifier is split into 11-bit (Most Significant) and 18-bit
(Least Significant) sections. This split ensures that the
lDE bit can remain at the same bit position in both the
standard and extended frames.
Following the arbitration field is the six-bit control field.
The first two bits of this field are reserved and must be
dominant. The remaining four bits of the control field
are the DLC, which specifies the number of data bytes
contained in the message.
The remaining portion of the frame (data field, CRC
field, Acknowledge field, End-of-Frame and intermission) is constructed in the same way as a standard data
frame (see Section 2.1 “Standard Data Frame”).
2.3
Remote Frame
Normally, data transmission is performed on an
autonomous basis by the data source node (e.g., a
sensor sending out a data frame). It is possible,
however, for a destination node to request data from the
source. To accomplish this, the destination node sends
a remote frame with an identifier that matches the identifier of the required data frame. The appropriate data
source node will then send a data frame in response to
the remote frame request.
There are two differences between a remote frame
(shown in Figure 2-3) and a data frame. First, the RTR
bit is at the recessive state, and second, there is no
data field. In the event of a data frame and a remote
frame with the same identifier being transmitted at the
same time, the data frame wins arbitration due to the
dominant RTR bit following the identifier. In this way,
the node that transmitted the remote frame receives
the desired data immediately.
2.4
Error Frame
An error frame is generated by any node that detects a
bus error. An error frame, shown in Figure 2-4, consists
of two fields: an error flag field followed by an error
delimiter field. There are two types of error flag fields.
The type of error flag field sent depends upon the error
status of the node that detects and generates the error
flag field.
DS20001801J-page 7
MCP2515
2.4.1
ACTIVE ERRORS
If an error-active node detects a bus error, the node
interrupts transmission of the current message by
generating an active error flag. The active error flag is
composed of six consecutive dominant bits. This bit
sequence actively violates the bit-stuffing rule. All other
stations recognize the resulting bit-stuffing error, and in
turn, generate error frames themselves, called error
echo flags.
The error flag field, therefore, consists of between six
and twelve consecutive dominant bits (generated by
one or more nodes). The error delimiter field (eight
recessive bits) completes the error frame. Upon
completion of the error frame, bus activity returns to
normal and the interrupted node attempts to resend the
aborted message.
Note:
2.4.2
Error echo flags typically occur when a
localized disturbance causes one or more
(but not all) nodes to send an error flag.
The remaining nodes generate error flags
in response (echo) to the original error flag.
2.5
An overload frame, shown in Figure 2-5, has the same
format as an active-error frame. An overload frame,
however, can only be generated during an interframe
space. In this way, an overload frame can be
differentiated from an error frame (an error frame is
sent during the transmission of a message). The
overload frame consists of two fields: an overload flag
followed by an overload delimiter. The overload flag
consists of six dominant bits followed by overload flags
generated by other nodes (and, as for an active error
flag, giving a maximum of twelve dominant bits). The
overload delimiter consists of eight recessive bits. An
overload frame can be generated by a node as a result
of two conditions:
1.
The node detects a dominant bit during the interframe space, an illegal condition. Exception: The
dominant bit is detected during the third bit of IFS.
In this case, the receivers will interpret this as a
SOF.
Due to internal conditions, the node is not yet
able to begin reception of the next message. A
node may generate a maximum of two sequential
overload frames to delay the start of the next
message.
2.
PASSIVE ERRORS
If an error-passive node detects a bus error, the node
transmits an error-passive flag followed by the error
delimiter field. The error-passive flag consists of six
consecutive recessive bits. The error frame for an errorpassive node consists of 14 recessive bits. From this, it
follows that unless the bus error is detected by an erroractive node or the transmitting node, the message will
continue transmission because the error-passive flag
does not interfere with the bus.
If the transmitting node generates an error-passive flag,
it will cause other nodes to generate error frames due to
the resulting bit-stuffing violation. After transmission of
an error frame, an error-passive node must wait for six
consecutive recessive bits on the bus before attempting
to rejoin bus communications.
Overload Frame
Note:
2.6
Case 2 should never occur with the
MCP2515 due to very short internal
delays.
Interframe Space
The interframe space separates a preceding frame (of
any type) from a subsequent data or remote frame.
The interframe space is composed of at least three
recessive bits, called the ‘Intermission’. This allows
nodes time for internal processing before the start of
the next message frame. After the intermission, the
bus line remains in the recessive state (Bus Idle) until
the next transmission starts.
The error delimiter consists of eight recessive bits, and
allows the bus nodes to restart bus communications
cleanly after an error has occurred.
DS20001801J-page 8
2003-2019 Microchip Technology Inc.
Start-of-Frame
ID 10
0
Stored in Buffers
Message
Filtering
Identifier
11
12
Arbitration Field
ID3
2003-2019 Microchip Technology Inc.
6
Control
Field
4
0 0 0
8
8N (0N8)
Data Field
Bit-Stuffing
Stored in Transmit/Receive Buffers
DLC0
Data
Length
Code
ID0
RTR
IDE
RB0
DLC3
8
15
CRC
16
CRC Field
IFS
1 1 1 1 1 1 1 1 1 1 1
CRC Del
Ack Slot Bit
ACK Del
1
End-ofFrame
7
FIGURE 2-1:
Reserved Bit
Data Frame (number of bits = 44 + 8N)
MCP2515
STANDARD DATA FRAME
DS20001801J-page 9
Start-of-Frame
ID10
0
ID3
Message
Filtering
Identifier
11
Stored in Buffers
11
18
Extended Identifier
Arbitration Field
ID0
SRR
IDE
EID17
000
Bit-Stuffing
8
Stored in Transmit/Receive Buffers
Data
Length
Code
4
8N (0 N 8)
Data Field
8
Data Frame (number of bits = 64 + 8N)
6
Control
Field
EID0
RTR
RB1
RB0
DLC3
DS20001801J-page 10
Reserved Bits
CRC
15
16
CRC Field
IFS
11111111111
CRC Del
Ack Slot Bit
ACK Del
1
End-ofFrame
7
FIGURE 2-2:
DLC0
32
MCP2515
EXTENDED DATA FRAME
2003-2019 Microchip Technology Inc.
ID3
Message
Filtering
Identifier
11
ID0
SRR
IDE
EID17
18
Extended Identifier
Remote Frame with Extended Identifier
Start-of-Frame
ID10
0
11
32
100
Data
Length
Code
4
6
Control
Field
EID0
RTR
RB1
RB0
DLC3
Reserved Bits
2003-2019 Microchip Technology Inc.
DLC0
No Data Field
CRC
15
16
CRC Field
IFS
11111111111
CRC Del
Ack Slot Bit
ACK Del
1
End-ofFrame
7
FIGURE 2-3:
Arbitration Field
MCP2515
REMOTE FRAME
DS20001801J-page 11
Start-of-Frame
ID 10
0
Message
Filtering
Identifier
11
ID3
12
Arbitration Field
6
Control
Field
4
0 0 0
Bit-Stuffing
Data
Length
Code
ID0
RTR
IDE
RB0
DLC3
DS20001801J-page 12
Reserved Bit
8
Data Frame or
Remote Frame
8N (0 N 8)
Data Field
8
Inter-Frame Space or
Overload Frame
0 0 1 1 1 1 1 1 1 1 0
Error
Delimiter
Echo
Error
Flag
Error
Flag
0 0 0 0 0 0 0
8
£6
6
Error Frame
FIGURE 2-4:
DLC0
Interrupted Data Frame
MCP2515
ACTIVE ERROR FRAME
2003-2019 Microchip Technology Inc.
2003-2019 Microchip Technology Inc.
Start-of-Frame
ID 10
0
11
12
Arbitration Field
6
Control
Field
4
1 0 0
ID0
RTR
IDE
RB0
DLC3
16
15
CRC
CRC Field
End-of-Frame or
Error Delimiter or
Overload Delimiter
1 1 1 1 1 1 1 1
CRC Del
Ack Slot Bit
ACK Del
1
End-ofFrame
7
Overload
Delimiter
Overload
Flag
0 0 0 0 0 0 0 1 1 1 1 1 1 1 1
8
6
Overload Frame
Inter-Frame Space or
Error Frame
FIGURE 2-5:
DLC0
Remote Frame (number of bits = 44)
MCP2515
OVERLOAD FRAME
DS20001801J-page 13
MCP2515
NOTES:
DS20001801J-page 14
2003-2019 Microchip Technology Inc.
MCP2515
3.0
MESSAGE TRANSMISSION
3.3
3.1
Transmit Buffers
In order to initiate message transmission, the TXREQ
bit (TXBnCTRL[3]) must be set for each buffer to be
transmitted. This can be accomplished by:
The MCP2515 implements three transmit buffers. Each
of these buffers occupies 14 bytes of SRAM and are
mapped into the device memory map.
The first byte, TXBnCTRL, is a control register
associated with the message buffer. The information in
this register determines the conditions under which the
message will be transmitted and indicates the status of
the message transmission (see Register 3-1).
Five bytes are used to hold the Standard and Extended
Identifiers, as well as other message arbitration information (see Register 3-3 through Register 3-6). The
last eight bytes are for the eight possible data bytes of
the message to be transmitted (see Register 3-8).
At a minimum, the TXBnSIDH, TXBnSIDL and TXBnDLC
registers must be loaded. If data bytes are present in the
message, the TXBnDm registers must also be loaded.
If the message is to use Extended Identifiers, the
TXBnEIDm registers must also be loaded and the
EXIDE (TXBnSIDL[3]) bit set.
Prior to sending the message, the MCU must initialize
the TXnIE bit in the CANINTE register to enable or
disable the generation of an interrupt when the message
is sent.
Note:
3.2
The TXREQ bit (TXBnCTRL[3]) must be
clear (indicating the transmit buffer is not
pending transmission) before writing to
the transmit buffer.
Transmit Priority
Transmit priority is a prioritization within the MCP2515
of the pending transmittable messages. This is
independent from, and not necessarily related to, any
prioritization implicit in the message arbitration scheme
built into the CAN protocol.
Prior to sending the SOF, the priority of all buffers that
are queued for transmission is compared. The transmit
buffer with the highest priority will be sent first. For
example, if Transmit Buffer 0 has a higher priority
setting than Transmit Buffer 1, Transmit Buffer 0 will be
sent first.
If two buffers have the same priority setting, the buffer
with the highest buffer number will be sent first. For
example, if Transmit Buffer 1 has the same priority
setting as Transmit Buffer 0, Transmit Buffer 1 will be
sent first.
There are four levels of transmit priority. If the TXP[1:0]
bits (TXBnCTRL[1:0]) for a particular message buffer
are set to ‘11’, that buffer has the highest possible priority. If the TXP[1:0] bits for a particular message buffer
are ‘00’, that buffer has the lowest possible priority.
2003-2019 Microchip Technology Inc.
Initiating Transmission
• Writing to the register via the SPI write command
• Sending the SPI RTS command
• Setting the TXnRTS pin low for the particular
transmit buffer(s) that are to be transmitted
If transmission is initiated via the SPI interface, the
TXREQ bit can be set at the same time as the TXPx
priority bits.
When TXREQ is set, the ABTF, MLOA and TXERR bits
(TXBnCTRL[5:4]) will be cleared automatically.
Note:
Setting the TXREQ bit (TXBnCTRL[3])
does not initiate a message transmission.
It merely flags a message buffer as being
ready for transmission. Transmission will
start when the device detects that the bus
is available.
Once the transmission has completed successfully, the
TXREQ bit will be cleared, the TXnIF bit (CANINTF) will
be set and an interrupt will be generated if the TXnIE bit
(CANINTE) is set.
If the message transmission fails, the TXREQ bit will
remain set. This indicates that the message is still
pending for transmission and one of the following
condition flags will be set:
• If the message started to transmit but
encountered an error condition, the TXERR
(TXBnCTRL[4]) and MERRF bits (CANINTF[7])
will be set, and an interrupt will be generated on
the INT pin if the MERRE bit (CANINTE[7]) is set
• If the message is lost, arbitration at the
MLOA bit (TXBnCTRL[5]) will be set
Note:
3.4
If One-Shot mode is enabled (OSM bit
(CANCTRL[3])), the above conditions will
still exist. However, the TXREQ bit will be
cleared and the message will not attempt
transmission a second time.
One-Shot Mode
One-Shot mode ensures that a message will only
attempt to transmit one time. Normally, if a CAN
message loses arbitration, or is destroyed by an error
frame, the message is retransmitted. With One-Shot
mode enabled, a message will only attempt to transmit
one time, regardless of arbitration loss or error frame.
One-Shot mode is required to maintain time slots in
deterministic systems, such as TTCAN.
DS20001801J-page 15
MCP2515
3.5
TXnRTS Pins
3.6
Aborting Transmission
The TXnRTS pins are input pins that can be configured
as:
The MCU can request to abort a message in a specific
message buffer by clearing the associated TXREQ bit.
• Request-to-Send inputs, which provide an
alternative means of initiating the transmission of
a message from any of the transmit buffers
• Standard digital inputs
In addition, all pending messages can be requested to
be aborted by setting the ABAT bit (CANCTRL[4]). This
bit MUST be reset (typically after the TXREQ bits have
been verified to be cleared) to continue transmitting
messages. The ABTF flag (TXBnCTRL[6]) will only be
set if the abort was requested via the ABAT bit. Aborting a message by resetting the TXREQ bit does NOT
cause the ABTF bit to be set.
Configuration and control of these pins is accomplished
using the TXRTSCTRL register (see Register 3-2). The
TXRTSCTRL register can only be modified when the
MCP2515 is in Configuration mode (see Section 10.0
“Modes of Operation”). If configured to operate as a
Request-to-Send pin, the pin is mapped into the
respective TXREQ bit (TXBnCTRL[3]) for the transmit
buffer. The TXREQ bit is latched by the falling edge of
the TXnRTS pin. The TXnRTS pins are designed to
allow them to be tied directly to the RXnBF pins to
automatically initiate a message transmission when the
RXnBF pin goes low.
The TXnRTS pins have internal pull-up resistors of
100 k (nominal).
DS20001801J-page 16
Note 1: Messages that were transmitting when
the abort was requested will continue to
transmit. If the message does not successfully complete transmission (i.e., lost
arbitration or was interrupted by an error
frame), it will then be aborted.
2: When One-Shot mode is enabled, if the
message is interrupted due to an error
frame or loss of arbitration, the ABTF bit
will set.
2003-2019 Microchip Technology Inc.
MCP2515
FIGURE 3-1:
TRANSMIT MESSAGE FLOWCHART
Start
No
The message transmission
sequence begins when the
device determines that the
TXREQ bit (TXBnCTRL[3]) for
any of the transmit registers
has been set.
Are any
TXREQ (TXBnCTRL[3])
bits = 1?
Yes
Clearing the TXREQ bit while it is set,
or setting the ABAT bit (CANCTRL[4])
before the message has started
transmission, will abort the message.
Clear:
ABTF (TXBnCTRL[6])
MLOA (TXBnCTRL[5])
TXERR (TXBnCTRL[4])
Is
CAN bus available
to start transmission?
Is
TXREQ = 0
or ABAT = 1?
No
Yes
No
Yes
Examine TXP[1:0] (TXBnCTRL[1:0])
to Determine Highest Priority Message
Transmit Message
Was
Message Transmitted
Successfully?
Yes
Clear TXREQ bit
No
Message error
or
lost arbitration
?
Message
Error
Set
TXERR (TXBnCTRL[4])
Lost
Arbitration
Yes
MERRE (CANINTE)?
Yes
Generate
Interrupt
TXnIE (CANINTE) = 1?
Set
MLOA (TXBnCTRL[5])
No
Generate
Interrupt
No
Set
TXnIF (CANTINF)
Set
MERRF (CANTINF)
The TXnIE bit determines
if an interrupt should be
generated when a
message is successfully
transmitted.
GOTO START
2003-2019 Microchip Technology Inc.
DS20001801J-page 17
MCP2515
REGISTER 3-1:
TXBnCTRL: TRANSMIT BUFFER n CONTROL REGISTER
(ADDRESS: 30h, 40h, 50h)
U-0
R-0
R-0
R-0
R/W-0
U-0
R/W-0
R/W-0
—
ABTF
MLOA
TXERR
TXREQ
—
TXP1
TXP0
bit 7
bit 0
Legend:
R = Readable bit
W = Writable bit
U = Unimplemented bit, read as ‘0’
-n = Value at POR
‘1’ = Bit is set
‘0’ = Bit is cleared
x = Bit is unknown
bit 7
Unimplemented: Read as ‘0’
bit 6
ABTF: Message Aborted Flag bit
1 = Message was aborted
0 = Message completed transmission successfully
bit 5
MLOA: Message Lost Arbitration bit
1 = Message lost arbitration while being sent
0 = Message did not lose arbitration while being sent
bit 4
TXERR: Transmission Error Detected bit
1 = A bus error occurred while the message was being transmitted
0 = No bus error occurred while the message was being transmitted
bit 3
TXREQ: Message Transmit Request bit
1 = Buffer is currently pending transmission
(MCU sets this bit to request message be transmitted – bit is automatically cleared when the
message is sent)
0 = Buffer is not currently pending transmission
(MCU can clear this bit to request a message abort)
bit 2
Unimplemented: Read as ‘0’
bit 1-0
TXP[1:0]: Transmit Buffer Priority bits
11 = Highest message priority
10 = High intermediate message priority
01 = Low intermediate message priority
00 = Lowest message priority
DS20001801J-page 18
2003-2019 Microchip Technology Inc.
MCP2515
REGISTER 3-2:
TXRTSCTRL: TXnRTS PIN CONTROL AND STATUS REGISTER
(ADDRESS: 0Dh)
U-0
U-0
R-x
R-x
R-x
R/W-0
R/W-0
R/W-0
—
—
B2RTS
B1RTS
B0RTS
B2RTSM
B1RTSM
B0RTSM
bit 7
bit 0
Legend:
R = Readable bit
W = Writable bit
U = Unimplemented bit, read as ‘0’
-n = Value at POR
‘1’ = Bit is set
‘0’ = Bit is cleared
x = Bit is unknown
bit 7-6
Unimplemented: Read as ‘0’
bit 5
B2RTS: TX2RTS Pin State bit
- Reads state of TX2RTS pin when in Digital Input mode
- Reads as ‘0’ when pin is in Request-to-Send mode
bit 4
B1RTS: TX1RTS Pin State bit
- Reads state of TX1RTS pin when in Digital Input mode
- Reads as ‘0’ when pin is in Request-to-Send mode
bit 3
B0RTS: TX0RTS Pin State bit
- Reads state of TX0RTS pin when in Digital Input mode
- Reads as ‘0’ when pin is in Request-to-Send mode
bit 2
B2RTSM: TX2RTS Pin mode bit
1 = Pin is used to request message transmission of TXB2 buffer (on falling edge)
0 = Digital input
bit 1
B1RTSM: TX1RTS Pin mode bit
1 = Pin is used to request message transmission of TXB1 buffer (on falling edge)
0 = Digital input
bit 0
B0RTSM: TX0RTS Pin mode bit
1 = Pin is used to request message transmission of TXB0 buffer (on falling edge)
0 = Digital input
2003-2019 Microchip Technology Inc.
DS20001801J-page 19
MCP2515
REGISTER 3-3:
TXBnSIDH: TRANSMIT BUFFER n STANDARD IDENTIFIER REGISTER HIGH
(ADDRESS: 31h, 41h, 51h)
R/W-x
R/W-x
R/W-x
R/W-x
R/W-x
R/W-x
R/W-x
R/W-x
SID10
SID9
SID8
SID7
SID6
SID5
SID4
SID3
bit 7
bit 0
Legend:
R = Readable bit
W = Writable bit
U = Unimplemented bit, read as ‘0’
-n = Value at POR
‘1’ = Bit is set
‘0’ = Bit is cleared
bit 7-0
x = Bit is unknown
SID[10:3]: Standard Identifier bits
REGISTER 3-4:
TXBnSIDL: TRANSMIT BUFFER n STANDARD IDENTIFIER REGISTER LOW
(ADDRESS: 32h, 42h, 52h)
R/W-x
R/W-x
R/W-x
U-0
R/W-x
U-0
R/W-x
R/W-x
SID2
SID1
SID0
—
EXIDE
—
EID17
EID16
bit 7
bit 0
Legend:
R = Readable bit
W = Writable bit
U = Unimplemented bit, read as ‘0’
-n = Value at POR
‘1’ = Bit is set
‘0’ = Bit is cleared
bit 7-5
SID[2:0]: Standard Identifier bits
bit 4
Unimplemented: Read as ‘0’
bit 3
EXIDE: Extended Identifier Enable bit
1 = Message will transmit Extended Identifier
0 = Message will transmit Standard Identifier
bit 2
Unimplemented: Read as ‘0’
bit 1-0
EID[17:16]: Extended Identifier bits
DS20001801J-page 20
x = Bit is unknown
2003-2019 Microchip Technology Inc.
MCP2515
REGISTER 3-5:
TXBnEID8: TRANSMIT BUFFER n EXTENDED IDENTIFIER 8 REGISTER HIGH
(ADDRESS: 33h, 43h, 53h)
R/W-x
R/W-x
R/W-x
R/W-x
R/W-x
R/W-x
R/W-x
R/W-x
EID15
EID14
EID13
EID12
EID11
EID10
EID9
EID8
bit 7
bit 0
Legend:
R = Readable bit
W = Writable bit
U = Unimplemented bit, read as ‘0’
-n = Value at POR
‘1’ = Bit is set
‘0’ = Bit is cleared
bit 7-0
x = Bit is unknown
EID[15:8]: Extended Identifier bits
REGISTER 3-6:
TXBnEID0: TRANSMIT BUFFER n EXTENDED IDENTIFIER 0 REGISTER LOW
(ADDRESS: 34h, 44h, 54h)
R/W-x
R/W-x
R/W-x
R/W-x
R/W-x
R/W-x
R/W-x
R/W-x
EID7
EID6
EID5
EID4
EID3
EID2
EID1
EID0
bit 7
bit 0
Legend:
R = Readable bit
W = Writable bit
U = Unimplemented bit, read as ‘0’
-n = Value at POR
‘1’ = Bit is set
‘0’ = Bit is cleared
bit 7-0
x = Bit is unknown
EID[7:0]: Extended Identifier bits
2003-2019 Microchip Technology Inc.
DS20001801J-page 21
MCP2515
REGISTER 3-7:
U-0
TXBnDLC: TRANSMIT BUFFER n DATA LENGTH CODE REGISTER
(ADDRESS: 35h, 45h, 55h)
R/W-x
—
RTR
U-0
U-0
—
—
R/W-x
R/W-x
(1)
DLC3
DLC2
(1)
R/W-x
(1)
DLC1
R/W-x
DLC0(1)
bit 7
bit 0
Legend:
R = Readable bit
W = Writable bit
U = Unimplemented bit, read as ‘0’
-n = Value at POR
‘1’ = Bit is set
‘0’ = Bit is cleared
x = Bit is unknown
bit 7
Unimplemented: Read as ‘0’
bit 6
RTR: Remote Transmission Request bit
1 = Transmitted message will be a remote transmit request
0 = Transmitted message will be a data frame
bit 5-4
Unimplemented: Reads as ‘0’
bit 3-0
DLC[3:0]: Data Length Code bits(1)
Sets the number of data bytes to be transmitted (0 to 8 bytes).
Note 1:
It is possible to set the DLC[3:0] bits to a value greater than eight; however, only eight bytes are
transmitted.
REGISTER 3-8:
TXBnDm: TRANSMIT BUFFER n DATA BYTE m REGISTER
(ADDRESS: 36h-3Dh, 46h-4Dh, 56h-5Dh)
R/W-x
R/W-x
R/W-x
R/W-x
R/W-x
R/W-x
R/W-x
R/W-x
TXBnDm7
TXBnDm6
TXBnDm5
TXBnDm4
TXBnDm3
TXBnDm2
TXBnDm1
TXBnDm0
bit 7
bit 0
Legend:
R = Readable bit
W = Writable bit
U = Unimplemented bit, read as ‘0’
-n = Value at POR
‘1’ = Bit is set
‘0’ = Bit is cleared
bit 7-0
x = Bit is unknown
TXBnDm[7:0]: Transmit Buffer n Data Field Byte m bits
DS20001801J-page 22
2003-2019 Microchip Technology Inc.
MCP2515
4.0
MESSAGE RECEPTION
4.1
Receive Message Buffering
The MCP2515 includes two full receive buffers with
multiple acceptance filters for each. There is also a
separate Message Assembly Buffer (MAB) that acts as
a third receive buffer (see Figure 4-2).
4.1.1
MESSAGE ASSEMBLY BUFFER
Of the three receive buffers, the MAB is always
committed to receiving the next message from the bus.
The MAB assembles all messages received. These
messages will be transferred to the RXBn buffers (see
Register 4-4 to Register 4-9) only if the acceptance
filter criteria is met.
4.1.2
RXB0 AND RXB1
The remaining two receive buffers, called RXB0 and
RXB1, can receive a complete message from the
protocol engine via the MAB. The MCU can access one
buffer, while the other buffer is available for message
reception, or for holding a previously received
message.
Note:
4.1.3
The entire content of the MAB is moved
into the receive buffer once a message is
accepted. This means, that regardless of
the type of identifier (Standard or
Extended) and the number of data bytes
received, the entire receive buffer is
overwritten with the MAB contents.
Therefore, the contents of all registers in
the buffer must be assumed to have been
modified when any message is received.
RECEIVE FLAGS/INTERRUPTS
When a message is moved into either of the receive
buffers, the appropriate RXnIF bit (CANINTF) is set.
This bit must be cleared by the MCU in order to allow a
new message to be received into the buffer. This bit
provides a positive lockout to ensure that the MCU has
finished with the message before the MCP2515
attempts to load a new message into the receive buffer.
4.2
Receive Priority
RXB0, the higher priority buffer, has one mask and two
message acceptance filters associated with it. The
received message is applied to the mask and filters for
RXB0 first.
RXB1 is the lower priority buffer, with one mask and
four acceptance filters associated with it.
In addition to the message being applied to the RXB0
mask and filters first, the lower number of acceptance
filters makes the match on RXB0 more restrictive and
implies a higher priority for that buffer.
When a message is received, the RXBnCTRL[3:0] register bits will indicate the acceptance filter number that
enabled reception and whether the received message
is a Remote Transfer Request.
4.2.1
ROLLOVER
Additionally, the RXB0CTRL register can be configured
such that, if RXB0 contains a valid message and
another valid message is received, an overflow error
will not occur and the new message will be moved into
RXB1, regardless of the acceptance criteria of RXB1.
4.2.2
RXM BITS
The RXM[1:0] bits (RXBnCTRL[6:5]) set special
Receive modes. Normally, these bits are cleared to ‘00’
to enable reception of all valid messages as determined by the appropriate acceptance filters. In this
case, the determination of whether or not to receive
standard or extended messages is determined by the
EXIDE bit (RFXnSIDL[3]) in the Filter n Standard Identifier Low register.
If the RXM[1:0] bits are set to ‘11’, the buffer will receive
all messages, regardless of the values of the acceptance filters. Also, if a message has an error before the
EOF, that portion of the message assembled in the
MAB, before the error frame, will be loaded into the buffer. This mode has some value in debugging a CAN
system and would not be used in an actual system
environment.
Setting the RXM[1:0] bits to ‘01’ or ‘10’ is not
recommended.
If the RXnIE bit (CANINTE) is set, an interrupt will be
generated on the INT pin to indicate that a valid
message has been received. In addition, the associated RXnBF pin will drive low if configured as a receive
buffer full pin. See Section 4.4 “RX0BF and RX1BF
Pins” for details.
2003-2019 Microchip Technology Inc.
DS20001801J-page 23
MCP2515
4.3
Start-of-Frame Signal
4.4.1
The RXnBF pins can be disabled to the high-impedance
state by clearing the BnBFE bits (BFPCTRL[3:2]).
If enabled, the Start-of-Frame signal is generated on
the SOF pin at the beginning of each CAN message
detected on the RXCAN pin.
4.4.2
The RXCAN pin monitors an Idle bus for a recessiveto-dominant edge. If the dominant condition remains
until the sample point, the MCP2515 interprets this as
a SOF and a SOF pulse is generated. If the dominant
condition does not remain until the sample point, the
MCP2515 interprets this as a glitch on the bus and no
SOF signal is generated. Figure 4-1 illustrates SOF
signaling and glitch filtering.
CONFIGURED AS BUFFER FULL
The RXnBF pins can be configured to act as either buffer full interrupt pins or as standard digital outputs.
Configuration and status of these pins are available via
the BFPCTRL register (Register 4-3). When set to
operate in Interrupt mode, by setting the BnBFE and
BnBFM bits (BFPCTRL[3:0]), these pins are active-low
and are mapped to the RXnIF bit (CANINTF) for each
receive buffer. When this bit goes high for one of the
receive buffers (indicating that a valid message has
been loaded into the buffer), the corresponding RXnBF
pin will go low. When the RXnIF bit is cleared by the
MCU, the corresponding interrupt pin will go to the logic
high state until the next message is loaded into the
receive buffer.
As with One-Shot mode, one use for SOF signaling is
for TTCAN-type systems. In addition, by monitoring
both the RXCAN pin and the SOF pin, an MCU can
detect early physical bus problems by detecting small
glitches before they affect the CAN communications.
4.4
DISABLED
RX0BF and RX1BF Pins
In addition to the INT pin, which provides an interrupt
signal to the MCU for many different conditions, the
Receive Buffer Full pins (RX0BF and RX1BF) can be
used to indicate that a valid message has been loaded
into RXB0 or RXB1, respectively. The pins have three
different configurations (Table 4-1):
1.
2.
3.
Disabled
Buffer Full Interrupt
Digital Output
FIGURE 4-1:
START-OF-FRAME SIGNALING
Normal SOF Signaling
ID Bit
START-OF-FRAME BIT
Sample
Point
RXCAN
SOF
Glitch Filtering
EXPECTED START-OF-FRAME BIT
Expected
Sample
Point
Bus Idle
RXCAN
SOF
DS20001801J-page 24
2003-2019 Microchip Technology Inc.
MCP2515
4.4.3
CONFIGURED AS DIGITAL OUTPUT
When used as digital outputs, the BnBFM bits
(BFPCTRL[1:0]) must be cleared and the BnBFE bits
(BFPCTRL[3:2]) must be set for the associated buffer.
In this mode, the state of the pin is controlled by the
BnBFS bits (BFPCTRL[5:4]). Writing a ‘1’ to a BnBFS
bit will cause a high level to be driven on the associated
buffer full pin, while a ‘0’ will cause the pin to drive low.
When using the pins in this mode, the state of the pin
should be modified only by using the SPI BIT MODIFY
command to prevent glitches from occurring on either
of the buffer full pins.
FIGURE 4-2:
Note:
TABLE 4-1:
CONFIGURING RXnBF PINS
BnBFE BnBFM BnBFS
Pin Status
0
X
X
Disabled, high-impedance
1
1
X
Receive buffer interrupt
1
0
0
Digital output = 0
1
0
1
Digital output = 1
RECEIVE BUFFER BLOCK DIAGRAM
Messages received in the MAB are initially
applied to the mask and filters of RXB0. In
addition, only one filter match occurs (e.g.,
if the message matches both RXF0 and
RXF2, the match will be for RXF0 and the
message will be moved into RXB0).
Acceptance Mask
RXM1
Acceptance Filter
RXF2
Acceptance Mask
RXM0
A
c
c
e
p
t
R
X
B
0
Acceptance Filter
RXF0
Acceptance Filter
RXF4
Acceptance Filter
RXF1
Acceptance Filter
RXF5
Identifier
Data Field
2003-2019 Microchip Technology Inc.
Acceptance Filter
RXF3
M
A
B
Identifier
A
c
c
e
p
t
R
X
B
1
Data Field
DS20001801J-page 25
MCP2515
FIGURE 4-3:
RECEIVE FLOWCHART
Start
Detect
Start of
Message?
No
Yes
Begin Loading Message into
Message Assembly Buffer (MAB)
Generate
Error
Frame
Valid
Message
Received?
No
Yes
Meets
a Filter Criteria
for RXB0?
Yes
No
Meets
a Filter Criteria
for RXB1?
Yes
No
Go to Start
Determines if the Receive
register is empty and able
to accept a new message.
Determines if RXB0 can roll
over into RXB1 if it is full.
Is
RX0IF (CANINTF)
= 0?
Is
BUKT (RXB0CTRL[2])
= 1?
No
Yes
No
Yes
Generate Overflow Error:
Set RX0OVR (EFLG[6])
Move Message into RXB0
Generate Overflow Error:
Set RX1OVR (EFLG[7])
Is
RX1IF (CANINTF[3])
= 0?
No
Yes
Set RX0IF (CANINTF[0]) = 1
Move Message into RXB1
No
Is
ERRIE (CANINTE[5])
= 1?
Set FILHIT0 (RXB0CTRL[0])
According to Which Filter Criteria
Set RX1IF (CANINTF[3]) = 1
Yes
Generate
Interrupt on INT
RX0IE (CANINTE[0]) Yes
= 1?
Are
B0BFM (BFPCTRL[0]) = 1
and
B0BFE (BFPCTRL[2]) = 1?
No
DS20001801J-page 26
Yes
Yes
Generate
Interrupt on INT
RXB0
No
Set CANSTAT[3:0] according to
which receive buffer the
message was loaded into
Set RXBF0
Pin = 0
Set FILHIT[2:0] (RXB1CTRL[2:0])
According to which Filter Criteria
was Met
Go to Start
RXB1
Set RXBF1
Pin = 0
RX1IE (CANINTE[1])
= 1?
No
Yes
Are
B1BFM (BFPCTRL[1]) = 1
and
B1BFE (BF1CTRL[3]) = 1?
No
2003-2019 Microchip Technology Inc.
MCP2515
REGISTER 4-1:
RXB0CTRL: RECEIVE BUFFER 0 CONTROL REGISTER (ADDRESS: 60h)
U-0
R/W-0
R/W-0
U-0
R-0
R/W-0
R-0
R-0
—
RXM1
RXM0
—
RXRTR
BUKT
BUKT1
FILHIT0(1)
bit 7
bit 0
Legend:
R = Readable bit
W = Writable bit
U = Unimplemented bit, read as ‘0’
-n = Value at POR
‘1’ = Bit is set
‘0’ = Bit is cleared
x = Bit is unknown
bit 7
Unimplemented: Read as ‘0’
bit 6-5
RXM[1:0]: Receive Buffer Operating mode bits
11 = Turns mask/filters off; receives any message
10 = Reserved
01 = Reserved
00 = Receives all valid messages using either Standard or Extended Identifiers that meet filter criteria;
Extended ID Filter registers, RXFnEID8:RXFnEID0, are applied to the first two bytes of data in
the messages with standard IDs
bit 4
Unimplemented: Read as ‘0’
bit 3
RXRTR: Received Remote Transfer Request bit
1 = Remote Transfer Request received
0 = No Remote Transfer Request received
bit 2
BUKT: Rollover Enable bit
1 = RXB0 message will roll over and be written to RXB1 if RXB0 is full
0 = Rollover is disabled
bit 1
BUKT1: Read-Only Copy of BUKT bit (used internally by the MCP2515)
bit 0
FILHIT0: Filter Hit bit (indicates which acceptance filter enabled reception of message)(1)
1 = Acceptance Filter 1 (RXF1)
0 = Acceptance Filter 0 (RXF0)
Note 1:
If a rollover from RXB0 to RXB1 occurs, the FILHIT0 bit will reflect the filter that accepted the message
that rolled over.
2003-2019 Microchip Technology Inc.
DS20001801J-page 27
MCP2515
REGISTER 4-2:
RXB1CTRL: RECEIVE BUFFER 1 CONTROL REGISTER (ADDRESS: 70h)
U-0
R/W-0
R/W-0
U-0
R-0
R-0
R-0
R-0
—
RXM1
RXM0
—
RXRTR
FILHIT2
FILHIT1
FILHIT0
bit 7
bit 0
Legend:
R = Readable bit
W = Writable bit
U = Unimplemented bit, read as ‘0’
-n = Value at POR
‘1’ = Bit is set
‘0’ = Bit is cleared
x = Bit is unknown
bit 7
Unimplemented: Read as ‘0’
bit 6-5
RXM[1:0]: Receive Buffer Operating mode bits
11 = Turns mask/filters off; receives any message
10 = Reserved
01 = Reserved
00 = Receives all valid messages using either Standard or Extended Identifiers that meet filter criteria
bit 4
Unimplemented: Read as ‘0’
bit 3
RXRTR: Received Remote Transfer Request bit
1 = Remote Transfer Request received
0 = No Remote Transfer Request received
bit 2-0
FILHIT[2:0]: Filter Hit bits (indicates which acceptance filter enabled reception of message)
101 = Acceptance Filter 5 (RXF5)
100 = Acceptance Filter 4 (RXF4)
011 = Acceptance Filter 3 (RXF3)
010 = Acceptance Filter 2 (RXF2)
001 = Acceptance Filter 1 (RXF1) (only if the BUKT bit is set in RXB0CTRL)
000 = Acceptance Filter 0 (RXF0) (only if the BUKT bit is set in RXB0CTRL)
DS20001801J-page 28
2003-2019 Microchip Technology Inc.
MCP2515
REGISTER 4-3:
BFPCTRL: RXnBF PIN CONTROL AND STATUS REGISTER (ADDRESS: 0Ch)
U-0
U-0
R/W-0
R/W-0
R/W-0
R/W-0
R/W-0
R/W-0
—
—
B1BFS
B0BFS
B1BFE
B0BFE
B1BFM
B0BFM
bit 7
bit 0
Legend:
R = Readable bit
W = Writable bit
U = Unimplemented bit, read as ‘0’
-n = Value at POR
‘1’ = Bit is set
‘0’ = Bit is cleared
x = Bit is unknown
bit 7-6
Unimplemented: Read as ‘0’
bit 5
B1BFS: RX1BF Pin State bit (Digital Output mode only)
- Reads as ‘0’ when RX1BF is configured as an interrupt pin
bit 4
B0BFS: RX0BF Pin State bit (Digital Output mode only)
- Reads as ‘0’ when RX0BF is configured as an interrupt pin
bit 3
B1BFE: RX1BF Pin Function Enable bit
1 = Pin function is enabled, operation mode is determined by the B1BFM bit
0 = Pin function is disabled, pin goes to a high-impedance state
bit 2
B0BFE: RX0BF Pin Function Enable bit
1 = Pin function is enabled, operation mode is determined by the B0BFM bit
0 = Pin function is disabled, pin goes to a high-impedance state
bit 1
B1BFM: RX1BF Pin Operation mode bit
1 = Pin is used as an interrupt when a valid message is loaded into RXB1
0 = Digital Output mode
bit 0
B0BFM: RX0BF Pin Operation mode bit
1 = Pin is used as an interrupt when a valid message is loaded into RXB0
0 = Digital Output mode
2003-2019 Microchip Technology Inc.
DS20001801J-page 29
MCP2515
REGISTER 4-4:
RXBnSIDH: RECEIVE BUFFER n STANDARD IDENTIFIER REGISTER HIGH
(ADDRESS: 61h, 71h)
R-x
R-x
R-x
R-x
R-x
R-x
R-x
R-x
SID10
SID9
SID8
SID7
SID6
SID5
SID4
SID3
bit 7
bit 0
Legend:
R = Readable bit
W = Writable bit
U = Unimplemented bit, read as ‘0’
-n = Value at POR
‘1’ = Bit is set
‘0’ = Bit is cleared
bit 7-0
x = Bit is unknown
SID[10:3]: Standard Identifier bits
These bits contain the eight Most Significant bits of the Standard Identifier for the received message.
REGISTER 4-5:
RXBnSIDL: RECEIVE BUFFER n STANDARD IDENTIFIER REGISTER LOW
(ADDRESS: 62h, 72h)
R-x
R-x
R-x
R-x
R-x
U-0
R-x
R-x
SID2
SID1
SID0
SRR
IDE
—
EID17
EID16
bit 7
bit 0
Legend:
R = Readable bit
W = Writable bit
U = Unimplemented bit, read as ‘0’
-n = Value at POR
‘1’ = Bit is set
‘0’ = Bit is cleared
x = Bit is unknown
bit 7-5
SID[2:0]: Standard Identifier bits
These bits contain the three Least Significant bits of the Standard Identifier for the received message.
bit 4
SRR: Standard Frame Remote Transmit Request bit (valid only if IDE bit = 0)
1 = Standard frame Remote Transmit Request received
0 = Standard data frame received
bit 3
IDE: Extended Identifier Flag bit
This bit indicates whether the received message was a standard or an extended frame.
1 = Received message was an extended frame
0 = Received message was a standard frame
bit 2
Unimplemented: Read as ‘0’
bit 1-0
EID[17:16]: Extended Identifier bits
These bits contain the two Most Significant bits of the Extended Identifier for the received message.
DS20001801J-page 30
2003-2019 Microchip Technology Inc.
MCP2515
REGISTER 4-6:
RXBnEID8: RECEIVE BUFFER n EXTENDED IDENTIFIER REGISTER HIGH
(ADDRESS: 63h, 73h)
R-x
R-x
R-x
R-x
R-x
R-x
R-x
R-x
EID15
EID14
EID13
EID12
EID11
EID10
EID9
EID8
bit 7
bit 0
Legend:
R = Readable bit
W = Writable bit
U = Unimplemented bit, read as ‘0’
-n = Value at POR
‘1’ = Bit is set
‘0’ = Bit is cleared
bit 7-0
x = Bit is unknown
EID[15:8]: Extended Identifier bits
These bits hold bits 15 through 8 of the Extended Identifier for the received message
REGISTER 4-7:
RXBnEID0: RECEIVE BUFFER n EXTENDED IDENTIFIER REGISTER LOW
(ADDRESS: 64h, 74h)
R-x
R-x
R-x
R-x
R-x
R-x
R-x
R-x
EID7
EID6
EID5
EID4
EID3
EID2
EID1
EID0
bit 7
bit 0
Legend:
R = Readable bit
W = Writable bit
U = Unimplemented bit, read as ‘0’
-n = Value at POR
‘1’ = Bit is set
‘0’ = Bit is cleared
bit 7-0
x = Bit is unknown
EID[7:0]: Extended Identifier bits
These bits hold the Least Significant eight bits of the Extended Identifier for the received message.
2003-2019 Microchip Technology Inc.
DS20001801J-page 31
MCP2515
REGISTER 4-8:
RXBnDLC: RECEIVE BUFFER n DATA LENGTH CODE REGISTER
(ADDRESS: 65h, 75h)
U-0
R-x
R-x
R-x
R-x
R-x
R-x
R-x
—
RTR
RB1
RB0
DLC3
DLC2
DLC1
DLC0
bit 7
bit 0
Legend:
R = Readable bit
W = Writable bit
U = Unimplemented bit, read as ‘0’
-n = Value at POR
‘1’ = Bit is set
‘0’ = Bit is cleared
x = Bit is unknown
bit 7
Unimplemented: Read as ‘0’
bit 6
RTR: Extended Frame Remote Transmission Request bit (valid only when IDE (RXBnSIDL[3]) = 1)
1 = Extended frame Remote Transmit Request received
0 = Extended data frame received
bit 5
RB1: Reserved Bit 1
bit 4
RB0: Reserved Bit 0
bit 3-0
DLC[3:0]: Data Length Code bits
Indicates the number of data bytes that were received.
REGISTER 4-9:
RXBnDm: RECEIVE BUFFER n DATA BYTE m REGISTER
(ADDRESS: 66h-6Dh, 76h-7Dh)
R-x
R-x
R-x
R-x
R-x
R-x
R-x
R-x
RBnD7
RBnD6
RBnD5
RBnD4
RBnD3
RBnD2
RBnD1
RBnD0
bit 7
bit 0
Legend:
R = Readable bit
W = Writable bit
U = Unimplemented bit, read as ‘0’
-n = Value at POR
‘1’ = Bit is set
‘0’ = Bit is cleared
bit 7-0
x = Bit is unknown
RBnD[7:0]: Receive Buffer n Data Field Bytes m bits
Eight bytes containing the data bytes for the received message.
DS20001801J-page 32
2003-2019 Microchip Technology Inc.
MCP2515
4.5
Message Acceptance Filters and
Masks
The message acceptance filters and masks are used to
determine if a message in the Message Assembly Buffer
should be loaded into either of the receive buffers (see
Figure 4-5). Once a valid message has been received
into the MAB, the identifier fields of the message are compared to the filter values. If there is a match, that message
will be loaded into the appropriate receive buffer.
identifier is compared to the masks and filters to determine if the message should be loaded into a receive
buffer. The mask essentially determines which bits to
apply the acceptance filters to. If any mask bit is set to
a zero, that bit will automatically be accepted,
regardless of the filter bit.
TABLE 4-2:
FILTER/MASK TRUTH TABLE
Mask Bit n
Filter Bit n
Message
Identifier
Bit
Accept or
Reject Bit n
When receiving standard data frames (11-bit identifier),
the MCP2515 automatically applies 16 bits of masks
and filters, normally associated with Extended
Identifiers, to the first 16 bits of the data field (Data
Bytes 0 and 1). Figure 4-4 illustrates how masks and
filters apply to extended and standard data frames.
0
x
x
Accept
1
0
0
Accept
1
0
1
Reject
1
1
0
Reject
1
1
Accept
Data byte filtering reduces the load on the MCU when
implementing Higher Layer Protocols (HLPs) that filter
on the first data byte (e.g., DeviceNet™).
Note:
4.5.1
4.5.2
DATA BYTE FILTERING
FILTER MATCHING
The filter masks (see Register 4-14 through
Register 4-17) are used to determine which bits in the
identifier are examined with the filters. A truth table is
shown in Table 4-2 that indicates how each bit in the
FIGURE 4-4:
1
x = don’t care
As shown in the Receive Buffer Block Diagram
(Figure 4-2), acceptance filters, RXF0 and RXF1 (and
filter mask, RXM0), are associated with RXB0. The
filters, RXF2, RXF3, RXF4, RXF5 and mask RXM1, are
associated with RXB1.
MASKS AND FILTERS APPLY TO CAN FRAMES
Extended Frame
ID10
ID0 EID17
EID0
Masks and Filters Apply to the Entire 29-Bit ID Field
Standard Data Frame
ID10
ID0 *
11-Bit ID Standard Frame
Data Byte 0
Data Byte 1
16-Bit Data Filtering*
*The two MSbs’ (EID17 and EID16) mask and filter bits are not used.
2003-2019 Microchip Technology Inc.
DS20001801J-page 33
MCP2515
4.5.3
FILHIT BITS
If the BUKT bit is clear, there are six codes
corresponding to the six filters. If the BUKT bit is set,
there are six codes corresponding to the six filters, plus
two additional codes corresponding to the RXF0 and
RXF1 filters that roll over into RXB1.
Filter matches on received messages can be determined
by the FILHIT bits in the associated RXBnCTRL register;
FILHIT0 (RXB0CTRL[0]) for Buffer 0 and FILHIT[2:0]
(RXB1CTRL[2:0]) for Buffer 1.
4.5.4
The three FILHITn bits for Receive Buffer 1 (RXB1) are
coded as follows:
•
•
•
•
•
•
If more than one acceptance filter matches, the
FILHITn bits will encode the binary value of the lowest
numbered filter that matched. For example, if filters,
RXF2 and RXF4, match, the FILHITn bits will be loaded
with the value for RXF2. This essentially prioritizes the
acceptance filters with a lower numbered filter having
higher priority. Messages are compared to filters in
ascending order of filter number. This also ensures that
the message will only be received into one buffer. This
implies that RXB0 has a higher priority than RXB1.
101 = Acceptance Filter 5 (RXF5)
100 = Acceptance Filter 4 (RXF4)
011 = Acceptance Filter 3 (RXF3)
010 = Acceptance Filter 2 (RXF2)
001 = Acceptance Filter 1 (RXF1)
000 = Acceptance Filter 0 (RXF0)
Note:
‘000’ and ‘001’ can only occur if the BUKT
bit in RXB0CTRL is set, allowing RXB0
messages to roll over into RXB1.
4.5.5
RXB0CTRL contains two copies of the BUKT bit and a
copy of the FILHIT0 bit.
Note:
111 = Acceptance Filter 1 (RXB1)
110 = Acceptance Filter 0 (RXB1)
001 = Acceptance Filter 1 (RXB0)
000 = Acceptance Filter 0 (RXB0)
FIGURE 4-5:
CONFIGURING THE MASKS AND
FILTERS
The Mask and Filter registers can only be modified
when the MCP2515 is in Configuration mode (see
Section 10.0 “Modes of Operation”).
The coding of the BUKT bit enables these three bits to be
used similarly to the FILHIT[2:0] (RXB1CTRL[2:0]) bits
and to distinguish a hit on filters, RXF0 and RXF1, in
either RXB0 or after a rollover into RXB1.
•
•
•
•
MULTIPLE FILTER MATCHES
The Mask and Filter registers read all ‘0’s
when in any mode except Configuration
mode.
MESSAGE ACCEPTANCE MASK AND FILTER OPERATION
Acceptance Filter Register
RXFn0
Acceptance Mask Register
RXMn0
RXMn1
RXFn1
RXFnn
RxRqst
RXMnn
Message Assembly Buffer
Identifier
DS20001801J-page 34
2003-2019 Microchip Technology Inc.
MCP2515
REGISTER 4-10:
RXFnSIDH: FILTER n STANDARD IDENTIFIER REGISTER HIGH
(ADDRESS: 00h, 04h, 08h, 10h, 14h, 18h)(1)
R/W-x
R/W-x
R/W-x
R/W-x
R/W-x
R/W-x
R/W-x
R/W-x
SID10
SID9
SID8
SID7
SID6
SID5
SID4
SID3
bit 7
bit 0
Legend:
R = Readable bit
W = Writable bit
U = Unimplemented bit, read as ‘0’
-n = Value at POR
‘1’ = Bit is set
‘0’ = Bit is cleared
bit 7-0
Note 1:
x = Bit is unknown
SID[10:3]: Standard Identifier Filter bits
These bits hold the filter bits to be applied to bits[10:3] of the Standard Identifier portion of a received
message.
The Mask and Filter registers read all ‘0’s when in any mode except Configuration mode.
REGISTER 4-11:
RXFnSIDL: FILTER n STANDARD IDENTIFIER REGISTER LOW
(ADDRESS: 01h, 05h, 09h, 11h, 15h, 19h)(1)
R/W-x
R/W-x
R/W-x
U-0
R/W-x
U-0
R/W-x
R/W-x
SID2
SID1
SID0
—
EXIDE
—
EID17
EID16
bit 7
bit 0
Legend:
R = Readable bit
W = Writable bit
U = Unimplemented bit, read as ‘0’
-n = Value at POR
‘1’ = Bit is set
‘0’ = Bit is cleared
x = Bit is unknown
bit 7-5
SID[2:0]: Standard Identifier Filter bits
These bits hold the filter bits to be applied to bits[2:0] of the Standard Identifier portion of a received
message.
bit 4
Unimplemented: Read as ‘0’
bit 3
EXIDE: Extended Identifier Enable bit
1 = Filter is applied only to extended frames
0 = Filter is applied only to standard frames
bit 2
Unimplemented: Read as ‘0’
bit 1-0
EID[17:16]: Extended Identifier Filter bits
These bits hold the filter bits to be applied to bits[17:16] of the Extended Identifier portion of a received
message.
Note 1:
The Mask and Filter registers read all ‘0’s when in any mode except Configuration mode.
2003-2019 Microchip Technology Inc.
DS20001801J-page 35
MCP2515
REGISTER 4-12:
RXFnEID8: FILTER n EXTENDED IDENTIFIER REGISTER HIGH
(ADDRESS: 02h, 06h, 0Ah, 12h, 16h, 1Ah)(1)
R/W-x
R/W-x
R/W-x
R/W-x
R/W-x
R/W-x
R/W-x
R/W-x
EID15
EID14
EID13
EID12
EID11
EID10
EID9
EID8
bit 7
bit 0
Legend:
R = Readable bit
W = Writable bit
U = Unimplemented bit, read as ‘0’
-n = Value at POR
‘1’ = Bit is set
‘0’ = Bit is cleared
bit 7-0
Note 1:
x = Bit is unknown
EID[15:8]: Extended Identifier bits
These bits hold the filter bits to be applied to bits[15:8] of the Extended Identifier portion of a received
message or to Byte 0 in received data if the corresponding RXM[1:0] bits = 00 and EXIDE = 0.
The Mask and Filter registers read all ‘0’s when in any mode except Configuration mode.
REGISTER 4-13:
RXFnEID0: FILTER n EXTENDED 1 REGISTER LOW
(ADDRESS: 03h, 07h, 0Bh, 13h, 17h, 1Bh)(1)
R/W-x
R/W-x
R/W-x
R/W-x
R/W-x
R/W-x
R/W-x
R/W-x
EID7
EID6
EID5
EID4
EID3
EID2
EID1
EID0
bit 7
bit 0
Legend:
R = Readable bit
W = Writable bit
U = Unimplemented bit, read as ‘0’
-n = Value at POR
‘1’ = Bit is set
‘0’ = Bit is cleared
bit 7-0
Note 1:
x = Bit is unknown
EID[7:0]: Extended Identifier bits
These bits hold the filter bits to be applied to bits[7:0] of the Extended Identifier portion of a received
message or to Byte 1 in received data if the corresponding RXM[1:0] bits = 00 and EXIDE = 0.
The Mask and Filter registers read all ‘0’s when in any mode except Configuration mode.
DS20001801J-page 36
2003-2019 Microchip Technology Inc.
MCP2515
REGISTER 4-14:
RXMnSIDH: MASK n STANDARD IDENTIFIER REGISTER HIGH
(ADDRESS: 20h, 24h)(1)
R/W-0
R/W-0
R/W-0
R/W-0
R/W-0
R/W-0
R/W-0
R/W-0
SID10
SID9
SID8
SID7
SID6
SID5
SID4
SID3
bit 7
bit 0
Legend:
R = Readable bit
W = Writable bit
U = Unimplemented bit, read as ‘0’
-n = Value at POR
‘1’ = Bit is set
‘0’ = Bit is cleared
bit 7-0
Note 1:
x = Bit is unknown
SID[10:3]: Standard Identifier Mask bits
These bits hold the mask bits to be applied to bits[10:3] of the Standard Identifier portion of a received
message.
The Mask and Filter registers read all ‘0’s when in any mode except Configuration mode.
REGISTER 4-15:
RXMnSIDL: MASK n STANDARD IDENTIFIER REGISTER LOW
(ADDRESS: 21h, 25h)(1)
R/W-0
R/W-0
R/W-0
U-0
U-0
U-0
R/W-0
R/W-0
SID2
SID1
SID0
—
—
—
EID17
EID16
bit 7
bit 0
Legend:
R = Readable bit
W = Writable bit
U = Unimplemented bit, read as ‘0’
-n = Value at POR
‘1’ = Bit is set
‘0’ = Bit is cleared
x = Bit is unknown
bit 7-5
SID[2:0]: Standard Identifier Mask bits
These bits hold the mask bits to be applied to bits[2:0] of the Standard Identifier portion of a received
message.
bit 4-2
Unimplemented: Reads as ‘0’
bit 1-0
EID[17:16]: Extended Identifier Mask bits
These bits hold the mask bits to be applied to bits[17:16] of the Extended Identifier portion of a received
message.
Note 1:
The Mask and Filter registers read all ‘0’s when in any mode except Configuration mode.
2003-2019 Microchip Technology Inc.
DS20001801J-page 37
MCP2515
\
REGISTER 4-16:
RXMnEID8: MASK n EXTENDED IDENTIFIER REGISTER HIGH
(ADDRESS: 22h, 26h)(1)
R/W-0
R/W-0
R/W-0
R/W-0
R/W-0
R/W-0
R/W-0
R/W-0
EID15
EID14
EID13
EID12
EID11
EID10
EID9
EID8
bit 7
bit 0
Legend:
R = Readable bit
W = Writable bit
U = Unimplemented bit, read as ‘0’
-n = Value at POR
‘1’ = Bit is set
‘0’ = Bit is cleared
bit 7-0
Note 1:
x = Bit is unknown
EID[15:8]: Extended Identifier bits
These bits hold the filter bits to be applied to bits[15:8] of the Extended Identifier portion of a received
message. If the corresponding RXM[1:0] bits = 00 and EXIDE = 0, these bits are applied to Byte 0 in
received data.
The Mask and Filter registers read all ‘0’s when in any mode except Configuration mode.
REGISTER 4-17:
RXMnEID0: MASK n EXTENDED IDENTIFIER REGISTER LOW
(ADDRESS: 23h, 27h)(1)
R/W-0
R/W-0
R/W-0
R/W-0
R/W-0
R/W-0
R/W-0
R/W-0
EID7
EID6
EID5
EID4
EID3
EID2
EID1
EID0
bit 7
bit 0
Legend:
R = Readable bit
W = Writable bit
U = Unimplemented bit, read as ‘0’
-n = Value at POR
‘1’ = Bit is set
‘0’ = Bit is cleared
bit 7-0
Note 1:
x = Bit is unknown
EID[7:0]: Extended Identifier Mask bits
These bits hold the filter bits to be applied to bits[7:0] of the Extended Identifier portion of a received
message. If the corresponding RXM[1:0] bits = 00 and EXIDE = 0, these bits are applied to Byte 1 in
received data.
The Mask and Filter registers read all ‘0’s when in any mode except Configuration mode.
DS20001801J-page 38
2003-2019 Microchip Technology Inc.
MCP2515
5.0
BIT TIMING
5.1
All nodes on a given CAN bus must have the same
Nominal Bit Rate (NBR). The CAN protocol uses NonReturn-to-Zero (NRZ) coding, which does not encode a
clock within the data stream. Therefore, the receive
clock must be recovered by the receiving nodes and
synchronized to the transmitter’s clock.
As oscillators and transmission times may vary from
node to node, the receiver must have some type of
Phase-Locked Loop (PLL) synchronized to data
transmission edges to synchronize and maintain the
receiver clock. Since the data is NRZ coded, it is
necessary to include bit-stuffing to ensure that an edge
occurs, at least every six bit times, to maintain the
Digital Phase-Locked Loop (DPLL) synchronization.
The bit timing of the MCP2515 is implemented using a
DPLL that is configured to synchronize to the incoming
data, as well as provide the nominal timing for the
transmitted data. The DPLL breaks each bit time into
multiple segments made up of minimal periods of time,
called the Time Quanta (TQ).
Bus timing functions executed within the bit time frame
(such as synchronization to the local oscillator, network
transmission delay compensation and sample point
positioning) are defined by the programmable Bit
Timing Logic (BTL) of the DPLL.
The CAN Bit Time
All devices on the CAN bus must use the same bit rate.
However, all devices are not required to have the same
master oscillator clock frequency. For the different
clock frequencies of the individual devices, the bit rate
has to be adjusted by appropriately setting the Baud
Rate Prescaler and number of Time Quanta in each
segment.
The CAN bit time is made up of non-overlapping segments. Each of these segments is made up of integer
units, called Time Quanta (TQ), explained later in this
data sheet. The Nominal Bit Rate (NBR) is defined in
the CAN specification as the number of bits per
second, transmitted by an ideal transmitter, with no
resynchronization. It can be described with the
equation:
EQUATION 5-1:
1
NBR = f bit = ------t bit
5.2
Nominal Bit Time
The Nominal Bit Time (NBT) (tbit) is made up of nonoverlapping segments (Figure 5-1). Therefore, the
NBT is the summation of the following segments:
t bit = t SyncSeg + t PropSeg + t PS 1 + t PS 2
Associated with the NBT are the sample point,
Synchronization Jump Width (SJW) and Information
Processing Time (IPT), which are explained later.
5.2.1
SYNCHRONIZATION SEGMENT
The Synchronization Segment (SyncSeg) is the first
segment in the NBT and is used to synchronize the
nodes on the bus. Bit edges are expected to occur
within the SyncSeg. This segment is fixed at 1 TQ.
FIGURE 5-1:
SyncSeg
CAN BIT TIME SEGMENTS
PropSeg
PhaseSeg1 (PS1)
Nominal Bit Time (NBT), tbit
2003-2019 Microchip Technology Inc.
PhaseSeg2 (PS2)
Sample
Point
DS20001801J-page 39
MCP2515
5.2.2
PROPAGATION SEGMENT
The Propagation Segment (PropSeg) exists to
compensate for physical delays between nodes. The
propagation delay is defined as twice the sum of the
signal’s propagation time on the bus line, including the
delays associated with the bus driver. The PropSeg is
programmable from 1-8 TQs.
5.2.3
PHASE SEGMENT 1 (PS1) AND
PHASE SEGMENT 2 (PS2)
The two Phase Segments, PS1 and PS2, are used to
compensate for edge phase errors on the bus. PS1 can
be lengthened (or PS2 shortened) by resynchronization. PS1 is programmable from 1-8 TQs and PS2 is
programmable from 2-8 TQs.
5.2.4
SAMPLE POINT
The sample point is the point in the bit time at which the
logic level is read and interpreted. The sample point is
located at the end of PS1. The exception to this rule is
if the Sample mode is configured to sample three times
per bit. In this case, while the bit is still sampled at the
end of PS1, two additional samples are taken at onehalf TQ intervals prior to the end of PS1, with the value
of the bit being determined by a majority decision.
5.2.5
Therefore:
PS2min = IPT = 2 TQs
5.2.6
SYNCHRONIZATION JUMP WIDTH
The Synchronization Jump Width (SJW) adjusts the bit
clock, as necessary, by 1-4 TQs (as configured) to
maintain synchronization with the transmitted
message. Synchronization is covered in more detail
later in this data sheet.
5.3
Time Quantum
Each of the segments that make up a bit time are made
up of integer units, called Time Quanta (TQ). The length
of each Time Quantum is based on the oscillator period
(TOSC). The base TQ equals twice the oscillator period.
Figure 5-2 shows how the bit period is derived from
TOSC and TQ. The TQ length equals one TQ clock
period (tBRPCLK), which is programmable using a programmable prescaler, called the Baud Rate Prescaler
(BRP). This is illustrated in the following equation:
EQUATION 5-2:
TQ = 2 • BRP • TOSC =
INFORMATION PROCESSING TIME
The Information Processing Time (IPT) is the time
required for the logic to determine the bit level of a
sampled bit. The IPT begins at the sample point, is
measured in TQ and is fixed at 2 TQs for the Microchip
CAN module. Since PS2 also begins at the sample
point and is the last segment in the bit time, it is
required that the PS2 minimum is not less than the IPT.
FIGURE 5-2:
2 • BRP
FOSC
Where: BRP equals the configuration as shown
in Register 5-1.
TQ AND THE BIT PERIOD
TOSC
TBRPCLK
tbit
Sync
(fixed)
PropSeg
(Programmable)
PS1
(Programmable)
PS2
(Programmable)
TQ
(tTQ)
CAN Bit Time
DS20001801J-page 40
2003-2019 Microchip Technology Inc.
MCP2515
5.4
Synchronization
To compensate for phase shifts between the oscillator
frequencies of each of the nodes on the bus, each CAN
controller must be able to synchronize to the relevant
signal edge of the incoming signal. Synchronization is
the process by which the DPLL function is implemented.
When an edge in the transmitted data is detected, the
logic will compare the location of the edge to the
expected time (SyncSeg). The circuit will then adjust
the values of PS1 and PS2 as necessary.
There are two mechanisms used for synchronization:
1.
2.
Hard synchronization
Resynchronization
5.4.1
HARD SYNCHRONIZATION
The phase error of an edge is given by the position of
the edge relative to SyncSeg, measured in TQ. The
phase error is defined in a magnitude of TQ as follows:
• e = 0 if the edge lies within SyncSeg
• e > 0 if the edge lies before the sample point
(TQ is added to PS1)
• e < 0 if the edge lies after the sample point of the
previous bit (TQ is subtracted from PS2)
5.4.2.2
No Phase Error (e = 0)
If the magnitude of the phase error is less than or equal
to the programmed value of the SJW, the effect of a
resynchronization is the same as that of a hard
synchronization.
5.4.2.3
Positive Phase Error (e > 0)
Hard synchronization is only performed when there is a
recessive-to-dominant edge during a Bus Idle condition, indicating the start of a message. After hard
synchronization, the bit time counters are restarted with
SyncSeg.
If the magnitude of the phase error is larger than the
SJW, and if the phase error is positive, PS1 is
lengthened by an amount equal to the SJW.
Hard synchronization forces the edge that has
occurred to lie within the Synchronization Segment of
the restarted bit time. Due to the rules of synchronization, if a hard synchronization occurs, there will not be
a resynchronization within that bit time.
If the magnitude of the phase error is larger than the
resynchronization jump width, and the phase error is
negative, PS2 is shortened by an amount equal to the
SJW.
5.4.2
RESYNCHRONIZATION
As a result of resynchronization, PS1 may be
lengthened or PS2 may be shortened. The amount of
lengthening or shortening of the Phase Buffer Segments has an upper bound, given by the
Synchronization Jump Width (SJW).
The value of the SJW will be added to PS1 or
subtracted from PS2 (see Figure 5-3). The SJW
represents the loop filtering of the DPLL. The SJW is
programmable between 1 TQ and 4 TQs.
5.4.2.1
Phase Errors
The NRZ bit coding method does not encode a clock
into the message. Clocking information will only be
derived from recessive-to-dominant transitions. The
property which states that only a fixed maximum
number of successive bits have the same value (bitstuffing) ensures resynchronization to the bit stream
during a frame.
2003-2019 Microchip Technology Inc.
5.4.2.4
5.4.3
1.
2.
3.
4.
5.
Negative Phase Error (e < 0)
SYNCHRONIZATION RULES
Only recessive-to-dominant edges will be used
for synchronization.
Only one synchronization within one bit time is
allowed.
An edge will be used for synchronization only if
the value detected at the previous sample point
(previously read bus value) differs from the bus
value immediately after the edge.
A transmitting node will not resynchronize on a
positive phase error (e > 0).
If the absolute magnitude of the phase error is
greater than the SJW, the appropriate Phase
Segment will adjust by an amount equal to the
SJW.
DS20001801J-page 41
MCP2515
FIGURE 5-3:
SYNCHRONIZING THE BIT TIME
Input Signal (e = 0)
SyncSeg
PropSeg
PhaseSeg2 (PS2)
PhaseSeg1 (PS1)
SJW (PS2)
SJW (PS1)
Sample
Point
Nominal Bit Time (NBT)
No Resynchronization (e = 0)
Input Signal
(e > 0)
SyncSeg
PropSeg
PhaseSeg2 (PS2)
PhaseSeg1 (PS1)
SJW (PS2)
SJW (PS1)
Sample
Point
Nominal Bit Time (NBT)
Actual Bit Time
Resynchronization to a Slower Transmitter (e > 0)
Input Signal (e < 0)
SyncSeg
PropSeg
PhaseSeg1 (PS1)
SJW (PS1)
PhaseSeg2 (PS2)
SJW (PS2)
Sample
Point
Nominal Bit Time (NBT)
Actual Bit Time
Resynchronization to a Faster Transmitter (e < 0)
DS20001801J-page 42
2003-2019 Microchip Technology Inc.
MCP2515
5.5
Programming Time Segments
Some requirements for programming of the Time
Segments:
• PropSeg + PS1 PS2
• PropSeg + PS1 TDELAY
• PS2 > SJW
For example, assuming that a 125 kHz CAN baud rate
with FOSC = 20 MHz is desired:
TOSC = 50 ns, choose BRP[5:0] = 04h, then TQ = 500 ns.
To obtain 125 kHz, the bit time must be 16 TQs.
Typically, the sampling of the bit should take place at
about 60-70% of the bit time, depending on the system
parameters. Also, typically, the TDELAY is 1-2 TQs.
SyncSeg = 1 TQ and PropSeg = 2 TQs. So setting
PS1 = 7 TQs would place the sample at 10 TQs after the
transition. This would leave 6 TQs for PS2.
Since PS2 is 6, according to the rules, SJW could be a
maximum of 4 TQs. However, a large SJW is typically
only necessary when the clock generation of the different nodes is inaccurate or unstable, such as using
ceramic resonators. So a SJW of 1 is usually enough.
5.6
Oscillator Tolerance
The bit timing requirements allow ceramic resonators
to be used in applications with transmission rates of up
to 125 kbit/sec as a rule of thumb. For the full bus
speed range of the CAN protocol, a quartz oscillator is
required. A maximum node-to-node oscillator variation
of 1.7% is allowed.
5.7
Bit Timing Configuration
Registers
The Configuration registers (CNF1, CNF2, CNF3)
control the bit timing for the CAN bus interface. These
registers can only be modified when the MCP2515 is in
Configuration mode (see Section 10.0 “Modes of
Operation”).
5.7.1
CNF1
The BRP[5:0] bits control the Baud Rate Prescaler.
These bits set the length of TQ relative to the OSC1
input frequency, with the minimum TQ length being
2 TOSC (when BRP[5:0] = b000000). The SJW[1:0]
bits select the SJW in terms of number of TQs.
5.7.2
CNF2
The PRSEG[2:0] bits set the length (in TQs) of the
Propagation Segment. The PHSEG1[2:0] bits set the
length (in TQs) of PS1.
The SAM bit controls how many times the RXCAN pin
is sampled. Setting this bit to a ‘1’ causes the bus to be
sampled three times: twice at TQ/2 before the sample
point and once at the normal sample point (which is at
the end of PS1). The value of the bus is determined to
be the majority sampled. If the SAM bit is set to a ‘0’,
the RXCAN pin is sampled only once at the sample
point.
The BTLMODE bit controls how the length of PS2 is
determined. If this bit is set to a ‘1’, the length of PS2 is
determined by the PHSEG2[2:0] bits of CNF3 (see
Section 5.7.3 “CNF3”). If the BTLMODE bit is set to a
‘0’, the length of PS2 is greater than that of PS1 and the
Information Processing Time (which is fixed at 2 TQs
for the MCP2515).
5.7.3
CNF3
The PHSEG2[2:0] bits set the length (in TQs) of PS2 if
the BTLMODE bit (CNF2[7]) is set to a ‘1’. If the
BTLMODE bit is set to a ‘0’, the PHSEG2[2:0] bits have
no effect.
2003-2019 Microchip Technology Inc.
DS20001801J-page 43
MCP2515
REGISTER 5-1:
CNF1: CONFIGURATION REGISTER 1 (ADDRESS: 2Ah)
R/W-0
R/W-0
R/W-0
R/W-0
R/W-0
R/W-0
R/W-0
R/W-0
SJW1
SJW0
BRP5
BRP4
BRP3
BRP2
BRP1
BRP0
bit 7
bit 0
Legend:
R = Readable bit
W = Writable bit
U = Unimplemented bit, read as ‘0’
-n = Value at POR
‘1’ = Bit is set
‘0’ = Bit is cleared
bit 7-6
SJW[1:0]: Synchronization Jump Width Length bits
11 = Length = 4 x TQ
10 = Length = 3 x TQ
01 = Length = 2 x TQ
00 = Length = 1 x TQ
bit 5-0
BRP[5:0]: Baud Rate Prescaler bits
TQ = 2 x (BRP[5:0] + 1)/FOSC.
REGISTER 5-2:
x = Bit is unknown
CNF2: CONFIGURATION REGISTER 2 (ADDRESS: 29h)
R/W-0
R/W-0
BTLMODE
SAM
R/W-0
R/W-0
R/W-0
PHSEG1[2:0]
R/W-0
R/W-0
R/W-0
PRSEG2
PRSEG1
PRSEG0
bit 7
bit 0
Legend:
R = Readable bit
W = Writable bit
U = Unimplemented bit, read as ‘0’
-n = Value at POR
‘1’ = Bit is set
‘0’ = Bit is cleared
x = Bit is unknown
bit 7
BTLMODE: PS2 Bit Time Length bit
1 = Length of PS2 is determined by the PHSEG2[2:0] bits of CNF3
0 = Length of PS2 is the greater of PS1 and IPT (2 TQs)
bit 6
SAM: Sample Point Configuration bit
1 = Bus line is sampled three times at the sample point
0 = Bus line is sampled once at the sample point
bit 5-3
PHSEG1[2:0]: PS1 Length bits
(PHSEG1[2:0] + 1) x TQ.
bit 2-0
PRSEG[2:0]: Propagation Segment Length bits
(PRSEG[2:0] + 1) x TQ.
DS20001801J-page 44
2003-2019 Microchip Technology Inc.
MCP2515
REGISTER 5-3:
CNF3: CONFIGURATION REGISTER 3 (ADDRESS: 28h)
R/W-0
R/W-0
U-0
U-0
U-0
SOF
WAKFIL
—
—
—
R/W-0
R/W-0
R/W-0
PHSEG2[2:0]
bit 7
bit 0
Legend:
R = Readable bit
W = Writable bit
U = Unimplemented bit, read as ‘0’
-n = Value at POR
‘1’ = Bit is set
‘0’ = Bit is cleared
bit 7
SOF: Start-of-Frame signal bit
If CLKEN (CANCTRL[2]) = 1:
1 = CLKOUT pin is enabled for SOF signal
0 = CLKOUT pin is enabled for clock out function
If CLKEN (CANCTRL[2]) = 0:
Bit is don’t care.
bit 6
WAKFIL: Wake-up Filter bit
1 = Wake-up filter is enabled
0 = Wake-up filter is disabled
bit 5-3
Unimplemented: Reads as ‘0’
bit 2-0
PHSEG2[2:0]: PS2 Length bits
(PHSEG2[2:0] + 1) x TQ. Minimum valid setting for PS2 is 2 TQs.
2003-2019 Microchip Technology Inc.
x = Bit is unknown
DS20001801J-page 45
MCP2515
NOTES:
DS20001801J-page 46
2003-2019 Microchip Technology Inc.
MCP2515
6.0
ERROR DETECTION
The CAN protocol provides sophisticated error
detection mechanisms. The following errors can be
detected.
6.1
CRC Error
With the Cyclic Redundancy Check (CRC), the
transmitter calculates special check bits for the bit
sequence from the Start-of-Frame until the end of the
data field. This CRC sequence is transmitted in the
CRC field. The receiving node also calculates the CRC
sequence using the same formula and performs a comparison to the received sequence. If a mismatch is
detected, a CRC error has occurred and an error frame
is generated. The message is repeated.
6.2
Acknowledge Error
In the Acknowledge field of a message, the transmitter
checks if the Acknowledge Slot bit (which has been
sent out as a recessive bit) contains a dominant bit. If
not, no other node has received the frame correctly. An
Acknowledge error has occurred, an error frame is
generated and the message will have to be repeated.
6.3
Form Error
If a node detects a dominant bit in one of the four
segments (including End-of-Frame, interframe space,
Acknowledge delimiter or CRC delimiter), a form error
has occurred and an error frame is generated. The
message is repeated.
6.4
Bit Error
A bit error occurs if a transmitter detects the opposite
bit level to what it transmitted (i.e., transmitted a
dominant and detected a recessive, or transmitted a
recessive and detected a dominant).
Exception: In the case where the transmitter sends a
recessive bit, and a dominant bit is detected during the
arbitration field and the Acknowledge Slot, no bit error
is generated because normal arbitration is occurring.
6.5
Stuff Error
lf, between the Start-of-Frame and the CRC delimiter,
six consecutive bits with the same polarity are
detected, the bit-stuffing rule has been violated. A stuff
error occurs and an error frame is generated. The
message is repeated.
2003-2019 Microchip Technology Inc.
6.6
Error States
Detected errors are made known to all other nodes via
error frames. The transmission of the erroneous message is aborted and the frame is repeated as soon as
possible. Furthermore, each CAN node is in one of the
three error states according to the value of the internal
error counters:
1.
2.
3.
Error-active
Error-passive
Bus-off (transmitter only)
The error-active state is the usual state where the node
can transmit messages and active error frames (made
of dominant bits) without any restrictions.
In the error-passive state, messages and passive error
frames (made of recessive bits) may be transmitted.
The bus-off state makes it temporarily impossible for
the station to participate in the bus communication.
During this state, messages can neither be received or
transmitted. Only transmitters can go bus-off.
6.7
Error Modes and Error Counters
The MCP2515 contains two error counters: the
Receive Error Counter (REC) (see Register 6-2) and
the Transmit Error Counter (TEC) (see Register 6-1).
The values of both counters can be read by the MCU.
These counters are incremented/decremented in
accordance with the CAN bus specification.
The MCP2515 is error-active if both error counters are
below the error-passive limit of 128.
It is error-passive if at least one of the error counters
equals or exceeds 128.
It goes to bus-off if the TEC exceeds the bus-off limit of
255. The device remains in this state until the bus-off
recovery sequence is received. The bus-off recovery
sequence consists of 128 occurrences of 11 consecutive
recessive bits (see Figure 6-1).
Note:
The MCP2515, after going bus-off, will
recover back to error-active without any
intervention by the MCU if the bus
remains idle for 128 x 11 bit times. If this is
not desired, the error Interrupt Service
Routine (ISR) should address this.
The current Error mode of the MCP2515 can be read
by the MCU via the EFLG register (see Register 6-3).
Additionally, there is an error state warning flag bit,
EWARN (EFLG[0]), which is set if at least one of the
error counters equals or exceeds the error warning limit
of 96. EWARN is reset if both error counters are less
than the error warning limit.
DS20001801J-page 47
MCP2515
FIGURE 6-1:
ERROR MODES STATE DIAGRAM
Reset
REC < 127 or
TEC < 127
Error-Active
128 Occurrences of
11 Consecutive
“Recessive” Bits
REC > 127 or
TEC > 127
Error-Passive
TEC > 255
Bus-Off
DS20001801J-page 48
2003-2019 Microchip Technology Inc.
MCP2515
REGISTER 6-1:
TEC: TRANSMIT ERROR COUNTER REGISTER (ADDRESS: 1Ch)
R-0
R-0
R-0
R-0
R-0
R-0
R-0
R-0
TEC7
TEC6
TEC5
TEC4
TEC3
TEC2
TEC1
TEC0
bit 7
bit 0
Legend:
R = Readable bit
W = Writable bit
U = Unimplemented bit, read as ‘0’
-n = Value at POR
‘1’ = Bit is set
‘0’ = Bit is cleared
bit 7-0
x = Bit is unknown
TEC[7:0]: Transmit Error Count bits
REGISTER 6-2:
REC: RECEIVE ERROR COUNTER REGISTER (ADDRESS: 1Dh)
R-0
R-0
R-0
R-0
R-0
R-0
R-0
R-0
REC7
REC6
REC5
REC4
REC3
REC2
REC1
REC0
bit 7
bit 0
Legend:
R = Readable bit
W = Writable bit
U = Unimplemented bit, read as ‘0’
-n = Value at POR
‘1’ = Bit is set
‘0’ = Bit is cleared
bit 7-0
x = Bit is unknown
REC[7:0]: Receive Error Count bits
2003-2019 Microchip Technology Inc.
DS20001801J-page 49
MCP2515
REGISTER 6-3:
EFLG: ERROR FLAG REGISTER (ADDRESS: 2Dh)
R/W-0
R/W-0
R-0
R-0
R-0
R-0
R-0
R-0
RX1OVR
RX0OVR
TXBO
TXEP
RXEP
TXWAR
RXWAR
EWARN
bit 7
bit 0
Legend:
R = Readable bit
W = Writable bit
U = Unimplemented bit, read as ‘0’
-n = Value at POR
‘1’ = Bit is set
‘0’ = Bit is cleared
x = Bit is unknown
bit 7
RX1OVR: Receive Buffer 1 Overflow Flag bit
- Sets when a valid message is received for RXB1 and RX1IF (CANINTF[1]) = 1
- Must be reset by MCU
bit 6
RX0OVR: Receive Buffer 0 Overflow Flag bit
- Sets when a valid message is received for RXB0 and RX0IF (CANINTF[0]) = 1
- Must be reset by MCU
bit 5
TXBO: Bus-Off Error Flag bit
- Sets when TEC reaches 255
- Resets after a successful bus recovery sequence
bit 4
TXEP: Transmit Error-Passive Flag bit
- Sets when TEC is equal to or greater than 128
- Resets when TEC is less than 128
bit 3
RXEP: Receive Error-Passive Flag bit
- Sets when REC is equal to or greater than 128
- Resets when REC is less than 128
bit 2
TXWAR: Transmit Error Warning Flag bit
- Sets when TEC is equal to or greater than 96
- Resets when TEC is less than 96
bit 1
RXWAR: Receive Error Warning Flag bit
- Sets when REC is equal to or greater than 96
- Resets when REC is less than 96
bit 0
EWARN: Error Warning Flag bit
- Sets when TEC or REC is equal to or greater than 96 (TXWAR or RXWAR = 1)
- Resets when both REC and TEC are less than 96
DS20001801J-page 50
2003-2019 Microchip Technology Inc.
MCP2515
7.0
INTERRUPTS
7.2
Transmit Interrupt
The MCP2515 has eight sources of interrupts. The
CANINTE register contains the individual interrupt
enable bits for each interrupt source. The CANINTF
register contains the corresponding interrupt flag bit for
each interrupt source. When an interrupt occurs, the
INT pin is driven low by the MCP2515 and will remain
low until the interrupt is cleared by the MCU. An
interrupt can not be cleared if the respective condition
still prevails.
When the Transmit Interrupt is enabled, TXnIE
(CANINTE) = 1, an interrupt will be generated on the
INT pin once the associated transmit buffer becomes
empty and is ready to be loaded with a new message.
The TXnIF bit (CANINTF) will be set to indicate the
source of the interrupt. The interrupt is cleared by
clearing the TXnIF bit.
It is recommended that the BIT MODIFY command be
used to reset flag bits in the CANINTF register rather than
normal write operations. This is done to prevent unintentionally changing a flag that changes during the WRITE
command, potentially causing an interrupt to be missed.
When the Receive Interrupt is enabled, RXnIE
(CANINTE) = 1, an interrupt will be generated on the
INT pin once a message has been successfully
received and loaded into the associated receive buffer.
This interrupt is activated immediately after receiving
the EOF field. The RXnIF bit (CANINTF) will be set to
indicate the source of the interrupt. The interrupt is
cleared by clearing the RXnIF bit.
It should be noted that the CANINTF flags are
read/write and an interrupt can be generated by the
MCU setting any of these bits, provided the associated
CANINTE bit is also set.
7.1
Interrupt Code Bits
The source of a pending interrupt is indicated in the
Interrupt Code bits, ICOD[2:0] (CANSTAT[3:1]), as
shown in Register 10-2. In the event that multiple interrupts occur, the INT pin will remain low until all interrupts
have been reset by the MCU. The ICOD[2:0] bits will
reflect the code for the highest priority interrupt that is
currently pending. Interrupts are internally prioritized,
such that the lower the ICODn bits value, the higher the
interrupt priority. Once the highest priority interrupt
condition has been cleared, the code for the next highest
priority interrupt that is pending (if any) will be reflected
by the ICODn bits (see Table 7-1). Only those interrupt
sources that have their associated CANINTE enable bit
set will be reflected in the ICODn bits.
TABLE 7-1:
ICOD[2:0] DECODE
ICOD[2:0]
Boolean Expression
000
ERR•WAK•TX0•TX1•TX2•RX0•RX1
001
ERR
010
ERR•WAK
011
ERR•WAK•TX0
100
ERR•WAK•TX0•TX1
101
ERR•WAK•TX0•TX1•TX2
110
ERR•WAK•TX0•TX1•TX2•RX0
111
ERR•WAK•TX0•TX1•TX2•RX0•RX1
Note:
7.3
7.4
Receive Interrupt
Message Error Interrupt
When an error occurs during the transmission or reception of a message, the Message Error Flag, MERRF
(CANINTF[7]), will be set, and if the MERRE bit
(CANINTE[7]) is set, an interrupt will be generated on
the INT pin. This is intended to be used to facilitate
baud rate determination when used in conjunction with
Listen-Only mode.
7.5
Bus Activity Wake-up Interrupt
When the MCP2515 is in Sleep mode and the
bus activity wake-up interrupt is enabled (WAKIE
(CANINTE[6]) = 1), an interrupt will be generated on
the INT pin and the WAKIF bit (CANINTF[6]) will be set
when activity is detected on the CAN bus. This interrupt
causes the MCP2515 to exit Sleep mode. The interrupt
is reset by clearing the WAKIF bit.
Note:
7.6
The MCP2515 wakes up into Listen-Only
mode.
Error Interrupt
When the error interrupt is enabled (ERRIE
(CANINTE[5]) = 1), an interrupt is generated on the INT
pin if an overflow condition occurs, or if the error state
of the transmitter or receiver has changed. The Error
Flag (EFLG) register will indicate one of the following
conditions.
ERR is associated with the ERRIE bit
(CANINTE[5]).
2003-2019 Microchip Technology Inc.
DS20001801J-page 51
MCP2515
7.6.1
RECEIVER OVERFLOW
An overflow condition occurs when the MAB has
assembled a valid receive message (the message
meets the criteria of the acceptance filters) and the
receive buffer associated with the filter is not available
for loading of a new message. The associated
RXnOVR bit (EFLG) will be set to indicate the overflow
condition. This bit must be cleared by the MCU.
7.6.2
RECEIVER WARNING
The REC has reached the MCU warning limit of 96.
7.6.3
TRANSMITTER WARNING
The TEC has reached the MCU warning limit of 96.
7.6.4
RECEIVER ERROR-PASSIVE
7.6.5
TRANSMITTER ERROR-PASSIVE
The TEC has exceeded the error-passive limit of 127
and the device has gone to the error-passive state.
7.6.6
BUS-OFF
The TEC has exceeded 255 and the device has gone
to the bus-off state.
7.7
Interrupt Acknowledge
Interrupts are directly associated with one or more
status flags in the CANINTF register. Interrupts are
pending as long as one of the flags is set. Once an
interrupt flag is set by the device, the flag can not be
reset by the MCU until the interrupt condition is
removed.
The REC has exceeded the error-passive limit of 127
and the device has gone to the error-passive state.
DS20001801J-page 52
2003-2019 Microchip Technology Inc.
MCP2515
REGISTER 7-1:
CANINTE: CAN INTERRUPT ENABLE REGISTER (ADDRESS: 2Bh)
R/W-0
R/W-0
R/W-0
R/W-0
R/W-0
R/W-0
R/W-0
R/W-0
MERRE
WAKIE
ERRIE
TX2IE
TX1IE
TX0IE
RX1IE
RX0IE
bit 7
bit 0
Legend:
R = Readable bit
W = Writable bit
U = Unimplemented bit, read as ‘0’
-n = Value at POR
‘1’ = Bit is set
‘0’ = Bit is cleared
bit 7
MERRE: Message Error Interrupt Enable bit
1 = Interrupt on error during message reception or transmission
0 = Disabled
bit 6
WAKIE: Wake-up Interrupt Enable bit
1 = Interrupt on CAN bus activity
0 = Disabled
bit 5
ERRIE: Error Interrupt Enable bit (multiple sources in EFLG register)
1 = Interrupt on EFLG error condition change
0 = Disabled
bit 4
TX2IE: Transmit Buffer 2 Empty Interrupt Enable bit
1 = Interrupt on TXB2 becoming empty
0 = Disabled
bit 3
TX1IE: Transmit Buffer 1 Empty Interrupt Enable bit
1 = Interrupt on TXB1 becoming empty
0 = Disabled
bit 2
TX0IE: Transmit Buffer 0 Empty Interrupt Enable bit
1 = Interrupt on TXB0 becoming empty
0 = Disabled
bit 1
RX1IE: Receive Buffer 1 Full Interrupt Enable bit
1 = Interrupt when message was received in RXB1
0 = Disabled
bit 0
RX0IE: Receive Buffer 0 Full Interrupt Enable bit
1 = Interrupt when message was received in RXB0
0 = Disabled
2003-2019 Microchip Technology Inc.
x = Bit is unknown
DS20001801J-page 53
MCP2515
REGISTER 7-2:
CANINTF: CAN INTERRUPT FLAG REGISTER (ADDRESS: 2Ch)
R/W-0
R/W-0
R/W-0
R/W-0
R/W-0
R/W-0
R/W-0
R/W-0
MERRF
WAKIF
ERRIF
TX2IF
TX1IF
TX0IF
RX1IF
RX0IF
bit 7
bit 0
Legend:
R = Readable bit
W = Writable bit
U = Unimplemented bit, read as ‘0’
-n = Value at POR
‘1’ = Bit is set
‘0’ = Bit is cleared
x = Bit is unknown
bit 7
MERRF: Message Error Interrupt Flag bit
1 = Interrupt is pending (must be cleared by MCU to reset the interrupt condition)
0 = No interrupt is pending
bit 6
WAKIF: Wake-up Interrupt Flag bit
1 = Interrupt is pending (must be cleared by MCU to reset the interrupt condition)
0 = No interrupt is pending
bit 5
ERRIF: Error Interrupt Flag bit (multiple sources in EFLG register)
1 = Interrupt is pending (must be cleared by MCU to reset the interrupt condition)
0 = No interrupt is pending
bit 4
TX2IF: Transmit Buffer 2 Empty Interrupt Flag bit
1 = Interrupt is pending (must be cleared by MCU to reset the interrupt condition)
0 = No interrupt is pending
bit 3
TX1IF: Transmit Buffer 1 Empty Interrupt Flag bit
1 = Interrupt is pending (must be cleared by MCU to reset the interrupt condition)
0 = No interrupt is pending
bit 2
TX0IF: Transmit Buffer 0 Empty Interrupt Flag bit
1 = Interrupt is pending (must be cleared by MCU to reset the interrupt condition)
0 = No interrupt is pending
bit 1
RX1IF: Receive Buffer 1 Full Interrupt Flag bit
1 = Interrupt is pending (must be cleared by MCU to reset the interrupt condition)
0 = No interrupt is pending
bit 0
RX0IF: Receive Buffer 0 Full Interrupt Flag bit
1 = Interrupt is pending (must be cleared by MCU to reset the interrupt condition)
0 = No interrupt is pending
DS20001801J-page 54
2003-2019 Microchip Technology Inc.
MCP2515
8.0
OSCILLATOR
8.2
The CLKOUT pin is provided to the system designer for
use as the main system clock or as a clock input for other
devices in the system. The CLKOUT has an internal
prescaler which can divide FOSC by 1, 2, 4 and 8. The
CLKOUT function is enabled and the prescaler is
selected via the CANCTRL register (see Register 10-1).
The MCP2515 is designed to operate with a crystal or
ceramic resonator connected to the OSC1 and OSC2
pins. The MCP2515 oscillator design requires the use
of a parallel cut crystal. Use of a series cut crystal may
give a frequency out of the crystal manufacturer’s
specifications. A typical oscillator circuit is shown in
Figure 8-1. The MCP2515 may also be driven by an
external clock source connected to the OSC1 pin, as
shown in Figure 8-2 and Figure 8-3.
8.1
Note:
The maximum frequency on CLKOUT is
specified as 25 MHz (See Table 13-5).
The CLKOUT pin will be active upon system Reset and
default to the slowest speed (divide-by-8) so that it can
be used as the MCU clock.
Oscillator Start-up Timer
The MCP2515 utilizes an Oscillator Start-up Timer
(OST) that holds the MCP2515 in Reset to ensure that
the oscillator has stabilized before the internal state
machine begins to operate. The OST keeps the device
in a Reset state for 128 OSC1 clock cycles after the
occurrence of a Power-on Reset, SPI Reset, after the
assertion of the RESET pin, and after a wake-up from
Sleep mode. It should be noted that no SPI protocol
operations should be attempted until after the OST has
expired.
FIGURE 8-1:
CLKOUT Pin
When Sleep mode is requested, the MCP2515 will
drive sixteen additional clock cycles on the CLKOUT
pin before entering Sleep mode. The Idle state of the
CLKOUT pin in Sleep mode is low. When the CLKOUT
function is disabled (CLKEN (CANCTRL[2]) = 0), the
CLKOUT pin is in a high-impedance state.
The CLKOUT function is designed to ensure that
thCLKOUT and tlCLKOUT timings are preserved when the
CLKOUT pin function is enabled, disabled or the
prescaler value is changed.
CRYSTAL/CERAMIC RESONATOR OPERATION
OSC1
C1
To Internal Logic
XTAL
C2
Note 1:
2:
FIGURE 8-2:
Note 1:
2:
RF(2)
Sleep
RS(1)
OSC2
A Series Resistor (RS) may be required for AT strip cut crystals.
The Feedback Resistor (RF ) is typically in the range of 2 to 10 M.
EXTERNAL CLOCK SOURCE(2)
Clock from
External System
OSC1
Open(1)
OSC2
A resistor to ground may be used to reduce system noise; this may increase system current.
Duty cycle restrictions must be observed (see Table 13-2).
2003-2019 Microchip Technology Inc.
DS20001801J-page 55
MCP2515
EXTERNAL SERIES RESONANT CRYSTAL OSCILLATOR CIRCUIT(1)
FIGURE 8-3:
330 k
330 k
74AS04
74AS04
To Other
Devices
MCP2510
74AS04
OSC1
0.1 mF
XTAL
Note 1:
TABLE 8-1:
Duty cycle restrictions must be observed (see Table 13-2).
CAPACITOR SELECTION FOR
CERAMIC RESONATORS
Typical Capacitor Values Used:
Mode
Freq.
OSC1
OSC2
8.0 MHz
27 pF
27 pF
16.0 MHz
22 pF
22 pF
Capacitor values are for design guidance only:
These capacitors were tested with the resonators
listed below for basic start-up and operation. These
values are not optimized.
Different capacitor values may be required to
produce acceptable oscillator operation. The user
should test the performance of the oscillator over the
expected VDD and temperature range for the
application.
See the notes following Table 8-2 for additional
information.
TABLE 8-2:
Osc
Type(1,4)
HS
Resonators Used:
Crystal
Freq.(2)
Typical Capacitor
Values Tested:
C1
C2
HS
4 MHz
27 pF
27 pF
8 MHz
22 pF
22 pF
20 MHz
15 pF
15 pF
Capacitor values are for design guidance only:
These capacitors were tested with the crystals listed
below for basic start-up and operation. These values
are not optimized.
Different capacitor values may be required to produce
acceptable oscillator operation. The user should test
the performance of the oscillator over the expected
VDD and temperature range for the application.
See the notes following this table for additional
information.
Crystals Used:(3)
4.0 MHz
8.0 MHz
16.0 MHz
Note 1:
2:
3:
4:
DS20001801J-page 56
CAPACITOR SELECTION FOR
CRYSTAL OSCILLATOR
4.0 MHz
8.0 MHz
20.0 MHz
While higher capacitance increases the
stability of the oscillator, it also increases
the start-up time.
Since each resonator/crystal has its own
characteristics, the user should consult the
resonator/crystal manufacturer for
appropriate values of external components.
RS may be required to avoid overdriving
crystals with a low drive level specification.
Always verify oscillator performance over
the VDD and temperature range that is
expected for the application.
2003-2019 Microchip Technology Inc.
MCP2515
9.0
RESET
Both of these Resets are functionally equivalent. It is
important to provide one of these two Resets after
power-up to ensure that the logic and registers are in
their default state. A hardware Reset can be achieved
automatically by placing an RC on the RESET pin (see
Figure 9-1). The values must be such that the device is
held in Reset for a minimum of 2 μs after VDD reaches
the operating voltage, as indicated in the electrical
specification (tRL).
The MCP2515 differentiates between two kinds of
Resets:
1.
2.
Hardware Reset – Low on RESET pin.
SPI Reset – Reset via SPI command.
FIGURE 9-1:
RESET PIN CONFIGURATION EXAMPLE
VDD
VDD
D(1)
R
R1(2)
RESET
C
Note 1: The diode, D, helps discharge the capacitor quickly when VDD powers down.
2: R1 = 1 k to 10 k will limit any current flowing into RESET from the external capacitor, C, in the event of
RESET pin breakdown due to Electrostatic Discharge (ESD) or Electrical Overstress (EOS).
2003-2019 Microchip Technology Inc.
DS20001801J-page 57
MCP2515
NOTES:
DS20001801J-page 58
2003-2019 Microchip Technology Inc.
MCP2515
10.0
MODES OF OPERATION
The MCP2515 has five modes of operation. These
modes are:
1.
2.
3.
4.
5.
Configuration mode
Normal mode
Sleep mode
Listen-Only mode
Loopback mode
The operational mode is selected via the
REQOP[2:0] bits (CANCTRL[7:5]); see Register 10-1).
When changing modes, the mode will not actually
change until all pending message transmissions are
complete. The requested mode must be verified by
reading the OPMODE[2:0] bits (CANSTAT[7:5]); see
Register 10-2.
10.1
Configuration Mode
The MCP2515 must be initialized before activation.
This is only possible if the device is in the Configuration
mode. Configuration mode is automatically selected
after power-up, a Reset or can be entered from any
other mode by setting the REQOP[2:0] bits to ‘100’.
When Configuration mode is entered, all error counters
are cleared. Configuration mode is the only mode
where the following registers are modifiable:
•
•
•
•
CNF1, CNF2, CNF3 registers
TXRTSCTRL register
Filter registers
Mask registers
10.2
Sleep Mode
The MCP2515 has an internal Sleep mode that is used
to minimize the current consumption of the device. The
SPI interface remains active for reading even when the
MCP2515 is in Sleep mode, allowing access to all
registers.
To enter Sleep mode, the Request Operation Mode bits
are set in the CANCTRL register (REQOP[2:0]). The
OPMODE[2:0] bits (CANSTAT[7:5]) indicate the operation mode. These bits should be read after sending the
SLEEP command to the MCP2515. The MCP2515 is
active and has not yet entered Sleep mode until these
bits indicate that Sleep mode has been entered.
When in internal Sleep mode, the wake-up interrupt is
still active (if enabled). This is done so that the MCU
can also be placed into a Sleep mode and use the
MCP2515 to wake it up upon detecting activity on the
bus.
2003-2019 Microchip Technology Inc.
When in Sleep mode, the MCP2515 stops its internal
oscillator. The MCP2515 will wake-up when bus activity
occurs or when the MCU sets, via the SPI interface, the
WAKIF bit (CANINTF[6]). To ‘generate’ a wake-up
attempt, the WAKIE bit (CANINTE[6]) must also be set
in order for the wake-up interrupt to occur.
The TXCAN pin will remain in the recessive state while
the MCP2515 is in Sleep mode.
10.2.1
WAKE-UP FUNCTIONS
The device will monitor the RXCAN pin for activity while
it is in Sleep mode. If the WAKIE bit is set, the device
will wake-up and generate an interrupt. Since the internal oscillator is shut down while in Sleep mode, it will
take some amount of time for the oscillator to start-up
and the device to enable itself to receive messages.
This Oscillator Start-up Timer (OST) is defined as
128 TOSC.
The device will ignore the message that caused the
wake-up from Sleep mode, as well as any messages
that occur while the device is ‘waking up’. The device
will wake-up in Listen-Only mode. The MCU must set
Normal mode before the MCP2515 will be able to
communicate on the bus.
The device can be programmed to apply a low-pass
filter function to the RXCAN input line while in internal
Sleep mode. This feature can be used to prevent the
device from waking up due to short glitches on the CAN
bus lines. The WAKFIL bit (CNF3[6]) enables or
disables the filter.
10.3
Listen-Only Mode
Listen-Only mode provides a means for the MCP2515 to
receive all messages (including messages with errors)
by configuring the RXM[1:0] bits (RXBnCTRL[6:5]). This
mode can be used for bus monitor applications or for
detecting the baud rate in ‘hot plugging’ situations.
For Auto-Baud Detection (ABD), it is necessary that at
least two other nodes are communicating with each
other. The baud rate can be detected empirically by
testing different values until valid messages are
received.
Listen-Only mode is a silent mode, meaning no
messages will be transmitted while in this mode
(including error flags or Acknowledge signals). In
Listen-Only mode, both valid and invalid messages will
be received, regardless of filters and masks or the
Receive Buffer Operating Mode bits, RXMn. The error
counters are reset and deactivated in this state. The
Listen-Only mode is activated by setting the Request
Operation Mode bits (REQOP[2:0]) in the CANCTRL
register.
DS20001801J-page 59
MCP2515
10.4
Loopback Mode
The filters and masks can be used to allow only
particular messages to be loaded into the Receive
registers. The masks can be set to all zeros to provide
a mode that accepts all messages. The Loopback
mode is activated by setting the Request Operation
Mode bits in the CANCTRL register.
Loopback mode will allow internal transmission of
messages from the transmit buffers to the receive
buffers without actually transmitting messages on the
CAN bus. This mode can be used in system
development and testing.
10.5
In this mode, the ACK bit is ignored and the device will
allow incoming messages from itself, just as if they
were coming from another node. The Loopback mode
is a silent mode, meaning no messages will be transmitted while in this state (including error flags or
Acknowledge signals). The TXCAN pin will be in a
recessive state.
REGISTER 10-1:
Normal Mode
Normal mode is the standard operating mode of the
MCP2515. In this mode, the device actively monitors all
bus messages and generates Acknowledge bits, error
frames, etc. This is also the only mode in which the
MCP2515 will transmit messages over the CAN bus.
CANCTRL: CAN CONTROL REGISTER (ADDRESS: XFh)
R/W-1
R/W-0
R/W-0
R/W-0
R/W-0
R/W-1
R/W-1
R/W-1
REQOP2
REQOP1
REQOP0
ABAT
OSM
CLKEN
CLKPRE1
CLKPRE0
bit 7
bit 0
Legend:
R = Readable bit
W = Writable bit
U = Unimplemented bit, read as ‘0’
-n = Value at POR
‘1’ = Bit is set
‘0’ = Bit is cleared
x = Bit is unknown
bit 7-5
REQOP[2:0]: Request Operation Mode bits
000 = Sets Normal Operation mode
001 = Sets Sleep mode
010 = Sets Loopback mode
011 = Sets Listen-Only mode
100 = Sets Configuration mode
All other values for the REQOPn bits are invalid and should not be used. On power-up, REQOP[2:0] = b’100’.
bit 4
ABAT: Abort All Pending Transmissions bit
1 = Requests abort of all pending transmit buffers
0 = Terminates request to abort all transmissions
bit 3
OSM: One-Shot Mode bit
1 = Enabled; messages will only attempt to transmit one time
0 = Disabled; messages will reattempt transmission if required
bit 2
CLKEN: CLKOUT Pin Enable bit
1 = CLKOUT pin is enabled
0 = CLKOUT pin is disabled (pin is in high-impedance state)
bit 1-0
CLKPRE[1:0]: CLKOUT Pin Prescaler bits
00 = FCLKOUT = System Clock/1
01 = FCLKOUT = System Clock/2
10 = FCLKOUT = System Clock/4
11 = FCLKOUT = System Clock/8
DS20001801J-page 60
2003-2019 Microchip Technology Inc.
MCP2515
REGISTER 10-2:
CANSTAT: CAN STATUS REGISTER (ADDRESS: XEh)
R-1
R-0
R-0
U-0
R-0
R-0
R-0
U-0
OPMOD2
OPMOD1
OPMOD0
—
ICOD2
ICOD1
ICOD0
—
bit 7
bit 0
Legend:
R = Readable bit
W = Writable bit
U = Unimplemented bit, read as ‘0’
-n = Value at POR
‘1’ = Bit is set
‘0’ = Bit is cleared
bit 7-5
x = Bit is unknown
OPMOD[2:0]: Operation Mode bits
000 = Device is in Normal Operation mode
001 = Device is in Sleep mode
010 = Device is in Loopback mode
011 = Device is in Listen-Only mode
100 = Device is in Configuration mode
bit 4
Unimplemented: Read as ‘0’
bit 3-1
ICOD[2:0]: Interrupt Flag Code bits
000 = No interrupt
001 = Error interrupt
010 = Wake-up interrupt
011 = TXB0 interrupt
100 = TXB1 interrupt
101 = TXB2 interrupt
110 = RXB0 interrupt
111 = RXB1 interrupt
bit 0
Unimplemented: Read as ‘0’
2003-2019 Microchip Technology Inc.
DS20001801J-page 61
MCP2515
NOTES:
DS20001801J-page 62
2003-2019 Microchip Technology Inc.
MCP2515
11.0
REGISTER MAP
reading and writing of data. Some specific control and
status registers allow individual bit modification using
the SPI BIT MODIFY command. The registers that
allow this command are shown as shaded locations in
Table 11-1. A summary of the MCP2515 control
registers is shown in Table 11-2.
The register map for the MCP2515 is shown in
Table 11-1. Address locations for each register are
determined by using the column (higher order four
bits) and row (lower order four bits) values. The registers have been arranged to optimize the sequential
TABLE 11-1:
CAN CONTROLLER REGISTER MAP
Lower
Address
Bits
Higher Order Address Bits
0000 xxxx
0001 xxxx
0010 xxxx
0011 xxxx
0100 xxxx 0101 xxxx 0110 xxxx 0111 xxxx
0000
RXF0SIDH
RXF3SIDH
RXM0SIDH
TXB0CTRL
TXB1CTRL
TXB2CTRL
RXB0CTRL
RXB1CTRL
0001
RXF0SIDL
RXF3SIDL
RXM0SIDL
TXB0SIDH
TXB1SIDH
TXB2SIDH
RXB0SIDH
RXB1SIDH
0010
RXF0EID8
RXF3EID8
RXM0EID8
TXB0SIDL
TXB1SIDL
TXB2SIDL
RXB0SIDL
RXB1SIDL
0011
RXF0EID0
RXF3EID0
RXM0EID0
TXB0EID8
TXB1EID8
TXB2EID8
RXB0EID8
RXB1EID8
0100
RXF1SIDH
RXF4SIDH
RXM1SIDH
TXB0EID0
TXB1EID0
TXB2EID0
RXB0EID0
RXB1EID0
0101
RXF1SIDL
RXF4SIDL
RXM1SIDL
TXB0DLC
TXB1DLC
TXB2DLC
RXB0DLC
RXB1DLC
0110
RXF1EID8
RXF4EID8
RXM1EID8
TXB0D0
TXB1D0
TXB2D0
RXB0D0
RXB1D0
0111
RXF1EID0
RXF4EID0
RXM1EID0
TXB0D1
TXB1D1
TXB2D1
RXB0D1
RXB1D1
1000
RXF2SIDH
RXF5SIDH
CNF3
TXB0D2
TXB1D2
TXB2D2
RXB0D2
RXB1D2
1001
RXF2SIDL
RXF5SIDL
CNF2
TXB0D3
TXB1D3
TXB2D3
RXB0D3
RXB1D3
1010
RXF2EID8
RXF5EID8
CNF1
TXB0D4
TXB1D4
TXB2D4
RXB0D4
RXB1D4
1011
RXF2EID0
RXF5EID0
CANINTE
TXB0D5
TXB1D5
TXB2D5
RXB0D5
RXB1D5
1100
BFPCTRL
TEC
CANINTF
TXB0D6
TXB1D6
TXB2D6
RXB0D6
RXB1D6
1101
TXRTSCTRL
REC
EFLG
TXB0D7
TXB1D7
TXB2D7
RXB0D7
RXB1D7
1110
CANSTAT
CANSTAT
CANSTAT
CANSTAT
CANSTAT
CANSTAT
CANSTAT
CANSTAT
CANCTRL
CANCTRL
CANCTRL
CANCTRL
CANCTRL
CANCTRL
CANCTRL
CANCTRL
1111
Note:
Shaded register locations indicate that the user is allowed to manipulate individual bits using the BIT MODIFY command.
TABLE 11-2:
Register
Name
BFPCTRL
CONTROL REGISTER SUMMARY
Address
(Hex)
Bit 7
Bit 6
Bit 5
Bit 4
Bit 3
Bit 2
Bit 1
Bit 0
POR/Reset
Value
0C
—
—
B1BFS
B0BFS
B1BFE
B0BFE
B1BFM
B0BFM
--00 0000
—
—
B2RTS
TXRTSCTRL
0D
B1RTS
B0RTS
B2RTSM
B1RTSM
CANSTAT
XE
OPMOD2 OPMOD1 OPMOD0
—
ICOD2
ICOD1
ICOD0
CANCTRL
XF
REQOP2 REQOP1 REQOP0
ABAT
OSM
CLKEN
TEC
1C
REC
1D
CNF3
28
SOF
CNF2
29
BTLMODE
SAM
CNF1
2A
SJW1
SJW0
BRP5
BRP4
BRP3
BRP2
BRP1
BRP0
0000 0000
CANINTE
2B
MERRE
WAKIE
ERRIE
TX2IE
TX1IE
TX0IE
RX1IE
RX0IE
0000 0000
CANINTF
2C
MERRF
WAKIF
ERRIF
TX2IF
TX1IF
TX0IF
RX1IF
RX0IF
0000 0000
EFLG
2D
RX1OVR
RX0OVR
TXBO
TXEP
RXEP
TXWAR
RXWAR
EWARN
0000 0000
TXB0CTRL
30
—
ABTF
MLOA
TXERR
TXREQ
—
TXP1
TXP0
-000 0-00
TXB1CTRL
40
—
ABTF
MLOA
TXERR
TXREQ
—
TXP1
TXP0
-000 0-00
TXB2CTRL
50
—
ABTF
MLOA
TXERR
TXREQ
—
TXP1
TXP0
-000 0-00
RXB0CTRL
60
—
RXM1
RXM0
—
RXRTR
BUKT
BUKT1
FILHIT0
-00- 0000
RXB1CTRL
70
—
RXM1
RXM0
—
RXRTR
FILHIT2
FILHIT1
FILHIT0
-00- 0000
WAKFIL
2003-2019 Microchip Technology Inc.
B0RTSM --xx x000
—
100- 000-
CLKPRE1 CLKPRE0 1000 0111
Transmit Error Counter (TEC)
0000 0000
Receive Error Counter (REC)
0000 0000
—
—
—
PHSEG22 PHSEG21 PHSEG20 00-- -000
PHSEG12 PHSEG11 PHSEG10 PRSEG2
PRSEG1
PRSEG0 0000 0000
DS20001801J-page 63
MCP2515
NOTES:
DS20001801J-page 64
2003-2019 Microchip Technology Inc.
MCP2515
12.0
SPI INTERFACE
12.4
12.1
Overview
The READ RX BUFFER instruction (Figure 12-3) provides
a means to quickly address a receive buffer for reading.
This instruction reduces the SPI overhead by one byte,
the address byte. The command byte actually has four
possible values that determine the Address Pointer
location. Once the command byte is sent, the controller
clocks out the data at the address location, the same as
the READ instruction (i.e., sequential reads are
possible). This instruction further reduces the SPI
overhead by automatically clearing the associated
receive flag, RXnIF (CANINTF), when CS is raised at
the end of the command.
The MCP2515 is designed to interface directly with the
Serial Peripheral Interface (SPI) port available on many
microcontrollers and supports Mode 0,0 and Mode 1,1.
Commands and data are sent to the device via the SI
pin, with data being clocked in on the rising edge of
SCK. Data is driven out by the MCP2515 (on the SO
line) on the falling edge of SCK. The CS pin must be
held low while any operation is performed. Table 12-1
shows the instruction bytes for all operations. Refer to
Figure 12-10 and Figure 12-11 for detailed input and
output timing diagrams for both Mode 0,0 and Mode 1,1
operation.
Note:
12.2
The MCP2515 expects the first byte after
lowering CS to be the instruction/command
byte. This implies that CS must be raised
and then lowered again to invoke another
command.
RESET Instruction
The RESET instruction can be used to reinitialize the internal registers of the MCP2515 and set the Configuration
mode. This command provides the same functionality, via
the SPI interface, as the RESET pin.
The RESET instruction is a single byte instruction that
requires selecting the device by pulling the CS pin low,
sending the instruction byte and then raising the CS
pin. It is highly recommended that the RESET command
be sent (or the RESET pin be lowered) as part of the
power-on initialization sequence.
12.3
READ Instruction
The READ instruction is started by lowering the CS pin.
The READ instruction is then sent to the MCP2515,
followed by the 8-bit address (A7 through A0). Next, the
data stored in the register at the selected address will
be shifted out on the SO pin.
The internal Address Pointer is automatically incremented to the next address once each byte of data is
shifted out. Therefore, it is possible to read the next
consecutive register address by continuing to provide
clock pulses. Any number of consecutive register
locations can be read sequentially using this method.
The READ operation is terminated by raising the CS pin
(Figure 12-2).
2003-2019 Microchip Technology Inc.
12.5
READ RX BUFFER Instruction
WRITE Instruction
The WRITE instruction is started by lowering the CS
pin. The WRITE instruction is then sent to the
MCP2515, followed by the address and at least one
byte of data.
It is possible to write to sequential registers by continuing to clock in data bytes as long as CS is held low.
Data will actually be written to the register on the rising
edge of the SCK line for the D0 bit. If the CS line is
brought high before eight bits are loaded, the write will
be aborted for that data byte and previous bytes in the
command will have been written. Refer to the timing
diagram in Figure 12-4 for a more detailed illustration of
the byte write sequence.
12.6
LOAD TX BUFFER Instruction
The LOAD TX BUFFER instruction (Figure 12-5) eliminates the eight-bit address required by a normal WRITE
command. The eight-bit instruction sets the Address
Pointer to one of six addresses to quickly write to a
transmit buffer that points to the “ID” or “data” address
of any of the three transmit buffers.
12.7
Request-to-Send (RTS) Instruction
The RTS command can be used to initiate message
transmission for one or more of the transmit buffers.
The MCP2515 is selected by lowering the CS pin. The
RTS command byte is then sent. As shown in
Figure 12-6, the last 3 bits of this command indicate
which transmit buffer(s) are enabled to send.
This command will set the TXREQ bit (TXBnCTRL[3])
for the respective buffer(s). Any or all of the last three
bits can be set in a single command. If the RTS
command is sent with nnn = 000, the command will be
ignored.
DS20001801J-page 65
MCP2515
12.8
READ STATUS Instruction
The READ STATUS instruction allows single instruction
access to some of the often used status bits for
message reception and transmission.
The MCP2515 is selected by lowering the CS pin and the
READ STATUS command byte, shown in Figure 12-8, is
sent to the MCP2515. Once the command byte is sent,
the MCP2515 will return eight bits of data that contain the
status.
If additional clocks are sent after the first eight bits are
transmitted, the MCP2515 will continue to output the
status bits as long as the CS pin is held low and clocks
are provided on SCK.
Each status bit returned in this command may also be
read by using the standard READ command with the
appropriate register address.
12.9
The part is selected by lowering the CS pin and the BIT
MODIFY command byte is then sent to the MCP2515.
The command is followed by the address of the
register, the mask byte and finally, the data byte.
The mask byte determines which bits in the register will
be allowed to change. A ‘1’ in the mask byte will allow
a bit in the register to change, while a ‘0’ will not.
The data byte determines what value the modified bits
in the register will be changed to. A ‘1’ in the data byte
will set the bit and a ‘0’ will clear the bit, provided that
the mask for that bit is set to a ‘1’ (see Figure 12-7).
FIGURE 12-1:
BIT MODIFY
Mask Byte
0 0 1 1 0 1 0 1
Data Byte
x x 1 0 x 0 x 1
Previous
Register
Contents
0 1 0 1 0 0 0 1
Resulting
Register
Contents
0 1 1 0 0 0 0 1
RX STATUS Instruction
The RX STATUS instruction (Figure 12-9) is used to
quickly determine which filter matched the message
and message type (standard, extended, remote). After
the command byte is sent, the controller will return
8 bits of data that contain the status data. If more clocks
are sent after the eight bits are transmitted, the
controller will continue to output the same status bits as
long as the CS pin stays low and clocks are provided.
12.10 BIT MODIFY Instruction
The BIT MODIFY instruction provides a means for
setting or clearing individual bits in specific status and
control registers. This command is not available for all
registers. See Section 11.0 “Register Map” to
determine which registers allow the use of this
command.
Note:
Executing the BIT MODIFY command on
registers that are not bit-modifiable will
force the mask to FFh. This will allow byte
writes to the registers, not BIT MODIFY.
DS20001801J-page 66
2003-2019 Microchip Technology Inc.
MCP2515
TABLE 12-1:
SPI INSTRUCTION SET
Instruction Name
Instruction Format
Description
1100 0000
Resets internal registers to the default state, sets Configuration
mode.
READ
0000 0011
Reads data from the register beginning at selected address.
READ RX BUFFER
1001 0nm0
When reading a receive buffer, reduces the overhead of a normal
READ command by placing the Address Pointer at one of four
locations, as indicated by ‘n,m’.
RESET
Note:
The associated RX flag bit, RXnIF (CANINTF), will be
cleared after bringing CS high.
WRITE
0000 0010
Writes data to the register beginning at the selected address.
LOAD TX BUFFER
0100 0abc
When loading a transmit buffer, reduces the overhead of a normal
WRITE command by placing the Address Pointer at one of six
locations, as indicated by ‘a,b,c’.
RTS
(Message
Request-to-Send)
1000 0nnn
Instructs controller to begin message transmission sequence for
any of the transmit buffers.
1000 0nnn
Request-to-Send for TXB2
Request-to-Send for TXBO
Request-to-Send for TXB1
READ STATUS
1010 0000
Quick polling command that reads several status bits for transmit
and receive functions.
RX STATUS
1011 0000
Quick polling command that indicates filter match and message
type (standard, extended and/or remote) of received message.
BIT MODIFY
0000 0101
Allows the user to set or clear individual bits in a particular
register.
Note:
2003-2019 Microchip Technology Inc.
Not all registers can be bit modified with this command.
Executing this command on registers that are not bit
modifiable will force the mask to FFh. See the register
map in Section 11.0 “Register Map” for a list of the
registers that apply.
DS20001801J-page 67
MCP2515
FIGURE 12-2:
READ INSTRUCTION
CS
0
1
2
3
4
5
6
7
8
9
10 11 12 13 14 15 16 17 18 19 20 21 22 23
SCK
Instruction
SI
0
0
0
0
0
Address Byte
0
1 A7
1
6
5
3
4
2
1
A0
Don’t Care
Data Out
High-Impedance
7
SO
FIGURE 12-3:
5
n m
0
1
2
3
4
5
6
7
8
9
10 11 12 13 14 15
SCK
Instruction
1
4
3
2
1
0
READ RX BUFFER INSTRUCTION
CS
SI
6
0
0
1
0
n
m
Data Out
High-Impedance
SO
FIGURE 12-4:
Don’t Care
0
7
6
5
4
3
2
1
0
Address Points to
Address
0 0 Receive Buffer 0,
Start at RXB0SIDH
0x61
0 1 Receive Buffer 0,
Start at RXB0D0
0x66
1 0 Receive Buffer 1,
Start at RXB1SIDH
0x71
1 1 Receive Buffer 1,
Start at RXB1D0
0x76
BYTE WRITE INSTRUCTION
CS
0
1
2
3
4
5
6
7
8
9
10 11 12 13 14 15 16 17 18 19 20 21 22 23
SCK
Instruction
SI
0
0
0
0
0
Address Byte
0
1
0 A7
6
5
4
3
2
Data Byte
1
A0
7
6
5
4
3
2
1
0
High-Impedance
SO
DS20001801J-page 68
2003-2019 Microchip Technology Inc.
MCP2515
FIGURE 12-5:
LOAD TX BUFFER INSTRUCTION
a b c
CS
0
1
2
3
4
5
6
7
8
9
10 11 12 13 14 15
SCK
Instruction
SI
0
1
0
0
Data In
a
0
b
c
7
6
5
4
3
2
1
0
High-Impedance
SO
FIGURE 12-6:
Address Points to
Addr
0 0 0 TX Buffer 0, Start at
TXB0SIDH
0x31
0 0 1 TX Buffer 0, Start at
TXB0D0
0x36
0 1 0 TX Buffer 1, Start at
TXB1SIDH
0x41
0 1 1 TX Buffer 1, Start at
TXB1D0
0x46
1 0 0 TX Buffer 2, Start at
TXB2SIDH
0x51
1 0 1 TX Buffer 2, Start at
TXB2D0
0x56
REQUEST-TO-SEND (RTS) INSTRUCTION
CS
0
1
2
3
4
5
6
7
T2
T1
T0
SCK
Instruction
1
SI
0
0
0
0
High-Impedance
SO
FIGURE 12-7:
BIT MODIFY INSTRUCTION
CS
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31
SCK
Instruction
SI
Address Byte
Mask Byte
Data Byte
0 0 0 0 0 1 0 1 A7 6 5 4 3 2 1 A0 7 6 5 4 3 2 1 0 7 6 5 4 3 2 1 0
High-Impedance
SO
Note:
Not all registers can be accessed with this command. See the register map for a list of the registers that apply.
2003-2019 Microchip Technology Inc.
DS20001801J-page 69
MCP2515
FIGURE 12-8:
READ STATUS INSTRUCTION
CS
0
1
2
3
4
5
6
7
0
0
0
8
9
10 11 12 13 14 15 16 17 18 19 20 21 22 23
SCK
Instruction
1
SI
0
1
0
0
Don’t Care
SO
Repeat
Data Out
Data Out
High-Impedance
7
6
5
4
3
2
1
0
7
6
5
4
3
2
1
0
RX0IF (CANINTF[0])
RX1IF (CANINTF[1])
TXREQ (TXB0CNTRL[3])
TX0IF (CANINTF[2])
TXREQ (TXB1CNTRL[3])
TX1IF (CANINTF[3])
TXREQ (TXB2CNTRL[3])
TX2IF (CANINTF[4])
FIGURE 12-9:
RX STATUS INSTRUCTION
CS
0
1
2
3
4
5
6
7
0
0
0
8
9
10 11 12 13 14 15 16 17 18 19 20 21 22 23
SCK
Instruction
1
SI
0
1
1
0
Don’t Care
SO
7
6
4
3
0 No RX message
0
0
1 Message in RXB0
1
0 Message in RXB1
1
1 Messages in both buffers*
7
6
0
Received Message
RXnIF (CANINTF) bits are mapped
to bits 7 and 6.
Repeat
Data Out
Data Out
High-Impedance
5
4
3
2
1
0
7
Msg Type Received
6
5
4
3
2
1
0
2
1 0
0 Standard data frame
0
0 0 RXF0
0
1 Standard remote frame
0
0 1 RXF1
1
0 Extended data frame
0
1 0 RXF2
1
1 Extended remote frame
0
1 1 RXF3
1
0 0 RXF4
1
0 1 RXF5
1
1 0 RXF0 (rollover to RXB1)
1
1 1 RXF1 (rollover to RXB1)
The extended ID bit is mapped to
bit 4. The RTR bit is mapped to
bit 3.
Filter Match
*Buffer 0 has higher priority; therefore, RXB0 status is reflected in bits[4:0].
DS20001801J-page 70
2003-2019 Microchip Technology Inc.
MCP2515
FIGURE 12-10:
SPI INPUT TIMING
3
CS
11
Mode 1,1
6
1
7
10
2
SCK Mode 0,0
4
SI
5
MSB In
LSB In
High-Impedance
SO
FIGURE 12-11:
SPI OUTPUT TIMING
CS
8
9
2
Mode 1,1
SCK
Mode 0,0
12
SO
14
13
MSB Out
LSB Out
Don’t Care
SI
2003-2019 Microchip Technology Inc.
DS20001801J-page 71
MCP2515
NOTES:
DS20001801J-page 72
2003-2019 Microchip Technology Inc.
MCP2515
13.0
ELECTRICAL CHARACTERISTICS
13.1
Absolute Maximum Ratings†
VDD.............................................................................................................................................................................7.0V
All Inputs and Outputs w.r.t. VSS ....................................................................................................... -0.6V to VDD + 1.0V
Storage Temperature ..............................................................................................................................-65°C to +150°C
Ambient Temperature with Power Applied...............................................................................................-65°C to +125°C
Soldering Temperature of Leads (10 seconds) .....................................................................................................+300°C
† Notice: Stresses above those listed under “Maximum Ratings” may cause permanent damage to the device. This
is a stress rating only and functional operation of the device at those or any other conditions above those
indicated in the operational listings of this specification is not implied. Exposure to maximum rating conditions for
extended periods may affect device reliability.
2003-2019 Microchip Technology Inc.
DS20001801J-page 73
MCP2515
TABLE 13-1:
DC CHARACTERISTICS
DC Characteristics
Param.
No.
Sym
VDD = 2.7V to 5.5V
Characteristic
Min
Max
Industrial (I): TAMB = -40°C to +85°C
Extended (E): TAMB = -40°C to +125°C
Units
Conditions
VDD
Supply Voltage
2.7
5.5
V
VRET
Register Retention Voltage
2.4
—
V
2
VDD + 1
V
SCK, CS, SI, TXnRTS Pins
0.7 VDD
VDD + 1
V
OSC1 Pin
0.85 VDD
VDD
V
RESET Pin
0.85 VDD
VDD
V
RXCAN, TXnRTS Pins
-0.3
0.15 * VDD
V
SCK, CS, SI Pins
-0.3
0.4 * VDD
V
OSC1 Pin
VSS
0.3 * VDD
V
RESET Pin
VSS
0.15 * VDD
V
TXCAN Pin
—
0.6
V
IOL = +6.0 mA, VDD = 4.5V
RXnBF Pin
—
0.6
V
IOL = +8.5 mA, VDD = 4.5V
High-Level Input Voltage
VIH
RXCAN Pin
Low-Level Input Voltage
VIL
Low-Level Output Voltage
VOL
SO, CLKOUT Pins
—
0.6
V
IOL = +2.1 mA, VDD = 4.5V
INT Pin
—
0.6
V
IOL = +1.6 mA, VDD = 4.5V
High-Level Output Voltage
V
TXCAN, RXnBF Pins
VDD – 0.7
—
V
IOH = -3.0 mA, VDD = 4.5V
SO, CLKOUT Pins
VDD – 0.5
—
V
IOH = -400 μA, VDD = 4.5V
INT Pin
VDD – 0.7
—
V
IOH = -1.0 mA, VDD = 4.5V
All I/Os except OSC1 and
TXnRTS Pins
-1
+1
μA
CS = RESET = VDD,
VIN = VSS to VDD
OSC1 Pin
-5
+5
μA
CINT
Internal Capacitance
(all inputs and outputs)
—
7
pF
TAMB = +25°C, fC = 1.0 MHz,
VDD = 0V (Note 1)
IDD
Operating Current
—
10
mA
VDD = 5.5V, FOSC = 25 MHz,
FCLK = 1 MHz, SO = Open
IDDS
Standby Current
(Sleep mode)
—
5
μA
CS, TXnRTS = VDD, inputs tied
to VDD or VSS, -40°C TO +85°C
—
8
μA
CS, TXnRTS = VDD, inputs tied
to VDD or VSS, -40°C TO +125°C
VOH
Input Leakage Current
ILI
Note 1:
This parameter is periodically sampled and not 100% tested.
DS20001801J-page 74
2003-2019 Microchip Technology Inc.
MCP2515
TABLE 13-2:
OSCILLATOR TIMING CHARACTERISTICS
Oscillator Timing Characteristics(1)
Param.
No.
Note 1:
Sym
Characteristic
Min
Max
Units
Conditions
Clock In Frequency
1
1
40
25
MHz
MHz
VDD = 4.5V to 5.5V
VDD = 2.7V to 5.5V
TOSC
Clock In Period
25
40
1000
1000
ns
ns
VDD = 4.5V to 5.5V
VDD = 2.7V to 5.5V
TDUTY
Duty Cycle
(external clock input)
0.45
0.55
—
TOSH/(TOSH + TOSL)
This parameter is periodically sampled and not 100% tested.
CAN INTERFACE AC CHARACTERISTICS
CAN Interface AC Characteristics
Sym
TWF
TABLE 13-4:
Characteristic
Wake-up Noise Filter
Sym
tRL
VDD = 2.7V to 5.5V
Industrial (I): TAMB = -40°C to +85°C
Extended (E): TAMB = -40°C to +125°C
Min
Max
Units
100
—
ns
Conditions
RESET AC CHARACTERISTICS
Reset AC Characteristics
Param.
No.
Industrial (I): TAMB = -40°C to +85°C
Extended (E): TAMB = -40°C to +125°C
FOSC
TABLE 13-3:
Param.
No.
VDD = 2.7V to 5.5V
VDD = 2.7V to 5.5V
Characteristic
RESET Pin Low Time
2003-2019 Microchip Technology Inc.
Industrial (I): TAMB = -40°C to +85°C
Extended (E): TAMB = -40°C to +125°C
Min
Max
Units
2
—
μs
Conditions
DS20001801J-page 75
MCP2515
TABLE 13-5:
CLKOUT PIN AC CHARACTERISTICS
CLKOUT Pin AC/DC Characteristics
Param.
No.
Sym
Characteristic
Industrial (I): TAMB = -40°C to +85°C
Extended (E): TAMB = -40°C to +125°C
VDD = 2.7V to 5.5V
Min
Max
Units
Conditions
thCLKOUT CLKOUT Pin High Time
15
—
ns
TOSC = 40 ns (Note 1)
tlCLKOUT CLKOUT Pin Low Time
15
—
ns
TOSC = 40 ns (Note 1)
trCLKOUT CLKOUT Pin Rise Time
—
5
ns
Measured from 0.3 VDD to
0.7 VDD (Note 1)
tfCLKOUT CLKOUT Pin Fall Time
—
5
ns
Measured from 0.7 VDD to
0.3 VDD (Note 1)
tdCLKOUT CLKOUT Propagation Delay
—
100
ns
(Note 1)
15
thSOF
Start-of-Frame High Time
—
2 TOSC
ns
(Note 1)
16
tdSOF
Start-of-Frame Propagation
Delay
—
2 TOSC + 0.5 TQ
ns
Measured from CAN bit sample
point; device is a receiver,
BRP[5:0] (CNF1[5:0]) = 0
(Note 2)
Note 1:
2:
All CLKOUT mode functionality and output frequency are tested at device frequency limits; however,
the CLKOUT prescaler is set to divide by one. This parameter is periodically sampled and not 100% tested.
Design guidance only, not tested.
FIGURE 13-1:
RXCAN
START-OF-FRAME PIN AC CHARACTERISTICS
Sample Point
16
15
DS20001801J-page 76
2003-2019 Microchip Technology Inc.
MCP2515
TABLE 13-6:
SPI INTERFACE AC CHARACTERISTICS
SPI Interface AC Characteristics
Param.
No.
Sym
Characteristic
VDD = 2.7V to 5.5V
Industrial (I): TAMB = -40°C to +85°C
Extended (E): TAMB = -40°C to +125°C
Min
Max
Units
Conditions
FCLK
Clock Frequency
—
10
MHz
1
TCSS
CS Setup Time
50
—
ns
2
TCSH
CS Hold Time
50
—
ns
3
TCSD
CS Disable Time
50
—
ns
4
TSU
Data Setup Time
10
—
ns
5
THD
Data Hold Time
10
—
ns
6
TR
Clock Rise Time
—
2
μs
(Note 1)
7
TF
Clock Fall Time
—
2
μs
(Note 1)
8
THI
Clock High Time
45
—
ns
9
TLO
Clock Low Time
45
—
ns
10
TCLD
Clock Delay Time
50
—
ns
11
TCLE
Clock Enable Time
50
—
ns
12
TV
Output Valid from Clock Low
—
45
ns
13
THO
Output Hold Time
0
—
ns
14
TDIS
Output Disable Time
—
100
ns
Note 1:
This parameter is not 100% tested.
2003-2019 Microchip Technology Inc.
DS20001801J-page 77
MCP2515
NOTES:
DS20001801J-page 78
2003-2019 Microchip Technology Inc.
MCP2515
14.0
PACKAGING INFORMATION
14.1
Package Marking Information
18-Lead PDIP (300 mil)
Example:
XXXXXXXXXXXXXXXXX
XXXXXXXXXXXXXXXXX
YYWWNNN
18-Lead SOIC (7.50 mm)
1850256
Example:
MCP2515-E/
e3
SO^^
XXXXXXXXXXXX
XXXXXXXXXXXX
XXXXXXXXXXXX
YYWWNNN
1850256
20-Lead TSSOP (4.4 mm)
XXXXXXXX
XXXXXNNN
YYWW
Example:
MCP2515I/ST e3 256
1850
20-Lead QFN (4x4x0.9 mm)
XXXXX
XXXXXX
XXXXXX
YWWNNN
Example:
MCP
2515E/ML e3
850256
Legend: XX...X
Y
YY
WW
NNN
e3
*
Note:
MCP2515-I/P^^
e3
Customer-specific information
Year code (last digit of calendar year)
Year code (last 2 digits of calendar year)
Week code (week of January 1 is week ‘01’)
Alphanumeric traceability code
Pb-free JEDEC designator for Matte Tin (Sn)
This package is Pb-free. The Pb-free JEDEC designator ( e3 )
can be found on the outer packaging for this package.
In the event the full Microchip part number cannot be marked on one line, it will
be carried over to the next line, thus limiting the number of available
characters for customer-specific information.
2003-2019 Microchip Technology Inc.
DS20001801J-page 79
MCP2515
/HDG3ODVWLF'XDO,Q/LQH 3 ±PLO%RG\>3',3@
1RWH
)RUWKHPRVWFXUUHQWSDFNDJHGUDZLQJVSOHDVHVHHWKH0LFURFKLS3DFNDJLQJ6SHFLILFDWLRQORFDWHGDW
KWWS ZZZPLFURFKLSFRPSDFNDJLQJ
N
NOTE 1
E1
1
2
3
D
E
A2
A
L
c
A1
b1
b
e
eB
8QLWV
'LPHQVLRQ/LPLWV
1XPEHURI3LQV
,1&+(6
0,1
1
120
0$;
3LWFK
H
7RSWR6HDWLQJ3ODQH
$
±
±
0ROGHG3DFNDJH7KLFNQHVV
$
%DVHWR6HDWLQJ3ODQH
$
±
±
6KRXOGHUWR6KRXOGHU:LGWK
(
0ROGHG3DFNDJH:LGWK
(
2YHUDOO/HQJWK
'
7LSWR6HDWLQJ3ODQH
/
/HDG7KLFNQHVV
F
E
E
H%
±
±
8SSHU/HDG:LGWK
/RZHU/HDG:LGWK
2YHUDOO5RZ6SDFLQJ
%6&
1RWHV
3LQYLVXDOLQGH[IHDWXUHPD\YDU\EXWPXVWEHORFDWHGZLWKLQWKHKDWFKHGDUHD
6LJQLILFDQW&KDUDFWHULVWLF
'LPHQVLRQV'DQG(GRQRWLQFOXGHPROGIODVKRUSURWUXVLRQV0ROGIODVKRUSURWUXVLRQVVKDOOQRWH[FHHGSHUVLGH
'LPHQVLRQLQJDQGWROHUDQFLQJSHU$60(4)1@
1RWH
)RUWKHPRVWFXUUHQWSDFNDJHGUDZLQJVSOHDVHVHHWKH0LFURFKLS3DFNDJLQJ6SHFLILFDWLRQORFDWHGDW
KWWS ZZZPLFURFKLSFRPSDFNDJLQJ
D
D2
EXPOSED
PAD
e
E2
2
E
b
2
1
1
K
N
N
NOTE 1
TOP VIEW
L
BOTTOM VIEW
A
A1
A3
8QLWV
'LPHQVLRQ/LPLWV
1XPEHURI3LQV
0,//,0(7(56
0,1
1
120
0$;
3LWFK
H
2YHUDOO+HLJKW
$
6WDQGRII
$
&RQWDFW7KLFNQHVV
$
2YHUDOO:LGWK
(
([SRVHG3DG:LGWK
(
2YHUDOO/HQJWK
'
([SRVHG3DG/HQJWK
%6&
5()
%6&
%6&
'
&RQWDFW:LGWK
E
&RQWDFW/HQJWK
/
&RQWDFWWR([SRVHG3DG
.
±
±
1RWHV
3LQYLVXDOLQGH[IHDWXUHPD\YDU\EXWPXVWEHORFDWHGZLWKLQWKHKDWFKHGDUHD
3DFNDJHLVVDZVLQJXODWHG
'LPHQVLRQLQJDQGWROHUDQFLQJSHU$60(
工商网监
湘ICP备2023018690号
