MD0105
4-Channel High-Voltage Protection T/R Switch
Features
General Description
•
•
•
•
•
The MD0105 is a high-voltage current-limiting
protection device. It is designed to protect a low-noise
receiver from high-voltage transmit pulses in
ultrasound applications. The MD0105 is commonly
referred to as a T/R (transmit-and-receive) switch.
Up to ±130V Input Voltage Protection
Low On-Resistance – 15Ω Typical
Fast Switching Speed
Four Electrically Isolated Channels
No External Supplies Needed
The device can be considered as a normally closed
switch with a typical switching resistance of 15Ω that
allows small signals to pass. Once the voltage drop
across the two terminals exceeds a nominal value of
±2V, the device will turn off. In the OFF state, the
MD0105 can withstand up to ±130V across its
terminals. A small amount of current (typically 200 µA)
is allowed to flow through.
Applications
•
•
•
•
•
Medical Ultrasound Imaging
NDT Applications
Fast Resettable Fuses
High-Side Switches
Data Acquisition
The MD0105 is not limited to just ultrasound
applications. It can also be used as resettable fuses to
protect power lines, for output short-circuit protection
and to protect data acquisition instruments. The

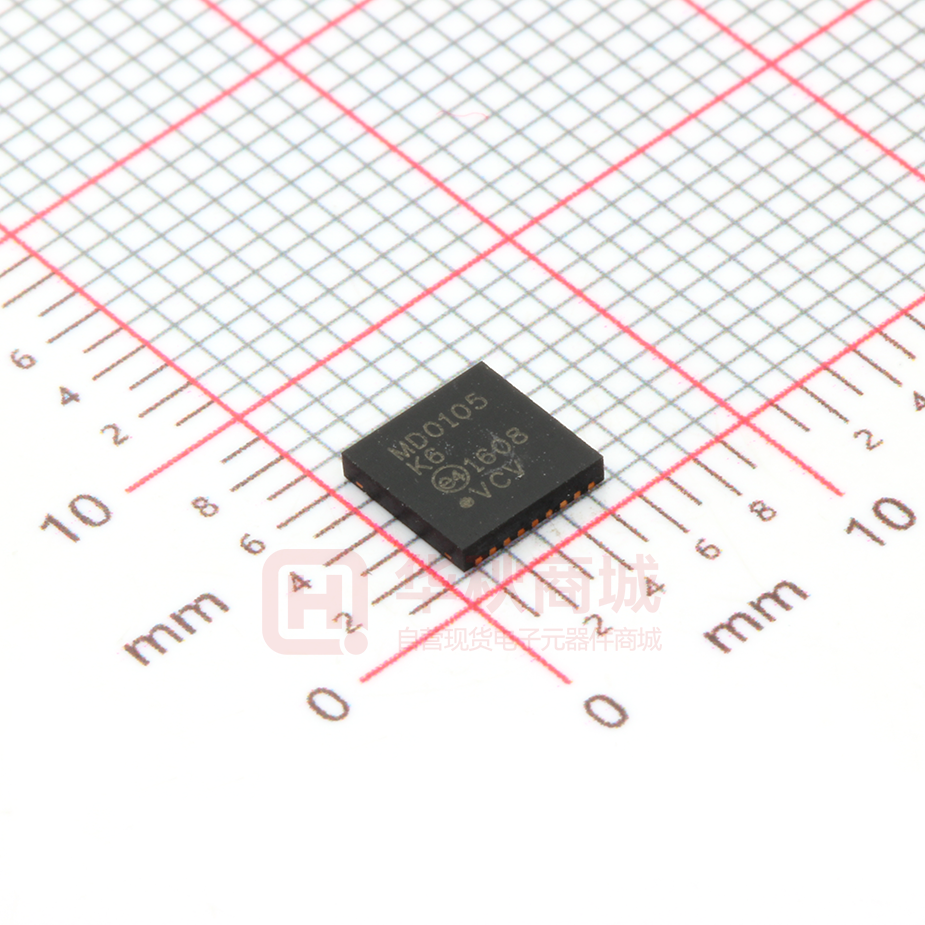

MD0105 is available in an 18-lead 5 x 5 mm DFN
package as a 4-channel device.
Package Type
18-lead DFN
(Top view)
1
18
NC
A1
2
17
B1
NC
3
16
NC
A2
4
15
B2
NC
5
14
NC
A3
6
13
B3
NC
7
12
NC
A4
8
11
B4
NC
9
10
NC
NC
See Table 2-1 for pin information. Pads are at the bottom of device.
2018 Microchip Technology Inc.
DS20005739A-page 1
MD0105
Functional Block Diagram
COM
Switch Control
A
DS20005739A-page 2
B
2018 Microchip Technology Inc.
MD0105
Typical Application Circuit
+130V
Piezo
Transducers
Transmitter
-130V
Logic
Control
and
Signal
Processing
TX
RX
Receiver
2018 Microchip Technology Inc.
B
MD0105
T/R Switch
A
High Voltage
Switches
DS20005739A-page 3
MD0105
1.0
ELECTRICAL CHARACTERISTICS
Absolute Maximum Ratings†
Differential Voltage, VA-B ............................................................................................................................ 0V to +140V
Maximum Junction Temperature, TJ ................................................................................................................... +125°C
Storage Temperature, TS ..................................................................................................................... –65°C to +150°C
Power Dissipation:
18-lead DFN ................................................................................................................................................. 1.6W
† Notice: Stresses above those listed under “Absolute Maximum Ratings” may cause permanent damage to the
device. This is a stress rating only, and functional operation of the device at those or any other conditions above those
indicated in the operational sections of this specification is not intended. Exposure to maximum rating conditions for
extended periods may affect device reliability.
Note 1: Device is ESD sensitive. Handling precautions are recommended.
DC ELECTRICAL CHARACTERISTICS
Electrical Specifications: TJ = 25°C unless otherwise specified.
Parameter
Sym.
Min.
Typ.
Max.
Unit
VA-B
±130
—
—
V
IA-B = ±1 mA
Switch-On Resistance from A to B
RSW
—
15
—
Ω
IA-B = ±5 mA
VA-B Trip Point to Turn Off
VTRIP
—
±1
±2
V
VOFF
—
±2
—
V
IA-B = ±1 mA
IA-B(OFF)
—
±200
±300
µA
VA-B = ±130V
Max.
Unit
Maximum Differential Input Voltage
from A to B
Switch Turn-Off Voltage
Switch-Off Current
Conditions
AC ELECTRICAL CHARACTERISTICS
Electrical Specifications: TJ = 25°C unless otherwise specified.
Parameter
Sym.
Min.
Typ.
Peak Switching Current
IPEAK
—
±60
—
mA
Turn-Off Time
TOFF
—
—
20
ns
Turn-On Time
Conditions
TON
—
—
20
ns
Switch-On Capacitance from A to B
CSW(ON)
—
21
—
pF
SW = ON
Switch-Off Capacitance from A to B
CSW(OFF)
—
15
—
pF
VSW = 25V
BW
—
100
—
Sym.
Min.
Typ.
Max.
Unit
Operating Junction Temperature
TJ
–40
—
+125
°C
Storage Temperature
TS
–65
—
+150
°C
JA
—
40
—
°C/W
Small Signal Bandwidth
MHz RLOAD = 50Ω
TEMPERATURE SPECIFICATIONS
Parameter
Conditions
TEMPERATURE RANGE
PACKAGE THERMAL RESISTANCE
18-lead DFN
Note 1:
Note 1
Mounted on an FR4 board, 25 mm x 25 mm x 1.57 mm
DS20005739A-page 4
2018 Microchip Technology Inc.
MD0105
Typical I-V Characteristics
+IPEAK
IA-B
IA-B = +200μA
-130V
-VOFF
+1.0mA
-VTRIP
+VTRIP
+1.0mA
+VOFF
VA-B
+130V
IA-B = -200μA
RSW = 15Ω
-IPEAK
2018 Microchip Technology Inc.
DS20005739A-page 5
MD0105
2.0
PIN DESCRIPTION
Functional descriptions for the pins are listed in
Table 2-1. See Package Type for the location of pins.
TABLE 2-1:
PIN FUNCTION TABLE
Pin Number
Pin Name
1
NC
No internal connection
2
A1
Switch Terminal A1
3
NC
No internal connection
4
A2
Switch Terminal A2
5
NC
No internal connection
6
A3
Switch Terminal A3
7
NC
No internal connection
8
A4
Switch Terminal A4
9
NC
No internal connection
10
NC
No internal connection
11
B4
Switch Terminal B4
12
NC
No internal connection
13
B3
Switch Terminal B3
14
NC
No internal connection
15
B2
Switch Terminal B2
16
NC
No internal connection
17
B1
Switch Terminal B1
18
NC
No internal connection
Center Tab
DS20005739A-page 6
Description
Connect to ground
2018 Microchip Technology Inc.
MD0105
3.0
DETAILED DESCRIPTION
The MD0105 can be considered as a normally closed
switch controlled by a built-in control circuit. (See
Functional Block Diagram.) The switch control circuit
monitors the voltage drop across Terminals A and B. If
the voltage difference is greater than ±2V, the T/R
switch opens. Once in the Open state, there is a small
amount of current flowing through the T/R switch (200
µA) to detect if the high voltage is still present. The T/R
switch does not close until the voltage across Terminal
A and Terminal B drops below ±2V. A pair of
back-to-back diodes, from the receiver side of the
switch to ground is needed to complete the circuit and
allow the peak current (about 60 mA) to flow through
the switch. If the diodes are not present, there is no
current path and the voltage drop across Terminals A
and B becomes less than ±2V. As a result, the switch
remains in the closed position.
3.1
On Resistance
When the voltage across Terminals A and B is below
±2V, the switch is in Receive mode and the RON is
typically 15Ω. Once the voltage across Terminals A and
B is greater than ±2V, the switch is in Transmit mode
and prevents high-voltage pulses from passing through
to the receiver.
3.2
Switch Capacitance
The typical switch-on capacitance, CSW(ON), is 21 pF.
This is measured from Terminal A to Terminal B when
the switch is turned on.
The switch-off capacitance is a function of the voltage
across the T/R switch. The CSW(OFF) is about 12 pF to
19 pF for 10V to 130V of transmit voltage.
3.3
TON and TOFF Time
TON and TOFF of the MD0105 are less than 20 ns,
which provides a quick transition between Transmit
Receive modes. The TON and TOFF are proportional to
the rise and fall times of the transmit pulses.
2018 Microchip Technology Inc.
DS20005739A-page 7
MD0105
4.0
PACKAGING INFORMATION
4.1
Package Marking Information
18-lead DFN
XXXXXXX
XXXXXXX
e3 YYWW
NNN
Legend: XX...X
Y
YY
WW
NNN
e3
*
Note:
DS20005739A-page 8
Example
MD0105
K6
e3 1823
513
Product Code or Customer-specific information
Year code (last digit of calendar year)
Year code (last 2 digits of calendar year)
Week code (week of January 1 is week ‘01’)
Alphanumeric traceability code
Pb-free JEDEC® designator for Matte Tin (Sn)
This package is Pb-free. The Pb-free JEDEC designator ( e3 )
can be found on the outer packaging for this package.
In the event the full Microchip part number cannot be marked on one line, it will
be carried over to the next line, thus limiting the number of available characters
for product code or customer-specific information. Package may or not include
the corporate logo.
2018 Microchip Technology Inc.
MD0105
Note: For the most current package drawings, see the Microchip Packaging Specification at www.microchip.com/packaging.
2018 Microchip Technology Inc.
DS20005739A-page 9
MD0105
NOTES:
DS20005739A-page 10
2018 Microchip Technology Inc.
MD0105
APPENDIX A:
REVISION HISTORY
Revision A (November 2018)
• Converted Supertex Doc# DSFP-MD0105 to
Microchip DS20005739A
• Changed the package marking format
• Changed the quantity of the 18-lead DFN K6
M932 media type from 2500/Reel to 3300/Reel
• Made minor text changes throughout the document
2018 Microchip Technology Inc.
DS20005739A-page 11
MD0105
PRODUCT IDENTIFICATION SYSTEM
To order or obtain information, e.g., on pricing or delivery, contact your local Microchip representative or sales office.
XX
PART NO.
-
Package
Options
Device
X
-
Environmental
X
Media Type
Device:
MD0105
=
4-Channel High-Voltage Protection T/R
Switch
Package:
K6
=
18-lead VDFN
Environmental:
G
=
Lead (Pb)-free/RoHS-compliant Package
Media Type:
(blank)
=
490/Tray for a K6 Package
M932
=
3300/Reel for a K6 Package
DS20005739A-page 12
Examples:
a) MD0105K6-G:
4-Channel High-Voltage
Protection T/R Switch
18-lead VDFN, 490/Tray
b) MD0105K6-G-M932:
4-Channel High-Voltage
Protection T/R Switch
18-lead VDFN, 3300/Reel
2018 Microchip Technology Inc.
Note the following details of the code protection feature on Microchip devices:
•
Microchip products meet the specification contained in their particular Microchip Data Sheet.
•
Microchip believes that its family of products is one of the most secure families of its kind on the market today, when used in the
intended manner and under normal conditions.
•
There are dishonest and possibly illegal methods used to breach the code protection feature. All of these methods, to our
knowledge, require using the Microchip products in a manner outside the operating specifications contained in Microchip’s Data
Sheets. Most likely, the person doing so is engaged in theft of intellectual property.
•
Microchip is willing to work with the customer who is concerned about the integrity of their code.
•
Neither Microchip nor any other semiconductor manufacturer can guarantee the security of their code. Code protection does not
mean that we are guaranteeing the product as “unbreakable.”
Code protection is constantly evolving. We at Microchip are committed to continuously improving the code protection features of our
products. Attempts to break Microchip’s code protection feature may be a violation of the Digital Millennium Copyright Act. If such acts
allow unauthorized access to your software or other copyrighted work, you may have a right to sue for relief under that Act.
Information contained in this publication regarding device
applications and the like is provided only for your convenience
and may be superseded by updates. It is your responsibility to
ensure that your application meets with your specifications.
MICROCHIP MAKES NO REPRESENTATIONS OR
WARRANTIES OF ANY KIND WHETHER EXPRESS OR
IMPLIED, WRITTEN OR ORAL, STATUTORY OR
OTHERWISE, RELATED TO THE INFORMATION,
INCLUDING BUT NOT LIMITED TO ITS CONDITION,
QUALITY, PERFORMANCE, MERCHANTABILITY OR
FITNESS FOR PURPOSE. Microchip disclaims all liability
arising from this information and its use. Use of Microchip
devices in life support and/or safety applications is entirely at
the buyer’s risk, and the buyer agrees to defend, indemnify and
hold harmless Microchip from any and all damages, claims,
suits, or expenses resulting from such use. No licenses are
conveyed, implicitly or otherwise, under any Microchip
intellectual property rights unless otherwise stated.
Trademarks
Microchip received ISO/TS-16949:2009 certification for its worldwide
headquarters, design and wafer fabrication facilities in Chandler and
Tempe, Arizona; Gresham, Oregon and design centers in California
and India. The Company’s quality system processes and procedures
are for its PIC® MCUs and dsPIC® DSCs, KEELOQ® code hopping
devices, Serial EEPROMs, microperipherals, nonvolatile memory and
analog products. In addition, Microchip’s quality system for the design
and manufacture of development systems is ISO 9001:2000 certified.
SQTP is a service mark of Microchip Technology Incorporated in
the U.S.A.
QUALITY MANAGEMENT SYSTEM
CERTIFIED BY DNV
The Microchip name and logo, the Microchip logo, AnyRate, AVR,
AVR logo, AVR Freaks, BitCloud, chipKIT, chipKIT logo,
CryptoMemory, CryptoRF, dsPIC, FlashFlex, flexPWR, Heldo,
JukeBlox, KeeLoq, Kleer, LANCheck, LINK MD, maXStylus,
maXTouch, MediaLB, megaAVR, MOST, MOST logo, MPLAB,
OptoLyzer, PIC, picoPower, PICSTART, PIC32 logo, Prochip
Designer, QTouch, SAM-BA, SpyNIC, SST, SST Logo,
SuperFlash, tinyAVR, UNI/O, and XMEGA are registered
trademarks of Microchip Technology Incorporated in the U.S.A.
and other countries.
ClockWorks, The Embedded Control Solutions Company,
EtherSynch, Hyper Speed Control, HyperLight Load, IntelliMOS,
mTouch, Precision Edge, and Quiet-Wire are registered
trademarks of Microchip Technology Incorporated in the U.S.A.
Adjacent Key Suppression, AKS, Analog-for-the-Digital Age, Any
Capacitor, AnyIn, AnyOut, BodyCom, CodeGuard,
CryptoAuthentication, CryptoAutomotive, CryptoCompanion,
CryptoController, dsPICDEM, dsPICDEM.net, Dynamic Average
Matching, DAM, ECAN, EtherGREEN, In-Circuit Serial
Programming, ICSP, INICnet, Inter-Chip Connectivity,
JitterBlocker, KleerNet, KleerNet logo, memBrain, Mindi, MiWi,
motorBench, MPASM, MPF, MPLAB Certified logo, MPLIB,
MPLINK, MultiTRAK, NetDetach, Omniscient Code Generation,
PICDEM, PICDEM.net, PICkit, PICtail, PowerSmart, PureSilicon,
QMatrix, REAL ICE, Ripple Blocker, SAM-ICE, Serial Quad I/O,
SMART-I.S., SQI, SuperSwitcher, SuperSwitcher II, Total
Endurance, TSHARC, USBCheck, VariSense, ViewSpan,
WiperLock, Wireless DNA, and ZENA are trademarks of
Microchip Technology Incorporated in the U.S.A. and other
countries.
Silicon Storage Technology is a registered trademark of Microchip
Technology Inc. in other countries.
GestIC is a registered trademark of Microchip Technology
Germany II GmbH & Co. KG, a subsidiary of Microchip
Technology Inc., in other countries.
All other trademarks mentioned herein are property of their
respective companies.
© 2018, Microchip Technology Incorporated, All Rights Reserved.
ISBN: 978-1-5224-3904-2
== ISO/TS 16949 ==
2018 Microchip Technology Inc.
DS20005739A-page 13
Worldwide Sales and Service
AMERICAS
ASIA/PACIFIC
ASIA/PACIFIC
EUROPE
Corporate Office
2355 West Chandler Blvd.
Chandler, AZ 85224-6199
Tel: 480-792-7200
Fax: 480-792-7277
Technical Support:
http://www.microchip.com/
support
Web Address:
www.microchip.com
Australia - Sydney
Tel: 61-2-9868-6733
India - Bangalore
Tel: 91-80-3090-4444
China - Beijing
Tel: 86-10-8569-7000
India - New Delhi
Tel: 91-11-4160-8631
Austria - Wels
Tel: 43-7242-2244-39
Fax: 43-7242-2244-393
China - Chengdu
Tel: 86-28-8665-5511
India - Pune
Tel: 91-20-4121-0141
Denmark - Copenhagen
Tel: 45-4450-2828
Fax: 45-4485-2829
China - Chongqing
Tel: 86-23-8980-9588
Japan - Osaka
Tel: 81-6-6152-7160
Finland - Espoo
Tel: 358-9-4520-820
China - Dongguan
Tel: 86-769-8702-9880
Japan - Tokyo
Tel: 81-3-6880- 3770
China - Guangzhou
Tel: 86-20-8755-8029
Korea - Daegu
Tel: 82-53-744-4301
France - Paris
Tel: 33-1-69-53-63-20
Fax: 33-1-69-30-90-79
China - Hangzhou
Tel: 86-571-8792-8115
Korea - Seoul
Tel: 82-2-554-7200
China - Hong Kong SAR
Tel: 852-2943-5100
Malaysia - Kuala Lumpur
Tel: 60-3-7651-7906
China - Nanjing
Tel: 86-25-8473-2460
Malaysia - Penang
Tel: 60-4-227-8870
China - Qingdao
Tel: 86-532-8502-7355
Philippines - Manila
Tel: 63-2-634-9065
China - Shanghai
Tel: 86-21-3326-8000
Singapore
Tel: 65-6334-8870
China - Shenyang
Tel: 86-24-2334-2829
Taiwan - Hsin Chu
Tel: 886-3-577-8366
China - Shenzhen
Tel: 86-755-8864-2200
Taiwan - Kaohsiung
Tel: 886-7-213-7830
Israel - Ra’anana
Tel: 972-9-744-7705
China - Suzhou
Tel: 86-186-6233-1526
Taiwan - Taipei
Tel: 886-2-2508-8600
China - Wuhan
Tel: 86-27-5980-5300
Thailand - Bangkok
Tel: 66-2-694-1351
Italy - Milan
Tel: 39-0331-742611
Fax: 39-0331-466781
China - Xian
Tel: 86-29-8833-7252
Vietnam - Ho Chi Minh
Tel: 84-28-5448-2100
Atlanta
Duluth, GA
Tel: 678-957-9614
Fax: 678-957-1455
Austin, TX
Tel: 512-257-3370
Boston
Westborough, MA
Tel: 774-760-0087
Fax: 774-760-0088
Chicago
Itasca, IL
Tel: 630-285-0071
Fax: 630-285-0075
Dallas
Addison, TX
Tel: 972-818-7423
Fax: 972-818-2924
Detroit
Novi, MI
Tel: 248-848-4000
Houston, TX
Tel: 281-894-5983
Indianapolis
Noblesville, IN
Tel: 317-773-8323
Fax: 317-773-5453
Tel: 317-536-2380
Los Angeles
Mission Viejo, CA
Tel: 949-462-9523
Fax: 949-462-9608
Tel: 951-273-7800
Raleigh, NC
Tel: 919-844-7510
New York, NY
Tel: 631-435-6000
San Jose, CA
Tel: 408-735-9110
Tel: 408-436-4270
Canada - Toronto
Tel: 905-695-1980
Fax: 905-695-2078
DS20005739A-page 14
China - Xiamen
Tel: 86-592-2388138
China - Zhuhai
Tel: 86-756-3210040
Germany - Garching
Tel: 49-8931-9700
Germany - Haan
Tel: 49-2129-3766400
Germany - Heilbronn
Tel: 49-7131-67-3636
Germany - Karlsruhe
Tel: 49-721-625370
Germany - Munich
Tel: 49-89-627-144-0
Fax: 49-89-627-144-44
Germany - Rosenheim
Tel: 49-8031-354-560
Italy - Padova
Tel: 39-049-7625286
Netherlands - Drunen
Tel: 31-416-690399
Fax: 31-416-690340
Norway - Trondheim
Tel: 47-7288-4388
Poland - Warsaw
Tel: 48-22-3325737
Romania - Bucharest
Tel: 40-21-407-87-50
Spain - Madrid
Tel: 34-91-708-08-90
Fax: 34-91-708-08-91
Sweden - Gothenberg
Tel: 46-31-704-60-40
Sweden - Stockholm
Tel: 46-8-5090-4654
UK - Wokingham
Tel: 44-118-921-5800
Fax: 44-118-921-5820
2018 Microchip Technology Inc.
08/15/18
