MSCDC100H170AG
Datasheet
SiC Diode Full Bridge Power Module
December 2019
Contents
Contents
Revision History....................................................................................................................................1
1.1 Revision 1.0.........................................................................................................................................................1
2 Product Overview..............................................................................................................................2
Features....................................................................................................................................................................2
Benefits.....................................................................................................................................................................3
Applications..............................................................................................................................................................3
Electrical Specifications........................................................................................................................4
3.1 Absolute Maximum Ratings................................................................................................................................4
3.2 Electrical Performance........................................................................................................................................4
3.3 Typical Performance Curves................................................................................................................................6
4 Package Specification........................................................................................................................7
Package Outline Drawing..........................................................................................................................................7
Microsemi Proprietary and Confidential MSCDC100H170AG Datasheet Revision 1.0
ii
Revision History
1
Revision History
The revision history describes the changes that were implemented in the document. The changes are listed
by revision, starting with the most current publication.
1.1
Revision 1.0
Revision 1.0 was published in December 2019. It is the first publication of this document.
Microsemi Proprietary and Confidential MSCDC100H170AG Datasheet Revision 1.0
1
Product Overview
2
Product Overview
This section shows the product overview of the MSCDC100H170AG device.
All ratings at Tj = 25 °C, unless otherwise specified.
Caution: These devices are sensitive to electrostatic discharge. Proper handling procedures should be
followed.
2.1
Features
The following are key features of the MSCDC100H170AG device:
• Silicon Carbide (SiC) Schottky Diode
◦ Zero reverse recovery
◦ Zero forward recovery
◦ Temperature independent switching behavior
◦ Positive temperature coefficient on VF
Microsemi Proprietary and Confidential MSCDC100H170AG Datasheet Revision 1.0
2
Product Overview
•
•
•
•
2.2
High blocking voltage
Low stray inductance
M5 power connectors
Aluminum nitride (AlN) substrate for improved thermal performance
Benefits
The following are benefits of the MSCDC100H170AG device:
• Outstanding performance at high frequency operation
• Low losses
• Direct mounting to heatsink (isolated package)
• Low junction to case thermal resistance
• RoHS compliant
2.3
Applications
The MSCDC100H170AG device is designed for the following applications:
• Uninterruptible Power Supply (UPS)
• Induction heating
• Welding equipment
• High-speed rectifiers
Microsemi Proprietary and Confidential MSCDC100H170AG Datasheet Revision 1.0
3
Electrical Specifications
3
Electrical Specifications
This section shows the electrical specifications of the MSCDC100H170AG device.
3.1
Absolute Maximum Ratings
The following table shows the absolute maximum ratings per SiC diode of the MSCDC100H170AG device.
Table 1 • Absolute Maximum Ratings
Symbol
Parameter
Max Ratings
Unit
VRRM
Repetitive peak reverse voltage
1700
V
IF
DC forward current
100
A
TC = 125 °C
Table 2 • Thermal and Package Characteristics
Symbol
Characteristic
Min
VISOL
RMS isolation voltage, any terminal to case t =1 minute,
50 Hz/60 Hz
4000
TJ
Operating junction temperature range
–40
175
TJOP
Recommended junction temperature under switching
conditions
–40
TJmax–25
TSTG
Storage temperature range
–40
125
TC
Operating case temperature
–40
125
Torque
Mounting
torque
Wt
3.2
Max
Unit
V
To heatsink
M6
3
5
For terminals
M5
2
3.5
Package weight
°C
N.m
300
g
Electrical Performance
The following table shows the thermal and package characteristics of the MSCDC100H170AG device.
Table 3 • Electrical Characteristics
Symbol
Characteristic
Test Conditions
VF
Diode forward voltage
IF = 100 A
IRM
Reverse leakage current
VR = 1700 V
Min
Typ
Max
Unit
Tj = 25 °C
1.5
1.8
V
Tj = 175 °C
2
Tj = 25 °C
100
400
µA
Tj = 175 °C
500
Microsemi Proprietary and Confidential MSCDC100H170AG Datasheet Revision 1.0
4
Electrical Specifications
Symbol
Characteristic
Test Conditions
QC
Total capacitive charge
VR = 900 V
820
nC
C
Total capacitance
f = 1 MHz, VR = 600 V
600
pF
f = 1 MHz, VR = 900 V
500
RthJC
Min
Junction-to-case thermal resistance
Microsemi Proprietary and Confidential MSCDC100H170AG Datasheet Revision 1.0
Typ
Max
0.174
Unit
°C/W
5
Electrical Specifications
3.3
Typical Performance Curves
This section shows the typical performance curves of the MSCDC100H70AG device.
Figure 1 • Maximum Transient Thermal Impedance
Figure 2 • Forward Current vs. Forward Voltage
Figure 3 • Capacitance vs. Reverse Voltage
Microsemi Proprietary and Confidential MSCDC100H170AG Datasheet Revision 1.0
6
Package Specification
4
Package Specification
This section shows the package specifications for the MSCDC100H170AG device.
4.1
Package Outline Drawing

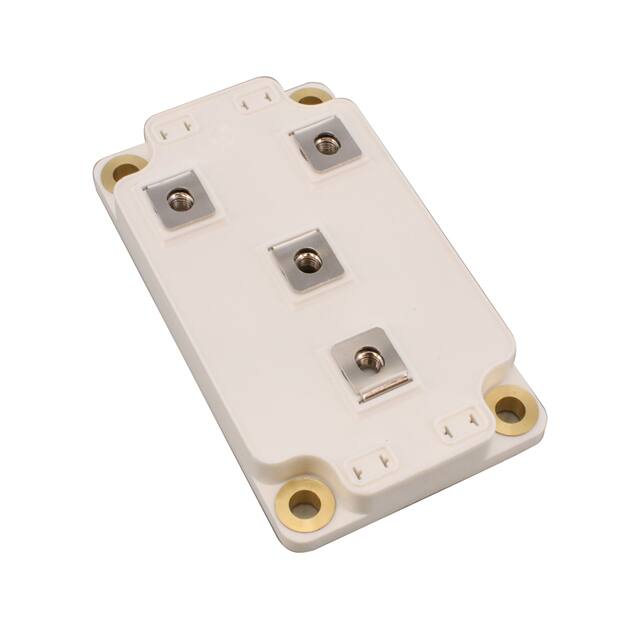

The following image illustrates the MSCDC100H170AG device. The dimensions in the following figure are
in millimeters.
Figure 4 • Package Outline Drawing
Microsemi Proprietary and Confidential MSCDC100H170AG Datasheet Revision 1.0
7
Legal
Microchip Technology Inc.
2355 West Chandler Blvd.
Chandler, Arizona, USA 85224-6199
Within the USA: +1 (800) 713-4113
Outside the USA: +1 (949) 380-6100
Sales: +1 (949) 380-6136
Fax: +1 (949) 215-4996
Email: sales.support@microsemi.com
www.microsemi.com
© 2019 Microsemi. All rights reserved.
Microsemi and the Microsemi logo are
trademarks of Microsemi Corporation. All
other trademarks and service marks are the
property of their respective owners.
Microsemi makes no warranty, representation, or guarantee regarding the information contained
herein or the suitability of its products and services for any particular purpose, nor does Microsemi
assume any liability whatsoever arising out of the application or use of any product or circuit. The
products sold hereunder and any other products sold by Microsemi have been subject to limited
testing and should not be used in conjunction with mission-critical equipment or applications. Any
performance specifications are believed to be reliable but are not verified, and Buyer must conduct
and complete all performance and other testing of the products, alone and together with, or
installed in, any end-products. Buyer shall not rely on any data and performance specifications or
parameters provided by Microsemi. It is the Buyer's responsibility to independently determine
suitability of any products and to test and verify the same. The information provided by Microsemi
hereunder is provided "as is, where is" and with all faults, and the entire risk associated with such
information is entirely with the Buyer. Microsemi does not grant, explicitly or implicitly, to any
party any patent rights, licenses, or any other IP rights, whether with regard to such information
itself or anything described by such information. Information provided in this document is
proprietary to Microsemi, and Microsemi reserves the right to make any changes to the information
in this document or to any products and services at any time without notice.
Microsemi, a wholly owned subsidiary of Microchip Technology Inc. (Nasdaq: MCHP),
offers a comprehensive portfolio of semiconductor and system solutions for
aerospace & defense, communications, data center and industrial markets. Products
include high-performance and radiation-hardened analog mixed-signal integrated
circuits, FPGAs, SoCs and ASICs; power management products; timing and
synchronization devices and precise time solutions, setting the world's standard
for time; voice processing devices; RF solutions; discrete components; enterprise
storage and communication solutions; security technologies and scalable anti-tamper
products; Ethernet solutions; Power-over-Ethernet ICs and midspans; as well as
custom design capabilities and services. Learn more at www.microsemi.com.
MSCC-0344-DS-01038-1.0-1219
Microsemi Proprietary and Confidential MSCDC100H170AG Datasheet Revision 1.0
