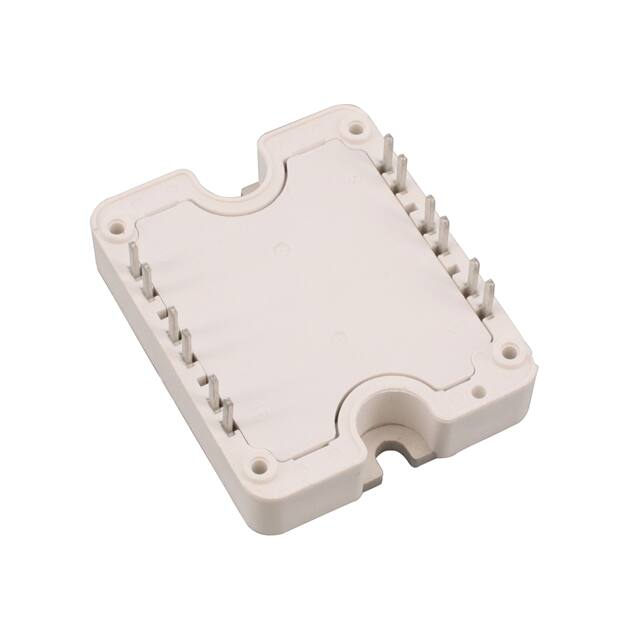

MSCDC50H1701AG

. MSCDC50H1701AG Datasheet SiC Diode Full Bridge Power Module December 2019 Contents Contents Revision History....................................................................................................................................1 1.1 Revision 1.0.........................................................................................................................................................1 2 Product Overview..............................................................................................................................2 Features....................................................................................................................................................................2 Benefits.....................................................................................................................................................................3 Applications..............................................................................................................................................................3 Electrical Specifications........................................................................................................................4 3.1 Absolute Maximum Ratings................................................................................................................................4 3.2 Electrical Performance........................................................................................................................................4 3.3 Typical Performance Curves................................................................................................................................6 Package Specification...........................................................................................................................7 4.1 Package Outline Drawing....................................................................................................................................7 Microsemi Proprietary and Confidential MSCDC50H1701AG Datasheet Revision 1.0 ii Revision History 1 Revision History The revision history describes the changes that were implemented in the document. The changes are listed by revision, starting with the most current publication. 1.1 Revision 1.0 Revision 1.0 was published in December 2019. It is the first publication of this document. Microsemi Proprietary and Confidential MSCDC50H1701AG Datasheet Revision 1.0 1 Product Overview 2 Product Overview This section shows the product overview of the MSCDC50H1701AG device. All multiple inputs and outputs must be shorted together 1/2 ; 7/8 ; 9/10 ; 12/13 All ratings at Tj = 25°C, unless otherwise specified. Caution: These devices are sensitive to electrostatic discharge. Proper handling procedures should be followed. 2.1 Features The following are key features of the MSCDC50H1701AG device: • Silicon Carbide (SiC) Schottky diode ◦ Zero reverse recovery ◦ Zero forward recovery ◦ Temperature independent switching behavior ◦ Positive temperature coefficient on VF • High blocking voltage Microsemi Proprietary and Confidential MSCDC50H1701AG Datasheet Revision 1.0 2 Product Overview • Very low stray inductance • Aluminum nitrate (AlN) substrate for improved thermal performance 2.2 Benefits The following are benefits of the MSCDC50H1701AG device: • Outstanding performance at high frequency operation • Solderable terminals for easy PCB mounting • Direct mounting to heatsink (isolated package) • Low profile • RoHS compliant 2.3 Applications The MSCDC50H1701AG device is designed for the following applications: • Uninterruptible power supplies • Induction heating • Welding equipment • High-speed rectifiers Microsemi Proprietary and Confidential MSCDC50H1701AG Datasheet Revision 1.0 3 Electrical Specifications 3 Electrical Specifications This section shows the electrical specifications of the MSCDC50H1701AG device. 3.1 Absolute Maximum Ratings The following table shows the absolute maximum ratings per SiC diode of the MSCDC50H1701AG device Table 1 • Absolute Maximum Ratings Symbol Parameter Max Ratings Unit VRRM Repetitive peak reverse voltage 1700 V IF DC forward current 50 A TC = 125 °C Table 2 • Thermal and Package Characteristics 3.2 Symbol Characteristics Min VISOL RMS isolation voltage, any terminal to case t =1 minute, 50 Hz/60 Hz 4000 TJ Operating junction temperature range –40 175 TJOP Recommended junction temperature under switching conditions –40 TJmax–25 TSTG Storage temperature range –40 125 TC Operating case temperature –40 125 Torque Mounting torque 2 3 N.m Wt Package weight 80 g To heatsink M4 Max Unit V °C Electrical Performance The following table shows the electrical characteristics per SiC diode of the MSCDC50H1701AG. Table 3 • Electrical Characteristics Symbol Characteristic Test Conditions VF Diode forward voltage IF = 50 A IRM QC Reverse leakage current Total capacitive charge VR = 1700 V Min Typ Max Unit Tj = 25 °C 1.5 1.8 V Tj = 175 °C 2 Tj = 25 °C 50 200 µA Tj = 175 °C 250 VR = 900 V Microsemi Proprietary and Confidential MSCDC50H1701AG Datasheet Revision 1.0 410 nC 4 Electrical Specifications Symbol Characteristic Test Conditions C Total capacitance f = 1 MHz, VR = 600 V 300 f = 1 MHz, VR = 900 V 250 RthJC Min Junction-to-case thermal resistance Microsemi Proprietary and Confidential MSCDC50H1701AG Datasheet Revision 1.0 Typ Max Unit pF 0.32 °C/W 5 Electrical Specifications 3.3 Typical Performance Curves This following section shows the typical performance curves of the MSCDC50H1701AG device. Figure 1 • Maximum Transient Thermal Impedance Figure 2 • Forward Current vs. Forward Voltage Figure 3 • Capacitance vs. Reverse Voltage Microsemi Proprietary and Confidential MSCDC50H1701AG Datasheet Revision 1.0 6 Package Specification 4 Package Specification This section shows the package specification of the MSCDC50H1701AG device. 4.1 Package Outline Drawing The following image illustrates the package outline of the MSCDC50H1701AG device. The dimensions are in millimeters. Figure 4 • Package Outline Drawing Microsemi Proprietary and Confidential MSCDC50H1701AG Datasheet Revision 1.0 7 Legal Microchip Technology Inc. 2355 West Chandler Blvd. Chandler, Arizona, USA 85224-6199 Within the USA: +1 (800) 713-4113 Outside the USA: +1 (949) 380-6100 Sales: +1 (949) 380-6136 Fax: +1 (949) 215-4996 Email: sales.support@microsemi.com www.microsemi.com © 2019 Microsemi. All rights reserved. Microsemi and the Microsemi logo are trademarks of Microsemi Corporation. All other trademarks and service marks are the property of their respective owners. Microsemi makes no warranty, representation, or guarantee regarding the information contained herein or the suitability of its products and services for any particular purpose, nor does Microsemi assume any liability whatsoever arising out of the application or use of any product or circuit. The products sold hereunder and any other products sold by Microsemi have been subject to limited testing and should not be used in conjunction with mission-critical equipment or applications. Any performance specifications are believed to be reliable but are not verified, and Buyer must conduct and complete all performance and other testing of the products, alone and together with, or installed in, any end-products. Buyer shall not rely on any data and performance specifications or parameters provided by Microsemi. It is the Buyer's responsibility to independently determine suitability of any products and to test and verify the same. The information provided by Microsemi hereunder is provided "as is, where is" and with all faults, and the entire risk associated with such information is entirely with the Buyer. Microsemi does not grant, explicitly or implicitly, to any party any patent rights, licenses, or any other IP rights, whether with regard to such information itself or anything described by such information. Information provided in this document is proprietary to Microsemi, and Microsemi reserves the right to make any changes to the information in this document or to any products and services at any time without notice. Microsemi, a wholly owned subsidiary of Microchip Technology Inc. (Nasdaq: MCHP), offers a comprehensive portfolio of semiconductor and system solutions for aerospace & defense, communications, data center and industrial markets. Products include high-performance and radiation-hardened analog mixed-signal integrated circuits, FPGAs, SoCs and ASICs; power management products; timing and synchronization devices and precise time solutions, setting the world's standard for time; voice processing devices; RF solutions; discrete components; enterprise storage and communication solutions; security technologies and scalable anti-tamper products; Ethernet solutions; Power-over-Ethernet ICs and midspans; as well as custom design capabilities and services. Learn more at www.microsemi.com. MSCC-0344-DS-01036-1.0-1219 Microsemi Proprietary and Confidential MSCDC50H1701AG Datasheet Revision 1.0 8
