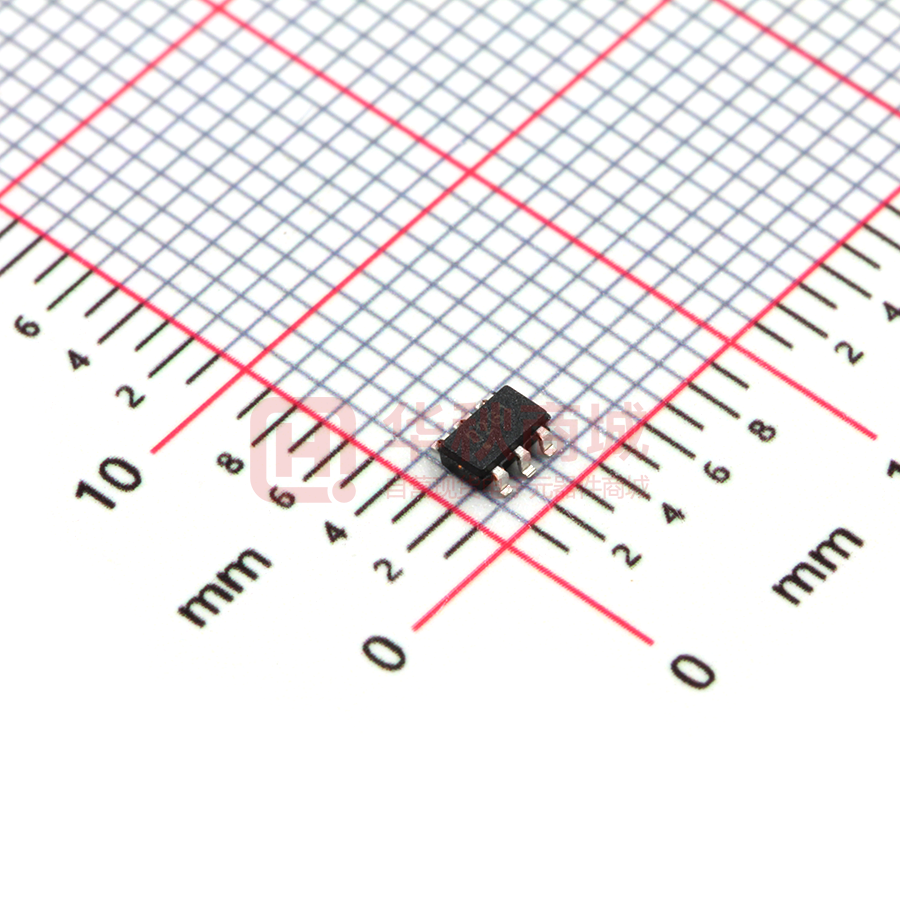

PIC10F202T-I/OT

PIC10F200/202/204/206 Memory Programming Specification This document includes the programming specifications for the following devices: • • • • 1.1 The PIC10F200/202/204/206 requires one power supply for VDD (5.0V) and one for VPP (12V). PIC10F200 PIC10F202 PIC10F204 PIC10F206 1.0 Hardware Requirements 1.2 Program/Verify Mode The Program/Verify mode for the PIC10F200/202/204/ 206 allows programming of user program memory for user ID locations, backup OSCCAL location and the Configuration Word. PROGRAMMING THE PIC10F200/202/204/206 The PIC10F200/202/204/206 is programmed using a serial method. The Serial mode will allow the PIC10F200/202/204/206 to be programmed while in the user’s system. This allows for increased design flexibility. This programming specification applies to PIC10F200/202/204/206 devices in all packages. Pin Diagrams GP0 1 VSS 2 GP1 3 6 GP3/MCLR/VPP 5 VDD 4 GP2/T0CKI/FOSC4 1 VSS 2 GP1/CIN- 3 1 VDD 2 GP2/T0CKI/FOSC4 3 GP1 4 TABLE 1-1: Pin Name 8 GP3/MCLR/VPP N/C 1 7 VSS VDD 2 6 N/C GP2/T0CKI/COUT/FOSC4 3 5 GP0 GP1/CIN- 4 5 VDD 4 GP2/T0CKI/COUT/FOSC4 8 GP3/MCLR/VPP 7 VSS 6 N/C 5 GP0/CIN+ PIN DESCRIPTIONS (DURING PROGRAMMING): PIC10F200/202/204/206 During Programming Function Pin Type Pin Description GP1 ICSPCLK I GP0 ICSPDAT I/O Program/Verify mode P Programming Power VDD VDD P Power Supply VSS VSS P Ground Legend: GP3/MCLR/VPP PIC10F204/6 N/C MCLR/VPP 6 PDIP PIC10F200/2 PDIP GP0/CIN+ PIC10F204/6 SOT-23 PIC10F200/2 SOT-23 Clock input – Schmitt Trigger input Data input/output – Schmitt Trigger input I = Input, O = Output, P = Power  2007-2011 Microchip Technology Inc. Advance Information DS41228F-page 1 PIC10F200/202/204/206 2.0 MEMORY MAPPING 2.1 User Program Memory Map have support in the language and programming tools. For this reason, it is recommended that the user only use the four LSBs of each user ID location. The user memory space extends from (0x000-0x0FF) on the PIC10F200/204 and (0x000-0x1FF) on the PIC10F202/206. In Program/Verify mode, the program memory space extends from (0x000-0x1FF) for the PIC10F200/204 and (0x000-0x3FF) for the PIC10F202/206. The first half, (0x000-0x0FF) and (0x000-0x1FF) respectively, is user program memory. The second half, (0x100-0x1FF) and (0x200-0x3FF) respectively, is configuration memory. The PC will increment from (0x000-0x0FF) and (0x000-0x1FF) respectively, then to 0x100 and 0x200, respectively (not to 0x000). 2.3 Configuration Word The Configuration Word register is physically located at 0x1FF and 0x3FF, respectively. It is only available upon Program mode entry. Once an Increment Address command is issued, the Configuration Word is no longer accessible, regardless of the address of the program counter. Note: In the configuration memory space, 0x100-0x13F for the PIC10F200/204, and 0x200-0x23F for the PIC10F202/206, are physically implemented. However, only locations 0x100-0x103 and 0x2000x203 are available. Other locations are reserved. User ID Locations The contents of user ID locations are used in the calculation of the device checksum when Code Protection is enabled (CP = 0). The four Least Significant bits (LSbs) of each location are concatenated into a 2-byte value, the “User ID”, and used in the checksum calculation. This 2-byte “User ID” is displayed by MPLAB® IDE. Table 2-1 illustrates an example of the relationship between the user ID locations and the “User ID” value (PIC10F200/204), used in the checksum computations (see Table 5-1 and Table 5-2). TABLE 2-1: User ID Memory Address “USER ID” VALUE AND LOCATION  (PIC10F200/204 EXAMPLE) User ID Location – 12-bit value Binary Hex FIGURE 2-2: User Memory Space A user may store identification information (ID) in four user ID locations. The user ID locations are mapped in [0x100:0x103] and [0x200:0x203], respectively. Each user ID location is 12 bits. PIC10F200/204 PROGRAM MEMORY MAP On-chip User Program Memory Reset Vector User ID Locations Config Memory Space 2.2 By convention, the Configuration Word register is stored at the logical address location of 0xFFF within the hex file generated for the PIC10F200/202/204/206. This logical address location may not reflect the actual physical address for the part itself. It is the responsibility of the programming software to retrieve the Configuration Word register from the logical address within the hex file and translate the address to the proper physical location when programming. Backup OSCCAL value 000h 00Fh 010h 0FEh 0FFh 100h103h 104h 105h Reserved Unimplemented Configuration Word 13Fh 140h 1FEh 1FFh “User ID” Values 0x100 0000 0000 1001b 009h 9xxxh 0x101 1100 0001 1000b C18h x8xxh 0x102 0111 0010 0100b 724h xx4xh 0x103 0110 0011 0101b 635h xxx5h “User ID” composite value displayed in MPLAB IDE = 9845h Although 12 bits are available in each location, previous devices only implemented the lower 4 bits of each location. As a result, these additional bits may not DS41228F-page 2 Advance Information  2007-2011 Microchip Technology Inc. PIC10F200/202/204/206 User Memory Space FIGURE 2-3: PIC10F202/206 PROGRAM MEMORY MAP 000h On-chip User Program Memory Reset Vector Config Memory Space User ID Locations Backup OSCCAL value 1FEh 1FFh 200h 203h 204h 205h Reserved 23Fh 240h Unimplemented Configuration Word 2.4 0FFh 100h 3FEh 3FFh Oscillator Calibration Bits The oscillator Calibration bits are stored at the Reset vector as the operand of a MOVLW instruction. Programming interfaces must allow users to program the Calibration bits themselves for custom trimming of the INTOSC. Capability for programming the Calibration bits when programming the entire memory array must also be maintained for backwards compatibility. 2.5 Backup OSCCAL Value The backup OSCCAL value, 0x104/0x204, is a factory reserved location where the OSCCAL value is stored during testing of the INTOSC. This location is not erased during a standard Bulk Erase, but is erased if the PC is moved into configuration memory prior to invoking a Bulk Erase. If this value is erased, it is the user’s responsibility to rewrite it back to this location for future use.  2007-2011 Microchip Technology Inc. Advance Information DS41228F-page 3 PIC10F200/202/204/206 3.0 PROGRAM/VERIFY MODE In Program/Verify mode, the program memory and the configuration memory can be accessed and programmed in serial fashion. ICSPDAT and ICSPCLK are used for the data and the clock, respectively. All commands and data words are transmitted LSb first. Data changes on the rising edge of the ICSPCLK and is latched on the falling edge. In Program/Verify mode, both the ICSPDAT and ICSPCLK are Schmitt Trigger inputs. The sequence that enters the device into Program/Verify mode places all other logic into the Reset state. Upon entering Program/Verify mode, all I/Os are automatically configured as high-impedance inputs and the address is cleared. 3.1 • VDD- First Entry mode • VPP- First Entry mode 3.1.1 3. To enter Program/verify mode via the VDD- first method, please follow the sequence below: 1. 2. 3. Hold ICSPCLK and ICSPDAT low. Raise the voltage on VDD from 0V to the desired operating voltage (VIL to VDD). Raise the voltage on MCLR/VPP from VDD or below, to VIHH. The VDD- first method is useful when programming the device when VDD is already applied, for it is not necessary to disconnect VDD to enter Program/Verify mode. See the timing diagram in Figure 3-2. FIGURE 3-2: PROGRAMMING MODE ENTRY – VDD FIRST TPPDP THLD0 VIHH VPP VIL VDD VPP- FIRST ENTRY MODE To enter Program/Verify mode via the VPP- first method, please follow the sequence below: 2. VDD- FIRST ENTRY MODE High-Voltage Program/Verify mode Entry and Exit There are two different methods of entering Program/ Verify mode via high-voltage: 1. 3.1.2 Hold ICSPCLK and ICSPDAT low. All other pins should be un-powered. Raise the voltage on MCLR/VPP from 0V to VIHH. Raise the voltage on VDD from 0V to the desired operating voltage. ICSPDAT ICSPCLK The VPP- first entry prevents the device from executing code prior to entering Program/Verify mode. For example, when Configuration Word 1 has MCLR disabled (MCLRE = 0), the power-up time is disabled (PWRTE = 0), the internal oscillator is selected (FOSC = 100), and ICSPCLK and ICSPDAT pins are driven by the user application, the device will execute code. Since this may prevent entry, VPP- First Entry mode is strongly recommended. See the timing diagram in Figure 3-1. FIGURE 3-1: PROGRAMMING MODE ENTRY – VPP FIRST TPPDP THLD0 VIHH VPP VIL VDD ICSPDAT ICSPCLK DS41228F-page 4 Advance Information  2007-2011 Microchip Technology Inc. PIC10F200/202/204/206 3.1.3 PROGRAM/VERIFY MODE EXIT To exit Program/Verify mode take MCLR to VDD or lower (VIL). See Figure 3-3 and Figure 3-4. FIGURE 3-3: PROGRAMMING MODE EXIT – VPP LAST TEXIT VIHH 3.2 Program/Verify Commands The PIC® Flash MCUs programming commands are six bits in length. The commands are summarized in Table 3-1. Commands that have data associated with them are specified to have a minimum delay of TDLY between the command and the data. After this delay, 16 clocks are required to either clock in or clock out the 14-bit data word. The first clock is for the Start bit and the last clock is for the Stop bit. 3.2.1 VPP VIL VDD ICSPDAT ICSPCLK FIGURE 3-4: PROGRAMMING MODE EXIT – VDD LAST TEXIT VIHH VPP VIL VDD ICSPDAT ICSPCLK SERIAL PROGRAM/VERIFY OPERATION The ICSPCLK pin is used for clock input and the ICSPDAT pin is used for data input/output during serial operation. To input a command, the clock pin is cycled six times. Each command bit is latched on the falling edge of the clock with the LSb of the command being input first. The data must adhere to the setup (TSET1) and hold (THLD1) times with respect to the falling edge of the clock (see Table 6-1). Commands that do not have data associated with them are required to wait a minimum of TDLY2 measured from the falling edge of the last command clock to the rising edge of the next command clock (see Table 6-1). Commands that do have data associated with them (Read and Load) are also required to wait TDLY2 between the command and the data segment measured from the falling edge of the last command clock to the rising edge of the first data clock. The data segment, consisting of 16 clock cycles, can begin after this delay. Note: After every End Programming command, a delay of TDIS is required. The first and last clock pulses during the data segment correspond to the Start and Stop bits, respectively. Input data is a “don't care” during the Start and Stop cycles. The 14 clock pulses between the Start and Stop cycles clock the 14 bits of input/output data. Data is transferred LSb first. During Read commands, in which the data is output from the PIC Flash MCUs, the ICSPDAT pin transitions from the high-impedance input state to the low-impedance output state at the rising edge of the second data clock (first clock edge after the Start cycle). The ICSPDAT pin returns to the high-impedance state at the rising edge of the 16th data clock (first edge of the Stop cycle). See Figure 3-6. The commands that are available are described in Table 3-1.  2007-2011 Microchip Technology Inc. Advance Information DS41228F-page 5 PIC10F200/202/204/206 TABLE 3-1: COMMAND MAPPING FOR PIC10F200/202/204/206 Command Mapping (MSb … LSb) HEX Data Load Data for Program Memory x x 0 0 1 0 02h 0, data (14), 0 Read Data from Program Memory x x 0 1 0 0 04h 0, data (14), 0 Increment Address x x 0 1 1 0 06h Begin Programming x x 1 0 0 0 08h End Programming x x 1 1 1 0 0Eh Bulk Erase Program Memory x x 1 0 0 1 09h 3.2.1.1 Externally Timed Internally Timed Load Data For Program Memory After receiving this command, the chip will load in a 14-bit “data word” when 16 cycles are applied, as described previously. Because this is a 12-bit core, the two MSbs of the data word are ignored. A timing diagram for the Load Data command is shown in Figure 3-5. FIGURE 3-5: LOAD DATA COMMAND (PROGRAM/VERIFY) 1 2 3 4 5 0 0 x 6 TDLY2 ICSPCLK ICSPDAT 3.2.1.2 1 0 TSET1 THLD1 1 2 strt_bit x 3 13 LSb 14 MSb 15 X 16 stp_bit X TSET1 -+THLD1 TDLY1 Read Data From Program Memory After receiving this command, the chip will transmit data bits out of the program memory (user or configuration) currently addressed, starting with the second rising edge of the clock input. The data pin will go into Output mode on the second rising clock edge, and it will revert to Input mode (high-impedance) after the 16th rising edge. Because this is a 12-bit core, the two MSbs of the 14-bit word will be read as ‘0’s. If the program memory is code-protected (CP = 0), portions of the program memory will be read as zeros. See Section 5.0 “Code Protection” for details. FIGURE 3-6: READ DATA FROM PROGRAM MEMORY COMMAND TDLY2 1 2 3 4 1 0 5 6 1 2 3 ICSPCLK ICSPDAT 13 14 15 16 TDLY3 0 0 x X strt_bit TDLY1 TSET1 MSb stp_bit LSb THLD1 Input DS41228F-page 6 Output Advance Information Input  2007-2011 Microchip Technology Inc. PIC10F200/202/204/206 3.2.1.3 Increment Address The PC is incremented when this command is received. A timing diagram of this command is shown in Figure 3-7. It is not possible to decrement the address counter. To reset this counter, the user must either exit and re-enter Program/Verify mode or increment the PC from 0x1FF for the PIC10F200/204 or 0x3FF for the PIC10F202/ 206 to 0x000. FIGURE 3-7: INCREMENT ADDRESS COMMAND TDLY2 1 2 3 4 5 Next Command 1 6 2 ICSPCLK ICSPDAT 0 1 0 1 x x TSET1 THLD1 3.2.1.4 Begin Programming (Externally Timed) A Load command must be given before every Begin Programming command. Programming will begin after this command is received and decoded. Programming requires (TPROG) time and is terminated using an End Programming command. This command programs the current location, no erase is performed. FIGURE 3-8: BEGIN PROGRAMMING (EXTERNALLY TIMED) TPROG 1 2 3 0 0 0 4 5 6 x x End Programming Command 1 2 ICSPCLK ICSPDAT TSET1  2007-2011 Microchip Technology Inc. 1 0 1 THLD1 Advance Information DS41228F-page 7 PIC10F200/202/204/206 3.2.1.5 End Programming The End Programming command terminates the program process. A delay of TDIS (see Table 6-1) is required before the next command to allow the internal programming voltage to discharge (see Figure 3-9). FIGURE 3-9: END PROGRAMMING (EXTERNALLY TIMED) TDIS 1 2 3 4 0 1 1 1 5 6 Next Command 1 2 ICSPCLK ICSPDAT x TSET1 3.2.1.6 Bulk Erase Program Memory After this command is performed, the entire program memory and Configuration Word is erased. 1. 2. 3. 4. 5. THLD1 To perform a full device Bulk Erase of the program memory, configuration fuses, user IDs and backup OSCCAL value, the following sequence must be performed (see Figure 3-16). Note 1: A fully erased part will read ‘1’s in every program memory location. 1. 2: The oscillator Calibration bits are erased if a Bulk Erase is invoked. They must be read and saved prior to erasing the device and restored during the programming operation. Oscillator Calibration bits are stored at the Reset vector as the operand of a MOVLW instruction. 2. 3. To perform a Bulk Erase of the program memory and configuration fuses, the following sequence must be performed (see Figure 3-15). x 4. 5. 6. 7. Read and save 0x0FF/0x1FF oscillator Calibration bits and 0x104/0x204 backup OSCCAL bits into computer/programmer temporary memory. Enter Program/Verify mode. Increment PC to 0x200/0x400 (first user ID location). Perform a Bulk Erase command. Wait TERA to complete Bulk Erase. Restore OSCCAL bits. Restore backup OSCCAL bits. Read and save 0x0FF/0x1FF oscillator Calibration bits and 0x104/0x204 backup OSCCAL bits into computer/programmer temporary memory. Enter Program/Verify mode. PC is set to Configuration Word address. Perform a Bulk Erase Program Memory command. Wait TERA to complete Bulk Erase. Restore OSCCAL bits. DS41228F-page 8 Advance Information  2007-2011 Microchip Technology Inc. PIC10F200/202/204/206 TABLE 3-2: BULK ERASE RESULTS Program Memory Space PC = Configuration Memory Space Program Memory Reset Vector Configuration Word User ID Backup OSCCAL Configuration Word or Program Memory Space E E E U U First User ID Location E E E E E FIGURE 3-10: BULK ERASE PROGRAM MEMORY COMMAND TERA 1 2 3 4 5 6 Next Command 1 2 ICSPCLK 1 ICSPDAT 0 0 1 x x TSET1 THLD1  2007-2011 Microchip Technology Inc. Advance Information DS41228F-page 9 PIC10F200/202/204/206 FIGURE 3-11: READING AND TEMPORARY SAVING OF THE OSCCAL CALIBRATION BITS Start Enter Programming Mode Increment Address No PC = 0x0FF/0x1FF? Yes Read Calibration Bits and Save in Computer/Programmer Temp. Memory Increment Address No PC = 0x104/0x204? Yes Read Backup OSCCAL Calibration Bits and Save in Computer/Programmer Temp. Memory Exit Programming Mode Done DS41228F-page 10 Advance Information  2007-2011 Microchip Technology Inc. PIC10F200/202/204/206 FIGURE 3-12: RESTORING/PROGRAMMING THE OSCCAL CALIBRATION BITS Start Enter Programming Mode Increment Address No PC = 0x0FF/0x1FF? Yes Read Calibration Bits from Computer/Programmer Temp. Memory Write Calibration Bits back as the operand of a MOVLW instruction to 0x0FF/0x1FF Increment Address No PC = 0x104/0x204? Yes Read Backup OSCCAL Calibration Bits from Computer/Programmer Temp. Memory Write Backup OSCCAL Bits back to 0x104/0x204 Exit Programming Mode Done  2007-2011 Microchip Technology Inc. Advance Information DS41228F-page 11 PIC10F200/202/204/206 FIGURE 3-13: PROGRAM FLOW CHART – PIC10F200/202/204/206 PROGRAM MEMORY Start Read and save OSCCAL bits (Figure 3-11) Enter Programing Mode PC = 0x1FF/0x3FF (Config Word) Increment Address Bulk Erase Device PROGRAM CYCLE Load Data for Program Memory One-Word Program Cycle Begin Programming Command (Externally timed) Read Data from Program Memory No Data Correct? Report Programming Failure End Programming Yes Increment Address Command No Wait TPROG All Programming Locations Done? Wait TDIS Yes Exit Programming Mode Restore OSCCAL bits (Figure 3-12) Program Configuration Memory (Figure 3-14) Done DS41228F-page 12 Advance Information  2007-2011 Microchip Technology Inc. PIC10F200/202/204/206 FIGURE 3-14: PROGRAM FLOW CHART – PIC10F200/202/204/206 CONFIGURATION MEMORY Start Enter Programming Mode PC = 0x1FF/0x3FF (Config Word) Load Data Command Programs Configuration Word One-Word Programming Cycle (see Figure 3-13) Read Data Command Data Correct? No Report Programming Failure Yes Increment Address Command No Address = 0x100/0x200 Yes Load Data Command Programs User ID’s One-Word Programming Cycle (see Figure 3-13) Read Data Command Data Correct? No Report Programming Failure Yes Increment Address Command No Address = 0x104/0x204? Yes Exit Programming Mode Yes Done  2007-2011 Microchip Technology Inc. Advance Information DS41228F-page 13 PIC10F200/202/204/206 FIGURE 3-15: PROGRAM FLOW CHART – ERASE PROGRAM MEMORY, CONFIGURATION WORD Start Bulk Erase Device Read and save OSCCAL bits (Figure 3-11) Wait TERA Restore OSCCAL bits (Figure 3-12) Enter Program/Verify mode PC = 0x1FF/0x3FF (Config Word) Exit Programming Mode Done FIGURE 3-16: PROGRAM FLOW CHART – ERASE PROGRAM MEMORY, CONFIGURATION WORD AND USER ID Read and save OSCCAL bits (Figure 3-11) Start Enter Program/Verify mode PC = 0x1FF/0x3FF (Config Word) Increment PC No PC = 0x100/0x200? (First User ID) Yes Bulk Erase Device Wait TERA Restore OSCCAL Bits (Figure 3-12) Exit Programming Mode Done DS41228F-page 14 Advance Information  2007-2011 Microchip Technology Inc. PIC10F200/202/204/206 4.0 CONFIGURATION WORD The PIC10F200/202/204/206 has several Configuration bits. These bits can be programmed (reads ‘0’) or left unchanged (reads ‘1’), to select various device configurations. REGISTER 4-1: CONFIGURATION WORD – PIC10F200/202/204/206 U-1 U-1 U-1 U-1 — — — — bit 11 bit 8 U-1 U-1 U-1 R/P-1 R/P-1 R/P-1 U-1 U-1 — — — MCLRE CP WDTE — — bit 7 bit 0 Legend: W = Writable bit ‘0’ = Bit is cleared R = Readable bit ‘1’ = Bit is set x = Bit is unknown -n = Value at POR U = Unimplemented bit P = Programmable Bit bit 11-5 Unimplemented: Read as ‘1’ bit 4 MCLRE: Master Clear Enable bit 1 = GP3/MCLR pin functions as MCLR 0 = GP3/MCLR pin functions as GP3, MCLR internally tied to VDD bit 3 CP: Code Protection bit 1 = Code protection off 0 = Code protection on bit 2 WDTE: Watchdog Timer Enable bit 1 = WDT enabled 0 = WDT disabled bit 1-0 Unimplemented: Read as ‘1’  2007-2011 Microchip Technology Inc. Advance Information DS41228F-page 15 PIC10F200/202/204/206 5.0 CODE PROTECTION 5.3 Checksum Computation For the PIC10F200/202/204/206, once code protection is enabled, all program memory locations, 0x0400x0FE (F200/204) and 0x040-x1FE (F202/206) inclusive, read all ‘0’s. Program memory locations, 0x0000x03F, 0x0FF (F200/204) and 0x1FF (F202/206), are always unprotected. The user ID locations, backup OSCCAL locations, and the Configuration Word read out in an unprotected fashion. It is possible to program the user ID locations, backup OSCCAL locations and the Configuration Word after code-protect is enabled. 5.3.1 5.1 The checksum is calculated by summing the following: Disabling Code Protection It is recommended that the following procedure be performed before any other programming is attempted. It is also possible to turn code protection off (CP = 1) using this procedure. However, all data within the program memory will be erased when this procedure is executed, and thus, the security of the code is not compromised. To disable code-protect: a) b) Enter Program mode. Execute Bulk Erase command (001001). Wait TERA. c) 5.2 Note: The checksum is calculated by reading the contents of the PIC10F200/202/204/206 memory locations and adding up the opcodes up to the maximum user addressable location (e.g., 0x1FF for the PIC10F202/206). Any Carry bits exceeding 16 bits are neglected. Finally, the Configuration Word (appropriately masked) is added to the checksum. Checksum computation for the PIC10F200/202/204/ 206 is shown in Table 5-2. • The contents of all program memory locations • The Configuration Word, appropriately masked • Masked user ID locations (when applicable) The Least Significant 16 bits of this sum is the checksum. The following table describes how to calculate the checksum for each device. Note: Program CHECKSUM Memory The checksum calculation differs depending on the code-protect setting. The Configuration Word and user ID locations can always be read regardless of the code-protect settings. Embedding Configuration Word and User ID Information in the  Hex File To allow portability of code, the programmer is required to read the Configuration Word and user ID locations from the hex file when loading the hex file. If Configuration Word information was not present in the hex file, then a simple warning message may be issued. Similarly, while saving a hex file, Configuration Word and user ID information must be included. An option to not include this information may be provided.  Microchip Technology Incorporated feels strongly that this feature is important for the benefit of the end customer. DS41228F-page 16 Advance Information  2007-2011 Microchip Technology Inc. PIC10F200/202/204/206 TABLE 5-1: CHECKSUM COMPUTATIONS – PIC10F200/204 Device Code-Protect PIC10F200/204 OFF ON Blank Value 0x723 at 0 and Max Address SUM[0x000:0x0FE] + CFGW & 0x01C 0xEF1D 0xDD65 SUM[0x00:0x3F] + CFGW & 0x01C + SUM_ID(1) 0xEEF1 0xD45D Checksum* Legend: CFGW = Configuration Word SUM[a:b] = [Sum of locations a to b inclusive] SUM_ID = User ID locations masked by 0x00F then made into a 16-bit value with ID0 as the Most Significant nibble. For example, ID0 = 0x1, ID1 = 0x2, ID2 = 0x3, ID3 = 0x4, then SUM_ID = 0x1234. *Checksum = [Sum of all the individual expressions] & [0x0FFFF] + = Addition & = Bitwise AND Note 1: The checksum shown assumes that SUM_ID contains the unprotected checksum. TABLE 5-2: CHECKSUM COMPUTATIONS – PIC10F202/206 Device Code-Protect PIC10F202/206 OFF ON Checksum* SUM[0x000:0x1FE] + CFGW & 0x01C (1) SUM[0x00:0x3F] + CFGW & 0x01C + SUM_ID Blank Value 0x723 at 0 and Max Address 0xEE1D 0xDC65 0xEDF1 0xD35D Legend: CFGW = Configuration Word SUM[a:b] = [Sum of locations a to b inclusive] SUM_ID = User ID locations masked by 0x00F then made into a 16-bit value with ID0 as the Most Significant nibble. For example, ID0 = 0x1, ID1 = 0x2, ID2 = 0x3, ID3 = 0x4, then SUM_ID = 0x1234. *Checksum = [Sum of all the individual expressions] & [0x0FFFF] + = Addition & = Bitwise AND Note 1: The checksum shown assumes that SUM_ID contains the unprotected checksum.  2007-2011 Microchip Technology Inc. Advance Information DS41228F-page 17 PIC10F200/202/204/206 6.0 PROGRAM/VERIFY MODE ELECTRICAL CHARACTERISTICS TABLE 6-1: AC/DC CHARACTERISTICS TIMING REQUIREMENTS FOR PROGRAM/VERIFY MODE Standard Operating Conditions (unless otherwise stated) Operating Temperature 10°C  TA 40°C Operating Voltage 4.5V  VDD 5.5V AC/DC CHARACTERISTICS Sym. Characteristics Min. Typ. Max. Units Conditions/ Comments General VDDPROG VDD level for programming operations, program memory 4.5 — 5.5 V VDDERA VDD level for Bulk Erase operations, program memory 4.5 — 5.5 V IDDPROG IDD level for programming operations, program memory — — 0.5 mA IDDERA IDD level for Bulk Erase operations, program memory — — 0.5 mA VPP High voltage on MCLR for Program/Verify mode entry 12.5 — 13.5 V IPP MCLR pin current during Program/Verify mode — — 0.45 mA TVHHR MCLR rise time (VSS to VIHH) for Program/ Verify mode entry — — 1.0 s TPPDP Hold time after VPP 5 — — s s TEXIT Time delay when exiting Program/Verify mode 1 — — VIH1 (ICSPCLK, ICSPDAT) input high level 0.8 VDD — — V VIL1 (ICSPCLK, ICSPDAT) input low level — — 0.2 VDD V TSET0 ICSPCLK, ICSPDAT setup time before MCLR (Program/Verify mode selection pattern setup time) 100 — — ns THLD0 ICSPCLK, ICSPDAT hold time after MCLR (Program/Verify mode selection pattern setup time) 5 — — s Serial Program/Verify TSET1 Data in setup time before clock 100 — — ns THLD1 Data in hold time after clock 100 — — ns TDLY1 Data input not driven to next clock input (delay required between command/data or command/command) 1.0 — — s TDLY2 Delay between clockto clockof next command or data 1.0 — — s TDLY3 Clock to data out valid (during Read Data) — 80 ns TERA Erase cycle time — 6 10(1) ms TPROG Programming cycle time (externally timed) — 1 2(1) ms TDIS Time delay for internal programming voltage discharge 100 — — s TRESET Time between exiting Program mode with VDD and VPP at GND and then re-entering Program mode by applying VDD. — 10 — ms Note 1: Minimum time to ensure that function completes successfully over voltage, temperature and device variations. DS41228F-page 18 Advance Information  2007-2011 Microchip Technology Inc. PIC10F200/202/204/206 APPENDIX A: REVISION HISTORY Revision F (11/2011) Revised Sections 2.2; 3.0-3.2; Table 3-1; Register 4-1; Table 5-1; Added Revision History.  2007-2011 Microchip Technology Inc. Advance Information DS41228F-page 19 PIC10F200/202/204/206 NOTES: DS41228F-page 20 Advance Information  2007-2011 Microchip Technology Inc. Note the following details of the code protection feature on Microchip devices: • Microchip products meet the specification contained in their particular Microchip Data Sheet. • Microchip believes that its family of products is one of the most secure families of its kind on the market today, when used in the intended manner and under normal conditions. • There are dishonest and possibly illegal methods used to breach the code protection feature. All of these methods, to our knowledge, require using the Microchip products in a manner outside the operating specifications contained in Microchip’s Data Sheets. Most likely, the person doing so is engaged in theft of intellectual property. • Microchip is willing to work with the customer who is concerned about the integrity of their code. • Neither Microchip nor any other semiconductor manufacturer can guarantee the security of their code. Code protection does not mean that we are guaranteeing the product as “unbreakable.” Code protection is constantly evolving. We at Microchip are committed to continuously improving the code protection features of our products. Attempts to break Microchip’s code protection feature may be a violation of the Digital Millennium Copyright Act. If such acts allow unauthorized access to your software or other copyrighted work, you may have a right to sue for relief under that Act. Information contained in this publication regarding device applications and the like is provided only for your convenience and may be superseded by updates. It is your responsibility to ensure that your application meets with your specifications. MICROCHIP MAKES NO REPRESENTATIONS OR WARRANTIES OF ANY KIND WHETHER EXPRESS OR IMPLIED, WRITTEN OR ORAL, STATUTORY OR OTHERWISE, RELATED TO THE INFORMATION, INCLUDING BUT NOT LIMITED TO ITS CONDITION, QUALITY, PERFORMANCE, MERCHANTABILITY OR FITNESS FOR PURPOSE. Microchip disclaims all liability arising from this information and its use. Use of Microchip devices in life support and/or safety applications is entirely at the buyer’s risk, and the buyer agrees to defend, indemnify and hold harmless Microchip from any and all damages, claims, suits, or expenses resulting from such use. No licenses are conveyed, implicitly or otherwise, under any Microchip intellectual property rights. Trademarks The Microchip name and logo, the Microchip logo, dsPIC, KEELOQ, KEELOQ logo, MPLAB, PIC, PICmicro, PICSTART, PIC32 logo, rfPIC and UNI/O are registered trademarks of Microchip Technology Incorporated in the U.S.A. and other countries. FilterLab, Hampshire, HI-TECH C, Linear Active Thermistor, MXDEV, MXLAB, SEEVAL and The Embedded Control Solutions Company are registered trademarks of Microchip Technology Incorporated in the U.S.A. Analog-for-the-Digital Age, Application Maestro, chipKIT, chipKIT logo, CodeGuard, dsPICDEM, dsPICDEM.net, dsPICworks, dsSPEAK, ECAN, ECONOMONITOR, FanSense, HI-TIDE, In-Circuit Serial Programming, ICSP, Mindi, MiWi, MPASM, MPLAB Certified logo, MPLIB, MPLINK, mTouch, Omniscient Code Generation, PICC, PICC-18, PICDEM, PICDEM.net, PICkit, PICtail, REAL ICE, rfLAB, Select Mode, Total Endurance, TSHARC, UniWinDriver, WiperLock and ZENA are trademarks of Microchip Technology Incorporated in the U.S.A. and other countries. SQTP is a service mark of Microchip Technology Incorporated in the U.S.A. All other trademarks mentioned herein are property of their respective companies. © 2007-2011, Microchip Technology Incorporated, Printed in the U.S.A., All Rights Reserved. Printed on recycled paper. ISBN: 978-1-61341-809-3 Microchip received ISO/TS-16949:2009 certification for its worldwide headquarters, design and wafer fabrication facilities in Chandler and Tempe, Arizona; Gresham, Oregon and design centers in California and India. The Company’s quality system processes and procedures are for its PIC® MCUs and dsPIC® DSCs, KEELOQ® code hopping devices, Serial EEPROMs, microperipherals, nonvolatile memory and analog products. In addition, Microchip’s quality system for the design and manufacture of development systems is ISO 9001:2000 certified.  2007-2011 Microchip Technology Inc. Advance Information DS41228F-page 21 Worldwide Sales and Service AMERICAS ASIA/PACIFIC ASIA/PACIFIC EUROPE Corporate Office 2355 West Chandler Blvd. Chandler, AZ 85224-6199 Tel: 480-792-7200 Fax: 480-792-7277 Technical Support: http://www.microchip.com/ support Web Address: www.microchip.com Asia Pacific Office Suites 3707-14, 37th Floor Tower 6, The Gateway Harbour City, Kowloon Hong Kong Tel: 852-2401-1200 Fax: 852-2401-3431 India - Bangalore Tel: 91-80-3090-4444 Fax: 91-80-3090-4123 India - New Delhi Tel: 91-11-4160-8631 Fax: 91-11-4160-8632 Austria - Wels Tel: 43-7242-2244-39 Fax: 43-7242-2244-393 Denmark - Copenhagen Tel: 45-4450-2828 Fax: 45-4485-2829 India - Pune Tel: 91-20-2566-1512 Fax: 91-20-2566-1513 France - Paris Tel: 33-1-69-53-63-20 Fax: 33-1-69-30-90-79 Japan - Yokohama Tel: 81-45-471- 6166 Fax: 81-45-471-6122 Germany - Munich Tel: 49-89-627-144-0 Fax: 49-89-627-144-44 Atlanta Duluth, GA Tel: 678-957-9614 Fax: 678-957-1455 Boston Westborough, MA Tel: 774-760-0087 Fax: 774-760-0088 Chicago Itasca, IL Tel: 630-285-0071 Fax: 630-285-0075 Cleveland Independence, OH Tel: 216-447-0464 Fax: 216-447-0643 Dallas Addison, TX Tel: 972-818-7423 Fax: 972-818-2924 Detroit Farmington Hills, MI Tel: 248-538-2250 Fax: 248-538-2260 Indianapolis Noblesville, IN Tel: 317-773-8323 Fax: 317-773-5453 Los Angeles Mission Viejo, CA Tel: 949-462-9523 Fax: 949-462-9608 Santa Clara Santa Clara, CA Tel: 408-961-6444 Fax: 408-961-6445 Toronto Mississauga, Ontario, Canada Tel: 905-673-0699 Fax: 905-673-6509 Australia - Sydney Tel: 61-2-9868-6733 Fax: 61-2-9868-6755 China - Beijing Tel: 86-10-8569-7000 Fax: 86-10-8528-2104 China - Chengdu Tel: 86-28-8665-5511 Fax: 86-28-8665-7889 Netherlands - Drunen Tel: 31-416-690399 Fax: 31-416-690340 China - Chongqing Tel: 86-23-8980-9588 Fax: 86-23-8980-9500 Korea - Seoul Tel: 82-2-554-7200 Fax: 82-2-558-5932 or 82-2-558-5934 China - Hangzhou Tel: 86-571-2819-3187 Fax: 86-571-2819-3189 Malaysia - Kuala Lumpur Tel: 60-3-6201-9857 Fax: 60-3-6201-9859 China - Hong Kong SAR Tel: 852-2401-1200 Fax: 852-2401-3431 Malaysia - Penang Tel: 60-4-227-8870 Fax: 60-4-227-4068 China - Nanjing Tel: 86-25-8473-2460 Fax: 86-25-8473-2470 Philippines - Manila Tel: 63-2-634-9065 Fax: 63-2-634-9069 China - Qingdao Tel: 86-532-8502-7355 Fax: 86-532-8502-7205 Singapore Tel: 65-6334-8870 Fax: 65-6334-8850 China - Shanghai Tel: 86-21-5407-5533 Fax: 86-21-5407-5066 Taiwan - Hsin Chu Tel: 886-3-5778-366 Fax: 886-3-5770-955 China - Shenyang Tel: 86-24-2334-2829 Fax: 86-24-2334-2393 Taiwan - Kaohsiung Tel: 886-7-536-4818 Fax: 886-7-330-9305 China - Shenzhen Tel: 86-755-8203-2660 Fax: 86-755-8203-1760 Taiwan - Taipei Tel: 886-2-2500-6610 Fax: 886-2-2508-0102 China - Wuhan Tel: 86-27-5980-5300 Fax: 86-27-5980-5118 Thailand - Bangkok Tel: 66-2-694-1351 Fax: 66-2-694-1350 Spain - Madrid Tel: 34-91-708-08-90 Fax: 34-91-708-08-91 UK - Wokingham Tel: 44-118-921-5869 Fax: 44-118-921-5820 China - Xian Tel: 86-29-8833-7252 Fax: 86-29-8833-7256 China - Xiamen Tel: 86-592-2388138 Fax: 86-592-2388130 China - Zhuhai Tel: 86-756-3210040 Fax: 86-756-3210049 DS41228F-page 22 Italy - Milan Tel: 39-0331-742611 Fax: 39-0331-466781 Korea - Daegu Tel: 82-53-744-4301 Fax: 82-53-744-4302 Advance Information 08/02/11  2007-2011 Microchip Technology Inc.
