RN171XVW-I/RM

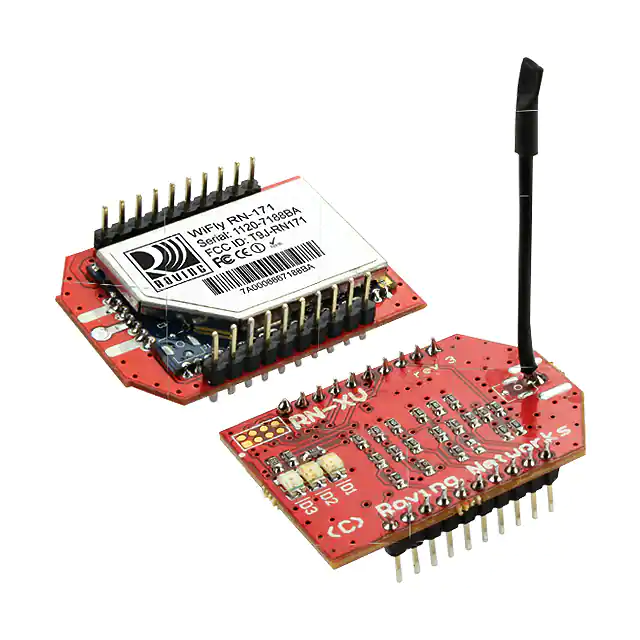

RNXV Bluetooth / Wi-Fi Module Provides drop in, certifi ed Bluetooth or Wi-Fi connectivity for existing systems currently using 802.15.4 modules PRODUCT BRIEF The RNXV module by Roving Networks provides drop-in, certifi ed Bluetooth or Wi-Fi™ connectivity for existing systems using 802.15.4 modules. Based on the popular 2 x 10 (2mm) socket footprint often found in embedded applications, the RNXV offers a complete wireless solution for customers looking to migrate to a standard protocol without modifying existing hardware. The RN171XV Wi-Fi module is built upon Roving’s RN171 ultra-low power 802.11 b/g technology which boasts a complete onboard TCP/IP stack with a simple UART interface. The onboard stack offers network services including full WEP/WPA/WPA2 security, FTP/HTTP client, UDP, TCP, HTTP, Telnet, DNS, and DHCP and Wi-Fi protected setup (WPS) amongst others. It supports infrastructure networking, AdHoc connectivity, and SoftAP. RN171XVW The RN41XV and RN42XV modules are built upon Roving’s RN41 and RN42 low power Bluetooth modules. The modules have an embedded Bluetooth stack and support multiple interface protocols and profiles including the commonly used SPP and HID profiles. The RN42 and RN41 are functionally compatible with high-performance, onboard antennas and support for Bluetooth EDR. ORDERING INFORMATION Module RN41XVU RN42XVP RN-XV-BT-WF-PB v. 1.03 12/12 Technology Antenna RN171XVW-I/RM* Wi-Fi Wire RN171XVS-I/RM Wi-Fi SMA connector RN171XVU-I/RM Wi-Fi U.FL connector RN41XVC-I/RM Bluetooth Chip RN41XVU-I/RM* Bluetooth U.FL connector RN42XVP-I/RM* Bluetooth PCB trace RN42XVU-I/RM Bluetooth U.FL connector * Note: modules shown left © 2012 Roving Networks. All rights reserved. RNXV Product Brief RN171XV (Wi-Fi) SPECIFICATIONS • • • • • • • • • • D irect internet connectivity Full 802.11 b/g data rate support Onboard TCP/IP stack Infrastructure, AdHoc, and AP modes Low power operation Industrial temperature range Multiple antenna options: wire, U.FL, SMA connector FCC, CE, IC, and Wi-Fi certifications Firmware over-air upgradeable Webserver configurator RN41XV / RN42XV (Bluetooth) • F ully certified Bluetooth® module, supports version 2.1 + Enhanced Data Rate (EDR) • Backwards-compatible with Bluetooth version 2.0, 1.2, and 1.1 • Low power: – RN41XV: 30 mA connected, < 10 mA sniff mode – RN42XV: 26 µA sleep, 3 mA connected, 30 mA transmit • UART (SPP) data connection interface • Certifications: FCC, IC, CE, Bluetooth SIG RF Data Rates Up to 54Mbps Range (LoS) ~200m Transmit Power (Tx) -2 to +12dBm (programmable) Sensitivity (Rx) -83dBm Serial Data Interface UART (up to 464Kbps) Configuration API, local or remote (over air) Frequency 2.4GHz ADC (8) 14-bit inputs Digital I/O 3 Antenna options Wire, SMA, UFL, chip Bluetooth Versions 2.1 + EDR, 2.0, 1.2, 1.1 Data Rate With onboard stack: 300Kbps Frequency Band 2.412 - 2.484 GHz Modulation Techniques FHSS/GFSK modulation, 79 channels at 1MHz intervals Profiles SPP, DUN, HID, iAP, HCI, RFCOM, L2CAP, SDP Supply Voltage 3.3V ± 10% Output Power RN41: +15dBm; RN42: +4dBm Power Consumption Standby/Idle 25 mA : Connected (normal mode) 30 mA Connected (low power Sniff) 8 mA Standby/Idle (Deep sleep enabled) 26 µA (250µA for RN41) Operating Temperature Range -40ºC to +85ºC Interface UART, USB, Bluetooth Antenna Options RN41: Chip antenna, U.FL connector RN42: PCB trace, U.FL connector Certifications FCC, IC, CE, Bluetooth SIG Dimensions in mm PIN DIAGRAM 10 9 8 7 6 5 4 3 2 1 24.4 RN-171-XV RN41XVC RN42XVP 24.4 10 9 8 7 6 5 4 3 2 1 RN41XVU RN42XVU 24.4 Top View 11 2.0 29.0 12 13 14 15 16 17 18 Top View 19 20 11 12 13 14 15 16 17 18 19 20 2.0 2.0 29.0 29.9 Dimensions in mm Side View Side View DEVELOPMENT TOOLS Roving offers several development tools for both Bluetooth and Wi-Fi RNXV modules such as the RN-XV-EK1, an evaluation kit that connects to a PC via a standard USB cable. It has 2 pushbutton switches and connectors for the RNXV. Part Number Descriptions RN-XV-EK1 RNXV Evaluation kit with UART to USB connector and 802.15.4 socket 102 Cooper Court | Los Gatos, CA 95032 +1 408 395-5300 | info@rovingnetworks.com www.rovingnetworks.com
