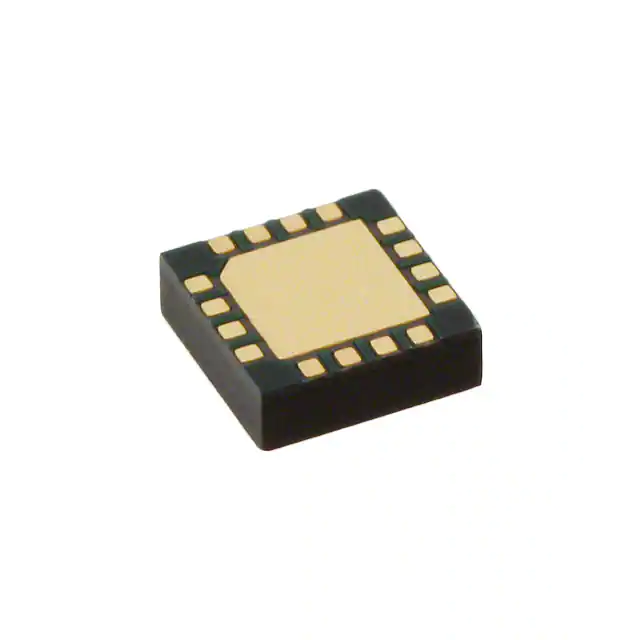

SST13LP05-MLCF

2.4-2.5 GHz / 4.9-5.8 GHz Dual-Band Power Amplifier Module SST13LP05 Data Sheet The SST13LP05 is a fully matched, dual-band power amplifier module (PAM) based on the highly-reliable InGaP/GaAs HBT technology. This PAM provides excellent RF performance, temperature-stable power detectors, and low-current analog on/ off control interfaces. The SST13LP05 provides stable RF and power detector performance over a large VCC power supply variation, with an ultra-low shut-down current. The SST13LP05 is ideal for the final stage power amplification in both batterypowered 802.11a/b/g WLAN transmitters and access point applications. Features • High Gain: • Low shut-down current (< 2 µA) – Typically 29 dB gain across 2.4-2.5 GHz – Typically 29-26 dB gain across 4.9-5.8 GHz10/12 • 20 dB dynamic range on-chip power detection • Built-in input/output matching • High linear output power: – >25 dBm P1dB (Pulsed single-tone signal) across 2.4-2.5 GHz – Meets 802.11b OFDM ACPR requirement up to 23.5 dBm across 2.4-2.5 GHz – Meets 802.11g OFDM ACPR requirement up to 23 dBm across 2.4-2.5 GHz – Added EVM ~4% up to 19 dBm for 54 Mbps 802.11g signal across 2.4-2.5 GHz – >24 dBm P1dB across 4.9-5.8 GHz – Meets 802.11a OFDM ACPR requirement up to 22.5 dBm across 4.9-5.8 GHz – Added EVM ~4% up to 18 dBm for 54 Mbps 802.11a signal across 4.9-5.8 GHz • High power-added efficiency/Low operating current for 802.11a/b/g applications • Packages available – 16-contact LGA package (4mm x 4mm) • All non-Pb (lead-free) devices are ROHS compliant. Applications • WLAN (IEEE 802.11a/g/b) • Japanese WLAN • HyperLAN2 • Multimedia – ~160 mA @ POUT = 19 dBm for 802.11g – ~235 mA @ POUT = 23.5 dBm for 802.11b – ~270 mA @ POUT = 18 dBm for 802.11a • Home RF • Built-in Ultra-low IREF power-up/down control • Cordless phones – IREF < 2 mA • High-speed power-up/down – Turn on/off time (10%-90%)
