UPS5100e3
5 A High Voltage Schottky Barrier Rectifier
KEY FEATURES
DESCRIPTION
This UPS5100e3 in the Powermite3 package is a high efficiency Schottky
rectifier that is also RoHS compliant offering high current/power capabilities
previously found only in much larger packages. They are ideal for SMD
applications that operate at high frequencies. In addition to its size
advantages, the Powermite3® package includes a full metallic bottom that
eliminates the possibility of solder flux entrapment during assembly and a
unique locking tab act as an efficient heat path to the heat-sink mounting. Its
innovative design makes this device ideal for use with automatic insertion
equipment.
Very low thermal resistance package
RoHS Compliant with e3 suffix part number
Guard-ring-die construction for transient
protection
Efficient heat path with Integral locking
bottom metal tab
Low forward voltage
Full metallic bottom eliminates flux
entrapment
Compatible with automatic insertion
Low profile-maximum height of 1mm
IMPORTANT: For the most current data, consult MICROSEMI’s website: http://www.microsemi.com
WWW . Microsemi .C OM
®
ABSOLUTE MAXIMUM RATINGS AT 25º C
(UNLESS OTHERWISE SPECIFIED)
Rating
Symbol
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
VRRM
VRWM
VR
100
V
RMS Reverse Voltage
VR(RMS)
70
V
Average Rectified Output Current
Non-Repetitive Peak Forward Surge Current
8.3ms Single half sine wave Superimposed
on Rated Load@ Tc =90 ºC
Storage Temperature
Io
5
A
IFSM
100
A
TSTG
-55 to +150
ºC
Junction Temperature
TJ
-55 to +125
ºC
Value
Unit
THERMAL CHARACTERISTICS
Thermal Resistance
Junction-to-Case (bottom)
Junction to Ambient (1)
RθJC
RθJA
2.5
65
ºC/ Watt
ºC/ Watt
(1) When mounted on FR-4 PC board using 2 oz copper with recommended minimum foot print

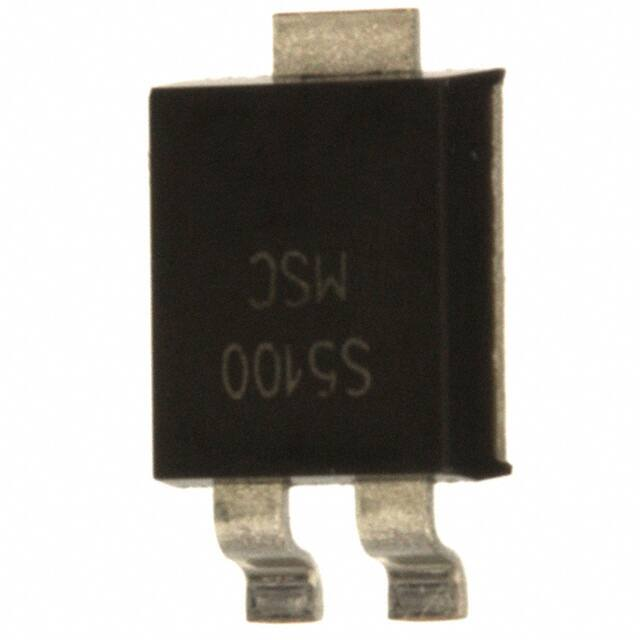

Powermite 3™
APPLICATIONS/BENEFITS
Switching and Regulating Power Supplies.
Silicon Schottky (hot carrier) rectifier for
minimal reverse voltage recovery
Elimination of reverse-recovery oscillations
to reduce need for EMI filtering
Charge Pump Circuits
Reduces reverse recovery loss with low IRM
Small foot print
190 X 260 mils (1:1 Actual size)
See mounting pad details on pg 3
MECHANICAL & PACKAGING
• CASE: Void-free transfer molded
thermosetting epoxy compound meeting
UL94V-0
• FINISH: Annealed matte-Tin plating over
copper and readily solderable per MILSTD-750 method 2026 (consult factory for
Tin-Lead plating)
• POLARITY: See figure (left)
• MARKING: S5100•
• WEIGHT: 0.072 gram (approx.)
• Package dimension on last page
• Tape & Reel option: 16 mm tape per
Standard EIA-481-B, 5000 on 13” reel
UPS5100e3
Copyright © 2007
10-15-2007 Rev C
Microsemi
Page 1
UPS5100e3
5 A High Voltage Schottky Barrier Rectifier
ELECTRICAL PARAMETERS @ 25°C (unless otherwise specified)
Symbol
VF
IF = 5 A , TL = 25 ºC
IF = 5 A , TL = 125 ºC
IF = 10 A , TL = 25 ºC
IF = 10 A , TL = 125 ºC
VBR
IR = 0.2 mA
Forward Voltage (Note 1)
Reverse Break Down Voltage
(Note 1)
Min
Typ.
Max
0.75
0.58
0.84
0.67
0.81
0.64
0.90
0.73
100
Units
V
V
IR
VR = 100V, Tj = 25ºC
VR = 100V, Tj = 125 ºC
15
10
CT
VR = 4 V; f = 1 MHZ
150
Reverse Current (Note1)
Capacitance
Conditions
200
20
μA
mA
WWW . Microsemi .C OM
Parameter
pF
Note: 1 Short duration test pulse used to minimize self – heating effect.
UPS5100e3
Copyright © 2007
10-15-2007 Rev C
Microsemi
Page 2
UPS5100e3
5 A High Voltage Schottky Barrier Rectifier
WWW . Microsemi .C OM
Notes: 1. TA = TSOLDERING POINT, RΘJS = 2.5C/W, RΘSA = 0ºC/W.
2. Device mounted on GETEK substrate, 2" x 2", 2 oz. copper , double-sided , cathode
pad dimensions 0.75" x 1.0", anode pad dimensions 0.25" x 1.0". RΘJA in range of
20-35°C/W.
3. Device mounted on FRA-4 substrate, 2" x 2", 2 oz. copper, single-sided, pad layout
RΘJA in range of 65°C/W. See mounting pad below.
MOUNTING PAD LAYOUT
UPS5100e3
Mounting Pad Dimensions: inches [mm]
Copyright © 2007
10-15-2007 Rev C
Microsemi
Page 3
UPS5100e3
5 A High Voltage Schottky Barrier Rectifier
WWW . Microsemi .C OM
TAPE & REEL
13 INCH REEL
UPS5100e3
Copyright © 2007
10-15-2007 Rev C
Microsemi
Page 4
UPS5100e3
5 A High Voltage Schottky Barrier Rectifier
WWW . Microsemi .C OM
PACKAGE DIMENSIONS
UPS5100e3
Copyright © 2007
10-15-2007 Rev C
Microsemi
Page 5
