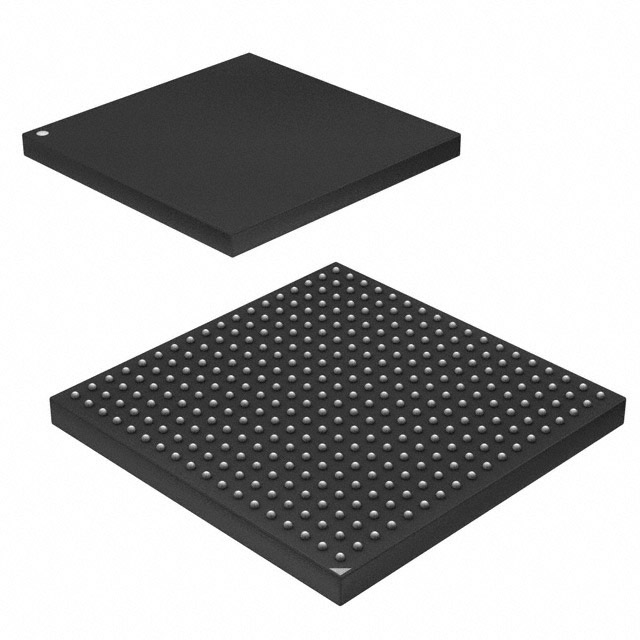

VSC7440 Datasheet
L2/L3 Enterprise Gigabit Ethernet Switch with 10 Gbps
Links
Microsemi Headquarters
One Enterprise, Aliso Viejo,
CA 92656 USA
Within the USA: +1 (800) 713-4113
Outside the USA: +1 (949) 380-6100
Sales: +1 (949) 380-6136
Fax: +1 (949) 215-4996
Email: sales.support@microsemi.com
www.microsemi.com
©2019 Microsemi, a wholly owned
subsidiary of Microchip Technology Inc. All
rights reserved. Microsemi and the
Microsemi logo are registered trademarks of
Microsemi Corporation. All other trademarks
and service marks are the property of their
respective owners.
Microsemi makes no warranty, representation, or guarantee regarding the information contained herein or the suitability of
its products and services for any particular purpose, nor does Microsemi assume any liability whatsoever arising out of the
application or use of any product or circuit. The products sold hereunder and any other products sold by Microsemi have
been subject to limited testing and should not be used in conjunction with mission-critical equipment or applications. Any
performance specifications are believed to be reliable but are not verified, and Buyer must conduct and complete all
performance and other testing of the products, alone and together with, or installed in, any end-products. Buyer shall not
rely on any data and performance specifications or parameters provided by Microsemi. It is the Buyer’s responsibility to
independently determine suitability of any products and to test and verify the same. The information provided by Microsemi
hereunder is provided “as is, where is” and with all faults, and the entire risk associated with such information is entirely
with the Buyer. Microsemi does not grant, explicitly or implicitly, to any party any patent rights, licenses, or any other IP
rights, whether with regard to such information itself or anything described by such information. Information provided in this
document is proprietary to Microsemi, and Microsemi reserves the right to make any changes to the information in this
document or to any products and services at any time without notice.
About Microsemi
Microsemi, a wholly owned subsidiary of Microchip Technology Inc. (Nasdaq: MCHP), offers a comprehensive portfolio of
semiconductor and system solutions for aerospace & defense, communications, data center and industrial markets.
Products include high-performance and radiation-hardened analog mixed-signal integrated circuits, FPGAs, SoCs and
ASICs; power management products; timing and synchronization devices and precise time solutions, setting the world's
standard for time; voice processing devices; RF solutions; discrete components; enterprise storage and communication
solutions, security technologies and scalable anti-tamper products; Ethernet solutions; Power-over-Ethernet ICs and
midspans; as well as custom design capabilities and services. Learn more at www.microsemi.com.
VMDS-10492. 4.2 6/19
Contents
1 Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.1
1.2
1.3
Revision 4.2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Revision 4.1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Revision 4.0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
2 Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2.1
2.2
General Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.1.1
Layer 2 and Layer 3 Forwarding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.1.2
Timing and Synchronization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.1.3
Quality of Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.1.4
Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.1.5
Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.1.6
Product Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2
2
2
2
3
3
3
4
3 Functional Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3.1
3.2
3.3
3.4
3.5
3.6
3.7
3.8
3.9
Register Notations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Functional Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3.2.1
Frame Arrival in Ports and Port Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3.2.2
Basic Classification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3.2.3
Security and Control Protocol Classification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3.2.4
Policing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3.2.5
Layer 2 Forwarding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3.2.6
Layer 3 Forwarding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3.2.7
Shared Queue System and Hierarchical Scheduler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.2.8
Rewriter and Frame Departure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.2.9
CPU Port Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.2.10 Synchronous Ethernet and Precision Time Protocol (PTP) . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.2.11 CPU Subsystem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Frame Headers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3.3.1
Internal Frame Header Placement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3.3.2
Internal Frame Header Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3.3.3
VStaX Header . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Port Numbering and Mappings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
3.4.1
Supported SerDes Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
3.4.2
Dual-Media Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
3.4.3
10G Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
3.4.4
Logical Port Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
SERDES1G . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
SERDES6G . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
SERDES10G . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Copper Transceivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
3.8.1
Register Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
3.8.2
Cat5 Twisted Pair Media Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
3.8.3
Wake-On-LAN and SecureOn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
3.8.4
Ethernet Inline Powered Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
3.8.5
IEEE 802.3af PoE Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
3.8.6
ActiPHY™ Power Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
3.8.7
Testing Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
3.8.8
VeriPHY™ Cable Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
DEV1G and DEV2G5 Port Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
VMDS-10492 VSC7440 Datasheet Revision 4.2
i
3.10
3.11
3.12
3.13
3.14
3.15
3.16
3.17
3.18
3.19
3.20
3.21
3.9.1
MAC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
3.9.2
Half-Duplex Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
3.9.3
Physical Coding Sublayer (PCS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
3.9.4
Port Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
DEV10G Port Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
3.10.1 MAC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
3.10.2 Physical Coding Sublayer (PCS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
3.10.3 Port Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Assembler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
3.11.1 Setting Up a Port in the Assembler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
3.11.2 Setting Up a Port for Frame Injection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
3.11.3 Setting Up MAC Control Sublayer PAUSE Frame Detection . . . . . . . . . . . . . . . . . . . . . . . . . 52
3.11.4 Setting Up PFC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
3.11.5 Setting Up Assembler Port Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
3.11.6 Setting Up the Loopback Path . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Versatile Content-Aware Processor (VCAP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
3.12.1 Configuring VCAP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
3.12.2 Wide VCAP Entries and Actions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
3.12.3 Individual VCAPs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
3.12.4 VCAP Programming Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Pipeline Points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
3.13.1 Pipeline Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Analyzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
3.14.1 Initializing the Analyzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
VCAP CLM Keys and Actions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
3.15.1 Keys Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
3.15.2 VCAP CLM X1 Key Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
3.15.3 VCAP CLM X2 Key Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
3.15.4 VCAP CLM X4 Key Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
3.15.5 VCAP CLM X8 Key Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
3.15.6 VCAP CLM X16 Key Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
3.15.7 VCAP CLM Actions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Analyzer Classifier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
3.16.1 Basic Classifier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
3.16.2 VCAP CLM Processing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
3.16.3 QoS Mapping Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
3.16.4 Analyzer Classifier Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
VLAN and MSTP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
3.17.1 Private VLAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
3.17.2 VLAN Pseudo Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
VCAP LPM: Keys and Action . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
3.18.1 VCAP LPM SGL_IP4 Key Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
3.18.2 VCAP LPM DBL_IP4 Key Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
3.18.3 VCAP LPM SGL_IP6 Key Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
3.18.4 VCAP LPM DBL_IP6 Key Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
3.18.5 VCAP LPM Actions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
IP Processing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
3.19.1 IP Source/Destination Guard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
3.19.2 IP Routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
3.19.3 Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
3.19.4 IGMP/MLD Snooping Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
VCAP IS2 Keys and Actions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
3.20.1 VCAP IS2 Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
3.20.2 VCAP IS2 Actions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
Analyzer Access Control Lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
3.21.1 VCAP IS2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
VMDS-10492 VSC7440 Datasheet Revision 4.2
ii
3.22
3.23
3.24
3.25
3.26
3.27
3.21.2 Analyzer Access Control List Frame Rewriting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Analyzer Layer 2 Forwarding and Learning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
3.22.1 Analyzer MAC Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
3.22.2 MAC Table Updates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
3.22.3 CPU Access to MAC Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
3.22.4 SCAN Command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
3.22.5 Forwarding Lookups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
3.22.6 Source Check and Automated Learning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
3.22.7 Automated Aging (AUTOAGE) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
3.22.8 Interrupt Handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184
Analyzer Access Control Forwarding, Policing, and Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
3.23.1 Mask Handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
3.23.2 Policing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
3.23.3 Analyzer Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 198
3.23.4 Analyzer sFlow Sampling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205
3.23.5 Mirroring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 206
Shared Queue System and Hierarchical Scheduler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
3.24.1 Analyzer Result . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
3.24.2 Buffer Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
3.24.3 Forwarding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211
3.24.4 Congestion Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213
3.24.5 Queue Mapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 219
3.24.6 Queue Congestion Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 223
3.24.7 Scheduling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 225
3.24.8 Queue System Initialization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 229
3.24.9 Miscellaneous Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 229
Automatic Frame Injector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 232
3.25.1 Injection Tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 233
3.25.2 Frame Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 234
3.25.3 Delay Triggered Injection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 234
3.25.4 Timer Triggered Injection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 238
3.25.5 Injection Queues . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 244
3.25.6 Adding Injection Frame . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 244
3.25.7 Starting Injection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 245
3.25.8 Stopping Injection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 245
3.25.9 Removing Injection Frames . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 245
3.25.10 Port Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 245
Rewriter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 246
3.26.1 Rewriter Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 246
3.26.2 Supported Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 246
3.26.3 Supported Frame Formats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 247
3.26.4 Rewriter Initialization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 247
3.26.5 VCAP_ES0 Lookup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 247
3.26.6 Mapping Tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 259
3.26.7 VLAN Editing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 261
3.26.8 DSCP Remarking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 266
3.26.9 VStaX Header Insertion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 267
3.26.10 Forwarding to GCPU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 267
3.26.11 Layer 3 Routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 269
3.26.12 Mirror Frames . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 269
3.26.13 Internal Frame Header Insertion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 270
3.26.14 Frame Injection from Internal CPU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 271
Disassembler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 272
3.27.1 Setting Up Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 272
3.27.2 Maintaining the Cell Buffer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 273
3.27.3 Setting Up MAC Control Sublayer PAUSE Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 273
3.27.4 Setting up Flow Control in Half-Duplex Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 274
3.27.5 Setting Up Frame Aging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 274
VMDS-10492 VSC7440 Datasheet Revision 4.2
iii
3.28
3.29
3.30
3.31
3.32
3.33
3.34
3.35
3.36
3.27.6 Setting Up Transmit Data Rate Limiting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 275
3.27.7 Error Detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 277
Layer 1 Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 277
Hardware Time Stamping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 281
3.29.1 One-Step Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 283
3.29.2 Calculation Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 284
3.29.3 Detecting Calculation Issues . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 285
3.29.4 Two-Step Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 285
3.29.5 Time of Day Time Stamping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 285
3.29.6 Time of Day Generation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 286
3.29.7 Multiple PTP Time Domains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 287
3.29.8 Register Interface to 1588 Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 287
3.29.9 Configuring I/O Delays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 289
VRAP Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 289
3.30.1 VRAP Request Frame Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 290
3.30.2 VRAP Response Frame Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 291
3.30.3 VRAP Header Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 291
3.30.4 VRAP READ Command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 291
3.30.5 VRAP READ-MODIFY-WRITE Command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 292
3.30.6 VRAP IDLE Command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 292
3.30.7 VRAP PAUSE Command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 292
Energy Efficient Ethernet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 293
CPU Injection and Extraction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 294
3.32.1 Frame Injection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 294
3.32.2 Frame Extraction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 295
3.32.3 Forwarding to CPU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 295
3.32.4 Automatic Frame Injection (AFI) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 295
Priority-Based Flow Control (PFC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 296
3.33.1 PFC Pause Frame Generation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 296
3.33.2 PFC Frame Reception . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 297
Protection Switching . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 297
3.34.1 Ethernet Ring Protection Switching . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 298
3.34.2 Link Aggregation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 301
3.34.3 Port Protection Switching . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 301
Low Power Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 301
3.35.1 One-Time Configurations for Low Power Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 301
3.35.2 General Considerations in Low Power Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 302
Clocking and Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 302
3.36.1 Pin Strapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 303
4 VCore-III System and CPU Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 305
4.1
4.2
4.3
4.4
4.5
VCore-III Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 306
Clocking and Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 306
4.2.1
Watchdog Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 307
Shared Bus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 307
4.3.1
VCore-III Shared Bus Arbitration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 309
4.3.2
Chip Register Region . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 309
4.3.3
SI Flash Region . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 310
4.3.4
DDR3/DDR3L Region . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 311
4.3.5
PCIe Region . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 311
VCore-III CPU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 311
4.4.1
Little Endian and Big Endian Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 311
4.4.2
Software Debug and Development . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 311
External CPU Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 311
4.5.1
Register Access and Multimaster Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 312
4.5.2
Serial Interface in Slave Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 312
VMDS-10492 VSC7440 Datasheet Revision 4.2
iv
4.6
4.7
4.8
4.5.3
MIIM Interface in Slave Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 314
4.5.4
Access to the VCore Shared Bus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 316
4.5.5
Mailbox and Semaphores . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 317
PCIe Endpoint Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 318
4.6.1
Accessing Endpoint Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 319
4.6.2
Enabling the Endpoint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 319
4.6.3
Base Address Registers Inbound Requests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 321
4.6.4
Outbound Interrupts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 321
4.6.5
Outbound Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 322
4.6.6
Power Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 323
4.6.7
Device Reset Using PCIe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 324
Frame DMA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 325
4.7.1
DMA Control Block Structures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 326
4.7.2
Enabling and Disabling FDMA Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 327
4.7.3
Channel Counters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 328
4.7.4
FDMA Events and Interrupts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 329
4.7.5
FDMA Extraction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 330
4.7.6
FDMA Injection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 330
4.7.7
Manual Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 331
VCore-III System Peripherals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 333
4.8.1
SI Boot Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 333
4.8.2
SI Master Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 335
4.8.3
DDR3/DDR3L Memory Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 340
4.8.4
Timers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 345
4.8.5
UARTs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 346
4.8.6
Two-Wire Serial Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 347
4.8.7
MII Management Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 350
4.8.8
GPIO Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 352
4.8.9
Serial GPIO Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 355
4.8.10 Fan Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 360
4.8.11 Temperature Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 361
4.8.12 Memory Integrity Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 361
4.8.13 Interrupt Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 364
5 Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 370
6 Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 371
6.1
6.2
DC Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 371
6.1.1
Reference Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 371
6.1.2
PLL Clock Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 371
6.1.3
DDR3/DDR3L SDRAM Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 371
6.1.4
SERDES1G . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 372
6.1.5
SERDES6G . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 373
6.1.6
SERDES10G . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 374
6.1.7
GPIO, SI, JTAG, and Miscellaneous Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 375
6.1.8
Thermal Diode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 376
AC Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 377
6.2.1
Reference Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 377
6.2.2
PLL Clock Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 379
6.2.3
SERDES1G . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 379
6.2.4
SERDES6G . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 380
6.2.5
SERDES10G . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 383
6.2.6
Reset Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 388
6.2.7
MII Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 389
6.2.8
Serial Interface (SI) Boot Master Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 390
6.2.9
Serial Interface (SI) Master Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 390
6.2.10 Serial Interface (SI) for Slave Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 391
6.2.11 DDR SDRAM Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 392
VMDS-10492 VSC7440 Datasheet Revision 4.2
v
6.3
6.4
6.5
6.2.12 JTAG Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.2.13 Serial Inputs/Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.2.14 Recovered Clock Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.2.15 Two-Wire Serial Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.2.16 IEEE 1588 Time Tick Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Current and Power Consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.3.1
Current Consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.3.2
Power Consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.3.3
Power Supply Sequencing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operating Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Stress Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
394
396
396
397
399
399
399
400
400
400
401
7 Pin Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 402
7.1
7.2
7.3
7.4
Pin Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 402
Pins by Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 403
7.2.1
DDR SDRAM Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 404
7.2.2
General-Purpose Inputs and Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 405
7.2.3
JTAG Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 405
7.2.4
MII Management Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 405
7.2.5
Miscellaneous . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 406
7.2.6
PCI Express Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 406
7.2.7
Power Supplies and Ground . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 406
7.2.8
SERDES1G . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 407
7.2.9
SERDES6G . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 407
7.2.10 SERDES10G . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 407
7.2.11 Serial CPU Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 408
7.2.12 System Clock Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 408
7.2.13 Twisted Pair Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 409
Pins by Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 411
Pins by Name . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 414
8 Package Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 417
8.1
8.2
8.3
Package Drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 417
Thermal Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 418
Moisture Sensitivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 419
9 Design Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 420
9.1
9.2
9.3
Power Supplies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 420
Power Supply Decoupling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 420
9.2.1
Reference Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 420
9.2.2
Single-Ended REFCLK Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 420
Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 421
9.3.1
General Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 421
9.3.2
SerDes Interfaces (SGMII, 2.5G, 10G) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 422
9.3.3
Serial Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 422
9.3.4
PCI Express Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 422
9.3.5
Two-Wire Serial Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 423
9.3.6
DDR3 SDRAM Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 423
9.3.7
Thermal Diode External Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 424
10 Design Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 426
11 Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 427
VMDS-10492 VSC7440 Datasheet Revision 4.2
vi
Figures
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7
Figure 8
Figure 9
Figure 10
Figure 11
Figure 12
Figure 13
Figure 14
Figure 15
Figure 16
Figure 17
Figure 18
Figure 19
Figure 20
Figure 21
Figure 22
Figure 23
Figure 24
Figure 25
Figure 26
Figure 27
Figure 28
Figure 29
Figure 30
Figure 31
Figure 32
Figure 33
Figure 34
Figure 35
Figure 36
Figure 37
Figure 38
Figure 39
Figure 40
Figure 41
Figure 42
Figure 43
Figure 44
Figure 45
Figure 46
Figure 47
Figure 48
Figure 49
Figure 50
Figure 51
Figure 52
Figure 53
Figure 54
RTL Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Default Scheduler-Shaper Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Frame with Internal Frame Header . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Internal Frame Header . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Frame With VStaX Header . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
VStaX Header Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
10G Muxing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Register Space Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Cat5 Media Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Low Power Idle Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Wake-On-LAN Functionality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Inline Powered Ethernet Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
ActiPHY State Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Far-End Loopback Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Near-End Loopback Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Connector Loopback Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Frame Injection Formats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
VCAP Cache Layout Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
VCAP Cache Type-Group Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Processing Flow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
VLAN Acceptance Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Basic QoS Classification Flow Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Basic DP Classification Flow Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Basic DSCP Classification Flow Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Basic VLAN Classification Flow Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Example of QoS Mappings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
VLAN Table Update Engine (TUPE) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
Router Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Unicast Routing Table Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Multicast Routing Table Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
Ingress Router Leg Lookup Flow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Ingress Router Leg MAC Address Matching for Unicast Packets . . . . . . . . . . . . . . . . . . . . . . . . . 139
IP Unicast Routing Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
ARP Pointer Remapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
IP Multicast Routing Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
MAC Table Organization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
DMAC Lookup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179
Source Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
PGID Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
PGID Lookup Decision Forwarding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
GLAG Port of Exit Calculation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
Port Mask Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
Policer Hierarchy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192
Sticky Events Available as Global Events . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199
Port Statistics Counters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199
Queue Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
BUM Policer Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
ACL Policer Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203
Ingress and Egress Routing Statistics per Router Leg per IP Version . . . . . . . . . . . . . . . . . . . . . 204
sFlow Stamp Format in FCS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 206
Ingress Mirroring in Specific VLAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
Shared Queue System Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209
Translation of Transmit Requests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213
VMDS-10492 VSC7440 Datasheet Revision 4.2
vii
Figure 55
Figure 56
Figure 57
Figure 58
Figure 59
Figure 60
Figure 61
Figure 62
Figure 63
Figure 64
Figure 65
Figure 66
Figure 67
Figure 68
Figure 69
Figure 70
Figure 71
Figure 72
Figure 73
Figure 74
Figure 75
Figure 76
Figure 77
Figure 78
Figure 79
Figure 80
Figure 81
Figure 82
Figure 83
Figure 84
Figure 85
Figure 86
Figure 87
Figure 88
Figure 89
Figure 90
Figure 91
Figure 92
Figure 93
Figure 94
Figure 95
Figure 96
Figure 97
Figure 98
Figure 99
Figure 100
Figure 101
Figure 102
Figure 103
Figure 104
Figure 105
Figure 106
Figure 107
Figure 108
Figure 109
Figure 110
Figure 111
Figure 112
Figure 113
Accounting Sheet Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 214
Reserved and Shared Resource Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215
Strict Priority Sharing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215
Per Priority Sharing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 216
WRED Sharing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 217
WRED Profiles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 217
Scheduler Hierarchy (Normal Scheduling Mode) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220
Queue Mapping Tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
Group Scheduling Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 222
Mobile Backhaul Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 222
Drop Decision Flow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 223
Queue Limitation Share . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 224
Default Scheduling Hierarchy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 226
Scheduler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 227
Internal Bus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231
Injection Tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 233
DTI Frame/Delay Sequence Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 235
Fine Tuning Bandwidth of DTI Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 236
Fine Tuning Bandwidth of Multiframe DTI Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 236
DTI Frame/Delay Sequence Using Inject Forever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 237
DTI Concatenation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 237
TTI Calendar Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 241
AFI TUPE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 243
Frame Forward Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 256
Mapping Tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260
VLAN Pushing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 262
VLAN Tag Construction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 264
Supported KEEP_IFH_SEL Formats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 271
Supported Time Stamping Flows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 281
Frame Flow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 282
Time Stamp Bus and FIFO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 285
Timing Distribution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 286
VRAP Request Frame Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 290
VRAP Header Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 291
READ Command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 292
WRITE Command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 292
READ-MODIFY-WRITE Command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 292
IDLE Command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 292
PAUSE Command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 293
EEE State Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 293
Down-MEP Injection from AFI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 296
PFC Generation Per Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 297
Ethernet Ring Protection Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 298
Ethernet Ring with Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 299
VCore-III System Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 305
Shared Bus Memory Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 308
Chip Registers Memory Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 310
SI Slave Mode Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 312
Write Sequence for SI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 313
Read Sequence for SI_CLK Slow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 314
Read Sequence for SI_CLK Pause . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 314
Read Sequence for One-Byte Padding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 314
MIIM Slave Write Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 316
MIIM Slave Read Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 316
FDMA DCB Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 327
FDMA Channel States . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 328
FDMA Channel Interrupt Hierarchy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 330
Extraction Status Word Encoding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 332
Injection Status Word Encoding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 333
VMDS-10492 VSC7440 Datasheet Revision 4.2
viii
Figure 114
Figure 115
Figure 116
Figure 117
Figure 118
Figure 119
Figure 120
Figure 121
Figure 122
Figure 123
Figure 124
Figure 125
Figure 126
Figure 127
Figure 128
Figure 129
Figure 130
Figure 131
Figure 132
Figure 133
Figure 134
Figure 135
Figure 136
Figure 137
Figure 138
Figure 139
Figure 140
Figure 141
Figure 142
Figure 143
Figure 144
Figure 145
Figure 146
Figure 147
Figure 148
Figure 149
Figure 150
Figure 151
Figure 152
Figure 153
Figure 154
Figure 155
Figure 156
SI Boot Controller Memory Map in 24-Bit Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 334
SI Boot Controller Memory Map in 32-Bit Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 334
SI Read Timing in Normal Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 335
SI Read Timing in Fast Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 335
SIMC SPI Clock Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 338
SIMC SPI 3x Transfers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 338
Memory Controller ODT Hookup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 343
UART Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 346
Two-Wire Serial Interface Timing for 7-bit Address Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 349
MII Management Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 351
SIO Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 356
SIO Timing with SGPIOs Disabled . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 357
SGPIO Output Order . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 357
Link Activity Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 359
Monitor State Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 363
Memory Detection Logic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 364
Interrupt Source Logic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 367
Interrupt Destination Logic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 368
Port Module Interrupt Logic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 368
Thermal Diode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 376
REFCLK/REFCLK2 Jitter Transfer Curves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 378
nRESET Signal Timing Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 388
MIIM Timing Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 389
SI Timing Diagram for Master Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 390
SI Input Data Timing Diagram for Slave Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 391
SI Output Data Timing Diagram for Slave Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 391
SI_DO Disable Test Circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 392
DDR SDRAM Input Timing Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 392
DDR SDRAM Output Timing Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 393
Test Load Circuit for DDR3 Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 394
JTAG Interface Timing Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 395
Test Circuit for TDO Disable Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 395
Serial I/O Timing Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 396
Test Circuit for Recovered Clock Output Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 397
Two-Wire Serial Read Timing Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 397
Two-Wire Serial Write Timing Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 398
Pin Diagram, Top Left . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 402
Pin Diagram, Top Right . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 403
Package Drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 418
2.5 V CMOS Single-Ended REFCLK Input Resistor Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . 421
3.3 V CMOS Single-Ended REFCLK Input Resistor Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . 421
16-Bit DDR3 SDRAM Point-to-Point Routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 423
External Temperature Monitor Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 425
VMDS-10492 VSC7440 Datasheet Revision 4.2
ix
Tables
Table 1
Table 2
Table 3
Table 4
Table 5
Table 6
Table 7
Table 8
Table 9
Table 10
Table 11
Table 12
Table 13
Table 14
Table 15
Table 16
Table 17
Table 18
Table 19
Table 20
Table 21
Table 22
Table 23
Table 24
Table 25
Table 26
Table 27
Table 28
Table 29
Table 30
Table 31
Table 32
Table 33
Table 34
Table 35
Table 36
Table 37
Table 38
Table 39
Table 40
Table 41
Table 42
Table 43
Table 44
Table 45
Table 46
Table 47
Table 48
Table 49
Table 50
Table 51
Table 52
Table 53
Table 54
Product Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Internal Frame Header Fields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
VStaX Header Fields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Default Port Numbering and Port Mappings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Interface Macro to I/O Pin Mapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Supported SerDes Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
10G Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Supported MDI Pair Combinations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
DEV1G and DEV2G5 MAC Configuration Registers Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
DEV1G and DEV2G5 Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
DEV1G and DEV2G5 Interrupt Sources Register Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
DEV1G and DEV2G5 Port Mode Configuration Registers Overview . . . . . . . . . . . . . . . . . . . . . . . 39
DEV1G and DEV2G5 PCS Configuration Registers Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
DEV1G and DEV2G5 PCS Test Pattern Configuration Registers . . . . . . . . . . . . . . . . . . . . . . . . . 41
DEV1G and DEV2G5 PCS EEE Configuration Registers Overview . . . . . . . . . . . . . . . . . . . . . . . 42
DEV1G and DEV2G5 100BASE-FX Configuration Registers Overview . . . . . . . . . . . . . . . . . . . . . 42
DEV10G Operation Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
DEV10G MAC Configuration Registers Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
DEV10G Reset Registers Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
DEV10G Interrupt Sources Registers Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
DEV10G BASE-R PCS Interrupt Sources Registers Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
DEV10G Port Mode Configuration Registers Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
DEV10G Port Module Advance Checks Configuration Registers . . . . . . . . . . . . . . . . . . . . . . . . . . 45
DEV10G PCS Configuration Registers Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
DEV10G PCS Status Registers Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
DEV10G BASE-R PCS Test Pattern Configuration Registers Overview . . . . . . . . . . . . . . . . . . . . 47
DEV10G PCS EEE Configuration and Status Registers Overview . . . . . . . . . . . . . . . . . . . . . . . . 48
DEV10G KR FEC Configuration and Status Registers Overview . . . . . . . . . . . . . . . . . . . . . . . . . . 48
DEV10G Statistics Registers Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Port Configuration Register Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Port Status Register Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Injection VLAN Register Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
PAUSE Frame Detection Configuration Register Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
PFC Configuration Register Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Port Statistics Configuration Register Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Loopback FIFO Configuration Register Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Loopback FIFO Sticky-Bit Registers Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
VCAP_ES0 and VCAP_SUPER Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Entry Bit Encoding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
VCAP CLM Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
VCAP CLM Entry Type-Group Fields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
VCAP CLM Action Type-Group Fields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
VCAP CLM Entry/Action Bit Distribution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
VCAP CLM Default Rule Addresses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
VCAP IS2 Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
VCAP IS2 Entry Type-Group Fields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
VCAP IS2 Entry/Action Bit Distribution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
VCAP LPM Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
VCAP LPM Entry Type-Group Fields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
VCAP LPM Entry/Action Bit Distribution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
VCAP ES0 Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
VCAP ES0 Entry/Action Bit Distribution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
CLM X2 Entry Type-Group and Distribution Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
CLM X4 Action Type-Group and Distribution Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
VMDS-10492 VSC7440 Datasheet Revision 4.2
x
Table 55
Table 56
Table 57
Table 58
Table 59
Table 60
Table 61
Table 62
Table 63
Table 64
Table 65
Table 66
Table 67
Table 68
Table 69
Table 70
Table 71
Table 72
Table 73
Table 74
Table 75
Table 76
Table 77
Table 78
Table 79
Table 80
Table 81
Table 82
Table 83
Table 84
Table 85
Table 86
Table 87
Table 88
Table 89
Table 90
Table 91
Table 92
Table 93
Table 94
Table 95
Table 96
Table 97
Table 98
Table 99
Table 100
Table 101
Table 102
Table 103
Table 104
Table 105
Table 106
Table 107
Table 108
Table 109
Table 110
Table 111
Table 112
Table 113
Pipeline Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Pipeline Actions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
VCAP CLM Keys and Sizes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
VCAP CLM Key Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
VCAP CLM X1 Key Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
VCAP CLM X2 Key Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
VCAP CLM X4 Key Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
VCAP CLM X8 Key Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
VCAP CLM X16 Key Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
VCAP CLM Action Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
VCAP CLM Actions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
VLAN Tag Extraction Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Routing Tag Control Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Frame Acceptance Filtering Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
QoS, DP, and DSCP Classification Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
VLAN Configuration Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Aggregation Code Generation Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
CPU Forwarding Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Frame Type Definitions for CPU Forwarding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Port Configuration of VCAP CLM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
Miscellaneous VCAP CLM Key Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
VCAP CLM Range Checker Configuration Registers Overview . . . . . . . . . . . . . . . . . . . . . . . . . . 121
VCAP CLM QoS Mapping Table Registers Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
VLAN Table (4224 Entries) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
MSTP Table (66 Entries) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Common VLAN and MSTP Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
VLAN Table Update Engine (TUPE) Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
VCAP LPM Key and Sizes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
VCAP LPM Key Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
VCAP LPM SGL_IP4 Key Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
VCAP LPM DBL_IP4 Key Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
VCAP LPM SGL_IP6 Key Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
VCAP LPM DBL_IP6 Key Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
VCAP LPM Action Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
VCAP LPM Actions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
CPU Queue Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Ingress Router Leg Events . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Ingress Router Leg Statistics Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Egress Router Leg Events . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Egress Router Leg Statistics Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
VCAP IS2 Keys and Sizes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
VCAP IS2 Key Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
VCAP IS2 Actions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
VCAP IS2 Frame Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
Port Configuration of VCAP IS2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
VCAP IS2 Key Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
VCAP IS2 Range Checker Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Other VCAP IS2 Key Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164
Combining VCAP IS2 Actions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
VCAP IS2 Statistics and Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166
ANA_ACL Address Swapping and Rewriting Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
ANA_ACL Routing Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
ANA_ACL PTP Processing and Rewriting Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
MAC Table Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
MAC Table Access Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
MAC Table Access Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
Scan Filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177
Scan Modification Actions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177
Forwarding Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
VMDS-10492 VSC7440 Datasheet Revision 4.2
xi
Table 114
Table 115
Table 116
Table 117
Table 118
Table 119
Table 120
Table 121
Table 122
Table 123
Table 124
Table 125
Table 126
Table 127
Table 128
Table 129
Table 130
Table 131
Table 132
Table 133
Table 134
Table 135
Table 136
Table 137
Table 138
Table 139
Table 140
Table 141
Table 142
Table 143
Table 144
Table 145
Table 146
Table 147
Table 148
Table 149
Table 150
Table 151
Table 152
Table 153
Table 154
Table 155
Table 156
Table 157
Table 158
Table 159
Table 160
Table 161
Table 162
Table 163
Table 164
Table 165
Table 166
Table 167
Table 168
Table 169
Table 170
Table 171
Table 172
Hardware-Based Learning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
Automated Age Scan Registers Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
Analyzer Interrupt Handling Registers Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184
PGID Registers Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
Source Table Registers Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188
Aggregation Table Registers Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188
GLAG Forward Registers Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188
Policer Control Registers Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
BUM Single Leaky Bucket Table Entries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193
ACL Policer Table Entries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194
Priority Policer Table Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Port Policer Table Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Storm Policer Table Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197
Analyzer Port Statistics Register Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 198
Queue Statistics Registers Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
BUM Policer Statistics Registers Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
ACL Policer Statistics Registers Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203
Analyzer Routing Statistics Registers Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204
Analyzer sFlow Registers Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205
ANA_AC Mirror Registers Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 206
Port Definitions in Shared Queue System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
Ingress Port Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
Analyzer Result . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
Buffer Control Registers Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211
Buffer Status Registers Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211
Statistics Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212
Forward Pressure Configuration Registers Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212
Analyzer Destination Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212
Frame Forwarder Registers Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213
Analyzer Congestion Results . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 214
Strict Priority Sharing Configuration Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 216
Per Priority Sharing Configuration Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 216
WRED Sharing Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 217
Threshold Configuration Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 218
Congestion Control Registers Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 218
Frame Forwarder Monitoring Registers Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 219
Queue Mapping Registers Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 223
Queue Limitation Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 224
Queue Limitation Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 224
Shaper Registers Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 227
Scheduler Arbitration Registers Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228
Miscellaneous Scheduler Registers Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228
Frame Aging Registers Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 229
Statistics Address Mapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230
Statistics Registers Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230
EEE Registers Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231
Calendar Registers Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 232
Frame Table Entry Register Overview (2048 entries) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 234
DTI Table Entry Registers Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 234
Miscellaneous DTI Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 235
TTI Timer Ticks Registers Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 239
TTI Parameters (2048 entries) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 239
TTI Calendar Registers Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240
Miscellaneous TTI Registers Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 241
AFI TUPE Registers Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 241
Port Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 246
ES0 Configuration Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 247
VCAP_ES0 Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 248
VCAP_ES0 Actions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 249
VMDS-10492 VSC7440 Datasheet Revision 4.2
xii
Table 173
Table 174
Table 175
Table 176
Table 177
Table 178
Table 179
Table 180
Table 181
Table 182
Table 183
Table 184
Table 185
Table 186
Table 187
Table 188
Table 189
Table 190
Table 191
Table 192
Table 193
Table 194
Table 195
Table 196
Table 197
Table 198
Table 199
Table 200
Table 201
Table 202
Table 203
Table 204
Table 205
Table 206
Table 207
Table 208
Table 209
Table 210
Table 211
Table 212
Table 213
Table 214
Table 215
Table 216
Table 217
Table 218
Table 219
Table 220
Table 221
Table 222
Table 223
Table 224
Table 225
Table 226
Table 227
Table 228
Table 229
Table 230
Table 231
Rewriter Pipeline Point Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 255
Pipeline Actions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 255
Pipeline Point Updating Rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 255
Frame Loopback Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 257
Pipeline Action Updates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 257
Loopback IFH Updates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 257
Egress Statistics Control Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 258
ESDX Index Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 258
Egress Statistics Update . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 259
Mapping Table Configuration Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260
Port VLAN Tag Configuration Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 261
ES0 VLAN Tag Actions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 263
Port-Based DSCP Editing Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 266
Rewriter VStaX Configuration Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 267
GCPU Configuration Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 268
Routing SMAC Configuration Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 269
L3 Routing Egress Mapping VLAN (EVMID) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 269
Mirror Probe Configuration Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 269
IFH Configuration Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 271
Replication Terminology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 272
Basic Port Setup Configuration Registers Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 272
Buffer Maintenance Configuration Register Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 273
PAUSE Frame Generation Configuration Registers Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . 273
PAUSE Frame Reception Configuration Registers Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . 274
PFC PAUSE Frame Generation Configuration Registers Overview . . . . . . . . . . . . . . . . . . . . . . . 274
Half-Duplex Mode Flow Control Configuration Register Overview . . . . . . . . . . . . . . . . . . . . . . . . 274
Aging Configuration Register Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 275
Aging Status Register Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 275
Rate Limiting Common Configuration Registers Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 275
Rate Limiting Frame Overhead Configuration Registers Overview . . . . . . . . . . . . . . . . . . . . . . . 276
Rate Limiting Payload Data Rate Configuration Registers Overview . . . . . . . . . . . . . . . . . . . . . . 276
Rate Limiting Frame Rate Registers Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 277
Error Detection Status Registers Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 277
Layer 1 Timing Configuration Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 277
Layer 1 Timing Recovered Clock Pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 278
Recovered Clock Settings for 1 Gbps or Lower . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 278
Recovered Clock Settings for 2.5 Gbps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 279
Recovered Clock Settings for SFI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 280
Recovered Clock Settings for PLL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 280
Squelch Configuration for Sources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 281
Timing Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 282
Rewriter PTP Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 283
Rewriter Operations for One-Step Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 284
LoadStore Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 287
IEEE 1588 Configuration Registers Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 287
PTP Actions in Rewriter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 288
Rewriter Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 288
Port Module Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 289
I/O Delays at 156.25 MHz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 289
I/O Delays at 52 MHz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 289
VRAP Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 290
VLAN Table Configuration Before APS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 298
VLAN TUPE Command for Ring Protection Switching . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 299
VLAN Table Configuration After APS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 300
MAC Table Flush, First Command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 300
Strapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 303
Clocking and Reset Configuration Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 306
Shared Bus Configuration Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 309
SI Slave Mode Pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 313
VMDS-10492 VSC7440 Datasheet Revision 4.2
xiii
Table 232
Table 233
Table 234
Table 235
Table 236
Table 237
Table 238
Table 239
Table 240
Table 241
Table 242
Table 243
Table 244
Table 245
Table 246
Table 247
Table 248
Table 249
Table 250
Table 251
Table 252
Table 253
Table 254
Table 255
Table 256
Table 257
Table 258
Table 259
Table 260
Table 261
Table 262
Table 263
Table 264
Table 265
Table 266
Table 267
Table 268
Table 269
Table 270
Table 271
Table 272
Table 273
Table 274
Table 275
Table 276
Table 277
Table 278
Table 279
Table 280
Table 281
Table 282
Table 283
Table 284
Table 285
Table 286
Table 287
Table 288
Table 289
Table 290
MIIM Slave Pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 315
MIIM Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 315
VCore Shared Bus Access Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 316
Mailbox and Semaphore Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 317
Manual PCIe Bring-Up Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 319
Base Address Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 321
PCIe Outbound Interrupt Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 321
Outbound Access Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 322
PCIe Access Header Fields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 322
FDMA PCIe Access Header Fields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 323
Power Management Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 324
PCIe Wake Pin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 324
FDMA Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 325
SI Boot Controller Configuration Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 333
Serial Interface Pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 334
SI Master Controller Configuration Registers Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 336
SI Master Controller Pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 337
DDR3/DDR3L Controller Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 340
General DDR3/DDR3L Timing and Mode Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 341
Memory Controller Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 341
Timer Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 345
UART Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 346
UART Interface Pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 346
Two-Wire Serial Interface Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 347
Two-Wire Serial Interface Pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 348
MIIM Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 350
MIIM Management Controller Pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 350
GPIO Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 352
GPIO Overlaid Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 353
Parallel Signal Detect Pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 354
SIO Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 355
SIO Controller Pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 355
Blink Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 358
SIO Controller Port Mapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 358
Fan Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 360
Fan Controller Pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 360
Temperature Sensor Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 361
Integrity Monitor Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 362
Memories with Integrity Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 364
Interrupt Controller Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 365
Interrupt Sources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 365
Interrupt Destinations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 367
External Interrupt Pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 369
Reference Clock Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 371
PLL Clock Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 371
DDR3 SDRAM Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 372
DDR3L SDRAM Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 372
1G Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 373
1G Receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 373
6G Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 373
6G Receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 374
10G Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 374
10G Receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 375
I/O Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 375
GPIO, SI, JTAG, and Miscellaneous Signals DC Specifications . . . . . . . . . . . . . . . . . . . . . . . . . 375
Thermal Diode Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 376
REFCLK Reference Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 377
REFCLK2 Reference Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 377
PLL Clock Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 379
VMDS-10492 VSC7440 Datasheet Revision 4.2
xiv
Table 291
Table 292
Table 293
Table 294
Table 295
Table 296
Table 297
Table 298
Table 299
Table 300
Table 301
Table 302
Table 303
Table 304
Table 305
Table 306
Table 307
Table 308
Table 309
Table 310
Table 311
Table 312
Table 313
Table 314
Table 315
Table 316
Table 317
Table 318
Table 319
Table 320
Table 321
Table 322
Table 323
Table 324
Table 325
Table 326
Table 327
Table 328
Table 329
Table 330
Table 331
Table 332
Table 333
Table 334
Table 335
Table 336
Table 337
Table 338
Table 339
Table 340
100BASE-FX, SGMII, SFP, 1000BASE-KX Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 379
100BASE-FX, SGMII, SFP, 1000BASE-KX Receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 379
100BASE-FX, SGMII, SFP, 2.5G, 1000BASE-KX Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . 380
100BASE-FX, SGMII, SFP, 2.5G, 1000BASE-KX Receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 381
PCIe Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 382
PCIe Receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 382
100BASE-FX, SGMII, SFP, 2.5G, 1000BASE-KX Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . 383
100BASE-FX, SGMII, SFP, 2.5G, 1000BASE-KX Receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 383
10G Transmitter Output (SFI Point B, Host) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 384
10G Transmitter Output (SFI Point B, Host) for Direct Attach Copper . . . . . . . . . . . . . . . . . . . . . 385
10G Receiver Input (SFI Point C, Host) for Direct Attach Copper . . . . . . . . . . . . . . . . . . . . . . . . 385
10G Receiver Input (SFI Point C and C”, Host) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 386
10G Transmitter Output (SFI Point A, ASIC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 387
SFI Input Receiver (SFI Point D, ASIC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 387
10GBASE-KR Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 387
10GBASE-KR Receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 388
nRESET Timing Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 388
MIIM Timing Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 389
SI Boot Timing Specifications for Master Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 390
SI Timing Specifications for Master Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 390
SI Timing Specifications for Slave Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 392
DDR3/DDR3L SDRAM Input Signal AC Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 393
DDR3/DDR3L SDRAM Output Signal AC Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 394
JTAG Interface AC Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 395
Serial I/O Timing Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 396
Recovered Clock Output AC Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 397
Two-Wire Serial Interface AC Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 398
IEEE1588 Time Tick Output AC Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 399
Operating Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 399
Power Consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 400
Power Consumption, Reduced Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 400
Recommended Operating Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 400
Stress Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 401
Pin Type Symbol Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 403
DDR3/DDR3L SDRAM Pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 404
GPIO Pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 405
JTAG Interface Pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 405
MII Management Interface Pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 405
Miscellaneous Pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 406
PCI Express Interface Pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 406
Power Supply and Ground Pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 406
SERDES1G Pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 407
SERDES6G Pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 407
SERDES10G Pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 407
Serial CPU Interface Pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 408
System Clock Interface Pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 408
Twisted Pair Interface Pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 409
Thermal Resistances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 419
Recommended Skew Budget . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 424
Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 427
VMDS-10492 VSC7440 Datasheet Revision 4.2
xv
Revision History
1
Revision History
The revision history describes the changes that were implemented in the document. The changes are
listed by revision, starting with the most current publication.
1.1
Revision 4.2
Revision 4.2 was published in April 2019. The following is a summary of changes in revision 4.2 of this
document.
•
•
1.2
VeriPHY™ Cable Diagnostics section was updated. For more information, see VeriPHY™ Cable
Diagnostics, page 37.
The Pins by Function section was updated with proper heading style.
Revision 4.1
Revision 4.1 was published in August 2017. The following is a summary of changes in revision 4.1 of this
document.
•
•
•
•
1.3
The DTI bandwidth description was updated. For more information, see DTI Bandwidth, page 238.
The number of the MAC table entries was updated. For more information, see Analyzer MAC Table,
page 170.
The PLL clock outputs table was updated. For more information, see Table 290, page 379.
The temperature formula for the temperature sensor was updated. For more information, see
Temperature Sensor, page 361.
Revision 4.0
Revision 4.0 was the first production-level publication of this document.
VMDS-10492 VSC7440 Datasheet Revision 4.2
1
Product Overview
2
Product Overview
The VSC7440 SparX-IV-34™ SMB/SME/Industrial Ethernet switch provides a rich set of Enterprise and
Industrial Ethernet switching features such as advanced TCAM-based VLAN and QoS processing that
enable delivery of differentiated services, security through TCAM-based frame processing using
Versatile Content Aware Processor (VCAP), protection switching, IEEE 1588v2 precision time protocol,
and synchronous Ethernet. IPv4/IPv6 Layer 3 (L3) routing is supported with up to 1K IPv4 (256 IPv6)
unicast LPM entries and up to 512 IPv4 (128 IPv6) L3 multicast groups. L3 security features include
source guard and reverse path forwarding (uRPF) tasks.
A powerful 500 MHz MIPS-24KEc CPU enables full management of the switch and advanced Enterprise
and Industrial applications.
The device targets managed Layer 2 and Layer 3 equipment in SMB, SME, and industrial applications
where high port count 1G switching with 10G aggregation links is required.
The VSC7440 SparX-IV-34™ device is a 34 Gbps SMB/SME/Industrial Ethernet switch with up to 10
ports supporting the following main port configurations:
•
•
•
•
4 × 1G SGMII ports + 4 × 2.5G SGMII ports + 2 × 10G SFI ports
4 × 1G SGMII ports + 6 × 2.5G SGMII ports
10 × 1G SGMII ports
Two of the 1G SGMII ports are dual-media ports with a choice of 1G SGMII or 1G CuPHY
In addition, the device supports one 10/100/1000 Mbps SGMII/SerDes Node Processor Interface (NPI)
Ethernet port.
2.1
General Features
This section lists the key device features and benefits.
2.1.1
Layer 2 and Layer 3 Forwarding
•
•
•
•
•
•
•
2.1.2
Timing and Synchronization
•
•
•
2.1.3
IEEE802.1Q switch with 4K VLANs and 16K MAC table entries
Push/pop/translate up to three VLAN tags on ingress and egress
RSTP and MSTP support
Fully non-blocking wire-speed switching performance for all frame sizes
IPv4/IPv6 unicast and multicast Layer 2 switching with up to 16K groups and 128 port masks
IPv4/IPv6 unicast and multicast Layer 3 forwarding (routing) with reverse path forwarding (RPF)
support
IGMPv2, IGMPv3, MLDv1, and MLDv2 support
Synchronous Ethernet, with four clock outputs recovered from any port
IEEE 1588-2008 (v2) with nanosecond-accurate time stamping for one-step and two-step clocks
Hardware processing and PTP frame generation
Quality of Service
•
•
•
•
•
•
•
•
One megabytes of integrated shared packet memory
Eight QoS classes per port
TCAM-based classification with pattern matching against Layer 2 through Layer 4 information
Dual-rate policers selected by VCAP IS2, eight single-rate priority policers per port, and two singlerate port policers for each port
Flexible 2K ingress QoS mappings and 4K egress QoS mappings for VLAN tags, DSCP values, and
MPLS labels
Up to 512 egress VLAN tag operations
Priority-based flow control (PFC) (IEEE 802.1Qbb)
Audio/Video bridging (AVB) with support for time-synchronized, low-latency audio and video
streaming services
VMDS-10492 VSC7440 Datasheet Revision 4.2
2
Product Overview
2.1.4
Security
•
•
•
•
2.1.5
Management
•
•
•
•
•
•
•
•
•
•
•
2.1.6
Versatile Content Aware Processor (VCAP™) packet filtering engine using ACLs for ingress and
egress packet inspection
Storm controllers for flooded broadcast, flooded multicast, and flooded unicast traffic
Per-port, per-address registration for copying/redirecting/discarding
32 VCAP single-rate policers
VCore-III™ CPU system with integrated 500 MHz MIPS 24KEc CPU with MMU and DDR3/DDR3L
SDRAM controller
PCIe 1.x CPU interface
CPU frame extraction (eight queues) and injection (two queues) through DMA, which enables
efficient data transfer between Ethernet ports and CPU/PCIe
EJTAG debug interface
Configurable 16-bit or 8-bit DDR3 SDRAM interface supporting up to one gigabyte (GB) of memory
Thirty-seven, pin-shared general-purpose I/Os
•
Serial GPIO and LED controller controlling up to 32 ports with four LEDs each
•
Triple PHY management controller (MIIM)
•
Dual UART
•
Dual built-in two wire serial interface multiplexer
•
External interrupts
•
1588 synchronization I/Os
•
SFP loss of signal inputs
External access to registers through PCIe, SPI, MIIM, or through an Ethernet port with inline
Versatile Register Access Protocol (VRAP)
Per-port counter set with support for the RMON statistics group (RFC 2819) and SNMP interfaces
group (RFC 2863)
Energy Efficient Ethernet (EEE) (IEEE 802.3az)
Synchronous Ethernet, with four clock outputs recovered from any port
Support for CPU modes with internal CPU only, external CPU only, or dual CPU
Product Parameters
All SerDes, copper transceivers, packet memory, and configuration tables necessary to support network
applications are integrated. The following table lists the primary parameters for the device.
Table 1 •
Product Parameters
Features and Port Configurations
Maximum bandwidth excluding 1G NPI port
34 Gbps
Maximum number of ports excluding 1G NPI port
10
10G SFI ports (also capable of 2.5G or 1G SGMII)
2
2.5G SGMII ports (also capable of 1G SGMII)
4
1G SGMII ports excluding 1G NPI port
2
1G dual media ports (1G SGMII or 1G CuPHY)
2
1G SGMII NPI port
1
Layer 2 Switching
Packet buffer
8 Mb
MAC table size
16K
Layer 2 multicast port masks
128
Super VCAP blocks (1K x 36 bits per block)
6
VCAP CLM entries (36 bits) per super VCAP block
1K
VMDS-10492 VSC7440 Datasheet Revision 4.2
3
Product Overview
Product Parameters (continued)
Table 1 •
VCAP LPM entries (36 bits) per super VCAP block
1K
VCAP IS2 entries (288 bits) per super VCAP block
128
VCAP ES0 entries
512
Layer 3 Routing
Router legs
32
IP unicast routes/hosts per super VCAP block allocated to VCAP LPM for unicast routing
IPv4: 1K
IPv6: 256
Next-hop/ARP table entries
256
IP (S,G) or (*, G) multicast groups per super VCAP block allocated to VCAP LPM for
multicast routing
IPv4: 512
IPv6: 128
Multicast router leg masks
256
ECMPs
16
Quality of Service and Security
Ingress QoS mapping table entries
2K
Egress QoS mapping table entries
4K
Security enforcement (ACL) rules (288 bits) per super VCAP block allocated to VCAP IS2 128
2.2
Applications
The device targets the following applications.
•
•
Industrial Ethernet equipment with protection switching and IEEE 1588 timing requirements
Fully managed Layer 2 and Layer 3 SMB and SME equipment, such as high port count 1G switches
with 10G aggregation links
VMDS-10492 VSC7440 Datasheet Revision 4.2
4
Functional Descriptions
3
Functional Descriptions
This section describes the functional aspects of the VSC7440 device, including available configurations,
operational features, and testing functionality. It also defines the device setup parameters that configure
the device for a particular application.
The functional descriptions in this section contain some information shared across multiple switch
families. As a result, some functional descriptions do not apply to the device. The following features and
associated functional aspects are not supported by VSC7440.
•
MEF services
•
ISDX, VSI, ESDX
•
Service statistics (ingress, egress)
•
ISDX selected SDLB policing
•
Versatile OAM processor (VOP)
•
Hardware OAM processing
•
Port VOEs, service VOEs, path VOEs
•
MIPs and MEPs
•
Y.1564 SAM, SAM sequence
•
OAM COSID and color
•
MPLS-TP processing (LSR, LER)
•
VCAP CLM keys: SGL_MLBS, DBL_MLBS, TRI_MLBS
•
MPLS TC mapping
•
Hierarchical QoS and dual-rate shaping
•
Stacking
•
Learn all frames
•
Stacking links
Note: The VStaX header is used by all switch families as an internal frame header and when communicating
with external CPUs.
The following illustration shows an RTL block diagram of the physical blocks in the device and how the
blocks interconnect. The functional aspects of each block are provided in following sections. The grayedout blocks represent the VCore-III and DEVCPU blocks. For more information about the VCore-III and
DEVCPU blocks, see VCore-III System and CPU Interfaces, page 305.
VMDS-10492 VSC7440 Datasheet Revision 4.2
5
Functional Descriptions
Figure 1 •
RTL Block Diagram
x2
x11
CuPHY
DEV2G5
DEV2G5
DEV1G
DSM
REW
SQS
HSCH
x5
SERDES1G
DEV1G
VCAP_ES0
x2
SERDES6G
HSIO
Frame bus
DEV1G
DEV10G
DEV10G
x4
SERDES10G
DEV1G
Flow control
x2
I/O Muxing
HSIO
XGANA/DIG/XFI/KR
OQS
REW
AFI
IQS
Priority-based flow control
QSYS
QRES
QFWD
ASM
ANA
VD0
VD1
VCore-III
CPU I/F
MIPS
24KEc
DEVCPU
Loopback
ANA_CL
ANA_L3
ANA_ACL
CLM
LPM
IS2
ANA_L2
ANA_AC
Normal
FDMA
LBK
Manual
VCAP_SUPER
LRN
Register target
3.1
Register Notations
This datasheet uses the following general register notations.
::.
is not always present. In that case the following notation is used:
::.
When a register group does exist, it is always prepended with a target in the notation.
In sections where only one register is discussed or the target (and register group) is known from the
context, the :: may be omitted for brevity leading to the following
notation:
.
When a register contains only one field, the . is not included in the notation.
When referring to a specific instance of a register group, specific register instance, or a specific bit in a
field, square brackets are used, for example:
:[]:.
::[].
::.[]
3.2
Functional Overview
This section provides an overview of all the major blocks and functions involved in the forwarding
operation in the same order as a frame traverses through the device. It also outlines other major
functionality of the devices, such as the CPU subsystem and IEEE 1588 PTP processing.
The following illustration shows the VSC7440 block diagram.
VMDS-10492 VSC7440 Datasheet Revision 4.2
6
Functional Descriptions
Figure 2 •
Block Diagram
Shared Queue System
Discard Statistics
EJTAG
Memory Controller
MIPS 24KEc
MMU
Automated Frame
Injection (AFI)
Shared Memory Pool
I-Cache
32 kB
Hierarchical QoS
Shaper and Scheduler
D-Cache
32 kB
Interrupt
Controller
Temperature
Sensor
Switch Core
Access
Block
Timers
VCore Arbiter
Analyzer
Ingress Processing
Manual Frame
Inject/Extract
VCore SBA
Access
Block
Switch Core
Registers
Egress VCAP Lookup
Frame DMA
(FDMA)
SI Slave
MIIM Slave
Frame Editing:
VLAN tags
DSCP
IEEE1588
L2/L3/L4
VRAP
Ethernet Register
Access
Rewriter
Egress Processing
Protection Switching
Forwarding L2/L3
Arrival Stats
Policing
(Port, QoS, ACL)
Access Control Lists
Ingress Classification
(VLAN and QoS Mapping)
VCore CPU Bus
nRESET
PCIE
PCIe
JTAG
JTAG
SI
Departure Stats
Port L2CP Handling
SI
DDR3/DDR3L Memory
Controller
IEEE1588 Engine
IEEE1588 Engine
DDR
GPIO functions:
LED, serial GPIO, UART,
two-wire serial interface,
IRQ, MIIM, LOS,
SyncE, 1588, RefClk
37
GPIO
Frame bus
x2
x4
x3
x2
Dual Media 1G Port Modules
1G Port Modules
2.5G Port Modules
10G Port Modules
MAC, PCS
1588/OAM Timestamping
MAC, PCS
1588/OAM Timestamping
MAC, PCS
1588/OAM Timestamping
MAC, PCS
1588/OAM Timestamping
x2
1G CuPHY
1000BASE-T
3.2.1
x2
x3
x4
x2
SerDes1G
Lane
SerDes1G
Lane
SerDes6/10G
Lane
SerDes10G
Lane
1G SGMII
100BASE-FX
1G SGMII
100BASE-FX
2.5G SGMII
1G SGMII
100BASE-FX
10G SFI
2.5G SGMII
1G SGMII
100BASE-FX
Frame Arrival in Ports and Port Modules
The Ethernet interfaces receive incoming frames and forward these to the port modules.
Two ports are dual media ports supporting either a 1G copper PHY or a 1G SGMII SerDes macro. The
remaining ports all support SerDes macros.
Each port contains a Media Access Controller (MAC) that performs a full suite of checks, such as VLAN
tag-aware frame size checking, frame check sequence (FCS) checking, and pause frame identification.
SerDes ports contain a Physical Coding Sublayer (PCS), which performs 8b/10b or 64b/66b encoding,
auto-negotiation of link speed and duplex mode, and monitoring of the link status.
Symmetric and asymmetric pause flow control are both supported as well as priority-based flow control
(IEEE 802.1Qbb).
VMDS-10492 VSC7440 Datasheet Revision 4.2
7
Functional Descriptions
All Ethernet ports support Energy Efficient Ethernet (EEE) according to IEEE 802.3az. The shared queue
system is capable of controlling the PCS operating states, which are active or low power. The PCS
understands the line signaling as required for EEE. This includes signaling of active, sleep, quiet, refresh,
and wake.
3.2.1.1
1G Copper PHY Ports
1G copper PHY ports operate in 1000BASE-T. Auto-negotiation is supported for pause settings and
remote fault signaling. Full-duplex is supported for 10/100/1000 Mbps, while half-duplex is supported for
10/100 Mbps.
3.2.1.2
1G SGMII Line Ports
1G SGMII line ports operate in one of the following modes:
•
•
•
3.2.1.3
10/100/1000 Mbps SGMII. The SGMII interface connects to an external copper PHY device or
copper SFP optical module with SGMII interface. In this mode, auto-negotiation is supported for link
speed, duplex settings, pause settings, and remote fault signaling. Full-duplex is supported for all
speeds, while half-duplex is supported for 10/100 Mbps.
100BASE-FX. The 100BASE-FX interface connects directly to a 100BASE-FX SFP optical module.
Auto-negotiation is not specified for 100BASE-FX and is not supported. Operation is always
100 Mbps and full duplex.
1000BASE-X. The 1000BASE-X interface connects directly to a 1000BASE-X SFP optical module.
Auto-negotiation is supported for pause settings and remote fault signaling. Operation is always
1000 Mbps and full duplex. 1G backplane Ethernet 1000BASE-KX is fully supported, including
auto-negotiation.
2.5G SGMII Line Ports
The 2.5G interface connects directly to an SFP optical module. Operation is always 2500 Mbps and full
duplex. 2.5G backplane Ethernet is also supported.
The 2.5G SGMII line port can also operate in the modes supported by the 1G SGMII line port.
3.2.1.4
10G SFI Line Ports
The 10G interface connects directly to a 10GBASE-R SFP+ optical module or an external PHY device.
Auto-negotiation is supported for pause settings, remote fault signaling, and backplane Ethernet
functions. The 10G or 1G operation is supported for SFP+ optical modules, and operation is always full
duplex.
When used with external devices capable of WAN-PHY (10GBASE-W) operation, the 10G line ports
support pacing operation as specified for 10GBASE-W operation.
The 10G SFI line port can also operate in the modes supported by the 2.5G and 1G SGMII line ports.
3.2.2
Basic Classification
Basic frame classification in the ingress processing module (the analyzer) receives all frames before
further classification processing is performed. The basic classifier uses configurable logic to classify each
frame to a VLAN, QoS class, drop precedence (DP) level, DSCP value, and an aggregation code. This
information is carried through the switch together with the frame and affects policing, drop precedence
marking, statistics collecting, security enforcement, Layer 2 and Layer 3 forwarding, and rewriting.
The basic classifier also performs a general frame acceptance check. The output from the basic
classification can be overwritten or changed by the more intelligent advanced classification using the
TCAM-based VCAP.
3.2.3
Security and Control Protocol Classification
Before being passed on to the Layer 2 forwarding, all frames are inspected by the VCAP IS2 for security
enforcement and control protocol actions.
The action associated with each IS2 entry (programmed into the IS2 action RAM) includes frame filtering,
single leaky bucket rate limiting (frame or byte based), snooping to CPU, redirecting to CPU, mirroring,
VMDS-10492 VSC7440 Datasheet Revision 4.2
8
Functional Descriptions
time stamping, and accounting. Although the VCAP IS2 is located in the ingress path of the device, it has
both ingress and egress capabilities.
The VCAP IS2 engine embeds powerful protocol awareness for well-known protocols such as LLC,
SNAP, ARP, IPv4, IPv6, and UDP/TCP. IPv6 is supported with full matching against both the source and
the destination IP addresses.
For each frame, up to two lookup keys are generated and matched against the VCAP entries.
3.2.4
Policing
Each frame is subject to one or more of the following policing operations.
•
•
•
•
•
•
Single-rate priority policers. Ingress port number and QoS class determine which policer to use.
Single-rate port policers. Ingress port number determines which policer to use.
VCAP single-rate policers. IS2 action selects which VCAP single-rate policer to use.
VCAP dual-rate policers. IS2 action selects which VCAP dual-rate policer to use.
Single-rate global storm policers. Frame characteristicS such as broadcast, unicast, multicast, or
learn frame select which policer to use.
Single-rate service broadcast, unicast, and multicast (BUM) policers for flooded frames. Service
classification and destination MAC address select which policer to use.
Each frame can trigger the following policers:
•
•
•
•
•
•
One BUM policer
One priority policer or one dual-rate VCAP policer
One port policer
One VCAP policer
Two port policers
Eight storm policers
Dual-rate policers are MEF-compliant, supporting both color-blind and color-aware operation. The initial
frame color is derived from the drop precedence level from the frame classification. The MEF coupling
mode is also configurable for each policer.
Dual-rate policers ensure Service Level Agreement (SLA) compliance. The outcome of this policing
operation is to mark each accepted frame as in-profile (green) or out-of-profile (yellow). Yellow frames
are treated as excess or discard-eligible and green frames are committed. Frames that exceed the
yellow/excess limits are discarded (red).
The two port policers and eight storm policers can be programmed to limit different types of traffic, such
as CPU-forwarded frames, learn frames, known or unknown unicast, multicast, or broadcast.
3.2.5
Layer 2 Forwarding
After the policers, the Layer 2 forwarding block of the analyzer handles all fundamental Layer 2
forwarding operations and maintains the associated MAC table, the VLAN table, and the aggregation
table. The device implements an 16K MAC table and a 4K VLAN table.
The main task of the analyzer is to determine the destination port set of each frame. The Layer 2
forwarding decision is based on various information such as the frame’s ingress port, source MAC
address, destination MAC address, and the VLAN identifier, as well as the frame’s VCAP actions,
mirroring, and the destination port’s link aggregation configuration.
Layer 2 forwarding of unicast and Layer 2 multicast frames is based on the destination MAC address and
the VLAN.
The switch can also L2-forward IPv4 and IPv6 multicast frames using additional Layer-3 information,
such as the source IP address. The latter enables source-specific IPv4 multicast forwarding (IGMPv3)
and source-specific IPv6 multicast forwarding (MLDv2). This process of L2-forwarding multicast frames
using Layer 3 information is called “snooping”, which is different from L3-forwarding (routing) of multicast
frames.
The following describes some of the contributions to the Layer 2 forwarding.
VMDS-10492 VSC7440 Datasheet Revision 4.2
9
Functional Descriptions
•
•
•
•
•
•
•
•
3.2.6
VLAN Classification VLAN-based forward filtering includes source port filtering, destination port
filtering, VLAN mirroring, and asymmetric VLANs.
Security Enforcement The security decision made by the VCAP IS2 can, for example, redirect the
frame to the CPU based on security filters.
MSTP The VLAN identifier maps to a Multiple Spanning Tree instance, which determines MSTPbased destination port filtering.
MAC Addresses Destination and source MAC address lookups in the MAC table determine if a
frame is a learn frame, a flood frame, a multicast frame, or a unicast frame.
Learning By default, the device performs hardware learning on all ports. However, certain ports
could be configured with secure learning enabled, where an incoming frame with unknown source
MAC address is classified as a “learn frame” and is redirected to the CPU. The CPU performs the
learning decision and also decides whether the frame is forwarded.
Learning can also be disabled. If learning is disabled, it does not matter if the source MAC address
is in the MAC table.
Link Aggregation A frame targeted to a link aggregate is processed to determine which physical
port of the link aggregate group the frame must be forwarded to.
Mirroring Mirror probes may be set up in different places in the forwarding path for monitoring
purposes. As part mirroring, a copy of the frame is sent either to the CPU or to another port.
Layer 3 Forwarding
The device supports Layer 3 forwarding (routing), which is performed by the analyzer. With Layer 3
forwarding, the IPv4 or IPv6 addresses determine the destination port set and Layer 3 processing is
performed on IP header. The Layer 3 forwarding process also replaces the arrival Layer-2 Ethernet
header (including MAC addresses and VLAN tags) with a new Layer 2 Ethernet header after departure
from the switch.
The analyzer supports 32 router legs, and supports Virtual Router Redundancy Protocol (VRRP). Ingress
router legs are addressed using classified arrival VLAN and DMAC address.
If an arrival frame is determined to belong to an ingress router leg and routing is enabled, Layer 3
forwarding is applied. Note that this is in addition to any Layer 2 forwarding, so for example, an arrival
multicast frame may be Layer 2 forwarded on the classified arrival VLAN and also Layer 3 forwarded to
one or more additional VLANs. IP unicast frames only use Layer 2 forwarding or Layer 3 forwarding, but
never both. Layer 3 forwarding always uses the classified arrival VLAN.
Layer 3 forwarding first checks the IP header for validity. IP header checks include IP version, header
length, and header checksum. The Time-to-Live (TTL) or Hop Limit values are also checked for validity
and decremented if the packet is forwarded.
The analyzer then searches the Longest Prefix Match (LPM) table for an exact match of the destination
IP address. If there is not an exact match, the table is searched for the best partial match. If there is no
partial match in the LPM table, the frame is Layer 3 forwarded to the location of the default gateway.
With Layer 3 forwarding, each egress frame copy uses an egress router leg to determine the per-copy
egress encapsulation. There can be up to 16 egress router legs associated with one forwarding entry in
support of Equal Cost Multipath (ECMP) functionality, where multiple forwarding paths are used between
adjacent routers for increased forwarding bandwidth.
Reverse path forwarding (RPF) is optionally performed on multicast and unicast (uRPF) packets as a
security check. This source IP address check helps detect and prevent address spoofing.
Multicast frames can be Layer 2 forwarded on the arrival VLAN as well as Layer 3 forwarded to different
VLANs. Layer 3 forwarding of IP multicast is different from Layer 2 forwarding of IP multicast using
IGMP/MLD snooping in the following ways:
•
•
•
•
IP header checks and TTL processing are performed
The Ethernet header is swapped
The egress VLANs may be different from the ingress VLANs
Multiple frame copies can be generated per physical port
Network control such as ICMP and ARP are redirected to the CPU, along with malformed packets,
packets with expired TTL, and packets with options.
VMDS-10492 VSC7440 Datasheet Revision 4.2
10
Functional Descriptions
3.2.7
Shared Queue System and Hierarchical Scheduler
The analyzer provides the destination port set of a frame to the shared queue system. It is the queue
system’s task to control the frame forwarding to all destination ports.
The shared queue system embeds memory that can be shared between all queues and ports. Frames
are mapped to queues through a programmable mapping function allowing ingress ports, egress ports,
and QoS classes to be taken into account. The sharing of resources between queues and ports is
controlled by an extensive set of thresholds.
Each egress port implements default schedulers and shapers as shown in the following illustration. Per
egress port, the scheduler sees the outcome of aggregating the egress queues (one per ingress port per
QoS class) into eight QoS classes.
3.2.7.1
Class-Based Queuing (Default Configuration)
By default, aggregation is done in a Deficit Weighted Round Robin fashion (DWRR) with equal weights to
all ingress ports within a QoS class, so byte-accurate weighted round robin scheduling between ingress
ports is performed for each QoS class.
The following illustration shows the default scheduler-shaper configuration. Hierarchical schedulingshaping is also possible.
Figure 3 •
Default Scheduler-Shaper Configuration
iCPU
Input Port N
•
•
•
D
W
R
R
S
Input Port 0
7
6
5
4
3
2
1
0
Virtual Input Queues
QoS Class 7
•
•
•
H
M
D
W
R
R
L
S
T
R
I
C
T
Port
Shaper
S
iCPU
Input Port N
•
•
•
D
W
R
R
S
QoS Class 0
Shaper
Input Port 0
Virtual Input Queues
QoS Class 0
Scheduling between QoS classes within the port can use one of the three following methods:
•
•
•
3.2.8
Strict Priority scheduling. Frames with the highest QoS class are always transmitted before frames
with lower QoS class.
Deficit Weighted Round Robin (DWRR) scheduling. Each QoS class serviced using DWRR sets a
DWRR weight ranging from 0 to 31.
Combination of Strict Priority and DWRR scheduling. The default configuration is shown, where QoS
classes 7 and 6 use strict priority while QoS classes 5 through 0 use DWRR. But any split between
strict and DWRR QoS classes can be configured.
Rewriter and Frame Departure
Before transmitting the frame on the egress line, the rewriter can modify selected fields in the frame such
as Ethernet headers and VLAN tags, IPv4/IPv6 fields, PTP fields, and FCS. The rewriter also updates
VMDS-10492 VSC7440 Datasheet Revision 4.2
11
Functional Descriptions
the frame’s COS and color indications such as DEI, PCP, and DSCP. Departure statistics are also kept
based on the classified VLAN.
•
•
•
•
Basic VLAN Tagging Operations (Port-based) By default, the egress VLAN actions are
determined by the egress port settings and classified VLAN. These include basic VLAN operations
such as pushing a VLAN tag, untagging for specific VLANs, and simple translations of DEI, PCP,
and DSCP.
Advanced VLAN Tagging Operations (Port-based and VCAP-based) By using the egress
VCAP ES0, significantly more advanced VLAN tagging operations can be achieved. ES0 enables
pushing up to three VLAN tags and flexible VLAN tag translation for VLAN tag/TPID, PCP, DEI, and
DSCP control. The lookup by VCAP ES0 includes classified VLAN, egress port, and COS/color
indications.
Layer 3 Forwarding (Routing) Operations Supports per-router-leg control of Ethernet link layer
encapsulation and VID, as well as modification of other Layer 3 fields such as IPv4 TTL, IPv4
checksum, and IPv6 hop limit.
PTP (IEEE 1588) Operations PTP PDU modifications include insertion/update of time stamps and
correction fields, as well as updating the UDP checksum.
The rewriter pads frames to minimum legal size if needed, and updates the FCS if the frame was
modified before the frame is transmitted.
The egress port module controls the flow control exchange of pause frames with a neighboring device
when the interconnection link operates in full-duplex flow control mode.
3.2.9
CPU Port Module
The CPU port module (DEVCPU) contains eight CPU extraction queues and two CPU injection queues.
These queues provide an interface for exchanging frames between the internal CPU system and the
switch core. An external CPU using the serial interface can also inject and extract frames to and from the
switch core by using the CPU port module.
In addition, any Ethernet interface on the device can be used for extracting and injecting frames. The
Ethernet interface used in this way is called the Node Processor Interface (NPI) and is typically
connected to an external CPU.
Injected frames may be prepended with an injection header to control processing and forwarding of these
frames. Extracted frames may be prepended with an extraction header to supply frame arrival and
classification information associated with each frame. These headers may be used by internal CPU or
external CPU.
The switch core can intercept a variety of different frame types and copy or redirect these to the CPU
extraction queues. The classifier can identify a set of well-known frames, such as IEEE reserved
destination MAC addresses (BPDUs, GARPs, CCM/Link trace), as well as IP-specific frames (IGMP,
MLD). Security VCAP IS2 provides another flexible way of intercepting all kinds of frames, such as
specific OAM frames, ARP frames or explicit applications based on TCP/UDP port numbers. In addition,
frames can be intercepted based on the MAC table, the VLAN table, or the learning process.
Whenever a frame is copied or redirected to the CPU, a CPU extraction queue number is associated with
the frame and used by the CPU port module when enqueuing the frame into the eight CPU extraction
queues. The CPU extraction queue number is programmable for every interception option in the switch
core.
3.2.10
Synchronous Ethernet and Precision Time Protocol (PTP)
The device supports Synchronous Ethernet and IEEE 1588 Precision Time Protocol (PTP) for
synchronizing network timing throughout a network.
Synchronous Ethernet allows for the transfer of precise network timing (frequency) using physical
Ethernet link timing. Each switch port can recover its ingress clock and output the recovered clock to one
of up to four recovered clock output pins. External circuitry can then generate a stable reference clock
input used for egress and core logic timing.
The Precision Time Protocol (PTP) allows for the transfer of precise network timing (frequency) and time
of day (phase) using Ethernet packets. PTP can operate as a one-step clock or a two-step clock. For
VMDS-10492 VSC7440 Datasheet Revision 4.2
12
Functional Descriptions
one-step clocks, a precise time is calculated and stamped directly into the PTP frames at departure. For
two-step clocks, a precise time is simply recorded and provided to the CPU for further processing. The
CPU can then initiate a follow-up message with the recorded timing.
The device supports PTP Delay_req/Delay_resp processing in hardware where the Delay_req frame is
terminated, and a Delay_resp frame is generated based on the request. In addition to updating relevant
PTP time stamps and message fields, the frame encapsulation can be changed. This includes swapping
and rewriting MAC addresses, IP addresses, and TCP/UDP ports, and updating the IPv4 TTL or IPv6
hop limit.
The device also supports generation of PTP Sync frames using the automatic frame injector (AFI)
functionality.
PTP is supported for a range of encapsulations including the following:
•
•
•
•
PTP over Ethernet
PTP over UDP over IPv4/IPv6 over Ethernet
Either of the above encapsulations over MPLS pseudowire over Ethernet
PTP over UDP over IPv4/IPv6 over MPLS over Ethernet
Two separate timing domains are supported: one for Synchronous Ethernet and data path forwarding,
and one for PTP timing synchronization. This gives the system designer control over how these two
timing architectures interact.
3.2.11
CPU Subsystem
The device contains a powerful, 500 MHz MIPS24KEc-compatible microprocessor, a high bandwidth
Ethernet Frame DMA engine, and a DDR3/DDR3L controller supporting up to 1 gigabyte (GB) of
memory. This complete system-on-chip supports Linux or embedded operating systems, enabling full
management of the switch and advanced software applications.
The device supports external CPU register access by the on-chip PCIe 1.x endpoint controller, by
specially formatted Ethernet frames on the NPI port (Versatile Register Access Protocol), or by register
access interface using SPI protocol. External CPUs can inject or extract Ethernet frames by the NPI port,
by PCIe DMA access, or by register read/writes (using any register-access interface).
3.3
Frame Headers
This section describes the internal header formats used within the device that are visible in frames to and
from the CPU, NPI port, and in frames exchanged between devices in multichip configurations.
The header formats are internal frame header (IFH) and VStaX header.
•
Internal frame header (IFH) IFH is used when extracting frames to CPU and injecting frames from
CPU. The IFH can also be inserted into frames transmitted on the NPI port. The IFH includes a
VStaX header.
VStaX header The VStaX header can be used for transmission to and from an NPI port.
•
3.3.1
Internal Frame Header Placement
The following illustration shows internal frame header placement.
Figure 4 •
Frame with Internal Frame Header
Bit 223
No Prefix:
Bit 0
Internal Frame Header
DMAC
SMAC
Frame data
Bit 223
Short Prefix:
ANY DMAC
Any SMAC
Long Prefix:
ANY DMAC
Any SMAC
0x8880 0x0009
Bit 0
Internal Frame Header
DMAC
Bit 223
VLAN tag
0x8880 0x0009
SMAC
Frame data
Bit 0
Internal Frame Header
DMAC
SMAC
Frame data
Field removed before transmitted
VMDS-10492 VSC7440 Datasheet Revision 4.2
13
Functional Descriptions
Frames are injected without prefix from internal CPU or directly attached CPU.
Frames can be injected with a prefix to accommodate CPU injection from a front port (that may be
directly attached), controlled by ASM:CFG:PORT_CFG.INJ_FORMAT_CFG.
The internal frame header and optional prefix is removed before transmitting the frame on a port. It is
only visible to the user when injecting and extracting frames to or from the switch core and optionally
when sending/receiving frames using the NPI port.
It is possible to configure a port to transmit frames with internal frame headers using
REW:COMMON:PORT_CTRL.KEEP_IFH_SEL. It is also possible to only transmit CPU redirected
frames with Internal frame headers using REW:COMMON:GCPU_CFG.GCPU_KEEP_IFH.
3.3.2
Internal Frame Header Layout
The internal frame header is 28 bytes long. The following illustration shows the layout.
VMDS-10492 VSC7440 Datasheet Revision 4.2
14
Functional Descriptions
Figure 5 •
Internal Frame Header
DST_MODE:L3MC
DST_MODE:ENCAP
DST_MODE:INJECT
DST_MODE:L3UC
61
60
RT_FWD
SWAP_MAC
TAG_TPID
58
57
54
52
ERLEG
GEN_IDX
223
48
47
GEN_IDX_MODE
PROT_ACTIVE
46
45
44
ARRIVAL TSTAMP
PDU_W16_OFFSET
38
PDU_TYPE
35
34
192
191
CL_RSLT
23
DST PORT_MASK
19
18
NEXT_HOP_DMAC
L3MC_GRP_IDX
MPLS_TTL
DST
14
11
10
MPLS_SBIT
ERLEG
MPLS_TC
7
7
TYPE_AFTER_POP
COPY_CNT
5
4
W16_POP_CNT
0
0
0
128
127
0
FWD
AFI_INJECT
21
ES0_ISDX_KEY_ENA
19
VSTAX_AVAIL
UPDATE_FCS
DST_MODE
SFLOW_MARKING
AGED
RX_MIRROR
17
16
15
14
12
11
10
9
MIRROR_PROBE
VSTAX
7
6
SRC_PORT
1
0
DO_NOT_REW
MISC
15
48
47
PIPELINE_ACT
13
12
PIPELINE_PT
FWD
26
25
8
7
MISC
INJECT DPORT
/ EXTRACT
CPU_MASK
10
TAGGING
0
TAGGING
POP_CNT
QOS
TRANSP_DSCP
UPDATE_DSCP
QOS
8
7
0
1
0
7
6
5
QOS
DSCP
Unused bits must be ignored and set to 0
0
The following table shows the internal frame header fields, including information whether a field is
relevant for injection, extraction, or both.
Table 2 •
Internal Frame Header Fields
Field Category
Field Name
Bit
Width
Description
TS
TSTAMP
223:192
32 bits
Arrival time stamp in nanoseconds.
VMDS-10492 VSC7440 Datasheet Revision 4.2
15
Functional Descriptions
Table 2 •
Internal Frame Header Fields (continued)
Field Category
Field Name
Bit
Width
Description
DST when
FWD.DST_MODE is
INJECT
RSV
191:181
11 bits
Reserved field. Must be set to 0.
DST PORT_MASK
180:128
53 bits
Injection destination port mask where
each bit representing a physical port (only
used for injection).
DST when
FWD.DST_MODE is
ENCAP
RSV
191:190
2 bits
Reserved field. Must be set to 0.
RT_FWD
189
1 bit
Update IP4 TTL and chksum/ip6 Hopcnt.
SWAP_MAC
188
1 bit
Instruct rewriter to swap MAC addresses.
TAG_TPID
187:186
2 bits
Tag protocol IDs.
0: Standard TPID as specified in
VSTAX.TAG.TAG_TYPE.
1: custom1 stag TPID.
2: custom2 stag TPID.
3: custom3 stag TPID.
RSV
185:184
2 bits
Reserved field. Must be set to 0.
GEN_IDX
183:174
10 bit
Generic index.
VSI when GEN_IDX_MODE = 1.
GEN_IDX_MODE
173
1 bit
0: Reserved.
1: VSI.
PROT_ACTIVE
172
1 bit
Protect is active.
PDU_W16_OFFSET
171:166
6 bits
PDU WORD16 (= 2 bytes) offset from
W16_POP_CNT to Protocol data unit
(PDU).
PDU_TYPE
165:163
3 bits
PDU type used to handle OAM, PTP and
SAT.
0: None.
1: OAM_Y1731.
2: OAM_MPLS_TP.
3: PTP.
4: IP4_UDP_PTP.
5: IP6_UDP_PTP.
6: Reserved.
7: SAM_SEQ.
CL_RSLT
162:147
16 bits
Classified MATCH_ID combined from
VCAP CLM and VCAP IS2. Used if the
frame is forwarded to the CPU.
MPLS_TTL
146:139
8 bits
TTL value for possible use in MPLS label.
MPLS_SBIT
138
1 bit
SBIT of last popped MPLS label. for
possible use in MPLS label.
MPLS_TC
137:135
3 bits
TC value for possible use in MPLS label.
VMDS-10492 VSC7440 Datasheet Revision 4.2
16
Functional Descriptions
Table 2 •
Internal Frame Header Fields (continued)
Field Category
Field Name
Bit
Width
Description
DST when
FWD.DST_MODE is
ENCAP
TYPE_AFTER_POP
134:133
2 bits
0: ETH - Normal Ethernet header, starting
with DMAC.
1: CW.
First 4 bits:
4: IPv4 header.
6: IPv6 header.
Others: MPLS CW (see RFC 4385)
2: MPLS. MPLS shim header follows.
W16_POP_CNT
132:128
5 bits
Number of WORD16 (= 2 bytes) to be
popped by rewriter, starting from
beginning of frame.
DST when
FWD.DST_MODE is
“L3UC”
RSV
191:183
9 bits
Reserved field. Must be set to 0.
ERLEG
182:176
7 bits
Egress router leg.
NEXT_HOP_DMAC
175:128
48 bits
Next hop DMAC. Only used for unicast
routing.
DST when
FWD.DST_MODE is
“L3MC”
RSV
191:152
40 bits
Reserved field. Must be set to 0.
L3MC_GRP_IDX
151:142
10 bits
IP multicast group used for L3 multicast
copies.
ERLEG
141:135
7 bits
Egress router leg.
COPY_CNT
134:128
7 bits
Number of multicast routed copies. Only
used for multicast routing.
127:48
80 bits
VStaX. See VStaX Header, page 20.
VSTAX
VMDS-10492 VSC7440 Datasheet Revision 4.2
17
Functional Descriptions
Table 2 •
Internal Frame Header Fields (continued)
Field Category
Field Name
Bit
Width
Description
FWD
AFI_INJ
47
1 bit
Injected into AFI.
RSV
46
1 bit
Reserved field. Must be set to 0.
ES0_ISDX_KEY_EN 45
A
1 bit
Controls use of ISDX in ES0 key.
RSV
44
1 bit
Reserved field. Must be set to 0.
VSTAX_AVAIL
43
1 bit
Received by ANA with valid VSTAX
section.
Extract: Frame received by ANA with valid
VSTAX section.
Inject: Frame to be forwarded based on
VSTAX section.
UPDATE_FCS
42
1 bit
Forces update of FCS.
0: Does not update FCS. FCS is only
updated if frame is modified by hardware.
1: Forces unconditional update of FCS.
RSV
41
1 bit
Reserved field. Must be set to 0.
DST_MODE
40:38
3 bits
Controls format of IFH.DST.
0: ENCAP
1: L3UC routing
2: L3MC routing
3: INJECT
Others: Reserved
SFLOW_MARKING
37
1 bit
Frame forwarded to CPU due to sFlow
sampling.
AGED
36
1 bit
Must be set to 0. Set if frame is aged by
QSYS. Only valid for extraction.
RX_MIRROR
35
1 bit
Signals that the frame is Rx mirrored.
MIRROR_PROBE
34:33
2 bits
Signals mirror probe for mirrored traffic.
0: Not mirrored.
1-3: Mirror probe 0-2.
SRC_PORT
32:27
6 bits
Physical source port number.
May be set by CPU to non-CPU port
number to masquerade another port.
DO_NOT_REW
26
1 bit
Controlled by CPU or
ANA_CL:PORT:QOS_CFG.KEEP_ENA
and prevents the rewriter from making any
changes of frames sent to front ports
when set.
VMDS-10492 VSC7440 Datasheet Revision 4.2
18
Functional Descriptions
Table 2 •
Internal Frame Header Fields (continued)
Field Category
Field Name
Bit
Width
Description
MISC
PIPELINE_ACT
25:23
3 bits
Pipeline action specifies if a frame is
injected, extracted, or discarded.
0: None
1: INJ
2: INJ_MASQ
3: Reserved
4: XTR
5: XTR_UPMEP
6: LBK_ASM
7: LBK_QS
PIPELINE_PT
22:18
5 bits
Pipeline point specifies the location where
a frame is injected, extracted, or
discarded.
0: None
1: ANA_VRAP
2: ANA_PORT_VOE
3: ANA_CL
4: ANA_CLM
5: ANA_IPT_PROT
6: ANA_OU_MIP
7: ANA_OU_SW
8: ANA_OU_PROT
9: ANA_OU_VOE
10: ANA_MID_PROT
11: ANA_IN_VOE
12: ANA_IN_PROT
13: ANA_IN_SW
14: ANA_IN_MIP
15: ANA_VLAN
16: ANA_DONE
17: REW_IN_MIP
18: REW_IN_SW
19: RE_IN_VOE
20: REW_OU_VOE
21: REW_OU_SW
22: REW_OU_MIP
23: REW_SAT
24: REW_PORT_VOE
25: REW_VRAP
CPU_MASK
17:10
8 bits
CPU extraction queue mask.
POP_CNT
9:8
2 bits
Controlled by CPU or
ANA_CL:PORT:VLAN_CTRL.VLAN_POP
_CNT or CLM VLAN_POP_CNT_ENA
and causes the rewriter to pop the
signaled number of consecutive VLAN
tags. If ENCAP.W16_POP_CNT >0 and
TYPE_AFTER_POP = ETH POP_CNT
applies to inner Ethernet layer.
TAGGING
VMDS-10492 VSC7440 Datasheet Revision 4.2
19
Functional Descriptions
Table 2 •
Internal Frame Header Fields (continued)
Field Category
Field Name
Bit
Width
Description
QOS
TRANSP_DSCP
7
1 bit
Controlled by CPU or
ANA_CL:PORT:QOS_CFG.
DSCP_KEEP_ENA and prevents the
rewriter from remapping DSCP values of
frames sent to front ports when set.
UPDATE_DSCP
6
1 bit
Controlled by CPU,
ANA_CL:PORT:QOS_CFG
DSCP_REWR_MODE_SEL, CLM
DSCP_ENA or ANA_CL:MAP_TBL:
SET_CTRL.DSCP_ENA and causes the
rewriter to update the frame’s DSCP value
with IFH.QOS.DSCP for frames sent to
front ports when set.
DSCP
5:0
6 bits
DSCP value.
The IFH is only used to control the rewriter on front ports or send to CPU. It is not transmitted with the
frame. For CPU ports, the information in the extraction IFH is for reference purposes only.
3.3.3
VStaX Header
When frames are sent to or from the NPI port, or when connecting multiple switches together, an optional
VStaX header is inserted into the frames.
The VStaX header consists of a 10-byte payload and is preceded by 2 bytes for the Microsemi EtherType
(0x8880). That is, a total of 12 bytes are inserted into the frame, as shown in the following illustration.
Figure 6 •
Frame With VStaX Header
FCS
Bit 79
Preamble
DMAC
SMAC
0x8880
Bit 0
VStaX Header, bit 79-0
Frame
Data
Microsemi EtherType
The layout of the 10-byte VStaX header is shown in the following illustration. In VStaX context, each
switch in a stack is termed a unit.
VMDS-10492 VSC7440 Datasheet Revision 4.2
20
Functional Descriptions
Figure 7 •
VStaX Header Layout
vstax2_isdx_ena=1 vstax2_isdx_ena=0
78
78
COSID
76
75
MUST BE 1
79
78
rsv
ISDX
68
67
MISC
AC
64
64
CL_DP
SP
CL_QOS
61
60
59
58
RSV
64
63
62
61
56
INGR_DROP_MODE 55
RSV
53
52
QOS
RSV
55
54
53
TTL
LRN_MODE
FWD_MODE
48
47
46
GENERAL
44
fwd_gmirror
fwd_stack
fwd_llookup
42
fwd_gcpu_all
RSV
TTL_KEEP
42
41
40
fwd_gcpu_ups
RSV
42
41
fwd_multicast
RSV
42
41
DST_UPSID
RSV
REW_CMD
36
35
DST_PN
32
RSV
fwd_logical
42 DST_PORT_TYPE 42
41
41
DST_UPSID
37
36
35
MC_IDX
37
36
DST_PN
32
32
rsv
44
43
42
DST_UPSID
37
36
DST_PN
32
fwd_physical
RSV
DST
DST_PN
32
32
32
31
31
CL_PCP
CL_DEI
29
28
27
TAG
CL_VID
16
15
14
13
INGR_PORT_TYPE
12
WAS_TAGGED
TAG_TYPE
port_type_intpn
port_type_upspn
SRC_PORT_TYPE 11 SRC_PORT_TYPE 11
src_ind_port
SRC_UPSID
RSV
Two values defined for src_intpn:
0xf: intpn_dlookup
0xe: intpn_router
rsv
SRC_ADDR_MODE 10
src_glag
src_ind_port
9
12
11
9
9
SRC
SRC_UPSID
5
4
3
SRC_INTPN
0
5
4
SRC_GLAGID
0
SRC_UPSPN
0
VMDS-10492 VSC7440 Datasheet Revision 4.2
0
21
Functional Descriptions
The following table describes each field in the VStaX header.
Table 3 •
VStaX Header Fields
Field Category
Field Name
Bit
Width
Description
Reserved
RSV
79
1 bit
Reserved field. Must be set to 1 when injecting
frames and must be checked on extraction.
MISC when
COSID
ANA_AC:PS_COMMO
ISDX
N.VSTAX2_MISC_ISD
X_ENA=1
78:76
3 bits
Class of service.
75:64
12 bits
Ingress service index.
MISC when
RSV
ANA_AC:PS_COMMO
N.VSTAX2_MISC_ISD
AC
X_ENA=0
78:68
11 bits
Reserved field. Must be set to 0 when injecting
frames from CPU and ignored on extraction.
67:64
4 bits
GLAG aggregation code
Reserved
RSV
63:62
2 bits
Reserved field. Must be set to 0.
QOS
CL_DP
60:61
2 bits
Classified drop precedence level.
SP
59
1 bit
Super priority.
Identifies frames to be forwarded between CPUs
of neighboring units, using egress and ingress
super priority queues in the assembler and
disassembler.
CL_QOS (IPRIO)
58:56
3 bits
Classified quality of service value (internal
priority).
INGR_DROP_MOD 55
E
1 bit
Congestion management information.
0: Ingress front port is in flow control mode.
1: Ingress front port is in drop mode.
RSV
54
1 bit
Reserved field. Must be set to 0.
Reserved
General
Reserved
RSV
53
1 bit
Reserved field. Must be set to 0.
TTL
52:48
5 bits
Time to live.
LRN_MODE
47
1 bit
0: Normal learning. SMAC and VID of the frame is
subject to learning.
1: Skip learning. Do not learn SMAC and VID of
the frame.
FWD_MODE
46:44
3 bits
Forward mode.
Encoding:
0x0: FWD_LLOOKUP: Forward using local lookup
in every unit.
0x1: FWD_LOGICAL: Forward to logical front port
at specific UPS.
0x2: FWD_PHYSICAL: Forward to physical front
port at specific UPS.
0x3: FWD_MULTICAST: Forward to ports part of
multicast group.
0x4: FWD_GMIRROR: Forward to global mirror
port.
0x5: FWD_GCPU_UPS: Forward to GCPU of
specific UPS.
0x6: FWD_GCPU_ALL: Forward to all GCPUs.
0x7: Reserved.
RSV
43
1 bit
Reserved field. Must be set to 0.
VMDS-10492 VSC7440 Datasheet Revision 4.2
22
Functional Descriptions
Table 3 •
VStaX Header Fields (continued)
Field Category
Field Name
Bit
Width
Description
VSTAX.DST when
REW_CMD
VSTAX.FWD_MODE is
FWD_LLOOKUP or
FWD_GMIRROR
42:32
11 bits
VCAP IS2 action REW_CMD.
VSTAX.DST when
DST_PORT_TYPE
VSTAX.FWD_MODE is
FWD_LOGICAL
42
1 bit
Destination port type. Encoding:
0: Front port
1: Internal port
DST_UPSID
41:37
5 bits
Destination unit port set ID.
DST_PN
36:32
5 bits
Logical destination port at unit identified by
dst_upsid.
42
1 bit
Reserved field. Must be set to 0.
41:37
5 bits
Destination unit port set ID.
36:32
5 bits
Physical destination port at unit identified by
dst_upsid.
42
1 bit
Reserved field. Must be set to 0.
41:32
10 bits
Forward to ports part of this multicast group index.
42
1 bit
Reserved field. Must be set to 0.
41:37
5 bits
Destination unit port set ID.
36
1 bit
Reserved field. Must be set to 0.
35:32
4 bits
CPU destination port at unit identified by
dst_upsid.
42
1 bit
Reserved field. Must be set to 0.
41
1 bit
Special TTL handling used for neighbor discovery.
40:36
5 bits
Reserved field. Must be set to 0.
DST_PN
35:32
4 bits
CPU destination port at unit identified by
dst_upsid.
CL_PCP
31:29
3 bits
Classified priority code point value.
CL_DEI
28
1 bit
Classified drop eligible indicator value.
CL_VID
27:16
12 bits
Classified VID.
WAS_TAGGED
15
1 bit
If set, frame was VLAN-tagged at reception.
TAG_TYPE
14
1 bit
Tag type.
0: C-tag (EtherType 0x8100).
1: S-tag (EtherType 0x88A8).
2 bits
Ingress ports type for private VLANs/Asymmetric
VLANs.
00: Promiscuous port.
01: Community port.
10: Isolated port.
RSV
VSTAX.DST when
VSTAX.FWD_MODE is
DST_UPSID
FWD_PHYSICAL
DST_PN
VSTAX.DST when
RSV
VSTAX.FWD_MODE is
MC_IDX
FWD_MULTICAST
VSTAX.DST when
RSV
VSTAX.FWD_MODE is
DST_UPSID
FWD_GCPU_UPS
RSV
DST_PN
VSTAX.DST when
RSV
VSTAX.FWD_MODE is
TTL_KEEP
FWD_GCPU_ALL
RSV
TAG
INGR_PORT_TYPE 13:12
VMDS-10492 VSC7440 Datasheet Revision 4.2
23
Functional Descriptions
Table 3 •
VStaX Header Fields (continued)
Field Category
Field Name
SRC
3.4
Bit
Width
Description
SRC_ADDR_MODE 10
1 bit
0: src_ind_port:
Individual port. Source consists of src_upsid and
src_upspn.
1: src_glag: Source consists of src_glag.
SRC_PORT_TYPE
11
1 bit
Only applicable if src_addr_mode==src_ind_port.
Reserved and must be set to 0 if
src_addr_mode==src_glag.
0: port_type_upspn.
1: port_type_intpn.
SRC_UPSID
9:5
5 bits
If src_addr_mode = src_ind_port:
ID of stack unit port set, where the frame was
initially received.
SRC_UPSPN
4:0
5 bits
If src_addr_mode = src_ind_port and
src_port_type = port_type_upspn:
Logical port number of the port (on source ups),
where the frame was initially received.
SRC_INTPN
3:0
4 bits
If src_addr_mode = src_ind_port and
src_port_type = port_type_intpn:
Internal port number.
SRC_GLAGID
0
5 bits
If src_addr_mode = src_glag:
ID of the GLAG.
Port Numbering and Mappings
The switch core contains an internal port numbering domain where ports are numbered from 0 through
14. A port connects to a port module, which connects to an interface macro, which connects to I/O pins
on the device. The port modules are DEV2G5 or DEV10G. The interface macros are SERDES1G,
SERDES6G, SERDES10G, or a copper transceiver.
Some ports are internal to the device and do not connect to port modules or interface macros. For
example, internal ports are used for frame injection and extraction to the CPU queues.
The following table shows the default port numbering and how the ports map to port modules and
interface macros.
Table 4 •
Default Port Numbering and Port Mappings
Port Number
Port Module
Maximum
Port Speed
Interface Macro
0
DEV2G5_0
1 Gbps
SERDES1G_0 or CUPHY_0
1
DEV2G5_1
1 Gbps
SERDES1G_1 or CUPHY_1
2
DEV2G5_2
1 Gbps
SERDES1G_2
3
DEV2G5_3
1 Gbps
SERDES1G_3
4 (NPI)
DEV2G5_4
1 Gbps
SERDES1G_4
5
DEV2G5_5
2.5 Gbps
SERDES6G_0
6
DEV2G5_6
2.5 Gbps
SERDES6G_1
7
DEV2G5_7
2.5 Gbps
SERDES10G_0
8
DEV2G5_8
2.5 Gbps
SERDES10G_1
9
DEV10G_0
10 Gbps
SERDES10G_2
VMDS-10492 VSC7440 Datasheet Revision 4.2
24
Functional Descriptions
Table 4 •
Default Port Numbering and Port Mappings (continued)
Port Number
Port Module
Maximum
Port Speed
Interface Macro
10
DEV10G_1
10 Gbps
SERDES10G_3
11 (CPU0)
No port module
No macro
No macro
12 (CPU1)
No port module
No macro
No macro
13 (VD0)
No port module
No macro
No macro
14 (VD1)
No port module
No macro
No macro
Ports 0 and 1 are dual-media ports and support either a SerDes interface or a copper transceiver.
Ports 11 through 14 are internal ports defined as follows:
•
•
•
Port 11 and port 12: CPU port 0 and 1 (CPU0, CPU1) are used for injection and extraction of frames.
Port 13: Virtual device 0 (VD0) is used for multicast routing.
Port 14: Virtual device 1 (VD1) is used for AFI frame injections.
The internal ports do not have associated port modules and interface macros.
The following table shows the fixed mapping from interface macros to the device I/O pins.
Table 5 •
3.4.1
Interface Macro to I/O Pin Mapping
SERDES Macros
I/O Pin Names
CUPHY_0 to CUPHY_1
P0_D[3:0]N, P0_D[3:0]P through
P1_D[3:0]N, P1_D[3:0]P
SERDES1G_0 to SERDES1G_4
S0_RXN, S0_RXP, S0_TXN, S0_TXP through
S4_RXN, S4_RXP, S4_TXN, S4_TXP
SERDES6G_0 to SERDES6G_1
S5_RXN, S5_RXP, S5_TXN, S5_TXP through
S6_RXN, S6_RXP, S6_TXN, S6_TXP
SERDES10G_0 to SERDES10G_3
S7_RXN, S7_RXP, S7_TXN, S7_TXP through
S10_RXN, S10_RXP, S10_TXN, S10_TXP
Supported SerDes Interfaces
The device supports a range of SerDes interfaces. The following table lists the SerDes interfaces
supported by the SerDes ports, including standards, data rates, connectors, medium, and coding for
each interface.
Data Rate
Connector
Medium
Coding
SERDES10G
Port
Speed
Port Interface Specification
SERDES6G(1)
Supported SerDes Interfaces
SERDES1G
Table 6 •
SFP
PCB
4B5B
x
x
x
PCB
8B10B
x
x
x
PCB
8B10B
x
x
x
x
x
x
x
x
100BASE-FX
IEEE 802.3, Clause 24 100M
125 Mbps
SGMII
Cisco
1G
1.25 Gbps
SFP
SFP-MSA
1G
1.25 Gbps
1000BASE-KX IEEE802.3, Clause 70
1G
1.25 Gbps
PCB,
backplane
8B10B
2.5G
2.5G
3.125 Gbps
PCB
8B10B
Proprietary (aligned to
SFP)
SFP
VMDS-10492 VSC7440 Datasheet Revision 4.2
25
Functional Descriptions
10GBASE-KR
IEEE 802.3, Clause 72 10G
SFP+(SFI)
SFF-8431:
10G
Direct Attached Cu
IEEE 802.3, Clause 52
- LAN
1.
Data Rate
Connector
1 x 10.3125 Gbps
SFP+
SERDES10G
Port
Speed
Port Interface Specification
SERDES6G(1)
Supported SerDes Interfaces (continued)
SERDES1G
Table 6 •
Medium
Coding
PCB,
backplane
64B66B
x
PCB, cable 64B66B
x
1 x 10.3125 Gbps
1 x 10.3125 Gbps
This column applies to SERDES6G ports, as well as SERDES10G_0 and SERDES10G_1.
3.4.2
Dual-Media Mode
Ports 0 and 1 are dual-media ports and support either a 1G copper transceiver or a 1G SERDES
interface. The dual-media mode is configurable per port through DEVCPU_GCB::PHY_CFG.PHY_ENA.
3.4.3
10G Modes
The two 10G ports can be used in two different modes:
•
•
SFI mode The 10G port connects to a SERDES10G macro through a DEV10G port module
enabling 10G SFI.
1G/2.5G mode The 10G port connects to a SERDES10G macro through a DEV2G5 port module
enabling 1G and 2.5G port speeds.
The 10G modes are configurable per 10G port through HSIO::HW_CFG. The following illustration shows
an overview of the I/O muxing, associated port modules, and SERDES macros for the 10G ports.
VMDS-10492 VSC7440 Datasheet Revision 4.2
26
Functional Descriptions
Figure 8 •
10G Muxing
S9_TX/RXN/P
S10_TX/RXN/P
XGDIG
XGXFI
XGKR1
XGKR0
XGKR1
10.3125 Gbps
10.3125 Gbps
1.25 Gbps
PCS_XFI
(SFI)
PCS1G
(SGMII)
DEV10G
1.25 Gbps
PCS_XFI
(SFI)
KR FEC
PCS10G_BR
XGXFI
10GBASE-KR
Training
XGKR0
XGDIG
HSIO::HW_CFG.DEV10G_1_MODE
10GBASE-KR
Training
HSIO::HW_CFG.DEV10G_0_MODE
XGANA
SERDES10G_3
SERDES10G_2
XGANA
PCS1G
(SGMII)
KR FEC
MAC10G
MAC1G
DEV10G_0
Port #9
DEV2G5_9
Port #9
PCS10G_BR
DEV2G5
DEV10G
Switch core
MAC10G
MAC1G
DEV10G_1
Port #10
DEV2G5_10
Port #10
DEV2G5
Switch core
Register target
The following table shows how the 10G ports connect to port modules and to SERDES macros for the
different modes.
Table 7 •
10G Modes
10G Mode
Port Number
Port Module
SERDES Macros
SFI
9
DEV10G_0
SERDES10G_2
10
DEV10G_1
SERDES10G_3
9
DEV2G5_9
SERDES10G_2
10
DEV2G5_10
SERDES10G_3
1G/2.5G
3.4.4
Logical Port Numbers
The analyzer and the rewriter uses in many places a logical port number. For instance, when link
aggregation is enabled, all ports within a link aggregation group must be configured to use the physical
port number of the port with the lowest port number within the group as logical port group ID. The
VMDS-10492 VSC7440 Datasheet Revision 4.2
27
Functional Descriptions
mapping to a logical port number is configured in ANA_CL:PORT:PORT_ID_CFG.LPORT_NUM and
REW::PORT_CTRL.ES0_LPORT_NUM.
3.5
SERDES1G
The SERDES1G is a high-speed SerDes interface that can operate at 1.25 Gbps (SGMII/SerDes,
1000BASE-KX). In addition, 100 Mbps (100BASE-FX) is supported by oversampling.
The SERDES1G supports the configuration of several parameters for increased performance in the
specific application environment. The features include:
•
•
•
3.6
Baudrate support 1.25 Gbps
Programmable loop bandwidth and phase regulation behavior for clock and data recovery unit
(CDR)
Input buffer (IB) and output buffer (OB) configurations supporting:
IB Signal Detect/Loss of Signal (LOS) options
IB equalization (including corner frequency configuration)
OB selectable de-emphasis
OB amplitude drive levels
OB slew rate control
SERDES6G
The SERDES6G is a high-speed SerDes interface, which can operate at the following data rates.
•
•
•
1.25 Gbps (SGMII/SerDes 1000BASE-KX)
2.5 Gbps
100 Mbps (100BASE-FX) is supported by oversampling.
The SERDES6G supports the configuration of several parameters for increased performance in the
specific application environment. Features include:
•
•
•
•
•
3.7
Configurable baud rate support from 1.25 Gbps to 2.5 Gbps.
Programmable loop bandwidth and phase regulation behavior for clock and data recovery unit
(CDR)
Phase-synchronization of transmitter when used in multilane aggregates for low skew between
lanes
Input buffer (IB) and output buffer (OB) configurations supporting:
IB signal detect and loss of signal (LOS) options
IB adaptive equalization
OB programmable de-emphasis, 3 taps
OB amplitude drive levels
OB slew rate control
Loopbacks for system diagnostics
SERDES10G
The SERDES10G is a high-speed SERDES interface, which can operate from 1.25 Gbps up to
11.5 Gbps. Due to its frequency synthesizer, any data rate between these limits are supported. 100 Mbps
(100MBASE-FX) is supported by oversampling.
The SERDES10G supports the configuration of several parameters for increased performance in the
specific application environment. The features include the following:
•
•
•
•
•
Configurable baud rate support from 1.25 Gbps to 11.5 Gbps
Programmable CDR loop filter bandwidth and phase regulation behavior for receiver
Programmable offset and phase adjustment of sampling stage
Transmitter to receiver synchronization including programmable jitter filtering/attenuation (< 0.01 Hz)
I/O buffer configurations supporting:
IB signal detect and loss of signal (LOS) options
IB adaptive equalization with high performance CTLE and 4-tap DFE
OB programmable de-emphasis, 3 taps
OB configurable amplitude drive levels
VMDS-10492 VSC7440 Datasheet Revision 4.2
28
Functional Descriptions
•
3.8
OB supply options (1.0 V or 1.2 V) for optimized drive strength
OB slew rate control
Loopbacks for system diagnostics
Copper Transceivers
This section describes the high-level functionality and operation of two built-in copper transceivers. The
integration is kept as close to multichip PHY and switch designs as possible. This allows a fast path for
software already running in a similar distributed design while still benefiting from the cost savings
provided by the integration.
3.8.1
Register Access
The registers of the integrated transceivers are not placed in the memory map of the switch, but are
attached instead to the built-in MII management controller 0 of the device. As a result, PHY registers are
accessed indirectly through the switch registers. For more information, see MII Management Controller,
page 350.
In addition to providing the IEEE 802.3 specified 16 MII Standard Set registers, the PHYs contain an
extended set of registers that provide additional functionality. The devices support the following types of
registers:
•
•
•
•
IEEE Clause 22 device registers with addresses from 0 to 31
Two pages of extended registers with addresses from 16E1 through 30E1 and 16E2 through 30E2
General-purpose registers with addresses from 0G to 30G
IEEE Clause 45 device registers accessible through the Clause 22 registers 13 and 14 to support
IEEE 802.3az Energy Efficient Ethernet registers
The memory mapping is controlled through PHY_MEMORY_PAGE_ACCESS::PAGE_ACCESS_CFG.
The following illustration shows the relationship between the device registers and their address spaces.
Figure 9 •
0
1
2
3
.
.
.
13
14
15
Register Space Layout
0G
1G
2G
3G
.
.
.
.
.
15G
Clause 45
Registers
IEEE 802.3
Standard
Registers
General Purpose
Registers
16
17
18
19
.
.
.
.
.
30
Main Registers
31
0x0000
3.8.1.1
16E1
17E1
18E1
19E1
.
.
.
.
.
30E1
Extended
Registers 1
0x0001
16E2
17E2
18E2
19E2
.
.
.
.
.
30E2
Extended
Registers 2
0x0002
16E3
17E3
18E3
19E3
.
.
.
.
.
30E3
Extended
Registers 3
0x0003
16G
17G
18G
19G
.
.
.
.
.
30G
0x0010
Broadcast Write
The PHYs can be configured to accept MII PHY register write operations, regardless of the destination
address of these writes. This is enabled in PHY_CTRL_STAT_EXT::BROADCAST_WRITE_ENA. This
enabling allows similar configurations to be sent quickly to multiple PHYs without having to do repeated
MII PHY write operations. This feature applies only to writes; MII PHY register read operations are still
interpreted with “correct” address.
3.8.1.2
Register Reset
The PHY can be reset through software, enabled in PHY_CTRL::SOFTWARE_RESET_ENA. Enabling
this field initiates a software reset of the PHY. Fields that are not described as sticky are returned to their
VMDS-10492 VSC7440 Datasheet Revision 4.2
29
Functional Descriptions
default values. Fields that are described as sticky are only returned to defaults if sticky-reset is disabled
through PHY_CTRL_STAT_EXT::STICKY_RESET_ENA. Otherwise, they retain their values from prior to
the software reset. A hardware reset always brings all PHY registers back to their default values.
3.8.2
Cat5 Twisted Pair Media Interface
The twisted pair interfaces are compliant with IEEE 802.3-2008 and IEEE 802.3az for Energy Efficient
Ethernet.
3.8.2.1
Voltage-Mode Line Driver
Unlike many other gigabit PHYs, this PHY uses a patented voltage-mode line driver that allows it to fully
integrate the series termination resistors (required to connect the PHY’s Cat5 interface to an external 1:1
transformer). Also, the interface does not require placement of an external voltage on the center tap of
the magnetic. The following illustration shows the connections.
Figure 10 • Cat5 Media Interface
PHY Port_n
RJ-45
Transformer
Pn_D0P
1
A+
Pn_D0N
2
A–
Pn_D1P
3
B+
Pn_D1N
6
B–
Pn_D2P
4
C+
Pn_D2N
5
C–
Pn_D3P
7
D+
8
D–
0.1 µF
0.1 µF
0.1 µF
0.1 µF
Pn_D3N
75 Ω
75 Ω
1000 pF,
2 kV
75 Ω
75 Ω
3.8.2.2
Cat5 Auto-Negotiation and Parallel Detection
The integrated transceivers support twisted pair auto-negotiation as defined by clause 28 of the IEEE
802.3-2008. The auto-negotiation process evaluates the advertised capabilities of the local PHY and its
link partner to determine the best possible operating mode. In particular, auto-negotiation can determine
speed, duplex configuration, and master or slave operating modes for 1000BASE-TX. Auto-negotiation
also allows the device to communicate with the link partner (through the optional “next pages”) to set
attributes that may not otherwise be defined by the IEEE standard.
If the Cat5 link partner does not support auto-negotiation, the device automatically use parallel detection
to select the appropriate link speed.
Auto-negotiation can be disabled by clearing PHY_CTRL.AUTONEG_ENA. If auto-negotiation is
disabled, the state of the SPEED_SEL_MSB_CFG, SPEED_SEL_LSB_CFG, and
DUPLEX_MODE_CFG fields in the PHY_CTRL register determine the device’s operating speed and
VMDS-10492 VSC7440 Datasheet Revision 4.2
30
Functional Descriptions
duplex mode. Note that while 10BASE-T and 100BASE-T do not require auto-negotiation, 1000BASE-T
does require it (defined by clause 40).
3.8.2.3
1000BASE-T Forced Mode Support
The integrated transceivers provides support for a 1000BASE-T forced test mode. In this mode, the PHY
can be forced into 1000BASE-T mode and does not require manual setting of master/slave at the two
ends of the link. This mode is only for test purposes. Do not use in normal operation. To configure a PHY
in this mode, set PHY_EEE_CTRL.FORCE_1000BT_ENA = 1, with
PHY_CTRL.SPEED_SEL_LSB_CFG = 1 and PHY_CTRL.SPEED_SEL_LSB_CFG = 0.
3.8.2.4
Automatic Crossover and Polarity Detection
For trouble-free configuration and management of Ethernet links, the integrated transceivers include a
robust automatic crossover detection feature for all three speeds on the twisted-pair interface
(10BASE-T, 100BASE-T, and 1000BASE-T). Known as HP Auto-MDIX, the function is fully compliant
with clause 40 of the IEEE 802.3-2002.
Additionally, the device detects and corrects polarity errors on all MDI pairs—a useful capability that
exceeds the requirements of the standard.
Both HP Auto-MDIX detection and polarity correction are enabled in the device by default. Default
settings can be changed using the POL_INV_DIS and PAIR_SWAP_DIS fields in the
PHY_BYPASS_CTRL register. Status bits for each of these functions are located in the
PHY_AUX_CTRL_STAT register.
The integrated transceivers can be configured to perform HP Auto-MDIX, even when auto-negotiation is
disabled (PHY_CTRL.AUTONEG_ENA = 0) and the link is forced into 10/100 speeds. To enable the HP
Auto-MDIX feature, set PHY_BYPASS_CTRL.FORCED_SPEED_AUTO_MDIX_DIS to 0.
The HP Auto-MDIX algorithm successfully detects, corrects, and operates with any of the MDI wiring pair
combinations listed in the following table.
Supported MDI Pair Combinations
Table 8 •
3.8.2.5
1, 2
3, 6
4, 5
7, 8
Mode
A
B
C
D
Normal MDI
B
A
D
C
Normal MDI-X
A
B
D
C
Normal MDI with pair swap on C and D pair
B
A
C
D
Normal MDI-X with pair swap on C and D pair
Manual MDI/MDI-X Setting
As an alternative to HP Auto-MDIX detection, the PHY can be forced to be MDI or MDI X using
PHY_EXT_MODE_CTRL.FORCE_MDI_CROSSOVER_ENA. Setting this field to 10 forces MDI, and
setting 11 forces MDI-X. Leaving the bits 00 enables the MDI/MDI-X setting to be based on
FORCED_SPEED_AUTO_MDIX_DIS and PAIR_SWAP_DIS in the register PHY_BYPASS_CTRL.
3.8.2.6
Link Speed Downshift
For operation in cabling environments that are incompatible with 1000BASE-T, the device provides an
automatic link speed “downshift” option. When enabled, the device automatically changes its 1000BASET auto-negotiation advertisement to the next slower speed after a set number of failed attempts at
1000BASE-T. No reset is required to exit this state if a subsequent link partner with 1000BASE-T support
is connected. This is useful in setting up in networks using older cable installations that may include only
pairs A and B and not pairs C and D.
Link speed downshifting is configured and monitored using SPEED_DOWNSHIFT_STAT,
SPEED_DOWNSHIFT_CFG, and SPEED_DOWNSHIFT_ENA in the register PHY_CTRL_EXT3.
VMDS-10492 VSC7440 Datasheet Revision 4.2
31
Functional Descriptions
3.8.2.7
Energy Efficient Ethernet
The integrated transceivers support IEEE 802.3az Energy Efficient Ethernet (EEE). This standard
provides a method for reducing power consumption on an Ethernet link during times of low use.
Figure 11 • Low Power Idle Operation
Active
Low-Power Idle
Active
Quiet
Wake
Tq
Refresh
Ts
Refresh
Sleep
Active
Quiet
Active
Quiet
Tr
Using LPI, the usage model for the link is to transmit data as fast as possible and then return to a low
power idle state. Energy is saved on the link by cycling between active and low power idle states. Power
is reduced during LPI by turning off unused circuits and, using this method, energy use scales with
bandwidth utilization.
The transceivers use LPI to optimize power dissipation in 100BASE-TX and 1000BASE-T operation. In
addition, IEEE 802.3az defines a 10BASE-Te mode that reduces transmit signal amplitude from 5 V to
approximately 3.3 V, peak-to-peak. This mode reduces power consumption in 10 Mbps link speed and
can fully interoperate with legacy 10BASE-T compliant PHYs over 100 m Cat5 cable or better.
To configure the transceivers in 10BASE-Te mode, set PHY_EEE_CTRL.EEE_LPI_RX_100BTX_DIS to
1 for each port. Additional Energy Efficient Ethernet features are controlled through Clause 45 registers
as defined in Clause 45 registers to Support Energy Efficient Ethernet
3.8.3
Wake-On-LAN and SecureOn
The device supports Wake-on-LAN, an Ethernet networking standard to awaken hosts by using a “magic
packet” that is decoded to ascertain the source, and then assert an interrupt pin or an LED. The device
also supports SecureOn to secure Wake-on-LAN against unauthorized access. The following illustration
shows an overview of the Wake-on-LAN functionality.
Figure 12 • Wake-On-LAN Functionality
Tx Path
Rx Path
WOL_MAC_ADDR
ADDR_REPEAT_CNT
Secure-On enable
Secure-On
password length
Secure-On password
Wake-on-LAN
Detect
WoL Detected
Wake-on-LAN detection is available in 10BASE-T, 100BASE-TX, and 1000BASE-T modes., It is enabled
by setting the interrupt mask register PHY_INT_MASK. WOL_INT_ENA and its status is read in the
interrupt status register PHY_INT_STAT. WOL_INT_PEND. Wake-on-LAN and SecureOn are configured
for each port using the PHY_WOL_MDINT_CTRL register. The MAC address for each port is saved in its
local register space (PHY_WOL_MAC_ADDRx).
VMDS-10492 VSC7440 Datasheet Revision 4.2
32
Functional Descriptions
3.8.4
Ethernet Inline Powered Devices
The integrated transceivers can detect legacy inline powered devices in Ethernet network applications.
The inline powered detection capability can be part of a system that allows for IP-phone and other
devices, such as wireless access points, to receive power directly from their Ethernet cable, similar to
office digital phones receiving power from a Private Branch Exchange (PBX) office switch over the
telephone cabling. This can eliminate the need of an external power supply for an IP-phone. It also
enables the inline powered device to remain active during a power outage (assuming the Ethernet switch
is connected to an uninterrupted power supply, battery, back-up power generator, or some other
uninterruptable power source).
The following illustration shows an example of this type of application.
Figure 13 • Inline Powered Ethernet Switch
Control
Gigabit Switch/PHY
PHY_port0
PHY_port1
PHY_portn
Inline,
Power-Over-Ethernet (PoE)
Power Supply
Transformer
Transformer
Transformer
RJ-45
I/F
RJ-45
I/F
RJ-45
I/F
Link
Partner
Link
Partner
Cat5
Link
Partner
The following procedure describes the process that an Ethernet switch must perform to process inline
power requests made by a link partner (LP); that is, in turn, capable of receiving inline power.
1.
2.
3.
4.
5.
Enables the inline powered device detection mode on each transceiver using its serial management
interface. Set PHY_CTRL_EXT4.INLINE_POW_DET_ENA to 1.
Ensures that the Auto-Negotiation Enable bit (register 0.12) is also set to 1. In the application, the
device sends a special Fast Link Pulse (FLP) signal to the LP. Reading
PHY_CTRL_EXT4.INLINE_POW_DET_STAT returns 00 during the search for devices that require
Power-over-Ethernet (PoE).
The transceiver monitors its inputs for the FLP signal looped back by the LP. An LP capable of
receiving PoE loops back the FLP pulses when the LP is in a powered down state. This is reported
when PHY_CTRL_EXT4.INLINE_POW_DET_STAT reads back 01. If an LP device does not loop
back the FLP after a specific time, PHY_CTRL_EXT4.INLINE_POW_DET_STAT automatically
resets to 10.
If the transceiver reports that the LP needs PoE, the Ethernet switch must enable inline power on
this port, externally of the PHY.
The PHY automatically disables inline powered device detection if
PHY_CTRL_EXT4.INLINE_POW_DET_STAT automatically resets to 10, and then automatically
changes to its normal auto-negotiation process. A link is then auto-negotiated and established when
the link status bit is set (PHY_STAT.LINK_STAT is set to 1).
VMDS-10492 VSC7440 Datasheet Revision 4.2
33
Functional Descriptions
6.
3.8.5
In the event of a link failure (indicated when PHY_STAT.LINK_STAT reads 0), the inline power must
be disabled to the inline powered device external to the PHY. The transceiver disables its normal
auto-negotiation process and re-enables its inline powered device detection mode.
IEEE 802.3af PoE Support
The integrated transceivers are also compatible with switch designs intended for use in systems that
supply power to Data Terminal Equipment (DTE) by means of the MDI or twisted pair cable, as described
in clause 33 of the IEEE 802.3af.
3.8.6
ActiPHY™ Power Management
In addition to the IEEE-specified power-down control bit (PHY_CTRL.POWER_DOWN_ENA), the device
also includes an ActiPHY power management mode for each PHY. The ActiPHY mode enables support
for power-sensitive applications. It uses a signal detect function that monitors the media interface for the
presence of a link to determine when to automatically power-down the PHY. The PHY “wakes up” at a
programmable interval and attempts to wake-up the link partner PHY by sending a burst of FLP over
copper media.
The ActiPHY power management mode in the integrated transceivers is enabled on a per-port basis
during normal operation at any time by setting PHY_AUX_CTRL_STAT.ACTIPHY_ENA to 1.
Three operating states are possible when ActiPHY mode is enabled:
•
•
•
Low power state
LP wake-up state
Normal operating state (link up state)
The PHY switches between the low power state and the LP wake-up state at a programmable rate (the
default is two seconds) until signal energy is detected on the media interface pins. When signal energy is
detected, the PHY enters the normal operating state. If the PHY is in its normal operating state and the
link fails, the PHY returns to the low power state after the expiration of the link status time-out timer. After
reset, the PHY enters the low power state.
When auto-negotiation is enabled in the PHY, the ActiPHY state machine operates as described. If autonegotiation is disabled and the link is forced to use 10BT or 100BTX modes while the PHY is in its low
power state, the PHY continues to transition between the low power and LP wake-up states until signal
energy is detected on the media pins. At that time, the PHY transitions to the normal operating state and
stays in that state even when the link is dropped. If auto-negotiation is disabled while the PHY is in the
normal operation state, the PHY stays in that state when the link is dropped and does not transition back
to the low power state.
The following illustration shows the relationship between ActiPHY states and timers.
VMDS-10492 VSC7440 Datasheet Revision 4.2
34
Functional Descriptions
Figure 14 • ActiPHY State Diagram
Low Power State
Signal Energy Detected on
Media
FLP Burst or
Clause 37 Restart
Signal Sent
Sleep Timer Expires
Timeout Timer Expires and
Auto-negotiation Enabled
LP Wake-up
State
3.8.6.1
Normal
Operation State
Low Power State
All major digital blocks are powered down in the lower power state.
In this state, the PHY monitors the media interface pins for signal energy. The PHY comes out of low
power state and transitions to the normal operating state when signal energy is detected on the media.
This happens when the PHY is connected to one of the following:
•
•
Auto-negotiation capable link partner
Another PHY in enhanced ActiPHY LP wake-up state
In the absence of signal energy on the media pins, the PHY transitions from the low power state to the
LP wake-up state periodically based on the programmable sleep timer
(PHY_CTRL_EXT3.ACTIPHY_SLEEP_TIMER). The actual sleep time duration is random, from –80 ms
to 60 ms, to avoid two linked PHYs in ActiPHY mode entering a lock-up state during operation.
After sending signal energy on the relevant media, the PHY returns to the low power state.
3.8.6.2
Link Partner Wake-up State
In the link partner wake-up state, the PHY attempts to wake up the link partner. Up to three complete FLP
bursts are sent on alternating pairs A and B of the Cat5 media for a duration based on the wake-up timer,
which is set using register bits 20E1.12:11.
After sending signal energy on the relevant media, the PHY returns to the low power state.
3.8.6.3
Normal Operating State
In normal operation, the PHY establishes a link with a link partner. When the media is unplugged or the
link partner is powered down, the PHY waits for the duration of the programmable link status time-out
timer, which is set using ACTIPHY_LINK_TIMER_MSB_CFG and ACTIPHY_LINK_TIMER_LSB_CFG in
the PHY_AUX_CTRL_STAT register. It then enters the low power state.
3.8.7
Testing Features
The integrated transceivers include several testing features designed to facilitate performing systemlevel debugging.
3.8.7.1
Ethernet Packet Generator (EPG)
The Ethernet Packet Generator (EPG) can be used at each of the 10/100/1000BASE-T speed settings
for copper Cat5 media to isolate problems between the MAC and the PHY, or between a local PHY and
its remote link partner. Enabling the EPG feature effectively disables all MAC interface transmit pins and
selects the EPG as the source for all data transmitted onto the twisted pair interface.
VMDS-10492 VSC7440 Datasheet Revision 4.2
35
Functional Descriptions
Important The EPG is intended for use with laboratory or in-system testing equipment only. Do not use
the EPG testing feature when the PHY is connected to a live network.
To use the EPG feature, set PHY_1000BT_EPG2.EPG_ENA to 1.
When PHY_1000BT_EPG2.EPG_RUN_ENA is set to 1, the PHY begins transmitting Ethernet packets
based on the settings in the PHY_1000BT_EPG1 and PHY_1000BT_EPG2 registers. These registers
set:
•
•
•
•
•
•
Source and destination addresses for each packet
Packet size
Inter-packet gap
FCS state
Transmit duration
Payload pattern
If PHY_1000BT_EPG1.TRANSMIT_DURATION_CFG is set to 0, PHY_1000BT_EPG1.EPG_RUN_ENA
is cleared automatically after 30,000,000 packets are transmitted.
3.8.7.2
CRC Counters
Two separate CRC counters are available in the PHY: a 14-bit good CRC counter available through
PHY_CRC_GOOD_CNT.CRC_GOOD_PKT_CNT and a separate 8-bit bad CRC counter in
PHY_CTRL_EXT4.CRC_1000BT_CNT.
3.8.7.3
Far-End Loopback
The far-end loopback testing feature is enabled by setting
PHY_CTRL_EXT1.FAR_END_LOOPBACK_ENA to 1. When enabled, it forces incoming data from a link
partner on the current media interface, into the MAC interface of the PHY, to be re-transmitted back to the
link partner on the media interface as shown in the following illustration. The incoming data also appears
on the receive data pins of the MAC interface. Data present on the transmit data pins of the MAC
interface is ignored when using this testing feature.
Figure 15 • Far-End Loopback Diagram
Link Partner
PHY
Switch
Rx
Cat5
Tx
3.8.7.4
Near-End Loopback
When the near-end loopback testing feature is enabled (by setting PHY_CTRL.LOOPBACK_ENA to 1),
data on the transmit data pins (TXD) is looped back in the PCS block, onto the device receive data pins
(RXD), as shown in the following illustration. When using this testing feature, no data is transmitted over
the network.
Figure 16 • Near-End Loopback Diagram
PHY
Link Partner
Switch
Rx
Cat5
Tx
VMDS-10492 VSC7440 Datasheet Revision 4.2
36
Functional Descriptions
3.8.7.5
Connector Loopback
The connector loopback testing feature allows the twisted pair interface to be looped back externally.
When using the connector loopback feature, the PHY must be connected to a loopback connector or a
loopback cable. Pair A must be connected to pair B, and pair C to pair D, as shown in the following
illustration. The connector loopback feature functions at all available interface speeds.
Figure 17 • Connector Loopback Diagram
PHY
Switch
A
Cat5
B
C
D
When using the connector loopback testing feature, the device auto-negotiation, speed, and duplex
configuration is set using device registers 0, 4, and 9. For 1000BASE-T connector loopback, the
following additional writes are required, executed in the following steps:
1.
2.
3.8.8
Enable the 1000BASE-T connector loopback. Set
PHY_CTRL_EXT2.CON_LOOPBACK_1000BT_ENA to 1.
Disable pair swap correction. Set PHY_CTRL_EXT2.CON_LOOPBACK_1000BT_ENA to 1.
VeriPHY™ Cable Diagnostics
The integrated transceivers include a comprehensive suite of cable diagnostic functions that are
available through the on-board processor. These functions enable cable operating conditions and status
to be accessed and checked. The VeriPHY suite has the ability to identify the cable length and operating
conditions and to isolate common faults that can occur on the Cat5 twisted pair cabling.
For the functional details of the VeriPHY suite and the operating instructions, see the ENT-AN0125, PHY,
Integrated PHY-Switch VeriPHY - Cable Diagnostics Feature Application Note.
3.9
DEV1G and DEV2G5 Port Modules
The DEV1G and DEV2G5 port modules are essentially the same with identical configurations. The only
difference is the bandwidth of the bus connecting the port module to the assembler. A DEV2G5 port
module can forward data at 2.5 Gbps while the DEV1G port module can forward data at 1 Gbps. The
bandwidth of the port module is configured in the SERDES macro connecting to the port module.
3.9.1
MAC
This section describes the high level functions and configuration options of the Media Access controller
(MAC) used in the DEV1G and DEV2G5 port modules.
The DEV1G MAC supports 10/100/1000 Mbps in full-duplex mode and 10/100 Mbps in half-duplex
mode.
For the DEV2G5 MAC, the supported speeds and duplex modes depend on the following associated
SERDES macro:
•
•
•
SERDES1G: 10/100/1000 Mbps in full-duplex mode and 10/100 Mbps in half-duplex mode.
SERDES6G: 10/100/1000/2500 Mbps in full-duplex mode and 10/100 Mbps in half-duplex mode.
SERDES10G: 10/100/1000/2500 Mbps in full-duplex mode and 10/100 Mbps in half-duplex mode.
The following table lists the registers associated with configuring the MAC.
Table 9 •
DEV1G and DEV2G5 MAC Configuration Registers Overview
Register
Description
Replication
MAC_ENA_CFG
Enabling of Rx and Tx data paths
Per port module
VMDS-10492 VSC7440 Datasheet Revision 4.2
37
Functional Descriptions
Table 9 •
DEV1G and DEV2G5 MAC Configuration Registers Overview (continued)
Register
Description
Replication
MAC_MODE_CFG
Port mode configuration
Per port module
MAC_MAXLEN_CFG
Maximum length configuration
Per port module
MAC_TAGS_CFG
VLAN/service tag configuration
Per port module
MAC_TAGS_CFG2
VLAN/service tag configuration 2
Per port module
MAC_ADV_CHK_CFG
Configuration to enable dropping of Type/Length error frames
Per port module
MAC_IFG_CFG
Inter-frame gap configuration
Per port module
MAC_HDX_CFG
Half-duplex configuration
Per port module
MAC_STICKY
Sticky bit recordings
Per port module
3.9.1.1
Clock and Reset
There is a number of resets in the port module. All of the resets can be set and cleared simultaneously.
By default, all blocks are in the reset state. With reference to DEV_RST_CTRL register, the resets are as
listed in the following table.
Table 10 •
DEV1G and DEV2G5 Reset
Register.Field
Description
DEV_RST_CTRL.MAC_RX_RST
Reset MAC receiver
DEV_RST_CTRL.MAC_TX_RST
Reset MAC transmitter
DEV_RST_CTRL.PCS_RX_RST
Reset PCS receiver
DEV_RST_CTRL.PCS_TX_RST
Reset PCS transmitter
When changing the MAC configuration, the port must go through a reset cycle. This is done by writing
register DEV_RST_CTRL twice. On the first write, the reset bits are set. On the second write, the reset
bits are cleared. The non-reset field DEV_RST_CTRL.SPEED_SEL must keep its new value for both
writes.
3.9.1.2
Interrupts
The following table lists the eight interrupt sources defined for DEV1G and DEV2G5 port modules. For
more information about general interrupt handling, see Interrupt Controller, page 364.
Table 11 •
DEV1G and DEV2G5 Interrupt Sources Register Overview
Register.Field
Description
DEV1G_INTR.FEF_FOUND_INTR_STICKY
Far-end-fault indication found
DEV1G_INTR.TX_LPI_INTR_STICKY
Low power idle transmit interrupt
DEV1G_INTR.RX_LPI_INTR_STICKY
Low power idle receive interrupt
DEV1G_INTR.AN_PAGE_RX_INTR_STICKY
New page event received by ANEG
DEV1G_INTR.AN_LINK_UP_INTR_STICKY
ANEG - Link status has changed to up
DEV1G_INTR.AN_LINK_DWN_INTR_STICKY
ANEG - Link status has changed to down
DEV1G_INTR.LINK_UP_INTR_STICKY
Link status is up
DEV1G_INTR. LINK_DWN_INTR_STICKY
Link status is down
VMDS-10492 VSC7440 Datasheet Revision 4.2
38
Functional Descriptions
3.9.1.3
Port Mode Configuration
The MAC provides a number of handles for configuring the port mode. With reference to the
MAC_MODE_CFG, MAC_IFG_CFG, and MAC_ENA_CFG registers, the handles are as listed in the
following table.
Table 12 •
DEV1G and DEV2G5 Port Mode Configuration Registers Overview
Register.Field
Description
MAC_MODE_CFG.FDX_ENA
Enables full-duplex mode
MAC_ENA_CFG.RX_ENA
Enables MAC receiver module
MAC_ENA_CFG.TX_ENA
Enables MAC transmitter module
MAC_IFG_CFG.TX_IFG
Adjusts inter frame gap in Tx direction
DEV_RST_CTRL.SPEED_SEL
Configures port speed and data rate
Clearing MAC_ENA_CFG.RX_ENA stops the reception of frames and further frames are discarded. An
ongoing frame reception is interrupted.
Clearing MAC_ENA_CFG.TX_ENA stops the dequeueing of frames from the egress queues, which
means that frames are held back in the egress queues. An ongoing frame transmission is completed.
TX inter-frame gap (MAC_IFG_CFG.TX_IFG) must be set according to selected speed and mode to
achieve 12 bytes IFG.
3.9.2
Half-Duplex Mode
The following special configuration options are available for half-duplex (HDX) mode.
•
•
•
•
3.9.2.1
Seed for back-off randomizer. MAC_HDX_CFG.SEED seeds the randomizer used by the back-off
algorithm. Use MAC_HDX_CFG.SEED_LOAD to load a new seed value.
Retransmission of frame after excessive collision.
MAC_HDX_CFG.RETRY_AFTER_EXC_COL_ENA determines whether the MAC retransmits
frames after an excessive collision has occurred. If set, a frame is not dropped after excessive
collisions, but the back-off sequence is restarted. This is a violation of IEEE 802.3, but is useful in
non-dropping half-duplex flow control operation.
Late collision timing. MAC_HDX_CFG.LATE_COL_POS adjusts the border between a collision
and a late collision in steps of 1 byte. According to IEEE 802.3, section 21.3, this border is permitted
to be on data byte 56 (counting frame data from 1); that is, a frame experiencing a collision on data
byte 55 is always retransmitted, but it is never retransmitted when the collision is on byte 57. For
each higher LATE_COL_POS value, the border is moved 1 byte higher.
Rx-to-Tx inter-frame gap. The sum of MAC_IFG_CFG.RX_IFG1 and MAC_IFG_CFG.RX_IFG2
establishes the time for the Rx-to-Tx inter-frame gap. RX_IFG1 is the first part of half-duplex Rx-toTx inter-frame gap. Within RX_IFG1, this timing is restarted if carrier sense (CRS) has multiple highlow transitions (due to noise). RX_IFG2 is the second part of half-duplex Rx-to-Tx inter-frame gap.
Within RX_IFG2, transitions on CRS are ignored.
Type/Length Check
The MAC supports frame lengths of up to 14,000 bytes. The maximum frame accepted by the MAC is
configurable and defined in MAC_MAXLEN_CFG.MAX_LEN.
The MAC allows 1/2/3 tagged frames to be 4/8/12 bytes longer respectively, than the specified maximum
length, with MAC_TAGS_CFG.VLAN_LEN_AWR_ENA. The MAC must be configured to look for VLAN
tags (MAC_TAGS_CFG.VLAN_AWR_ENA). By default, EtherType 0x8100 and 0x88A8 are identified as
VLAN tags. In addition, three custom EtherTypes can be configured by MAC_TAGS_CFG.TAG_ID,
MAC_TAGS_CFG2.TAG_ID2, and MAC_TAGS_CFG2.TAG_ID3.
If a received frame exceeds the maximum length, the frame is truncated and marked as aborted.
The MAC can drop frames with in-range and out-of-range length errors by enabling
MAC_ADV_CHK_CFG.LEN_DROP_ENA.
VMDS-10492 VSC7440 Datasheet Revision 4.2
39
Functional Descriptions
3.9.3
Physical Coding Sublayer (PCS)
This section provides information about the Physical Coding Sublayer (PCS) block, where the autonegotiation process establishes mode of operation for a link. The PCS supports an SGMII mode and two
SerDes modes, 1000BASE-X and 100BASE-FX.
The following table lists the registers associated with the PCS.
Table 13 •
DEV1G and DEV2G5 PCS Configuration Registers Overview
Register
Description
Replication
PCS1G_CFG
PCS configuration
Per PCS
PCS1G_MODE_CFG
PCS mode configuration
Per PCS
PCS1G_SD_CFG
Signal Detect configuration
Per PCS
PCS1G_ANEG_CFG
Auto-negotiation configuration register
Per PCS
PCS1G_ANEG_NP_CFG
Auto-negotiation next page configuration
Per PCS
PCS1G_LB_CFG
Loopback configuration
Per PCS
PCS1G_ANEG_STATUS
Status signaling of PCS auto-negotiation process
Per PCS
PCS1G_ANEG_NP_STATUS
Status signaling of the PCS auto-negotiation next page process
Per PCS
PCS1G_LINK_STATUS
Link status
Per PCS
PCS1G_LINK_DOWN_CNT
Link down counter
Per PCS
PCS1G_STICKY
Sticky bit register
Per PCS
The PCS is enabled in PCS1G_CFG.PCS_ENA and PCS1G_MODE_CFG.SGMII_MODE_ENA selects
between the SGMII and SerDes mode. For information about enabling 100BASE-FX, see 100BASE-FX.
The PCS supports the IEEE 802.3, Clause 66 unidirectional mode, where the transmission of data is
independent of the state of the receive link (PCS1G_MODE_CFG.UNIDIR_MODE_ENA).
3.9.3.1
Auto-Negotiation
Auto-negotiation is enabled with PCS1G_ANEG_CFG.ANEG_ENA. To restart the auto-negotiation
process, PCS1G_ANEG_CFG.ANEG_RESTART_ONE_SHOT must be set.
In SGMII mode (PCS1G_MODE_CFG.SGMII_MODE_ENA = 1), matching the duplex mode with the link
partner must be ignored (PCS1G_ANEG_CFG.SW_RESOLVE_ENA). Otherwise the link is kept down
when the auto-negotiation process fails.
The advertised word for the auto-negotiation process (base page) is configured in
PCS1G_ANEG_CFG.ADV_ABILITY. The next page information is configured in
PCS1G_ANEG_NP_CFG.NP_TX.
When the auto-negotiation state machine has exchanged base page abilities, the
PCS1G_ANEG_STATUS.PAGE_RX_STICKY is asserted indicating that the link partner’s abilities were
received (PCS1G_ANEG_STATUS.LP_ADV_ABILITY).
If next page information need to be exchanged (only available in SerDes model, that is,
PCS1G_MODE_CFG.SGMII_MODE_ENA = 0), PAGE_RX_STICKY must be cleared, next page abilities
must be written to PCS1G_ANEG_NP_CFG.NP_TX, and
PCS1G_ANEG_NP_CFG.NP_LOADED_ONE_SHOT must be set. When the auto-negotiation state
machine has exchanged the next page abilities, the PCS1G_ANEG_STATUS.PAGE_RX_STICKY is
asserted again indicating that the link partner’s next page abilities were received
(PCS1G_ANEG_STATUS.LP_NP_RX). Additional exchanges of next page information are possible
using the same procedure.
Next page engagement is coded in bit 15 of Base Page of Next page information.
VMDS-10492 VSC7440 Datasheet Revision 4.2
40
Functional Descriptions
After the last next page has been received, the auto-negotiation state machine enters the IDLE_DETECT
state, and the PCS1G_ANEG_STATUS.PR bit is set indicating that ability information exchange (base
page and possible next pages) has finished and software can now resolve priority. Appropriate actions,
such as Rx or Tx reset or auto-negotiation restart, can then be taken based on the negotiated abilities.
The LINK_OK state is reached one link timer period later.
When the auto-negotiation process reached the LINK_OK state,
PCS1G_ANEG_STATUS.ANEG_COMPLETE is asserted.
3.9.3.2
Link Surveillance
The current link status can be observed through PCS1G_LINK_STATUS.LINK_STATUS. The
LINK_STATUS is defined as either the PCS synchronization state or as bit 15 of
PCS1G_ANEG_STATUS.LP_ADV_ABILITY, which carries information about the link status in SGMII
mode.
Link down is defined as the auto-negotiation state machine being in neither the AN_DISABLE_LINK_OK
state nor the LINK_OK state for one link timer period. If a link down event occurred,
PCS1G_STICKY.LINK_DOWN_STICKY is set and PCS1G_LINK_DOWN_CNT is incremented. In
SGMII mode, the link timer period is 1.6 ms, whereas in SerDes mode, the link timer period is 10 ms.
The PCS synchronization state can be observed through PCS1G_LINK_STATUS.SYNC_STATUS.
Synchronization is lost when the PCS is not able to recover and decode data received from the attached
serial link.
3.9.3.3
Signal Detect
The PCS can be enabled to react to loss of signal through signal detect (PCS1G_SD_CFG.SD_ENA).
Upon loss of signal, the PCS Rx state machine is restarted, and frame reception stops. If signal detect is
disabled, no action is taken upon loss of signal. The polarity of signal detect is configurable in
PCS1G_SD_CFG.SD_POL.
The source of signal detect is selected in PCS1G_SD_CFG.SD_SEL to either the SerDes PMA or the
PMD receiver. If the SerDes PMA is used as source, the SerDes macro provides the signal detect. If the
PMD receiver is used as source, signal detect is sampled externally through one of the GPIO pins on the
device. For more information about the configuration of the GPIOs and signal detect, see Parallel Signal
Detect, page 354.
PCS1G_LINK_STATUS.SIGNAL_DETECT contains the current value of the signal detect input.
3.9.3.4
Tx Loopback
For debug purposes, the Tx data path in the PCS can be looped back into the Rx data path. This is
enabled through PCS1G_LB_CFG.TBI_HOST_LB_ENA.
3.9.3.5
Test Patterns
The following table lists the DEV1G and DEV2G5 registers associated with configuring test patterns.
Table 14 •
DEV1G and DEV2G5 PCS Test Pattern Configuration Registers
Register
Description
Replication
PCS1G_TSTPAT_MODE_CFG
Test pattern configuration
Per PCS
PCS1G_TSTPAT_STATUS
Test pattern status
Per PCS
PCS1G_TSTPAT_MODE_CFG.JTP_SEL overwrites normal operation of the PCS and enables
generation of jitter test patterns for debug. The jitter test patterns are defined in IEEE 802.3, Annex 36A.
The following patterns are supported.
•
•
•
•
•
High frequency test pattern
Low frequency test pattern
Mixed frequency test pattern
Continuous random test pattern with long frames
Continuous random test pattern with short frames
VMDS-10492 VSC7440 Datasheet Revision 4.2
41
Functional Descriptions
The PCS1G_TSTPAT_MODE_STATUS register holds information about error and lock conditions while
running the jitter test patterns.
3.9.3.6
Low Power Idle
The following table lists the registers associated with Energy Efficient Ethernet (EEE) configuration and
status in PCS.
DEV1G and DEV2G5 PCS EEE Configuration Registers Overview
Table 15 •
Register
Description
Replication
PCS1G_LPI_CFG
Configuration of the PCS low power idle process Per PCS
PCS1G_LPI_WAKE_ERROR_CNT
Wake error counter
Per PCS
PCS1G_LPI_STATUS
Low power idle status
Per PCS
The PCS supports Energy Efficient Ethernet (EEE) as defined by IEEE 802.3az. The PCS converts low
power idle (LPI) encoding between the MAC and the serial interface transparently. In addition, the PCS
provides control signals to stop data transmission in the SerDes macro. During low power idles, the serial
transmitter in the SerDes macro can be powered down, only interrupted periodically while transmitting
refresh information, which allows the receiver to notice that the link is still up but in power-down mode.
For more information about powering down the serial transmitter in the SerDes macro, see SERDES1G,
page 28 or SERDES6G, page 28.
It is not necessary to enable the PCS for EEE, because it is controlled indirectly by the shared queue
system. It is possible, however, to manually force the PCS into the low power idle mode through
PCS1G_LPI_CFG.TX_ASSERT_LPIDLE. During LPI mode, the PCS constantly encodes low power idle
with periodical refreshes. For more information about EEE, see Energy Efficient Ethernet, page 293.
The current low power idle state can be observed through PCS1G_LPI_STATUS for both receiver and
transmitter:
•
•
RX_LPI_MODE: Set if the receiver is in low power idle mode.
RX_QUIET: Set if the receiver is in the quiet state of the low power idle mode. If cleared while
RX_LPI_MODE is set, the receiver is in the refresh state of the low power idle mode.
The same is observable for the transmitter through TX_LPI_MODE and TX_QUIET.
If an LPI symbol is received, the RX_LPI_EVENT_STICKY bit is set, and if an LPI symbol is transmitted,
the TX_LPI_EVENT_STICKY bit is set. These events are sticky.
The PCS1G_LPI_WAKE_ERROR_CNT wake-up error counter increments when the receiver detects a
signal and the PCS is not synchronized. This can happen when the transmitter fails to observe the wakeup time or if the receiver is not able to synchronize in time.
3.9.3.7
100BASE-FX
The following table lists the registers associated with 100BASE-FX.
Table 16 •
DEV1G and DEV2G5 100BASE-FX Configuration Registers Overview
Register
Description
Replication
PCS_FX100_CFG
Configuration of the PCS 100BASE-FX mode
Per PCS
PCS_FX100_STATUS
Status of the PCS 100BASE-FX mode
Per PCS
The PCS supports a 100BASE-FX mode in addition to the SGMII and 1000BASE-X SerDes modes. The
100BASE-X mode uses 4-bit/5-bit coding as specified in IEEE 802.3, Clause 24 for fiber connections.
The 100BASE-FX mode is enabled through PCS_FX100_CFG.PCS_ENA, which masks out all PCS1G
related registers.
The following options are available.
VMDS-10492 VSC7440 Datasheet Revision 4.2
42
Functional Descriptions
•
Far-End Fault facility: In 100BASE-FX, the PCS supports the optional Far-End Fault facility. Both
Far-End Fault Generation (PCS_FX100_CFG.FEFGEN_ENA) and Far-End Fault Detection
(PCS_FX100_CFG.FEFCHK_ENA) are supported. A Far-End Fault incident is recorded in
PCS_FX100_STATUS.FEF_FOUND.
Signal Detect: 100BASE-FX has a similar signal detect scheme as of the SGMII and SERDES
modes. For 100BASE-FX, PCS_FX100_CFG.SD_ENA enables signal detect, and
PCS_FX100_CFG.SD_SEL selects the input source. The current status of the signal detect input
can be observed through PCS_FX100_STATUS.SIGNAL_DETECT. For more information about
signal detect, see Signal Detect, page 41.
Link Surveillance: The PCS synchronization status can be observed through
PCS_FX100_STATUS.SYNC_STATUS. When synchronization is lost the link breaks and
PCS_FX100_STATUS.SYNC_LOST_STICKY is set. The PCS continuously tries to recover the link.
Unidirectional mode: 100BASE-FX has a similar unidirectional mode as for the SGMII and SerDes
modes, enabled through PCS_FX100_CFG.UNIDIR_MODE_ENA.
•
•
•
3.9.4
Port Statistics
Port statistics for DEV1G and DEV2G5 port modules are collected in the assembler and is accessed
through registers in the assembler.
3.10
DEV10G Port Module
The DEV10G port module can be used in the full-duplex operation mode listed in the following table.
Table 17 •
DEV10G Operation Mode
Mode
Lane
Speed
(Gbps)
SFI
10.3125 1
3.10.1
Lanes
PCS
Encoding Used
IPG
Shrink
(Avg)
Preamble
Shrink
Data
Bandwidth
Payload
Bandwidth
64b/66b
No
No
10 Gbps
10 Gbps
PCS
SFI
Comment
Standard
SFI
MAC
This section describes the high level functions and the configuration options of the Media Access
Controller (MAC) that is used in the DEV10G port modules.
The following table lists the registers associated with configuring the DEV10G MAC.
Table 18 •
DEV10G MAC Configuration Registers Overview
Register
Description
Replication
MAC_ENA_CFG
Enables of Rx and Tx data paths
Per port
MAC_MODE_CFG
Port mode configuration
Per port
MAC_MAXLEN_CFG
Maximum length configuration
Per port
MAC_NUM_TAGS_CFG
Number of tags configuration
Per port
MAC_TAGS_CFG
VLAN/service tag configuration
Three per port
MAC_ADV_CHK_CFG
Advance Check Feature configuration
Per port
MAC_LFS_CFG
Link Fault Signaling configuration
Per port
MAC_LB_CFG
Loopback configuration
Per port
MAC_STICKY
Sticky bit recordings
Per port
VMDS-10492 VSC7440 Datasheet Revision 4.2
43
Functional Descriptions
3.10.1.1
Clock and Reset
There is a number of synchronous resets in the DEV10G port module. All of the resets can be set and
cleared simultaneously. By default, all blocks are in the reset state (reset active). The following tables
lists all available resets.
Table 19 •
DEV10G Reset Registers Overview
Target::Register.Field
Description
DEV10G::DEV_RST_CTRL.MAC_RX_RST
Resets MAC receiver
DEV10G::DEV_RST_CTRL.MAC_TX_RST
Resets MAC transmitter
DEV10G::DEV_RST_CTRL.PCS_RX_RST
Resets PCS receiver
DEV10G::DEV_RST_CTRL.PCS_TX_RST
Resets PCS transmitter
When changing the MAC configuration, the port must go through a reset cycle. This is done by writing
the register DEV10G::DEV_RST_CTRL twice. On the first write, all reset bits must be set to active (0x1).
On the second write, reset bits are cleared (0x0). Non-reset bits in DEV10G::DEV_RST_CTRL must
keep their value for both writes.
3.10.1.2
Interrupts
The following table lists the five interrupt sources defined for DEV10G port module. For more information
about general interrupt handling, see Interrupt Controller, page 364.
Table 20 •
DEV10G Interrupt Sources Registers Overview
Target::Register.Field
Description
DEV10G::INTR. PCS_BR_INTR
One of the Base-R PCS interrupt indications is active
DEV10G::INTR.TX_LPI_INTR
TX low power idle mode has changed
DEV10G::INTR.RX_LPI_INTR
RX low power idle mode has changed
DEV10G::INTR.LINK_UP_INTR
Link status is up
DEV10G::INTR. LINK_DWN_INTR
Link status is down
All the sticky events in SFI PCS can generate an interrupt if their corresponding interrupt mask is set to 1.
The following table lists the interrupt registers that are used for interrupt generation if corresponding
event bit is set from 10GBASE-R PCS (or SFI PCS).
Table 21 •
DEV10G BASE-R PCS Interrupt Sources Registers Overview
Interrupt Mask Register
Interrupt Register Sticky Bit
Replication
PCS_INTR_MASK
SFI PCS sticky bits
Per PCS
KR_FEC_STICKY_MASK
KR FEC sticky bits
Per PCS
EEE_INTR_MASK
SFI PCS EEE sticky bits
Per PCS
VMDS-10492 VSC7440 Datasheet Revision 4.2
44
Functional Descriptions
3.10.1.3
Port Mode Configuration
The MAC provides a number of handles for configuring the port mode. The following table lists the
associated registers.
Table 22 •
DEV10G Port Mode Configuration Registers Overview
Target::Register.Field
Description
DEV10G::DEV_RST_CTRL.SPEED_SEL
Configures MAC and PCS Rx/Tx clock frequencies.
6: Both MAC and PCS Rx/Tx clocks are disabled.
7: SFI 10 Gbps.
Unused values are reserved.
DEV10G::MAC_ENA_CFG.RX_ENA
Enable MAC receiver module.
DEV10G::MAC_ENA_CFG.TX_ENA
Enable MAC transmitter module.
DEV10G::MAC_MODE_CFG.TUNNEL_PAUSE_FRAMES
Enable tunneling of pause frames on a link.
DEV10G::MAC_MODE_CFG.MAC_PREAMBLE_CFG
Preamble format configuration.
DEV10G::MAC_MODE_CFG.MAC_IPG_CFG
IPG format configuration.
DEV10G::MAC_MODE_CFG. HIH_CRC_CHECK
Enable check for HiH checksum.
3.10.1.4
Type/Length Check
The MAC supports frame lengths of up to 14,000 bytes. The maximum frame accepted by the MAC is
configurable and defined in DEV10G::MAC_MAXLEN_CFG.MAX_LEN. Maximum length is automatically
adjusted if one or more tags are included in the current frame. The MAC allows 1/2/3 tagged frames to be
4/8/12 bytes longer respectively, than the specified maximum length.
DEV10G::MAC_MAXLEN_CFG.MAX_LEN_TAG_CHK configures whether the max Length check takes
the number of tags into consideration.
A number of tags can be selected by DEV10G::MAC_NUM_TAGS_CFG.NUM_TAGS. By default,
EtherType 0x8100 and 0x88A8 are identified as VLAN tags. In addition, three custom EtherTypes can be
configured by MAC_TAGS_CFG.TAG_ID.
If a received frame exceeds the maximum length, the frame is truncated and marked as aborted.
The MAC can drop the frames with length (in-range and out-of-range) errors by enabling
MAC_ADV_CHK_CFG.INR_ERR_ENA and MAC_ADV_CHK_CFG.OOR_ERR_ENA.
There are also other checks available that can be enabled based on configurations listed in the following
table.
Table 23 •
DEV10G Port Module Advance Checks Configuration Registers
Target::Register.Field
Description
DEV10G::MAC_ADV_CHK_CFG.EXT_EOP_CHK_ENA
Enables extended end of packet check.
DEV10G::MAC_ADV_CHK_CFG.EXT_SOP_CHK_ENA
Enable extended start of packet check.
DEV10G::MAC_ADV_CHK_CFG.SFD_CHK_ENA
Enable start-of-frame-delimiter check.
DEV10G::MAC_ADV_CHK_CFG.PRM_SHK_CHK_DIS
Disable preamble shrink check.
DEV10G::MAC_ADV_CHK_CFG.PRM_CHK_ENA
Enable preamble check.
DEV10G::MAC_ADV_CHK_CFG.OOR_ERR_ENA
Enable out-of-range error check.
DEV10G::MAC_ADV_CHK_CFG.INR_ERR_ENA
Enable in-range error check.
3.10.1.5
Local and Remote Fault Signaling
By default the MAC is configured to detect a Link Fault indication and react by transmitting the
appropriate sequence ordered set. The feature can be disabled completely using
VMDS-10492 VSC7440 Datasheet Revision 4.2
45
Functional Descriptions
DEV10G::MAC_LFS_CFG.LFS_MODE_ENA. It is also possible to configure MAC into unidirectional
mode according to IEEE 802.3, Clause 66, where frames are transmitted while receiving link fault
indication but interleaved by appropriate ordered sets in between
(DEV10G::MAC_LFS_CFG.LFS_UNIDIR_ENA).
3.10.2
Physical Coding Sublayer (PCS)
This section describes the Physical Coding Sublayer (PCS) blocks included in the DEV10G port module.
The following table lists the applicable registers for DEV10G PCS configuration.
Table 24 •
DEV10G PCS Configuration Registers Overview
Register
Description
Replication
PCS_CFG
SFI-PCS configuration
Per PCS
PCS_SD_CFG
SFI-PCS signal detect configuration
Per PCS
The following table lists the applicable registers for DEV10G PCS status.
Table 25 •
DEV10G PCS Status Registers Overview
Register
Description
Replication
PCS_STATUS
SFI-PCS status
Per PCS
TX_ERRBLK_CNT
SFI-PCS counter for number of times transmit FSM enters TX_E state Per PCS
TX_CHARERR_CNT
SFI-PCS counter for number of invalid control characters transmitter
detected from MAC
Per PCS
RX_BER_CNT
SFI-PCS counter for number of times receive BER FSM enters
BER_BAD_SH state (ber_count)
Per PCS
RX_ERRBLK_CNT
SFI-PCS counter for number of times receive FSM enters RX_E state Per PCS
RX_CHARERR_CNT
SFI-PCS counter for receive number of invalid control characters after Per PCS
decoding
RX_OSET_FIFO_STAT
SFI-PCS receive ordered set FIFO status
Per PCS
RX_OSET_FIFO_DATA
SFI-PCS receive ordered set FIFO data
Per PCS
RX_FSET_FIFO_STAT
SFI-PCS receive F-Sig FIFO status
Per PCS
RX_FSET_FIFO_DATA
SFI-PCS receive F-Sig FIFO data
Per PCS
3.10.2.1
Backplane Auto-Negotiation
Backplane auto-negotiation must be used when normal auto-negotiation is disabled. For the DEV10G
port module there is no specific function or setup available.
3.10.2.2
Link Surveillance
For SFI mode of operation, current link status can be observed through
PCS_10GBASE_R::PCS_STATUS defined as follows:
To receive correct data, the PCS must achieve block lock
(PCS_10GBASE_R::PCS_STATUS.RX_BLOCK_LOCK). This block lock is achieved when PCS detects
a 66-bit boundary. Whenever the block lock is lost or achieved, a sticky bit is set
(PCS_10GBASE_R::PCS_INTR_STAT.LOCK_CHANGED_STICKY). Whenever a large number of false
sync headers is detected HI_BER (PCS_10GBASE_R::PCS_STATUS.RX_HI_BER) is asserted and a
sticky bit is set (PCS_10GBASE_R::PCS_INTR_STAT.RX_HI_BER_STICKY). If a local fault or remote
fault is received, it is flagged in PCS_10GBASE_R::PCS_INTR_STAT.RX_OSET_STICKY, and the
sequence ordered set received can be read from
PCS_10GBASE_R::RX_OSET_FIFO_DATA.RX_OSET_FIFO_DATA.
VMDS-10492 VSC7440 Datasheet Revision 4.2
46
Functional Descriptions
PCS_10GBASE_R::RX_FSET_FIFO_STAT can be used to know how many ordered sets are captured
and FIFO full status.
3.10.2.3
Signal Detect
The PCS can be enabled to react to loss of signal through signal detect
(PCS_10GBASE_R::PCS_SD_CFG.SD_ENA). Upon loss of signal, the PCS Rx state machine is
restarted, and frame reception stops. If signal detect is disabled, no action is taken upon loss of signal.
The polarity of signal detect is configurable by PCS_10GBASE_R::PCS_SD_CFG.SD_POL, where value
of this bit indicates the active Signal Detect state of the selected input line.
The source of signal detect is selected in PCS_10GBASE_R::PCS_SD_CFG.SD_SEL to either the
SERDES PMA or the PMD receiver. If the SERDES PMA is used as source, the SERDES macro
provides the signal detect. If the PMD receiver is used as source, signal detect is sampled externally
through one of the GPIO pins on the device. For more information about the configuration of the GPIOs
and signal detect, see Parallel Signal Detect, page 354.
3.10.2.4
Tx Loopback
For debug purposes, there is a loopback path defined within all PCS blocks that loops back Tx data path
into the Rx data path. This is enabled through PCS_10GBASE_R::PCS_CFG.PMA_LOOPBACK_ENA
for PCS SFI.
3.10.2.5
Test Patterns
The following table lists the registers associated with configuring SFI PCS
Table 26 •
DEV10G BASE-R PCS Test Pattern Configuration Registers Overview
Target::Register.Field
Description
Replication
PCS_10GBASE_R::PCS_CFG.TX_TEST_ Enables test pattern mode in SFI PCS transmitter.
MODE
Per PCS
PCS_10GBASE_R::PCS_CFG.TX_TEST_ Enables test pattern mode in SFI PCS receiver.
MODE
Per PCS
PCS_10GBASE_R::TEST_CFG
Per PCS
Test pattern configuration register when test mode is
enabled for SFI PCS
PCS_10GBASE_R::TX_SEEDA_MSB.TX Most significant 26 bits of seed A used to initialize SFI
_SEEDA_MSB
PCS scrambler in test mode.
Per PCS
PCS_10GBASE_R::TX_SEEDA_LSB.TX_ Least significant 32 bits of seed A used to initialize SFI
SEEDA_LSB
PCS scrambler in test mode.
Per PCS
PCS_10GBASE_R::TX_SEEDB_MSB.TX Most significant 26 bits of seed B used to initialize SFI
_SEEDB_MSB
PCS scrambler in test mode.
Per PCS
PCS_10GBASE_R::TX_SEEDB_LSB.TX_ Least significant 32 bits of seed B used to initialize SFI
SEEDB_LSB
PCS scrambler in test mode.
Per PCS
PCS_10GBASE_R::TX_DATAPAT_MSB.T Most significant 32 bits of 64-bit data pattern used in
X_DATAPAT_MSB
pseudo-random and user-defined test pattern mode for
transmitter of SFI PCS.
Per PCS
PCS_10GBASE_R::TX_DATAPAT_LSB.T Least significant 32 bits of 64-bit data pattern used in
X_DATAPAT_LSB
pseudo-random and user-defined test pattern mode for
transmitter of SFI PCS.
Per PCS
PCS_10GBASE_R::RX_DATAPAT_MSB.
RX_DATAPAT_MSB
Most significant 32 bits of 64-bit data pattern used in
pseudo-random and user-defined test pattern mode for
receiver of SFI PCS.
Per PCS
PCS_10GBASE_R::RX_DATAPAT_LSB.R Least significant 32 bits of 64-bit data pattern used in
X_DATAPAT_LSB
pseudo-random and user-defined test pattern mode for
receiver of SFI PCS.
Per PCS
VMDS-10492 VSC7440 Datasheet Revision 4.2
47
Functional Descriptions
Table 26 •
DEV10G BASE-R PCS Test Pattern Configuration Registers Overview (continued)
Target::Register.Field
Description
Replication
PCS_10GBASE_R::PCS_STATUS.TESTP When in test pattern check mode, this bit will read 1 if the Per PCS
AT_MATCH
test pattern checker detects a match. When 0, the test
pattern does not match. The test pattern error counts
should still be used along with this register bit to
determine proper test match status. The bit will read back
1 only when the test pattern is matching. This may
happen even while test pattern errors are counted on
other clock cycles.
PCS_10GBASE_R::TEST_ERR_CNT.TES Count of detected test pattern errors in Rx test pattern
T_ERR_CNT
checker. Write 0 to clear.
Per PCS
By setting PCS_10GBASE_R::PCS_CFG.TX_TEST_MODE and
PCS_10GBASE_R::PCS_CFG.RX_TEST_MODE register bits to 1, test pattern mode is enabled in SFI
PCS. The following test patterns are supported as per IEEE 802.3, clause 49.2.8 and clause 49.2.12.
•
•
•
•
Square wave
Pseudo random
PRBS31
User defined
User-defined mode is a slightly modified test pattern in which the scrambler is not initialized with any
seed value, so there will be no errors after every 128-block window.
Different types of test pattern generation can be chosen by configuring
PCS_10GBASE_R::TEST_CFG.TX_TESTPAT_SEL and that of checkers by configuring
PCS_10GBASE_R::TEST_CFG.RX_TESTPAT_SEL. For square wave test pattern generation, period
can be configured using PCS_10GBASE_R::TEST_CFG.TX_SQPW_4B. For pseudo-random test
pattern inversion of seeds and data is enabled by PCS_10GBASE_R::TEST_CFG.TX_DSBL_INV and
PCS_10GBASE_R::TEST_CFG.RX_DSBL_INV.
3.10.2.6
Low Power Idle
The following table lists the configuration and status registers related to EEE in PCS.
Table 27 •
DEV10G PCS EEE Configuration and Status Registers Overview
Target::Register
Description
Replication
PCS_10GBASE_R::EEE_STATUS
SFI PCS low power idle status.
Per PCS
PCS_10GBASE_R::WAKE_ERR_CNT
SFI PCS wake_error_counter value as
specified in IEEE 802.3az, clause
49.2.13.2.4.
Per PCS
3.10.2.7
KR FEC
SFI PCS also supports KR FEC. The following table lists the applicable registers.
Table 28 •
DEV10G KR FEC Configuration and Status Registers Overview
Register
Description
Replication
KR_FEC_CFG
KR FEC configuration register
Per PCS
KR_FEC_STATUS
KR FEC status
Per PCS
KR_FEC_STICKY
KR FEC sticky bits
Per PCS
KR_FEC_CORRECTED
KR FEC corrected error blocks counter
Per PCS
KR_FEC_UNCORRECTED
KR FEC uncorrected error blocks counter
Per PCS
VMDS-10492 VSC7440 Datasheet Revision 4.2
48
Functional Descriptions
To enable FEC, PCS_10GBASE_R::KR_FEC_CFG.FEC_ENA must be set. In addition, data bits must be
flipped at KR FEC interface with PCS. This is achieved by setting both
PCS_10GBASE_R::KR_FEC_CFG.TX_DATA_FLIP and
PCS_10GBASE_R::KR_FEC_CFG.RX_DATA_FLIP to 1.
For enabling FEC error indication in the PCS register bit, set
PCS_10GBASE_R::KR_FEC_CFG.ENABLE_ERROR_INDICATION to 1. This ensures that SFI PCS
decodes the block correctly, and hence correct data is presented to MAC. When FEC looses frame lock,
it is reflected in the PCS_10GBASE_R::KR_FEC_STICKY.FEC_FRAME_LOCK_STICKY sticky bit.
There are two counters in FEC for counting corrected and uncorrected error blocks. These are cleared
by writing a 1 to PCS_10GBASE_R::KR_FEC_CFG.RESET_MONITOR_COUNTERS, followed by a 0.
When the counters cross a threshold value configurable by
PCS_10GBASE_R::FIXED_ERROR_COUNT_THRESHOLD and
PCS_10GBASE_R::UNFIXABLE_ERROR_COUNT_THRESHOLD, two corresponding sticky bits are set
(PCS_10GBASE_R::KR_FEC_STICKY.FEC_FIXED_ERROR_COUNT_STICKY and
PCS_10GBASE_R::KR_FEC_STICKY.FEC_UNFIXABLE_ERROR_COUNT_STICKY).
Note: KR FEC must not be enabled when EEE is enabled. This mode is not supported.
3.10.3
Port Statistics
The DEV10G port module contains a set of port statistics. Packets counters are 32 bits wide and byte
counters are 40 bits wide. The following table lists the counters. The counters are writable. In particular,
the counters are cleared by writing a 0 to each counter.
Table 29 •
DEV10G Statistics Registers Overview
Register
Description
RX_SYMBOL_ERR_CNT
Rx symbol carrier error counter
RX_PAUSE_CNT
Rx pause frame counter
RX_UNSUP_OPCODE_CNT
Rx Control frame counter
RX_UC_CNT
Rx unicast frame counter
RX_MC_CNT
Rx multicast frame counter
RX_BC_CNT
Rx broadcast frame counter
RX_CRC_ERR_CNT
Rx CRC error counter
RX_UNDERSIZE_CNT
Rx undersize counter (valid frame format)
RX_FRAGMENTS_CNT
Rx undersize counter (CRC error)
RX_IN_RANGE_LEN_ERR_CNT
Rx in-range length error counter
RX_OUT_OF_RANGE_LEN_ERR_CNT
Rx out-of-range length error counter
RX_OVERSIZE_CNT
Rx oversize counter (valid frame format)
RX_JABBERS_CNT
Rx jabbers counter
RX_SIZE64_CNT
Rx 64 byte frame counter
RX_SIZE65TO127_CNT
Rx 65-127 byte frame counter
RX_SIZE128TO255_CNT
Rx 128-255 byte frame counter
RX_SIZE256TO511_CNT
Rx 256-511 byte frame counter.
RX_SIZE512TO1023_CNT
Rx 512-1023 byte frame counter.
RX_SIZE1024TO1518_CNT
Rx 1024-1518 byte frame counter.
RX_SIZE1519TOMAX_CNT
Rx 1519 to max. length byte frame counter.
RX_IPG_SHRINK_CNT
Rx Inter packet gap shrink counter.
VMDS-10492 VSC7440 Datasheet Revision 4.2
49
Functional Descriptions
Table 29 •
DEV10G Statistics Registers Overview (continued)
Register
Description
TX_PAUSE_CNT
Tx Pause frame counter.
TX_UC_CNT
Tx unicast frame counter.
TX_MC_CNT
Tx multicast frame counter.
TX_BC_CNT
Tx broadcast frame counter.
TX_SIZE64_CNT
Tx 64 byte frame counter.
TX_SIZE65TO127_CNT
Tx 65-127 byte frame counter.
TX_SIZE128TO255_CNT
Tx 128-255 byte frame counter.
TX_SIZE256TO511_CNT
Tx 256-511 byte frame counter.
TX_SIZE512TO1023_CNT
Tx 512-1023 byte frame counter.
TX_SIZE1024TO1518_CNT
Tx 1024-1518 byte frame counter.
TX_SIZE1519TOMAX_CNT
Tx 1519 to max. length byte frame counter.
RX_ALIGNMENT_LOST_CNT
Counter to track the dribble-nibble (extra nibble) errors in frames.
RX_TAGGED_FRMS_CNT
Counts frames that are tagged (C-tagged or S-tagged).
RX_UNTAGGED_FRMS_CNT
Counts frames that are Not tagged (neither C-tagged nor S-tagged).
TX_TAGGED_FRMS_CNT
Counts frames that are tagged (C-tagged or S-tagged).
TX_UNTAGGED_FRMS_CNT
Counts frames that are Not tagged (neither C-tagged nor S-tagged).
RX_HIH_CKSM_ERR_CNT
Rx HiH checksum error counter.
RX_XGMII_PROT_ERR_CNT
Rx XGMII protocol error counter.
3.11
Assembler
The assembler (ASM) block is responsible for collecting words from the smaller taxi bus and assembling
them into cells. It is also responsible for the loopback path between the rewriter and the analyzer.
For the first cell of a frame, which is the SOF cell, the assembler adds room for a 28-byte internal frame
header (IFH). On a stacking port, the stacking tag is extracted from the frame data and placed in the
respective part of the IFH.
The assembler receives a calendar sequence from the queue system defining in the sequence the ports
should be served on the outgoing cell bus.
The assembler also detects PAUSE frames and forwards the extracted PAUSE information to the
disassembler. PFC pause information extracted from PFC PAUSE frames are forwarded to the queue
system.
Finally, the assembler collects the port statistics for all lower speed ports, which are the DEV1G and
DEV2G5 ports. Statistics for the high-speed DEV10G ports are handled locally in the port module.
3.11.1
Setting Up a Port in the Assembler
The following table lists the port configuration registers within the assembler. Ethernet ports and CPU
ports are configured using the same registers. Some of the fields are only relevant for setting up a CPU
port (internal or external) and they will be covered in a later section.
Table 30 •
Port Configuration Register Overview
Target::Register.Field
Description
Replication
ASM::PORT_CFG.NO_PREAMBLE_ENA
Preamble configuration of incoming frames.
Per port
ASM::PORT_CFG.SKIP_PREAMBLE_ENA
Preamble configuration of incoming frames.
Per port
VMDS-10492 VSC7440 Datasheet Revision 4.2
50
Functional Descriptions
Port Configuration Register Overview (continued)
Table 30 •
Target::Register.Field
Description
Replication
ASM::PORT_CFG.PAD_ENA
Enable padding.
Per port
ASM::PORT_CFG.INJ_DISCARD_CFG
Configures discard behavior for injected frames.
Per port
ASM::PORT_CFG.INJ_FORMAT_CFG
Configure format of injected frames.
Per port
ASM::PORT_CFG.VSTAX2_AWR_ENA
Enable VStaX stacking header awareness.
Per port
By default, an Ethernet port does not need configuration in the assembler as long as special settings are
not required. However, the following exceptions may apply:
If the port is used as a stacking port, set ASM::PORT_CFG.VSTAX2_AWR_ENA, which enables
detection of the VStaX stacking header. If a VStaX stacking header is found, the assembler will remove
the header from the frame and put it into the internal frame header.
Frames received from the port modules are preamble prepended by default. If a port module is
configured for preamble shrink mode, the ASM::PORT_CFG.NO_PREAMBLE_ENA must be set to 1,
because the port module does not prepend a preamble in this mode.
When ASM::PORT_CFG.PAD_ENA is set, frames that are smaller than 64 bytes are padded to reach the
minimum frame size.
The assembler has a built-in frame fragment detection mechanism for incoming frames that were started
but never received their EOF (because the port module was taken down, for example). These frames are
normally finalized by creating an EOF abort marked cell. If a frame has been discarded, it is noted in
ASM::PORT_STICKY.FRM_AGING_STICKY. The following table lists the port status register.
Table 31 •
Port Status Register Overview
Target::Register.Field
Description
Replication
ASM::PORT_STICKY.IFH_PREFIX_ERR_STICKY Injection format mismatch sticky bit Per port
ASM::PORT_STICKY.FRM_AGING_STICKY
3.11.2
Frame aging sticky bit
Per port
Setting Up a Port for Frame Injection
Any front port and the internal CPU ports (ports 11-12) can be configured for frame injection. Frames that
are to be injected must have an IFH prepended the frame data. Optionally, the frame can further be
prepended an SMAC, a DMAC, and a VLAN tag. This results in the following three prefix formats for
injection frames:
•
•
•
Injection with long prefix
Injection with short prefix
Injection with no prefix
The injection format is selected in ASM::PORT_CFG.INJ_FORMAT_CFG. The prefix formats are shown
in the following illustration.
VMDS-10492 VSC7440 Datasheet Revision 4.2
51
Functional Descriptions
Figure 18 • Frame Injection Formats
Injection with long prefix:
Any DMAC
48 bits
Any SMAC
48 bits
Injection
VLAN tag
32 bits
Any SMAC
48 bits
8880 0009
16 bits 16 bits
8880 0009
16 bits 16 bits
IFH
224 bits
Original frame
Injection with short prefix:
Any DMAC
48 bits
IFH
224 bits
Original frame
Injection with no prefix:
IFH
224 bits
Original frame
Start-of-frame
For the long prefix, the incoming frame is matching against a programmable VLAN tag. The VLAN tag is
common for all ports. Only the VID and TPID fields of the VLAN tag are compared. The following table
lists the injection VLAN configuration register.
Table 32 •
Injection VLAN Register Overview
Target::Register.Field
Description
Replication
ASM::INJ_VLAN_CFG.INJ_VID_CFG
Injection tag VID
1
ASM::INJ_VLAN_CFG.INJ_TPID_CFG
Injection tag TPID
1
When a port is setup to receive frames with either a short prefix or a long prefix, the incoming frames are
checked against the selected prefix. If the prefix does not match, an error indication is set in
ASM::PORT_STICKY.IFH_PREFIX_ERR_STICKY. Depending on the setting of
ASM::PORT_CFG.INJ_DISCARD_CFG, the frames are processed in one of the three following modes.
•
•
•
None. Both compliant and non-compliant frames are forwarded. Compliant frames are forwarded
based on the IFH, and non-compliant frames are forwarded as regular frames.
Drop non-compliant. Compliant frames are forwarded based on the IFH, and non-compliant frames
are discarded.
Drop compliant. Compliant frame are discarded, and non-compliant frames are forwarded as normal
frames.
If a CPU port is used for frame injection, ASM::PORT_CFG.NO_PREAMBLE_ENA must be set to 1 so
that the assembler does not expect frame data to be prepended with a preamble.
If a front port is used for frame injection, ASM::PORT_CFG.SKIP_PREAMBLE_ENA must be set to 1 to
discard the preamble data before processing of the prepended injection header.
3.11.3
Setting Up MAC Control Sublayer PAUSE Frame Detection
The following table lists the PAUSE frame detection configuration registers in the assembler.
Table 33 •
PAUSE Frame Detection Configuration Register Overview
Target::Register.Field
Description
Replication
ASM::PAUSE_CFG.ABORT_PAUSE_ENA
Stop forwarding of PAUSE frames
Per port
ASM::PAUSE_CFG.ABORT_CTRL_ENA
Stop forwarding of MAC control frames Per port
ASM::MAC_ADDR_HIGH_CFG.MAC_ADDR_HIGH
Bits 47-24 of DMAC address checked in Per port
MAC_Control frames
ASM::MAC_ADDR_LOW_CFG.MAC_ADDR_LOW
Bits 23-0 of DMAC address checked in Per port
MAC_Control frames
VMDS-10492 VSC7440 Datasheet Revision 4.2
52
Functional Descriptions
The assembler is responsible for detecting PAUSE frames and forwarding the PAUSE value to the
disassembler. Because PAUSE frames belong to the MAC control sublayer, they should in general be
filtered and not forwarded to a higher layer; that is, forwarded on the cell bus so they reach the analyzer.
The filtering is done by abort marking the frame.
The PAUSE frame and other MAC control frames can be forwarded to the analyzer. For PAUSE frame
forwarding, ASM::PAUSE_CFG.ABORT_PAUSE_ENA must be set to 0. For other MAC control frame
forwarding, ASM::PAUSE_CFG.ABORT_CTRL_ENA must be set to 0.
When PAUSE frames are received, the DMAC address is checked. The DMAC address must be either
the 48-bit multicast address 01-80-C2-00-00-01 as mentioned by IEEE802.3 Annex 31B.1 or the MAC
address of the port, which is configured in ASM::MAC_ADDR_HIGH_CFG.MAC_ADDR_HIGH and
ASM::MAC_ADDR_LOW_CFG.MAC_ADDR_LOW.
Note: The values configured in ASM::MAC_ADDR_HIGH_CFG.MAC_ADDR_HIGH and
ASM::MAC_ADDR_LOW_CFG.MAC_ADDR_LOW must match the value configured in
DSM::MAC_ADDR_BASE_HIGH_CFG.MAC_ADDR_HIGH and
DSM::MAC_ADDR_BASE_LOW_CFG.MAC_ADDR_LOW.
The number of received PAUSE frames is tracked as part of the port statistics. For more information, see
Setting Up Assembler Port Statistics, page 53.
3.11.4
Setting Up PFC
The PFC module of the assembler identifies PFC PAUSE frames by checking if the DMAC matches the
reserved multicast address 01-80-c2-00-00-01, the Type/Length field matches a MAC control frame
(0x8808), and the opcode is indicating a PFC frame (0x0101). Upon receiving a PFC PAUSE frame, the
assembler extracts and stores the timer information for all enabled priorities in the assembler PFC
timers. The PFC module generates a stop signal towards the queue system based on the current timer
values.
Detection of PFC frames is enabled by setting ASM::PFC_CFG.RX_PFC_ENA to 1 for the respective
(port,priority). When enabling PFC the current link speed for the port must be configured in
ASM::PFC_CFG.FC_LINK_SPEED for timing information to be evaluated correctly. The PFC
configuration registers are shown in the following table.
Table 34 •
3.11.5
PFC Configuration Register Overview
Target::Register.Field
Description
Replication
ASM::PFC_CFG.RX_PFC_ENA
Enable PFC per priority
Per port
ASM::PFC_CFG.FC_LINK_SPEED
Configure the link speed
Per port
Setting Up Assembler Port Statistics
The assembler collects port statistics for all DEV1Gs and DEV2G5s. Statistics are also collected from the
disassembler and the assembler. Port statistics for DEV10Gs are not collected in the assembler and
must be looked up in each DEV10G separately.
The following table lists the port statistics configuration register in the assembler.
Table 35 •
Port Statistics Configuration Register Overview
Target::Register.Field
Description
Replication
ASM::STAT_CFG.STAT_CNT_CLR_SHOT
Statistics counter initialization.
1
ASM::PORT_CFG.CSC_STAT_DIS
Disables collection of statistics in the
ASM.
Per port
Port statistics inside the ASM are stored in RAMs. Before they can be used, they must be initialized to 0
by setting ASM::STAT_CFG.STAT_CNT_CLR_SHOT to 1.
VMDS-10492 VSC7440 Datasheet Revision 4.2
53
Functional Descriptions
The statistic counters start counting as soon as the hardware has reset
ASM::STAT_CFG.STAT_CNT_CLR_SHOT to 0.
For information about the lists of port statistics registers available per port, see ASM:DEV_STATISTICS
register group in the Register List.
For the 10G capable ports, set ASM::PORT_CFG.CSC_STAT_DIS to 1 when the port is set up for
speeds faster than 2.5G, because the collection of statistics are handled locally in the DEV10G. For lower
speeds, the port uses a DEV2G5.
All statistic counters have a width of 32 bits, except for the five byte-counters; RX_IN_BYTES_CNT,
RX_OK_BYTES_CNT, RX_BAD_BYTES_CNT, TX_OUT_BYTES_CNT, and TX_OK_BYTES_CNT.
Those have an additional 4-bit MSB counter. When reading from counters with more than 32 bits, the
non-MSB part has to be read first in order to latch the MSB part into a shadow register, where the value
can be read afterward. For writing, the MSB part must be written first.
3.11.6
Setting Up the Loopback Path
Cells to be looped back by the assembler are received on a separate loopback cell bus interface from the
rewriter. The assembler merges the loopback data with data received from the ports onto the outgoing
cell bus towards the analyzer. Loopback data belongs to one of the three following types.
•
•
•
Virtual device 0 (VD0)
Virtual device 1 (VD1)
Front port loopback (LBK)
Each of the three loopback traffic types has its own FIFO. VD0 is accessed at register replication 0, VD1
at register replication 1, and LBK at register replication 2. The following table lists the loopback
configuration registers.
Table 36 •
Loopback FIFO Configuration Register Overview
Target::Register.Field
Description
Replication
ASM::LBK_FIFO_CFG.FIFO_FLUSH
Flush all data in the FIFO.
Per FIFO
ASM::VD_FC_WM.VD_FC_WM
Watermark for flow control towards the
queue system.
Per VD FIFO
A FIFO can be flushed using the ASM::LBK_FIFO_CFG.FIFO_FLUSH register. The register field clears
itself when the flush is completed.
Cells in the FIFO can be discarded due to aging. If a frame is discarded due to aging, a per port sticky bit
is set in ASM::LBK_AGING_STICKY. The following table lists the loopback FIFO sticky bit registers.
Table 37 •
Loopback FIFO Sticky-Bit Registers Overview
Target::Register.Field
Description
Replication
ASM::LBK_AGING_STICKY.LBK_AGING_ Set if a frame has been discarded due to 1
STICKY
aging. Per port bitmask.
ASM::LBK_OVFLW_STICKY.LBK_OVFLW Set if a frame have been discarded due
_STICKY
to overflow.
1
For VD0 and VD1, the loopback block pushes back towards the queue system to avoid FIFO overflows.
The watermark for configuring the FIFO level at which push back is active can be set in
ASM::VD_FC_WM.VD_FC_WM. The watermark can be configured individually for VD0 and VD1.
No flow control handling exists for the LBK FIFO. In case of overflow, all new cells received from the
rewriter are discarded, and a bit in the ASM::LBK_OVFLW_STICKY.LBK_OVFLW_STICKY sticky-bit
register is set.
VMDS-10492 VSC7440 Datasheet Revision 4.2
54
Functional Descriptions
3.12
Versatile Content-Aware Processor (VCAP)
The Versatile Content-Aware Processor (VCAP™) is a content-aware packet processor that allows wirespeed packet inspection for rich implementation of, for example, advanced VLAN and QoS classification
and manipulations, IP source guarding, and security features for wireline and wireless applications. This
is achieved by programming rules into the VCAP.
When a VCAP is enabled, every frame passing though the switch is analyzed and multiple keys are
created based on the contents of the packet. The frame is examined to determine the frame type (for
example, IPv4 TCP frame), so that the frame information is extracted according to the frame type, portspecific configuration, and classification results from the basic classification. Keys are applied to the
VCAP and when there is a match between a key and a rule in the VCAP, the rule is then applied to the
packet from which the key was extracted.
A rule consists of an entry, an action, and a counter. Keys are matched against the entry of a rule. When
a rule is matched, the action is returned by the VCAP, and the rule’s counter is incremented.
One and only one rule will match a key. If a key matches more than one rule, the rule at the highest
address is selected. This means that a rule at high address takes priority over rules at lower addresses.
When a key does not match a rule, a default rule is triggered. A default rule’s action is programmable just
like regular rules. Some VCAPs have more than one default rule; which default rule to use is determined
at the same time as the key is created and applied to the VCAP.
This section provides information about entries and actions in general terms. When discussing an entry
or an action, it is considered a vector of bits that is provided by software. For information about building
classification matching (CLM) keys, see VCAP CLM Keys and Actions, page 71. For information about
building ingress stage 2 (IS2) keys, see VCAP IS2 Keys and Actions, page 150. For information about
building longest prefix matching (LPM) keys, see VCAP LPM: Keys and Action, page 131. For
information about building egress stage 0 (ES0) keys, see VCAP_ES0 Lookup, page 247.
The following sections describe how to program rules into the VCAPs of the device. First, a general
description of configuration and VCAP operations is provided, including a description of wide VCAP
rules. Second, detailed information about individual VCAPs is provided. Finally, a few practical examples
illustrate how everything fits together when programming rules into VCAPs.
3.12.1
Configuring VCAP
Registers are available in two targets: VCAP_ES0 and VCAP_SUPER. Use VCAP_ES0 to configure the
VCAP ES0 target and the VCAP_SUPER target for all other VCAPs.
The following table lists the registers associated with VCAP_ES0 and VCAP_SUPER.
Table 38 •
VCAP_ES0 and VCAP_SUPER Registers
Register
Description
VCAP_UPDATE_CTRL
Initiates of read/write/move/initialization operations
VCAP_MV_CFG
Configures move/initialization operations
VCAP_CORE_IDX
Resource allocation, core index (does not apply to ES0)
VCAP_CORE_MAP
Resource allocation, mapping of cores (does not apply to ES0)
VCAP_ENTRY_DAT
Cache: Entry data
VCAP_MASK_DAT
Cache: Entry mask
VCAP_ACTION_DAT
Cache: Action
VCAP_CNT_DAT
Cache: Sticky-counter
VCAP_RULE_ENA
Cache: Rule enable (only applies to ES0)
A rule in the VCAP consists of an entry, action, and counter showing if the entry was hit. Rules are
accessed indirectly though a cache. The cache corresponds to one address in VCAP memory. Software
VMDS-10492 VSC7440 Datasheet Revision 4.2
55
Functional Descriptions
access the cache using the VCAP configuration registers VCAP_ENTRY_DAT, VCAP_MASK_DAT,
VCAP_ACTION_DAT, and VCAP_CNT_DAT.
The following illustration shows an example cache register mapping for a VCAP with 36-bit entry
data/mask, 70-bit action, and a 1-bit sticky counter. Cache registers are replicated to accommodate fields
that are wider than 32 bits. For example, if the entry size is 36 bits, bits [31:0] are accessed using
VCAP_ENTRY_DAT[0][31:0], and bits [35:32] are accessed using VCAP_ENTRY_DAT[1][3:0].
Figure 19 • VCAP Cache Layout Example
VCAP_ENTRY_DAT
idx: 1
32
idx: 0
0
don’t care
64
Entry Data
36
VCAP_MASK_DAT
idx: 1
32
idx: 0
don’t care
64
0
Entry Mask
36
32
VCAP_CNT_DAT
idx: 1
don’t care
VCAP_ACTION_DAT
64
32
idx: 0
0
Action
70
idx: 0
don’t care
96
idx: 2
0
Counter
1
Entries have both entry data and entry mask fields. This allows a don’t-care of any bit position in the key
when matching a key against entries.
Table 39 •
Entry Bit Encoding
VCAP_ENTRY_DAT[n]/V
CAP_MASK_DAT[n]
Description
0/0
Bit n is encoded for the match-0 operation. When a key is applied to the VCAP, this bit
in the entry will match a 0 at position n in the key.
0/1
Bit n is encoded for match-any operation. When a key is applied to the VCAP, this bit in
the entry will match both 0 and 1 at position n in the key.
This encoding is sometimes referred to as don’t care.
1/0
Bit n is encoded for match-1 operation. When a key is applied to the VCAP, this bit in
the entry will match a 1 at position n in the key.
1/1
Bit n is encoded for match-off operation. The entry will never match any keys.
This encoding is not available in the VCAP ES0. Instead, it is treated as match-any.
When programming a rule that does not use all the available bits in the cache, remaining (undefined)
entry bits must be set to match-0, and action bits must be set to zeros.
VMDS-10492 VSC7440 Datasheet Revision 4.2
56
Functional Descriptions
To disable a rule, one or more bits in the entry is set to match-off. VCAP ES0 does not allow match-off
encoding. Rules are instead enabled and disabled by the VCAP_RULE_ENA.RULE_ENA cache field.
The counter for a rule is incremented when the entry of the rule is matched by a key. Counters that are 1bit wide do not wrap, but instead saturate at 1.
3.12.1.1
Writing, Reading, and Initializing Rules
All access to and from VCAP memory goes through the cache.
To write a rule in the VCAP memory at address a: Entry data, entry action, and counter is first written to
the cache registers and then transferred into VCAP memory by triggering a write operation on the cache
by setting VCAP_UPDATE_CTRL.UPDATE_CMD = 0, VCAP_UPDATE_CTRL.UPDATE_ADDR = a,
and VCAP_UPDATE_CTRL.UPDATE_SHOT = 1. The UPDATE_SHOT field is cleared by hardware
when the rule has put into VCAP memory.
To read a rule from address a in the VCAP memory: Trigger a read operation on the cache by setting
VCAP_UPDATE_CTRL.UPDATE_CMD = 1, VCAP_UPDATE_CTRL.UPDATE_ADDR = a, and
VCAP_UPDATA_CTRL.UPDATE_SHOT = 1. The UPDATE_SHOT field is cleared by hardware when a
copy of the rule is available for reading via cache registers.
Active rules must not be overwritten by other rules (except when writing disabled rules). Software must
make sure that addresses are initialized before they are written.
It is possible to write the contents of the cache can be written to a range of addresses inside VCAP
memory. This is used during initialization of VCAP memory.
To write the contents of the cache to addresses a through b in VCAP memory, where a < b: Trigger an
initialization-operation by setting VCAP_MV_CFG.MV_NUM_POS = b-a. And
VCAP_UPDATE_CTRL.UPDATE_CMD = 4, VCAP_UPDATE_CTRL.UPDATE_ADDR = a, and
VCAP_UPDATE_CTRL.UPDATA_SHOT = 1. When the UPDATE_SHOT field is cleared, the addresses
have been overwritten with the contents of the cache.
The cache can be cleared by writing VCAP_UPDATE_CTRL.CLEAR_CACHE = 1. This immediately sets
the contents of the entry to disabled, action and counter is set to all-zeros.
VCAP_UPDATE_CTRL.CLEAR_CACHE can be set at the same time as triggering an write or
initialization operation, the cache will be cleared before writing to the VCAP memory.
It is possible to selectively disable access to entry, action, and/or counter during operations by setting
VCAP_UPDATE_CTRL.UPDATE_ENTRY_DIS, VCAP_UPDATE_CTRL.UPDATE_ACTION_DIS, or
VCAP_UPDATE_CTRL.UPDATE_CNT_DIS. These fields allow specialized operations such as clearing
counter values by performing initialization or write operations with disabled entry and action updating.
3.12.1.2
Moving a Block of Rules
The VCAP supports move operation for efficient and safe moving of rules inside VCAP memory. Moving
may be required to make room for new rules, because rules are prioritized by address.
To move n addresses from address a to address b in VCAP memory: Trigger a move operation by setting
VCAP_MV_CFG.MV_NUM_POS = (a>b ? a-b : b-a), VCAP_MV_CFG.MV_SIZE = (n-1). And setting
VCAP_UPDATE_CTRL.UPDATE_CMD = (a>b ? 2 : 3), VCAP_UPDATE_CTRL.UPDATE_ADDR = a,
and VCAP_UPDATE_CTRL.UPDATE_SHOT = 1. When the UPDATE_SHOT field is cleared, the
contents of the addresses have been moved inside VCAP memory. The cache is overwritten during the
move-operation.
Rules must not be moved to a region that contains active rules. Software must make sure that
destination addresses are initialized before performing a move operation. After moving rules the move
operation leaves VCAP memory in initialized state, so overlapping source and destination regions is not
a problem during move operations.
3.12.1.3
Sharing Resources
The device implements a shared pool of six blocks that can be distributed freely among the CLM, IS2,
and LPM VCAPs. Each block in the pool has 1,024 addresses with entries, actions, and counters.
VMDS-10492 VSC7440 Datasheet Revision 4.2
57
Functional Descriptions
Blocks are located back-to-back in the VCAP memory space. Block 0 is assigned addresses 0 through
1,023; block 1 is assigned addresses 1,024 though 2,047; and so on. Prioritizing of rules based on
address still applies when multiple blocks are assigned to the same VCAP.
To simplify software development, all blocks assigned to the same VCAP should be allocated as one
consecutive region of addresses in memory. After a block of VCAP resources is allocated to a VCAP, it
cannot be reallocated. Resource assignment must be done during startup before the VCAPs are
enabled.
After reset, all VCAP resources default to unallocated power-down mode. To allocate a block from the
shared pool, write block index to VCAP_CORE_IDX.CORE_IDX, then map it to a specific interface by
writing VCAP_CORE_MAP.CORE_MAP. For more information, see the register description for encoding
of owners.
3.12.1.4
Bringing Up VCAP
The contents of the VCAP are unknown after reset. Software must initialize all addresses of the VCAP to
disabled entry and all-zeros in action and counter before enabling lookups.
The default rules of the VCAPs must also be initialized. After lookup is enabled for the VCAPs, default
rules are triggered and applied to frames.
Some VCAPs implement resource sharing. As a result, software must allocate resources as part of
VCAP bring up.
For more information about default addresses rules and resource allocation, see Individual VCAPs,
page 59.
3.12.2
Wide VCAP Entries and Actions
Some VCAPs support entries and actions that are wider than a single address in the VCAP memory. The
size of an entry or action is described as Xn, where n is the number of addresses that is taken up in
memory. When programming an X2 or larger entry or action, addresses are written one by one until the
entire entry or action is written to VCAP memory.
A rule consists of one entry and one action. The size of the rule is described as Xn where n is the largest
of entry or action widths. For example, a rule consisting of an X2 entry and an X4 action is considered to
be an X4 rule. The entry and action must start at the same address, so that address offset 0 for both
entry and action is located at the same address inside the VCAP memory.
When programming a rule where the action is wider than the entry, entry addresses exceeding the size of
the entry must be disabled. When the entry is wider than the action, action addresses exceeding the size
of the action must be set to zeros.
The starting address of an Xn rule must be divisible by n. This means that X1 rules may be placed at any
address, X2 rules may only placed at even addresses, X4 rules may only be placed at addresses
divisible by 4, and so on. During move-operations this puts a restriction on the distance that rules are
moved. In other words, when performing move-operation on a region of VCAP memory that contains
rules of X2 or larger size, the rules must still be at legal addresses after the move.
When a rule is matched by a key, the counter at address offset 0 is incremented.
When writing an X2 or larger rule, software must start with the highest address and end with the lowest
address. This is needed so that rules are not triggered prematurely during writing. When disabling rules,
software must start by disabling the lowest address. This is automatically handled when using the
initialization operation for disabling rules.
3.12.2.1
Type-Group Fields
A special type-group field is required to differentiate rules when a VCAP supports different sized entries
or actions. The type-group is not part of the entry/action description. Software has to manually lookup
and insert type-group field into entry/action data when writing rules to VCAP memory.
The type-group field is placed at the low bits of the entry and/or action. The value and width of the typegroup field differs between VCAPs and depends on the entry/action size of and the address offset into
VMDS-10492 VSC7440 Datasheet Revision 4.2
58
Functional Descriptions
the rule. For more information about type-group fields for individual VCAPs, see Individual VCAPs,
page 59.
The following illustration shows an example of inserting a 2-bit entry type-group field and a 3-bit action
type-group field for a VCAP with 36-bit entry data/mask and a 64-bit action. After inserting of type-group,
there is room for 34 additional entry/mask bits and 61 action bits in the cache.
Figure 20 • VCAP Cache Type-Group Example
32
2
idx: 0
32
64
36
2
idx: 1
idx: 0
32
Entry Data
0
E. TG Mask
VCAP_MASK_DAT
0
E. TG
36
idx: 1
don’t care
64
idx: 0
Entry Mask
0
A. TG
VCAP_ENTRY_DAT
VCAP_ACTION_DAT
idx: 1
don’t care
64
Action
3
When programming the entry’s type-group field, the mask bits must be set to zeros, so that the typegroup bits consist of match-1 or match-0, or both.
Use the following procedure for each address that is part of an entry.
1.
2.
3.
Use the entry’s current address offset and size to find the appropriate type-group field and
associated field-width by using the entry type-group table for the VCAP. Skip step 2 if entry typegroup is not applicable for the VCAP.
Insert the entry type-group field into the cache for a type-group field width of n. Write the value of the
type-group field to bit-positions [n-1:0] in VCAP_ENTRY_DAT and write zeros to bit-positions [n-1:0]
in VCAP_MASK_DAT. In this way, type-group field value 1 becomes match-1 and 0 becomes match0.
Fill the remainder of VCAP_ENTRY_DAT and VCAP_MASK_DAT with appropriate entry data. There
will be room for (entry width – type-group width) additional bits of entry data.
Use the following procedure for each address is that is part of an action.
1.
2.
3.
Use the action’s current address offset and size to find the appropriate type-group field and
associated field-width by using the action type-group table for the VCAP. Skip step 2 if action typegroup is not applicable for the VCAP.
Insert the action type-group field into the cache. For a type-group field width of n. Write the value of
the type-group field to bit positions [n-1:0] in VCAP_ACTION_DAT.
Fill the remainder of VCAP_ACTION_DAT with appropriate action data. There will be room for
(action width – type-group width) additional bits of action data.
Counters never use type-group encoding.
3.12.3
Individual VCAPs
This section provides detailed information about the individual VCAPs; VCAP CLM, VCAP IS2, VCAP
LPM, and VCAP ES0. The CLM, IS2, and LPM VCAPs share resources. For more information, see
Sharing Resources, page 57.
VMDS-10492 VSC7440 Datasheet Revision 4.2
59
Functional Descriptions
3.12.3.1
VCAP CLM
The following table lists the parameters that apply to the VCAP CLM.
Table 40 •
VCAP CLM Parameters
Parameter
Description
Number of VCAP addresses
1,024 per block that is allocated to this VCAP
Width of entry
36 bits per address
Width of action
70 bits per address
Counter type
1 bit saturating counter
Supported entry sizes
X1, X2, X4, X8, and X16
Supported action sizes
X1, X2, X4
Associated register target
VCAP_SUPER
The type-group field must be inserted into entries when programming rules, because the VCAP CLM
supports more than one entry size.
Table 41 •
VCAP CLM Entry Type-Group Fields
Address Offset
Size
Entry Type Group
Description
0
X1
0b1
Software must insert 1 bit with the value 1 into first
address of all X1 entries.
0
X2
0b10
Software must insert 2 bit with the value 2 into first
address of all X2 entries.
0
X4
0b100
Software must insert 3 bit with the value 4 into first
address of all X4 entries.
0
X8
0b1000
Software must insert 4 bit with the value 8 into first
address of all X8 entries.
0
X16
0b10000
Software must insert 5 bit with the value 16 into first
address of all X16 entries.
1, 3, 5, 7, 9, 11, 13, and 15
0b0
Software must insert 1 bit with the value 0 into
uneven addresses of all entries.
2, 6, 10, and 14
0b00
Software must insert 2 bit with the value 0 into
addresses 2, 6, 10, and 14 of all entries.
4 and 12
0b000
Software must insert 3 bit with the value 0 into
addresses 4 and 12 of all entries.
8
0b0000
Software must insert 4 bit with the value 0 into
addresses 8 of all entries.
The type-group field must be inserted into actions when programming rules, because the VCAP CLM
supports more than one action size.
Table 42 •
VCAP CLM Action Type-Group Fields
Address Offset
Size
Action Type Group
Description
0
X1
0b1
Software must insert 1 bit with the value 1 into first
address of all X1 actions.
0
X2
0b10
Software must insert 2 bit with the value 2 into first
address of all X2 actions.
VMDS-10492 VSC7440 Datasheet Revision 4.2
60
Functional Descriptions
Table 42 •
VCAP CLM Action Type-Group Fields (continued)
Address Offset
Size
Action Type Group
Description
0
X4
0b100
Software must insert 3 bit with the value 4 into first
address of all X4 actions.
1 and 3
0b0
Software must insert 1 bit with the value 0 into
uneven addresses of all actions.
2
0b00
Software must insert 2 bit with the value 0 into
address 2 of all actions.
It is possible to calculate the distribution of entry and action bits in the VCAP CLM based on entry and
action widths, together with the type-group field-widths.
VCAP CLM Entry/Action Bit Distribution
Table 43 •
Address offset
X1
X8
X16
0
e[34:0], a[68:0] e[33:0], a[67:0] e[32:0],
a[66:0]
e[31:0]
e[30:0]
e[67:33],
a[135:67]
e[66:32]
e[65:31]
2
e[101:68],
a[203:136]
e[100:67]
e[99:66]
3
e[136:102],
a[272:204]
e[135:101]
e[134:100]
4
e[168:136]
e[167:135]
5
e[203:169]
e[202:168]
6
e[237:204]
e[236:203]
7
e[272:238]
e[271:237]
1
X2
e[68:34],
a[136:68]
X4
8
e[303:272]
9
e[338:304]
10
e[372:339]
11
e[407:373]
12
e[440:408]
13
e[475:441]
14
e[509:476]
15
e[544:510]
The VCAP CLM implements default rules. When submitting a key to the VCAP CLM, the analyzer
simultaneously decides which default rule to hit if the key does not match any entries in the VCAP. If no
resources (blocks) are assigned to VCAP CLM, there can be no matches. As a result, default rules will
be hit.
VCAP CLM Default Rule Addresses
Table 44 •
VCAP
Number of
Default Rules
Address
CLM0
30
Starting address of CLM0 default rule number n is (6,144 + n × 16).
CLM1
30
Starting address of CLM1 default rule number n is (6,624 + n × 16).
CLM2
30
Starting address of CLM2 default rule number n is (7,104 + n × 16).
VMDS-10492 VSC7440 Datasheet Revision 4.2
61
Functional Descriptions
3.12.3.2
VCAP IS2
The following table lists the parameters that apply to the VCAP IS2.
VCAP IS2 Parameters
Table 45 •
Parameter
Description
Number of VCAP addresses
1,024 per block that is allocated to this VCAP
Width of entry
36 bits per address
Width of action
70 bits per address
Counter-type
1-bit saturating counter
Supported entry sizes
X4, X8, X16
Supported action sizes
X4
Associated register target
VCAP_SUPER
The type-group field must be inserted into entries when programming rules, because the VCAP IS2
supports more than one entry size.
Table 46 •
VCAP IS2 Entry Type-Group Fields
Address Offset
Size
Entry
Type-Group
0
X4
0b1
Software must insert 1 bit with the value 1 into first address of
all X4 entries.
0
X8
0b10
Software must insert 2 bit with the value 2 into first address of
all X8 entries.
0
X16
0b100
Software must insert 3 bit with the value 4 into first address of
all X16 entries.
1, 2, 3, 5, 6, 7, 9, 10,
11, 13, 14, and 15
Description
Software must not insert type-group into addresses 1, 2, 3, 5, 6,
7, 9, 10, 11, 13, 14, and 15 for entries.
4 and 12
0b0
Software must insert 1 bit with the value 0 into addresses 4 and
12 of all entries.
8
0b00
Software must insert 2 bits with the value 0 into address 8.
Because only one action size is supported by the VCAP IS2, no type-group is inserted into actions when
programming rules.
It is possible to calculate the distribution of entry and action bits in the VCAP IS2 based on entry and
action widths together with the entry type-group field width.
Table 47 •
VCAP IS2 Entry/Action Bit Distribution
Address Offset
X4
X8
X16
0
e[34:0], a[69:0]
e[33:0]
e[32:0]
1
e[70:35],
a[139:70]
e[69:34]
e[68:33]
2
e[106:71],
a[209:140]
e[105:70]
e[104:69]
3
e[142:107],
a[279:210]
e[141:106]
e[140:105]
e[176:142]
e[175:141]
4
VMDS-10492 VSC7440 Datasheet Revision 4.2
62
Functional Descriptions
Table 47 •
VCAP IS2 Entry/Action Bit Distribution (continued)
Address Offset
X4
X8
X16
5
e[212:177]
e[211:176]
6
e[248:213]
e[247:212]
7
e[284:249]
e[283:248]
8
e[317:284]
9
e[353:318]
10
e[389:354]
11
e[425:390]
12
e[460:426]
13
e[496:461]
14
e[532:497]
15
e[568:533]
The VCAP IS2 has 16 default rules. The address of default rule number n is (7584 + 16 × n). When
submitting a key to the VCAP IS2, the analyzer simultaneously determines which default rule to hit if the
key does not match any entries. If no resources (blocks) were assigned to VCAP IS2, there can be no
matches and default rules will be hit.
3.12.3.3
VCAP LPM
The following table lists the parameters that apply to the VCAP LPM.
VCAP LPM Parameters
Table 48 •
Parameter
Description
Number of VCAP addresses
1,024 per block that is allocated to this VCAP
Width of entry
36 bit per address
Width of action
70 bit per address
Counter-type
1 bit saturating counter
Supported entry sizes
X1, X2, X4, X8
Supported action sizes
X1
Associated register target
VCAP_SUPER
The type-group field must be inserted into entries when programming rules, because the VCAP LPM
supports more than one entry size.
Table 49 •
VCAP LPM Entry Type-Group Fields
Address Offset
Size
Entry Type Group
Description
0
X1
0b1
Software must insert 1 bit with the value 1 into
first address of all X1 entries.
0
X2
0b10
Software must insert 2 bit with the value 2 into
first address of all X2 entries.
0
X4
0b100
Software must insert 3 bit with the value 4 into
first address of all X4 entries.
0
X8
0b1000
Software must insert 4 bit with the value 8 into
first address of all X8 entries.
VMDS-10492 VSC7440 Datasheet Revision 4.2
63
Functional Descriptions
Table 49 •
VCAP LPM Entry Type-Group Fields (continued)
Address Offset
Size
Entry Type Group
Description
1, 3, 5, and 7
0b0
Software must insert 1 bit with the value 0 into
uneven addresses of all entries.
2 and 6
0b00
Software must insert 2 bit with the value 0 into
addresses 2 and 6 of all entries.
4
0b000
Software must insert 3 bit with the value 0 into
addresses 4 of all entries.
Because only one action size is supported by the VCAP LPM, no type-group is inserted into actions
when programming rules.
It is possible to calculate the distribution of entry and action bits in the VCAP LPM based on entry and
action widths together with the entry type-group field width.
Table 50 •
VCAP LPM Entry/Action Bit Distribution
Address Offset
X1
X2
X4
X8
0
e[34:0], a[69:0]
e[33:0]
e[32:0]
e[31:0]
e[68:34]
e[67:33]
e[66:32]
2
e[101:68]
e[100:67]
3
e[136:102]
e[135:101]
1
4
e[168:136]
5
e[203:169]
6
e[237:204]
7
e[272:238]
The VCAP LPM does not implement default rules. If the key does not match any entries, or if no
resources (blocks) are assigned to the VCAP LPM, routing lookups are treated as misses.
3.12.3.4
VCAP ES0
VCAP ES0 has 512 addresses available. The following parameters apply to the VCAP ES0.
Table 51 •
VCAP ES0 Parameters
Parameter
Description
Number of VCAP addresses
512.
Width of entry
30 bits per address.
Width of action
285 bits per address.
Counter-type
1-bit saturating counter.
Supported entry sizes
X1.
Supported action sizes
X1.
Associated register target
VCAP_ES0.
The type-group field is not used when programming entries and actions, because VCAP ES0 supports
only one entry size and one action size.
VMDS-10492 VSC7440 Datasheet Revision 4.2
64
Functional Descriptions
The following table shows the distribution of entry and action bits in the VCAP ES0.
Table 52 •
VCAP ES0 Entry/Action Bit Distribution
Address Offset
X1
0
e[29:0], a[284:0]
The VCAP ES0 has 11 default rules. The address of default rule number n is (512 + n). When submitting
a key to the VCAP ES0, the rewriter simultaneously decides which default rule to hit if the key does not
match any entries in the VCAP.
3.12.4
VCAP Programming Examples
This section provides examples of programming VCAP CLM and VCAP ES0.
3.12.4.1
Writing a Wide CLM Rule
This example shows how to write a CLM X4 rule, consisting of an X2 TRI_VID entry and an X4 FULL
action, to the CLM1 VCAP. In this example, the second and third blocks of VCAP resources have already
been mapped to CLM1.
When the second and third resource blocks are mapped to CLM1, it then owns VCAP address range
1024-3071. An X4 rule must be placed on an address inside memory owned by CLM1 and starting
addresses must be divisible by four, because it is an X4 rule. In this example, the X4 rule is written to
addresses 1412-1415.
Software is expected to track memory usage so that it only writes to VCAP memory that does not already
contain active rules. Deleting of rules is done by initializing the associated addresses.
The X2 TRI_VID entry is 69 bits wide. The X4 FULL action is 250 bits wide. For information about how to
build a FULL action, see VCAP CLM Actions, page 92. For information about how to build a TRI_VID
entry, see VCAP CLM X2 Key Details, page 75.
Each address holds 36 bits of entry data/mask, but some of them are used for type-group fields. For
more information about TRI_VID’s entry type-group field and entry bit-ranges for address offset 0 and 1,
Table 41, page 60 and Table 43, page 61. The results are shown in the following table.
Table 53 •
CLM X2 Entry Type-Group and Distribution Summary
Address
Type-Group Field
Entry Data/Mask Range
1412
0b10
[33:0]
1413
0b0
[68:34]
Note: The TRI_VID entry completely fills available entry space. If it had been less than 69 bits wide, then MSBs
at address offset 1 would have been treated as Match-0.
Each address holds 70 bits of action, but some of them are used for type-group fields. For more
information the FULL’s action type-group field and the action bit ranges for all four address offsets, see
Table 42, page 60 and Table 43, page 61. The results are shown in the following table.
Table 54 •
CLM X4 Action Type-Group and Distribution Summary
Address
Type-Group Field
Action Data/Mask Range
1412
0b100
[66:0]
1413
0b0
[135:67]
1414
0b00
[203:136]
1415
0b0
[249:204]
The FULL action is only 250 bits wide, so bits [272:250] of address offset 3 must be treated as zeros.
VMDS-10492 VSC7440 Datasheet Revision 4.2
65
Functional Descriptions
Software must write the highest address offset first and work down to the lowest address offset.
3.12.4.1.1 Writing Address Offset 3 of X4 Rule
Software is not allowed to modify the cache while VCAP operation is ongoing. Always check if
VCAP_UPDATE_CTRL.UPDATE_SHOT is cleared before starting to modify the cache. If a previous
operation is still ongoing, wait for the UPDATE_SHOT to clear.
When a new rule is started, first clear cache’s entry, action, and counter by setting
VCAP_UPDATE_CTRL.CLEAR_CACHE = 1.
The TRI_VID entry is an X2 entry and not part of address offset 3. The entry at this address must be set
to Match-off. This has already been achieved by clearing of the cache.
The FULL action is not so wide that it needs a third VCAP_ACTION_DAT replication so this must be set
to zero. This has already been achieved by clearing of the cache.
Write action to cache: VCAP_ACTION_DAT[1][31:0] = zero-extend(action[249:235]),
VCAP_ACTION_DAT[0][31:1] = action[234:204], and VCAP_ACTION_DAT[0][0] = 0, because typegroup field for the X4 CLM action at address offset 3 is 0b0.
Write cache to VCAP memory by setting VCAP_UPDATE_CTRL = (4|(1415 0)
Inner TAG =
Priority S-TAG
N
Y
Y
N
Inner TAG =
C-TAG accepted
[port]
N
Inner TAG =
Priority C-TAG Accepted
[port]
Y
N
Discard
Inner TAG =
Priority S-TAG Accepted
[port]
Y
Discard
N
Inner TAG =
Priority C-TAG
N
Y
Discard
Y
Y
Discard
Inner TAG =
S-TAG accepted
[port]
Inner TAG =
C-TAG (VID > 0)
N
Y
These checks are available per S-tag TPID value. Four
values are supported: 0x88A8 (standard) and three
custom TPID values.
Frame accepted
The VLAN acceptance filter does not apply to untagged Layer 2 control protocol frames. They are always
accepted even when VLAN tags are required for other frames. The following frames are recognized as
Layer 2 control protocol frames:
•
•
•
Frames with DMAC = 0x0180C2000000 through 0x0180C200000F
Frames with DMAC = 0x0180C2000020 through 0x0180C200002F
Frames with DMAC = 0x0180C2000030 through 0x0180C200003F
Tagged Layer 2 control protocol frames are handled by the VLAN acceptance filter like normal tagged
frames and they must comply with the filter settings to be accepted.
Frames discarded by the frame acceptance filters are assigned PIPELINE_PT = ANA_CL and learning of
the frames’ source MAC addresses are at the same time disabled.
VMDS-10492 VSC7440 Datasheet Revision 4.2
106
Functional Descriptions
3.16.1.5
QoS, DP, and DSCP Classification
This section provides information about the functions in the QoS, DP, and DSCP classification. The three
tasks are described as one, because the tasks have functionality in common.
The following table lists the registers associated with QoS, DP, and DSCP classification.
Table 69 •
QoS, DP, and DSCP Classification Registers
Register
Description
Replication
ANA_CL:PORT:QOS_CFG
Configuration of the overall classification flow Per port
for QoS, DP, and DSCP.
ANA_CL:PORT:PCP_DEI_MAP_CFG
Port-based mapping of (DEI, PCP) to (DP,
QoS).
Per port per DEI per
PCP (16 per port)
ANA_CL::DSCP_CFG
DSCP configuration per DSCP value.
Per DSCP (64)
ANA_CL::QOS_MAP_CFG.DSCP_REWR_VAL
DSCP rewrite values per QoS class.
Per QoS class (8)
ANA_CL::CPU_8021_QOS_CFG
Configuration of QoS class for Layer 2
control protocol frames redirected to the
CPU.
Per Layer 2 protocol
address (32)
The basic classification provides the user with control of the QoS, DP, and DSCP classification
algorithms. The result of the basic classification are the following frame properties:
•
•
•
The frame’s QoS class. This class is encoded in a 3-bit field, where 7 is the highest priority QoS
class and 0 is the lowest priority QoS class. The QoS class is used by the queue system when
enqueuing frames and when evaluating resource consumptions, for policing, statistics, and rewriter
actions. The QoS class is carried internally in the IFH field IFH.VSTAX.QOS.CL_QOS.
The frame’s DP level. This level is encoded in a 2-bit field, where frames with DP = 3 have the
highest probability of being dropped and frames with DP = 0 have the lowest probability. The DP
level is used by the MEF compliant policers for measuring committed and peak information rates, for
restricting memory consumptions in the queue system, for collecting statistics, and for rewriting
priority information in the rewriter. The DP level is incremented by the policers if a frame is
exceeding a programmed committed information rate. The DP level is carried internally in the IFH
field IFH.VSTAX.QOS.CL_DP.
The frame’s DSCP. This value is encoded in a 6-bit fields. The DSCP value is forwarded with the
frame to the rewriter where it is translated and rewritten into the frame. The DSCP value is only
applicable to IPv4 and IPv6 frames. The DSCP is carried internally in the IFH field IFH.QOS.DSCP.
The classifier looks for the following fields in the incoming frame to determine the QoS, DP, and DSCP
classification:
•
•
•
•
Priority Code Point (PCP) when the frame is VLAN tagged or priority tagged. There is an option to
use the inner tag for double tagged frames (VLAN_CTRL.VLAN_TAG_SEL).
Drop Eligible Indicator (DEI) when the frame is VLAN tagged or priority tagged. There is an option to
use the inner tag for double tagged frames (VLAN_CTRL.VLAN_TAG_SEL).
DSCP (all 6 bits, both for IPv4 and IPv6 packets). The classifier can look for the DSCP value behind
up to three VLAN tags. For non-IP frames, the DSCP is 0 and it is not used elsewhere in the switch.
Destination MAC address (DMAC) for L2CP frames. Layer 2 control protocol frames that are
redirected to the CPU are given a programmable QoS class independently of other frame properties.
The following illustration shows the flow chart of basic QoS classification.
VMDS-10492 VSC7440 Datasheet Revision 4.2
107
Functional Descriptions
Figure 23 • Basic QoS Classification Flow Chart
QoS class = DEFAULT_QOS_VAL[port]
DSCP = 0
”Frame is IPv4 or IPv6"
Y
DSCP = Frame.DSCP
DSCP_TRANSLATE_ENA[port]
Y
DSCP = DSCP_TRANSLATE_VAL[DSCP]
DSCP_QOS_ENA[port]
Y
DSCP_TRUST_ENA[DSCP]
Y
”Frame has inner tag” and
PCP_DEI_QOS_ENA[port] and VLAN_TAG_SEL[port]
QoS class = DSCP_QOS_VAL[DSCP]
Y
QoS class = PCP_DEI_QOS_VAL[port][Frame.InnerDEI][Frame.InnerPCP]
”Frame has outer tag” and
PCP_DEI_QOS_ENA[port]
Y
QoS class = PCP_DEI_QOS_VAL[port][Frame.OuterDEI][Frame.OuterPCP]
”Frame is BPDU”
(DMAC = 0x0180C200000X)
and ”redirect to CPU”
Y
QoS class = BPDU_QOS[DMAC[bits 3:0]]
”Frame is GARP”
(DMAC = 0x0180C200002X)
and ”redirect to CPU”
Y
QoS class = GXRP_QOS[DMAC[bits 3:0]]
”Frame is Y.1731/IEEE802.1ag”
(DMAC = 0x0180C200003X)
and ”redirect to CPU”
Y
QoS class = Y1731_AG_QOS[DMAC[bits 3:0]]
Basic classified QoS class (IFH.VSTAX.QOS.CL_QOS)
The following illustration shows the flow chart for basic DP classification.
VMDS-10492 VSC7440 Datasheet Revision 4.2
108
Functional Descriptions
Figure 24 • Basic DP Classification Flow Chart
DP = DEFAULT_DP_VAL[port]
DSCP = 0
”Frame is IPv4 or IPv6"
Y
DSCP = Frame.DSCP
Y
DSCP_TRANSLATE_ENA[port]
Y
DSCP = DSCP_TRANSLATE_VAL[DSCP]
DSCP_DP_ENA[port]
Y
DSCP_TRUST_ENA[DSCP]
Y
”Frame has inner tag” and
PCP_DEI_DP_ENA[port] and VLAN_TAG_SEL[port]
DP = DSCP_DP_VAL[DSCP]
Y
DP = PCP_DEI_DP_VAL[port][Frame.InnerDEI][Frame.InnerPCP]
”Frame has outer tag” and
PCP_DEI_DP_ENA[port]
Y
DP = PCP_DEI_DP_VAL[port][Frame.OuterDEI][Frame.OuterPCP]
”Frame is BPDU”
(DMAC = 0x0180C200000X)
and ”redirect to CPU”
Y
DP = 0
”Frame is GARP”
(DMAC = 0x0180C200002X)
and ”redirect to CPU”
Y
DP = 0
”Frame is Y.1731/IEEE802.1ag”
(DMAC = 0x0180C200003X)
and ”redirect to CPU”
Y
DP = 0
Basic classified DP
(IFH.VSTAX.QOS.CL_DP)
The following illustration shows the flow chart for basic DSCP classification.
VMDS-10492 VSC7440 Datasheet Revision 4.2
109
Functional Descriptions
Figure 25 • Basic DSCP Classification Flow Chart
DSCP = 0
”Frame is IPv4 or IPv6"
Y
DSCP = Frame.DSCP
Y
DSCP_TRANSLATE_ENA[port]
Y
DSCP =
DSCP_TRANSLATE_VAL[DSCP]
DSCP_REWR_MODE_SEL[port] == ”Rewrite all” or
DSCP_REWR_MODE_SEL[port] == Rewrite DSCP=0" and DSCP == 0 or
DSCP_REWR_MODE_SEL[port] == ”Rewrite selected” and DSCP_REWR_ENA[DSCP]
Y
Basic classified QoS class
Basic classified DP level
DSCP = DSCP_REWR_VAL[8 x Basic classified DP level + Basic classified QOS class]
Basic classified DSCP
(IFH.QOS.DSCP)
Note that the DSCP translation part is common for both QoS, DP, and DSCP classification, and the
DSCP trust part is common for both QoS and DP classification.
The basic classifier has the option to overrule rewriter configuration (REW:PORT:DSCP_MAP) that
remaps the DSCP value at egress. When ANA_CL:PORT:QOS_CFG.DSCP_KEEP_ENA is set, the
rewriter is instructed not to modify the frame’s DSCP value (IFH.QOS.TRANSP_DSCP is set to 1).
The basic classified QoS, DP, and DSCP can be overwritten by more intelligent decisions made in the
VCAP CLM.
3.16.1.6
VLAN Classification
The following table lists the registers associated with VLAN classification.
Table 70 •
VLAN Configuration Registers
Register
Description
ANA_CL:PORT:VLAN_CTRL
Configures the port’s processing of VLAN information in Per port
VLAN-tagged and priority-tagged frames. Configures the
port-based VLAN.
VMDS-10492 VSC7440 Datasheet Revision 4.2
Replication
110
Functional Descriptions
Table 70 •
VLAN Configuration Registers (continued)
ANA_CL::VLAN_STAG_CFG
Configures custom S-tag TPID value.
3
ANA_CL:PORT:PCP_DEI_TRANS_CFG
Port-based translation of (DEI, PCP) to basic classified
(DEI, PCP).
Per port per
DEI per PCP
(16 per port)
ANA_CL:PORT:VLAN_TPID_CTRL.
BASIC_TPID_AWARE_DIS
Configures valid TPIDs for VLAN classification. This
configuration is shared with routing tag control.
Per port
The VLAN classification determines the following set of VLAN parameters for all frames:
•
•
•
•
Priority Code Point (PCP). The PCP is carried internally in the IFH field IFH.VSTAX.TAG.CL_PCP.
Drop Eligible Indicator (DEI). The DEI is carried internally in the IFH field IFH.VSTAX.TAG.CL_DEI.
VLAN Identifier (VID). The VID is carried internally in the IFH field IFH.VSTAX.TAG.CL_VID.
Tag Protocol Identifier (TPID) type, which holds information about the TPID of the tag used for
classification. The TPID type is carried internally in IFH field IFH.VSTAX.TAG.TAG_TYPE. Extended
information about the tag type is carried in IFH.DST.TAG_TPID.
The device recognizes five types of tags based on the TPID, which is the EtherType in front of the tag:
•
•
•
Customer tags (C-tags), which use TPID 0x8100.
Service tags (S-tags), which use TPID 0x88A8 (IEEE 802.1ad).
Custom service tags (S-tags), which use one of three custom TPIDs programmed in
ANA_CL::VLAN_STAG_CFG. Three different values are supported.
For customer tags and service tags, both VLAN tags (tags with nonzero VID) and priority tags (tags with
VID = 0) are processed.
It is configurable, which of the five recognized TPIDs are valid for the VLAN classification
(VLAN_TPID_CTRL.BASIC_TPID_AWARE_DIS). Only VLAN tags with valid TPIDs are used by the
VLAN classification. The parsing of VLAN tags stops when a VLAN tag with an invalid TPID is seen.
The VLAN tag information is either retrieved from a tag in the incoming frame or from default port-based
configuration. The port-based VLAN tag information is configured in ANA_CL:PORT:VLAN_CTRL.
For double tagged frames (at least two VLAN tags with valid TPIDs), there is an option to use the inner
tag instead of the outer tag (VLAN_CTRL.VLAN_TAG_SEL). Note that if the frame has more than two
valid VLAN tags, the inner tag refers to the tag immediately after the outer tag.
The following illustration shows the flow chart for basic VLAN classification.
VMDS-10492 VSC7440 Datasheet Revision 4.2
111
Functional Descriptions
Figure 26 • Basic VLAN Classification Flow Chart
TAG_TPID = VLAN_CTRL.PORT_TAG_TYPE
PCP = VLAN_CTRL.PORT_PCP
DEI = VLAN_CTRL.PORT_DEI
VID = VLAN_CTRL.PORT_VID
A tag is valid for VLAN classification when:
- the TPID is one of 5 known TPIDs, and
- BASIC_TPID_AWARE_DIS[tag number, TPID] is cleared.
”Frame has valid outer tag” and
VLAN_AWARE_ENA[port]
Y
”Frame has valid inner tag” and
VLAN_TAG_SEL[port]
Y
TAG_TPID = TPID(Frame.InnerTPID)
PCP = Frame.InnerPCP
DEI = Frame.InnerDEI
VID = Frame.InnerVID
TAG_TPID = TPID(Frame.OuterTPID)
PCP = Frame.OuterPCP
DEI = Frame.OuterDEI
VID = Frame.OuterVID
VLAN_PCP_DEI_TRANS_ENA
Y
PCP = PCP_TRANS_VAL[port][8 x DEI + PCP]
DEI = DEI_TRANS_VAL[port][8 x DEI + PCP]
VID == 0
Y
VID = VLAN_CTRL.PORT_VID
Basic Classified Tag information
In addition to the classification shown, the port decides the number of VLAN tags to pop at egress
(VLAN_CTRL.VLAN_POP_CNT). If the configured number of tags to pop is greater than the actual
number of valid tags in the frame, the number is reduced to the number of actual valid tags in the frame.
A maximum of three VLAN tags can be popped. The VLAN pop count is carried in IFH field
IFH.TAGGING.POP_CNT.
Finally, the VLAN classification sets IFH field IFH.VSTAX.TAG.WAS_TAGGED if the port is VLAN aware
and the frame has one or more valid VLAN tags. WAS_TAGGED is used the rewriter to make decision on
whether tag information from existing tags can be used for rewriting.
VMDS-10492 VSC7440 Datasheet Revision 4.2
112
Functional Descriptions
The basic classified tag information can be overwritten by more intelligent decisions made in the VCAP
CLM.
3.16.1.7
Link Aggregation Code Generation
This section provides information about the functions in link aggregation code generation.
The following table lists the registers associated with aggregation code generation.
Table 71 •
Aggregation Code Generation Registers
Register
Description
Replication
ANA_CL::AGGR_CFG
Configures use of Layer 2 through Layer 4 flow information Common
for link aggregation code generation.
The classifier generates a link aggregation code, which is used in the analyzer when selecting to which
port in a link aggregation group a frame is forwarded.
The following contributions to the link aggregation code are configured in the AGGR_CFG register.
•
•
•
•
•
•
•
Destination MAC address—use the 48 bits of the DMAC.
Reversed destination MAC address—use the 48 bits of the DMAC in reverse order (bit 47 becomes
bit 0, bit 46 becomes bit 1, and so on).
Source MAC address—use the lower 48 bits of the SMAC.
IPv6 flow label—use the 20 bits of the flow label.
Source and destination IP addresses for IPv4 and IPv6 frames —use all bits of both the SIP and DIP.
TCP/UDP source and destination ports for IPv4 and IPv6 frames use the 16 bits of both the SPORT
and DPORT.
Random aggregation code—use a 4-bit pseudo-random number.
All contributions that are enabled are 4-bit XOR’ed, and the resulting code is used by the Layer 2
forwarding function (ANA_AC) to select 1 out of 16 link aggregation port masks. The 16 link aggregation
port masks are configured in ANA_AC:AGGR. For more information see Aggregation Group Port
Selection, page 188.
If AGGR_CFG.AGGR_USE_VSTAX_AC_ENA is enabled and the frame has a VStaX header, all other
contributions to link aggregation code calculation are ignored, and the AC field of the VStaX-header is
used directly. Otherwise, link aggregation code generation operates as previously described.
Note that AGGR_CFG.AGGR_DMAC_REVERSED_ENA and AGGR_CFG.AGGR_DMAC_ENA are
independent. If both bits are enabled, the frame’s DMAC contributes both normally and reversed in the
link aggregation code calculation.
3.16.1.8
CPU Forwarding Determination
The following table lists the registers associated with CPU forwarding in the basic classifier.
Table 72 •
CPU Forwarding Registers
Register
Description
Replication
ANA_CL:PORT:CAPTURE_CFG
Enables CPU forwarding for various frame types.
Configures valid TPIDs for CPU forwarding.
Per port
ANA_CL:PORT:CAPTURE_BPDU_CFG
Enables CPU forwarding per BPDU address
Per port
ANA_CL:PORT:CAPTURE_GXRP_CFG
Enables CPU forwarding per GxRP address
Per port
ANA_CL:PORT:CAPTURE_Y1731_AG_CFG
Enables CPU forwarding per Y.1731/IEEE802.1ag
address
Per port
ANA_CL::CPU_PROTO_QU_CFG
CPU extraction queues for various frame types
None
ANA_CL::CPU_8021_QU_CFG
CPU extraction queues for BPDU, GARP, and
Y.1731/IEEE802.1ag addresses
None
ANA_CL::VRAP_CFG
VLAN configuration of VRAP filter
None
VMDS-10492 VSC7440 Datasheet Revision 4.2
113
Functional Descriptions
Table 72 •
CPU Forwarding Registers (continued)
Register
Description
Replication
ANA_CL::VRAP_HDR_DATA
Data match against VRAP header
None
ANA_CL::VRAP_HDR_MASK
Mask used to don’t care bits in the VRAP header
None
The basic classifier has support for determining whether certain frames must be forwarded to the CPU
extraction queues. Other parts of the device can also determine CPU forwarding, for example, the
VCAPs or the VOEs. All events leading to CPU forwarding are OR’ed together, and the final CPU
extraction queue mask, which is available to the user, contains the sum of all events leading to CPU
extraction.
Upon CPU forwarding by the basic classifier, the frame type and configuration determine whether the
frame is redirected or copied to the CPU. Any frame type or event causing a redirection to the CPU
causes all front ports to be removed from the forwarding decision—only the CPU receives the frame.
When copying a frame to the CPU, the normal forwarding of the frame to front ports is unaffected.
The following table lists the standard frame types recognized by the basic classifier, with respect to CPU
forwarding.
Table 73 •
Frame Type Definitions for CPU Forwarding
Frame
Condition
Copy/Redirect
BPDU Reserved Addresses
(IEEE 802.1D 7.12.6)
DMAC = 0x0180C2000000 to 0x0180C20000F
Redirect/Copy/Discard
GARP Application Addresses
(IEEE 802.1D 12.5)
DMAC = 0x0180C2000020 to 0x0180C200002F
Redirect/Copy/Discard
Y.1731/IEEE802.1ag Addresses
DMAC = 0x0180C2000030 to 0x0180C200003F
Redirect/Copy/Discard
IGMP
DMAC = 0x01005E000000 to 0x01005E7FFFFF
EtherType = IPv4
IP Protocol = IGMP
Redirect
MLD
DMAC = 0x333300000000 to 0x3333FFFFFFFFF
Redirect
EtherType = IPv6
IPv6 Next Header = 0 (Hop-by-hop options header)
Hop-by-hop options header with the first option being a
Router Alert option with the MLD message (Option Type
= 5, Opt Data Len = 2, Option Data = 0).
Hop-by-hop
EtherType = IPv6
IPv6 Next Header = 0 (Hop-by-hop options header)
Redirect
ICMPv6
EtherType = IPv6
IPv6 Next Header = 58 (ICMPv6)
Redirect
IPv4 Multicast Ctrl
DMAC = 0x01005E000000 to 0x01005E7FFFFF
EtherType = IPv4
IP protocol is not IGMP
IPv4 DIP inside 224.0.0.x
Copy
IPv6 Multicast Ctrl
DMAC = 0x333300000000 to 0x3333FFFFFFFF
EtherType = IPv6
IPv6 header is not hop-by-hop or ICMPv6
IPv6 DIP inside FF02::/16
Copy
Each frame type has a corresponding CPU extraction queue. Note that hop-by-hop and ICMPv6 frames
share the same CPU extraction queue.
Prior to deciding whether to CPU forward a frame, the frame’s VLAN tagging must comply with a
configurable filter (ANA_CL::CAPTURE_CFG.CAPTURE_TPID_AWARE_DIS). For all frame types listed
VMDS-10492 VSC7440 Datasheet Revision 4.2
114
Functional Descriptions
in Table 73, page 114, only untagged frames or VLAN-tagged frames where the outer VLAN tag’s TPID is
not disabled are considered.
The basic classifier can recognize VRAP frames and redirect them to the CPU. This is a proprietary
frame format, which is used for reading and writing switch configuration registers through Ethernet
frames. For more information, see VRAP Engine, page 289.
The VRAP filter in the classifier performs three checks in order to determine whether a frame is a VRAP
frame:
1.
2.
3.
VLAN check. The filter can be either VLAN unaware or VLAN aware
(ANA_CL::VRAP_CFG.VRAP_VLAN_AWARE_ENA). If VLAN unaware, VRAP frames must be
untagged. If VLAN aware, VRAP frames must be VLAN tagged and the frame’s VID must match a
configured value (ANA_CL::VRAP_CFG.VRAP_VID). Double VLAN tagged frames always fail this
check.
EtherType and EPID check. The EtherType must be 0x8880 and the EPID (bytes 0 and 1 after the
EtherType) must be 0x0004.
VRAP header check. The VRAP header (bytes 0, 1, 2, and 3 after the EPID) must match a 32-bit
configured value (ANA_CL::VRAP_HDR_DATA) where any bits can be don’t cared by a mask
(ANA_CL::VRAP_HDR_MASK).
If all three checks are fulfilled, frames are redirected to CPU extraction queue
ANA_CL::CPU_PROTO_QU_CFG.CPU_VRAP_QU. The VRAP filter is enabled in
ANA_CL:PORT:CAPTURE_CFG.CPU_VRAP_REDIR_ENA.
3.16.1.9
Logical Port Mapping
The basic classifier works on the physical port number given by the interface where the frame was
received. Other device blocks work on a logical port number that defines the link aggregation instance
rather than the physical port. The logical port number is defined in
ANA_CL:PORT:PORT_ID_CFG.LPORT_NUM. It is, for instance, used for learning and forwarding in
ANA_L2.
3.16.2
VCAP CLM Processing
Each frame is matched six times against entries in the VCAP CLM. The matching is done in serial
implying results from one match can influence the keys used in the next match.
The VCAP CLM returns an action for each enabled VCAP CLM lookup. If the lookup matches an entry in
VCAP CLM, the associated action is returned. If an entry is not matched, a per-port default action is
returned. There is no difference between an action from a match and a default action.
3.16.2.1
VCAP CLM Port Configuration and Key Selection
This section provides information about special port configurations that control the key generation for
VCAP CLM.
The following table lists the registers associated with port configuration for VCAP CLM.
Table 74 •
Port Configuration of VCAP CLM
Register
Description
Replication
ANA_CL:PORT:ADV_CL_CFG
Configuration of the key selection for the VCAP CLM.
Enables VCAP CLM lookups.
Per port per lookup
ANA_CL::CLM_MISC_CTRL
Force lookup in VCAP CLM for looped frames or frames
where processing is terminated by a pipeline point.
None
VCAP CLM is looked up if the lookup is enabled by the port configuration
(ADV_CL_CFG.LOOKUP_ENA) or if the previous VCAP CLM lookup has returned a key type for the next
lookup through VCAP CLM action NXT_KEY_TYPE. However, if the previous lookup returns
NXT_KEY_TYPE = CLMS_DONE, then no further lookups are done, even if the port has enabled the
lookup.
VMDS-10492 VSC7440 Datasheet Revision 4.2
115
Functional Descriptions
Prior to each VCAP CLM lookup, the type of key to be used in the lookup is selected. A number of
parameters control the key type selection:
•
•
Configuration parameters (ADV_CL_CFG).
For each (port, VCAP CLM lookup) a key type can be specified for different frame types. Although
any key type can be specified for a given frame type, not all key types are in reality applicable to a
given frame type. The applicable key types are listed in the ANA_CL:PORT:ADV_CL_CFG register
description. The following frame types are supported:
•
IPv6 frames (EtherType 0x86DD and IP version 6)
•
IPv4 frames (EtherType 0x0800 and IP version 4)
•
MPLS unicast frames (EtherType 0x8847)
•
MPLS multicast frames (EtherType 0x8848)
•
MPLS label stack processing (frame type after MPLS link layer is processed)
•
Other frames (non-MPLS, non-IP)
The type of the current protocol layer. For each VCAP CLM lookup, a frame pointer can optionally be
moved to the next protocol layer, and the type of the next protocol layer can be specified. This
influences key type selection for the next VCAP CLM lookup. The variables frame_ptr and
frame_type holds information about the current protocol layer.
Key type specified in action in previous VCAP CLM lookup.
The action of a VCAP CLM lookup can optionally specify a specific key type to be used in the following
VCAP CLM lookup.
The full algorithm used for selecting VCAP CLM key type is shown in the following pseudo code.
// ======================================================================
// ANA_CL: VCAP CLM Key Type Selection
//
// Determine which key type to use in VCAP CLM lookup.
// The algorithm is run prior to each VCAP CLM lookup.
// ---------------------------------------------------------------------// Frame position (byte pointer) for use as base for next VCAP CLM key
// Updated by UpdateFramePtrAndType() upon VCAP CLM lookup
int frame_ptr = 0;
// Frame type at frame_ptr position.
// Updated by UpdateFramePtrAndType() upon VCAP CLM lookup
//
// Supported values:
//
ETH: frame_ptr points to DMAC
//
CW:
frame_ptr points to start of IP header or CW/ACH of MPLS frame
//
MPLS: frame_ptr points to an MPLS label.
frame_type_t frame_type = ETH;
int ClmKeyType(
// VCAP CLM index. 0=First VCAP CLM lookup, 5=Last lookup
clm_idx,
// Action from previous VCAP CLM lookup (if clm_idx > 0)
//
// clm_action.vld is only set if VCAP CLM lookup
// was enabled.
clm_action,
)
{
int
key_type = 0;
port_cfg_t port_clm_cfg;
port_clm_cfg = csr.port[port_num].adv_cl_cfg[clm_idx];
if (clm_action.vld && clm_action.nxt_key_type != 0) {
// Previous VCAP CLM lookup specifies next key type
VMDS-10492 VSC7440 Datasheet Revision 4.2
116
Functional Descriptions
return clm_action.nxt_key_type;
}
// Determine key type based on port parameters and frame_ptr/frame_type
switch (frame_type) {
case ETH:
// Choose key type based on EtherType
// The EtherType() function skips any VLAN tags. A maximum of 3 VLAN
// tags can be skipped.
switch (EtherType(frame_ptr)) {
case ETYPE_IP4: // 0x0800
key_type = port_clm_cfg.ip4_clm_key_sel;
break;
case ETYPE_IP6: // 0x86DD
key_type = port_clm_cfg.ip6_clm_key_sel;
break;
case ETYPE_MPLS_UC: // 0x8847
key_type = port_clm_cfg.mpls_uc_clm_key_sel;
break;
case ETYPE_MPLS_MC: // 0x8848
key_type = port_clm_cfg.mpls_mc_clm_key_sel;
break;
}
if (key_type = 0) {
key_type = port_clm_cfg.etype_clm_key_sel;
}
break;
case CW:
switch (IPVersion(frame_ptr)) {
case 4 : key_type = port_clm_cfg.ip4_clm_key_sel;
break;
case 6 : key_type = port_clm_cfg.ip6_clm_key_sel;
break;
default: key_type = port_clm_cfg.etype_clm_key_sel; break;
}
break;
case MPLS:
key_type = port_clm_cfg.mlbs_clm_key_sel;
break;
}
return key_type;
} // ClmKeyType
// --------------------------------------------------------------------// ANA_CL: VCAP CLM Key Type Selection
// ======================================================================
By default, frames looped by the rewriter or frames already discarded or CPU-redirected, for instance the
basic classifier, are not subject to VCAP CLM lookups. Optionally, VCAP CLM lookups can be enforced
through configuration ANA_CL::CLM_MISC_CTRL.LBK_CLM_FORCE_ENA for looped frames and
through ANA_CL::CLM_MISC_CTRL.IGR_PORT_CLM_FORCE_ENA for frames already discarded or
CPU-redirected. When forcing a VCAP CLM lookup, the VCAP CLM key is chosen from the configuration
in ANA_CL::CLM_MISC_CTRL.FORCED_KEY_SEL. Only selected keys are available.
3.16.2.2
Frame Pointer and Frame Type Update
After each VCAP CLM lookup, the information in the associated action is used to update frame_ptr and
frame_type. This in turn influences the key type and key field values used for the next VCAP CLM
lookup.
VMDS-10492 VSC7440 Datasheet Revision 4.2
117
Functional Descriptions
The following fields in the VCAP CLM action can be used to move to the next protocol layer:
•
NXT_OFFSET_FROM_TYPE.
Move frame pointer past current protocol layer (Ethernet and/or IP). The actual number of bytes the
frame pointer is moved may vary depending on content of the current protocol layer, such as the
number of VLAN tags or IPv4 options.
NXT_NORM_W16_OFFSET.
Move frame pointer a number of 16 bit words. If both NXT_OFFSET_FROM_TYPE and
NXT_NORM_W16_OFFSET are specified, then frame pointer is first moved based on
NXT_OFFSET_FROM_TYPE and afterwards moved further into the frame based on
NXT_NORM_W16_OFFSET.
NXT_TYPE_AFTER_OFFSET.
Specify protocol layer at new frame pointer position.
•
•
For more information about VCAP CLM action fields, see Table 65, page 92.
Each VCAP CLM lookup can at most move the frame pointer 66 bytes. The following pseudo code shows
the algorithm used to update frame_ptr and frame_type upon each VCPA_CLM lookup.
//
//
//
//
//
//
//
//
======================================================================
ANA_CL: VCAP CLM Frame Pointer and Frame Type Update
Update frame_ptr and frame_type upon VCAP CLM lookup.
Prior to first VCAP CLM lookup frame_ptr is initialized to 0 and
frame_type is set to ETH.
The algorithm is run after each VCAP CLM lookup.
----------------------------------------------------------------------
// Function for updating
//
frame_ptr
//
frame_type
// based on action from VCAP CLM lookup
void UpdateFramePtrAndType(
// VCAP CLM index. 0=First VCAP CLM lookup,
// 5=Last VCAP CLM lookup
clm_idx,
// Action from VCAP CLM lookup
// clm_action.vld is only set if
// VCAP CLM lookup was enabled.
clm_action,
// From ClmKeyFieldsMpls()
clm_key_fields_mpls,
)
{
int frame_ptr_current = frame_ptr;
int frame_type_current = frame_type;
if (!clm_action.vld) return;
if (clm_action.nxt_offset_from_type > 0) {
// Move frame_ptr based on frame type
switch (clm_action.nxt_offset_from_type) {
case SKIP_ETH:
if (frame_type_current == ETH) {
// Move frame_ptr past DMAC, SMAC, 0-3 VLAN tags and EtherType
SkipLinkLayer(&frame_ptr);
}
break;
VMDS-10492 VSC7440 Datasheet Revision 4.2
118
Functional Descriptions
case SKIP_IP_ETH:
switch (frame_type_current) {
case ETH:
// Move frame_ptr past DMAC, SMAC, 0-3 VLAN tags and EtherType
if (EtherType(frame_ptr) == ETYPE_IP4) || // 0x0800
(EtherType(frame_ptr) == ETYPE_IP6) { // 0x86DD
SkipLinkLayer(&frame_ptr);
// Move frame_ptr past IPv4 header (including options) or
// IPv6 header
SkipIPHeader(&frame_ptr);
}
break;
case CW:
switch (IPVersion(frame_ptr)) {
case 4:
case 6:
// Move frame_ptr past IPv4 header (including options) or
// IPv6 header
SkipIPHeader(&frame_ptr);
break;
}
break;
}
}
frame_type = clm_action.nxt_type_after_offset;
} // clm_action.nxt_offset_from_type > 0
if (clm_action.nxt_norm_w16_offset > 0) {
// Move frame_ptr a specific number of bytes
frame_ptr = frame_ptr + 2*clm_action.nxt_norm_w16_offset;
frame_type = clm_action.nxt_type_after_offset;
}
if (frame_type_current == DATA &&
clm_action.nxt_key_type != 0) {
// Allow frame_type change, regardsless of whether frame_ptr
// has been moved
frame_type = clm_action.nxt_type_after_offset;
}
// PW termination of MPLS frame
if (clm_action.fwd_type == TERMINATE_PW) {
if IsOam(frame_ptr, csr) && (clm_key_fields_mpls.rsv_lbl_pos) {
// Reserved label used to identify OAM
// Move frame_ptr if reserved MPLS label was skipped by
// ClmKeyFieldsMpls() in key generation prior to VCAP CLM lookup
frame_ptr += 4;
} elsif (frame_type == CW && !IsOam(frame_ptr, csr)) {
// PW termination of MPLS frame with CW => Skip CW and
// change frame_type
frame_ptr += 4;
frame_type = ETH;
}
}
// OAM LSP
VMDS-10492 VSC7440 Datasheet Revision 4.2
119
Functional Descriptions
if (clm_action.fwd_type == POP_LBL && IsOam(frame_ptr, csr) &&
(clm_key_fields_mpls.rsv_lbl_pos)) {
// Reserved label used to identify OAM
// Move frame_ptr if reserved MPLS label was skipped by
// ClmKeyFieldsMpls() in key generation prior to VCAP CLM lookup
frame_ptr += 4;
}
if (frame_ptr - frame_ptr_current > 66) {
// Cannot skip >66 bytes per VCAP CLM.
// Set sticky bit and don't skip anything
csr.adv_cl_max_w16_offset_fail_sticky = 1;
frame_ptr = frame_ptr_current;
frame_type = frame_type_current;
}
if (frame_ptr > 126 ) {
// Cannot skip >126 bytes total.
// Set sticky bit and discard frame
csr.adv_cl_nxt_offset_too_big_sticky = 1;
frame.abort = true;
}
} // UpdateFramePtrAndType
// ---------------------------------------------------------------------// ANA_CL: VCAP CLM Frame Pointer and Frame Type Update
// ======================================================================
3.16.2.3
Removing Protocol Layers
The analyzer classifier can instruct the rewriter to remove protocol layers from the frame, that is, to
remove a number of bytes from the start of the frame.
This is achieved by setting the NXT_NORMALIZE action field in the VCAP CLM action. When
NXT_NORMALIZE is set in a VCAP CLM action, then the frame pointer for the next VCAP CLM lookup
(if any) is calculated, and the rewriter is then instructed to remove all bytes up to, but not including, the
position pointed to by the frame pointer.
If multiple VCAP CLM actions have the NXT_NORMALIZE bit set, then the last such action controls the
number of bytes removed by the rewriter.
Note that the rewriter can skip a maximum of 42 bytes, starting at the DMAC of the frame. This
corresponds to an Ethernet header with three VLAN tags and an MPLS stack with three LSEs and a
control word (CW).
3.16.2.4
Miscellaneous VCAP CLM Key Configuration
The analyzer classifier can control some specific fields when generating the VCAP CLM keys. The
following table lists the registers that control the parameters.
Table 75 •
Miscellaneous VCAP CLM Key Configuration
Register
Description
ANA_CL:PORT:ADV_CL_CFG Configures L3_DSCP and TCI0 source.
ANA_CL::CLM_MISC_CTRL
Replication
Per port per VCAP
CLM lookup
Configures IGR_PORT_MASK_SEL and IGR_PORT_MASK. None
Each port can control specific fields in the generated keys:
•
Selects source of DSCP in L3_DSCP key field
(ANA_CL:PORT:ADV_CL_CFG.USE_CL_DSCP_ENA). By default, the DSCP value is taken from
VMDS-10492 VSC7440 Datasheet Revision 4.2
120
Functional Descriptions
•
the frame. Another option is to use the current classified DSCP value as input to the key. The current
classified DSCP value is the result from either the previous VCAM_CLM lookup or the basic
classifier if this is the first lookup.
Selects source of VID, PCP, and DEI in the VID0, PCP0, and DEI0 key fields
(ANA_CL:PORT:ADV_CL_CFG.USE_CL_TCI0_ENA). By default, the values are taken from the
outer VLAN tag in the frame (or port’s VLAN if frame is untagged). Another option is to use the
current classified values as input to the key. The current classified values are the result from either
the previous VCAM_CLM lookup or the basic classifier if this is the first lookup.
Note that these configurations are only applicable to keys containing the relevant key fields.
VCAP CLM keys NORMAL, NORMAL_7TUPLE, and NORMAL_5TUPLE_IP4 contain the key fields
IGR_PORT_MASK_SEL and IGR_PORT_MASK. For frames received on a front port,
IGR_PORT_MASK_SEL is set to 0 and the bit corresponding to the frame’s physical ingress port number
is set in IGR_PORT_MASK. The following lists some settings for frames received on other interfaces and
how this can be configured through register CLM_MISC_CTRL:
•
•
•
•
Loopback frames:
By default, IGR_PORT_MASK_SEL=1 and IGR_PORT_MASK has one bit set corresponding to the
physical port which the frame was looped on. Optionally use IGR_PORT_MASK_SEL = 3.
Masqueraded frames:
By default, IGR_PORT_MASK_SEL=0 and IGR_PORT_MASK has one bit set corresponding to the
masquerade port. Optionally, use IGR_PORT_MASK_SEL = 2.
Virtual device frames:
By default, IGR_PORT_MASK_SEL = 0 and IGR_PORT_MASK has one bit set corresponding to
the original physical ingress port. Optionally, use IGR_PORT_MASK_SEL = 3.
CPU injected frames:
By default, IGR_PORT_MASK_SEL=0 and IGR_PORT_MASK has none bits set. Optionally use
IGR_PORT_MASK_SEL=3.
For more information about the contents of IGR_PORT_MASK_SEL and IGR_PORT_MASK, see VCAP
CLM Keys and Actions, page 71.
3.16.2.5
VCAP CLM Range Checkers
The following table lists the registers associated with configuring VCAP CLM range checkers.
Table 76 •
VCAP CLM Range Checker Configuration Registers Overview
Register
Description
Replication
ANA_CL::ADV_RNG_CTRL
Configures range checker types
Per range checker
ANA_CL::ADV_RNG_VALUE_CFG
Configures range start and end points
Per range checker
Eight global VCAP CLM range checkers are supported by the NORMAL, NORMAL_7TUPLE,
NORMAL_5TUPLE_IP4, and PURE_5TUPLE_IP4 keys. All frames using these keys are compared
against the range checkers and a 1-bit range “match/no match” flag is returned for each range checker.
The combined eight match/no match flags are used in the L4_RNG key field. So, it is possible to include
for example ranges of DSCP values and/or ranges of TCP source port numbers in the VCAP rules.
Note: VCAP IS2 also supports range checkers, however, they are independent of the VCAP CLM range
checkers.
The range key is generated for each frame based on extracted frame data and the configuration in
ANA_CL::ADV_RNG_CTRL. Each of the eight range checkers can be configured to one of the following
range types:
•
•
TCP/UDP destination port range
Input to the range is the frame’s TCP/UDP destination port number.
Range is only applicable to TCP/UDP frames.
TCP/UDP source port range
Input to the range is the frame’s TCP/UDP source port number.
Range is only applicable to TCP/UDP frames.
VMDS-10492 VSC7440 Datasheet Revision 4.2
121
Functional Descriptions
•
•
•
•
TCP/UDP source and destination ports range. Range is matched if either source or destination port
is within range.
Input to the range are the frame’s TCP/UDP source and destination port numbers.
Range is only applicable to TCP/UDP frames.
VID range
Input to the range is the classified VID.
Range is applicable to all frames.
DSCP range
Input to the range is the classified DSCP value.
Range is applicable to IPv4 and IPv6 frames.
EtherType range
Input to the range is the frame’s EtherType.
Range is applicable to all frames.
Range start points and range end points are configured in ANA_CL::ADV_RNG_VALUE_CFG with both
the start point and the end point being included in the range. A range matches if the input value to the
range (for instance the frame’s TCP/UDP destination port) is within the range defined by the start point
and the end point.
3.16.2.6
Cascading VCAP CLM Lookups
Each of the six VCAP CLM lookups can be “cascaded” such that a frame only matches a VCAP CLM
entry in lookup n+1 if it also matched a specific entry in VCAP CLM lookup n. In other words, VCAP CLM
entries in different VCAP CLM lookups are bound together.
The following parameters controls cascading of VCAP CLM entries:
•
•
Key field: G_IDX
The generic index, G_IDX, is available in most VCAP CLM key types. The value of this field can be
specified in the action of the preceding VCAP CLM lookup.
Action fields: NXT_IDX_CTRL and NXT_IDX
Control how to calculate G_IDX for next VCAP CLM lookup.
For information about detailed encoding of NXT_IDX_CTRL, see Table 65, page 92.
In addition to cascading VCAP CLM lookups, it is also possible for each VCAP CLM lookup to move to
the next protocol layer of the frame, such that key values for lookup n + 1 are retrieved from a different
offset in the frame than for lookup n.
3.16.3
QoS Mapping Table
The following table lists the registers associated with the QoS mapping table.
Table 77 •
VCAP CLM QoS Mapping Table Registers Overview
Register
Description
Replication
ANA_CL:MAP_TBL:SET_CTRL
Controls which mapping results to use.
256
ANA_CL:MAP_TBL:MAP_ENTRY
Configuration of the QoS mapping values.
2,048
The classifier contains a shared QoS mapping table with 2,048 entries
(ANA_CL:MAP_TBL:MAP_ENTRY) that maps incoming QoS information to classified internal QoS
information. Inputs to a mapping can be either DEI and PCP from VLAN tags, DSCP value, or MPLS TC
bits. Outputs from a mapping are new classified values for COSID, DEI, PCP, DSCP, QoS class, DP
level, and TC bits. The table is looked up twice for each frame with two different keys.
The QoS mapping table is laid out with 256 rows with each eight mapping entries. Each specific QoS
mapping only uses a subset of the 2,048 entries and it therefore allows for many QoS different mappings
at the same time. It can for instance hold 32 unique mappings from DSCP to DEI/PCP or 128 unique
translations of DEI/PCP to DEI/PCP.
The two lookups per frame in the QoS mapping table are defined by the VCAP CLM actions MAP_IDX
and MAP_KEY. One VCAP CLM match can only define one set MAP_IDX and MAP_KEY so two lookups
in the QoS mapping table requires two VCAP CLM matches. Action MAP_IDX defines which one of the
VMDS-10492 VSC7440 Datasheet Revision 4.2
122
Functional Descriptions
256 rows the QoS mapping starts at and the MAP_KEY defines which parameter from the frame to use
as key into the QoS mapping table. The following lists the available keys and how the resulting row and
entry number in the mapping table is derived:
•
•
•
•
PCP. Use PCP from the frame’s outer VLAN tag. If the frame is untagged, the port’s VLAN tag is
used. Row and entry number is derived the following way:
Row = MAP_IDX, Entry = PCP.
Number of entries per mapping: 8 entries.
DEI and PCP. Use DEI and PCP from one of the frame’s VLAN tags. The MAP_KEY can select
between using either outer, middle, or inner tag. If the frame is untagged, the port’s VLAN tag is
used. Row and entry number is derived the following way:
Row = (8x DEI + PCP) DIV 8 + MAP_IDX, Entry = (8x DEI + PCP) MOD 8.
Number of entries per mapping: 16 entries.
DSCP (IP frames only). Use the frame’s DSCP value. For non-IP frames, no mapping is done. Row
and entry number is derived the following way:
Row = DSCP DIV 8 + MAP_IDX, Entry = DSCP MOD 8.
Number of entries per mapping: 64 entries.
DSCP (all frames). Use the frame’s DSCP value. For non-IP VLAN tagged frames, use DEI and
PCP from the frame’s outer VLAN tag. For non-IP untagged frames, use DEI and PCP from port
VLAN. Row and entry number is derived the following way:
IP frames:
Row = DSCP DIV 8 + MAP_IDX, Entry = DSCP MOD 8.
Non-IP frames:
Row = (8x DEI + PCP) DIV 8 + MAP_IDX + 8, Entry = (8x DEI + PCP) MOD 8.
•
Number of entries per mapping: 80 entries.
TC. Use the frame’s classified TC bits from the extracted MPLS label (label selected by VCAP CLM
actions TC_ENA or TC_LABEL). Row and entry number is derived the following way:
Row = MAP_IDX, Entry = TC.
Number of entries per mapping: 8 entries.
QoS mappings can be shared between multiple VCAP CLM entries by defining the same mapping and
using the same entries in the mapping table. It is up to the user of the QoS mapping table to make sure
that entries are allocated so that they do not overlap unintentionally.
Each entry in the QoS mapping table (ANA_CL:MAP_TBL:MAP_ENTRY) contains a full set of new QoS
values (COSID, DEI, PCP, QoS class, DP level, DSCP, TC) to be used as new classified values instead
of the current classified values from basic classification and VCAP CLM. Each of the QoS values is gated
by an enable bit (ANA_CL:MAP_TBL:SET_CTRL) so that a mapping can for example define a complete
new set of QoS values by enabling all values or it can override selected values only. Note that
ANA_CL:MAP_TBL:SET_CTRL must be configured for each used row in the mapping table.
The following illustration shows an example of a frame for which a DSCP and a DEI/PCP mapping are
defined.
VMDS-10492 VSC7440 Datasheet Revision 4.2
123
Functional Descriptions
Figure 27 • Example of QoS Mappings
Frame
DMAC
SMAC
VLAN
tag0
VLAN
tag1
VLAN
tag2
Ty
pe
IPv4 header
Mapping 0:
VCAP CLM action MAP_KEY = 0
VCAP CLM action MAP_IDX = 8
Frame.DEI = 1
Frame.PCP = 3)
FCS
Mapping 1:
VCAP CLM action MAP_KEY = 6
VCAP CLM action MAP_IDX = 128
Frame.DSCP = 26
ANA_CL:MAP_TBL
Entry: 7
Entry: 0
Row: 0
MAP_IDX
9
MAP_IDX
DEI=0
PCP=0
8
DEI=1
PCP=7
DEI=1
PCP=3
QOS_VAL = 3
DP_VAL = 1
PCP_VAL = 5
DEI_VAL = 1
128
DSCP=0
DSCP=26
DSCP_VAL = 45
135
DSCP=63
Row: 255
3.16.4
Analyzer Classifier Diagnostics
The analyzer classifier contains a large set of sticky bits that can inform about the frame processing and
decisions made by ANA_CL. The following categories of sticky bits are available.
•
•
•
•
•
Frame acceptance filtering (ANA_CL::FILTER_STICKY, ANA_CL::VLAN_FILTER_STICKY).
VLAN and QoS classification (ANA_CL::CLASS_STICKY)
CPU forwarding (ANA_CL::CAT_STICKY)
VCAP CLM lookups and actions, QoS mapping tables (ANA_CL::ADV_CL_STICKY)
IP header checks (ANA_CL::IP_HDR_CHK_STICKY)
The sticky bits are common for all ports in the analyzer classifier. All sticky bits, except for VCAP CLM
sticky bits, have four corresponding sticky mask bits (ANA_CL:STICKY_MASK) that allow any sticky bit
to be counted by one of the four per-port analyzer access control counters. For more information, see
Analyzer Statistics, page 198.
3.17
VLAN and MSTP
The VLAN table and the MSTP table are the two main tables that control VLAN and Spanning Tree frame
processing.
VMDS-10492 VSC7440 Datasheet Revision 4.2
124
Functional Descriptions
The following table shows the configuration parameters (located within the ANA_L3 configuration target)
for each entry in the VLAN table.
Table 78 •
VLAN Table (4224 Entries)
Field in ANA_L3:VLAN
Bits
Description
VMID
5
VMID, identifying VLAN’s router leg.
VLAN_MSTP_PTR
7
Pointer to STP instance associated with VLAN.
VLAN_FID
13
FID to use for learning and forwarding.
VLAN_IGR_FILTER_ENA 1
Enable VLAN ingress filtering.
VLAN_SEC_FWD_ENA
1
Enables secure forwarding on a per VLAN basis.
When secure forwarding is enabled, only frames with known SMAC are forwarded.
VLAN_FLOOD_DIS
1
Disables flooding of frames with unknown DMAC on a per VLAN basis.
VLAN_LRN_DIS
1
Disables learning of SMAC of frames received on this VLAN.
VLAN_RLEG_ENA
1
Enables router leg in VLAN.
VLAN_PRIVATE_ENA
1
Enables/disables this VLAN as a Private VLAN (PVLAN).
VLAN_MIRROR_ENA
1
VLAN mirror enable flag. If this field is set, frames classified to this ingress VLAN
are mirrored.
Note that a mirroring probe must also be configured to enable VLAN based
mirroring. see Mirroring, page 206.
VLAN_PORT_MASK
VLAN_PORT_MASK1
11
Specifies mask of ports belonging to VLAN.
TUPE_CTRL
16
Controls value for Table Update Engine (TUPE).
The following table shows the configuration parameters for each entry in the MSTP table.
Table 79 •
MSTP Table (66 Entries)
Field in ANA_L3:MSTP
Bits
Description
MSTP_FWD_MASK
1 per port
Enables/disables forwarding per port
MSTP_LRN_MASK
1 per port
Enables/disables learning per port
The following table lists common parameters that also affect the VLAN and MSTP processing of frames.
Table 80 •
Common VLAN and MSTP Parameters
Register/Field in ANA_L3_COMMON
Bits
Description
VLAN_CTRL.VLAN_ENA
1
Enables/disables VLAN lookup
PORT_FWD_CTRL
1 per port
Configures forwarding state per port
PORT_LRN_CTRL
1 per port
Configures learning state per port
VLAN_FILTER_CTRL
1 per port
Configures VLAN ingress filtering per port
VLAN_ISOLATED_CFG
1 per port
Configures isolated port mask
VLAN_COMMUNITY_CFG
1 per port
Configures community port mask
If VLAN support is enabled (in VLAN_CTRL.VLAN_ENA), the classified VID is used to lookup the VLAN
information in the VLAN table. The VLAN table in turn provides an address (VLAN_MSTP_PTR) into the
MSTP table. Learn, mirror, and forwarding results are calculated by combining information from the
VLAN and MSTP tables.
VMDS-10492 VSC7440 Datasheet Revision 4.2
125
Functional Descriptions
3.17.1
Private VLAN
In a Private VLAN (PVLAN), ports are configured to be one of three different types: Promiscuous,
isolated, or community.
Promiscuous Ports A promiscuous port can communicate with all ports in the PVLAN, including the
isolated and community ports.
Isolated Ports An isolated port has complete Layer 2 separation from the other ports within the same
PVLAN, but not from the promiscuous ports. PVLANs block all traffic to isolated ports except traffic from
promiscuous ports. Traffic from isolated port is forwarded only to promiscuous ports.
Community Ports Community ports communicate among themselves and with the PVLAN’s
promiscuous ports. Community ports cannot communicate with isolated ports.
PVLAN can be enabled per VLAN, and port type can be configured per physical port.
3.17.2
VLAN Pseudo Code
The pseudo code for the ingress VLAN processing is shown below. For routed frames, an egress VLAN
processing also takes place. This is not part of the following pseudo code.
In the pseudo code, “csr.” is used to denote configuration parameters, “req.” is used to denote input from
previous processing steps in the analyzer, as well as information provided for the following steps in the
analyzer.
if (req.cpu_inject != 0) {
// cpu_inject => Bypass!
return;
}
if (csr.vlan_ena) {
// Get VLAN entry based on Classified VID
igr_vlan_entry = csr.vlan_tbl[req.ivid + req.vsi_ena*4096];
} else {
// Default VLAN entry
igr_vlan_entry.vlan_mstp_ptr
= 0;
igr_vlan_entry.vlan_fid
= 0;
igr_vlan_entry.vlan_sec_fwd_ena = 0;
igr_vlan_entry.vlan_flood_dis
= 0;
igr_vlan_entry.vlan_lrn_dis
= 0;
igr_vlan_entry.vlan_rleg_ena
= 0;
igr_vlan_entry.vlan_private_ena = 0;
igr_vlan_entry.vlan_mirror_ena = 0;
igr_vlan_entry.vlan_port_mask
= -1; // All-ones
igr_vlan_entry.vmid
= 0;
}
// Retrieve MSTP state
if (csr.vlan_ena) {
igr_mstp_entry = csr.mstp_tbl[igr_vlan_entry.vlan_mstp_ptr];
} else {
igr_mstp_entry.mstp_fwd_mask = -1; // All-ones
igr_mstp_entry.mstp_lrn_mask = -1; // All-ones
}
if (IsCpuPort(req.port_num) ||
IsVD0(req.port_num) ||
IsVD1(req.port_num)) {
// Received from CPU or VD0/VD1 =>
// * Do not learn
// * Do not perform ingress filtering
VMDS-10492 VSC7440 Datasheet Revision 4.2
126
Functional Descriptions
//
(these ports are not in ingress masks)
req.l2_lrn = 0;
} else {
// ---------------------------------------------// Perform ingress filtering and learning disable
// ---------------------------------------------// Port forwarding state
if (csr.common.port_fwd_ena[req.port_num] == 0) {
// Ingress port not enabled for forwarding
req.l2_fwd = 0;
csr.port_fwd_deny_sticky =1;
}
// Port learning state
if (csr.port_lrn_ena[req.port_num] == 0) {
req.l2_lrn = 0;
csr.port_lrn_deny_sticky = 1;
}
if (csr.vlan_ena) {
// Empty VLAN?
if (igr_vlan_entry.vlan_port_mask == 0) {
csr.vlan_lookup_invld_sticky = 1;
}
// VLAN ingress filtering
if ((csr.vlan_igr_filter_ena[req.port_num] ||
igr_vlan_entry.vlan_igr_filter_ena)
&&
igr_vlan_entry.vlan_port_mask[req.port_num] == 0) {
req.l2_fwd = 0;
req.l2_lrn = 0;
csr.vlan_igr_filter_sticky = 1;
} else {
// MSTP forwarding state
if (igr_mstp_entry.mstp_fwd_mask[req.port_num] == 0) {
req.l2_fwd = 0;
csr.mstp_discard_sticky = 1;
} else {
csr.mstp_fwd_allowed_sticky = 1;
}
// Learning enabled for VLAN?
if (igr_vlan_entry.vlan_lrn_dis) {
req.l2_lrn = 0;
csr.vlan_lrn_deny_sticky = 1;
// MSTP learning state
} else if (igr_mstp_entry.mstp_lrn_mask[req.port_num] == 0) {
req.l2_lrn = 0;
csr.mstp_lrn_deny_sticky = 1;
} else {
csr.mstp_lrn_allowed_sticky = 1;
}
// Private VLAN handling
if (igr_vlan_entry.vlan_private_ena) {
if (req.vs2_avail == 0) {
VMDS-10492 VSC7440 Datasheet Revision 4.2
127
Functional Descriptions
// Not received from stack port, so determine port type and
// update req accordingly.
// 0b00: Promiscuous port
// 0b01: Community port
// 0b10: Isolated port
req.ingr_port_type = 0b00;
if (csr.vlan_community_mask[req.port_num]) {
req.ingr_port_type = 0b01;
}
if (csr.vlan_isolated_mask[req.port_num]) {
req.ingr_port_type = 0b10;
}
}
if (req.ingr_port_type == 0b10) {
// Isolated port
// Only allow communication with promiscuous ports
igr_vlan_entry.vlan_port_mask &=
(~csr.vlan_isolated_mask & ~csr.vlan_community_mask);
} else if (req.ingr_port_type == 0b01) {
// Community port
// Allow communication with promiscuous ports and other community
ports,
// but not with isolated ports
igr_vlan_entry.vlan_port_mask &= ~csr.vlan_isolated_mask;
}
}
} // vlan_igr_filter_ena
} // csr.vlan_ena
}
// Only allow forwarding to enabled ports
igr_vlan_entry.vlan_port_mask &= csr.port_fwd_ena;
// Update req with results
req.vlan_mask = igr_vlan_entry.vlan_port_mask & igr_mstp_entry.mstp_fwd_mask;
req.ifid
req.vlan_mirror
req.vlan_flood_dis
req.vlan_sec_fwd_ena
=
=
=
=
igr_vlan_entry.vlan_fid;
igr_vlan_entry.vlan_mirror_ena;
igr_vlan_entry.vlan_flood_dis;
igr_vlan_entry.vlan_sec_fwd_ena;
// Identical ingress and egress FID/VID.
// May be overruled later by egress VLAN handling.
// Note: ANA_L2 DMAC lookup always use req.efid, even when req.l3_fwd=0.
req.evid = req.ivid;
if (req.dmac[40]) {
// If MC, DA lookup must use EVID
req.efid = req.vsi_ena . req.evid;
} else {
// If UC, DA lookup must use IFID
req.efid = req.ifid;
}
// Store vmid for later use (e.g. in rleg detection)
req.irleg = igr_vlan_entry.vmid;
req.erleg = req.irleg;
VMDS-10492 VSC7440 Datasheet Revision 4.2
128
Functional Descriptions
3.17.2.1
VLAN Table Update Engine
The VLAN Table Update Engine (TUPE) can be used to quickly update a large number of port masks in
the VLAN Table. For example, to support fast fail-over in scenarios with redundant forwarding paths. The
following table lists the TUPE related parameters that are outside the VLAN Table.
Table 81 •
VLAN Table Update Engine (TUPE) Parameters
Register/Field in ANA_L3:TUPE
Bits
Description
TUPE_MISC.TUPE_START
1
Start TUPE.
TUPE_MISC.TUPE_CTRL_VAL_ENA
1
Enable use of TUPE_CTRL_VAL and TUPE_CTRL_VAL_MASK.
TUPE_CTRL_BIT_ENA
1
Enable use of TUPE_CTRL_BIT_MASK.
TUPE_PORT_MASK_A_ENA
1
Enable use of TUPE_PORT_MASK_A.
TUPE_PORT_MASK_B_ENA
1
Enable use of TUPE_PORT_MASK_B
TUPE_COMB_MASK_ENA
1
Enable combined use of TUPE_CTRL_BIT_MASK and
TUPE_PORT_MASK_A.
TUPE_ADDR.TUPE_START_ADDR
13
First address in VLAN table for TUPE to process.
TUPE_ADDR.TUPE_END_ADDR
13
Last address in VLAN table for TUPE to process.
TUPE_CMD_PORT_MASK_CLR
TUPE_CMD_PORT_MASK_CLR1
11
TUPE command: Port mask bits to clear.
TUPE_CMD_PORT_MASK_SET
TUPE_CMD_PORT_MASK_SET1
11
TUPE command: Port mask bits to set.
TUPE_CTRL_VAL
16
TUPE parameter controlling which VLAN table entries to update.
TUPE_CTRL_VAL_MASK
16
TUPE parameter controlling which VLAN table entries to update.
TUPE_CTRL_BIT_MASK
16
TUPE parameter controlling which VLAN table entries to update.
TUPE_PORT_MASK_A
TUPE_PORT_MASK_A1
11
TUPE parameter controlling which VLAN table entries to update.
TUPE_PORT_MASK_B
TUPE_PORT_MASK_B1
11
TUPE parameter controlling which VLAN table entries to update.
The TUPE_CTRL field in the VLAN table can be used to classify VLANs into different groups, and the
VLAN_PORT_MASK for such groups of VLANs are quickly updated using TUPE. Using the parameters
listed, the TUPE_CTRL field in the VLAN table can be processed as a field of individual bits, a field with
one value, or a combination of the two.
For example, if a command for TUPE uses the following, the TUPE_CTRL field is treated as an 8-bit
value field and eight individual bits.
•
•
•
TUPE_CTRL_BIT_ENA = 1
TUPE_CTRL_BIT_MASK = 0x00ff
TUPE_CTRL_VAL_MASK = 0xff00
In order for TUPE to update a VLAN entry’s VLAN_PORT_MASK, the value part of TUPE_CTRL must
match the required value, and one or more bits of the bit part of TUPE_CTRL must be set.
If all bits in TUPE_CTRL are used as a value field, then a total of 216 groups can be created, but each
VLAN can only be member of one such group.
On the other end of the spectrum, if all bits in TUPE_CTRL are treated as individual bits, then only 16
groups can be created, but every VLAN can be member of any number of these groups.
In configurations that have fewer physical ports than the number of bits in the VLAN_PORT_MASK, such
bits can be used as an extension to the bit part of the TUPE_CTRL field.
Apart from the VLAN’s TUPE_CTRL, the value of the VLAN’s VLAN_PORT_MASK is also used to
decide whether to update a given VLAN table entry.
VMDS-10492 VSC7440 Datasheet Revision 4.2
129
Functional Descriptions
The following illustration depicts the TUPE functionality.
Figure 28 • VLAN Table Update Engine (TUPE)
VLAN Table (ANA_L3:VLAN)
TUPE_START_ADDR
TUPE_CTRL
Value part
Bit part
VLAN_PORT_MASK
...
Unused bits
Used bits
(physical ports)
TUPE_END_ADDR
Possibly new value of
VLAN_PORT_MASK
TUPE
Command
Parameters
(ANA_L3:TUPE)
TUPE Algorithm
The following pseudo code shows the full algorithm used by TUPE.
for (addr = csr.tupe_start_addr; addr < csr.tupe_end_addr; addr++) {
vlan_entry = vlan_tbl[addr];
if (
(// If enabled, check matching value
!csr.tupe_ctrl_val_ena
||
((vlan_entry.tupe_ctrl & csr.tupe_ctrl_val_mask) == csr.tupe_ctrl_val))
&&
(// If enabled, check if VLAN's tupe_ctrl has any bits overlapping
// with csr.tupe_CTRL_BIT_MASK
!csr.tupe_ctrl_bit_ena
||
((vlan_entry.tupe_ctrl & csr.tupe_ctrl_bit_mask) != 0))
&&
(// If enabled, check if VLAN's vlan_port_mask has any bits overlapping
// with csr.tupe_PORT_MASK_A
!csr.tupe_port_mask_a_ena
||
((vlan_entry.vlan_port_mask & csr.tupe_port_mask_a) != 0))
&&
(// Combined mode
// If enabled, check if VLAN's tupe_ctrl has any bits overlapping
// with TUPE_CTRL_BIT_MASK or VLAN's vlan_port_mask has any bits
// overlapping with TUPE_PORT_MASK_A
// I.e. the bit mask part of TUPE_CTRL is extended with bits from
// vlan_port_maks.
!csr.tupe_comb_mask_ena
||
((vlan_entry.tupe_ctrl & csr.tupe_ctrl_bit_mask) != 0)
||
((vlan_entry.vlan_port_mask & csr.tupe_port_mask_a) != 0))
&&
(// If enabled, check if VLAN's vlan_port_mask has any bits overlapping
// with csr.tupe_PORT_MASK_B
VMDS-10492 VSC7440 Datasheet Revision 4.2
130
Functional Descriptions
!csr.tupe_port_mask_b_ena
||
((vlan_entry.vlan_port_mask & csr.tupe_port_mask_b) != 0))
) {
// vlan_port_mask must be updated for this addr
for (p = 0; p < port_count; p++) {
if (csr.tupe_cmd_port_mask_clr[p] == 1 &&
csr.tupe_cmd_port_mask_set[p] == 1) {
// clr+set => toggle
vlan_entry.vlan_port_mask[p] = !vlan_entry.vlan_port_mask[p];
} else if (csr.tupe_cmd_port_mask_clr[p] == 1) {
vlan_entry.vlan_port_mask[p] = 0;
} else if (csr.tupe_cmd_port_mask_set[p] == 1) {
vlan_entry.vlan_port_mask[p] = 1;
}
}
// Write back to VLAN table
vlan_tbl[addr] = vlan_entry;
}
}
3.18
VCAP LPM: Keys and Action
The IP addresses used for IP source/destination guard and for IP routing are stored in a VCAP in the
VCAP_SUPER block. The part of the VCAP_SUPER block allocated for this purpose is VCAP LPM
(Longest Path Match).
VCAP LPM encodes both the IP addresses (VCAP keys) and the action information associated with each
VCAP key.
The following table shows the different key types supported by the VCAP LPM.
Table 82 •
VCAP LPM Key and Sizes
Key Name
Key Size
Number of VCAP Words
SGL_IP4
33
1
DBL_IP4
64
2
SGL_IP6
129
4
DBL_IP6
256
8
The following table provides an overview of the VCAP LPM key. When programming an entry in VCAP
LPM, the associated key fields listed must be programmed in the listed order with the first field in the
table starting at bit 0 of the entry. For more information, see, Versatile Content-Aware Processor (VCAP),
page 55.
Table 83 •
VCAP LPM Key Overview
Field Name
Short Description
Size
SGL_IP4
DST_FLAG
IP4_XIP
DBL_IP4
SGL_IP6
DBL_IP6
0=SIP, 1=DIP
1
x
IPv4 SIP/DIP
32
x
IP4_SIP
IPv4 SIP
32
x
IP4_DIP
IPv4 DIP
32
x
IP6_XIP
IPv6 SIP/DIP
128
IP6_SIP
IPv6 SIP
128
x
IP6_DIP
IPv6 DIP
128
x
x
VMDS-10492 VSC7440 Datasheet Revision 4.2
x
131
Functional Descriptions
3.18.1
VCAP LPM SGL_IP4 Key Details
The SGL_IP4 key is to be used for IPv4 UC routing as well as IPv4 Source/Destination Guard.
VCAP LPM SGL_IP4 Key Details
Table 84 •
3.18.2
Field Name
Description
Size
DST_FLAG
0: IP4_XIP is only to be used for SIP matching.
1: IP4_XIP is only to be used for DIP matching.
1
IP4_XIP
IPv4 address
32
VCAP LPM DBL_IP4 Key Details
The DBL_IP4 key is to be used for IPv4 MC routing.
Table 85 •
3.18.3
VCAP LPM DBL_IP4 Key Details
Field Name
Description
Size
IP4_SIP
IPv4 source address
32
IP4_DIP
IPv4 destination address
32
VCAP LPM SGL_IP6 Key Details
The SGL_IP6 key is to be used for IPv6 UC routing as well as IPv6 Source/Destination Guard.
Table 86 •
3.18.4
VCAP LPM SGL_IP6 Key Details
Field Name
Description
Size
DST_FLAG
0: IP6_XIP is only to be used for SIP matching
1: IP6_XIP is only to be used for DIP matching
1
IP6_XIP
IPv6 address
128
VCAP LPM DBL_IP6 Key Details
The DBL_IP6 key is to be used for IPv6 MC routing.
Table 87 •
3.18.5
VCAP LPM DBL_IP6 Key Details
Field Name
Description
Size
IP6_SIP
IPv6 source address
128
IP6_DIP
IPv6 destination address
128
VCAP LPM Actions
VCAP LPM supports three different actions:
•
•
•
ARP_PTR
L3MC_PTR
ARP_ENTRY
VMDS-10492 VSC7440 Datasheet Revision 4.2
132
Functional Descriptions
The following table lists the actions and the key types for which they are intended to be used.
VCAP LPM Action Selection
Table 88 •
Action Name
Size
Description and Appropriate VCAP LPM Key Types
ARP_PTR
18
Provides pointer to ARP entry in ARP Table (ANA_L3:ARP).
LPM key types: SGL_IP4, SGL_IP6.
L3MC_PTR
10
Provides pointer to L3MC Table (ANA_L3:L3MC).
LPM key types: DBL_IP4, DBL_IP6.
ARP_ENTRY
62
ARP entry.
LPM key types: SGL_IP4, SGL_IP6.
The following table provides information about the VCAP LPM actions. When programming an action in
VCAP LPM, the associated action fields listed must be programmed in the listed order, with the first field
in the table starting at bit 0 of the action.
Table 89 •
VCAP LPM Actions
Field Name
Description and Encoding
Size
ARP_PTR L3MC_PTR
ARP_ENTRY
Action Type
0: ARP_PTR
1: L3MC_PTR
2: ARP_ENTRY
3: Reserved
2
x
x
ARP_PTR
Pointer to entry in ARP Table (ANA_L3:ARP)
8
x
ARP_PTR_REMA
P_ENA
If set, ARP_PTR is used to point to an entry in 1
the ARP Pointer Remap Table
(ANA_L3:ARP_PTR_REMAP).
x
ECMP_CNT
Number of equal cost, multiple paths routes to 4
DIP. See Unicast Routing, page 141.
x
RGID
Route Group ID. Used for SIP RPF check. See 3
SIP RPF Check, page 147.
x
L3MC_PTR
Pointer to entry in L3MC Table
(ANA_L3:L3MC)
8
MAC_MSB
See ANA_L3:ARP:ARP_CFG_0.MAC_MSB.
16
x
MAC_LSB
See ANA_L3:ARP:ARP_CFG_1.MAC_LSB.
32
x
ARP_VMID
See ANA_L3:ARP:ARP_CFG_0.ARP_VMID.
5
x
x
x
ZERO_DMAC_CP See
3
U_QU
ANA_L3:ARP:ARP_CFG_0.ZERO_DMAC_CP
U_QU.
SIP_RPF_ENA
See
ANA_L3:ARP:ARP_CFG_0.SIP_RPF_ENA.
1
SECUR_MATCH_
VMID_ENA
See
1
ANA_L3:ARP:ARP_CFG_0.SECUR_MATCH_
VMID_ENA.
SECUR_MATCH_
MAC_ENA
See
1
ANA_L3:ARP:ARP_CFG_0.SECUR_MATCH_
MAC_ENA.
ARP_ENA
See ANA_L3:ARP:ARP_CFG_0.ARP_ENA.
1
VMDS-10492 VSC7440 Datasheet Revision 4.2
133
Functional Descriptions
3.19
IP Processing
This section provides information about IP routing and IP security checks. The configuration parameters
for IP routing are located within the ANA_L3 configuration target.
Each frame is subject to two lookups in VCAP LPM. One lookup is used for looking up SIP, and the other
lookup is used for looking up DIP or DIP+SIP (for IP multicast frames).
3.19.1
IP Source/Destination Guard
For security purposes, the device can be configured to identify specific combinations of the following
information and apply security rules based on that information.
•
•
(SMAC, SIP) or (VMID, SIP)
(DMAC, DIP) or (VMID, DIP)
The VCAP LPM and ARP table in ANA_L3 are used to perform matching. The result of the matching is
available for security rules in ANA_ACL through the following VCAP fields:
•
•
L3_SMAC_SIP_MATCH. Set to 1 if (VMID, SIP) and/or (SMAC, SIP) match was found.
L3_DMAC_DIP_MATCH. Set to 1 if (VMID, DIP) and/or (DMAC, DIP) match was found.
IP source/destination guard check can be enabled per port using COMMON:SIP_SECURE_ENA and
COMMON:DIP_SECURE_ENA.
When enabled, the frame’s DIP and the frame’s SIP are each looked up in VCAP LPM. The associated
VCAP action provides an index to an ARP Table entry in which the required SMAC/DMAC and/or VMID
is configured.
The following pseudo code specifies the behavior of the IP Source Guard checks.
// Determine value of req.l3_sip_match (available in ANA_ACL as
L3_SMAC_SIP_MATCH)
if (!req.ip4_avail && !req.ip6_avail) {
req.l3_sip_match = 1;
return;
}
if (csr.sip_cmp_ena(req.port_num)) {
req.l3_sip_match = 0;
} else {
req.l3_sip_match = 1;
}
if (!LpmHit()) {
return;
}
if (req.ip4_avail) {
csr.secur_ip4_lpm_found_sticky = 1;
}
if (req.ip6_avail) {
csr.secur_ip6_lpm_found_sticky = 1;
}
sip_arp_entry = csr.arp_tbl[sip_lpm_entry.arp_ptr];
if ((sip_arp_entry.secur_match_vmid_ena == 0 ||
igr_vlan_entry.vmid == sip_arp_entry.arp_vmid)
&&
(sip_arp_entry.secur_match_mac_ena == 0 ||
req.smac == sip_arp_entry.mac)) {
VMDS-10492 VSC7440 Datasheet Revision 4.2
134
Functional Descriptions
req.l3_sip_match = 1;
if (req.ip4_avail) {
csr.secur_ip4_sip_match_sticky = 1;
} else {
csr.secur_ip6_sip_match_sticky = 1;
}
}
if (req.l3_sip_match == 0) {
csr.secur_sip_fail_sticky = 1;
}
The IP Destination Guard check works in the same way as the SIP check, except for the following:
•
•
DIP check is not performed if frame has a multicast DMAC.
DIP check is not performed if router leg has been matched.
The following pseudo code specifies the behavior of the IP Destination Guard checks.
// Determine value of req.l3_sip_match (available in ANA_ACL as
L3_SMAC_SIP_MATCH)
if (!req.ip4_avail && !req.ip6_avail) {
req.l3_sip_match = 1;
return;
}
if (csr.sip_cmp_ena(req.port_num)) {
req.l3_sip_match = 0;
} else {
req.l3_sip_match = 1;
}
if (!LpmHit()) {
return;
}
if (req.ip4_avail) {
csr.secur_ip4_lpm_found_sticky = 1;
}
if (req.ip6_avail) {
csr.secur_ip6_lpm_found_sticky = 1;
}
sip_arp_entry = csr.arp_tbl[sip_lpm_entry.arp_ptr];
if ((sip_arp_entry.secur_match_vmid_ena == 0 ||
igr_vlan_entry.vmid == sip_arp_entry.arp_vmid)
&&
(sip_arp_entry.secur_match_mac_ena == 0 ||
req.smac == sip_arp_entry.mac)) {
req.l3_sip_match = 1;
if (req.ip4_avail) {
csr.secur_ip4_sip_match_sticky = 1;
} else {
csr.secur_ip6_sip_match_sticky = 1;
}
}
VMDS-10492 VSC7440 Datasheet Revision 4.2
135
Functional Descriptions
if (req.l3_sip_match == 0) {
csr.secur_sip_fail_sticky = 1;
}
3.19.2
IP Routing
The device supports routing of IPv4 and IPv6 unicast and multicast packets through the 32 router
interfaces, also known as “router legs”. Each router leg is attached to a VLAN.
The following illustration shows a configuration with three VLANs, each with an attached router leg for
routing IP packets between the VLANs. Port 11 is member of both VLAN 1 and VLAN 2.
When a packet is being routed from one VLAN (the ingress VLAN) to another VLAN (the egress VLAN),
the VID of the ingress VLAN is termed IVID, and the VID of the egress VLAN is termed the EVID.
Figure 29 • Router Model
Router
8
Router Leg
Router Leg
Router Leg
VLAN 1
VLAN 2
VLAN 3
9
10 11
12 13
14 15 16 17 18 19
Within the device, a router leg is identified by a 5-bit VMID value. When a packet is being routed, it is
then received by the router entity using a router leg identified by an ingress VMID (or IVMID) and
transmitted on an egress router leg identified by an egress VMID (or EVMID).
IP routing, also known as L3 forwarding, is only supported in VLAN-aware mode.
3.19.2.1
Frame Types for IP Routing
In order for IP packets to be routed by the device, the following conditions must be met.
•
•
•
•
3.19.2.2
IPv4 packets must not contain options.
IPv6 packets must not contain hop-by-hop options.
Optionally packets with some illegal SIP and DIP addresses can be filtered. For more information,
see Illegal IPv4 Addresses, page 140 and Illegal IPv6 Addresses, page 140.
IPv4 header checksum must be correct.
Routing Table Overview
The following illustration provides an overview of the table lookups involved in IP unicast routing within
the L3 part of the analyzer.
The VCAP and ARP table lookups are performed in parallel with the VLAN/MSTP/VMID table lookups. If
the frame does not match a router leg, the result of VCAP and ARP table lookups are not used for
routing.
VMDS-10492 VSC7440 Datasheet Revision 4.2
136
Functional Descriptions
Figure 30 • Unicast Routing Table Overview
(DIP)
Classified VID
VCAP
VLAN
Table
VCAP action type == arp_ptr
arp_ptr_remap_ena == 1
VLAN_MSTP_PTR
ARP_PTR_REMAP
Table
VCAP action type == arp_ptr
arp_ptr_remap_ena == 0
MSTP
Table
VMID
VMID
Table
Ingress VLAN /
ingress router leg
VCAP action type ==
arp_entry
ARP
Table
L2 Forwarding Decision
for Ingress VLAN
IP Unicast Routing Decision
ARP_VMID
VMID
Table
RLEG_EVID
VLAN
Table
Egress router leg /
egress VLAN
MSTP_PTR
MSTP
Table
L2 Forwarding Decision
for Egress VLAN
The following illustration provides an overview of the table lookups involved in IP multicast routing within
the L3 part of the analyzer.
The VCAP and L3MC table lookups are performed in parallel with the VLAN/MSTP/VMID table lookups.
If the frame does not match a router leg, the result of VCAP and L3MC table lookups are not used for
routing.
VMDS-10492 VSC7440 Datasheet Revision 4.2
137
Functional Descriptions
Figure 31 • Multicast Routing Table Overview
Classified VID
First pass: (DIP,SIP)
VCAP
First pass:
L3MC-PTR
L3MC
Table
Second pass:
L3MC_PTR
from first pass
VLAN
Table
VLAN_MSTP_PTR
MSTP
Table
VMID
VMID
Table
Ingress VLAN/
Ingress router leg
L2 Forwarding Decision
for Ingress VLAN
IP Multicast Routing Decision
Egress VMID
VMID
Table
RLEG_EVID
VLAN
Table
Egress router leg/
egress VLAN
MSTP_PTR
MSTP
Table
L2 Forwarding Decision
for Egress VLAN
3.19.2.3
Ingress Router Leg Lookup
The VID used to determine the ingress router leg is the classified VID. The classified VID can be
deducted based on a variety of parameters, such as VLAN tag or ingress port. For more information, see
VLAN Classification, page 110.
A total of 32 router legs are supported. Each router leg can be used for both IPv4 and IPv6 unicast and
multicast routing. A maximum of one router leg per VLAN is supported.
When processing incoming frames, the classified VID is used to index the VLAN table. The RLEG_ENA
parameter determines if the VLAN is enabled for routing of packets, and if so, the VMID is used to index
the VMID table. The flow is depicted in the following illustration.
VMDS-10492 VSC7440 Datasheet Revision 4.2
138
Functional Descriptions
Figure 32 • Ingress Router Leg Lookup Flow
VMID Table
(Router leg
configuration)
VLAN Table
Classified
VID
VMID
VLAN_RLEG_ENA
RLEG_IP4_UC_ENA
RLEG_IP4_MC_ENA
RLEG_IP4_ICMP_REDIR_ENA
RLEG_IP4_VRID_ENA
RLEG_IP6_UC_ENA
RLEG_IP6_MC_ENA
RLEG_IP6_ICMP_REDIR_ENA
RLEG_IP6_VRID_ENA
RLEG_EVID(11:0)
RLEG_IP4_VRID0(7:0)
RLEG_IP6_VRID1(7:0)
RLEG_IP4_MC_TTL(7:0)
RLEG_IP6_MC_TTL(7:0)
3.19.2.3.1 Unicast Router Leg Detection
On L2, up to three different MAC addresses are used to identify the router leg:
•
•
The normal router leg MAC address. This MAC address consists of a base address that is
configured using COMMON:RLEG_CFG_0.RLEG_MAC_LSB and
COMMON:RLEG_CFG_0.RLEG_MAC_MSB.
To have different MAC addresses for each router leg, the three least significant bytes of the base
MAC address can optionally be incremented by the Classified VID or the VMID. This is configured
using COMMON:RLEG_CFG_1.RLEG_MAC_TYPE_SEL.
VRRP MAC address for IPv4. This MAC address consists of a base address that is configured using
COMMON:VRRP_IP4_CFG_0.VRRP_IP4_BASE_MAC_MID and
COMMON:VRRP_IP4_CFG_0.VRRP_IP4_BASE_MAC_HIGH.
For each router leg, the least signficant byte is configured per router leg using
VMID:VRRP_CFG.RLEG_IP4_VRID. Up to two VRID values are supported per router leg.
•
Use of VRRP for IPv4 is enabled using VMID:RLEG_CTRL.RLEG_IP4_VRID_ENA.
VRRP MAC address for IPv6. This is configured in the same manner as VRRP MAC address for
IPv4.
The matching of router leg MAC address for unicast packets is shown in the following illustration.
Figure 33 • Ingress Router Leg MAC Address Matching for Unicast Packets
From VMID Table:
Frame is IPv4/6
RLEG_IP4/6_UC_ENA
AND
RLEG_IP4/6_VRID_ENA
RLEG_IP4/6_VRID
Normal base MAC address
COMMON:RLEG_CFG_1.RLEG_MAC_MSB
COMMON:RLEG_CFG_0.RLEG_MAC_LSB
24
IVMID
Classified VID
0
RLEG selector
COMMON:RLEG_CFG_1.RLEG_MAC_TYPE_SEL
(47:0)
24
+
Frame’s DMAC matches
Router’s MAC address
=?
(7:0)
(47:8)
8
48
=?
AND
=?
OR
AND
Router leg MAC
address match
Frame’s DMAC
matches VRRP MAC
address
Frame.DMAC
VRRP Base MAC address
COMMON:VRRP_IP4/6_CFG_0.VRRP_IP4/6_BASE_MAC_HIGH
COMMON:VRRP_IP4/6_CFG_1.VRRP_IP4/6_BASE_MAC_MID
VMDS-10492 VSC7440 Datasheet Revision 4.2
139
Functional Descriptions
The packet is a candidate for unicast routing if a frame’s DMAC matches one of the router leg MAC
addresses. Packets sent to the router itself will also match the router leg MAC address, but these will be
caught through entries in the ARP table.
Despite matching a router leg MAC address, routing is not performed for any of the following reasons. If
any of following criteria are met, the frame may be redirected to the CPU, depending on configuration
parameters.
•
•
•
•
•
It is not an IP packet (for example, an ARP reply).
There are IP header errors.
DIP or SIP address is illegal (optional).
Packet contains IPv4 options/IPv6 hop-by-hop options.
IPv4 TTL or IPv6 HL is less than two.
3.19.2.3.2 Multicast Router Leg Detection
For each router leg, IP multicast routing can be enabled using VMID:RLEG_CTRL.RLEG_IP4_MC_ENA
and VMID:RLEG_CTRL.RLEG_IP6_MC_ENA.
In addition to having multicast routing enabled for the router leg configured for the VLAN, the frame’s
DMAC must be within a specific range in order for the packet to be candidate for IPv4/6 routing.
•
•
IPv4 DMAC range: 01-00-5E-00-00-00 to 01-00-5E-7F-FF-FF
IPv6 DMAC range: 33-33-00-00-00-00 to 33-33-FF-7F-FF-FF
Despite having a DMAC address within the required range, routing is not performed for any of the
following reasons:
•
•
•
•
There are IP header errors.
DIP or SIP address is illegal (optional).
Packet contains IPv4 options/IPv6 hop-by-hop options
IPv4 TTL or IPv6 HL is less than two.
If any of above criteria are met, then the frame may be redirected to CPU, depending on configuration
parameters.
The frame is still L2 forwarded if no router leg match is found.
3.19.2.3.3 Illegal IPv4 Addresses
Use the ROUTING_CFG.IP4_SIP_ADDR_VIOLATION_REDIR_ENA parameters to configure each of
the following SIP address ranges to be considered illegal.
•
•
•
0.0.0.0 to 0.255.255.255 (IP network zero)
127.0.0.0 to 127.255.255.255 (IP loopback network)
224.0.0.0 to 255.255.255.255 (IP multicast/experimental/broadcast)
Frames with an illegal SIP can be redirected to the CPU using
CPU_RLEG_IP_HDR_FAIL_REDIR_ENA.
Use the ROUTING_CFG.IP4_DIP_ADDR_VIOLATION_REDIR_ENA parameters to configure each of
the following DIP address ranges to be considered illegal.
•
•
•
0.0.0.0 to 0.255.255.255 (IP network zero)
127.0.0.0 to 127.255.255.255 (IP loopback network)
240.0.0.0 to 255.255.255.254 (IP experimental)
Frames with an illegal DIP can be redirected to the CPU using
CPU_RLEG_IP_HDR_FAIL_REDIR_ENA.
3.19.2.3.4 Illegal IPv6 Addresses
Use the ROUTING_CFG.IP6_SIP_ADDR_VIOLATION_REDIR_ENA parameters to configure each of
the following SIP address ranges to be considered illegal.
•
•
•
::/128 (unspecified address)
::1/128 (loopback address)
ff00::/8 (IPv6 multicast addresses)
VMDS-10492 VSC7440 Datasheet Revision 4.2
140
Functional Descriptions
Frames with an illegal SIP can be redirected to the CPU using
CPU_RLEG_IP_HDR_FAIL_REDIR_ENA.
Use the ROUTING_CFG.IP6_DIP_ADDR_VIOLATION_REDIR_ENA parameters to configure each of
the following DIP address ranges to be considered illegal.
•
•
::/128 (unspecified address)
::1/128 (loopback address)
Frames with an illegal DIP can be redirected to the CPU using
CPU_RLEG_IP_HDR_FAIL_REDIR_ENA.
3.19.2.4
Unicast Routing
The IPv4/IPv6 unicast forwarding table in the Analyzer is configured with known routes. There are
typically two types of routes: Local IP and Remote IP.
•
•
Local IP networks directly accessible through the router. These entries return the DMAC address of
the destination host and correspond to an ARP lookup.
Remote IP networks accessible through a router. These entries return the DMAC address of the
next-hop router.
If frames are deemed suitable for IP unicast routing, a DIP lookup is performed in the Longest Prefix
Match (LPM) table. The lookup is a Classless Inter-Domain Routing (CIDR) lookup. That is, all network
sizes are supported.
For IP addresses in local IP networks without corresponding MAC addresses, LPM entry with a
corresponding ARP entry with a zero MAC address should be configured. This results in redirecting the
matching frames to the CPU and thus allows the CPU to exchange ARP/NDP messages with the stations
on the local IP networks to request their MAC address and afterwards use this information to update the
ARP table.
Packets with IVMID = EVMID (packets that are to be routed back to the router leg on which they were
received) can optionally be redirected to the CPU such that the CPU can generate an ICMP Redirect
message. This is configurable using VMID:RLEG_CTRL.RLEG_IP4_ICMP_REDIR_ENA and
VMID:RLEG_CTRL.RLEG_IP6_ICMP_REDIR_ENA.
If such packets are not redirected to the CPU, they are routed.
IVMID and EVMID are configured using VLAN:VMID_CFG.VMID and ARP:ARP_CFG_0.ARP_VMID.
The following illustration shows an IPv4 unicast routing example. IPv6 unicast routing works identically to
IPv4 unicast routing, with the exception that each of the IPv6 addresses occupies four times as much
space in VCAP LPM.
VMDS-10492 VSC7440 Datasheet Revision 4.2
141
Functional Descriptions
Figure 34 • IP Unicast Routing Example
Router leg 1 (VMID=1)
MAC: 0x001122330001
IPv4: 1.1.1.0
o
n
Router leg 2 (VMID=2)
MAC: 0x001122330002
IPv4: 2.2.2.0
Router
m
a
b
c
VLAN2
IPv4 network: 2.2.2.0/24
VLAN1
IPv4 network 1.1.1.0/24
Host A1
IPv4: 1.1.1.1
MAC: 0x000001010101
Router A3
IPv4: 1.1.1.3
MAC: 0x000001010103
Default Router
IPv4 network
*.*.*.*/0
IPv4 network
5.5.0.0/12
IPv4 network 3.3.0.0/16
IPv4 network 4.4.0.0/16
LPM VCAP
VCAP Actions
VCAP Entries
Index
Up to
4,096 IPv4 entries / 1,024 IPv6 entries
Search Direction
ARP Table
Valid
DIP
Prefix
Length
ECMP
ARP IDX
CPU
0
x
x
x
x
x
...
Router B2
IPv4: 2.2.2.2
MAC: 0x000002020202
DMAC
EVMID
x
x
...
m+7
1
1.1.1.0
32
0
m+7
1
000000000000
X
m+6
1
1.1.1.1
32
0
m+6
0
000001010101
1
m+5
1
1.1.1.2
32
0
m+5
0
000001010102
1
m+4
1
1.1.1.3
32
0
m+4
0
000001010103
1
m+3
1
2.2.2.0
32
0
m+3
1
000000000000
2
m+2
1
2.2.2.1
32
0
m+2
0
000002020201
2
m+1
1
2.2.2.2
32
0
m+1
0
000002020202
2
m
1
2.2.2.3
32
0
m
0
000002020203
2
...
...
n+5
1
1.1.1.0
24
0
n+5
1
000000000000
x
n+4
1
2.2.2.0
24
0
n+5
0
000001010103
1
n+3
1
3.3.0.0
16
0
n+4
0
000001010103
1
n+2
1
4.4.0.0
16
0
0
0
000002020202
2
n+1
1
5.5.0.0
12
1
n+2
x
x
x
n
0
x
x
x
x
x
x
x
0
1
0.0.0.0
0
0
0
0
000002020202
2
...
...
Known
local
hosts
256 entries
Host A2
IPv4: 1.1.1.2
MAC: 0x000001010102
Host B3
IPv4: 2.2.2.3
MAC: 0x000002020203
Host B1
IPv4: 2.2.2.1
MAC: 0x000002020201
Known
Network
Equal
Cost
Network
Default gateway
Ports o, n, and m are connected to Router A3, Host A1, and Host A2. These stations are included in an
IP subnet associated with VLAN 1 and connected to the router by router leg 1. Router leg 1’s MAC
address is shown.
Ports a, b, and c are connected to Router B2, Host B1, and Host B3. These stations are included in an IP
subnet associated with VLAN 2 and connected to the router by router leg 2.
The router leg MAC addresses in the example offsets the base MAC address by the respective router
leg’s VMID.
Traffic destined within a subnet is L2-forwarded. For example, traffic from Host A1 to Host A2 is L2
forwarded.
VMDS-10492 VSC7440 Datasheet Revision 4.2
142
Functional Descriptions
Traffic destined outside a subnet is sent to the router using the router leg’s MAC address. The router
performs the routing decision as follows:
1.
2.
3.
4.
Known local host. If the destination IP address is known to be a local host (with the full IP address
installed in the VCAP LPM table), the router takes the local host DMAC address and egress router
leg VMID (EVMID) from the ARP table entry pointed to by the ARP_IDX of the VCAP Action. For
example, if traffic sent from Host A1 to B1 is routed using LPM entry m+2 (2.2.2.1/32) and ARP entry
m + 2, the local host’s DMAC address is found to be 0x000002020201 and egress router leg to be
RLEG2 (that is, VMID = 2).
Known longest prefix. If the full destination IP address is not known, the router finds the longest
matching IP prefix and uses it to determine the next hop DMAC address and egress router leg. For
example, traffic sent from host A1 to host 4.4.4.2 is routed using LPM entry n + 2 (the 4.4.0.0 subnet
is reached through Router B2) and using ARP entry 0, the next hop’s DMAC address is found to be
0x000002020202 and egress router leg to be RLEG2 (for example, VMID = 2).
Known equal cost multiple paths (ECMP). If the full destination IP address is not known by the
router and the longest matching IP prefix is an equal cost path, the next hop DMAC address and
egress router leg is derived from one of up to 16 ARP entries. For example, traffic sent from host A1
to host 5.5.5.13 is routed using VCAP LPM entry n + 1. The corresponding VCAP action has
ECMP = 1, so the ARP table entry is chosen to be either n + 2 or n + 3, based on a pseudo random
number. If entry n + 2 is chosen, the next hop’s DMAC address is found to be 0x000001010103
(Router A3) and egress router leg to be RLEG1. If entry n + 3 is chosen, the next hop’s DMAC
address is found to be 0x000002020202 (Router B2) and egress router leg to be RLEG2.
Default gateway. In order to forward packets destined to unknown subnets to a default router, a
default rule can be configured for the VCAP LPM. This is illustrated in the IP Unicast Routing
example as a “0.0.0.0” rule. For example, traffic sent from host A1 to host 8.9.4.2 is routed using
LPM entry 0 (the default router is reached through Router B2) and ARP entry 0, the next hop’s
DMAC address is found to be 0x000002020202 and egress Router Leg to be RLEG2.
When routing packets, the router replaces the frame’s DMAC with the ARP table’s DMAC and replaces
the SMAC with MAC address associated with the egress router leg. The classified VID is replaced by the
egress VID (VMID:RLEG_CTRL.RLEG_EVID). The TTL/HL is decremented by 1. Note that the VMID
tables (ANA_L3:VMID and REW:VMID) and the router leg MAC address must be configured consistently
in the analyzer Layer 3 and rewriter.
If host A2 wants to send traffic to a host in subnet 3.3.0.0/16, the host issues an ARP request and gets a
response to send traffic to router A3. Host A2 can choose to ignore this request, in which case, the router
routes to router A3 in the same VLAN.
Local networks 1.1.1.0/24 and 2.2.2.0/24 are also configured. Hosts and routers located in these
networks can be directly L2 accessed. This includes IP addresses 1.1.1.0 and 2.2.2.0, which are the IP
addresses of the router in the respective subnets to be used for IP management traffic, for example.
3.19.2.4.1 Encoding ARP Entry in VCAP Action
Instead of using an entry in the ARP table, the ARP information can alternatively be written into the
VCAP action of the LPM entry so as to not be limited by the size of the ARP table.
ARP entries written into a VCAP actions have the following limitations compared to ARP entries in the
ARP table.
•
•
•
ECMP cannot be supported. If there are multiple paths to a given subnet, then ARP table entries
must be used.
RGID cannot be configured. If RGIDs of SIP RPF are used, then ARP table entries must be used for
such routes.
Alternative Next Hop Configuration cannot be supported. If Alternative Next Hop Configuration is
required, then ARP table entries must be used.
3.19.2.4.2 ARP Pointer Remap
An ARP Pointer Remap table is available to support fast fail-over when the next hop changes for a large
group of LPM VCAP entries.
By setting ARP_PTR_REMAP_ENA=1 in LPM VCAP action, the ARP_PTR in the VCAP action is used
to address an entry in the ARP_PTR_REMAP table and through this, new ARP_PTR and ECMP_CNT
VMDS-10492 VSC7440 Datasheet Revision 4.2
143
Functional Descriptions
values are looked up and used for lookup in the ARP table. Thus instead of updating ARP_PTR and
ECMP_CNT for many LPM VCAP entries, only the corresponding entry in ARP_PTR_REMAP needs to
be updated.
The following illustration depicts both the case where ARP Pointer remapping is not used as well as the
case where it is used, that is ARP_PTR_REMAP_ENA = 1.
Figure 35 • ARP Pointer Remapping
ARP_PTR_REMAP Table not used
ANA_L3:ARP
LPM VCAP Action
(action type: ARP_PTR)
ARP_PTR
ANA_L3:ARP_PTR_REMAP
ARP_PTR_REMAP_ENA=0
ECMP_CNT
ARP_PTR
ECMP_CNT
RGID
ARP_PTR remapped through
ARP_PTR_REMAP Table
ANA_L3:ARP
LPM VCAP Action
(action type: ARP_PTR)
ANA_L3:ARP_PTR_REMAP
ARP_PTR
ARP_PTR_REMAP_ENA=1
ECMP_CNT
RGID
3.19.2.5
ARP_PTR
ECMP_CNT
IP Multicast Routing
The multicast system is split into two stages, stage 1 and stage 2.
In stage 1, the frame is received on a front port and the IP multicast system in ANA_L3 is activated. This
stage is used to ensure L2 forwarding to all relevant ports in the ingress VLAN as well as ingress
mirroring. If the frame needs to be L3 forwarded to other VLANs, an internal port module called virtual
device 0 (VD0) also receives an L2 copy, together with information about the number of VLANs that
receive a routed copy of the frame.
VMDS-10492 VSC7440 Datasheet Revision 4.2
144
Functional Descriptions
In stage 2, the analyzer processes each frame copy from VD0, and L3 forwards each frame copy to its
egress VLAN.
In stage 1, ANA_L3 uses the VCAP LPM to determine the forwarding of the frame. Typically, two types of
VCAP LPM multicast entries exist: source-specific and source-independent.
•
•
Source specific IP multicast groups, where the same group IP address can be used by multiple
sources. Such groups are denoted (S,G).
Source independent IP multicast groups, where the group IP address uniquely identifies the IP
multicast flow. Such groups are denoted (*,G).
IPv4 multicast groups occupies two entries in the VCAP LPM, and IPv6 multicast groups occupies eight
entries. Source-specific multicast groups must be placed with higher precedence than sourceindependent multicast groups.
A matching entry in the VCAP LPM results in an index (L3MC_IDX) to an entry in the L3MC Table.
Each L3MC table entry contains a list of egress router legs to which frames are routed. Upon removing
the ingress router leg from the list, the required number of routed multicast copies is calculated and this
number (L3MC_COPY_CNT) is sent to VD0.
Stage 1 L2 forwards the frame. ANA_ACL can be used to limit the L2 forwarding, for example, to support
IGMP/MLD snooping.
For each L3MC entry, it can optionally be configured that routing is only performed if the frame was
received by a specific ingress router leg. This is termed reverse path forwarding check and is configured
using L3MC:L3MC_CTRL.RPF_CHK_ENA and L3MC:L3MC_CTRL.RPF_VMID.
Note that this RPF check is unrelated to the SIP RPF check. For more information about the SIP RPF
check, see SIP RPF Check, page 147.
Reverse path forwarding check does not affect the L2 forwarding decision.
In stage 2, VD0 replicates the frame according to L3MC_COPY_CNT, and L3MC_IDX is written into the
frame’s IFH.
For each copy, which ANA_L3 receives from VD0 during stage 2, L3MC_IDX from IFH is used to lookup
the L3MC table entry and thus find the list of egress router legs that require a routed copy. The egress
router leg is used to determine the egress VID which in turn is used to perform (VID, DMAC) lookup in
the MAC table for L2 forwarding within the egress VLAN.
For each egress router leg, it can be configured that frames are only L3 forwarded to the router leg if the
TTL/HL of the packet is above a certain value. This is configured using
VMID:VMID_MC.RLEG_IP4_MC_TTL and VMID:VMID_MC.RLEG_IP6_MC_TTL.
In stage 2, both learning and ingress filtering is disabled.
The following illustration shows an IPv4 multicast routing example. IPv6 multicast routing works
identically to IPv4 multicast routing, with the exception that the IPv6 entries occupies four times as much
space in VCAP LPM.
VMDS-10492 VSC7440 Datasheet Revision 4.2
145
Functional Descriptions
Figure 36 • IP Multicast Routing Example
Router
Router
leg 1
VLAN 1
IP network 1.1.1.0/24
8
9
1.1.1.1
1.1.1.3
10
VLAN 2
IP network 2.2.2.0/24
11
2.2.2.1
1.1.1.2
Sender
Router
leg 2
2.2.2.2
Receiver 1
2.2.2.3
Receiver 2
Receiver 3
LPM VCAP
SIP
CPU
l3mc_idx
n+4
1
230.1.1.1 1.1.1.3
0
0
1
0x6
1
1
n+2
1
230.1.1.1 2.2.2.2
1
1
1
0xFF
0
x
n
1
230.1.1.2 2.2.2.2
1
2
x
x
x
x
1
230.1.1.1
x
1023
x
x
x
x
0
x
256 entries
G
EVMID_MASK
RPF_CHK_ RPF_
(Router leg bit mask)
ENA
VMID
128 bits
...
Up to
2,048 IPv4 entries/
512 IPv6 entries
Valid
L3MC Table
Index
...
Search Direction
VCAP
Actions
VCAP Entries
Index
A sender host with IPv4 address 1.1.1.3 is transmitting IPv4 multicast frames to the group address
230.1.1.1 and DMAC = 0x01005E010101. The frames must be L2 forwarded to receivers in VLAN 1 and
L3 forwarded to receivers in VLAN 2. For the latter, an entry for the (1.1.1.3, 230.1.1.1) pair is added to
the VCAP LPM.
3.19.2.5.1 Stage 1
•
•
•
•
•
•
Lookup of (SIP,G) = (1.1.1.3, 230.1.1.1) in VCAP LPM returns L3MC_IDX = 0 and a corresponding
entry in L3MC table. L3MC_IDX = 0 is inserted into the IFH.
The L3MC entry has RPF check enabled (RPF_ENA = 1). Because the frame has been received
through the specified router leg, L3 forwarding is allowed.
The L3MC entry specifies that frames are forwarded to router leg 1 and 2. Because the frame has
been received on router leg 1, only router leg 2 needs a routed copy. In other words, the number of
L3 frame copies required is set to 1.
If the frame’s TTL is = 0x600.
1
x
VMDS-10492 VSC7440 Datasheet Revision 4.2
153
Functional Descriptions
VCAP IS2 Key Overview (continued)
Field Name
Description
Size
ETYPE
Frame’s EtherType
Overloading:
OAM Y.1731 frames: ETYPE[6:0] contains OAM
MEL flags, see below. OAM_Y1731 is set to 1 to
indicate the overloading of ETYPE.
16
IP4_VID
MAC_ETYPE
ARP
IP4_TCP_UDP
IP4_OTHER
CUSTOM_2
IP6_VID
IP_7TUPLE
CUSTOM_1
Table 96 •
x
OAM MEL flags:
Encoding of MD level/MEG level (MEL). One bit for
each level where lowest level encoded as zero.
The following keys can be generated:
MEL=0: 0b0000000
MEL=1: 0b0000001
MEL=2: 0b0000011
MEL=3: 0b0000111
MEL=4: 0b0001111
MEL=5: 0b0011111
MEL=6: 0b0111111
MEL=7: 0b1111111
Together with the mask, the following kinds of rules
may be created:
- Exact match. Fx. MEL = 2: 0b0000011
- Below. Fx. MEL< = 4: 0b000XXXX
- Above. Fx. MEL> = 5: 0bXX11111
- Between. Fx. 3< = MEL< = 5: 0b00XX111,
where 'X' means don't care.
IP4
Frame type flag indicating the frame is an IPv4
1
frame.
Set if frame is IPv4 frame (EtherType = 0x800 and
IP version = 4)
L2_PAYLOAD_ETYPE
Byte 0-7 of L2 payload after Type/Len field.
Overloading:
OAM Y.1731 frames (OAM_Y1731 = 1):
Bytes 0-3: OAM PDU bytes 0-3
Bytes 4-5: OAM_MEPID
Bytes 6-7: Unused.
64
L3_FRAGMENT
Set if IPv4 frame is fragmented (more fragments
flag = 1 or fragments offset > 0).
1
x x
L3_FRAG_OFS_GT0
Set if IPv4 frame is fragmented but not the first
fragment (fragments offset > 0)
1
x x
ARP_ADDR_SPACE_OK
Set if hardware address is Ethernet.
1
x
1
x
ARP_LEN_OK
Set if Hardware address length = 6 (Ethernet) and 1
IP address length = 4 (IP).
x
ARP_TARGET_MATCH
Target Hardware Address = SMAC (RARP).
1
x
ARP_SENDER_MATCH
Sender Hardware Address = SMAC (ARP).
1
x
ARP_PROTO_SPACE_OK Set if protocol address space is 0x0800.
VMDS-10492 VSC7440 Datasheet Revision 4.2
x x
x
x
154
Functional Descriptions
VCAP IS2 Key Overview (continued)
Field Name
Description
Size
IP4_VID
MAC_ETYPE
ARP
IP4_TCP_UDP
IP4_OTHER
CUSTOM_2
IP6_VID
IP_7TUPLE
CUSTOM_1
Table 96 •
ARP_OPCODE_UNKNOW Set if ARP opcode is none of the below mentioned. 1
N
x
ARP_OPCODE
ARP opcode.
Only valid if ARP_OPCODE_UNKNOWN is
cleared.
0: ARP request.
1: ARP reply.
2: RARP request.
3: RARP reply.
2
x
L3_OPTIONS
Set if IPv4 frame contains options (IP len > 5). IP
options are not parsed.
1
x x
L3_TTL_GT0
Set if IPv4 TTL / IPv6 hop limit is greater than 0.
1
x x
x
L3_TOS
Frame’s IPv4/6 DSCP and ECN fields.
8
x x
x
L3_IP4_DIP
IPv4 frames: Destination IPv4 address.
IPv6 frames: Source IPv6 address, bits 63:32.
32
x
x x x
L3_IP4_SIP
IPv4 frames: Source IPv4 address.
IPv6 frames: Source IPv6 address, bits 31:0.
32
x
x x x
L3_IP6_DIP
IPv6 frames: Destination IPv6 address.
IPv4 frames: Bits 31:0: Destination IPv4 address.
128
x x
L3_IP6_SIP
IPv6 frames: Destination IPv6 address.
IPv4 frames: Bits 31:0: Destination IPv4 address.
In addition, for IP_7TUPLE and IPv4 frames:
Bit 127: L3_FRAGMENT.
Bit 126: L3_FRAG_OFS_GT0.
Bit 125: L3_OPTIONS.
128
x x
DIP_EQ_SIP
Set if destination IP address is equal to source IP
address.
1
x x x
L3_IP_PROTO
IPv4 frames (IP4 = 1): IP protocol.
IPv6 frames (IP4 = 0): Next header.
8
x
TCP_UDP
Frame type flag indicating the frame is a TCP or
UDP frame.
Set if frame is IPv4/IPv6 TCP or UDP frame (IP
protocol/next header equals 6 or 17).
1
TCP
Frame type flag indicating the frame is a TCP
1
frame.
Set if frame is IPv4 TCP frame (IP protocol = 6) or
IPv6 TCP frames (Next header = 6)
x
x
L4_DPORT
TCP/UDP destination port.
Overloading for IP_7TUPLE:
Non-TCP/UDP IP frames:
L4_DPORT = L3_IP_PROTO.
16
x
x
L4_SPORT
TCP/UDP source port.
16
x
x
VMDS-10492 VSC7440 Datasheet Revision 4.2
x
x
155
Functional Descriptions
VCAP IS2 Key Overview (continued)
IP4_VID
MAC_ETYPE
ARP
IP4_TCP_UDP
IP4_OTHER
CUSTOM_2
IP6_VID
IP_7TUPLE
CUSTOM_1
Table 96 •
Field Name
Description
Size
L4_RNG
Range mask. Range types: SPORT, DPORT,
SPORT or DPORT, VID, DSCP, custom.
Input into range checkers is taken from classified
results (VID, DSCP) and frame (SPORT, DPORT,
custom).
8
x
x
SPORT_EQ_DPORT
Set if TCP/UDP source port equals TCP/UDP
destination port.
1
x
x
SEQUENCE_EQ0
Set if TCP sequence number is 0.
1
x
x
L4_FIN
TCP flag FIN.
1
x
x
L4_SYN
TCP flag SYN.
1
x
x
L4_RST
TCP flag RST.
1
x
x
L4_PSH
TCP flag PSH.
1
x
x
L4_ACK
TCP flag ACK.
1
x
x
L4_URG
TCP flag URG.
1
x
x
L3_PAYLOAD
Payload bytes after IP header.
IPv4: IPv4 options are not parsed so payload is
always taken 20 bytes after the start of the IPv4
header.
96
L4_PAYLOAD
Payload bytes after TCP/UDP header.
64
Overloading for IP_7TUPLE:
Non TCP/UDP frames (TCP_UDP = 0): Payload
bytes 0 – 7 after IP header. IPv4 options are not
parsed so payload is always taken 20 bytes after
the start of the IPv4 header for non TCP/UDP IPv4
frames.
OAM_CCM_CNTS_EQ0
Flag indicating if dual-ended loss measurement
counters in CCM frames are used.
This flag is set if the TxFCf, RxFCb, and TxFCb
counters are set to all zeros.
1
x
OAM_Y1731
Set if frame’s EtherType = 0x8902. If set, ETYPE
is overloaded with OAM MEL flags, See ETYPE.
1
x
CUSTOM1
57 bytes payload starting from current frame
pointer position, as controlled by VCAP CLM
actions.
Note that if frame_type==ETH, then payload is
retrieved from a position following the Ethernet
layer, for example, after DMAC, SMAC, 0 – 3
VLAN tags, and EtherType.
456
CUSTOM2
24 bytes payload from frame. Location in frame is 192
controlled by VCAP CLM actions.
Note that if frame_type==ETH, payload is retrieved
from a position following the Ethernet layer, for
example, after DMAC, SMAC, 0 – 3 VLAN tags
and EtherType.
VMDS-10492 VSC7440 Datasheet Revision 4.2
x
x
x
x
x
156
Functional Descriptions
3.20.2
VCAP IS2 Actions
VCAP IS2 supports only one action, size 196 bits, which applies to all VCAP IS2 keys. The action is
listed in the following table. When programming an action in VCAP IS2, the associated action fields listed
must be programmed in the listed order with the first field in the table starting at bit 0 in the action.
Table 97 •
VCAP IS2 Actions
Action Name
Description
Size
IS_INNER_ACL
Set if VCAP IS2 action belongs to ANA_IN_SW pipeline point.
1
PIPELINE_FORCE If set, use PIPELINE_PT unconditionally and set PIPELINE_ACT = NONE if
_ENA
PIPELINE_PT == NONE. Overrules previous settings of pipeline point.
1
PIPELINE_PT
Pipeline point used if PIPELINE_FORCE_ENA is set:
0: NONE
1: ANA_VRAP
2: ANA_PORT_VOE
3: ANA_CL
4: ANA_CLM
5: ANA_IPT_PROT
6: ANA_OU_MIP
7: ANA_OU_SW
8: ANA_OU_PROT
9: ANA_OU_VOE
10: ANA_MID_PROT
11: ANA_IN_VOE
12: ANA_IN_PROT
13: ANA_IN_SW
14: ANA_IN_MIP
15: ANA_VLAN
16: ANA_DONE
5
HIT_ME_ONCE
If set, the next frame hitting the rule is copied to CPU using CPU_QU_NUM.
CPU_COPY_ENA overrules HIT_ME_ONCE implying that if CPU_COPY_ENA is also
set, all frames hitting the rule are copied to the CPU.
1
INTR_ENA
If set, an interrupt is triggered when this rule is hit
1
CPU_COPY_ENA
If set, frame is copied to CPU using CPU_QU_NUM.
1
CPU_QU_NUM
CPU queue number used when copying to the CPU
3
CPU_DIS
If set, disable extraction to CPU queues from previous forwarding decisions. Action
CPU_COPY_ENA is applied after CPU_DIS.
1
LRN_DIS
If set, autolearning is disallowed.
1
RT_DIS
If set, routing is disallowed.
1
POLICE_ENA
If set, frame is policed by policer pointed to by POLICE_IDX.
Overloading: If cleared, POLICE_IDX can be used to select a new source IP address
from table ANA_ACL::SWAP_SIP when replacing IP addresses. See ACL_RT_MODE.
1
POLICE_IDX
Selects policer index used when policing frames.
5
Overloading: If POLICE_ENA=0, selects source IP address when replacing IP addresses.
IGNORE_PIPELIN
E_CTRL
Ignore ingress pipeline control. This enforces the use of the VCAP IS2 action even when 1
the pipeline control has terminated the frame before VCAP IS2.
VMDS-10492 VSC7440 Datasheet Revision 4.2
157
Functional Descriptions
Table 97 •
VCAP IS2 Actions (continued)
Action Name
Description
Size
LOG_MSG_INT
Controls logMessageInterval when REW_CMD[5] = 1:
3
For multicast Delay_Resp frames, SWAP_MAC_ENA and LOG_MSG_INT encode a new
logMessageInterval:
SWAP_MAC_ENA=0, LOG_MSG_INT=0: logMessageInterval = 0
SWAP_MAC_ENA=0, LOG_MSG_INT=1: logMessageInterval = 1
...
SWAP_MAC_ENA=0, LOG_MSG_INT=7: logMessageInterval = 7
SWAP_MAC_ENA=1, LOG_MSG_INT=0: logMessageInterval = –8
SWAP_MAC_ENA=1, LOG_MSG_INT=1: logMessageInterval = –7
...
SWAP_MAC_ENA=1, LOG_MSG_INT=7: logMessageInterval = –1
MASK_MODE
Controls how PORT_MASK is applied.
3
0: OR_DSTMASK: Or PORT_MASK with destination mask.
1: AND_VLANMASK: And PORT_MASK with VLAN mask.
2: REPLACE_PGID: Replace PGID port mask from MAC table lookup by PORT_MASK.
3: REPLACE_ALL: Use PORT_MASK as final destination set replacing all other port
masks. Note that with REPLACE_ALL, the port mask becomes sticky and cannot be
modified by later processing steps.
4: REDIR_PGID: Redirect using PORT_MASK[7:0] as PGID table index. See
PORT_MASK for extra configuration options.
options. Note that the port mask becomes sticky and cannot be modified by subsequent
processing steps.
5: OR_PGID_MASK: Or PORT_MASK with PGID port mask from MAC table lookup.
6: Reserved.
7: Reserved.
The CPU port is untouched by MASK_MODE.
PORT_MASK
Port mask applied to the forwarding decision.
MASK_MODE=4:
PORT_MASK[52]: SRC_PORT_MASK_ENA. If set, SRC_PORT_MASK is AND’ed with
destination result.
PORT_MASK[51]: AGGR_PORT_MASK_ENA. If set, AGGR_PORT_MASK is AND’ed
with destination result.
MASK_MODE=4:
PORT_MASK[50]: VLAN_PORT_MASK_ENA. If set, VLAN_PORT_MASK is AND’ed
with
destination result.
PORT_MASK[7:0]: PGID table index.
55
MIRROR_PROBE
Mirroring performed according to configuration of a mirror probe.
0: No mirroring.
1: Mirror probe 0.
2: Mirror probe 1.
3: Mirror probe 2.
2
VMDS-10492 VSC7440 Datasheet Revision 4.2
158
Functional Descriptions
Table 97 •
VCAP IS2 Actions (continued)
Action Name
Description
Size
REW_CMD
REW_CMD[1:0] - PTP command:
0: No command.
1: ONE-STEP update. Update PTP PDU according to ingress and egress port mode.
2: TWO-STEP stamping. Send frame untouched, but store ingress and egress time
stamps in the time stamp FIFO.
3: TIME-OF-DAY update. Fill system time-of-day into frame.
8
REW_CMD[3:2] - Delay command:
0: No command.
1: Add configured egress delay for the egress port (REW::PTP_EDLY_CFG).
2: Add configured ingress delay for the ingress port (REW::PTP_IDLY1_CFG).
3: Add configured ingress delay for the ingress port (REW::PTP_IDLY2_CFG).
REW_CMD[5:4] - Sequence number and time stamp command:
0: No command.
1: Fill in sequence number and increment. Sequence number is selected by IFH.TSTAMP.
2: Enable Delay_Req/resp processing. This mode includes updating the
requestReceiptTimestamp with the ingress time stamp.
3: Enable Delay_Req/resp processing. This mode excludes updating the
requestReceiptTimestamp.
Note that if REW_CMD[5] is set, REW_CMD[5:4] is cleared by ANA_ACL before passing
the REW_CMD action to the rewriter.
REW_CMD[6]: If set, set DMAC to incoming frame’s SMAC.
REW_CMD[7]: If set, set SMAC to configured value for the egress port.
TTL_UPDATE_ENA If set, IPv4 TTL or IPv6 hop limit is decremented.
Overloading:
If ACL_RT_MODE[3]=1 (SWAPPING) and ACL_RT_MODE[2:0]=4, 5, 6, or 7, the IPv4
TTL or IPv6 hop limit is preset to value configured in ANA_ACL::SWAP_IP_CTRL.
1
SAM_SEQ_ENA
If set, ACL_RT_MODE only applies to frames classified as SAM_SEQ.
Overloading:
If ACL_RT_MODE=0x8 (replace DMAC): If set,
ANA_ACL::SWAP_IP_CTRL.DMAC_REPL_OFFSET_VAL controls number of bits in
frame’s DMAC, counting from MSB, to replace with corresponding bits in ACL_MAC.
1
TCP_UDP_ENA
If set, TCP/UDP ports are set to new values: DPORT = MATCH_ID, SPORT =
MATCH_ID_MASK.
1
MATCH_ID
Logical ID for the entry. The MATCH_ID is extracted together with the frame if the frame is 16
forwarded to the CPU (CPU_COPY_ENA). The result is placed in IFH.CL_RSLT.
Overloading: If TCP_UDP_ENA is set, MATCH_ID defines new DPORT.
MATCH_ID_MASK Mask used by MATCH_ID.
Overloading:
If TCP_UDP_ENA is set, MATCH_ID defines new SPORT.
16
CNT_ID
Counter ID, used per lookup to index the 4K frame counters (ANA_ACL:CNT_TBL).
Multiple VCAP IS2 entries can use the same counter.
12
SWAP_MAC_ENA
Swap MAC addresses.
Overloading:
If REW_CMD[5]=1: For multicast Delay_Resp frames, SWAP_MAC_ENA and
LOG_MSG_INT encodes a new logMessageInterval. See LOG_MSG_INT.
1
VMDS-10492 VSC7440 Datasheet Revision 4.2
159
Functional Descriptions
Table 97 •
VCAP IS2 Actions (continued)
Action Name
Description
Size
ACL_RT_MODE
Controls routing updates in ANA_AC and how ACL_MAC is applied:
0: No change.
ACL_RT_MODE[3] = 0 (ROUTING mode):
ACL_RT_MODE[0] = 1: Enable Unicast routing updates in ANA_AC
ACL_RT_MODE[1] = 1: Enable Multicast routing updates in ANA_AC
ACL_RT_MODE[2] = 1: Enable overloading of ACL_MAC field.
4
ACL_RT_MODE[3] = 1 (SWAPPING mode):
ACL_RT_MODE[2:0] encodes a SWAPPING sub-mode:
0: Replace DMAC.
1: Replace SMAC.
2: Swap MAC addresses. Replace SMAC if new SMAC is multicast.
3: Swap MAC addresses if DMAC is unicast. Replace SMAC if DMAC is multicast.
4: Swap MAC addresses. Replace SMAC if new SMAC is multicast. Swap IP addresses.
Replace SIP if new SIP is multicast.
5: Swap MAC addresses if DMAC is unicast. Replace SMAC if DMAC is multicast. Swap
IP addresses if DIP is unicast. Replace SIP if DIP is multicast.
6: Swap IP addresses. Replace SIP if new SIP is multicast.
7: Replace SMAC. Swap IP addresses. Replace SIP if new SIP is multicast.
Note that when replacing a MAC address, the new MAC address is taken from
ACL_MAC. When replacing a SIP, the new SIP is taken from
ANA_ACL::SWAP_SIP[POLICE_IDX].
ACL_MAC
MAC address used to replace either SMAC or DMAC based on ACL_RT_MODE.
Overloading:
ACL_RT_MODE[3:2] = 1.
ACL_MAC[0]: PORT_PT_CTRL_ENA - Overrule PORT_PT_CTRL.
ACL_MAC[6:1]: PORT_PT_CTRL_IDX - into ANA_AC_POL:PORT_PT_CTRL.
ACL_MAC[16]: Enable use of ACL_MAC[26:17] as DLB policer index.
ACL_MAC[26:17]: DLB policer index.
48
ACL_RT_MODE(3) = 1:
MAC address used to replace either SMAC or DMAC based on ACL_RT_MODE.
PTP_DOM_SEL
3.21
PTP domain selector. PTP_DOM_SEL indexes the PTP configuration in
ANA_ACL:PTP_DOM used in Delay_Resp frames. See REW_CMD.
2
Analyzer Access Control Lists
The analyzer access control list (ANA_ACL) block performs the following tasks.
•
•
•
•
•
Controls the VCAP IS2 lookups in terms of key selection, evaluation of range checkers, and control
of specific VCAP IS2 key fields such as IGR_PORT_MASK_SEL and VID.
Generates VCAP IS2 keys and execute the two lookups.
Updates VCAP IS2 statistics based on match results.
Assigns actions from VCAP IS2 matching or default actions when there is no match.
Controls routing-related frame rewrites.
The following sections provides specific information about each of these tasks.
VMDS-10492 VSC7440 Datasheet Revision 4.2
160
Functional Descriptions
3.21.1
VCAP IS2
Each frame is classified to one of nine overall VCAP IS2 frame types. The frame type determines which
VCAP IS2 key types are applicable and controls which frame data to extract.
Table 98 •
VCAP IS2 Frame Types
Frame Type
Condition
IPv6 multicast frame
The Type/Len field is equal to 0x86DD.
The IP version is 6.
The destination IP address is a multicast address (FF00::/8).
Special IPv6 frames:
•IPv6 TCP frame: Next header is TCP (0x6).
•IPv6 UDP frame: Next header is UDP (0x11).
•IPv6 Other frame: Next header is neither TCP nor UDP.
IPv6 unicast frame
The Type/Len field is equal to 0x86DD.
The IP version is 6.
The destination IP address is not a multicast address.
Special IPv6 frames:
•IPv6 TCP frame: Next header is TCP (0x6).
•IPv6 UDP frame: Next header is UDP (0x11).
•IPv6 Other frame: Next header is neither TCP nor UDP
IPv4 multicast frame
The Type/Len field is equal to 0x800.
The IP version is 4.
The destination IP address is a multicast address (224.0.0.0/4).
Special IPv4 frames:
•IPv4 TCP frame: IP protocol is TCP (0x6).
•IPv4 UDP frame: IP protocol is UDP (0x11).
•IPv4 Other frame: IP protocol is neither TCP nor UDP.
IPv4 unicast frame
The Type/Len field is equal to 0x800.
The IP version is 4.
The destination IP address is not a multicast address.
Special IPv4 frames:
•IPv4 TCP frame: IP protocol is TCP (0x6).
•IPv4 UDP frame: IP protocol is UDP (0x11).
•IPv4 Other frame: IP protocol is neither TCP nor UDP.
(R)ARP frame
The Type/Len field is equal to 0x0806 (ARP) or 0x8035 (RARP).
OAM Y.1731 frame
The Type/Len field is equal to 0x8902 (ITU-T Y.1731).
SNAP frame
The Type/Len field is less than 0x600.
The Destination Service Access Point field, DSAP is equal to 0xAA.
The Source Service Access Point field, SSAP is equal to 0xAA.
The Control field is equal to 0x3.
LLC frame
The Type/Len field is less than 0x600
The LLC header does not indicate a SNAP frame.
ETYPE frame
The Type/Len field is greater than or equal to 0x600, and the Type field
does not indicate any of the previously mentioned frame types, that is,
ARP, RARP, OAM, IPv4, or IPv6.
Some protocols of interest do not have their own frame type but are included in other mentioned frame
types. For instance, Precision Time Protocol (PTP) frames are handled by VCAP IS2 as either ETYPE
frames, IPv4 frames, or IPv6 frames. The following encapsulations of PTP frames are supported:
•
•
•
PTP over Ethernet: ETYPE frame with Type/Len = 0x88F7.
PTP over UDP over IPv4: IPv4 UDP frame with UDP destination port numbers 319 or 320.
PTP over UDP over IPv6: IPv6 UDP frame with UDP destination port numbers 319 or 320.
VMDS-10492 VSC7440 Datasheet Revision 4.2
161
Functional Descriptions
Specific PTP fields are contained in eight bytes of payload extracted after either the EtherType for PTP
over Ethernet or in eight bytes of payload after the UDP header for IPv4/IPv6 frames.
3.21.1.1
Port Configuration and Key Selection
This section provides information about special port configurations that control the key generation for
VCAP IS2.
The following table lists the registers associated with port configuration for VCAP IS2.
Table 99 •
Port Configuration of VCAP IS2
Register
Description
Replication
ANA_ACL:PORT:VCAP_S2_KEY_SEL
Configuration of the key selection for the VCAP IS2
Per port per lookup
ANA_ACL::VCAP_S2_CFG
Enabling of VCAP IS2 lookups.
Per port per lookup
Each of the two lookups in VCAP IS2 must be enabled before use (VCAP_S2_CFG.SEC_ENA) for a key
to be generated and a match to be used. If a lookup is disabled on a port, frames received by the port are
not matched against rules in VCAP IS2 for that lookup.
Each port controls the key selection for each of the two lookups in VCAP IS2 through the
VCAP_S2_KEY_SEL register. For some frame type (OAM Y.1731, SNAP, LLC, EYTYPE) the key
selection is given as only the MAC_ETYPE key can be used. For others frame types (ARP and IP)
multiple keys can be selected from. The following table lists the applicable key types available for each
frame type listed in Table 98, page 161.
Table 100 • VCAP IS2 Key Selection
Frame Type
Applicable VCAP IS2 keys
IPv6 multicast frames
IP6_VID
IP_7TUPLE
MAC_ETYPE
IPv6 unicast frames
IP_7TUPLE
MAC_ETYPE
IPv4 multicast frames
IP4_VID
IP_7TUPLE
IP4_TCP_UDP
IP4_OTHER
MAC_ETYPE
IPv4 unicast frames
IP_7TUPLE
IP4_TCP_UDP
IP4_OTHER
MAC_ETYPE
(R)ARP frames
ARP
MAC_ETYPE
OAM Y.1731 frames
MAC_ETYPE
SNAP frames
MAC_ETYPE
LLC frames
MAC_ETYPE
ETYPE frames
MAC_ETYPE
Note: The key selection is overruled if VCAP CLM instructs the use of a custom key, where data from the frame
is extracted at a VCAP CLM-selected point. For more information, see VCAP IS2 Custom Keys,
page 163.
For information about VCAP IS2 keys and actions, see VCAP IS2 Keys and Actions, page 150.
VMDS-10492 VSC7440 Datasheet Revision 4.2
162
Functional Descriptions
3.21.1.2
VCAP IS2 Custom Keys
VCAP IS2 supports two custom keys, CUSTOM_1 and CUSTOM_2. Custom keys extract raw data from
the frame at one selectable location. The custom keys enable matching against protocol fields not
supported by other VCAP IS2 keys. The use of the custom keys must be enabled through a VCAP CLM
FULL action using CUSTOM_ACE_ENA and CUSTOM_ACE_OFFSET.
CUSTOM_1 extracts 57 consecutive bytes of data from the frame and CUSTOM_2 extracts 24
consecutive bytes of data from the frame. The data is extracted at one of four different positions in the
frame. For frames of frame_type ETH (IFH.TYPE_AFTER_POP), the positions are defined as:
•
•
•
•
Link layer. Corresponds to first byte in DMAC.
Link layer payload. Corresponds to first byte in L3, after VLAN tags and EtherType.
Link layer payload plus 20 bytes. Corresponds to first byte in L4 for IPv4 frame.
Link layer payload plus 40 bytes. Corresponds to first byte in L4 for IPv6 frame.
For frames of frame_type CW, the first link layer position is not available. The positions are defined as:
•
•
•
3.21.1.3
Link layer payload. Corresponds to first byte in control word for non-IP frames and first byte in IP
header for IP frames.
Link layer payload plus 20 bytes. Corresponds to first byte in L4 for IPv4 frame.
Link layer payload plus 40 bytes. Corresponds to first byte in L4 for IPv6 frame.
VCAP IS2 Range Checkers
The following table lists the registers associated with configuring VCAP IS2 range checkers.
Table 101 • VCAP IS2 Range Checker Configuration
Register
Description
Replication
ANA_ACL::VCAP_S2_RNG_CTRL
Configuration of the range checker types
Per range checker
ANA_ACL::VCAP_S2_RNG_VALUE_CFG
Configuration of range start and end points
Per range checker
ANA_ACL::VCAP_S2_RNG_OFFSET_CFG Offset into frame when using a range checker
based on selected value from frame
None
Eight global VCAP IS2 range checkers are supported by the IP4_TCP_UDP and IP_7TUPLE keys. All
frames using these keys are compared against the range checkers and a 1-bit range “match/no match”
flag is returned for each range checker. The combined eight match/no match flags are used in the
L4_RNG key field. So, it is possible to include for example ranges of DSCP values and/or ranges of TCP
source port numbers in the ACLs.
Note, VCAP CLM also supports range checkers but they are independent of the VCAP IS2 range
checkers.
The range key is generated for each frame based on extracted frame data and the configuration in
ANA_ACL::VCAP_S2_RNG_CTRL. Each of the eight range checkers can be configured to one of the
following range types:
•
•
•
•
TCP/UDP destination port range
Input to the range is the frame’s TCP/UDP destination port number.
Range is only applicable to TCP/UDP frames.
TCP/UDP source port range
Input to the range is the frame’s TCP/UDP source port number.
Range is only applicable to TCP/UDP frames.
TCP/UDP source and destination ports range. Range is matched if either source or destination port
is within range.
Input to the range are the frame’s TCP/UDP source and destination port numbers.
Range is only applicable to TCP/UDP frames.
VID range
Input to the range is the classified VID.
Range is applicable to all frames.
VMDS-10492 VSC7440 Datasheet Revision 4.2
163
Functional Descriptions
•
•
DSCP range
Input to the range is the classified DSCP value.
Range is applicable to IPv4 and IPv6 frames.
Selected frame field range
Input to the range is a selected 16-bit wide field from the frame. The field is selected using the offset
value configured in ANA_ACL::VCAP_S2_RNG_OFFSET_CFG. The offset starts at the Type/Len
field in the frame after up to 3 VLAN tags have been skipped. Note that only one selected value can
be configured for all eight range checkers.
Range is applicable to all frames.
Range start points and range end points are configured in ANA_ACL::VCAP_S2_RNG_VALUE_CFG
with both the start point and the end point being included in the range. A range matches if the input value
to the range (for instance the frame’s TCP/UDP destination port) is within the range defined by the start
point and the end point.
3.21.1.4
Miscellaneous VCAP IS2 Key Configurations
The following table lists the registers associated with configuration that control the specific fields in the
VCAP IS2 keys.
Table 102 • Other VCAP IS2 Key Configurations
Register
Description
ANA_ACL::VCAP_S2_CFG.SEC_ROUTE_HA Enables use of IRLEG VID and ERLEG VID
NDLING_ENA
instead of classified VID.
ANA_ACL:VCAP_S2:VCAP_S2_MISC_CTRL
Replication
Per port
Configuration of IGR_PORT_MASK_SEL and None
IGR_PORT_MASK.
By default, the field VID contains the frame’s classified VID for both VCAP IS2 lookups. Routable frames
(determined by ANA_L3) with field L3_RT=1, can be configured
(ANA_ACL::VCAP_S2_CFG.SEC_ROUTE_HANDLING_ENA) to use the IRLEG VID for the first lookup
in VCAP IS2 and ERLEG VID for the second lookup. This enables ACL rules that apply to the ingress
router leg and ACL rules that apply to the egress router leg. The IRLEG VID and ERLEG VID are
provided by ANA_L3.
All VCAP IS2 keys except IP4_VID and IP6_VID contain the field IGR_PORT_MASK_SEL and
IGR_PORT_MASK. For frames received on a front port, IGR_PORT_MASK_SEL is set to 0 and the bit
corresponding to the frame’s physical ingress port number is set in IGR_PORT_MASK. The following
lists some settings for frames received on other interfaces and how this can be configured through
register VCAP_S2_MISC_CTRL:
•
•
•
•
Loopback frames. By default, IGR_PORT_MASK_SEL = 1 and IGR_PORT_MASK has one bit set
corresponding to the physical port which the frame was looped on. Optionally use
IGR_PORT_MASK_SEL = 3.
Masqueraded frames. By default, IGR_PORT_MASK_SEL=0 and IGR_PORT_MASK has one bit
set corresponding to the masquerade port. Optionally, use IGR_PORT_MASK_SEL = 2.
Virtual device frames. By default, IGR_PORT_MASK_SEL=0 and IGR_PORT_MASK has one bit
set corresponding to the original physical ingress port. Optionally use IGR_PORT_MASK_SEL = 3.
CPU injected frames. By default, IGR_PORT_MASK_SEL = 0 and IGR_PORT_MASK has none
bits set. Optionally use IGR_PORT_MASK_SEL = 3.
For more information about the contents of IGR_PORT_MASK_SEL and IGR_PORT_MASK, see VCAP
IS2 Key Overview, page 151.
3.21.1.5
Processing of VCAP IS2 Actions
VCAP IS2 returns an action for each enabled VCAP IS2 lookup. If the lookup matches an entry in VCAP
IS2 then the associated action is returned. A default action is returned when no entries are matched. The
first VCAP IS2 lookup returns a default action per physical ingress port while the second VCAP IS2
lookup returns a common default action. There is no difference between an action from a match and a
default action.
VMDS-10492 VSC7440 Datasheet Revision 4.2
164
Functional Descriptions
VCAP IS2 contains 58 default actions that are allocated the following way:
•
•
•
•
0-52: Per ingress port default actions for first lookup.
53, 54: Per CPU port (CPU0 and CPU1) default actions for first lookup.
55, 56: Per virtual device (VD0 and VD1) default actions for first lookup.
57: Common default action for second lookup.
Each of the two VCAP IS2 actions (from first and second lookups) can be processed either at the pipeline
point ANA_OU_SW or at pipeline point ANA_IN_SW. This is controlled by VCAP IS2 action
IS_INNER_ACL. The order of processing is given as:
1.
2.
3.
4.
Process first action if the first’s action IS_INNER_ACL is 0.
Process second action if the second’s action IS_INNER_ACL is 0.
Process first action if the first’s action IS_INNER_ACL is 1.
Process second action if the second’s action IS_INNER_ACL is 1.
This implies that the second action can be processed in ANA_OU_SW pipeline point and the first action
can be processed in ANA_IN_SW pipeline point, or vice versa. Both actions can also be placed at the
same pipeline point in which case the first action is processed before the second.
Processing of each action obeys the frame’s current pipeline information (pipeline point and pipeline
action). For instance if the frame has been redirected at pipeline point ANA_CLM then neither of the
VCAP IS2 actions are applied. However, VCAP IS2 action IGNORE_PIPELINE_CTRL can overrule this.
Furthermore, frame processing between pipeline points ANA_OU_SW and ANA_IN_SW such as OAM
filtering or protection switching can influence the processing of the VCAP IS2 actions so that only an
action belonging to pipeline point ANA_OU_SW is processed.
The following table lists how the two VCAP IS2 action are combined when both VCAP IS2 actions are
processed. For most cases, the processing is sequential, meaning that if both actions have settings for
the same (for instance MIRROR_PROBE), the second processing takes precedence. Others are sticky
meaning they cannot be undone by the second processing if already set by the first.
Table 103 • Combining VCAP IS2 Actions
Action name
Combining actions
IS_INNER_ACL
Processed individually for each action.
PIPELINE_FORCE_ENA
Processed individually for each action. Second processing uses the result from the first
processing which can prevent its processing if the pipeline information from first
processing disables the second processing.
PIPELINE_PT
See PIPELINE_FORCE_ENA.
HIT_ME_ONCE
Sticky.
INTR_ENA
Sticky.
CPU_COPY_ENA
Sticky.
CPU_QU_NUM
Sticky (each action can generate a CPU copy and based on configuration in
ANA_AC:PS_COMMON:CPU_CFG.ONE_CPU_COPY_ONLY_MASK, both copies can
be sent to CPU).
CPU_DIS
Processed individually for each action. Second processing may clear CPU copy from
first processing.
LRN_DIS
Sticky.
RT_DIS
Sticky.
POLICE_ENA
Sticky.
POLICE_IDX
Second action takes precedence when POLICE_ENA is set.
IGNORE_PIPELINE_CTRL Processed individually for each action.
LOG_MSG_INT
Second action takes precedence when LOG_MSG_INT > 0.
VMDS-10492 VSC7440 Datasheet Revision 4.2
165
Functional Descriptions
Table 103 • Combining VCAP IS2 Actions (continued)
Action name
Combining actions
MASK_MODE
Processed individually for each action. Second processing uses the result from the first
processing. (If the first processing is sticky, the second processing is not applied).
MASK_MODE is sticky for the following values:
3: REPLACE_ALL
4: REDIR_PGID
6: VSTAX
PORT_MASK
See MASK_MODE.
MIRROR_PROBE
Second action takes precedence when MIRROR_PROBE > 0.
REW_CMD
Second action takes precedence same functions are triggered by both actions. If
different functions are used, both are applied.
TTL_UPDATE_ENA
Second action takes precedence when same function is triggered by both actions. If
different functions are used, both are applied.
SAM_SEQ_ENA
Second action takes precedence when same function is triggered by both actions. If
different functions are used, both are applied.
TCP_UDP_ENA
Second action takes precedence when TCP_UDP_ENA is set.
MATCH_ID
Processed individually for each action. Second processing uses the result from the first
processing.
MATCH_ID_MASK
Processed individually for each action. Second processing uses the result from the first
processing.
CNT_ID
Processed individually for each action. Two counters are updated, one for each action.
SWAP_MAC_ENA
Sticky.
ACL_RT_MODE
Second action takes precedence when same function is triggered by both actions. If
different functions are used, both are applied.
ACL_MAC
Second action takes precedence when same function is triggered by both actions. If
different functions are used, both are applied.
PTP_DOM_SEL
Second action takes precedence when PTP_DOM_SEL > 0.
3.21.1.6
VCAP IS2 Statistics and Diagnostics
The following table lists the registers associated with VCAP IS2 statistics and diagnostics.
Table 104 • VCAP IS2 Statistics and Diagnostics
Register
Description
Replication
ANA_ACL::SEC_LOOKUP_STICKY
Sticky bits for each key type used in VCAP IS2.
Per lookup
ANA_ACL::CNT
VCAP IS2 match counters. Indexed with VCAP IS2 action
CNT_ID.
1,024
Each key type use in a lookup in VCAP IS2 triggers a sticky bit being set in
ANA_ACL::SEC_LOOKUP_STICKY. A sticky bit is cleared by writing.
Each action returned by VCAP IS2 triggers one of 1,024 counters (ANA_ACL::CNT) to be incremented.
This applies to both actions from matches and default actions. The index into the counters is provided by
VCAP IS2 action CNT_ID. The CNT_ID is fully flexible meaning multiple actions can point to the same
counter. The counters are writable so they can be preset to any value. A counter is cleared by writing 0.
3.21.1.7
Routing Statistics
If a routed frame is discarded by a VCAP IS2 rule it is configurable how the frame is counted in terms of
ingress and egress router leg statistics.
VMDS-10492 VSC7440 Datasheet Revision 4.2
166
Functional Descriptions
If the frame is discarded by the first VCAP IS2 lookup, it is selectable whether to count the frame in the
ingress router leg statistics (ANA_ACL::VCAP_S2_MISC_CTRL.ACL_RT_IGR_RLEG_STAT_MODE).
The frame is never counted by the egress router leg statistics.
If the frame is discarded by the second VCAP IS2 lookup, it is selectable whether to count the frame in
the egress router leg statistics
(ANA_ACL::VCAP_S2_MISC_CTRL.ACL_RT_EGR_RLEG_STAT_MODE). The frame is always
counted by the ingress router leg statistics.
3.21.2
Analyzer Access Control List Frame Rewriting
The ANA_ACL block supports various frame rewrite functions used in routing and PTP.
When rewriting in the ANA_ACL block, ingress mirroring with an exact mirror copy of the incoming frame
is no longer possible, because any rewrites are also reflected in the mirror copy.
3.21.2.1
Address Swapping and Rewriting
VCAP IS2 actions can trigger frame rewrites in the ANA_ACL block with focus on MAC addresses, IP
addresses, TCP/UDP ports as well as IPv4 TTL and IPv6 hop limit.
The following table lists the registers associated with address swapping and rewriting capabilities in
ANA_ACL.
Table 105 • ANA_ACL Address Swapping and Rewriting Registers
Register
Description
Replication
ANA_ACL::SWAP_SIP
IP table with 32 IPv4 addresses or 8 IPv6 addresses. Provides new
source IP address when swapping IP addresses in frame with
multicast destination IP address.
32
ANA_ACL::SWAP_IP_CTRL Controls IPv4 TTL and IPv6 hop limit values. Controls number of bits
to replace in DMAC.
None
VCAP IS2 action ACL_RT_MODE can enable the following rewrite modes:
•
•
•
•
•
•
•
•
Replace DMAC. The frame’s DMAC is replaced with the MAC address specified in VCAP IS2 action
ACL_MAC. It is selectable to only replace part of the DMAC (for instance the OUI only). This is
enabled with VCAP IS2 action REW_CMD[9], and the number of bits to replace is set in
ANA_ACL::SWAP_IP_CTRL.DMAC_REPL_OFFSET_VAL.
Replace SMAC. The frame’s SMAC is replaced with the MAC address specificed in VCAP IS2
action ACL_MAC.
Swap MAC addresses and replace SMAC if MC. The frame’s MAC addresses are swapped. If the
new SMAC is a multicast MAC, it is replaced with the MAC address specificed in VCAP IS2 action
ACL_MAC.
Swap MAC addresses if UC else replace SMAC if MC. The frame’s MAC addresses are swapped
if the frame’s DMAC is unicast. Otherwise, the frame’s SMAC is replaced with the MAC address
specificed in VCAP IS2 action ACL_MAC.
Swap MAC and IP addresses and replace SIP and SMAC if MC. The frame’s MAC addresses are
swapped and the frame’s IP addresses are swapped. If the new SMAC is a multicast MAC, it is
replaced with the MAC address specificed in VCAP IS2 action ACL_MAC. If the new SIP is a
multicast, it is replaced with an IP address from the IP address table ANA_ACL::SWAP_SIP.
Swap MAC and IP addresses if UC else replace SIP and SMAC if MC. The frame’s MAC
addresses are swapped if the frame’s DMAC is unicast. Otherwise, the frame’s SMAC is replaced
with the MAC address specificed in VCAP IS2 action ACL_MAC. The frame’s IP addresses are
swapped if the frame’s DIP is unicast. Otherwise, the frame’s SIP is replaced with an IP address
from the IP address table ANA_ACL::SWAP_SIP.
Swap IP addresses and replace SIP if MC. The frame’s IP addresses are swapped. If the new SIP
is a multicast, it is replaced with an IP address from the IP address table ANA_ACL::SWAP_SIP.
Replace SMAC, swap IP addresses, and replace SIP if MC. The frame’s SMAC is replaced with
the MAC address specificed in VCAP IS2 action ACL_MAC. The frame’s IP addresses are swapped.
VMDS-10492 VSC7440 Datasheet Revision 4.2
167
Functional Descriptions
If the new SIP is a multicast, it is replaced with an IP address from the IP address table
ANA_ACL::SWAP_SIP.
The IP address table (ANA_ACL::SWAP_SIP) used by some of the above mentioned modes is indexed
using VCAP IS2 action POLICE_IDX (VCAP IS2 action POLICE_ENA must be 0). The IP address table
can contain 32 IPv4 addresses or 8 IPv6 addresses.
When swapping IP addresses or replacing the source IP address, it is also possible to preset the IPv4
TTL or the IPv6 hop limit. This is enabled by VCAP IS2 action TTL_UPDATE_ENA. The new TTL value
for IPv4 frames is configured in ANA_ACL::SWAP_IP_CTRL.IP_SWAP_IP4_TTL_VAL and the new hop
limit value for IPv6 frames is configured in ANA_ACL::SWAP_IP_CTRL.IP_SWAP_IP4_TTL_VAL.
IPv4 and IPv6 TCP/UDP frames have the option to replace the source and destination port numbers with
new values. This is enabled through VCAP IS2 action TCP_UDP_ENA and new port numbers are
provided by VCAP IS2 action MATCH_ID and MATCH_ID_MASK.
The IPv4 header checksum is updated whenever required by above mentioned frame rewrites. The UDP
checksum is updated whenever required for IPv6 frames and cleared for IPv4 frames.
3.21.2.2
Routing in ANA_ACL
The following table lists the registers associated with routing capabilities in ANA_ACL.
Table 106 • ANA_ACL Routing Registers
Register
Description
Replication
ANA_ACL::VCAP_S2_MISC_CTRL.ACL_RT_SEL
Enable routing related frame rewrites in
ANA_ACL
None
ANA_ACL::VCAP_S2_MISC_CTRL.ACL_RT_UPDATE_ Enable use of egress router leg as VSI in
GEN_IDX_ERLEG_ENA
rewriter.
None
ANA_ACL::VCAP_S2_MISC_CTRL.ACL_RT_UPDATE_ Enable use of egress VID as VSI in rewriter. None
GEN_IDX_EVID_ENA
If PTP and routing is to be supported concurrently, then some routing related frame rewrites must be
done in ANA_ACL instead of in the rewriter. This is enabled in
ANA_ACL::VCAP_S2_MISC_CTRL.ACL_RT_SEL or by setting VCAP IS2 action ACL_RT_MODE.
When enabled, the frame’s DMAC is changed to the next-hop MAC address specificed by ANA_L3 and
the rewriter is informed not to rewrite the DMAC. The following classification results used by the rewriter
are changed when routing in ANA_ACL:
•
•
The frame’s classified VID is set to the egress VID.
The frame’s classified VSI is optionally set to the egress router leg
(ANA_ACL::VCAP_S2_MISC_CTRL.ACL_RT_UPDATE_GEN_IDX_ERLEG_ENA) or the egress
VID (ANA_ACL::VCAP_S2_MISC_CTRL.ACL_RT_UPDATE_GEN_IDX_EVID_ENA)
In addition, ANA_L3 must be setup to change the source MAC address with the address belonging to the
egress router leg (ANA_L3::ROUTING_CFG.RT_SMAC_UPDATE_ENA). The IPv4 TTL or IPv6 hop limit
is still decremented by the rewriter.
3.21.2.3
PTP Delay_Req/Resp Processing
VCAP IS2 actions can trigger PTP Delay_Req/resp processing where an incoming Delay_Req frame is
terminated and a Delay_Resp frame is generated with appropriate PTP updates.
The following table lists the registers associated with PTP processing and rewriting capabilities in
ANA_ACL.
Table 107 • ANA_ACL PTP Processing and Rewriting Registers
Register
Description
Replication
ANA_ACL:PORT:PTP_CFG
PTP time domain configuration and PTP
portNumber configuration used in portIdentity.
Per port
VMDS-10492 VSC7440 Datasheet Revision 4.2
168
Functional Descriptions
Table 107 • ANA_ACL PTP Processing and Rewriting Registers (continued)
Register
Description
Replication
ANA_ACL::PTP_MISC_CTRL
Enable Delay_Req/resp processing.
Enable logMessageInterval update for multicast
Delay_Resp frames.
None
ANA_ACL:PTP_DOM:PTP_CLOCK_ID_MSB
PTP clockIdentity used in portIdentity.
Per PTP domain
ANA_ACL:PTP_DOM:PTP_CLOCK_ID_LSB
PTP clockIdentity used in portIdentity.
Per PTP domain
ANA_ACL:PTP_DOM:PTP_SRC_PORT_CFG PTP portNumber used in portIdentity.
Per PTP domain
Configuration of whether to use fixed portNumber
or per-port portNumber.
ANA_ACL:PTP_DOM:PTP_MISC_CFG
Configuration of flagField with associated mask.
The PTP domain is specified with VCAP IS2
action PTP_DOM_SEL.
Per PTP domain
VCAP IS2 action REW_CMD defines the Delay_Req/Resp processing mode where two modes exist:
•
•
Generate Delay_Resp from Delay Req frame and update the receiveTimestamp in the PTP header
with the ingress PTP time stamp. Use the time stamp from the configured time domain
(ANA_ACL:PORT:PTP_CFG.PTP_DOMAIN). This time domain must match the selected time
domain on the ingress port (DEVxx::PTP_CFG.PTP_DOM)
Generate Delay_Resp from Delay Req frame and do not update the receiveTimestamp.
In addition to the VCAP IS2 action, the Delay_Req/Resp processing must also be enabled in ANA_ACL
(ANA_ACL::PTP_MISC_CTRL.PTP_ALLOW_ACL_REW_ENA).
In addition to updating the receiveTimestamp, the following PTP header modifications are done
independently of the Delay_Req/Resp processing mode:
•
•
•
•
messageType. The PTP messageType is set to 0x9 (Delay_Resp)
messageLength. The PTP messageLength is set to 0x54 and the frame is expanded with 10 bytes
to accomodate the requestingPortIdentity. If the frame expands beyond 148 bytes, then the frame is
discarded.
For PTP frames carried over UDP, the UDP length is increased with 10 bytes. It is mandatory that
the original UDP length is 44 bytes. For PTP frames carried over IPv4, the IP total length is
increased with 10 bytes.
flagField. Selected bits in the PTP flagField can be reconfigured using the per-PTP domain
configured flagField and flagField mask (ANA_ACL:PTP_DOM:PTP_MISC_CFG).
The PTP domain is selected using VCAP IS2 action PTP_DOM_SEL.
sourcePortIdentity. The sourcePortIdentity is constructed using a 64-bit clockIdentity and a 16-bit
portNumber. The clockIdentity is configurable per-PTP domain.
By default, the portNumber is set to a per-PTP domain configured value. In addition, it is selectable
to overwrite the six least significant bits with a per-port configured value.
•
•
•
The PTP domain is selected using VCAP IS2 action PTP_DOM_SEL.
controlField. The PTP controlField is set to 0x3.
logMessageInterval. The PTP logMessageInterval can be specified for multicast frames only with
new values ranging from –8 through 7. The new value is configured using VCAP IS2 actions
SWAP_MAC_ENA and LOG_MSG_INT.
This update can be globally disabled in
ANA_ACL::PTP_MISC_CTRL.PTP_DELAY_REQ_MC_UPD_ENA.
requestingPortIdentity. This fields is set to the incoming frame’s sourcePortIdentity.
For PTP frames carried over UDP, any PTP header modifications trigger the UDP checksum to be
updated for IPv6 frames and to be cleared for IPv4 frames.
VMDS-10492 VSC7440 Datasheet Revision 4.2
169
Functional Descriptions
In addition to the PTP header modifications, address swapping and rewriting can also be enabled for
PTP frames. For PTP carried over UDP it can be useful to also swap MAC addresses, swap IP
addresses, change UDP port numbers, and preset the IPv4 TTL or IPv6 hop limit.
3.22
Analyzer Layer 2 Forwarding and Learning
The analyzer Layer 2 (ANA_L2) block performs the following tasks:
•
•
•
•
Determining forwarding decisions
Tracking network stations and their MAC addresses through learning and aging
Tracking and setting limits for number station learned per FID/ports
Scanning and updating the MAC table
The analyzer Layer 2 block makes a forwarding decision based on a destination lookup in the MAC table.
The lookup is based on the received Destination MAC address together with either the classified VID for
multicast traffic or the classified FID for unicast traffic. If an entry is found in the MAC table lookup, the
associated entry address is used for selecting forwarding port or ports. A flood forwarding decision is
made if no entry is found and forwarding to unknown destinations is permitted
(ANA_L3:VLAN:VLAN_CFG.VLAN_SEC_FWD_ENA).
The analyzer Layer 2 block performs a source lookup in the MAC table to determine if the source station
is known or unknown by looking at if there is an entry in the MAC table. If a MAC table entry exists, a port
move detection is performed by looking at whether the frame was received at the expected interface
specified. The source check can trigger the following associated actions.
•
•
•
Disabling forwarding from unknown or moved stations
Triggering automated learning
Sending copy to CPU
If the source station is known, the entry AGE_FLAG is cleared to indicate that source associated with the
entry is active. The AGE_FLAG is part of the aging functionality to remove inactive MAC table entries.
For more information, see Automated Aging (AUTOAGE), page 183.
The following subsections further describe the main analyzer Layer 2 blocks.
3.22.1
Analyzer MAC Table
The analyzer Layer 2 block contains a MAC table with 16,384 entries containing information about
stations learned or known by the device. The table is organized as a hash table with four buckets on each
row. Each row is indexed based on a hash value calculated based on the station’s (FID, MAC) pair.
The filtering ID (FID) used is either the FID from the VLAN table if a unicast MAC is looked up or else it is
the classified VID. It is possible to enforce use of FID for multicast (ANA_L3:COMMON:SERVICE_CFG).
MAC table organization is depicted in the following illustration.
VMDS-10492 VSC7440 Datasheet Revision 4.2
170
Functional Descriptions
Figure 37 • MAC Table Organization
Row 0
MAC Entry
CMAC Table
HASH_KEY (FIX, MAC)
3.22.1.1
ck
et
3
2
Bu
ck
et
Bu
ck
et
Bu
Bu
ck
et
0
1
Row 8191
MAC Entry Table
Each entry in the MAC table contains the fields listed in the following table.
Table 108 • MAC Table Entry
Field
Bits
Description
VLD
1
Entry is valid.
MAC
48
The MAC address of the station. (Part of primary key).
FID
13
VLAN filtering identifier (FID) unicast C-MAC entries. VLAN identifier (VID) for multicast CMAC entries. (Part of primary key).
LOCKED
1
Lock the entry as static. Note: Locking an entry will prevent hardware from changing
anything but the AGE_FLAG in the entry.
MIRROR
1
Frames from or to this station are candidate for mirroring.
AGE_FLAG
2
The number of loopbackaging periods that have taken place since the last frame was
received from this station. Incremented by hardware during a CPU SCAN and AUTOAGE
SCAN for the entry configured AGE_INTERVAL.
AGE_INTERVAL 2
Used to select which age timer is associated with the entry.
NXT_LRN_ALL
1
Used to ensure consistent MAC tables in a stack.
CPU_COPY
1
Frames from or to this station are candidate for CPU copy. Used together with CPU_QU
(to specify queue number).
CPU_QU
3
Used together with CPU_COPY.
SRC_KILL_FWD 1
Frames from this station will not be forwarded. This flag is not used for destination lookups.
VLAN_IGNORE
1
Used for ignoring the VLAN_PORT_MASK contribution from the VLAN table when
forwarding frames to this station. Can optionally be used for source port ignore
(ANA_L2::FWD_CFG.FILTER_MODE_SEL).
ADDR
12
Stored entry address used for forwarding and port move detection. The field is encoded
according to ADDR_TYPE.
VMDS-10492 VSC7440 Datasheet Revision 4.2
171
Functional Descriptions
Table 108 • MAC Table Entry (continued)
Field
Bits
Description
ADDR_TYPE
3
This field encodes how to interpret the ADDR field.
Encoded as:
ADDR_TYPE= UPSID_PN(0): Unicast entry address. Used to associate the entry with a
unique {UPSID, UPSPN} port.
ADDR(9:5) = UPSID
ADDR(4:0) = UPSPN
ADDR_TYPE=GCPU_UPS(1): CPU management entry address. Used to associate the
entry with a unique global CPU port or internal port.
ADDR(9:5) = UPSID
ADDR(11) = 0:
ADDR(3:0) = CPU port number.
ADDR(11) = 1:
ADDR(3:0) = 0xe: Internal port number.
ADDR(3:0) = 0xf: Local lookup at destination unit (UPSID).
ADDR_TYPE=GLAG(2): Unicast GLAG address. Used to associate the entry with a global
aggregated port.
ADDR = GLAGID.
ADDR_TYPE=MC_IDX(3): Multicast entry address. Used to associate the entry with an
entry in the PGID table. Specifies forwarding to the ports found in the PGID table entry
indexed by mc_idx.
ADDR = mc_idx.
3.22.1.2
CAM Row
Under some circumstances, it might be necessary to store more entries than possible on a MAC table
row, in which case entries are continuously changed or automatically updated.
To reduce this issue, one additional MAC table row (named CAM row) exist with entries that can be used
to extend any hash chain, and thereby reduce the probability for hash depletion where all the buckets on
a MAC table row are used. These entries on the CAM row can be used as any other MAC table entries.
CAM row usage is controlled separately (by ANA_L2::LRN_CFG.AUTO_LRN_USE_MAC_CAM_ENA,
ANA_L2::LRN_CFG.CPU_LRN_USE_MAC_CAM_ENA and
ANA_L2::LRN_CFG.LRN_MOVE_CAM_ENTRY_BACK).
3.22.2
MAC Table Updates
Entries in the MAC table are added, deleted, or updated by the following methods.
•
•
•
3.22.3
Automatic (hardware-based) learning of source MAC addresses; that is, inserting new (MAC, FID)
pairs in the MAC table
CPU access to MAC table (for example, CPU-based learning and table maintenance)
Automated age scan.
CPU Access to MAC Table
This section describes CPU access to the MAC table. The following table lists the applicable registers.
Table 109 • MAC Table Access Registers
Target::Register.Field
Description
Replication
LRN::
COMMON_ACCESS_CTRL
Controls CSR access to MAC table.
1
VMDS-10492 VSC7440 Datasheet Revision 4.2
172
Functional Descriptions
Table 109 • MAC Table Access Registers (continued)
Target::Register.Field
Description
Replication
LRN::MAC_ACCESS_CFG_0
Configures MAC (most significant bits) and FID for MAC table
entries.
1
LRN::MAC_ACCESS_CFG_1
Configures MAC address (Least significant bits) for MAC table
entries and FID.
1
LRN::MAC_ACCESS_CFG_2
Configures the following MAC entry fields:
ADDR
ADDR_TYPE
SRC_KILL_FWD
NXT_LRN_ALL
CPU_COPY
VLAN_IGNORE
AFE_FLAG
AGE_INTERNAL
MIRROR
LOCKED
VLD
1
LRN::EVENT_STICKY
Sticky status for access performed.
1
LRN::SCAN_NEXT_CFG
MAC table scan filter controls.
1
LRN::SCAN_NEXT_CFG_1
MAC table port move handles when performing MAC table SCAN. 1
ANA_L2::SCAN_FID_CTRL
Controls use of additional FIDs when doing scan.
1
ANA_L2::SCAN_FID_CFG
Configures additional VID/FID filters during scan if enabled via
ANA_L2::SCAN_FID_CTRL.
16
LRN::SCAN_LAST_ROW_CFG
Configures a last row applicable for scan.
1
LRN::SCAN_NEXT_CNT
MAC table status when performing MAC table SCAN.
1
LRN::LATEST_POS_STATUS
Holds the latest CPU accessed MAC table location after a
CPU_ACCESS_CMD has finished.
1
CPU access to the MAC table is performed by an indirect command-based interface where a number of
fields are configured (in LRN::MAC_TABLE_ACCESS_CFG_*) followed by specifying the command (in
LRN::COMMON_ACCESS_CTRL.CPU_ACCESS_CMD). The access is initiated by a shot bit that is
cleared upon completion of the command
(LRN::COMMON_ACCESS_CTRL.MAC_TABLE_ACCESS_SHOT). It is possible to trigger CPU
interrupt upon completion (ANA_L2:COMMON:INTR.LRN_ACCESS_COMPLETE_INTR).
VMDS-10492 VSC7440 Datasheet Revision 4.2
173
Functional Descriptions
The following table lists the types of access possible.
Table 110 • MAC Table Access Commands
Command
Purpose
Use
Learn
Insert/learn new entry in MAC Configure MAC and FID of the new entry in
table.
LRN::MAC_ACCESS_CFG_0 and
LRN::MAC_ACCESS_CFG_1.
Position given by HASH(MAC,
FID).
Configure entry fields in LRN::MAC_ACCESS_CFG_2.
Status of operation returned in:
LRN::EVENT_STICKY.CPU_LRN_REFRESH_STICKY,
LRN::EVENT_STICKY.CPU_LRN_INSERT_STICKY,
LRN::EVENT_STICKY.CPU_LRN_REPLACE_STICKY,
LRN::EVENT_STICKY.CPU_LRN_REPLACE_FAILED_STICK
Y, LRN::EVENT_STICKY.CPU_LRN_FAILED_STICKY, and
LRN::EVENT_STICKY.LRN_MOVE_STICKY
Unlearn/Forget
Delete/unlearn entry in MAC
table given by (MAC, FID).
Configure MAC and FID of the entry to be unlearned in
LRN::MAC_ACCESS_CFG_0 and
LRN::MAC_ACCESS_CFG_1.
Position given by HASH(MAC,
FID).
Status of operation returned in:
LRN::EVENT_STICKY.CPU_UNLEARN_STICKY and
LRN::EVENT_STICKY.CPU_UNLEARN_FAILED_STICKY.
Lookup
Lookup entry in MAC table
given by (MAC, FID).
Configure MAC and FID of the entry to be looked up in
LRN::MAC_ACCESS_CFG_0 and
LRN::MAC_ACCESS_CFG_1.
Position given by HASH(MAC,
FID)
Status of lookup operation returned in:
LRN::EVENT_STICKY.CPU_LOOKUP_STICKY and
LRN::EVENT_STICKY.CPU_LOOKUP_FAILED_STICKY
Entry fields are returned in LRN::MAC_ACCESS_CFG_2 if
lookup succeeded.
Read direct
Read entry in MAC table
indexed by (row, column)
Configure the index of the entry to read in
LRN::COMMON_ACCESS_CTRL.CPU_ACCESS_DIRECT_R
OW,
LRN::COMMON_ACCESS_CTRL.CPU_ACCESS_DIRECT_C
OL and
LRN::COMMON_ACCESS_CTRL.CPU_ACCESS_DIRECT_T
YPE
Status of read operation returned in
LRN::EVENT_STICKY.CPU_READ_DIRECT_STICKY
Entry fields are returned in LRN::MAC_ACCESS_CFG_0,
LRN::MAC_ACCESS_CFG_1 and
LRN::MAC_ACCESS_CFG_2 if read succeeded.
VMDS-10492 VSC7440 Datasheet Revision 4.2
174
Functional Descriptions
Table 110 • MAC Table Access Commands (continued)
Command
Purpose
Use
Write direct
Write entry in MAC table
indexed by (row, column)
Configure the index of the entry to write in
LRN::COMMON_ACCESS_CTRL.CPU_ACCESS_DIRECT_R
OW,
LRN::COMMON_ACCESS_CTRL.CPU_ACCESS_DIRECT_C
OL and
LRN::COMMON_ACCESS_CTRL.CPU_ACCESS_DIRECT_T
YPE
Configure entry fields in LRN::MAC_ACCESS_CFG_0,
LRN::MAC_ACCESS_CFG_1 and
LRN::MAC_ACCESS_CFG_2
Status of write operation returned in
LRN::EVENT_STICKY.CPU_WRITE_DIRECT_STICKY
Scan
Find next/Find all
Configure the starting row for the scan in:
LRN::COMMON_ACCESS_CTRL.CPU_ACCESS_DIRECT_R
Searches through the MAC
OW,
table and either stops at the
LRN::COMMON_ACCESS_CTRL.CPU_ACCESS_DIRECT_C
first row with entries matching OL and
the specified filter conditions
LRN::COMMON_ACCESS_CTRL.CPU_ACCESS_DIRECT_T
or perform the specified
YPE
actions on all entries matching
the specified filter conditions. Configure an ending row for the scan (if searching through the
complete table is not required):
LRN::SCAN_LAST_ROW_CFG.SCAN_LAST_ROW
For information about search filters and corresponding actions,
see SCAN Command, page 176.
Find smallest
Get the smallest entry in the
Configure MAC and FID of the starting point for the search in
MAC table numerically larger LRN::MAC_ACCESS_CFG_0 and
than the specified (FID, MAC). LRN::MAC_ACCESS_CFG_1.
FID and MAC are evaluated as Configure search filters to be used during find smallest:
a 61 bit number with the FID
being most significant.
Use
LRN::SCAN_NEXT_CFG.SCAN_NEXT_IGNORE_LOCKED_E
NA to only search among entries with
LRN::MAC_ACCESS_CFG_2.MAC_ENTRY_LOCKED cleared.
Use LRN::SCAN_NEXT_CFG.FID_FILTER_ENA to only search
among entries with the VID/FID specified in
LRN::MAC_ACCESS_CFG_0.MAC_ENTRY_FID.
Use LRN::SCAN_NEXT_CFG.ADDR_FILTER_ENA to only
search among entries with the address specified in
LRN::MAC_ACCESS_CFG_2.MAC_ENTRY_ADDR and
LRN::MAC_ACCESS_CFG_2.MAC_ENTRY_ADDR_TYPE
Clear all
3.22.3.1
Initialize the table
Clears the entire table.
Adding a Unicast Entry
Use the following steps to add a unicast entry to the MAC table using the CPU interface.
VMDS-10492 VSC7440 Datasheet Revision 4.2
175
Functional Descriptions
1.
2.
3.
4.
5.
6.
3.22.3.2
Configure the entry MAC address: LRN::MAC_ACCESS_CFG_0.MAC_ENTRY_MAC_MSB LRN::MAC_ACCESS_CFG_1.MAC_ENTRY_MAC_LSB < 32 LS MAC bit >
Configure the VLAN FID:
LRN::MAC_ACCESS_CFG_0.MAC_ENTRY_FID
Configure the UPSID/UPSPN value:
LRN::MAC_ACCESS_CFG_2.MAC_ENTRY_ADDR_TYPE 0 (=UPSID)
LRN::MAC_ACCESS_CFG_2.MAC_ENTRY_ADDR
Make the entry valid: LRN::MAC_ACCESS_CFG_2.MAC_ENTRY_VLD 1
Perform access:
LRN::COMMON_ACCESS_CTRL.CPU_ACCESS_CMD 0 (=LEARN)
LRN::COMMON_ACCESS_CTRL.MAC_TABLE_ACCESS_SHOT 1
Verify that access succeeded: LRN::COMMON_ACCESS_CTRL.MAC_TABLE_ACCESS_SHOT ==
0? LRN::EVENT_STICKY.CPU_LRN_INSERT_STICKY==1?
Adding Multicast Entry with Destination Set in PGID Table
Use the following steps to add Layer 2 multicast entries to the MAC table using the CPU interface.
1.
2.
3.
4.
5.
6.
7.
3.22.4
Configure the entry MAC address: LRN::MAC_ACCESS_CFG_0.MAC_ENTRY_MAC_MSB LRN::MAC_ACCESS_CFG_1.MAC_ENTRY_MAC_LSB < 32 LSB MAC bits >
Configure the VLAN ID:
LRN::MAC_ACCESS_CFG_0.MAC_ENTRY_FID
Configure the PGID pointer:
LRN::MAC_ACCESS_CFG_2.MAC_ENTRY_ADDR_TYPE 3 (=MC_IDX)
LRN::MAC_ACCESS_CFG_2.MAC_ENTRY_ADDR
Lock the entry (not subject to aging and automatic removal):
LRN::MAC_ACCESS_CFG_2.MAC_ENTRY_LOCKED 1
Make the entry valid:
LRN::MAC_ACCESS_CFG_2.MAC_ENTRY_VLD 1
Perform access:
LRN::COMMON_ACCESS_CTRL.CPU_ACCESS_CMD 0 (=LEARN)
LRN::COMMON_ACCESS_CTRL.MAC_TABLE_ACCESS_SHOT 1
Verify that access succeeded: LRN::COMMON_ACCESS_CTRL.MAC_TABLE_ACCESS_SHOT ==
0? LRN::EVENT_STICKY.CPU_LRN_INSERT_STICKY==1?
SCAN Command
The SCAN command easily performs table management, such as port flushing, CPU-based aging, and
port moves.
Scan can be configured with a variety of filters and modifiers that allows the CPU to easily identify and
optionally modify entries matching the configured filter conditions.
The scan operates by running through all entries and whenever entries are found with matching
conditions, the scan either stops with a status of the matching location (for example, a “find next”
operation) or performs the configured modification actions for all entries (for example, “scan all”
operation).
When the scan runs as “find next”, the scan commands are performed for finding the next matching
entry. In this case it is possible to specify a starting row for a scan (
LRN::COMMON_ACCESS_CTRL.CPU_ACCESS_DIRECT_ROW and
LRN::COMMON_ACCESS_CTRL.CPU_ACCESS_DIRECT_TYPE).
Whenever the scan stops with a matching entry, the CPU can process the entry and then sets the
starting row to the row following the matching row and, issue another scan command. This can then be
repeated until all entries have been scanned.
SCAN is started by setting LRN::COMMON_ACCESS_CTRL.CPU_ACCESS_CMD 5 (=SCAN) and
setting the shot bit LRN::COMMON_ACCESS_CTRL.MAC_TABLE_ACCESS_SHOT
SCAN is completed when the shot bit is cleared in
LRN::COMMON_ACCESS_CTRL.MAC_TABLE_ACCESS_SHOT.
VMDS-10492 VSC7440 Datasheet Revision 4.2
176
Functional Descriptions
The following table lists the supported SCAN filters.
Table 111 • Scan Filters
Filter Type
Target::Register.Field
Description
FID filter
LRN::SCAN_NEXT_CFG.FID_FILTER_ENA
LRN::MAC_ACCESS_CFG_0.MAC_ENTRY_FID
ANA_L2::SCAN_FID_CTRL
ANA_L2::SCAN_FID_CFG
Finds entries with a specific
VID/FID.
Port or Address filter
LRN::SCAN_NEXT_CFG.ADDR_FILTER_ENA,
LRN::MAC_ACCESS_CFG_2.MAC_ENTRY_ADDR,
LRN::MAC_ACCESS_CFG_2.MAC_ENTRY_ADDR_TYPE
LRN::SCAN_NEXT_CFG_1.SCAN_ENTRY_ADDR_MASK
Finds entries with a specific
ADDR_TYPE and ADDR. Note
that this can be combined with
ADDR wildcards; for example, to
find all entries related with a given
ADDR_TYPE, and so on.
Automatic age scan
port filter
LRN::SCAN_NEXT_CFG.SCAN_USE_PORT_FILTER_ENA Configures a port filter used for
ANA_L2::FILTER_OTHER_CTRL
defining which ports are
applicable for automatic aging.
ANA_L2::FILTER_LOCAL_CTRL
Non-locked only filter LRN::SCAN_NEXT_CFG.SCAN_NEXT_IGNORE_LOCKED Finds non locked entries.
_ENA
Aged only filter
LRN::SCAN_NEXT_CFG.SCAN_NEXT_AGED_ONLY_ENA Finds only aged entries, that is,
AGE_FLAG equal to maximum
(configured in
ANA_L2::LRN_CFG.AGE_SIZE).
AGE_INTERVAL filter LRN::SCAN_NEXT_CFG.SCAN_AGE_INTERVAL_MASK
Finds entries with a specific
AGE_INTERVAL.
AGE_FLAG filter
LRN::SCAN_NEXT_CFG.SCAN_AGE_FILTER_SEL
MAC_ACCESS_CFG_2.MAC_ENTRY_AGE_FLAG
Finds only entries with a specific
value.
NXT_LRN_ALL filter
LRN::SCAN_NEXT_CFG.NXT_LRN_ALL_FILTER_ENA
MAC_ACCESS_CFG_2. MAC_ENTRY_NXT_LRN_ALL
Finds only entries with a specific
value.
Ignore locked filter
LRN::SCAN_NEXT_CFG.SCAN_NEXT_IGNORE_LOCKED Finds all or only non locked
_ENA
entries.
Aged only filter
LRN::SCAN_NEXT_CFG.SCAN_NEXT_AGED_ONLY_ENA Finds all or only aged entries
(AGE_FLAG != 0).
The following table lists the available SCAN related actions.
Table 112 • Scan Modification Actions
Action Type
Target::Register.Field
Description
Scan next until
found
LRN::SCAN_NEXT_CFG.SCAN_NEXT_UNTIL_FOUND_ENA Controls if scan stops when finding
an entry or scans through all
entries.
Update
AGE_FLAG
LRN::SCAN_NEXT_CFG.SCAN_AGE_FLAG_UPDATE_SEL
Update
NXT_LRN_ALL
LRN::SCAN_NEXT_CFG.SCAN_NXT_LRN_ALL_UPDATE_S Update sNXT_LRN_ALL for found
EL
entries.
See LRN::SCAN_NEXT_CFG.
Change address
(MOVE)
LRN::SCAN_NEXT_CFG.SCAN_NEXT_MOVE_FOUND_ENA Updates address for found entries.
LRN::SCAN_NEXT_CFG_1.PORT_MOVE_NEW_ADDR
LRN::SCAN_NEXT_CFG_1.SCAN_ENTRY_ADDR_MASK
Updates AGE_FLAG for found
entries.
See LRN::SCAN_NEXT_CFG.
VMDS-10492 VSC7440 Datasheet Revision 4.2
177
Functional Descriptions
Table 112 • Scan Modification Actions (continued)
Action Type
Target::Register.Field
Description
Remove
LRN::SCAN_NEXT_CFG.SCAN_NEXT_REMOVE_FOUND_E Removes found entries.
NA
CPU age scan
LRN::SCAN_NEXT_CFG.SCAN_NEXT_INC_AGE_BITS_ENA Performs CPU based age scan.
Aged entries. For example, entries
with AGE_FLAG equal to
maximum (configured in
ANA_L2::LRN_CFG.AGE_SIZE)
are removed and Non aged
entries, such as entries with
AGE_FLAG less than maximum,
gets the AGE_FLAG incremented.
Automatic Learning, page 181.
The following SCAN status is available:
•
•
•
•
3.22.4.1
Match scan result for the last matching row is reported
(LRN::LATEST_POS_STATUS.SCAN_NEXT_STATUS).
Number of entries found during the scan found (LRN::SCAN_NEXT_CNT.SCAN_NEXT_CNT).
Scan remove is reported via the sticky event (LRN::EVENT_STICKY.SCAN_REMOVED_STICKY)
Scan match found is reported via the sticky event
(LRN::EVENT_STICKY.ROW_WITH_SCAN_ENTRY_STICKY).
Initiating a Port Move for a Specific FID
The following example initiates a port move for specific FID.
•
•
•
•
•
•
•
3.22.5
Move found entries:
Set LRN::SCAN_NEXT_CFG.SCAN_NEXT_MOVE_FOUND_ENA = 1.
Specify the FID filter:
Set LRN::SCAN_NEXT_CFG.FID_FILTER_ENA = 1.
Set LRN::MAC_ACCESS_CFG_0.MAC_ENTRY_FID = .
Specify port filter:
Set LRN::SCAN_NEXT_CFG.ADDR_FILTER_ENA = 1.
Set LRN::MAC_ACCESS_CFG_2.MAC_ENTRY_ADDR_TYPE = 0 to specify address type
UPSID_PN.
Set LRN::MAC_ACCESS_CFG_2.MAC_ENTRY_ADDR = to specify UPSID and
UPSPN.
Specify the new address:
Set LRN::SCAN_NEXT_CFG_1.PORT_MOVE_NEW_ADDR =
Set LRN::SCAN_NEXT_CFG_1.SCAN_ENTRY_ADDR_MASK = all ones.
Scan through all rows by starting at row 0:
Set LRN::COMMON_ACCESS_CTRL.CPU_ACCESS_DIRECT_ROW = 0.
Set LRN::COMMON_ACCESS_CTRL.CPU_ACCESS_DIRECT_TYPE = 0.
Issue SCAN command:
Set LRN::COMMON_ACCESS_CTRL.CPU_ACCESS_CMD = 5.
Set LRN::COMMON_ACCESS_CTRL.MAC_TABLE_ACCESS_SHOT = 1.
Wait until LRN::COMMON_ACCESS_CTRL.MAC_TABLE_ACCESS_SHOT is cleared.
Forwarding Lookups
This section describes forwarding handling. The following table lists the applicable registers.
Table 113 • Forwarding Registers
Target::Register.Field
Description
Replication
ANA_L2:COMMON:FWD_CFG
Configures common forwarding options
1
VMDS-10492 VSC7440 Datasheet Revision 4.2
178
Functional Descriptions
3.22.5.1
DMAC-Based Forwarding
The analyzer performs destination lookup in the MAC table to determine if the destination MAC address
is known or unknown.
•
•
If the destination is unknown, a flood forwarding decision is made if forwarding from unknown
sources is allowed (ANA_L3:VLAN:VLAN_CFG.VLAN_SEC_FWD_ENA). The associated flood
masks are located in the PGID table.
If the destination address is known, the associated ADDR_TYPE and ADDR stored in the
destination entry is used to find the destination port or ports in the PGID table.
Flooded traffic can be made available for mirroring
(ANA_L2:COMMON:FWD_CFG.FLOOD_MIRROR_ENA) and CPU copying
(ANA_L2:COMMON:FWD_CFG.FLOOD_CPU_COPY_ENA
ANA_L2:COMMON:FWD_CFG.CPU_DMAC_QU).
Traffic with known DMAC and VLAN_IGNORE set
LRN:COMMON:MAC_ACCESS_CFG_2.MAC_ENTRY_VLAN_IGNORE for CPU learned frames or
LRN:COMMON:AUTO_LRN_CFG.AUTO_LRN_IGNORE_VLAN for auto learned entries) and optionally
also flooded traffic (when ANA_L2:COMMON:FWD_CFG.FLOOD_IGNORE_VLAN_ENA set) can be
configured to ignore VLAN port mask or source port mask
(ANA_L2:COMMON:FWD_CFG.FILTER_MODE_SEL).
The DMAC lookup of the received {DMAC, EFID} in the MAC table is shown in the following illustration.
Figure 38 • DMAC Lookup
DMAC MAC lookup
performed
# MAC entry found?
mac_entry.vld=1?
false
# Allow VLAN flooding?
req.vlan_flood_dis==1?
true
false
# Use info from MAC entry
req.dst_addr_type := mac_entry.addr_type
req.dst_addr := mac_entry.addr
vlan_ignore := mac_entry.vlan_ignore
req.dmac_mirror := mac_entry.mirror
# Use flood configuration
req.flood := true
vlan_ignore :=
ANA_L2::FWD_CFG.FLOOD_IGNORE_VLAN_ENA
req.dmac_mirror :=
ANA_L2::FWD_CFG.FLOOD_MIRROR_ENA
# CPU copy?
ANA_L2::FWD_CFG.CPU_DMAC_COPY_ENA &&
mac_entry.cpu_copy?
req.l2_fwd := 0
req.vlan_mask := 0
true
# CPU copy?
ANA_L2::FWD_CFG.FLOOD_CPU_COPY_ENA?
true
true
false
req.cpu_dest_set( ANA_L2::FWD_CFG.CPU_DMAC_QU) :=
1
req.cpu_dest_set(mac_entry.cpu_qu) := 1
false
vlan_ignore?
true
# VLAN ignore filter mode
ANA_L2:COMMON:FWD_CFG.FILTER_MODE_SEL?
false
true
req.ignore_src_mask := true
req.vlan_mask := ”ALL_ONES”
false
DMAC handling done
VMDS-10492 VSC7440 Datasheet Revision 4.2
179
Functional Descriptions
3.22.6
Source Check and Automated Learning
This section describes hardware (or automated) learning related to source checking. The following table
lists the applicable registers.
Table 114 • Hardware-Based Learning
Target::Register.Field
Description
Replication
ANA_L2::AUTO_LRN_CFG
Configures automatic learning per port
1
ANA_L2::LRN_SECUR_CFG
Configures secure forwarding per port
1
ANA_L2::LRN_SECUR_LOCKED_CF
G
Configures secure forwarding for static locked entries per
port.
1
ANA_L2::LRN_COPY_CFG
Configures CPU copy of learn frames per port.
1
ANA_L2::MOVELOG_STICKY
Identifies ports with moved stations.
1
ANA_L2::LRN_CFG
Configures common learning properties.
1
ANA_L3:VLAN:VLAN_CFG.VLAN_FID Configures filtering identifier (FID) to be used for learning.
Per VLAN
LRN::AUTO_LRN_CFG
Configures automatic learning options.
1
LRN::EVENT_STICKY
Signal various sticky learning events.
1
ANA_L2:PORT_LIMIT:PORT_LIMIT_
CTRL
Controls automatic learn limits per logical port and GLAG.
per port and
GLAG (11+8
instances)
ANA_L2:PORT_LIMIT:PORT_LIMIT_
STATUS
Status for port limits.
per port and
GLAG (11+8
instances)
ANA_L2:LRN_LIMIT:FID_LIMIT_CTRL Controls automatic learn limits per FID.
per FID (4,224
instances)
ANA_L2:LRN_LIMIT:FID_LIMIT_
STATUS
per FID (4,224
instances)
Status for FID limits.
The device learns addresses from each received frame’s SMAC field, so that subsequently forwarded
frames whose destination addresses have been learned can be used to restrict transmission to the port
or ports necessary to reach their destination.
The analyzer performs source lookup of the received {SMAC, IFID} in the MAC table to determine if the
source station is known or unknown. For more information, see Figure 39, page 181. If the source station
is known, a port move detection is performed by checking that the frame was received at the expected
port as specified by the ADDR_TYPE and ADDR stored in the source entry. The expected port can be a
logical port (represented as UPSID, UPSPN), an MC_IDX, or a global aggregated port (represented as
GLAGID). Failing source checks can trigger a number of associated actions:
•
•
•
•
Secure forwarding. Disable forwarding from unknown or moved stations. This action can be
triggered by two configurations:
•
VLAN-based Secure forwarding controlled per VLAN
(ANA_L3:VLAN:VLAN_CFG.VLAN_SEC_FWD_ENA).
•
Port-based secure forwarding controlled per port (ANA_L2::LRN_SECUR_CFG).
Secure forwarding from locked entries. Disable forwarding from known but moved stations with
locked MAC table entry (ANA_L2:COMMON:LRN_SECUR_LOCKED_CFG).
Automatic learning enabled per port (ANA_L2::AUTO_LRN_CFG). Automatic learning of traffic
received from an unknown source station will cause the MAC table to be updated with a new entry.
Traffic received from a known source station with changed port will cause the known MAC table
entry ADDR_TYPE and ADDR to be updated.
CPU copy enabled per port (ANA_L2::LRN_COPY_CFG and ANA_L2::LRN_CFG.CPU_LRN_QU).
A learn copy is sent to CPU.
VMDS-10492 VSC7440 Datasheet Revision 4.2
180
Functional Descriptions
These actions are controlled independently. In other words, it is possible to send a CPU copy as well as
disable normal forwarding.
Figure 39 • Source Check
Source MAC lookup performed
# MAC entry found?
mac_entry.vld=1?
false
# Create MAC entry
false
mac_entry.addr_type := src_addr.type
mac_entry.addr := src_addr.addr
true
# Port move detection?
mac_entry.addr_type == src_addr.type &&
mac_entry.addr == src_addr.addr?
# CPU copy based on source lookup?
mac_entry.cpu_copy &&
ANA_L2::LRN_CFG.CPU_SMAC_COPY_ENA?
# Automatic learning?
ANA_L2::AUTO_LRN_CFG[req.port_num]==1?
true
false
req.cpu_dest_set(mac_entry.cpu_qu) := 1
# Secure VLAN forwarding?
req.vlan_sec_fwd_ena==1?
false
true
Put mac_entry into auto LRN queue
true
false
# Secure port forwarding?
ANA_L2::LRN_SECUR_CFG[req.port_num]==1?
true
req.l2_fwd := 0
req.vlan_mask := 0
true
req.cpu_dest_set(ANA_L2::LRN_CFG.C
PU_LRN_QU) := 1
false
# CPU copy of learn frames?
ANA_L2::LRN_COPY_CFG[req.port_num]==1?
false
Learn handling done
The source lookup is also used to clear an Age flag (used as activity indication) in the MAC table to allow
inactive MAC table entries to be pruned.
Port move detection is not performed for locked MAC table entries unless enabled
(ANA_L2::LRN_CFG.LOCKED_PORTMOVE_DETECT_ENA).
Frames failing locked port move detection can be copied to CPU queue
(ANA_L2::LRN_CFG.CPU_LRN_QU and ANA_L2::LRN_CFG.LOCKED_PORTMOVE_COPY_ENA).
3.22.6.1
Automatic Learning
The device can automatically add or update entries in the MAC table. New entries added by automatic
learning are formatted as follows.
•
•
•
•
•
•
VLD is set
MAC is set to the frame’s SMAC address
FID set to the frame’s REQ.FID
ADDR_TYPE, ADDR is set to:
UPSID_PN if received on a non aggregated port
GLAG if received on a global aggregated port
MAC_CPU_COPY (LRN::AUTO_LRN_CFG.AUTO_LRN_CPU_COPY)
MAC_CPU_QU (LRN::AUTO_LRN_CFG.AUTO_LRN_CPU_QU)
VMDS-10492 VSC7440 Datasheet Revision 4.2
181
Functional Descriptions
•
•
•
•
•
SRC_KILL (LRN::AUTO_LRN_CFG.AUTO_LRN_SRC_KILL_FWD)
IGNORE_VLAN (LRN::AUTO_LRN_CFG.AUTO_LRN_IGNORE_VLAN)
MIRROR (LRN::AUTO_LRN_CFG.AUTO_LRN_MIRROR)
AGE_INTERVAL (LRN::AUTO_LRN_CFG.AUTO_AGE_INTERVAL)
All other fields are cleared
When a frame is received from a known station, that is, the MAC table already contains an entry for the
received frame’s (SMAC, VID/FID), the analyzer clears the AGED_FLAG for unlocked entries (LOCKED
flag cleared) and optionally, locked entries (ANA_L2:COMMON:LRN_CFG.AGE_LOCKED_ENA). A
cleared AGE_FLAG implies that the station is active. For more information, Automated Aging
(AUTOAGE), page 183.
For unlocked entries, ADDR_TYPE and ADDR fields are compared against the following:
•
•
UPSID_PN if received on a non aggregated port
GLAG if received on a global aggregated port
If there is a difference, the source entry ADDR_TYPE and ADDR is updated, which implies the station
has moved to a new port.
Source check for entries stored with ADDR_TYPE=MC_IDX (=3) can be ignored
(ANA_L2::LRN_CFG.IGNORE_MCIDX_PORTMOVE_ENA).
3.22.6.2
Port Move Log
A port move occurs when an existing MAC table entry for (MAC, FID) is updated with new port
information (ADDR_TYPE and ADDR). Such an event is logged and reported (in
ANA_L2::MOVELOG_STICKY) by setting the bit corresponding to the new port.
If port moves continuously occurs, it may indicate a loop in the network or a faulty link aggregation
configuration.
Port moves for locked entries can be detected in
ANA_L2::LRN_CFG.LOCKED_PORTMOVE_DETECT_ENA.
3.22.6.3
Port Learn Limits
It is possible to specify the maximum number of entries in the MAC table per port.
Port limits can be specified per logical port (local link aggregated port) and per global link aggregated
port (GLAG) (ANA_L2:PORT_LIMIT:PORT_LIMIT_CTRL.PORT_LRN_CNT_LIMIT). These limits do not
take multicast into account.
The current number of learned entries are always available in
ANA_L2:PORT_LIMIT:PORT_LIMIT_STATUS.PORT_LRN_CNT and are updated whenever either an
automatic learn operation or a CPU access is performed.
After a limit is reached, both automatic learning and CPU-based learning of unlocked entries are denied.
A learn frame to be learned when the limit is reached can selectively be discarded, redirected to CPU, or
copied to CPU (controlled in ANA_L2:PORT_LIMIT:PORT_LIMIT_CTRL.PORT_LIMIT_EXCEED_SEL).
Trying to exceed the configured limit can also trigger interrupt
(ANA_L2:PORT_LIMIT:PORT_LIMIT_CTRL.PORT_LIMIT_EXCEED_IRQ_ENA).
When learn limits are exceeded, a corresponding sticky bit is set
(ANA_L2:PORT_LIMIT:PORT_LIMIT_STATUS.PORT_LRN_LIMIT_EXCEEDED_STICKY).
If a MAC table entry interrupt moves from one port to another port, it is also reflected in the current
number of learned entries.
3.22.6.4
Filtering Identifier Learn Limits
It is possible to specify the maximum number of entries to be used per FID
(ANA_L2:LRN_LIMIT:FID_LIMIT_CTRL.FID_LRN_CNT_LIMIT). These limits do not take multicast into
account.
The current number of learned entries are always available in
ANA_L2:LRN_LIMIT:FID_LIMIT_STATUS.FID_LRN_CNT.
VMDS-10492 VSC7440 Datasheet Revision 4.2
182
Functional Descriptions
After a limit is reached, both automatic learning and CPU-based learning of unlocked entries are denied.
A learn frame to be learned when the limit is reached can selectively be discarded, redirected to CPU, or
copied to CPU (controlled by ANA_L2:LRN_LIMIT:FID_LIMIT_CTRL.FID_LIMIT_EXCEED_SEL).
Attempts to exceed the configured limit can also trigger interrupt
(ANA_L2:LRN_LIMIT:FID_LIMIT_CTRL.FID_LIMIT_EXCEED_IRQ_ENA).
When the learn limits are exceeded, a corresponding sticky bit is set
(ANA_L2:LRN_LIMIT:FID_LIMIT_STATUS.FID_LRN_LIMIT_EXCEEDED_STICKY).
3.22.6.5
Shared or Independent VLAN Learning in MAC Table
The device can be set up to do a mix of Independent VLAN Learning (IVL), where MAC addresses are
learned separately on each VLAN and Shared VLAN Learning (SVL), where a MAC table entry is shared
among a group of VLANs. For shared VLAN learning, a MAC address and a filtering identifier (FID)
define each MAC table entry. A set of VIDs used for Shared VLAN learning maps to the same FID.
Shared VLAN learning is only applicable for unicast traffic.
Addresses learned from frames with one VLAN Identifier (VID) may or may not be used to filter frames
with the same SMAC but another VID, depending on management controls. If learned information is
shared for two or more given VIDs those VIDs map to a single Filtering Identifier (FID) and the term
Shared VLAN Learning (SVL) is used to describe their relationship. If the information is not shared, the
VIDs map to different FIDs and Independent VLAN Learning (IVL) is being used. FID is configured per
VLAN (ANA_L3:VLAN:VLAN_CFG.VLAN_FID).
For example, if VID 16 and VID 17 use SVL and share FID 16, then a MAC entry (MAC #X, FID 16) is
known for both VID 16 and VID 17.
If VID 16 and VID 17 use IVL and use FID 16 and FID 17, a MAC entry (MAC #X, FID 16) is only known
for VID 16; that is, the MAC address will be unknown for VID 17 (FID = 17).
In a VLAN-unaware operation, the device is set up to do SVL; that is, MAC addresses are learned for all
VLANs. Protocol-based VLAN, where traffic is classified into multiple VLANs based on protocol, requires
SVL
3.22.7
Automated Aging (AUTOAGE)
This section describes how to configure automated age scanning. The following table lists the applicable
registers.
Table 115 • Automated Age Scan Registers Overview
Target::Register.Field
Description
LRN::AUTOAGE_CFG
Configures automated age scan of MAC table for 4
each of the four AGE_INTERVALs.
LRN::AUTOAGE_CFG_1
Configures automated age scan of MAC table.
1
LRN::AUTOAGE_CFG_2
Configures automated age scan of MAC table.
1
LRN::EVENT_STICKY.
AUTOAGE_SCAN_COMPLETED_STICKY
Signals completion of an automatic scan.
1
LRN::EVENT_STICKY.
AUTOAGE_SCAN_STARTED_STICKY
Signals start of an automatic scan.
1
LRN::EVENT_STICKY. AUTOAGE_AGED_STICKY
Signals entries aged due to automatic aging.
1
LRN::EVENT_STICKY.
AUTOAGE_REMOVE_STICKY
Signals entries removed due to automatic aging. 1
ANA_L2::FILTER_LOCAL_CTRL
Configures front port filters to be used by
automatic aging and CPU scan.
1
ANA_L2::FILTER_OTHER_CTRL
Configures remote scan filter to be used by
automatic aging and CPU scan.
1
ANA_L2::LRN_CFG.AGE_SIZE
Configures the AGE_FLAG size.
1
VMDS-10492 VSC7440 Datasheet Revision 4.2
Replication
183
Functional Descriptions
Entry AGE_FLAG is used to detect inactive sources. The AGE_FLAG field is cleared upon receiving
traffic from a given source station and is periodically incremented by hardware to detect and delete
inactive source entries.
The automated age scan scans the MAC table and checks age candidates (entries with LOCK flag set to
0) for activity.
If an entry’s AGE_FLAG is set to maximum value (configured in ANA_L2::LRN_CFG.AGE_SIZE), the
entry is deemed inactive and removed. If an entry’s AGE_FLAG is less than the maximum value, the
AGE_FLAG is incremented.
The flag is cleared when receiving frames from the station identified by the MAC table entry.
It is possible to configure and forget AUTOAGE, which means that once configured automated aging is
performed without any further CPU assistance.
The interval between automatic aging can be controlled by specifying AGE_FLAG size
(ANA_L2::LRN_CFG.AGE_SIZE), unit size (LRN::AUTOAGE_CFG.UNIT_SIZE), and the number of units
between aging (LRN::AUTOAGE_CFG.PERIOD_VAL).
Setting LRN::AUTOAGE_CFG.UNIT_SIZE different from 0 to start the automatic aging.
To temporarily disable automatic aging, set LRN::AUTOAGE_CFG. PAUSE_AUTO_AGE_ENA to 1.
Additional control of automatic aging allows for instantaneously start and stop of current age scan
(LRN::AUTOAGE_CFG_1.FORCE_HW_SCAN_SHOT and
LRN::AUTOAGE_CFG_1.FORCE_HW_SCAN_STOP_SHOT).
It is also possible to do a controlled stopping of current age scan after it completes
(LRN::AUTOAGE_CFG_1.FORCE_IDLE_ENA).
It is possible to selectively do age filtering of local ports specified in
ANA_L2::FILTER_LOCAL_CTRL.FILTER_FRONTPORT_ENA or selectively do age filtering of entries
learned on remote devices in a multichip configuration
(ANA_L2::FILTER_OTHER_CTRL.FILTER_REMOTE_ENA). Both types must be enabled
(LRN::AUTOAGE_CFG_1.USE_PORT_FILTER_ENA).
The state of automatic aging can be monitored (LRN::AUTOAGE_CFG_2.NEXT_ROW,
LRN::AUTOAGE_CFG_2.SCAN_ONGOING_STATUS,
LRN::EVENT_STICKY.AUTOAGE_SCAN_COMPLETED_STICKY and
LRN::EVENT_STICKY.AUTOAGE_SCAN_STARTED_STICKY).
It is possible to observe whether entries are affected by a sticky event
(LRN::EVENT_STICKY.AUTOAGE_AGED_STICKY and
LRN::EVENT_STICKY.AUTOAGE_REMOVE_STICKY).
Example
For a 300-second age time, set four age periods of 75 seconds each:
1.
2.
3.
3.22.8
Set ANA_L2::LRN_CFG.AGE_SIZE to 1.
Set LRN::AUTOAGE_CFG[0]. AUTOAGE_UNIT_SIZE to 3.
Set LRN::AUTOAGE_CFG[0]. AUTOAGE_PERIOD_VAL to 75.
Interrupt Handling
The following table lists the interrupt handling registers.
Table 116 • Analyzer Interrupt Handling Registers Overview
Target::Register.Field
Description
Replication
ANA_L2::INTR
Status of interrupt source
1
ANA_L2::INTR_ENA
Mask interrupt
1
ANA_L2::INTR_IDENT
Status of interrupt
1
VMDS-10492 VSC7440 Datasheet Revision 4.2
184
Functional Descriptions
A sticky status of all interrupt sources in the analyzer is available (ANA_L2::INTR.VCAP_S2_INTR), and
all interrupt source can individually be configured to trigger CPU interrupt (ANA_L2::INTR_ENA). The
current CPU interrupt status is available (ANA_L2::INTR_IDENT).
The following analyzer interrupt sources exist:
VCAP IS2 can be setup to trigger CPU interrupt (VCAP_S2_INTR) when an entry with enabled interrupt
is hit (VCAP IS2 action INTR_ENA).
It is possible to trigger interrupt (PORT_LRN_LIMIT_INTR) when learning on a port attempt to exceed a
configured port learn limit (configured in
ANA_L2:PORT_LIMIT:PORT_LIMIT_CTRL.PORT_LIMIT_EXCEED_IRQ_ENA).
It is possible to trigger interrupt (FID_LRN_LIMIT_INTR) when learning on a FID attempt to exceed a
configured limit (configured in ANA_L2:LRN_LIMIT:FID_LIMIT_CTRL.FID_LIMIT_EXCEED_IRQ_ENA).
LRN access to the MAC table can be configured to trigger interrupt (LRN_ACCESS_COMPLETE_INTR)
after completion. This is useful when multiple CPU scans must be performed as fast as possible, for
example, when sorting the MAC addresses extracted from the entire MAC table using SCAN commands.
For more information about using the SCAN command, see SCAN Command, page 176.
3.23
Analyzer Access Control Forwarding, Policing, and
Statistics
This section provides information about analyzer access control (ANA_AC) forwarding, policing, and
statistics.
3.23.1
Mask Handling
This section describes how a number of port masks are applied to ensure correct forwarding.
•
•
•
•
•
•
VLAN port mask from ANA_L3:VLAN. This mask is used to ensure frames are only forwarded within
a dedicated VLAN (or VSI if service forwarded). The VLAN mask handle protection by means of
hardware assisted updates. For more information, see VLAN Table Update Engine, page 129. The
VLAN mask can be modified by VCAP CLM full action MASK_MODE and by VCAP IS2 action
MASK_MODE.
PGID port mask from ANA_AC:PGID. This mask is based on the DMAC lookup in the PGID table.
One of the six flood PGID entries is used if the DMAC is unknown. For DMAC known in the MAC
table, the associated address is used to select the used PGID entry.
Source port mask from ANA_AC:SRC. This mask is used to ensure frames are never forwarded to
the port it was received on and the used entry is found by looking up the source port.
Global source port mask from ANA_AC:SRC. This mask is used to ensure frames are never
forwarded to the global port it was received on and the used entry is found by looking up the global
stacking source port.
Aggregation port mask from ANA_AC:AGGR. This mask is used to ensure frames are forwarded to
one port within each aggregate destination port.
REQ.port_mask and REQ.mask_mode. This mask is special in the sense that it is a general purpose
mask that can be used for various security features and protection. The mask is controlled by VCAP
CLM and VCAP IS2.
The following sections provide more information about the different port masks.
3.23.1.1
PGID Lookup
The following table lists the registers associated with PGID lookup.
Table 117 • PGID Registers Overview
Target::Register.Field
Description
Replication
ANA_AC:PGID:PGID_MISC_CFG
Configures how to interpret PGID_CFG and configures CPU
copy with associated CPU queue.
per PGID
ANA_AC:PGID:PGID_CFG
Configures destination port mask or destination {UPSID,PN}.
per PGID
VMDS-10492 VSC7440 Datasheet Revision 4.2
185
Functional Descriptions
The PGID table is organized as shown in the following illustration.
Figure 40 • PGID Layout
mc_idx:0x1ff
GLAG 31 mbr 7
GLAG or General
purpose destinations
GLAG 0 mbr 1
GLAG 0 mbr 0
general purpose destination n
mc_idx:0x0ff
PGID ADDR
0x20a
0x10b
General purpose
destinations
0
front port mask
52
mc_idx:0x006
0
0
0
flood destination masks
0
0
mc_idx:0x000 0
0
front port unicast
destination masks
0
0
general purpose destination 1
general purpose destination 0
IP6 MC control flood mask
IP6 MC data flood mask
IP4 MC control flood mask
IP4 MC data flood mask
L2 multicast flood mask
L2 unicast flood mask
port 10 destination mask
port 1 destination mask
port 0 destination mask
0x011
1
0
or
reserved (must be zero)
52
upsid upspn
9
5
0
x00b
0x000
STACK interpret?
The forwarding process generates a forwarding decision that is used to perform a lookup in the PGID
table. The following forwarding decisions are possible.
•
•
•
•
•
Flood forwarding to one of the six flood masks located from address 11 to address 16 in the PGID
table is used as destination mask.
Unicast forwarding to {UPSID,UPSPN}. UPSID is checked against
ANA_AC::COMMON_VSTAX_CFG.OWN_UPSID:
If identical, destination mask is found based on lookup of UPSPN within the front port destinations of
the PGID table (address 0 to 10).
If not identical, destination mask is found based on lookup of UPSID in
ANA_AC:UPSID:UPSID_CFG.
Multicast forwarding: mc_idx is looked up in the PGID table with an offset of 11. Based on the
returned entry stack bit:
If cleared, the returned entry mask is interpreted as a destination mask.
If set, the returned entry mask is {UPSID,UPSPN} and the destination mask is found based on
lookup of UPSID in ANA_AC:UPSID:UPSID_CFG.
REQ destination set (REQ.COMMON.PORT_MASK when
REQ.COMMON.MASK_MODE=REPLACE_PGID). Destination set (REQ.COMMON.PORT_MASK
from VCAP CLM or VCAP IS2 is directly used as destination mask without PGID lookup.
REQ.L2_FWD cleared. Frame is discarded.
It is possible to generate a CPU copy can be generated when using the PGID lookup. If
ANA_AC:PGID:PGID_MISC_CFG.PGID_CPU_COPY_ENA is set in the used PGID entry, a copy is sent
to CPU queue specified by ANA_AC:PGID:PGID_MISC_CFG.PGID_CPU_QU.
The following illustration depicts the PGID lookup decision.
VMDS-10492 VSC7440 Datasheet Revision 4.2
186
Functional Descriptions
Figure 41 • PGID Lookup Decision Forwarding
Select PGID entry
# Redirect via PGID entry?
REQ.COMMON.MASK_MODE == REDIR_PGID?
false
#Unknown DMAC?
Req.Flood?
# PGID index from CLM or VCAP_S2
PGID_ENTRY :=
PGID_TBL(REQ.COMMON.PORT_MASK(7:0))
true
Flood decison
true
req.l2_uc=1?
true
# Unicast flood
PGID_ENTRY := PGID_TBL(11)
true
# IP4 MC CTRL flood
PGID_ENTRY := PGID_TBL(14)
req.ip_mc=1 and req.ip4_avail=1 ?
true
req.ip_mc_ctrl=1?
# IP4 MC DATA flood
PGID_ENTRY := PGID_TBL(13)
false
false
req.ip_mc=1 and req.ip6_avail=1 ?
false
true
true
req.ip_mc_ctrl=1?
# IP6 MC DATA flood
PGID_ENTRY := PGID_TBL(15)
false
# L2 MC flood
PGID_ENTRY := PGID_TBL(12)
false
PGID_ENTRY := PGID_TBL(11
+req.dst.fwd_addr.mc_idx)
true
req.dst.fwd_type==MC_IDX?
# IP6 MC CTRL flood
PGID_ENTRY := PGID_TBL(16)
false
req.dst.fwd_type==UPSID_PN?
true
IsOwnUpsid(req.dst.fwd_addr.upsid)?
true
PGID_ENTRY :=
PGID_TBL(req.dst.fwd_addr.upspn)
false
false
IFH.VSTAX.GEN := FWD_LOGICAL
IFH.VSTAX.DST:UPSID := req.dst.fwd_addr.upsid;
IFH.VSTAX.DST:UPSPN := req.dst.fwd_addr.upspn;
do_stack_upsid_fwd
:= true;
Done selecting
PGID entry
No PGID lookup
The following debug events can be used to observe current forwarding:
ANA_AC:PS_STICKY:STICKY.PGID_CPU_MASK_STICKY,
ANA_AC:PS_STICKY:STICKY.NO_L2_L3_FWD_STICKY,
ANA_AC:PS_STICKY:STICKY.IP6_MC_CTRL_FLOOD_STICKY,
ANA_AC:PS_STICKY:STICKY.IP6_MC_DATA_FLOOD_STICKY,
ANA_AC:PS_STICKY:STICKY.IP4_MC_CTRL_FLOOD_STICKY,
ANA_AC:PS_STICKY:STICKY.IP4_MC_DATA_FLOOD_STICKY,
ANA_AC:PS_STICKY:STICKY.L2_MC_FLOOD_STICKY and
ANA_AC:PS_STICKY:STICKY.UC_FLOOD_STICKY
The events can be counted in the port statistics block by setting the corresponding counter
mask:ANA_AC:PS_STICKY_MASK:STICKY_MASK
VMDS-10492 VSC7440 Datasheet Revision 4.2
187
Functional Descriptions
3.23.1.2
Source Lookup
This section describes how to configure source port filtering. The following table lists the applicable
registers.
Table 118 • Source Table Registers Overview
Target::Register.Field
Description
Replication
ANA_AC:SRC:SRC_CFG
Configures source port filtering
23
Source port filtering for each ingress port can be configured to ensure that frames are not bridged back to
the port it was received on (ANA_AC:SRC[0-14]:SRC_CFG).
Ports part of a link aggregation group (LAG) are configured with identical source masks, with all member
ports removed (bits corresponding to the member ports are cleared).
If a port is part of a global link aggregation group, a filter is applied to ensure that frames received at this
port are not bridged back to any of the ports in the global link aggregation group of which the source port
is part (ANA_AC:SRC[15-22]:SRC_CFG).
Local device ports part of a global link aggregation group must be cleared in the global aggregation
source mask (via ANA_AC:SRC[15-22]:SRC_CFG).
Source port filtering can be disabled when VCAP IS2 action MASK_MODE is set to 4 (= REDIR_PGID).
Source port filtering is not applied when a frame is routed.
3.23.1.3
Aggregation Group Port Selection
This section describes how to configure the aggregation table. The following table lists the applicable
registers.
Table 119 • Aggregation Table Registers Overview
Target::Register.Field
Description
Replication
ANA_AC:AGGR:AGGR_CFG
Configures aggregation port filtering.
16
The purpose of the aggregation table is to ensure that when a frame is destined for an aggregation
group, it is forwarded to exactly one of the group’s member ports.
The aggregation code REQ.AGGR_CODE generated in the classifier is used to look up an aggregation
mask in the aggregation table. Aggregation mask is configured in ANA_AC:AGGR:AGGR_CFG.
For non-aggregated ports, there is a one-to-one correspondence between logical port (ANA_CL:PORT:
PORT_ID_CFG.LPORT_NUM) and physical port, and the aggregation table does not change the
forwarding decision.
For aggregated ports, all physical ports in the aggregation group map to the same logical port, and
destination entries for a logical port in the PGID table must include all physical ports, which are members
of the aggregation group. Therefore, all but one LAG member port must be removed from the destination
port set.
For more information about link aggregation, see Link Aggregation Code Generation, page 113
3.23.1.4
Global Link Aggregation Forwarding
This section describes how to configure forwarding to a GLAG. The following table lists the applicable
registers.
Table 120 • GLAG Forward Registers Overview
Target::Register.Field
Description
ANA_AC::COMMON_VSTAX_CFG Configures VSTAX handles.
VMDS-10492 VSC7440 Datasheet Revision 4.2
Replication
1
188
Functional Descriptions
Table 120 • GLAG Forward Registers Overview (continued)
Target::Register.Field
Description
Replication
ANA_AC:GLAG:MBR_CNT_CFG
Configures number of members per GLAG.
8
The device performs a final port of exit (POE) calculation in ingress device when destination is a global
aggregated port. GLAG POE calculation must be enabled
(ANA_AC::COMMON_VSTAX_CFG.VSTAX2_GLAG_ENA). When enabled, GLAG forwarding uses a
portion of the PGID table (addresses 75 to 138). These addresses must use UPSID, UPSPN encoding
by setting the stack interpret bit.
POE calculation, which selects one of the global aggregated as destination port, is shown in the following
illustration.
Figure 42 • GLAG Port of Exit Calculation
glag_mbr_cnt_table
dmac
MAC Table
glagid
glag_mbr_cnt
glag_mbr_idx := ac mod glag_mbr_cnt
glag part of PGID table
{glagid, glag_mbr_idx}
{upsid, upspn}
The total number of ports part of a GLAG must be specified in ANA_AC:GLAG:MBR_CNT_CFG.
The corresponding destination must be configured in PGID table for each GLAG member.
3.23.1.5
Port Mask Operation
The final destination port mask is deducted as shown in the following illustration.
VMDS-10492 VSC7440 Datasheet Revision 4.2
189
Functional Descriptions
Figure 43 • Port Mask Operation
Mask Operation
# Prepare masks
src_mask := SrcTable(REQ.COMMON.PORTNUM)
aggr_mask := AggrTable(REQ.COMMON.AC)
# Forwarding controlled from CLM or VCAP_S2?
REQ.COMMON.MASK_MODE == REPLACE_ALL?
false
true
# Overrule forwarding from CLM or VCAP_S2?
REQ.COMMON.MASK_MODE == REPLACE_PGID?
true
# Replace pgid destination port mask
pgid_mask := REQ.COMMON.PORT_MASK
true
# Add to pgid destination port mask
pgid_mask |= REQ.COMMON.PORT_MASK
true
# Ignore source filtering
src_mask := ALL_ONES
true
# Ignore Aggregation mask
aggr_mask := ALL_ONES
false
# Normal PGID forwarding
pgid_mask := PgidLookupSel(REQ)
# Add forwarding from CLM or VCAP_S2?
REQ.COMMON.MASK_MODE == OR_PGID_MASK?
false
# Source filtering?
ANA_L2:ISDX:SERVICE_CTRL.SRC_MASK_DIS ||
REQ.L3_FWD?
false
# Aggreration selection?
ANA_L2:ISDX:SERVICE_CTRL.AGGR_REPLACE_EN
A==0 && ANA_L2:ISDX:SERVICE_CTRL.AGGR_VAL
!= 0?
false
dst_mask := pgid_mask &&
src_mask && aggr_mask && REQ.VLAN_PORT_MASK
# Additional forwarding from CLM or VCAP_S2?
REQ.COMMON.MASK_MODE == OR_DST_MASK?
true
# Add to final destination port mask
dst_mask |= REQ.COMMON.PORT_MASK
# Final destination port mask
dst_mask := REQ.COMMON.PORT_MASK
false
Done selecting destination port mask
3.23.2
Policing
This section describes the functions of the policers. The following table lists the applicable registers.
Table 121 • Policer Control Registers Overview
Target::Register.Field
Description
Replication
ANA_AC_POL::POL_ALL_CFG
Configures general control settings.
1
ANA_AC_POL::POL_ACL_CTRL
Configures VCAP policer’s mode of operation.
32
ANA_AC_POL::POL_ACL_RATE_CFG
Configures VCAP policer’s peak information rate
32
ANA_AC_POL::POL_ACL_THRES_CFG
Configures VCAP policer’s burst capacity.
32
VMDS-10492 VSC7440 Datasheet Revision 4.2
190
Functional Descriptions
Table 121 • Policer Control Registers Overview (continued)
Target::Register.Field
Description
Replication
ANA_AC_POL::POL_STORM_CTRL
Configures storm policer’s mode of operation.
8
ANA_AC_POL::POL_STORM_RATE_CFG
Configures storm policer’s peak information rate
8
ANA_AC_POL::POL_STORM_THRES_CFG
Configures Storm policer’s burst capacity.
8
ANA_AC_POL::POL_PORT_RATE_CFG
Configures port policer’s peak information rate.
Per port per
port policer
ANA_AC_POL::POL_PORT_THRES_CFG_0
Configures port policer’s burst capacity.
Per port per
port policer
ANA_AC_POL::POL_PORT_THRES_CFG_1
Configures port policer’s hysteresis when used for Per port per
flowcontrol.
port policer
ANA_AC_POL:POL_PORT_CTRL:POL_PORT_
CFG
Configures port policer’s mode of operation.
ANA_AC_POL:POL_PORT_CTRL:POL_PORT_
GAP
Configures port policer’s gap value used to correct Per port
size per frame.
ANA_AC_POL::POL_STICKY
Captures various policer events for diagnostic
purposes.
1
ANA_AC_POL:COMMON_SDLB:DLB_CTRL
Configures common SDLB policer’s mode of
operation.
1
ANA_AC_POL:COMMON_SDLB:DLB_STICKY
Captures various SDLB policer events for
diagnostic purposes.
1
ANA_AC_POL:SDLB:DLB_CFG
Configures SDLB policer’s mode of operation.
Per SDLB
ANA_AC_POL:SDLB:LB_CFG
Configures SDLB policer’s committed and peak
leaky buckets
Per SDLB
per leaky
bucket
3.23.2.1
Per port per
port policer
Policer Hierarchy
There are multiple levels of policing, which operate in configurable hierarchies, as shown in the following
illustration.
VMDS-10492 VSC7440 Datasheet Revision 4.2
191
Functional Descriptions
Figure 44 • Policer Hierarchy
ISDX 0 AND
SDLB IDX 0?
Pol
Port
Port
#2
Pol
Pol
#1
#0
Yes isdx based
No
VCAP DLB
enable?
Yes
No
(SLB)
(3x SLB)
Bundle
policers
index
isdx based
index
VCAP
based
index
port
based
index
Port DROP and
PASS statistics
Service
policers
VCAP DROP and
PASS statistics
BUM
policers
ASP statistics
BUNDLE DROP
statistics
BUM DROP and
PASS statistics
VCAP DROP and
PASS statistics
Outer VCAP
policers
Inner VCAP
policers
Port
policers
Global
storm
policers
Port
Port
Pol
Pol
#1
Pol
Port
Port
#7
Pol
Pol
#1
(2x SLB)
(8x SLB)
No
ISDX 0 AND
SERVICE_BYPA
SS_ENA?
Yes
#0
#0
queue
based
index
(DLB)
(DLB)
(SLB)
Either outer or
Inner VCAP policer
exists selectable per
VCAP_S2 lookup
At most, each frame can see one ACL policer. ACL policing can occur as either outer or inner ACLbased. VCAP IS2 action IS_INNER_ACL allows ACL policing to occur before or after service DLB
policing and service statistics.
The VCAP, port, broadcast/unicast/multicast (BUM), and storm policers are single leaky bucket (SLB)
policers, whereas the service and bundle policers are MEF 10.2 compliant dual leaky bucket (DLB)
policers.
The BUM policers group the leaky buckets into sets of three, covering broadcast, unicast, and multicast
traffic.
The VCAP, port and storm policers are configurable in steps of 25,040 bits per second, with a minimum
of 25,040 bits per second.
The BUM, service, and bundle policers can cover bandwidth in the interval between 0 Gbps and
32 Mbps, with 16 kbps granularity and between 0 Gbps and 10 Gbps with 8 Mbps granularity. The
granularity scaling can be configured using the TIMESCALE_VAL configuration parameters.
The service policers can be used as queue policers for non-service traffic when ISDX is zero and
ISDX_SDLB index is zero. The queue policer operation is controlled through
ANA_L2:COMMON:FWD_CFG.QUEUE_DEFAULT_SDLB_ENA and
ANA_L2:COMMON:PORT_DLB_CFG.QUEUE_DLB_IDX.
The bundle policers are only available for services. The index is controlled through
ANA_L2:ISDX:MISC_CFG.BDLB_IDX. However, it is possible to use the bundle policers as port policers
for non-service traffic when ISDX is zero. The port policer operation is controlled through
ANA_L2:COMMON:FWD_CFG.PORT_DEFAULT_BDLB_ENA and
ANA_L2:COMMON:PORT_DLB_CFG.PORT_DLB_IDX.
It is possible to specify a pipeline point for the service policers
(ANA_L2:ISDX:MISC_CFG.PIPELINE_PT). This can be used to specify where in the processing flow
BUM, SDLB, and BDLB policers are active (default set to NONE, which disables any pipeline effect).
The service statistics reflect the decisions made by the service policer. This implies that if a service
policer marks a frame yellow, then the yellow service counter is incremented even though the frame
might be discarded by one of the subsequent policers.
All policers can be configured to add between –64 and 63 bytes per frame to adjust the counted frame
size for inter-frame gap and/or encapsulation.
VMDS-10492 VSC7440 Datasheet Revision 4.2
192
Functional Descriptions
3.23.2.2
BUM Policing
Each entry in the BUM single leaky bucket table contains the following fields.
Table 122 • BUM Single Leaky Bucket Table Entries
Field
Bits
Description
ANA_AC_POL:BUM_SLB:SLB_CFG.TIMESCALE_VAL
2
Configures policer rate granularity.
ANA_AC_POL:BUM_SLB:SLB_CFG.CIR_INC_DP_VAL 2
Controls how much drop precedence (DP) is
incremented for excess traffic.
ANA_AC_POL:BUM_SLB:SLB_CFG.GAP_VAL
7
Configures the leaky bucket calculation to
include or exclude preamble, inter-frame gap
and optional encapsulation through
configuration.
ANA_AC_POL:BUM_SLB:LB_CFG[2:0].THRES_VAL
3x7
Configures burst size.
ANA_AC_POL:BUM_SLB:LB_CFG[2:0].RATE_VAL
3 x 11
Configures rate.
ANA_AC_POL:BUM_SLB:SLB_CFG.ENCAP_DATA_DIS 1
Configures if stripped encapsulation data
(normalized data) is policed by the policer.
ANA_AC_POL:BUM_SLB:MISC_CFG.FRAME_RATE_E 1
NA
Configures frame rate operation.
The BUM policers are indexed through the VLAN table (ANA_L3:VLAN:BUM_CFG.BUM_SLB_IDX). This
indexing can be overruled for services through the ISDX table
(ANA_L2:ISDX:MISC_CFG.BUM_SLB_IDX and ANA_L2:ISDX:MISC_CFG.BUM_SLB_ENA).
Each BUM policer contains three leaky buckets. Rates and thresholds are configured through
ANA_AC_POL:BUM_SLB:LB_CFG).
Traffic for the three BUM leaky buckets is configurable in
ANA_AC_POL:COMMON_BUM_SLB:TRAFFIC_MASK_CFG. This provides a flexible allocation of traffic
for the policers. For example, it is possible to have BUM configured as:
•
•
•
Leaky bucket 0: Broadcast traffic
(ANA_AC_POL:COMMON_BUM_SLB:TRAFFIC_MASK_CFG[0].TRAFFIC_TYPE_MASK = 1)
Leaky bucket 1: Unknown unicast traffic
(ANA_AC_POL:COMMON_BUM_SLB:TRAFFIC_MASK_CFG[1].TRAFFIC_TYPE_MASK = 4)
Leaky bucket 2: Unknown multicast traffic
(ANA_AC_POL:COMMON_BUM_SLB:TRAFFIC_MASK_CFG[2]. TRAFFIC_TYPE_MASK = 2)
BUM policers can be configured as frame-based policers
(ANA_AC_POL:BUM_SLB:MISC_CFG.FRAME_RATE_ENA).
The BUM statistics count on the following events (configured through
ANA_AC:STAT_GLOBAL_CFG_BUM:STAT_GLOBAL_EVENT_MASK):
•
•
•
•
•
•
Bit 0: Count Broadcast traffic discarded by BUM policer
Bit 1: Count Multicast traffic discarded by BUM policer
Bit 2: Count Unicast traffic discarded by BUM policer
Bit 3: Count Broadcast traffic applicable for BUM policer, but not discarded
Bit 4: Count Multicast traffic applicable for BUM policer, but not discarded
Bit 5: Count Unicast traffic applicable for BUM policer, but not discarded.
VMDS-10492 VSC7440 Datasheet Revision 4.2
193
Functional Descriptions
3.23.2.3
ACL Policing
Each ACL policer entry contains the fields listed in the following table.
Table 123 • ACL Policer Table Entries
Field
Bits
Description
ACL_TRAFFIC_TYPE_MASK
2
Configures the traffic types to be taken into account by the policer.
FRAME_RATE_ENA
1
Configures frame rate mode for the ACLpolicer, where rates are measured
in frames per second instead of bytes per second.
DP_BYPASS_LVL
2
Controls the lowest DP level that is taken into account. That is, traffic with
DP below this value is ignored and not policed.
GAP_VALUE
7
Configures the leaky bucket calculation to include or exclude preamble,
inter-frame gap and optional encapsulation through configuration.
ACL_THRES
6
Configures ACL policer burst capacity.
ACL_RATE
17
Configures ACL policer rate.
At most, a frame can trigger one ACL policer. ACL policers are enabled by specifying a rate in
ANA_AC_POL:POL_ALL_CFG:POL_ACL_RATE_CFG.ACL_RATE and also enabled by a VCAP IS2 hit.
For more information, see VCAP IS2, page 62.
The policer burst capacity can be specified with 4K granularity
(ANA_AC_POL:POL_ALL_CFG:POL_ACL_THRES_CFG.ACL_THRES).
The following parameters can also be configured per policer.
•
•
•
•
The leaky bucket calculation can be configured to include or exclude preamble, inter-frame gap and
an optional encapsulation (ANA_AC_POL:POL_ALL_CFG:POL_ACL_CTRL.GAP_VALUE).
Traffic with DP level below a certain level can be configured to bypass the policers
(ANA_AC_POL:POL_ALL_CFG:POL_ACL_CTRL.DP_BYPASS_LVL).
Each policer can be configured to measure frame rates instead of bit rates
(ANA_AC_POL:POL_ALL_CFG:POL_ACL_CTRL.FRAME_RATE_ENA).
Each policer can be configured to operate on frames towards CPU and/or front ports
(ANA_AC_POL:POL_ALL_CFG:POL_ACL_CTRL.ACL_TRAFFIC_TYPE_MASK).
Traffic dropped by an ACL policer can be counted in the ACL statistics block and optionally also in the
port statistic block. For more information, see Analyzer Statistics, page 198.
The following ACL policer debug events are available:
•
•
•
•
Bypass of policer due to pipeline handling can be identified
(ANA_AC_POL:POL_ALL_CFG:POL_STICKY.POL_ACL_PT_BYPASS_STICKY).
Bypass of policer due to bypass level can be identified
(ANA_AC_POL:POL_ALL_CFG:POL_STICKY.POL_ACL_BYPASS_STICKY).
Dropping of traffic due to ACL policer can be identified
(ANA_AC_POL:POL_ALL_CFG:POL_STICKY.POL_ACL_DROP_STICKY).
Policers that are active but not closed can be identified
(ANA_AC_POL:POL_ALL_CFG:POL_STICKY.POL_ACL_ACTIVE_STICKY).
For example, to use ACL policers to limit traffic to CPU only, the following configuration is required:
•
•
•
•
Set up a VCAP S2 rule to enable ACL policer 5.
Configure ACL policer 5 to only allow 100 frames per second towards CPU: # the rate is 10 times the
configured value ANA_AC_POL:POL_ALL_CFG:POL_ACL_RATE_CFG[5].ACL_RATE = 10
ANA_AC_POL:POL_ALL_CFG:POL_ACL_CTRL[5].FRAME_RATE_ENA = 1
Do not accept burst:
ANA_AC_POL:POL_ALL_CFG:POL_ACL_THRES_CFG[5].ACL_THRES = 0
Only police traffic towards CPU:
ANA_AC_POL:POL_ALL_CFG:POL_ACL_CTRL[5].ACL_TRAFFIC_TYPE_MASK = 2
VMDS-10492 VSC7440 Datasheet Revision 4.2
194
Functional Descriptions
3.23.2.4
Priority Policing
The configuration parameters for priority policing are listed in the following table.
Table 124 • Priority Policer Table Entry
Field
Description
ANA_L2::FWD.QUEUE_DEFAULT_SDLB_ENA
Enables priority policers for non-service frames.
ANA_L2:PORT:PORT_DLB_CFG.QUEUE_DLB_IDX
Specifies which DLB policers are used for priority policing.
Non-service frames (which ISDX = 0 and ANA_L2:ISDX:DLB_CFG.DLB_IDX = 0) can use the service
policers as priority policers. This is enabled in ANA_L2::FWD_CFG.QUEUE_DEFAULT_SDLB_ENA.
The frame’s ingress port and classified QoS class select the priority policer. The configuration of the
priority policer follows the configuration of the service policers. For more information, see All policers can
be configured to add between –64 and 63 bytes per frame to adjust the counted frame size for interframe gap and/or encapsulation., page 192.
Note that a DLB policer index enabled by VCAP IS2 action ACL_MAC[16] takes precedence over the
priority policing. In that case, the frame is policed by the VCAP selected policer and not the priority
policer.
3.23.2.5
Port Policing
Each port policer entry contains the fields listed in the following table.
Table 125 • Port Policer Table Entry
Field
Bits
Description
TRAFFIC_TYPE_MASK
8
Configures the traffic types to be taken into account by the policer.
FRAME_RATE_ENA
1
Configures frame rate mode for the port policer, where rates are measured
in frames per second instead of bytes per second.
LIMIT_NONCPU_TRAFFIC_ENA
1
Configures how policing affects traffic towards front ports.
LIMIT_CPU_TRAFFIC_ENA
1
Configures how policing affects traffic towards CPU.
CPU_QU_MASK
8
Configures policing of frames to the individual CPU queues for the port
policer (see TRAFFIC_TYPE_MASK).
FC_ENA
1
Configures port policer to trigger flow control.
FC_STATE
1
Current flow control state.
DP_BYPASS_LVL
2
Controls the lowest DP level that is taken into account. That is, traffic with
DP below this value is ignored and not policed.
GAP_VALUE
7
Configures the leaky bucket calculation to include or exclude preamble,
inter-frame gap and optional encapsulation through configuration.
PORT_THRES0
6
Configures port policer burst capacity.
PORT_THRES1
6
Configures port policer hysteresis size when a port policer is in flow control
mode (see FC_ENA).
PORT_RATE
17
Configures port policer rate.
Frames applicable for policing are any frames received by the MAC and forwarded to the classifier. Short
frames (less than 148 bytes) with errors, pause frames, or MAC control frames are not forwarded by the
MAC and therefore not accounted for in the policers, That is, they are not policed and do not add to the
rate measured by the policers.
Port policers are enabled by configuring the traffic type to be policed
(ANA_AC_POL:POL_PORT_CTRL:POL_PORT_CFG.TRAFFIC_TYPE_MASK) and specifying a
corresponding rate (ANA_AC_POL:POL_PORT_CFG:POL_PORT_RATE_CFG.PORT_RATE).
VMDS-10492 VSC7440 Datasheet Revision 4.2
195
Functional Descriptions
The policer burst capacity can be specified with 4K granularity
(ANA_AC_POL:POL_PORT_CFG:POL_PORT_THRES_CFG_0.PORT_THRES0).
Policing of traffic destined for CPU port or ports can be controlled (in
ANA_AC_POL:POL_PORT_CTRL:POL_PORT_CFG.TRAFFIC_TYPE_MASK(7) = 0 and CPU bypass
mask in ANA_AC_POL:POL_PORT_CTRL:POL_PORT_CFG.CPU_QU_MASK).
Port policers can individually be configured to affect frames towards CPU ports
(ANA_AC_POL:POL_PORT_CTRL:POL_PORT_CFG.LIMIT_CPU_TRAFFIC_ENA) or front ports
(ANA_AC_POL:POL_PORT_CTRL:POL_PORT_CFG.LIMIT_NONCPU_TRAFFIC_ENA).
The port policers can be configured for either serial or parallel operation
(ANA_AC_POL::POL_ALL_CFG.PORT_POL_IN_PARALLEL_ENA):
•
•
Serial. The policers are checked one after another. If a policer is closed, the frame is discarded and
the subsequent policer buckets are not updated with the frame.
Parallel. The policers are working in parallel independently of each other. Each frame is added to a
policer bucket if the policer is open, otherwise the frame is discarded. A frame may be added to one
policer although another policer is closed.
The following parameters can also be configured per policer.
•
•
•
The leaky bucket calculation can be configured to include or exclude preamble, inter-frame gap and
an optional encapsulation (ANA_AC_POL:POL_PORT_CTRL:POL_PORT_GAP.GAP_VALUE).
Each policer can be configured to measure frame rates instead of bit rates
(ANA_AC_POL:POL_PORT_CTRL:POL_PORT_CFG.FRAME_RATE_ENA).
Traffic with DP level below a certain level can be configured to bypass the policers
(ANA_AC_POL:POL_PORT_CTRL:POL_PORT_CFG.DP_BYPASS_LVL).
By default, a policer discards frames (to the affected port type: CPU and/or front port or ports) while the
policer is closed. A discarded frame is not forwarded to any ports (including the CPU).
However, each port policer has the option to run in flow control where the policer instead of discarding
frames instructs the MAC to issue flow control pause frames
(ANA_AC_POL:POL_ALL_CFG:POL_PORT_FC_CFG.FC_ENA). When operating in Flow control mode
it is possible to specify a hysteresis, which controls when the policer can re-open after having closed
(ANA_AC_POL:POL_PORT_CFG:POL_PORT_THRES_CFG_1. PORT_THRES1). The current flow
control state is accessible (ANA_AC_POL:POL_ALL_CFG:POL_PORT_FC_CFG.FC_STATE).
Note: Flow control signaling out of ANA_AC must be enabled
(ANA_AC_POL::POL_ALL_CFG.PORT_FC_ENA).
To improve fairness between small and large frames being policed by the same policer a hysteresis can
be specified for drop mode (ANA_AC_POL:POL_PORT_CFG:
POL_PORT_THRES_CFG_1.PORT_THRES1), which controls when the policer can re-open after
having closed. By setting it to a value larger than the maximum transmission unit, it can be guaranteed
that when the policer opens again, all frames have the same chance of being accepted.
Port policers can be configured operate on logical ports instead of physical ports
(ANA_AC_POL::POL_ALL_CFG.LPORT_POLICE_ENA) and thereby allow policing of aggregated port
bandwidth.
Traffic dropped by a policer can be counted by the port statistic block.
The following port policer debug events are available.
•
•
•
•
•
Bypass of policer due to pipeline handling can be identified
(ANA_AC_POL:POL_ALL_CFG:POL_STICKY.POL_PORT_PT_BYPASS_STICKY).
Bypass of policer due to DP bypass level can be identified
(ANA_AC_POL:POL_ALL_CFG:POL_STICKY.POL_PORT_BYPASS_STICKY).
Dropping of traffic towards CPU due to policer can be identified
(ANA_AC_POL:POL_ALL_CFG:POL_STICKY.POL_PORT_DROP_CPU_STICKY).
Dropping of traffic towards front port due to policer can be identified
(ANA_AC_POL:POL_ALL_CFG:POL_STICKY.POL_PORT_DROP_FWD_STICKY).
Policers that are active but not closed can be identified per policer
(ANA_AC_POL:POL_ALL_CFG:POL_STICKY.POL_PORT_ACTIVE_STICKY).
VMDS-10492 VSC7440 Datasheet Revision 4.2
196
Functional Descriptions
•
•
3.23.2.6
Policer triggering flow control can be identified
(ANA_AC_POL:POL_ALL_CFG:POL_STICKY.POL_PORT_FC_STICKY).
Policer leaving flow control state can be identified
(ANA_AC_POL:POL_ALL_CFG:POL_STICKY.POL_PORT_FC_CLEAR_STICKY).
Storm Policing
Each storm policer entry contains the fields in the following table. The fields are all located within the
ANA_AC_POL:POL_ALL_CFG register group.
Table 126 • Storm Policer Table Entry
Field
Bits
Description
STORM_TRAFFIC_TYPE_MASK
8
Configures the traffic types to be taken into account by the
policer.
STORM_FRAME_RATE_ENA
1
Configures frame rate mode for the ACL policer, where rates are
measured in frames per second instead of bytes per second.
STORM_LIMIT_NONCPU_TRAFFIC_ENA
1
Configures how policing affects traffic towards front ports.
STORM_LIMIT_CPU_TRAFFIC_ENA
1
Configures how policing affects traffic towards CPU.
STORM_CPU_QU_MASK
8
Configures policing of frames to the individual CPU queues for
the port policer (see TRAFFIC_TYPE_MASK).
STORM_GAP_VALUE
7
Configures the leaky bucket calculation to include or exclude
preamble, inter-frame gap and optional encapsulation through
configuration
STORM_THRES
6
Configures storm policer burst capacity.
STORM_RATE
17
Configures storm policer rate.
Frames applicable for policing are any frame received by the MAC and forwarded to the classifier. Short
frames (less than 148 bytes) with errors, pause frames, or MAC control frames are not forwarded by the
MAC and therefore not accounted for in the policers. That is, they are not policed and do not add to the
rate measured by the policers.
Storm policers are enabled by configuring the traffic type to be policed
(POL_STORM_CTRL.STORM_TRAFFIC_TYPE_MASK) and specifying a corresponding rate
(POL_STORM_RATE_CFG.STORM_RATE).
The policer burst capacity can be specified with 4K granularity (POL_STORM_THRES_CFG).
Policing of traffic destined for CPU port or ports can be controlled
(POL_STORM_CTRL.STORM_TRAFFIC_TYPE_MASK(7) = 0 and CPU bypass mask in
POL_STORM_CTRL.STORM_CPU_QU_MASK).
Storm policers can be configured individually to affect frames towards CPU ports
(POL_STORM_CTRL.STORM_LIMIT_CPU_TRAFFIC_ENA) or front ports
(POL_STORM_CTRL.STORM_LIMIT_NONCPU_TRAFFIC_ENA).
The following parameters can also be configured per policer.
•
•
Leaky bucket calculation can be configured to include or exclude preamble, inter-frame gap, and an
optional encapsulation (POL_ALL_CFG.STORM_GAP_VALUE).
Each policer can be configured to measure frame rates instead of bit rates
(POL_STORM_CTRL.STORM_FRAME_RATE_ENA).
Traffic dropped by a storm policer can be counted by the port statistic block.
The following storm policer debug events are available.
•
Dropping of traffic towards CPU due to policer can be identified
(POL_STICKY.POL_STORM_DROP_CPU_STICKY).
VMDS-10492 VSC7440 Datasheet Revision 4.2
197
Functional Descriptions
•
•
3.23.3
Dropping of traffic towards front port due to policer can be identified
(POL_STICKY.POL_STORM_DROP_FWD_STICKY).
Policers that are active but not closed can be identified per policer
(POL_STICKY.POL_STORM_ACTIVE_STICKY).
Analyzer Statistics
This section describes how to configure and collect statistics. There are six statistics counter blocks in
the analyzer:
•
•
•
•
•
•
Port statistics: Four 40-bit counters available are for each port.
Queue statistics: Two 40-bit counters are available for each queue.
BUM policer statistics: Six 40-bit counters are available for each BUM policer.
ACL policer statistics: Two 40-bit counters are available for each ACL policer.
Ingress router leg statistics: Eight IPv4 40-bit counters and eight IPv6 40-bit counters are available
for each ingress router leg.
Egress router leg statistics: Eight IPv4 40-bit counters and eight IPv6 40-bit counters are available
for each egress router leg.
Counters can be set up to count frames or bytes based on configurable criteria. This is described in the
following sections.
3.23.3.1
Port Statistics
The following table lists the applicable port statistics registers.
Table 127 • Analyzer Port Statistics Register Overview
Target::Register.Field
Description
Replication
ANA_AC:STAT_GLOBAL_CFG_PORT.
STAT_GLOBAL_EVENT_MASK
Configures global event mask per counter.
4
ANA_AC:STAT_GLOBAL_CFG_PORT:S Initializes or resets all statistic counters and the sticky bits. 1
TAT_RESET.RESET
ANA_AC:STAT_CNT_CFG_PORT.STAT_ Configures counting of frames with certain priorities.
CFG. CFG_PRIO_MASK
per port × 4
ANA_AC:STAT_CNT_CFG_PORT.STAT_ Configures the frame type to be counted.
CFG. CFG_CNT_FRM_TYPE
per port× 4
ANA_AC:STAT_CNT_CFG_PORT.STAT_ Configures counting of bytes or frames.
CFG. CFG_CNT_BYTE
per port × 4
ANA_AC:STAT_CNT_CFG_PORT.STAT_ Least significant 32 bits.
LSB_CNT
per port × 4
ANA_AC:STAT_CNT_CFG_PORT.STAT_ Most significant 8 bits.
MSB_CNT
per port × 4
ANA_AC:STAT_CNT_CFG_PORT.STAT_ Sticky bits for counter events.
EVENTS_STICKY
per port
The port statistics block allows counting of a wide variety of frame events. These are represented by a
12-bit event mask:
•
•
•
Bits 0–3 represent any stick bit contribution from preceding blocks in ANA.
Bits 4–7 represent port policer events.
Bits 8–11 represent storm and ACL policer events and loopback frames.
The propagation of the event mask from the preceding blocks in the analyzer to ANA_AC is shown in the
following illustration, except for bits 8–11. See
ANA_AC:STAT_GLOBAL_CFG_PORT:STAT_GLOBAL_EVENT_MASK.GLOBAL_EVENT_MASK.
VMDS-10492 VSC7440 Datasheet Revision 4.2
198
Functional Descriptions
Figure 45 • Sticky Events Available as Global Events
ANA_CL
*_sticky
*_sticky_mask(0)
*_sticky_mask(1)
*_sticky_mask(2)
*_sticky_mask(3)
ANA_L3
ANA_L2
*_sticky
*_sticky
*_sticky_mask(0)
*_sticky_mask(1)
*_sticky_mask(2)
*_sticky_mask(3)
*_sticky_mask(0)
*_sticky_mask(1)
*_sticky_mask(2)
*_sticky_mask(3)
ANA_AC
*_sticky
*_sticky_mask(0)
*_sticky_mask(1)
*_sticky_mask(2)
*_sticky_mask(3)
Port
Policer
global events[7:0]
The global events [3:0] are typically allocated for detected control frames, frames dropped due to wrong
configuration, frames dropped due to VLAN filtering, and so on.
As an example, a particular event that is normally only of interest during debug, ANA_L2:
STICKY.VLAN_IGNORE_STICKY can be configured to be the global event 0 in
ANA_L2:STICKY_MASK.VLAN_IGNORE_STICKY_MASK(0).
The following illustration shows the configuration and status available for each port statistics counter.
Figure 46 • Port Statistics Counters
3
cn
t
CF
G_
P
ST RIO
AT
_
_M MA
SB SK
_C
CF
NT
G_
CN
ST
T
AT _BY
_L
T
SB E
_C
NT
cn
t0
cn
t1
Port_num
Before the statistic counters can be used, they must be initialized to clear all counter values and sticky
bits (ANA_AC:STAT_GLOBAL_CFG_PORT:STAT_RESET.RESET).
For each counter the type of frames that are counted must be configured
(ANA_AC:STAT_CNT_CFG_PORT.STAT_CFG.CFG_CNT_FRM_TYPE).
Note: Frames without any destination are seen by the port statistics block as aborted.
Each counter must be configured whether frames or bytes are counted.
(ANA_AC:STAT_CNT_CFG_PORT.STAT_CFG.CFG_CNT_BYTE).
It is possible to limit counting to certain priorities
(ANA_AC:STAT_CNT_CFG_PORT.STAT_CFG.CFG_PRIO_MASK).
Counter events that can trigger counting can be selected among the global events
(ANA_AC:STAT_GLOBAL_CFG_PORT. STAT_GLOBAL_EVENT_MASK). There is one common event
mask for each of the four counter sets.
Each 40-bit counter consists of an MSB part and an LSB part (ANA_AC:STAT_CNT_CFG_PORT.
STAT_MSB_CNT and ANA_AC:STAT_CNT_CFG_PORT.STAT_LSB_CNT). The MSB part of the
counter is latched to a shadow register when the LSB part is read. As a result, the LSB part must always
VMDS-10492 VSC7440 Datasheet Revision 4.2
199
Functional Descriptions
be read first, and the MSB part must be read immediately after the LSB part. When writing to the counter,
the LSB part must be written first, followed by the MSB part.
The following pseudo code shows the port statistics functionality.
for (port_counter_idx = 0; port_counter_idx < 4; port_counter_idx++) {
if
(STAT_CNT_CFG_PORT[frame.igr_port].STAT_CFG[port_counter_idx].CFG_PRIO_MASK[
frame.prio]) {
count = FALSE;
global_event_mask =
STAT_GLOBAL_EVENT_MASK[port_counter_idx].GLOBAL_EVENT_MASK;
event_match = (STAT_GLOBAL_EVENT_MASK[port_counter_idx].GLOBAL_EVENT_MASK
&
frame.event_mask);
switch
(STAT_CNT_CFG_PORT[frame.igr_port].STAT_CFG[port_counter_idx].CFG_CNT_FRM_TY
PE) {
case 0x0:
if (!frame.error && !event_match) count = 1;
break;
case 0x1:
if (!frame.error && event_match) count = 1;
break;
case 0x2:
if (frame.error && event_match) count = 1;
break;
case 0x3:
if (event_match) count = 1;
break;
case 0x4:
if (frame.error && !event_match) count = 1;
break;
case 0x5:
if (frame.error) count = 1;
break;
}
if (count) {
if
(STAT_CNT_CFG_PORT[frame.igr_port].STAT_CFG[port_counter_idx].CFG_CNT_BYTE) {
STAT_xSB_CNT[port_counter_idx] += frame.bytes;
} else {
STAT_xSB_CNT[port_counter_idx]++;
}
}
}
}
Example: To set up port counter 3 to count bytes filtered by VLAN ingress filter, the following
configuration is required.
•
•
•
Enable VLAN drop events as global event 3:
Set
ANA_L3:L3_STICKY_MASK:VLAN_MSTP_STICKY_MASK[3].VLAN_IGR_FILTER_STICKY_MAS
K = 1.
Initialize counters:
Set ANA_AC:STAT_GLOBAL_CFG_PORT:STAT_RESET.RESET = 1.
Set up port counters. For each active Ethernet port:
Set ANA_AC:STAT_CNT_CFG_PORT[port].STAT_CFG[3].CFG_CNT_FRM_TYPE = 3.
VMDS-10492 VSC7440 Datasheet Revision 4.2
200
Functional Descriptions
•
Set ANA_AC:STAT_CNT_CFG_PORT[port].STAT_CFG[3].CFG_CNT_BYTE = 1.
Set ANA_AC:STAT_CNT_CFG_PORT[port].STAT_CFG[3].CFG_PRIO_MASK = 0xFF.
Enable global event 3 as trigger:
Set ANA_AC:STAT_GLOBAL_CFG_PORT[3]. STAT_GLOBAL_EVENT_MASK = 8.
Example: To set up port counter 0 to count frames dropped by port policer, the following configuration is
required.
•
•
3.23.3.2
Set up port counters. For each active Ethernet port:
Set ANA_AC:STAT_CNT_CFG_PORT[port].STAT_CFG[0].CFG_CNT_FRM_TYPE = 3.
Set ANA_AC:STAT_CNT_CFG_PORT[port].STAT_CFG[0].CFG_CNT_BYTE = 0.
Set ANA_AC:STAT_CNT_CFG_PORT[port].STAT_CFG[0].CFG_PRIO_MASK = 0xFF.
Enable global event 4 to 7 as trigger:
Set ANA_AC:STAT_GLOBAL_CFG_PORT[0]. STAT_GLOBAL_EVENT_MASK = 0xF0.
Queue Statistics
The following table lists the applicable queue statistics registers.
Table 128 • Queue Statistics Registers Overview
Target::Register.Field
Description
Replication
ANA_AC:STAT_GLOBAL_CFG_QUEUE:
STAT_GLOBAL_CFG
Configures counting of bytes or frames per
queue (= port × 8 + iprio).
2
ANA_AC:STAT_GLOBAL_CFG_QUEUE:
STAT_GLOBAL_EVENT_MASK
Configures global event mask per queue
(= port × 8 + iprio).
2
ANA_AC:STAT_CNT_CFG_QUEUE.STAT_LSB_CNT Least significant 32 bits of counters per queue. per queue × 2
ANA_AC:STAT_CNT_CFG_QUEUE.STAT_MSB_CNT Most significant 8 bits of counters per queue.
per queue × 2
The following illustration shows the configuration and status available for each queue statistics counter.
Figure 47 • Queue Statistics
ST
AT
_M
SB
_C
NT
ST
AT
_L
SB
_C
NT
cn
t0
cn
t1
index = port number × 8 + IPRIO
Each counter type must be configured to count either bytes or frames
(ANA_AC:STAT_GLOBAL_CFG_QUEUE: STAT_GLOBAL_CFG.CFG_CNT_BYTE).
ACL events that can trigger counting can be selected among the following events:
•
•
Count traffic applicable for queue policer, but not discarded
Count traffic discarded by queue policer
There is one common event mask for each of the two queue counter types
(ANA_AC:STAT_GLOBAL_CFG_QUEUE:STAT_GLOBAL_EVENT_MASK).
Each 40-bit counter consists of an MSB part and an LSB part
(ANA_AC:STAT_CNT_CFG_QUEUE.STAT_MSB_CNT and
ANA_AC:STAT_CNT_CFG_QUEUE.STAT_LSB_CNT). The MSB part of the counter is latched to a
VMDS-10492 VSC7440 Datasheet Revision 4.2
201
Functional Descriptions
shadow register when the LSB part is read. As a result, the LSB part must always be read first, and the
MSB part must be read immediately after the LSB part. When writing to the counter, the MSB part must
be written first, followed by the LSB part.
3.23.3.3
Broadcast, Unicast, Multicast (BUM) Policer Statistics
The following table lists the applicable BUM policer statistics registers.
Table 129 • BUM Policer Statistics Registers Overview
Target::Register.Field
Description
Replication
ANA_AC:STAT_GLOBAL_CFG_BUM Configures counting bytes or frames per BUM policer
: STAT_GLOBAL_CFG
index.
2
ANA_AC:STAT_GLOBAL_CFG_BUM Configures global event mask per BUM policer index.
: STAT_GLOBAL_EVENT_MASK
2
ANA_AC:STAT_CNT_CFG_BUM.ST Least significant 32 bits of counters per BUM policer
AT_LSB_CNT
index.
per BUM policer
index × 2
ANA_AC:STAT_CNT_CFG_BUM.ST Most significant 8 bits of counters per BUM policer index. per BUM policer
AT_MSB_CNT
index × 2
The following illustration shows the configuration and status available for each BUM policer.
Figure 48 • BUM Policer Statistics
ST
AT
_L
SB
_C
NT
M
SB
_C
NT
ST
AT
_
cn
t
cn 4
t
5
cn
t
cn 0
t
1
index =
ANA_L3:VLAN:BUM_CFG.BUM_SLB_IDX
or
ANA_L2:ISDX:MISC_CFG.BUM_SLB_IDX
Set of six counters per
BUM policer
Each of the two counters in a counter set can be configured to which frames are counted and if bytes or
frames are counted. This configuration is shared among all counter sets.
The BUM event mask supports counting the following frame types:
•
•
•
•
•
•
Broadcast traffic discarded by BUM policer
Multicast traffic discarded by BUM policer
Unicast traffic discarded by BUM policer
Broadcast traffic applicable for BUM policer but not discarded
Multicast traffic applicable for BUM policer but not discarded
Unicast traffic applicable for BUM policer but not discarded
The event mask is configured in ANA_AC:STAT_GLOBAL_CFG_BUM:STAT_GLOBAL_EVENT_MASK.
Each 40-bit counter consists of an MSB part and an LSB part
(ANA_AC:STAT_CNT_CFG_BUM.STAT_MSB_CNT and ANA_AC:STAT_CNT_CFG_
BUM.STAT_LSB_CNT). The MSB part of the counter is latched to a shadow register when the LSB part
is read. As a result, the LSB part must always be read first, and the MSB part must be read immediately
after the LSB part. When writing to the counter, the MSB part must be written first, followed by the LSB
part.
VMDS-10492 VSC7440 Datasheet Revision 4.2
202
Functional Descriptions
3.23.3.4
ACL Policer Statistics
The following table lists the applicable ACL policer statistics registers.
Table 130 • ACL Policer Statistics Registers Overview
Target::Register.Field
Description
Replication
ANA_AC:STAT_GLOBAL_CFG_ACL:
STAT_GLOBAL_CFG
Configures counting of bytes or frames per ACL
policer index.
2
ANA_AC:STAT_GLOBAL_CFG_ACL:
STAT_GLOBAL_EVENT_MASK
Configures global event mask per ACL policer
index.
2
ANA_AC:STAT_CNT_CFG_ACL.STAT_LSB_ Least significant 32 bits of counters per ACL
CNT
policer index.
per ACL policer
index × 2
ANA_AC:STAT_CNT_CFG_ACL.STAT_MSB_ Most significant 8 bits of counters per ACL policer
CNT
index.
per ACL policer
index × 2
The following illustration shows the configuration and status available for each ACL policer statistics
counter.
Figure 49 • ACL Policer Statistics
ST
AT
_M
SB
_C
NT
ST
AT
_L
SB
_C
NT
cn
t0
cn
t1
index = VCAP_S2.POLICE_IDX
Each counter type must be configured whether bytes or frames are counted
(ANA_AC:STAT_GLOBAL_CFG_ACL: STAT_GLOBAL_CFG.CFG_CNT_BYTE).
ACL events that can trigger counting can be selected among the following events. If an ACL policer is
triggered by an IS2 action, with IS_INNER_ACL = 1, it is termed “inner”. Otherwise, it is termed “outer”.
•
•
•
•
•
•
•
•
Count CPU traffic applicable for outer ACL policer, but not discarded
Count front port traffic applicable for outer ACL policer, but not discarded
Count CPU traffic discarded by outer ACL policer
Count front port traffic discarded by outer ACL policer
Count CPU traffic applicable for inner ACL policer, but not discarded
Count front port traffic applicable for inner ACL policer, but not discarded
Count CPU traffic discarded by inner ACL policer
Count front port traffic discarded by inner ACL policer
There is one common event mask for each of the two ACL policer counter types
(ANA_AC:STAT_GLOBAL_CFG_ACL:STAT_GLOBAL_EVENT_MASK).
Each 40-bit counter consists of an MSB part and an LSB part
(ANA_AC:STAT_CNT_CFG_ACL.STAT_MSB_CNT and
ANA_AC:STAT_CNT_CFG_ACL.STAT_LSB_CNT). The MSB part of the counter is latched to a shadow
register when the LSB part is read. As a result, the LSB part must always be read first, and the MSB part
must be read immediately after the LSB part. When writing to the counter, the MSB part must be written
first, followed by the LSB part.
VMDS-10492 VSC7440 Datasheet Revision 4.2
203
Functional Descriptions
3.23.3.5
Routing Statistics
The following table lists the applicable routing statistics registers.
Table 131 • Analyzer Routing Statistics Registers Overview
Target::Register.Field
Description
Replication
ANA_AC:STAT_GLOBAL_CFG_IRLEG:
STAT_GLOBAL_CFG
Configures counting of bytes or frames per ingress 8
router leg counter.
ANA_AC:STAT_GLOBAL_CFG_IRLEG:
STAT_GLOBAL_EVENT_MASK
Configures global event mask per ingress router
leg counter.
8
ANA_AC:STAT_CNT_CFG_IRLEG.STAT_LSB_ Least significant 32 bits of ingress router leg
CNT
counters.
Per RLEG per
IP_version × 8
ANA_AC:STAT_CNT_CFG_IRLEG.STAT_MSB_ Most significant 8 bits of ingress router leg
CNT
counters.
Per RLEG per
IP_version × 8
ANA_AC:STAT_GLOBAL_CFG_ERLEG:
STAT_GLOBAL_CFG
Configures counting of bytes or frames per egress 8
router leg counter.
ANA_AC:STAT_GLOBAL_CFG_ERLEG:
STAT_GLOBAL_EVENT_MASK
Configures global event mask per egress router
leg counter.
8
ANA_AC:STAT_CNT_CFG_ERLEG.STAT_LSB Least significant 32 bits of egress router leg
_CNT
counters.
Per RLEG per
IP_version × 8
ANA_AC:STAT_CNT_CFG_ERLEG.STAT_MSB Most significant 8 bits of egress router leg
_CNT
counters.
Per RLEG per
IP_version × 8
The following illustration shows the configuration and status available for ingress router leg and egress
router leg statistics counter sets. For this device, RLEG_CNT is 64.
Figure 50 • Ingress and Egress Routing Statistics per Router Leg per IP Version
IRLEG Statistics
ERLEG Statistics
IPv6 entries
IPv6 entries
cn
t
1
0
t
T
ST
AT
_L
SB
_C
NT
cn
cn
t
7
t
cn
ST
A
7
IPv4 entries
index = erleg when IPv4
index = erleg+RLEG_CNT when IPv6
T_
M
SB
ST
_C
AT
NT
_L
SB
_C
NT
cn
t
0
cn
t
1
IPv4 entries
ST
AT
_M
SB
_C
N
index = irleg when IPv4
index = irleg+RLEG_CNT when IPv6
Each counter type must be configured if bytes or frames are counted
(ANA_AC:STAT_GLOBAL_CFG_IRLEG: STAT_GLOBAL_CFG.CFG_CNT_BYTE and
ANA_AC:STAT_GLOBAL_CFG_ERLEG: STAT_GLOBAL_CFG.CFG_CNT_BYTE)
Ingress router leg counter events that can trigger counting can be selected among the following events:
•
•
•
•
•
acl_discarded - frame applicable for routing but discarded due to VCAP IS2 ingress discard action
(first VCAP IS2 lookup with action RT_ENA cleared).
received IP unicast traffic - frame applicable for routing (hitting a router leg).
received IP multicast traffic - frame applicable for routing (hitting a router leg).
unicast_routed - frame is unicast routed.
multicast_routed - frame is multicast routed
VMDS-10492 VSC7440 Datasheet Revision 4.2
204
Functional Descriptions
•
•
ip_multicast_rpf_discarded - frame discarded due to failed Reverse Path Forwarding check (frame
not received from configured interface)
ip_TTL_discarded - frame discarded due to TTL VLAN_MIRROR_ENA set (enabled in
ANA_AC:MIRROR_PROBE[x].PROBE_CFG.PROBE_VLAN_MODE== 1).
All frames received from a known station with MAC->MIRROR set (enabled in
ANA_AC:MIRROR_PROBE[x].PROBE_CFG.PROBE_MAC_MODE(1)= 1).
All frames send to a known station with MAC->MIRROR set (enabled in
ANA_AC:MIRROR_PROBE[x].PROBE_CFG. PROBE_MAC_MODE(0) = 1). This can also be
flooded traffic (enabled via ANA_L2::FWD_CFG.FLOOD_MIRROR_ENA).
Frames selected through configured VCAP entries (enabled by VCAP IS2 action
MIRROR_PROBE). For such frames, the only other applicable mirror criteria is
PROBE_DIRECTION.
All frames received from CPU, also known as CPU ingress mirroring (enabled in
ANA_AC:MIRROR_PROBE[x].PROBE_CFG.PROBE_DIRECTION(1) = 1 and CPU ports to be RX
mirrored set in ANA_AC:MIRROR_PROBE[x].PROBE_RX_CPU_AND_VD).
The mirror port configured per probe (QFWD:SYSTEM:FRAME_COPY_CFG[8-11]) can be any port on
the device, including the CPU.
Rx-mirrored traffic sent to the mirror port is sent as received optionally with an additional Q-tag (enabled
in REW::MIRROR_PROBE_CFG.REMOTE_MIRROR_CFG).
VMDS-10492 VSC7440 Datasheet Revision 4.2
207
Functional Descriptions
Tx-mirrored traffic sent to the mirror port is modified according to a configured Tx port
(REW:COMMON:MIRROR_PROBE_CFG.MIRROR_TX_PORT) optionally with an additional Q-tag
(enabled in REW::MIRROR_PROBE_CFG.REMOTE_MIRROR_CFG).
For information about possible rewriter options for mirrored frames, see Mirror Frames, page 269.
Example: Ingress port mirroring in specific VLAN
All traffic only in VLAN 3 from host B on port 3 (the probe port) is mirrored to port 11 (the mirror port)
using probe 1, as shown in the following illustration.
Figure 52 • Ingress Mirroring in Specific VLAN
Switch
2
3
4
11
VLAN 3
VLAN 2
Host A
Host B
Host C
Network Analyzer
The following configuration is required:
•
•
•
3.24
Enable RX mirroring on port 3:
ANA_AC:MIRROR_PROBE[1].PROBE_CFG.PROBE_DIRECTION = 2 (= Rx only)
ANA_AC:MIRROR_PROBE[1].PROBE_PORT_CFG = 0x8 (port 3)
Enable VID filtering:
ANA_AC:MIRROR_PROBE[1].PROBE_CFG.PROBE_VLAN_MODE = 2
ANA_AC:MIRROR_PROBE[1].PROBE_CFG. PROBE_VID = 3
Setup mirror port: QFWD:SYSTEM:FRAME_COPY_CFG[10].FRMC_PORT_VAL 11
Shared Queue System and Hierarchical Scheduler
The device includes a shared queue system with a per-port ingress queue and 3,358 shared egress
queues. The shared queue system has 8 megabits of buffer. It receives frames from 15 ports, stores
them in a shared packet memory, and transmits them towards 15 destination ports. The first 11 ports are
assigned directly to a specific front port, whereas the last four ports are internal ports.
Table 134 • Port Definitions in Shared Queue System
Ports
Connection
0–8
Front port, maximum bandwidth is 1 Gbps or 2.5 Gbps.
9 – 10
Front port, maximum bandwidth is 10 Gbps.
11 – 12
Frame injection and extraction CPU ports. The CPU connects these ports to DMA logic or to a register
interface.
13
IP multicast loopback port (VD0).
When the queue system is requested to transmit to VD0, it generates multiple copies. All copies are,
outside the queue system, looped back into the analyzer. The rewriter changes the ingress port number to
VD0 before the loop. The analyzer generates a routed version of each of the frame copies coming from
VD0.
VMDS-10492 VSC7440 Datasheet Revision 4.2
208
Functional Descriptions
Table 134 • Port Definitions in Shared Queue System (continued)
Ports
Connection
14
AFI loopback port (VD1).
When the queue system is requested to send to VD1, it sends the request to the AFI. The AFI stores the
request and can be configured to transmit the frame to any port in a programmed schedule. The AFI can
transmit the frame to any of the egress ports. If VD1 is selected as destination by the AFI, the frame is
looped back into the analyzer.
The following illustration provides an overview of shared queue system.
Figure 53 • Shared Queue System Block Diagram
Scheduling Configuration
Egress Queues, Destination 0
Queue 0
Queue 1
Buffer Control
Analyzed
Frames
Ingress Queues
Forwarding
Queue
Mapping
Queue 0
Ref
Queue 1
Frame
Forwarder
Queue
Mapper
Analyzer
Result
Scheduler
Hierarchy
Queue n
Egress Queues, Destination 1
Queue 0
Queue
Limitation
Queue n
Data
Congestion Control
Packet
Memory
Resource
Management
Transmit
commands
for port 0
Queue 1
Transmit
commands
for port 1
Scheduler
Hierarchy
Queue n
Egress Queues, Destination n
Queue 0
Queue 1
Transmit
commands
for port n
Scheduler
Hierarchy
Queue n
Frames are stored in the packet memory and linked into the ingress queue for the logical source port
along with the analyzer result.
The analyzer result is then processed by a frame forwarder, frame by frame. Each of the frame
transmission requests are added to an egress queue in the queue system attached to a specific egress
port. A transmission request can be a normal switching request to another port, a mirror copy, for
stacking updates, and for a CPU connected to one of the egress ports. For VD0, it can do multiple copies
of the request. The frame forwarder can also request that a specific frame copy be discarded.
The frame forwarder is efficient, because only frame references are switched, giving a forwarding
bandwidth in the range of 67 Gbps (64 byte frames) to 2 terabits (Tbps) (1,518 byte frames). The frame
data itself is not moved within the queue system.
The forwarding request is passed through a queue mapper, which then selects an egress queue based
on the classified properties of the frame. For example, a simple switch may use the classified QoS class
only and an advanced carrier switch may use MPLS-classified traffic class (TC).
A congestion control system can decide to discard some or all copies of the frame. This decision is
based on consumption per QoS level. The queue mapper can be configured to change the drop decision
using a congestion control mechanism based on queue sizes rather than only QoS class.
Each destination port has a part of the total shared queue pool attached. Transmission is scheduled
towards the destination ports through a hierarchical scheduling system, where all queues belonging to
each port are arbitrated. On the way out, frames pass through the rewriter where the frame data can be
VMDS-10492 VSC7440 Datasheet Revision 4.2
209
Functional Descriptions
modified due to, for instance, routing, MPLS encapsulation, or tagging. The queue system does not
change the original frame data.
An ingress port operates in one of three basic modes: drop mode, port flow control, or priority-based flow
control. The following table lists the modes and flow definitions.
Table 135 • Ingress Port Modes
Mode
Flow
Drop mode (DROP)
The link partner is unaware of congestion and all frames received by the port are evaluated
by the congestion control function where copies of the frame can be discarded.
Port flow control (FC)
The link partner is informed through pause frames (full-duplex) or collisions (half-duplex)
that the port cannot accept more data. If the link partner obeys the pause requests, no
incoming data is discarded by the port. If the pause frames are disobeyed by the link
partner, the buffer control function in the queue system discards data before it reaches the
ingress queues.
Priority-based flow
control (PFC)
The link partner is informed about which QoS classes in the queue system are congested
and the link partner should stop scheduling more frames belonging to these QoS classes. If
the pause frames are disobeyed by the link partner, the buffer control function in the queue
system discards data before it reaches the ingress queues.
3.24.1
Analyzer Result
The analyzer provides required information for switching frames in the shared queue system. The
following table lists the information provided and a general description of the purpose.
Table 136 • Analyzer Result
Group
Field
Function
Destination selection
Destination set
Set of ports to receive a normal switched copy.
Destination selection
CPU queue mask
Set of CPU queues to receive a copy.
Destination selection
Mirror
Requests mirror copy.
Destination selection
Learn all
Requests learn copy to stack ports.
Congestion control
Drop mode
This particular frame can be dropped even if ingress port is setup for
flow control.
Congestion control
DP
Drop precedence level.
Congestion control
Priorities
Ingress resource priority of the frame. Four classified classes are
provided from the analyzer: QoS, PCP, COSID, and TC. All values
between 0 and 7.
Queue mapping
SP
Super priority frame.
Queue mapping
QGRP
Queue group for service-based egress queuing.
Statistics
OAM type
Service counters can be configured to only count certain OAM frame
types.
3.24.2
Buffer Control
Frames are stored in a shared packet memory bank, which contains 5,952 words of 176 bytes each. A
memory manager controls which words the packet writer uses to store a frame.
With proper configuration, the packet memory bank always has a free word available for incoming
frames. There are configurable thresholds for triggering pause frame requests on ports enabled for flow
control and for discarding frames due to too large memory use when for instance pause frames are
disobeyed by the link partner.
VMDS-10492 VSC7440 Datasheet Revision 4.2
210
Functional Descriptions
Frames discarded at this stage are discarded without considering the frame’s destination ports. This kind
of discarding is called tail dropping. It is an indication of head-of-line blocking and is not usually desired.
For information about how it can be avoided by properly configuring the congestion control system, see
Congestion Control, page 213.
The pause frame and discard mechanisms are activated when a threshold for the individual port’s
memory use is reached and when a threshold for the total use of memory is reached.
The following table lists the configuration registers involved in the buffer control.
Table 137 • Buffer Control Registers Overview
Register
Description
Replication
QSYS::ATOP
Maximum allowed memory use for a port before tail dropping is
activated.
Per port
QSYS::ATOP_TOT_CFG
Total memory use before tail dropping can be activated.
None
QSYS::PAUSE_CFG
Thresholds for when to start and stop port flow control based on
memory use by the port.
Per port
QSYS::PAUSE_TOT_CFG
Total memory use before flow control is activated.
None
QFWD::SWITCH_PORT_MODE
Enable drop mode for a port.
Per port
The following table lists available status information.
Table 138 • Buffer Status Registers Overview
Register
Description
Replication
QSYS::MMGT_PORT_USE
Current consumption for a specific port
None
QSYS::MMGT_PORT_VIEW
Selection of port to show usage for
None
QSYS::MMGT
Number of free words in packet memory
None
3.24.3
Forwarding
The frame forwarder processes frames at the head of the per-port ingress queues by adding references
to the egress queues for each of the frames’ destination ports. The references points from the egress
queues to the stored frames. The forwarder can add from 78 million to 156 million references per second.
The ingress queues are selected by a weighted round-robin search, where the weights are configured in
QFWD::SWITCH_PORT_MODE.FWD_URGENCY.
Each frame is processed as either a drop-mode frame or a flow control frame, which influences how the
congestion control works. For a drop-mode frame, the congestion control can discard frame copies while
for a flow control frame, it lets the frame stay at the head of the ingress queue blocking further processing
of frames from the port until the congestion situation is over. A frame is processed as a drop-mode frame
if one of the following conditions is met:
•
•
•
The ingress port is configured to be an ingress drop port.
The egress port is configured to be an egress drop port.
The frame itself is analyzed to be a drop frame.
In terms of discarding frames, the forwarder can work in an ingress-focused statistics mode or an egressfocused statistics mode. The mode is configured per ingress port in QFWD::STAT_CNT_CFG.
In the ingress-focused mode, a frame can be discarded towards multiple destinations simultaneously.
The discard statistics is only incremented if the frame is discarded towards all destinations.
In the egress-focused mode, the discard statistics is incremented for each copy of the frame being
discarded at the expense of the forwarder only discarding one frame copy per cycle. As a result, the
forwarder can become oversubscribed. For example, if two 10G ports are multicasting 64-byte frames at
wire-speed to ten destinations, the total amount of frame copies per second is 20 × 10
VMDS-10492 VSC7440 Datasheet Revision 4.2
211
Functional Descriptions
frames/(8 × (64 + 20) ns) = 1,523 million frames per second. The forwarder can at maximum process
156 million frames per second. As a consequence, the ingress queues fill up and tail dropping is
inevitable.
The highlights of the modes are listed in the following table.
Table 139 • Statistics Modes
Statistics Mode
Operation
Ingress-focused
A frame switched to N ports and discarded to M ports will update the discard statistics for the
ingress port by one, only if N = 0 and M >0. The forwarder will use N cycles to process the
frame.
Egress-focused
A frame switched to N ports and discarded to M ports will update the discard statistics for the M
egress ports by one. The forwarder will use N+M cycles to process the frame.
3.24.3.1
Forward Pressure
The worst-case switching capacity in the frame forwarder is 78 million frames per second. This
corresponds to 52 Gbps line rate with minimum-sized frames.
However, if a large share of these frames have multiple destinations, and are all close to the 64 byte
minimum frame size, the processing speed is insufficient to process the destination copy one at a time.
The consequence is that the ingress queues start to fill. The ingress queues contain both high and low
priority traffic, unicast, and multicast frames. To avoid head-of-line blocking effects from the ingress
queues filling up and eventually leading to tail dropping, a forward pressure system is in place. It can
discard frame copies based on the size of the ingress queues. Forward pressure is configured in the
QSYS::FWD_PRESSURE registers, where each port is allowed only a certain number of copies per
frame if the number of pending transmit-requests in the port’s ingress queue exceeds a threshold.
The following table lists the registers associated with configuring forward pressure.
Table 140 • Forward Pressure Configuration Registers Overview
Register
Description
Replication
QSYS::FWD_PRESSURE.FWD_PRESSURE
Configures forwarding pressure limits per port.
Per port
QSYS::MMGT_IQ_STAT
Returns current ingress queue size.
Per port
QFWD::FWD_PRESSURE.FWD_PRESS_DROP Counts number of frame copies discarded due to
_CNT
this feature. Value is total discards for all ports in
common.
3.24.3.2
None
Destination Selection
The forwarder adds references to the egress queues by evaluating the destination selection information
shown in the following table from the analyzer.
Table 141 • Analyzer Destination Selection
Field
Function
Destination set
Set of ports to receive a normal switched copy.
All ports except the internal extraction ports have a bit in this mask.
CPUQ
Set of CPU queues to receive a copy.
Mirror
Request mirror copy.
Learn all
Request learn copy to stack ports.
The destination set selects specific egress ports, and the CPUQ, mirror, and learn-all fields are indirect
frame destinations and must be translated to transmit requests through the frame copy configuration
VMDS-10492 VSC7440 Datasheet Revision 4.2
212
Functional Descriptions
table. The table provides a specific egress port and QoS class to use in congestion control. The table is
accessed through the QFWD::FRAME_COPY_CFG register.
The following illustration shows the translation of transmit requests.
Figure 54 • Translation of Transmit Requests
Egress ports from destination set
CPU queues
Mirror request
Translate
requests to
egress ports
Egress ports
LearnAll request
The CPUQ field instructs which of the eight CPU extraction queues should get a copy of this frame. Each
queue in the queue system is translated into either one of the two internal CPU ports or to a front port.
The egress QoS class can be set to the same value as the ingress QoS class or to a specific value per
CPU extraction queue. A super priority can also be used. For more information, see Super Priorities,
page 229.
The mirror field is the mirror probe number, which is set by the analyzer if the frame must be mirrored.
There are three mirror probes available, and for each of the probes, associated egress port and egress
QoS class can be set by the translation table.
Finally, if the learn-all field is set, the frame should also be forwarded to the stacking links. It is selectable
to forward the frame to either of the two stacking links or to both, depending on the stacking topology.
The following table lists the configuration registers associated with the forwarding function.
Table 142 • Frame Forwarder Registers Overview
Register
Description
Replication
QFWD::SWITCH_PORT_MODE Enables forwarding to/from port.
Forwarding speed configuration.
Drop mode setting.
Per port
QFWD::FRAME_COPY_CFG
Translates CPUQ/mirror/learn all to enqueuing requests.
12
QFWD::FRAME_COPY_LRNA
Learn All frame copy extra port.
None
QFWD::CPUQ_DISCARD
Disables enqueuing to specific CPU queues.
None
QSYS::FWD_PRESSURE
Configures forwarding pressure limits per port.
Per port
QFWD::MIRROR_CFG
Configures whether discarded copies should still generate a mirror None
copy.
3.24.4
Congestion Control
The buffer control can only guarantee that no ingress port consumes more than a certain amount of
memory. Discards made by the buffer control are tail drops. The congestion control is more advanced in
that it facilitates intelligent discard where only frames belonging to a congested flow are discarded.
If the forwarder finds that some frame copies are made to a congested flow, it discards the copies (dropmode frames) or lets the copies block further processing of the ingress queue (flow control ports).
VMDS-10492 VSC7440 Datasheet Revision 4.2
213
Functional Descriptions
The congestion control information from the analyzer result involved in the congestion control is listed in
the following table.
Table 143 • Analyzer Congestion Results
Field
Function
Drop mode
This frame can be dropped even if port is setup for flow control. This function is mainly used by the
analyzer for stacking use where the ingress unit's source port determines how congestion should
be handled.
DP
Drop precedence level. A value 0-3, telling how yellow the frame is.
QoS class
Frame’s ingress QoS class
The current consumption of resources in the congestion controller is updated when a reference is added
to one of the egress queues. The congestion controller tracks four different resources:
•
•
•
•
Ingress packet memory consumption. Each frame uses a number of 176-byte words.
Egress packet memory consumption. Each frame uses a number of 176-byte words.
Ingress frame reference consumption. Each frame uses one frame reference per frame copy.
Egress frame reference consumption. Each uses one frame reference per frame copy.
There are 5,952 memory words and 5,952 frame references in total.
The accounting is done based on QoS classes and port numbers. Each account has a threshold
specifying how many resources the account is permitted to consume. The accounts are as follows:
•
•
•
•
Consumption per port per QoS class. This is a reservation account.
Consumption per port. A frame does not consume resources from this account before the resources
belonging to the previous account are consumed. This is a reservation account.
Consumption per QoS class. A frame does not consume resources from this account before the
resources belonging to the previous two accounts are consumed. This is a sharing account.
Consumption in addition to the above. A frame does not consume from this account before the
resources belonging to the previous three accounts are consumed. This is a sharing account.
The congestion controller updates an accounting sheet with the listed accounts for each of the tracked
resources.
The following illustration shows reservation accounts for the packet memory accounting sheets when a
700-byte frame from port 0 forwarded to ports 1 and 5 with QoS class 2 is added. The frame size
requires the use of five words in the packet memory. The account for ingress port 0, QoS class 2 is
reserved three words. Before the frame is added, it is checked if the account was fully utilized. If the
account was not fully used, the frame is allowed into the queue system. After the frame is added, the
account is updated with the five words and therefore uses two more than was reserved. These are
consumed from the port account. The port account is reserved 0 words and the added two words
therefore also close the port account. This affects further frame reception.
In the egress side, there are no words reserved for the account per port, per QoS class. The port account
for port 1 is reserved 8 words and 0 for port 5.
Figure 55 • Accounting Sheet Example
Packet memory, egress user
Packet memory, ingress user
Priority
0 1 2 3 4 5 6 7 P
0 1 2 3 4 5 6 7 P
Port
Port
0
Priority
5
3
2
0
0
1
1
...
...
...
5
...
...
5
0
5
8
5
0
5
0
VMDS-10492 VSC7440 Datasheet Revision 4.2
214
Functional Descriptions
For PFC purposes, the congestion controller contains an additional accounting sheet of the ingress
memory consumption. The sheet has its own set of thresholds. The result of the accounting is whether to
send PFC pause frames towards the link partner.
The combined rule for allowing a frame copy is if both of the following are true:
•
•
Either ingress or egress memory evaluation must allow the frame copy.
Either the ingress or egress reference evaluation must allow the frame copy.
When the reserved accounts are closed, the shared accounts spanning multiple ports are checked.
There are various rules for regarding these accounts as open or closed. These rules are explained in the
following through three major resource modes, which the congestion controller is intended to be used in.
Figure 56 • Reserved and Shared Resource Overview
Sh
ar
ed
Re
so
ur
ce
Packet Memory
Port 1
prio 0
prio 1
prio 2
prio 3
prio 0
prio 1
prio 2
prio 3
prio 4
prio 5
prio 6
prio 7
prio 5
prio 6
prio 7
Egress
Reservation
Port 0
prio 4
Port 1
prio 0
prio 1
prio 2
prio 3
prio 4
prio 5
prio 6
prio 7
prio 5
prio 6
prio 7
Ingress
Reservation
Port 0
prio 0
prio 1
prio 2
prio 3
prio 4
The resource modes are defined by the way the shared resources are distributed between classes of
frames. Note, that there are many options for configuring a different resource mode than the modes
described in the following. This is outside the scope of this document.
3.24.4.1
Strict Priority Sharing
This resource mode considers higher QoS classes as more important than lower QoS classes. The
shared area is one big pool shared between all QoS classes. Eight thresholds define the limit for each of
the eight QoS classes. If the total consumption by all QoS classes exceeds one of the thresholds, the
account associated with the particular QoS class is closed.
Figure 57 • Strict Priority Sharing
QoS class 7 limit
QoS class 5 limit
QoS class 4 limit
QoS class 3 limit
QoS class 2 limit
a
Sh
ce
ur
so
e
dR
re
QoS class 1 limit
Consumption
QoS class 6 limit
QoS class 0 limit
VMDS-10492 VSC7440 Datasheet Revision 4.2
215
Functional Descriptions
One important property of this mode is that higher QoS classes can block lower QoS classes. A
congested flow with a high QoS class uses all of the shared resources up to its threshold setting and
frame with lower QoS classes are thus affected (lower burst capacity).
The following table shows the configuration settings for strict priority sharing mode.
Table 144 • Strict Priority Sharing Configuration Settings
Configuration
Setting
Reservation thresholds
These can be set to any desired value. The amount set aside for each account should
be subtracted from the overall resource size, before the sharing thresholds are set up.
Ingress QoS class thresholds
Levels at which each QoS class should start to reject further enqueuing. Frames with
multiple destinations are only accounted once because they are physically only
stored once.
Ingress color thresholds
Set to their maximum value to disable. The color is not considered in this mode.
WRED group memberships
Disable all.
Egress sharing thresholds
Set all to 0, because only use ingress sharing control is . Egress would account for
multiple copies, which is not intended.
QoS reservation
(QRES::RES_QOS_MODE)
Disable for all. No shared resources are set aside per QoS class.
3.24.4.2
Per Priority Sharing
This mode sets aside some memory for each QoS class and can in addition have an amount of memory
reserved for green traffic only. This mode operates on ingress resources, in order to utilize that frames
with multiple destinations are only stored once.
Figure 58 • Per Priority Sharing
DP=0 limit
QoS class 7
QoS class 6
QoS class 5
QoS class 4
QoS class 2
QoS class 1
QoS class 0
QoS class 3
ce
sour
d Re
e
r
a
Sh
DP=1 limit
DP=2 limit
DP=3 limit
The following table shows the configuration settings for per priority sharing mode.
Table 145 • Per Priority Sharing Configuration Settings
Configuration
Setting
Reservation thresholds
These can be set to any desired value, except for ingress per port reservation. The
algorithm requires these to be zeroed.
Ingress QoS class thresholds
Set to amount of shared memory which should be set aside for each QoS class. The
sum of all these should not exceed the amount of memory left after all the
reservations has been subtracted.
Ingress color thresholds
Subtracting all reservations including QoS class shared areas may end up in some
unused memory. Set the color thresholds to various levels to guarantee more space
the greener.
WRED group memberships
Disable all.
Egress sharing thresholds
Set all to 0, as we only use ingress sharing control. Egress would account for
multiple copies, which is not intended.
VMDS-10492 VSC7440 Datasheet Revision 4.2
216
Functional Descriptions
Table 145 • Per Priority Sharing Configuration Settings (continued)
Configuration
Setting
QoS reservation
(QRES::RES_QOS_MODE)
Enable for all.
3.24.4.3
Weighted Random Early Discard (WRED) Sharing
In this mode, the shared resource accounts close at random. A high consumption gives a high probability
of discarding a frame. This sharing method only operates on the egress memory consumption.
There are three WRED groups, each having a number of ports assigned to it. Each WRED group
contains 24 WRED profiles; one per QoS class and per DP = 1, 2, 3. Each WRED profile defines a
threshold for drop probability 0% and a threshold for drop probability 100%. Frames with DP = 0 value
are considered green and have no WRED profile. Green frames should always be allowed.
Memory consumptions within a WRED group are tracked per QoS class, but across DP levels, however,
green frames affect the drop probability of yellow frames.
The WRED groups with each eight QoS classes are shown in the following illustration. It is also possible
to use fewer groups or different sizes for each QoS classes.
Figure 59 • WRED Sharing
WRED Group 0
WRED Group 1
QoS class 7
QoS class 6
QoS class 5
QoS class 4
QoS class 3
QoS class 2
QoS class 1
QoS class 0
QoS class 7
QoS class 6
QoS class 5
e
ourc
d res
QoS class 4
QoS class 2
QoS class 1
QoS class 0
QoS class 7
QoS class 6
QoS class 5
QoS class 4
QoS class 3
QoS class 2
QoS class 1
QoS class 0
e
Shar
QoS class 3
DP = 0 limit
WRED Group 2
The following illustration shows an example of the WRED profiles for a QoS class within a WRED group.
Thresholds are shown for DP = 2 only.
Figure 60 • WRED Profiles
Drop probability
M
W
P=
LO
D_
E
_R
3
D
D
P=
2
100%
W
M
W
ED
_R
1
DP=
H
IG
_H
WRED group
consumption for
QoS class
The WRED sharing is operating as an egress algorithm. The following table shows the configuration
setting.
Table 146 • WRED Sharing Configuration
Configuration
Setting
Reservation thresholds
These can be set to any desired value, except for ingress per port reservation. The
algorithm requires these to be zeroed.
VMDS-10492 VSC7440 Datasheet Revision 4.2
217
Functional Descriptions
Table 146 • WRED Sharing Configuration (continued)
Configuration
Setting
Ingress priority thresholds
Set to their maximum value, as the QoS classes should not have any sharing across
WRED groups.
Ingress color thresholds
Set to their maximum.
WRED group memberships
Set to define the WRED groups. For each group, define as well the up to 24 WRED
profiles (per QoS class and DP level)
Egress sharing thresholds
Set the QoS class thresholds to the highest possible consumption before any profile
hits 100% probability. The color thresholds can then operate on the remainder of the
resource in control and can all be set to the same value, allowing use of all the
remaining. A discard due to the WRED profile takes precedence over other sharing
states, so the area outside the group sections is only available for green traffic.
QoS reservation
(QRES::RES_QOS_MODE)
Disable for all.
3.24.4.4
Priority-Based Flow Control
There is a fifth accounting scheme for the pending frames. It operates on ingress memory use, but has
the same set of thresholds as the other account systems. The output from that system is however not
used for stopping/discarding frame copies, but for requesting the port to transmit pause flow control
frames for the involved priorities. The threshold levels here should be configured in a way so that the
blocking thresholds cannot be reached during the trailing amount of data.
3.24.4.5
Threshold Configuration
There is a large number of thresholds for the reservations described. They are all found in the
QRES::RES_CFG register, which is replicated approximately 5,120 times.
Table 147 • Threshold Configuration Overview
QRES::RES_CFG Replication Description
0 – 119
Ingress memory reservation for port P priority Q accessed at index 8P + Q.
496 – 503
Ingress memory shared priority threshold for priority Q accessed at index 496 + Q.
508 – 511
Ingress memory shared threshold for DP levels 1, 2, 3, and 0.
512 – 526
Ingress memory reservation for port P, shared between priorities, accessed at index
512 + P.
1,024 – 2,047
Ingress reference thresholds. Same organization as for ingress memory, but added
offset 1,024.
2,048 – 3,071
Egress memory thresholds. Same organization as for ingress memory, but added
offset 2,048.
3,072 – 4,095
Egress reference thresholds. Same organization as for ingress memory, but added
offset 3,072.
4,096 – 5,119
PFC memory thresholds, operating on ingress memory use. PFC is activated when
no memory left according to these thresholds. Same organization as the ingress
stop thresholds, but added offset 4,096.
The following table lists other registers involved in congestion control.
Table 148 • Congestion Control Registers Overview
Register
Description
QRES::RES_STAT (replicated same
way as RES_CFG)
Returns maximum value the corresponding threshold has been compared
with.
VMDS-10492 VSC7440 Datasheet Revision 4.2
218
Functional Descriptions
Table 148 • Congestion Control Registers Overview (continued)
Register
Description
QRES::RES_STAT_CUR (replicated
as RES_CFG)
Returns current value this threshold is being compared with.
QRES::WRED_PROFILE (72 profiles) Profile description. There are 3 (grp) × 3 (DP) × 8 (prio) profiles.
QRES::WRED_GROUP
WRED group membership configuration per port.
QRES::PFC_CFG
Enable PFC per port.
QRES::RES_QOS_MODE
Enable QoS reservation for QoS classes.
QFWD::SWITCH_PORT_MODE
Controls whether yellow traffic can use reserved space (YEL_RSVD). Allows
ports to use shared space (IGR_NO_SHARING, EGR_NO_SHARING).
3.24.4.6
Frame Forwarder Monitoring
The performance of the frame forwarder can be monitored through the registers listed in the following
table.
Table 149 • Frame Forwarder Monitoring Registers Overview
Register
Description
QFWD::FWD_DROP_EVENTS
Sticky bits per port telling if drops from each individual ingress port
occurred.
QFWD::FWD_CPU_DROP_CNT
Counts number of frames not forwarded to the CPU due to congestion.
QFWD::FWD_STAT_CNT
Counts number of frame copies added to the egress queues in total.
QFWD::FWD_PRESS_DROP_CNT
Counts number of frame copies discarded due to forward pressure.
Value is the total discards across all ports.
QSYS::MMGT_IQ_STAT
Returns current ingress queue size.
QSYS::MMGT
Returns number of free references for the egress queues.
3.24.5
Queue Mapping
When a frame is forwarded to an egress port, a frame reference is inserted into one of the port’s egress
queues. The egress queues are read by a programmable scheduler consisting of a number of scheduler
elements (SEs). Each SE serves 8 or 16 queues, configurable through the HSCH::HSCH_LARGE_ENA
registers. Each SE selects the next input to transmit and forwards the decision to a next-layer SE,
selecting from which of its inputs to transmit. There are a total of three layers, with layer 0 being the
queue connected layer. Connections between the layers are fully configurable in HSCH::L0_CFG and
HSCH::L1_CFG. For more information about SE functionality, see Scheduling, page 225 and Bandwidth
Control, page 226.
The scheduler includes a dual leaky bucket shaper to limit the traffic rate from inputs attached to it. To
distribute the bandwidth between the inputs, the scheduler also contains a weighted round robin arbiter.
The number of queues available in total for all ports is 3,358. The queue mapper must be configured to
how these queues are assigned to each egress port. The overall traffic management for each port is the
result of the queue mapping and scheduler hierarchy.
The following illustration shows an example of the default egress port hierarchy. At layer 0, eight SEs
select between data in the same QoS level, with queues from each source port. This forms a basic traffic
manager, where all source ports are treated fair between each other, and higher priorities are preferred.
This is accomplished by having the layer 0 SEs select input in a round robin fashion, and the mid-layer
select strictly higher inputs before lower inputs. In general, all SEs can be configured to various polices
on how to select inputs.
VMDS-10492 VSC7440 Datasheet Revision 4.2
219
Functional Descriptions
The illustration also shows the two super-priority queues available in all ports. The scheduler hierarchy
configuration must be based on a desired scheme. The hardware default setup is providing a queue per
(source, priority) per egress port. All queues with the same QoS level are arbitrated first, in layer 0.
Figure 61 • Scheduler Hierarchy (Normal Scheduling Mode)
src 1, iprio 0
Scheduler
Element
Su
pe
r
src 14, iprio 0
pr
io
r
pe
Su
1
pr
src 0, iprio 1
io
0
src 1, iprio 1
Scheduler
Element
Scheduler
Element
Scheduler
Element
Transmit
Requests
src 14, iprio 1
src 0, iprio 7
src 1, iprio 7
Scheduler
Element
src 14, iprio 7
3.24.5.1
Mapping System
All queues in the system are referred to as a layer 0 SE number and an input number. For example, the
default configuration puts all traffic for port 0 from source 7 in priority 0 into the queue (0,7); SE number 0,
input 7. When the forwarder requests a frame to be added to a queue, the queue group—all classified
priorities, the source port, and the destination port—are used to find the SE and input on it, through some
configurable mapping tables. There are three basic hierarchy types, and the first part of the mapping
procedure is to find the hierarchy type in QFWD::QMAP_PORT_MODE. The mode is found for frames
with classified qgrp = 0 in the QMAP_MODE_NONSERVICE field and in QMAP_MODE_SERVICE for
qgrp >0. Note that service and non-service mappings can be combined at the higher layers, in order to
combine the two basic types of traffic in the application. An overview of the queue mapping tables is
shown in the following illustration. The drop statistics mode is also found by looking up information in
these tables. For more information, see Statistics, page 230.
VMDS-10492 VSC7440 Datasheet Revision 4.2
220
Functional Descriptions
Figure 62 • Queue Mapping Tables
QoS
TC
PCP
COSID
QoS Table
sel
qc_
qc
(qgrp, dport)
Map Mode
src port
Input number
rp
drop_stat_ctrl
qg
SE Table
SE number
cos_sel
cos8_ena
oam_cnt_sel
base_addr
QoS
TC
PCP
COSID
val 0-7
address
Ingress
Service Stat
add
res
s
frm
oct
Mapping is accomplished by the following steps.
1.
2.
Find queuing class (qc_cl)
qc_sel = QMAP_QOS_TBL (qgrp,dport)
qc = (qos, cosid, pcp, tc) (qos_sel)
Find queue. This mapping depends on which of the following hierarchy modes are configured:
Mode 0: Normal mode. This is the default mode on all ports. It is used for arbitrating all frames with
the same queuing class, treating all source ports equally. SE = QMAP_SE_TBL (128 + qc, dport),
inp = source port.
Mode 1: Group mode. This mode is used for having eight queues per queue group in layer 0. Used
in Carrier applications where each service should have its own queues, with a traffic profile per
queuing class.
SE = QMAP_SE_TBL (qgrp,dstp), inp = qc.
The following illustration shows the group scheduling mode.
VMDS-10492 VSC7440 Datasheet Revision 4.2
221
Functional Descriptions
Figure 63 • Group Scheduling Mode
qgrp 0, qos 0
qgrp 0, qos 1
Scheduler
Element
Su
pe
qgrp n, qos 7
r
pr
io
1
r
pe
Su
Scheduler
Element
i
pr
o
qgrp 1, cos 0
0
qgrp 1, cos 1
Scheduler
Element
Scheduler
Element
Transmit
Requests
qgrp n, cos 7
Scheduler
Element
qgrp 17, cos 0
qgrp 17, cos 1
Scheduler
Element
qgrp n, cos 7
Mode 2: Microwave Backhaul (MBH) mode. This mode is used when many queue groups need to be
arbitrated per queuing class, and they share a common outgoing quality of service policy. For example, it
may be possible to have 100 queues per queuing class arbitrated on level 0 and 1, and class selected on
level 2. In this case, the SE table is used by SE = QMAP_SE_TBL (qgrp – (qgrp MOD 16) + qc, dport),
inp = qgrp MOD 16.
The following illustration shows the Mobile Backhaul mode.
Figure 64 • Mobile Backhaul Mode
qgrp 0, qos 0
qgrp 1, qos 0
Scheduler
Element
Su
pe
r
qgrp 15, qos 0
pr
io
1
r
pe
Su
Scheduler
Element
pr
io
qgrp 112, qos 0
0
qgrp 113, qos 0
Scheduler
Element
Scheduler
Element
Transmit
Requests
qgrp 127, qos 0
Scheduler
Element
qgrp 112, qos 7
qgrp 113, qos 7
Scheduler
Element
qgrp 127, qos 7
VMDS-10492 VSC7440 Datasheet Revision 4.2
222
Functional Descriptions
The following table lists the registers associated with assigning queues for each egress port.
Table 150 • Queue Mapping Registers Overview
Configuration
Description
QMAP_PORT_MODE
Selects queue layer hierarchy type
QMAP_QOS_TBL
Selects per (qgrp,dport) from which queueing QoS it should be derived
QMAP_SE_TBL
Selects per (qgrp,dport) a scheduling element
3.24.5.2
Service Statistics
As shown in the following illustration, drop statistics configuration is also being looked up in the mapping
flow. The device has 1,024 service counter sets. On the ingress side, the queue system only counts
discarded frames. On the egress side, it counts the amount of frames transmitted. In both cases, there is
a counter for green frames and another counter for yellow frames.
The egress counter set to count is selected through the rewriter. The ingress counter is selected by
looking up drop statistics information when the queuing class is looked up. That returns a base index,
which is multiplied by four, and one of the four classified priority parameters is added. If the set is
configured for using only four counters, the MSB of the priority is cleared. The resulting index will
afterwards be counting drops, with 18 bits of octet counting, and 10 bits of frame counting. Optionally, all
28 bits can be used for frame counting. For more information about drop statistics, see Statistics,
page 230.
3.24.6
Queue Congestion Control
The congestion control system may choose to forward a frame to a specific queue or to discard it. In
either case, the decision passes through a queue limitation function, which can alter the decision based
on another view of the resources.
The following illustration shows the drop decision flow.
Figure 65 • Drop Decision Flow
Transmit or
discard frame
copy to a
specific port
Frame
Forwarder
Transmit or
discard frame
copy to a
specific queue
Queue
Mapper
Transmit frame
copy to a
specific queue
or skip request
Queue
Limitation
Scheduler
The queue limitation function checks the queue size against various configurable and dynamic values
and may change a transmit request to a discard by canceling the request to the scheduler.
The queue limitation system uses queue sizes (in terms of packet memory usage) of all queues. Each
queue is assigned to a share. The share is a configuration parameter for the port, QoS class, and
service/non-service type as set in the QLIMIT_PORT_CFG register. With this configuration granularity, it
also possible to change the queue rights to be shared for the scheduling element to which they are
attached, so that one aggressive queue will make other queues on the same element start discarding
frames. That is done in the QLIMIT_SHR_MODE field. A set of watermarks is afterwards used to control
some queue limitation drop mechanisms, trying to discard data for congested queues without affecting
well-balanced traffic.
The conditions under which a frame is discarded is shown in the following illustration The watermarks
shown are defined per shared account and per color. If yellow traffic is present, it can be discarded fairly
without affecting the green traffic.
VMDS-10492 VSC7440 Datasheet Revision 4.2
223
Functional Descriptions
Figure 66 • Queue Limitation Share
Discard all
QLIMIT_SHR_TOP
Discard if queue is active
QLIMIT_SHR_ATOP
Discard if queue looks congested
QLIMIT_SHR_CTOP
Discard if queue consumes
too much
QLIMIT_SHR_QLIM
Queue size sum
No frame discarding
The following table provides descriptions of the queue limitation conditions.
Table 151 • Queue Limitation Conditions
State
Description
Traffic Condition
Queue is active
The queue size exceeds the
watermark in QLIMIT_QUE_ACT
The queue is not idle. When the
filling gets very high, only nonactive queues are allowed further
enqueing.
Queue looks congested
The queue size exceeds the
watermark in QLIMIT_QUE_CONG
The queue seems to be growing.
When the share filling is high, it can
be chosen to discard further data
into the queue.
Queue consumes too much The queue size exceeds DYN_WM,
which is the QLIMIT_SHR_CTOP
watermark divided by the number of
queues looking congested.
The queue seems to be one of the
reasons for the growing memory
consumption, and further additions
to the queue can be avoided.
The following table lists the queue limitation registers.
Table 152 • Queue Limitation Registers
Register Groups
Description
QLIMIT_QUEUE
Reads current queue size
QLIMIT_PORT
Assigns ports to shares
QLIMIT_SHR
Configures watermarks for share and monitor filling and dynamic
watermarks
QLIMIT_MON
Reads the status for each of the logical shares.
VMDS-10492 VSC7440 Datasheet Revision 4.2
224
Functional Descriptions
3.24.7
Scheduling
All egress queues are combined in a tree structure where the root is connected to an egress port. The
scheduling capabilities consist of the following three aspects.
•
•
•
3.24.7.1
Structure of the hierarchy
Bandwidth limitation (shaping)
Bandwidth distribution (arbitration between inputs)
Hierarchy Structure
The hierarchy consists of three layers: queue, middle, and outer.
•
•
•
3.24.7.2
Layer 0 is the queue level. All inputs to scheduler elements are connected to a specific egress
queue, as described in the previous section. This layer has 416 elements with eight inputs each. A
number of those can be reconfigured to have 16 inputs, in which case they are called “large
elements”. Only elements in multiples of two can become large, so the one following cannot be
used.
Layer 1 is the middle layer. There are 64 elements in this layer, all having 32 inputs. These inputs
are connected to outputs of the layer 0 elements, through the HSCH::L0_CFG table.
Layer 2 is the output layer. There is one scheduler element per egress port (15 elements). All
elements have 64 inputs connected to outputs from layer 1 elements. Input n on the layer 2 elements
can only be connected to layer 1 element n, configured in HSCH::L1_CFG.
Default Hierarchy
The initialization engine in the scheduler builds a default hierarchy for all ports, and no further
configuration of it is needed. It sets all ports into normal mode, using eight large elements on layer 0, and
one element on each of the two other layers. The layer 0 elements are all configured for frame based
round robin selection, and the layer 1 elements for strict selection of highest available input.
Port n uses elements 16n, 16n + 2, 16n + 14,... for layer 0. The example in the following illustration is for
port 7.
VMDS-10492 VSC7440 Datasheet Revision 4.2
225
Functional Descriptions
Figure 67 • Default Scheduling Hierarchy
layer 0
layer 1
layer 2
SE
#112
SE
#114
SE
#116
15 queues, src x,
dst 7, iprio 3
SE
#118
SE #7
SE #7
SE
#120
SE
#122
SE
#124
SE
#126
3.24.7.3
Bandwidth Control
Each scheduler element has a dual leaky bucket shaper on its output, which may block further
transmissions from that scheduler element. It is controlled through a leaky bucket system, filling the
bucket when data is transmitted, and leaking it at the configured rate. The bucket is closed when more
data than the configured burst capacity has been filled into it.
The shaper has three rate modes that define what is added to a bucket:
•
•
•
Bits transmitted excluding IFG
Bits transmitted including IFG
Frames transmitted
Each of the three layers have four linked lists configured. All scheduling elements with active shapers
must be members of one of those. Each linked list is processed once every configurable interval. When a
list is processed, all shapers in it will leak its configured rate setting.
Examples:
VMDS-10492 VSC7440 Datasheet Revision 4.2
226
Functional Descriptions
•
•
Data rate shapers are connected in a linked list, which is traversed every 10 µs. The shaper rate
granularity becomes 100 kbps.
Frame rate shapers are connected in a linked list, which is traversed every 1 ms. The shaper rate
granularity becomes 1 kilo frames per second.
Each scheduler element includes two leaky buckets to support DLB shaping. The committed information
rate (CIR) bucket is open when the filling is below the configured limit. The excess information rate (EIR)
shaper is always closed, unless the congestion control reports that a threshold is reached. Which
congestion thresholds to react on are configurable for each shaper and should depend on the traffic
groups the particular element is a part of. The effect of the DLB shaper is that the rate out of the shaper
is CIR or CIR plus EIR, depending of the accumulation of data in the queue system.
The following table lists the registers associated with shaping.
Table 153 • Shaper Registers Overview
3.24.7.4
Register
Description
HSCH::SE_CFG
Selects filling mode
HSCH::CIR_CFG
Configures leak rate and burst capacity for CIR bucket
HSCH::EIR_CFG
Configures leak rate and burst capacity for EIR bucket
HSCH::SE_DLB_SENSE
Selects thresholds to control EIR with.
HSCH::HSCH_LEAK_LIST
Configures leak list periods and starting index
HSCH::SE_CONNECT
Links to next in leaking lists
HSCH::CIR_STATE
Returns current CIR bucket filling
HSCH::EIR_STATE
Returns current EIR bucket filling
HSCH::SE_STATE
Returns whether or not the shaper is open
Bandwidth Distribution
Each scheduler element is selecting one of its inputs as the next source of transmission if a scheduling
process passes through it. A number of different options are available for how this arbitration takes place.
A configured value for the scheduler element tells how many of the lower indexed inputs should be
arbitrated with the DWRR method. Inputs with higher indexes are preferred and arbitrated strict.
Figure 68 • Scheduler
0
DWRR
Strict
16
The lower indexes are arbitrated in the effort to achieve a bandwidth ratio between them. In this regard,
the bandwidth can be measured in frames, data bits, or line bits (including IFG). Each input is configured
with a cost setting, and the algorithm strives to give n times more bandwidth to input A than B, if the cost
configuration for A is n times lower than B. The following are two cost configuration examples.
•
•
Input 4 has cost 7, and input 6 has cost 11. If the total bandwidth shaped out of the scheduler
element is 180 Mbps, input 4 will get 110 Mbps of it.
All inputs have cost 1, and the element is configured for frames per second arbitration. Algorithm will
by this strive to send an equal number of frames from each input.
VMDS-10492 VSC7440 Datasheet Revision 4.2
227
Functional Descriptions
Configuring costs is done indirectly by setting the HSCH_CFG_CFG.DWRR_IDX first (pointing to the
scheduler element to configure), after which the costs are accessible through the HSCH_DWRR
registers.
The following table lists the registers associated with the arbitration algorithm.
Table 154 • Scheduler Arbitration Registers Overview
Register
Description
HSCH::SE_CFG
Selects arbitration mode (data/line/frame) and number of inputs running DWRR
HSCH::CFG_CFG
Selects for which element to configure/monitor DWRR algorithm
HSCH::DWRR_ENTRY Configures costs for each input
HSCH::INP_STATE
3.24.7.5
Returns input states for a scheduler element
Queue Shapers
In addition to the shaping capabilities at the output of each scheduling element, it is also possible to
shape individual queues. These shapers are single leaky bucket based. The devices contain 832 such
shapers that can be assigned to any of the 3,328 queues. The assignment of queue shapers is done
through the HSCH::QSHP_ALLOC_CFG register. This is replicated per scheduling elements in layer 0,
and defines the range of inputs on the element that should have queue shapers assigned, and the index
of the first of the 832 shapers to allocate to it. The shapers must be linked together for the leaking
process in HSCH::QSHP_CONNECT
For example, to configure queue shapers on inputs 5 to 7 on elements 100 to 120, use the queue
shapers from 400 to 462.
For I in 100 to 120 loop
HSCH:QSHP_ALLOC_CFG[I]:QSHP_ALLOC_CFG.QSHP_MIN := 5
HSCH:QSHP_ALLOC_CFG[I]:QSHP_ALLOC_CFG.QSHP_MAX := 7
HSCH:QSHP_ALLOC_CFG[I]:QSHP_ALLOC_CFG.QSHP_BASE := 3*(I-100)+400
HSCH:QSHP_ALLOC_CFG[I]:QSHP_CONNECT.SE_LEAK_LINK := I+1;
Endloop
(terminate chain)
HSCH:QSHP_ALLOC_CFG[120]:QSHP_CONNECT.SE_LEAK_LINK := 120
The leak process operates as for the SE shapers and must be configured in
HSCH:HSCH_LEAK_LISTS[3].
The indexes of shapers allocated to a set of queues are only used in the QSHP_BASE settings. The
shapers are accessed afterwards through the QSHP_CFG and QSHP_STATUS registers, accessed
indirectly after setting HSCH_CFG_CFG.CFG_SE_IDX to the desired scheduling element.
For example, to configure the shaper on input 6 of element 118 to shape to 1.2 Mbps, set
HSCH::HSCH_CFG_CFG.CFG_SE_IDX := 118 and HSCH:QSHP_CFG[6].QSHP_CIR_CFG.CIR_RATE
:= 12 (assuming the leak chain is configured for unit 100 kbps).
3.24.7.6
Miscellaneous Scheduler Features
The following table lists some features that might be useful.
Table 155 • Miscellaneous Scheduler Registers Overview
Field
Description
SE_CONNECT_VLD
Stops the whole scheduler operation. Can be useful when reconfiguring the hierarchy.
LEAK_DIS
Disables leaking process.
FRM_ADJ
Sets the byte difference between line and data rate calculations.
DEQUEUE_DIS
Disables transmissions per port.
VMDS-10492 VSC7440 Datasheet Revision 4.2
228
Functional Descriptions
3.24.8
Queue System Initialization
The queue system automatically initializes all tables and data structures when setting
RAM_CTRL.RAM_ENA to 1, followed by setting RAM_CTRL.RAM_INIT to 1. Software should
afterwards wait for 150 µs or wait for the RAM_INIT bit to be cleared by hardware. After that the
RESET_CFG.CORE_ENA must be raised, and the queue system is ready to operate. All thresholds and
queue mappings are prepared with operational values. Configuration can afterwards be modified. The
only per-port setting required to change in the queue system for initial bring-up of the queue system is
the SWITCH_PORT_MODE.PORT_ENA, which must be set to one allowing switching of frames to and
from the port.
3.24.9
Miscellaneous Features
This section provides information about other miscellaneous features of the queue system.
3.24.9.1
Frame Aging
The queue system supports discarding of frames pending in the queue system for too long time. This is
known as frame aging. The frame aging period is configured in FRM_AGING.MAX_AGE, which controls
the generation of a periodical aging tick.
The packet memory manager marks frames pending in the queue system when the aging tick occurs.
Frames pending for more than two aging ticks are subject to frame aging and are discarded by the queue
system when scheduled for transmission. As a consequence, frames can be discarded after pending
between one or two aging periods in the queue system.
The following table lists the configuration registers associated with frame aging.
Table 156 • Frame Aging Registers Overview
Field
Description
Replication
QSYS::FRM_AGING.MAX_AGE
Sets the aging period
None
HSCH::PORT_MODE.AGE_DIS
Disables aging checks per egress port
Per port
HSCH::PORT_MODE.FLUSH_ENA
Regards various frames as being too old
None
3.24.9.2
Super Priorities
There are two special queues available in each egress port: super priority queue 0 and super priority
queue 1. For more information, see Figure 61, page 220. These queues are selected before any other
queues. They are intended for urgent protocol traffic injected by the CPU system. Frames in super
priority queue 0 disregard the output shaper state and are not counted in the shaper’s buckets. Frames in
super priority queue 1 obey the output shaper state and are counted in the shaper’s buckets.
The following frames can be added to the super priority queues:
•
•
•
3.24.9.3
AFI injected frames: The AFI can be configured to inject into either of the super priority queues. For
more information, see Adding Injection Frame, page 244.
CPU injected frames: Frames injected with an IFH with the SP flag set are inserted into the super
priority queue as being set in the drop precedence (DP) IFH field.
CPU extracted, mirror, learn all frames: Frames subject to the translation in
QFWD::FRAME_COPY_CFG can configure use of either of the super priority queues.
Frame Modifications in the Queue System
The queue system typically passes data completely untouched from the ingress to the egress side,
except for a few special cases.
Frame copies to the CPU can be sent into the rewriter with two different priority schemes, involving
modification of the internal frame header. Either the frame takes the QoS class from the CPU extraction
queue number or it takes the QoS class from the configuration in QFWD::FRAME_COPY_CFG. This is
controlled in PORT_MODE.CPU_PRIO_MODE.
VMDS-10492 VSC7440 Datasheet Revision 4.2
229
Functional Descriptions
Frame copies due to learn-all stack synchronization can be truncated to 64 bytes to save bandwidth on
the line. This is enabled in HSCH::PORT_MODE.TRUNC_ENA.
3.24.9.4
Statistics
The queue system counts frame discards and successful transmissions. Each counted event updates a
counter instance, counting octets in a 40-bit counter and frames in a 32-bit counter. A frame is counted
as discarded when none of the frame’s destination ports are reached, excluding mirror and learn-all
copies. If a frame is discarded, a counter instance, per ingress port, per QoS class per color, is updated.
The color granularity here is only green or yellow, mapped from the analyzed DP value through the
QSYS::DP_MAP settings. A frame transmission is a frame leaving the queue system towards the
rewriter. In this direction, a counter instance per egress port, per QoS class per color, is updated. An
abort counter instance per egress port counts frames discarded due to frame aging, queue system
flushing, or abort requests from the rewriter.
There are statistics available per service counter index, which is provided by the analyzer for ingress
service discard statistics and from the rewriter for egress service transmission statistics. The service
counters are available per counter index, per color.
Access to the statistics is indirect. The QSYS::STAT_CFG configuration register must be set to the port
or service counter index to be accessed, and all counters related to this index can afterwards be read in
the QSYS::CNT registers. The following table lists the available port counters and how they are mapped.
Unused addresses return undefined values. In the expressions, yel = 1 for reading yellow counters and
yel = 0 for green. The mapping from classified DP to color is made in the QSYS::DP_MAP register.
The following table shows the addresses of the frame counters. The equivalent octet counters are found
at the frame counter address plus 64 for the 32 least significant bits and at the frame counter address
plus 128 for the eight most significant bits.
Table 157 • Statistics Address Mapping
Statistics Index
Event
0 – 15
Frames received on the port viewed. The first eight counters are for green frames, QoS level 0 –
7. The last eight counters are for yellow frames, defined by the QSYS::DP_MAP register.
16 – 31
Frames dropped on the port viewed. Drops will be for the ingress port point of view or egress,
depending on the DROP_COUNT_EGRESS option. There are eight green counters and eight
yellow counters.
32
Tail drops on the port views. Drops made by the buffer control.
256 – 271
Transmitted frames on the port viewed. Same layout as for the receive set.
272
Transmit aborted frames for the port viewed. This can be due to aging, flushing, or abortion
decision by the rewriter.
512 + 513
Green and yellow drops for service counter viewed.
768 – 769
Green and yellow transmissions for service counter viewed.
The service counters are reduced in size; 10 bits for the frame part and 18 bits for the octet part.
However, STAT_CFG.STAT_SRV_PKT_ONLY can be set to use all 28 bits for frame counting.
The following table lists the registers associated with statistics access.
Table 158 • Statistics Registers Overview
Register
Description
Replication
QSYS::STAT_CFG
Selects which counter set index to access. Clears counters.
None
QSYS::CNT
Replicated register with statistics access.
1,024
QSYS::DP_MAP
Maps DP levels to color.
None
Examples:
VMDS-10492 VSC7440 Datasheet Revision 4.2
230
Functional Descriptions
To read number of transmitted yellow frames for service counter 714:
1.
2.
Write 714 to STAT_VIEW in QSYS::STAT_CFG.
Read QSYS::CNT[385].
To read number of discarded green octets with QoS class 4 on port 9:
1.
2.
3.
3.24.9.5
Write 9 to STAT_VIEW in QSYS::STAT_CFG.
Read QSYS::CNT[76] for the least significant bits.
Read QSYS::CNT[140] for the most significant bits.
Energy Efficient Ethernet (EEE) Control
The front ports are able to signal low power idle (LPI) towards the MACs, in case they request the PHYs
to enter low power mode. A controller in each port module assures that frames are not transmitted when
the PHYs are powered down. This controller powers the PHY down when there is nothing to transmit for
a while, and it powers up the PHY when there is either data ready for a configurable time or when the
queue system has urgent data ready requiring transmission as soon as possible.
The following table lists the registers with configuring EEE.
Table 159 • EEE Registers Overview
Register
Description
Replication
QSYS::EEE_CFG
Configures the priorities per port which should bring the port
alive as fast as possible.
Per port
QSYS::EEE_THRES
Configures the amount of cells or frames pending for a priority Per port
before the port should request immediate power up.
Example: Configure the device to power up the PHYs when 10 frames are pending.
Only ports 3 through 6 should regard their data as urgent and only for priorities 6 and 7. All other data
should get transmitted when the EEE controller in the port has seen pending data for the controller
configured time.
1.
2.
3.24.9.6
Write 10 to QSYS::EEE_THRES:EEE_HIGH_FRAMES.
Write 0xC0 to QSYS::EEE_CFG[3–6]::EEE_FAST_QUEUES.
Calendar Setup
There are a number of logical ports, all needing bandwidth into and out of the queue system. This is
controlled through a calendar module that grants each port access to internal busses.
The following illustration shows an overview of the internal busses. All ports are connected to a port data
bus (taxi bus) and granted access to the chip core through a mux obeying the calendar decision.
Similarly, on the path towards the transmit interface, a mux controls which port transmits the next time.
Figure 69 • Internal Bus
Loopback VD0/VD1
TAXI_0
TAXI_0
Front
Ports
..
.
..
.
Queues
TAXI_CPU
TAXI_CPU
Front
Ports
Calendar
Algorithm
VMDS-10492 VSC7440 Datasheet Revision 4.2
231
Functional Descriptions
The front ports are connected to taxi busses and must be guaranteed bandwidth that corresponds to their
line speed. The internal CPU ports and loopback paths can operate up to 10 Gbps (7.5 Gbps for VD0).
In any port configuration, a subset of the ports is enabled. The calendar algorithm is the central place
where bandwidth is distributed between the ports. The calendar algorithm can be controlled by two
methods: automatic or sequenced.
In the automatic calendar configuration, a configuration per port defines if the port is granted 0 Gbps,
1 Gbps, 2.5 Gbps, or 10 Gbps bandwidth. For the four internal ports, the bandwidth granted is half of
these choices. In other words, internal CPU port 1 can be granted 1.25 Gbps in bandwidth.
In the sequenced operation, a specific sequence of port numbers forms the calendar. The port sequence
controls which port is granted the cycle, per bus cycle (two system clock periods).
The algorithm mode is configured in CAL_CTRL.CAL_MODE. It is possible through this register to
program a manual sequence, to halt the calendar, and to select between sequenced and automatic
calendars.
Both calendar modes may leave some slots unallocated and therefore idle on the busses. These idle
cycles can be used for configuration access (which will wait for unused cycles) and other slow operations
in the system (MAC table scan, for example). Slots allocated for a port and not used due to lack of data to
transfer can be used by the internal ports through the HSCH::OUTB_* registers, where it is, per internal
port, configured how often it will seek granting of an unused cycle. Setting internal CPU port 0 to seek
access every five cycles means that it can get up to one frame transfer every 64 ns, or approximately
10 Gbps.
In the ingress side, the loopback paths can use idle cycles if enabled in the assembler, which controls the
ingress mux.
The following table list the registers associated with configuring the calendar function.
Table 160 • Calendar Registers Overview
Register
Description
CAL_CTRL
Calendar function mode. Configures auto-grant rate.
OUTB_SHARE_ENA
Enables granting unused bus cycles to the internal ports (CPU and VD)
on the egress side.
OUTB_CPU_SHARE_ENA
Configures bandwidth sharing between the two internal CPU ports.
CAL_SEQ
Interface to the sequence memory. See register list.
CAL_AUTO
Per port setting with requested bus bandwidth.
3.25
Automatic Frame Injector
The automatic frame injector (AFI) provides mechanisms for periodic injection of PDUs such as 1588
PDUs. The following blocks are involved in frame injection.
•
•
•
•
•
QSYS - The frames are sent into the queue system by the CPU and stored in the queue system until
deleted by software.
AFI - Using timers and other parameters, AFI controls the automatic frame injection.
REW - For outbound data path injections, the REW performs frame modifications.
Loopback path - The loopback path (VD1) between the disassembler and assembler is used to
inject frames into the inbound data path.
ANA - For inbound data path injections, the ANA performs modifications of frames.
AFI supports two types of automatic frame injection: timer triggered (TTI) and delay triggered (DTI).
•
Timer Triggered Injection (TTI) - Frame injection rate is controlled by timers with typical values of
approximately 3 ms or higher. Only single-frame injections are supported; injection of sequences of
frames is not supported. For each frame, jitter can be enabled for the associated injection timer.
Timer triggered injection can be combined with delay triggered injection.
VMDS-10492 VSC7440 Datasheet Revision 4.2
232
Functional Descriptions
•
3.25.1
Delay Triggered Injection (DTI) - A sequence of frames, including configurable delay between
frames, is injected. Delay triggered injection can be combined with TTI, such that DTI is used to
inject a (high) background load (imitating normal user traffic), and TTI is used to inject OAM PDUs
for measuring IR, FLR, FTD, and FDV. AFI supports up to 16 active DTI frame sequences at a time.
Injection Tables
The main tables used to configure frame injection are frame table, DTI table, and TTI table.
Injection frames for both TTI and DTI are configured in the frame table. The frame table itself does not
hold the frame, but rather a pointer to where the frame is located in the buffer memory within QSYS.
For DTI, frames can be configured into a linked list of frames to be injected. Each frame in the linked list
may be configured to be injected multiple times before proceeding with the next frame in the chain. Each
frame in the sequence is followed by one or more delay entries, specifying the delay between injections.
Timers for each TTI frame are configured in the TTI table. TTIs are always single frame injections, so the
inj_cnt and next_ptr fields in the frame table are unused for TTI. Delay entries are not used for TTI.
The TTI calendar controls the frequency with which different parts of the TTI table are serviced.
Figure 70 • Injection Tables
Delay Triggered Injection of
sequence of 5 frames on port 5
Injection Frame Table
DTI Table
port_num ena
first_frm_ptr
...
5
...
1
16 entries
inj_cnt next_ptr
3
Second frame. To be injected 3 times.
TTI Ticks
7
6
5
4
3
2
1
0
Delay
...
1
First frame of OoS injection frame sequence
2K entries
...
n/a
n/a
TTI Table
Timer configuration
frm_ptr tick_idx tick_cnt
Delay
Delay between the 3 injections of previous frame in
chain.
...
Base Tick
jitter
port_num
...
end_ptr
9
1
TTI Calendar
Fifth and last frame.
Delay
...
0
n/a
n/a
2K entries
...
VMDS-10492 VSC7440 Datasheet Revision 4.2
4 calendar
slots
start_ptr
7
233
Functional Descriptions
3.25.2
Frame Table
The following table lists the registers associated with configuring parameters for each entry in the frame
table.
Table 161 • Frame Table Entry Register Overview (2048 entries)
Register
Field
Description
FRM_NEXT_AND_TYPE
NEXT_PTR
Next entry in table. Does not apply for TTI.
FRM_NEXT_AND_TYPE
ENTRY_TYPE Entry type: Frame or Delay entry. Does not apply for TTI.
ENTRY_TYPE=Frame
FRM_ENTRY_PART0
INJ_CNT
Number of times to inject frame. Does not apply for TTI.
FRM_RM
Frame removal. See Removing Injection Frames,
page 245.
FRM_GONE
Frame removal.
FRM_INFO
Frame information. See
MISC:NEW_FRM_INFO.FRM_INFO.
DELAY
Delay between injection of start of frames. Unit is one
system clock cycle. Does not apply for TTI.
ENTRY_TYPE=Delay
FRM_ENTRY_PART0
3.25.3
Delay Triggered Injection
Delay triggered injection supports up to 16 flows at a time. For each DTI flow, the DTI table holds a
pointer to a sequence of frames and delay entries, as well as the queue and port number, into which the
frames are injected. The NEXT_PTR field of the frame table is used to link frames and delay entries
together into a sequence. The frame sequence can have any length, only limited by the size of the frame
table.
Each DTI sequence can be configured to be injected repeatedly until stopped, or injected a specified
number of times. For example, if the frame sequence consists of five frames with INJ_CNT = 1, and the
sequence is configured to be injected 1000 times, then a total of 5000 frames will be injected.
DTI can be used in conjunction with TTI, for example, using TTI to inject OAM PDUs for measuring
performance metrics of the service.
The following table lists the registers associated with configuring the parameters for each of the 16
entries in the DTI table.
Table 162 • DTI Table Entry Registers Overview
Register
Field
Description
Replication
DTI_MODE
MODE
Mode of DTI instance.
Per DTI
DTI_MODE
TRAILING_DELAY_ Only applies “trailing delay” for every Nth
SEQ_CNT
sequence injection. See Fine Tuning Bandwidth
of Multiframe Sequence, page 236.
DTI_MODE
DTI_NEXT
Used for concatenating DTIs. Next DTI to activate Per DTI
when this DTI completes.
DTI_FRM
FIRST_FRM_PTR
Pointer to first frame in frame sequence.
Per DTI
DTI_FRM
NEXT_FRM_PTR
Pointer to next frame in frame sequence.
Per DTI
DTI_CNT
CNT
Counter (mode dependent).
Per DTI
Port number on which injection queue transmits.
Per DTI
DTI_PORT_QU PORT_NUM
VMDS-10492 VSC7440 Datasheet Revision 4.2
Per DTI
234
Functional Descriptions
Miscellaneous DTI related parameters are shown in the following table.
Table 163 • Miscellaneous DTI Parameters
Register
Field
Description
Replication
DTI_CTRL
BW
Bandwidth of DTI flow
0: =5 Gbps
Per DTI
DTI_CTRL
ENA
Enables DTI
Per DTI
Frame entries in a DTI sequence may point to the same frame in the queue system’s buffer memory. For
example, shown in the following illustration, frame A and frame B shown may point to the same frame in
the buffer memory.
The delay entries in a DTI sequence must be configured such that they are longer than the transmission
time (given the port speed) of the preceding frame in the sequence.
If a DTI sequence is configured with two consecutive frame entries, then these will be injected with a
minimum delay of approximately 14 clock cycles.
3.25.3.1
Frame-Delay Sequence
A DTI flow typically consists of a sequence of alternating frame/delay entries in the frame table. If a given
frame is to be injected multiple times (FRM_ENTRY_PART0.INJ_CNT>1), then the delay of the following
entry in the sequence is applied after each injection. If additional delay is required after the last injection,
then this can be achieved by an additional delay entry. The use of delay entries is shown in the following
illustration.
DTI Frame/Delay Sequence Example
Figure 71 •
Inserted after each
injection of Frame B.
Inserted after last injection of
Frame B.
DTI
Frame C
INJ_CNT=1
NEXT_PTR
Delay
DELAY=200
NEXT_PTR
Delay
DELAY=100
NEXT_PTR
Frame B
INJ_CNT=2
NEXT_PTR
Delay
DELAY=150
NEXT_PTR
Frame A
INJ_CNT=2
NEXT_PTR
FIRST_PTR
Delay
DELAY=125
NEXT_PTR=0
Resulting frame sequence:
Frame A
Frame A
150
3.25.3.2
Frame B
150
100
Frame B
Frame C
100 + 200 = 300
125
Frame A
...
Time
Bandwidth Fine Tuning
The combination of INJ_CNT and two following delay entries can be used to fine tune the rate generated
by a DTI flow. This is shown in the following illustration, where a small delay after the four injections of
frame A is used to fine tune the rate of the DTI flow.
VMDS-10492 VSC7440 Datasheet Revision 4.2
235
Functional Descriptions
Figure 72 • Fine Tuning Bandwidth of DTI Sequence
Fine tune bandwidth
of DTI sequence.
DTI
NEXT_PTR
Frame A
INJ_CNT=4
NEXT_PTR
FIRST_PTR
Delay
DELAY=150
Delay
DELAY=3
NEXT_PTR=0
Resulting frame sequence:
Frame A
Frame A
150
Frame A
Frame A
150
150
Frame A
150
3
...
Time
By combining the setting of INJ_CNT and the DELAY value of the last delay depicted, the bandwidth of
the DTI sequence can be controlled with high granularity, because the additional (blue) delay will only be
applied for every INJ_CNT injections of frame A.
The bandwidth adjustment mechanism shown may be insufficient for controlling the bandwidth of multiframe sequences (sequences with different frames), because the last delay will be applied for every
injection of the frame sequence.
3.25.3.3
Fine Tuning Bandwidth of Multiframe Sequence
For multiframe sequences, additional fine tuning of the bandwidth of the entire sequence can be
achieved by configuring the last delay in the sequence, also known as the “trailing delay”, to only be
applied for every Nth injection of the sequence. This is achieved using the
TRAILING_DELAY_SEQ_CNT parameter and is shown in the following illustration.
Figure 73 • Fine Tuning Bandwidth of Multiframe DTI Sequence
Inserted after each
injection of Frame B.
DTI
TRAILING_DELAY_SEQ_CNT = 2
Inserted after every
second sequence injection.
Inserted after last injection of
Frame B.
Delay
DELAY=100
Delay
DELAY=50
NEXT_PTR
Frame B
INJ_CNT=2
NEXT_PTR
Delay
DELAY=150
NEXT_PTR
NEXT_PTR
Frame A
NEXT_PTR
FIRST_PTR
Delay
DELAY=1
NEXT_PTR=0
Resulting frame sequence:
Frame A
Frame B
150
3.25.3.4
100
Frame B
100 + 50 = 150
Frame A
Frame B
150
100
Frame B
100 + 50 = 150
...
Frame A
1
Time
Burst Size Test Using Single DTI
If a NEXT_PTR is set to point back to a previous entry in the sequence, then injection will continue
forever, that is, until the DTI is stopped. This is depicted in the following illustration. The configuration
shown can be used for leaky bucket burst size testing, where the first part of the sequence empties the
bucket, followed by a steady frame flow with the rate of the leaky bucket.
VMDS-10492 VSC7440 Datasheet Revision 4.2
236
Functional Descriptions
Figure 74 • DTI Frame/Delay Sequence Using Inject Forever
Inject forever
(In other words, until DTI is stopped)
DTI
Delay
DELAY=200
Frame B
INJ_CNT=1
NEXT_PTR
Delay
DELAY=100
NEXT_PTR
NEXT_PTR
Frame A
INJ_CNT=2
NEXT_PTR
FIRST_PTR
Delay
DELAY=150
NEXT_PTR
Resulting frame sequence:
Frame B
Frame B
100
100
150
200
...
Frame B
Frame B
150
Time
3.25.3.5
Burst Size Test Using DTI Concatenation
Two (or more) DTIs can be concatenated, such that when one DTI completes, another DTI is activated.
This is depicted in the following illustration. It can be used for leaky bucket burst size testing, where the
first part of the sequence empties the bucket, followed by a steady frame flow with the rate of the leaky
bucket.
Note that when DTI concatenation is used, the last delay entry in the frame-delay sequence of the first
DTI is not awaited before starting the next DTI. That is, the next DTI is started when the first DTI reads an
entry with NEXT_PTR = 0. As shown in the illustration, the delay between the last Frame A and the first
Frame B will not be 150 clock cycles, but instead approximately 12 clock cycles. If this is considered
problematic, it can be addressed by using an additional DTI with a sequence consisting only of two delay
entries. For example, DTI #2 could be inserted between DTI#1, and DTI#3 and DTI#2 could then be
configured with a sequence consisting of two delay entries, with the first having delay = 150.
Figure 75 • DTI Concatenation
DTI #1
MODE=2
CNT=3
DTI_NEXT=3
DTI #3
MODE=0
CNT=10
DTI #3 is enabled
when DTI #1
completes
Delay
DELAY=100
FIRST_PTR
Frame B
INJ_CNT=1
NEXT_PTR=0
NEXT_PTR
Frame A
INJ_CNT=1
NEXT_PTR
FIRST_PTR
Delay
DELAY=150
NEXT_PTR=0
Resulting frame sequence:
Frame B is injected 10 times
Frame A
Frame A
100
100
Frame A
...
Frame B
Frame B
150
VMDS-10492 VSC7440 Datasheet Revision 4.2
150
Time
237
Functional Descriptions
3.25.3.6
DTI Bandwidth
For 64 bytes frames, AFI can inject up to 10.5 Gbps at 156 MHz clock frequency and up to 3.25 Gbps at
52 MHz clock frequency for a single DTI flow or inject a total bandwidth, across all DTI flows, of up to
26 Gbps at 156 MHz and up to 8 Gbps at 52 MHz.
Higher injection bandwidths can be supported for frame sizes larger than 64 bytes.
Injections into ingress data path must be forwarded through VD1. For 64 bytes frames, the maximum
bandwidth through VD1 is 10.5 Gbps at 156 MHz and up to 3.25 Gbps at 52 MHz.
Note: Depending on port configuration, cell bus bandwidth may impose additional bandwidth limitations.
The bandwidth that a DTI is injecting into a queue must not exceed the bandwidth, that HSCH is
transmitting from the queue, because the port’s FRM_OUT_MAX will then be reached, possibly affecting
other DTIs injecting on the same port. For more information, see Port Parameters, page 245. The only
exception is if there is only one DTI injecting on the port, because there are no other DTIs that could be
affected.
3.25.3.7
DTI Sequence Processing Time
For high bandwidth DTI flows, the time it takes to process the delays and frames in a DTI sequence must
be taken into account:
•
•
•
Processing a frame entry with no succeeding delay entry takes 12 clock cycles.
Processing a frame entry with a succeeding delay entry takes 12 clock cycles.
Processing a delay entry, which does not succeed a frame entry takes 12 clock cycles.
For example, a sequence consisting of a frame entry followed by two delay entries will take 24 clock
cycles to process. If the frame is a 64-byte frame and the clock period is 4 ns, this will corresponds to a
maximum flow bandwidth of approximately 7 Gbps ((64 + 20) × 8 bits/(24 × 4 ns) = 7 Gbps), regardless
of the delay values configured for the two delays.
Although it takes 12 clock cycles to process a delay entry, it is valid to configure a delay entry with a
delay smaller than 12 clock cycles, because this will be compensated for when generating the delay
between later frames in the sequence. For more information, see Figure 73, page 236. For example, the
delay between the rightmost frame B and the succeeding frame A will be 150 + 12 clock cycles (instead
of 150 + 1). To compensate for this, however, the delay between the succeeding two frames A will be
150 – 11 clock cycles.
3.25.4
Timer Triggered Injection
For TTIs, frame injection is controlled by timers. To control the time between injections, configure the
following registers for each TTI:
•
•
TTI_TIMER.TICK_IDX. For each TTI, one of eight configurable timer ticks shown in the following
table must be chosen.
TTI_TIMER.TIMER_LEN. The number of timer ticks that must elapse between each injection.
That is, the period between each injection becomes tick_period × TIMER_LEN.
VMDS-10492 VSC7440 Datasheet Revision 4.2
238
Functional Descriptions
The following table lists the registers associated with TTI timer tickers.
Table 164 • TTI Timer Ticks Registers Overview
Register
Field
Description
TTI_TICK_LEN_0_3 LEN0 TTI_TICK_LEN_4_7 LEN7
Length of timer ticks.
8
The length of each of the eight timer ticks is
specified as multiples of the length of the
preceding timer tick (that is, -1). Timer 0
is the shortest timer tick, and timer tick 7 is the
longest.
Tick 0 is specified in multiple of TTI_TICK_BASE
(default 52 µs).
Default configuration:
tick_idx
tick_len
0
1
1
8
2
8
3
3
4
10
5
10
6
10
7
6
TTI_TICK_BASE
Replication
Tick_Period
52 µs
(1 × 52 µs)
416 µs
(8 × 52 µs)
3.3 ms
(8 × 416 µs)
10 ms
(3 × 3.3 ms)
100 ms
(10 × 10 ms)
1 second (10 × 100 ms)
10 seconds (10 × 1 sec)
1 minute (6 × 10 sec)
BASE_LEN Length of TTI base tick in system clock cycles.
1
The following table lists the registers associated with configuring parameters for each of the 2K entries in
the TTI table.
Table 165 • TTI Parameters (2048 entries)
Register
Field
Description
Replication
TTI_PORT_QU
PORT_NUM
Port number on which injection queue transmits.
Per TTI
TTI_TIMER
TICK_IDX
Which of the eight timer ticks is used by the timer controlling the Per TTI
injection of this frame.
TTI_TIMER
JITTER_MODE
Enables jitter for the number of timer ticks between each
Per TTI
injection of this frame.
0: No jitter.
1: Timer is set to a random value in the range [TIMER_LEN*0.75;
TIMER_LEN].
2: Timer is set to a random value in the range [TIMER_LEN*0.50;
TIMER_LEN].
3: Timer is set to a random value in the range [1;TIMER_LEN].
TTI_TIMER
TIMER_LEN
Number of timer ticks between each injection of this frame.
Per TTI
0: Disables timer.
0xff: Injects frame next time the entry is serviced. After servicing,
hardware sets TIMER_LEN to 0. This is intended to be used
during removal of frame from buffer memory. See Removing
Injection Frames, page 245.
TTI_FRM
FRM_PTR
Points to the frame (in frame table), which the TTI injects.
Per TTI
TTI_TICKS
TICK_CNT
Number of ticks until next injection.
Should be set to a random value in the range 1-TIMER_LEN
before starting TTI.
Per TTI
VMDS-10492 VSC7440 Datasheet Revision 4.2
239
Functional Descriptions
Table 165 • TTI Parameters (2048 entries) (continued)
Register
Field
Description
Replication
TTI_MISC_CFG
INJ_CNT_ENA
Enables counting of injected frames in
TTI_MISC:TTI_INJ_CNT.TTI_INJ_CNT.
Per TTI
An entry in the TTI table is checked approximately every two clock cycles. If the TTI’s tick (configured
through TICK_IDX) has changed, then the TICK_CNT is decremented. If it becomes zero, the frame is
injected, and TICK_CNT is set to TIMER_LEN.
3.25.4.1
TTI Calendar
In default configuration, TTI table entries are serviced from 0-2047, then restarted again at entry 0.
When configuring the TTI table, the following must be considered:
•
•
It takes up to 4 clock cycles, worst-case, to service an entry in the TTI table.
A TTI must be serviced more frequently than the frequency of the TTI’s tick (see
TTI_TIMER.TICK_IDX).
This means that looping through the entire TTI table may take 2048 × 4 = 8192 clock cycles. With a clock
period of 4 ns, this corresponds to approximately 66 µs. In other words, no TTI must use a tick faster
than 66 us.
If TTIs faster than 66 µs are required, the TTI calendar can be used to have some entries in the TTI table
serviced more often than others, meaning the TTI table can be split into sections with TTIs using ticks of
different speeds.
The TTI calendar consists of four entries, as described in Table 6
Table 166 • TTI Calendar Registers Overview
Register
Field
Description
Replication
TTI_CAL_SLOT_PTRS SLOT_START_PTR
SLOT_END_PTR
Calendar slot’s frame table start and end pointer.
4
TTI_CAL_SLOT_CNT
SLOT_CNT
Number of TTIs to service in slot before moving to next 4
TTI calendar slot.
TTI_CTRL
TTI_CAL_LEN
Length of TTI calendar.
TTI_CTRL
TTI_INIT
When set, initializes calendar to start at calendar slot 0. 1
Cleared by AFI when done.
1
The following illustration shows a configuration for the TTI calendar. In this case, only TTI entry 0-1023
are being used.
VMDS-10492 VSC7440 Datasheet Revision 4.2
240
Functional Descriptions
Figure 76 • TTI Calendar Example
TTI Table
TTI_CAL_LEN=2
start=0
0-255
TTI
Calendar
end=255
cnt=2
start=256
cnt=1
start
256-1023
end=1023
end
cnt
start
end
cnt
Order of TTI Table entry checks:
0,1,256,2,3,257, .... 254,255,384,0,1,385,...
In the example, it takes (256/2) × (1 + 2) × 4 = 1536 clock cycles to service all TTIs in the blue section.
With a clock cycle of 4 ns, the TTIs in the blue section must not use ticks faster than 1536 × 4 = 6144 ns.
Similarly, the 768 TTIs in the red section must not use ticks faster than
(768/1) × (1 + 2) × 4 × 4 ns = ~36.9 µs
3.25.4.2
Other TTI Parameters
Other TTI-related parameters are listed in the following table.
Table 167 • Miscellaneous TTI Registers Overview
Register
Field
Description
Replication
TTI_CTRL
TTI_ENA
Enables TTI.
1
Before enabling TTI, TTI_INIT should be used to initialize calendar state.
TTI_INJ_CNT TTI_INJ_CNT Number of TTI injections.
Enabled per TTI using TTI_TBL:TTI_MISC_CFG.INJ_CNT_ENA.
3.25.4.3
1
TTI Table Update Engine (AFI TUPE)
The AFI Table Update Engine (AFI TUPE) can be used to quickly update a large number of entries in the
TTI Table such as disabling or enabling timers in fail-over scenarios. AFI TUPE related parameters are
listed in the following table. The parameters prefixed with CRIT are used to specify the criteria, which
TTIs fulfill in order for TUPE to apply.
Table 168 • AFI TUPE Registers Overview
AFI:TUPE
Register
Field
Description
Replication
TUPE_MISC
TUPE_START
Start TUPE.
1
TUPE_MISC
CRIT_TUPE_CTRL_VAL_ENA Enable use of CRIT_TUPE_CTRL_VAL and
CRIT_TUPE_CTRL_MASK.
1
TUPE_MISC
CRIT_PORT_NUM_ENA
1
Enable use of CRIT_PORT_NUM_VAL.
VMDS-10492 VSC7440 Datasheet Revision 4.2
241
Functional Descriptions
Table 168 • AFI TUPE Registers Overview (continued)
AFI:TUPE
Register
Field
Description
Replication
TUPE_MISC
CRIT_QU_NUM_ENA
Enable use of CRIT_QU_NUM_VAL.
1
TUPE_MISC
CMD_TIMER_ENA_ENA
Enable use of CMD_TIMER_ENA_VAL.
1
TUPE_MISC
CMD_TIMER_ENA_VAL
TUPE command parameter: New TIMER_ENA
value.
1
TUPE_MISC
CMD_PORT_NUM_ENA
Enable use of CMD_PORT_NUM_VAL.
1
TUPE_MISC
CMD_QU_NUM_ENA
Enable use of CMD_QU_NUM_VAL.
1
TUPE_ADDR
TUPE_START_ADDR
First address in TTI table for AFI TUPE to
process.
1
TUPE_ADDR
TUPE_END_ADDR
Last address in TTI table for AFI TUPE to
process.
1
TUPE_CRIT1
CRIT_PORT_NUM_VAL
TUPE criteria parameter controlling which TTI
table entries to update.
1
TUPE_CRIT1
CRIT_QU_NUM_VAL
TUPE criteria parameter controlling which TTI
table entries to update.
1
TUPE_CRIT2
CRIT_TUPE_CTRL_MASK
TUPE criteria parameter controlling which TTI
table entries to update.
1
TUPE_CRIT3
CRIT_TUPE_CTRL_VAL
TUPE criteria parameter controlling which TTI
table entries to update.
2
TUPE_CMD1
CMD_PORT_NUM_VAL
TUPE command parameter: New PORT_NUM
value.
1
TUPE_CMD1
CMD_QU_NUM _VAL
TUPE command parameter: New QU_NUM
value.
1
The following TTI parameters can be used as part of the TUPE criteria:
•
•
•
PORT_NUM
QU_NUM
TUPE_CTRL
The parameters prefixed "CMD" specify the commands, which are applied to any TTIs, which fulfill the
TUPE criteria. Using the TUPE command parameters, the following TTI parameters can be changed:
•
•
•
TIMER_ENA
Timers can be enabled/disabled.
PORT_NUM
Injections can be moved to a different port.
QU_NUM
Injections can be moved to a different queue.
While TUPE is running no injections will be performed for any TTIs which match the configured TUPE
criteria and fall within the configured TUPE address range.
The TUPE_CTRL field in the TTI Table can be used to classify TTIs into different groups, such that a
TUPE command can easily address all TTIs within such group.
The following illustration depics the AFI TUPE functionality.
VMDS-10492 VSC7440 Datasheet Revision 4.2
242
Functional Descriptions
Figure 77 • AFI TUPE
TTI Table (AFI:TTI_TBL)
TUPE_START_ADDR
TUPE_CTRL
Other TTI parameters
TUPE_END_ADDR
Possibly new value s for TTI
AFI TUPE
Criteria (CRIT)
and
Command (CMD)
Parameters
AFI TUPE Algorithm
The full algorithm used by AFI TUPE is shown in the following pseudo code. Configuration parameters
are prefixed "csr.".
// AFI Table UPdate Engine (AFI TUPE) Algorithm
bool tupe_ctrl_match;
for (addr = csr.tupe_start_addr; addr < csr.tupe_end_addr; addr++) {
tti_tbl_entry = tti_tbl[addr];
tupe_ctrl_match = FALSE;
for (i = 0; i < 2; i++) {
if ((tti_tbl_entry.tupe_ctrl & csr.crit_tupe_ctrl_mask) ==
csr.crit_tupe_ctrl_val[i]) {
tupe_ctrl_match = TRUE;
}
}
if (
(// Check matching TUPE_CTRL value
tupe_ctrl_match)
&&
(// If enabled, check if TTI's PORT_NUM matches csr.crit_port_num_val
!csr.crit_port_num_ena
||
(tti_tbl_entry.port_num == csr.crit_port_num_val))
&&
(// If enabled, check if TTI's QU_NUM matches csr.crit_qu_num_val
!csr.crit_qu_num_ena
||
(tti_tbl_entry.qu_num == csr.crit_qu_num_val))
) {
// TTI fulfills criterias => Apply TUPE command to TTI
// timer_ena
if (csr.cmd_timer_ena_ena) {
tti_tbl_entry.timer_ena = csr.cmd_timer_ena_val;
VMDS-10492 VSC7440 Datasheet Revision 4.2
243
Functional Descriptions
}
// port_num
if (csr.cmd_port_num_ena) {
tti_tbl_entry.port_num = csr.cmd_port_num_val;
}
// qu_num
if (csr.cmd_qu_num_ena) {
tti_tbl_entry.qu_num = csr.cmd_qu_num_val;
}
// Write back to TTI table
tti_tbl[addr] = tti_tbl_entry;
}
}
3.25.5
Injection Queues
DTI and TTI may inject into any egress queue in the queue system. In injection context, the queues can
be divided into the following categories:
•
•
•
Normal queues. These queues are processed by each level of SEs in HSCH. Frames injected into
such queues are thus subject to the M-DWRR and shaping algorithms of the SEs. Frames are
injected into the tail of the selected queue.
Port injection queue without shaping. These queues, one for each port, inject frames on the port with
higher priority than normal queues. The state of the DLB shaper is disregarded and is not updated
with the size of the transmitted frame.
Injected frames are injected into the tail of the queue, but due to the high priority, the queue will
normally be (almost) empty.
Port injection queue with shaping. These queues, one for each port, inject frames on the port with
higher priority than normal queues. The state of the port shaper is respected and is updated with the
size of the transmitted frame.
Injected frames are injected into the tail of the queue, but due to the high priority, the queue will
normally be (almost) empty.
The queue into which a TTI or DTI injects frames is controlled by the QU_NUM parameter. The actual
value to be used for these parameters depend on the HSCH configuration. For more information, see
Queue Mapping, page 219.
For injections into the ingress data path, frames must be looped through VD1 and QU_NUM must be
configured to select a VD1 queue.
3.25.6
Adding Injection Frame
To add a frame for injection by AFI, the CPU must follow this procedure:
1.
2.
3.
4.
5.
6.
7.
Set AFI::MISC_CTRL.AFI_ENA to 1 before any use of AFI.
Send the frame to AFI. AFI_INJ must be set in the IFH. For more information, see Frame Headers,
page 13.
Poll AFI::NEW_FRM_CTRL.VLD to await the frame being received by AFI.
When the frame has been received by AFI, then copy frame information from AFI::NEW_FRM_INFO
to an unused entry in the Frame table.
Clear AFI::NEW_FRM_CTRL.VLD.
TTI: Set up the TTI table to have the frame injected with the desired interval and to the desired
queue and port. For more information, see Timer Triggered Injection, page 238.
DTI: For injection of a sequence of frames, repeat steps 1 through 4.
Set up the DTI Table to inject the frames. For more information, see Table 162, page 234.
VMDS-10492 VSC7440 Datasheet Revision 4.2
244
Functional Descriptions
Configure other DTI parameters. For more information, see Table 163, page 235.
3.25.7
Starting Injection
TTI is enabled by using TTI_INIT to initialize and then setting TTI_ENA = 1.
Each TTI is started by setting TIMER_LEN a non-zero value.
Each DTI is started by setting DTI_CTRL.ENA = 1.
3.25.8
Stopping Injection
Each TTI is stopped by setting TIMER_LEN to 0.
All TTIs can be stopped by setting TTI_ENA = 0.
Each DTI is stopped by setting DTI_CTRL.ENA = 0.
3.25.9
Removing Injection Frames
This section provides information about removing a single frame (TTI) or frame sequence (DTI) from the
buffer memory.
3.25.9.1
Single Frame (TTI)
To remove a single frame from buffer memory, the frame must be injected one more time. This “removal
injection” does not result in a frame transmission, but purely serves to remove the frame from the buffer
memory.
Use the following procedure to remove a single frame from buffer memory.
1.
2.
3.
Set the FRM_RM bit for frame in the frame table.
For TTI: Set TIMER_LEN to 0x1ff.
Poll the FRM_GONE bit until it gets set by AFI.
When performing removal injection, injection must be enabled for the corresponding port by setting
AFI:PORT_TBL[]:PORT_CFG.FRM_OUT_MAX != 0.
3.25.9.2
Frame Sequence (DTI)
Use the following procedure to remove a DTI frame sequence from buffer memory.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
Disable the DTI by setting DTI_CTRL.ENA = 0.
Set the FRM_RM bit for each frame to be removed in the frame table.
Set DTI_FRM.NEXT_FRM_PTR to DTI_FRM.FIRST_FRM_PTR.
Set DTI_MODE.MODE = 0.
Set DTI_CNT.CNT = 1.
Set DTI_MODE.FRM_INJ_CNT to 0.
Optionally, set all delays in sequence to 0 to speed up the removal procedure.
Set DTI_CNT_DOWN.CNT_DOWN to 0.
Enable the DTI by setting DTI_CTRL.ENA = 1.
Poll the FRM_GONE for the last frame to be removed until the bit gets set by AFI.
This procedure causes the frames to be injected one last time and through this, be removed from buffer
memory. The frames will not actually be transmitted on the destination port.
When performing removal injection, injection must be enabled for the corresponding port by setting
AFI:PORT_TBL[]:PORT_CFG.FRM_OUT_MAX != 0.
3.25.10 Port Parameters
To ensure that the queue system does not overflow with injected frames, for example, if a port is in flow
control, an upper bound on the number of injected, but not yet transmitted, frames per port can be
configured in FRM_OUT_MAX.
If FRM_OUT_MAX is reached, then any DTI injections are postponed until the number of outstanding
frames falls below FRM_OUT_MAX. TTI injections uses a slightly higher limit of
VMDS-10492 VSC7440 Datasheet Revision 4.2
245
Functional Descriptions
FRM_OUT_MAX+TTI_FRM_OUT_MAX. This ensures that TTI injection are still possible, even if a DTI
flow faster than the port speed has been configured.
If PFC is used in conjunction with automatic frame injection, then either all frames must be injected into
queues controlled by the same flow control priority, or all frames must be injected into queues that cannot
be stopped by PFC.
If EEE is used in conjunction with automatic frame injection, then all frames for that port must be injected
into queues with the same urgent configuration.
Setting FRM_OUT_MAX = 0 will stop all injections on port.
Table 169 • Port Parameters
Register
Field
Description
Replication
PORT_CFG
FRM_OUT_MAX
Maximum number of injections outstanding for the
port at-a-time.
Per port
PORT_CFG
FRM_RM_ONLY
Only allows frame removal injections. That is,
normal injections are not allowed.
Per port
TTI_PORT_FRM_OUT
TTI_FRM_OUT_MAX
Additional injections that can be outstanding before Per port
affecting TTI injection.
3.26
Rewriter
The switch core includes a rewriter (REW) that is common for all ports. The rewriter performs all frame
editing prior to frame transmission. Each frame can be handled multiple times by the rewriter
•
•
•
•
One time per destination port.
One time towards the mirror target port.
One time when copied or redirected to internal and/or external CPU.
One time when looped back to the analyzer.
All frames that are input to the rewriter can be modified by previous blocks of the frame processing flow.
The internal frame header informs the rewriter what ingress frame manipulations (popping) are
performed on any given frame. The same ingress frame manipulation is performed for each copy of a
frame, while the rewriter may perform per destination specific egress frame manipulations (pushing) to
the frame.
The rewriter is the final step in the frame processing flow of the device.
3.26.1
Rewriter Operation
The rewriter supports the following frame operations.
•
•
•
•
•
•
•
•
•
•
3.26.2
VLAN tag (802.1Q, 802.1ad) editing: tagging of frames and remapping of PCP and DEI.
L3 routing. SMAC/DMAC, VID and TTL modifications for IPv4 and IPv6.
Implement Precision Time Protocol (PTP) time stamping by interfacing to the PTP block.
Interfacing to the loopback block. Loopback frames to ANA based on VCAP_ES0 actions. Rewrite
MACs and IFH of looped frames.
DSCP remarking: rewriting the DSCP value in IPv4 and IPv6 frames based on classified DSCP
value.
Insert or update VSTAX headers.
Handling of both Rx and Tx mirror frames.
Padding of undersize frames to 64 bytes or 76 bytes.
Frame FCS update control.
Add preamble to all frames with an external port destination.
Supported Ports
The device operates with up to 11 physical ports, two loopback ports, and two DEVCPU extraction ports
as possible frame destinations. These frame destinations are addressed by the rewriter using the egress
port number.
VMDS-10492 VSC7440 Datasheet Revision 4.2
246
Functional Descriptions
3.26.3
Supported Frame Formats
The rewriter can identify and rewrite both headers and payload of the following frame types.
Ethernet Frames
•
•
•
Ethernet link layer DMAC+SMAC
Maximum of three VLAN Q-tags (802.1Q, 802.1ad)
Payload (IPv4, IPv6, Y.1731 OAM, PTP, and so on)
The analyzer places information in the IFH to help the rewriter with frame identification. The IFH fields,
IFH.DST.ENCAP.W16_POP_CNT and IFH.DST.ENCAP.TYPE_AFTER_POP, are used for this purpose.
3.26.3.1
Maximum Frame Expansion
The rewriter can push 60 bytes into a frame when the IFH is popped and when no other frame pop
operations are done. The frame preamble will occupy 8 of the 60 bytes that can be pushed.
3.26.4
Rewriter Initialization
Rewriter initialization comprises two steps:
•
•
Set REW::RAM_INIT.RAM_ENA to 1
Set REW::RAM_INIT.RAM_INIT to 1
Before the rewriter can be configured, the RAM-based configuration registers must be initialized by
writing a 1 to the above RAM_INIT registers. The RAM_INIT.RAM_INIT register is reset by hardware
when the initialization is complete.
If VCAP_ES0 is enabled, it must be initialized. All of the default port actions in VCAP_ES0 should also be
initialized to ensure proper operation. For more information about initializing VCAP_ES0, see Versatile
Content-Aware Processor (VCAP), page 55.
3.26.5
VCAP_ES0 Lookup
The rewriter performs stage 0 VCAP egress matching (VCAP_ES0) lookups for each frame when
enabled. The following table lists the registers associated with VCAP_ES0 lookup.
Table 170 • ES0 Configuration Registers
Register
Description
Replication
ES0_CTRL.
ES0_LU_ENA
Enables lookup in VCAP_ES0 to control advanced frame modifications.
None
ES0_CTRL.
ES0_BY_RLEG
Enables ES0 router mode lookup when IFH.FWD.DST_MODE indicates
routing.
None
ES0_CTRL.
ES0_BY_RT_FWD
Enables ES0 router mode lookup when IFH.DST.ENCAP.RT_FWD
indicates routing.
None
PORT_CTRL.
ES0_LPORT_NUM
Maps the configuration port to a logical port number to be used by ES0
keys. The port used in the lookup can be Tx-mirrored.
Ports
VCAP_ES0 lookup is enabled by setting REW::ES0_CTRL.ES0_LU_ENA = 1. Frames destined to the
DEVCPU cannot be rewritten, and there is no VCAP_ES0 lookup for these frames.
All ES0 actions are ignored when VCAP_ES0 is disabled.
There are two ES0 key types: VID and ISDX.
The VID key is always used if:
•
•
•
IFH.FWD.ES0_ISDX_KEY_ENA = 0
REW::ES0_CTRL.ES0_BY_RLEG = 1 and (IFH.FWD.DST_MODE = L3UC_ROUTING or
IFH.FWD.DST_MODE = L3MC_ROUTING)
REW::ES0_CTRL.ES0_BY_RT_FWD = 1 and IFH.DST.ENCAP.RT_FWD = 1.
VMDS-10492 VSC7440 Datasheet Revision 4.2
247
Functional Descriptions
The ISDX key is used if a VID key is not used and IFH.FWD.ES0_ISDX_KEY_ENA = 1.
Table 171 • VCAP_ES0 Keys
Key Field
Description
Size
ISDX
VID
X1_TYPE
X1 type.
0: ISDX.
1: VID.
1
x
x
EGR_PORT
Logical egress port number.
Configuration port mapped via REW::PORT_CTRL.ES0_LPORT_NUM. The
default is no mapping (EGR_PORT = configuration port number).
The configuration port is either the physical port or a Tx-mirror port number.
4
x
x
PROT_ACTIVE Protection is active. Value is IFH.ENCAP.PROT_ACTIVE.
1
x
x
VSI
7
x
x
Virtual Switch Instance.
Default value is VSI = IFH.DST.ENCAP.GEN_IDX if
IFH.DST.ENCAP.GEN_IDX_MODE = 1 else 0.
The following conditions will change the default:
If REW::ES0_CTRL.ES0_BY_RLEG = 1 and
(IFH.FWD.DST_MODE = L3UC_ROUTING or
IFH.FWD.DST_MODE = L3MC_ROUTING)
Force VSI = 0x3ff to identify routing.
If REW::ES0_CTRL.ES0_BY_RT_FWD = 1 and IFH.ENCAP.RT_FWD = 1.
Force VSI = 0x3ff to identify routing.
COSID
Class of Service Identifier.
Value is IFH.VSTAX.MISC.COSID if
REW::PORT_CTRL.VSTAX2_MISC_ISDX_ENA = 1 else 0.
3
x
X
COLOR
Frame color.
Value is IFH.VSTAX.QOS.DP mapped through REW::DP_MAP.DP.
1
x
x
SERVICE_FRM Service frame.
Set to 1 if IFH.VSTAX.MISC.ISDX > 0 and
REW::PORT_CTRL.VSTAX2_MISC_ISDX_ENA = 1 else 0.
1
x
x
ISDX
Ingress Service Index.
Value is IFH.VSTAX.MISC.ISDX if
REW::PORT_CTRL.VSTAX2_MISC_ISDX_ENA = 1 else 0.
9
x
VID
IEEE VLAN identifier.
Default value is VID = IFH.VSTAX.TAG.VID.
12
x
The following conditions will change the default:
If REW::ES0_CTRL.ES0_BY_RLEG = 1 and (IFH.FWD.DST_MODE =
L3UC_ROUTING or IFH.FWD.DST_MODE = L3MC_ROUTING)
VID = IFH.DST.L3[UC|MC].ERLEG
If REW::ES0_CTRL.ES0_BY_RT_FWD = 1 and
IFH.DST.ENCAP.RT_FWD = 1
VID = IFH.DST.ENCAP.GEN_IDX.
The following tables show the actions available in VCAP_ES0. Default actions are selected by
PORT_CTRL.ES0_LPORT_NUM when no ES0 entry is hit.
VMDS-10492 VSC7440 Datasheet Revision 4.2
248
Functional Descriptions
When REW::ES0_CTRL.ES0_LU_ENA = 1, all of the default actions must be initialized to ensure correct
frame handling.
Table 172 • VCAP_ES0 Actions
Field Name
Description
Width
PUSH_OUTER_TAG Controls tag A (outer tagging).
0: Port tagging. Push port tag as outer tag if enabled for port. No ES0 tag A.
1: ES0 tag A. Push ES0 tag A as outer tag. No port tag.
2: Forced port tagging. Push port tag as outer tag. No ES0 tag A.
3: Forced untagging. No outer tag pushed (no port tag, no ES0 tag A).
2
PUSH_INNER_TAG
Controls tag B (inner tagging).
0: Do not push ES0 tag B as inner tag.
1: Push ES0 tag B as inner tag.
1
TAG_A_TPID_SEL
Selects TPID for ES0 tag A.
0: 0x8100.
1: 0x88A8.
2: Custom1.
3: Custom2.
4: Custom3.
5: Classified. Selected by ANA in IFH.VSTAX.TAG_TYPE and
IFH.DST.ENCAP.TAG_TPID:
If IFH.DST.ENCAP.TAG_TPID = STD_TPID:
If IFH.VSTAX.TAG.TAG_TYPE = 0, then 0x8100 else 0x88A8
If IFH.DST.ENCAP.TAG_TPID = CUSTOM[n]:
REW::TPID_CFG[n]:TPID_VAL.
3
TAG_A_VID_SEL
Selects VID for ES0 tag A.
0: Classified VID + VID_A_VAL.
1: VID_A_VAL.
1
TAG_A_PCP_SEL
Select PCP source for ES0 tag A.
3
0: Classified PCP.
1: PCP_A_VAL.
2: Reserved.
3: PCP of popped VLAN tag if available (IFH.VSTAX.TAG.WAS_TAGGED = 1 and
num_popped_tags>0) else PCP_A_VAL.
4: Mapped using mapping table 0, otherwise use PCP_A_VAL.
5: Mapped using mapping table 1, otherwise use mapping table 0.
6: Mapped using mapping table 2, otherwise use PCP_A_VAL.
7: Mapped using mapping table 3, otherwise use mapping table 2.
TAG_A_DEI_SEL
Select DEI source for ES0 tag A.
0: Classified DEI.
1: DEI_A_VAL.
2: REW::DP_MAP.DP [IFH.VSTAX.QOS.DP].
3: DEI of popped VLAN tag if available (IFH.VSTAX.TAG.WAS_TAGGED = 1 and
num_popped_tags>0) else DEI_A_VAL.
4: Mapped using mapping table 0, otherwise use DEI_A_VAL.
5: Mapped using mapping table 1, otherwise use mapping table 0.
6: Mapped using mapping table 2, otherwise use DEI_A_VAL.
7: Mapped using mapping table 3, otherwise use mapping table 2.
VMDS-10492 VSC7440 Datasheet Revision 4.2
3
249
Functional Descriptions
Table 172 • VCAP_ES0 Actions (continued)
Field Name
Description
Width
TAG_B_TPID_SEL
Selects TPID for ES0 tag B.
0: 0x8100.
1:0x88A8.
2: Custom 1.
3: Custom 2.
4: Custom 3.
5: See TAG_A_TPID_SEL.
3
TAG_B_VID_SEL
Selects VID for ES0 tag B.
0: Classified VID + VID_B_VAL.
1: VID_B_VAL.
1
TAG_B_PCP_SEL
Selects PCP source for ES0 tag B.
0: Classified PCP.
1: PCP_B_VAL.
2: Reserved.
3: PCP of popped VLAN tag if available (IFH.VSTAX.TAG.WAS_TAGGED=1 and
num_popped_tags>0) else PCP_B_VAL.
4: Mapped using mapping table 0, otherwise use PCP_B_VAL.
5: Mapped using mapping table 1, otherwise use mapping table 0.
6: Mapped using mapping table 2, otherwise use PCP_B_VAL.
7: Mapped using mapping table 3, otherwise use mapping table 2.
3
TAG_B_DEI_SEL
Selects DEI source for ES0 tag B.
0: Classified DEI.
1: DEI_B_VAL.
2: REW::DP_MAP.DP [IFH.VSTAX.QOS.DP].
3: DEI of popped VLAN tag if available (IFH.VSTAX.TAG.WAS_TAGGED = 1 and
num_popped_tags>0) else DEI_B_VAL.
4: Mapped using mapping table 0, otherwise use DEI_B_VAL.
5: Mapped using mapping table 1, otherwise use mapping table 0.
6: Mapped using mapping table 2, otherwise use DEI_B_VAL.
7: Mapped using mapping table 3, otherwise use mapping table 2.
3
TAG_C_TPID_SEL
Selects TPID for ES0 tag C.
0: 0x8100.
1:0x88A8.
2: Custom 1.
3: Custom 2.
4: Custom 3.
5: See TAG_A_TPID_SEL.
3
TAG_C_PCP_SEL
Selects PCP source for ES0 tag C.
0: Classified PCP.
1: PCP_C_VAL.
2: Reserved.
3: PCP of popped VLAN tag if available (IFH.VSTAX.TAG.WAS_TAGGED=1 and
num_popped_tags>0) else PCP_C_VAL.
4: Mapped using mapping table 0, otherwise use PCP_C_VAL.
5: Mapped using mapping table 1, otherwise use mapping table 0.
6: Mapped using mapping table 2, otherwise use PCP_C_VAL.
7: Mapped using mapping table 3, otherwise use mapping table 2.
3
VMDS-10492 VSC7440 Datasheet Revision 4.2
250
Functional Descriptions
Table 172 • VCAP_ES0 Actions (continued)
Field Name
Description
Width
TAG_C_DEI_SEL
Selects DEI source for ES0 tag C.
0: Classified DEI.
1: DEI_C_VAL.
2: REW::DP_MAP.DP [IFH.VSTAX.QOS.DP].
3: DEI of popped VLAN tag if available (IFH.VSTAX.TAG.WAS_TAGGED = 1 and
num_popped_tags>0) else DEI_C_VAL.
4: Mapped using mapping table 0, otherwise use DEI_C_VAL.
5: Mapped using mapping table 1, otherwise use mapping table 0.
6: Mapped using mapping table 2, otherwise use DEI_C_VAL.
7: Mapped using mapping table 3, otherwise use mapping table 2.
3
VID_A_VAL
VID used in ES0 tag A. See TAG_A_VID_SEL.
12
PCP_A_VAL
PCP used in ES0 tag A. See TAG_A_PCP_SEL.
3
DEI_A_VAL
DEI used in ES0 tag A. See TAG_A_DEI_SEL.
1
VID_B_VAL
VID used in ES0 tag B. See TAG_B_VID_SEL.
12
PCP_B_VAL
PCP used in ES0 tag B. See TAG_B_PCP_SEL.
3
DEI_B_VAL
DEI used in ES0 tag B. See TAG_B_DEI_SEL.
1
VID_C_VAL
VID used in ES0 tag C. See TAG_C_VID_SEL.
12
PCP_C_VAL
PCP used in ES0 tag C. See TAG_C_PCP_SEL.
3
DEI_C_VAL
DEI used in ES0 tag C. See TAG_C_DEI_SEL.
1
POP_VAL
Pops one additional Q-tag.
1
num_popped_tags = IFH.tagging.pop_cnt + POP_VAL.
The rewriter counts the number of Q-tags in the frame and only pops tags that are
present in the frame. NUM_POPPED_TAGS is equal to the last available tag.
UNTAG_VID_ENA
Controls insertion of tag C. Un-tag or insert mode can be selected. See
PUSH_CUSTOMER_TAG.
1
PUSH_CUSTOMER Selects tag C mode:
_TAG
0: Do not push tag C.
1: Push tag C if IFH.VSTAX.TAG.WAS_TAGGED = 1.
2: Push tag C if IFH.VSTAX.TAG.WAS_TAGGED = 0.
3: Push tag C if UNTAG_VID_ENA = 0 or (C-TAG.VID ! = VID_C_VAL).
2
TAG_C_VID_SEL
Selects VID for ES0 tag C. The resulting VID is termed C-TAG.VID.
0: Classified VID.
1: VID_C_VAL.
1
DSCP_SEL
Selects source for DSCP.
0: Controlled by port configuration and IFH.
1: Classified DSCP via IFH.
2: DSCP_VAL.
3: Reserved.
4: Mapped using mapping table 0, otherwise use DSCP_VAL.
5: Mapped using mapping table 1, otherwise use mapping table 0.
6: Mapped using mapping table 2, otherwise use DSCP_VAL.
7: Mapped using mapping table 3, otherwise use mapping table 2.
3
DSCP_VAL
DSCP value.
6
VMDS-10492 VSC7440 Datasheet Revision 4.2
251
Functional Descriptions
Table 172 • VCAP_ES0 Actions (continued)
Field Name
Description
Width
PROTECTION_SEL
Change ENCAP_ID, ESDX_BASE and OAM_MEP_IDX based on
IFH.DST.ENCAP.PROT_ACTIVE.
0: No protection. Do not use protection index values.
1: Use _P if ifh.encap.prot_active = 1.
2: Use _P if ifh.encap.prot_active = 0.
3: Reserved.
2
LABEL_SEL
Selects value of the MPLS pseudo wire label.
0: ES0:MPLS_LABEL.
1-3: Reserved.
4: Mapped using mapping table 0.
5: Mapped using mapping table 1.
6: Mapped using mapping table 2.
7: Mapped using mapping table 3.
3
TC_SEL
Selects TC for MPLS label.
0: Classified TC.
1: TC_VAL.
2: COSID (IFH.VSTAX.MISC.COSID).
3: Reserved.
4: Mapped using mapping table 0, otherwise use TC_VAL.
5: Mapped using mapping table 1, otherwise use mapping table 0.
6: Mapped using mapping table 2, otherwise use TC_VAL.
7: Mapped using mapping table 3, otherwise use mapping table 2.
3
SBIT_SEL
Configures SBIT-selection.
0: Classified SBIT.
1: Fixed. SBIT_VAL.
1
TTL_SEL
Configures TTL selection.
0: Classified TTL.
1: Fixed. TTL_VAL.
1
MPLS_LABEL
MPLS pseudo wire label.
20
TC_VAL
Configured TC value.
3
SBIT_VAL
Configured SBIT value
1
TTL_VAL
Configured TTL value.
8
CW_DIS
Disable control word (CW) in MPLS encapsulation.
0: MPLS_LABEL_CFG.CW_ENA controls CW.
1: CW is disabled.
1
ENCAP_ID
Index into the MPLS encapsulation table (REW::ENCAP). Setting ENCAP_ID to
zero disables pushing of MPLS encapsulation.
0: Disables the use of MPLS encapsulation.
1-127: Selects ENCAP ID.
7
ENCAP_ID_P
Index to use when enabled by PROTECTION_SEL. The encoding is equal to
ENCAP_ID.
7
VMDS-10492 VSC7440 Datasheet Revision 4.2
252
Functional Descriptions
Table 172 • VCAP_ES0 Actions (continued)
Field Name
Description
Width
POP_CNT
If POP_CNT > 0, then ifh.dst.encap.w16_pop_cnt is overruled with POP_CNT
when popping MPLS labels. The encoding is:
0: Use ifh.dst.encap.w16_pop_cnt as word16 (2 bytes) pop count
1: Do not pop any bytes.
2: Pop 2 × 2 = 4 bytes.
…
21: Pop 2 × 21 = 42 bytes.
22-31: Reserved.
If the number of bytes popped by POP_CNT is larger than the value given by
ifh.dst.encap.w16_pop_cnt, the IFH value is always used.
5
ESDX_BASE
Egress service index. Used to index egress service counter set
(REW::CNT_CTRL.STAT_MODE).
10
ESDX_BASE _P
Egress service index to use when enabled by PROTECTION_SEL.
10
ESDX_COSID_
OFFSET
Egress counter set, offset per COSID.
24
Stat index = ESDX_BASE + ESDX_COSID_OFFSET[(3 x COSID + 2) : 3 x COSID]
MAP_0_IDX
Index 0 into mapping resource A.
Index bits 10:3. Index bits 2:0 are controlled by MAP_0_KEY.
8
MAP_1_IDX
Index 1 into mapping resource A.
Index bits 10:3. Index bits 2:0 are controlled by MAP_1_KEY.
8
MAP_2_IDX
Index 0 into mapping resource B.
Index bits 10:3. Index bits 2:0 are controlled by MAP_2_KEY.
8
MAP_3_IDX
Index 1 into mapping resource B.
Index bits 10:3. Index bits 2:0 are controlled by MAP_2_KEY.
8
MAP_0_KEY
Key used when looking up mapping table 0.
QoS mappings:
0: QoS (8 entries): IDX = IDX_A + QOS.
1: DP, QoS (32 entries): IDX = IDX_A + IFH..DP × 8 + QOS.
DSCP mappings:
2: DSCP (64 entries): IDX = IDX_A + IFH..DSCP.
3: DP, DSCP (256 entries): IDX = IDX_A + 64 × IFH..DP + IFH..DSCP.
4: DP, TOS_PRE (32 entries): IDX = IDX_A + IFH..DP × 8 + TOS_PRE.
PCP mappings:
5: PCP (8 entries): IDX = IDX_A + IFH..PCP.
6: DP, PCP (32 entries): IDX = IDX_A + IFH..DP × 8 + IFH..PCP.
7: DEI, PCP (16 entries): IDX = IDX_A + IFH..DEI × 8 + IFH..PCP.
TC mappings:
8: TC: IDX = IDX_A + IFH..TC.
9: DP, TC: IDX = IDX_A + IFH..DP × 8 + IFH..TC.
Popped customer tag mappings:
10: Popped PCP (8 entries): IDX = MAP_0_IDX + pop.PCP
11: DP, popped PCP (32 entries): IDX = MAP_0_IDX + IFH..DP × 8 + pop.PCP.
12: Popped DEI, popped PCP (16 entries): IDX = MAP_0_IDX + pop.DEI × 8 +
pop.PCP.
COSID mappings:
13: COSID (8 entries): IDX = IDX_A + IFH.VSTAX.MISC.COSID.
14: DP, COSID (32 entries): IDX = IDX_A + IFH..DP × 8 +
IFH.VSTAX.MISC.COSID.
4
MAP_1_KEY
See MAP_0_KEY.
4
MAP_2_KEY
See MAP_0_KEY.
4
MAP_3_KEY
See MAP_0_KEY.
4
VMDS-10492 VSC7440 Datasheet Revision 4.2
253
Functional Descriptions
Table 172 • VCAP_ES0 Actions (continued)
Field Name
Description
Width
OAM_MEP_IDX_VL
D
Setting this bit to 1 causes the OAM_MEP_IDX to be used.
1
OAM_MEP_IDX
OAM MEP index.
8
OAM_MEP_IDX_P
OAM MEP index to use when enabled by PROTECTION_SEL.
8
OAM_LM_COSID_
COLOR_SEL
0: Mapped using mapping table 0 if valid, otherwise use value 0.
1: Mapped using mapping table 1 if valid, otherwise use mapping table 0.
2: Mapped using mapping table 2 if valid, otherwise use value 0.
3: Mapped using mapping table 3 if valid, otherwise use mapping table 2.
2
INDEPENDENT_
MEL_ENA
OAM MEL mode.
1
MIP_IDX
Ethernet MIP index.
0: Disable.
Other: MIP index value.
7
FWD_SEL
ES0 Forward selector.
0: No action.
1: Copy to loopback interface.
2: Redirect to loopback interface.
3: Discard.
2
CPU_QU
CPU extraction queue. Used when FWD_SEL >0 and PIPELINE_ACT = XTR.
3
PIPELINE_PT
ES0 pipeline point.
0: REW_IN_SW.
1: REW_OU_SW.
2: REW_SAT.
3: Reserved.
2
PIPELINE_ACT
Pipeline action when FWD_SEL >0.
0: XTR. CPU_QU selects CPU extraction queue
1: LBK_ASM.
1
SWAP_MAC_ENA
This setting is only active when FWD_SEL = 1 or FWD_SEL = 2 and
PIPELINE_ACT = LBK_ASM.
0: No action.
1: Swap MACs and clear bit 40 in new SMAC.
1
LOOP_ENA
Setting LOOP_ENA overrides the other pipeline control settings.
0: Forward based on PIPELINE_PT and FWD_SEL
1: Force FWD_SEL=REDIR, PIPELINE_ACT = LBK_ASM,
PIPELINE_PT = REW_SAT, swap MACs and clear bit 40 in new SMAC. Do not
apply CPU_QU.
1
3.26.5.1
Rewriter Pipeline Handling
In order to achieve the correct statistics and processing of frames, it is important that frames can be
extracted, injected, discarded, and looped at specific positions in the processing flow. Based on the
position, processing—especially counters, are affected. For information about how pipeline points are
used in the processing flow, see Pipeline Points, page 67.
Note that a frame is always physically passed through the entire processing. Logically, certain elements
of the processing can be disabled or enabled.
VMDS-10492 VSC7440 Datasheet Revision 4.2
254
Functional Descriptions
The following table lists the pipeline points available in the rewriter.
Table 173 • Rewriter Pipeline Point Definitions
Pipeline Point
What can set it?
Position in Flow
NONE
Default
0
REW_IN_MIP
Inner MIP configured in rewriter
1
REW_IN_SW
Inner software MEP controlled by VCAP_ES0
2
REW_IN_VOE
Service VOE in VOP
3
REW_OU_VOE
Service VOE in VOP
4
REW_OU_SW
Outer software MEP controlled by VCAP_ES0
5
REW_OU_MIP
Outer software MIP configured in rewriter
6
REW_SAT
SAT software MEP controlled by VCAP_ES0
7
REW_PORT_VOE
Port VOE in VOP
8
REW_VRAP
Set in VRAP reply frame
9
Each point in the flow assigns one of the possible pipeline actions listed in the following table.
Table 174 • Pipeline Actions
Action Type
Name
Comment
Inject
INJ
INJ_MASQ
INJ_CENTRAL
Injection actions set by ANA are cleared when the frame enters the
rewriter by setting the pipeline point and action to NONE.
Extract
XTR
XTR is set by ES0 and MIP.
XTR_UPMEP
XTR_UPMEP is also set by the VOP.
XTR_REW_LATE XTR_REW_LATE can only be set in ANA.
Loopback
LBK_ASM
LBK_QS
LBK_QS is set in ANA. This action is treated as an injection action
in the rewriter. LBK_ASM can be set by ES0 when looping frames
back to ANA. This action is treated as an extraction in the rewriter.
None
NONE
Default. No pipeline point and action is assigned to frame.
Frames looped by the analyzer (PIPELINE_ACT = LBK_QS) have their ANA pipeline point changed to a
REW pipeline point, which indicates the point in the rewriter flow in REW where they appear again after
being looped. The following pipeline point translations are handled.
•
•
•
PIPELINE_PT = ANA_PORT_VOE is changed to REW_PORT_VOE
PIPELINE_PT = ANA_OU_VOE is changed to REW_OU_VOE
PIPELINE_PT = ANA_IN_VOE is changed to REW_IN_VOE
Frame forward and counter updates are done based on the assigned pipeline points and actions. In the
rewriter, pipeline points and actions can be assigned by ES0, the MIP, and the VOP.
Frames injected by a CPU can also have pipeline point and actions set in the injection IFH.
The rules listed in the following table apply when pipeline points are updated.
Table 175 • Pipeline Point Updating Rules
Pipeline Action
Rule
None
The pipeline point and actions can be updated.
VMDS-10492 VSC7440 Datasheet Revision 4.2
255
Functional Descriptions
Table 175 • Pipeline Point Updating Rules (continued)
Pipeline Action
Rule
Inject
If a frame is injected in pipeline point N, the forwarding cannot be changed in
pipeline point N-1 and it will not be counted in the N-1 point. Logically the frame
does not exist in the N-1 point.
Example: A frame is injected in the REW_VRAP pipeline point (Pipeline point =
REW_VRAP, Action = INJ). The SW-MEP is configured to loop the same frame
in the pipeline point REW_SAT. The frame will not be looped, because it was
injected later in the pipeline (REW_VRAP > REW_SAT). The frame will not be
counted by the egress service statistics, which has a default location in the
REW_PORT_VOE pipeline point for injected frames.
Extract
If frame is extracted in pipeline point N the forwarding cannot be changed in
pipeline point N+1 and it will not be counted in the N+1 point. Logically the
frame does not exist in the N+1 point.
Example: A frame is extracted in the REW_IN_MIP pipeline point (Pipeline
point = REW_IN_MIP, Action = XTR). The SW-MEP is configured to loop the
same frame in the pipeline point REW_SAT. The frame will not be looped
because it has already been extracted earlier in the pipeline (REW_IN_MIP <
REW_SAT). The frame will not be counted by the egress service statistics,
which has a default location in the REW_OU_SW pipeline point for extracted
frames.
3.26.5.2
Frame Copy, Redirect, or Discard
Frame forwarding may be changed by ES0 action FWD_SEL, the MIP or the VOP. Changing frame
forwarding will update the frame pipeline point and action.
The following options are available to control frame forwarding.
•
•
•
•
No action. Do not change frame forwarding.
Copy frame to CPU via the loopback interface. The frame is looped back to the ANA where it is sent
to the CPU. The IFH of the CPU copy is modified to select a CPU queue. The frame is also
forwarded as normal to the destination port and can be modified by the normal rewriter operations.
Redirect frame to ANA via loopback interface. When doing frame loopbacks, the destination port of
the redirected frame will be left unchanged. The IFH of the frame is modified and the MAC
addresses may be swapped. Redirected frames may also be sent to a CPU queue. This can be
done as a standalone operation or together with the loopback frame. When redirecting, the frame is
only sent to the loopback interface and not to the original destination port.
Discard frame. The frame is terminated before transmission.
The following illustrations depicts options for frame forwarding.
Figure 78 • Frame Forward Options
To DSM
No action or copy
DA
SA
Changed
Payload
F
C
S
From OQS
IFH
DA
SA
Payload
F
C
S
To LBK
Copy or redirect
Rewriter
IFH(1) SA(2) DA(2)
Payload
F
C
S
1. The IFH is modified for looped frames.
2. MACs can be swapped for looped frames.
Terminate
Discard
VMDS-10492 VSC7440 Datasheet Revision 4.2
256
Functional Descriptions
The following table lists the registers associated with the frame loopback options.
Table 176 • Frame Loopback Options
Register
Description
Replication
ES0_CTRL.
Using ES0 it is possible to loop frames back to ANA with the None
ES0_FRM_LBK_CFG LOOP_ENA action.
If this bit is set, a frame can only be looped once by ES0.
Frame forwarding is changed if allowed by the current frame pipeline point and action. For more
information, see Rewriter Pipeline Handling, page 254.
The following table shows the pipeline action when the frame forwarding is changed.
Table 177 • Pipeline Action Updates
Forwarding Selection
Pipeline Action Updates
NONE
Unchanged
COPY
Unchanged
REDIR
CPU redirection: XTR / XTR_UPMEP
Loopback frames: LBK_ASM
DISCARD
XTR / XTR_UPMEP
The pipeline updating rules ensures that a REDIR or DISCARD decision cannot be changed at a later
pipeline point. A COPY may be changed at a later point to either a REDIR or DISCARD action.
•
•
If a copy is changed to a discard, the CPU still receives the frame copy.
If a copy is changed to a redirection, the CPU receives a copy and the frame is looped back or also
sent to the redirection queue.
When frames are copied or redirected the IFH is updated as described in the following table.
Table 178 • Loopback IFH Updates
IFH Field
Updated by
FWD.SRC_PORT
COPY or REDIR. The frame source port is changed to the current destination port.
MISC.PIPELINE_PT
COPY or REDIR. The pipeline point in which the frame forwarding was updated.
MISC.PIPELINE_ACT
COPY or REDIR. The pipeline action assigned to the frame.
MISC.CPU_MASK
Any operation. A CPU copy may be generated by all forward selections.
FWD.DO_LBK
Rewriter loopback. This bit is set to indicate that the frame has been looped by the
REW. Can optionally be used to prevent multiple loops of the same frame.
FWD.UPDATE_FCS
VOP. Set by the VOP if a looped frame changed.
VSTAX.MISC.ISDX
VOP. The frame ISDX can be changed by the VOP.
VSTAX.QOS.DP
VOP. The DP level can be set to 0 by the VOP.
ENCAP.MPLS_TTL
VOP. The MPLS_TTL can be set to 1 by the VOP.
3.26.5.3
Egress Statistics Update
The rewriter does not have Egress Service Index (ESDX) and port-based counters of its own. Instead,
the egress statistic counters in XQS:STAT are used for all frame and byte counting. For more
information, see Statistics, page 230.
The following counters are available to the rewriter as frame and octet counters.
•
Per egress port: 2 × 8 + 1 = 17 counters (color × cell bus priority + abort)
VMDS-10492 VSC7440 Datasheet Revision 4.2
257
Functional Descriptions
•
ESDX: 2 × 1,024 = 2,048 counters (color × ESDX)
Frame and octets are counted simultaneously on each index by two separate counters. The counter
widths are 40 bits for octet counters and 32 bits for frame counters.
The following table lists the registers associated with ESDX counter configuration.
Table 179 • Egress Statistics Control Registers
Register
Description
Replication
CNT_CTRL.
STAT_MODE
Configures ESDX counter index selection.
Global
CNT_CTRL.
VSTAX_STAT_ESDX_DIS
Configures ESDX counting for stacking ports.
Global
If this bit is set and PORT_CTRL.VSTAX_HDR_ENA = 1, all counting
based on the ESDX value is disabled regardless of the
CNT_CTRL.STAT_MODE configuration.
CNT_CTRL.
Enables counting of frames discarded by the rewriter.
STAT_CNT_FRM_ABORT_ENA This bit only enables counting of frames discarded by ES0 or the
SW_MIP. Frame discards done by the VOP are not included.
Global
PORT_CTRL.
XTR_STAT_PIPELINE_PT
Configures the extraction statistics pipeline point. Frames extracted
Port
before the configured pipeline point are not counted by the ESDX
counters.
Configuring the REW_IN_MIP value will cause all extracted frames to
be counted.
Default is REW_OU_SW.
PORT_CTRL.
INJ_STAT_PIPELINE_PT
Configures the injection statistics pipeline point. Frames injected after Port
the configured pipeline point are not counted by the ESDX counters.
Configuring the REW_VRAP value will cause all injected frames to be
counted.
Default is REW_OU_VOE.
3.26.5.4
Statistics Counter Index Calculation
The port counter index is always the physical port number and priority. The frame color is determined in
the same manner as the ESDX counter.
The ESDX counter index calculation is controlled by the CNT_CTRL.STAT_MODE register.
Table 180 • ESDX Index Selection
STAT_MODE
Description
0
Use ESDX if available:
ESDX is available if ES0 lookup is enabled and if ES0.ESDX_BASE is different from 0.
Index = ES0.ESDX_BASE + ES0.ESDX_COSID_OFFSET(IFH.VSTAX.MISC.COSID).
If ESDX is not available:
Index = IFH.VSTAX.MISC.ISDX (4,096 available. The two MSB bits are ignored.)
Regardless of the index selection, the frame color is:
Color = DP_MAP.DP(IFH.VSTAX.QOS.DP)
1
Similar to STAT_MODE = 0, except counting is disabled if the ESDX is not available.
2
Use ISDX: Index = IFH.VSTAX.MISC.ISDX.
The frame color is used to count multicast frames:
Color = FRAME.ETH_LINK_LAYER.DMAC (bit 40).
VMDS-10492 VSC7440 Datasheet Revision 4.2
258
Functional Descriptions
Table 180 • ESDX Index Selection (continued)
STAT_MODE
Description
3
Use VID:
Index = Classified VID (IFH.VSTAX.TAG.VID), if no tag is pushed
Index = VID of outermost pushed tag, if a tag is pushed
Index = REW:VMID:RLEG_CTRL.RLEG_EVID (IFH.DST..ERLEG) if L3.
The frame color is used to count multicast frames:
Color = FRAME.ETH_LINK_LAYER.DMAC (bit 40).
The two MSB bits of the VID are ignored. 1,024 counter indexes are available.
Both port counters and ESDX counters are updated based on pipeline points and actions. For more
information, see Rewriter Pipeline Handling, page 254. The ESDX statistics pipeline points can be
configured using the PORT_CTRL.INJ_STAT_PIPELINE_PT and
PORT_CTRL.XTR_STAT_PIPELINE_PT registers.
The following table shows when the counters are updated.
Table 181 • Egress Statistics Update
Counter
Is Updated When?
Port
Pipeline action is not Extract (action different from XTR, XTR_LATE_REW, XTR_UPMEP, and LBK_ASM).
Frame is transmitted (abort = 0).
Updated for all egress port numbers including virtual device (VD) and extraction CPU port numbers.
ESDX
The egress port is a physical port.
The frame matches the parameters configured in CNT_CTRL.STAT_MODE:
For extracted frames (Action: XTR, XTR_UPMEP and LBK_ASM):
The egress statics is located in the pipeline point, PORT_CTRL.XTR_STAT_PIPELINE_PT. Frames
extracted in or after this point are counted.
For injected frames (Action: INJ, INJ_x, LBK_QS):
The egress statics is located the pipeline point, PORT_CTRL.INJ_STAT_PIPELINE_PT. Frames injected in
or before this point are counted.
Frame is transmitted (abort = 0).
The pipeline action is different from XTR_LATE_REW.
Abort
3.26.5.5
A frame is aborted by REW or OQS (abort = 1).
Counting of frames aborted by REW must be enabled by setting
CNT_CTRL.STAT_CNT_FRM_ABORT_ENA.
Protection Active
Using ES0, the rewriter is able to change various indexes based on the value of the
IFH.DST.ENCAP.PROT_ACTIVE field in the IFH.
•
•
•
3.26.6
Use the ES0 key field PROT_ACTIVE to change all ES0 actions when protection is active.
The numbers of ES0 keys are limited, so the same key can optionally generate two different indexes
based on the value of IFH.DST.ENCAP.PROT_ACTIVE. This is enabled using the ES0 action
PROTECTION_SEL.
The ENCAP_ID, ESDX_BASE and OAM_MEP_IDX indexes can be changed. These indexes are
used when enabled by PROTECTION_SEL: ENCAP_ID_P, ESDX_BASE_P, and
OAM_MEP_IDX_P.
Mapping Tables
The rewriter contains two mapping resources (A and B) that can be used to look up the following fields.
•
•
TC value in MPLS labels
DSCP value in IP frames
VMDS-10492 VSC7440 Datasheet Revision 4.2
259
Functional Descriptions
•
•
DEI in 802.3 VLAN tags
PCP in 802.3 VLAN tags
The following table lists the configuration registers associated with the mapping tables.
Table 182 • Mapping Table Configuration Registers
Register
Description
Replication
MAP_VAL_x:TC_VAL
Mapped TC value
2,048 × 2
MAP_VAL_x:DSCP_VAL
Mapped DSCP value
2,048 × 2
MAP_VAL_x:DEI_VAL
Mapped DEI value
2,048 × 2
MAP_VAL_x:PCP_VAL
Mapped PCP value
2,048 × 2
MAP_VAL_x:OAM_COLOR
Mapped OAM Color
2,048 × 2
MAP_VAL_x:OAM_COSID
Mapped OAM Cosid
2,048 × 2
MAP_LBL_x:LBL_VAL
Mapped MPLS label value
2,048 × 2
MAP_RES_x (x= A or B)
Each of the two resources provide all of the fields listed above. Two lookups are done in each resource
for every frame. This generates four mapping results per frame.
The four lookups implement mapping table 0 to 3. The address used for each lookup is controlled by the
ES0 actions MAP_n_KEY and MAP_n_IDX (n = 0:3).
A mapping table address consists of two parts:
•
•
A base index: ES0.MAP_n_IDX. This controls the MSB part of the table address.
One of 15 different keys that use classified frame properties to generate the LSB of the table
address. For more information about each key, see ES0 Configuration Registers, page 247.
The following illustration depicts the mapping table functionality.
Figure 79 • Mapping Tables
1 to 3 MPLS labels
LABEL
VCAP
ES0
ES0 Key
TC
S
TTL
Pushed Q-Tags
D
TPID
PCP E VID
I
Egress
OAM
IP Frame PDU-MOD
DSCP
OAM
Path Info
Table selector actions
for each field
SOC
Frame from OQS
ES0.map_idx(0,1)
Frame
Innermost TCI
Map Resource A
Address
IFH
ES0.map_key(0,1)
Table 0 fields
Addr Resource
A
Table 1 fields
SOC
Classified
fields
ES0.map_key(2,3)
Map Resource B
Address
ES0.map_idx(2,3)
Table 2 fields
Addr Resource
B
Table 3 fields
The mapping tables provide a flexible way to update frame fields. The following example shows how to
configure and use mapping table 1.
Update PCP in VLAN tag A using mapping table 1. Use frame DSCP as index:
•
Enable ES0
VMDS-10492 VSC7440 Datasheet Revision 4.2
260
Functional Descriptions
•
•
•
•
•
•
•
Program an ES0 key
Set ES0 action TAG_A_PCP_SEL to 5 for selected key
Set ES0 action PUSH_OUTER_TAG = 1
Update PCP by using Table 1:
Select a base address in resource A. Base address 256 is used in this example
Set ES0 action MAP_1_IDX = 256/8 = 32
Use frame DSCP as key: Set ES0 action MAP_1_KEY = 2
Program the PCP mapping in table 1: Addr = 256 to 256 + 63 (all DSCP values)
Write REW:MAP_RES_A:$Addr/MAP_VAL_A PCP_VAL
Frame DSCP is used as key in this example. If the DSCP is not available (frame is non IP), the mapping
is considered invalid, and the PCP value is selected using this fallback method:
•
•
Use mapping table 1 if key is valid, otherwise use mapping table 0.
Use mapping table 0 if key is valid, otherwise use a fixed value.
In the example, a PCP value from table 0 is used instead for non IP frames, if the table 0 key is valid.
Otherwise, the ES0 action PCP_A_VAL is used. Mapping tables 2 and 3 have the same functionality.
Mapping tables 0 and 1 share the 2,048 addresses available in Resource A. Table 2 and 3 share 2,048
addresses in Resource B.
3.26.7
VLAN Editing
The rewriter performs five steps related to VLAN editing for each frame and destination:
1.
2.
3.
4.
5.
ES0 lookup. ES0 is looked up for each frame if enabled by the global configuration. The action from
ES0 controls the pushing of VLAN tags.
VLAN popping. Zero to three VLAN tags are popped from the frame. Popping is controlled from the
ANA by IFH.TAGGING.POP_CNT and by the action ES0.POP_VAL.
VLAN push decision. Decides the number of new tags to push and which tag source to use for each
tag. Tag sources are port, ES0 (tags A to C), and routing.
Constructs the VLAN tags. The new VLAN tags are constructed based on the tag sources’
configuration.
VLAN pushing. The new VLAN tags are pushed.
The outermost tag can optionally be controlled by port-based VLAN configuration.
Table 183 • Port VLAN Tag Configuration Registers
Register
Description
Replication
TPID_CFG.
TPID_VAL
Configures three custom TPID values.
These must be configured identically in
ANA_CL::VLAN_STAG_CFG.STAG_ETYPE_VAL.
3
PORT_VLAN_CFG
PORT_*
Port VLAN TCI.
Port _VID is also used for untagged set.
Ports
TAG_CTRL:
TAG_CFG_OBEY_
WAS_TAGGED
Controls how port tags are added. If this bit is set, the IFH field
Ports
VSTAX.TAG.WAS_TAGGED must be 1 before a port tag is added
to a frame.
TAG_CTRL:
TAG_CFG
Controls port tagging. Four modes are supported.
Ports
TAG_CTRL:
TAG_TPID_CFG
Selects Tag Protocol Identifier (TPID) for port tagging.
Ports
TAG_CTRL:
TAG_VID_CFG
Selects VID in port tag.
Ports
TAG_CTRL:
TAG_PCP_CFG
Selects PCP fields in port tag.
Ports
TAG_CTRL:
TAG_DEI_CFG
Selects DEI fields in port tag.
Ports
VMDS-10492 VSC7440 Datasheet Revision 4.2
261
Functional Descriptions
Table 183 • Port VLAN Tag Configuration Registers (continued)
Register
Description
DP_MAP.DP
Maps the four drop precedence levels (DP) to a drop eligible value Global
(DE or COLOR).
PORT:
PCP_MAP_DEx
Mapping table. Maps DP level and QoS class to new PCP values. Per port per
Q per DE
PORT:
DEI_MAP_DEx
Mapping table. Maps DP level and QoS class to new DEI values.
3.26.7.1
Replication
Per port per
Q per DE
ES0 Lookup
For each frame passing through the rewriter, an optional VCAP_ES0 lookup is done using the
appropriate key. The action from ES0 is used in the following to determine the frame’s VLAN editing.
3.26.7.2
VLAN Popping
The rewriter initially pops the number of VLAN tags specified by the IFH field IFH.TAGGING.POP_CNT
received with the frame. Up to three VLAN tags can be popped via the IFH. The rewriter itself can further
influence the number VLAN tags being popped by the ES0 action POP_VAL. This can increase the pop
count by one.
The rewriter analyzes the total number of tags in a frame, and this is the maximum number of tags that
can be popped regardless of the IFH and ES0 pop values.
3.26.7.3
VLAN Push Decision
After popping the VLAN tags, the rewriter decides to push zero to three new VLAN tags into the outgoing
frame according to the port’s tagging configuration in register TAG_CTRL.TAG_CFG and the action from
a potential VCAP ES0 hit.
Two additional tags can be added for mirrored or GCPU frames. These special tags will always be the
outermost ones. If MPLS encapsulation is added to a frame, the mirror or GCPU tags are placed after the
MPLS link layer SMAC.
Figure 80 • VLAN Pushing
DMAC
SMAC
0-2 GCPU or
Mirror Tags
Tag A
Outer Tag
(ES0, Port)
Tag B
Inner Tag
(ES0)
Tag C
Customer
Tag (ES0)
EtherType
Payload
Special tags(1)
Configurable port tag(2)
ES0 tag A
Force no tag (ES0)
Force port tag (ES0)
No tag
ES0 tag B
No tag
ES0 tag C
1. Mirror tag is controlled by REW::MIRROR_PROBE_CFG.REMOTE_MIRROR_CFG
GCPU tag is controlled by REW::GCPU_CFG.GCPU_TAG_SEL.
2. Port tag is controlled by REW:PORT:TAG_CTRL.TAG_CFG.
VMDS-10492 VSC7440 Datasheet Revision 4.2
262
Functional Descriptions
The following table lists ES0 VLAN tag actions.
Table 184 • ES0 VLAN Tag Actions
ES0_ACTION
TAG_CFG
Tagging Action
No ES0 hit
Controls port The port tag is pushed according to TAG_CTRL.TAG_CFG as
tag
outermost tag. The following options are available:
- Tag all frames with port tag.
- Tag all frames with port tag, except if classified VID = 0 or
classified VID=PORT_VLAN_CFG.PORT_VID.
- Tag all frames with port tag, except if classified VID = 0.
TAG_CTRL.TAG_VID_CFG selects between classified- or fixed-port
VID.
No inner tag.
PUSH_OUTER_TAG = 0
PUSH_INNER_TAG = 0
Controls port Same as No ES0 hit action.
tag
PUSH_OUTER_TAG = 1
PUSH_INNER_TAG = 0
Don’t care
ES0 tag A is pushed as outer tag.
No inner tag.
PUSH_OUTER_TAG = 2
PUSH_INNER_TAG = 0
Don’t care
Port tag is pushed as outer tag. This overrules port settings in
TAG_CFG.
No inner tag.
PUSH_OUTER_TAG = 3
PUSH_INNER_TAG = 0
Don’t care
No tags are pushed. This overrules port settings in TAG_CFG.
PUSH_OUTER_TAG = 0
PUSH_INNER_TAG = 1
Controls port Port tag is pushed according to TAG_CFG as outermost tag. The
tag
following options are available:
- Tag all frames with port tag.
- Tag all frames with port tag, except if classified VID = 0 or
classified VID = PORT_TAG_DEFAULT. PORT_TCI_VID.
- Tag all frames with port tag, except if classified VID = 0.
- No port tag.
TAG_CTRL.TAG_VID_CFG select between classified- or fixed-port
VID.
ES0 tag B is pushed as inner tag.
ES0 tag B is effectively the outer tag if the port tag is not pushed.
PUSH_OUTER_TAG = 1
PUSH_INNER_TAG = 1
Don’t care
ES0 tag A is pushed as outer tag.
ES0 tag B is pushed as inner tag.
PUSH_OUTER_TAG = 2
PUSH_INNER_TAG = 1
Don’t care
Port tag is pushed as outer tag. This overrules port settings in
TAG_CFG.
ES0 tag B is pushed as inner tag.
PUSH_OUTER_TAG = 3
PUSH_INNER_TAG = 1
Don’t care
No outer tag is pushed. This overrules port settings in TAG_CFG.
ES0 tag B is pushed as inner tag.
ES0 tag B is effectively the outer tag, because no outer tag is pushed.
Tag C is controlled separately and will always be the inner most tag.
All combinations of tags A to C are allowed.
PUSH_CUSTOMER_TAG = 0
Controls port Does not push customer tag (tag C).
tag
PUSH_CUSTOMER_TAG = 1
Controls port Push tag C if IFH.VSTAX.TAG.WAS_TAGGED = 1.
tag
PUSH_CUSTOMER_TAG = 2
Controls port Push tag C if IFH.VSTAX.TAG.WAS_TAGGED = 0.
tag
VMDS-10492 VSC7440 Datasheet Revision 4.2
263
Functional Descriptions
Table 184 • ES0 VLAN Tag Actions (continued)
ES0_ACTION
TAG_CFG
PUSH_CUSTOMER_TAG = 3
Controls port 3: Push tag C if UNTAG_VID_ENA = 0 or (C-TAG.VID
tag
! = VID_C_VAL). C-TAG.VID is controlled by TAG_C_VID_SEL.
UNTAG_VID_ENA
Controls port See PUSH_CUSTOMER_TAG = 3.
tag
3.26.7.4
Tagging Action
Constructing VLAN Tags
The contents of the tag header are highly programmable when pushing a VLAN tag. The following
illustration shows the VLAN tag construction.
Figure 81 • VLAN Tag Construction
TPID
PCP
D
E
I
VID
0x8100
Mapped using ES0(2)
Classified + fixed(3)
0x88A8
(2)
Routing (VMID)
3xCustom
Classified
Fixed
(1)
Fixed
Classified
PCP of popped tag
QoS class
Mapped DE, QoS
Mapped DE, COSID
Mapped DE, PCP
COSID
Mapped using ES0(2)
DEI of popped tag(2)
Classified
1. Classified using IFH 0x8100, 0x88A8,
or 3xCustom.
2. ES0 tag A to C.
3. For port tag, this is classified only.
Fixed
Color (DE)
Mapped DE, QoS
Mapped DE, COSID
Mapped DE, PCP
The port tags (ES0.PUSH_OUTER_TAG = [0[2]), the ES0 tags A to C, and the special tags have
individual configurations.
Port Tag: PCP
Use REW:PORT:TAG_CTRL.TAG_PCP_CFG to configure the following:
•
•
•
•
•
•
•
Use the classified PCP.
Use the egress port’s port VLAN (PORT_VLAN_CFG.PORT_PCP).
Use the QoS class directly.
Map DE and QoS class to a new PCP value using the per-port table PCP_MAP_DEx.
Map DE and COSID to a new PCP value using the per-port table PCP_MAP_DEx.
Map DE and classified PCP to a new PCP value using the per-port table PCP_MAP_DEx.
Use the COSID class directly.
Port Tag: DEI
Use REW:PORT_TAG_CTRL.TAG_DEI_CFG to configure the following:
•
•
•
Use the classified DEI.
Use the egress port’s port VLAN (PORT_VLAN_CFG.PORT_DEI).
Use mapped DP to DE level (color).
VMDS-10492 VSC7440 Datasheet Revision 4.2
264
Functional Descriptions
•
•
•
Map DE and QoS class to a new DEI value using the per-port table DEI_MAP_DEx.
Map DE and COSID to a new DEI value using the per-port table DEI_MAP_DEx.
Map DE and classified PCP to a new DEI value using the per-port table DEI_MAP_DEx.
Port Tag: VID
Use REW:PORT:TAG_CTRL.TAG_VID_CFG to configure the following:
•
•
•
Use the classified VID.
Use the egress port’s port VLAN (PORT_VLAN_CFG.PORT_VID).
Use VMID from router leg lookup. When L3 routing is active, the classified VID is overwritten by the
VMID.
Port Tag: TPID
Use REW:PORT:TAG_CTRL.TAG_TPID_CFG to configure the following:
•
•
•
•
Use Ethernet type 0x8100 (C-tag).
Use Ethernet type 0x88A8 (S-tag).
Use one of three custom TPIDs programmed in REW::TPID_CFG.TPID_VAL.
The TPID is classified by ANA and selected by IFH.
Similar options for the ES0 tag A to tag C are available:
ES0 Tag: PCP
Use ES0 action TAG_x_PCP_SEL to configure the following:
•
•
•
•
Use the classified PCP.
Use ES0_ACTION.PCP_x_VAL.
Use PCP of popped tag (IFH.VSTAX.TAG.WAS_TAGGED = 1 and num_popped_tags>0) else
PCP_x_VAL.
Use the complex mapping functionality provided by ES0 to lookup a PCP value.
ES0 Tag: DEI
Use ES0 action TAG_x_DEI_SEL to configure the following:
•
•
•
•
•
Use the classified DEI.
Use ES0_ACTION.DEI_x_VAL.
Use the complex mapping functionality provided by ES0 to lookup a DEI value.
Use DEI of popped tag (IFH.VSTAX.TAG.WAS_TAGGED = 1 and num_popped_tags>0) else
DEI_x_VAL.
Use the mapped DP to DE level (color) directly.
ES0 Tag: VID
Use ES0 action TAG_x_VID_SEL to configure the following:
•
•
Tag A and B: Use the classified VID incremented with ES0.VID_x_VAL.
Tag C: Use the classified VID.
Use ES0_ACTION.VID_x_VAL.
ES0 Tag: TPID
Use ES0 action TAG_x_TPID_SEL to configure the following:
•
•
•
•
Use Ethernet type 0x8100 (C-tag).
Use Ethernet type 0x88A8 (S-tag).
Use one of three custom TPIDs programmed in REW::TPID_CFG.TPID_VAL.
TPID is classified by ANA and selected via IFH.
GCPU or mirror forwarding can optionally insert additional tags. These will always be added as the
outermost tags. One or two special tags (A and B) can be added. The tag construction options as follows:
Special Tag A+B: PCP
•
•
Use the classified PCP.
Use fixed value.
Special Tag A+B: DEI
VMDS-10492 VSC7440 Datasheet Revision 4.2
265
Functional Descriptions
•
Use fixed value.
Special Tag A+B: VID
•
Use fixed value.
Special Tag A+B: TPID
•
•
•
•
3.26.8
Use Ethernet type 0x8100 (C-tag).
Use Ethernet type 0x88A8 (S-tag).
Use one of three custom TPIDs programmed in REW::TPID_CFG.TPID_VAL.
TPID is classified by ANA and selected by means of IFH.
DSCP Remarking
The rewriter supports two DSCP remarking schemes. The first remarking mode is controlled by port and
IFH settings. The second remarking mode is controlled by ES0 actions and by the general mapping
tables.
DSCP actions from ES0 override any remarking done by the port.
3.26.8.1
ES0-Based DSCP Remarking
ES0 controls DSCP remarking if ES0 lookups are enabled and the DSCP_SEL action is different from 0.
For more information, see Mapping Tables, page 259.
3.26.8.2
Legacy Port-Based Mode
Simple DSCP remapping can be done using a common table shared by all ports.
The following table shows the port-based DSCP editing registers associated with remarking.
Table 185 • Port-Based DSCP Editing Registers
Register
Description
Replication
DP_MAP.DP
Maps the four drop precedence levels to a drop eligible value
(DE). DE is also called color.
Global
DSCP_REMAP.DSCP_REMAP
Full one-to one DSCP remapping table common for all ports.
None
DSCP_MAP.DSCP_UPDATE_ENA Selects DSCP from either frame or IFH.QOS.DSCP.
If DSCP_MAP.DSCP_UPDATE_ENA = 1 and
IFH.QOS.UPDATE_DSCP = 1: Selected
DSCP = IFH.QOS.DSCP
Else keep frame DSCP: Selected DSCP = Frame DSCP.
Ports
DSCP_MAP.DSCP_REMAP_ENA
Ports
Optionally remaps selected DSCP.
If DSCP_MAP.DSCP_REMAP_ENA = 1 and
IFH.QOS.TRANSPARENT_DSCP = 0: New DSCP =
DSCP_REMAP [Selected DSCP].
Else do no remap: New DSCP = selected DSCP.
The following remarking options are available.
•
•
•
•
No DSCP remarking. The DSCP value in the frame is untouched.
Update the DSCP value in the frame with the value received from the analyzer in IFH.QOS.DSCP.
Update the DSCP value in the frame with the frame DSCP mapped through
DSCP_REMAP.DSCP_REMAP.
Update the DSCP value in the frame with the value received from the analyzer (IFH.QOS.DSCP)
mapped through DSCP_REMAP.DSCP_REMAP.
ANA can set IFH.QOS.TRANSPARENT_DSCP to prevent DSCP mapping even if this is enabled for a
port. ANA can also force use of the frame DSCP for mapping by setting IFH.QOS.UPDATE_DSCP to 0.
The IP checksum is updated when changing the DSCP for IPv4 frames.
VMDS-10492 VSC7440 Datasheet Revision 4.2
266
Functional Descriptions
3.26.9
VStaX Header Insertion
The rewriter controls insertion of the VStaX header. For more information about the header fields, see
VStaX Header, page 20.
The following registers are used for configuration of the rewriter specific stacking functionality.
Table 186 • Rewriter VStaX Configuration Registers
Register
Description
Replication
COMMON_CTRL.
OWN_UPSID
Configures own UPSID to be used for stacking.
None
CNT_CTRL.
VSTAX_STAT_ESDX_DIS
Configures ESDX counting for stacking ports.
If this bit is set and PORT_CTRL.VSTAX_HDR_ENA = 1, all counting
based on the ESDX value is disabled regardless of the
CNT_CTRL.STAT_MODE configuration.
None
PORT_CTRL.
VSTAX_STACK_GRP_SEL
Selects logical stacking port (or stacking port group) membership.
Ports
PORT_CTRL.
VSTAX_HDR_ENA
Enables insertion of stacking header in frame.
Ports
PORT_CTRL.
VSTAX_PAD_ENA
Enables padding of frames to 76 bytes.
Setting this bit will cause all frames on the port to be extended to 76
bytes instead of 64 bytes.
This should only optionally be enabled for stacking ports
(PORT_CTRL.VSTAX_HDR_ENA = 1). Setting this bit will prevent
frames from becoming under sized in a receiving switch, when the
VStaX header is removed. See
ASM::ERR_STICKY.FRAGMENT_STICKY.
Ports
PORT_CTRL.VSTAX2_MIRR
OR_OBEY_WAS_TAGGED
Configures tagging of frames with VSTAX.GEN.FWD_MODE =
VS2_FWD_GMIRROR. Only active on front ports for frames with this
FWD_MODE.
This is used to control the remote mirror tagging of frames that have
been mirrored from one unit in the stack to another unit.
Ports
PORT_CTRL.
VSTAX2_MISC_ISDX_ENA
Configures VSTAX MISC field decoding. Select between MISC- or AC
mode.
Ports
VSTAX_PORT_GRP_CFG.
VSTAX_TTL
Link TTL value.
2
VSTAX_PORT_GRP_CFG.
VSTAX_LRN_ALL_HP_ENA
Changes priority of learn all frames to the highest priority
(IFH.VSTAX.QOS = 7).
2
VSTAX_PORT_GRP_CFG.
VSTAX_MODE
Controls whether forwarding modes specific to VStaX AF are translated 2
to BF forwarding modes.
If set to 0, the following translation is performed:
fwd_logical -> fwd_llookup
fwd_mc -> fwd_llookup
If set to 1, no translation is performed.
Translation is only required for advanced forwarding switches operating
in a basic forwarding stack.
3.26.10 Forwarding to GCPU
The OQS can redirect CPU frames on selected CPU queues to the external ports instead of sending
them to the internal CPU. This is called GCPU forwarding and is typically used if an external CPU is
connected to the VSC7440 device through an Ethernet port.
VMDS-10492 VSC7440 Datasheet Revision 4.2
267
Functional Descriptions
GCPU forwarding is controlled per individual CPU queue. Stack ports have additional options for GCPU
forwarded frames.
Table 187 • GCPU Configuration Registers
Register
Description
GCPU_CFG.
GCPU_KEEP_IFH
Used when GCPU frames are forwarded to a front port.
Per CPU Q
Frames are sent with the IFH preserved. The IFH is encapsulated according
to the configuration. Setting GCPU_KEEP_IFH to a value different from 0
overrides the GCPU_TAG_SEL and GCPU_DO_NOT_REW settings for
front ports. No other rewrites are done to the frame.
The GCPU_KEEP_IFH setting is not active if PORT_CTRL.KEEP_IFH_SEL
is different from 0 or if PORT_CTRL.VSTAX_HDR_ENA = 1.
GCPU_CFG.
Used when GCPU frames are forwarded to a front port.
GCPU_DO_NOT_REW Except for the optional tags configured in GCPU_CFG.GCPU_TAG_SEL,
frames are not modified when forwarded to the GCPU.
Replication
Per CPU Q
GCPU_CFG.
GCPU_TAG_SEL
The destination port type determines the functionality.
Per CPU Q
When a GCPU frame is forwarded to a stack port: Force a change of the
VSTAX.TAG to the configured values in GCPU_TAG_CFG:0.
When a GCPU frame is forwarded to a front port:
Optionally add one or two Q-tags to the frame. The tags are configured using
GCPU_TAG_CFG.
GCPU_CFG.
GCPU_FWD_MODE
Used when GCPU frames are forwarded to a stack port. Controls the value
of VSTAX.DST.DST_PN.
CPU_CFG.
GCPU_UPSPN
Used when GCPU frames are forwarded to a stack port.
Per CPU Q
CPU QUEUE to be used as destination queue for global CPU transmission.
The value depends on configuration and the value of
GCPU_CFG.GCPU_FWD_MODE. Controls the value of
VSTAX.DST.DST_PN.
GCPU_CFG.
GCPU_UPSID
Used when GCPU frames are forwarded to a stack port.
UPSID to be used as destination in the VStaX header. Sets
VSTAX.DST.DST_UPSID to configured value.
GCPU_TAG_CFG.
TAG_TPID_SEL
Configuration of Q-Tags for GCPU frames.
2
GCPU frames that are forwarded to a front port can optionally have one or
two IEEE 802.3 VLAN tags added. The tags will be placed in the outer most
position after the SMAC.
GCPU VLAN tag Protocol Identifiers (TPID).
GCPU_TAG_CFG.
TAG_VID_VAL
GCPU VLAN VID value.
2
GCPU_TAG_CFG.
TAG_DEI_VAL
GCPU VLAN DEI values.
2
GCPU_TAG_CFG.
TAG_PCP_SEL
Selection of GCPU VLAN PCP values.
2
GCPU_TAG_CFG.
TAG_PCP_VAL
GCPU VLAN PCP values.
2
Per CPU Q
Per CPU Q
The IFH.MISC.CPU_MASK field is used to select the GCPU forwarding configuration. If multiple bits are
set in this mask, the most significant bit is always used to control the GCPU forwarding. The
ANA_AC::CPU_CFG.ONE_CPU_COPY_ONLY_MASK register is used to control how the CPU_MASK
is set before the frame enters the rewriter. If the CPU_MASK field is 0, all GCPU forwarding is disabled.
GCPU frame forwarding must be enabled in the OQS per CPU queue using the
QFWD::FRAME_COPY_CFG.FRMC_PORT_VAL registers.
VMDS-10492 VSC7440 Datasheet Revision 4.2
268
Functional Descriptions
3.26.11 Layer 3 Routing
The following registers are associated with routing (Layer 3, or L3). They are used when the analyzer
signals routing by setting IFH.FWD.DST_MODE = L3UC_ROUTING or L3MC_ROUTING.
The analyzer can also signal routing using IFH.DST.ENCAP.RT_FWD = 1. In this case, the MAC
addresses and VMIDs are controlled directly by the analyzer, and the registers in the rewriter are not
used.
Table 188 • Routing SMAC Configuration Registers
Register
Description
Replication
RLEG_CFG_0.
RLEG_MAC_LSB
Router Leg SMAC address used for IP routing (least significant bits).
Must be set identical to ANA_L3::RLEG_CFG_0.RLEG_MAC_LSB.
None
RLEG_CFG_1.
RLEG_MAC_TYPE_SEL
Configures how Router Leg MAC addresses are specified.
None
Must be set identical to ANA_L3::RLEG_CFG_1.RLEG_MAC_TYPE_SEL.
0: RLEG_MAC:= RLEG_MAC_MSB(23:0) and (RLEG_MAC_LSB(23:0) +
VMID(7:0) mod 224)
1: RLEG_MAC:= RLEG_MAC_MSB(23:0) and (RLEG_MAC_LSB(23:0) +
VID(11:0) mod 224
Others: RLEG_MAC:= RLEG_MAC_MSB(23:0) and
RLEG_MAC_LSB(23:0) number of common address for all VLANs.
RLEG_CFG_1.
RLEG_MAC_MSB
MSB part of SMAC used for IP routing.
Must be set identical to ANA_L3::RLEG_CFG_1.RLEG_MAC_MSB.
None
The IFH.DST.L3_[MC|UC]ROUTING.ERLEG fields are used to select the VID of routed frames using the
Egress Mapped VLAN (VMID) configuration registers listed in the following table.
Table 189 • L3 Routing Egress Mapping VLAN (EVMID)
Register
Description
Replication
RLEG_CTRL.RLEG_EVID
VID value assigned to this router leg.
32
RLEG_CTRL.
Controls the value of IFH.VSTAX.TAG.WAS_TAGGED field in the
RLEG_VSTAX2_WAS_TAGGED stack header for frames that are L3 forwarded to a stack port.
32
3.26.12 Mirror Frames
The device offers three mirror probe sets that can be individually configured. The following table lists the
rewriter configuration registers associated with mirroring.
Table 190 • Mirror Probe Configuration Registers
Register
Description
MIRROR_PROBE_CFG.
MIRROR_TX_PORT
The Tx port for each mirror probe (from where rewrite configuration was Mirror probes
taken).
Replication
MIRROR_PROBE_CFG.
REMOTE_ENCAP_ID
Selects encapsulation ID to use for remote mirror frames.
Mirror probes
MIRROR_PROBE_CFG. Enables encapsulation of mirrored frames. One or two Q-tags (Q-in-Q)
REMOTE_MIRROR_CFG or the encapsulation table can be used.
In tag mode, the VLAN tags are added after the outer SMAC. In other
words, if an MPLS link layer is added to the frame, the tags are added
after the LL-SMAC.
In encapsulation mode, an entry in the ENCAP table is used for
encapsulation. This overrides any encapsulation selected by ES0 for
the frame.
VMDS-10492 VSC7440 Datasheet Revision 4.2
269
Functional Descriptions
Table 190 • Mirror Probe Configuration Registers (continued)
Register
Description
Replication
MIRROR_TAG_x_CFG:
TAG_x_PCP_VAL
Mirror Q-tag PCP value.
2× mirror
probes
MIRROR_TAG_x_CFG:
TAG_x_PCP_SEL
Selection of mirror Q-tag PCP values.
2× mirror
probes
MIRROR_TAG_x_CFG:
TAG_x_DEI_VAL
Mirror Q-tag DEI values.
2× mirror
probes
MIRROR_TAG_x_CFG:
TAG_x_VID_VAL
Mirror Q-tag VID values.
2× mirror
probes
MIRROR_TAG_x_CFG:
TAG_x_TPID_SEL
The tag protocol identifier (TPID) for the remote mirror VLAN tag.
2× mirror
probes
The device supports mirroring frames from either Rx ports (ingress mirror) or Tx ports (egress mirror).
Frames either received on a port (Rx mirror) or frames sent to a port (Tx mirror) are copied to a mirror
destination port.
For Tx mirroring, the rewriter rewrites the frame sent to the mirror destination port, exactly as the original
frame copy is rewritten when forwarded to the mirror probe port. The mirror probe port number must be
configured in the rewriter using register MIRROR_TX_PORT.
For Rx mirroring, the rewriter makes no modifications to the frame, so an exact copy of the original frame
as received on the mirror probe port (ingress port) is sent out on the mirror destination port.
The analyzer controls both Rx and Tx mirroring. For more information, see Mirroring, page 206. The
rewriter obtains mirror information for the frame from the internal frame header.
IFH.FWD.MIRROR_PROBE indicates if the frame is a mirror copy and if so, to which of three mirror
probes the frame belongs. Encoding is as follows.
•
•
•
•
MIRROR_PROBE = 0: Frame is not a mirror copy
MIRROR_PROBE = 1: Frame is mirrored using mirror probe set 1
MIRROR_PROBE = 2: Frame is mirrored using mirror probe set 2
MIRROR_PROBE = 3: Frame is mirrored using mirror probe set 3
In addition, the IFH.FWD.RX_MIRROR bit indicates if the frame is Rx mirrored (1) or Tx mirrored (0).
When mirroring traffic to a device that is not directly attached to the VSC7440 device, it may be required
to push one or two VLAN tags to mirrored frame copies as to not violate general VLAN membership for
the mirror destination port. These VLAN tags are called “remote mirror VLAN tags” and can be
configured individually for each mirror probe. When enabled, the remote mirror VLAN tags are pushed
onto all mirrored traffic by the rewriter whether it is an Rx mirrored frame or a Tx mirrored frame. For
remote mirroring it is also possible to add MPLS capsulation using the encapsulation table if this is
required for forwarding the frame.
The REMOTE_MIRROR_ENA register configures whether to add one or two remote mirror VLAN tags or
MPLS encapsulation. The REMOTE_ENCAP_ID bit selects the MPLS encapsulation to be used.
For Tx mirroring, care must be taken if maximum frame expansion is already required by the rewriter for
the TX mirror probe port. In this case enabling remote mirror VLAN tags or encapsulation would add an
extra frame expansion, which can cause frame disruption on the mirror destination port. It is not possible
to add remote mirror encapsulation to a frame that already has encapsulation added by ES0. In this case
the remote mirror encapsulation ID will replace the ID selected by the ES0.ENCAP_ID action.
3.26.13 Internal Frame Header Insertion
The rewriter can be configured to insert the internal frame header (IFH) into the frame upon transmission.
For more information about the IFH, Frame Headers, page 13.
VMDS-10492 VSC7440 Datasheet Revision 4.2
270
Functional Descriptions
Insertion of the IFH can be configured on any port, but it is intended for frames forwarded to the internal
CPU and the NPI port (external CPU). When IFH insertion is enabled on a given port, all frames leaving
that port contain the IFH.
The following table lists the registers for configuring the insertion of extraction IFH into the frame.
Table 191 • IFH Configuration Registers
Register
Description
Replication
PORT_CTRL.KEEP_IFH_SEL Configures the rewriter IFH mode for the port. See also
Ports
ASM::PORT_CFG.INJ_FORMAT_CFG.
0: Normal mode.
1: Keep IFH without modifications. Frames are not updated. IFH is
kept.
2: Encapsulate IFH. The frame’s DMAC, SMAC and a fixed TAG with
ETYPE = 8880 (Microsemi) and EPID=0x0009 are inserted in front of
the IFH: [FRM_DMAC][FRM_SMAC][0x8880][0x0009][IFH][FRAME].
3: Encapsulate IFH using the ENCAP table. Use ES0 to generate an
ENCAP_ID and insert the encapsulation in front of the
IFH:[ENCAP][IFH][FRAME].
The following illustration shows supported formats using KEEP_IFH_SEL.
Figure 82 • Supported KEEP_IFH_SEL Formats
KEEP_IFH_SEL = 0
IFH
DA
SA
Payload
F
C
S
KEEP_IFH_SEL = 1
Rewrite frame
IFH
DA
SA
Payload
F
C
S
Rewriter
KEEP_IFH_SEL = 2
KEEP_IFH_SEL = 3
DA
SA
Microsemi EtherType
and Protocol ID
Encapsulation
(ES0.ENCAP_ID)
IFH
DA
IFH
SA
DA
SA
Payload
Payload
F
C
S
F
C
S
Frames are always formatted using KEEP_IFH_SEL = 1 when extracting frames to the internal CPU
ports. This cannot be changed.
Note that for KEEP_IFH_SEL = 1, the frames transmitted on external ports are not valid Ethernet frames,
because the extraction IFH precedes the DMAC. As a result, this frame format must be used for direct
transmission to another VSC7440 device that understands the format or to a dedicated FPGA or NPU.
This format cannot be used for forwarding to a standard Ethernet device.
The frame formats using KEEP_IFH_SEL = 2 or KEEP_IFH_SEL = 3 are primarily used on a port that is
directly attached to an external CPU. When the IFH is included using these frame formats, the IFH is
included in the frame’s FCS calculation and a valid Ethernet frame is transmitted.
3.26.14 Frame Injection from Internal CPU
To instruct the switch core how to process the frame, the internal CPU injects frames to switch core using
the internal frame header. The format of injected frames from the internal CPU is similar to the
KEEP_IFH_SEL = 1 format.
On arrival to the rewriter, such injected frames are no different from any other frames. However, the IFH
contains information related to rewriter functionality specifically targeting efficient frame injection:
•
Do not rewrite (IFH.FWD.DO_NOT_REW):
If this injection IFH bit is set, the rewriter forward frames unchanged to the egress port no matter any
other rewriter configurations, except IFH.FWD.update_fcs.
VMDS-10492 VSC7440 Datasheet Revision 4.2
271
Functional Descriptions
•
•
3.27
Update frame check sequence (IFH.FWD.UPDATE_FCS):
If this injection IFH bit is set, the rewriter updates the FCS before forwarding a frame to the egress
port. By setting this bit in the Injection IFH, the internal CPU can leave it to switch core hardware to
make sure the FCS value included with the frame is correct even though no other frame
modifications are performed by the switch core.
Swap MACs (IFH.DST.ENCAP.SWAP_MAC):
Swap MACs in the Ethernet link layer and clear bit 40 of the new SMAC before sending the frame to
the egress port. Swapping the MACs will also force the frame FCS to be updated. Cannot be used if
IFH.FWD.DO_NOT_REW = 1.
Disassembler
This section provides information about the disassembler (DSM) block. The disassembler is mainly
responsible for disassembling cells into Taxi words and forwarding them to the port modules. In addition,
it has several other responsibilities such as:
•
•
•
MAC Control sublayer PAUSE function with generation of PAUSE frames and stop forwarding traffic
on reception of PAUSE frames
Aging of frames that are stopped by flow control
Controlling transmit data rate according to IEEE802.3ar
The following table lists replication terminology.
Table 192 • Replication Terminology
3.27.1
Replication Terminology
Description
Replication Value
Per port
Per physical ports. For example, DEV1Gs, 15
DEV2G5s, DEV10Gs and CPU ports.
Setting Up Ports
In general, no additional configuration is required to bring up a port in the disassembler. However, the
following are some exceptions:
•
•
•
•
For the 10G capable ports, set DSM::BUF_CFG.CSC_STAT_DIS to 1 when the port is set up for
10 Gbps, because the collection of statistics are handled locally in the DEV10G. For lower speeds,
the port uses a DEV2G5.
For 10G capable ports, set DSM::DEV_TX_STOP_WM_CFG.DEV_TX_STOP_WM to 3 if the port is
set up for 2.5 Gbps or 1 Gbps, and set it to 1 for 100 Mbps and 10 Mbps.
For 10G capable ports, set DSM::DEV_TX_STOP_WM_CFG.DEV10G_SHADOW_ENA to 1 when
port is set up for speeds below 10 Gbps.
For 2.5G capable ports, the DSM::DEV_TX_STOP_WM_CFG.DEV_TX_STOP_WM must be set to
1 if the port is set up for 100 Mbps and 10 Mbps.
Ports are indexed by 0 – 10 being front ports and 11 – 12 being CPU ports.
The following table lists the registers associated with setting up basic ports.
Table 193 • Basic Port Setup Configuration Registers Overview
Target::Register.Field
Description
Replication
DSM::BUF_CFG.CSC_STAT_DIS
Disables collection of statistics in the disassembler.
Per port
DSM::DEV_TX_STOP_WM_CFG.DEV_TX Watermark for maximum fill level of port module TX buffer. Per port
_STOP_WM
DSM::DEV_TX_STOP_WM_CFG.DEV10G Enable low speeds for 10G capable ports.
_SHADOW_ENA
VMDS-10492 VSC7440 Datasheet Revision 4.2
Per port
272
Functional Descriptions
3.27.2
Maintaining the Cell Buffer
The cell buffer is responsible for aligning and buffering the cell data received from the rewriter before the
data are forwarded on the Taxi bus.
The cell buffer can be flushed for each port separately.
The following table lists registers associated with configuring buffer maintenance.
Table 194 • Buffer Maintenance Configuration Register Overview
Target::Register.Field
Description
Replication
DSM::CLR_BUF.CLR_BUF
Flush the cell buffer.
Per port
Before a buffer is flushed, ensure that no data is forwarded to this port by stopping the QSYS forwarding
and disabling FC/PFC so that frames waiting for transmission will be sent. FC can be disabled in
DSM::RX_PAUSE_CFG.RX_PAUSE_EN.
3.27.3
Setting Up MAC Control Sublayer PAUSE Function
This section provides information about setting up the MAC control sublayer PAUSE function.
3.27.3.1
PAUSE Frame Generation
The main sources for triggering generation of PAUSE frames are the port level and buffer level
watermarks in the queue system. It is also possible to trigger PAUSE generation based on the analyzer
policing state.
For watermark-based PAUSE generation, a hysteresis is implemented. FC is indicated when the level of
used resources exceeds the high watermark and it is released when the level falls below the low
watermark. The following table lists the registers associated with configuration PAUSE frame generation.
Table 195 • PAUSE Frame Generation Configuration Registers Overview
Target::Register.Field
Description
Replication
DSM::ETH_FC_CFG.FC_ANA_ENA
Controls generation of FC based on FC request from the
analyzer.
Per port
DSM::ETH_FC_CFG.FC_QS_ENA
Controls the generation of FC based on FC request from
the queue system.
Per port
DSM::MAC_CFG.TX_PAUSE_VAL
The pause_time as defined by IEEE802.3 Annex 31B2.
Per port
DSM::MAC_CFG.TX_PAUSE_XON_XOFF
TX PAUSE zero on deassert.
Per port
DSM::MAC_ADDR_BASE_HIGH_CFG.
MAC_ADDR_HIGH
Bits 47-24 of SMAC address used in MAC_Control
frames.
Per port
DSM::MAC_ADDR_BASE_LOW_CFG.
MAC_ADDR_LOW
Bits 23-0 of SMAC address used in MAC_Control frames. Per port
DSM::MAC_CFG.TX_PAUSE_VAL defines the timer value for generated PAUSE frames. If the state
does not change by half of the time specified in this bit group, a new PAUSE frame is generated.
To generate a zero value pause frame when the reason for pausing has disappeared, set
DSM::MAC_CFG.TX_PAUSE_XON_XOFF to 1.
The DMAC of a generated pause frame is always the globally assigned 48-bit multicast address 01 80
C2 00 00 01.
The SMAC of a generated pause frame is defined by
DSM::MAC_ADDR_BASE_HIGH_CFG.MAC_ADDR_HIGH and
DSM::MAC_ADDR_BASE_LOW_CFG.MAC_ADDR_LOW.
VMDS-10492 VSC7440 Datasheet Revision 4.2
273
Functional Descriptions
3.27.3.2
Reaction on Received PAUSE Frame
The assembler detects received PAUSE frames and forwards the pause_time to the disassembler, which
stops data transmission (if enabled) for the period defined by pause_time. If PFC is enabled for a port,
then RX_PAUSE_EN must be disabled in the disassembler.
The following table lists the registers associated with configuring PAUSE frame reception.
Table 196 • PAUSE Frame Reception Configuration Registers Overview
Target::Register.Field
Description
Replication
DSM::RX_PAUSE_CFG.RX_PAUSE_EN
Enables flow control in Rx direction
Per port
3.27.3.3
PFC Pause Frame Generation
When PFC is enabled for a port, PFC PAUSE frames are generated when requested by the queue
system.
PFC is enabled on a per port basis in the disassembler. The queue system must also be setup to
generate PFC requests towards the disassembler. Regular flow control and PFC cannot operate
simultaneously on the same port. The available PFC configurations in the disassembler are listed in the
following table.
Table 197 • PFC PAUSE Frame Generation Configuration Registers Overview
Target::Register.Field
Description
Replication
DSM::ETH_PFC_CFG.PFC_MIN_
UPDATE_TIME
Minimum time between two PFC PDUs when PFC state changes Per port
after transmission of PFC PDU.
DSM::ETH_PFC_CFG.PFC_XOFF After sending PFC PDU with flow control deasserted for all
_MIN_UPDATE_ENA
priorities, enforces a PFC_MIN_UPDATE_TIME delay before
allowing transmission of next PFC PDU.
Per port
DSM::ETH_PFC_CFG.PFC_ENA
Per port
3.27.4
Enables PFC operation for the port.
Setting up Flow Control in Half-Duplex Mode
The following table lists the configuration registers for half-duplex mode flow control. For more
information about setting up flow control in half-duplex mode, see PAUSE Frame Generation, page 273.
Table 198 • Half-Duplex Mode Flow Control Configuration Register Overview
Target::Register.Field
Description
Replication
DSM::MAC_CFG.HDX_BACKPRESSURE
Enables HDX backpressure instead of FDX FC when FC Per port
is generated.
To enable half-duplex flow control, DSM::MAC_CFG.HDX_BACKPRESSURE must be set to 1. In this
mode, the disassembler forwards the FC status to the port modules, which then collides incoming
frames.
3.27.5
Setting Up Frame Aging
The following tables provide the aging configuration and status register settings. If frame aging is
enabled, the disassembler discards frames that are stuck, for example, due to flow control or frames that
VMDS-10492 VSC7440 Datasheet Revision 4.2
274
Functional Descriptions
are received from the queue system with an era value eligible for aging. Frames discarded by aging are
counted in DSM::AGED_FRMS.AGED_FRMS_CNT.
Table 199 • Aging Configuration Register Overview
Target::Register.Field
Description
Replication
DSM::BUF_CFG.AGING_ENA
Enable aging of frames stuck in the disassembler buffer system for Per port
long periods.
Table 200 • Aging Status Register Overview
Target::Register.Field
Description
Replication
DSM::AGED_FRMS.AGED_FRMS_CNT
Count number of aged frames.
Per port
3.27.6
Setting Up Transmit Data Rate Limiting
The disassembler can limit the transmit data rate as specified in IEEE802.3ar, which defines the
following three rate limiting methods. The disassembler allows enabling of any combination of the
following three methods.
•
•
•
Frame overhead
Payload data rate
Frame rate
The following table lists the registers associated with rating limiting.
Table 201 • Rate Limiting Common Configuration Registers Overview
Target::Register.Field
Description
Replication
DSM::TX_RATE_LIMIT_MODE.
TX_RATE_LIMIT_ACCUM_MODE_ENA
Enables for accumulated rate limit mode.
Per port
DSM::TX_RATE_LIMIT_MODE.
PAYLOAD_PREAM_CFG
Defines whether the preamble is counted as payload in
Per port
txRateLimitPayloadRate and txRateLimitFrameRate mode.
DSM::TX_RATE_LIMIT_MODE.
PAYLOAD_CFG
Defines if what is configured as header size in
TX_RATE_LIMIT_HDR_SIZE::
TX_RATE_LIMIT_HDR_CFG is subtracted form the
payload.
Per port
DSM::TX_RATE_LIMIT_MODE.
IPG_SCALE_VAL
Scales the IPG calculated by txRateLimitFrameOverhead
and/or txRateLimitPayloadRate by a power of 2.
Per port
DSM::TX_RATE_LIMIT_HDR_CFG.
TX_RATE_LIMIT_HDR_SIZE
Defines how much of the frame is seen as header and not
counted as payload.
per port
If more than one of the rate limiting modes previously mentioned are enabled, the additional inter-packet
gap is the maximum of each of the values generated by one of the enabled modes. However, if only the
frame overhead and the data payload data rate modes are enabled, the additional inter-packet gap can
be calculated as the sum of the additional gaps retrieved from each of the two modes. To enable the
function, set DSM::TX_RATE_LIMIT_MODE.TX_RATE_LIMIT_ACCUM_MODE_ENA to 1.
If the preamble of a frame is not to be counted as payload, set
DSM::TX_RATE_LIMIT_MODE.PAYLOAD_CFG to 0.
In addition, if parts of the frame are to be seen as header and not counted as payload, set
DSM::TX_RATE_LIMIT_MODE.PAYLOAD_CFG to 1.
DSM::TX_RATE_LIMIT_HDR_CFG.TX_RATE_LIMIT_HDR_SIZE defines how much of the frame that
should be considered as header. Note that this register is global for all ports enabled by
DSM::TX_RATE_LIMIT_MODE.PAYLOAD_CFG. The payload configuration applies to Payload Data
Rate and Frame Rate mode.
VMDS-10492 VSC7440 Datasheet Revision 4.2
275
Functional Descriptions
To enable bandwidth limiting down to very low data rates, the calculated IPG can be scaled. In other
words, multiplied by a power of 2 in the range 2 to 1024. By this it is possible to limit the data rate down
to 2.3% (for 1536 byte frames).
3.27.6.1
Setting Up Frame Overhead
The following table lists the frame overhead configuration registers.
Table 202 • Rate Limiting Frame Overhead Configuration Registers Overview
Target::Register.Field
Description
Replication
DSM::TX_RATE_LIMIT_MODE.
TX_RATE_LIMIT_FRAME_OVERHEAD_ENA
Enable txRateLimitFrameOverhead mode.
Per port
DSM::RATE_CTRL.FRM_GAP_COMP
Inter-packet gap to be used.
Per port
To increase the minimum inter-packet gap for all packets, set
DSM::TX_RATE_LIMIT_MODE.TX_RATE_LIMIT_FRAME_OVERHEAD_ENA to 1, and set
DSM::RATE_CTRL.FRM_GAP_COMP to a value between 13 to 255.
For more information about the scaling feature if the GAP must be above 255, see Setting Up Transmit
Data Rate Limiting, page 275.
3.27.6.2
Setting Up Payload Data Rate
The following table lists the payload data rate configuration registers.
Table 203 • Rate Limiting Payload Data Rate Configuration Registers Overview
Target::Register.Field
Description
Replication
DSM::TX_RATE_LIMIT_MODE.
TX_RATE_LIMIT_PAYLOAD_RATE_ENA
Enable txRateLimitPayloadRate mode.
Per port
DSM::TX_IPG_STRETCH_RATIO_CFG.
TX_FINE_IPG_STRETCH_RATIO
Stretch ratio.
Per port
To limit the data rate relative to the transmitted payload, set
DSM::TX_RATE_LIMIT_MODE.TX_RATE_LIMIT_PAYLOAD_RATE_ENA to 1.
The inter-packet gap increase can be expressed as:
ΔIPG = 2S × (256/R) × L
Where:
S: Scaling factor DSM::TX_RATE_LIMIT_MODE.IPG_SCALE_VAL
R: Stretch ratio
DSM::TX_IPG_STRETCH_RATIO_CFG.TX_FINE_IPG_STRETCH_RATIO
L: Payload length, possibly modified according to
DSM::TX_RATE_LIMIT_MODE.PAYLOAD_PREAM_CFG and
DSM::TX_RATE_LIMIT_MODE.PAYLOAD_CFG
Notes
Total IPG is 12 byte standard IPG plus IPG.
Values for R must not be below 1152 or above 518143.
Values for S must not be above 10.
Fractional parts of the resulting IPG value are carried forward to the next IPG.
Higher values for S allow for finer target accuracy/granularity on the cost of an increased IPG jitter.
The utilization can be expressed as:
U = L / (L + IPG) or
VMDS-10492 VSC7440 Datasheet Revision 4.2
276
Functional Descriptions
U = R / (R + 2S × 256)
3.27.6.3
Setting Up Frame Rate
The following table lists the frame rate configuration registers.
Table 204 • Rate Limiting Frame Rate Registers Overview
Target::Register.Field
Description
Replication
DSM::TX_RATE_LIMIT_MODE.
TX_RATE_LIMIT_FRAME_RATE_ENA
Enables txRateLimitFrameRate mode.
Per port
DSM::TX_FRAME_RATE_START_CFG.
TX_FRAME_RATE_START
Frame rate start.
Per port
To define a minimum frame spacing, set
DSM::TX_RATE_LIMIT_MODE.TX_RATE_LIMIT_FRAME_RATE_ENA to 1.
At start of payload, a counter is loaded with the value stored in
DSM::TX_FRAME_RATE_START_CFG.TX_FRAME_RATE_START.
What is counted as payload is defined by DSM::TX_RATE_LIMIT_MODE.PAYLOAD_PREAM_CFG and
DSM::TX_RATE_LIMIT_MODE.PAYLOAD_CFG.
With every payload byte transmitted, the counter is decremented by 1.
At end of frame, the GAP will be extended by the counter value, if above 12.
3.27.7
Error Detection
The following table lists the error detection status registers.
Table 205 • Error Detection Status Registers Overview
Target::Register.Field
Description
Replication
DSM::BUF_OFLW_STICKY.BUF_OFLW_STICKY Cell buffer had an overflow.
Per port
DSM::BUF_UFLW_STICKY.BUF_UFLW_STICKY Cell buffer had an underrun.
Per port
DSM::TX_RATE_LIMIT_STICKY.TX_
RATE_LIMIT_STICKY
Per port.
IPG was increased by one of the three rate limiting
modes.
If one or both of BUF_OFLW_STICKY and BUF_UFLW_STICKY sticky bits are set, the port module was
set up erroneously.
TX_RATE_LIMIT_STICKY is set when an IPG of a frame is increased due to one of the three rate limiting
modes.
3.28
Layer 1 Timing
There are eight recovered clocks, four outputs that provide timing sources for external timing circuitry in
redundant timing implementations, and four internal clocks for the timing-recovery circuit. The following
tables list the registers and pins associated with Layer 1 timing.
Table 206 • Layer 1 Timing Configuration Registers
Register
Description
HSIO::SYNC_ETH_CFG
Configures recovered clocks. Replicated per recovered clock.
HSIO::SYNC_ETH_PLL_CFG
Additional PLL recovered clock configuration. Replicated per
recovered clock.
HSIO::SYNC_ETH_SD10G_CFG
Additional 10G recovered clock configurations. Replicated per 10G
interface.
VMDS-10492 VSC7440 Datasheet Revision 4.2
277
Functional Descriptions
Table 206 • Layer 1 Timing Configuration Registers (continued)
Register
Description
HSIO::PLL5G_CFG3
Enables high speed clock output.
PHY[0]:PHY_GP:PHY_RCVD_CLK0_CTRL
Configures PHY0 recovered clock.
PHY[1]:PHY_GP:PHY_RCVD_CLK1_CTRL
Configuration PHY1 recovered clock.
Table 207 • Layer 1 Timing Recovered Clock Pins
Pin Name
I/O
Description
RCVRD_CLK0
O
Recovered clock output, configured by SYNC_ETH_CFG[0].
This is an overlaid function on GPIO.
RCVRD_CLK1
O
Recovered clock output, configured by SYNC_ETH_CFG[1].
This is an overlaid function on GPIO.
RCVRD_CLK2
O
Recovered clock output, configured by SYNC_ETH_CFG[2].
This is an overlaid function on GPIO.
RCVRD_CLK3
O
Recovered clock output, configured by SYNC_ETH_CFG[3].
This is an overlaid function on GPIO.
CLKOUTPLL
O
PLL high speed clock output.
CLKOUTPLL2
O
PLL2 high speed clock output.
It is possible to recover receive timing from any 10/100/1000 Mbps, 2.5 Gbps, or SFI data streams into
the device.
The recovered clock outputs have individual divider configuration (through
SYNC_ETH_CFG.SEL_RCVRD_CLK_DIV) to allow division of SerDes receive frequency by 1, 2, 4, 5, 8,
16, or 25. In addition to the output dividers, the SFI 10G sources have local pre-dividers to allow
adjustments for the SFI links 64/66 encoding overhead by extending clock cycles through
SYNC_ETH_SD10G_CFG.SD10G_RCVRD_CLK_DIV.
The recovered clocks are single-ended outputs, and the suggested divider settings in the following tables
are selected to make sure to not output too high a frequency via the input and outputs.
Ports operating in 1 Gbps or lower speeds allow recovery of either 31.25 MHz or 125 MHz clocks.
Configure the ports as shown in the following table.
Table 208 • Recovered Clock Settings for 1 Gbps or Lower
Port
Output Frequency
Register Settings for Output n
CuPHY
0-1
125 MHz
Only for internal clocks (n = 4, 5, 6, and 7).
SYNC_ETH_CFG[n].RCVRD_CLK_ENA=1,
SYNC_ETH_CFG[n].SEL_RCVRD_CLK_DIV=6,
SYNC_ETH_CFG[n].SEL_RCVRD_CLK_SRC=(DEV),
PHY_RCVD_CLK[DEV]_CTRL.RCVD_CLK[DEV]_ENA=1,
PHY_RCVD_CLK[DEV]_CTRL.CLK_SRC_SEL[DEV]=[DEV],
PHY_RCVD_CLK[DEV]_CTRL.CLK_FREQ_SEL[DEV]=1, and
PHY_RCVD_CLK[DEV]_CTRL.CLK_SEL_PHY[DEV]=1
VMDS-10492 VSC7440 Datasheet Revision 4.2
278
Functional Descriptions
Table 208 • Recovered Clock Settings for 1 Gbps or Lower
Port
Output Frequency
Register Settings for Output n
CuPHY
0-1
31.25 MHz
SYNC_ETH_CFG[n].RCVRD_CLK_ENA=1,
SYNC_ETH_CFG[n].SEL_RCVRD_CLK_DIV=1,
SYNC_ETH_CFG[n].SEL_RCVRD_CLK_SRC=(DEV),
PHY_RCVD_CLK[DEV]_CTRL.RCVD_CLK[DEV]_ENA=1,
PHY_RCVD_CLK[DEV]_CTRL.CLK_SRC_SEL[DEV]=[DEV],
PHY_RCVD_CLK[DEV]_CTRL.CLK_FREQ_SEL[DEV]=1, and
PHY_RCVD_CLK[DEV]_CTRL.CLK_SEL_PHY[DEV]=1
SerDes
0-6
125 MHz
Only for internal clocks (n = 4, 5, 6, and 7).
SYNC_ETH_CFG[n].RCVRD_CLK_ENA=1,
SYNC_ETH_CFG[n].SEL_RCVRD_CLK_DIV=6, and
SYNC_ETH_CFG[n].SEL_RCVRD_CLK_SRC=(DEV+4)
SerDes
0-6
31.25 MHz
SYNC_ETH_CFG[n].RCVRD_CLK_ENA=1,
SYNC_ETH_CFG[n].SEL_RCVRD_CLK_DIV=1, and
SYNC_ETH_CFG[n].SEL_RCVRD_CLK_SRC=(DEV+4)
7-10
125 MHz
Only for internal clocks (n = 4, 5, 6, and 7).
SYNC_ETH_CFG[n].RCVRD_CLK_ENA=1,
SYNC_ETH_CFG[n].SEL_RCVRD_CLK_DIV=6,
SYNC_ETH_CFG[n].SEL_RCVRD_CLK_SRC=(DEV+6), and
SYNC_ETH_SD10G_CFG[DEV-7].SD10G_RCVRD_CLK_DIV=0
7-10
31.25 MHz
SYNC_ETH_CFG[n].RCVRD_CLK_ENA=1,
SYNC_ETH_CFG[n].SEL_RCVRD_CLK_DIV=1,
SYNC_ETH_CFG[n].SEL_RCVRD_CLK_SRC=(DEV+6), and
SYNC_ETH_SD10G_CFG[DEV-7].SD10G_RCVRD_CLK_DIV=0
Ports operating in 2.5 Gbps mode allow recovery of a 31.25 MHz clock. The following table shows the
configuration settings.
Table 209 • Recovered Clock Settings for 2.5 Gbps
Port
Output Frequency
Register Settings for Output n
5-6
125 MHz
Only for internal clocks (n = 4, 5, 6, or 7).
SYNC_ETH_CFG[n].RCVRD_CLK_ENA=1,
SYNC_ETH_CFG[n].SEL_RCVRD_CLK_DIV=6, and
SYNC_ETH_CFG[n].SEL_RCVRD_CLK_SRC=(DEV+4)
5-6
31.25 MHz
SYNC_ETH_CFG[n].RCVRD_CLK_ENA=1,
SYNC_ETH_CFG[n].SEL_RCVRD_CLK_DIV=1, and
SYNC_ETH_CFG[n].SEL_RCVRD_CLK_SRC=(DEV+4)
7-10
125 MHz
Only for internal clocks (n = 4, 5, 6, or 7).
SYNC_ETH_CFG[n].RCVRD_CLK_ENA=1,
SYNC_ETH_CFG[n].SEL_RCVRD_CLK_DIV=6, and
SYNC_ETH_CFG[n].SEL_RCVRD_CLK_SRC=(DEV+6)
SYNC_ETH_SD10G_CFG[DEV-7].SD10G_RCVRD_CLK_DIV=1
7-10
31.25 MHz
SYNC_ETH_CFG[n].RCVRD_CLK_ENA=1,
SYNC_ETH_CFG[n].SEL_RCVRD_CLK_DIV=1,
SYNC_ETH_CFG[n].SEL_RCVRD_CLK_SRC=(DEV+6), and
SYNC_ETH_SD10G_CFG[DEV-7].SD10G_RCVRD_CLK_DIV=1
Ports operating in SFI mode allow two base frequencies: One derived directly from the line rate, and one
that is adjusted for the 64/66 encoding overhead. The latter is generated by extending every sixteenth
VMDS-10492 VSC7440 Datasheet Revision 4.2
279
Functional Descriptions
clock cycle by half a clock-period. While this introduces jitter, it makes the frequency compatible with the
other recovered clocks. Configure as described in the following table.
Table 210 • Recovered Clock Settings for SFI
Port
Output Frequency
Register Settings for Output n
9-10
~161 MHz
(10.3125 GHz/64)
Only for internal clocks (n = 4, 5, 6, or 7).
SYNC_ETH_CFG[n].RCVRD_CLK_ENA=1,
SYNC_ETH_CFG[n].SEL_RCVRD_CLK_DIV=0,
SYNC_ETH_CFG[n].SEL_RCVRD_CLK_SRC=(DEV+6), and
SYNC_ETH_SD10G_CFG[DEV-7].SD10G_RCVRD_CLK_DIV=1.
9-10
156.25 MHz
Only for internal clocks (n = 4, 5, 6, or 7).
SYNC_ETH_CFG[n].RCVRD_CLK_ENA=1,
SYNC_ETH_CFG[n].SEL_RCVRD_CLK_DIV=0,
SYNC_ETH_CFG[n].SEL_RCVRD_CLK_SRC=(DEV+6), and
SYNC_ETH_SD10G_CFG[DEV-7].SD10G_RCVRD_CLK_DIV=2.
Synthesized by extending every 16th clock cycle by 1/2 period.
9-10
~32 MHz
(10.3125 GHz/320)
SYNC_ETH_CFG[n].RCVRD_CLK_ENA=1,
SYNC_ETH_CFG[n].SEL_RCVRD_CLK_DIV=4,
SYNC_ETH_CFG[n].SEL_RCVRD_CLK_SRC=(DEV+6), and
SYNC_ETH_SD10G_CFG[DEV-7].SD10G_RCVRD_CLK_DIV=1.
9-10
31.25 MHz
SYNC_ETH_CFG[n].RCVRD_CLK_ENA=1,
SYNC_ETH_CFG[n].SEL_RCVRD_CLK_DIV=4,
SYNC_ETH_CFG[n].SEL_RCVRD_CLK_SRC=(DEV+6), and
SYNC_ETH_SD10G_CFG[DEV-7].SD10G_RCVRD_CLK_DIV=2
Synthesized by extending (approximately) every third clock cycle by
1/10th period.
The frequency of the PLLs can be used as recovered clock. The following table shows the configurations.
Table 211 • Recovered Clock Settings for PLL
PLL
Output Frequency
Register Settings for Output n
PLL
125 MHz
Only for internal clocks (n = 4, 5, 6, or 7).
SYNC_ETH_CFG[n].RCVRD_CLK_ENA=1,
SYNC_ETH_CFG[n].SEL_RCVRD_CLK_DIV=6, and
SYNC_ETH_CFG[n].SEL_RCVRD_CLK_SRC=12
PLL
31.25 MHz
SYNC_ETH_CFG[n].RCVRD_CLK_ENA=1,
SYNC_ETH_CFG[n].SEL_RCVRD_CLK_DIV=1, and
SYNC_ETH_CFG[n].SEL_RCVRD_CLK_SRC=12
PLL2
125 MHz
Only for internal clocks (n = 4, 5, 6, or 7).
SYNC_ETH_CFG[n].RCVRD_CLK_ENA=1,
SYNC_ETH_CFG[n].SEL_RCVRD_CLK_DIV=6, and
SYNC_ETH_CFG[n].SEL_RCVRD_CLK_SRC=21
PLL2
31.25 MHz
SYNC_ETH_CFG[n].RCVRD_CLK_ENA=1,
SYNC_ETH_CFG[n].SEL_RCVRD_CLK_DIV=1, and
SYNC_ETH_CFG[n].SEL_RCVRD_CLK_SRC=21
The recovered clock from PLLs can also be sent directly out on the differential high-speed CLKOUTPLL
and CLKOUTPLL2 outputs. The recovered clock frequency must be set to copy the switch core using
HSIO::PLL5G_CFG3.CLKOUT2_SEL.
It is possible to automatically squelch the clock output when the device detects a loss of signal on an
incoming data stream. This can be used for failover in external timing recovery solutions.
VMDS-10492 VSC7440 Datasheet Revision 4.2
280
Functional Descriptions
The following table lists how to configure squelch for possible recovered clock sources (configured in
SYNC_ETH_CFG[n].SEL_RCVRD_CLK_SRC).
Table 212 • Squelch Configuration for Sources
SRC
Associated Squelch Configuration
4-8
Set SERDES1G_COMMON_CFG.SE_AUTO_SQUELCH_ENA in SD macro to enable squelch when
receive signal is lost. SD1G macro index is (SRC-4).
9-10
Set SERDES6G_COMMON_CFG.SE_AUTO_SQUELCH_ENA in SD macro to enable squelch when
receive signal is lost. SD6G macro-index is (SRC-9).
14-17
Set SYNC_ETH_SD10G_CFG[(SRC-14)].SD10G_AUTO_SQUELCH_ENA to enable squelch when
receive signal is lost.
12
Set SYNC_ETH_PLL_CFG[0].PLL_AUTO_SQUELCH_ENA to enable squelch when PLL loses lock.
21
Set SYNC_ETH_PLL_CFG[1].PLL_AUTO_SQUELCH_ENA to enable squelch when PLL2 loses lock.
When squelching, the clock will stop when it detects a loss of signal (or PLL lock). The clock will stop on
either on high or low level.
3.29
Hardware Time Stamping
Hardware time stamping provides nanosecond-accurate frame arrival and departure time stamps, which
are used to obtain high precision timing synchronization and timing distribution, as well as significantly
better accuracy in performance monitoring measurements than what is obtained from pure software
implementations.
The hardware time stamping functions operate in both standalone devices and in systems where multiple
devices are interconnected to form a multichip system.
Figure 83 • Supported Time Stamping Flows
1588-enabled
Switch or PHY
Interconnect
Front Port
Device
Front Port
Interconnect
1588-enabled
Switch or PHY
Hardware time stamping can update PTP frames coming from a standard front port without any 1588
support or from a partner device that does parts of the timing update. Each port is configured according
to the partner device attached.
VMDS-10492 VSC7440 Datasheet Revision 4.2
281
Functional Descriptions
The modes defined in the following table comply with commonly used methods of transferring timing
information in a multichip system, but are as such not specified in the IEEE 1588 standard.
The time of day counters are generated in the DEVCPU block where there are various means of
accurately updating the time. For more information, see Time of Day Generation, page 286. The output
from the DEVCPU block is a set of timing parameters listed in the following table.
Table 213 • Timing Parameters
Parameter
Description
NSF (32 bit)
Counts number of nanoseconds since PTP was enabled in the device. Wraps at 232.
TOD_nsec (30 bit)
Counts the number of nanoseconds of current time of day. Wraps at 109, and will potentially be
in synch with the partner devices.
TOD_secs (48 bit)
Counts number of seconds of current time of day. Wraps at 248.
NSX48
Counts number of nanoseconds. NSX48 always take the value of TOD_nsec + TOD_sec*109.
The parameter is to be used for time stamping transfer to partner devices.
NSX32/NSX44
The lower 32 or 44 bits of NSX48.
The PTP frame flow through the device is shown in the following illustration.
Figure 84 • Frame Flow
Rx Port
Rx delay
SERDES
PCS
Rx stamp (NSF)
MAC
ANA
SQS
REW
PTP
REW stamp
(all counters)
Tx FIFO
PTP
Tx stamp (NSF)
MAC
Tx delay
PCS
SERDES
Tx Port
The time stamps generated by the ports are samples of the NSF value. The ingress time is the time at
which the PCS sees the start of frame, synchronized to the system clock domain. The correct 1588
VMDS-10492 VSC7440 Datasheet Revision 4.2
282
Functional Descriptions
ingress time is the time at which the first bit of the DMAC is received on the SERDES interface so a preconfigured delay is used to adjust for this in the time stamp calculations. The subtraction of the delay is
done by the port modules. Delays due to barrel shifting are adjusted by a manual process, where the
barrel shifter state must be read out and used when configuring the port’s I/O delays. For more
information, see Configuring I/O Delays, page 289.
Similarly, in the egress direction, a delay is added to the time stamps in order to move the time stamping
point to when the first bit of the DMAC leaves the SerDes. This added delay takes place in the port
modules.
The analyzer recognizes the PTP frames through VCAP IS2 matching and decides which operation to
perform (one-step, two-step, or time-of-day-write) and which delays to add to the correction field (CF) to
adjust for instance for asymmetrical path delays.
The rewriter modifies the PTP frame and can instruct the egress port module to add a delay to the
correction field corresponding to the delay from the rewriting point to the transmission point. Otherwise, it
can insert the original time stamp and the egress time stamp in a time stamp FIFO, which can be read by
the CPU. The rewriter operation depends on the analyzer decisions and the PTP modes of the frame’s
ingress and egress ports.
The following table lists the PTP configuration available to the rewriter.
Table 214 • Rewriter PTP Configuration
Field
Description
MR
Mode of ingress port
MT
Mode of egress port
IDLY(2)
Two ingress delays optionally added to CF. Looked up for the ingress port. Format is 32 bits
signed.
EDLY
One egress delay optionally added to CF. Looked up for the egress port. Only one delay is
added per transfer. Format is 32 bits signed.
UDP_CSUM_DIS(4/6)
Can disable updating the UDP checksums in IPv4 and IPv6 frames.
3.29.1
One-Step Functions
The mode of a port determines how timing information is exchanged between the port and its link partner.
Only the rewriter uses this information for executing the correct calculations and for deciding the right
delta command to be executed in the egress port module. When the analyzer has decided to do a onestep timing update of a frame, the rewriter updates the correction field to the time at which it passes
through the rewriter, and it will afterwards either prepare the PDU with timing information for the link
partner, or it will ask the port module to add the time delay to the serial transmission onto the correction
field. The following sections describe the PTP port modes used by the rewriter when doing one-step
updates.
3.29.1.1
Front
Front ports are ports on the boundary of the local PTP system. Frames received must have their timing
information updated to the time at which they left the link partner, and frames transmitted will likewise be
updated to the time of transmission.
3.29.1.2
RSRV32
In a multichip system, the RSRV32 mode can be used for interconnect links. The ingress unit must
update the CF field with the residence time from ingress link to any point in the ingress unit, and in the
RSRV field of the PDU set the value of NSX32 at the time of CF update. As the egress unit in a multichip
system has synchronized NSX32 (common clock by some means), it will be able to update the CF field
with time passed from the ingress rewriter to the time of system departure.
VMDS-10492 VSC7440 Datasheet Revision 4.2
283
Functional Descriptions
3.29.1.3
RSRV30
Similar to the mode RSRV32, but the reference point is moved to the time of departure from the egress
unit. The time value to use in the reserved bytes field only is the TOD_nsec value instead of NSX32.
3.29.1.4
ADDS48
The interconnect link in this mode carries frames where the ingress time in NSX48 format is subtracted
from the CF field. Likewise, the egress unit will add the NSX48 at time of departure. This is accomplished
by the following steps.
•
•
•
•
3.29.1.5
Ingress rewriter: CF is added time from ingress port to rewriter (NSF delta)
Ingress rewriter: CF is subtracted NSX value when doing the rewrite
Egress rewriter: CF is added NSX value when doing the rewrite
Egress port: CF is added time from rewriter to departure (NSF delta)
ADDS44
This mode operates as the ADDS48, only NSX44 is used instead. In this mode the egress unit must be
able to see that the NSX44 has wrapped since the ingress unit did the subtraction, ie. if the NSX44 at
ingress was 0xFFF.FFFF.FFFF, and at egress is 0x000.0000.0132, a larger value was subtracted than
added. This is handled by the ingress unit setting CF(46) to the NSX48(44) value, and the egress unit
checking the same to see if NSX48(44) has changed. In that case 244 is added to CF.
3.29.1.6
MONITOR
This mode is used for an egress port where we want the frame to be updated to the time of reception
only. This is used for CPU ports, where software must be able to compare the frame time with the local
time stamp, in order to detect drift. It can also be used for mirroring ports where it is desired to see what
time was carried on frames received from an interconnect. When a frame is transmitted on a MONITOR
port, the frame will be calculated up to the ingress time stamping point. The frame will be added selected
delay (IDLY/EDLY), but will not take any chip internal residence time in as a contributor to the CF.
3.29.1.7
DISABLED
A disabled PTP port is not updating PTP frames at all. This mode only applies to the destination port. If
the ingress PTP mode is set to disabled, it is treated as being a FRONT port.
3.29.2
Calculation Overview
The modes of ingress and egress ports determine which PTP calculations to do. The calculations are
split in an ingress half updating the frame to the time at which it passes the central rewriter and an egress
half, where residence time from the rewriter is prepared and finalized in the egress port module or on the
other side of the link (backplane).
In all cases the selected delay is added to CF (IDLY/EDLY).
If the ingress port mode is misconfigured as being DISABLED or MONITOR, it will be handled as a
FRONT port.
The port module is through an internal preamble instructed to either do a delta update of the correction
field only (CF), or to do a delta update of both the correction field and the reserved bytes field
(CF_RSRV). In both cases the rewriter NSF value is sent along as a reference for the delta delay
calculation in the port.
Table 215 • Rewriter Operations for One-Step Operation
Mode
Receiving From
Transmitting To
FRONT
CF += (NSF – IFH.STAMP)
Preamble = (CF, NSF)
RSRV30
CF += (NSEC – PDU.RSRV)
PDU.RSRV = NSEC
Preamble = (CF_RSRV, NSF)
RSRV32
CF += (NSX32 – PDU.RSRV)
PDU.RSRV = NSX32
VMDS-10492 VSC7440 Datasheet Revision 4.2
284
Functional Descriptions
Table 215 • Rewriter Operations for One-Step Operation (continued)
Mode
Receiving From
Transmitting To
ADDS44
CF += (NSX44@rew)
CF += (CF_org(46)/=NSX48(44))?244:0
CF(46) = CF(47)
CF –= NSX44 CF(46) = NSX48(44)
ADDS48
CF += NSX48
CF –= NSX48
MONITOR
CF –= (NSF – IFH.TSTAMP)
DISABLED
NOP
3.29.3
Detecting Calculation Issues
A sticky bit per port informs if frames are received with the reserved bytes field non-zero. This can be
used to detect if incoming frames contain unexpected information in the reserved bytes field.
If the correction field is outside the valid range –247 to 247–1, another sticky bit is set in the port module
indicating the overflow. The port module replaces in this case the final CF with the overflow indication
value 247–1. This detection is however disabled when using ADDS48 mode because the correction field
in this mode rolls over regularly.
3.29.4
Two-Step Functions
The two-step PTP mode uses software as a middle stage for informing next hubs about residence times.
A FIFO of time stamping events is available for software where ingress and egress time stamps as well
as port numbers can be read out. The FIFO can contain 1,024 time stamp entries.
Figure 85 • Time Stamp Bus and FIFO
DEV_0
ooo
TsBus
DEV_1
TsBus
DEV_n
Tx=0
Ingress
PortNo
Ingress
Timestamp
Tx=1
Egress
PortNo
Egress
Timestamp
To S/W
REW
TS FIFO
The bus passes through all port modules and terminates in a timestamp FIFO in the rewriter. If the
analyzer has decided to do a two-step operation, the rewriter pushes two entries into the FIFO. The first
entry contains the egress time stamp and the egress port number; the second entry contains the ingress
time stamp and the ingress port number. In addition, a flag indicates whether the entry contains ingress
or egress information.
When correlating frames copied to the CPU with entries in the FIFO, the ingress time stamp found in the
IFH is the same as ingress time stamp found in the FIFO.
Note that the IDLY and EDLY values are not added to the CF field in the two-step case, as the frames are
transferred untouched. Software must manually add these delays for the follow-up frames.
3.29.5
Time of Day Time Stamping
When sending out SYNC frames with full TOD, the rewriter does the TOD time stamping at the time
where the frame passes through the rewriter and the port module is instructed to do a one-step update in
VMDS-10492 VSC7440 Datasheet Revision 4.2
285
Functional Descriptions
addition. The transmitted SYNC therefore has ORG_TIME=’close to departure time’, and CF=’minor
correction to that’.
REW: PDU.ORGTIME := (TOD_sec, TOD_nsec)
REW: Preamble := (CF, NSF)
DEV: CF += NSF@mac_Tx-ofs
3.29.6
Time of Day Generation
The DEVCPU has connection to four GPIOs to be used for 1588 synchronization shown in the following
illustration.
Figure 86 • Timing Distribution
Five controllers configured for:
- Load absolute time
- Load signed delta time
- Store absolute time
- Generate pulse or clock on pin
Load/store can be done on incoming edge
or immediately.
Adjuster
GPIO
LoadStore
Ctrl
LoadStore
Ctrl
LoadStore
LoadStoreCtrl
Ctrl
load
store
AbsT
gen
DeltaT
gen
TimeOfDay
sec (48 bits)
nsec (30 bits)
nsf (32 bits)
ooo
TimeOfDay
TimeOfDay
Analyzer / Rewriter / Port Modules
(only NSF in port module)
Each block using timing has a TimeOfDay instance included. These modules let time pass according to
an incoming delta request, instructing it to add the nominal clock period in nanoseconds (+0/+1/–1) for
each system clock cycle. This is controlled by a deltaT function in the DEVCPU, which can be configured
to do regular adjustments to the time by adding a single nanosecond more or less at specified intervals.
The absT function in the DEVCPU can set the full TOD time in the system. This is controlled by the
LoadStore controllers.
The DEVCPU includes five LoadStore controllers. All but the last one use a designated GPIO pin on the
GPIO interface. LoadStore controller 0 uses PTP_0 pin; LoadStore controller 1 uses PTP_1 pin, and so
forth. Before using the LoadStore controller, the VCore-III CPU must enable the overlaid functions for the
appropriate GPIO pins. For more information, see GPIO Overlaid Functions, page 352.
Each controller has CPU accessible registers with the full time of day set, and can be configured to load
these into the TimeOfDay instances, or to store the current values from them. The operation can be done
on a detected edge on the associated pin or immediately. The GPIO pin can also generate a clock with
VMDS-10492 VSC7440 Datasheet Revision 4.2
286
Functional Descriptions
configurable high and low periods set in nanoseconds using the TimeOfDay watches or it can generate a
pulse at a configured time with a configurable duration and polarity.
Table 216 • LoadStore Controller
Pin Control Field
Function
Action
Load: Load TOD_SEC and TOD_NSEC through the absTime bus
Delta: Add configured nsec to the current time of day (absT).
Store: Store the current TOD_SEC,TOD_NSEC,TOD_NSF.
Clock: Generate a clock or a pulse on the pin.
Sync
Execute the load/store on incoming edge, if action is LOAD or STORE.
Generate a pulse instead of clock if action is CLOCK.
Inverse polarity
Falling edges are detected/generated.
TOD_sec
The 48-bit seconds of a time of day set to be loaded or stored.
TOD_nsec
The 30-bit nanoseconds of a time of day set to be loaded or stored.
TOD_NSF
The 32-bit free running timer to be stored (no load of that one)
Waveform high
Number of nanoseconds in the high period for generated clocks.
Duration of pulse for generated pulse.
Waveform_low
Number of nanoseconds in the low period for generated clocks.
Delay from TOD_ns = 0 for generated pulse.
In addition, the load operation can load a delta to the current time. This is done by executing a LOAD
action but using the DELTA command.
Each operation generates an interrupt when executed. For the clock action, the interrupt is generated
when the output switches to the active level. The interrupts from each controller can be masked and
monitored by the interrupt controller in the ICPU_CFG register target.
The five controllers are completely equal in their capabilities. For concatenated distributed TC
applications, two of the controllers are set up in STORE/sync mode, where incoming edges on the pin
make the Time of day be stored in the controller registers.
3.29.7
Multiple PTP Time Domains
For communicating with link partners running in another TOD domain, the device includes three PTP
time domains. Each port belongs to one domain only, and by default, all ports belong to time domain 0.
Other time domains are accessed by configuring the time domain in the port modules, the analyzer, the
rewriter, and the Loadstore controllers.
3.29.8
Register Interface to 1588 Functions
The following table lists the blocks and register configurations associated with IEEE 1588 functionality.
Table 217 • IEEE 1588 Configuration Registers Overview
Block
Configurations
Analyzer
PTP actions in VCAP IS2.
Rewriter
Path and asymmetry delays
Enabling use of preamble
Setting PTP port mode/options
Accessing time stamp FIFO
Port modules
Enable rewriting. Read barrel shifter states for accuracy.
I/O delays.
Per port SMAC for address replacing.
CPU device
Controlling TOD generation.
VMDS-10492 VSC7440 Datasheet Revision 4.2
287
Functional Descriptions
3.29.8.1
VCAP IS2 Actions
In the analyzer, the VCAP IS2 actions are related to PTP operation. The REW_CMD action field
determines the PTP actions in the rewriter.
Table 218 • PTP Actions in Rewriter
Action Bits
Description
1-0: PTP command
0: No operation.
1: One-step.
2: Two-step.
3: Time of day.
3-2: Delay command
0: Do not add any delays.
1: Add PTP_EDLY(Tx port).
2: Add PTP_IDLY1(Rx port).
3: Add PTP_IDLY2(Rx port).
5-4: Sequence number and 0: No operation.
time stamp command
1: Sequence update. The rewriter contains a table of 256 sequence numbers which can
be selected by the lower bits of the time stamp field from the IFH. If this command bit is
set, the selected sequence number is put into the PDU, and the sequence will be
incremented by one. Feature only makes sense when frame is injected by the CPU, in
which case the IFH can be fully controlled by injecting with IFH.
2-3: Delay_Req/Delay_Resp processing. These modes are handled in the analyzer. This
is used for automatic response generation without involving software. If bits 1-0 are set to
one-step, the rewriter is requested to update the CF field to the time of reception.
6: SMAC to DMAC
If set, copy the SMAC into the DMAC of the frame.
7: Configuration to SMAC
If set, set the SMAC to the PTP SMAC configured per egress port.
3.29.8.2
Rewriter Registers
The following table lists registers associated with time stamping.
Table 219 • Rewriter Registers
Register
Description
PTP_MODE_CFG
Assign time domain and PTP port mode for each port.
PTP_EDLY_CFG
PTP_IDLY1_CFG
PTP_IDLY2_CFG
Configure ingress and egress optional delays to use per port.
PTP_SMAC_LSB
PTP_SMAC_MSB
Configure the optional SMAC to replace in the PDUs.
PTP_MISC_CFG
Disable UDP checksum updating per port.
PTP_TWOSTEP_CTRL
Get next time stamp from FIFO.
PTP_TWOSTEP_STAMP
Next time stamp value.
PTP_CPUVD_MODE_CFG Set mode and time domain for CPU and virtual device ports.
PTP_RSRV_NOT_ZERO
Sticky bit for incoming non-zero reserved bytes field.
PTP_SEQ_NO
Set or get sequence number for 256 flows.
VMDS-10492 VSC7440 Datasheet Revision 4.2
288
Functional Descriptions
3.29.8.3
Port Module Registers
The following table lists the port module registers associated with time stamping. The
PTP_PHY_PREDICT_CFG register must be set for ports with internal PHYs.
Table 220 • Port Module Registers
Register
Description
PTP_CFG
Set I/O delays for port, enable PTP, and set port’s time domain.
PTP_EVENTS
Sticky bit for correction field overflow.
PTP_PHY_PREDICT_CFG
Configures the timing information delivered from the internal PHYs
on port 0 and port 1.
PTP_PHASE_PREDICT_CFG
Enables increased accuracy through clock phase evaluation.
3.29.9
Configuring I/O Delays
After a valid link is established and detected by the involved PCS logic, the I/O delays from the internal
time stamping points to the serial line must be configured. The delays are both mode-specific and
interface-specific, depending on the core clock frequency.
Ingress barrel shifter states that in 1G mode, the Rx delays must be added 0.8 ns times the value of
PCS1G_LINK_STATUS.DELAY_VAR to adjust for barrel shifting state after link establishment. In 2.5G
mode, the multiplier is 0.32 ns. In 100FX mode, the Rx delays must be subtracted 0.8 ns times the value
of PCS_FX100_STATUS.EDGE_POS_PTP to adjust for detected data phase.
The following tables provides the Rx and Tx delay times on the ports.
Table 221 • I/O Delays at 156.25 MHz
Port Number
100FX Mode
Rx/Tx
1G Mode
Rx/Tx
2.5G Mode
Rx/Tx
10G Mode
Rx/Tx
0–4
69.3/79.5
43.2/44.7
5, 6
78.2/80.8
51.7/43.9
22.0/14.1
7, 8
123.7/113.1
95.5/76.8
40.5/29.4
9, 10
123.7/113.1
95.5/76.8
39.9/29.2
111.8/162.1
100FX Mode
Rx/Tx
1G Mode
Rx/Tx
2.5G Mode
Rx/Tx
10G Mode
Rx/Tx
0–4
67.3/82.9
44.0/44.2
Does not apply
Does not apply
5, 6
75.4/83.3
52.2/44.2
Does not apply
Does not apply
7, 8
116.6/116.0
98.1/75.3
Does not apply
Does not apply
9, 10
116.6/116.0
98.1/75.3
Does not apply
Does not apply
Table 222 • I/O Delays at 52 MHz
Port Number
3.30
VRAP Engine
The Versatile Register Access Protocol (VRAP) engine allows external equipment to access registers in
the device through any of the Ethernet ports on the device. The VRAP engine interprets incoming VRAP
requests, and executes read, write, and read-modify-write commands contained in the frames. The
results of the register accesses are reported back to the transmitter through automatically generated
VRAP response frames.
VMDS-10492 VSC7440 Datasheet Revision 4.2
289
Functional Descriptions
The device supports version 1 of VRAP. All VRAP frames, both requests and responses, are standard
Ethernet frames. All VRAP protocol fields are big-endian formatted.
The registers listed in the following table control the VRAP engine.
Table 223 • VRAP Registers
Register
Description
Replication
ANA_CL:PORT:CAPTURE_CFG.
CPU_VRAP_REDIR_ENA
Enable redirection of VRAP frames to CPU.
Per port
ANA_CL::CPU_PROTO_QU_CFG.
CPU_VRAP_QU
Configure the CPU extraction queue for VRAP frames. None
QFWD:SYSTEM:FRAME_COPY_CFG.
FRMC_PORT_VAL
Map VRAP CPU extraction queue to a CPU port. One Per CPU
CPU port must be reserved for VRAP frames.
extraction
queue
DEVCPU_QS:XTR:XTR_GRP_CFG.MODE
Enable VRAP mode for reserved CPU port.
Per CPU port
DEVCPU_QS:INJ:INJ_GRP_CFG.MODE
Enable VRAP mode injection for reserved CPU port.
Per CPU port
ASM:CFG:PORT_CFG.INJ_FORMAT_CFG
The IFH without prefix must be present for VRAP
response frames.
Per port
ASM:CFG:PORT_CFG.NO_PREAMBLE_ENA Expect no preamble in front of IFH and frame.
Per port
DEVCPU_GCB::VRAP_ACCESS_STAT
None
VRAP access status.
The VRAP engine processes incoming VRAP frames that are redirected to the VRAP CPU extraction
queue by the basic classifier. For more information about the VRAP filter in the classifier, see CPU
Forwarding Determination, page 113.
The VRAP engine is enabled by allocating one of the two CPU ports as a dedicated VRAP CPU port
(DEVCPU_QS:XTR:XTR_GRP_CFG.MODE and DEVCPU_QS:INJ:INJ_GRP_CFG.MODE). The VRAP
CPU extraction queue (ANA_CL::CPU_PROTO_QU_CFG.CPU_VRAP_QU) must be mapped as the
only CPU extraction queue to the VRAP CPU port
(QFWD:SYSTEM:FRAME_COPY_CFG.FRMC_PORT_VAL). In addition, the VRAP CPU port must
enable the use of IFH without prefix and without preamble (ASM::PORT_CFG).
The complete VRAP functionality can be enabled automatically at chip startup by using special chip boot
modes. For more information, see VCore-III Configurations, page 306.
3.30.1
VRAP Request Frame Format
The following illustration shows the format of a VRAP request frame.
Figure 87 • VRAP Request Frame Format
DMAC
SMAC
Any valid DMAC
48 bits
EtherType
VRAP Commands
EPID
Any valid SMAC
0x8880
0x0004
VRAP HDR
(Request)
48 bits
16 bits
16 bits
32 bits
#1
FCS
#n
variable length
Valid FCS
32 bits
VRAP request frames can optionally be VLAN tagged with one VLAN tag.
The EtherType = 0x8880 and the Ethernet Protocol Identifier (EPID) = 0x0004 identify the VRAP frames.
The subsequent VRAP header is used in both request and response frames.
The VRAP commands included in the request frame are the actual register access commands. The
VRAP engine supports the following five VRAP commands:
•
•
•
•
•
READ: Returns the 32-bit contents of any register in the device.
WRITE: Writes a 32-bit value to any register in the device.
READ-MODIFY-WRITE: Does read/modify/write of any 32-bit register in the device.
IDLE: Does not access registers; however, it is useful for padding and identification purposes.
PAUSE: Does not access registers, but causes the VRAP engine to pause between register access.
VMDS-10492 VSC7440 Datasheet Revision 4.2
290
Functional Descriptions
Each of the VRAP commands are described in the following sections. Each VRAP request frame can
contain multiple VRAP commands. Commands are processed sequentially starting with VRAP command
1, 2, and so on. There are no restrictions on the order or number of commands in the frame.
3.30.2
VRAP Response Frame Format
DMAC
SMAC from
VRAP request frame
SMAC
DMAC from VRAP
request frame
EtherType
EPID
0x8880
0x0004
VRAP HDR
(Response)
48 bits
48 bits
16 bits
16 bits
32 bits
READ and IDLE results
#1
#n
variable length
FCS
Valid FCS
32 bits
The VRAP response frame follows the VRAP request frame in terms of VLAN tagging: If the VRAP request was
tagged, the VRAP response is also tagged using the same VLAN.
Only the READ and IDLE commands require data to be returned to the transmitter of the VRAP request
frame. However, even if the VRAP request frame does not contain READ and IDLE commands, a VRAP
response frame is generated with enough padding data (zeros) to fulfill the minimum transfer unit size.
3.30.3
VRAP Header Format
Both VRAP request and VRAP response frames contain a 32-bit VRAP header. The VRAP header is
used to identify the protocol version and to differentiate between VRAP requests and VRAP response
frames. The device supports VRAP version 1. A valid VRAP request frame must use Version = 1 and
Flags.R = 1. Frames with an invalid VRAP header are discarded and not processed by the VRAP engine.
The following illustration shows the VRAP header.
Figure 88 • VRAP Header Format
4 bits
4 bits
24 bits
Version
Flags
Reserved
31
28 27
24 23
0
Version:
Set to 0x1 in VRAP response frames.
VRAP request frames are ignored if Version 1
Flags:
4 bits are used for Flags. Only one flag is defined:
R
Rsv
3
0
R: 0=Request, 1=Response
Rsv: Set to 0 in VRAP response frames and ignored in VRAP
request frames.
Reserved:
Set to 0 in VRAP response frames and ignored in VRAP
request frames.
3.30.4
VRAP READ Command
The VRAP READ command returns the contents of any 32-bit register inside the device. The 32-bit readdata result is put into the VRAP response frame.
The READ command is 4 bytes wide and consists of one 32-bit address field, which is 32-bit aligned. The
2 least significant bits of the address set to 01. The following illustration shows the request command and
the associated response result.
VMDS-10492 VSC7440 Datasheet Revision 4.2
291
Functional Descriptions
Figure 89 • READ Command
Request:
Response:
Register address, bits 31:2 01
Register read data
32 bits
32 bits
Figure 90 • WRITE Command
Request:
3.30.5
Register address, bits 31:2 10
Register write data
32 bits
32 bits
VRAP READ-MODIFY-WRITE Command
The READ-MODIFY-WRITE command does read/modify/write-back on any 32-bit register inside the
device.
The READ-MODIFY-WRITE command is 12 bytes wide and consists of one 32-bit address field, which is
32-bit aligned. The two least significant bits of the address set to 11 followed by one 32-bit write-data field
followed by one 32-bit overwrite-mask field. For bits set in the overwrite mask, the corresponding bits in
the write data field are written to the register while bits cleared in the overwrite mask are untouched when
writing to the register. The following illustration shows the command.
Figure 91 • READ-MODIFY-WRITE Command
Request:
3.30.6
Register address, bits 31:2 11
Register write data
Overwrite mask
32 bits
32 bits
32 bits
VRAP IDLE Command
The IDLE command does not access registers in the device. Instead it just copies itself (the entire
command) into the VRAP response. This can be used for padding to fulfill the minimum transmission unit
size, or an external CPU can use it to insert a unique code into each VRAP request frame so that it can
separate different replies from each other.
The IDLE command is 4 bytes wide and consists of one 32-bit code word with the four least significant
bits of the code word set to 0000. The following illustration depicts the request command and the
associated response.
Figure 92 • IDLE Command
Request:
Response:
Any 28-bit value
0000
32 bits
3.30.7
Copy of value
0000
32 bits
VRAP PAUSE Command
The PAUSE command does not access registers in the device. Instead it causes the VRAP engine to
enter a wait state and remain there until the pause time has expired. This can be used to ensure
sufficient delay between VRAP commands when this is needed.
The PAUSE command is 4 bytes wide and consists of one 32-bit code word with the four least significant
bits of the code word set to 0100. The wait time is controlled by the 28 most significant bits of the wait
command. The time unit is 1 us. The following illustration depicts the PAUSE command.
VMDS-10492 VSC7440 Datasheet Revision 4.2
292
Functional Descriptions
Figure 93 • PAUSE Command
Request:
Pause value (µs)
0100
32 bits
3.31
Energy Efficient Ethernet
The Ethernet ports support Energy Efficient Ethernet (EEE) to reduce power consumption when there is
little or no traffic on a port.
The state diagram in the following illustration shows the EEE LPI algorithm implemented in the device.
Figure 94 • EEE State Diagram
LPI
EMPTY
Port has frame(s) for
transmission
LPI
NONEMPTY
Port queue(s) in
OQS exceed
FWD_PRESS_THRES
watermark
EEE_TIMER_AGE passed
OR
Port queue(s) in OQS exceed
FWD_PRESS_THRES watermark
ACTIVATING
EEE_TIMER_WAKEUP passed
ACTIVE
NONEMPTY
Transmitting
Port has no frames for
transmission
Port has frame(s) for
transmission
ACTIVE
EMPTY
EEE_TIMER_HOLDOFF passed
•
•
•
•
•
LPI_EMPTY: Low power mode. Port has no frames for transmission.
LPI_NONEMPTY: Low power mode. Port has frames for transmission, but the number of frames is
very limited (below EEE_URGENT_THRES in OQS) or EEE_TIMER_AGE has not passed yet.
ACTIVATING: Port is being activated prior to restarting frame transmission. The timer
EEE_TIMER_WAKEUP controls the length of the activation time.
ACTIVE_NONEMPTY: Port is active and transmitting. This is the normal state for ports without EEE
enabled.
ACTIVE_EMPTY: Port is active, but currently has no frames for transmission. If frames for
transmission do not become available within EEE_TIMER_HOLDOFF, then the port enters low
power mode (in state LPI_EMPTY).
VMDS-10492 VSC7440 Datasheet Revision 4.2
293
Functional Descriptions
The state transition timing values are configured in the EEE_CFG register per port module, and the
levels at which the queue system asserts forward pressure are configured in the QSYS::EEE_CFG and
QSYS::EEE_THRES registers.
As illustrated, the “port has frames for transmission” condition is true if there are frames for transmission
and the scheduling algorithm allows transmission of any of the available frames. So it is possible that a
port enters LPI_EMPTY or stays in LPI_EMPTY, even though there are frames in one or more queues.
It is also possible, though not likely, that forward pressure is set for one or more queues when going into
LPI_EMPTY. This occurs when the scheduling algorithm has decided to transmit from other queue or
queues than those signalling forward pressure and the transmission of these frames causes the port
leaky bucket to close.
The “forward pressure signalled for queues” condition does not look at whether the queues with forward
pressure are actually allowed to transmit.
For ports that are shaped to a low bandwidth, the forward pressure watermark in OQS should be set a
low value, such that it is mainly the port shaping that controls when to exit LPI.
3.32
CPU Injection and Extraction
This section provides an overview of how the CPU injects and extracts frames to and from the switch
core.
The switch core forwards CPU extracted frames to eight CPU extraction queues that per queue are
mapped to one of the two CPU ports (by means of QFWD:SYSTEM:FRAME_COPY_CFG[0:7]) that the
CPU can access. For each CPU extraction queue, it is possible to specify the egress priority
(QFWD:SYSTEM:FRAME_COPY_CFG.FRMC_QOS_ENA). For each CPU port, there is strict priority
selection between the egress queues.
For injection, there are two CPU injection groups that can simultaneously forward frames into the
analyzer. The CPU can access the injection and extraction groups through either a Frame DMA or direct
register access.
For more information about injecting and extracting CPU traffic through front ports used as NPI port, see
Internal Frame Header Placement, page 13; Setting Up a Port for Frame Injection, page 51; and
Forwarding to GCPU, page 267.
3.32.1
Frame Injection
The traffic at any injection pipeline point from CPU, NPI, and AFI using the IFH
(IFH.MISC.PIPELINE_ACT:= INJ_MASQ and IFH.MISC.PIPELINE_PT: = ).
When a frame is injected at a given pipeline point, it is logically not processed in the flow before reaching
the injection point. For example, a frame injected at the ANA_CLM pipeline point bypasses VRAP
detection, port Down-MEP handling, and basic classification, which requires the frame to be injected with
an IFH configured with all the fields normally set by Basic classification.
Injecting a frame at the ANA_DONE pipeline point causes it to bypass the complete analyzer and
destination port must be specified in IFH (IFH.MISC.DPORT = ).
Frames can be injected as either unicast or as multicast:
•
•
3.32.1.1
Unicast injection that allows injection into a single egress port (configured in IFH.MISC.DPORT) with
all IFH.DST.ENCAP operators available in the Rewriter such as OAM and PTP detection and
hardware handling (if IFH.FWD.DST_MODE is set to ENCAP).
Multicast injection that allows injection to multiple egress ports (IFH.FWD.DST_MODE = INJECT
and IFH.DST.INJECT.PORT_MASK). Because IFH.DST is used for specifying the destination set, it
is not possible to use IFH.DST.ENCAP for this type of injection and all IFH.DST.ENCAP fields will
default to 0. This mode bypasses the analyzer, meaning that all IFH fields used by rewriter must be
given a proper value by software.
Masqueraded Injection
The device supports masqueraded injection of frames from CPU where processing of the frame is done
as if the frame was received on the masqueraded port (IFH.MISC.PIPELINE_ACT=INJ_MASQ and
VMDS-10492 VSC7440 Datasheet Revision 4.2
294
Functional Descriptions
IFH.FWD.SRC_PORT=). A masquerade-injected frame sees the same source filter,
classification, and learning as the physical port being masqueraded.
3.32.1.2
Injection Pipeline Points
The device supports specifying where in the processing flow a frame is injected by specifying a pipeline
point for the frame (IFH.MISC.PIPELINE_PT0). The frame will then only be processed after the specified
injection point.
3.32.2
Frame Extraction
The CPU receives frames through eight CPU extraction queues. These extraction queues can be
mapped to one of the two CPU ports or any of the front ports (QFWD:SYSTEM:FRAME_COPY_CFG[07]). The CPU extraction queues use memory resources from the shared queue system and are subject to
the thresholds and congestion rules programmed for the CPU extraction queues and the shared queue
system in general.
A frame can be extracted for multiple reasons. For example, a BPDU with a new source MAC address
can be extracted as both a BPDU and a learn frame with two different CPU extraction queues selected.
By default, the highest CPU extraction queue number receives a copy of the frame, but it is also possible
to generate multiple frame copies to all the selected CPU extraction queues
(ANA_AC::CPU_CFG.ONE_CPU_COPY_ONLY_MASK).
The CPU can read frames from the CPU port in two ways:
•
•
Reading registers in the CPU system. For more information, see Manual Extraction, page 331.
Using the Frame DMA in the CPU system. For more information, see FDMA Extraction, page 330.
CPU extracted frames include an IFH (28-bytes) placed in front of the DMAC. The IFH contains relevant
side band information about the frame, such as the frame’s classification result (VLAN tag information,
DSCP, QoS class) and the reason for sending the frame to the CPU. For more information about the
contents of the IFH, Frame Headers, page 13.
The originating CPU extraction port number is not part of the IFH, however, a 4-byte header can be
included in front of the IFH containing the CPU extraction port number
(DEVCPU_QS::XTR_GRP_CFG.MODE).
3.32.3
Forwarding to CPU
Several mechanisms can be used to trigger redirection or copying of frames to the CPU. The following
blocks can generate traffic to a CPU queue.
•
•
•
•
•
•
Analyzer classifier ANA_CL
Analyzer Layer 3 ANA_L3
Analyzer Access Control Lists ANA_ACL
Analyzer Layer 2 ANA_L2
Analyzer Access Control ANA_AC
Rewriter
Frames copied or redirected to the CPU from both the rewriter and the Up-MEPs are looped and passed
another time through the analyzer.
3.32.4
Automatic Frame Injection (AFI)
The AFI block supports repeated (automated) injection, which requires the injection frame to be sent to
the AFI block with a single IFH bit set (IFH.FWD.AFI_INJ) and with an IFH header configured as for
normal CPU injection.
After an injection frame is sent to the AFI block, the frame can be added for AFI injection. For more
information, see Adding Injection Frame, page 244.
Frames injected from the AFI block are treated as any CPU injection, where IFH fields controls how
injection occurs.
A Down-MEP injected frame must be directly injected into the right egress port as shown in the following
illustration.
VMDS-10492 VSC7440 Datasheet Revision 4.2
295
Functional Descriptions
Figure 95 • Down-MEP Injection from AFI
Loopback path
Up-MEP injection point
ASM
ANA
SQS
devcpu
VD1
port 52
V1
taxi9
REW
DSM
port m
AFI
taxi0
port 0
OAM_MEP
OAM_MEP
DEVCPU
Down-MEP point to port
3.33
Priority-Based Flow Control (PFC)
Priority-based flow control (PFC, IEEE 802.1Qbb) is supported on all ports for all QoS classes. The
device provides independent support for transmission of pause frames and reaction to incoming pause
frames, which allows asymmetric flow control configurations.
3.33.1
PFC Pause Frame Generation
The queue system monitors the congestion per ingress and egress queue. If a flow control condition is
asserted, the queue system forwards the congestion status to the disassembler. The disassembler
stores the congestion status per (port, priority). Based on the congestion status, the disassembler will
transmit PFC frames for each port.
3.33.1.1
Queue System
The queue system has a set of dedicated PFC watermarks. If the memory consumption of a queue
exceeds a PFC watermark, a flow control condition is asserted, and the updated congestion status is
forwarded the disassembler. For information about the configuration of the PFC watermarks, see PriorityBased Flow Control (PFC), page 296.
3.33.1.2
Disassembler
The disassembler (DSM) stores the congestion status per queue (per port, per priority) and generates
PFC PDU based on the information. For more information about the available PFC configuration
registers, see PFC Pause Frame Generation, page 274.
The following illustration shows the algorithm controlling the generation of PFC frames for each port. The
8-bit congestion state from the queue system is fc_qs. TX_PAUSE_VAL and PFC_MIN_UPDATE_TIME
are configurable per port. The TX_PAUSE_VAL configuration is shared between LLFC and PFC.
When a priority becomes congested, a PFC PDU is generated to flow control this priority. When half of
the signaled timer value has expired, and the queue is still congested, a new PFC PDU is generated. If
other priorities become congested while the timer is running, then PFC_MIN_UPDATE_TIME is used to
speed up the generation of the next PFC PDU. The timer is shared between all priorities per port.
Every PFC PDU signals the flow control state for all priorities of the port. In other words, the
priority_enable_vector of the PFC PDU is always set to 0x00ff, independent of whether or not a priority is
enabled for flow control. For disabled priorities, the pause time value is always set to 0.
VMDS-10492 VSC7440 Datasheet Revision 4.2
296
Functional Descriptions
Figure 96 • PFC Generation Per Port
FC Inactive
fc_qs != 0x00
&&
(timer == 0 || !PFC_XOFF_MIN_UPDATE_ENA)
Transmit PFC PDU
(xoff)
timer =
PFC_MIN_UPDATE_TIME
Transmit PFC PDU
fc_txed = fc_qs
timer = TX_PAUSE_VAL
timer < TX_PAUSE_VAL/2
fc_qs == 0x00
&&
timer < (TX_PAUSE_VAL –
PFC_MIN_UPDATE_TIME)
PFC Sent
fc_qs unchanged
fc_qs == fc_txed
fc_qs != fc_txed
fc_qs != 0x00
&&
timer < (TX_PAUSE_VAL –
PFC_MIN_UPDATE_TIME)
PFC Sent
fc_qs changed
fc_qs: Congestion state per priority from QS
3.33.1.3
Statistics
The number of transmitted pause frames is counted in the TX_PAUSE_CNT counter and shared with the
counter for transmitted link-layer flow control pause frames. Statistics are handled locally in the DEV10G
port modules. For other port module types, the assembler handles the statistics.
3.33.2
PFC Frame Reception
Received PFC frames are detected by the assembler. The status is forwarded to the queue system,
which will pause the egress traffic according to the timer value specified in the pause frames.
3.33.2.1
Assembler
The assembler identifies PFC PDUs and stores the received pause time values in a set of counters. The
counters are decremented according to the link speed of the port. The assembler signals a stop
indication to the queue system for all (port, priority) with pause times different from 0.
For information about the PFC configuration of the assembler, see Setting Up PFC, page 53.
3.33.2.2
Queue System
The queue system stores the PFC stop indications received from the assembler per (port, priority). It
pauses the transmission for all egress queues with an active PFC stop indication. The queue system
does not require any PFC configuration.
3.33.2.3
Statistics
PFC pause frames are recognized as control frames and counted in the RX_UNSUP_OPCODE_CNT
counter. Statistics are handled locally in the DEV10G port modules. For other port module types, the
assembler handles the statistics.
3.34
Protection Switching
The following types of hardware-assisted protection switching are supported:
VMDS-10492 VSC7440 Datasheet Revision 4.2
297
Functional Descriptions
•
•
•
Ethernet ring protection switching
Port protection switching
Linear protection switching for E-Lines
Both ring protection and linear protection can also be supported over a link aggregation group (LAG).
3.34.1
Ethernet Ring Protection Switching
When protection switching occurs in an Ethernet ring (ITU-T G.8032), the following actions must be taken
to restore connectivity.
•
•
MAC addresses learned on the ring ports for the involved FIDs must be flushed from the MAC table.
This is done using the scan functionality in the LRN block. Using
ANA_L2:COMMON:SCAN_FID_CFG.SCAN_FID_VAL MAC, addresses for up to 16 FIDs can be
flushed at a time.
The RPL port must be changed to forwarding state and ports interfacing to the failed link must be
changed to blocking state. For rings supporting many VLANs, this can be done efficiently using
VLAN TUPE.
The following illustration shows an Ethernet ring protection example. Switch A is part of two rings, ring 1
and ring 2. Ring 1 uses 18 VIDs, VID 4-19 and 31-32, for forwarding traffic. Ring 2 uses 32 VIDs, VID 1030 and 40-50.
To allow a VLAN TUPE command to identify the VIDs used by each of the two rings, a bit in the
TUPE_CTRL field in the VLAN table is allocated for each of the two rings. In this example, ring 1 uses bit
0 in TUPE_CTRL, and ring 2 uses bit 1.
Figure 97 • Ethernet Ring Protection Example
Ethernet Switch A
0
1
2
3
4
5
6
7
8
Ring protectionlink (RPL)
Ethernet
Switch
B
Ring 1
VLANs: 4-19, 31-32
Ethernet
Switch
D
Ethernet
Switch
E
Ring 2
VLANs: 10-30, 40-50
Ethernet
Switch
G
Ethernet
Switch
F
RPL port
Ring protection link (RPL)
Ethernet
Switch
C
The following table shows the configuration of the VLAN table of switch A. The VLAN_PORT_MASK bit
shows only the value for the ring ports. For the other ports (ports 2-6), the VLAN_PORT_MASK bits are
assumed to be 0.
Table 224 • VLAN Table Configuration Before APS
Address (VID)
TUPE_CTRL
VLAN_PORT_MASK
VLAN_FID
4-9
0x01
0x0003
4-9
10-19
0x03
0x0083
10-19
31-32
0x01
0x0003
31-32
20-30, 40-50
0x02
0x0080
20-30, 40-50
VID 4-9 and 31-32 are only used by ring 1, so only bit 0 is set in TUPE_CTRL. VLAN_PORT_MASK
includes the two ring ports of ring 1, port 0, and port 1.
VMDS-10492 VSC7440 Datasheet Revision 4.2
298
Functional Descriptions
VID 10-19 are used by both ring 1 and ring 2, so bit 0 and bit 1 are both set in TUPE_CTRL.
VLAN_PORT_MASK includes the ring ports of ring 1 as well as port 7, used by ring 2. Port 8 is not
included, because it is in blocking state.
VID 20-30 and 40-50 are only used by ring 2, so only bit 1 is set in TUPE_CTRL. VLAN_PORT_MASK
includes port 7.
In this example, independently learning is used for all VLANs; that is, a separate FID is used for each
VID.
To also block reception of frames on any blocking ports, ANA_L3:COMMON:VLAN_FILTER_CTRL must
be configured to include all ring ports. In this example ports 0,1,7 and 8 must be set in
ANA_L3:COMMON:VLAN_FILTER_CTRL.
The following illustration shows the same set up as the previous illustration, but now a link in ring 2 has
failed. As a result, the RPL of ring 2 must be activated, meaning port 8 of switch A must be changed to
forwarding state.
Figure 98 • Ethernet Ring with Failure
Ethernet Switch A
0
1
2
3
4
5
6
7
8
Ring protection link (RPL)
Ring 1
VLANs: 4-19, 31-32
Ethernet
Switch
B
Ethernet
Switch
D
Ethernet
Switch
E
Ring protection link (RPL)
Ring 2
VLANs: 10-30, 40-50
Ethernet
Switch
G
Link failure!
Ethernet
Switch
C
Ethernet
Switch
F
RPL port
To avoid having to perform write access to the VLAN_PORT_MASKs of each of VID 10-30 and 40-50,
VLAN TUPE can be used instead. The following table lists the VLAN TUPE parameters to reconfigure
the VLAN table.
Table 225 • VLAN TUPE Command for Ring Protection Switching
Field
Value
Comment
TUPE_CTRL_BIT_MASK
0x0002
Bits 0 and 1 of TUPE_CTRL are used as bit mask.
The TUPE command is applied only to VIDs used by ring 2, so
only bit 1 is set.
TUPE_CTRL_BIT_ENA
1
Enables use of TUPE_CTRL_BIT_MASK.
TUPE_START_ADDR
10
To make VLAN TUPE complete faster, only cover VID 10-50.
TUPE_END_ADDR
50
TUPE_CMD_PORT_MASK_SET
0x0100
Enables forwarding on port 8.
TUPE_START
1
Starts VLAN TUPE. The device clears TUPE_START when TUPE
is completed.
VMDS-10492 VSC7440 Datasheet Revision 4.2
299
Functional Descriptions
After the VLAN TUPE command is completed, the VLAN table is updated as shown in the following table.
Table 226 • VLAN Table Configuration After APS
Addr (VID)
TUPE_CTRL
VLAN_PORT_MASK
VLAN_FID
4-9
0x01
0x0003
4-9
10-19
0x03
0x0183
10-19
31-32
0x01
0x0003
31-32
20-30, 40-50
0x02
0x0180
20-30, 40-50
The TUPE_CTRL field is 16 bits wide, so using the described approach allows up 16 Ethernet rings with
VLAN TUPE assisted protection switching. However, any unused bits in the 11-bit wide
VLAN_PORT_MASK can be used in the same manner as TUPE_CTRL bits.
For Ethernet rings using only a few VIDs, there is little to gain in using VLAN TUPE and new values could
instead be written directly to the VLAN_PORT_MASK of the relevant VIDs.
In addition to running the VLAN TUPE commands listed in the previous table, any MAC addresses
learned on the ring ports of ring 2 must be flushed from the MAC table. In the above example, ring 2 uses
32 VIDs for forwarding traffic. Each of these use a specific FID. In this example, FID is set equal to VID.
MAC addresses for up to 16 FIDs can be flushed at a time, so to flush MAC addresses for 32 FIDs, two
flush commands must be executed. The first flush command is shown in the following table. The second
flush command is identical, except SCAN_FID_VAL is set to 26-30, 40-50.
Table 227 • MAC Table Flush, First Command
Field
Value
Comment
ANA_L2::SCAN_FID_CTRL.SCAN_FID_ENA
1
Enables use of SCAN_FID_VAL.
ANA_L2::SCAN_FID_CFG.SCAN_FID_VAL
10-25
Flushes FIDs 10-25.
Flushing can be done for up to 16 discrete FID
values at a time.
If flushing needs to be done for less than 16 FIDs.
the unused FID values must be set to 0x1FFFF.
LRN::SCAN_NEXT_CFG.FID_FILTER_ENA
1
Enables FID specific flushing.
LRN::MAC_ACCESS_CFG_0.MAC_ENTRY_FID
0x1FFFF 0x1FFFF => not used.
LRN::AUTOAGE_CFG_1.USE_PORT_FILTER_ENA
1
Enables flushing for specific ports.
ANA_L2::FILTER_LOCAL_CTRL
0x0180
Flushes port 7 and 8.
LRN::SCAN_NEXT_CFG.SCAN_NEXT_REMOVE_F
OUND_ENA
1
Removes matches. In other words flushing.
LRN::COMMON_ACCESS_CTRL.MAC_TABLE_ACC 1
ESS_SHOT
Start flushing.
The device clears
MAC_TABLE_ACCESS_SHOT when flushing
has completed.
If desirable the device can be configured to
generate an interrupt when flushing has
completed. This can be used to trigger any
subsequent flush commands.
Flushing MAC addresses from the MAC table usually takes longer than running VLAN TUPE. As a result,
to have the protection switching complete as fast as possible, start MAC table flushing first, followed by
VLAN TUPE. The two will then run in parallel, and when both have completed, the protection switching is
done.
VMDS-10492 VSC7440 Datasheet Revision 4.2
300
Functional Descriptions
3.34.2
Link Aggregation
For both ring protection and linear protection, the working/protection entity can be forwarded on a LAG,
providing an additional layer of hardware assisted protection switching.
When a link within the LAG fails, the 16 port masks in ANA_AC:AGGR must be updated to avoid
forwarding on the failed link.
To avoid consuming multiple entries in VCAP ES0 for services being forwarded on a LAG,
REW:COMMON:PORT_CTRL.ES0_LPORT_NUM must be setup such that a common port number is
used in VCAP ES0 keys, regardless of the actual LAG member chosen.
3.34.3
Port Protection Switching
The device supports several methods through which 1:1 port protection switching can be supported:
•
•
•
Link Aggregation Groups. A LAG with two ports can be configured and ANA_AC:AGGR can be set
to only use one of the links in the LAG.
Disabling the standby port in ANA_L3:MSTP.
Disabling the standby port using ANA_L3:COMMON:PORT_FWD_CTRL and
ANA_L3:COMMON:PORT_LRN_CTRL. This is the recommended approach, because it interferes
minimally with other features of the device.
Regardless of the method, a logical port number must be configured for the involved ports such that MAC
addresses are learned on the logical port number to avoid the need for flushing MAC table entries when
protection switching occurs. The logical port number is configured in
ANA_CL:PORT:PORT_ID_CFG.LPORT_NUM.
REW:COMMON:PORT_CTRL.ES0_LPORT_NUM must be used to avoid consuming multiple VCAP
ES0 entries. For more information, see Link Aggregation, page 301.
3.35
Low Power Mode
For applications that only use 1G port speeds it is possible to change the switch core to a low power
mode where the operating clock frequency is dropped to one third of the normal clock frequency.
Configuration of the switch core clock frequency is done after reset, before enabling switch ports.
3.35.1
One-Time Configurations for Low Power Mode
For applications that only use 1G port speeds, reconfiguration of the switch core clock frequency is done
in several steps listed in the following:
1. Configure the switch core clock frequency:
HSIO:PLL5G_CFG:PLL5G_CFG0.CORE_CLK_DIV = 25 (write to all PLLs when
applicable),
HSIO::CLK_CFG.SWC_CLK_DIV2 = 1.
2. Configure the port calendar using the following procedure:
DSM::TAXI_CAL_CFG[0].CAL_PGM_ENA = 1
for (i=0; i
