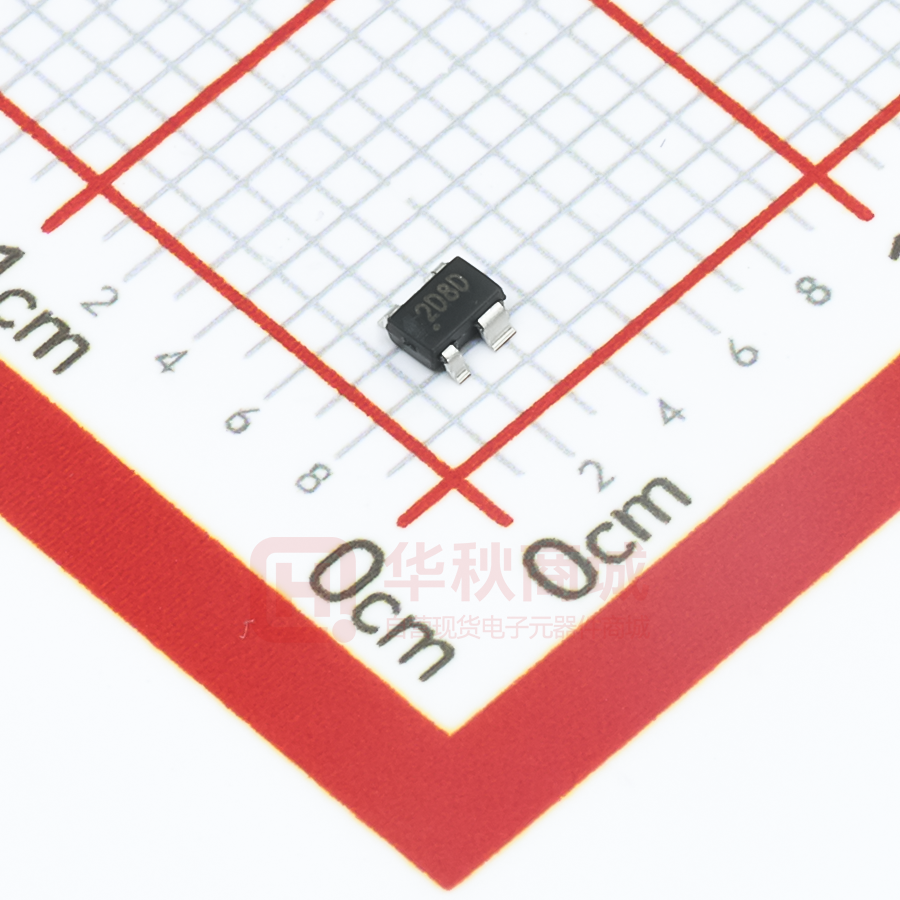

SPF5043Z 50 MHz to 4000 MHz Low-Noise Amplifier ® General Description The SPF5043Z is a high-performance GaAs pHEMT MMIC LNA designed for operation from 50 MHz to 4000 MHz. The on-chip active bias network provides stable current over temperature and process threshold voltage variations. SOT-343 Package Product Features The SPF5043Z offers ultra-low noise figure and high linearity performance in a gain block configuration. Its single-supply operation and integrated matching networks make implementation remarkably simple. The high maximum input power specification makes it ideal for high dynamic range receivers. • • • • • • • 0.8 dB Ultra-Low Noise Figure at 900 MHz 18.2 dB Gain at 900 MHz 35 dBm OIP3 High Linearity at 1900 MHz 22.7 dBm P1dB at 1900 MHz 3 V to 5 V Flexible, Single-Supply Operation 46mA IDQ, Adjustable Broadband Internal Matching Functional Block Diagram Applications RF In 3 2 GND GND 4 1 RF Out • Cellular, PCS, W-CDMA, ISM and LTE • Low Noise, High Linearity Gain Block Applications Pin 1 Reference Mark Ordering Information Part No. Description SPF5043Z 3000 pieces on a 7” Reel SPF5043ZSR 100 pieces on a 7” Reel SPF5043ZPCK1 400-3000 MHz EVB with 5pc sample bag Datasheet, June 12, 2018 | Subject to change without notice 1 of 14 www.qorvo.com SPF5043Z 50 MHz to 4000 MHz Low-Noise Amplifier ® Absolute Maximum Ratings Parameter Recommended Operating Conditions Rating Parameter −65°C to +150°C +5.5 V 100 mA +25 dBm 330 mW Storage Temperature Drain Voltage (VD) Device Current, ID Input Power (CW) Dissipated Power Min VD +4.75 Operating Temp. Range −40 Junction Temperature (TJ) Typ Max Units +5 +5.25 +85 150 V °C °C Electrical specifications are measured at specified test conditions. Specifications are not guaranteed over all recommended operating conditions. Operation of this device outside the parameter ranges given above may cause permanent damage. Electrical Specifications Test conditions unless otherwise noted: VD = +5 V, IDQ = 46 mA, Temp. = +25°C, 50Ω system, Qorvo broad application circuit Parameter Conditions Min 900 MHz 1960 MHz 900 MHz 50 16.7 11.4 17.4 Operational Frequency Range Gain Output P1dB Output IP3 Noise Figure Reverse Isolation, |S12| Input Return Loss Output Return Loss Drain Voltage, VD Drain Quiescent Current, IDQ Thermal Resistance, θjc 1900 MHz POUT -5 dBm/tone, Δf 1 MHz, 900MHz POUT -5 dBm/tone, Δf 1 MHz, 1900 MHz 900 MHz 1900 MHz 900 MHz 1900 MHz 900 MHz 1900 MHz 900 MHz 1900 MHz 30.0 13.0 13.0 Typ 18.2 12.9 22.6 22.7 33.0 35.0 0.8 0.8 23.5 19.0 16.0 17.5 17.5 16.5 5 46 125 Junction to case* Max Units 4000 19.7 14.4 MHz dB dB dBm 1.0 5.25 54 dBm dBm dBm dB dB dB dB dB dB dB dB V mA °C/W *Ground Leads Datasheet, June 12, 2018 | Subject to change without notice 2 of 14 www.qorvo.com SPF5043Z 50 MHz to 4000 MHz Low-Noise Amplifier ® Typical Performance – VD +5 V Broadband Application Circuit Test Conditions: VD = +5 V, ID = 46 mA, OIP3 Tone Spacing = 1 MHz & POUT 0 dBm/tone, TCASE = 25°C, 50Ω system Parameter 0.1GHz* 0.4GHz 0.9GHz 1.5GHz 1.9GHz 2.2GHz 2.5GHz 3.5GHz 3.8GHz Unit Small Signal Gain Noise Figure OIP3 Output P1dB 23.5 0.65 30.5 na 21.6 0.61 31.0 22.5 18.2 0.74 33.0 22.6 14.8 0.82 34.5 22.7 13.1 0.78 35.0 22.7 11.9 0.84 35.5 23.0 10.8 0.96 36.5 22.8 8.0 1.34 38.5 23.1 7.0 1.49 37.5 22.8 dB dB dBm dBm Input Return Loss Output Return Loss Reverse Isolation -13.0 -22.0 -27.0 -12.5 -17.5 -26.0 -15.5 -20.0 -23.5 -18.0 -18.0 -20.5 -17.5 -17.0 -19.0 -17.0 -17.0 -18.0 -16.0 -16.5 -17.5 -11.5 -16.0 -15.0 -10.5 -13.5 -15.0 dB dB dB *Tested with Bias Tee @ 100 MHz Typical Performance – VD +3V Broadband Application Circuit Test Conditions: VD = +3 V, ID = 25 mA, OIP3 Tone Spacing = 1 MHz & POUT 0 dBm/tone, TCASE = 25°C, 50Ω system Parameter 0.1GHz* 0.4GHz 0.9GHz 1.5GHz 1.9GHz 2.2GHz 2.5GHz 3.5GHz 3.8GHz Units Small Signal Gain Noise Figure OIP3 Output P1dB 22.6 0.60 26.5 na 20.9 0.61 27.0 19.3 17.7 0.73 28.5 19.5 14.4 0.82 30.0 19.9 12.7 0.78 30.5 20.0 11.5 0.85 30.5 20.3 10.5 0.93 32.0 20.2 7.6 1.28 33.5 20.3 6.7 1.48 33.0 19.7 dB dB dBm dBm Input Return Loss Output Return Loss Reverse Isolation -10.5 -21.0 -26.0 -11.0 -21.5 -25.5 -14.0 -28.5 -22.5 -16.5 -24.5 -20.0 -16.5 -22.5 -18.0 -16.0 -22.5 -17.5 -14.5 -22.5 -16.5 -10.5 -20.0 -14.5 -9.5 -15.5 -14.0 dB dB dB *Tested with Bias Tee @ 100 MHz Datasheet, June 12, 2018 | Subject to change without notice 3 of 14 www.qorvo.com SPF5043Z 50 MHz to 4000 MHz Low-Noise Amplifier ® SPF5043ZPCK1 Evaluation Board Layout & Schematic Bill of Material Reference Des. Value Description Manuf. Part Number Q1 n/a LNA, 50MHz to 4000MHz Amp Qorvo SPF5043Z C1 0.1 μF CAP, 0.1 μF,10%, 16V, X7R, 0603 Murata GRM188R71C104KA01D C2, C3, C4 100 pF CAP, 100 pF, 5%, 50V, C0G, 0603 Murata GRM1885C1H101JA01D L1 100 nH IND, 100 nH, 5%, M/L, 0603 Toko LL1608-FSLR10J Datasheet, June 12, 2018 | Subject to change without notice 4 of 14 www.qorvo.com SPF5043Z ® 50 MHz to 4000 MHz Low-Noise Amplifier Performance Plots – VD +5V Test conditions unless otherwise noted: VD = +5 V, ID =46 mA Datasheet, June 12, 2018 | Subject to change without notice 5 of 14 www.qorvo.com SPF5043Z ® 50 MHz to 4000 MHz Low-Noise Amplifier Performance Plots – VD +5 V (Continue 1) Test conditions unless otherwise noted: VD = +5 V, ID =46 mA Datasheet, June 12, 2018 | Subject to change without notice 6 of 14 www.qorvo.com SPF5043Z ® 50 MHz to 4000 MHz Low-Noise Amplifier Performance Plots – VD +5 V (Continue 2) Test conditions unless otherwise noted: VD = +5 V, ID =46 mA, Temp.=+25°C Datasheet, June 12, 2018 | Subject to change without notice 7 of 14 www.qorvo.com SPF5043Z ® 50 MHz to 4000 MHz Low-Noise Amplifier Performance Plots – VD +3 V Test conditions unless otherwise noted: VD = +3 V, ID =25 mA Datasheet, June 12, 2018 | Subject to change without notice 8 of 14 www.qorvo.com SPF5043Z ® 50 MHz to 4000 MHz Low-Noise Amplifier Performance Plots – VD +3 V (Continue 1) Test conditions unless otherwise noted: VD = +3 V, ID =25 mA Datasheet, June 12, 2018 | Subject to change without notice 9 of 14 www.qorvo.com SPF5043Z ® 50 MHz to 4000 MHz Low-Noise Amplifier Performance Plots – VD +3 V (Continue 2) Test conditions unless otherwise noted: VD = +3 V, ID =25 mA, Temp.=+25°C Datasheet, June 12, 2018 | Subject to change without notice 10 of 14 www.qorvo.com SPF5043Z ® 50 MHz to 4000 MHz Low-Noise Amplifier De-Embedded Device S-parameters* Test conditions unless otherwise noted: Temp.=+25°C *Measured with Bias-T Datasheet, June 12, 2018 | Subject to change without notice 11 of 14 www.qorvo.com SPF5043Z 50 MHz to 4000 MHz Low-Noise Amplifier ® De-embedded Device S-parameters* (Continue) Test conditions unless otherwise noted: Temp.=+25°C *Measured with Bias-T Pin Configuration and Description RF In 3 2 GND GND 4 1 RF Out Pin 1 Reference Mark Pin No. Label 1 RF Out 2 GND 3 RF In 4 GND Description RF output and Drain DC input. Internally matched to 50Ω. External DC blocking capacitor is required for RF output. DC/RF ground connection. RF input. This pin is internally DC coupled and RF matched to 50Ω. External DC blocking capacitor is required. DC/RF ground connection. Datasheet, June 12, 2018 | Subject to change without notice 12 of 14 www.qorvo.com SPF5043Z ® 50 MHz to 4000 MHz Low-Noise Amplifier Device Package Information Marking and Dimensions Trace Code Trace Code Notes: 1. 2. 3. 4. All dimensions are in millimeters. Angles are in degrees. Dimension and tolerance formats conform to ASME Y14.4M-1994. The terminal #1 identifier and terminal numbering conform to JESD 95-1 SPP-012 Trace code to be assigned by sub-contractor Recommended PCB Layout Pattern Notes: 1. All dimensions are in inches. Angles are in degrees. 2. Use 1 oz. copper minimum for top and bottom layer metal. 3. Ensure good package backside paddle solder attach for reliable operation and best electrical performance. Datasheet, June 12, 2018 | Subject to change without notice 13 of 14 www.qorvo.com SPF5043Z 50 MHz to 4000 MHz Low-Noise Amplifier ® Handling Precautions Parameter Rating Standard ESD – Human Body Model (HBM) Class 1A ESDA / JEDEC JS-001-2014 MSL – Moisture Sensitivity Level Level 1 IPC/JEDEC J-STD-020 Caution! ESD-Sensitive Device Solderability Compatible with lead-free (260°C max. reflow temp.) soldering process. Solder profiles available upon request. Contact plating: Matte Sn RoHS Compliance This part is compliant with 2011/65/EU RoHS directive (Restrictions on the Use of Certain Hazardous Substances in Electrical and Electronic Equipment) as amended by Directive 2015/863/EU. This product also has the following attributes: • Lead Free • Halogen Free (Chlorine, Bromine) • Antimony Free • TBBP-A (C15H12Br402) Free • PFOS Free • SVHC Free Pb Contact Information For the latest specifications, additional product information, worldwide sales and distribution locations: Web: www.qorvo.com Tel: 1-844-890-8163 Email: customer.support@qorvo.com For technical questions and application information: Email: appsupport@qorvo.com Important Notice The information contained herein is believed to be reliable; however, Qorvo makes no warranties regarding the information contained herein and assumes no responsibility or liability whatsoever for the use of the information contained herein. All information contained herein is subject to change without notice. Customers should obtain and verify the latest relevant information before placing orders for Qorvo products. The information contained herein or any use of such information does not grant, explicitly or implicitly, to any party any patent rights, licenses, or any other intellectual property rights, whether with regard to such information itself or anything described by such information. THIS INFORMATION DOES NOT CONSTITUTE A WARRANTY WITH RESPECT TO THE PRODUCTS DESCRIBED HEREIN, AND QORVO HEREBY DISCLAIMS ANY AND ALL WARRANTIES WITH RESPECT TO SUCH PRODUCTS WHETHER EXPRESS OR IMPLIED BY LAW, COURSE OF DEALING, COURSE OF PERFORMANCE, USAGE OF TRADE OR OTHERWISE, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Without limiting the generality of the foregoing, Qorvo products are not warranted or authorized for use as critical components in medical, life-saving, or life-sustaining applications, or other applications where a failure would reasonably be expected to cause severe personal injury or death. Copyright 2018 © Qorvo, Inc. | Qorvo is a registered trademark of Qorvo, Inc. Datasheet, June 12, 2018 | Subject to change without notice 14 of 14 www.qorvo.com
