TQL9092
Ultra Low Noise, Flat Gain LNA
RFMD + TriQuint = Qorvo
Applications
Repeaters / DAS
Mobile Infrastructure
LTE / WCDMA / CDMA / GSM
General Purpose Wireless
TDD or FDD systems

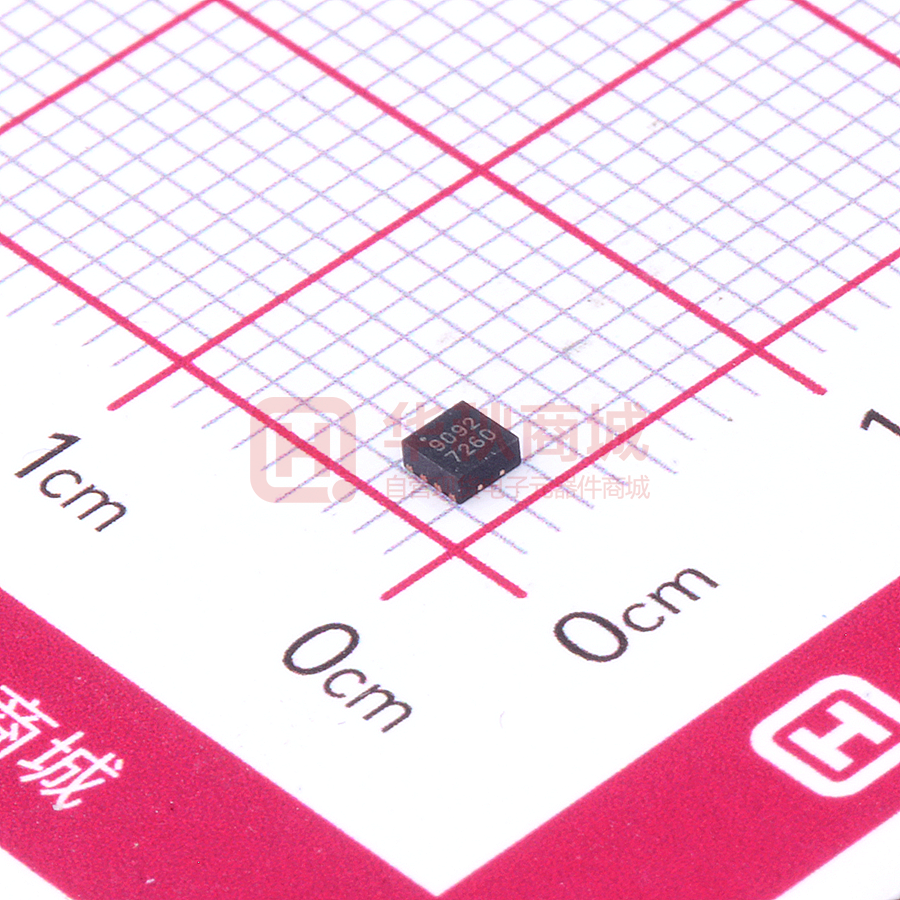

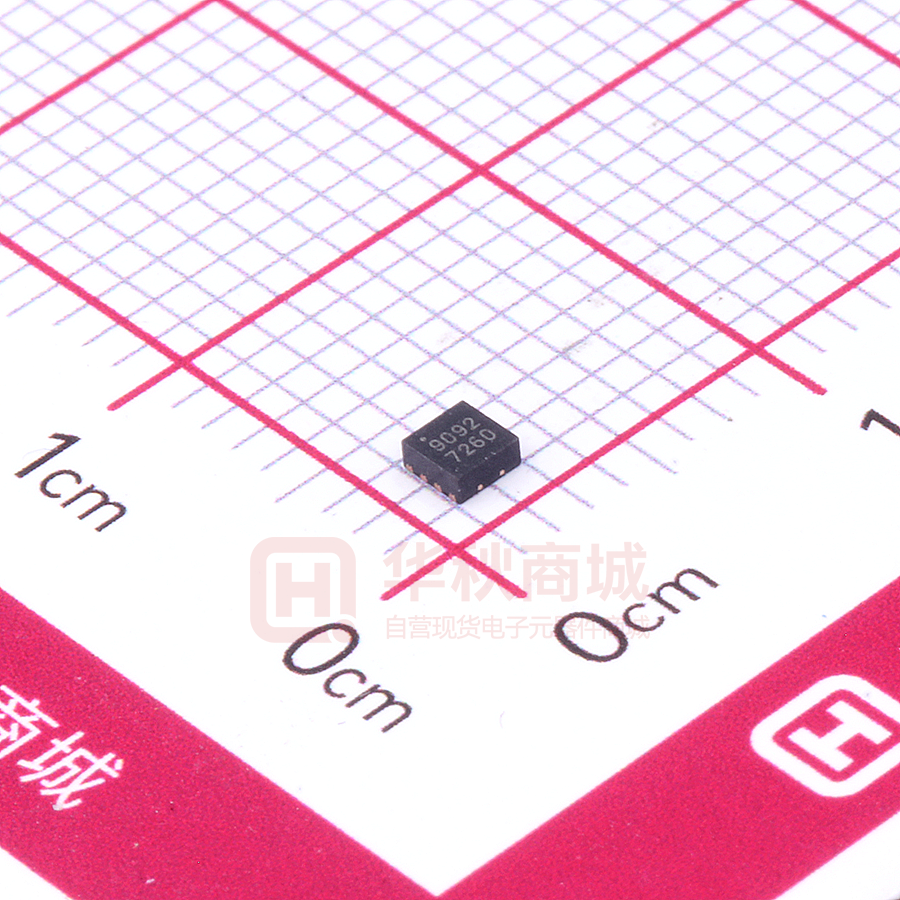

8 pin 2x2 mm DFN Package
Product Features
Functional Block Diagram
0.6-4.2 GHz Operational Bandwidth
Ultra low noise figure, 0.6 dB NF @ 2.6 GHz
>20 dB gain across 1.5 to 3.8 GHz
Flat 2 dB gain variation across 1.5 to 3.6GHz
Bias adjustable for linearity optimization
37 dBm OIP3 at 65mA IDD
Shut-down mode pin with 1.8V TTL logic
Unconditionally stable
Integrated shutdown control pin
Maintains OFF state with high Pin drive
+3V to +5V supply; does not require -Vgg
Pin 1 Reference Mark
Vbias
1
8
NC
RF In
2
7
RF Out
NC
3
6
Shut Down
NC
4
5
NC
Backside Paddle - RF/DC GND
General Description
Pin Configuration
The TQL9092 is a flat-gain, high-linearity, ultra-low noise
amplifier in a small 2 x 2 mm surface-mount package.
The LNA provides a gain flatness of 2 dB (peak-to-peak)
over a wide bandwidth from 1.5 to 3.6GHz. At 2.6 GHz,
the amplifier typically provides 22.6 dB gain, +39.5 dBm
OIP3 at a 65 mA bias setting, and 0.6 dB noise figure.
The LNA can be biased from a single positive supply
ranging from 3.3 to 5 volts. The device is housed in a
green/RoHS-compliant industry-standard 2x2 mm
package.
Pin No.
Label
1
3, 4, 5, 8
2
6
7
Backside Paddle
Vbias
No Connect or GND
RF In
Shut Down
RF Out
RF/DC GND
The TQL9092 is internally matched using a high
performance E-pHEMT process and only requires five
external components for operation from a single positive
supply: an external RF choke and blocking/bypass
capacitors and a bias resistor going to pin 1. This LNA
integrates a shut-down biasing capability to allow for
operation in TDD applications.
Ordering Information
The TQL9092 is optimized for linear performance across
the 1.5 to 4.2 GHz frequency band but can operate down
to 600 MHz.
Part No.
Description
TQL9092
TQL9092-PCB
Ultra low noise, Flat Gain LNA
0.6-4.2 GHz Evaluation Board
Standard T/R size = 2500 pieces on a 7” reel
Datasheet: Rev E 12-23-15
© 2015 TriQuint Semiconductor, Inc
- 1 of 9 -
Disclaimer: Subject to change without notice
www.triquint.com \ www.qorvo.com
TQL9092
Ultra Low Noise, Flat Gain LNA
RFMD + TriQuint = Qorvo
Absolute Maximum Ratings
Parameter
Recommended Operating Conditions
Rating
Storage Temperature
−65 to 150°C
Supply Voltage (VDD)
+7 V
RF Input Power, CW, 50Ω, T=25°C
+33 dBm
RF Input Power, WCDMA, 10dB PAR
+27 dBm
RF Input Power, CW, OFF State
+33 dBm
Operation of this device outside the parameter ranges
given above may cause permanent damage.
Parameter
Min
Typ
Supply Voltage (VDD)
TCASE
Tj for >106 hours MTTF
3.3
−40
5.0
Max Units
5.25
+105
+190
V
°C
°C
Electrical specifications are measured at specified test
conditions. Specifications are not guaranteed over all
recommended operating conditions.
Electrical Specifications
Test conditions unless otherwise noted: VDD =+5V, Temp=+25°C, 50 Ω system.
Parameter
Operational Frequency Range
Test Frequency
Gain
Gain Flatness
Input Return Loss
Output Return Loss
Conditions
Min
Typ
600
21
1500-3600MHz
Noise Figure(1)
Output P1dB
Output IP3
Pout=+5 dBm/tone, Δf=1 MHz
On state
Power Shutdown Control (pin 6)
Off state (Power down)
On state
Current, IDD
Off state (Power down)
VPD ≥ 1.17 V
Shutdown pin current, ISD
LNA ON to OFF
Switching Speed
LNA OFF to ON
channel to case
Thermal Resistance, θjc
+33
0
1.17
45
2600
22.6
2.0
11
17
0.65
+19
+37
65
3
140
583
216
48
Max
Units
4200
MHz
MHz
dB
dB
dB
dB
dB
dBm
dBm
V
V
mA
24.5
0.95
0.63
VDD
85
mA
µA
ns
ns
°C/W
Note: 1) Noise figure data has input trace loss de-embedded.
Datasheet: Rev E 12-23-15
© 2015 TriQuint Semiconductor, Inc
- 2 of 9 -
Disclaimer: Subject to change without notice
www.triquint.com \ www.qorvo.com
TQL9092
Ultra Low Noise, Flat Gain LNA
RFMD + TriQuint = Qorvo
S-Parameters
Test Conditions: VDD=+5 V, IDD=65 mA (typ.), T=+25°C, unmatched 50 ohm system, calibrated to device leads
Freq (GHz)
S11 (dB)
S11 (ang)
S21 (dB)
S21 (ang)
S12 (dB)
S12 (ang)
S22 (dB)
S22 (ang)
0.6
0.7
0.8
0.9
1
1.1
1.2
1.3
1.4
1.5
1.6
1.7
1.8
1.9
2
2.1
2.2
2.3
2.4
2.5
2.6
2.7
2.8
2.9
3
3.1
3.2
3.3
3.4
3.5
3.6
3.7
3.8
3.9
4
-11.76
-12.71
-13.48
-13.97
-14.17
-14.12
-13.85
-13.51
-13.22
-13.03
-12.87
-12.74
-12.57
-12.32
-12.15
-11.91
-11.84
-11.71
-11.58
-11.36
-10.75
-10.51
-9.95
-9.36
-8.79
-8.27
-7.79
-7.41
-7.15
-6.96
-6.82
-6.79
-6.81
-6.92
-7.10
-50.69
-50.64
-49.70
-47.94
-46.01
-44.61
-44.30
-45.93
-48.66
-52.44
-56.00
-60.59
-64.83
-70.61
-77.39
-85.11
-94.45
-103.32
-114.41
-125.29
-137.87
-152.17
-166.24
179.27
164.95
150.82
137.73
124.99
113.98
103.20
94.04
85.65
77.65
70.51
63.84
23.21
22.61
22.07
21.62
21.24
20.95
20.72
20.57
20.45
20.40
20.40
20.44
20.53
20.65
20.82
21.01
21.26
21.48
21.77
22.03
22.35
22.54
22.71
22.86
22.88
22.83
22.61
22.32
21.90
21.40
20.87
20.27
19.67
19.02
18.40
75.64
64.33
53.89
44.25
35.23
26.72
18.67
10.97
3.55
-3.55
-10.53
-17.40
-24.24
-31.05
-37.89
-44.83
-51.96
-59.27
-66.85
-74.82
-83.11
-92.23
-101.40
-111.02
-121.01
-131.17
-141.31
-151.26
-160.90
-169.96
-178.58
173.50
166.05
159.20
152.87
-32.67
-32.32
-32.07
-31.88
-31.74
-31.66
-31.60
-31.58
-31.58
-31.60
-31.66
-31.73
-31.81
-31.91
-32.00
-32.11
-32.22
-32.33
-32.45
-32.56
-32.51
-32.96
-33.19
-33.45
-33.76
-34.10
-34.47
-34.84
-35.23
-35.60
-35.91
-36.16
-36.31
-36.36
-36.34
3.34
-0.10
-3.77
-7.51
-11.34
-15.27
-19.21
-23.13
-27.21
-31.21
-35.36
-39.63
-44.05
-48.65
-53.53
-58.82
-64.28
-70.14
-76.66
-83.41
-92.09
-100.23
-109.01
-118.56
-128.78
-139.39
-150.14
-160.90
-171.42
178.70
169.44
161.01
153.47
146.55
140.32
-17.78
-19.37
-21.01
-22.57
-24.09
-25.21
-25.32
-24.42
-23.14
-22.30
-21.21
-20.45
-19.74
-19.19
-18.89
-18.73
-18.88
-19.01
-19.75
-20.68
-22.11
-25.45
-29.13
-27.48
-22.59
-19.03
-16.31
-14.19
-12.59
-11.16
-10.25
-9.49
-8.97
-8.48
-8.08
-82.70
-95.95
-111.25
-127.54
-146.47
-170.38
163.93
142.26
125.62
112.36
99.97
90.85
80.82
74.07
65.49
57.48
49.58
40.16
31.25
19.64
1.63
-16.73
-56.17
-118.31
-154.88
-173.88
170.67
158.49
146.44
137.22
128.56
120.64
113.48
106.15
99.85
Noise Parameters
Test conditions unless otherwise noted: VDD=+5 V, IDD=65 mA (typ.), Temp=+25°C, 50 Ohm system
Freq (GHz)
NFmin (dB)
GammaOpt (mag)
GammaOpt (deg)
Rn (Ω)
1.7
0.44
0.21
41.22
3.91
1.8
0.43
0.21
43.79
3.97
1.9
0.44
0.17
52.37
3.64
2
0.46
0.16
52.59
3.65
2.1
0.46
0.16
52.28
3.80
2.2
0.47
0.14
65.48
3.57
2.3
0.48
0.16
64.17
3.46
2.4
0.51
0.15
69.57
3.54
2.5
0.54
0.12
87.09
3.25
2.6
0.56
0.11
97.35
3.14
2.7
0.58
0.06
103.92
3.45
Datasheet: Rev E 12-23-15
© 2015 TriQuint Semiconductor, Inc
- 3 of 9 -
Disclaimer: Subject to change without notice
www.triquint.com \ www.qorvo.com
TQL9092
Ultra Low Noise, Flat Gain LNA
RFMD + TriQuint = Qorvo
TQL9092-PCB Evaluation Board
J4 GND
J4
J5
C4
J3
C7
J3 VDD
R
3
1 uF
100 pF
C7
C3
L1
R4
J1
C1
C3
C4
100 pF
L1
18 nH
(0603) C2
R4
J2
C2
U1
R1
R2
C1
J1
1
2
RF
Input
100 pF
J2
7
Q1
6
RF
Output
100 pF
3,4,5,8
R2
0
J6
C5
J5 PD
R1
20K
J7
C6
See notes 4 & 5.
Notes:
1. See Evaluation Board PCB Information section for material and stack-up.
2. R3 (0 Ω jumper) is not shown on the schematic and may be replaced with copper trace in the target application layout.
3. All components are of 0402 size unless stated on the schematic.
4. For TDD Applications: R1 = 20K & R2 = 0Ω
5. For FDD Applications: R1 = 20K ‘OR’ Pin 6 tied to ground. R2 = DNP/Omitted
6. A through line is included on the evaluation board to de-embed the board losses.
7. R4 sets the current draw. Can be changed for the desired bias point. See table below.
Bill of Material – TQL9092-PCB
Reference Des.
N/A
U1
R4
R1
R2, 3
L1
C4
C1, C2, C3, C5, C6
Value
N/A
n/a
5.1K
20K
0Ω
18 nH
1.0 uF
100 pF
Description
Printed Circuit Board
Ultra Low Noise, Flat Gain LNA
Resistor, Chip, 0402, 5%, 1/16W
Resistor, chip, 0402, 5%, 1/16W
Resistor, Chip, 0402, 5%, 1/16W
Inductor, 0603, 5%, Ceramic
Cap., Chip, 0402, 10%, 10V, X5R
Cap., Chip, 0402, 5%, 50V, NPO/COG
Manuf.
Qorvo
Qorvo
various
various
various
various
various
various
Part Number
TQL9092
R4 Resistor Values for Various ICQ settings
ICQ (mA)
R4
45
9.2K
Datasheet: Rev E 12-23-15
© 2015 TriQuint Semiconductor, Inc
55
6.5K
65
5.1K
75
3.9K
- 4 of 9 -
85
3.1K
95
2.6K
105
2.2K
115
1.8K
Disclaimer: Subject to change without notice
www.triquint.com \ www.qorvo.com
TQL9092
Ultra Low Noise, Flat Gain LNA
RFMD + TriQuint = Qorvo
Typical Performance – TQL9092-PCB
Test conditions unless otherwise noted: VDD=+5 V, IDD=65 mA (typ.), Temp=+25°C
Parameter
Pout=+5 dBm/tone, ∆f=1 MHz
Pout=+5 dBm/tone, ∆f=1 MHz
IDD = 80 mA
OIP3
Noise figure
Typical Values
Conditions
Frequency
Gain
Input Return Loss
Output Return Loss
Output P1dB
OIP3
(1)
Units
900
22.8
13.5
33
+20.1
+34
1950
21.3
10
27
+20.2
+38.4
2600
22.6
10.5
17
+19
+39.2
3500
22.6
11.8
18
+18.3
+37.6
+40
+35.7
+34.7
+32.8
0.66
0.55
0.6
0.6
4200
18.3
9.2
10.2
+17.2
+35.8
MHz
dB
dB
dB
dBm
dBm
dBm
0.8
dB
Note: 1) Noise figure data has input trace loss de-embedded.
Performance Plots – TQL9092-PCB
Test conditions unless otherwise noted: VDD=+5 V, IDD = 65mA, Temp=+25°C. Noise figure data has input trace loss deembedded.
Gain vs. Frequency
26
Input Return Loss vs. Frequency
0
Output Return Loss vs. Frequency
0
+105°C
+105°C
Input Return Loss (dB)
−40°C
Gain (dB)
+25°C
-5
+25°C
24
23
22
21
20
-5
−40°C
Output Return Loss (dB)
25
-10
-15
-20
-25
19
18
500
1000
1500
2000
2500
3000
3500
4000
4500
500
1000
1500
2000
2500
3000
3500
4000
-20
4500
0
500
1000
1500
2000
2500
3000
OIP3 vs Frequency
Temp.=+25°C
Pout/tone = +5 dBm
+105°C
−40°C
−40°C
OIP3 (dBm)
0.8
0.6
0.4
40
OIP3 (dBm)
40
35
30
35
30
700 MHz
1500 MHz
1950 MHz
2600 MHz
3500 MHz
0.2
0.0
25
2100
2800
3500
4200
25
700
1400
Frequency (MHz)
2800
3500
4200
45
45
30
-10
25
-15
20
-20
15
+25°C
-25
10
−40°C
OIP3 (dBm)
Gain (dB)
+105°C
IDD (mA)
19
15
65
75
85
95
105
115
OIP3 vs Frequency
Pout/tone = +5 dBm
VDD = +3.3 V
Temp.=+25°C
R4 = 2.7K
40
17
55
ICQ (mA)
OFF State Gain & Current vs Pin
-5
21
P1dB (dBm)
2100
Frequency (MHz)
P1dB vs Frequency
23
4500
+25°C
1.0
1400
4000
OIP3 vs ICQ
45
Pout/tone = 5 dBm
+25°C
700
3500
Frequency (MHz)
45
+105°C
Noise Figure (dB)
−40°C
Frequency (MHz)
Noise Figure vs. Frequency
1.2
+25°C
-15
-30
0
Frequency (MHz)
1.4
+105°C
-25
-30
0
-10
ICQ = 65 mA
35
30
-30
5
Gain
IDD
13
-35
700
1400
2100
2800
3500
Frequency (MHz)
Datasheet: Rev E 12-23-15
© 2015 TriQuint Semiconductor, Inc
4200
0
-10
-5
0
5
10
15
Pin (dBm)
- 5 of 9 -
20
25
30
25
700
1400
2100
2800
3500
4200
Frequency (MHz)
Disclaimer: Subject to change without notice
www.triquint.com \ www.qorvo.com
TQL9092
Ultra Low Noise, Flat Gain LNA
RFMD + TriQuint = Qorvo
TQL9092 3.3V VDD Operation
This page provides performance data when operating at 3.3V VDD with 65mA and 80mA IDD. The
current level was adjusted with the following resistor setting on the evaluation board. Please refer
to pg. 4 for PCB schematic and layout.
R4 = 2.4K for IDD = 65mA
R4 = 1.6K for IDD = 80mA
Typical Performance – VDD = 3.3V
Test conditions unless otherwise noted: VDD=+3.3 V, Temp=+25°C
Parameter
Typical Values
Conditions
Frequency
IDD
Gain
Input Return Loss
Output Return Loss
Output P1dB
Pout=+5 dBm/tone, ∆f=1 MHz
OIP3
(1)
Noise figure
1950
65
21.5
10.5
26
+18.5
+36.8
0.43
Units
2600
80
21.5
10.5
26
+18.7
+35.7
0.42
65
22.4
10.5
18
+17.4
+40.2
0.52
3500
80
22.3
11
18
+17.6
+38.8
0.51
65
22.2
10
18
+16
+33.3
0.74
MHz
mA
dB
dB
dB
dBm
dBm
dB
80
22.4
11
20
+15.8
+35.3
0.74
Note: 1) Noise figure data has input trace loss de-embedded.
Performance Plots – TQL9092-PCB at VDD = 3.3V
Test conditions unless otherwise noted: VDD=+3.3 V, Temp=+25°C. Noise figure data has input trace loss de-embedded.
Gain vs. Frequency
26
Input Return Loss vs. Frequency
0
25
Output Return Loss vs. Frequency
0
-5
-5
-10
-10
22
21
|S22| (dB)
23
|S11| (dB)
Gain (dB)
24
-15
-20
-15
-20
20
-25
IDD = 80 mA
19
-25
IDD = 80 mA
IDD = 65 mA
IDD = 80 mA
IDD = 65 mA
18
IDD = 65 mA
-30
0
500
1000
1500
2000
2500
3000
3500
4000
4500
-30
0
500
1000
Frequency (MHz)
2000
2500
3000
3500
4000
4500
0
500
1000
Frequency (MHz)
OIP3 vs. Pout/tone (IDD = 65mA)
45
1500
2000
2500
3000
3500
4000
4500
Frequency (MHz)
OIP3 vs. Pout/tone (I DD = 80mA)
45
1500
Noise Figure vs Frequency
1.0
0.8
35
30
Noise Figure (dB)
40
OIP3 (dBm)
OIP3 (dBm)
40
35
0.6
0.4
30
1950 MHz
1950 MHz
2600 MHz
2600 MHz
3500 MHz
3500 MHz
25
0.2
IDD = 65 mA
IDD = 80 mA
25
3
4
5
Pout/Tone (dBm)
Datasheet: Rev E 12-23-15
© 2015 TriQuint Semiconductor, Inc
6
7
3
4
5
Pout/Tone (dBm)
- 6 of 9 -
6
7
0.0
1900
2100
2300
2500
2700
2900
3100
3300
3500
Frequency (MHz)
Disclaimer: Subject to change without notice
www.triquint.com \ www.qorvo.com
TQL9092
Ultra Low Noise, Flat Gain LNA
RFMD + TriQuint = Qorvo
Pin Configuration and Description
Pin 1 Reference Mark
Vbias
1
8
NC
RF In
2
7
RF Out
NC
3
6
Shut Down
NC
4
5
NC
Backside Paddle - RF/DC GND
Pin No.
Label
Description
1
Vbias
Sets the Icq bias point for the device.
2
RF In
RF Input pin. A DC Block is required.
A high voltage(>1.17V) turns off the device. If the pin is pulled to ground or driven
Shut Down
with a voltage less than 0.63V, then the device will operate under LNA ON state.
RF Output pin. DC bias will also need to be injected through a RF bias
RF Out / DCBias
choke/inductor for operation.
NC
No electrical connection. Provide grounded land pads for PCB mounting integrity.
RF/DC ground. Use recommended via pattern to minimize inductance and
RF/DC GND
thermal resistance; see PCB Mounting Pattern for suggested footprint.
6
7
3, 4, 5, 8
Backside
Paddle
Evaluation Board PCB Information
Qorvo PCB 1128449 Material and Stack-up
0.010"
0.062" ± 0.006"
Finished Board
Thickness
Rogers 4350B
εr=3.7 typ.
1 oz. Cu top layer
1 oz. Cu inner layer
Rogers 4450F
1 oz. Cu inner layer
0.010"
Rogers 4350B
1 oz. Cu bottom layer
50 ohm line dimensions: width = 0.020”, spacing = 0.032”
Datasheet: Rev E 12-23-15
© 2015 TriQuint Semiconductor, Inc
- 7 of 9 -
Disclaimer: Subject to change without notice
www.triquint.com \ www.qorvo.com
TQL9092
Ultra Low Noise, Flat Gain LNA
RFMD + TriQuint = Qorvo
Mechanical Information
Package Marking and Dimensions
Marking: Part number – 9092
Lot code – XXXX
9092
XXXX
Notes:
1. All dimensions are in millimeters. Angles are in degrees.
2. Except where noted, this part outline conforms to JEDEC standard MO-220, Issue E (Variation VGGC) for thermally enhanced
plastic very thin fine pitch quad flat no lead package (QFN).
3. Dimension and tolerance formats conform to ASME Y14.4M-1994.
4. The terminal #1 identifier and terminal numbering conform to JESD 95-1 SPP-012.
PCB Mounting Pattern
Notes:
1. All dimensions are in millimeters. Angles are in degrees.
2. Use 1 oz. copper minimum for top and bottom layer metal.
3. Vias are required under the backside paddle of this device for proper RF/DC grounding and thermal dissipation. We
recommend a 0.35mm (#80/.0135") diameter bit for drilling via holes and a final plated thru diameter of 0.25 mm (0.10”).
4. Ensure good package backside paddle solder attach for reliable operation and best electrical performance.
Datasheet: Rev E 12-23-15
© 2015 TriQuint Semiconductor, Inc
- 8 of 9 -
Disclaimer: Subject to change without notice
www.triquint.com \ www.qorvo.com
TQL9092
Ultra Low Noise, Flat Gain LNA
RFMD + TriQuint = Qorvo
Product Compliance Information
ESD Sensitivity Ratings
Solderability
Compatible with both lead-free (260 °C max. reflow
temperature) and tin/lead (245 °C max. reflow
temperature) soldering processes.
Caution! ESD-Sensitive Device
Contact plating: NiPdAu
ESD Rating:
Value:
Test:
Standard:
Class 1B
500V to 1000V
Charged Device Model (CDM)
JEDEC Standard JESD22-C101
RoHs Compliance
This part is compliant with EU 2002/95/EC RoHS
directive (Restrictions on the Use of Certain Hazardous
Substances in Electrical and Electronic Equipment).
This product also has the following attributes:
Lead Free
Halogen Free (Chlorine, Bromine)
Antimony Free
TBBP-A (C15H12Br402) Free
PFOS Free
SVHC Free
MSL Rating
MSL Rating: Level 1
Test:
260°C convection reflow
Standard:
JEDEC Standard IPC/JEDEC J-STD-020
Contact Information
For the latest specifications, additional product information, worldwide sales and distribution locations:
Web: www.triquint.com
Tel: 877-800-8584
Email: customer.support@qorvo.com
For information about the merger of RFMD and TriQuint as Qorvo:
Web: www.qorvo.com
For technical questions and application information:
Email: sjcapplications.engineering@qorvo.com
Important Notice
The information contained herein is believed to be reliable. Qorvo makes no warranties regarding the information
contained herein. Qorvo assumes no responsibility or liability whatsoever for any of the information contained herein.
Qorvo assumes no responsibility or liability whatsoever for the use of the information contained herein. The
information contained herein is provided "AS IS, WHERE IS" and with all faults, and the entire risk associated with
such information is entirely with the user. All information contained herein is subject to change without notice.
Customers should obtain and verify the latest relevant information before placing orders for Qorvo products. The
information contained herein or any use of such information does not grant, explicitly or implicitly, to any party any
patent rights, licenses, or any other intellectual property rights, whether with regard to such information itself or
anything described by such information.
Qorvo products are not warranted or authorized for use as critical components in medical, life-saving, or life-sustaining
applications, or other applications where a failure would reasonably be expected to cause severe personal injury or
death.
Datasheet: Rev E 12-23-15
© 2015 TriQuint Semiconductor, Inc
- 9 of 9 -
Disclaimer: Subject to change without notice
www.triquint.com \ www.qorvo.com
工商网监
湘ICP备2023018690号
