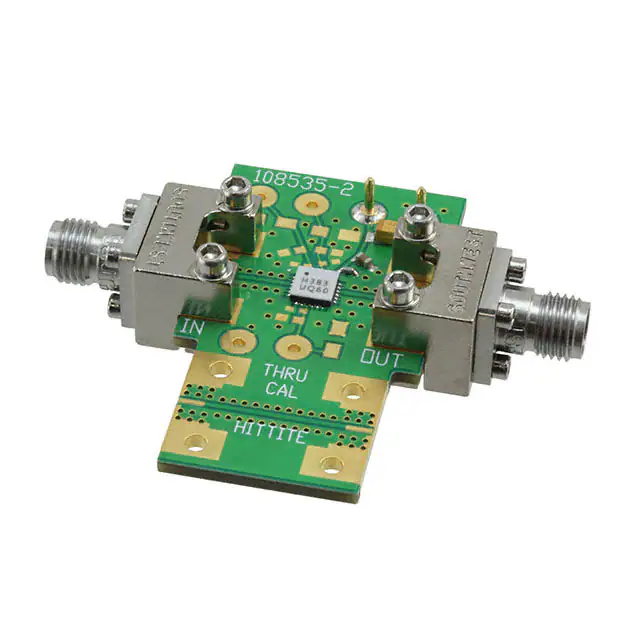

HMC383LC4 v05.0514 LINEAR & POWER AMPLIFIERS - SMT GaAs PHEMT MMIC MEDIUM POWER AMPLIFIER, 12 - 30 GHz Typical Applications Features The HMC383LC4 is ideal for: Gain: 15 dB • Point-to-Point Radios Saturated Output Power: +18 dBm • Point-to-Multi-Point Radios & VSAT Output IP3: +25 dBm • Test Equipment & Sensors Single Positive Supply: +5V @ 100 mA • LO Driver for HMC Mixers 50 Ohm Matched Input/Output • Military & Space RoHS Compliant 4x4 mm Package Functional Diagram General Description The HMC383LC4 is a general purpose GaAs PHEMT MMIC Driver Amplifier housed in a leadless RoHS compliant SMT package. The amplifier provides 15 dB of gain and +18 dBm of saturated power from a single +5V supply. Consistent gain and output power across the operating band make it possible to use a common driver/LO amplifier approach in multiple radio bands. The RF I/Os are DC blocked and matched to 50 Ohms for ease of use. The HMC383LC4 is housed in a RoHS compliant leadless 4x4 mm package allowing the use of surface mount manufacturing techniques. Electrical Specifications, TA = +25° C, Vdd = +5V Parameter Min. Frequency Range Gain 12 Gain Variation Over Temperature Max. Min. 15 0.02 Typ. Max. Min. 16 -24 13 0.03 16 0.02 Typ. Max. Min. 24 - 28 12 0.03 15 0.02 Typ. Max. 28 - 30 10 0.03 GHz 13 0.02 Units dB 0.03 dB/ °C Input Return Loss 14 14 11 13 dB Output Return Loss 14 17 10 8 dB 15 dBm 17 16 dBm dBm Output Power for 1 dB Compression (P1dB) 12 Saturated Output Power (Psat) Output Third Order Intercept (IP3) Noise Figure Supply Current (Idd) 1 Typ. 12 - 16 75 15 13.5 16.5 13 16 12 17 18 24 25 25 23 10.5 8 7.5 8 100 135 75 100 135 75 100 135 75 100 dB 135 mA Information furnished by Analog Devices is believed to be accurate and reliable. However, no For price, 2delivery, and to placeChelmsford, orders: Analog MA Devices, Inc., For price, delivery and to place orders: Microwave Corporation, Elizabeth Drive, 01824 responsibility is assumed by Analog Devices for its use, nor for anyHittite infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 rights of third parties that may result from its use. Specifications subject to change without notice. No Phone: 978-250-3343 Fax: 978-250-3373 Phone: Order781-329-4700 On-line at www.hittite.com • Order online at www.analog.com license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Application Support: Phone: 1-800-ANALOG-D Trademarks and registered trademarks are the property of their respective owners. Application Support: Phone: 978-250-3343 or apps@hittite.com HMC383LC4 v05.0514 GaAs PHEMT MMIC MEDIUM POWER AMPLIFIER, 12 - 30 GHz Broadband Gain & Return Loss Gain vs. Temperature 16 GAIN (dB) RESPONSE (dB) 10 S21 S11 S22 0 -10 12 8 +25C +85C -40C 4 0 -20 8 12 16 20 24 28 12 32 14 16 18 20 22 Input Return Loss vs. Temperature 28 30 0 +25C -5 +85C -40C RETURN LOSS (dB) RETURN LOSS (dB) 26 Output Return Loss vs. Temperature 0 -10 -15 -20 +25C +85C -5 -40C -10 -15 -20 12 14 16 18 20 22 24 26 28 30 12 14 16 FREQUENCY (GHz) 18 20 22 24 26 28 26 28 30 FREQUENCY (GHz) P1dB vs. Temperature Psat vs. Temperature 22 22 20 20 18 18 16 16 14 14 Psat (dBm) P1dB (dBm) 24 FREQUENCY (GHz) FREQUENCY (GHz) LINEAR & POWER AMPLIFIERS - SMT 20 20 12 10 8 +25C +85C -40C 6 4 12 +25C +85C -40C 10 8 6 4 2 2 0 0 12 14 16 18 20 22 24 FREQUENCY (GHz) 26 28 30 12 14 16 18 20 22 24 30 FREQUENCY (GHz) Information furnished by Analog Devices is believed to be accurate and reliable. However, no For price, 2delivery, and to placeChelmsford, orders: Analog MA Devices, Inc., For price, delivery and to place orders: Microwave Corporation, Elizabeth Drive, 01824 responsibility is assumed by Analog Devices for its use, nor for anyHittite infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 rights of third parties that may result from its use. Specifications subject to change without notice. No Phone: 978-250-3343 Fax: 978-250-3373 Phone: Order781-329-4700 On-line at www.hittite.com • Order online at www.analog.com license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Application Support: Phone: 1-800-ANALOG-D Trademarks and registered trademarks are the property of their respective owners. Application Support: Phone: 978-250-3343 or apps@hittite.com 2 HMC383LC4 v05.0514 GaAs PHEMT MMIC MEDIUM POWER AMPLIFIER, 12 - 30 GHz 20 18 18 Pout (dBm), GAIN (dB), PAE (%) Pout (dBm), GAIN (dB), PAE (%) Power Compression @ 30 GHz 20 16 14 Pout (dBm) Gain (dB) PAE (%) 12 10 8 6 4 2 0 -16 -14 -12 -10 Pout (dBm) Gain (dB) PAE (%) 16 14 12 10 8 6 4 2 0 -14 -8 -6 -4 -2 0 2 4 6 -12 -10 8 -6 -4 -2 0 2 4 6 8 28 30 28 30 INPUT POWER (dBm) Output IP3 vs. Temperature Noise Figure vs. Temperature 30 NOISE FIGURE (dB) 26 22 +25C +85C -40C 18 14 10 12 15 18 21 24 27 13 12 11 10 9 8 7 6 5 4 3 2 1 0 30 +25C +85C -40C 12 14 16 FREQUENCY (GHz) 22 24 26 0 -10 18 ISOLATION (dB) GAIN (dB), P1dB (dBm), Psat (dBm) 20 Reverse Isolation vs. Temperature 19 17 16 15 14 4.5 18 FREQUENCY (GHz) Gain & Power vs. Supply Voltage @ 18 GHz Gain P1dB Psat -20 +25C +85C -40C -30 -40 -50 -60 -70 5 Vdd Supply Voltage (Vdc) 3 -8 INPUT POWER (dBm) IP3 (dBm) LINEAR & POWER AMPLIFIERS - SMT Power Compression @ 18 GHz 5.5 12 14 16 18 20 22 24 26 FREQUENCY (GHz) Information furnished by Analog Devices is believed to be accurate and reliable. However, no For price, 2delivery, and to placeChelmsford, orders: Analog MA Devices, Inc., For price, delivery and to place orders: Microwave Corporation, Elizabeth Drive, 01824 responsibility is assumed by Analog Devices for its use, nor for anyHittite infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 rights of third parties that may result from its use. Specifications subject to change without notice. No Phone: 978-250-3343 Fax: 978-250-3373 Phone: Order781-329-4700 On-line at www.hittite.com • Order online at www.analog.com license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Application Support: Phone: 1-800-ANALOG-D Trademarks and registered trademarks are the property of their respective owners. Application Support: Phone: 978-250-3343 or apps@hittite.com HMC383LC4 v05.0514 GaAs PHEMT MMIC MEDIUM POWER AMPLIFIER, 12 - 30 GHz Typical Supply Current vs. Vdd Drain Bias Voltage (Vdd) +5.5 Vdc Vdd (V) Idd (mA) RF Input Power (RFIN)(Vdd = +5Vdc) +10 dBm +4.5 99 Channel Temperature 175 °C +5.0 100 +5.5 101 Continuous Pdiss (T= 85 °C) (derate 10 mW/°C above 85 °C) 0.92 W Thermal Resistance (channel to ground paddle) 98 °C/W Storage Temperature -65 to +150 °C Operating Temperature -40 to +85 °C ESD Sensitivity (HBM) Class 1A Note: Amplifier will operate over full voltage ranges shown above ELECTROSTATIC SENSITIVE DEVICE OBSERVE HANDLING PRECAUTIONS Outline Drawing LINEAR & POWER AMPLIFIERS - SMT Absolute Maximum Ratings NOTES: 1. PACKAGE BODY MATERIAL: ALUMINA 2. LEAD AND GROUND PADDLE PLATING: 30-80 MICROINCHES GOLD OVER 50 MICROINCHES MINIMUM NICKEL. 3. ALL DIMENSIONS ARE IN INCHES [MM] 4. LEAD SPACING TOLERANCE IS NON-CUMULATIVE 5. PACKAGE WARP SHALL NOT EXCEED 0.05mm DATUM -C6. ALL GROUND LEADS AND GROUND PADDLE MUST BE SOLDERED TO PCB RF GROUND Package Information Part Number Package Body Material Lead Finish HMC383LC4 Alumina, White Gold over Nickel MSL Rating MSL3 [1] Package Marking [2] H383 XXXX [1] Max peak reflow temperature of 260 °C [2] 4-Digit lot number XXXX Information furnished by Analog Devices is believed to be accurate and reliable. However, no For price, 2delivery, and to placeChelmsford, orders: Analog MA Devices, Inc., For price, delivery and to place orders: Microwave Corporation, Elizabeth Drive, 01824 responsibility is assumed by Analog Devices for its use, nor for anyHittite infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 rights of third parties that may result from its use. Specifications subject to change without notice. No Phone: 978-250-3343 Fax: 978-250-3373 Phone: Order781-329-4700 On-line at www.hittite.com • Order online at www.analog.com license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Application Support: Phone: 1-800-ANALOG-D Trademarks and registered trademarks are the property of their respective owners. Application Support: Phone: 978-250-3343 or apps@hittite.com 4 HMC383LC4 v05.0514 GaAs PHEMT MMIC MEDIUM POWER AMPLIFIER, 12 - 30 GHz Pin Descriptions LINEAR & POWER AMPLIFIERS - SMT Pin Number 5 Function Description 1, 2, 4 - 15, 17, 18, 20 - 24 N/C No connection required. These pins may be connected to RF/DC ground without affecting performance if using grounded coplanar wave guide transmission lines. 3 RFIN This pad is AC coupled and matched to 50 Ohms. 16 RFOUT This pad is AC coupled and matched to 50 Ohms. 19 Vdd Power Supply Voltage for the amplifier. External bypass capacitors of 100 pF, 1,000 pF and 2.2 µF are required. GND Package base has an exposed metal ground that must be connected to RF/DC ground. Vias under the device are required Interface Schematic Application Circuit Component Value C1 100 pF C2 1,000 pF C3 2.2 µF Information furnished by Analog Devices is believed to be accurate and reliable. However, no For price, 2delivery, and to placeChelmsford, orders: Analog MA Devices, Inc., For price, delivery and to place orders: Microwave Corporation, Elizabeth Drive, 01824 responsibility is assumed by Analog Devices for its use, nor for anyHittite infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 rights of third parties that may result from its use. Specifications subject to change without notice. No Phone: 978-250-3343 Fax: 978-250-3373 Phone: Order781-329-4700 On-line at www.hittite.com • Order online at www.analog.com license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Application Support: Phone: 1-800-ANALOG-D Trademarks and registered trademarks are the property of their respective owners. Application Support: Phone: 978-250-3343 or apps@hittite.com HMC383LC4 v05.0514 GaAs PHEMT MMIC MEDIUM POWER AMPLIFIER, 12 - 30 GHz LINEAR & POWER AMPLIFIERS - SMT Evaluation PCB List of Materials for Evaluation PCB 122198 Item Description J1, J2 2.92 mm PCB mount K-connector J3, J4 DC Pin C1 100 pF capacitor, 0402 pkg. C2 1,000 pF Capacitor, 0603 pkg. C3 2.2µF Capacitor, Tantalum U1 HMC383LC4 Amplifier PCB [2] 108535 Evaluation PCB [1] Reference this number when ordering complete evaluation PCB [2] Circuit Board Material: Rogers 4350. [1] The circuit board used in this application should use RF circuit design techniques. Signal lines should have 50 Ohm impedance while the package ground leads and exposed paddle should be connected directly to the ground plane similar to that shown. A sufficient number of via holes should be used to connect the top and bottom ground planes. The evaluation board should be mounted to an appropriate heat sink. The evaluation circuit board shown is available from Hittite upon request. Information furnished by Analog Devices is believed to be accurate and reliable. However, no For price, 2delivery, and to placeChelmsford, orders: Analog MA Devices, Inc., For price, delivery and to place orders: Microwave Corporation, Elizabeth Drive, 01824 responsibility is assumed by Analog Devices for its use, nor for anyHittite infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 rights of third parties that may result from its use. Specifications subject to change without notice. No Phone: 978-250-3343 Fax: 978-250-3373 Phone: Order781-329-4700 On-line at www.hittite.com • Order online at www.analog.com license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Application Support: Phone: 1-800-ANALOG-D Trademarks and registered trademarks are the property of their respective owners. Application Support: Phone: 978-250-3343 or apps@hittite.com 6
