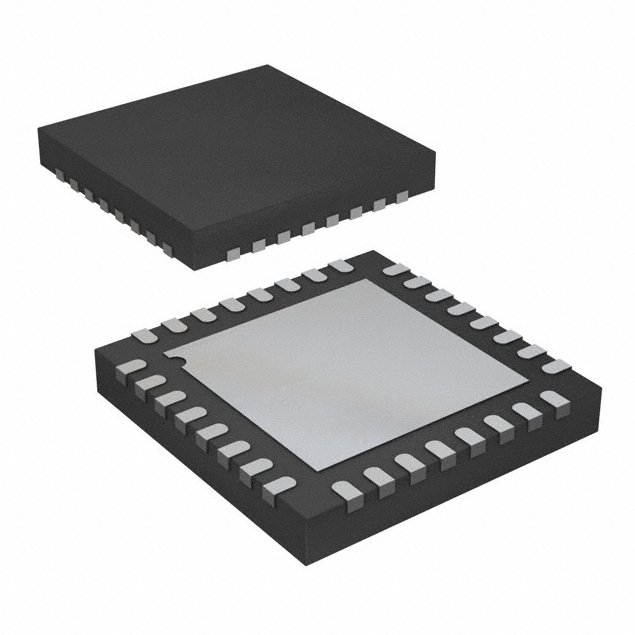

AD7124-4BCPZ

4-Channel, Low Noise, Low Power, 24-Bit, Sigma-Delta ADC with PGA and Reference AD7124-4 Data Sheet FEATURES Low-side power switch General-purpose outputs Multiple filter options Internal temperature sensor Self and system calibration Sensor burnout detection Automatic channel sequencer Per channel configuration Power supply: 2.7 V to 3.6 V and ±1.8 V Independent interface power supply Power-down current: 5 µA maximum Temperature range: −40°C to +125°C 32-lead LFCSP/24-lead TSSOP 3-wire or 4-wire serial interface SPI, QSPI, MICROWIRE, and DSP compatible Schmitt trigger on SCLK ESD: 4 kV 3 power modes RMS noise Low power: 24 nV rms at 1.17 SPS, gain = 128 (255 µA typical) Mid power: 20 nV rms at 2.34 SPS, gain = 128 (355 µA typical) Full power: 23 nV rms at 9.4 SPS, gain = 128 (930 µA typical) Up to 22 noise free bits in all power modes (gain = 1) Output data rate Full power: 9.38 SPS to 19,200 SPS Mid power: 2.34 SPS to 4800 SPS Low power: 1.17 SPS to 2400 SPS Rail-to-rail analog inputs for gains > 1 Simultaneous 50 Hz/60 Hz rejection at 25 SPS (single cycle settling) Diagnostic functions (which aid safe integrity level (SIL) certification) Crosspoint multiplexed analog inputs 4 differential/7 pseudo differential inputs Programmable gain (1 to 128) Band gap reference with 10 ppm/°C drift maximum (70 µA) Matched programmable excitation currents Internal clock oscillator On-chip bias voltage generator APPLICATIONS Temperature measurement Pressure measurement Industrial process control Instrumentation Smart transmitters FUNCTIONAL BLOCK DIAGRAM 1.9V LDO REGCAPA VBIAS BANDGAP REF AVDD AVSS CROSSPOINT MUX AIN2/IOUT/VBIAS/P1 BUF BURNOUT DETECT AIN4/IOUT/VBIAS PGA1 24-BIT Σ-Δ ADC PGA2 BUF AIN5/IOUT/VBIAS 1.8V LDO REFERENCE BUFFERS AIN1/IOUT/VBIAS AIN3/IOUT/VBIAS/P2 REFIN2(+) REFIN2(–) AVSS AVDD AIN0/IOUT/VBIAS IOVDD REGCAPD REFIN1(+) REFIN1(–) REFOUT VARIABLE DIGITAL FILTER SERIAL INTERFACE AND CONTROL LOGIC X-MUX ANALOG BUFFERS AVSS CHANNEL SEQUENCER GPOs TEMPERATURE SENSOR DIAGNOSTICS PSW POWER SWITCH SCLK CS AIN6/IOUT/VBIAS/REFIN2(+) AIN7/IOUT/VBIAS/REFIN2(–) DOUT/RDY DIN AVDD SYNC DIAGNOSTICS COMMUNICATIONS POWER SUPPLY SIGNAL CHAIN DIGITAL EXCITATION CURRENTS INTERNAL CLOCK AD7124-4 AVSS AVSS DGND CLK 13197-001 AVDD Figure 1. Rev. D Document Feedback Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Trademarks and registered trademarks are the property of their respective owners. One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. Tel: 781.329.4700 ©2015–2018 Analog Devices, Inc. All rights reserved. Technical Support www.analog.com AD7124-4 Data Sheet TABLE OF CONTENTS Features .............................................................................................. 1 Calibration................................................................................... 53 Applications ....................................................................................... 1 Span and Offset Limits .............................................................. 54 Functional Block Diagram .............................................................. 1 System Synchronization ............................................................ 54 Revision History ............................................................................... 3 Digital Filter .................................................................................... 55 General Description ......................................................................... 5 Sinc4 Filter ................................................................................... 55 Specifications..................................................................................... 6 Sinc3 Filter ................................................................................... 57 Timing Characteristics .............................................................. 11 Fast Settling Mode (Sinc4 + Sinc1 Filter) .................................. 59 Absolute Maximum Ratings .......................................................... 14 Fast Settling Mode (Sinc3 + Sinc1 Filter) .................................. 61 Thermal Resistance .................................................................... 14 Post Filters ................................................................................... 63 ESD Caution ................................................................................ 14 Summary of Filter Options ....................................................... 66 Pin Configurations and Function Descriptions ......................... 15 Diagnostics ...................................................................................... 67 Typical Performance Characteristics ........................................... 18 Signal Chain Check .................................................................... 67 Terminology .................................................................................... 27 Reference Detect ......................................................................... 67 RMS Noise and Resolution............................................................ 28 Calibration, Conversion, and Saturation Errors .................... 67 Full Power Mode ......................................................................... 28 Overvoltage/Undervoltage Detection ..................................... 67 Mid Power Mode ........................................................................ 31 Power Supply Monitors ............................................................. 68 Low Power Mode ........................................................................ 34 LDO Monitoring ........................................................................ 68 Getting Started ................................................................................ 37 MCLK Counter ........................................................................... 68 Overview...................................................................................... 37 SPI SCLK Counter...................................................................... 68 Power Supplies ............................................................................ 38 SPI Read/Write Errors ............................................................... 69 Digital Communication............................................................. 38 SPI_IGNORE Error ................................................................... 69 Configuration Overview ........................................................... 40 Checksum Protection ................................................................ 69 ADC Circuit Information .............................................................. 45 Memory Map Checksum Protection ....................................... 69 Analog Input Channel ............................................................... 45 ROM Checksum Protection...................................................... 70 External Impedance When Using a Gain of 1 ........................ 46 Burnout Currents ....................................................................... 71 Programmable Gain Array (PGA) ........................................... 47 Temperature Sensor ................................................................... 71 Reference ..................................................................................... 47 Grounding and Layout .................................................................. 72 Bipolar/Unipolar Configuration .............................................. 47 Applications Information .............................................................. 73 Data Output Coding .................................................................. 48 Temperature Measurement Using a Thermocouple .............. 73 Excitation Currents .................................................................... 48 Temperature Measurement Using an RTD ............................. 74 Bridge Power-Down Switch ...................................................... 49 Flowmeter.................................................................................... 76 Logic Outputs.............................................................................. 49 On-Chip Registers .......................................................................... 78 Bias Voltage Generator .............................................................. 49 Communications Register......................................................... 79 Clock ............................................................................................ 49 Status Register ............................................................................. 79 Power Modes ............................................................................... 49 ADC_CONTROL Register ....................................................... 80 Standby and Power-Down Modes ............................................ 49 Data Register ............................................................................... 82 Digital Interface .......................................................................... 50 IO_CONTROL_1 Register........................................................ 82 DATA_STATUS .......................................................................... 52 IO_CONTROL_2 Register........................................................ 84 Serial Interface Reset (DOUT_RDY_DEL and CS_EN Bits) 52 ID Register................................................................................... 84 Reset ............................................................................................. 52 Error Register .............................................................................. 84 Rev. D | Page 2 of 93 Data Sheet AD7124-4 ERROR_EN Register ..................................................................85 Offset Registers............................................................................ 91 MCLK_COUNT Register ..........................................................87 Gain Registers .............................................................................. 91 Channel Registers........................................................................87 Outline Dimensions ........................................................................ 92 Configuration Registers .............................................................89 Ordering Guide ........................................................................... 93 Filter Registers .............................................................................90 REVISION HISTORY 6/2018—Rev. C to Rev. D Changes to Features Section ............................................................ 1 Changes to General Description Section ....................................... 5 Added Table 1; Renumbered Sequentially ..................................... 5 Changes to Drift Parameter, External REFIN Voltage Parameter, and Note 12, Table 3.......................................................................... 8 Changes to Table 7 ..........................................................................16 Changes to Figure 13 and Figure 15 .............................................18 Changes to Figure 44, Figure 45, and Figure 46 ..........................23 Changes to Reference Section........................................................37 Changes to Accessing the ADC Register Map Section and Reset Column, Table 39 ............................................................................39 Changes to External Impedance When Using a Gain of 1 Section ..............................................................................................46 Changes to Reference Section........................................................47 Changes to Standby and Power-Down Modes Section ..............49 Changes to Calibration Section .....................................................53 Change to Sinc3 Output Data Rate and Settling Time Section .57 Change to Calibration, Conversion, and Saturation Errors Section .......................................................................................................... 67 Changes to MCLK Counter Section .............................................68 Changes to Memory Map Checksum Protection Section .........69 Changes to Reset Column and Note 1, Table 64 .........................78 Changes to Description Column, Table 68 ..................................81 Changes to ID Register Section .....................................................84 Changes to Description Column, Table 73 ..................................87 Changes to Description Column, Table 74 ..................................88 Changes to Configuration Registers Section ...............................89 Updated Outline Dimensions ........................................................92 Changes to Ordering Guide ...........................................................93 7/2016—Rev. B to Rev. C Change to Features Section .............................................................. 1 Changes to Specifications Section and Table 2.............................. 5 Changes to Table 4 ..........................................................................13 Change to Table 8 ............................................................................27 Changes to Table 9 and Table 10 ...................................................28 Change to Table 25 ..........................................................................32 Changes to Table 28 ........................................................................33 Change to Table 29 ..........................................................................34 Changes to Accessing the ADC Register Map and Table 38 .....38 Changes to Diagnostics Section, Table 44, and Table 45 ...........41 Added External Impedance When Using a Gain of 1 Section, Figure 74, Figure 75, and Figure 76; Renumbered Sequentially .....45 Changes to Standby and Power-Down Modes Section ..............48 Changes to Single Conversion Mode Section ............................. 50 Changes to Continuous Read Mode Section ............................... 51 Changes to Sinc4 Output Data Rate/Settling Time Section ....... 54 Changes to Sinc4 Zero Latency Section ........................................ 55 Changes to Sinc3 Output Data Rate and Settling Time Section ......56 Changes to Sinc3 Zero Latency Section ........................................ 57 Change to Output Data Rate and Settling Time, Sinc4 + Sinc1 Filter Section .................................................................................... 59 Change to Output Data Rate and Settling Time, Sinc3 + Sinc1 Filter Section .................................................................................... 60 Changes to SPI_IGNORE Error Section ...................................... 68 Added ROM Checksum Protection Section................................ 69 Changes to Table 63 ........................................................................ 77 Changes to ID Register Section and Error Register Section ..... 83 Changes to Table 70 and ERROR_EN Register Section ............ 84 Changes to Table 71 ........................................................................ 85 Changes to Table 73 ........................................................................ 87 12/2015—Rev. A to Rev. B Changed +105°C to +125°C .........................................Throughout Changes to Table 2 ............................................................................ 5 Added Endnote 4, Table 2; Renumbered Sequentially ............... 10 Changes to Figure 17 Through Figure 22 .................................... 18 Changes to Figure 23 Through Figure 26 .................................... 19 Changes to Figure 30, Figure 33, and Figure 34 .......................... 20 Changes to Figure 37 Through Figure 40 .................................... 21 Changes to Figure 41 Through Figure 46 .................................... 22 Changes to Figure 47 and Figure 48 ............................................. 23 Changes to Figure 64 ...................................................................... 25 Changes to Figure 126 .................................................................... 69 Change to Table 17 .......................................................................... 30 Changes to Reference Section ....................................................... 36 Changes to Accessing the ADC Register Map Section and Table 38 ............................................................................................. 38 Change to Table 63 .......................................................................... 76 Change to ID Register Section ...................................................... 82 Change to Table 73 .......................................................................... 85 Change to Table 73 .......................................................................... 86 Changes to the Ordering Guide .................................................... 90 7/2015—Rev. 0 to Rev. A Change to Data Sheet Title .............................................................. 1 Changes to Internal Reference Drift Parameter, Table 2 ............. 7 Changes to Figure 30 ...................................................................... 20 Change to Digital Outputs Section ............................................... 37 Rev. D | Page 3 of 93 AD7124-4 Data Sheet Change to Single Conversion Mode Section............................... 49 Changes to Calibration Section .................................................... 51 Changes to Figure 83 ...................................................................... 53 Changes to Figure 91 ...................................................................... 56 Changes to Figure 99 ...................................................................... 58 Changes to Figure 105 .................................................................... 60 Changes to Reference Detect Section and Figure 119 ............... 65 Change to Table 70 ......................................................................... 83 Changes to Table 71 ....................................................................... 84 5/2015—Revision 0: Initial Version Rev. D | Page 4 of 93 Data Sheet AD7124-4 GENERAL DESCRIPTION The AD7124-4 is a low power, low noise, completely integrated analog front end for high precision measurement applications. The device contains a low noise, 24-bit Σ-Δ analog-to-digital converter (ADC), and can be configured to have four differential inputs or seven single-ended or pseudo differential inputs. The on-chip low gain stage ensures that signals of small amplitude can be interfaced directly to the ADC. One of the major advantages of the AD7124-4 is that it gives the user the flexibility to employ one of three integrated power modes. The current consumption, range of output data rates, and rms noise can be tailored with the power mode selected. The device also offers a multitude of filter options, ensuring that the user has the highest degree of flexibility. The AD7124-4 can achieve simultaneous 50 Hz and 60 Hz rejection when operating at an output data rate of 25 SPS (single cycle settling), with rejection in excess of 80 dB achieved at lower output data rates. The AD7124-4 establishes the highest degree of signal chain integration. The device contains a precision, low noise, low drift internal band gap reference, and also accepts an external differential reference, which can be internally buffered. Other key integrated features include programmable low drift excitation current sources, burnout currents, and a bias voltage generator, which sets the common-mode voltage of a channel to AVDD/2. The low-side power switch enables the user to power down bridge sensors between conversions, ensuring the absolute minimal power consumption of the system. The device also allows the user the option of operating with either an internal clock or an external clock. The integrated channel sequencer allows several channels to be enabled simultaneously, and the AD7124-4 sequentially converts on each enabled channel, simplifying communication with the device. As many as 16 channels can be enabled at any time; a channel being defined as an analog input or a diagnostic such as a power supply check or a reference check. This unique feature allows diagnostics to be interleaved with conversions. The AD7124-4 also supports per channel configuration. The device allows eight configurations or setups. Each configuration consists of gain, filter type, output data rate, buffering, and reference source. The user can assign any of these setups on a channel by channel basis. The AD7124-4 also has extensive diagnostic functionality integrated as part of its comprehensive feature set. These diagnostics include a cyclic redundancy check (CRC), signal chain checks, and serial interface checks, which lead to a more robust solution. These diagnostics reduce the need for external components to implement diagnostics, resulting in reduced board space needs, reduced design cycle times, and cost savings. The failure modes effects and diagnostic analysis (FMEDA) of a typical application has shown a safe failure fraction (SFF) greater than 90% according to IEC 61508. The device operates with a single analog power supply from 2.7 V to 3.6 V or a dual 1.8 V power supply. The digital supply has a range of 1.65 V to 3.6 V. It is specified for a temperature range of −40°C to +125°C. The AD7124-4 is housed in a 32-lead LFCSP package and a 24-lead TSSOP package. Note that, throughout this data sheet, multifunction pins, such as DOUT/RDY, are referred to either by the entire pin name or by a single function of the pin, for example, RDY, when only that function is relevant. The AD7124-4 B grade has operational and performance differences from the AD7124-4. Table 1 lists these differences. Unless otherwise noted, all references to AD7124-4 refer to the device and not to the B grade. Table 1. Differences Between the AD7124-4 and the AD7124-4 B Grade Parameter LFCSP Package Height Internal Reference Drift Excitation Currents in Standby Mode Gain of 1, High Impedance Loads AD7124-4 0.75 mm 15 ppm/°C Disabled Impacts settling time when switching channels AD7124-4 B Grade 0.95 mm 10 ppm/°C Remain active if enabled Does not impact settling time when switching channels Table 2. AD7124-4 Overview Parameter Maximum Output Data Rate RMS Noise (Gain = 128) Peak-to-Peak Resolution at 1200 SPS (Gain = 1) Typical Current (ADC + PGA) Low Power Mode 2400 SPS 24 nV 16.4 bits Mid Power Mode 4800 SPS 20 nV 17.1 bits Full Power Mode 19,200 SPS 23 nV 18 bits 255 µA 355 µA 930 µA Rev. D | Page 5 of 93 AD7124-4 Data Sheet SPECIFICATIONS AVDD = 2.9 V to 3.6 V (full power mode), 2.7 V to 3.6 V (mid and low power mode), IOVDD = 1.65 V to 3.6 V, AVSS = DGND = 0 V, REFINx(+) = 2.5 V, REFINx(−) = AVSS, master clock = 614.4 kHz, all specifications TMIN to TMAX, unless otherwise noted. Table 3. Parameter1 ADC Output Data Rate, fADC Low Power Mode Mid Power Mode Full Power Mode No Missing Codes2 Min Typ 1.17 2.34 9.38 24 24 Max Unit 2400 4800 19,200 SPS SPS SPS Bits Bits ppm of FSR ppm of FSR FS3 > 2, sinc4 filter FS3 > 8, sinc3 filter See the RMS Noise and Resolution section See the RMS Noise and Resolution section Gain = 12 Gain > 14 ±15 200/gain In order of noise µV µV Gain = 1 to 8 Gain = 16 to 128 10 80 40 10 40 20 10 nV/°C nV/°C nV/°C nV/°C nV/°C nV/°C nV/°C Gain = 1 or gain > 16 Gain = 2 to 8 Gain = 16 Gain = 1 or gain > 16 Gain = 2 to 8 Gain = 16 % % % % Gain = 1, TA = 25°C Gain > 1 Gain = 2 to 8, TA = 25°C Gain = 16 to 128 Resolution RMS Noise and Update Rates Integral Nonlinearity (INL) −4 −15 Offset Error5 Before Calibration After Internal Calibration/System Calibration Offset Error Drift vs. Temperature6 Low Power Mode Mid Power Mode Full Power Mode Gain Error5, 7 Before Internal Calibration After Internal Calibration After System Calibration Gain Error Drift vs. Temperature Power Supply Rejection Low Power Mode Mid Power Mode2 Full Power Mode Common-Mode Rejection8 At DC2 Sinc3, Sinc4 Filter2 At 50 Hz, 60 Hz At 50 Hz At 60 Hz ±1 ±2 −0.0025 −0.016 +4 +15 +0.0025 −0.3 +0.004 ±0.025 In order of noise 1 +0.016 2 87 96 92 100 99 85 105 1029, 2 115 1059, 2 Test Conditions/Comments ppm/°C dB dB dB dB dB 90 115 120 120 120 120 Rev. D | Page 6 of 93 AIN = 1 V/gain, external reference Gain = 2 to 16 Gain = 1 or gain > 16 Gain = 2 to 16 Gain = 1 or gain > 16 dB dB dB dB dB AIN = 1 V, gain = 1 AIN = 1 V/gain, gain 2 or 4 AIN = 1 V/gain, gain 2 or 4 AIN = 1 V/gain, gain ≥ 8 AIN = 1 V/gain, gain ≥ 8 dB dB dB 10 SPS, 50 Hz ± 1 Hz, 60 Hz ± 1 Hz 50 SPS, 50 Hz ± 1 Hz 60 SPS, 60 Hz ± 1 Hz Data Sheet Parameter1 Fast Settling Filters2 At 50 Hz At 60 Hz Post Filters2 At 50 Hz, 60 Hz Normal Mode Rejection2 Sinc4 Filter External Clock At 50 Hz, 60 Hz At 50 Hz At 60 Hz Internal Clock At 50 Hz, 60 Hz At 50 Hz At 60 Hz Sinc3 Filter External Clock At 50 Hz, 60 Hz At 50 Hz At 60 Hz Internal Clock At 50 Hz, 60 Hz At 50 Hz At 60 Hz Fast Settling Filters External Clock At 50 Hz At 60 Hz Internal Clock At 50 Hz At 60 Hz Post Filters External Clock At 50 Hz, 60 Hz Internal Clock At 50 Hz, 60 Hz AD7124-4 Min Unit Test Conditions/Comments 115 115 dB dB First notch at 50 Hz, 50 Hz ± 1 Hz First notch at 60 Hz, 60 Hz ± 1 Hz 130 130 dB dB 20 SPS, 50 Hz ± 1 Hz, 60 Hz ± 1 Hz 25 SPS, 50 Hz ± 1 Hz, 60 Hz ± 1 Hz 120 80 dB dB 120 120 dB dB 10 SPS, 50 Hz ± 1 Hz, 60 Hz ± 1 Hz 50 SPS, REJ6010=1, 50 Hz ± 1 Hz, 60 Hz ± 1 Hz 50 SPS, 50 Hz ± 1 Hz 60 SPS, 60 Hz ± 1 Hz 98 66 dB dB 92 92 dB dB 100 65 dB dB 100 100 dB dB 73 52 dB dB 68 68 dB dB 10 SPS, 50 Hz ± 1 Hz, 60 Hz ± 1 Hz 50 SPS, REJ6010 = 1, 50 Hz ± 1 Hz, 60 Hz ± 1 Hz 50 SPS, 50 Hz ± 1 Hz 60 SPS, 60 Hz ± 1 Hz 40 40 dB dB First notch at 50 Hz, 50 Hz ± 0.5 Hz First notch at 60 Hz, 60 Hz ± 0.5 Hz 24.5 24.5 dB dB First notch at 50 Hz, 50 Hz ± 0.5 Hz First notch at 60 Hz, 60 Hz ± 0.5 Hz 86 62 dB dB 20 SPS, 50 Hz ± 1 Hz, 60 Hz ± 1 Hz 25 SPS, 50 Hz ± 1 Hz, 60 Hz ± 1 Hz 67 50 dB dB 20 SPS, 50 Hz ± 1 Hz, 60 Hz ± 1 Hz 25 SPS, 50 Hz ± 1 Hz, 60 Hz ± 1 Hz V VREF = REFINx(+) − REFINx(−), or internal reference ANALOG INPUTS11 Differential Input Voltage Ranges12 Absolute AIN Voltage Limits2 Gain = 1 (Unbuffered) Gain = 1 (Buffered) Gain > 1 Typ Max ±VREF/gain AVSS − 0.05 AVSS + 0.1 AVSS − 0.05 AVDD + 0.05 AVDD − 0.1 AVDD + 0.05 Rev. D | Page 7 of 93 V V V 10 SPS, 50 Hz ± 1 Hz, 60 Hz ± 1 Hz 50 SPS, REJ6010 = 1, 50 Hz ± 1 Hz, 60 Hz ± 1 Hz 50 SPS, 50 Hz ± 1 Hz 60 SPS, 60 Hz ± 1 Hz 10 SPS, 50 Hz ± 1 Hz, 60 Hz ± 1 Hz 50 SPS, REJ6010 = 1, 50 Hz ± 1 Hz, 60 Hz ± 1 Hz 50 SPS, 50 Hz ± 1 Hz 60 SPS, 60 Hz ± 1 Hz AD7124-4 Parameter1 Analog Input Current Gain > 1 or Gain = 1 (Buffered) Low Power Mode Absolute Input Current Differential Input Current Analog Input Current Drift Mid Power Mode Absolute Input Current Differential Input Current Analog Input Current Drift Full Power Mode Absolute Input Current Differential Input Current Analog Input Current Drift Gain = 1 (Unbuffered) Absolute Input Current Analog Input Current Drift REFERENCE INPUT Internal Reference Initial Accuracy Drift AD7124-4 AD7124-4 B Grade Output Current Load Regulation Power Supply Rejection External Reference External REFIN Voltage2 Absolute REFIN Voltage Limits2 Reference Input Current Buffered Low Power Mode Absolute Input Current Reference Input Current Drift Mid Power Mode Absolute Input Current Reference Input Current Drift Full Power Mode Absolute Input Current Reference Input Current Drift Unbuffered Absolute Input Current Reference Input Current Drift Normal Mode Rejection Common-Mode Rejection Data Sheet Min Typ Max Unit ±1 ±0.2 25 nA nA pA/°C ±1.2 ±0.4 25 nA nA pA/°C ±3.3 ±1.5 25 nA nA pA/°C ±2.65 1.1 µA/V nA/V/°C Test Conditions/Comments Current varies with input voltage 2.5 − 0.2% 2.5 2 2 2 2.5 + 0.2% 10 15 10 10 V ppm/°C ppm/°C ppm/°C mA µV/mA dB TA = 25°C TSSOP LFCSP LFCSP AVDD AVDD + 0.05 AVDD − 0.1 V V V REFIN = REFINx(+) − REFINx(−) Unbuffered Buffered 50 85 0.5 AVSS − 0.05 AVSS + 0.1 2.5 ±0.5 10 nA pA/°C ±1 10 nA pA/°C ±3 10 nA pA/°C ±12 6 µA nA/°C 100 dB Same as for analog inputs Rev. D | Page 8 of 93 Data Sheet Parameter1 EXCITATION CURRENT SOURCES (IOUT0/IOUT1) Output Current AD7124-4 Min 5 2 0.2 Hysteresis Input Currents Input Capacitance % ppm/°C % AVDD − 0.37 AVSS − 0.05 AVDD − 0.48 V 30 µs/nF ±0.5 13,584 °C Codes/°C 10 30 0.5/2/4 AVDD − 0.6 0.4 1.6 1.55 1 0.7 AVDD + 0.04 AVSS − 0.04 614.4 − 5% 614.4 50:50 614.4 + 5% 2.4576 45:55 to 55:45 0.3 × IOVDD 0.35 × IOVDD 0.7 0.7 × IOVDD 0.65 × IOVDD 1.7 2 0.2 −1 TA = 25°C Matching between IOUT0 and IOUT1, VOUT = 0 V AVDD = 3 V ± 5% 50 µA/100 µA/250 µA/500 µA current sources, 2% accuracy 750 µA and 1000 µA current sources, 2% accuracy Available on any analog input pin V AVSS + (AVDD − AVSS)/2 6.7 7 Test Conditions/Comments Available on any analog input pin µA AVSS − 0.05 VBIAS Generator Start-Up Time High, VINH Unit ppm/°C %/V %/V V BIAS VOLTAGE (VBIAS) GENERATOR VBIAS TEMPERATURE SENSOR Accuracy Sensitivity LOW-SIDE POWER SWITCH On Resistance (RON) Allowable Current2 BURNOUT CURRENTS AIN Current DIGITAL OUTPUTS (P1 AND P2) Output Voltage High, VOH Low, VOL DIAGNOSTICS Power Supply Monitor Detect Level Analog Low Dropout Regulator (ALDO) Digital LDO (DLDO) Reference Detect Level AINM/AINP Overvoltage Detect Level AINM/AINP Undervoltage Detect Level INTERNAL/EXTERNAL CLOCK Internal Clock Frequency Duty Cycle External Clock Frequency Duty Cycle Range LOGIC INPUTS2 Input Voltage Low, VINL Max 50/100/250/ 500/750/1000 ±4 50 ±0.5 Initial Tolerance Drift Current Matching Drift Matching2 Line Regulation (AVDD) Load Regulation Output Compliance2 Typ 0.6 +1 10 Rev. D | Page 9 of 93 Dependent on the capacitance connected to AINx Ω mA Continuous current µA Analog inputs must be buffered V V ISOURCE = 100 µA ISINK = 100 µA V V V V V AVDD − AVSS ≥ 2.7 V IOVDD ≥ 1.75 V REF_DET_ERR bit active if VREF < 0.7 V kHz % MHz % Internal divide by 4 V V V V V V V V µA pF 1.65 V ≤ IOVDD < 1.9 V 1.9 V ≤ IOVDD < 2.3 V 2.3 V ≤ IOVDD ≤ 3.6 V 1.65 V ≤ IOVDD < 1.9 V 1.9 V ≤ IOVDD < 2.3 V 2.3 V ≤ IOVDD < 2.7 V 2.7 V ≤ IOVDD ≤ 3.6 V 1.65 V ≤ IOVDD ≤ 3.6 V VIN = IOVDD or GND All digital inputs AD7124-4 Parameter1 LOGIC OUTPUTS (INCLUDING CLK) Output Voltage2 High, VOH Low, VOL Floating State Leakage Current Floating State Output Capacitance Data Output Coding SYSTEM CALIBRATION2 Calibration Limit Full Scale (FS) Zero Scale Input Span POWER SUPPLY VOLTAGES FOR ALL POWER MODES AVDD to AVSS Low Power Mode Mid Power Mode Full Power Mode IOVDD to GND AVSS to GND IOVDD to AVSS POWER SUPPLY CURRENTS11, 13 IAVDD, External Reference Low Power Mode Gain = 12 Gain = 1 IAVDD Increase per AINx Buffer2 Gain = 2 to 8 Gain = 16 to 128 IAVDD Increase per Reference Buffer2 Mid Power Mode Gain = 12 Gain = 1 IAVDD Increase per AINx Buffer2 Gain = 2 to 8 Gain = 16 to 128 IAVDD Increase per Reference Buffer2 Full Power Mode Gain = 12 Gain = 1 IAVDD Increase per AINx Buffer2 Gain = 2 to 8 Gain = 16 to 128 IAVDD Increase per Reference Buffer2 IAVDD Increase Due to Internal Reference2 Due to VBIAS2 Due to Diagnostics2 IIOVDD Low Power Mode Mid Power Mode Full Power Mode Data Sheet Min Typ Max Unit Test Conditions/Comments 0.4 +1 V V µA pF ISOURCE = 100 µA ISINK = 100 µA IOVDD − 0.35 −1 10 Offset binary 1.05 × FS 2.1 × FS V V V 3.6 3.6 3.6 3.6 0 5.4 V V V V V V 125 15 205 235 10 140 25 250 300 20 µA µA µA µA µA 150 30 275 330 20 170 40 345 430 30 µA µA µA µA µA 315 90 660 875 85 350 135 830 1200 120 µA µA µA µA µA 50 70 µA 15 4 20 5 µA µA 20 25 55 35 40 80 µA µA µA −1.05 × FS 0.8 × FS 2.7 2.7 2.9 1.65 −1.8 Rev. D | Page 10 of 93 All buffers off All gains All buffers off All gains All buffers off All gains Independent of power mode; the reference buffers are not required when using this reference Independent of power mode Data Sheet AD7124-4 Parameter1 POWER-DOWN CURRENTS13 Standby Current IAVDD IIOVDD Power-Down Current IAVDD IIOVDD Min Typ Max Unit Test Conditions/Comments Independent of power mode 7 8 15 20 µA µA LDOs on only 1 1 3 2 µA µA Temperature range = −40°C to +125°C. These specifications are not production tested but are supported by characterization data at the initial product release. FS is the decimal equivalent of the FS[10:0] bits in the filter registers. 4 The integral nonlinearity is production tested in full power mode only. For other power modes, the specification is supported by characterization data at the initial product release. 5 Following a system or internal zero-scale calibration, the offset error is in the order of the noise for the programmed gain and output data rate selected. A system fullscale calibration reduces the gain error to the order of the noise for the programmed gain and output data rate. 6 Recalibration at any temperature removes these errors. 7 Gain error applies to both positive and negative full-scale. A factory calibration is performed at gain = 1, TA = 25°C. 8 When gain > 1, the common-mode voltage is between (AVSS + 0.1 + 0.5/gain) and (AVDD − 0.1 − 0.5/gain). 9 Specification is for a wider common-mode voltage between (AVSS − 0.05 + 0.5/gain) and (AVDD − 0.1 − 0.5/gain). 10 REJ60 is a bit in the filter registers. When the first notch of the sinc filter is at 50 Hz, a notch is placed at 60 Hz when REJ60 is set to 1. This gives simultaneous 50 Hz and 60 Hz rejection. 11 When the gain is greater than 1, the analog input buffers are enabled automatically. The buffers can only be disabled when the gain equals 1. 12 When VREF = (AVDD − AVSS), the typical differential input equals 0.92 × VREF/gain for the low and mid power modes and 0.86 × VREF/gain for full power mode when gain > 1. 13 The digital inputs are equal to IOVDD or DGND with excitation currents and bias voltage generator disabled. 1 2 3 TIMING CHARACTERISTICS AVDD = 2.9 V to 3.6 V (full power mode), 2.7 V to 3.6 V (mid and low power mode), IOVDD = 1.65 V to 3.6 V, AVSS = DGND = 0 V, Input Logic 0 = 0 V, Input Logic 1 = IOVDD, unless otherwise noted. Table 4. Parameter1, 2 t3 t4 t12 Min 100 100 Typ Max 3/MCLK3 12/MCLK 24/MCLK Unit ns ns ns ns ns µs t13 6 25 50 µs µs µs t14 3/MCLK 12/MCLK 24/MCLK READ OPERATION t1 t24 t56, 7 t6 t78 t7A7 0 0 10 0 ns ns ns 80 80 80 ns ns ns ns 10 ns 110 t5 ns ns Rev. D | Page 11 of 93 Test Conditions/Comments SCLK high pulse width SCLK low pulse width Delay between consecutive read/write operations Full power mode Mid power mode Low power mode DOUT/RDY high time if DOUT/RDY is low and the next conversion is available Full power mode Mid power mode Low power mode SYNC low pulse width Full power mode Mid power mode Low power mode CS falling edge to DOUT/RDY active time SCLK active edge5 to data valid delay Bus relinquish time after CS inactive edge SCLK inactive edge to CS inactive edge SCLK inactive edge to DOUT/RDY high The DOUT_RDY_DEL bit is cleared, the CS_EN bit is cleared The DOUT_RDY_DEL bit is set, the CS_EN bit is cleared Data valid after CS inactive edge, the CS_EN bit is set AD7124-4 Parameter1, 2 WRITE OPERATION t8 t9 t10 t11 Data Sheet Min Typ Max 0 30 25 0 Unit Test Conditions/Comments ns ns ns ns CS falling edge to SCLK active edge5 setup time Data valid to SCLK edge setup time Data valid to SCLK edge hold time CS rising edge to SCLK edge hold time These specifications were sample tested during the initial release to ensure compliance. All input signals are specified with tR = tF = 5 ns (10% to 90% of IOVDD and timed from a voltage level of IOVDD/2. 2 See Figure 3, Figure 4, Figure 5, and Figure 6. 3 MCLK is the master clock frequency. 4 These specifications are measured with the load circuit shown in Figure 2 and defined as the time required for the output to cross the VOL or VOH limits. 5 The SCLK active edge is the falling edge of SCLK. 6 These specifications are derived from the measured time taken by the data output to change by 0.5 V when loaded with the circuit shown in Figure 2. The measured number is then extrapolated back to remove the effects of charging or discharging the 25 pF capacitor. The times quoted in the timing characteristics are the true bus relinquish times of the device and, therefore, are independent of external bus loading capacitances. 7 RDY returns high after a read of the ADC. In single conversion mode and continuous conversion mode, the same data can be read again, if required, while RDY is high, although subsequent reads must not occur close to the next output update. In continuous read mode, the digital word can be read only once. 8 When the CS_EN bit is cleared, the DOUT/RDY pin changes from its DOUT function to its RDY function, following the last inactive edge of the SCLK. When CS_EN is set, the DOUT pin continues to output the LSB of the data until the CS inactive edge. 1 Timing Diagrams ISINK (100µA) TO OUTPUT PIN IOVDD/2 25pF 13197-002 ISOURCE (100µA) Figure 2. Load Circuit for Timing Characterization CS (I) t6 t5 t1 DOUT/RDY (O) MSB LSB t2 t7 t3 t4 I = INPUT, O = OUTPUT Figure 3. Read Cycle Timing Diagram (CS_EN Bit Cleared) Rev. D | Page 12 of 93 13197-003 SCLK (I) Data Sheet AD7124-4 CS (I) t6 t1 t5 MSB DOUT/RDY (O) LSB t7A t2 t3 13197-004 SCLK (I) t4 I = INPUT, O = OUTPUT Figure 4. Read Cycle Timing Diagram (CS_EN Bit Set) CS (I) t11 t8 SCLK (I) t9 t10 MSB LSB 13197-005 DIN (I) I = INPUT, O = OUTPUT Figure 5. Write Cycle Timing Diagram t12 WRITE DIN WRITE t12 t12 READ READ 13197-006 DOUT/RDY SCLK Figure 6. Delay Between Consecutive Serial Operations CS DIN t13 13197-007 DOUT/RDY SCLK Figure 7. DOUT/RDY High Time when DOUT/RDY is Initially Low and the Next Conversion is Available SYNC (I) 13197-008 t14 MCLK (I) Figure 8. SYNC Pulse Width Rev. D | Page 13 of 93 AD7124-4 Data Sheet ABSOLUTE MAXIMUM RATINGS TA = 25°C, unless otherwise noted. THERMAL RESISTANCE Table 5. θJA is specified for the worst case conditions, that is, a device soldered in a circuit board for surface-mount packages. Parameter AVDD to AVSS IOVDD to DGND IOVDD to AVSS AVSS to DGND Analog Input Voltage to AVSS Reference Input Voltage to AVSS Digital Input Voltage to DGND Digital Output Voltage to DGND AINx/Digital Input Current Operating Temperature Range Storage Temperature Range Maximum Junction Temperature Lead Temperature, Soldering Reflow ESD Ratings Human Body Model (HBM) Field-Induced Charged Device Model (FICDM) Machine Model Rating −0.3 V to +3.96 V −0.3 V to +3.96 V −0.3 V to +5.94 V −1.98 V to +0.3 V −0.3 V to AVDD + 0.3 V −0.3 V to AVDD + 0.3 V −0.3 V to IOVDD + 0.3 V −0.3 V to IOVDD + 0.3 V 10 mA −40°C to +125°C −65°C to +150°C 150°C Table 6. Thermal Resistance Package Type 32-Lead LFCSP 24-Lead TSSOP ESD CAUTION 260°C 4 kV 1250 V 400 V Stresses at or above those listed under Absolute Maximum Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational section of this specification is not implied. Operation beyond the maximum operating conditions for extended periods may affect product reliability. Rev. D | Page 14 of 93 θJA 32.5 128 θJC 32.71 42 Unit °C/W °C/W Data Sheet AD7124-4 1 2 3 4 5 6 7 8 AD7124-4 TOP VIEW (Not to Scale) 24 23 22 21 20 19 18 17 REGCAPA AVSS REFOUT AIN7/IOUT/VBIAS/REFIN2(–) AIN6/IOUT/VBIAS/REFIN2(+) DNC DNC AIN5/IOUT/VBIAS 13197-009 AIN3/IOUT/VBIAS/P2 DNC DNC REFIN1(+) REFIN1(–) DNC DNC AIN4/IOUT/VBIAS 9 10 11 12 13 14 15 16 REGCAPD IOVDD DGND AIN0/IOUT/VBIAS AIN1/IOUT/VBIAS DNC DNC AIN2/IOUT/VBIAS/P1 NOTES 1. DNC = DO NOT CONNECT. 2. CONNECT EXPOSED PAD TO AVSS. DIN 1 24 DOUT/RDY SCLK 2 23 SYNC CLK 3 22 AVDD CS 4 21 PSW REGCAPD 5 AD7124-4 20 REGCAPA IOVDD 6 TOP VIEW (Not to Scale) 19 AVSS DGND 7 18 REFOUT AIN0/IOUT/VBIAS 8 17 AIN7/IOUT/VBIAS/REFIN2(–) AIN1/IOUT/VBIAS 9 16 AIN6/IOUT/VBIAS/REFIN2(+) AIN2/IOUT/VBIAS/P1 10 15 AIN5/IOUT/VBIAS AIN3/IOUT/VBIAS/P2 11 14 AIN4/IOUT/VBIAS REFIN1(+) 12 13 REFIN1(–) 13197-300 32 31 30 29 28 27 26 25 CS CLK SCLK DIN DOUT/RDY SYNC AVDD PSW PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS Figure 10. 24-Lead TSSOP Pin Configuration Figure 9. 32-Lead LFCSP Pin Configuration Table 7. Pin Function Descriptions LFCSP 1 2 Pin No. TSSOP 5 6 Mnemonic REGCAPD IOVDD 3 4 7 8 DGND AIN0/IOUT/VBIAS 5 9 AIN1/IOUT/VBIAS 6, 7, 10, 11, 14, 15, 18, 19 8 N/A1 DNC 10 AIN2/IOUT/VBIAS/P1 9 11 AIN3/IOUT/VBIAS/P2 Description Digital LDO Regulator Output. Decouple this pin to DGND with a 0.1 µF capacitor. Serial Interface Supply Voltage, 1.65 V to 3.6 V. IOVDD is independent of AVDD. Therefore, the serial interface can operate at 1.65 V with AVDD at 3.6 V, for example. Digital Ground Reference Point. Analog Input 0/Output of Internal Excitation Current Source/Bias Voltage. This input pin is configured via the configuration registers to be the positive or negative terminal of a differential or pseudo differential input. Alternatively, the internal programmable excitation current source can be made available at this pin. Either IOUT0 or IOUT1 can be switched to this output. A bias voltage midway between the analog power supply rails can be generated at this pin. Analog Input 1/Output of Internal Excitation Current Source/Bias Voltage. This input pin is configured via the configuration registers to be the positive or negative terminal of a differential or pseudo differential input. Alternatively, the internal programmable excitation current source can be made available at this pin. Either IOUT0 or IOUT1 can be switched to this output. A bias voltage midway between the analog power supply rails can be generated at this pin. Do Not Connect. Do not connect to these pins. Analog Input 2/Output of Internal Excitation Current Source/Bias Voltage/GeneralPurpose Output 1. This input pin is configured via the configuration registers to be the positive or negative terminal of a differential or pseudo differential input. Alternatively, the internal programmable excitation current source can be made available at this pin. Either IOUT0 or IOUT1 can be switched to this output. A bias voltage midway between the analog power supply rails can be generated at this pin. This pin can also be configured as a general-purpose output bit, referenced between AVSS and AVDD. Analog Input 3/Output of Internal Excitation Current Source/Bias Voltage/GeneralPurpose Output 2. This input pin is configured via the configuration registers to be the positive or negative terminal of a differential or pseudo differential input. Alternatively, the internal programmable excitation current source can be made available at this pin. Either IOUT0 or IOUT1 can be switched to this output. A bias voltage midway between the analog power supply rails can be generated at this pin. This pin can also be configured as a general-purpose output bit, referenced between AVSS and AVDD. Rev. D | Page 15 of 93 AD7124-4 LFCSP 12 Pin No. TSSOP 12 Data Sheet Mnemonic REFIN1(+) 13 13 REFIN1(−) 16 14 AIN4/IOUT/VBIAS 17 15 AIN5/IOUT/VBIAS 20 16 AIN6/IOUT/VBIAS/ REFIN2(+) 21 17 AIN7/IOUT/VBIAS/ REFIN2(−) 22 18 REFOUT 23 19 AVSS 24 25 26 27 20 21 22 23 REGCAPA PSW AVDD SYNC 28 24 DOUT/RDY Description Positive Reference Input. An external reference can be applied between REFIN1(+) and REFIN1(−). REFIN1(+) can be anywhere between AVDD and AVSS + 0.5 V. The nominal reference voltage (REFIN1(+) − REFIN1(−)) is 2.5 V, but the device functions with a reference from 0.5 V to AVDD. Negative Reference Input. This reference input can be anywhere between AVSS and AVDD – 0.5 V. Analog Input 4/Output of Internal Excitation Current Source/Bias Voltage. This input pin is configured via the configuration registers to be the positive or negative terminal of a differential or pseudo differential input. Alternatively, the internal programmable excitation current source can be made available at this pin. Either IOUT0 or IOUT1 can be switched to this output. A bias voltage midway between the analog power supply rails can be generated at this pin. Analog Input 5/Output of Internal Excitation Current Source/Bias Voltage. This input pin is configured via the configuration registers to be the positive or negative terminal of a differential or pseudo differential input. Alternatively, the internal programmable excitation current source can be made available at this pin. Either IOUT0 or IOUT1 can be switched to this output. A bias voltage midway between the analog power supply rails can be generated at this pin. Analog Input 6/Output of Internal Excitation Current Source/Bias Voltage/Positive Reference Input. This input pin is configured via the configuration registers to be the positive or negative terminal of a differential or pseudo differential input. Alternatively, the internal programmable excitation current source can be made available at this pin. Either IOUT0 or IOUT1 can be switched to this output. A bias voltage midway between the analog power supply rails can be generated at this pin. This pin also functions as a positive reference input for REFIN2(±). REFIN2(+) can be anywhere between AVDD and AVSS + 0.5 V. The nominal reference voltage (REFIN2(+) to REFIN2(−)) is 2.5 V, but the device functions with a reference from 0.5 V to AVDD. Analog Input 7/Output of Internal Excitation Current Source/Bias Voltage/Negative Reference Input. This input pin is configured via the configuration registers to be the positive or negative terminal of a differential or pseudo differential input. Alternatively, the internal programmable excitation current source can be made available at this pin. Either IOUT0 or IOUT1 can be switched to this output. A bias voltage midway between the analog power supply rails can be generated at this pin. This pin also functions as the negative reference input for REFIN2(±). This reference input can be anywhere between AVSS and AVDD – 0.5 V. Internal Reference Output. The buffered output of the internal 2.5 V voltage reference is available on this pin. Analog Supply Voltage. The voltage on AVDD is referenced to AVSS. The differential between AVDD and AVSS must be between 2.7 V and 3.6 V in mid or low power mode and between 2.9 V and 3.6 V in full power mode. AVSS can be taken below 0 V to provide a dual power supply to the AD7124-4. For example, AVSS can be tied to −1.8 V and AVDD can be tied to +1.8 V, providing a ±1.8 V supply to the ADC. Analog LDO Regulator Output. Decouple this pin to AVSS with a 0.1 µF capacitor. Low-Side Power Switch to AVSS. Analog Supply Voltage, Relative to AVSS. Synchronization Input. This pin is a logic input that allows synchronization of the digital filters and analog modulators when using a number of AD7124-4 devices. When SYNC is low, the nodes of the digital filter, the filter control logic, and the calibration control logic are reset, and the analog modulator is held in a reset state. SYNC does not affect the digital interface but does reset RDY to a high state if it is low. Serial Data Output/Data Ready Output. DOUT/RDY functions as a serial data output pin to access the output shift register of the ADC. The output shift register can contain data from any of the on-chip data or control registers. In addition, DOUT/RDY operates as a data ready pin, going low to indicate the completion of a conversion. If the data is not read after the conversion, the pin goes high before the next update occurs. The DOUT/RDY falling edge can also be used as an interrupt to a processor, indicating that valid data is available. With an external serial clock, the data can be read using the DOUT/RDY pin. When CS is low, the data/control word information is placed on the DOUT/RDY pin on the SCLK falling edge and is valid on the SCLK rising edge. Rev. D | Page 16 of 93 Data Sheet LFCSP 29 Pin No. TSSOP 1 AD7124-4 Mnemonic DIN 30 2 SCLK 31 3 CLK 32 4 CS EP 1 Description Serial Data Input to the Input Shift Register on the ADC. Data in the input shift register is transferred to the control registers within the ADC, with the register selection bits of the communications register identifying the appropriate register. Serial Clock Input. This serial clock input is for data transfers to and from the ADC. The SCLK pin has a Schmitt-triggered input, making the interface suitable for opto-isolated applications. The serial clock can be continuous with all data transmitted in a continuous train of pulses. Alternatively, it can be a noncontinuous clock with the information being transmitted to or from the ADC in smaller batches of data. Clock Input/Clock Output. The internal clock can be made available at this pin. Alternatively, the internal clock can be disabled, and the ADC can be driven by an external clock. This allows several ADCs to be driven from a common clock, allowing simultaneous conversions to be performed. Chip Select Input. This is an active low logic input that selects the ADC. Use CS to select the ADC in systems with more than one device on the serial bus or as a frame synchronization signal in communicating with the device. CS can be hardwired low if the serial peripheral interface (SPI) diagnostics are unused, allowing the ADC to operate in 3-wire mode with SCLK, DIN, and DOUT interfacing with the device. Exposed Pad. Connect the exposed pad to AVSS. N/A means not applicable. Rev. D | Page 17 of 93 CODES (HEX) 400 CODES (HEX) Figure 12. Noise Histogram Plot (Mid Power Mode, Post Filter, Output Data Rate = 25 SPS, Gain = 1) 250 200 150 Figure 13. Noise Histogram Plot (Low Power Mode, Post Filter, Output Data Rate = 25 SPS, Gain = 1) CODES (HEX) 10,000 SAMPLES 1000 800 200 0 CODES (HEX) 10,000 SAMPLES 400 350 350 300 300 100 100 50 50 0 0 CODES (HEX) Rev. D | Page 18 of 93 13197-011 0 13197-014 10,000 SAMPLES 13197-015 Figure 11. Noise Histogram Plot (Full Power Mode, Post Filter, Output Data Rate = 25 SPS, Gain = 1) 7FFFE9 7FFFFA 800002 800009 800011 800019 800020 800028 800030 800038 80003F 800047 80004F 800057 80005E 800066 80006E 800075 80007D 800085 80008D 800094 80009C 8000A4 OCCURRENCE 1000 7FFFC1 7FFFC3 7FFFC5 7FFFC7 7FFFC9 7FFFCB 7FFFCD 7FFFCF 7FFFD1 7FFFD3 7FFFD5 7FFFD7 7FFFD9 7FFFDB 7FFFDD 7FFFDF 7FFFE1 7FFFE3 7FFFE5 7FFFE7 7FFFE9 7FFFEB 7FFFED 7FFFF0 7FFFF2 600 OCCURRENCE 7FFFDC 7FFFDB 7FFFDA 7FFFD9 7FFFD8 7FFFD7 7FFFD6 7FFFD5 7FFFD4 7FFFD3 7FFFD2 7FFFD1 7FFFD0 7FFFCF 7FFFCE OCCURRENCE 1500 7FFEED 7FFF03 7FFF1A 7FFF30 7FFF47 7FFF5D 7FFF74 7FFF8A 7FFFA1 7FFFB8 7FFFCE 7FFFE5 7FFFFB 800012 800028 80003F 800055 80006C 800083 800099 8000B0 8000C6 8000DD 8000F3 80010A 800121 400 OCCURRENCE 1200 13197-010 CODES (HEX) 13197-012 7FFFC6 7FFFC7 7FFFC8 7FFFC9 7FFFCA 7FFFCB 7FFFCC 7FFFCD 7FFFCE 7FFFCF 7FFFD0 7FFFD1 7FFFD2 7FFFD3 7FFFD4 7FFFD5 7FFFD6 7FFFD7 7FFFD8 7FFFD9 7FFFDA 7FFFDB 7FFFDC 7FFFDD 7FFFDE 7FFFDF 7FFFE0 7FFFE1 7FFFE2 7FFFE3 OCCURRENCE 2500 13197-013 7FFF2A 7FFF64 7FFF75 7FFF86 7FFF97 7FFFA8 7FFFB8 7FFFC9 7FFFDA 7FFFEB 7FFFFC 80000C 80001D 80002E 80003F 800050 800060 800071 800082 800093 8000A4 8000B4 8000C5 OCCURRENCE AD7124-4 Data Sheet TYPICAL PERFORMANCE CHARACTERISTICS 350 10,000 SAMPLES 2000 300 250 200 150 500 100 50 0 Figure 14. Noise Histogram Plot (Full Power Mode, Post Filter, Output Data Rate = 25 SPS, Gain = 128) 700 10,000 SAMPLES 600 500 400 300 200 100 0 Figure 15. Noise Histogram Plot (Mid Power Mode, Post Filter, Output Data Rate = 25 SPS, Gain = 128) 10,000 SAMPLES 250 200 150 Figure 16. Noise Histogram Plot (Low Power Mode, Post Filter, Output Data Rate = 25 SPS, Gain = 128) Data Sheet AD7124-4 60 60 100 UNITS 40 OFFSET ERROR (µV) 20 0 –20 20 0 –20 –25 –10 5 20 35 50 65 80 95 110 125 TEMPERATURE (°C) –60 –40 13197-017 –60 –40 5 20 35 50 65 80 95 110 125 Figure 20. Input Referred Offset Error vs. Temperature (Gain = 16, Full Power Mode) 60 100 UNITS 100 UNITS 40 40 OFFSET ERROR (µV) 20 0 –20 –40 20 0 –20 –40 –25 –10 5 20 35 50 65 80 95 110 125 TEMPERATURE (°C) –60 –40 13197-018 –60 –40 –25 –10 5 20 35 50 65 80 95 110 125 TEMPERATURE (°C) 13197-021 OFFSET ERROR (µV) –10 TEMPERATURE (°C) Figure 17. Input Referred Offset Error vs. Temperature (Gain = 8, Full Power Mode) Figure 21. Input Referred Offset Error vs. Temperature (Gain = 16, Mid Power Mode) Figure 18. Input Referred Offset Error vs. Temperature (Gain = 8, Mid Power Mode) 60 60 100 UNITS 100 UNITS 40 OFFSET ERROR (µV) 40 20 0 –20 –60 –40 20 0 –20 –40 –40 –25 –10 5 20 35 50 65 80 95 110 TEMPERATURE (°C) 125 13197-019 OFFSET ERROR (µV) –25 13197-020 –40 –40 Figure 19. Input Referred Offset Error vs. Temperature (Gain = 8, Low Power Mode) –60 –40 –25 –10 5 20 35 50 65 80 95 110 TEMPERATURE (°C) Figure 22. Input Referred Offset Error vs. Temperature (Gain = 16, Low Power Mode) Rev. D | Page 19 of 93 125 13197-022 OFFSET ERROR (µV) 40 60 100 UNITS AD7124-4 Data Sheet 60 0.045 100 UNITS 56 UNITS 0.040 0.035 0.030 20 GAIN ERROR (%) OFFSET ERROR (µV) 40 0 –20 0.025 0.020 0.015 0.010 0.005 –40 –10 5 20 35 50 65 80 95 110 125 TEMPERATURE (°C) 13197-023 –25 –0.005 –40 20 35 50 65 80 95 3 56 UNITS 110 125 GAIN = 1 GAIN = 8 GAIN = 16 2 INL (PPM OF FSR) 0 –0.0005 –0.0010 1 0 –1 –2 –25 –10 5 20 35 50 65 80 95 110 125 TEMPERATURE (°C) –3 –2.5 13197-024 –0.0015 –40 –2.0 –1.5 –1.0 –0.5 0 0.5 1.0 1.5 2.0 2.5 ANALOG INPUT VOLTAGE × GAIN (V) 13197-026 GAIN ERROR (%) 5 Figure 26. Input Referred Gain Error vs. Temperature (Gain = 16) 0.0005 Figure 27. INL vs. Differential Input Signal (Analog Input × Gain), ODR = 50 SPS, External 2.5 V Reference Figure 24. Input Referred Gain Error vs. Temperature (Gain = 1) 0.015 –10 TEMPERATURE (°C) Figure 23. Input Referred Offset Error vs. Temperature (Gain = 1, Analog Input Buffers Enabled) 0.0010 –25 13197-026 0 –60 –40 4 56 UNITS GAIN = 1 GAIN = 8 GAIN = 16 3 0.010 INL (ppm of FSR) 0.005 0 1 0 –1 –2 –0.005 –0.010 –40 –25 –10 5 20 35 50 65 80 95 110 125 TEMPERATURE (°C) Figure 25. Input Referred Gain Error vs. Temperature (Gain = 8) –4 –2.5 –1.5 –0.5 0.5 1.5 2.5 ANALOG INPUT VOLTAGE × GAIN (V) Figure 28. INL vs. Differential Input Signal (Analog Input × Gain), ODR = 50 SPS, Internal Reference Rev. D | Page 20 of 93 13197-227 –3 13197-025 GAIN ERROR (%) 2 Data Sheet 25 AD7124-4 30 109 UNITS 109 UNITS 25 20 OCCURRENCE COUNTS 20 15 10 15 10 5 5 0 –0.85035 –0.76635 –0.79435 –0.82235 –0.85035 –0.87835 –0.90635 –0.93435 –0.96235 EXCITATION CURRENT MATCHING (%) Figure 29. Internal Reference Voltage Histogram 13197-031 INITIAL ACCURACY (V) –0.99035 –1.01835 2.500671 13197-027 2.500471 2.500272 2.500073 2.499874 2.499675 2.499476 2.499277 2.499078 2.498879 2.498680 0 Figure 32. IOUTx Current Initial Matching Histogram (500 μA) 490 2.5020 30 UNITS 29 UNITS 485 EXCITATION CURRENT (µA) 2.5010 2.5005 2.5000 2.4995 2.4990 2.4985 2.4980 2.4975 480 475 470 465 –10 5 20 35 50 65 80 95 110 125 460 –40 TEMPERATURE (°C) 20 35 50 65 80 95 110 125 110 125 0 EXCITATION CURRENT MISMATCH (%) 29 UNITS 20 15 10 5 EXCITATION CURRENT ACCURACY (%) –0.2 –0.4 –0.6 –0.8 –1.0 –1.2 –40 13197-030 –2.534660 –2.707408 –3.880156 –3.052904 –3.225652 –3.398400 –3.571148 –3.743986 –3.916644 0 –4.089392 5 Figure 33. Excitation Current Drift (500 μA) 109 UNITS –4.262140 –10 TEMPERATURE (°C) Figure 30. Internal Reference Voltage vs. Temperature 25 –25 –25 –10 5 20 35 50 65 80 95 TEMPERATURE (°C) Figure 34. Excitation Current Drift Matching (500 μA) Figure 31. IOUTx Current Initial Accuracy Histogram (500 μA) Rev. D | Page 21 of 93 13197-034 –25 13197-030 2.4965 –40 13197-033 2.4970 OCCURRENCE INTERNAL REFERENCE VOLTAGE (V) 2.5015 Data Sheet 1.0 450 0.9 400 0.8 ANALOG CURRENT (µA) 350 0.7 0.6 0.5 0.4 50µA 100µA 250µA 500µA 750µA 1mA 0.2 0.1 0 0 0.33 0.66 200 150 50 0.99 1.32 1.65 1.98 2.31 2.64 2.97 3.30 0 –40 GAIN = 1, AIN BUFFERS OFF GAIN = 2 TO 8 GAIN = 1, AIN BUFFERS ON GAIN = 16 TO 128 –25 –10 5 20 35 50 65 80 95 110 125 TEMPERATURE (°C) Figure 35. Output Compliance (AVDD = 3.3 V) Figure 38. Analog Current vs. Temperature (Mid Power Mode) 350 1.000 0.995 300 0.985 0.980 0.975 0.970 0.965 50µA 100µA 250µA 500µA 750µA 0.955 0.33 0.66 0.99 1.32 1.65 1.98 2.31 2.64 2.97 3.30 VLOAD (V) GAIN = 1, AIN BUFFERS OFF GAIN = 1, AIN BUFFERS ON GAIN = 2 TO 8 GAIN = 16 TO 128 –25 –10 5 20 35 50 65 80 95 110 125 TEMPERATURE (°C) Figure 39. Analog Current vs. Temperature (Low Power Mode) 70 1200 GAIN = 1, AIN BUFFERS OFF GAIN = 2 TO 8 GAIN = 1, AIN BUFFERS ON GAIN = 16 TO 128 DIGITAL CURRENT (µA) 60 800 600 400 200 FULL POWER MID POWER LOW POWER 50 40 30 20 10 –25 –10 5 20 35 50 65 80 95 110 125 TEMPERATURE (°C) 13197-037 0 –40 100 0 –40 Figure 36. Output Compliance (AVDD = 3.3 V) 1000 150 50 0.950 0 200 0 –40 –25 –10 5 20 35 50 65 80 95 TEMPERATURE (°C) Figure 40. Digital Current vs. Temperature Figure 37. Analog Current vs. Temperature (Full Power Mode) Rev. D | Page 22 of 93 110 125 13197-040 0.960 250 13197-039 ANALOG CURRENT (µA) 0.990 13197-035 EXCITATION CURRENT (NORMALIZED) 250 100 VLOAD (V) ANALOG CURRENT (µA) 300 13197-038 0.3 13197-034 EXCITATION CURRENT (NORMALIZED) AD7124-4 Data Sheet AD7124-4 6 4 4 3 2 2 1 CURRENT (nA) –2 –4 –6 –8 –12 –14 –40 –1 –2 –3 –4 GAIN = 1 GAIN = 4 GAIN = 16 GAIN = 64 –25 –10 –5 GAIN = 2 GAIN = 8 GAIN = 32 GAIN = 128 5 20 35 –6 50 65 80 95 110 125 TEMPERATURE (°C) –7 –40 13197-041 –10 0 Figure 41. Absolute Analog Input Current vs. Temperature (Full Power Mode) GAIN = 1 GAIN = 4 GAIN = 16 GAIN = 64 –25 –10 GAIN = 2 GAIN = 8 GAIN = 32 GAIN = 128 5 20 35 50 65 80 95 110 125 TEMPERATURE (°C) 13197-044 CURRENT (nA) 0 Figure 44. Differential Analog Input Current vs. Temperature (Full Power Mode) 2 2 1 0 CURRENT (nA) CURRENT (nA) 0 –2 –4 –1 –2 –3 –6 –4 –25 –10 GAIN = 2 GAIN = 8 GAIN = 32 GAIN = 128 5 20 35 –5 50 65 80 95 110 125 TEMPERATURE (°C) –6 –40 Figure 42. Absolute Analog Input Current vs. Temperature (Mid Power Mode) GAIN = 1 GAIN = 4 GAIN = 16 GAIN = 64 –25 –10 GAIN = 2 GAIN = 8 GAIN = 32 GAIN = 128 5 20 35 50 65 80 95 110 125 TEMPERATURE (°C) 13197-045 –10 –40 GAIN = 1 GAIN = 4 GAIN = 16 GAIN = 64 13197-042 –8 Figure 45. Differential Analog Input Current vs. Temperature (Mid Power Mode) 1 1 0 0 –1 –1 CURRENT (nA) –3 –4 –5 –6 –2 –3 –4 –7 –9 –40 GAIN = 1 GAIN = 4 GAIN = 16 GAIN = 64 –25 –10 GAIN = 2 GAIN = 8 GAIN = 32 GAIN = 128 5 20 35 –5 50 65 TEMPERATURE (°C) 80 95 110 125 –6 –40 13197-043 –8 Figure 43. Absolute Analog Input Current vs. Temperature (Low Power Mode) GAIN = 1 GAIN = 4 GAIN = 16 GAIN = 64 –25 –10 GAIN = 2 GAIN = 8 GAIN = 32 GAIN = 128 5 20 35 50 65 TEMPERATURE (°C) 80 95 110 125 13197-046 CURRENT (nA) –2 Figure 46. Differential Analog Input Current vs. Temperature (Low Power Mode) Rev. D | Page 23 of 93 AD7124-4 Data Sheet 0 23 22 –1.5 –2.0 –2.5 –3.0 –4.0 –40 FULL POWER MID POWER LOW POWER –25 5 –10 20 35 50 65 80 95 110 125 TEMPERATURE (°C) Figure 47. Reference Input Current vs. Temperature (Reference Buffers Enabled) 18 17 16 15 G G G G G G G G G 14 13 12 1 = 1 BUFF OFF =1 =2 =4 =8 = 16 = 32 = 64 = 128 10 100 1k 10k OUTPUT DATA RATE, SETTLED (SPS) Figure 50. Peak-to-Peak Resolution vs. Output Data Rate (Settled), Sinc3 Filter (Full Power Mode) 23 32 UNITS 22 0.8 0.6 0.4 0.2 0 –0.2 –0.4 21 20 19 18 17 16 15 G G G G G G G G G 14 13 12 11 15 25 40 50 60 70 85 95 105 115 125 TEMPERATURE (°C) 10 13197-048 –0.6 –40 –30 –20 –10 0 1 22 21 21 PEAK-TO-PEAK RESOLUTION (Bits) 23 22 20 19 18 17 16 13 12 11 = 1 BUFF OFF =1 =2 =4 =8 = 16 = 32 = 64 = 128 1 10 100 1k OUTPUT DATA RATE, SETTLED (SPS) 1k 10k 20 19 18 17 16 15 G G G G G G G G G 14 13 12 11 10 10k Figure 49. Peak-to-Peak Resolution vs. Output Data Rate (Settled), Sinc4 Filter (Full Power Mode) = 1 BUFF OFF =1 =2 =4 =8 = 16 = 32 = 64 = 128 10 13197-048 G G G G G G G G G 100 OUTPUT DATA RATE (SPS) 23 14 10 Figure 51. Peak-to-Peak Resolution vs. Output Data Rate, Sinc4 + Sinc1 Filter (Full Power Mode) Figure 48. Temperature Sensor Accuracy 15 = 1 BUFF OFF =1 =2 =4 =8 = 16 = 32 = 64 = 128 13197-050 1.0 PEAK-TO-PEAK RESOLUTION (Bits) TEMPERATURE SENSOR ERROR (%) 19 10 1.2 PEAK-TO-PEAK RESOLUTION (Bits) 20 11 13197-047 –3.5 21 1 10 100 OUTPUT DATA RATE (SPS) 1k 10k 13197-051 CURRENT (nA) –1.0 13197-049 PEAK-TO-PEAK RESOLUTION (Bits) –0.5 Figure 52. Peak-to-Peak Resolution vs. Output Data Rate, Sinc3 + Sinc1 Filter (Full Power Mode) Rev. D | Page 24 of 93 AD7124-4 23 22 22 21 21 18 17 16 15 G G G G G G G G G 14 13 12 11 10 = 1 BUFF OFF =1 =2 =4 =8 = 16 = 32 = 64 = 128 10 1 100 10k 1k 100k Figure 53. Peak-to-Peak Resolution vs. Output Data Rate (Settled), Sinc4 Filter (Mid Power Mode) 18 17 16 15 13 12 21 PEAK-TO-PEAK RESOLUTION (Bits) 22 21 18 17 16 G G G G G G G G G 14 13 12 11 = 1 BUFF OFF =1 =2 =4 =8 = 16 = 32 = 64 = 128 1 10 100 1k 10k 100k OUTPUT DATA RATE, SETTLED (SPS) Figure 54. Peak-to-Peak Resolution vs. Output Data Rate (Settled), Sinc3 Filter (Mid Power Mode) 19 18 17 16 15 13 12 10 1 21 PEAK-TO-PEAK RESOLUTION (Bits) 22 21 18 17 16 14 13 12 11 = 1 BUFF OFF =1 =2 =4 =8 = 16 = 32 = 64 = 128 1 10 100 OUTPUT DATA RATE (SPS) 1k Figure 55. Peak-to-Peak Resolution vs. Output Data Rate, Sinc4 + Sinc1 Filter (Mid Power Mode) 100 1k 10k 20 19 18 17 16 15 G G G G G G G G G 14 13 12 11 10 10 = 1 AIN BUFF OFF =1 =2 =4 =8 = 16 = 32 = 64 = 128 9 13197-054 G G G G G G G G G 10 Figure 57. Peak-to-Peak Resolution vs. Output Data Rate (Settled), Sinc4 Filter (Low Power Mode) 23 19 = 1 AIN BUFF OFF =1 =2 =4 =8 = 16 = 32 = 64 = 128 OUTPUT DATA RATE, SETTLED (SPS) 22 15 G G G G G G G G G 14 23 20 1k 20 11 10 100 Figure 56. Peak-to-Peak Resolution vs. Output Data Rate, Sinc3 + Sinc1 Filter (Mid Power Mode) 23 19 10 OUTPUT DATA RATE (SPS) 22 20 = 1 BUFF OFF =1 =2 =4 =8 = 16 = 32 = 64 = 128 1 23 15 G G G G G G G G G 14 10 13197-053 PEAK-TO-PEAK RESOLUTION (Bits) 19 11 OUTPUT DATA RATE, SETTLED (SPS) PEAK-TO-PEAK RESOLUTION (Bits) 20 13197-056 19 1 10 100 1k OUTPUT DATA RATE, SETTLED (SPS) 10k 13197-057 20 13197-055 PEAK-TO-PEAK RESOLUTION (Bits) 23 13197-052 PEAK-TO-PEAK RESOLUTION (Bits) Data Sheet Figure 58. Peak-to-Peak Resolution vs. Output Data Rate (Settled), Sinc3 Filter (Low Power Mode) Rev. D | Page 25 of 93 AD7124-4 Data Sheet 23 35 GAIN = 1, LOW POWER GAIN = 1, MID POWER GAIN = 1, FULL POWER GAIN = 8, LOW POWER GAIN = 8, MID POWER GAIN = 8, FULL POWER GAIN = 16, LOW POWER GAIN = 16, MID POWER GAIN = 16, FULL POWER 21 30 DIGITAL CURRENT (µA) 20 19 18 17 16 G G G G G G G G G 14 13 12 11 10 = 1 BUFF OFF =1 =2 =4 =8 = 16 = 32 = 64 = 128 1 25 20 15 10 5 10 100 1k OUTPUT DATA RATE (SPS) Figure 59. Peak-to-Peak Resolution vs. Output Data Rate, Sinc4 + Sinc1 Filter (Low Power Mode) 0 0 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 Figure 62. Digital Current vs. Wait Time in Standby Mode, ADC in Single Conversion Mode (50 SPS) 1000 22 21 800 20 LOW POWER, EXTERNAL REF MID POWER, EXTERNAL REF FULL POWER, EXTERNAL REF LOW POWER INTERNAL REF MID POWER, INTERNAL REF FULL POWER, INTERNAL REF RMS NOISE (nV) 19 18 17 16 G G G G G G G G G 14 13 12 11 10 = 1 BUFF OFF =1 =2 =4 =8 = 16 = 32 = 64 = 128 1 600 400 200 10 100 1k OUTPUT DATA RATE (SPS) Figure 60. Peak-to-Peak Resolution vs. Output Data Rate, Sinc3 + Sinc1 Filter (Low Power Mode) 0 –0.08 0 0.02 0.04 0.06 0.08 Figure 63. RMS Noise vs. Analog Input Voltage for the Internal Reference and External Reference (Gain = 32, 50 SPS) 29 UNITS 3 OSCILLATOR ERROR (%) 250 –0.02 4 GAIN = 1, LOW POWER GAIN = 1, MID POWER GAIN = 1, FULL POWER GAIN = 8, LOW POWER GAIN = 8, MID POWER GAIN = 8, FULL POWER GAIN = 16, LOW POWER GAIN = 16, MID POWER GAIN = 16, FULL POWER 300 –0.04 ANALOG INPUT VOLTAGE (V) 400 350 –0.06 13197-202 15 13197-059 200 150 100 50 2 1 0 –1 0 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 WAIT TIME IN STANDBY MODE (Seconds) 0.9 1.0 13197-200 –2 Figure 61. Analog Current vs. Wait Time in Standby Mode, ADC in Single Conversion Mode (50 SPS) Rev. D | Page 26 of 93 –3 –40 –25 –10 5 20 35 50 65 80 95 110 TEMPERATURE (°C) Figure 64. Internal Oscillator Error vs. Temperature 125 13197-064 PEAK-TO-PEAK RESOLUTION (Bits) 0.2 WAIT TIME IN STANDBY MODE (Seconds) 23 ANALOG CURRENT (µA) 0.1 13197-201 15 13197-058 PEAK-TO-PEAK RESOLUTION (Bits) 22 Data Sheet AD7124-4 TERMINOLOGY Offset Error Offset error is the deviation of the first code transition from the ideal AINP voltage (AINM + 0.5 LSB) when operating in the unipolar mode. AINP AINP refers to the positive analog input. AINM AINM refers to the negative analog input. Integral Nonlinearity (INL) INL is the maximum deviation of any code from a straight line passing through the endpoints of the transfer function. The endpoints of the transfer function are zero scale (not to be confused with bipolar zero), a point 0.5 LSB below the first code transition (000 … 000 to 000 … 001), and full scale, a point 0.5 LSB above the last code transition (111 … 110 to 111 … 111). The error is expressed in ppm of the full-scale range. Gain Error Gain error is the deviation of the last code transition (111 … 110 to 111 … 111) from the ideal AINP voltage (AINM + VREF/gain − 3/2 LSBs). Gain error applies to both unipolar and bipolar analog input ranges. Gain error is a measure of the span error of the ADC. It includes full-scale errors but not zero-scale errors. For unipolar input ranges, it is defined as full-scale error minus unipolar offset error; whereas for bipolar input ranges, it is defined as full-scale error minus bipolar zero error. In bipolar mode, offset error is the deviation of the midscale transition (0111 … 111 to 1000 … 000) from the ideal AINP voltage (AINM − 0.5 LSB). Offset Calibration Range In the system calibration modes, the AD7124-4 calibrates offset with respect to the analog input. The offset calibration range specification defines the range of voltages that the AD7124-4 can accept and still calibrate offset accurately. Full-Scale Calibration Range The full-scale calibration range is the range of voltages that the AD7124-4 can accept in the system calibration mode and still calibrate full scale correctly. Input Span In system calibration schemes, two voltages applied in sequence to the AD7124-4 analog input define the analog input range. The input span specification defines the minimum and maximum input voltages from zero to full scale that the AD7124-4 can accept and still calibrate gain accurately. Rev. D | Page 27 of 93 AD7124-4 Data Sheet RMS NOISE AND RESOLUTION in parentheses) is calculated based on peak-to-peak noise (shown in parentheses). The peak-to-peak resolution represents the resolution for which there is no code flicker. Table 8 through Table 37 show the rms noise, peak-to-peak noise, effective resolution, and noise-free (peak-to-peak) resolution of the AD7124-4 for various output data rates, gain settings, and filters. The numbers given are for the bipolar input range with an external 2.5 V reference. These numbers are typical and are generated with a differential input voltage of 0 V when the ADC is continuously converting on a single channel. It is important to note that the effective resolution is calculated using the rms noise, whereas the peak-to-peak resolution (shown Effective Resolution = Log2(Input Range/RMS Noise) Peak-to-Peak Resolution = Log2(Input Range/Peak-to-Peak Noise FULL POWER MODE Sinc4 Table 8. RMS Noise (Peak-to-Peak Noise) vs. Gain and Output Data Rate (µV), Full Power Mode Filter Word (Dec.) 2047 1920 960 480 384 320 240 120 60 30 15 8 4 2 1 Output Data Rate (SPS) 9.4 10 20 40 50 60 80 160 320 640 1280 2400 4800 9600 19,200 Output Data Rate (Zero Latency Mode) (SPS) 2.34 2.5 5 10 12.5 15 20 40 80 160 320 600 1200 2400 4800 f3dB (Hz) 2.16 2.3 4.6 9.2 11.5 13.8 18.4 36.8 73.6 147.2 294.4 552 1104 2208 4416 Gain = 1 0.24 (1.5) 0.23 (1.5) 0.31 (2.1) 0.42 (3) 0.48 (3.2) 0.51 (3.3) 0.6 (4.8) 0.86 (6.9) 1.2 (8.9) 1.7 (13) 2.4 (19) 3.3 (25) 4.9 (38) 8.8 (76) 72 (500) Gain = 2 0.15 (0.89) 0.14 (0.89) 0.22 (1.3) 0.3 (2.1) 0.33 (2.1) 0.35 (2.4) 0.41 (3) 0.55 (4.1) 0.76 (6.1) 1.1 (8.8) 1.6 (13) 2.3 (16) 3.4 (25) 6.8 (61) 38 (270) Gain = 4 0.091 (0.6) 0.094 (0.6) 0.13 (0.89) 0.19 (1.4) 0.2 (1.3) 0.23 (1.3) 0.28 (1.8) 0.37 (2.5) 0.53 (4.1) 0.74 (5.7) 1.1 (8.4) 1.5 (12) 2.4 (20) 4.9 (34) 21 (150) Gain = 8 0.071 (0.41) 0.076 (0.42) 0.1 (0.6) 0.14 (0.97) 0.16 (1.1) 0.17 (1.2) 0.19 (1.3) 0.29 (2) 0.4 (2.7) 0.57 (4.1) 0.82 (6) 1.2 (8) 2 (13) 4.3 (27) 13 (95) Gain = 16 0.045 (0.26) 0.048 (0.27) 0.069 (0.41) 0.09 (0.63) 0.1 (0.75) 0.11 (0.78) 0.13 (0.86) 0.2 (1.2) 0.26 (1.8) 0.38 (2.9) 0.55 (4) 0.76 (6) 1.3 (9.1) 2.6 (21) 7.5 (57) Gain = 32 0.031 (0.17) 0.03 (0.19) 0.044 (0.26) 0.063 (0.39) 0.068 (0.43) 0.077 (0.5) 0.09 (0.54) 0.13 (0.84) 0.18 (1.2) 0.26 (2) 0.38 (2.5) 0.53 (4) 0.83 (6.4) 1.7 (13) 4.4 (33) Gain = 64 0.025 (0.15) 0.025 (0.16) 0.035 (0.22) 0.053 (0.34) 0.059 (0.42) 0.064 (0.41) 0.072 (0.48) 0.11 (0.7) 0.15 (0.95) 0.22 (1.6) 0.3 (2.3) 0.43 (3.2) 0.68 (4.8) 1.3 (12) 3.3 (26) Gain = 128 0.023 (0.14) 0.025 (0.15) 0.034 (0.22) 0.043 (0.27) 0.048 (0.28) 0.056 (0.35) 0.063 (0.45) 0.098 (0.6) 0.14 (0.86) 0.19 (1.4) 0.26 (1.8) 0.37 (2.7) 0.58 (4.3) 1.2 (9.4) 2.8 (23) Table 9. Effective Resolution (Peak-to-Peak Resolution) vs. Gain and Output Data Rate (Bits), Full Power Mode Filter Word (Dec.) 2047 1920 960 480 384 320 240 120 60 30 15 8 4 2 1 Output Data Rate (SPS) 9.4 10 20 40 50 60 80 160 320 640 1280 2400 4800 9600 19,200 Output Data Rate (Zero Latency Mode) (SPS) 2.34 2.5 5 10 12.5 15 20 40 80 160 320 600 1200 2400 4800 Gain = 1 24 (21.7) 24 (21.7) 23.9 (21.2) 23.5 (20.7) 23.3 (20.5) 23.2 (20.3) 23 (20) 22.5 (19.5) 22 (19.1) 21.5 (18.5) 21 (18) 20.5 (17.5) 20 (17) 19.1 (16) 16.1 (13.3) Gain = 2 24 (21.4) 24 (21.4) 23.5 (20.8) 23 (20.3) 22.9 (20.2) 22.8 (20) 22.6 (19.7) 22.1 (19.2) 21.6 (18.6) 21.1 (18.1) 20.5 (17.6) 20.1 (17.2) 19.5 (16.5) 18.5 (15.3) 16 (13.2) Gain = 4 23.7 (21) 23.7 (21) 23.2 (20.4) 22.6 (19.8) 22.5 (19.6) 22.4 (19.5) 22.1 (19.3) 21.7 (18.9) 21.2 (18.2) 20.7 (17.7) 20.2 (17.2) 19.7 (16.7) 19 (16) 18 (15.1) 15.9 (13) Rev. D | Page 28 of 93 Gain = 8 23.1 (20.5) 23 (20.5) 22.5 (20) 22.1 (19.3) 21.9 (19.1) 21.8 (19) 21.6 (18.9) 21 (18.3) 20.6 (17.8) 20.1 (17.2) 19.5 (16.7) 19 (16.2) 18.3 (15.6) 17.2 (14.5) 15.5 (12.7) Gain = 16 22.7 (20.2) 22.6 (20.1) 22.1 (19.5) 21.7 (18.9) 21.5 (18.7) 21.4 (18.6) 21.2 (18.5) 20.6 (18) 20.2 (17.4) 19.7 (16.8) 19.1 (16.3) 18.6 (15.7) 17.9 (15.1) 16.9 (13.9) 15.4 (12.4) Gain = 32 22.3 (19.8) 22.3 (19.7) 21.8 (19.2) 21.2 (18.6) 21.1 (18.5) 21 (18.3) 20.7 (18.1) 20.1 (17.5) 19.7 (17) 19.2 (16.3) 18.7 (15.9) 18.2 (15.3) 17.5 (14.6) 16.5 (13.5) 15.1 (12.2) Gain = 64 21.6 (19) 21.6 (19) 21.1 (18.4) 20.5 (17.8) 20.4 (17.7) 20.2 (17.6) 20 (17.3) 19.5 (16.9) 19 (16.3) 18.5 (15.6) 18 (15.1) 17.5 (14.6) 16.8 (14) 15.9 (12.7) 14.6 (11.5) Gain = 128 20.7 (18.1) 20.7 (18.1) 20.1 (17.4) 19.8 (17.1) 19.6 (17) 19.4 (16.6) 19.2 (16.4) 18.6 (16) 18.1 (15.5) 17.6 (14.8) 17.2 (14.4) 16.7 (13.8) 16 (13.2) 15 (12) 13.8 (10.8) Data Sheet AD7124-4 Sinc3 Table 10. RMS Noise (Peak-to-Peak Noise) vs. Gain and Output Data Rate (µV), Full Power Mode Filter Word (Dec.) 2047 1920 1280 640 384 320 160 80 40 20 10 6 3 2 1 Output Data Rate (SPS) 9.4 10 20 30 50 60 120 240 480 960 1920 3200 6400 9600 19,200 Output Data Rate (Zero Latency Mode) (SPS) 3.13 3.33 5 10 16.67 20 40 80 160 320 640 1066.67 2133.33 3200 6400 f3dB (Hz) 2.56 2.72 5.44 8.16 13.6 16.32 32.64 65.28 130.56 261.12 522.24 870.4 1740.8 2611.2 5222.4 Gain = 1 0.23 (1.5) 0.24 (1.5) 0.31 (1.8) 0.4 (2.6) 0.53 (3.3) 0.55 (3.6) 0.78 (5.1) 1.1 (7) 1.5 (11) 2.3 (16) 3.2 (26) 4.9 (38) 25 (170) 110 (820) 890 (6500) Gain = 2 0.15 (0.89) 0.15 (0.89) 0.18 (1.2) 0.26 (1.6) 0.3 (2.2) 0.37 (2.4) 0.53 (3.4) 0.73 (4.9) 1.1 (6.8) 1.5 (9.8) 2.2 (16) 3.2 (24) 13 (89) 54 (390) 430 (3000) Gain = 4 0.096 (0.58) 0.096 (0.6) 0.12 (0.82) 0.17 (1.2) 0.2 (1.6) 0.24 (1.8) 0.35 (2.3) 0.49 (3.2) 0.67 (4.5) 0.99 (6.6) 1.5 (11) 2.1 (15) 7.1 (54) 28 (210) 220 (1500) Gain = 8 0.07 (0.38) 0.07 (0.4) 0.09 (0.55) 0.11 (0.82) 0.17 (1.1) 0.19 (1.3) 0.26 (1.8) 0.37 (2.6) 0.52 (3.7) 0.75 (5.1) 1.1 (8.5) 1.6 (12) 4.3 (35) 14 (110) 110 (790) Gain = 16 0.046 (0.25) 0.05 (0.26) 0.059 (0.35) 0.088 (0.52) 0.1 (0.75) 0.12 (0.8) 0.17 (1.1) 0.25 (1.6) 0.34 (2.2) 0.53 (3.5) 0.73 (5.5) 1 (7.7) 2.4 (18) 7.4 (57) 55 (390) Gain = 32 0.033 (0.16) 0.034 (0.17) 0.041 (0.24) 0.055 (0.36) 0.075 (0.51) 0.084 (0.54) 0.12 (0.85) 0.17 (1.2) 0.25 (1.7) 0.35 (2.4) 0.49 (3.9) 0.68 (5.6) 1.5 (11) 3.9 (27) 28 (190) Gain = 64 0.023 (0.11) 0.023 (0.12) 0.033 (0.18) 0.048 (0.27) 0.062 (0.39) 0.068 (0.44) 0.1 (0.66) 0.14 (1) 0.19 (1.4) 0.28 (2.1) 0.4 (3.2) 0.56 (4.2) 1.1 (8.4) 2.3 (17) 14 (100) Gain = 128 0.017 (0.09) 0.018 (0.09) 0.027 (0.14) 0.039 (0.22) 0.056 (0.33) 0.06 (0.37) 0.097 (0.55) 0.12 (0.78) 0.17 (1.2) 0.25 (1.8) 0.35 (2.7) 0.48 (3.6) 0.9 (6.7) 1.7 (13) 7.6 (56) Table 11. Effective Resolution (Peak-to-Peak Resolution) vs. Gain and Output Data Rate, Full Power Mode Filter Word (Dec.) 2047 1920 1280 640 384 320 160 80 40 20 10 6 3 2 1 Output Data Rate (SPS) 9.4 10 20 30 50 60 120 240 480 960 1920 3200 6400 9600 19,200 Output Data Rate (Zero Latency Mode) (SPS) 3.13 3.33 5 10 16.67 20 40 80 160 320 640 1066.67 2133.33 3200 6400 Gain = 1 24 (21.7) 24 (21.7) 24 (21.4) 23.6 (20.9) 23.2 (20.5) 23.1 (20.4) 22.6 (19.9) 22.1 (19.4) 21.6 (18.8) 21.1 (18.3) 20.6 (17.6) 19.9 (17) 17.6 (14.8) 15.5 (12.6) 12.5 (9.7) Gain = 2 24 (21.4) 24 (21.4) 23.7 (21) 23.2 (20.5) 22.8 (20.1) 22.7 (20) 22.2 (19.5) 21.7 (19) 21.2 (18.5) 20.7 (18) 20.1 (17.2) 19.6 (16.6) 17.6 (14.8) 15.5 (12.6) 12.5 (9.7) Gain = 4 23.6 (21) 23.6 (21) 23.2 (20.5) 22.8 (20) 22.4 (19.6) 22.3 (19.4) 21.8 (19) 21.3 (18.6) 20.8 (18.1) 20.3 (17.5) 19.7 (16.8) 19.2 (16.3) 17.4 (14.5) 15.4 (12.6) 12.5 (9.7) Gain = 8 23.1 (20.6) 23.1 (20.6) 22.7 (20.1) 22.2 (19.5) 21.8 (19.1) 21.7 (18.9) 21.2 (18.4) 20.7 (17.9) 20.2 (17.4) 19.7 (16.9) 19.1 (16.2) 18.6 (15.6) 17.2 (14.1) 15.4 (12.5) 12.5 (9.6) Gain = 16 22.7 (20.3) 22.6 (20.2) 22.3 (19.8) 21.8 (19.2) 21.4 (18.7) 21.3 (18.6) 20.8 (18.1) 20.3 (17.6) 19.8 (17.1) 19.2 (16.4) 18.7 (15.8) 18.2 (15.3) 17 (14.1) 15.4 (12.4) 12.5 (9.6) Gain = 32 22.2 (19.9) 22.2 (19.8) 21.9 (19.3) 21.4 (18.7) 21 (18.2) 20.8 (18.1) 20.3 (17.5) 19.8 (17) 19.3 (16.5) 18.8 (16) 18.3 (15.3) 17.8 (14.8) 16.7 (13.8) 15.3 (12.5) 12.4 (9.6 Gain = 64 21.7 (19.3) 21.7 (19.3) 21.2 (18.7) 20.6 (18.1) 20.3 (17.6) 20.1 (17.4) 19.6 (16.9) 19.1 (16.3) 18.6 (15.8) 18.1 (15.2) 17.6 (14.6) 17.1 (14.2) 16.3 (13.2) 15 (12.2) 12.4 (9.6) Gain = 128 21 (18.7) 21 (18.7) 20.5 (18.1) 19.9 (17.4) 19.4 (16.9) 19.3 (16.7) 18.7 (16.1) 18.3 (15.6) 17.8 (15) 17.3 (14.4) 16.8 (13.8) 16.3 (13.4) 15.4 (12.5) 14.5 (11.6) 12.3 (9.5) Post Filters Table 12. RMS Noise (Peak-to-Peak Noise) vs. Gain and Output Data Rate (µV), Full Power Mode Output Data Rate (SPS) 16.67 20 25 27.27 Gain = 1 0.51 (3.3) 0.53 (3.3) 0.57 (3.6) 0.6 (3.9) Gain = 2 0.34 (2.1) 0.36 (2.1) 0.37 (2.2) 0.38 (2.2) Gain = 4 0.21 (1.3) 0.23 (1.3) 0.25 (1.6) 0.26 (1.6) Gain = 8 0.16 (0.97) 0.18 (1) 0.18 (1.2) 0.19 (1.2) Rev. D | Page 29 of 93 Gain = 16 0.11 (0.65) 0.11 (0.65) 0.12 (0.75) 0.13 (0.82) Gain = 32 0.075 (0.41) 0.078 (0.45) 0.082 (0.47) 0.084 (0.55) Gain = 64 0.062 (0.34) 0.062 (0.34) 0.062 (0.38) 0.072 (0.44) Gain = 128 0.051(0.3) 0.051 (0.3) 0.055 (0.31) 0.063 (0.43) AD7124-4 Data Sheet Table 13. Effective Resolution (Peak-to-Peak Resolution) vs. Gain and Output Data Rate (Bits), Full Power Mode Output Data Rate (SPS) 16.67 20 25 27.27 Gain = 1 23.2 (20.5) 23.2 (20.5) 23.1 (20.4) 23 (20.3) Gain = 2 22.8 (20.2) 22.7 (20.2) 22.7 (20.1) 22.6 (20.1) Gain = 4 22.5 (19.9) 22.3 (19.9) 22.2 (19.6) 22.2 (19.5) Gain = 8 21.9 (19.3) 21.7 (19.2) 21.7 (19) 21.7 (19) Gain = 16 21.5 (18.9) 21.5 (18.9) 21.3 (18.7) 21.2 (18.5) Gain = 32 21 (18.5) 20.9 (18.4) 20.9 (18.3) 20.8 (18.1) Gain = 64 20.3 (17.8) 20.3 (17.8) 20.3 (17.7) 20.1 (17.4) Gain = 128 19.5 (17) 19.5 (17) 19.5 (17) 19.2 (16.5) Fast Settling Filter (Sinc4 + Sinc1) Table 14. RMS Noise (Peak-to-Peak Noise) vs. Gain and Output Data Rate (µV), Full Power Mode (Average by 16) Filter Word (Dec.) 384 120 24 20 2 1 Output Data Rate (SPS) 2.63 8.42 42.11 50.53 505.26 1010.53 Gain = 1 0.19 (1.2) 0.32 (2.1) 0.69 (4.6) 0.71 (5.1) 2.4 (18) 4.8 (35) Gain = 2 0.11 (0.75) 0.2 (1.3) 0.44 (3) 0.49 (3.1) 1.6 (10) 3 (20) Gain = 4 0.077 (0.52) 0.13 (0.97) 0.29 (2.1) 0.3 (2.2) 1.1 (8.3) 1.9 (12) Gain = 8 0.063 (0.34) 0.1 (0.63) 0.23 (1.6) 0.25 (1.7) 0.87 (5.5) 1.4 (8.8) Gain = 16 0.036 (0.21) 0.067 (0.46) 0.14 (0.99) 0.16 (1.1) 0.56 (3.5) 0.89 (5.2) Gain = 32 0.027 (0.17) 0.045 (0.28) 0.1 (0.72) 0.11 (0.78) 0.47 (2.9) 0.57 (3.7) Gain = 64 0.021 (0.11) 0.039 (0.23) 0.081 (0.54) 0.09 (0.6) 0.33 (2.1) 0.49 (3) Gain = 128 0.019 (0.098) 0.031 (0.2) 0.07 (0.49) 0.082 (0.57) 0.3 (2) 0.44 (3) Table 15. Effective Resolution (Peak-to-Peak Resolution) vs. Gain and Output Data Rate (Bits), Full Power Mode (Average by 16) Filter Word (Dec.) 384 120 24 20 2 1 Output Data Rate (SPS) 2.63 8.42 42.11 50.53 505.26 1010.53 Gain = 1 24 (22) 23.9 (21.2) 22.8 (20) 22.7 (19.9) 21 (18.1) 20 (17.1) Gain = 2 24 (21.7) 23.6 (20.8) 22.4 (19.7) 22.3 (19.6) 20.6 (17.9) 19.7 (16.9) Gain = 4 23.9 (21.2) 23.3 (20.3) 22.1 (19.2) 22 (19.1) 20.2 (17.2) 19.3 (16.6) Gain = 8 23.3 (20.8) 22.5 (19.9) 21.4 (18.6) 21.2 (18.5) 19.5 (16.8) 18.8 (16.1) Gain = 16 23 (20.5) 22.2 (19.4) 21.1 (18.3) 20.9 (18.1) 19.1 (16.4) 18.4 (15.9) Gain = 32 22.5 (19.8) 21.9 (19.1) 20.5 (17.7) 20.4 (17.6) 18.4 (15.7) 18.1 (15.4) Gain = 64 21.8 (19.5) 20.9 (18.4) 19.9 (17.1) 19.7 (17) 17.8 (15.2) 17.3 (14.7) Gain = 128 21 (18.6) 20.2 (17.6) 19.1 (16.3) 18.9 (16.1) 17 (14.3) 16.5 (13.7) Fast Settling Filter (Sinc3 + Sinc1) Table 16. RMS Noise (Peak-to-Peak Noise) vs. Gain and Output Data Rate (µV), Full Power Mode (Average by 16) Filter Word (Dec.) 384 120 24 20 2 1 Output Data Rate (SPS) 2.78 8.89 44.44 53.33 533.33 1066.67 Gain = 1 0.22 (1.4) 0.31 (2.1) 0.7 (4.8) 0.77 (5.2) 6.1 (46) 44 (320) Gain = 2 0.13 (0.75) 0.21 (1.3) 0.46 (3.1) 0.5 (3.4) 3.2 (23) 22 (160) Gain = 4 0.081 (0.44) 0.13 (0.89) 0.29 (2.1) 0.31 (2.3) 1.8 (12) 11 (80) Gain = 8 0.048 (0.3) 0.1 (0.63) 0.22 (1.5) 0.24 (1.6) 1.1 (7.5) 5.7 (40) Gain = 16 0.039 (0.24) 0.068 (0.47) 0.14 (0.95) 0.17 (1) 0.65 (4.3) 2.9 (22) Gain = 32 0.026 (0.18) 0.047 (0.28) 0.098 (0.67) 0.11 (0.73) 0.4 (2.7) 1.5 (11) Gain = 64 0.025 (0.13) 0.036 (0.25) 0.079 (0.56) 0.09 (0.66) 0.31 (2.2) 0.83 (6.2) Gain = 128 0.019 (0.11) 0.033 (0.17) 0.071 (0.44) 0.077 (0.48) 0.27 (2) 0.54 (4) Table 17. Effective Resolution (Peak-to-Peak Resolution) vs. Gain and Output Data Rate (Bits), Full Power Mode (Average by 16) Filter Word (Dec.) 384 120 24 20 2 1 Output Data Rate (SPS) 2.78 8.89 44.44 53.33 533.33 1066.67 Gain = 1 24 (21.8) 24 (21.2) 22.8 (20) 22.6 (19.9) 19.7 (16.8) 16.8 (13.9) Gain = 2 24 (21.7) 23.5 (20.9) 22.4 (19.6) 22.3 (19.5) 19.6 (16.8) 16.8 (13.9) Gain = 4 23.9 (21.4) 23.2 (20.4) 22.1 (19.2) 22 (19.1) 19.4 (16.6) 16.8 (13.9) Gain = 8 23.6 (21) 22.6 (19.9) 21.4 (18.7) 21.3 (18.6) 19.1 (16.3) 16.7 (13.9) Rev. D | Page 30 of 93 Gain = 16 22.9 (20.3) 22.1 (19.4) 21.1 (18.3) 20.8 (18.2) 18.9 (16.1) 16.7 (13.8) Gain = 32 22.5 (19.8) 21.7 (19.1) 20.6 (17.8) 20.4 (17.7) 18.6 (15.8) 16.6 (13.8) Gain = 64 21.6 (19.2) 21 (18.3) 19.9 (17.1) 19.7 (16.9) 17.9 (15.1) 16.5 (13.6) Gain = 128 21 (18.4) 20.2 (17.8) 19.1 (16.5) 19 (16.3) 17.2 (14.3) 16.1 (13.3) Data Sheet AD7124-4 MID POWER MODE Sinc4 Table 18. RMS Noise (Peak-to-Peak Noise) vs. Gain and Output Data Rate (µV), Mid Power Mode Filter Word (Dec.) 2047 1920 960 480 240 120 96 80 60 30 15 8 4 2 1 Output Data Rate (SPS) 2.34 2.5 5 10 20 40 50 60 80 160 320 600 1200 2400 4800 Output Data Rate (Zero Latency Mode) (SPS) 0.586 0.625 1.25 2.5 5 10 12.5 15 20 40 80 150 300 600 1200 f3dB (Hz) 0.52 0.575 1.15 2.3 4.6 9.2 11.5 13.8 18.4 36.8 73.6 138 276 552 1104 Gain = 1 0.22 (1.4) 0.25 (1.4) 0.34 (2) 0.44 (2.8) 0.67 (3.8) 0.98 (6) 1 (7.4) 1.1 (7.2) 1.3 (8.4) 1.8 (11) 2.6 (17) 3.7 (23) 5.3 (36) 9.3 (72) 71 (500) Gain = 2 0.14 (0.88) 0.17 (0.88) 0.21 (1.2) 0.28 (1.8) 0.4 (2.4) 0.58 (3.6) 0.67 (4.2) 0.7 (4.3) 0.8 (5.1) 1.2 (7.6) 1.7 (11) 2.3 (15) 3.6 (24) 6.8 (53) 37 (270) Gain = 4 0.095 (0.6) 0.11 (0.6) 0.13 (0.77) 0.19 (1.1) 0.27 (1.6) 0.37 (2.3) 0.41 (2.5) 0.44 (3) 0.53 (3.4) 0.73 (4.6) 1 (6.6) 1.5 (9.6) 2.4 (16) 4.8 (35) 21 (160) Gain = 8 0.062 (0.38) 0.073 (0.38) 0.085 (0.52) 0.1 (0.82) 0.2 (1.1) 0.27 (1.7) 0.28 (1.9) 0.33 (2.1) 0.37 (2.4) 0.54 (3.4) 0.79 (4.7) 1.2 (7.2) 1.9 (13) 4.1 (34) 13 (98) Gain = 16 0.048 (0.24) 0.048 (0.24) 0.064 (0.36) 0.1 (0.55) 0.14 (0.85) 0.2 (1.1) 0.23 (1.3) 0.24 (1.4) 0.27 (1.6) 0.39 (2.4) 0.58 (3.4) 0.84 (5) 1.3 (8.2) 2.5 (19) 7.2 (55) Gain = 32 0.036 (0.17) 0.037 (0.19) 0.052(0.25) 0.072 (0.41) 0.098 (0.64) 0.14 (0.87) 0.15 (0.95) 0.17 (1.1) 0.2 (1.3) 0.28 (1.9) 0.4 (2.5) 0.56 (4) 0.85 (6) 1.7 (13) 4.3 (33) Gain = 64 0.024 (0.14) 0.024 (0.14) 0.04 (0.21) 0.057 (0.34) 0.081 (0.47) 0.11 (0.74) 0.13 (0.78) 0.14 (0.89) 0.18 (1.1) 0.23 (1.4) 0.33 (2) 0.46 (2.8) 0.68 (4.3) 1.3 (10) 3.1 (24) Gain = 128 0.02 (0.1) 0.021 (0.1) 0.035 (0.2) 0.048 (0.28) 0.07 (0.43) 0.09 (0.57) 0.11 (0.7) 0.12 (0.75) 0.13 (0.82) 0.19 (1.2) 0.26 (1.5) 0.4 (2.6) 0.6 (4.5) 1.2 (9.7) 2.6 (21) Table 19. Effective Resolution (Peak-to-Peak Resolution) vs. Gain and Output Data Rate (Bits), Mid Power Mode Filter Word (Dec.) 2047 1920 960 480 240 120 96 80 60 30 15 8 4 2 1 Output Data Rate (SPS) 2.34 2.5 5 10 20 40 50 60 80 160 320 600 1200 2400 4800 Output Data Rate (Zero Latency Mode) (SPS) 0.586 0.625 1.25 2.5 5 10 12.5 15 20 40 80 150 300 600 1200 Gain = 1 24 (21.8) 24 (21.8) 23.8 (21.2) 23.4 (20.8) 22.8 (20.3) 22.3 (19.7) 22.2 (19.5) 22.1 (19.4) 21.9 (19.2) 21.4 (18.8) 20.9 (18.2) 20.4 (17.7) 19.8 (17.1) 19 (16.1) 16.1 (13.3) Gain = 2 24 (21.4) 23.8 (21.4) 23.5 (21) 23.1 (20.4) 22.5 (20) 22 (19.4) 21.8 (19.2) 21.7 (19.1) 21.5 (18.9) 21 (18.9) 20.5 (17.8) 20 (17.3) 19.4 (16.7) 18.5 (15.5) 16 (13.2) Gain = 4 23.6 (21) 23.5 (21) 23.2 (20.6) 22.7 (20.1) 22.1 (19.6) 21.7 (19) 21.5 (18.9) 21.4 (18.7) 21.1 (18.5) 20.7 (18.5) 20.2 (17.5) 19.7 (17) 19 (16.3) 18 (15.1) 15.9 (12.9) Gain = 8 23.3 (20.6) 23 (20.6) 22.8 (20.2) 22.2 (19.6) 21.6 (19.1) 21.1 (18.5) 21 (18.3) 20.9 (18.2) 20.7 (18) 20.2 (17.5) 19.6 (17) 19 (16.4) 18.3 (15.6) 17.2 (14.2) 15.5 (12.6) Rev. D | Page 31 of 93 Gain = 16 22.6 (20.3) 22.6 (20.3) 22.2 (19.7) 21.5 (19.1) 21.1 (18.5) 20.6 (18.1) 20.4 (17.9) 20.3 (17.8) 20.1 (17.6) 19.6 (17) 19 (16.5) 18.5 (15.9) 17.9 (15.2) 16.9 (14) 15.4 (12.5) Gain = 32 22.1 (19.7) 22 (19.7) 21.5 (19.2) 21 (18.5) 20.6 (17.9) 20.1 (17.5) 19.9 (17.3) 19.8 (17.2) 19.6 (16.9) 19.1 (16.3) 18.6 (15.9) 18.1 (15.3) 17.5 (14.7) 16.5 (13.6) 15.1 (12.2) Gain = 64 21.6 (19.1) 21.6 (19.1) 20.9 (18.5) 20.4 (17.8) 19.9 (17.3) 19.4 (16.8) 19.2 (16.6) 19.1 (16.4) 18.9 (16.2) 18.4 (15.8) 17.9 (15.3) 17.4 (14.8) 16.8 (14) 15.8 (12.9) 14.6 (11.7) Gain = 128 20.9 (18.5) 20.8 (18.5) 20.1 (17.6) 19.6 (17.1) 19.1 (16.5) 18.7 (16) 18.5 (15.8) 18.4 (15.7) 18.2 (15.5) 17.7 (15) 17.2 (14.6) 16.6 (13.9) 16 (13.1) 15 (12) 13.9 (10.9) AD7124-4 Data Sheet Sinc3 Table 20. RMS Noise (Peak-to-Peak Noise) vs. Gain and Output Data Rate (µV), Mid Power Mode Filter Word (Dec.) 2047 960 480 320 160 96 80 40 20 10 5 3 2 1 Output Data Rate (SPS) 2.34 5 10 15 30 50 60 120 240 480 960 1600 2400 4800 Output Data Rate (Zero Latency Mode) (SPS) 0.78 1.67 3.33 5 10 16.67 20 40 80 160 320 533.33 800 1600 f3dB (Hz) 0.64 1.36 2.72 4.08 8.16 13.6 16.32 32.64 65.28 130.6 261.1 435.2 652.8 1306 Gain = 1 0.25 (1.5) 0.35 (2.2) 0.5 (3.1) 0.6 (3.8) 0.83 (5.6) 1.1 (7.5) 1.2 (7.7) 1.7 (11) 2.5 (16) 3.5 (24) 6.7 (53) 25 (170) 110 (740) 880 (5800) Gain = 2 0.17 (1) 0.23 (1.3) 0.31 (1.9) 0.38 (2.4) 0.54 (3.3) 0.72 (4.4) 0.8 (4.8) 1.1 (7) 1.6 (9.7) 2.2 (15) 4.1 (34) 13 (90) 54 (360) 430 (3100) Gain = 4 0.087 (0.58) 0.14 (0.82) 0.19 (1.3) 0.24 (1.6) 0.34 (2.2) 0.44 (2.9) 0.48 (3.1) 0.7 (4.6) 0.94 (6.2) 1.4 (9.3) 2.5 (19) 7.1 (53) 27 (200) 220 (1500) Gain = 8 0.065 (0.4) 0.1 (0.58) 0.14 (0.89) 0.17 (1.1) 0.24 (1.6) 0.31 (2) 0.35 (2.2) 0.47 (3.2) 0.7 (5) 1 (7) 1.8 (14) 4.2 (30) 14 (110) 110 (760) Gain = 16 0.049 (0.27) 0.074 (0.43) 0.1 (0.63) 0.13 (0.8) 0.18 (1.1) 0.24 (1.5) 0.25 (1.6) 0.36 (2.2) 0.53 (3.2) 0.78 (5.3) 1.2 (8.7) 2.4 (18) 7.4 (51) 55 (400) Gain = 32 0.034 (0.19) 0.053 (0.31) 0.075 (0.44) 0.089 (0.54) 0.13 (0.77) 0.17 (1) 0.18 (1.1) 0.26 (1.7) 0.37 (2.3) 0.56 (3.9) 0.84 (6.4) 1.5 (11) 3.9 (29) 27 (180) Gain = 64 0.03 (0.16) 0.041 (0.22) 0.6 (0.35) 0.076 (0.46) 0.1 (0.65) 0.14 (0.82) 0.15 (0.94) 0.21 (1.5) 0.31 (2.1) 0.46 (3.1) 0.67 (5) 1.1 (7.8) 2.3 (16) 14 (110) Gain = 128 0.022 (0.11) 0.034 (0.17) 0.049 (0.28) 0.062 (0.35) 0.088 (0.53) 0.11 (0.7) 0.12 (0.77) 0.18 (1.1) 0.26 (1.8) 0.38 (2.5) 0.57 (3.9) 0.89 (6.8) 1.6 (12) 7.5 (56) Table 21. Effective Resolution (Peak-to-Peak Resolution) vs. Gain and Output Data Rate (Bits), Mid Power Mode Filter Word (Dec.) 2047 960 480 320 160 96 80 40 20 10 5 3 2 1 Output Data Rate (SPS) 2.34 5 10 15 30 50 60 120 240 480 960 1600 2400 4800 Output Data Rate (Zero Latency Mode) (SPS) 0.78 1.67 3.33 5 10 16.67 20 40 80 160 320 533.33 800 1600 Gain = 1 24 (21.7) 23.8 (21.1) 23.3 (20.6) 23 (20.3) 22.5 (19.8) 22.1 (19.4) 22 (19.3) 21.5 (18.8) 21 (18.3) 20.4 (17.7) 19.5 (16.5) 17.6 (14.8) 15.5 (12.7) 12.5 (9.7) Gain = 2 23.8 (21.2) 23.4 (20.8) 22.9 (20.3) 22.6 (20) 22.1 (19.5) 21.7 (19.1) 21.6 (19) 21.1 (18.5) 20.6 (18) 20.1 (17.3) 19.2 (16.2) 17.5 (14.8) 15.5 (12.7) 12.5 (9.7) Gain = 4 23.6 (21) 23.1 (20.5) 22.6 (19.9) 22.3 (19.6) 21.8 (19.1) 21.4 (18.7) 21.3 (18.6) 20.8 (18.1) 20.3 (17.6) 19.8 (17) 19 (16) 17.4 (14.5) 15.5 (12.6) 12.5 (9.7) Gain = 8 23.2 (20.6) 22.6 (20) 22.1 (19.4) 21.8 (19.1) 21.3 (18.6) 20.9 (18.2) 20.8 (18.1) 20.3 (17.6) 19.8 (17) 19.2 (16.4) 18.4 (15.4) 17.2 (14.3) 15.4 (12.6) 12.5 (9.7) Gain = 16 22.6 (20.1) 22 (19.5) 21.5 (18.9) 21.2 (18.6) 20.7 (18.1) 20.3 (17.7) 20.2 (17.6) 19.7 (17.1) 19.2 (16.6) 18.6 (15.9) 18 (15.1) 17 (14.1) 15.4 (12.6) 12.5 (9.6) Gain = 32 22.1 (19.6) 21.5 19) 21 (18.4) 20.7 (18.1) 20.2 (17.6) 19.8 (17.2) 19.7 (17.1) 19.2 (16.5) 18.7 (16) 18.1 (15.3) 17.5 (14.6) 16.7 (13.8) 15.3 (12.4) 12.5 (9.6) Gain = 64 21.3 (18.9) 20.8 (18.4) 20.3 (17.8) 20 (17.4) 19.5 (16.9) 19.1 (16.5) 19.1 (16.3) 18.5 (15.7) 18 (15.2) 17.4 (14.6) 16.8 (13.9) 16.1 (13.3) 15 (12.3) 12.4 (9.5) Gain = 128 20.7 (18.4) 20.1 (17.8) 19.6 (17.1) 19.3 (16.8) 18.8 (16.2) 18.4 (15.8) 18.3 (15.6) 17.7 (15.1) 17.2 (14.4) 16.7 (13.9) 16.1 (13.3) 15.4 (12.6) 14.6 (11.7) 12.4 (9.4) Post Filters Table 22. RMS Noise (Peak-to-Peak Noise) vs. Gain and Output Data Rate (µV), Mid Power Mode Output Data Rate (SPS) 16.67 20 25 27.27 Gain = 1 1.1 (6.3) 1.1 (6.9) 1.2 (8) 1.3 (9.2) Gain = 2 0.69 (4) 0.7 (4) 0.8 (4.6) 0.82 (4.8) Gain = 4 0.41 (2.5) 0.41 (2.5) 0.46 (2.8) 0.48 (2.8) Gain = 8 0.31 (2) 0.33 (2.1) 0.36 (2.3) 0.36 (2.3) Gain = 16 0.23 (1.4) 0.23 (1.5) 0.25 (1.5) 0.28 (1.6) Gain = 32 0.17 (0.96) 0.18 (0.96) 0.17 (1) 0.19 (1.1) Gain = 64 0.13 (0.79) 0.14 (0.81) 0.15 (0.9) 0.16 (1) Gain = 128 0.11 (0.61) 0.12 (0.67) 0.12 (0.74) 0.13 (0.79) Table 23. Effective Resolution (Peak-to-Peak Resolution) vs. Gain and Output Data Rate (Bits), Mid Power Mode Output Data Rate (SPS) 16.67 20 25 27.27 Gain = 1 22.1 (19.6) 22.1 (19.5) 22 (19.2) 21.9 (19) Gain = 2 21.8 (19.2) 21.8 (19.2) 21.6 (19.1) 21.5 (19) Gain = 4 21.5 (18.9) 21.5 (18.9) 21.4 (18.8) 21.3 (18.8) Gain = 8 20.9 (18.3) 20.9 (18.2) 20.7 (18.1) 20.7 (18.1) Rev. D | Page 32 of 93 Gain = 16 20.4 (17.8) 20.4 (17.7) 20.3 (17.6) 21.1 (17.6) Gain = 32 19.8 (17.3) 19.8 (17.3) 19.7 (17.2) 19.7 (17.1) Gain = 64 19.2 (16.6) 19 (16.6) 18.9 (16.4) 18.9 (16.3) Gain = 128 18.4 (16) 18.3 (15.8) 18.2 (15.7) 18.2 (15.6) Data Sheet AD7124-4 Fast Settling Filter (Sinc4 + Sinc1) Table 24. RMS Noise (Peak-to-Peak Noise) vs. Gain and Output Data Rate (µV), Mid Power Mode (Average by 16) Filter Word (Dec.) 96 30 6 5 2 1 Output Data Rate (SPS) 2.63 8.42 42.11 50.53 126.32 252.63 Gain = 1 0.36 (2.4) 0.67 (4.2) 1.5 (9) 1.6 (9.3) 2.5 (15) 5.2 (21) Gain = 2 0.23 (1.5) 0.44 (2.7) 0.96 (6.1) 1 (7.7) 1.6 (11) 3.1 (19) Gain = 4 0.15 (0.82) 0.26 (1.6) 0.57 (3.7) 0.62 (4) 1 (7.2) 1.8 (11) Gain = 8 0.1 (0.71) 0.18 (1.1) 0.42 (2.6) 0.46 (3) 0.76 (4.9) 1.4 (9.8) Gain = 16 0.078 (0.44) 0.14 (0.8) 0.32 (1.9) 0.33 (2) 0.57 (3.7) 0.92 (6.2) Gain = 32 0.056 (0.35) 0.1 (0.54) 0.22 (1.5) 0.24 (1.6) 0.41 (2.7) 0.62 (4.2) Gain = 64 0.045 (0.26) 0.08 (0.48) 0.18 (1.1) 0.2 (1.3) 0.32 (2.4) 0.49 (3) Gain = 128 0.038 (0.21) 0.067 (0.41) 0.15 (0.95) 0.17 (1.2) 0.29 (1.9) 0.41 (3) Table 25. Effective Resolution (Peak-to-Peak Resolution) vs. Gain and Output Data Rate (Bits), Mid Power Mode (Average by 16) Filter Word (Dec.) 96 30 6 5 2 1 Output Data Rate (SPS) 2.63 8.42 42.11 50.53 126.32 252.63 Gain = 1 23.7 (21) 22.8 (20.2) 21.7 (19.1) 21.5 (19) 20.9 (18.3) 19.9 (17.3) Gain = 2 23.4 (20.7) 22.4 (19.8) 21.3 (18.6) 21.2 (18.4) 20.5 (17.8) 19.6 (17) Gain = 4 23 (20.5) 22.2 (19.5) 21.1 (18.4) 20.9 (18.2) 20.2 (17.4) 19.4 (16.8) Gain = 8 22.5 (19.8) 21.7 (19.1) 20.5 (17.9) 20.4 (17.8) 19.6 (17) 18.8 (16) Gain = 16 21.9 (19.4) 21 (18.6) 19.9 (17.3) 19.8 (17.2) 19.1 (16.4) 18.4 (15.6) Gain = 32 21.4 (18.8) 20.6 (18.1) 19.4 (16.7) 19.3 (16.6) 18.6 (15.8) 17.9 (15.2) Gain = 64 20.7 (18.2) 19.9 (17.3) 18.7 (16) 18.5 (15.9) 17.9 (15.2) 17.3 (14.7) Gain = 128 20 (17.5) 19.1 (16.5) 18 (15.2) 17.8 (15) 17.1 (14.3) 16.5 (13.7) Fast Settling Filter (Sinc3 + Sinc1) Table 26. RMS Noise (Peak-to-Peak Noise) vs. Gain and Output Data Rate (µV), Mid Power Mode (Average by 16) Filter Word (Dec.) 96 30 6 5 2 1 Output Data Rate (SPS) 2.78 8.89 44.44 53.33 133.33 266.67 Gain = 1 0.39 (2.4) 0.71 (4.2) 1.5 (9.5) 1.6 (11) 6 (37) 44 (320) Gain = 2 0.25 (1.5) 0.43 (2.5) 0.93 (6) 1 (6.9) 3.2 (20) 23 (160) Gain = 4 0.16 (1) 0.27 (1.6) 0.59 (3.8) 0.66 (4.2) 1.8 (11) 12 (83) Gain = 8 0.11 (0.67) 0.19 (1.1) 0.43 (2.6) 0.46 (2.8) 1 (7.2) 5.7 (41) Gain = 16 0.08 (0.48) 0.15 (1) 0.32 (2.1) 0.35 (2.3) 0.63 (4.5) 3 (20) Gain = 32 0.058 (0.31) 0.098 (0.64) 0.22 (1.5) 0.24 (1.6) 0.43 (3) 1.6 (9.9) Gain = 64 0.047 (0.27) 0.083 (0.47) 0.18 (1.1) 0.2 (1.2) 0.33 (2.2) 0.84 (6.4) Gain = 128 0.039 (0.23) 0.068 (0.4) 0.15 (0.98) 0.17 (1.1) 0.27 (1.8) 0.56 (3.5) Table 27. Effective Resolution (Peak-to-Peak Resolution) vs. Gain and Output Data Rate (Bits), Mid Power Mode (Average by 16) Filter Word (Dec.) 96 30 6 5 2 1 Output Data Rate (SPS) 2.78 8.89 44.44 53.33 133.33 266.67 Gain = 1 23.6 (21) 22.7 (20.2) 21.7 (19) 21.5 (18.8) 19.7 (17) 16.8 (13.9) Gain = 2 23.3 (20.7) 22.5 (19.9) 21.4 (18.7) 21.2 (18.5) 19.6 (16.9) 16.7 (13.9) Gain = 4 22.9 (20.3) 22.2 (19.6) 21 (18.3) 20.9 (18.2) 19.4 (16.8) 16.7 (13.9) Gain = 8 22.5 (19.8) 21.7 (19.1) 20.5 (17.9) 20.4 (17.8) 19.2 (16.4) 16.7 (13.9) Rev. D | Page 33 of 93 Gain = 16 21.9 (19.3) 21 (18.3) 19.9 (17.2) 19.8 (17.1) 18.9 (16.1) 16.7 (13.9) Gain = 32 21.4 (18.9) 20.6 (17.9) 19.4 (16.7) 19.3 (16.6) 18.5 (15.7) 16.6 (13.9) Gain = 64 20.7 (18.1) 19.8 (17.3) 18.7 (16.1) 18.6 (16) 17.8 (15.1) 16.5 (13.6) Gain = 128 19.9 (17.4) 19.1 (16.6) 18 (15.3) 17.8 (15.1) 17.1 (14.4) 16.1 (13.4) AD7124-4 Data Sheet LOW POWER MODE Sinc4 Table 28. RMS Noise (Peak-to-Peak Noise) vs. Gain and Output Data Rate (µV), Low Power Mode Filter Word (Dec.) 2047 1920 960 480 240 120 60 48 40 30 15 8 4 2 1 Output Data Rate (SPS) 1.17 1.25 2.5 5 10 20 40 50 60 80 160 300 600 1200 2400 Output Data Rate (Zero Latency Mode) (SPS) 0.293 0.3125 0.625 1.25 2.5 5 10 12.5 15 20 40 75 150 300 600 f3dB (Hz) 0.269 0.288 0.575 1.15 2.3 4.6 9.2 11.5 13.8 18.4 36.8 69 138 276 552 Gain = 1 0.22 (1.2) 0.24 (1.5) 0.37 (2.1) 0.5 (3) 0.65 (4.1) 0.9 (5.8) 1.3 (8) 1.4 (9.3) 1.6 (10) 1.8 (12) 2.6 (17) 3.7 (24) 5.2 (35) 9.4 (57) 72 (470) Gain = 2 0.15 (0.89) 0.15 (0.89) 0.23 (1.2) 0.3 (1.7) 0.42 (2.5) 0.61 (3.5) 0.82 (5) 0.95 (6) 0.99 (6.6) 1.2 (7.5) 1.8 (11) 2.5 (17) 4 (24) 7.6 (47) 39 (240) Gain = 4 0.095 (0.67) 0.095 (0.67) 0.13 (0.82) 0.18 (1.2) 0.26 (1.9) 0.38 (2.5) 0.53 (3.7) 0.6 (4.2) 0.64 (4.5) 0.77 (5.1) 1.1 (7.2) 1.6 (11) 2.6 (17) 5.8 (36) 22 (130) Gain = 8 0.071 (0.41) 0.071 (0.41) 0.1 (0.61) 0.13 (0.77) 0.2 (1.1) 0.28 (1.7) 0.38 (2.4) 0.46 (2.8) 0.47 (3.2) 0.55 (3.7) 0.85 (5.7) 1.2 (7.5) 2.1 (13) 4.9 (32) 16 (110) Gain = 16 0.053 (0.26) 0.053 (0.26) 0.068 (0.37) 0.099 (0.56) 0.14 (0.8) 0.2 1.2) 0.29 (1.8) 0.32 (2.1) 0.35 (2.2) 0.4 (2.7) 0.56 (3.9) 0.87 (5.6) 1.4 (8.5) 3 (19) 8 (49) Gain = 32 0.043 (0.2) 0.043 (0.2) 0.055 (0.26) 0.078 (0.39) 0.1 (0.6) 0.15 (0.85) 0.21 (1) 0.24 (1.5) 0.26 (1.7) 0.3 (2) 0.41 (2.5) 0.58 (3.9) 1 (6) 1.9 (11) 4.8 (29) Gain = 64 0.035 (0.16) 0.035 (0.16) 0.041 (0.23) 0.06 (0.31) 0.085 (0.5) 0.12 (0.68) 0.17 (0.95) 0.2 (1.1) 0.21 (1.3) 0.25 (1.6) 0.33 (2.1) 0.48 (2.9) 0.76 (5.2) 1.4 (9) 3.3 (21) Gain = 128 0.024 (0.12) 0.024 (0.12) 0.035 (0.17) 0.052 (0.26) 0.072 (0.43) 0.096 (0.6) 0.14 (0.9) 0.16 (1) 0.17 (1.1) 0.19 (1.3) 0.28 (1.6) 0.39 (2.6) 0.6 (3.9) 1.3 (7.8) 2.6 (18) Table 29. Effective Resolution (Peak-to-Peak Resolution) vs. Gain and Output Data Rate, Low Power Mode Filter Word (Dec.) 2047 1920 960 480 240 120 60 48 40 30 15 8 4 2 1 Output Data Rate (SPS) 1.17 1.25 2.5 5 10 20 40 50 60 80 160 300 600 1200 2400 Output Data Rate (Zero Latency Mode) (SPS) 0.29311 0.3125 0.625 1.25 2.5 5 10 12.5 15 20 40 75 150 300 600 Gain = 1 24 (22) 24 (21.7) 23.7 (21.2) 23.3 (20.7) 22.9 (20.2) 22.4 (19.7) 21.9 (19.2) 21.7 (19) 21.6 (18.9) 21.4 (18.7) 20.9 (18.2) 20.4 (17.7) 19.9 (17.1) 19 (16.4) 16.1 (13.4) Gain = 2 23.8 (21.4) 23.8 (21.3) 23.4 (21) 23 (20.5) 22.5 (19.9) 22 (19.4) 21.5 (18.9) 21.3 (18.7) 21.2 (18.5) 21 (18.3) 20.4 (17.8) 19.9 (17.2) 19.3 (16.7) 18.3 (15.7) 16 (13.4) Gain = 4 23.7 (20.9) 23.6 (20.8) 23.2 (20.5) 22.7 (20) 22.2 (19.4) 21.7 (18.9) 21.2 (18.4) 21 (18.2) 20.9 (18.1) 20.6 (17.9) 20.1 (17.4) 19.6 (16.8) 18.9 (16.2) 17.7 (15.1) 15.8 (13.3) Gain = 8 23.2 (20.5) 23.1 (20.5) 22.6 (20) 22.1 (19.6) 21.6 (19.1) 21.1 (18.5) 20.6 (18) 20.4 (17.8) 20.3 (17.6) 20.1 (17.4) 19.5 (16.8) 19 (16.3) 18.2 (15.6) 17 (14.3) 15.3 (12.5) Rev. D | Page 34 of 93 Gain = 16 22.7 (20.2) 22.6 (20.1) 22.1 (19.7) 21.6 (19.1) 21.1 (18.6) 20.6 (18) 20.1 (17.4) 19.9 (17.2) 19.8 (17.1) 19.6 (16.8) 19.1 (16.3) 18.5 (15.8) 17.8 (15.2) 16.7 (14) 15.2 (12.5) Gain = 32 21.8 (19.7) 21.8 (19.6) 21.4 (19.2) 20.9 (18.6) 20.5 (18) 20 (17.5) 19.5 (17.3) 19.3 (16.7) 19.2 (16.5) 19 (16.2) 18.5 (15.7) 18 (15.3) 17.3 (14.7) 16.3 (13.8) 15 (12.4) Gain = 64 21.3 (18.9) 21.2 (18.9) 20.8 (18.4) 20.3 (17.9) 19.8 (17.2) 19.3 (16.8) 18.8 (16.3) 18.6 (16.1) 18.5 (15.9) 18.3 (15.6) 17.8 (15.2) 17.3 (14.7) 16.7 (13.9) 15.7 (13.1) 14.5 (11.9) Gain = 128 20.6 (18.3) 20.6 (18.3) 20.1 (17.8) 19.5 (17.2 19.1 (16.5) 18.6 (16) 18.1 (15.4) 17.9 (15.2) 17.8 (15.1) 17.6 (14.9) 17.1 (14.5) 16.6 (13.9) 16 (13.3) 14.9 (12.3) 13.9 (11) Data Sheet AD7124-4 Sinc3 Table 30. RMS Noise (Peak-to-Peak Noise) vs. Gain and Output Data Rate (µV), Low Power Mode Filter Word (Dec.) 2047 480 240 160 80 48 40 20 10 5 3 2 1 Output Data Rate (SPS) 1.17 5 10 15 30 50 60 120 240 480 800 1200 2400 Output Data Rate (Zero Latency Mode) (SPS) 0.39 1.67 3.33 5 10 16.67 20 40 80 160 266.67 400 800 f3dB (Hz) 0.32 1.36 2.72 4.08 8.16 13.6 16.32 32.64 65.28 130.6 217.6 326.4 652.8 Gain = 1 0.26 (1.5) 0.51 (3.1) 0.75 (4.5) 0.88 (5.5) 1.3 (7.8) 1.7 (9.9) 1.8 (12) 2.5 (17) 3.5 (25) 6.8 (48) 25 (180) 110 (740) 870 (5600) Gain = 2 0.17 (0.9) 0.31 (1.9) 0.45 (2.8) 0.55 (3.3) 0.77 (4.9) 1 (6.4) 1.1 (7) 1.6 (10) 2.4 (16) 4.3 (32) 13 (98) 55 (390) 430 (2900) Gain = 4 0.099 (0.6) 0.2 (1.3) 0.29 (2) 0.3 (2.4) 0.47 (3.3) 0.63 (4.6) 0.71 (5) 0.9 (6.1)7 1.5 (9.9) 2.6 (19) 7.4 (53) 28 (180) 220 (1400) Gain = 8 0.072 (0.36) 0.15 (0.86) 0.21 (1.3) 0.26 (1.6) 0.36 (2.2) 0.47 (3.1) 0.52 (3.4) 0.73 (5) 1.1 (7.6) 2 (15) 4.5 (34) 15 (100) 110 (670) Gain = 16 0.055 (0.27) 0.11 (0.65) 0.16 (0.9) 0.19 (1.2) 0.27 (1.7) 0.36 (2.2) 0.39 (2.5) 0.55 (3.7) 0.8 (5.3) 1.3 (9) 2.7 (18) 7.6 (57) 56 (370) Gain = 32 0.039 (0.21) 0.078 (0.45) 0.11 (0.65) 0.14 (0.79) 0.19 (1.2) 0.26 (1.7) 0.27 (1.8) 0.41 (2.5) 0.56 (3.5) 0.9 (6.5) 1.6 (11) 4 (32) 28 (180) Gain = 64 0.032 (0.16) 0.063 (0.37) 0.085 (0.51) 0.1 (0.62) 0.15 (0.94) 0.2 ( 1.3) 0.21 (1.4) 0.3 (1.9) 0.45 (2.8) 0.7 (4.5) 1.1 (7.7) 2.4 (16) 14 (100) Gain = 128 0.026 (0.13) 0.05 (0.28) 0.071 (0.39) 0.089 (0.53) 0.12 (0.72) 0.16 (1) 0.18 (1.3) 0.26 (1.6) 0.37 (2.3) 0.55 (3.3) 0.91 (6) 1.6 (12) 7.6 (52) Gain = 64 21.2 (18.9) 20.2 (17.7) 19.8 (17.2) 19.5 (16.9) 19 (16.3) 18.6 (15.9) 18.5 (15.8) 18 (15.3) 17.4 (14.8) 16.8 (14.1) 16.1 (13.3) 15 (12.2) 12.5 (9.6) Gain = 128 20.5 (18.2) 19.6 (17.1) 19.1 (16.6) 18.8 (16.2) 18.3 (15.7) 17.9 (15.2) 17.7 (15.1) 17.2 (14.6) 16.7 (14.1) 16.1 (13.5) 15.4 (12.7) 14.5 (11.6) 12.3 (9.6) Table 31. Effective Resolution (Peak-to-Peak Resolution) vs. Gain and Output Data Rate, Low Power Mode Filter Word (Dec.) 2047 480 240 160 80 48 40 20 10 5 3 2 1 Output Data Rate (SPS) 1.17 5 10 15 30 50 60 120 120 480 800 1200 2400 Output Data Rate (Zero Latency Mode) (SPS) 0.39 1.67 3.33 5 10 16.67 20 40 80 160 266.67 400 800 Gain = 1 24 (21.7) 23.2 (20.6) 22.7 (20.1) 22.4 (19.8) 21.9 (19.3) 21.5 (18.9) 21.4 (18.7) 20.9 (18.2) 20.4 (17.6) 19.5 (16.7) 17.6 (14.8) 15.5 (12.7) 12.5 (9.8) Gain = 2 23.8 (21.4) 22.9 (20.3) 22.4 (19.8) 22.1 (19.5) 21.6 (19) 21.2 (18.6) 21.1 (18.4) 20.6 (17.9) 20 (17.2) 19.2 (16.3) 17.5 (14.6) 15.5 (12.7) 12.5 (9.8) Gain = 4 23.6 (21) 22.6 (19.9) 22.1 (19.3) 21.8 (19) 21.3 (18.5) 20.9 (18.1) 20.8 (17.9) 20.3 (17.4) 19.7 (16.9) 18.8 (16) 17.4 (14.5) 15.4 (12.7) 12.5 (9.8) Gain = 8 23 (20.7) 22 (19.5) 21.5 (18.9) 21.2 (18.6) 20.7 (18.1) 20.3 (17.6) 20.2 (17.5) 19.7 (16.9) 19.1 (16.3) 18.2 (15.4) 17.1 (14.2) 15.4 (12.6) 12.5 (9.8 Gain = 16 22.4 (20.1) 21.4 (18.9) 20.9 (18.4) 20.6 (18) 20.1 (17.5) 19.7 (17.1) 19.6 (16.9) 19.1 (16.4) 18.6 (15.9) 17.9 (15.1) 16.8 (14.1) 15.3 (12.4) 12.5 (9.7) Gain = 32 21.9 (19.5) 20.9 (18.4) 20.4 (17.9) 20.1 (17.6) 19.6 (17) 19.2 (16.5) 19.1 (16.4) 18.6 (15.9) 18.1 (15.4) 17.4 (14.6) 16.6 (13.8) 15.2 (12.3) 12.5 (9.7) Post Filters Table 32. RMS Noise (Peak-to-Peak Noise) vs. Gain and Output Data Rate (µV), Low Power Mode Output Data Rate (SPS) 16.67 20 25 27.27 Gain = 1 1.7 (12) 1.7 (11) 1.8 (11) 1.9 (11) Gain = 2 0.96 (5.8) 1.1 (6.4) 1.1 (6.7) 1.1 (7.3) Gain = 4 0.65 (4) 0.65 (4.2) 0.68 (4.2) 0.69 (4.4) Gain = 8 0.45 (2.6) 0.46 (2.6) 0.52 (2.7) 0.54 (2.9) Gain = 16 0.34 (1.9) 0.36 (1.9) 0.37 (2) 0.4 (2.1) Gain = 32 0.25 (1.5) 0.26 (1.5) 0.26 (1.6) 0.27 (1.8) Gain = 64 0.2 (1.2) 0.21 (1.2) 0.22 (1.2) 0.23 (1.4) Gain = 128 0.16 (0.92) 0.17 (0.93) 0.17 (1.1) 0.18 (1.3) Table 33. Effective Resolution (Peak-to-Peak Resolution) vs. Gain and Output Data Rate (Bits), Low Power Mode Output Data Rate (SPS) 16.67 20 25 27.27 Gain = 1 21.5 (18.8) 21.5 (18.8) 21.4 (18.8) 21.3 (18.7) Gain = 2 21.3 (18.7) 21.2 (18.6) 21.2 (18.5) 21.1 (18.4) Gain = 4 20.9 (18.2) 20.9 (18.2) 20.8 (18.2) 20.8 (18.1) Gain = 8 21.4 (17.9) 20.4 (17.9) 20.2 (17.8) 20.2 (17.7) Rev. D | Page 35 of 93 Gain = 16 19.8 (17.3) 19.7 (17.3) 19.7 (17.3) 19.6 (17.2) Gain = 32 19.3 (16.7) 19.2 (16.7) 19.2 (16.6) 19.1 (16.4) Gain = 64 18.6 (16.1) 18.6 (16.1) 18.5 (15.9) 18.4 (15.8) Gain = 128 17.9 (15.4) 17.8 (15.4) 17.8 (15.1) 17.7 (14.9) AD7124-4 Data Sheet Fast Settling Filter (Sinc4 + Sinc1) Table 34. RMS Noise (Peak-to-Peak Noise) vs. Gain and Output Data Rate (µV), Low Power Mode (Average by 8) Filter Word (Dec.) 96 30 6 5 2 1 Output Data Rate (SPS) 2.27 7.27 36.36 43.64 109.1 218.18 Gain = 1 0.53 (3.4) 0.89 (5.4) 2.1 (12) 2.2 (13) 3.7 (25) 8.4 (52) Gain = 2 0.34 (2.2) 0.6 (3.6) 1.4 (8.3) 1.4 (9.7) 2.5 (18) 5.4 (34) Gain = 4 0.19 (1.2) 0.36 (2.2) 0.82 (5.6) 0.93 (6.5) 1.5 (10) 3.3 (21) Gain = 8 0.16 (0.97) 0.27 (1.8) 0.64 (3.9) 0.71 (4.2) 1.3 (7.5) 2.6 (16) Gain = 16 0.1 (0.61) 0.21 (1.2) 0.43 (2.7) 0.5 (3.1) 0.86 (5.6) 1.6 (9.8) Gain = 32 0.082 (0.48) 0.15 (0.93) 0.33 (2.1) 0.35 (2.4) 0.59 (3.5) 0.97 (6.1) Gain = 64 0.065 (0.38) 0.12 (0.65) 0.25 (1.6) 0.28 (1.7) 0.47 (3.2) 0.75 (5.4) Gain = 128 0.058 (0.37) 0.093 (0.59) 0.21 (1.4) 0.23 (1.5) 0.39 (2.4) 0.63 (4.7) Table 35. Effective Resolution (Peak-to-Peak Resolution) vs. Gain and Output Data Rate (Bits), Low Power Mode (Average by 8) Filter Word (Dec.) 96 30 6 5 2 1 Output Data Rate (SPS) 2.27 7.27 36.36 43.64 109.1 218.18 Gain = 1 23.2 (20.5) 22.4 (19.8) 21.2 (18.6) 21.1 (18.5) 20.4 (17.6) 19.2 (16.6) Gain = 2 22.8 (20.1) 22 (19.4) 20.8 (18.1) 20.7 (18) 19.9 (17.1) 18.8 (16.2) Gain = 4 22.7 (20) 21.7 (19.1) 20.5 (17.8) 20.4 (17.6) 19.6 (16.9) 18.5 (15.9) Gain = 8 21.9 (19.3) 21.1 (18.4) 19.9 (17.3) 19.8 (17.2) 18.9 (16.3) 17.9 (15.2) Gain = 16 21.5 (19) 20.5 (18) 19.5 (16.8) 19.3 (16.6) 18.5 (15.8) 17.6 (15) Gain = 32 20.9 (18.3) 20 (17.4) 18.9 (16.2) 18.8 (16) 18 (15.4) 17.3 (14.7) Gain = 64 20.2 (17.6) 19.4 (16.9) 18.3 (15.6) 18.1 (15.5) 17.3 (14.6) 16.7 (13.8) Gain = 128 19.4 (16.7) 18.7 (16) 17.5 (14.8) 17.4 (14.7) 16.6 (14) 15.9 (13) Fast Settling Filter (Sinc3 + Sinc1) Table 36. RMS Noise (Peak-to-Peak Noise) vs. Gain and Output Data Rate (µV), Low Power Mode (Average by 8) Filter Word (Dec.) 96 30 6 5 2 1 Output Data Rate (SPS) 2.5 8 40 48 120 240 Gain = 1 0.53 (3.6) 0.92 (5.4) 2.1 (13) 2.3 (14) 11 (72) 88 (530) Gain = 2 0.33 (2.1) 0.58 (3.4) 1.3 (8.3) 1.5 (8.6) 5.9 (39) 45 (250) Gain = 4 0.21 (1.4) 0.4 (2.3) 0.83 (6) 0.87 (6.6) 3.2 (23) 22 (140) Gain = 8 0.15 (0.93) 0.28 (1.6) 0.61 (4.1) 0.7 (4.4) 1.9 (15) 11 (82) Gain = 16 0.11 (0.6) 0.2 (1.1) 0.44 (3) 0.5 (3.3) 1.1 (8.5) 5.8 (40) Gain = 32 0.073 (0.44) 0.14 (0.79) 0.33 (2.1) 0.36 (2.3) 0.7 (4.7) 3 (22) Gain = 64 0.064 (0.39) 0.11 (0.62) 0.26 (1.6) 0.3 (1.7) 0.5 (3.3) 01.6 (11) Gain = 128 0.051 (0.29) 0.094 (0.51) 0.21 (1.3) 0.23 (1.4) 0.4 (2.4) 0.94 (6.3) Table 37. Effective Resolution (Peak-to-Peak Resolution) vs. Gain and Output Data Rate (Bits), Low Power Mode (Average by 8) Filter Word (Dec.) 96 30 6 5 2 1 Output Data Rate (SPS) 2.5 8 40 48 120 240 Gain = 1 23.2 (20.4) 22.4 (19.8) 21.2 (18.6) 21 (18.4) 18.7 (16.1) 15.8 (13.2) Gain = 2 22.8 (20.2) 22 (19.5) 20.9 (18.2) 20.7 (18.1) 18.7 (16) 15.8 (13.2) Gain = 4 22.5 (19.8) 21.6 (19) 20.5 (17.7) 20.4 (17.5) 18.6 (15.8) 15.8 (13.2) Gain = 8 22 (19.4) 21.1 (18.6) 20 (17.2) 19.8 (17) 18.3 (15.3) 15.7 (12.9) Rev. D | Page 36 of 93 Gain = 16 21.4 (19) 20.6 (18.1) 19.4 (16.7) 19.3 (16.5) 18.1 (15.2) 15.7 (12.9) Gain = 32 21 (18.4) 20.1 (17.6) 18.9 (16.2) 18.7 (16.1) 17.8 (15) 15.7 (12.8) Gain = 64 20.2 (17.6) 19.4 (16.9) 18.2 (15.6) 18 (15.5) 17.3 (14.6) 15.6 (12.8) Gain = 128 19.6 (17) 18.7 (16.2) 17.5 (14.9) 17.4 (14.8) 16.6 (14) 15.3 (12.6) Data Sheet AD7124-4 GETTING STARTED AVDD AVDD REFIN1(+) IN+ OUT– IN+ OUT– VBIAS OUT+ AIN0 AIN1 AIN2 AIN3 AIN4 AIN5 REFIN2(+) X-MUX REFIN2(–) IN– OUT+ IN– RREF REFERENCE DETECT AVDD Σ-Δ ADC PGA SERIAL INTERFACE AND CONTROL LOGIC CHANNEL SEQUENCER TEMP SENSOR AVSS DIGITAL FILTER VDD DIAGNOSTICS REFIN1(–) PSW DOUT/RDY DIN SCLK CS IOVDD INTERNAL CLOCK CLK SYNC AD7124-4 REGCAPA REGCAPD AVSS DGND NOTES 1. SIMPLIFIED BLOCK DIAGRAM SHOWN. 13197-068 AVSS Figure 65. Basic Connection Diagram OVERVIEW The AD7124-4 is a low power ADC that incorporates a Σ-Δ modulator, buffer, reference, gain stage, and on-chip digital filtering, which is intended for the measurement of wide dynamic ranges, low frequency signals (such as those in pressure transducers), weigh scales, and temperature measurement applications. Power Modes The AD7124-4 offers three power modes: high power mode, mid power mode, and low power mode. This allows the user total flexibility in terms of speed, rms noise, and current consumption. Analog Inputs Reference buffers are also included on chip, which can be used with the internal reference and externally applied references. Programmable Gain Array (PGA) The analog input signal can be amplified using the PGA. The PGA allows gains of 1, 2, 4, 8, 16, 32, 64, and 128. Burnout Currents Two burnout currents, which can be programmed to 500 nA, 2 µA, or 4 µA, are included on chip to detect the presence of the external sensor. Σ-Δ ADC and Filter The AD7124-4 contains a fourth-order Σ-Δ modulator followed by a digital filter. The device has the following filter options: The device can have four differential or seven pseudo differential analog inputs. The analog inputs can be buffered or unbuffered. The AD7124-4 uses flexible multiplexing; thus, any analog input pin can be selected as a positive input (AINP) and any analog input pin can be selected as a negative input (AINM). • • • • • Multiplexer Channel Sequencer The on-chip multiplexer increases the channel count of the device. Because the multiplexer is included on chip, any channel changes are synchronized with the conversion process. The AD7124-4 allows up to 16 configurations, or channels. These channels can consist of analog inputs, reference inputs, or power supplies such that diagnostic functions, such as power supply monitoring, can be interleaved with conversions. The sequencer automatically converts all enabled channels. When each enabled channel is selected, the time required to generate the conversion is equal to the settling time for the selected channel. Reference The device contains a 2.5 V reference, which has a drift of 10 ppm/°C maximum for the AD7124-4 B grade and for the AD7124-4 in the TSSOP package and 15 ppm/°C maximum for the AD7124-4 in the LFCSP package. Rev. D | Page 37 of 93 Sinc4 Sinc3 Fast filter Post filter Zero latency AD7124-4 Data Sheet Per Channel Configuration POWER SUPPLIES The AD7124-4 allows up to eight different setups, each setup consisting of a gain, output data rate, filter type, and a reference source. Each channel is then linked to a setup. Serial Interface The AD7124-4 operates with an analog power supply voltage from 2.7 V to 3.6 V in low or mid power mode and from 2.9 V to 3.6 V in full power mode. The device accepts a digital power supply from 1.65 V to 3.6 V. The AD7124-4 has a 3-wire or 4-wire SPI. The on-chip registers are accessed via the serial interface. The device has two independent power supply pins: AVDD and IOVDD. Clock • The device has an internal 614.4 kHz clock. Use either this clock or an external clock as the clock source for the device. The internal clock can also be made available on a pin if a clock source is required for external circuitry. Temperature Sensor • AVDD is referred to AVSS. AVDD powers the internal analog regulator that supplies the ADC. IOVDD is referred to DGND. This supply sets the interface logic levels on the SPI interface and powers an internal regulator for operation of the digital processing. Single Supply Operation (AVSS = DGND) The AD7124-4 has two general-purpose digital outputs. These can be used for driving external circuitry. For example, an external multiplexer can be controlled by these outputs. When the AD7124-4 is powered from a single supply that is connected to AVDD, AVSS and DGND can be shorted together on one single ground plane. With this setup, an external level shifting circuit is required when using truly bipolar inputs to shift the common-mode voltage. Recommended regulators include the ADP162, which has a low quiescent current. Calibration Split Supply Operation (AVSS ≠ DGND) Both internal calibration and system calibration are included on chip; therefore, the user has the option of removing offset or gain errors internal to the device only, or removing the offset or gain errors of the complete end system. The AD7124-4 can operate with AVSS set to a negative voltage, allowing true bipolar inputs to be applied. This allows a truly fully differential input signal centered around 0 V to be applied to the AD7124-4 without the need for an external level shifting circuit. For example, with a 3.6 V split supply, AVDD = +1.8 V and AVSS = −1.8 V. In this use case, the AD7124-4-internally level shifts the signals, allowing the digital output to function between DGND (nominally 0 V) and IOVDD. The on-chip temperature sensor monitors the die temperature. Digital Outputs Excitation Currents The device contains two excitation currents which can be set independently to 50 µA, 100 µA, 250 µA, 500 µA, 750 µA, or 1 mA. Bias Voltage A bias voltage generator is included on chip so that signals from thermocouples can be biased suitably. The bias voltage is set to AVDD/2 and can be made available on any input. It can supply multiple channels. Bridge Power Switch (PSW) A low-side power switch allows the user to power down bridges that are interfaced to the ADC. Diagnostics The AD7124-4 includes numerous diagnostics features such as Reference detection Overvoltage/undervoltage detection CRC on SPI communications CRC on the memory map SPI read/write checks DIGITAL COMMUNICATION The AD7124-4 has a 3-wire or 4-wire SPI interface that is compatible with QSPI™, MICROWIRE™, and DSPs. The interface operates in SPI Mode 3 and can be operated with CS tied low. In SPI Mode 3, SCLK idles high, the falling edge of SCLK is the drive edge, and the rising edge of SCLK is the sample edge. This means that data is clocked out on the falling/drive edge and data is clocked in on the rising/sample edge. DRIVE EDGE SAMPLE EDGE 13197-069 • • • • • When using a split supply for AVDD and AVSS, the absolute maximum ratings must be considered (see the Absolute Maximum Ratings section). Ensure that IOVDD is set below 3.6 V to stay within the absolute maximum ratings for the device. These diagnostics allow a high level of fault coverage in an application. Figure 66. SPI Mode 3, SCLK Edges Rev. D | Page 38 of 93 Data Sheet AD7124-4 Accessing the ADC Register Map The communications register controls access to the full register map of the ADC. This register is an 8-bit, write only register. On power-up or after a reset, the digital interface defaults to a state where it expects a write to the communications register; therefore, all communication begins by writing to the communications register. 8-BIT COMMAND 8 BITS, 16 BITS, OR 24 BITS OF DATA CMD DATA CS DIN The data written to the communications register determines which register is accessed and if the next operation is a read or write. The register address bits (Bit 5 to Bit 0) determine the specific register to which the read or write operation applies. 13197-070 SCLK Figure 67. Writing to a Register (8-Bit Command with Register Address Followed by Data of 8 Bits, 16 Bits, or 24 Bits; Data Length Is Dependent on the Register Selected) When the read or write operation to the selected register is complete, the interface returns to its default state, where it expects a write operation to the communications register. In situations where interface synchronization is lost, a write operation of at least 64 serial clock cycles with DIN high returns the ADC to its default state by resetting the entire device, including the register contents. Alternatively, if CS is used with the digital interface, returning CS high resets the digital interface to its default state and aborts any current operation. 8-BIT COMMAND 8 BITS, 16 BITS, 24 BITS, OR 32 BITS OUTPUT CS CMD DIN Figure 67 and Figure 68 illustrate writing to and reading from a register by first writing the 8-bit command to the communications register followed by the data for the addressed register. DOUT/RDY Reading the ID register is the recommended method for verifying correct communication with the device. The ID register is a read only register and contains the value of 0x04 for the AD7124-4 and 0x06 for the AD7124-4 B grade. The communication register and ID register details are described in Table 38 and Table 39. DATA 13197-071 SCLK Figure 68. Reading from a Register (8-Bit Command with Register Address Followed by Data of 8 Bits, 16 Bits, 24 Bits, or 32 Bits; Data Length on DOUT Is Dependent on the Register Selected, CRC Enabled) Table 38. Communications Register Reg. 0x00 Name COMMS Bits [7:0] Bit 7 WEN Bit 6 R/W Bit 5 Bit 4 Bit 3 Bit 2 RS[5:0] Bits [7:0] Bit 7 Bit 6 Bit 5 DEVICE_ID Bit 4 Bit 3 Bit 1 Bit 0 Reset 0x00 RW W Bit 0 Reset 0x04/ 0x06 RW R Table 39. ID Register Reg. 0x05 Name ID Rev. D | Page 39 of 93 Bit 2 Bit 1 SILICON_REVISION AD7124-4 Data Sheet CONFIGURATION OVERVIEW Channel Configuration After power-on or reset, the AD7124-4 default configuration is as follows: The AD7124-4 has 16 independent analog input channels and eight independent setups. The user can select any of the analog input pairs on any channel, as well as any of the eight setups for any channel, giving the user full flexibility in the channel configuration. This also allows per channel configuration when using all differential inputs because each channel can have its own dedicated setup. • • • Channel: Channel 0 is enabled, AIN0 is selected as the positive input, and AIN1 is selected as the negative input. Setup 0 is selected. Setup: the input and reference buffers are disabled, the gain is set to 1, and the external reference is selected. ADC control: the AD7124-4 is in low power mode, continuous conversion mode and the internal oscillator is enabled and selected as the master clock source. Diagnostics: the only diagnostic enabled is the SPI_IGNORE_ERR function. Note that only a few of the register setting options are shown; this list is just an example. For full register information, see the On-Chip Registers section. Figure 69 shows an overview of the suggested flow for changing the ADC configuration, divided into the following three blocks: • • • • Channel configuration (see Box A in Figure 69) Setup (see Box B in Figure 69) Diagnostics (see Box C in Figure 69) ADC control (see Box D in Figure 69) Along with the analog inputs, signals such as the power supply or reference can also be used as inputs; they are routed to the multiplexer internally when selected. The AD7124-4 allows the user to define 16 configurations, or channels, to the ADC. This allows diagnostics to be interleaved with conversions. Channel Registers Use the channel registers to select which input pins are either the positive analog input or the negative analog input for that channel. This register also contains a channel enable/disable bit and the setup selection bits, which are used to select which of the eight available setups to use for this channel. When the AD7124-4 is operating with more than one channel enabled, the channel sequencer cycles through the enabled channels in sequential order, from Channel 0 to Channel 15. If a channel is disabled, it is skipped by the sequencer. Details of the channel register for Channel 0 are shown in Table 40. A CHANNEL CONFIGURATION SELECT POSITIVE AND NEGATIVE INPUT FOR EACH ADC CHANNEL SELECT ONE OF 8 SETUPS FOR ADC CHANNEL B SETUP 8 POSSIBLE ADC SETUPS SELECT FILTER, OUTPUT DATA RATE, GAIN AND MORE C DIAGNOSTICS ENABLE CRC, SPI READ AND WRITE CHECKS ENABLE LDO CHECKS, AND MORE D ADC CONTROL SELECT ADC OPERATING MODE, CLOCK SOURCE, SELECT POWER MODE, DATA + STATUS, AND MORE 13197-072 • Figure 69. Suggested ADC Configuration Flow Table 40. Channel 0 Register Reg. Name Bits Bit 7 0x09 CHANNEL_0 [15:8] Enable [7:0] Bit 6 Bit 5 Setup Bit 4 Bit 3 Bit 2 0 AINP[2:0] AINM[4:0] Rev. D | Page 40 of 93 Bit 1 Bit 0 AINP[4:3] Reset RW 0x8001 RW Data Sheet AD7124-4 ADC Setups bipolar mode, the ADC accepts negative differential input voltages, and the output coding is offset binary. In unipolar mode, the ADC accepts only positive differential voltages, and the coding is straight binary. In either case, the input voltage must be within the AVDD and AVSS supply voltages. The user can also select the reference source using these registers. Four options are available: an internal 2.5 V reference, an external reference connected between REFIN1(+) and REFIN1(−), an external reference connected between REFIN2(+) and REFIN2(−), or AVDD to AVSS. The PGA gain is also set; gains of 1, 2, 4, 8, 16, 32, 64, and 128 are provided. The analog input buffers and reference input buffers for the setup can also be enabled using this register. The AD7124-4 has eight independent setups. Each setup consists of the following four registers: • • • • Configuration register Filter register Offset register Gain register For example, Setup 0 consists of Configuration Register 0, Filter Register 0, Offset Register 0, and Gain Register 0. Figure 70 shows the grouping of these registers. The setup is selectable from the channel registers detailed in the Channel Configuration section. This allows each channel to be assigned to one of eight separate setups. Table 41 through Table 44 show the four registers that are associated with Setup 0. This structure is repeated for Setup 1 to Setup 7. Filter Registers The filter registers select which digital filter is used at the output of the ADC modulator. The filter type and the output data rate are selected by setting the bits in this register. For more information, see the Digital Filter section. Configuration Registers The configuration registers allow the user to select the output coding of the ADC by selecting between bipolar and unipolar. In CONFIGURATION REGISTERS FILTER REGISTERS GAIN REGISTERS OFFSET REGISTERS CONFIG_0 0x19 FILTER_0 0x21 GAIN_0 0x31 OFFSET_0 0x29 CONFIG_1 0x1A FILTER_1 0x22 GAIN_1 0x32 OFFSET_1 0x2A CONFIG_2 0x1B FILTER_2 0x23 GAIN_2 0x33 OFFSET_2 0x2B CONFIG_3 0x1C FILTER_3 0x24 GAIN_3 0x34 OFFSET_3 0x2C CONFIG_4 0x1D FILTER_4 0x25 GAIN_4 0x35 OFFSET_4 0x2D CONFIG_5 0x1E FILTER_5 0x26 GAIN_5 0x36 OFFSET_5 0x2E CONFIG_6 0x1F FILTER_6 0x27 GAIN_6 0x37 OFFSET_6 0x2F CONFIG_7 0x20 GAIN_7 0x38 FILTER_7 0x28 SELECT DIGITAL FILTER TYPE AND OUTPUT DATA RATE ANALOG INPUT BUFFERS REFERENCE BUFFERS BURNOUT REFERENCE SOURCE GAIN GAIN CORRECTION OPTIONALLY PROGRAMMED PER SETUP AS REQUIRED OFFSET_7 0x30 OFFSET CORRECTION OPTIONALLY PROGRAMMED PER SETUP AS REQUIRED SINC4 SINC3 SINC4 + SINC1 SINC3 + SINC1 ENHANCED 50Hz/60Hz REJECTION 13197-073 SELECT PERIPHERAL FUNCTIONS FOR ADC CHANNEL Figure 70. ADC Setup Register Grouping Table 41. Configuration 0 Register Reg. 0x19 Name CONFIG_0 Bits Bit 7 [15:8] [7:0] REF_BUFM Bit 6 Bit 5 Bit 4 0 AIN_BUFP AIN_BUFM Bit 3 Bipolar REF_SEL Bit 2 Bit 1 Burnout PGA Bit 0 REF_BUFP Reset 0x0860 RW RW Table 42. Filter 0 Register Reg. 0x28 Name FILTER_0 Bits Bit 7 [23:9] [15:8] [7:0] Bit 6 Filter Bit 5 Bit 4 REJ60 Bit 3 0 Bit 2 Bit 1 Bit 0 Reset RW POST_FILTER SINGLE_CYCLE 0x060180 RW FS[10:8] FS[7:0] Table 43. Offset 0 Register Reg. 0x29 Name OFFSET_0 Bits [23:0] Bits[23:0] Offset[23:0] Reset RW 0x800000 RW Bits[23:0] Gain[23:0] Reset RW 0x5XXXXX RW Table 44. Gain 0 Register Reg. 0x31 Name GAIN_0 Bits [23:0] Rev. D | Page 41 of 93 AD7124-4 Data Sheet Offset Registers When a diagnostic is enabled, the corresponding flag is contained in the error register. All enabled flags are OR’ed to control the ERR flag in the status register. Thus, if an error occurs (for example, the SPI CRC check detects an error), the relevant flag (for example, the SPI_CRC_ERR flag) in the error register is set. The ERR flag in the status register is also set. This is useful when the status bits are appended to conversions. The ERR bit indicates if an error has occurred. The user can then read the error register for more details on the error source. The offset registers hold the offset calibration coefficient for the ADC. The power-on reset value of an offset register is 0x800000. The offset registers are 24-bit read/write registers. The poweron reset value is automatically overwritten if an internal or system zero-scale calibration is initiated by the user or if the offset registers are written to by the user. Gain Registers The gain registers are 24-bit registers that hold the gain calibration coefficient for the ADC. The gain registers are read/write registers. The gain is factory calibrated at a gain of 1; thus, the default value varies from device to device. The default value is automatically overwritten if an internal or system fullscale calibration is initiated by the user. For more information on calibration, see the Calibration section. The frequency of the on-chip oscillator can also be monitored on the AD7124-4. The MCLK_COUNT register monitors the master clock pulses. Table 45 to Table 47 give more detail on the diagnostic registers. See the Diagnostics section for more detail on the diagnostics available. ADC Control Register The ADC control register configures the core peripherals for use by the AD7124-4 and the mode for the digital interface. The power mode (full power, mid power, or low power) is selected via this register. Also, the mode of operation is selected, for example, continuous conversion or single conversion. The user can also select the standby and power-down modes, as well as any of the calibration modes. In addition, this register contains the clock source select bits and the internal reference enable bits. The reference select bits are contained in the setup configuration registers (see the ADC Setups section for more information). Diagnostics The ERROR_EN register enables and disables the numerous diagnostics on the AD7124-4. By default, the SPI_IGNORE function is enabled, which indicates inappropriate times to write to the ADC (for example, during power-up and during a reset). Other diagnostics include • • • • • SPI read and write checks, which ensure that only valid registers are accessed SCLK counter, which ensures that the correct number of SCLK pulses are used SPI CRC Memory map CRC LDO checks The digital interface operation is also selected via the ADC control register. This register allows the user to enable the data plus status read and continuous read mode. For more details, see the Digital Interface section. The details of this register are shown in Table 48. Table 45. Error Register Reg. 0x06 Name Error Bits [23:16] Bit 7 [15:8] AINP_OV_ ERR ALDO_PSM_ ERR [7:0] Bit 6 Bit 5 Bit 4 Bit 3 LDO_CAP_ERR Bit 2 ADC_CAL_ERR AINM_OV_ ERR SPI_SCLK_ CNT_ERR AINM_UV_ ERR SPI_READ_ ERR REF_DET_ERR 0 SPI_WRITE_ ERR SPI_CRC_ERR 0 AINP_UV_ ERR SPI_IGNORE_ ERR Bit 1 ADC_CONV_ ERR DLDO_PSM_ ERR MM_CRC_ ERR Bit 0 ADC_SAT_ ERR 0 Reset 0x000000 Bit 1 ADC_CONV_ ERR_EN DLDO_PSM_ ERR_EN MM_CRC_ ERR_EN Bit 0 ADC_SAT_ ERR_EN ALDO_PSM_ TRIP_TEST_EN ROM_CRC_ ERR_EN RW R ROM_CRC_ ERR Table 46. Error Enable Register Reg. 0x07 Name ERROR_EN Bits [23:16] Bit 7 0 [15:8] AINP_OV_ ERR_EN ALDO_PSM_ ERR_EN [7:0] Bit 6 MCLK_CNT_ EN AINP_UV_ ERR_EN SPI_IGNORE_ ERR_EN Bit 5 LDO_CAP_ CHK_TEST_EN AINM_OV_ ERR_EN SPI_SCLK_ CNT_ERR_EN Bit 4 Bit 3 LDO_CAP_CHK AINM_UV_ ERR_EN SPI_READ_ ERR_EN REF_DET_ ERR_EN SPI_WRITE_ ERR_EN Bit 2 ADC_CAL_ ERR_EN DLDO_PSM_ TRIP_TEST_EN SPI_CRC_ ERR_EN Reset 0x000040 RW RW Table 47. MCLK Count Register Reg. 0x08 Name MCLK_COUNT Bits [7:0] Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 MCLK_COUNT Bit 2 Bit 1 Bit 0 Reset 0x00 RW R Table 48. ADC Control Register Reg. 0x01 Name ADC_CONTROL Bits [15:8] Bit 7 Bit 6 0 [7:0] POWER_MORE Bit 5 Bit 4 DOUT_RDY_DEL Bit 3 CONT_ READ Mode Rev. D | Page 42 of 93 Bit 2 DATA_STATUS Bit 1 CS_EN Bit 0 REF_EN CLK_SEL Reset 0x0000 RW RW Data Sheet AD7124-4 Understanding Configuration Flexibility In Figure 71, Figure 72, and Figure 73, the registers shown in black font are programmed for this configuration. The registers shown in gray font are redundant. The most straightforward implementation of the AD7124-4 is to use differential inputs with adjacent analog inputs and run all of them with the same setup, gain correction, and offset correction register. For example, the user requires four differential inputs. In this case, the user selects the following differential inputs: AIN0/ AIN1, AIN2/AIN3, AIN4/AIN5, AIN6/AIN7. Programming the gain and offset registers is optional for any use case, as indicated by the dashed lines between the register blocks. If an internal or system offset or full-scale calibration is performed, the gain and offset registers for the selected channel are automatically updated. An alternative way to implement these four fully differential inputs is by taking advantage of the eight available setups. Motivation for this includes having a different speed, noise, or gain requirement on some of the four differential inputs vs. other inputs, or there may be a specific offset or gain correction for particular channels. Figure 72 shows how each of the differential inputs can use a separate setup, allowing full flexibility in the configuration of each channel. CHANNEL REGISTERS CH0 0x09 AIN1 CH1 0x0A AIN2 CH2 0x0B AIN3 CH3 0x0C AIN4 CH4 0x0D AIN5 CH5 0x0E AIN6 AIN7 CH6 0x0F CH7 0x10 CH8 0x11 CH9 0x12 CH10 0x13 CH11 0x14 CH12 0x15 CH13 0x16 SELECT ANALOG INPUT PARTS ENABLE THE CHANNEL SELECT SETUP 0 OFFSET REGISTERS CONFIG_0 0x19 FILTER_0 0x21 GAIN_0 0x31 OFFSET_0 0x29 CONFIG_1 0x1A FILTER_1 0x22 GAIN_1 0x32 OFFSET_1 0x2A CONFIG_2 0x1B FILTER_2 0x23 GAIN_2 0x33 OFFSET_2 0x2B CONFIG_3 0x1C FILTER_3 0x24 GAIN_3 0x34 OFFSET_3 0x2C CONFIG_4 0x1D FILTER_4 0x25 GAIN_4 0x35 OFFSET_4 0x2D CONFIG_5 0x1E FILTER_5 0x26 GAIN_5 0x36 OFFSET_5 0x2E CONFIG_6 0x1F FILTER_6 0x27 GAIN_6 0x37 OFFSET_6 0x2F CONFIG_7 0x20 FILTER_7 0x28 GAIN_7 0x38 OFFSET_7 0x30 SELECT PERIPHERAL FUNCTIONS FOR ADC CHANNEL SELECT DIGITAL FILTER TYPE AND OUTPUT DATA RATE CH14 0x17 CH15 0x18 GAIN REGISTERS FILTER REGISTERS CONFIGURATION REGISTERS ANALOG INPUT BUFFERS REFERENCE BUFFERS BURNOUT REFERENCE SOURCE GAIN GAIN CORRECTION OFFSET CORRECTION OPTIONALLY OPTIONALLY PROGRAMMED PROGRAMMED PER SETUP AS REQUIRED PER SETUP AS REQUIRED SINC4 SINC3 SINC4 + SINC1 13197-074 AIN0 SINC3 + SINC1 ENHANCED 50Hz/60Hz REJECTION Figure 71. Four Fully Differential Inputs, All Using a Single Setup (CONFIG_0, FILTER_0, GAIN_0, OFFSET_0) CHANNEL REGISTERS AIN0 CH0 AIN1 CH1 0x0A AIN2 CH2 0x0B AIN3 CH3 0x0C AIN4 CH4 0x0D AIN5 CH5 0x0E AIN7 CH6 0x0F CH7 0x10 CH8 0x11 CH9 0x12 CH10 0x13 CH11 0x14 CH12 0x15 CH13 0x16 SELECT ANALOG INPUT PARTS ENABLE THE CHANNEL SELECT SETUP OFFSET REGISTERS CONFIG_0 0x19 FILTER_0 0x21 GAIN_0 0x31 OFFSET_0 0x29 CONFIG_1 0x1A FILTER_1 0x22 GAIN_1 0x32 OFFSET_1 0x2A CONFIG_2 0x1B FILTER_2 0x23 GAIN_2 0x33 OFFSET_2 0x2B CONFIG_3 0x1C FILTER_3 0x24 GAIN_3 0x34 OFFSET_3 0x2C CONFIG_4 0x1D FILTER_4 0x25 GAIN_4 0x35 OFFSET_4 0x2D CONFIG_5 0x1E FILTER_5 0x26 GAIN_5 0x36 OFFSET_5 0x2E CONFIG_6 0x1F FILTER_6 0x27 GAIN_6 0x37 OFFSET_6 0x2F CONFIG_7 0x20 FILTER_7 0x28 GAIN_7 0x38 OFFSET_7 0x30 SELECT DIGITAL FILTER TYPE AND OUTPUT DATA RATE SELECT PERIPHERAL FUNCTIONS FOR ADC CHANNEL CH14 0x17 CH15 0x18 GAIN REGISTERS FILTER REGISTERS CONFIGURATION REGISTERS ANALOG INPUT BUFFERS REFERENCE BUFFERS BURNOUT REFERENCE SOURCE GAIN OFFSET CORRECTION GAIN CORRECTION OPTIONALLY OPTIONALLY PROGRAMMED PROGRAMMED PER SETUP AS REQUIRED PER SETUP AS REQUIRED SINC4 SINC3 SINC4 + SINC1 SINC3 + SINC1 ENHANCED 50Hz/60Hz REJECTION Figure 72. Four Fully Differential Inputs with a Separate Setup per Channel Rev. D | Page 43 of 93 13197-075 AIN6 0x09 AD7124-4 Data Sheet Figure 73 shows an example of how the channel registers span between the analog input pins and the setup configurations downstream. In this random example, two differential inputs and two single-ended inputs are required. The single-ended inputs are the AIN0/AIN7 and AIN6/AIN7 combinations. The first differential input pair (AIN0/AIN1) uses Setup 0. The two single-ended input pairs (AIN0/AIN7 and AIN6/AIN7) are set up as diagnostics; therefore, they use a separate setup (Setup 1). The final differential input (AIN2/AIN3) also uses a separate setup: Setup 2. Given that three setups are selected for use, the CONFIG_0, CONFIG_1, and CONFIG_2 registers are programmed as required, and the FILTER_0, FILTER_1, and FILTER_2 registers are also programmed as required. Optional gain and offset correction can be employed on a per setup basis by programming the GAIN_0, GAIN_1, and GAIN_2 registers and the OFFSET_0, OFFSET_1, and OFFSET_2 registers. In the example shown in Figure 73, the CHANNEL_0 to CHANNEL_3 registers are used. Setting the MSB (the enable bit) in each of these registers enables the four combinations via the crosspoint multiplexer. When the AD7124-4 converts, the sequencer transitions in ascending sequential order from CHANNEL_0 to CHANNEL_1 to CHANNEL_2, and then on to CHANNEL_3 before looping back to CHANNEL_0 to repeat the sequence. CHANNEL REGISTERS CHANNEL_0 0x09 AIN1 CHANNEL_1 0x0A AIN2 CHANNEL_2 0x0B AIN3 CHANNEL_3 0x0C AIN4 CHANNEL_4 0x0D AIN5 CHANNEL_5 0x0E AIN6 AIN7 CONFIGURATION REGISTERS CONFIG_0 CONFIG_1 CHANNEL_6 0x0F CONFIG_2 CHANNEL_7 0x10 CONFIG_3 CHANNEL_8 0x11 CONFIG_4 CHANNEL_9 0x12 CONFIG_5 CHANNEL_10 0x13 CONFIG_6 CHANNEL_11 0x14 CHANNEL_12 0x15 CHANNEL_13 0x16 CONFIG_7 FILTER REGISTERS SELECT ANALOG INPUT PARTS ENABLE THE CHANNEL SELECT SETUP FILTER_0 0x21 GAIN_0 0x31 OFFSET_0 0x29 0x1A FILTER_1 0x22 GAIN_1 0x32 OFFSET_1 0x2A 0x1B FILTER_2 0x23 GAIN_2 0x33 OFFSET_2 0x2B 0x1C FILTER_3 0x24 GAIN_3 0x34 OFFSET_3 0x2C 0x1D FILTER_4 0x25 GAIN_4 0x35 OFFSET_4 0x2D 0x1E FILTER_5 0x26 GAIN_5 0x36 OFFSET_5 0x2E 0x1F FILTER_6 0x27 GAIN_6 0x37 OFFSET_6 0x2F 0x20 FILTER_7 0x28 GAIN_7 0x38 OFFSET_7 0x30 SELECT PERIPHERAL FUNCTIONS FOR ADC CHANNEL SELECT DIGITAL FILTER TYPE AND OUTPUT DATA RATE ANALOG INPUT BUFFERS REFERENCE BUFFERS BURNOUT REFERENCE SOURCE GAIN OFFSET REGISTERS 0x19 CHANNEL_14 0x17 CHANNEL_15 0x18 GAIN REGISTERS GAIN CORRECTION OFFSET CORRECTION OPTIONALLY OPTIONALLY PROGRAMMED PROGRAMMED PER SETUP AS REQUIRED PER SETUP AS REQUIRED SINC4 SINC3 SINC4 + SINC1 SINC3 + SINC1 ENHANCED 50Hz/60Hz REJECTION Figure 73. Mixed Differential and Single-Ended Configuration Using Multiple Shared Setups Rev. D | Page 44 of 93 13197-076 AIN0 Data Sheet AD7124-4 ADC CIRCUIT INFORMATION ANALOG INPUT CHANNEL The channels are configured using the AINP[4:0] bits and the AINM[4:0] bits in the channel registers (see Table 49). The device can be configured to have four differential inputs, seven pseudo differential inputs, or a combination of both. When using differential inputs, use adjacent analog input pins to form the input pair. Using adjacent pins minimizes any mismatch between the channels. The AD7124-4 uses flexible multiplexing; thus, any of the analog input pins, AIN0 to AIN7, can be selected as a positive input or a negative input. This feature allows the user to perform diagnostics such as checking that pins are connected. It also simplifies printed circuit board (PCB) design. For example, the same PCB can accommodate 2-wire, 3-wire, and 4-wire resistance temperature detectors (RTDs). The inputs can be buffered or unbuffered at a gain of 1 but are automatically buffered when the gain exceeds 1. The AINP and AINM buffers are enabled/disabled separately using the AIN_BUFP and AIN_BUFM bits in the configuration register (see Table 50). In buffered mode, the input channel feeds into a high impedance input stage of the buffer amplifier. Therefore, the input can tolerate significant source impedances and is tailored for direct connection to external resistive type sensors such as strain gages or RTDs. AVDD AIN0 AVSS AVDD AVDD When the device is operated in unbuffered mode, the device has a higher analog input current. Note that this unbuffered input path provides a dynamic load to the driving source. Therefore, resistor/capacitor (RC) combinations on the input pins can cause gain errors, depending on the output impedance of the source that is driving the ADC input. AIN1 BURNOUT CURRENTS AVSS PGA TO ADC AVDD AIN6 The absolute input voltage in unbuffered mode (gain = 1) includes the range between AVSS − 50 mV and AVDD + 50 mV. The absolute input voltage range in buffered mode at a gain of 1 is restricted to a range between AVSS + 100 mV and AVDD − 100 mV. The common-mode voltage must not exceed these limits; otherwise, linearity and noise performance degrade. AVSS AVSS AVDD 13197-077 AIN7 AVSS When the gain is greater than 1, the analog input buffers are automatically enabled. The PGA placed in front of the input buffers is rail-to-rail; thus, in this case, the absolute input voltage includes the range from AVSS − 50 mV to AVDD + 50 mV. Figure 74. Analog Input Multiplexer Circuit Table 49. Channel Register Reg. 0x09 to 0x18 Name Bits CHANNEL_0 to [15:8] CHANNEL_15 [7:0] Bit 7 Enable Bit 6 Bit 5 Setup Bit 4 Bit 3 Bit 2 Bit 1 0 AINP[2:0] Bit 0 AINP[4:3] Reset 0x8001 RW RW Reset 0x0860 RW RW AINM[4:0] Table 50. Configuration Register Reg. 0x19 to 0x20 Name CONFIG_0 to CONFIG_7 Bits [15:8] [7:0] Bit 7 Bit 6 REF_BUFM AIN_BUFP Bit 5 0 AIN_BUFM Bit 4 Bit 3 Bipolar REF_SEL Rev. D | Page 45 of 93 Bit 2 Bit 1 Burnout Bit 0 REF_BUFP PGA AD7124-4 Data Sheet EXTERNAL IMPEDANCE WHEN USING A GAIN OF 1 6000 When a gain of 1 is used, the PGA is powered down, reducing the current consumption. A capacitive network is included at the PGA output for electromagnetic compatibility (EMC) purposes. For a gain of 1, this capacitive network is connected directly to the analog input pins because the PGA is bypassed (see Figure 77). A precharge buffer is included on the AD7124-4 B grade to charge this capacitive network quickly when switching channels. The precharge buffer ensures that the analog input is settled when sampled by the ADC. RC: 100Ω RESISTOR 1µF CAPICITOR 0.01µF CAPACITOR TO GND RC: 100Ω RESISTOR 0.1µF CAPICITOR 0.01µF CAPICITOR TO GND RC: 100Ω RESISTOR 0.01µF CAPICITOR 0.01µF CAPICITOR TO GND 5000 ERROR (µV) 4000 3000 2000 1000 –1000 1 10 100 1000 10000 SETTLED OUTPUT DATA RATE (sps) 13048-175 0 When using the AD7124-4, which does not include the precharge buffer, using large external loads at a gain of 1 in multiplexed applications affects the settling time. Large external loads affect the initial error on the gain of 1 channel. The external RC antialiasing filter determines the recovery time of the channel. When the gain of 1 channel is selected, the maximum possible error (initial error) is Figure 75. Error vs. Settled Output Data Rate (100 kΩ Resistors in Attenuator Circuit) 7000 RC: 1kΩ RESISTOR 0.01µF CAPICITOR 0.01µF CAPACITOR TO GND RC: 1kΩ RESISTOR 0.01µF CAPICITOR NO CAPICITOR TO GND 6000 VERROR = CPAR × (VIN_PREV_CH × GAIN_PREV_CH − VIN) ÷ (CPAR + CFILT) (1) 5000 4000 ERROR (µV) where: CPAR is the internal capacitance (63 pF due to 10 pF/25 pF network plus 3 pF of parasitic capacitance). CFILT is the external filter capacitance on the gain of 1 channel. VIN_PREV_CH is the input voltage of the previous selected channel. GAIN_PREV_CH is the gain of the previous selected channel. 3000 2000 1000 –1000 1 10 100 1000 SETTLED OUTPUT DATA RATE (sps) 10000 13048-176 0 If a fast output data rate is selected, the error in the conversion has a magnitude comparable with Equation 1. For slower output data rates, the error is reduced as the ADC takes more time to process the analog input, which allows the front end to settle. The settling time is dependent on the time constant of the external antialiasing filter. Figure 76. Error vs. Settled Output Data Rate (47 kΩ Resistors in Attenuator Circuit) Figure 75 and Figure 76 show that, at low output data rates, the ADC allows sufficient time for the gain of 1 channel to settle for any external load resistance and RC filter values. At intermediate output data rates, reducing the values of the external RC components reduces the time constant of the external filter so that the analog input can settle within the allowed time. For high output data rates, the settling time allowed by the ADC is short; therefore, a large capacitor from AINP to AINM minimizes the error. Figure 75 and Figure 76 show the error for different RC filter combinations on the gain of 1 channel when a resistor attenuator is connected to the analog input and the ADC is multiplexed. For gains > 1, the PGA is used, which isolates the internal capacitive network from the analog input pins. Therefore, for gains > 1, there are no restrictions on the external circuitry. RC ANTI-ALIASING FILTER BUFFER AD7124-8 AVSS AVSS 10pF MUX AINP PGA2 ADC 25pF AINM 10pF ATTENUATOR CIRCUIT AVSS AVSS Figure 77. Input Schematic Rev. D | Page 46 of 93 BUFFER 13048-078 AVSS Data Sheet AD7124-4 PROGRAMMABLE GAIN ARRAY (PGA) BUF PGA1 24-BIT Σ-∆ ADC PGA2 BUF ANALOG BUFFERS Figure 78. PGA The AD7124-4 can be programmed to have a gain of 1, 2, 4, 8, 16, 32, 64, or 128 by using the PGA bits in the configuration register (see Table 50). The PGA consists of two stages. For a gain of 1, both stages are bypassed. For gains of 2 to 8, a single stage is used, whereas for gains greater than 8, both stages are used. The analog input range is ±VREF/gain. Therefore, with an external 2.5 V reference, the unipolar ranges are from 0 mV to 19.53 mV to 0 V to 2.5 V, and the bipolar ranges are from ±19.53 mV to ±2.5 V. For high reference values, for example, VREF = AVDD, the analog input range must be limited. Consult the Specifications section for more details on these limits. The recommended 2.5 V reference voltage sources for the AD7124-4 include the ADR4525, which is a low noise, low power reference. Note that the reference input provides a high impedance, dynamic load when unbuffered. Because the input impedance of each reference input is dynamic, resistor/capacitor combinations on these inputs can cause dc gain errors if the reference inputs are unbuffered, depending on the output impedance of the source driving the reference inputs. Reference voltage sources typically have low output impedances and are, therefore, tolerant to having decoupling capacitors on REFINx(+) without introducing gain errors in the system. Deriving the reference input voltage across an external resistor means that the reference input sees a significant external source impedance. In this situation, using the reference buffers is required. REFERENCE The AD7124-4 has an embedded 2.5 V reference. The embedded reference is a low noise, low drift reference with 15 ppm/°C drift maximum for the AD7124-4 in the LFCSP package and 10 ppm/°C drift maximum for the TSSOP package and the AD7124-4 B grade. Including the reference on the AD7124-4 reduces the number of external components needed in applications such as thermocouples, leading to a reduced PCB size. REFIN1(+) The common-mode range for the differential reference inputs is from AVSS − 50 mV to AVDD + 50 mV when the reference buffers are disabled. The reference inputs can also be buffered on-chip. The buffers require 100 mV of headroom. The reference voltage of REFIN (REFINx(+) − REFINx(−)) is 2.5 V nominal, but the AD7124-4 is functional with reference voltages from 0.5 V to AVDD. In applications where the excitation (voltage or current) for the transducer on the analog input also drives the reference voltage for the devices, the effect of the low frequency noise in the excitation source is removed, because the application is ratiometric. If the AD7124-4 is used in nonratiometric applications, use a low noise reference. 13197-080 X-MUX When the gain stage is enabled, the output from the multiplexer is applied to the input of the PGA. The presence of the PGA means that signals of small amplitude can be gained within the AD7124-4 and still maintain excellent noise performance. internally connected to the modulator. It can also be made available on the REFOUT pin. A 0.1 μF decoupling capacitor is required on REFOUT when the internal reference is active. 3V ADR4525 4.7µF REFIN1(–) 0.1µF 2.5V REF REFINx(+) 1µF 4.7µF REFINx(–) BAND GAP REF AVDD AVSS AVSS 13197-082 REFOUT REFIN2(+) REFIN2(–) Figure 80. ADR4525 to AD7124-4 Connections BIPOLAR/UNIPOLAR CONFIGURATION 24-BIT Σ-∆ ADC 13197-081 REFERENCE BUFFERS Figure 79. Reference Connections This reference can be used to supply the ADC (by setting the REF_EN bit in the ADC_CONTROL register to 1) or an external reference can be applied. For external references, the ADC has a fully differential input capability for the channel. In addition, the user can select one of two external reference options (REFIN1 or REFIN2). The reference source for the AD7124-4 is selected using the REF_SEL bits in the configuration register (see Table 50). When the internal reference is selected, it is The analog input to the AD7124-4 can accept either unipolar or bipolar input voltage ranges, which allows the user to tune the ADC input range to the sensor output range. When a split power supply is used, the device accepts truly bipolar inputs. When a single power supply is used, a bipolar input range does not imply that the device can tolerate negative voltages with respect to system AVSS. Unipolar and bipolar signals on the AINP input are referenced to the voltage on the AINM input. For example, if AINM is 1.5 V and the ADC is configured for unipolar mode with a gain of 1, the input voltage range on the AINP input is 1.5 V to 3 V when VREF = AVDD = 3 V. If the ADC is configured for bipolar mode, the analog input range on the AINP input is 0 V to AVDD. The bipolar/unipolar option is chosen by programming the bipolar bit in the configuration register. Rev. D | Page 47 of 93 AD7124-4 Data Sheet DATA OUTPUT CODING EXCITATION CURRENTS When the ADC is configured for unipolar operation, the output code is natural (straight) binary with a zero differential input voltage resulting in a code of 00 … 00, a midscale voltage resulting in a code of 100 … 000, and a full-scale input voltage resulting in a code of 111 … 111. The output code for any analog input voltage can be represented as The AD7124-4 also contains two matched, software configurable, constant current sources that can be programmed to equal 50 µA, 100 µA, 250 µA, 500 µA, 750 µA, or 1 mA. These current sources can be used to excite external resistive bridges or RTD sensors. Both current sources source currents from AVDD and can be directed to any of the analog input pins (see Figure 81). Code = (2N × AIN × Gain)/VREF The pins on which the currents are made available are programmed using the IOUT1_CH and IOUT0_CH bits in the IO_CONTROL_1 register (see Table 51). The magnitude of each current source is individually programmable using the IOUT1 and IOUT0 bits in the IO_CONTROL_1 register. In addition, both currents can be output to the same analog input pin. When the ADC is configured for bipolar operation, the output code is offset binary with a negative full-scale voltage resulting in a code of 000 … 000, a zero differential input voltage resulting in a code of 100 … 000, and a positive full-scale input voltage resulting in a code of 111 … 111. The output code for any analog input voltage can be represented as Code = 2 N−1 Note that the on-chip reference does not need to be enabled when using the excitation currents. × ((AIN × Gain/VREF) + 1) where: N = 24. AIN is the analog input voltage. Gain is the gain setting (1 to 128). IOUT0 IOUT1 VBIAS AVDD AIN0 AVSS VBIAS AVDD AVDD AIN1 BURNOUT CURRENTS AVSS PGA TO ADC AVSS VBIAS AVDD 13197-083 AIN7 AVSS Figure 81. Excitation Current and Bias Voltage Connections Table 51. Input/Output Control 1 Register Reg. 0x03 Name IO_ CONTROL_ 1 Bits [23:16] [15:8] [7:0] Bit 7 GPIO_DAT2 PDSW Bit 6 Bit 5 GPIO_DAT1 0 0 IOUT1_CH Bit 4 0 IOUT1 Bit 3 GPIO_CTRL2 Rev. D | Page 48 of 93 Bit 2 GPIO_CTRL1 Bit 1 0 IOUT0 IOUT0_CH Bit 0 0 Reset 0x000000 RW RW Data Sheet AD7124-4 BRIDGE POWER-DOWN SWITCH CLOCK In bridge applications such as strain gages and load cells, the bridge itself consumes the majority of the current in the system. For example, a 350 Ω load cell requires 8.6 mA of current when excited with a 3 V supply. To minimize the current consumption of the system, the bridge can be disconnected (when it is not being used) using the bridge power-down switch. The switch can withstand 30 mA of continuous current, and it has an on resistance of 10 Ω maximum. The PDSW bit in the IO_CONTROL_1 register controls the switch. The AD7124-4 includes an internal 614.4 kHz clock on chip. This internal clock has a tolerance of ±5%. Use either the internal clock or an external clock as the clock source to the AD7124-4. The clock source is selected using the CLK_SEL bits in the ADC_CONTROL register (see Table 54). LOGIC OUTPUTS The AD7124-4 has two general-purpose digital outputs: P1 and P2. These are enabled using the GPIO_CTRL bits in the IO_ CONTROL_1 register (see Table 51). The pins can be pulled high or low using the GPIO_DATx bits in the register; that is, the value at the pin is determined by the setting of the GPIO_DATx bits. The logic levels for these pins are determined by AVDD rather than by IOVDD. When the IO_CONTROL_1 register is read, the GPIO_DATx bits reflect the actual value at the pins; this is useful for short-circuit detection. These pins can be used to drive external circuitry, for example, an external multiplexer. If an external multiplexer is used to increase the channel count, the multiplexer logic pins can be controlled via the AD7124-4 general-purpose output pins. The general-purpose output pins can be used to select the active multiplexer pin. Because the operation of the multiplexer is independent of the AD7124-4, reset the modulator and filter using the SYNC pin or by writing to the mode or configuration register each time that the multiplexer channel is changed. BIAS VOLTAGE GENERATOR A bias voltage generator is included on the AD7124-4 (see Figure 81). It biases the negative terminal of the selected input channel to (AVDD − AVSS)/2. This function is useful in thermocouple applications, as the voltage generated by the thermocouple must be biased around some dc voltage if the ADC operates from a single power supply. The bias voltage generator is controlled using the VBIASx bits in the IO_CONTROL_2 register (see Table 53). The power-up time of the bias voltage generator is dependent on the load capacitance. Consult the Specifications section for more details. The internal clock can also be made available at the CLK pin. This is useful when several ADCs are used in an application and the devices must be synchronized. The internal clock from one device can be used as the clock source for all ADCs in the system. Using a common clock, the devices can be synchronized by applying a common reset to all devices, or the SYNC pin can be pulsed. POWER MODES The AD7124-4 has three power modes: full power mode, mid power mode, and low power mode. The mode is selected using the POWER_MODE bits in the ADC_CONTROL register. The power mode affects the power consumption of the device as well as changing the master clock frequency. A 614.4 kHz clock is used by the device. However, this clock is internally divided, the division factor being dependent on the power mode. Thus, the range of output data rates and performance is affected by the power mode. Table 52. Power Modes Power Mode Full Power Mid Power Low Power 1 Master Clock (kHz) 614.4 153.6 76.8 Output Data Rate1 (SPS) 9.37 to 19,200 2.34 to 4800 1.17 to 2400 Current See the Specifications section Unsettled, using a sinc3/sinc4 filter. STANDBY AND POWER-DOWN MODES In standby mode, most blocks are powered down. The LDOs remain active so that registers maintain their contents. If enabled, the reference, the internal oscillator, the P1 and P2 digital outputs, the bias voltage generator, and the low-side power switch remain active. On the AD7124-4 B grade, the excitation currents, if enabled, also remain active in standby mode. The excitation currents are disabled on the AD7124-4. These blocks can be disabled, if required, by setting the corresponding bits appropriately. The reference detection and LDO capacitor detection functions are disabled in standby mode. Table 53. Input/Output Control 2 Register Reg. 0x04 Name IO_CONTROL_2 Bit 7 VBIAS7 0 Bit 6 VBIAS6 0 Bit 5 0 VBIAS3 Bit 4 0 VBIAS2 Bit 3 VBIAS5 Bit 2 VBIAS4 Bit 1 0 VBIAS1 Bit 0 0 VBIAS0 Reset 0x0000 RW RW Reset 0x0000 RW RW Table 54. ADC Control Register Reg. 0x01 Name ADC_CONTROL Bit 7 Bit 6 0 POWER_MODE Bit 5 Bit 4 DOUT_RDY_DEL Bit 3 CONT_READ Mode Rev. D | Page 49 of 93 Bit 2 DATA_STATUS Bit 1 CS_EN Bit 0 REF_EN CLK_SEL AD7124-4 Data Sheet Other diagnostics remain active if enabled when the ADC is in standby mode. Diagnostics can be enabled or disabled while in standby mode. However, any diagnostics that require the master clock (reference detect, undervoltage/overvoltage detection, LDO trip tests, memory map CRC, and MCLK counter) must be enabled when the ADC is in continuous conversion mode or idle mode; these diagnostics do not function if enabled in standby mode. The standby current is typically 15 µA when the LDOs only are enabled. If functions such as the bias voltage generator remain active in standby mode, the current increases by 36 µA typically. If the internal oscillator remains active in standby mode, the current increases by 22 µA typically. When exiting standby mode, the AD7124-4 requires 130 MCLK cycles to power up and settle. The internal oscillator, if disabled in standby mode, requires an additional 40 µs to power up and settle. If an external master clock is being used, ensure that it is active before issuing the command to exit standby mode. Do not write to the ADC_ CONTROL register again until the ADC has powered up and settled. In power-down mode, all blocks are powered down, including the LDOs. All registers lose their contents, and the digital outputs P1 and P2 are placed in tristate. To prevent accidental entry to power-down mode, the ADC must first be placed into standby mode. If an external master clock is being used, keep it active until the device is placed in power-down mode. Exiting powerdown mode requires 64 SCLK cycles with CS = 0 and DIN = 1, that is, a serial interface reset. The AD7124-4 requires 2 ms typically to power up and settle. The POR_FLAG in the status register can be monitored to determine the end of the power up/settling period. After this time, the user can access the on-chip registers. The power-down current is 2 µA typically. DIGITAL INTERFACE The programmable functions of the AD7124-4 are controlled using a set of on-chip registers. Data is written to these registers via the serial interface. Read access to the on-chip registers is also provided by this interface. All communications with the device must start with a write to the communications register. After power-on or reset, the device expects a write to its communications register. The data written to this register determines whether the next operation is a read operation or a write operation, and determines to which register this read or write operation occurs. Therefore, write access to any of the other registers on the devices begins with a write operation to the communications register, followed by a write to the selected register. A read operation from any other register (except when continuous read mode is selected) starts with a write to the communications register, followed by a read operation from the selected register. The serial interface of the AD7124-4 consists of four signals: CS, DIN, SCLK, and DOUT/RDY. The DIN line transfers data into the on-chip registers, whereas DOUT/RDY accesses data from the on-chip registers. SCLK is the serial clock input for the device, and all data transfers (either on DIN or DOUT/RDY) occur with respect to the SCLK signal. The DOUT/RDY pin also operates as a data ready signal; the line goes low when a new data-word is available in the output register. It is reset high when a read operation from the data register is complete. It also goes high before the data register updates to indicate when not to read from the device, to ensure that a data read is not attempted while the register is being updated. CS is used to select a device. It can decode the AD7124-4 in systems where several components are connected to the serial bus. Figure 3 and Figure 4 show timing diagrams for interfacing to the AD7124-4 with CS decoding the devices. Figure 3 shows the timing for a read operation from the output shift register of the AD7124-4. Figure 4 shows the timing for a write operation to the input shift register. A delay is required between consecutive SPI communications. Figure 5 shows the delay required between SPI read/write operations. It is possible to read the same word from the data register several times, even though the DOUT/RDY line returns high after the first read operation. However, care must be taken to ensure that the read operations are complete before the next output update occurs. In continuous read mode, the data register can be read only once. The serial interface can operate in 3-wire mode by tying CS low. In this case, the SCLK, DIN, and DOUT/RDY lines communicate with the AD7124-4. The end of the conversion can be monitored using the RDY bit in the status register. This scheme is suitable for interfacing to microcontrollers. If CS is required as a decoding signal, it can be generated from a port pin. For microcontroller interfaces, it is recommended that SCLK idle high between data transfers. The AD7124-4 can be operated with CS being used as a frame synchronization signal. This scheme is useful for DSP interfaces. In this case, the first bit (MSB) is effectively clocked out by CS, because CS normally occurs after the falling edge of SCLK in DSPs. SCLK can continue to run between data transfers, provided the timing numbers are obeyed. CS must be used to frame read and write operations and the CS_EN bit in the ADC_CONTROL register must be set when the diagnostics SPI_READ_ERR, SPI_WRITE_ERR, or SPI_SCLK_CNT_ERR are enabled. The serial interface can be reset by writing a series of 1s on the DIN input. See the Reset section for more details. Reset returns the interface to the state in which it is expecting a write to the communications register The AD7124-4 can be configured to continuously convert or perform a single conversion (see Figure 82 through Figure 84). Single Conversion Mode In single conversion mode, the AD7124-4 performs a single conversion and is placed in standby mode after the conversion is complete. If a master clock is present (external master clock or the internal oscillator is enabled), DOUT/RDY goes low to Rev. D | Page 50 of 93 Data Sheet AD7124-4 indicate the completion of a conversion. When the data-word is read from the data register, DOUT/RDY goes high. The data register can be read several times, if required, even when DOUT/RDY is high. Do not read the ADC_CONTROL register close to the completion of a conversion because the mode bits are being updated by the ADC to indicate that the ADC is in standby mode. If several channels are enabled, the ADC automatically sequences through the enabled channels and performs a conversion on each channel. When a conversion is started, DOUT/RDY goes high and remains high until a valid conversion is available and CS is low. As soon as the conversion is available, DOUT/RDY goes low. The ADC then selects the next channel and begins a conversion. The user can read the present conversion while the next conversion is being performed. As soon as the next conversion is complete, the data register is updated; therefore, the user has a limited period in which to read the conversion. When the ADC has performed a single conversion on each of the selected channels, it returns to standby mode. If the DATA_STATUS bit in the ADC_CONTROL register is set to 1, the contents of the status register are output along with the conversion each time that the data read is performed. The four LSBs of the status register indicate the channel to which the conversion corresponds. Continuous Conversion Mode Continuous conversion is the default power-up mode. The AD7124-4 converts continuously, and the RDY bit in the status register goes low each time a conversion is complete. If CS is low, the DOUT/RDY line also goes low when a conversion is complete. To read a conversion, write to the communications register, indicating that the next operation is a read of the data register. When the data-word is read from the data register, DOUT/RDY goes high. The user can read this register additional times, if required. However, the user must ensure that the data register is not being accessed at the completion of the next conversion; otherwise the new conversion word is lost. When several channels are enabled, the ADC automatically sequences through the enabled channels, performing one conversion on each channel. When all channels are converted, the sequence starts again with the first channel. The channels are converted in order from lowest enabled channel to highest enabled channel. The data register is updated as soon as each conversion is available. The DOUT/RDY pin pulses low each time a conversion is available. The user can then read the conversion while the ADC converts the next enabled channel. If the DATA_STATUS bit in the ADC_CONTROL register is set to 1, the contents of the status register, along with the conversion data, are output each time the data register is read. The status register indicates the channel to which the conversion corresponds. CS DIN 0x01 0x0004 0x42 DATA 13197-087 DOUT/RDY SCLK Figure 82. Single Conversion Configuration CS DOUT/RDY 0x42 0x42 DATA DATA 13197-088 DIN SCLK Figure 83. Continuous Conversion Configuration Rev. D | Page 51 of 93 AD7124-4 Data Sheet CS DIN 0x01 0x0800 DOUT/RDY DATA 13197-089 DATA SCLK Figure 84. Continuous Read Configuration Continuous Read Mode In continuous read mode, it is not required to write to the communications register before reading ADC data; apply the required number of SCLKs after DOUT/RDY goes low to indicate the end of a conversion. When the conversion is read, DOUT/RDY returns high until the next conversion is available. In this mode, the data can be read only once. Ensure that the dataword is read before the next conversion is complete. If the user has not read the conversion before the completion of the next conversion, or if insufficient serial clocks are applied to the AD7124-4 to read the word, the serial output register is reset when the next conversion is complete, and the new conversion is placed in the output serial register. The ADC must be configured for continuous conversion mode to use continuous read mode. To enable continuous read mode, set the CONT_READ bit in the ADC_CONTROL register. When this bit is set, the only serial interface operations possible are reads from the data register. To exit continuous read mode, write a read data command (0x42) while the DOUT/RDY pin is low. Alternatively, apply a software reset, that is, 64 SCLKs with CS = 0 and DIN = 1. This resets the ADC and all register contents. These are the only commands that the interface recognizes after it is placed in continuous read mode. DIN must be held low in continuous read mode until an instruction is to be written to the device. If multiple ADC channels are enabled, each channel is output in turn, with the status bits being appended to the data if DATA_ STATUS is set in the ADC_CONTROL register. The status register indicates the channel to which the conversion corresponds. DATA_STATUS The contents of the status register can be appended to each conversion on the AD7124-4. This is a useful function if several channels are enabled. Each time a conversion is output, the contents of the status register are appended. The four LSBs of the status register indicate to which channel the conversion corresponds. In addition, the user can determine if any errors are being flagged via the ERROR_FLAG bit. To append the status register contents to every conversion, the DATA_STATUS bit in the ADC_CONTROL register is set to 1. SERIAL INTERFACE RESET (DOUT_RDY_DEL AND CS_EN BITS) The instant at which the DOUT/RDY pin changes from being a DOUT pin to a RDY pin is programmable on the AD7124-4. By default, the D OUT/RDY pin changes functionality after a period of time following the last SCLK rising edge, the SCLK edge on which the LSB is read by the processor. This time is 10 ns minimum by default and, by setting the DOUT_RDY_DEL bit in the ADC_ CONTROL register to 1, can be extended to 110 ns minimum. By setting the CS_EN bit in the ADC_CONTROL register to 1, the DOUT/RDY pin continues to output the LSB of the register being read until CS is taken high. This configuration is useful if the CS signal is used to frame all read operations. If CS is not used to frame all read operations, set CS_EN to 0 so that DOUT/RDY changes functionality following the last SCLK edge in the read operation. CS_EN must be set to 1 and the CS signal must be used to frame all read and write operations when the SPI_READ_ERR, SPI_WRITE_ERR, and SPI_SCLK_CNT_ERR diagnostic functions are enabled. The serial interface is always reset on the CS rising edge, that is, the interface is reset to a known state whereby it awaits a write to the communications register. Therefore, if a read or write operation is performed by performing multiple 8- bit data transfers, CS must be held low until the all bits are transferred. RESET The circuitry and serial interface of the AD7124-4 can be reset by writing 64 consecutive 1s to the device. This resets the logic, the digital filter, and the analog modulator, and all on-chip registers are reset to their default values. A reset is automatically performed on power-up. A reset requires a time of 90 MCLK cycles. The POR_FLAG bit in the status register is set to 1 when the reset is initiated and then is set to 0 when the reset is complete. A reset is useful if the serial interface becomes asynchronous due to noise on the SCLK line. Rev. D | Page 52 of 93 Data Sheet AD7124-4 CALIBRATION calibration, which ensures that the offset register is at its default value. The AD7124-4 is factory calibrated at a gain of 1, and the resulting gain coefficient is the default gain coefficient on the device. The device does not support further internal full-scale calibrations at a gain of 1. The AD7124-4 provides four calibration modes that can be used to eliminate the offset and gain errors on a per setup basis: • • • • Internal zero-scale calibration mode Internal full-scale calibration mode System zero-scale calibration mode System full-scale calibration mode Only one channel can be active during calibration. After each conversion, the ADC conversion result is scaled using the ADC calibration registers before being written to the data register. The default value of the offset register is 0x800000, and the nominal value of the gain register is 0x5XXXXX. The calibration range of the ADC gain is from 0.4 × VREF/gain to 1.05 × VREF/gain. The following equations show the calculations that are used in each calibration mode. In unipolar mode, the ideal relationship—that is, not taking into account the ADC gain error and offset error—is as follows:  0.75 × VIN  Data =  × 2 23 − (Offset − 0x800000)  ×  VREF  Gain ×2 0x400000 In bipolar mode, the ideal relationship—that is, not taking into account the ADC gain error and offset error—is as follows:  0.75 × VIN  Data =  × 2 23 − (Offset − 0x800000)  ×  VREF  Gain + 0x800000 0x400000 To start a calibration, write the relevant value to the mode bits in the ADC_CONTROL register. The DOUT/RDY pin and the RDY bit in the status register go high when the calibration initiates. When the calibration is complete, the contents of the corresponding offset or gain register are updated, the RDY bit in the status register is reset, the DOUT/RDY pin returns low (if CS is low), and the AD7124-4 reverts to idle mode. System calibrations expect the system zero-scale (offset) and system full-scale (gain) voltages to be applied to the ADC pins before initiating the calibration modes. As a result, errors external to the ADC are removed. The system zero-scale calibration must be performed before the system full-scale calibration. From an operational point of view, treat a calibration like another ADC conversion. Set the system software to monitor the RDY bit in the status register or the DOUT/RDY pin to determine the end of a calibration via a polling sequence or an interrupt-driven routine. An internal/system offset calibration and system full-scale calibration requires a time equal to the settling time of the selected filter to be completed. The internal full-scale calibration requires a time of four settling periods (gain > 1). A calibration can be performed at any output data rate. Using lower output data rates results in better calibration accuracy and is accurate for all output data rates. A new calibration is required for a given channel if the reference source or the gain for that channel is changed. Offset and system full-scale calibrations can be performed in any power mode. Internal full-scale calibrations can be performed in the low power or mid power modes only. Thus, when using full power mode, the user must select mid or low power mode to perform the internal full-scale calibration. However, an internal full-scale calibration performed in low or mid power mode is valid in full power mode, if the same gain is used. During an internal offset calibration, the selected positive analog input pin is disconnected, and it is connected internally to the selected negative analog input pin. For this reason, it is necessary to ensure that the voltage on the selected negative analog input pin does not exceed the allowed limits and is free from excessive noise and interference. The offset error is typically ±15 µV for gains of 1 to 8 and ±200/gain µV for higher output data rates. An internal or system offset calibration reduces the offset error to the order of the noise. The gain error is factory calibrated at ambient temperature and at a gain of 1. Following this calibration, the gain error is ±0.0025% maximum. Therefore, internal full-scale calibrations at a gain of 1 are not supported on the AD7124-4. For other gains, the gain error is −0.3%. An internal full-scale calibration at ambient temperature reduces the gain error to ±0.016% maximum for gains of 2 to 8 and ±0.025% typically for higher gains. A system full-scale calibration reduces the gain error to the order of the noise. To perform an internal full-scale calibration, a full-scale input voltage is automatically connected to the selected analog input for this calibration. A full-scale calibration is recommended each time the gain of a channel is changed to minimize the fullscale error. When performing internal calibrations, the internal full-scale calibration must be performed before the internal zero-scale calibration. Therefore, write the value 0x800000 to the offset register before performing the internal full-scale The AD7124-4 provides the user with access to the on-chip calibration registers, allowing the microprocessor to read the calibration coefficients of the device and to write its own calibration coefficients from prestored values in the EEPROM. A read or write of the offset and gain registers can be performed at any time except during an internal or self-calibration. The values in the calibration registers are 24 bits wide. The span and offset of the device can also be manipulated using the registers. Rev. D | Page 53 of 93 AD7124-4 Data Sheet SPAN AND OFFSET LIMITS SYSTEM SYNCHRONIZATION Whenever a system calibration mode is used, the amount of offset and span which can be accommodated is limited. The overriding requirement in determining the amount of offset and gain which can be accommodated by the device is the requirement that the positive full-scale calibration limit is ≤1.05 × VREF/gain. This allows the input range to go 5% above the nominal range. The built-in headroom in the AD7124-4 analog modulator ensures that the device still operates correctly with a positive full-scale voltage which is 5% beyond the nominal. The SYNC input allows the user to reset the modulator and the digital filter without affecting any of the setup conditions on the device. This allows the user to start gathering samples of the analog input from a known point in time, that is, the rising edge of SYNC. Take SYNC low for at least four master clock cycles to implement the synchronization function. The range of input span in both the unipolar and bipolar modes has a minimum value of 0.8 × VREF/gain and a maximum value of 2.1 × VREF/gain. However, the span, which is the difference between the bottom of the AD7124-4 input range and the top of its input range, must account for the limitation on the positive full-scale voltage. The amount of offset that can be accommodated depends on whether the unipolar or bipolar mode is being used. The offset must account for the limitation on the positive fullscale voltage. In unipolar mode, there is considerable flexibility in handling negative (with respect to AINM) offsets. In both unipolar and bipolar modes, the range of positive offsets that can be handled by the device depends on the selected span. Therefore, in determining the limits for system zero-scale and full-scale calibrations, the user must ensure that the offset range plus the span range does exceed 1.05 × VREF/gain. This is best illustrated by looking at a few examples. If the device is used in unipolar mode with a required span of 0.8 × VREF/gain, the offset range that the system calibration can handle is from −1.05 × VREF/gain to +0.25 × VREF/gain. If the device is used in unipolar mode with a required span of VREF/gain, the offset range that the system calibration can handle is from −1.05 × VREF/gain to +0.05 × VREF/gain. Similarly, if the device is used in unipolar mode and required to remove an offset of 0.2× VREF/gain, the span range that the system calibration can handle is 0.85 × VREF/gain. If the device is used in bipolar mode with a required span of ±0.4 × VREF/gain, then the offset range which the system calibration can handle is from −0.65 × VREF/gain to +0.65 × VREF/gain. If the device is used in bipolar mode with a required span of ±VREF/gain, the offset range the system calibration can handle is from −0.05 × VREF/gain to +0.05 × VREF/gain. Similarly, if the device is used in bipolar mode and required to remove an offset of ±0.2 × VREF/gain, the span range that the system calibration can handle is ±0.85 × VREF/gain. If multiple AD7124-4 devices are operated from a common master clock, they can be synchronized so that their data registers are updated simultaneously. A falling edge on the SYNC pin resets the digital filter and the analog modulator and places the AD7124-4 into a consistent, known state. While the SYNC pin is low, the AD7124-4 is maintained in this state. On the SYNC rising edge, the modulator and filter exit this reset state and, on the next clock edge, the device starts to gather input samples again. In a system using multiple AD7124-4 devices, a common signal to their SYNC pins synchronizes their operation. This is normally performed after each AD7124-4 has performed its own calibration or has calibration coefficients loaded into its calibration registers. The conversions from the AD7124-4 devices are then synchronized. The device exits reset on the master clock falling edge following the SYNC low to high transition. Therefore, when multiple devices are being synchronized, pull the SYNC pin high on the master clock rising edge to ensure that all devices begin sampling on the master clock falling edge. If the SYNC pin is not taken high in sufficient time, it is possible to have a difference of one master clock cycle between the devices; that is, the instant at which conversions are available differs from device to device by a maximum of one master clock cycle. The SYNC pin can also be used as a start conversion command. In this mode, the rising edge of SYNC starts conversion and the falling edge of RDY indicates when the conversion is complete. The settling time of the filter must be allowed for each data register update. For example, if the ADC is configured to use the sinc4 filter and zero latency is disabled, the settling time equals 4/fADC where fADC is the output data rate when continuously converting on a single channel. Rev. D | Page 54 of 93 Data Sheet AD7124-4 DIGITAL FILTER Table 55. Filter Registers Reg. 0x21 to 0x28 Name FILTER_0 to FILTER_7 Bit 7 Bit 6 Filter Bit 5 Bit 4 REJ60 Bit 3 0 Bit 2 Bit 1 Bit 0 POST_FILTER SINGLE_CYCLE FS[10:8] Reset 0x060180 RW RW FS[7:0] conversion after the channel change. Subsequent conversions on this channel occur at 1/fADC. CHANNEL CONVERSIONS CH A When the AD7124-4 is powered up, the sinc4 filter is selected by default. This filter gives excellent noise performance over the complete range of output data rates. It also gives the best 50 Hz/ 60 Hz rejection, but it has a long settling time. In Figure 85, the blocks shown in gray are unused. POST FILTER AVERAGING BLOCK CH B CH B CH B CH A CH A 1/fADC DT/fCLK Figure 86. Sinc4 Channel Change When conversions are performed on a single channel and a step change occurs, the ADC does not detect the change in the analog input. Therefore, it continues to output conversions at the programmed output data rate. However, it is at least four conversions later before the output data accurately reflects the analog input. If the step change occurs while the ADC is processing a conversion, then the ADC takes five conversions after the step change to generate a fully settled result. ANALOG INPUT 13197-091 MODULATOR SINC3 /SINC4 FILTER CHANNEL B NOTES 1. DT = DEAD TIME The filter bits in the filter register select between the sinc type filter. SINC4 FILTER CHANNEL A 13197-092 The AD7124-4 offers a great deal of flexibility in the digital filter. The device has several filter options. The option selected affects the output data rate, settling time, and 50 Hz and 60 Hz rejection. The following sections describe each filter type, indicating the available output data rates for each filter option. The filter response along with the settling time and 50 Hz and 60 Hz rejection is also discussed. FULLY SETTLED ADC OUTPUT Figure 85. Sinc4 Filter The output data rate (the rate at which conversions are available on a single channel when the ADC is continuously converting) is equal to 13197-093 Sinc4 Output Data Rate/Settling Time 1/fADC Figure 87. Asynchronous Step Change in the Analog Input The 3 dB frequency for the sinc4 filter is equal to fADC = fCLK/(32 × FS[10:0]) f3dB = 0.23 × fADC where: fADC is the output data rate. fCLK is the master clock frequency (614.4 kHz in full power mode, 153.6 kHz in mid power mode, and 76.8 kHz in low power mode). FS[10:0] is the decimal equivalent of the FS[10:0] bits in the filter register. FS[10:0] can have a value from 1 to 2047. Table 56 gives some examples of the relationship between the values in the FS[10:0] bits and the corresponding output data rate and settling time. The output data rate can be programmed from Power Mode Full Power (fCLK = 614.4 kHz) • • • 9.38 SPS to 19,200 SPS for full power mode 2.35 SPS to 4800 SPS for mid power mode 1.17 SPS to 2400 SPS for low power mode Table 56. Examples of Output Data Rates and the Corresponding Settling Times for the Sinc4 Filter Mid Power (fCLK = 153.6 kHz) The settling time for the sinc4 filter is equal to tSETTLE = (4 × 32 × FS[10:0] + Dead time)/fCLK where Dead time = 61 when FS[10:0] = 1 and 95 when FS[10:0] > 1. When a channel change occurs, the modulator and filter are reset. The settling time is allowed to generate the first Low Power (fCLK = 76.8 kHz) Rev. D | Page 55 of 93 FS[10:0] 1920 384 320 480 96 80 240 48 40 Output Data Rate (SPS) 10 50 60 10 50 60 10 50 60 Settling Time (ms) 400.15 80.15 66.82 400.61 80.61 67.28 401.22 81.22 67.89 AD7124-4 Data Sheet Sinc4 Zero Latency Zero latency is enabled by setting the SINGLE_CYCLE bit in the filter register to 1. With zero latency, the conversion time when continuously converting on a single channel approximately equals the settling time. The benefit of this mode is that a similar period of time elapses between all conversions irrespective of whether the conversions occur on one channel or whether several channels are used. When the analog input is continuously sampled on a single channel, the output data rate equals fADC = fCLK/(4 × 32 × FS[10:0]) 1/fADC Figure 88. Sinc4 Zero Latency Operation At low output data rates, this extra delay has little impact on the value of the settling time. However, at high output data rates, the delay must be considered. Table 57 summarizes the output data rate when continuously converting on a single channel and the settling time when switching between channels for a sample of FS[10:0] values. When switching between channels, the AD7124-4 allows the complete settling time to generate the first conversion after the channel change. Therefore, the ADC automatically operates in zero latency mode when several channels are enabled—setting the SINGLE_CYCLE bit has no benefits. Table 57. Examples of Output Data Rates and the Corresponding Settling Times for the Sinc4 Filter (Zero Latency) Mid Power (fCLK = 153.6 kHz) Low Power (fCLK = 76.8 kHz) Settling Time (ms) 400.15 80.15 66.82 400.61 80.61 67.28 401.22 81.22 67.89 The description in the Sinc4 Filter section is valid when manually switching channels, for example, writing to the device to change channels. When multiple channels are enabled, the on-chip sequencer is automatically used; the device automatically sequences between all enabled channels. In this case, the first conversion takes the complete settling time as listed in Table 56. For all subsequent conversions, the time needed for each conversion is the settling time also, but the dead time is reduced to 30. Sinc4 50 Hz and 60 Hz Rejection Figure 89 shows the frequency response of the sinc4 filter when the output data rate is programmed to 50 SPS and zero latency is disabled. For the same configuration but with zero latency enabled, the filter response remains the same but the output data rate is 12.5 SPS. The sinc4 filter provides 50 Hz (±1 Hz) rejection in excess of 120 dB minimum, assuming a stable master clock. 0 –10 –20 –30 –40 –50 –60 –70 –80 –90 –100 –110 –120 0 25 50 75 100 FREQUENCY (Hz) 125 150 13197-095 where Dead time = 61 when FS[10:0] = 1 and 95 when FS[10:0] > 1. Sequencer FILTER GAIN (dB) Dead time/fCLK FS[10:0] 1920 384 320 480 96 80 240 48 40 13197-094 ADC OUTPUT When the user selects another channel, there is an extra delay in the first conversion of Power Mode Full Power (fCLK = 614.4 kHz) ANALOG INPUT FULLY SETTLED where: fADC is the output data rate. fCLK is the master clock frequency. FS[10:0] is the decimal equivalent of the FS[10:0] bits in the setup filter register. Output Data Rate (SPS) 2.5 12.5 15 2.5 12.5 15 2.5 12.5 15 When the analog input is constant or a channel change occurs, valid conversions are available at a near constant output data rate. When conversions are being performed on a single channel and a step change occurs on the analog input, the ADC continues to output fully settled conversions if the step change is synchronized with the conversion process. If the step change is asynchronous, one conversion is output from the ADC, which is not completely settled (see Figure 88). Figure 89. Sinc4 Filter Response (50 SPS Output Data Rate, Zero Latency Disabled or 12.5 SPS Output Data Rate, Zero Latency Enabled) Rev. D | Page 56 of 93 Data Sheet AD7124-4 Figure 90 shows the frequency response of the sinc4 filter when the output data rate is programmed to 60 SPS and zero latency is disabled. For the same configuration but with zero latency enabled, the filter response remains the same but the output data rate is 15 SPS. The sinc4 filter provides 60 Hz (±1 Hz) rejection of 120 dB minimum, assuming a stable master clock. 0 –10 –20 FILTER GAIN (dB) –30 0 –10 –20 –50 –60 –70 –80 –90 –30 –100 –40 –120 –60 0 25 75 100 125 150 Figure 92. Sinc4 Filter Response (50 SPS Output Data Rate, Zero Latency Disabled or 12.5 SPS Output Data Rate, Zero Latency Enabled, REJ60 = 1) –80 –90 SINC3 FILTER –100 –120 0 30 60 90 120 150 FREQUENCY (Hz) 13197-096 –110 Figure 90. Sinc4 Filter Response (60 SPS Output Data Rate, Zero Latency Disabled or 15 SPS Output Data Rate, Zero Latency Enabled) When the output data rate is 10 SPS with zero latency disabled or 2.5 SPS with zero latency enabled, simultaneous 50 Hz and 60 Hz rejection is obtained. The sinc4 filter provides 50 Hz (±1 Hz) and 60 Hz (±1 Hz) rejection of 120 dB minimum, assuming a stable master clock. A sinc3 filter can be used instead of the sinc4 filter. The filter is selected using the filter bits in the filter register. This filter has good noise performance, moderate settling time, and moderate 50 Hz and 60 Hz (±1 Hz) rejection. In Figure 93, the blocks shown in gray are unused. POST FILTER MODULATOR SINC3 /SINC4 FILTER AVERAGING BLOCK 0 Figure 93. Sinc3 Filter –10 Sinc3 Output Data Rate and Settling Time –20 The output data rate (the rate at which conversions are available on a single channel when the ADC is continuously converting) equals –30 FILTER GAIN (dB) 50 FREQUENCY (Hz) –70 13197-098 –110 –50 13197-099 FILTER GAIN (dB) –40 –40 –50 fADC = fCLK/(32 × FS[10:0]) –60 –70 –80 –90 –100 0 30 60 90 FREQUENCY (Hz) 120 150 13197-097 –110 –120 Figure 91. Sinc4 Filter Response (10 SPS Output Data Rate, Zero Latency Disabled or 2.5 SPS Output Data Rate, Zero Latency Enabled) Simultaneous 50 Hz/60 Hz rejection can also be achieved using the REJ60 bit in the filter register. When the sinc filter places a notch a 50 Hz, the REJ60 bit places a first order notch at 60 Hz. The output data rate is 50 SPS when zero latency is disabled and 12.5 SPS when zero latency is enabled. Figure 92 shows the frequency response of the sinc4 filter. The filter provides 50 Hz ± 1 Hz and 60 Hz ± 1 Hz rejection of 82 dB minimum, assuming a stable master clock. where: fADC is the output data rate. fCLK is the master clock frequency (614.4 kHz in full power mode, 153.6 kHz in mid power mode and 76.8 kHz in low power mode). FS[10:0] is the decimal equivalent of the FS[10:0] bits in the filter register. FS[10:0] can have a value from 1 to 2047. The output data rate can be programmed from • • • 9.38 SPS to 19,200 SPS for full power mode 2.35 SPS to 4800 SPS for mid power mode 1.17 SPS to 2400 SPS for low power mode The settling time for the sinc3 filter is equal to tSETTLE = (3 × 32 × FS[10:0] + Dead time)/fCLK where Dead time = 61 when FS[10:0] = 1 and 95 FS[10:0] >1. The 3 dB frequency is equal to Rev. D | Page 57 of 93 f3dB = 0.262 × fADC AD7124-4 Data Sheet When the analog input is continuously sampled on a single channel, the output data rate equals Table 58 gives some examples of FS[10:0] settings and the corresponding output data rates and settling times. fADC = fCLK/(3 × 32 × FS[10:0]) Table 58. Examples of Output Data Rates and the Corresponding Settling Times for the Sinc3 Filter Power Mode Full Power (fCLK = 614.4 kHz) Mid Power (fCLK = 153.6 kHz) Low Power (fCLK = 76.8 kHz) FS[10:0] 1920 384 320 480 96 80 240 48 40 Output Data Rate (SPS) 10 50 60 10 50 60 10 50 60 Settling Time (ms) 300.15 60.15 50.15 300.61 60.61 50.61 301.22 61.22 51.22 When a channel change occurs, the modulator and filter are reset. The complete settling time is allowed to generate the first conversion after the channel change (see Figure 94). Subsequent conversions on this channel are available at 1/fADC. CONVERSIONS CHANNEL A CH A CHANNEL B CH A CH B CH B 1/fADC DT/fCLK NOTES 1. DT = DEAD TIME 13197-100 CHANNEL Figure 94. Sinc3 Channel Change When conversions are performed on a single channel and a step change occurs, the ADC does not detect the change in the analog input. Therefore, it continues to output conversions at the programmed output data rate. However, it is at least three conversions later before the output data accurately reflects the analog input. If the step change occurs while the ADC is processing a conversion, the ADC takes four conversions after the step change to generate a fully settled result. where: fADC is the output data rate. fCLK is the master clock frequency. FS[10:0] is the decimal equivalent of the FS[10:0] bits in the filter register. When switching channels, there is an extra delay in the first conversion of Dead time/fCLK where Dead time = 61 when FS[10:0] = 1 or 95 when FS > 1. At low output data rates, this extra delay has little impact on the value of the settling time. However, at high output data rates, the delay must be considered. Table 59 summarizes the output data rate when continuously converting on a single channel and the settling time when switching between channels for a sample of FS[10:0]. When the user selects another channel, the AD7124-4 allows the complete settling time to generate the first conversion after the channel change. Therefore, the ADC automatically operates in zero latency mode when several channels are enabled—setting the SINGLE_CYCLE bit has no benefits. When the analog input is constant or a channel change occurs, valid conversions are available at a near constant output data rate. When conversions are being performed on a single channel and a step change occurs on the analog input, the ADC continues to output fully settled conversions if the step change is synchronized with the conversion process. If the step change is asynchronous, one conversion is output from the ADC that is not completely settled (see Figure 96). ANALOG INPUT FULLY SETTLED ADC OUTPUT FULLY SETTLED 1/fADC ADC OUTPUT 13197-102 ANALOG INPUT 3 Zero Latency Operation 1/fADC 13197-101 Figure 96. Sinc Figure 95. Asynchronous Step Change in the Analog Input Sinc3 Zero Latency Zero latency is enabled by setting the SINGLE_CYCLE bit in the filter register to 1. With zero latency, the conversion time when continuously converting on a single channel approximately equals the settling time. The benefit of this mode is that a similar period of time elapses between all conversions irrespective of whether the conversions occur on one channel or whether several channels are used. Table 59. Examples of Output Data Rates and the Corresponding Settling Times for the Sinc3 Filter (Zero Latency) Power Mode Full Power (fCLK = 614.4 kHz) Mid Power (fCLK = 153.6 kHz) Low Power (fCLK = 76.8 kHz) Rev. D | Page 58 of 93 FS[10:0] 1920 384 320 480 96 80 240 48 40 Output Data Rate (SPS) 3.33 16.67 20 3.33 16.67 20 3.33 16.67 20 Settling Time (ms) 300.15 60.15 50.15 300.61 60.61 50.61 301.22 61.22 51.22 Data Sheet AD7124-4 Sinc3 50 Hz and 60 Hz Rejection Figure 97 shows the frequency response of the sinc3 filter when the output data rate is programmed to 50 SPS and zero latency is disabled. For the same configuration but with zero latency enabled, the filter response remains the same but the output data rate is 16.67 SPS. The sinc3 filter gives 50 Hz ± 1 Hz rejection of 95 dB minimum for a stable master clock. 0 –10 –20 –30 –40 –50 –60 –70 –80 –90 –100 –110 –120 0 0 30 60 –10 –30 Simultaneous 50 Hz and 60 Hz rejection can also be achieved using the REJ60 bit in the filter register. When the sinc filter places a notch a 50 Hz, the REJ60 bit places a first order notch at 60 Hz. The output data rate is 50 SPS when zero latency is disabled and 16.67 SPS when zero latency is enabled. Figure 100 shows the frequency response of the sinc3 filter with this configuration. Assuming a stable clock, the rejection at 50 Hz and 60 Hz (±1 Hz) is in excess of 67 dB minimum. –40 –50 –60 –70 –80 –90 –100 0 25 50 75 100 125 150 FREQUENCY (Hz) 0 13197-103 –110 –120 –10 –20 Figure 97. Sinc3 Filter Response (50 SPS Output Data Rate, Zero Latency Disabled or 16.67 SPS Output Data Rate, Zero Latency Enabled) FILTER GAIN (dB) Figure 98 shows the frequency response of the sinc3 filter when the output data rate is programmed to 60 SPS and zero latency is disabled. For the same configuration but with zero latency enabled, the filter response remains the same but the output data rate is 20 SPS. The sinc3 filter has rejection of 95 dB minimum at 60 Hz ± 1 Hz, assuming a stable master clock. –30 –40 –50 –60 –70 –80 –90 –100 0 –110 –10 –120 0 –20 25 50 75 100 125 150 FREQUENCY (Hz) –30 13197-106 FILTER GAIN (dB) 150 Figure 99. Sinc3 Filter Response (10 SPS Output Data Rate, Zero Latency Disabled or 3.33 SPS Output Data Rate, Zero Latency Enabled) –20 FILTER GAIN (dB) 120 90 FREQUENCY (Hz) 13197-105 The description in the Sinc3 Filter section is valid when manually switching channels, for example, writing to the device to change channels. When multiple channels are enabled, the on-chip sequencer is automatically used; the device automatically sequences between all enabled channels. In this case, the first conversion takes the complete settling time as listed in Table 58. For all subsequent conversions, the time needed for each conversion is also the settling time, but the dead time is reduced to 30. When the output data rate is 10 SPS with zero latency disabled or 3.33 SPS with zero latency enabled, simultaneous 50 Hz and 60 Hz rejection is obtained. The sinc3 filter has rejection of 100 dB minimum at 50 Hz ± 1 Hz and 60 Hz ± 1 Hz (see Figure 99). FILTER GAIN (dB) Sequencer Figure 100. Sinc3 Filter Response (50 SPS Output Data Rate, Zero Latency Disabled or 16.67 SPS Output Data Rate, Zero Latency Enabled, REJ60 = 1) –40 –50 FAST SETTLING MODE (SINC4 + SINC1 FILTER) –60 –70 –80 –90 –100 0 30 60 90 FREQUENCY (Hz) 120 150 13197-104 –110 –120 In fast settling mode, the settling time is close to the inverse of the first filter notch; therefore, the user can achieve 50 Hz and/or 60 Hz rejection at an output data rate close to 1/50 Hz or 1/60 Hz. The settling time is approximately equal to 1/output data rate. Therefore, the conversion time is near constant when converting on a single channel or when converting on several channels. Figure 98. Sinc3 Filter Response (60 SPS Output Data Rate, Zero Latency Disabled or 20 SPS Output Data Rate, Zero Latency Enabled) Rev. D | Page 59 of 93 AD7124-4 Data Sheet Figure 101. Fast Settling Mode, Sinc4 + Sinc1 Filter Output Data Rate and Settling Time, Sinc4 + Sinc1 Filter When continuously converting on a single channel, the output data rate is fADC = fCLK/((4 + Avg − 1) × 32 × FS[10:0]) where: fADC is the output data rate. fCLK is the master clock frequency (614.4 kHz in full power mode, 153.6 kHz in mid power mode, and 76.8 kHz in low power mode). Avg is 16 for the full or mid power mode and 8 for low power mode. FS[10:0] is the decimal equivalent of the FS[10:0] bits in the filter register. FS[10:0] can have a value from 1 to 2047. When another channel is selected by the user, there is an extra delay in the first conversion. The settling time is equal to tSETTLE = ((4 + Avg − 1) × 32 × FS[10:0] + Dead time)/fCLK where Dead time = 95. The 3 dB frequency is equal to f3dB = 0.44 × fADC Table 60 lists sample FS[10:0] settings and the corresponding output data rates and settling times. Table 60. Examples of Output Data Rates and the Corresponding Settling Times (Fast Settling Mode, Sinc4 + Sinc1) Power Mode Full Power (fCLK = 614.4 kHz, Average by 16) Mid Power (fCLK = 153.6 kHz, Average by 16) Low Power (fCLK = 76.8 kHz, Average by 8) FS[10:0] 120 24 20 30 6 5 30 6 5 First Notch (Hz) 10 50 60 10 50 60 10 50 60 Output Data Rate (SPS) 8.42 42.11 50.53 8.42 42.11 50.53 7.27 36.36 43.64 CH A CH A CH A CH A CH B CH B CH B CH B 1/fADC DT/f CLK NOTES 1. DT = DEAD TIME Settling Time (ms) 118.9 23.9 19.94 119.36 24.36 20.4 138.72 28.72 24.14 When the analog input is constant or a channel change occurs, valid conversions are available at a near constant output data rate. When the device is converting on a single channel and a step change occurs on the analog input, the ADC does not detect the change and continues to output conversions. If the step change is synchronized with the conversion, only fully settled results are output from the ADC. However, if the step change is asynchronous to the conversion process, there is one intermediate result, which is not completely settled (see Figure 103). ANALOG INPUT VALID ADC OUTPUT 1/fADC 13197-109 13197-107 SINC3/SINC4 FILTER AVERAGING BLOCK CONVERSIONS CH A CHANNEL B Figure 102. Fast Settling, Sinc4 + Sinc1 Filter POST FILTER MODULATOR CHANNEL A CHANNEL 13197-108 Enable the fast settling mode using the filter bits in the filter register. In fast settling mode, a sinc1 filter is included after the sinc4 filter. The sinc1 filter averages by 16 in the full power and mid power modes and averages by 8 in the low power mode. In Figure 101, the blocks shown in gray are unused. Figure 103. Step Change on the Analog Input, Sinc4 + Sinc1 Filter Sequencer The description in the Fast Settling Mode (Sinc4 + Sinc1 Filter) section is valid when manually switching channels, for example, writing to the device to change channels. When multiple channels are enabled, the on-chip sequencer is automatically used; the device automatically sequences between all enabled channels. In this case, the first conversion takes the complete settling time as listed in Table 60. For all subsequent conversions, the time needed for each conversion is also the settling time, but the dead time is reduced to 30. 50 Hz and 60 Hz Rejection, Sinc4 + Sinc1 Filter Figure 104 shows the frequency response when FS[10:0] is set to 24 in the full power mode or 6 in the mid power mode or low power mode. Table 60 lists the corresponding output data rate. The sinc filter places the first notch at fNOTCH = fCLK/(32 × FS[10:0]) The sinc1 filter places notches at fNOTCH/Avg (Avg equaling 16 for the full power mode and mid power mode and equaling 8 for the low power mode). Notches are also placed at multiples of this frequency; therefore, when FS[10:0] is set to 6 in the full power mode or mid power mode, a notch is placed at 800 Hz due to the sinc filter and notches are placed at 50 Hz and multiples of 50 Hz due to the averaging. In low power mode, a notch is placed at 400 Hz due to the sinc filter and notches are placed at 50 Hz and multiples of 50 Hz due to the averaging. The notch at 50 Hz is a first-order notch; therefore, the notch is not wide. This means that the rejection at 50 Hz exactly is good, assuming a stable master clock. However, in a band of 50 Hz ± 1 Hz, the rejection degrades significantly. The rejection at 50 Hz ± 0.5 Hz is 40 dB minimum, assuming a stable clock; therefore, a good master clock source is recommended when using fast settling mode. Rev. D | Page 60 of 93 Data Sheet AD7124-4 0 FAST SETTLING MODE (SINC3 + SINC1 FILTER) –10 In fast settling mode, the settling time is close to the inverse of the first filter notch; therefore, the user can achieve 50 Hz and/or 60 Hz rejection at an output data rate close to 1/50 Hz or 1/60 Hz. The settling time is approximately equal to 1/output data rate. Therefore, the conversion time is near constant when converting on a single channel or when converting on several channels. –20 –40 –50 –60 –70 –80 –90 –100 0 30 60 90 120 150 FREQUENCY (Hz) 13197-110 –110 –120 Enable the fast settling mode using the filter bits in the filter register. In fast settling mode, a sinc1 filter is included after the sinc3 filter. The sinc1 filter averages by 16 in the full power and mid power modes and averages by 8 in low power mode. In Figure 107, the blocks shown in gray are unused. POST FILTER Figure 104. 50 Hz Rejection Figure 105 shows the filter response when FS[10:0] is set to 20 in full power mode or 5 in the mid power and low power modes. In this case, a notch is placed at 60 Hz and multiples of 60 Hz. The rejection at 60 Hz ± 0.5 Hz is equal to 40 dB minimum. AVERAGING BLOCK Figure 107. Fast Settling Mode, Sinc3 + Sinc1 Filter When continuously converting on a single channel, the output data rate is –20 –30 FILTER GAIN (dB) MODULATOR Output Data Rate and Settling Time, Sinc3 + Sinc1 Filter 0 –10 fADC = fCLK/((3 + Avg − 1) × 32 × FS[10:0]) –40 –50 where: fADC is the output data rate. fCLK is the master clock frequency (614.4 kHz in full power mode, 153.6 kHz in mid power mode, and 76.8 kHz in low power mode). Avg is 16 in full or mid power mode and 8 in low power mode. FS[10:0] is the decimal equivalent of the FS[10:0] bits in the filter register. FS[10:0] can have a value from 1 to 2047. –60 –70 –80 –90 –100 0 30 60 90 120 150 FREQUENCY (Hz) 13197-111 –110 –120 When another channel is selected by the user, there is an extra delay in the first conversion. The settling time is equal to Figure 105. 60 Hz Rejection tSETTLE = ((3 + Avg − 1) × 32 × FS[10:0] + Dead time)/ fCLK Simultaneous 50 Hz/60 Hz rejection is achieved when FS[10:0] is set to 384 in full power mode or 30 in the mid power and low power modes. Notches are placed at 10 Hz and multiples of 10 Hz, thereby giving simultaneous 50 Hz and 60 Hz rejection. The rejection at 50 Hz ± 0.5 Hz and 60 Hz ± 0.5 Hz is 44 dB typically. 0 –10 –20 where Dead time = 95. The 3 dB frequency is equal to f3dB = 0.44 × fNOTCH Table 61 lists some sample FS[10:0] settings and the corresponding output data rates and settling times. Table 61. Examples of Output Data Rates and the Corresponding Settling Times (Fast Settling Mode, Sinc3 + Sinc1) –30 –40 –50 Power Mode Full Power (fCLK = 614.4 kHz, Average by 16) –60 –70 –80 –90 Mid Power (fCLK = 153.6 kHz, Average by 16) –100 –110 –120 0 30 60 90 120 FREQUENCY (Hz) 150 13197-112 FILTER GAIN (dB) SINC3 /SINC4 FILTER 13197-113 FILTER GAIN (dB) –30 Low Power (fCLK = 76.8 kHz, Average by 8) Figure 106. Simultaneous 50 Hz and 60 Hz Rejection Rev. D | Page 61 of 93 FS[10:0] 120 24 20 30 6 5 30 6 5 First Notch (Hz) 10 50 60 10 50 60 10 50 60 Output Data Rate (SPS) 8.89 44.44 53.33 8.89 44.44 53.33 8 40 48 Settling Time (ms) 112.65 22.65 18.9 113.11 23.11 19.36 126.22 26.22 22.06 AD7124-4 Data Sheet 40 dB minimum, assuming a stable clock; therefore, a good master clock source is recommended when using fast settling mode. When the analog input is constant or a channel change occurs, valid conversions are available at a near constant output data rate. CHANNEL CHANNEL A 0 CHANNEL B –10 –20 –30 NOTES 1. DT = DEAD TIME Figure 108. Fast Settling, Sinc3 + Sinc1 Filter When the device is converting on a single channel and a step change occurs on the analog input, the ADC does not detect the change and continues to output conversions. When the step change is synchronized with the conversion, only fully settled results are output from the ADC. However, if the step change is asynchronous to the conversion process, one intermediate result is not completely settled (see Figure 109). –40 –50 –60 –70 –80 –90 –100 –110 –120 0 30 60 90 120 150 FREQUENCY (Hz) 13197-116 DT/fCLK Figure 110. 50 Hz Rejection ANALOG INPUT VALID 1/fADC 13197-115 ADC OUTPUT Figure 111 shows the filter response when FS[10:0] is set to 20 in full power mode or 5 in the mid power and low power modes. In this case, a notch is placed at 60 Hz and multiples of 60 Hz. The rejection at 60 Hz ± 0.5 Hz is equal to 40 dB minimum. 0 Figure 109. Step Change on the Analog Input, Sinc + Sinc1 Filter 3 –10 –20 Sequencer –30 FILTER GAIN (dB) The description in the Fast Settling Mode (Sinc3 + Sinc1 Filter) section is valid when manually switching channels, for example, writing to the device to change channels. When multiple channels are enabled, the on-chip sequencer is automatically used; the device automatically sequences between all enabled channels. In this case, the first conversion takes the complete settling time as listed in Table 61. For all subsequent conversions, the time needed for each conversion is also the settling time, but the dead time is reduced to 30. –40 –50 –60 –70 –80 –90 –100 –110 –120 0 50 Hz and 60 Hz Rejection, Sinc3 + Sinc1 Filter 30 60 90 FREQUENCY (Hz) Figure 110 shows the frequency response when FS[10:0] is set to 24 in the full power mode or 6 in the mid power mode or low power mode. Table 61 lists the corresponding output data rate. The sinc filter places the first notch at fNOTCH = fCLK/(32 × FS[10:0]) The averaging block places notches at fNOTCH/Avg (Avg equaling 16 for the full power mode and mid power mode and equaling 8 for the low power mode). Notches are also placed at multiples of this frequency; therefore, when FS[10:0] is set to 6 in full power mode or mid power mode, a notch is placed at 800 Hz due to the sinc filter and notches are placed at 50 Hz and multiples of 50 Hz due to the averaging. In low power mode, a notch is placed at 400 Hz due to the sinc filter and notches are placed at 50 Hz and multiples of 50 Hz due to the averaging. 120 150 13197-117 1/fADC CH B CH B CH B CH B FILTER GAIN (dB) CH A CH A CH A CH A 13197-114 CONVERSIONS CH A Figure 111. 60 Hz Rejection Simultaneous 50 Hz/60 Hz rejection is achieved when FS[10:0] is set to 384 in full power mode or 30 in the mid power and low power modes. Notches are placed at 10 Hz and multiples of 10 Hz, thereby giving simultaneous 50 Hz and 60 Hz rejection. The rejection at 50 Hz ± 0.5 Hz and 60 Hz ± 0.5 Hz is 42 dB typically. The notch at 50 Hz is a first-order notch; therefore, the notch is not wide. This means that the rejection at 50 Hz exactly is good, assuming a stable master clock. However, in a band of 50 Hz ± 1 Hz, the rejection degrades significantly. The rejection at 50 Hz ± 0.5 Hz is Rev. D | Page 62 of 93 Data Sheet AD7124-4 filters are realized by post filtering the output of the sinc3 filter. The filter bits must be set to all 1s to enable the post filter. The post filter option to use is selected using the POST_FILTER bits in the filter register. In Figure 113, the blocks shown in gray are unused. 0 –10 –20 –40 –50 POST FILTER –60 MODULATOR –70 SINC3/SINC4 FILTER AVERAGING BLOCK –80 –90 13197-119 FILTER GAIN (dB) –30 Figure 113. Post Filters –100 –120 0 30 60 90 120 150 FREQUENCY (Hz) 13197-118 –110 Figure 112. Simultaneous 50 Hz and 60 Hz Rejection POST FILTERS The post filters provide rejection of 50 Hz and 60 Hz simultaneously and allow the user to trade off settling time and rejection. These filters can operate up to 27.27 SPS or can reject up to 90 dB of 50 Hz ± 1 Hz and 60 Hz ± 1 Hz interference. These Table 62 shows the output data rates with the accompanying settling times and the rejection. When continuously converting on a single channel, the first conversion requires a time of tSETTLE. Subsequent conversions occur at 1/fADC. When multiple channels are enabled (either manually or using the sequencer), the settling time is required to generate a valid conversion on each enabled channel. Table 62. AD7124-4 Post Filters: Output Data Rate, Settling Time (tSETTLE), and Rejection Output Data Rate (SPS) 27.27 25 20 16.67 1 f3dB (Hz) 17.28 15.12 13.38 12.66 tSETTLE, Full Power Mode (ms) 38.498 41.831 51.831 61.831 tSETTLE, Mid Power Mode (ms) 38.998 42.331 52.331 62.331 tSETTLE, Low Power Mode (ms) 39.662 42.995 52.995 62.995 Stable master clock used. Rev. D | Page 63 of 93 Simultaneous Rejection of 50 Hz ± 1 Hz and 60 Hz ± 1 Hz (dB)1 47 62 86 92 Data Sheet 0 –10 –20 –20 –30 –30 –60 –70 –80 –80 –90 –90 0 100 200 300 400 500 600 FREQUENCY (Hz) Figure 114. DC to 600 Hz, 27.27 SPS Output Data Rate, 36.67 ms Settling Time –100 40 0 0 –10 –20 –30 –30 FILTER GAIN (dB) –20 –50 –60 –80 –90 –90 55 60 65 70 FREQUENCY (Hz) Figure 115. Zoom in 40 Hz to 70 Hz, 27.27 SPS Output Data Rate, 36.67 ms Settling Time 0 –20 –30 –30 FILTER GAIN (dB) –10 –20 –80 –90 –90 FREQUENCY (Hz) 400 500 600 –100 40 13197-122 300 Figure 116. DC to 600 Hz, 25 SPS Output Data Rate, 40 ms Settling Time 500 600 –60 –80 200 400 –50 –70 100 300 –40 –70 –100 40 200 Figure 118. DC to 600 Hz, 20 SPS Output Data Rate, 50 ms Settling Time –10 –60 100 FREQUENCY (Hz) 0 –50 70 –100 0 –40 65 –60 –70 50 60 –50 –80 45 55 –40 –70 –100 40 50 Figure 117. Zoom in 40 Hz to 70 Hz, 25 SPS Output Data Rate, 40 ms Settling Time –10 –40 45 FREQUENCY (Hz) 13197-121 FILTER GAIN (dB) –60 –70 –100 FILTER GAIN (dB) –50 13197-124 –50 –40 45 50 55 FREQUENCY (Hz) 60 65 70 13197-125 –40 13197-123 FILTER GAIN (dB) 0 –10 13197-120 FILTER GAIN (dB) AD7124-4 Figure 119. Zoom in 40 Hz to 70 Hz, 20 SPS Output Data Rate, 50 ms Settling Time Rev. D | Page 64 of 93 AD7124-4 0 –10 –10 –20 –20 –30 –30 –40 –50 –60 –40 –50 –60 –70 –70 –80 –80 –90 –90 –100 –100 40 0 100 200 300 FREQUENCY (Hz) 400 500 600 Figure 120. DC to 600 Hz, 16.667 SPS Output Data Rate, 60 ms Settling Time 45 50 55 FREQUENCY (Hz) 60 65 70 13197-127 FILTER GAIN (dB) 0 13197-126 FILTER GAIN (dB) Data Sheet Figure 121. Zoom in 40 Hz to 70 Hz, 16.667 SPS Output Data Rate, 60 ms Settling Time Rev. D | Page 65 of 93 AD7124-4 Data Sheet SUMMARY OF FILTER OPTIONS The AD7124-4 has several filter options. The filter that is chosen affects the output data rate, settling time, the rms noise, the stop band attenuation, and the 50 Hz and 60 Hz rejection. Table 63 shows some sample configurations and the corresponding performance in terms of throughput and 50 Hz and 60 Hz rejection. Table 63. Filter Summary1 Filter Sinc4 Sinc4, Zero Latency Sinc3 Fast Settling (Sinc4 + Sinc1) Fast Settling (Sinc3 + Sinc1) Post Filter 1 2 Power Mode All All All All All All All All All All All Full/mid Low Full/mid Low Full/mid Low Full/mid Low Full/mid Low Full/mid Low All All All All Output Data Rate (SPS) 10 50 50 60 12.5 12.5 15 10 50 50 60 50.53 43.64 42.11 36.36 8.4 7.27 53.33 48 44.44 40 8.89 8 27.27 25 20 16.67 REJ60 0 0 1 0 0 1 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 50 Hz Rejection (dB)2 120 dB (50 Hz and 60 Hz) 120 dB (50 Hz only) 82 dB (50 Hz and 60 Hz) 120 dB (60 Hz only) 120 dB (50 Hz only) 82 dB (50 Hz and 60 Hz) 120 dB (60 Hz only) 100 dB (50 Hz and 60 Hz) 95 dB (50 Hz only) 67 dB (50 Hz and 60 Hz) 95 dB (60 Hz only) 40 dB (60 Hz only) 40 dB (60 Hz only) 40 dB (50 Hz only) 40 dB (50 Hz only) 40 dB (50 Hz and 60 Hz) 40 dB (50 Hz and 60 Hz) 40 dB (60 Hz only) 40 dB (60 Hz only) 40 dB (50 Hz only) 40 dB (50 Hz only) 40 dB (50 Hz and 60 Hz) 40 dB (50 Hz and 60 Hz) 47 dB (50 Hz and 60 Hz) 62 dB (50 Hz and 60 Hz) 85 dB (50 Hz and 60 Hz) 90 dB (50 Hz and 60 Hz) These calculations assume a stable master clock. For fast settling mode, the 50 Hz/60 Hz rejection is measured in a band of ±0.5 Hz around 50 Hz and/or 60 Hz. For all other modes, a region of ±1 Hz around 50 Hz and/or 60 Hz is used. Rev. D | Page 66 of 93 Data Sheet AD7124-4 DIAGNOSTICS The AD7124-4 has numerous diagnostic functions on chip. Use these features to ensure is performed, check the status of the REF_DET_ERR bit at the end of the calibration cycle. • • • • • The reference detect flag may be set when the device exits standby mode. Therefore, read the error register after exiting standby mode to reset the flag to 0. Read/write operations are to valid registers only Only valid data is written to the on-chip registers Appropriate decoupling is used on the LDOs The external reference, if used, is present The ADC modulator and filter are working within specification CALIBRATION, CONVERSION, AND SATURATION ERRORS Functions such as the reference and power supply voltages can be selected as inputs to the ADC. The AD7124-4 can therefore check the voltages connected to the device. The AD7124-4 also generates an internal 20 mV signal that can be applied internally to a channel by selecting the V_20MV_P to V_20MV_M channel in the channel register. The PGA can be checked using this function. As the PGA setting is increased, for example, the signal as a percent of the analog input range is reduced by a factor of two. This allows the user to check that the PGA is functioning correctly. REFERENCE DETECT The AD7124-4 includes on-chip circuitry to detect if there is a valid reference for conversions or calibrations when the user selects an external reference as the reference source. This is a valuable feature in applications such as RTDs or strain gages where the reference is derived externally. OUTPUT: 0 WHEN REFIN ≤0.7V 1 WHEN REFIN 1) takes a time of four settling periods. Internal full-scale calibrations cannot be performed in the full power mode. So, if using the full-power mode, select mid or low power mode for the internal full-scale calibration. This calibration is valid in full power mode as the same reference and gain are used. When performing internal zero-scale and internal full-scale calibrations, the internal full-scale calibration must be performed before the internal zero-scale calibration. Therefore, write 0x800000 to the offset register before performing any internal full-scale calibration, which resets the offset register to its default value. Rev. D | Page 81 of 93 AD7124-4 Mode Value 0111 1000 1001 to1111 Data Sheet Description System zero-scale (offset) calibration. Connect the system zero-scale input to the channel input pins of the selected channel. RDY goes high when the calibration is initiated and returns low when the calibration is complete. The ADC is placed in idle mode following a calibration. The measured offset coefficient is placed in the offset register of the selected channel. A system zeroscale calibration is required each time the gain of a channel is changed. Select only one channel when full-scale calibration is being performed. A system zero-scale calibration takes a time of one settling period to be performed. System full-scale (gain) calibration. Connect the system full-scale input to the channel input pins of the selected channel. RDY goes high when the calibration is initiated and returns low when the calibration is complete. The ADC is placed in idle mode following a calibration. The measured full-scale coefficient is placed in the gain register of the selected channel. A full-scale calibration is required each time the gain of a channel is changed. Select only one channel when full-scale calibration is being performed. A system full-scale calibration takes a time of one settling period to be performed. Reserved. DATA REGISTER RS[5:0] = 0, 0, 0, 0, 1, 0 Power-On/Reset = 0x000000 The conversion result from the ADC is stored in this data register. This is a read-only register. On completion of a read operation from this register, the RDY bit/pin is set. IO_CONTROL_1 REGISTER RS[5:0] = 0, 0, 0, 0, 1, 1 Power-On/Reset = 0x000000 Table 69 outlines the bit designations for the register. Bit 23 is the first bit of the data stream. The number in parentheses indicates the power-on/reset default status of that bit. Bit 7 GPIO_DAT2 (0) PDSW (0) Bit 6 Bit 5 GPIO_DAT1 (0) 0 (0) 0 (0) IOUT1_CH (0) Bit 4 0 (0) IOUT1 (0) Bit 3 GPIO_CTRL2 (0) Bit 2 GPIO_CTRL1 (0) Bit 1 0 (0) IOUT0 (0) IOUT0_CH (0) Bit 0 0 (0) Table 69. IO_CONTROL_1 Register Bit Descriptions Bits 23 Bit Name GPIO_DAT2 22 GPIO_DAT1 21, 20 19 0 GPIO_CTRL2 18 GPIO_CTRL1 17, 16 15 0 PDSW 14 0 Description Digital Output P2. When GPIO_CTRL2 is set, the GPIO_DAT2 bit sets the value of the P2 general-purpose output pin. When GPIO_DAT2 is high, the P2 output pin is high. When GPIO_DAT2 is low, the P2 output pin is low. When the IO_CONTROL_1 register is read, the GPIO_DAT2 bit reflects the status of the P2 pin if GPIO_CTRL2 is set. Digital Output P1. When GPIO_CTRL1 is set, the GPIO_DAT1 bit sets the value of the P1 general-purpose output pin. When GPIO_DAT1 is high, the P1 output pin is high. When GPIO_DAT1 is low, the P1 output pin is low. When the IO_CONTROL_1 register is read, the GPIO_DAT1 bit reflects the status of the P1 pin if GPIO_CTRL1 is set. This bit must be programmed with a Logic 0 for correct operation. Digital Output P2 enable. When GPIO_CTRL2 is set, the digital output P2 is active. When GPIO_CTRL2 is cleared, the pin functions as an analog input, AIN3. Digital Output P1 enable. When GPIO_CTRL1 is set, the digital output P1 is active. When GPIO_CTRL1 is cleared, the pin functions as an analog input, AIN2. This bit must be programmed with a Logic 0 for correct operation. Bridge power-down switch control bit. Set this bit to close the bridge power-down switch PDSW to AGND. The switch can sink up to 30 mA. Clear this bit to open the bridge power-down switch. When the ADC is placed in standby mode, the bridge power-down switch remains active. This bit must be programmed with a Logic 0 for correct operation. Rev. D | Page 82 of 93 Data Sheet Bits 13:11 Bit Name IOUT1 10:8 IOUT0 7:4 IOUT1_CH 3:0 IOUT0_CH AD7124-4 Description These bits set the value of the excitation current for IOUT1. 000 = off. 001 = 50 µA. 010 = 100 µA 011 = 250 µA. 100 = 500 µA. 101 = 750 µA. 110 = 1000 µA 111 = 1000 µA. These bits set the value of the excitation current for IOUT0. 000 = off. 001 = 50 µA. 010 = 100 µA 011 = 250 µA. 100 = 500 µA. 101 = 750 µA. 110 = 1000 µA 111 = 1000 µA. Channel select bits for the excitation current for IOUT1. 0000 = IOUT1 is available on the AIN0 pin. 0001 = IOUT1 is available on the AIN1 pin. 0010 = reserved 0011 = reserved 0100 = IOUT1 is available on the AIN2 pin. 0101 = IOUT1 is available on the AIN3 pin. 0110 = reserved 0111 = reserved 1000 = reserved 1001 = reserved 1010 = IOUT1 is available on the AIN4 pin. 1011 = IOUT1 is available on the AIN5 pin. 1100 = reserved 1101 = reserved 1110 = IOUT1 is available on the AIN6 pin. 0111 = IOUT1 is available on the AIN7 pin. Channel select bits for the excitation current for IOUT0. 0000 = IOUT0 is available on the AIN0 pin. 0001 = IOUT0 is available on the AIN1 pin. 0010 = reserved 0011 = reserved 0100 = IOUT0 is available on the AIN2 pin. 0101 = IOUT0 is available on the AIN3 pin. 0110 = reserved 0111 = reserved 1000 = reserved 1001 = reserved 1010 = IOUT0 is available on the AIN4 pin. 1011 = IOUT0 is available on the AIN5 pin. 1100 = reserved 1101 = reserved 1110 = IOUT0 is available on the AIN6 pin. 1111 = IOUT0 is available on the AIN7 pin. Rev. D | Page 83 of 93 AD7124-4 Data Sheet IO_CONTROL_2 REGISTER RS[5:0] = 0, 0, 0, 1, 0, 0 Power-On/Reset = 0x0000 Table 70 outlines the bit designations for the register. Bit 15 is the first bit of the data stream. The number in parentheses indicates the power-on/reset default status of that bit. The internal bias voltage can be enabled on multiple channels. Bit 7 VBIAS7 (0) 0 (0) Bit 6 VBIAS6 (0) 0 (0) Bit 5 0 (0) VBIAS3 (0) Bit 4 0 (0) VBIAS2 (0) Bit 3 VBIAS5 (0) 0 (0) Bit 2 VBIAS4 (0) 0 (0) Bit 1 0 (0) VBIAS1 (0) Bit 0 0 (0) VBIAS0 (0) Table 70. IO_CONTROL_2 Register Bit Descriptions Bits 15 14 13, 12 11 10 9, 8, 7, 6 5 4 3, 2 1 0 Bit Name VBIAS7 VBIAS6 0 VBIAS5 VBIAS4 0 VBIAS3 VBIAS2 0 VBIAS1 VBIAS0 Description Enable the bias voltage on the AIN7 channel. When set, the internal bias voltage is available on AIN7. Enable the bias voltage on the AIN6 channel. When set, the internal bias voltage is available on AIN6. This bit must be programmed with a Logic 0 for correct operation. Enable the bias voltage on the AIN5 channel. When set, the internal bias voltage is available on AIN5. Enable the bias voltage on the AIN4 channel. When set, the internal bias voltage is available on AIN4. This bit must be programmed with a Logic 0 for correct operation. Enable the bias voltage on the AIN3 channel. When set, the internal bias voltage is available on AIN3. Enable the bias voltage on the AIN2 channel. When set, the internal bias voltage is available on AIN2. This bit must be programmed with a Logic 0 for correct operation. Enable the bias voltage on the AIN1 channel. When set, the internal bias voltage is available on AIN1. Enable the bias voltage on the AIN0 channel. When set, the internal bias voltage is available on AIN0. ID REGISTER RS[5:0] = 0, 0, 0, 1, 0, 1 Power-On/Reset = 0x04 (AD7124-4)/0x06 (AD7124-4 B Grade) The identification number for the AD7124-4 is stored in the ID register. This is a read only register. ERROR REGISTER RS[5:0] = 0, 0, 0, 1, 1, 0 Power-On/Reset = 0x000000 Diagnostics, such as checking overvoltages and checking the SPI interface, are included on the AD7124-4. The error register contains the flags for the different diagnostic functions. The functions are enabled and disabled using the ERROR_EN register. Table 71 outlines the bit designations for the register. Bit 23 is the first bit of the data stream. The number in parentheses indicates the power-on/reset default status of that bit. Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 AINM_UV_ERR (0) SPI_READ_ERR (0) LDO_CAP_ERR (0) REF_DET_ERR (0) SPI_WRITE_ERR (0) ADC_CAL_ERR (0) 0 (0) ADC_CONV_ERR (0) DLDO_PSM_ERR (0) MM_CRC_ERR (0) ADC_SAT_ERR (0) 0 (0) 0 (0) AINP_OV_ERR (0) ALDO_PSM_ERR (0) AINP_UV_ERR (0) AINM_OV_ERR (0) SPI_IGNORE_ERR (0) SPI_SCLK_CNT_ERR (0) Rev. D | Page 84 of 93 SPI_CRC_ERR (0) ROM_CRC_ERR (0) Data Sheet AD7124-4 Table 71. Error Register Bit Descriptions Bits 23:20 19 Bit Name 0 LDO_CAP_ERR 18 ADC_CAL_ERR 17 16 15 14 13 12 11 ADC_CONV_ERR ADC_SAT_ERR AINP_OV_ERR AINP_UV_ERR AINM_OV_ERR AINM_UV_ERR REF_DET_ERR 10 9 8 7 6 0 DLDO_PSM_ERR 0 ALDO_PSM_ERR SPI_IGNORE_ERR 5 SPI_SCLK_CNT_ERR 4 3 2 1 SPI_READ_ERR SPI_WRITE_ERR SPI_CRC_ERR MM_CRC_ERR 0 ROM_CRC_ERR Description These bits must be programmed with a Logic 0 for correct operation. Analog/digital LDO decoupling capacitor check. This flag is set if the decoupling capacitors required for the analog and digital LDOs are not connected to the AD7124-4. Calibration check. If a calibration is initiated but not completed, this flag is set to indicate that an error occurred during the calibration. The associated calibration register is not updated. This bit indicates whether a conversion is valid. This flag is set if an error occurs during a conversion. ADC saturation flag. This flag is set if the modulator is saturated during a conversion. Overvoltage detection on AINP. Undervoltage detection on AINP. Overvoltage detection on AINM. Undervoltage detection on AINM. Reference detection. This flag indicates when the external reference being used by the ADC is open circuit or less than 0.7 V. This bit must be programmed with a Logic 0 for correct operation. Digital LDO error. This flag is set if an error is detected with the digital LDO. This bit must be programmed with a Logic 0 for correct operation. Analog LDO error. This flag is set if an error is detected with the analog LDO voltage. When a CRC check of the internal registers is being performed, the on-chip registers cannot be written to. User instructions are ignored by the ADC. This bit is set when the CRC check of the registers is occurring. The bit is cleared when the check is complete; write operations can only be performed then. All serial communications are some multiple of eight bits. This bit is set when the number of SCLK cycles is not a multiple of eight. This bit is set when an error occurs during an SPI read operation. This bit is set when an error occurs during an SPI write operation. This bit is set if an error occurs in the CRC check of the serial communications. Memory map error. A CRC calculation is performed on the memory map each time that the registers are written to. Following this, periodic CRC checks are performed on the on-chip registers. If the register contents have changed, the MM_CRC_ERR bit is set. ROM error. A CRC calculation is performed on the ROM contents (contains the default register values) on power-up. If the contents have changed, the ROM_CRC_ERR bit is set. ERROR_EN REGISTER RS[5:0] = 0, 0, 0, 1, 1, 1 Power-On/Reset = 0x000040 All the diagnostic functions can be enabled or disabled by setting the appropriate bits in this register. Table 72 outlines the bit designations for the register. Bit 23 is the first bit of the data stream. The number in parentheses indicates the power-on/reset default status of that bit. Bit 7 0 (0) AINP_OV_ ERR_EN (0) Bit 6 MCLK_ CNT_ EN (0) AINP_UV_ ERR_EN (0) ALDO_ PSM_ ERR_EN (0) SPI_ IGNORE_ ERR_EN (0) Bit 5 LDO_CAP_CHK_ TEST_EN (0) Bit 4 Bit 3 LDO_CAP_CHK (0) AINM_OV_ERR_ EN (0) AINM_UV_ ERR_EN (0) REF_DET_ER R_EN (0) SPI_SCLK_CNT_ ERR_EN (0) SPI_READ_ ERR_EN (0) SPI_WRITE_ ERR_EN (0) Rev. D | Page 85 of 93 Bit 2 ADC_CAL_ERR_ EN (0) DLDO_PSM_ TRIP_TEST_EN (0) SPI_CRC_ERR_ EN (0) Bit 1 ADC_CONV_ ERR_ EN (0) DLDO_PSM_ ERR_EN (0) MM_CRC_ERR_ EN Bit 0 ADC_SAT_ ERR_EN (0) ALDO_PSM_ TRIP_TEST_EN (0) ROM_CRC_ERR_EN AD7124-4 Data Sheet Table 72. ERROR_EN Register Bit Descriptions Bits 23 22 Bit Name 0 MCLK_CNT_EN 21 LDO_CAP_CHK_TEST_EN 20:19 LDO_CAP_CHK 18 17 ADC_CAL_ERR_EN ADC_CONV_ERR_EN 16 15 14 13 12 11 ADC_SAT_ERR_EN AINP_OV_ERR_EN AINP_UV_ERR_EN AINM_OV_ERR_EN AINM_UV_ERR_EN REF_DET_ERR_EN 10 DLDO_PSM_TRIP_TEST_EN 9 DLDO_PSM_ERR_ERR 8 ALDO_PSM_TRIP_TEST_EN 7 ALDO_PSM_ERR_EN 6 SPI_IGNORE_ERR_EN 5 SPI_SCLK_CNT_ERR_EN 4 SPI_READ_ERR_EN 3 SPI_WRITE_ERR_EN Description This bit must be programmed with a Logic 0 for correct operation. Master clock counter. When this bit is set, the master clock counter is enabled and the result is reported via the MCLK_COUNT register. The counter monitors the master clock being used by the ADC. If an external clock is the clock source, the MCLK counter monitors this external clock. Similarly, if the on-chip oscillator is selected as the clock source to the ADC, the MCLK counter monitors the on-chip oscillator. Test of analog/digital LDO decoupling capacitor check. When this bit is set, the decoupling capacitor is internally disconnected from the LDO, forcing a fault condition. This allows the user to test the circuitry which is used for the analog and digital LDO decoupling capacitor check. Analog/digital LDO decoupling capacitor check. These bits enable the capacitor check. When a check is enabled, the ADC checks for the presence of the external decoupling capacitor on the selected supply. When the check is complete, the LDO_CAP_CHK bits are both reset to 0. 00 = check is not enabled. 01 = check the analog LDO capacitor. 10 = check the digital LDO capacitor. 11 = check is not enabled. When this bit is set, the calibration fail check is enabled. When this bit is set, the conversions are monitored and the ADC_CONV_ERR bit is set when a conversion fails. When this bit is set, the ADC modulator saturation check is enabled. When this bit is set, the overvoltage monitor on all enabled AINP channels is enabled. When this bit is set, the undervoltage monitor on all enabled AINP channels is enabled. When this bit is set, the overvoltage monitor on all enabled AINM channels is enabled. When this bit is set, the undervoltage monitor on all enabled AINM channels is enabled. When this bit is set, any external reference being used by the ADC is continuously monitored. An error is flagged if the external reference is open circuit or has a value of less than 0.7 V. Checks the test mechanism that monitors the digital LDO. When this bit is set, the input to the test circuit is tied to DGND instead of the LDO output. Set the DLDO_PSM_ERR bit in the error register. When this bit is set, the digital LDO voltage is continuously monitored. The DLDO_PSM_ERR bit in the error register is set if the voltage being output from the digital LDO is outside specification. Checks the test mechanism that monitors the analog LDO. When this bit is set, the input to the test circuit is tied to AVSS instead of the LDO output. Set the ALDO_PSM_ERR bit in the error register. When this bit is set, the analog LDO voltage is continuously monitored. The ALDO_PSM_ERR bit in the error register is set if the voltage being output from the analog LDO is outside specification. When a CRC check of the internal registers is being performed, the on-chip registers cannot be accessed. User write instructions are ignored by the ADC. Set this bit so that the SPI_IGNORE_ERR bit in the error register informs the user when write operations must not be performed. When this bit is set, the SCLK counter is enabled. All read and write operations to the ADC are multiples of eight bits. For every serial communication, the SCLK counter counts the number of SCLK pulses. CS must be used to frame each read and write operation. If the number of SCLK pulses used during a communication is not a multiple of eight, the SPI_SCLK_CNT_ERR bit in the error register is set. For example, a glitch on the SCLK pin during a read or write operation can be interpreted as an SCLK pulse. In this case, the SPI_SCLK_CNT_ERR bit is set as there is an excessive number of SCLK pulses detected. CS_EN in the ADC_CONTROL register must be set to 1 when the SCLK counter function is being used. When this bit is set, the SPI_READ_ERR bit in the error register is set when an error occurs during a read operation. An error occurs if the user attempts to read from invalid addresses. CS_EN in the ADC_CONTROL register must be set to 1 when the SPI read check function is being used. When this bit is set, the SPI_WRITE_ERR bit in the error register is set when an error occurs during a write operation. An error occurs if the user attempts to write to invalid addresses or write to readonly registers. CS_EN in the ADC_CONTROL register must be set to 1 when the SPI write check function is being used. Rev. D | Page 86 of 93 Data Sheet AD7124-4 Bits 2 Bit Name SPI_CRC_ERR_EN 1 MM_CRC_ERR_EN 0 ROM_CRC_ERR_EN Description This bit enables a CRC check of all read and write operations. The SPI_CRC_ERR bit in the error register is set if the CRC check fails. In addition, an 8-bit CRC word is appended to all data read from the AD7124-4. When this bit is set, a CRC calculation is performed on the memory map each time that the registers are written to. Following this, periodic CRC checks are performed on the on-chip registers. If the register contents have changed, the MM_CRC_ERR bit is set. When this bit is set, a CRC calculation is performed on the ROM contents on power-on. If the ROM contents have changed, the ROM_CRC_ERR bit is set. MCLK_COUNT REGISTER RS[5:0] = 0, 0, 1, 0, 0, 0 Power-On/Reset = 0x00 The master clock frequency can be monitored using this register. Table 73 outlines the bit designations for the register. Bit 7 is the first bit of the data stream. The number in parentheses indicates the power-on/reset default status of that bit. Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 MCLK_COUNT (0) Bit 2 Bit 1 Bit 0 Table 73. MCLK_COUNT Register Bit Descriptions Bits 7:0 Bit Name MCLK_COUNT Description This register allows the user to determine the frequency of the internal/external oscillator. Internally, a clock counter increments every 131 pulses of the sampling clock (614.4 kHz in full power mode, 153.6 kHz in mid power mode, and 768 kHz in low power mode). The 8-bit counter wraps around on reaching its maximum value. The counter output is read back via this register. Note that the incrementation of the register is asynchronous to the register read. If a register read coincides with the register incrementation, it is possible to read an invalid value. To prevent this, read the register four times, then read the register four times again at a later point. By reading four values, it is possible to identify the correct register value at the start and end of the timing instants. CHANNEL REGISTERS RS[5:0] = 0, 0, 1, 0, 0, 1 to 0, 1, 1, 0, 0, 0 Power-On/Reset = 0x8001 for CHANNEL_0; all other channel registers are set to 0x0001 Sixteen channel registers are included on the AD7124-4, CHANNEL_0 to CHANNEL_15. The channel registers begin at Address 0x09 (CHANNEL_0) and end at Address 0x18 (CHANNEL_15). Via each register, the user can configure the channel (AINP input and AINM input), enable or disable the channel, and select the setup. The setup is selectable from eight different options defined by the user. When the ADC converts, it automatically sequences through all enabled channels. This allows the user to sample some channels multiple times in a sequence, if required. In addition, it allows the user to include diagnostic functions in a sequence also. Table 74 outlines the bit designations for the register. Bit 15 is the first bit of the data stream. The number in parentheses indicates the power-on/reset default status of that bit. Bit 7 Enable (1) Bit 6 Bit 5 Bit 4 Setup (0) AINP[2:0](000) Bit 3 Bit 2 0 (0) AINM[4:0](00001) Bit 1 Bit 0 AINP[4:3](00) Table 74. Channel Register Bit Descriptions Bits 15 Bit Name Enable Description Channel enable bit. Setting this bit enables the device channel for the conversion sequence. By default, only the enable bit for Channel 0 is set. The order of conversions starts with the lowest enabled channel, then cycles through successively higher channel numbers, before wrapping around to the lowest channel again. When the ADC writes a result for a particular channel, the four LSBs of the status register are set to the channel number, 0 to 15. This allows the channel the data corresponds to be identified. When the DATA_STATUS bit in the ADC_CONTROL register is set, the contents of the status register are appended to each conversion when it is read. Use this function when several channels are enabled to determine to which channel the conversion value read corresponds. Rev. D | Page 87 of 93 AD7124-4 Bits 14:12 Bit Name Setup 11:10 9:5 0 AINP[4:0] 4:0 AINM[4:0] Data Sheet Description Setup select. These bits identify which of the eight setups are used to configure the ADC for this channel. A setup comprises a set of four registers: analog configuration, output data rate/filter selection, offset register, and gain register. All channels can use the same setup, in which case the same 3-bit value must be written to these bits on all active channels. Alternatively, up to eight channels can be configured differently. These bits must be programmed with a Logic 0 for correct operation. Positive analog input AINP input select. These bits select which of the analog inputs is connected to the positive input for this channel. 00000 = AIN0 (default). 00001 = AIN1. 00010 = AIN2. 00011 = AIN3. 00100 = AIN4. 00101 = AIN5. 00110 = AIN6. 00111 = AIN7. 01000 to 01111 = reserved. 10000 = temperature sensor. 10001 = AVSS. 10010 = internal reference. 10011 = DGND. 10100 = (AVDD − AVSS)/6+. Use in conjunction with (AVDD − AVSS)/6− to monitor supply AVDD − AVSS. 10101 = (AVDD − AVSS)/6−. Use in conjunction with (AVDD − AVSS)/6+ to monitor supply AVDD − AVSS. 10110 = (IOVDD − DGND)/6+. Use in conjunction with (IOVDD − DGND)/6− to monitor IOVDD − DGND. 10111 = (IOVDD − DGND)/6−. Use in conjunction with (IOVDD − DGND)/6+ to monitor IOVDD − DGND. 11000 = (ALDO − AVSS)/6+. Use in conjunction with (ALDO − AVSS)/6− to monitor the analog LDO. 11001 = (ALDO − AVSS)/6−. Use in conjunction with (ALDO − AVSS)/6+ to monitor the analog LDO. 11010 = (DLDO − DGND)/6+. Use in conjunction with (DLDO − DGND)/6− to monitor the digital LDO. 11011 = (DLDO − DGND)/6−. Use in conjunction with (DLDO − DGND)/6+ to monitor the digital LDO. 11100 = V_20MV_P. Use in conjunction with V_20MV_M to apply a 20 mV p-p signal to the ADC. 11101 = V_20MV_M. Use in conjunction with V_20MV_P to apply a 20 mV p-p signal to the ADC. 11110 = reserved. 11111 = reserved. Negative analog input AINM input select. These bits select which of the analog inputs is connected to the negative input for this channel. 00000 = AIN0. 00001 = AIN1 (default). 00010 = AIN2. 00011 = AIN3. 00100 = AIN4. 00101 = AIN5. 00110 = AIN6. 00111 = AIN7. 01000 to 01111 = reserved. 10000 = temperature sensor. 10001 = AVSS. 10010 = internal reference. 10011 = DGND. 10100 = (AVDD − AVSS)/6+. Use in conjunction with (AVDD − AVSS)/6− to monitor supply AVDD − AVSS. 10101 = (AVDD − AVSS)/6−. Use in conjunction with (AVDD − AVSS)/6+ to monitor supply AVDD − AVSS. 10110 = (IOVDD − DGND)/6+. Use in conjunction with (IOVDD − DGND)/6− to monitor IOVDD − DGND. 10111 = (IOVDD − DGND)/6−. Use in conjunction with (IOVDD − DGND)/6+ to monitor IOVDD − DGND. 11000 = (ALDO − AVSS)/6+. Use in conjunction with (ALDO − AVSS)/6− to monitor the analog LDO. 11001 = (ALDO − AVSS)/6−. Use in conjunction with (ALDO − AVSS)/6+ to monitor the analog LDO. 11010 = (DLDO − DGND)/6+. Use in conjunction with (DLDO − DGND)/6− to monitor the digital LDO. Rev. D | Page 88 of 93 Data Sheet Bits Bit Name AD7124-4 Description 11011 = (DLDO − DGND)/6−. Use in conjunction with (DLDO − DGND)/6+ to monitor the digital LDO. 11100 = V_20MV_P. Use in conjunction with V_20MV_M to apply a 20 mV p-p signal to the ADC. 11101 = V_20MV_M. Use in conjunction with V_20MV_P to apply a 20 mV p-p signal to the ADC. 11110 = reserved. 11111 = reserved. CONFIGURATION REGISTERS RS[5:0] = 0, 1, 1, 0, 0, 1 to 1, 0, 0, 0, 0, 0 Power-On/Reset = 0x0860 The AD7124-4 has eight configuration registers, CONFIG_0 to CONFIG_7. Each configuration register is associated with a setup; CONFIG_x is associated with Setup x. In the configuration register, the reference source, polarity, and reference buffers are configured. Table 75 outlines the bit designations for the register. Bit 15 is the first bit of the data stream. The number in parentheses indicates the power-on/reset default status of that bit. Bit 7 Bit 6 REF_BUFM (0) 0 (0) AIN_BUFP (1) Bit 5 Bit 4 AIN_BUFM (1) Bit 3 Bipolar (1) REF_SEL (0) Bit 2 Bit 1 Burnout (0) Bit 0 REF_BUFP (0) PGA (0) Table 75. Configuration Register Bit Descriptions Bits 15:12 11 Bit Name 0 Bipolar 10:9 Burnout 8 REF_BUFP 7 REF_BUFM 6 AIN_BUFP 5 AIN_BUFM 4:3 REF_SEL 2:0 PGA Description These bits must be programmed with a Logic 0 for correct operation. Polarity select bit. When this bit is set, bipolar operation is selected. When this bit is cleared, unipolar operation is selected. These bits select the magnitude of the sensor burnout detect current source. 00 = burnout current source off (default). 01 = burnout current source on, 0.5 μA. 10 = burnout current source on, 2 μA. 11 = burnout current source on, 4 μA. Buffer enable on REFINx(+). When this bit is set, the positive reference input (internal or external) is buffered. When this bit is cleared, the positive reference input (internal or external) is unbuffered. Buffer enable on REFINx(−). When this bit is set, the negative reference input (internal or external) is buffered. When this bit is cleared, the negative reference input (internal or external) is unbuffered. Buffer enable on AINP. When this bit is set, the selected positive analog input pin is buffered. When this bit is cleared, the selected positive analog input pin is unbuffered. Buffer enable on AINM. When this bit is set, the selected negative analog input pin is buffered. When this bit is cleared, the selected negative analog input pin is unbuffered. Reference source select bits. These bits select the reference source to use when converting on any channels using this configuration register. 00 = REFIN1(+)/REFIN1(−). 01 = REFIN2(+)/REFIN2(−). 10 = internal reference. 11 = AVDD. Gain select bits. These bits select the gain to use when converting on any channels using this configuration register. PGA Gain Input Range When VREF = 2.5 V (Bipolar Mode) 000 1 ±2.5 V 001 2 ±1.25 V 010 4 ± 625 mV 011 8 ±312.5 mV 100 16 ±156.25 mV 101 32 ±78.125 mV 110 64 ±39.06 mV 111 128 ±19.53 mV Rev. D | Page 89 of 93 AD7124-4 Data Sheet FILTER REGISTERS RS[5:0] = 1, 0, 0, 0, 0, 1 to 1, 0, 1, 0, 0, 0 Power-On/Reset = 0x060180 The AD7124-4 has eight filter registers, FILTER_0 to FILTER_7. Each filter register is associated with a setup; FILTER_x is associated with Setup x. In the filter register, the filter type and output word rate are set. Table 76 outlines the bit designations for the register. Bit 15 is the first bit of the data stream. The number in parentheses indicates the power-on/reset default status of that bit. Bit 7 Bit 6 Filter (0) Bit 5 Bit 4 REJ60 (0) Bit 3 Bit 2 Bit 1 POST_FILTER (0) 0 (0) Bit 0 SINGLE_CYCLE (0) FS[10:8] (0) FS[7:0] (0) Table 76. Filter Register Bit Descriptions Bits 23:21 Bit Name Filter 20 REJ60 19:17 POST_FILTER 16 SINGLE_CYCLE 15:11 10:0 0 FS[10:0] Description Filter type select bits. These bits select the filter type. 000 = sinc4 filter (default). 001 = reserved. 010 = sinc3 filter. 011 = reserved. 100 = fast settling filter using the sinc4 filter. The sinc4 filter is followed by an averaging block, which results in a settling time equal to the conversion time. In full power and mid power modes, averaging by 16 occurs whereas averaging by 8 occurs in low power mode. 101 = fast settling filter using the sinc3 filter. The sinc3 filter is followed by an averaging block, which results in a settling time equal to the conversion time. In full power and mid power modes, averaging by 16 occurs whereas averaging by 8 occurs in low power mode. 110 = reserved. 111 = post filter enabled. The AD7124-4 includes several post filters, selectable using the POST_FILTER bits. The post filters have single cycle settling, the settling time being considerably better than a simple sinc3/sinc4 filter. These filters offer excellent 50 Hz and60 Hz rejection. When this bit is set, a first order notch is placed at 60 Hz when the first notch of the sinc filter is at 50 Hz. This allows simultaneous 50 Hz and 60 Hz rejection. Post filter type select bits. When the filter bits are set to 1, the sinc3 filter is followed by a post filter which offers good 50 Hz and 60 Hz rejection at output data rates that have zero latency approximately. POST_FILTER Output Data Rate (SPS) Rejection at 50 Hz and 60 Hz ± 1 Hz (dB) 000 Reserved Not applicable 001 Reserved Not applicable 010 27.27 47 011 25 62 100 Reserved Not applicable 101 20 86 110 16.7 92 111 Reserved Not applicable Single cycle conversion enable bit. When this bit is set, the AD7124-4 settles in one conversion cycle so that it functions as a zero latency ADC. This bit has no effect when multiple analog input channels are enabled or when the single conversion mode is selected. When the fast filters are used, this bit has no effect. These bits must be programmed with a Logic 0 for correct operation. Filter output data rate select bits. These bits set the output data rate of the sinc3 and sinc4 filters as well as the fast settling filters. In addition, they affect the position of the first notch of the filter and the cutoff frequency. In association with the gain selection, they also determine the output noise and, therefore, the effective resolution of the device (see noise tables). FS can have a value from 1 to 2047. Rev. D | Page 90 of 93 Data Sheet AD7124-4 OFFSET REGISTERS GAIN REGISTERS RS[5:0] = 1, 0, 1, 0, 0, 1 to 1, 1, 0, 0, 0, 0 Power-On/Reset = 0x800000 RS[5:0] = 1, 1, 0, 0, 0, 1 to 1, 1, 1, 0, 0, 0 Power-On/Reset = 0x5XXXXX The AD7124-4 has eight offset registers, OFFSET_0 to OFFSET_7. Each offset register is associated with a setup; OFFSET_x is associated with Setup x. The offset registers are 24-bit registers and hold the offset calibration coefficient for the ADC and its power-on reset value is 0x800000. Each of these registers is a read/write register. These registers are used in conjunction with the associated gain register to form a register pair. The poweron reset value is automatically overwritten if an internal or system zero-scale calibration is initiated by the user. The ADC must be placed in standby mode or idle mode when writing to the offset registers. The AD7124-4 has eight gain registers, GAIN_0 to GAIN_7. Each gain register is associated with a setup; GAIN_x is associated with Setup x. The gain registers are 24-bit registers and hold the full-scale calibration coefficient for the ADC. The AD7124-4 is factory calibrated to a gain of 1. The gain register contains this factory generated value on power-on and after a reset. The gain registers are read/write registers. However, when writing to the registers, the ADC must be placed in standby mode or idle mode. The default value is automatically overwritten if an internal or system full-scale calibration is initiated by the user or the full-scale registers are written to. Rev. D | Page 91 of 93 AD7124-4 Data Sheet OUTLINE DIMENSIONS DETAIL A (JEDEC 95) 5.10 5.00 SQ 4.90 PIN 1 INDICATOR 0.30 0.25 0.18 PIN 1 INDIC ATOR AREA OPTIONS (SEE DETAIL A) 32 25 1 24 0.50 BSC 3.75 3.60 SQ 3.55 EXPOSED PAD 8 17 0.80 0.75 0.70 TOP VIEW COMPLIANT TO JEDEC STANDARDS MO-220-WHHD-5 Figure 133. 32-Lead Lead Frame Chip Scale Package [LFCSP] 5 mm × 5 mm Body and 0.75 mm Package Height (CP-32-12) Dimensions shown in millimeters 7.90 7.80 7.70 24 13 4.50 4.40 4.30 6.40 BSC 1 12 PIN 1 0.65 BSC 0.15 0.05 0.30 0.19 1.20 MAX SEATING PLANE 0.20 0.09 8° 0° 0.75 0.60 0.45 0.10 COPLANARITY COMPLIANT TO JEDEC STANDARDS MO-153-AD Figure 134. 24-Lead Thin Shrink Small Outline Package [TSSOP] (RU-24) Dimensions shown in millimeters Rev. D | Page 92 of 93 0.20 MIN FOR PROPER CONNECTION OF THE EXPOSED PAD, REFER TO THE PIN CONFIGURATION AND FUNCTION DESCRIPTIONS SECTION OF THIS DATA SHEET. 0.05 MAX 0.02 NOM COPLANARITY 0.08 0.20 REF SEATING PLANE PKG-004570 BOTTOM VIEW 10-20-2017-C TOP VIEW 9 16 0.50 0.40 0.30 Data Sheet AD7124-4 DETAIL A (JEDEC 95) 0.30 0.25 0.18 25 PIN 1 INDIC ATOR AREA OPTIONS (SEE DETAIL A) 32 24 1 0.50 BSC 3.70 3.60 SQ 3.50 EXPOSED PAD 17 TOP VIEW 1.00 0.95 0.85 END VIEW PKG-004754/005209 SEATING PLANE 0.50 0.40 0.30 8 9 16 0.05 MAX 0.02 NOM COPLANARITY 0.08 0.20 REF BOTTOM VIEW 0.20 MIN FOR PROPER CONNECTION OF THE EXPOSED PAD, REFER TO THE PIN CONFIGURATION AND FUNCTION DESCRIPTIONS SECTION OF THIS DATA SHEET. COMPLIANT TO JEDEC STANDARDS MO-220-VHHD-5. 01-16-2016-A PIN 1 INDICATOR 5.10 5.00 SQ 4.90 Figure 135. 32-Lead Lead Frame Chip Scale Package [LFCSP] 5 mm × 5 mm Body and 0.95 mm Package Height (CP-32-30) Dimensions shown in millimeters ORDERING GUIDE Model1 AD7124-4BCPZ AD7124-4BCPZ-RL AD7124-4BCPZ-RL7 AD7124-4BBCPZ AD7124-4BBCPZ-RL AD7124-4BBCPZ-RL7 AD7124-4BRUZ AD7124-4BRUZ-RL AD7124-4BRUZ-RL7 EVAL-AD7124-4SDZ EVAL-SDP-CB1Z 1 Temperature Range −40°C to +125°C −40°C to +125°C −40°C to +125°C −40°C to +125°C −40°C to +125°C −40°C to +125°C −40°C to +125°C −40°C to +125°C −40°C to +125°C Package Description 32-Lead Lead Frame Chip Scale Package [LFCSP] 32-Lead Lead Frame Chip Scale Package [LFCSP] 32-Lead Lead Frame Chip Scale Package [LFCSP] 32-Lead Lead Frame Chip Scale Package [LFCSP] 32-Lead Lead Frame Chip Scale Package [LFCSP] 32-Lead Lead Frame Chip Scale Package [LFCSP] 24-Lead Thin Shrink Small Outline Package [TSSOP] 24-Lead Thin Shrink Small Outline Package [TSSOP] 24-Lead Thin Shrink Small Outline Package [TSSOP] Evaluation Board Evaluation Controller Board Z = RoHS Compliant Part. ©2015–2018 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners. D13197-0-6/18(D) Rev. D | Page 93 of 93 Package Option CP-32-12 CP-32-12 CP-32-12 CP-32-30 CP-32-30 CP-32-30 RU-24 RU-24 RU-24
