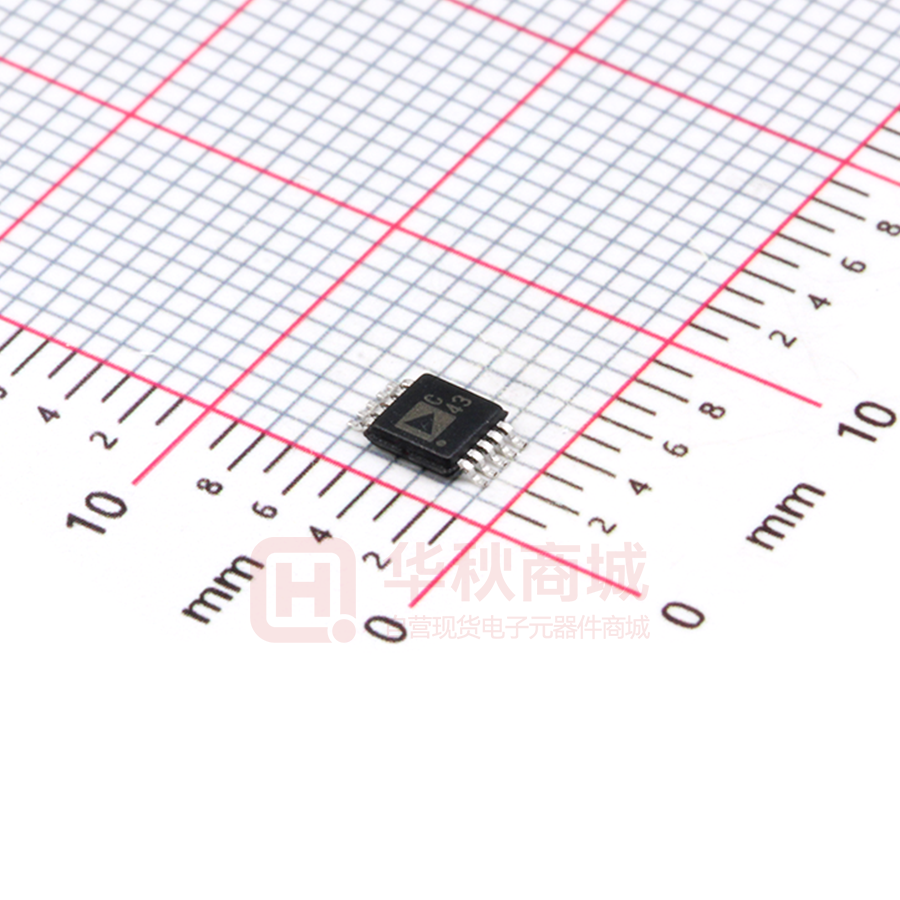

AD7789BRMZ-REEL

Low Power, 16-/24-Bit, Sigma-Delta ADCs AD7788/AD7789 Data Sheet FUNCTIONAL BLOCK DIAGRAM AD7788: 16-bit resolution AD7789: 24-bit resolution Power Supply: 2.5 V to 5.25 V operation Normal: 75 µA maximum Power-down: 1 µA maximum RMS noise: 1.5 µV AD7788: 16-bit p-p resolution AD7789: 19-bit p-p resolution (21.5 bits effective) Integral nonlinearity: 3.5 ppm typical Simultaneous 50 Hz and 60 Hz rejection Internal clock oscillator VDD monitor channel 10-lead MSOP REFIN(+) REFIN(–) GND AD7788/ AD7789 AIN(+) AIN(–) VDD CLOCK DOUT/RDY Σ-Δ ADC* *AD7788: 16-BIT ADC AD7789: 24-BIT ADC SERIAL INTERFACE AND CONTROL LOGIC DIN SCLK CS 03539-001 FEATURES Figure 1. INTERFACE 3-wire serial SPI-, QSPI™-, MICROWIRE-, and DSP-compatible Schmitt trigger on SCLK APPLICATIONS Smart transmitters Battery applications Portable instrumentation Sensor measurement Temperature measurement Pressure measurement Weigh scales 4 to 20 mA loops GENERAL DESCRIPTION The AD7788/AD7789 are low power, low noise, analog front ends for low frequency measurement applications. The AD7789 contains a low noise, 24-bit, ∑-∆ analog-to-digital converter (ADC) with one differential input. The AD7788 is a 16-bit version of the AD7789. The devices operate with a single power supply from 2.5 V to 5.25 V. When operating from a 3 V supply, the power dissipation for the device is 225 µW maximum. The AD7788/AD7789 are available in a 10-lead MSOP. The devices operate from an internal clock. Therefore, the user does not have to supply a clock source to the devices. The output data rate is 16.6 Hz, which gives simultaneous 50 Hz/60 Hz rejection. Rev. C Document Feedback Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Trademarks and registered trademarks are the property of their respective owners. One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. Tel: 781.329.4700 ©2003–2016 Analog Devices, Inc. All rights reserved. Technical Support www.analog.com AD7788/AD7789 Data Sheet TABLE OF CONTENTS Features .............................................................................................. 1 Communications Register ......................................................... 11 Interface ............................................................................................. 1 Status Register ............................................................................. 12 Applications ....................................................................................... 1 Mode Register ............................................................................. 13 Functional Block Diagram .............................................................. 1 Data Register ............................................................................... 13 General Description ......................................................................... 1 ADC Circuit Information.............................................................. 14 Revision History ............................................................................... 2 Noise Performance ..................................................................... 14 Specifications..................................................................................... 3 Digital Interface .......................................................................... 14 AD7789 .......................................................................................... 3 Circuit Description......................................................................... 17 AD7788 .......................................................................................... 4 Analog Input Channel ............................................................... 17 AD7788/AD7789 .......................................................................... 5 Bipolar/Unipolar Configuration .............................................. 17 Timing Characteristics ................................................................ 6 Data Output Coding .................................................................. 17 Timing Diagrams.......................................................................... 7 Reference Input........................................................................... 17 Absolute Maximum Ratings............................................................ 8 VDD Monitor ................................................................................ 18 ESD Caution .................................................................................. 8 Grounding and Layout .............................................................. 18 Pin Configuration and Function Descriptions ............................. 9 Outline Dimensions ....................................................................... 19 Typical Performance Characteristics ........................................... 10 Ordering Guide .......................................................................... 19 On-Chip Registers .......................................................................... 11 REVISION HISTORY 4/16—Rev. B to Rev. C Change to (RS1, RS0 = 0, 1; Power-On/Reset = 0x02) Section.......13 Updated Outline Dimensions ....................................................... 19 Changes to Ordering Guide .......................................................... 19 3/06—Rev. A to Rev. B Changes to Ordering Guide .......................................................... 19 11/04—Rev. 0 to Rev. A Updated Format .................................................................. Universal Added Footnote 2 to Integral Nonlinearity A Grade................... 4 Changes to Figure 5 .......................................................................... 9 Updated Outline Dimensions ....................................................... 19 Changes to Ordering Guide .......................................................... 19 8/03—Revision 0: Initial Version Rev. C | Page 2 of 20 Data Sheet AD7788/AD7789 SPECIFICATIONS AD7789 VDD = 2.5 V to 5.25 V; REFIN(+) = 2.5 V; REFIN(−) = GND; GND = 0 V; all specifications TMIN to TMAX, unless otherwise noted. Table 1. Parameter 1 ADC CHANNEL SPECIFICATION Output Update Rate ADC CHANNEL No Missing Codes 2 Resolution Output Noise Integral Nonlinearity Offset Error Offset Error Drift vs. Temperature Full-Scale Error 3 Gain Drift vs. Temperature Power Supply Rejection ANALOG INPUTS Differential Input Voltage Ranges Absolute AIN Voltage Limits2 Analog Input Current Average Input Current2 Average Input Current Drift Normal-Mode Rejection2 At 50 Hz, 60 Hz Common-Mode Rejection At DC At 50 Hz, 60 Hz2 REFERENCE INPUT REFIN Voltage Reference Voltage Range2 Absolute REFIN Voltage Limits2 Average Reference Input Current Average Reference Input Current Drift Normal-Mode Rejection2 At 50 Hz, 60 Hz Common-Mode Rejection At DC At 50 Hz, 60 Hz 1 2 3 AD7789B Unit Test Conditions/Comments 16.6 Hz nom 24 19 1.5 ±15 ±3 ±10 ±10 ±0.5 90 Bits min Bits p-p µV rms typ ppm of FSR max µV typ nV/°C typ µV typ ppm/°C typ dB min ±REFIN GND − 30 mV VDD + 30 mV V nom V min V max ±400 ±50 nA/V typ pA/V/°C typ 65 dB min 90 100 dB min dB min 2.5 0.1 VDD GND − 30 mV VDD + 30 mV 0.5 ±0.03 V nom V min V max V min V max µA/V typ nA/V/°C typ REFIN = REFIN(+) − REFIN(−) 65 dB min 50 Hz ± 1 Hz, 60 Hz ± 1 Hz AIN = 1 V 110 110 dB typ dB typ 100 dB typ, AIN = 1 V REFIN = REFIN(+) − REFIN(−) Input current varies with input voltage 50 Hz ± 1 Hz, 60 Hz ± 1 Hz AIN = 1 V 100 dB typ 50 Hz ± 1 Hz, 60 Hz ± 1 Hz 50 Hz ± 1 Hz, 60 Hz ± 1 Hz Temperature range: −40°C to +105°C. Specification is not production tested but is supported by characterization data at initial product release. Full-scale error applies to both positive and negative full scale and applies at the factory calibration conditions (VDD = 4 V). Rev. C | Page 3 of 20 AD7788/AD7789 Data Sheet AD7788 VDD = 2.5 V to 5.25 V (B grade); VDD = 2.7 V to 5.25 V (A grade); REFIN(+) = 2.5 V; REFIN(−) = GND; GND = 0 V; all specifications TMIN to TMAX, unless otherwise noted. Table 2. Parameter 1 ADC CHANNEL SPECIFICATION Output Update Rate ADC CHANNEL No Missing Codes 2 Resolution Output Noise Integral Nonlinearity Offset Error Offset Error Drift vs. Temperature Full-Scale Error 3 Gain Drift vs. Temperature Power Supply Rejection ANALOG INPUTS Differential Input Voltage Ranges Absolute AIN Voltage Limits2 AD7788A, AD7788B Unit 16.6 Hz nom 16 16 1.5 ±15 ±50 ±3 ±10 ±10 ±0.5 90 90 Bits min Bits p-p µV rms typ ppm of FSR max ppm of FSR max µV typ nV/°C typ µV typ ppm/°C typ dB min dB typ ±REFIN GND − 30 mV VDD + 30 mV V nom V min V max Analog Input Current Average Input Current2 Average Input Current Drift Normal-Mode Rejection2 At 50 Hz, 60 Hz Common-Mode Rejection At DC At 50 Hz, 60 Hz2 REFERENCE INPUT REFIN Voltage Reference Voltage Range2 Absolute REFIN Voltage Limits2 Average Reference Input Current Average Reference Input Current Drift Normal-Mode Rejection2 At 50 Hz, 60 Hz Common-Mode Rejection At DC At 50 Hz, 60 Hz 1 2 3 Test Conditions/Comments B grade A grade2 B grade A grade REFIN = REFIN(+) − REFIN(−) Input current varies with input voltage ±400 ±50 nA/V typ pA/V/°C typ 65 60 dB min dB min 90 90 100 100 dB min dB typ dB min dB typ 2.5 0.1 VDD GND − 30 mV VDD + 30 mV 0.5 ±0.03 V nom V min V max V min V max µA/V typ nA/V/°C typ REFIN = REFIN(+) − REFIN(−) 65 60 dB min dB min B grade, 50 Hz ± 1 Hz, 60 Hz ± 1 Hz A grade AIN = 1 V 100 110 dB typ dB typ Temperature range: B grade: −40°C to +105°C; A grade: −40°C to +85°C. Specification is not production tested but is supported by characterization data at initial product release. Full-scale error applies to both positive and negative full scale and applies at the factory calibration conditions (VDD = 4 V). Rev. C | Page 4 of 20 B grade, 50 Hz ± 1 Hz, 60 Hz ± 1 Hz A grade, 50 Hz ± 1 Hz, 60 Hz ± 1 Hz AIN = 1 V B grade, 100 dB typ A grade B grade, 50 Hz ± 1 Hz, 60 Hz ± 1 Hz A grade, 50 Hz ± 1 Hz, 60 Hz ± 1 Hz 50 Hz ± 1 Hz, 60 Hz ± 1 Hz Data Sheet AD7788/AD7789 AD7788/AD7789 Table 3. Parameter LOGIC INPUTS All Inputs Except SCLK 1 VINL, Input Low Voltage VINH, Input High Voltage SCLK Only (Schmitt-Triggered Input)1 VT(+) VT(−) VT(+) − VT(−) VT(+) VT(−) VT(+) − VT(−) Input Currents Input Capacitance LOGIC OUTPUTS VOH, Output High Voltage1 VOL, Output Low Voltage1 VOH, Output High Voltage1 VOL, Output Low Voltage1 Floating-State Leakage Current Floating-State Output Capacitance Data Output Coding POWER REQUIREMENTS 2 Power Supply Voltage VDD − GND Power Supply Currents IDD Current IDD (Power-Down Mode) 1 2 AD7788A, AD7788B/AD7789B Unit Test Conditions/Comments 0.8 0.4 2.0 V max V max V min VDD = 5 V VDD = 3 V VDD = 3 V or 5 V 1.4/2 0.8/1.4 0.3/0.85 0.9/2 0.4/1.1 0.3/0.85 ±1 10 V min/V max V min/V max V min/V max V min/V max V min/V max V min/V max µA max pF typ VDD = 5 V VDD = 5 V VDD = 5 V VDD = 3 V VDD = 3 V VDD = 3 V VIN = VDD All digital inputs VDD − 0.6 0.4 4 0.4 ±1 10 Offset binary V min V max V min V max µA max pF typ VDD = 3 V, ISOURCE = 100 µA VDD = 3 V, ISINK = 100 µA VDD = 5 V, ISOURCE = 200 µA VDD = 5 V, ISINK = 1.6 mA 2.5/5.25 2.7/5.25 V min/max V min/max AD7789, AD7788 B grade AD7788 A grade 75 80 1 µA max µA max µA max 65 µA typ, VDD = 3.6 V 73 µA typ, VDD = 5.25 V Specification is not production tested but is supported by characterization data at initial product release. Digital inputs equal to VDD or GND. Rev. C | Page 5 of 20 AD7788/AD7789 Data Sheet TIMING CHARACTERISTICS VDD = 2.5 V to 5.25 V (AD7788B and AD7789); VDD = 2.7 V to 5.25 V (AD7788A); GND = 0 V; REFIN(+) = 2.5 V; REFIN(−) = GND; Input Logic 0 = 0 V; Input Logic 1 = VDD, unless otherwise noted. Table 4. Parameter 1, 2 t3 t4 Read Operation t1 t2 3 t5 5, 6 t6 t7 Write Operation t8 t9 t10 t11 Limit at TMIN, TMAX (B Version) 100 100 Unit ns min ns min Description SCLK high pulse width SCLK low pulse width 0 60 80 0 60 80 10 80 0 10 ns min ns max ns max ns min ns max ns max ns min ns max ns min ns min CS falling edge to DOUT/RDY active time VDD = 4.75 V to 5.25 V VDD = 2.7 V to 3.6 V SCLK active edge to data valid delay 4 VDD = 4.75 V to 5.25 V VDD = 2.7 V to 3.6 V Bus relinquish time after CS inactive edge SCLK inactive edge to CS inactive edge SCLK inactive edge to DOUT/RDY high 0 30 25 0 ns min ns min ns min ns min CS falling edge to SCLK active edge setup time4 Data valid to SCLK edge setup time Data valid to SCLK edge hold time CS rising edge to SCLK edge hold time Sample tested during initial release to ensure compliance. All input signals are specified with tR = tF = 5 ns (10% to 90% of VDD) and timed from a voltage level of 1.6 V. See Figure 3 and Figure 4. These numbers are measured with the load circuit of, and defined as, the time required for the output to cross the VOL or VOH limits. 4 SCLK active edge is the falling edge of SCLK. 5 These numbers are derived from the measured time taken by the data output to change 0.5 V when loaded with the circuit of Figure 2. The measured number is then extrapolated back to remove the effects of charging or discharging the 50 pF capacitor. This means that the times quoted in the Timing Characteristics are the true bus relinquish times of the device and, as such, are independent of external bus loading capacitances. 6 RDY returns high after a read of the ADC. In single-conversion mode and continuous-conversion mode, the same data can be read again, if required, while RDY is high, although care should be taken to ensure that subsequent reads do not occur close to the next output update. In continuous read mode, the digital word can be read only once. 1 2 3 Rev. C | Page 6 of 20 Data Sheet AD7788/AD7789 TIMING DIAGRAMS ISINK (1.6mA WITH VDD = 5V, 100µA WITH VDD = 3V) TO OUTPUT PIN 1.6V ISOURCE (200µA WITH VDD = 5V, 100µA WITH VDD = 3V) 03539-002 50pF Figure 2. Load Circuit for Timing Characterization CS (I) t6 t1 t5 MSB DOUT/RDY (O) LSB t7 t2 t3 03539-003 SCLK (I) t4 I = INPUT, O = OUTPUT Figure 3. Read Cycle Timing Diagram CS (I) t11 t8 SCLK (I) t9 t10 MSB LSB I = INPUT, O = OUTPUT Figure 4. Write Cycle Timing Diagram Rev. C | Page 7 of 20 03539-004 DIN (I) AD7788/AD7789 Data Sheet ABSOLUTE MAXIMUM RATINGS TA = 25°C, unless otherwise noted. Table 5. Parameter VDD to GND Analog Input Voltage to GND Reference Input Voltage to GND Total AIN/REFIN Current (Indefinite) Digital Input Voltage to GND Digital Output Voltage to GND Operating Temperature Range B Grade A Grade Storage Temperature Range Maximum Junction Temperature 10-Lead MSOP Thermal Impedance θJA θJC Lead Temperature, Soldering (10 sec) IR Reflow, Peak Temperature Rating −0.3 V to +7 V −0.3 V to VDD + 0.3 V −0.3 V to VDD + 0.3 V 30 mA −0.3 V to VDD + 0.3 V −0.3 V to VDD + 0.3 V Stresses at or above those listed under Absolute Maximum Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational section of this specification is not implied. Operation beyond the maximum operating conditions for extended periods may affect product reliability. ESD CAUTION −40°C to +105°C −40°C to +85°C −65°C to +150°C 150°C 206°C/W 44°C/W 300°C 220°C Rev. C | Page 8 of 20 Data Sheet AD7788/AD7789 PIN CONFIGURATION AND FUNCTION DESCRIPTIONS SCLK 1 CS 2 AD7788/ AD7789 10 DIN 9 DOUT/RDY 8 VDD TOP VIEW AIN(–) 4 (Not to Scale) 7 GND REFIN(+) 5 6 REFIN(–) 03539-005 AIN(+) 3 Figure 5. Pin Configuration Table 6. Pin Function Descriptions Pin No. 1 Mnemonic SCLK 2 CS 3 4 5 AIN(+) AIN(−) REFIN(+) 6 7 8 9 REFIN(−) GND VDD DOUT/RDY 10 DIN Description Serial Clock Input for Data Transfers to and from the ADC. The SCLK has a Schmitt-triggered input, making the interface suitable for opto-isolated applications. The serial clock can be continuous, with all data transmitted in a continuous train of pulses. Alternatively, it can be a noncontinuous clock with the information being transmitted to or from the ADC in smaller batches of data. Chip Select Input. This is an active low logic input used to select the ADC. CS can be used to select the ADC in systems with more than one device on the serial bus or as a frame synchronization signal in communicating with the device. CS can be hardwired low, allowing the ADC to operate in 3-wire mode with SCLK, DIN, and DOUT/RDY used to interface with the device. Analog Input. AIN(+) is the positive terminal of the fully differential analog input. Analog Input. AIN(–) is the negative terminal of the fully differential analog input. Positive Reference Input. REFIN(+) can lie anywhere between VDD and GND + 0.1 V. The nominal reference voltage (REFIN(+) − REFIN(−)) is 2.5 V, but the device functions with a reference from 0.1 V to VDD. Negative Reference Input. This reference input can lie anywhere between GND and VDD − 0.1 V. Ground Reference Point. Supply Voltage. 3 V or 5 V nominal. The DOUT/RDY falling edge can be used as an interrupt to a processor, indicating that valid data is available. With an external serial clock, the data can be read using the DOUT/RDY pin. With CS low, the data/control word information is placed on the DOUT/RDY pin on the SCLK falling edge and is valid on the SCLK rising edge. The end of a conversion is also indicated by the RDY bit in the status register. When CS is high, the DOUT/RDY pin is three-stated, but the RDY bit remains active. Serial Data Input to the Input Shift Register on the ADC. Data in this shift register is transferred to the control registers within the ADC; the register selection bits of the communications register identify the appropriate register. Rev. C | Page 9 of 20 AD7788/AD7789 Data Sheet TYPICAL PERFORMANCE CHARACTERISTICS 8388625 0 –10 –20 –30 –40 CODE dB –50 –60 –70 –80 –90 –110 –120 0 20 40 60 80 100 FREQUENCY (Hz) 120 140 8388591 160 VDD = 3V, VREF = 2.048V, TA = 25°C, RMS NOISE = 1.25µV 0 200 Figure 6. Frequency Response with 16.6 Hz Update Rate 70 400 600 READ NO. 800 1000 Figure 8. AD7789 Noise Plot 3.0 VDD = 3V VREF = 2.048V TA = 25°C RMS NOISE = 1.25µV VDD = 5V UPDATE RATE = 16.6Hz TA = 25°C 2.5 60 RMS NOISE (µV) 50 40 30 2.0 1.5 1.0 20 0.5 0 8388591 03539-013 10 03539-008 OCCURENCE 03539-009 03539-007 –100 0 8388625 0 CODE Figure 7. AD7789 Noise Histogram 0.5 1.0 1.5 2.0 2.5 3.0 VREF (V) 3.5 4.0 Figure 9. AD7788/AD7789 Noise vs. VREF Rev. C | Page 10 of 20 4.5 5.0 Data Sheet AD7788/AD7789 ON-CHIP REGISTERS For read or write operations, once the subsequent read or write operation to the selected register is complete, the interface returns to where it expects a write operation to the communications register. This is the default state of the interface and, on power-up or after a reset, the ADC is in this default state waiting for a write operation to the communications register. In situations where the interface sequence is lost, a write operation of at least 32 serial clock cycles with DIN high returns the ADC to this default state by resetting the entire device. Table 7 outlines the bit designations for the communications register. CR0 through CR7 indicate the bit location, CR denoting the bits are in the communications register. CR7 denotes the first bit of the data stream. The number in parentheses indicates the power-on/reset default status of that bit. The ADC is controlled and configured via a number of on-chip registers, which are described on the following pages. In the following descriptions, set implies a Logic 1 state and cleared implies a Logic 0 state, unless otherwise stated. COMMUNICATIONS REGISTER (RS1, RS0 = 0, 0) The communications register is an 8-bit, write only register. All communications to the device must start with a write operation to the communications register. The data written to the communications register determines whether the next operation is a read or write operation, and to which register this operation takes place. CR7 WEN(0) CR6 0(0) CR5 RS1(0) CR4 RS0(0) CR3 R/W(0) CR2 CREAD(0) CR1 CH1(0) CR0 CH0(0) Table 7. Communications Register Bit Designations Bit Location CR7 Bit Name WEN CR6 CR5 to CR4 0 RS1 to RS0 CR3 R/W CR2 CREAD CR1 to CR0 CH1 to CH0 Description Write Enable Bit. A 0 must be written to this bit so that the write to the communications register actually occurs. If a 1 is the first bit written, the device does not clock on to subsequent bits in the register. It stays at this bit location until a 0 is written to this bit. Once a 0 is written to the WEN bit, the next seven bits are loaded to the communications register. This bit must be programmed with a Logic 0 for correct operation. Register Address Bits. These address bits are used to select which of the ADC registers are being selected during this serial interface communication (see Table 8). A 0 in this bit location indicates that the next operation is a write to a specified register. A 1 in this position indicates that the next operation is a read from the designated register. Continuous Read of the Data Register. When this bit is set to 1 (and the data register is selected), the serial interface is configured so that the data register can be continuously read, that is, the contents of the data register are placed on the DOUT/RDY pin automatically when the SCLK pulses are applied. The communications register does not have to be written to for data reads. To enable continuous read mode, the instruction 001111XX must be written to the communications register. To exit the continuous read mode, the instruction 001110XX must be written to the communications register while the DOUT/RDY pin is low. While in continuous read mode, the ADC monitors activity on the DIN line so that it can receive the instruction to exit continuous read mode. Additionally, a reset occurs if 32 consecutive 1s are seen on DIN. Therefore, DIN should be held low in continuous read mode until an instruction is to be written to the device. These bits are used to select the analog input channel. The differential channel can be selected AIN(+)/AIN(−) or an internal short AIN(−)/AIN(−) can be selected. Alternatively, the power supply can be selected, that is, the ADC can measure the voltage on the power supply, which is useful for monitoring power supply variation. The power supply voltage is divided by 5 and then applied to the modulator for conversion. The ADC uses a 1.17 V ± 5% on-chip reference as the reference source for the analog-to-digital conversion. Any change in channel resets the filter and a new conversion is started. Rev. C | Page 11 of 20 AD7788/AD7789 Data Sheet Table 8. Register Selection RS1 0 0 0 1 1 RS0 0 0 1 0 1 Register Communications register during a write operation Status register during a read operation Mode register Reserved Data register Register Size 8-bit 8-bit 8-bit 8-bit 16-bit (AD7788) 24-bit (AD7789) Table 9. Channel Selection CH1 0 0 1 1 CH0 0 1 0 1 Channel AIN(+) − AIN(−) Reserved AIN(−) − AIN(−) VDD monitor STATUS REGISTER (RS1, RS0 = 0, 0; Power-On/Reset = 0x88 for AD7788 and 0x8C for AD7789) The status register is an 8-bit, read only register. To access the ADC status register, the user must write to the communications register, select the next operation to be a read, and load Bit RS1 and Bit RS0 with 0. Table 10 outlines the bit designations for the status register. SR0 through SR7 indicate the bit locations, SR denoting the bits are in the status register. SR7 denotes the first bit of the data stream. The number(s) in parentheses indicates the power-on/reset default status of that bit. MSB SR7 RDY(1) LSB SR6 ERR(0) SR5 0(0) SR4 0(0) SR3 1(1) SR2 WL(1/0) SR1 CH1(0) SR0 CH0(0) Table 10. Status Register Bit Designations Bit Location SR7 Bit Name RDY SR6 ERR SR5 SR4 SR3 SR2 0 0 1 WL SR1 to SR0 CH1 to CH0 Description Ready Bit for ADC. Cleared when data is written to the ADC data register. The RDY bit is set automatically after the ADC data register has been read or a period of time before the data register is updated with a new conversion result to tell the user not to read the conversion data. It is also set when the device is placed in power-down mode. The end of a conversion is indicated by the DOUT/RDY pin. This pin can be used as an alternative to the status register for monitoring the ADC for conversion data. ADC Error Bit. This bit is written to at the same time as the RDY bit. Set to indicate that the result written to the ADC data register has been clamped to all 0s or all 1s. Error sources include overrange, underrange. Cleared by a write operation to start a conversion. This bit is cleared automatically. This bit is cleared automatically. This bit is set automatically. AD7788/AD7789 Identifier. This bit is cleared automatically if the device is an AD7788 and it is set automatically if the device is an AD7789. This bit is used to distinguish between the AD7788 and AD7789. These bits indicate which channel is being converted by the ADC. Rev. C | Page 12 of 20 Data Sheet AD7788/AD7789 MODE REGISTER (RS1, RS0 = 0, 1; Power-On/Reset = 0x02) The mode register is an 8-bit register from which data can be read from or written to. This register is used to configure the ADC for range, to set unipolar or bipolar mode, or to place the device into power-down mode. Table 11 outlines the bit designations for the mode register. MR0 through MR7 indicate the bit locations, MR denoting the bits are in the mode register. MR7 denotes the first bit of the data stream. The number in parentheses indicates the power-on/reset default status of that bit. Any write to the setup register resets the modulator and filter, and sets the RDY bit. MSB MR7 MD1(0) LSB MR6 MD0(0) MR5 0(0) MR4 0(0) MR3 0(0) MR2 U/B(0) MR1 1(1) MR0 0(0) Table 11. Mode Register Bit Designations Bit Location MR7 to MR6 Bit Name MD1 to MD0 MR5 to MR3 MR2 0 U/B MR1 MR0 1 0 Description Mode Select Bits. These bits select between continuous conversion mode, single conversion mode, and standby mode. In continuous conversion mode, the ADC continuously performs conversions and places the result in the data register. DOUT/ RDY goes low when a conversion is complete. The user can read these conversions by placing the device in continuous read mode whereby the conversions are automatically placed on the DOUT/ RDY line when SCLK pulses are applied. Alternatively, the user can instruct the ADC to output the conversion by writing to the communications register. After power-on, the first conversion is available after a period 2/ fADC while subsequent conversions are available at a frequency of fADC. In single conversion mode, the ADC is placed in power-down mode when conversions are not being performed. When single conversion mode is selected, the ADC powers up (which takes 1 ms) and performs a single conversion, requiring a duration of 2/fADC. The conversion result is placed in the data register, DOUT/ RDY goes low, and the ADC returns to power-down mode. The conversion remains in the data register and DOUT/ RDY remains active (low) until the data is read or another conversion is performed (see Table 12). These bits must be programmed with a Logic 0 for correct operation. Unipolar/Bipolar Bit. Set by user to enable unipolar coding; that is, zero differential input results in 000…000 output, and a full-scale differential input results in 111…111 output. Cleared by the user to enable bipolar coding. Negative full-scale differential input results in an output code of 000…000, zero differential input results in an output code of 100…000, and a positive full-scale differential input results in an output code of 111…111. This bit must be programmed with a Logic 1 for correct operation. This bit must be programmed with a Logic 0 for correct operation. Table 12. Operating Modes MD1 0 0 1 1 MD0 0 1 0 1 Mode Continuous conversion mode (default) Reserved Single conversion mode Power-down mode DATA REGISTER (RS1, RS0 = 1, 1; Power-On/Reset = 0x0000 for the AD7788 and 0x000000 for the AD7789) The conversion result from the ADC is stored in this data register. This is a read only register. On completion of a read operation from this register, the RDY bit/pin is set. Rev. C | Page 13 of 20 AD7788/AD7789 Data Sheet ADC CIRCUIT INFORMATION The AD7788/AD7789 are low power ADCs that incorporate a Σ-Δ modulator and on-chip digital filtering intended for the measurement of wide dynamic range, low frequency signals, such as those in pressure transducers, weigh scales, and temperature measurement applications. The device has one unbuffered differential input. The device requires an external reference voltage between 0.1 V and VDD. Figure 10 shows the basic connections required to operate the device. POWER SUPPLY 0.1µF 10µF VDD REFIN(+) IN+ OUT– OUT+ AD7788/ AD7789 CS AIN(+) DOUT/RDY IN– AIN(–) MICROCONTROLLER SCLK GND 03539-006 REFIN(–) Figure 10. Basic Connection Diagram The output rate of the AD7788/AD7789 (fADC) is 16.6 Hz with the settling time equal to 2 × tADC (120.4 ms). Normal-mode rejection is the major function of the digital filter. Simultaneous 50 Hz and 60 Hz rejection is optimized as notches are placed at both 50 Hz and 60 Hz with this update rate (see Figure 6). NOISE PERFORMANCE Typically, the devices have an rms noise of 1.5 μV rms that corresponds to a peak-to-peak resolution of 16 bits for the AD7788 and 19 bits (equivalent to an effective resolution of 21.5 bits) for the AD7789. These numbers are for the bipolar input range with a reference of 2.5 V. The noise was measured with a differential input voltage of 0 V. The peak-to-peak resolution figures represent the resolution for which there is no code flicker within a six-sigma limit. The output noise comes from two sources. The first is the electrical noise in the semiconductor devices (device noise) used in the implementation of the modulator. The second is quantization noise, added when the analog input is converted into the digital domain. DIGITAL INTERFACE As previously outlined, the AD7788/AD7789 programmable functions are controlled using a set of on-chip registers. Data is written to these registers via the serial interface and read access to the on-chip registers is also provided by this interface. All communications with the devices must start with a write to the communications register. After power-on or reset, the devices expect a write to the communications register. The data written to this register determines whether the next operation is a read operation or a write operation, and also determines to which register this read or write operation occurs. Therefore, write access to any of the other registers on the devices begins with a write operation to the communications register followed by a write to the selected register. A read operation from any other register (except when continuous read mode is selected) starts with a write to the communications register followed by a read operation from the selected register. The AD7788/AD7789 serial interface consists of four signals: CS, DIN, SCLK, and DOUT/RDY. The DIN line is used to transfer data into the on-chip registers and DOUT/RDY is used for accessing data from the on-chip registers. SCLK is the serial clock input for the device, and all data transfers (either on DIN or DOUT/RDY ) occur with respect to the SCLK signal. The DOUT/ RDY pin operates as a data ready signal also, the line goes low when a new data-word is available in the output register. It is reset high when a read operation from the data register is complete. It also goes high prior to the data register update to indicate when not to read from the device; this ensures that a data read is not attempted while the register is being updated. CS is used to select a device. It can be used to decode the AD7788/AD7789 in systems where several compo-nents are connected to the serial bus. Figure 3 and Figure 4 show timing diagrams for interfacing to the AD7788/AD7789 with CS being used to decode the devices. Figure 3 shows the timing for a read operation from the output shift register, while Figure 4 shows the timing for a write operation to the input shift register. In all modes except continuous read mode, it is possible to read the same word from the data register several times even though the DOUT/RDY line returns high after the first read operation. However, care must be taken to ensure that the read operations have been completed before the next output update occurs. In continuous read mode, the data register can be read only once. The serial interface can operate in 3-wire mode by tying CS low. In this case, the SCLK, DIN, and DOUT/RDY lines are used to communicate with the AD7788/AD7789. The end of conversion can be monitored using the RDY bit in the status register. This scheme is suitable for interfacing to microcontrollers. If CS is required as a decoding signal, it can be generated from a port pin. For microcontroller interfaces, it is recommended that SCLK idles high between data transfers. The AD7788/AD7789 can operate with CS being used as a frame synchronization signal. This scheme is useful for DSP interfaces. In this case, the first bit (MSB) is effectively clocked out by CS, because CS normally occurs after the falling edge of SCLK in DSPs. The SCLK can continue to run between data transfers, provided the timing numbers are obeyed. Rev. C | Page 14 of 20 Data Sheet AD7788/AD7789 The serial interface can be reset by writing a series of 1s on the DIN input. If a Logic 1 is written to the AD7788/AD7789 for at least 32 serial clock cycles, the serial interface is reset. This ensures that the interface can be reset to a known state if the interface gets lost due to a software error or a glitch in the system. Reset returns the interface to the state in which it is expecting a write to the communications register. This operation resets the contents of all registers to their power-on values. The AD7788/AD7789 can be configured to continuously convert or to perform a single conversion. See Figure 11 to Figure 13. Single Conversion Mode In single-conversion mode, the AD7788/AD7789 are placed in power-down mode between conversions. When a single conversion is initiated by setting MD1 to 1 and MD0 to 0 in the mode register, the AD7788/AD7789 power up, perform a single conversion, and then return to power-down mode. The devices require 1 ms to power up and settle. The AD7788/AD7789 then perform a conversion, requiring a time period of 2 × tADC. DOUT/RDY goes low to indicate the completion of a conversion. When the data-word has been read from the data register, DOUT/RDY goes high. If CS is low, DOUT/RDY remains high until another conversion is initiated and completed. The data register can be read several times, if required, even when DOUT/RDY has gone high. Continuous Conversion Mode This is the default power-up mode. The AD7788/AD7789 continuously convert, the RDY pin in the status register going low each time a conversion is complete. If CS is low, the DOUT/RDY line also goes low when a conversion is complete. To read a conversion, the user can write to the communications register, indicating that the next operation is a read of the data register. The digital conversion is placed on the DOUT/RDY pin as soon as SCLK pulses are applied to the ADC. DOUT/ RDY returns high when the conversion is read. The user can read this register additional times, if required. However, the user must ensure that the data register is not being accessed at the completion of the next conversion or else the new conversion word is lost. CS DIN 0x10 0x82 0x38 DATA 03539-010 DOUT/RDY SCLK Figure 11. Single Conversion CS 0x38 0x38 DIN DATA DATA 03539-012 DOUT/RDY SCLK Figure 12. Continuous-Conversion Mode Rev. C | Page 15 of 20 AD7788/AD7789 Data Sheet Continuous Read Mode If the data-word has not read the conversion before the completion of the next conversion, or if insufficient serial clocks are applied to the AD7788/AD7789 to read the word, the serial output register is reset when the next conversion is complete and the new conversion is placed in the output serial register. Rather than write to the communications register each time a conversion is complete to access the data, the AD7788/AD7789 can be placed in continuous read mode. By writing 001111XX to the communications register, the user needs only to apply the appropriate number of SCLK cycles to the ADC and the dataword is automatically placed on the DOUT/RDY line when a conversion is complete. To exit continuous read mode, the instruction 001110XX must be written to the communications register while the DOUT/ RDY pin is low. While in continuous read mode, the ADC monitors activity on the DIN line so that it can receive the instruction to exit continuous read mode. Additionally, a reset occurs if 32 consecutive 1s are seen on DIN. Therefore, DIN should be held low in continuous read mode until an instruction is to be written to the device. When DOUT/RDY goes low to indicate the end of a conversion, sufficient SCLK cycles must be applied to the ADC and the data conversion is placed on the DOUT/RDY line. When the conversion is read, DOUT/RDY returns high until the next conversion is available. In this mode, the data can be read only once. Also, the user must ensure that the data-word is read before the next conversion is complete. CS 0x3C DIN DATA DATA DATA 03539-011 DOUT/RDY SCLK Figure 13. Continuous-Read Mode Rev. C | Page 16 of 20 Data Sheet AD7788/AD7789 CIRCUIT DESCRIPTION ANALOG INPUT CHANNEL DATA OUTPUT CODING The AD7788/AD7789 have one differential analog input channel that is connected to the modulator, thus, the input is unbuffered. Note that this unbuffered input path provides a dynamic load to the driving source. Therefore, resistor/capacitor combinations on the input pins can cause dc gain errors, depending on the output impedance of the source that is driving the ADC input. Table 13 shows the allowable external resistance/capacitance values such that no gain error at the 16-bit level is introduced (AD7788). Table 14 shows the allowable external resistance/capacitance values such that no gain error at the 20-bit level is introduced (AD7789). When the ADC is configured for unipolar operation, the output code is natural (straight) binary with a zero differential input voltage resulting in a code of 000...000, a midscale voltage resulting in a code of 100...000, and a full-scale input voltage resulting in a code of 111...111. The output code for any analog input voltage can be represented as Table 13. External R-C Combination for No 16-Bit Gain Error (AD7788) C (pF) 50 100 500 1000 5000 R (Ω) 22.8 k 13.1 k 3.3 k 1.8 k 360 When the ADC is configured for bipolar operation, the output code is offset binary with a negative full-scale voltage resulting in a code of 000...000, a zero differential input voltage resulting in a code of 100...000, and a positive full-scale input voltage resulting in a code of 111...111. The output code for any analog input voltage can be represented as Code = 2N – 1 × ((AIN/VREF) + 1) where: AIN is the analog input voltage. N = 16 for the AD7788, 24 for the AD7789. Table 14. External R-C Combination for No 20-Bit Gain Error (AD7789) C (pF) 50 100 500 1000 5000 Code = 2N × (AIN/VREF) REFERENCE INPUT R (Ω) 16.7 k 9.6 k 2.2 k 1.1 k 160 The absolute input voltage includes the range between GND − 30 mV and VDD + 30 mV. The negative absolute input voltage limit does allow the possibility of monitoring small true bipolar signals with respect to GND. BIPOLAR/UNIPOLAR CONFIGURATION The analog input to the devices can accept either unipolar or bipolar input voltage ranges. A bipolar input range does not imply that the devices can tolerate large negative voltages with respect to system GND. Unipolar and bipolar signals on the AIN(+) input are referenced to the voltage on the AIN(−) input. For example, if AIN(−) is 2.5 V and the ADC is configured for unipolar mode, the input voltage range on the AIN(+) pin is 2.5 V to 5 V. If the ADC is configured for bipolar mode, the analog input range on the AIN(+) input is 0 V to 5 V. The bipolar/ unipolar option is chosen by programming the U/B bit in the mode register. The AD7788/AD7789 have a fully differential input capability for the channel. The common-mode range for these differential inputs is from GND to VDD. The reference input is unbuffered and, therefore, excessive R-C source impedances introduce gain errors. The reference voltage REFIN (REFIN(+) − REFIN(−)) is 2.5 V nominal, but the AD7788/AD7789 are functional with reference voltages from 0.1 V to VDD. In applications where the excitation (voltage or current) for the transducer on the analog input also drives the reference voltage for the devices, the effect of the low frequency noise in the excitation source is removed because the application is ratiometric. If the AD7788/AD7789 are used in a nonratiometric application, a low noise reference should be used. Recommended 2.5 V reference voltage sources for the AD7788/ AD7789 include the ADR381 and ADR391, because they are low noise, low power references. If the analog circuitry uses a 2.5 V power supply, the reference voltage source requires some headroom. In this case, a 2.048 V reference such as the ADR380 can be used. Again, these are low power, low noise references. Also note that the reference inputs provide a high impedance, dynamic load. Because the input impedance of each reference input is dynamic, resistor/capacitor combinations on these inputs can cause dc gain errors, depending on the output impedance of the source that is driving the reference inputs. Rev. C | Page 17 of 20 AD7788/AD7789 Data Sheet Reference voltage sources like those recommended in the previous section (for example, ADR391) typically have low output impedances and are, therefore, tolerant to having decoupling capacitors on REFIN(+) without introducing gain errors in the system. Deriving the reference input voltage across an external resistor means that the reference input sees a significant external source impedance. External decoupling on the REFIN pins is not recommended in this type of circuit configuration. VDD MONITOR Along with converting external voltages, the analog input channel can be used to monitor the voltage on the VDD pin. When Bit CH1 and Bit CH0 in the communications register are set to 1, the voltage on the VDD pin is internally attenuated by 5 and the resultant voltage is applied to the Σ-Δ modulator using an internal 1.17 V reference for analog-to-digital conversion. This is useful because variations in the power supply voltage can be monitored. GROUNDING AND LAYOUT Because the analog inputs and reference inputs of the ADC are differential, most of the voltages in the analog modulator are common-mode voltages. The excellent common-mode rejection of the device removes common-mode noise on these inputs. The digital filter provides rejection of broadband noise on the power supply, except at integer multiples of the modulator sampling frequency. The digital filter also removes noise from the analog and reference inputs, provided that these noise sources do not saturate the analog modulator. As a result, the AD7788/AD7789 are more immune to noise interference than conventional high resolution converters. However, because the resolution of the AD7788/AD7789 is so high, and the noise levels from the AD7788/AD7789 are so low, care must be taken with regard to grounding and layout. The printed circuit board that houses the AD7788/AD7789 should be designed such that the analog and digital sections are separated and confined to certain areas of the board. A minimum etch technique is generally best for ground planes because it gives the best shielding. It is recommended that the AD7788/AD7789 GND pins be tied to the AGND plane of the system. In any layout, it is important that the user consider the flow of currents in the system, ensuring that the return paths for all currents are as close as possible to the paths the currents took to reach their destinations. Avoid forcing digital currents to flow through the AGND sections of the layout. The AD7788/AD7789 ground plane should be allowed to run under the devices to prevent noise coupling. The power supply lines to the AD7788/AD7789 should use as wide a trace as possible to provide low impedance paths and reduce the effects of glitches on the power supply line. Fast switching signals, such as clocks, should be shielded with digital ground to avoid radiating noise to other sections of the board, and clock signals should never be run near the analog inputs. Avoid crossover of digital and analog signals. Traces on opposite sides of the board should run at right angles to each other. This reduces the effects of feedthrough through the board. A microstrip technique is by far the best, but it is not always possible with a double-sided board. In this technique, the component side of the board is dedicated to ground planes, with signals placed on the solder side. Good decoupling is important when using high resolution ADCs. VDD should be decoupled with a 10 µF tantalum in parallel with 0.1 µF capacitors to GND. To achieve the best from these decoupling components, they should be placed as close as possible to the device, ideally right up against the device. All logic chips should be decoupled with 0.1 µF ceramic capacitors to DGND. Rev. C | Page 18 of 20 Data Sheet AD7788/AD7789 OUTLINE DIMENSIONS 3.10 3.00 2.90 10 3.10 3.00 2.90 5.15 4.90 4.65 6 1 5 PIN 1 IDENTIFIER 0.50 BSC 0.95 0.85 0.75 15° MAX 1.10 MAX 0.30 0.15 6° 0° 0.23 0.13 0.70 0.55 0.40 COMPLIANT TO JEDEC STANDARDS MO-187-BA 091709-A 0.15 0.05 COPLANARITY 0.10 Figure 14. 10-Lead Mini Small Outline Package [MSOP] (RM-10) Dimensions shown in millimeters ORDERING GUIDE Model 1 AD7788BRM AD7788BRMZ AD7788BRMZ-REEL AD7788ARM AD7788ARMZ AD7788ARMZ-REEL AD7789BRM AD7789BRMZ AD7789BRMZ-REEL 1 Temperature Range −40°C to +105°C −40°C to +105°C −40°C to +105°C −40°C to +85°C −40°C to +85°C −40°C to +85°C −40°C to +105°C −40°C to +105°C −40°C to +105°C Package Description 10-Lead Mini Small Outline Package [MSOP] 10-Lead Mini Small Outline Package [MSOP] 10-Lead Mini Small Outline Package [MSOP] 10-Lead Mini Small Outline Package [MSOP] 10-Lead Mini Small Outline Package [MSOP] 10-Lead Mini Small Outline Package [MSOP] 10-Lead Mini Small Outline Package [MSOP] 10-Lead Mini Small Outline Package [MSOP] 10-Lead Mini Small Outline Package [MSOP] Z = RoHS Compliant Part. Rev. C | Page 19 of 20 Package Option RM-10 RM-10 RM-10 RM-10 RM-10 RM-10 RM-10 RM-10 RM-10 Branding COX C3G C3G COZ COZ C4T COY C43 C43 AD7788/AD7789 Data Sheet NOTES ©2003–2016 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners. D03539-0-4/16(C) Rev. C | Page 20 of 20
