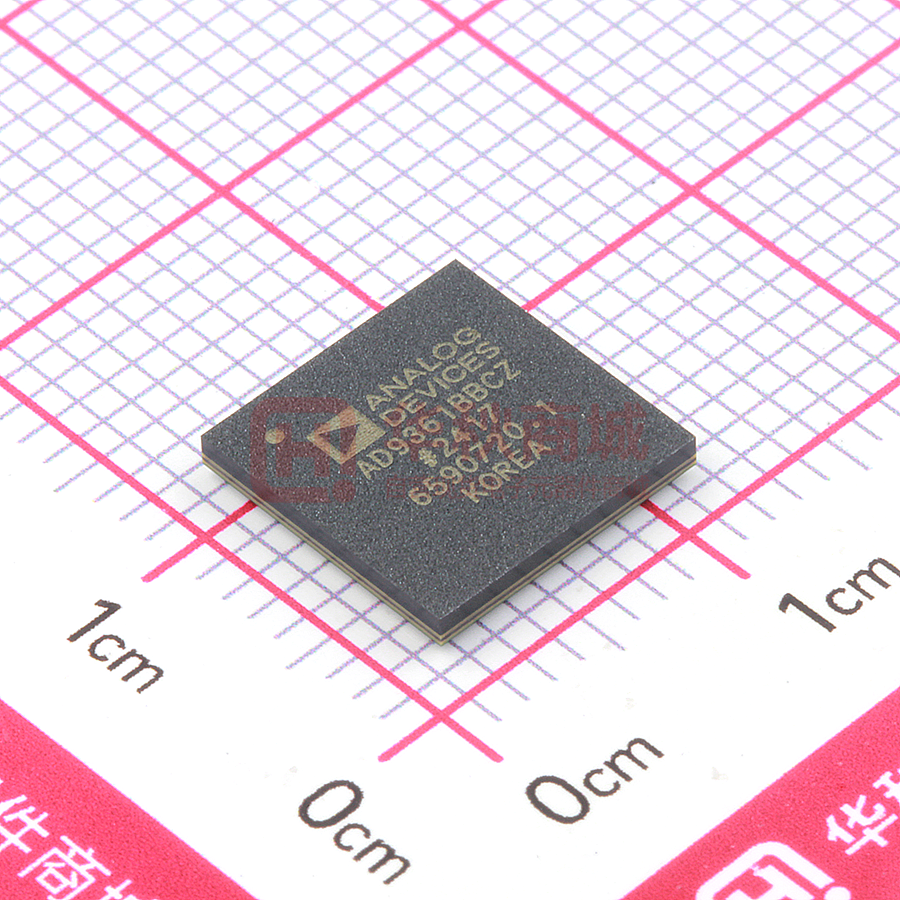

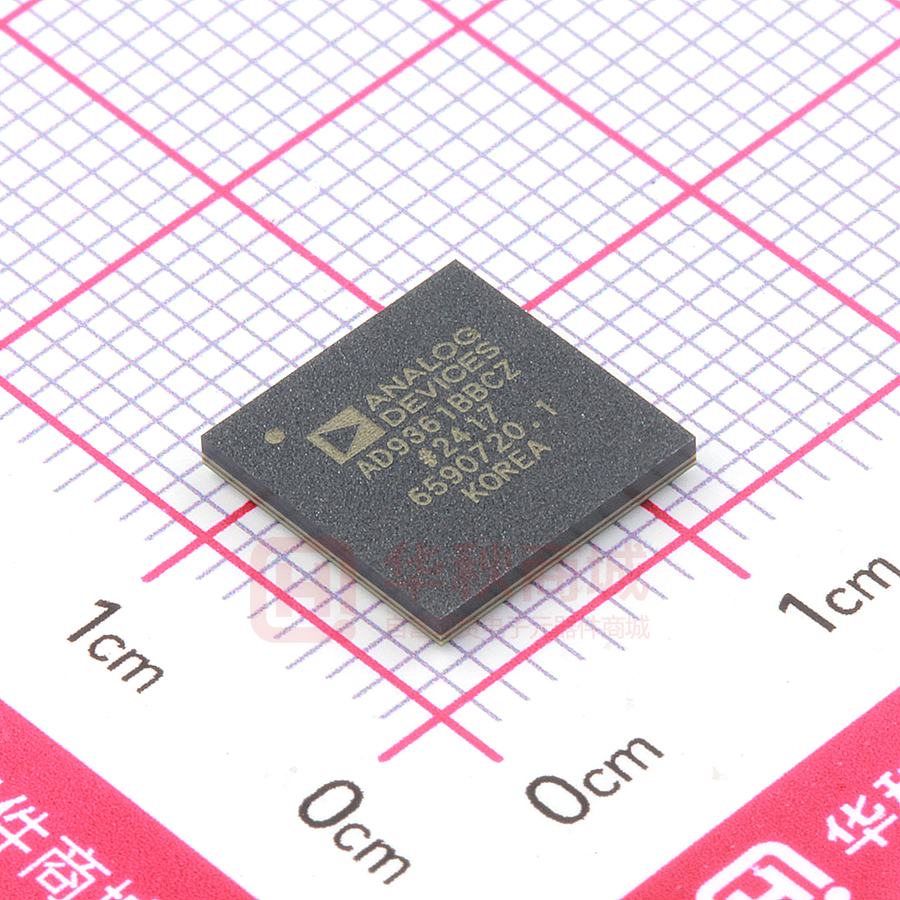

AD9361BBCZ

RF Agile Transceiver AD9361 Data Sheet FUNCTIONAL BLOCK DIAGRAM AD9361 RX1A_P, RX1A_N ADC RX1C_P, RX1C_N RX2A_P, RX2A_N ADC RX2C_P, RX2C_N RX LO TX_MON1 TX LO TX1A_P, TX1A_N DAC DATA INTERFACE RX2B_P, RX2B_N P0_[D11:D0]/ TX_[D5:D0] P1_[D11:D0]/ RX_[D5:D0] TX1B_P, TX1B_N TX_MON2 TX2A_P, TX2A_N TX2B_P, TX2B_N SPI CTRL DAC DAC CTRL GPO RADIO SWITCHING PLLs CLK_OUT AUXADC AUXDACx XTALP XTALN NOTES 1. SPI, CTRL, P0_[D11:D0]/TX_[D5:D0], P1_[D11:D0]/RX_[D5:D0], AND RADIO SWITCHING CONTAIN MULTIPLE PINS. 10453-001 APPLICATIONS RX1B_P, RX1B_N DAC RF 2 × 2 transceiver with integrated 12-bit DACs and ADCs TX band: 47 MHz to 6.0 GHz RX band: 70 MHz to 6.0 GHz Supports TDD and FDD operation Tunable channel bandwidth:
