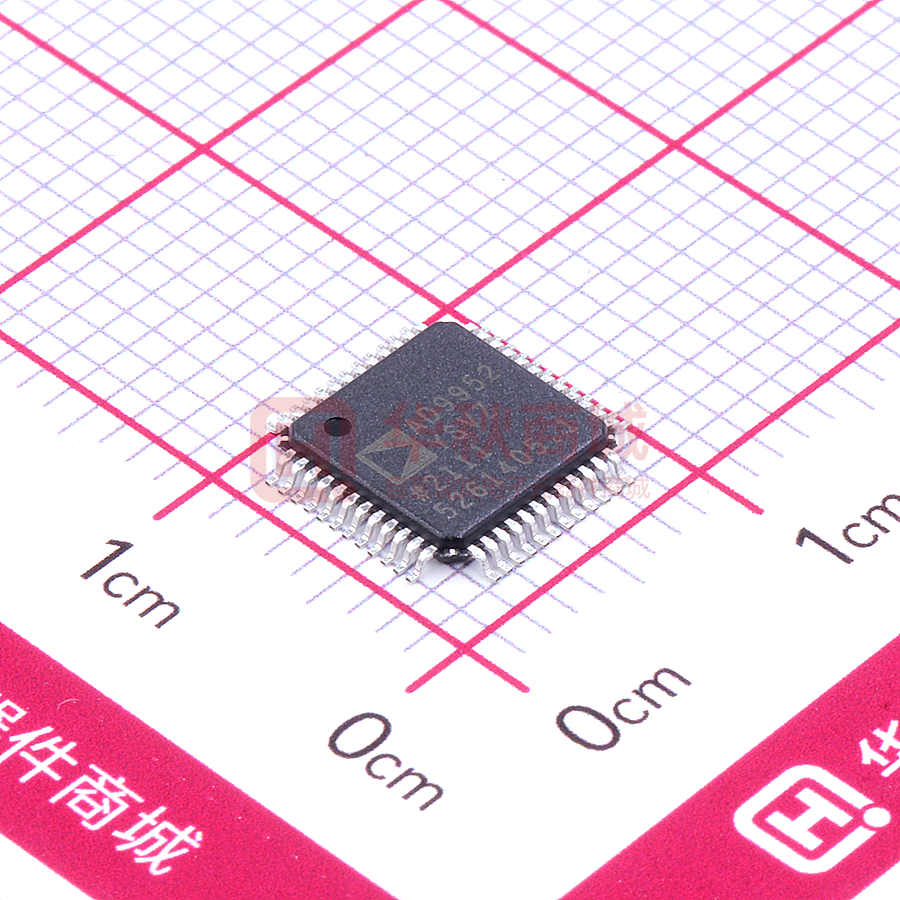

AD9952YSVZ

400 MSPS 14-Bit, 1.8 V CMOS Direct Digital Synthesizer AD9952 Data Sheet FEATURES APPLICATIONS 400 MSPS internal clock speed Integrated 14-bit DAC 32-bit tuning word Phase noise ≤ −120 dBc/Hz at 1 kHz offset (DAC output) Excellent dynamic performance >80 dB SFDR at 160 MHz (±100 kHz offset) AOUT Serial input/output (I/O) control 1.8 V power supply Software and hardware controlled power-down 48-lead TQFP_EP package PLL REFCLK multiplier (4× to 20×) Internal oscillator, can be driven by a single crystal Phase modulation capability Multichip synchronization High speed comparator (200 MHz toggle rate) Agile LO frequency synthesis Programmable clock generators Test and measurement equipment Acousto-optic device drivers GENERAL DESCRIPTION The AD9952 is a direct digital synthesizer (DDS) featuring a 14-bit DAC (digital-to-analog converter) and operating up to 400 MSPS. The AD9952 uses advanced DDS technology, coupled with an internal high speed, high performance DAC to form a digitally programmable, complete high frequency synthesizer capable of generating a frequency-agile analog output sinusoidal waveform at up to 200 MHz. The AD9952 is designed to provide fast frequency hopping and fine tuning resolution (32-bit frequency tuning word). The frequency tuning and control words are loaded into the AD9952 via a serial I/O port. The AD9952 is specified to operate over the extended industrial temperature range of −40°C to +105°C. FUNCTIONAL BLOCK DIAGRAM DDS CORE AD9952 PHASE ACCUMULATOR 19 14 COS(X) DAC 14 SYNC_IN OSK TIMING AND CONTROL LOGIC I/O UPDATE M U X PWRDWNCTL 0 SYNC CONTROL REGISTERS ÷4 COMPARATOR OSCILLATOR/BUFFER 4× TO 20× CLOCK MULTIPLIER REFCLK REFCLK M U X COMP_IN COMP_IN SYSTEM CLOCK COMP_OUT ENABLE CRYSTAL OUT IOUT IOUT SYSTEM CLOCK AMPLITUDE SCALE FACTOR Z–1 CLEAR PHASE ACCUMULATOR DDS CLOCK 14 32 SYNC_CLK DAC_R SET PHASE OFFSET 32 I/O PORT RESET 03358-001 FREQUENCY TUNING WORD Z–1 Figure 1. Rev. C Document Feedback Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Trademarks and registered trademarks are the property of their respective owners. One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. Tel: 781.329.4700 ©2003–2017 Analog Devices, Inc. All rights reserved. Technical Support www.analog.com AD9952 Data Sheet TABLE OF CONTENTS Features .............................................................................................. 1  Control Register Bit Descriptions ............................................ 16  Applications ....................................................................................... 1  Other Register Descriptions ..................................................... 18  General Description ......................................................................... 1  Modes of Operation ................................................................... 18  Functional Block Diagram .............................................................. 1  Programming Features .............................................................. 18  Revision History ............................................................................... 2  Synchronizing Multiple AD9952s ............................................ 20  Electrical Specifications ................................................................... 3  Serial Port Operation ................................................................. 20  Absolute Maximum Ratings............................................................ 6  Power-Down Functions ............................................................. 23  ESD Caution .................................................................................. 6  Layout Considerations ................................................................... 25  Pin Configuration and Function Descriptions ............................. 7  Suggested Application Circuits ..................................................... 26  Typical Performance Characteristics ............................................. 9  Outline Dimensions ....................................................................... 27  Equivalent Input/Output Circuits ................................................ 12  Ordering Guide .......................................................................... 27  Theory of Operation ...................................................................... 13  Component Blocks ..................................................................... 13  REVISION HISTORY 2/2017—Rev. B to Rev. C Changes to Features Section............................................................ 1 Changes to Ordering Guide .......................................................... 27 Changes to Figure 32...................................................................... 26 Added Exposed Pad Notation to Outline Dimensions ............. 27 Changes to Ordering Guide .......................................................... 27 5/2009—Rev. A to Rev. B Changes to Comparator Input Characteristics, Hysteresis Parameter, Table 1 .......................................................... 4 Changes to Pin Configuration and Function Descriptions Section and Table 3 ........................................................................... 7 Changes to Table 5 .......................................................................... 15 Changes to Serial Interface Port Pin Description Section ........ 22 5/2006—Rev. 0 to Rev. A Updated Format .................................................................. Universal Changes to Electrical Specifications Section .................................3 Changes to Figure 3 ...........................................................................9 Changes to Serial Port Operation Section .................................. 20 Inserted Figure 24, Figure 25, and Figure 26 .............................. 21 12/2003—Revision 0: Initial Version Rev. C | Page 2 of 28 Data Sheet AD9952 ELECTRICAL SPECIFICATIONS AVDD, DVDD = 1.8 V ± 5%, DVDD_I/O = 3.3 V ± 5%, DAC_RSET = 3.92 kΩ, external reference clock frequency = 400 MHz with REFCLK multiplier disabled, unless otherwise noted. DAC output must be referenced to AVDD, not AGND. Table 1. Parameter REF CLOCK INPUT CHARACTERISTICS Frequency Range REFCLK Multiplier Disabled REFCLK Multiplier Enabled @ 4× REFCLK Multiplier Enabled @ 20× Input Capacitance Input Impedance Duty Cycle Duty Cycle with REFCLK Multiplier Enabled REFCLK Input Power 1 DAC OUTPUT CHARACTERISTICS Resolution Full-Scale Output Current Gain Error Output Offset Differential Nonlinearity Integral Nonlinearity Output Capacitance Residual Phase Noise @ 1 kHz Offset, 40 MHz AOUT REFCLK Multiplier Enabled @ 20× REFCLK Multiplier Enabled @ 4× REFCLK Multiplier Disabled Voltage Compliance Range Wideband Spurious-Free Dynamic Range (SFDR) 1 MHz to 10 MHz Analog Out 10 MHz to 40 MHz Analog Out 40 MHz to 80 MHz Analog Out 80 MHz to 120 MHz Analog Out 120 MHz to 160 MHz Analog Out Narrow-Band SFDR 40 MHz Analog Out (±1 MHz) 40 MHz Analog Out (±250 kHz) 40 MHz Analog Out (±50 kHz) 40 MHz Analog Out (±10 kHz) 80 MHz Analog Out (±1 MHz) 80 MHz Analog Out (±250 kHz) 80 MHz Analog Out (±50 kHz) 80 MHz Analog Out (±10 kHz) 120 MHz Analog Out (±1 MHz) 120 MHz Analog Out (±250 kHz) 120 MHz Analog Out (±50 kHz) 120 MHz Analog Out (±10 kHz) 160 MHz Analog Out (±1 MHz) 160 MHz Analog Out (±250 kHz) 160 MHz Analog Out (±50 kHz) 160 MHz Analog Out (±10 kHz) Temp Min Full Full Full 25°C 25°C 25°C 25°C Full 1 20 4 25°C 25°C 25°C 25°C 25°C 25°C 5 –10 25°C 25°C 25°C 25°C Typ Max Unit 400 100 20 MHz MHz MHz pF kΩ % % dBm 3 1.5 50 35 –15 0 14 10 65 +3 15 +10 0.6 1 2 5 –105 –115 –132 AVDD + 0.5 AVDD − 0.5 Bits mA %FS µA LSB LSB pF dBc/Hz dBc/Hz dBc/Hz V 25°C 25°C 25°C 25°C 25°C 73 67 62 58 52 dBc dBc dBc dBc dBc 25°C 25°C 25°C 25°C 25°C 25°C 25°C 25°C 25°C 25°C 25°C 25°C 25°C 25°C 25°C 25°C 87 89 91 93 85 87 89 91 83 85 87 89 81 83 85 87 dBc dBc dBc dBc dBc dBc dBc dBc dBc dBc dBc dBc dBc dBc dBc dBc Rev. C | Page 3 of 28 AD9952 Data Sheet Parameter COMPARATOR INPUT CHARACTERISTICS Input Capacitance Input Resistance Input Current Hysteresis COMPARATOR OUTPUT CHARACTERISTICS Logic 1 Voltage, High Z Load Logic 0 Voltage, High Z Load Propagation Delay Output Duty Cycle Error Rise/Fall Time, 5 pF Load Toggle Rate, High Z Load Output Jitter 2 COMPARATOR NARROW-BAND SFDR 10 MHz (±1 MHz) 10 MHz (±250 kHz) 10 MHz (±50 kHz) 10 MHz (±10 kHz) 70 MHz (±1 MHz) 70 MHz (±250 kHz) 70 MHz (±50 kHz) 70 MHz (±10 kHz) 110 MHz (±1 MHz) 110 MHz (±250 kHz) 110 MHz (±50 kHz) 110 MHz (±10 kHz) 140 MHz (±1 MHz) 140 MHz (±250 kHz) 140 MHz (±50 kHz) 140 MHz (±10 kHz) 160 MHz (±1 MHz) 160 MHz (±250 kHz) 160 MHz (±50 kHz) 160 MHz (±10 kHz) CLOCK GENERATOR OUTPUT JITTER 3 5 MHz AOUT 10 MHz AOUT 40 MHz AOUT 80 MHz AOUT 120 MHz AOUT 140 MHz AOUT 160 MHz AOUT TIMING CHARACTERISTICS Serial Control Bus Maximum Frequency 4 Minimum Clock Pulse Width Low Minimum Clock Pulse Width High Maximum Clock Rise/Fall Time Minimum Data Setup Time DVDD_I/O = 3.3 V 5 (TCSU, TDSU) Minimum Data Setup Time DVDD_I/O = 1.8 V5 (TCSU, TDSU) Minimum Data Hold Time (TDH) Maximum Data Valid Time (TDV) Temp 25°C 25°C 25°C 25°C Full Full 25°C 25°C 25°C 25°C 25°C Min Typ Max Unit 45 pF kΩ µA mV 3 500 ±12 30 1.6 0.4 3 ±5 1 200 1 V V ns % ns MHz ps rms 25°C 25°C 25°C 25°C 25°C 25°C 25°C 25°C 25°C 25°C 25°C 25°C 25°C 25°C 25°C 25°C 25°C 25°C 25°C 25°C 80 85 90 95 80 85 90 95 80 85 90 95 80 85 90 95 80 85 90 95 dBc dBc dBc dBc dBc dBc dBc dBc dBc dBc dBc dBc dBc dBc dBc dBc dBc dBc dBc dBc 25°C 25°C 25°C 25°C 25°C 25°C 25°C 100 60 50 50 50 50 50 ps rms ps rms ps rms ps rms ps rms ps rms ps rms 25 Mbps ns ns ns ns ns ns ns Full Full Full Full Full Full Full Full Rev. C | Page 4 of 28 7 7 2 3 5 0 25 Data Sheet Parameter Wake-Up Time 6 Minimum Reset Pulse Width High I/O UPDATE to SYNC_CLK Setup Time DVDD_I/O = 3.3 V I/O UPDATE to SYNC_CLK Setup Time DVDD_I/O = 3.3 V I/O UPDATE, SYNC_CLK Hold Time Latency I/O UPDATE to Frequency Change Propagation Delay I/O UPDATE to Phase Offset Change Propagation Delay I/O UPDATE to Amplitude Change Propagation Delay CMOS LOGIC INPUTS Logic 1 Voltage @ DVDD_I/O (Pin 43) = 1.8 V Logic 0 Voltage @ DVDD_I/O (Pin 43) = 1.8 V Logic 1 Voltage @ DVDD_I/O (Pin 43) = 3.3 V Logic 0 Voltage @ DVDD_I/O (Pin 43) = 3.3 V Logic 1 Current Logic 0 Current Input Capacitance CMOS LOGIC OUTPUTS (1 mA Load) DVDD_I/O = 1.8 V Logic 1 Voltage Logic 0 Voltage CMOS LOGIC OUTPUTS (1 mA Load) DVDD_I/O = 3.3 V Logic 1 Voltage Logic 0 Voltage POWER CONSUMPTION (AVDD = DVDD = 1.8 V) Single-Tone Mode Rapid Power-Down Mode Full-Sleep Mode SYNCHRONIZATION FUNCTION 8 Maximum SYNC Clock Rate (DVDD_I/O = 1.8 V) Maximum SYNC Clock Rate (DVDD_I/O = 3.3 V) SYNC_CLK Alignment Resolution 9 AD9952 Temp Full Full Full Full Full Min 5 4 6 0 Unit ms SYSCLK cycles 7 ns ns ns 25°C 25°C 25°C 24 24 16 SYSCLK cycles SYSCLK cycles SYSCLK cycles 25°C 25°C 25°C 25°C 25°C 25°C 25°C 1.25 25°C 25°C 1.35 25°C 25°C 2.8 Max 0.6 2.2 3 0.8 12 12 2 25°C 25°C 25°C 25°C 25°C 25°C Typ 1 162 150 20 62.5 100 ±1 V V V V µA µA pF 0.4 V V 0.4 V V 171 160 27 mW mW mW MHz MHz SYSCLK cycles To achieve the best possible phase noise, the largest amplitude clock possible should be used. Reducing the clock input amplitude reduces the phase noise performance of the device. 2 Represents the cycle-to-cycle residual jitter from the comparator alone. 3 Represents the cycle-to-cycle residual jitter from the DDS core driving the comparator. 4 The maximum frequency of the serial I/O port refers to the maximum speed of the port during a write operation. During a register readback, the maximum port speed is restricted to 2 Mbps. 5 Setup time refers to the TCSU (setup time of the falling edge of CS to the SCLK rising edge) and TDSU (setup time of the data change on SDIO to the SCLK rising edge). 6 Wake-up time refers to the recovery from analog power-down modes (see the Power-Down Functions section). The longest time required is for the reference clock multiplier PLL to relock to the reference. The wake-up time assumes there is no capacitor on DACBP and that the recommended PLL loop filter values are used. 7 SYSCLK cycle refers to the actual clock frequency used on-chip by the DDS. If the reference clock multiplier is used to multiply the external reference clock frequency, the SYSCLK frequency is the external frequency multiplied by the reference clock multiplication factor. If the reference clock multiplier is not used, the SYSCLK frequency is the same as the external reference clock frequency. 8 SYNC_CLK = ¼ SYSCLK rate. For SYNC_CLK rates ≥ 50 MHz, the high speed sync enable bit, CFR2 [11], should be set. 9 This parameter indicates that the digital synchronization feature cannot overcome phase delays (timing skew) between system clock rising edges. If the system clock edges are aligned, the synchronization function should not increase the skew between the two edges. 1 Rev. C | Page 5 of 28 AD9952 Data Sheet ABSOLUTE MAXIMUM RATINGS Table 2. Parameter Maximum Junction Temperature DVDD_I/O AVDD, DVDD Digital Input Voltage (DVDD_I/O = 3.3 V) Digital Input Voltage (DVDD_I/O = 1.8 V) Digital Output Current Storage Temperature Range Operating Temperature Range Lead Temperature (10 sec Soldering) θJA θJC Rating 150°C 4V 2V –0.7 V to +5.25 V –0.7 V to +2.2 V 5 mA –65°C to +150°C –40°C to +105°C 300°C 38°C/W 15°C/W Stresses at or above those listed under Absolute Maximum Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational section of this specification is not implied. Operation beyond the maximum operating conditions for extended periods may affect product reliability. ESD CAUTION Rev. C | Page 6 of 28 Data Sheet AD9952 SYNC_IN DVDD_I/O DGND SDIO 45 44 43 42 41 SDO SYNC_CLK 46 IOSYNC OSK 47 SCLK DGND 48 CS DGND PIN CONFIGURATION AND FUNCTION DESCRIPTIONS 40 39 38 37 I/O UPDATE 1 DVDD 2 35 PWRDWNCTL DGND 3 34 DVDD 36 RESET AVDD 4 33 DGND AGND 5 32 AGND AVDD 6 AD9952 31 COMP_IN AGND 7 TOP VIEW (Not to Scale) 30 COMP_IN 8 9 29 AVDD 28 COMP_OUT 16 17 18 19 20 21 22 23 24 IOUT AGND DACBP DAC_RSET 15 IOUT 14 AVDD 13 AVDD 25 AVDD AVDD LOOP_FILTER 12 AGND 26 AGND AGND CLKMODESELECT 11 AVDD 27 AVDD AGND CRYSTAL OUT 10 03358-002 REFCLK REFCLK Figure 2. Pin Configuration Note that the exposed paddle on the bottom of the package is a ground connection for the DAC and must be attached to AGND in any board layout. Note that Pin 43, DVDD_I/O, can be powered to 1.8 V or 3.3 V; however, the DVDD pins (Pin 2 and Pin 34) can only be powered to 1.8 V. Table 3. 48-Lead TQFP/EP Pin No. 1 Mnemonic I/O UPDATE I/O I 2, 34 3, 33, 42, 47, 48 4, 6, 13, 16, 18, 19, 25, 27, 29 5, 7, 14, 15, 17, 22, 26, 32 8 DVDD DGND I I Description The rising edge transfers the contents of the internal buffer memory to the I/O registers. This pin must be set up and held around the SYNC_CLK output signal. Digital Power Supply Pins (1.8 V). Digital Power Ground Pins. AVDD I Analog Power Supply Pins (1.8 V). AGND I Analog Power Ground Pins. REFCLK I Complementary Reference Clock/Oscillator Input. When the REFCLK port is operated in singleended mode, REFCLK should be decoupled to AVDD with a 0.1 µF capacitor. 9 REFCLK I Reference Clock/Oscillator Input. See the Clock Input section for details on the oscillator/REFCLK operation. 10 11 CRYSTAL OUT CLKMODESELECT O I 12 LOOP_FILTER I 20 21 IOUT IOUT O O Output of the Oscillator Section. Control Pin for the Oscillator Section. When high, the oscillator section is enabled. When low, the oscillator section is bypassed. This pin provides the connection for the external zero compensation network of the REFCLK multiplier’s PLL loop filter. The network consists of a 1 kΩ resistor in series with a 0.1 µF capacitor tied to AVDD. Complementary DAC Output. Should be biased through a resistor to AVDD, not AGND. DAC Output. Should be biased through a resistor to AVDD, not AGND. Rev. C | Page 7 of 28 AD9952 Data Sheet Pin No. 23 24 Mnemonic DACBP DAC_RSET I/O I I 28 30 31 35 36 COMP_OUT COMP_IN COMP_IN PWRDWNCTL RESET O I I I I 37 IOSYNC I 38 SDO O 39 40 41 CS SCLK SDIO I I I/O 43 44 DVDD_I/O SYNC_IN I I 45 46 SYNC_CLK OSK O I Paddle Exposed Paddle I Description DAC Biasline Decoupling Pin. A 0.1 μF capacitor to AGND is recommended. A resistor (3.92 kΩ nominal) connected from AGND to DAC_RSET establishes the reference current for the DAC. Comparator Output. Comparator Input. Comparator Complementary Input. Input Pin Used as an External Power-Down Control. See Table 7 for additional information. Active High Hardware Reset Pin. Assertion of the RESET pin forces the AD9952 to the initial state, as described in the I/O port register map (see Table 5). Asynchronous Active High Reset of the Serial Port Controller. When high, the current I/O operation is immediately terminated, enabling a new I/O operation to commence once IOSYNC is returned low. If unused, ground this pin; do not allow this pin to float. When operating the I/O port as a 3-wire serial port, this pin serves as the serial data output. When operated as a 2-wire serial port, this pin is unused and can be left unconnected. This pin functions as an active low chip select that allows multiple devices to share the I/O bus. This pin functions as the serial data clock for I/O operations. When operating the I/O port as a 3-wire serial port, this pin serves as the serial data input only. When operated as a 2-wire serial port, this pin is the bidirectional serial data pin. Digital Power Supply. For I/O cells only, 3.3 V. Input signal used to synchronize multiple AD9952s. This input is connected to the SYNC_CLK output of a master AD9952. Clock output pin that serves as a synchronizer for external hardware. Input pin used to control the direction of the shaped on-off keying function when programmed for operation. OSK is synchronous to the SYNC_CLK pin. When OSK is not programmed, this pin should be tied to DGND. The exposed paddle on the bottom of the package is a ground connection for the DAC and must be attached to AGND in any board layout. Note that Pin 43, DVDD_I/O, can be powered to 1.8 V or 3.3 V; however, the DVDD pins (Pin 2 and Pin 34) can only be powered to 1.8 V. Rev. C | Page 8 of 28 Data Sheet AD9952 TYPICAL PERFORMANCE CHARACTERISTICS MKR1 98.0MHz –70.68dB ATTEN 10dB REF 0dBm 0 PEAK LOG –10 10dB/ –20 –20 –30 –30 MARKER 100.000000MHz –70.68dB –40 –50 –50 –60 W1 S2 S3 FC –70 AA –80 1 –90 –100 VBW 3kHz SPAN 200MHz SWEEP 55.56 s (401 PTS) 03358-003 –90 –100 CENTER 100MHz #RES BW 3kHz REF 0dBm 0 PEAK LOG 10dB/ –10 –20 MKR1 40.0MHz –56.2dB ATTEN 10dB 1R –30 MARKER 80.000000MHz –69.12dB –40 –50 MARKER 40.000000MHz –56.2dB –40 –50 –60 W1 S2 S3 FC –70 AA –80 1 –60 W1 S2 S3 FC –70 AA –80 1 –90 VBW 3kHz SPAN 200MHz SWEEP 55.56 s (401 PTS) –100 CENTER 100MHz #RES BW 3kHz Figure 4. FOUT = 10 MHz, FCLK = 400 MSPS, WBSFDR REF 0dBm 0 PEAK LOG –10 10dB/ ATTEN 10dB VBW 3kHz SPAN 200MHz SWEEP 55.56 s (401 PTS) 03358-007 CENTER 100MHz #RES BW 3kHz 03358-004 –90 –100 Figure 7. FOUT = 120 MHz, FCLK = 400 MSPS, WBSFDR MKR1 0Hz –68.44dB REF 0dBm 0 PEAK LOG 10dB/ –10 1R –20 ATTEN 10dB MKR1 0Hz –53.17dB 1R –20 –30 –50 SPAN 200MHz SWEEP 55.56 s (401 PTS) –20 –30 –40 VBW 3kHz Figure 6. FOUT = 80 MHz, FCLK = 400 MSPS, WBSFDR MKR1 80.0MHz –69.12dB ATTEN 10dB 1 CENTER 100MHz #RES BW 3kHz Figure 3. FOUT = 1 MHz, FCLK = 400 MSPS, WBSFDR REF 0dBm 0 PEAK 1R LOG 10dB/ –10 1R MARKER 80.000000MHz –61.55dB –40 –60 W1 S2 S3 FC –70 AA –80 MKR1 80.0MHz –61.55dB ATTEN 10dB 03358-006 REF 0dBm 0 PEAK 1R LOG –10 10dB/ –30 MARKER 40.000000MHz –68.44dB –40 –50 MARKER 80.000000MHz –53.17dB 1 –60 –60 W1 S2 S3 FC –70 AA –80 W1 S2 S3 FC –70 AA –80 1 –90 VBW 3kHz SPAN 200MHz SWEEP 55.56 s (401 PTS) Figure 5. FOUT = 40 MHz, FCLK = 400 MSPS, WBSFDR –100 CENTER 100MHz #RES BW 3kHz VBW 3kHz SPAN 200MHz SWEEP 55.56 s (401 PTS) Figure 8. FOUT = 160 MHz, FCLK = 400 MSPS, WBSFDR Rev. C | Page 9 of 28 03358-008 CENTER 100MHz #RES BW 3kHz 03358-005 –90 –100 AD9952 Data Sheet ATTEN 10dB 1 MKR1 1.105MHz –5.679dBm REF –4dBm 0 PEAK LOG –10 10dB/ –20 –20 –30 –30 MARKER 1.105000MHz –5.679dBm –40 –50 –40 –50 W1 S2 S3 FC –70 AA –80 –60 W1 S2 S3 FC –70 AA –80 –90 ST –100 –90 ST –100 CENTER 1.105MHz #RES BW 30Hz VBW 30Hz SPAN 2MHz SWEEP 199.2 s (401 PTS) 03358-009 –60 REF 0dBm 0 PEAK LOG 10dB/ –10 REF –4dBm 0 PEAK LOG 10dB/ –10 1R –20 –20 –30 –30 MARKER 40.000000MHz –56.2dB –40 –50 –40 –50 ATTEN 10dB 1 MKR1 120.205MHz –6.825dBm MARKER 120.205000MHz –6.825dBm –90 ST –100 CENTER 10MHz #RES BW 30Hz VBW 30Hz SPAN 2MHz SWEEP 199.2 s (401 PTS) 03358-010 1 CENTER 120.2MHz #RES BW 30Hz Figure 10. FOUT = 10 MHz, FCLK = 400 MSPS, NBSFDR, ±1 MHz REF 0dBm 0 PEAK LOG 10dB/ –10 SPAN 2MHz SWEEP 199.2 s (401 PTS) Figure 13. FOUT = 120.2 MHz, FCLK = 400 MSPS, NBSFDR, ±1 MHz MKR1 39.905MHz –5.347dBm ATTEN 10dB VBW 30Hz 03358-013 –90 –100 REF –4dBm 0 PEAK LOG 10dB/ –10 1 –20 ATTEN 10dB 1 MKR1 600kHz –0.911dB –20 –30 –30 MARKER 39.905000MHz –5.347dBm –40 –50 –60 W1 S2 S3 FC –70 AA –80 –90 –90 ST –100 –100 VBW 30Hz SPAN 2MHz SWEEP 199.2 s (401 PTS) 03358-011 –60 W1 S2 S3 FC –70 AA –80 CENTER 39.9MHz #RES BW 30Hz CENTER 160.5000000MHz Figure 11. FOUT = 39.9 MHz, FCLK = 400 MSPS, NBSFDR, ±1 MHz CENTER 160.5MHz #RES BW 30Hz VBW 30Hz SPAN 2MHz SWEEP 199.2 s (401 PTS) Figure 14. FOUT = 160 MHz, FCLK = 400 MSPS, NBSFDR, ±1 MHz Rev. C | Page 10 of 28 03358-014 –50 SPAN 2MHz SWEEP 199.2 s (401 PTS) –60 W1 S2 S3 FC –70 AA –80 –60 W1 S2 S3 FC –70 AA –80 –40 VBW 30Hz Figure 12. FOUT = 80.3 MHz, FCLK = 400 MSPS, NBSFDR, ±1 MHz MKR1 85kHz –93.01dB ATTEN 10dB MKR1 80.301MHz –6.318dBm MARKER 80.301000MHz –6.318dBm CENTER 80.25MHz #RES BW 30Hz Figure 9. FOUT = 1.1 MHz, FCLK = 400 MSPS, NBSFDR, ±1 MHz 1 ATTEN 10dB 03358-012 REF –4dBm 0 PEAK LOG –10 10dB/ 0 –10 –20 –30 –40 –50 –60 –70 –80 –90 –100 –110 –20 –30 –40 –50 –60 –70 –80 –90 –100 –110 –120 –130 –140 –150 –160 –170 10 L(f) (dBc/Hz) 0 –10 100 1k 10k f (Hz) 100k 1M 10M –120 –130 –140 –150 –160 –170 10 Figure 15. Residual Phase Noise with FOUT = 159.5 MHz, FCLK = 400 MSPS (Green), 4 MSPS × 100 MSPS (Red), and 20 MSPS × 20 MSPS (Blue) 100 10k 1k 100k 1M f (Hz) 03358-017 AD9952 03358-015 Figure 17. Residual Phase Noise with FOUT = 9.5 MHz, FCLK = 400 MSPS (Green), 4 MSPS ×100 MSPS (Red), and 20 MSPS × 20 MSPS (Blue) t1 = 3.156ns t2 = 3.04ns ∆t = –116.0PS 1/∆t = –8.621GHz FALL (R1) = 396.4PS RISE(R2) = 464.3PS R1 R2 CH1 200mVΩ M 200PS 20.0GS/S A CH1 708mV IT 4.0PS/PT 3.1ns 03358-016 1 REF2 200mV 500ns Figure 16. Residual Peak-to-Peak Jitter of DDS and Comparator Operating Together at 160 MHz M 500PS 20.0GS/S IT 10.0PS/PT –100PS A CH1 708mV Figure 18. Comparator Rise and Fall Time at 160 MHz Rev. C | Page 11 of 28 03358-018 L(f) (dBc/Hz) Data Sheet AD9952 Data Sheet EQUIVALENT INPUT/OUTPUT CIRCUITS COMPARATOR INPUTS DIGITAL INPUTS DVDD_I/O INPUT COMP_IN 03358-021 COMP_IN Figure 21. Comparator Inputs 03358-019 AVOID OVERDRIVING DIGITAL INPUTS. FORWARD-BIASING ESD DIODES MAY COUPLE DIGITAL NOISE ONTO POWER PINS. COMPARATOR OUTPUT Figure 19. Digital Inputs AVDD DIGITAL OUTPUTS IOUT 03358-022 IOUT MUST TERMINATE OUTPUTS TO AVDD FOR CURRENT FLOW. DO NOT EXCEED THE OUTPUT VOLTAGE COMPLIANCE RATING. 03358-020 Figure 22. Comparator Outputs Figure 20. DAC Outputs Rev. C | Page 12 of 28 Data Sheet AD9952 THEORY OF OPERATION COMPONENT BLOCKS Clock Input DDS Core The AD9952 supports various clock methodologies. Support for differential or single-ended input clocks and enabling of an onchip oscillator and/or a PLL multiplier is all controlled via userprogrammable bits. The AD9952 can be configured in one of six operating modes to generate the system clock. The modes are configured using the CLKMODESELECT pin, Control Function Register 1 (CFR1) [4], and CFR2 [7:3]. Connect the CLKMODESELECT external pin to logic high to enable the onchip crystal oscillator circuit. With the on-chip oscillator enabled, connect an external crystal to the REFCLK and REFCLKB inputs to produce a low frequency reference clock in the range of 20 MHz to 30 MHz. The signal generated by the oscillator is buffered before it is delivered to the rest of the chip. This buffered signal is available via the CRYSTAL OUT pin. CFR1 [4] can be used to enable or disable the buffer, turning on or turning off the system clock. The oscillator itself is not powered down to avoid long start-up times associated with turning on a crystal oscillator. Writing CFR2 [9] to logic high enables the crystal oscillator output buffer. Logic low at CFR2 [9] disables the oscillator output buffer. The output frequency (fO) of the DDS is a function of the frequency of the system clock (SYSCLK), the value of the frequency tuning word (FTW), and the capacity of the accumulator (232, in this case). The exact relationship is given below with fS defined as the frequency of SYSCLK. f O = (FTW )( f S )/ 2 32 with 0 ≤ FTW ≤ 2 31 f O = f S × (1 – (FTW / 2 32 )) with 2 31 < FTW < 2 32 – 1 The value at the output of the phase accumulator is translated to an amplitude value via the COS(x) functional block and routed to the DAC. To introduce a phase offset, the phase offset word, or POW, is used. The actual phase offset, F for the output of the DDS core, is determined by the following relationship: Φ = 360 POW 214 In certain applications, it is desirable to force the output signal to zero phase. Setting the FTW or POW to 0 does not accomplish this; it only results in the DDS core holding its current phase value or continuing to run at the current phase, respectively. To set the phase offset to zero, a control bit is required to force the phase accumulator output to zero. The bits to clear the phase accumulator are found in Control Function Register 1, Bit [13] and Bit [8]. At power-up, the clear phase accumulator bit is set to Logic 1, but the buffer memory for this bit is cleared (Logic 0). Therefore, upon power-up, the phase accumulator remains clear until the first I/O UPDATE is issued. Phase-Locked Loop (PLL) Connecting CLKMODESELECT to logic low disables the onchip oscillator and the oscillator output buffer. With the oscillator disabled, an external oscillator must provide the REFCLK and/or REFCLKB signals. For differential operation, these pins are driven with complementary signals. For singleended operation, a 0.1 µF capacitor should be connected between the unused pin and the analog power supply. With the capacitor in place, the clock input pin bias voltage is 1.35 V. In addition, the PLL can be used to multiply the reference frequency by an integer value in the range of 4 (decimal) to 20 (decimal). Table 4 summarizes the clock modes of operation. Note that the PLL multiplier is controlled via CFR2 [7:3], independent of CFR1 [4]. The PLL allows multiplication of the REFCLK frequency. Control of the PLL is accomplished by programming the 5-bit REFCLK multiplier portion of Control Function Register 2 (CFR2), Bits [7:3]. When programmed for values ranging from 0x04 to 0x14 (4 decimal to 20 decimal), the PLL multiplies the REFCLK input frequency by the corresponding decimal value. However, the maximum output frequency of the PLL is restricted to 400 MHz. Whenever the PLL value is changed, the user should be aware that time must be allocated to allow the PLL to lock (approximately 1 ms). The PLL is bypassed by programming a value outside the range of 4 (decimal) to 20 (decimal). When bypassed, the PLL is shut down to conserve power. Rev. C | Page 13 of 28 AD9952 Data Sheet Table 4. Clock Input Modes of Operation CFR1 [4] Low Low Low Low High CLKMODESELECT High High Low Low X CFR2 [7:3] 3 < M < 21 M < 4 or M > 20 3 < M < 21 M < 4 or M > 20 X Oscillator Enabled Yes Yes No No No System Clock FCLK = FOSC × M FCLK = FOSC FCLK = FOSC × M FCLK = FOSC FCLK = 0 Frequency Range (MHz) 80 < FCLK < 400 20 < FCLK < 30 80 < FCLK < 400 10 < FCLK < 400 N/A DAC Output Comparator The AD9952 incorporates an integrated 14-bit current output DAC. Unlike most DACs, this output is referenced to AVDD, not AGND. Many applications require a square wave signal rather than a sine wave. For example, in most clocking applications a high slew rate helps to reduce phase noise and jitter. To support these applications, the AD9952 includes an on-chip comparator. The comparator has a bandwidth greater than 200 MHz and a common-mode input range of 1.3 V to 1.8 V. By setting the comparator power-down bit, CFR1 [6], the comparator can be turned off to save on power consumption. Two complementary outputs provide a combined full-scale output current (IOUT). Differential outputs reduce the amount of common-mode noise that might be present at the DAC output, offering the advantage of an increased signal-to-noise ratio. The full-scale current is controlled by an external resistor (RSET) connected between the DAC_RSET pin and the DAC ground (AGND_DAC). The full-scale current is proportional to the resistor value as follows: RSET = 39.19 / IOUT The maximum full-scale output current of the combined DAC outputs is 15 mA, but limiting the output to 10 mA provides the best spurious-free dynamic range (SFDR) performance. The DAC output compliance range is AVDD + 0.5 V to AVDD – 0.5 V. Voltages developed beyond this range cause excessive DAC distortion and could potentially damage the DAC output circuitry. Proper attention should be paid to the load termination to keep the output voltage within this compliance range. Serial I/O Port The AD9952 serial port is a flexible, synchronous serial communications port that allows easy interface to many industry-standard microcontrollers and microprocessors. The serial I/O port is compatible with most synchronous transfer formats, including both the Motorola 6905/11 SPI® and Intel® 8051 SSR protocols. The interface allows read/write access to all registers that configure the AD9952. MSB first or LSB first transfer formats are supported. The AD9952 serial interface port can be configured as a single pin I/O (SDIO) that allows a 2-wire interface or two unidirectional pins for in/out (SDIO/SDO), which in turn enable a 3-wire interface. Two optional pins, IOSYNC and CS, enable greater flexibility for system design in the AD9952. Please see the Serial Port Operation section for details on how to program the AD9952 through the serial I/O port. Register Map and Descriptions The register map is listed in Table 5. Rev. C | Page 14 of 28 Data Sheet AD9952 Table 5. Register Map Register Name (Serial Address) Control Function Register 1 (CFR1) Register Address (0x00) Bit Range [7:0] (MSB) Bit 7 Digital PowerDown Bit 6 Comparator PowerDown Bit 5 DAC PowerDown [15:8] Not Used Not Used Auto Clr Phase Accum. [23:16] Automatic Sync Enable Software Manual Sync [31:24] Control Function Register 2 (CFR2) (0x01) Amplitude Scale Factor (ASF) Amplitude Ramp Rate (ARR) Frequency Tuning Word 0 (FTW0) (0x02) [23:16] [7:0] [15:8] (0x03) [7:0] (0x04) [7:0] [15:8] [23:16] [31:24] [7:0] [15:8] Phase Offset Word (POW) [7:0] [15:8] (0x05) Bit 4 Clock Input PowerDown Enable SINE Output Bit 3 External PowerDown Mode Not Used Bit 2 Not Used Bit 1 SYNC_CLK Out Disable Clear Phase Accum. SDIO Input Only Default Value 0x00 LSB First 0x00 Not Used Not Used Load ARR @ I/O UPDATE VCO Range 0x00 OSK Enable Auto OSK Keying Charge Pump Current [1:0] REFCLK Multiplier 0x00 or 0x01, or 0x02 or 0x03: Bypass Multiplier 0x04 to 0x14: 4× to 20× Multiplication Not Used High Hardware CRYSTAL Speed Manual OUT Pin Sync Sync Active Enable Enable Not Used Amplitude Scale Factor Register [7:0] Amplitude Scale Factor Register [13:8] Auto Ramp Rate Speed Control [1:0] Amplitude Ramp Rate Register [7:0] Not Used [1:0] (LSB) Bit 0 Not Used Frequency Tuning Word 0 [7:0] Frequency Tuning Word 0 [15:8] Frequency Tuning Word 0 [23:16] Frequency Tuning Word 0 [31:24] Phase Offset Word 0 [7:0] Phase Offset Word 0 [13:8] Rev. C | Page 15 of 28 Not Used 0x00 0x00 0x00 0x18 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 AD9952 Data Sheet The CFR1 bits control the functions, features, and modes of the AD9952. The functionality of each bit is detailed below. CFR1 [22] = 1. The software controlled manual synchronization feature is executed. The SYNC_CLK rising edge is advanced by one SYNC_CLK cycle and this bit is cleared. To advance the rising edge multiple times, this bit needs to be set for each advance (see the Synchronizing Multiple AD9952 section).. CFR1 [31:27]: Not Used CFR1 [21:14]: Not Used CFR1 [26]: Amplitude Ramp Rate Load Control Bit CFR1 [13]: Auto-Clear Phase Accumulator Bit CFR1 [26] = 0 (default). The amplitude ramp rate timer is loaded only upon timeout (timer = 1) and is not loaded due to an I/O UPDATE input signal. CFR1 [13] = 0 (default). The current state of the phase accumulator remains unchanged when the frequency tuning word is applied. CFR1 [26] = 1. The amplitude ramp rate timer is loaded upon timeout (timer = 1) or at the time of an I/O UPDATE input signal. CFR1 [13] = 1. This bit synchronously clears the phase accumulator automatically (by loadings 0s) for one cycle upon reception of an I/O UPDATE signal. CFR1 [25]: Shaped On-Off Keying Enable Bit CFR1 [12]: Sine/Cosine Select Bit CFR1 [25] = 0 (default). Shaped on-off keying is bypassed. CFR1 [12] = 0 (default). The angle-to-amplitude conversion logic employs a COSINE function. CONTROL REGISTER BIT DESCRIPTIONS Control Function Register 1 (CFR1) CFR1 [25] = 1. Shaped on-off keying is enabled. When enabled, CFR1 [24] controls the mode of operation for this function. CFR1 [24]: Auto Shaped On-Off Keying Enable Bit (only valid when CFR1[25] is active high) CFR1 [12] = 1. The angle-to-amplitude conversion logic employs a SINE function. CFR1 [11]: Not Used CFR1 [24] = 0 (default). When CFR1[25] is active, a Logic 0 on CFR1[24] enables the manual shaped on-off keying operation. Each amplitude sample sent to the DAC is multiplied by the amplitude scale factor. See the Shaped On-Off Keying section for details. CFR1 [10]: Clear Phase Accumulator CFR1 [10] = 0 (default). The phase accumulator functions as normal. CFR1 [10] = 1. The phase accumulator memory elements are cleared and held clear until this bit is cleared. CFR1 [24] = 1. When CFR1[25] is active, a Logic 1 on CFR1 [24] enables the auto shaped on-off keying operation. Toggling the OSK pin high causes the output scalar to ramp up from zero scale to the amplitude scale factor at a rate determined by the amplitude ramp rate. Toggling the OSK pin low causes the output to ramp down from the amplitude scale factor to zero scale at the amplitude ramp rate (see the Shaped On-Off Keying section). CFR1 [9] = 0 (default). The SDIO pin has bidirectional operation (2-wire serial programming mode). CFR1 [23]: Automatic Synchronization Enable Bit CFR1 [8]: LSB First CFR1 [23] = 0 (default). The automatic synchronization feature of multiple AD9952s is inactive. CFR1 [8] = 0 (default). MSB first format is active. CFR1 [23] = 1. The automatic synchronization feature of multiple AD9952s is active. The device synchronizes its internal synchronization clock (SYNC_CLK) to align to the signal present on the SYNC_IN input (see the Synchronizing Multiple AD9952 section). CFR1 [22]: Software Manual Synchronization of Multiple AD9952s CFR1 [9]: SDIO Input Only CFR1 [9] = 1. The serial data I/O pin (SDIO) is configured as an input only pin (3-wire serial programming mode). CFR1 [8] = 1. The serial interface accepts serial data in LSB-first format. CFR1 [7]: Digital Power-Down Bit CFR1 [7] = 0 (default). All digital functions and clocks are active. CFR1 [7] = 1. All non-I/O digital functionality is suspended, lowering the power significantly. CFR1 [22] = 0 (default). The manual synchronization feature is inactive. Rev. C | Page 16 of 28 Data Sheet AD9952 CFR1 [6]: Comparator Power-Down Bit CFR1 [6] = 0 (default). The comparator is enabled for operation. CFR1 [6] = 1. The comparator is disabled and is in its lowest power dissipation state. CFR2 [11] = 1. The high speed sync enhancement is on. This bit should be set when using the autosynchronization feature for SYNC_CLK inputs beyond 50 MHz, (200 MSPS SYSCLK). See the Synchronizing Multiple AD9952s section. CFR2 [10]: Hardware Manual Sync Enable Bit CFR1 [5]: DAC Power-Down Bit CFR2 [10] = 0 (default). The hardware manual sync function is off. CFR1 [5] = 0 (default). The DAC is enabled for operation. CFR2 [10] = 1. The hardware manual sync function is enabled. While this bit is set, a rising edge on the SYNC_IN pin causes the device to advance the SYNC_CLK rising edge by one REFCLK cycle. Unlike the software manual sync enable bit, this bit does not self-clear. Once the hardware manual sync mode is enabled, it stays enabled until this bit is cleared (see the Synchronizing Multiple AD9952 section). CFR1 [5] = 1. The DAC is disabled and is in its lowest power dissipation state. CFR1 [4]: Clock Input Power-Down Bit CFR1 [4] = 0 (default). The clock input circuitry is enabled for operation. CFR1 [4] = 1. The clock input circuitry is disabled and the device is in its lowest power dissipation state. CFR2 [9]: CRYSTAL OUT Enable Bit CFR2 [9] = 0 (default). The CRYSTAL OUT pin is inactive. CFR1 [3]: External Power-Down Mode CFR1 [3] = 0 (default). Selects the external rapid recovery power-down mode. In this mode, when the PWRDWNCTL input pin is high, the digital logic and the DAC digital logic are powered down. The DAC bias circuitry, PLL, oscillator, and clock input circuitry are not powered down. CFR1 [3] = 1. Selects the external full power-down mode. In this mode, when the PWRDWNCTL input pin is high, all functions are powered down. This includes the DAC and PLL, which take a significant amount of time to power up. CFR2 [9] = 1. The CRYSTAL OUT pin is active. When active, the crystal oscillator circuitry output drives the CRYSTAL OUT pin, which can be connected to other devices to produce a reference frequency. The oscillator responds to crystals in the range of 20 MHz to 30 MHz. CFR2 [8]: Not Used CFR2 [7:3]: Reference Clock Multiplier Control Bits CFR1 [2]: Not Used This 5-bit word controls the multiplier value out of the clockmultiplier (PLL) block. Valid values are 4 decimal to 20 decimal (0x04 to 0x14). Values entered outside this range bypass the clock multiplier. See the Phase-Locked Loop (PLL) section. CFR1 [1]: SYNC_CLK Disable Bit CFR2 [2]: VCO Range Control Bit CFR1 [1] = 0 (default). The SYNC_CLK pin is active. This bit is used to control the range setting on the VCO. CFR2 [2] = 0 (default). The VCO operates in a range of 100 MHz to 250 MHz. CFR1 [1] = 1. The SYNC_CLK pin assumes a static Logic 0 state to keep noise generated by the digital circuitry at a minimum. However, the synchronization circuitry remains active (internally) to maintain normal device timing. CFR2 [2] = 1. The VCO operates in a range of 250 MHz to 400 MHz. CFR1 [0]: Not Used, Leave at 0 CFR2 [1:0]: Charge Pump Current Control Bits Control Function Register 2 (CFR2) These bits are used to control the current setting on the charge pump. The default setting, CFR2 [1:0], sets the charge pump current to the default value of 75 µA. For each bit added (Bit 01, Bit 10, and Bit 11), 25 µA of current is added to the charge pump current: 100 µA, 125 µA, and 150 µA. The CFR2 bits control the functions, features, and modes of the AD9952, primarily related to the analog sections of the chip. CFR2 [23:12]: Not Used CFR2 [11]: High Speed Sync Enable Bit CFR2 [11] = 0 (default). The high speed sync enhancement is off. Rev. C | Page 17 of 28 AD9952 Data Sheet OTHER REGISTER DESCRIPTIONS PROGRAMMING FEATURES Amplitude Scale Factor (ASF) Phase Offset Control The ASF register stores the 2-bit auto ramp rate speed value and the 14-bit amplitude scale factor used in the output shaped keying (OSK) operation. In auto OSK operation, ASF [15:14] tell the OSK block how many amplitude steps to take for each increment or decrement. ASF [13:0] sets the maximum value for the OSK internal multiplier. In manual OSK mode, ASF [15:14] have no effect. ASF [13:0] provide the output scale factor directly. If the OSK enable bit is cleared, CFR1 [25] = 0, this register has no effect on device operation. A 14-bit phase offset (θ) can be added to the output of the phase accumulator by means of the control registers. This feature provides the user with two different methods of phase control. Amplitude Ramp Rate (ARR) The ARR register stores the 8-bit amplitude ramp rate used in the auto OSK mode. This register programs the rate at which the amplitude scale factor counter increments or decrements. If the OSK is set to manual mode, or if OSK enable is cleared, this register has no effect on device operation. Frequency Tuning Word 0 (FTW0) The frequency tuning word is a 32-bit register that controls the rate of accumulation in the phase accumulator of the DDS core. Its specific role depends on the device mode of operation. Phase Offset Word (POW) The phase offset word is a 14-bit register that stores a phase offset value. This offset value is added to the output of the phase accumulator to offset the current phase of the output signal. The exact value of phase offset is given by the following formula: POW Φ =  14  × 360°  2  The first method is a static phase adjustment, where a fixed phase offset is loaded into the appropriate phase offset register and left unchanged. The result is that the output signal is offset by a constant angle relative to the nominal signal. This allows the user to phase align the DDS output with some external signal, if necessary. In the second method of phase control, the user regularly updates the phase offset register via the I/O port. By properly modifying the phase offset as a function of time, the user can implement a phase modulated output signal. However, both the speed of the I/O port and the frequency of SYSCLK limit the rate at which phase modulation can be performed. The AD9952 allows for a programmable continuous zeroing of the phase accumulator as well as a clear and release or automatic zeroing function. Each feature is individually controlled via the CFR1 bits. CFR1 [13] is the automatic clear phase accumulator bit. CFR1 [10] clears the phase accumulator and holds the value to 0. Continuous Clear Bit The continuous clear bit is simply a static control signal that, when active high, holds the phase accumulator at 0 for the entire time the bit is active. When the bit goes low, inactive, the phase accumulator is allowed to operate. Clear and Release Function Or When set, the auto-clear phase accumulator clears and releases the phase accumulator upon receiving an I/O UPDATE. The automatic clearing function is repeated for every subsequent I/O UPDATE until the appropriate auto-clear control bit is cleared.  Φ  14 POW =  ×2  360°  where Φ is the desired phase offset, in degrees. MODES OF OPERATION Shaped On-Off Keying Single-Tone Mode In single-tone mode, the DDS core uses a single tuning word. Whatever value is stored in FTW0 is supplied to the phase accumulator. This value can only be changed manually, which is done by writing a new value to FTW0 and by issuing an I/O UPDATE. Phase adjustment is possible through the phase offset register. The shaped on-off keying function of the AD9952 allows the user to control the ramp-up and ramp-down time of an on-off emission from the DAC. This function is used in burst transmissions of digital data to reduce the adverse spectral impact of short, abrupt bursts of data. Auto and manual shaped on-off keying modes are supported. The auto mode generates a linear scale factor at a rate determined by the amplitude ramp rate (ARR) register controlled by an external pin (OSK). Manual mode allows the user to directly control the output amplitude by writing the scale factor value into the amplitude scale factor (ASF) register. Rev. C | Page 18 of 28 Data Sheet AD9952 The shaped on-off keying function can be bypassed (disabled) by clearing the OSK enable bit (CFR1 [25] = 0). The modes are controlled by two bits located in the most significant byte of the control function register (CFR). CFR1 [25] is the shaped on-off keying enable bit. When CFR1 [25] is set, the output scaling function is enabled and CFR1 [25] bypasses the function. CFR1 [24] is the internal shaped on-off keying active bit. When CFR1 [24] is set, internal shaped on-off keying mode is active; when CFR1 [24] is cleared, external shaped on-off keying mode is active. CFR1 [24] is a don’t care if the shaped on-off keying enable bit (CFR1 [25]) is cleared. The power-up condition of the shaped on-off keying is disabled (CFR1 [25] = 0). Figure 23 shows the block diagram of the OSK circuitry. Auto Shaped On-Off Keying Mode Operation The auto shaped on-off keying mode is active when CFR1 [25] and CFR1 [24] are set. When auto shaped on-off keying mode is enabled, a single-scale factor is internally generated and applied to the multiplier input for scaling the output of the DDS core block (see Figure 23). The scale factor is the output of a 14-bit counter that increments/decrements at a rate determined by the contents of the 8-bit output ramp rate register. The scale factor increases if the OSK pin is high and decreases if the OSK pin is low. The scale factor is an unsigned value such that all 0s multiply the DDS core output by 0 (decimal) and 0x3FFF multiplies the DDS core output by 16,383 (decimal). To use the full amplitude (14-bits) with fast ramp rates, the internally generated scale factor step size is controlled via the ASF [15:14]. Table 6 describes the increment/decrement step size of the internally generated scale factor per the ASF [15:14]. A special feature of this mode is that the maximum output amplitude allowed is limited by the contents of the amplitude scale factor register. This allows the user to ramp to a value less than full scale. Table 6. Auto Scale Factor Internal Step Size ASF [15:14] (Binary) 00 01 10 11 OSK Ramp Rate Timer The OSK ramp rate timer is a loadable down counter that generates the clock signal to the 14-bit counter, which, in turn, generates the internal scale factor. The ramp rate timer is loaded with the value of the ASFR every time the counter reaches 1 (decimal). This load and countdown operation continues for as long as the timer is enabled, unless the timer is forced to load before reaching a count of 1. If the load OSK timer bit (CFR1 [26]) is set, the ramp rate timer is loaded upon an I/O UPDATE or upon reaching a value of 1. The ramp timer can be loaded before reaching a count of 1 by three methods. The first method of loading is by changing the OSK input pin. When the OSK input pin changes state, the ASFR value is loaded into the ramp rate timer, which then proceeds to count down as normal. The second method in which the sweep ramp rate timer can be loaded before reaching a count of 1 is if the load OSK timer bit (CFR1 [26]) is set and an I/O UPDATE is issued. The last method in which the sweep ramp rate timer can be loaded before reaching a count of 1 is when going from the inactive auto shaped on-off keying mode to the active auto shaped on-off keying mode; that is, when the sweep enable bit is being set. DDS CORE 0 TO DAC AUTO DESK ENABLE CFR1[24] 1 COS(X) Increment/Decrement Size 1 2 4 8 OSK ENABLE CFR[25] OSK PIN 1 0 OUT LOAD OSK TIMER CFR1[26] AMPLITUDE RAMP RATE REGISTER (ASF) 0 AMPLITUDE SCALE FACTOR REGISTER (ASF) SYNC_CLK 1 HOLD UP/DN LOAD INC/DEC ENABLE DATA EN CLOCK AUTO SCALE FACTOR GENERATOR RAMP RATE TIMER Figure 23. On-Off Shaped Keying, Block Diagram Rev. C | Page 19 of 28 03358-023 0 AD9952 Data Sheet External Shaped On-Off Keying Mode Operation The external shaped on-off keying mode is enabled by writing CFR1 [25] to a Logic 1 and writing CFR1 [24] to a Logic 0. When configured for external shaped on-off keying, the content of the ASFR becomes the scale factor for the data path. The scale factors are synchronized to SYNC_CLK via the I/O UPDATE functionality. SYNCHRONIZING MULTIPLE AD9952s The AD9952 product allows easy synchronization of multiple AD9952s. There are three modes of synchronization available to the user: an automatic synchronization mode, a software controlled manual synchronization mode, and a hardware controlled manual synchronization mode. In all cases, to synchronize two or more devices, the following considerations must be observed. First, all units must share a common clock source. Trace lengths and path impedance of the clock tree must be designed to keep the phase delay of the different clock branches as closely matched as possible. Second, the I/O UPDATE signal’s rising edge must be provided synchronously to all devices in the system. Finally, regardless of the internal synchronization method used, the DVDD_I/O supply should be set to 3.3 V for all devices that are to be synchronized. AVDD and DVDD should be left at 1.8 V. In automatic synchronization mode, one device is chosen as a master; the other devices are slaved to this master. When configured in this mode, the slaves automatically synchronize their internal clocks to the SYNC_CLK output signal of the master device. To enter automatic synchronization mode, set the slave device’s automatic synchronization bit (CFR1 [23] = 1). Connect the SYNC_IN input(s) to the master SYNC_CLK output. The slave device continuously updates the phase relationship of its SYNC_CLK until it is in phase with the SYNC_IN input, which is the SYNC_CLK of the master device. When attempting to synchronize devices running at SYSCLK speeds beyond 250 MSPS, the high speed sync enhancement enable bit should be set (CFR2 [11] = 1). In software manual synchronization mode, the user forces the device to advance the SYNC_CLK rising edge one SYSCLK cycle (¼ SYNC_CLK period). To activate the manual synchronization mode, set the slave device’s software manual synchronization bit (CFR1 [22] = 1). The bit (CFR1 [22]) is cleared immediately. To advance the rising edge of the SYNC_CLK multiple times, this bit needs to be set multiple times. In hardware manual synchronization mode, the SYNC_IN input pin is configured such that it advances the rising edge of the SYNC_CLK signal each time the device detects a rising edge on the SYNC_IN pin. To put the device into hardware manual synchronization mode, set the hardware manual synchronization bit (CFR2 [10] = 1). Unlike the software manual synchronization bit, this bit does not self-clear. Once the hardware manual synchronization mode is enabled, all rising edges detected on the SYNC_IN input cause the device to advance the rising edge of the SYNC_CLK by one SYSCLK cycle until this enable bit is cleared (CFR2 [10] = 0). Using a Single Crystal to Drive Multiple AD9952 Clock Inputs The AD9952 crystal oscillator output signal is available on the CRYSTAL OUT pin, enabling one crystal to drive multiple AD9952s. To drive multiple AD9952s with one crystal, the CRYSTAL OUT pin of the AD9952 using the external crystal should be connected to the REFCLK input of the other AD9952. The CRYSTAL OUT pin is static until the CFR2 [9] bit is set, enabling the output. The drive strength of the CRYSTAL OUT pin is typically very low, so this signal should be buffered prior to using it to drive any loads. SERIAL PORT OPERATION The operations of the AD9952 are controlled by setup data and parameters loaded into the device by means of a serial I/O port. The internal control structure is organized as a series of registers. Each register is double-buffered. New data is first stored in I/O buffers as it is received. Subsequently, the data is transferred to the internal registers that actually control the device operation. While the I/O buffers are receiving new data, the old data that is already in the control registers continues to be used until the I/O buffers are transferred into the control registers. The transfer from I/O buffer to control registers requires an I/O update event. This event is triggered by sending a pulse to the I/O UPDATE pin. Step 1: Writing Data Through the Serial I/O Port to the I/O Buffers There are two phases to a serial I/O communication cycle: • Phase 1: Instruction (one byte) • Phase 2: Data (one or more bytes) Phase 1 is the instruction byte, clocked in by the first eight rising edges of SCLK. This single byte provides the AD9952 serial port controller with the information that it needs regarding the upcoming data phase, Phase 2. This information tells the serial port controller whether the data is a read or a write operation, as well as the address of the intended register. Once the controller knows the register address, the number of bytes of data to be expected is calculated automatically. The number of bytes transferred during Phase 2 depends on the particular register being accessed. For example, when the Control Function Register 2 is accessed, the data consists of three bytes (or 24 bits). However, if the Frequency Tuning Word 0 register is accessed, the data is four bytes (or 32 bits). Step 1 is complete when both the instruction byte and the required number of data bytes are written to or read from. Rev. C | Page 20 of 28 Data Sheet AD9952 Instruction Byte Details The instruction byte contains the following information. (MSB) D7 R/W D6 X D5 X D4 A5 D3 A4 D2 A3 D1 A2 (LSB) D0 A1 R/W—Bit 7 of the instruction byte determines whether a read or write data transfer occurs after the instruction byte write. Logic High indicates a read operation; a Logic 0 indicates a write operation. X, X—Bit 6 and Bit 5, respectively, of the instruction byte are don’t care. SYNC_CLK I/O UPDATE TSU DVDD I/O = 3.3V 1.8V I/O UPDATE TO SYNC_CLK SETUP TIME = 4ns 6ns Figure 24. Setup Time for I/O Update Pulse for Synchronous Data Transfer To transfer data without having to monitor the SYNC_CLK signal and without having to guarantee setup time, an alternate method is to provide an I/O update pulse for more than one SYNC_CLK period (more than four SYSCLK periods) asynchronously. If this is done, the I/O update pulse overlaps with at least one SYNC_CLK rising edge. However, there is no guarantee of which SYNC_CLK rising edge transfers the I/O buffer data to the registers. This method introduces an ambiguity of one SYNC_CLK cycle (four SYSCLK cycles) in the calculation of the propagation delay and should be avoided if propagation delay of data transfers is an important consideration. This method is shown in Figure 25. SYNC_CLK I/O UPDATE I/O UPDATE HIGH PULSE GREATER THAN 1 SYNC_CLK PERIOD A5, A4, A3, A2, A1—Bit 4, Bit 3, Bit 2, Bit 1, and Bit 0, respectively, of the instruction byte determine which register is accessed during the data transfer portion of the communication cycle. Step 2: Transfer of I/O Buffers to Registers 03358-025 All data written into the serial port is clocked into the I/O buffer on the rising edge of SCLK. All data read back from the serial port is clocked out on the falling edge of SCLK. Note that the readback operation reads data from registers, not the I/O buffers. If new data has been written to an I/O buffer, but an I/O update has not occurred, the old data stored in the register is read back (see Step 2: Transfer of I/O Buffers to Registers). Also, the serial I/O port speed of 25 Mbps refers solely to the speed of SCLK during a write operation. As the AD9952 does not generate data, the readback operation is considered a debug feature and is not supported beyond 1 Mbps. As shown in Figure 24, the I/O update pulse is sampled synchronously by the AD9952 on the rising edge of SYNC_CLK. Therefore, the I/O update pulse needs to be set up to the rising edge of the SYNC_CLK signal. 03358-026 After the completion of Phase 2, the AD9952 serial port controller expects the next eight SCLK rising edges to be a new instruction byte, followed by an appropriate number of data bytes. See the Example Operation section of this document for details. Figure 25. I/O Update Pulse in Asynchronous Data Transfer It should be noted that the exact transfer of data from the I/O buffers to the registers actually occurs one SYNC_CLK cycle after the I/O update signal is detected by the AD9952, as shown in Figure 26. When the desired setup data is written via the serial port to the I/O buffers, the registers must be updated by issuing an I/O update signal on the I/O UPDATE pin. The I/O update signal consists of a logic high pulse (DVDD_I/O) on the I/O UPDATE pin. Rev. C | Page 21 of 28 AD9952 Data Sheet SYSCLK A B A B SYNC_CLK I/O UPDATE DATA IN REGISTERS DATA 1 DATA 2 DATA 3 DATA 0 DATA 1 DATA 2 03358-031 DATA IN I/O BUFFERS THE DEVICE REGISTERS AN I/O UPDATE AT POINT A. THE DATA IS TRANSFERRED FROM THE I/O BUFFERS AT POINT B. Figure 26. Timing of I/O Update Signal vs. Actual Register Update Serial Interface Port Pin Description ●●● SCLK ●●● ●●● SDIO TCSU TDSU TDH DVDD I/O = 3.3V DVDD I/O = 1.8V TCSU = 3ns TDSU = 3ns TDH = 0ns TCSU = 5ns TDSU = 5ns TDH = 0ns TDH 03358-032 CS—Chip Select Bar. CS is active low input that allows more than one device on the same serial communication line. The SDO pin and SDIO pin go to a high impedance state when this input is high. If driven high during any communication cycle, the cycle is suspended until CS is reactivated low. Chip select can be tied low in systems that maintain control of SCLK. When toggling CS, it is important that care is taken to meet the clock setup time with respect to the falling edge of CS and TCSU (see Figure 27). CS Figure 27. Serial Port I/O Setup (TCSU, TDSU) and Hold (TDH) Times SCLK SDIO—Serial Data I/O. Data is always written into the AD9952 on this pin. However, this pin can be used as a bidirectional data line. Bit 9 of Register 0x00 controls the configuration of this pin. The default is Logic 0, which configures the SDIO pin as bidirectional. In order to guarantee proper serial I/O port operation (see Figure 27), data on this pin must be set up and held to the rising edge of SCLK on read operations. SDIO SDO TDV = 25ns 03358-033 SCLK—Serial Clock. The serial clock pin is used to synchronize data to and from the AD9952 and to run the internal state machines. SCLK maximum frequency is 25 MHz. Figure 28. Serial Port I/O Data Valid Time (TDV) During Readback MSB/LSB Transfers SDO—Serial Data Out. Data is read from this pin for protocols that use separate lines for transmitting and receiving data. In the case where the AD9952 operates in a single bidirectional I/O mode, this pin does not output data and is set to a high impedance state. The AD9952 serial port can support both most significant bit (MSB) first or least significant bit (LSB) first data formats. The control register, Register 0x00, Bit 8, controls this functionality. The default value of Register 0x00 [8] is low (MSB first). IOSYNC—Synchronizes the I/O port state machines without affecting the registers’ contents. An active high input on the IOSYNC pin causes the current communication cycle to abort. After IOSYNC returns low (Logic 0), another communication cycle can begin, starting with the instruction byte write. When the control register (0x00 [8]) is set high, the AD9952 serial port is in LSB-first format. The instruction byte must be written in the format indicated by the control register (0x00 [8]), and the instruction byte must be written from least significant bit to most significant bit (right to left in the table located in the Instruction Byte Details section). Note that even in LSB-first mode, the two respective phases of the communication cycle, the instruction byte phase and the data communication phase, retain their respective positions. Rev. C | Page 22 of 28 Data Sheet AD9952 When in LSB-first mode, the device reads the instruction byte first (LSB to MSB), then calculates the expected number of bytes from the address provided, and then receives/provides data from the referenced register in LSB-first format (LSB to MSB of the register selected). Example Operation In this example, the amplitude scale factor is calculated and written to present a 45° phase offset on the output of the AD9952. First, the default MSB-first case is considered. Then, the alternate LSB-first method is presented. For the purpose of the example, the following assumptions are made: • The microcontroller is currently meeting the setup and hold times for the serial I/O port (this is a software only example). • The phase offset change needs to occur at a known point in time (the data transfer needs to be synchronous). • No other values are written or altered during the example. MSB-First Mode (Default) Case First, the phase offset word (POW) needs to be calculated. Per the formula in the Phase Offset Word (POW) section, the POW is calculated to be 45/360 × 214 or 2048 (h’800). Next, the instruction byte to write to the POW needs to be sent. The first bit is 0, to indicate a write. The next two bits are don’t care bits, and are set to 0. The last 5 bits correspond to the POW address, which is h’05. This makes the instruction byte: b’00001001. Next, the data calculated in Step 1 is sent to the part. The POW is 2 bytes wide. To make the 14-bit value fit into the 16-bit register, the 2 MSBs are padded with don’t care bits. In this example, the don’t care bits are assumed to be 0. The 2 data bytes therefore are b’00001000 00000000. Once the 24 bits of data are sent to the part (8 bits of instruction byte and 16 bits of data), the phase offset word I/O buffer is changed, but the change has not been made in the phase offset word (POW) register. As no other data is being written in this example, the I/O update pulse, which is 1.5 SYNC_CLK cycles in duration, is sent to the I/O update pin. This transfers the data from the POW I/O buffer to the POW register. LSB First Mode Case The values calculated in the MSB-first mode case are still valid. The order of the bits in the instruction byte and in the data bytes for the POW need to be reversed. Finally, as before, the I/O update pin is pulsed with a high signal for duration of 1.5 SYNC_CLK cycles, to transfer the contents of the POW I/O buffer to the POW register. POWER-DOWN FUNCTIONS The AD9952 supports an externally controlled or hardware power-down feature as well as the more common software programmable power-down features found in other Analog Devices DDS products. The software control power-down allows the DAC, comparator, PLL, input clock circuitry, and digital logic to be individually powered down via unique control bits (CFR1 [7:4]). With the exception of CFR1 [6], these bits are not active when the externally controlled power-down pin (PWRDWNCTL) is high. External power-down control is supported on the AD9952 via the PWRDWNCTL input pin. When the PWRDWNCTL input pin is high, the AD9952 enters a power-down mode based on the CFR1 [3] bit. When the PWRDWNCTL input pin is low, the external power-down control is inactive. When the CFR1 [3] bit is 0 and the PWRDWNCTL input pin is high, the AD9952 is put into a fast recovery power-down mode. In this mode, the digital logic and the DAC digital logic are powered down. The DAC bias circuitry, comparator, PLL, oscillator, and clock input circuitry is not powered down. The comparator can be individually powered down by setting the comparator power-down bit, CFR1 [6] = 1. When the CFR1 [3] bit is high, and the PWRDWNCTL input pin is high, the AD9952 is put into the full power-down mode. In this mode, all functions are powered down. This includes the DAC and PLL, which take a significant amount of time to power up. When the PWRDWNCTL input pin is high, the individual power-down bits (CFR1 [7] and CFR1 [5:4]) are invalid (don’t care) and unused. When the PWRDWNCTL input pin is low, the individual power-down bits control the power-down modes of operation. Note that the power-down signals are all designed such that a Logic 1 indicates the low power mode and a Logic 0 indicates the active or power-up mode. Table 7 indicates the logic level for each power-down bit that drives out of the AD9952 core logic to the analog section and the digital clock generation section of the chip for the external power-down operation. First, the instruction byte is sent. Because the part is now in LSB-first mode, the value sent is b’10010000. Next, the data bytes are sent in LSB-first mode: b’00000000 00010000. Rev. C | Page 23 of 28 AD9952 Data Sheet Table 7. Power-Down Control Functions Control PWRDWNCTL = 0 CFR1 [3] don’t care Mode Active Software control PWRDWNCTL = 1 CFR1 [3] = 0 External control, fast recovery power-down mode PWRDWNCTL = 1 CFR1 [3] = 1 External control, full power-down mode Rev. C | Page 24 of 28 Description Digital power-down = CFR1 [7] Comparator power-down = CFR1 [6] DAC power-down = CFR1 [5] Input clock power-down = CFR1 [4] Digital power-down = 1’b1 Comparator power-down = 1’b0 or CFR1 [6] DAC power-down = 1’b0 Input clock power-down = 1’b0 Digital power-down = 1’b1 Comparator power-down = 1’b1 DAC power-down = 1’b1 Input clock power-down = 1’b1 Data Sheet AD9952 LAYOUT CONSIDERATIONS For the best performance, the following layout guidelines should be observed. Always provide the analog power supply (AVDD) and the digital power supply (DVDD) on separate supplies, even if just from two different voltage regulators driven by a common supply. Likewise, the ground connections (AGND, DGND) should be kept separate as far back to the source as possible (for example, separate the ground planes on a localized board, even if the grounds connect to a common point in the system). Bypass capacitors should be placed as close to the supply pin as possible. Usually, a multitiered bypassing scheme consisting of a small high frequency capacitor (100 pF) placed close to the supply pin and progressively larger capacitors (0.1 µF, 10 µF) placed further away from the actual supply source works best. Rev. C | Page 25 of 28 AD9952 Data Sheet SUGGESTED APPLICATION CIRCUITS MODULATED/ DEMODULATED SIGNAL AD9952 03358-027 RF/IF INPUT LPF REFCLK Figure 29. Synchronized LO for Upconversion/Down Conversion PHASE COMPARATOR LOOP FILTER VCO AD9952 FILTER 03358-028 REF SIGNAL TUNING WORD Figure 30. Digitally Programmable Divide-by-N Function in PLL TUNING WORD IOUT LPF IOUT LPF AD9952 DDS AD9952 03358-029 ON-CHIP COMPARATOR CMOS LEVEL CLOCK Figure 31. Frequency Agile Clock Generator FREQUENCY TUNING WORD PHASE OFFSET WORD 1 I/I-BAR BASEBAND REFCLK AD9952 DDS IOUT IOUT LPF REFCLK CRYSTAL OUT SYNC OUT RF OUT SYNC IN AD9952 DDS IOUT IOUT LPF REFCLK FREQUENCY TUNING WORD PHASE OFFSET WORD 2 Q/Q-BAR BASEBAND Figure 32. Two AD9952s Synchronized to Provide I Carriers and Q Carriers with Independent Phase Offsets for Nulling Rev. C | Page 26 of 28 03358-030 CRYSTAL Data Sheet AD9952 OUTLINE DIMENSIONS 9.00 BSC SQ 1.20 MAX BOTTOM VIEW (PINS UP) 37 36 48 1 37 36 48 1 7.00 BSC SQ PIN 1 3.50 SQ TOP VIEW (PINS DOWN) 0° MIN 1.05 1.00 0.95 0.15 0.05 SEATING PLANE 0.20 0.09 7° 3.5° 0° 0.08 MAX COPLANARITY EXPOSED PAD 12 13 VIEW A 25 24 25 24 0.50 BSC LEAD PITCH VIEW A ROTATED 90° CCW 12 13 0.27 0.22 0.17 FOR PROPER CONNECTION OF THE EXPOSED PAD, REFER TO THE PIN CONFIGURATION AND FUNCTION DESCRIPTIONS SECTION OF THIS DATA SHEET. COMPLIANT TO JEDEC STANDARDS MS-026-ABC 011708-A 0.75 0.60 0.45 Figure 33. 48-Lead Thin Quad Flat Package, Exposed Pad [TQFP_EP] (SV-48-4) Dimensions shown in millimeters ORDERING GUIDE Model 1 AD9952YSVZ AD9952YSVZ-REEL7 AD9954/PCBZ 1 Temperature Range –40°C to +105°C –40°C to +105°C Package Description 48-Lead Thin Quad Flat Package, Exposed Pad [TQFP_EP] 48-Lead Thin Quad Flat Package, Exposed Pad [TQFP_EP] Evaluation Board Used for the AD9952 Z = RoHS Compliant Part. Rev. C | Page 27 of 28 Ordering Quantity 500 Package Option SV-48-4 SV-48-4 AD9952 Data Sheet NOTES ©2003–2017 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners. D03358-0-2/17(C) Rev. C | Page 28 of 28
