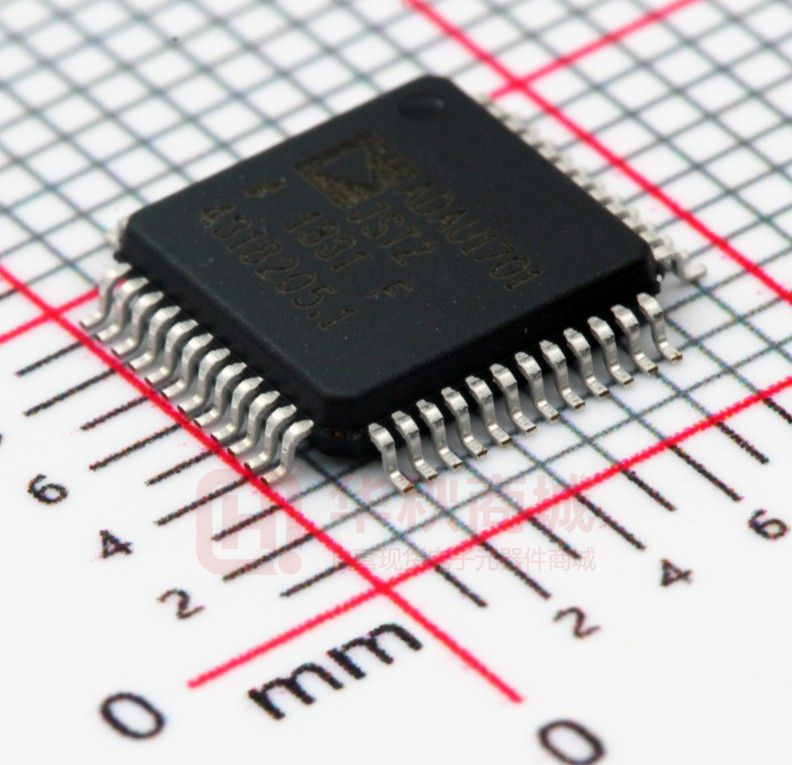

ADAU1701JSTZ

厂商：
AD(亚德诺)
封装：
LQFP48_7X7MM
描述：
带有两个ADC和四个DAC的SigmaDSP 28/56位音频处理器

数据手册：

下载ADAU1701JSTZ.pdf

立即购买

数据手册
价格&库存

ADAU1701JSTZ 数据手册

SigmaDSP 28-/56-Bit Audio Processor with Two ADCs and Four DACs ADAU1701 Data Sheet FEATURES GENERAL DESCRIPTION 28-/56-bit, 50 MIPS digital audio processor 2 ADCs: SNR of 100 dB, THD + N of −83 dB 4 DACs: SNR of 104 dB, THD + N of −90 dB Complete standalone operation Self-boot from serial EEPROM Auxiliary ADC with 4-input mux for analog control GPIOs for digital controls and outputs Fully programmable with SigmaStudio graphical tool 28-bit × 28-bit multiplier with 56-bit accumulator for full double-precision processing Clock oscillator for generating a master clock from crystal PLL for generating master clock from 64 × fS, 256 × fS, 384 × fS, or 512 × fS clocks Flexible serial data input/output ports with I2S-compatible, left-justified, right-justified, and TDM modes Sampling rates of up to 192 kHz are supported On-chip voltage regulator for compatibility with 3.3 V systems 48-lead, plastic LQFP The ADAU1701 is a complete single-chip audio system with a 28-/56-bit audio DSP, ADCs, DACs, and microcontroller-like control interfaces. Signal processing includes equalization, crossover, bass enhancement, multiband dynamics processing, delay compensation, speaker compensation, and stereo image widening. This processing can be used to compensate for real-world limitations of speakers, amplifiers, and listening environments, providing dramatic improvements in perceived audio quality. APPLICATIONS Multimedia speaker systems MP3 player speaker docks Automotive head units Minicomponent stereos Digital televisions Studio monitors Speaker crossovers Musical instrument effects processors In-seat sound systems (aircraft/motor coaches) Rev. C Its signal processing is comparable to that found in high end studio equipment. Most processing is done in full 56-bit, double precision mode, resulting in very good low level signal performance. The ADAU1701 is a fully programmable DSP. The easy to use SigmaStudio™ software allows the user to graphically configure a custom signal processing flow using blocks such as biquad filters, dynamics processors, level controls, and GPIO interface controls. ADAU1701 programs can be loaded on power-up either from a serial EEPROM through its own self-boot mechanism or from an external microcontroller. On power-down, the current state of the parameters can be written back to the EEPROM from the ADAU1701 to be recalled the next time the program is run. Two Σ-Δ ADCs and four Σ-Δ DACs provide a 98.5 dB analog input to analog output dynamic. Each ADC has a THD + N of −83 dB, and each DAC has a THD + N of −90 dB. Digital input and output ports allow a glueless connection to additional ADCs and DACs. The ADAU1701 communicates through an I2C® bus or a 4-wire SPI port. Document Feedback Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Trademarks and registered trademarks are the property of their respective owners. One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. Tel: 781.329.4700 ©2007–2016 Analog Devices, Inc. All rights reserved. Technical Support www.analog.com ADAU1701 Data Sheet TABLE OF CONTENTS Features .............................................................................................. 1 RAMs and Registers ....................................................................... 30 Applications ....................................................................................... 1 Address Maps .............................................................................. 30 General Description ......................................................................... 1 Parameter RAM .......................................................................... 30 Revision History ............................................................................... 3 Data RAM ................................................................................... 30 Functional Block Diagram .............................................................. 4 Read/Write Data Formats ......................................................... 30 Specifications..................................................................................... 5 Control Register Map ..................................................................... 32 Analog Performance .................................................................... 5 Control Register Details ................................................................ 34 Digital Input/Output .................................................................... 6 2048 to 2055 (0x0800 to 0x0807)—Interface Registers ......... 34 Power .............................................................................................. 6 2056 (0x0808)—GPIO Pin Setting Register ........................... 35 Temperature Range ...................................................................... 6 PLL and Oscillator ........................................................................ 6 2057 to 2060 (0x0809 to 0x080C)—Auxiliary ADC Data Registers ....................................................................................... 36 Regulator........................................................................................ 7 2064 to 2068 (0x0810 to 0x0814)—Safeload Data Registers 37 Digital Timing Specifications ..................................................... 7 2069 to 2073 (0x0815 to 0x819)—Safeload Address Registers ....................................................................................... 37 Absolute Maximum Ratings.......................................................... 10 Thermal Resistance .................................................................... 10 ESD Caution ................................................................................ 10 Pin Configuration and Function Descriptions ........................... 11 Typical Performance Characteristics ........................................... 14 2074 to 2075 (0x081A to 0x081B)—Data Capture Registers 38 2076 (0x081C)—DSP Core Control Register ......................... 39 2078 (0x081E)—Serial Output Control Register ................... 40 2079 (0x081F)—Serial Input Control Register....................... 41 System Block Diagram ................................................................... 15 2080 to 2081 (0x0820 to 0x0821)—Multipurpose Pin Configuration Registers............................................................. 42 Theory of Operation ...................................................................... 16 2082 (0x0822)—Auxiliary ADC and Power Control ............ 43 Initialization .................................................................................... 17 2084 (0x0824)—Auxiliary ADC Enable .................................. 43 Power-Up Sequence ................................................................... 17 2086 (0x0826)—Oscillator Power-Down ................................ 43 Control Registers Setup ............................................................. 17 2087 (0x0827)—DAC Setup...................................................... 44 Recommended Program/Parameter Loading Procedure ..... 17 Multipurpose Pins .......................................................................... 45 Power Reduction Modes............................................................ 17 Auxiliary ADC ............................................................................ 45 Using the Oscillator .................................................................... 18 General-Purpose Input/Output Pins ....................................... 45 Setting Master Clock/PLL Mode .............................................. 18 Serial Data Input/Output Ports ................................................ 45 Voltage Regulator ....................................................................... 19 Layout Recommendations............................................................. 48 Audio ADCs .................................................................................... 20 Parts Placement .......................................................................... 48 Audio DACs .................................................................................... 21 Grounding ................................................................................... 48 Control Ports ................................................................................... 22 Typical Application Schematics .................................................... 49 I2C Port ........................................................................................ 23 Self-Boot Mode ........................................................................... 49 SPI Port ........................................................................................ 26 I2C Control .................................................................................. 50 Self-Boot ...................................................................................... 27 SPI Control .................................................................................. 51 Signal Processing ............................................................................ 29 Outline Dimensions ....................................................................... 52 Numeric Formats........................................................................ 29 Ordering Guide .......................................................................... 52 Programming .............................................................................. 29 Rev. C | Page 2 of 52 Data Sheet ADAU1701 REVISION HISTORY 5/16—Rev. B to Rev. C Changes to Audio DACs Section and Figure 19 .........................21 6/11—Rev. A to Rev. B Deleted Table 2; Renumbered Sequentially ................................... 6 Changes to Table 4 ............................................................................ 6 2/11—Rev. 0 to Rev. A Moved Figure 1 .................................................................................. 4 Changes to Specifications Section................................................... 5 Changes to Table 8, Test Conditions/Comments Column .......... 8 Reordered Figures in Digital Timing Diagrams Section ............. 9 Changes to Figure 2........................................................................... 9 Changes to Figure 5 and Figure 6 ................................................. 10 Changes to Table 11 ........................................................................ 12 Replaced Figure 8 to Figure 11 ...................................................... 15 Renamed Theory of Operation Section ....................................... 17 Changes to Initialization Section .................................................. 18 Change to Setting the Master Clock/PLL Mode Section ........... 19 Changes to Table 15 ........................................................................ 23 Replaced Figure 22 through Figure 25 ......................................... 26 Changes to EEPROM Format Section.......................................... 28 Deleted Table 20, Renumbered Sequentially ............................... 29 Inserted Figure 28, Renumbered Sequentially ............................ 29 Changes to Control Register Details Section .............................. 35 Changes to Ordering Guide ........................................................... 53 7/07—Revision 0: Initial Version Rev. C | Page 3 of 52 ADAU1701 Data Sheet FUNCTIONAL BLOCK DIAGRAM DIGITAL DIGITAL ANALOG ANALOG PLL PLL LOOP VDD GROUND VDD GROUND MODE FILTER 2 2 3 3 3 CRYSTAL 3.3V 1.8V REGULATOR ADAU1701 2 CLOCK OSCILLATOR PLL 2 FILTA/ ADC_RES DAC STEREO ADC 28-/56-BIT, 50MIPS AUDIO PROCESSOR CORE 40ms DELAY MEMORY 2 RESET/ MODE SELECT CONTROL INTERFACE AND SELFBOOT 8-CH DIGITAL INPUT 8-BIT AUX ADC DAC 4-CHANNEL ANALOG OUTPUT 8-CH DIGITAL OUTPUT GPIO INPUT/OUTPUT MATRIX 5 3 RESET SELFBOOT I2C/SPI DIGITAL IN AND WRITEBACK OR GPIO 3 3 AUX ADC DIGITAL OUT OR GPIO OR GPIO Figure 1. Rev. C | Page 4 of 52 06412-001 2-CHANNEL ANALOG INPUT FILTD/CM Data Sheet ADAU1701 SPECIFICATIONS AVDD = 3.3 V, DVDD = 1.8 V, PVDD = 3.3 V, IOVDD = 3.3 V, master clock input = 12.288 MHz, unless otherwise noted. ANALOG PERFORMANCE Specifications are guaranteed at 25°C (ambient). Table 1. Parameter ADC INPUTS Number of Channels Resolution Full-Scale Input Signal-to-Noise Ratio A-Weighted Dynamic Range A-Weighted Total Harmonic Distortion + Noise Interchannel Gain Mismatch Crosstalk DC Bias Gain Error DAC OUTPUTS Number of Channels Resolution Full-Scale Analog Output Signal-to-Noise Ratio A-Weighted Dynamic Range A-Weighted Total Harmonic Distortion + Noise Crosstalk Interchannel Gain Mismatch Gain Error DC Bias VOLTAGE REFERENCE Absolute Voltage (CM) AUXILIARY ADC Full-Scale Analog Input INL DNL Offset Input Impedance Min Typ Max Unit 2 24 100 (283) Bits µA rms (µA p-p) 100 dB 100 −83 25 −82 1.5 dB dB mdB dB V % Test Conditions/Comments Stereo input 2 V rms input with 20 kΩ (18 kΩ external + 2 kΩ internal) series resistor −60 dB with respect to full-scale analog input 95 1.4 −11 250 1.6 +11 4 24 0.9 (2.5) Bits V rms (V p-p) 104 dB 104 −90 −100 25 dB dB dB mdB % V −3 dB with respect to full-scale analog input Analog channel-to-channel crosstalk Two stereo output channels −60 dB with respect to full-scale analog output 99 −10 1.4 1.5 250 +10 1.6 1.4 1.5 1.6 V 2.8 3.0 0.5 1.0 15 30 3.1 V LSB LSB mV kΩ 17.8 42 Rev. C | Page 5 of 52 −1 dB with respect to full-scale analog output Analog channel-to-channel crosstalk ADAU1701 Data Sheet DIGITAL INPUT/OUTPUT Table 2. Parameter Input Voltage, High Input Voltage, Low Input Leakage, High Input Leakage, Low Bidirectional Pin Pull-Up Current, Low MCLKI Input Leakage, High MCLKI Input Leakage, Low High Level Output Voltage Low Level Output Voltage Input Capacitance GPIO Output Drive 1 Symbol VIH VIL IIH IIL IIH IIL VOH VOL Min 2.0 Typ Max 1 IOVDD 0.8 1 1 150 3 3 2.0 0.8 5 2 Unit V V µA µA µA µA µA V V pF mA Test Conditions/Comments Excluding MCLKI Excluding MCLKI and bidirectional pins IOH = 2 mA IOL = 2 mA Maximum specifications are measured across a temperature range of −40°C to +130°C (case), a DVDD range of 1.62 V to 1.98 V, and an AVDD range of 2.97 V to 3.63 V. POWER Table 3. Parameter SUPPLY VOLTAGE Analog Voltage Digital Voltage PLL Voltage IOVDD Voltage SUPPLY CURRENT Analog Current (AVDD and PVDD) Digital Current (DVDD) Analog Current, Reset Digital Current, Reset DISSIPATION Operation (AVDD, DVDD, PVDD) 2 Reset, All Supplies POWER SUPPLY REJECTION RATIO (PSRR) 1 kHz, 200 mV p-p Signal at AVDD 1 2 Min Typ Max 1 3.3 1.8 3.3 3.3 50 40 35 1.5 Unit V V V V 85 60 55 4.5 mA mA mA mA 286.5 118 mW mW 50 dB Maximum specifications are measured across a temperature range of −40°C to +130°C (case), a DVDD range of 1.62 V to 1.98 V, and an AVDD range of 2.97 V to 3.63 V. Power dissipation does not include IOVDD power because the current drawn from this supply is dependent on the loads at the digital output pins. TEMPERATURE RANGE Table 4. Parameter Functionality Guaranteed Min 0 Typ Max 70 Unit °C ambient Min MCLK_Nom − 20% Typ Max MCLK_Nom + 20% 20 Unit MHz ms mmho PLL AND OSCILLATOR Table 5. PLL and Oscillator 1 Parameter PLL Operating Range PLL Lock Time Crystal Oscillator Transconductance (gm) 1 78 Maximum specifications are measured across a temperature range of −40°C to +130°C (case), a DVDD range of 1.62 V to 1.98 V, and an AVDD range of 2.97 V to 3.63 V. Rev. C | Page 6 of 52 Data Sheet ADAU1701 REGULATOR Table 6. Regulator 1 Parameter DVDD Voltage 1 Min 1.7 Typ 1.8 Max 1.84 Unit V Regulator specifications are calculated using a Zetex Semiconductors FZT953 transistor in the circuit. DIGITAL TIMING SPECIFICATIONS Table 7. Digital Timing 1 Parameter MASTER CLOCK tMP Limit tMAX Unit Test Conditions/Comments ns ns ns ns MCLKI period, 512 × fS mode MCLKI period, 384 × fS mode MCLKI period, 256 × fS mode MCLKI period, 64 × fS mode 40 40 10 10 ns ns ns ns tSIS 10 ns tSIH 10 ns tLOS tLOH tTS tSODS 10 10 5 40 ns ns ns ns 40 ns INPUT_BCLK (Pin 9) low pulse width INPUT_BCLK (Pin 9) high pulse width INPUT_LRCLK (Pin 8) setup; time to INPUT_BCLK rising INPUT_LRCLK (Pin 8) hold; time from INPUT_BCLK rising SDATA_INx (Pin 10, Pin 11, Pin 28, or Pin 29) setup; time to INPUT_BCLK (Pin 9) rising SDATA_INx (Pin 10, Pin 11, Pin 28, or Pin 29) hold; time from INPUT_BCLK (Pin 9) rising OUTPUT_LRCLK (Pin 16) setup in slave mode OUTPUT_LRCLK (Pin 16) hold in slave mode OUTPUT_BCLK (Pin 11) falling to OUTPUT_LRCLK (Pin 16) timing skew SDATA_OUTx (Pin 14, Pin 15, Pin 26, or Pin 27) delay in slave mode; time from OUTPUT_BCLK (Pin 11) falling SDATA_OUTx (Pin 14, Pin 15, Pin 26, or Pin 27) delay in master mode; time from OUTPUT_BCLK (Pin 11) falling 6.25 MHz ns ns ns ns ns ns ns ns CCLK (Pin 23) frequency CCLK (Pin 23) pulse width low CCLK (Pin 23) pulse width high CLATCH (Pin 21) setup; time to CCLK (Pin 23) rising CLATCH (Pin 21) hold; time from CCLK (Pin 23) rising CLATCH (Pin 21) pulse width high CDATA (Pin 20) setup; time to CCLK (Pin 23) rising CDATA (Pin 20) hold; time from CCLK (Pin 23) rising COUT (Pin 22) delay; time from CCLK (Pin 23) falling kHz µs µs µs µs ns ns ns ns ns SCL (Pin 23) frequency SCL (Pin 23) high SCL (Pin 23) low Setup time, relevant for repeated start condition Hold time; after this period, the first clock is generated Data setup time SCL (Pin 23) rise time SCL (Pin 23) fall time SDA (Pin 22) rise time SDA (Pin 22) fall time Bus-free time; time between stop and start SERIAL PORT tBIL tBIH tLIS tLIH tMIN 36 48 73 291 tSODM SPI PORT fCCLK tCCPL tCCPH tCLS tCLH tCLPH tCDS tCDH tCOD I2C PORT fSCL tSCLH tSCLL tSCS tSCH tDS tSCR tSCF tSDR tSDF tBFT 244 366 488 1953 80 80 0 100 80 0 80 101 400 0.6 1.3 0.6 0.6 100 300 300 300 300 0.6 Rev. C | Page 7 of 52 ADAU1701 Data Sheet Parameter MULTIPURPOSE PINS AND RESET tGRT tGFT tGIL tRLPW 1 tMIN Limit tMAX 50 50 1.5 × 1/fS 20 Unit Test Conditions/Comments ns ns μs ns GPIO (MPx pins) rise time GPIO (MPx pins) fall time GPIO (MPx pins) input latency; time until high/low value is read by core RESET low pulse width All timing specifications are given for the default (I2S) states of the serial input port and the serial output port (see Table 65). Digital Timing Diagrams tLIH tBIH INPUT_BCLK tBIL tLIS INPUT_LRCLK tSIS SDATA_INx LEFT-JUSTIFIED MODE MSB MSB – 1 tSIH tSIS SDATA_INx I2S MODE MSB tSIH tSIS tSIS SDATA_INx RIGHT-JUSTIFIED MODE LSB MSB tSIH tSIH 8-BIT CLOCKS (24-BIT DATA) 12-BIT CLOCKS (20-BIT DATA) 06412-002 14-BIT CLOCKS (18-BIT DATA) 16-BIT CLOCKS (16-BIT DATA) Figure 2. Serial Input Port Timing tCLS tCLH tCLPH tCCPL tCCPH CLATCH CCLK CDATA tCDH tCDS tCOD Figure 3. SPI Port Timing Rev. C | Page 8 of 52 06412-004 COUT Data Sheet ADAU1701 tDS tSCH tSCH SDA tSCR SCL tSCLL tSCS tSCF tBFT 06412-005 tSCLH Figure 4. I2C Port Timing tTS OUTPUT_BCLK tLOS OUTPUT_LRCLK SDATA_OUTx LEFT-JUSTIFIED MODE tSODS tSODM MSB MSB – 1 tSODS tSODM SDATA_OUTx I2S MODE MSB tSODS tSODM SDATA_OUTx RIGHT-JUSTIFIED MODE MSB LSB 8-BIT CLOCKS (24-BIT DATA) 12-BIT CLOCKS (20-BIT DATA) 06412-003 14-BIT CLOCKS (18-BIT DATA) 16-BIT CLOCKS (16-BIT DATA) Figure 5. Serial Output Port Timing tMP RESET tRLPW Figure 6. Master Clock and RESET Timing Rev. C | Page 9 of 52 06412-006 MCLKI ADAU1701 Data Sheet ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE Table 8. Parameter DVDD to GND AVDD to GND IOVDD to GND Digital Inputs Maximum Junction Temperature Temperature Range Storage Operating Soldering (10 sec) Rating 0 V to 2.2 V 0 V to 4.0 V 0 V to 4.0 V DGND − 0.3 V, IOVDD + 0.3 V 135°C θJA is specified for the worst-case conditions, that is, a device soldered in a circuit board for surface-mount packages. −65°C to +150°C 0°C to +70°C 300°C ESD CAUTION Table 9. Thermal Resistance Package Type 48-Lead LQFP Stresses at or above those listed under Absolute Maximum Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational section of this specification is not implied. Operation beyond the maximum operating conditions for extended periods may affect product reliability. Rev. C | Page 10 of 52 θJA 72 θJC 19.5 Unit °C/W Data Sheet ADAU1701 AGND PLL_MODE0 PLL_MODE1 CM FILTD AGND VOUT3 VOUT2 VOUT1 VOUT0 FILTA AVDD PIN CONFIGURATION AND FUNCTION DESCRIPTIONS 48 47 46 45 44 43 42 41 40 39 38 37 AGND 1 ADC0 2 ADC_RES ADC1 RESET 5 36 AVDD 35 PLL_LF 3 34 PVDD 4 33 PGND 32 MCLKI 31 OSCO 30 RSVD PIN 1 INDICATOR ADAU1701 TOP VIEW (Not to Scale) SELFBOOT 6 ADDR0 7 MP4 8 29 MP2 MP5 9 28 MP3 MP1 10 MP0 11 27 MP8 26 MP9 DGND 12 25 DGND 06412-007 DVDD SCL/CCLK SDA/COUT CLATCH/WP ADDR1/CDATA/WB MP11 IOVDD VDRIVE MP10 MP6 MP7 DVDD 13 14 15 16 17 18 19 20 21 22 23 24 Figure 7. 48-Lead LQFP Pin Configuration Table 10. Pin Function Descriptions Pin No. 1, 37, 42 Mnemonic AGND Type 1 PWR 2 ADC0 A_IN 3 ADC_RES A_IN 4 ADC1 A_IN 5 RESET D_IN 6 SELFBOOT D_IN 7 ADDR0 D_IN 8 MP4 D_IO 9 MP5 D_IO 10 MP1 D_IO 11 MP0 D_IO 12, 25 DGND PWR 13, 24 DVDD PWR Description Analog Ground Pin. The AGND, DGND, and PGND pins can be tied directly together in a common ground plane. Decouple AGND to an AVDD pin with a 100 nF capacitor. Analog Audio Input 0. Full-scale 100 μA rms input. Current input allows input voltage level to be scaled with an external resistor. An 18 kΩ resistor gives a 2 V rms full-scale input. See the Audio ADCs section for details. ADC Reference Current. Set the full-scale current of the ADCs with an external 18 kΩ resistor connected between this pin and ground. See the Audio ADCs section for details. Analog Audio Input 1. Full-scale 100 μA rms input. Current input allows the input voltage level to be scaled with an external resistor. An 18 kΩ resistor gives a 2 V rms full-scale input. Active Low Reset Input. Reset is triggered on a high-to-low edge, and the ADAU1701 exits reset on a low-to-high edge. For more information about initialization, see the Power-Up Sequence section for details. Enable/Disable Self-Boot. SELFBOOT selects control port (low) or self-boot (high). Setting this pin high initiates a self-boot operation when the ADAU1701 is brought out of a reset. This pin can be tied directly to the control voltage or pulled up/down with a resistor. See the Self-Boot section for details. I2C and SPI Address 0. In combination with ADDR1 function on Pin 20, this pin allows up to four ADAU1701 devices to be used on the same I2C bus and up to two ICs to be used with a common SPI CLATCH signal. See the I2C Port section for details. Multipurpose GPIO or Serial Input Port LRCLK (INPUT_LRCLK). See the Multipurpose Pins section for more details. Multipurpose GPIO or Serial Input Port BCLK (INPUT_BCLK). See the Multipurpose Pins section for more details. Multipurpose GPIO or Serial Input Port Data 1 (SDATA_IN0). See the Multipurpose Pins section for more details. Multipurpose GPIO or Serial Input Port Data 0 (SDATA_IN1). See the Multipurpose Pins section for more details. Digital Ground Pin. The AGND, DGND, and PGND pins can be tied directly together in a common ground plane. Decouple DGND to a DVDD pin with a 100 nF capacitor. 1.8 V Digital Supply. This can be supplied either externally or generated from a 3.3 V supply with the on-board 1.8 V regulator. Decouple DVDD to DGND with a 100 nF capacitor. Rev. C | Page 11 of 52 ADAU1701 Data Sheet Pin No. 14 Mnemonic MP7 Type 1 D_IO 15 MP6 D_IO 16 MP10 D_IO 17 VDRIVE A_OUT 18 IOVDD PWR 19 MP11 D_IO 20 ADDR1/CDATA/WB D_IN 21 CLATCH/WP D_IO 22 SDA/COUT D_IO 23 SCL/CCLK D_IO 26 MP9 D_IO/A_IO 27 MP8 D_IO/A_IO 28 MP3 D_IO/A_IO 29 MP2 D_IO/A_IO 30 31 RSVD OSCO D_OUT 32 MCLKI D_IN Description Multipurpose GPIO or Serial Output Port Data 1 (SDATA_OUT1). See the Multipurpose Pins section for more details. Multipurpose GPIO, Serial Output Port Data 0, or TDM Data Output (SDATA_OUT0). See the Multipurpose Pins section for more details. Multipurpose GPIO or Serial Output Port LRCLK (OUTPUT_LRCLK). See the Multipurpose Pins section for more details. Drive for 1.8 V Regulator. The base of the voltage regulator external PNP transistor is driven from VDRIVE. See the Voltage Regulator section for details. Supply for Input and Output Pins. The voltage on this pin sets the highest input voltage that should be seen on the digital input pins. This pin is also the supply for the digital output signals on the control port and MP pins. Always set IOVDD to 3.3 V. The current draw of this pin is variable because it is dependent on the loads of the digital outputs. Multipurpose GPIO or Serial Output Port BCLK (OUTPUT_BCLK). See the Multipurpose Pins section for more details. I2C Address 1/SPI Data Input/EEPROM Write Back Trigger. This is a multifunction pin as follows: ADDR1: I2C Address 1. In combination with ADDR0, this sets the I2C address of the IC so that four ADAU1701 devices can be used on the same I2C bus. See the I2C Port section for details. CDATA: SPI Data Input. See the SPI Port section for details. WB: EEPROM Writeback Trigger. A rising (default) or falling (if set in the EEPROM messages) edge on this pin triggers a writeback of the interface registers to the external EEPROM. This function can be used to save parameter data on power-down. See the Self-Boot section for details. SPI Latch Signal/Self-Boot EEPROM Write Protect. This is a multifunction pin as follows: CLATCH: SPI Latch Signal. Must go low at the beginning of an SPI transaction and high at the end of a transaction. Each SPI transaction can take a different number of cycles on the CCLK pin to complete, depending on the address and read/write bit that are sent at the beginning of the SPI transaction. See the SPI Port section for details. WP: Self-Boot EEPROM Write Protect. This pin is an open-collector output when in self-boot mode. The ADAU1701 pulls this low to enable writes to an external EEPROM. This pin should be pulled high to 3.3 V. See the Self-Boot section for details. I2C Data/SPI Data Output. This is a multifunction pin, as follows: SDA: I2C Data. This pin is a bidirectional open-collector. The line connected to this pin should have a 2.2 kΩ pull-up resistor. See the I2C Port section for details. COUT: This SPI data output is used for reading back registers and memory locations. It is three-stated when an SPI read is not active. See the SPI Port section for details. I2C Clock/SPI Clock. This is a dual function pin, as follows: SCL: I2C Clock. This pin is always an open-collector input when in I2C control mode. In selfboot mode, this pin is an open-collector output (I2C master). The line connected to this pin should have a 2.2 kΩ pull-up resistor. See the I2C Port section for details. CCLK: SPI Clock. This pin can either run continuously or be gated off between SPI transactions. See the SPI Port section for details. Multipurpose GPIO, Serial Output Port Data 3 (SDATA_OUT3), or Auxiliary ADC Input 0. See the Multipurpose Pins section for more details. Multipurpose GPIO, Serial Output Port Data 2 (SDATA_OUT2), or Auxiliary ADC Input 3. See the Multipurpose Pins section for more details. Multipurpose GPIO, Serial Input Port Data 3 (SDATA_IN3), or Auxiliary ADC Input 2. See the Multipurpose Pins section for more details. Multipurpose GPIO, Serial Input Port Data 2 (SDATA_IN2), or Auxiliary ADC Input 1. See the Multipurpose Pins section for more details. Reserved. Tie to ground, either directly or through a pull-down resistor. Crystal Oscillator Circuit Output. Connect a 100 Ω damping resistor between this pin and the crystal. Do not use this output to directly drive a clock to another IC. If the crystal oscillator is not used, this pin can be left disconnected. See the Using the Oscillator section for details. Master Clock Input. MCLKI can either be connected to a 3.3 V clock signal or be the input from the crystal oscillator circuit. See the Setting Master Clock/PLL Mode section for details. Rev. C | Page 12 of 52 Data Sheet ADAU1701 Pin No. 33 Mnemonic PGND Type 1 PWR 34 PVDD PWR 35 PLL_LF A_OUT 36, 48 38, 39 PWR D_IN 40 AVDD PLL_MODE0, PLL_MODE1 CM 41 FILTD A_OUT 43 to 46 VOUT3 A_OUT 44 VOUT2 A_OUT 45 VOUT1 A_OUT 46 VOUT0 A_OUT 47 FILTA A_OUT A_OUT Description PLL Ground Pin. The AGND, DGND, and PGND pins can be tied directly together in a common ground plane. Decouple PGND to PVDD by using a 100 nF capacitor. 3.3 V Power Supply for the PLL and the Auxiliary ADC Analog Section. Decouple this pin to PGND by using a 100 nF capacitor. PLL Loop Filter Connection. Two capacitors and a resistor need to be connected to this pin, as shown in Figure 15. See the Setting Master Clock/PLL Mode section for more details. 3.3 V Analog Supply. Decouple this pin to AGND by using a 100 nF capacitor. PLL Mode Setting. PLL_MODE0 and PLL_MODE1 set the output frequency of the master clock PLL. See the Setting Master Clock/PLL Mode section for more details. 1.5 V Common-Mode Reference. Connect a 47 μF decoupling capacitor between this pin and ground to reduce crosstalk between the ADCs and DACs. The material of the capacitors is not critical. This pin can be used to bias external analog circuits, as long as those circuits are not drawing current from the pin (such as when CM is connected to the noninverting input of an op amp). DAC Filter Decoupling Pin. Connect a 10 μF capacitor between this pin and ground. The capacitor material is not critical. The voltage on this pin is 1.5 V. VOUT DAC Output. The full-scale output voltage is 0.9 V rms. This output can be used with either an active or passive output reconstruction filter. See the Audio DACs section for details. VOUT2 DAC Output. The full-scale output voltage is 0.9 V rms. This output can be used with either an active or passive output reconstruction filter. See the Audio DACs section for details. VOUT1 DAC Output. The full-scale output voltage is 0.9 V rms. This output can be used with either an active or passive output reconstruction filter. See the Audio DACs section for details. VOUT0 DAC Output. The full-scale output voltage is 0.9 V rms. This output can be used with either an active or passive output reconstruction filter. See the Audio DACs section for details. ADC Filter Decoupling Pin. A 10 μF capacitor should be connected between this pin and ground. The capacitor material is not critical. The voltage on this pin is 1.5 V. 1 PWR = power/ground, A_IN = analog input, D_IN = digital input, A_OUT = analog output, D_IO = digital input/output, D_IO/A_IO = digital input/output or analog input/output. Rev. C | Page 13 of 52 ADAU1701 Data Sheet TYPICAL PERFORMANCE CHARACTERISTICS 0.10 0.20 fS = 48kHz fS = 48kHz 0.08 0.15 0.06 0.10 0.04 GAIN (dB) GAIN (dB) 0.05 0 –0.05 0.02 0 –0.02 –0.04 –0.10 –0.06 –0.15 2 4 6 8 10 12 14 16 18 20 FREQUENCY (kHz) 22 –0.10 15 10 20 FREQUENCY (kHz) Figure 8. ADC Pass-Band Filter Response Figure 10. DAC Pass-Band Filter Response 10 0 –10 –20 –20 –30 –30 GAIN (dB) –10 –40 –50 –40 –50 –60 –60 –70 –70 –80 –80 –90 –100 5 10 15 20 25 30 35 FREQUENCY (kHz) 40 45 06412-009 –90 –100 0 fS = 48kHz 0 fS = 48kHz 0 2 4 6 8 10 12 14 16 FREQUENCY (kHz) Figure 11. DAC Stop-Band Filter Response Figure 9. ADC Stop-Band Filter Response Rev. C | Page 14 of 52 18 20 06412-011 10 GAIN (dB) 5 0 06412-010 0 06412-008 –0.20 –0.08 Data Sheet ADAU1701 SYSTEM BLOCK DIAGRAM 3.3V 100nF 100nF 3.3V TO 1.8V REGULATOR CIRCUIT 100nF 100nF 10µF + 10µF + IOVDD PVDD AVDD DVDD VDRIVE 18kΩ ADC0 AUDIO ADC INPUT SIGNALS 18kΩ VOUT0 ADC1 VOUT1 18kΩ DAC OUTPUT FILTERS (ACTIVE OR PASSIVE) ADC_RES VOUT2 FILTA + 10µF VOUT3 100nF FILTD 10µF MP0 MULTIPURPOSE PIN INTERFACES 100nF MP1 MP2 ADCs + ADAU1701 DACs MP3 CM MP4 10µF + 100nF MP5 MP6 MP7 MP8 MP9 MP10 ADDR0 MP11 ADDR1/CDATA/WB CLATCH/WP 3.3V SDA/COUT 475Ω 3.3nF EEPROM, MICROCONTROLLER, AND/OR SELFBOOT LOGIC 56nF SCL/CCLK PLL_LF PLL_MODE0 PLL SETTINGS SELFBOOT PLL_MODE1 MCLKI RESET RESET LOGIC 3MHz TO 25MHz 22pF 100Ω OSCO RSVD AGND DGND PGND 06412-012 22pF Figure 12. System Block Diagram Rev. C | Page 15 of 52 ADAU1701 Data Sheet THEORY OF OPERATION The core of the ADAU1701 is a 28-bit DSP (56-bit with doubleprecision processing) optimized for audio processing. The program and parameter RAMs can be loaded with a custom audio processing signal flow built by using SigmaStudio graphical programming software from Analog Devices, Inc. The values stored in the parameter RAM control individual signal processing blocks, such as equalization filters, dynamics processors, audio delays, and mixer levels. A safeload feature allows for transparent parameter updates and prevents clicks in the output signals. The program RAM, parameter RAM, and register contents can be saved in an external EEPROM, from which the ADAU1701 can self-boot on startup. In this standalone mode, parameters can be controlled through the on-board multipurpose pins. The ADAU1701 can accept controls from switches, potentiometers, rotary encoders, and IR receivers. Parameters such as volume and tone settings can be saved to the EEPROM on power-down and recalled again on power-up. The ADAU1701 can operate with digital or analog inputs and outputs, or a mix of both. The stereo ADC and four DACs each have an SNR of at least +100 dB and a THD + N of at least −83 dB. The 8-channel, flexible serial data input/output ports allow glueless interconnection to a variety of ADCs, DACs, general-purpose DSPs, S/PDIF receivers and transmitters, and sample rate converters. The serial ports of the ADAU1701 can be configured in I2S, left-justified, right-justified, or TDM serial port-compatible modes. Twelve multipurpose (MP) pins allow the ADAU1701 to receive external control signals as input and to output flags or controls to other devices in the system. The MP pins can be configured as digital I/Os, inputs to the 4-channel auxiliary ADC, or serial data I/O ports. As inputs, they can be connected to buttons, switches, rotary encoders, potentiometers, IR receivers, or other external circuitry to control the internal signal processing program. When configured as outputs, these pins can be used to drive LEDs, control other ICs, or connect to other external circuitry in an application. The ADAU1701 has a sophisticated control port that supports complete read/write capability of all memory locations. Control registers are provided to offer complete control of the configuration and serial modes of the chip. The ADAU1701 can be configured for either SPI or I2C control, or can self-boot from an external EEPROM. An on-board oscillator can be connected to an external crystal to generate the master clock. In addition, a master clock phase- locked loop (PLL) allows the ADAU1701to be clocked from a variety of different clock speeds. The PLL can accept inputs of 64 × fS, 256 × fS, 384 × fS, or 512 × fS to generate the internal master clock of the core. The SigmaStudio software is used to program and control the SigmaDSP® through the control port. Along with designing and tuning a signal flow, the tools can be used to configure all of the DSP registers and burn a new program into the external EEPROM. The SigmaStudio graphical interface allows anyone with digital or analog audio processing knowledge to easily design a DSP signal flow and port it to a target application. At the same time, it provides enough flexibility and programmability for an experienced DSP programmer to have in-depth control of the design. In SigmaStudio, the user can connect graphical blocks (such as biquad filters, dynamics processors, mixers, and delays), compile the design, and load the program and parameter files into the ADAU1701memory through the control port. Signal processing blocks available in the provided libraries include • • • • • • • • • • • • • Single- and double-precision biquad filters Processors with peak or rms detection for monochannel and multichannel dynamics Mixers and splitters Tone and noise generators Fixed and variable gain Loudness Delay Stereo enhancement Dynamic bass boost Noise and tone sources FIR filters Level detectors GPIO control and conditioning Additional processing blocks are always being developed. Analog Devices also provides proprietary and third-party algorithms for applications such as matrix decoding, bass enhancement, and surround virtualizers. Contact Analog Devices for information about licensing these algorithms. The ADAU1701 operates from a 1.8 V digital power supply and a 3.3 V analog supply. An on-board voltage regulator can be used to operate the chip from a single 3.3 V supply. It is fabricated on a single monolithic, integrated circuit and is packaged in a 48-lead LQFP for operation over the 0°C to +70°C temperature range. Rev. C | Page 16 of 52 Data Sheet ADAU1701 INITIALIZATION This section details the procedure for properly setting up the ADAU1701. The following five-step sequence provides an overview of how to initialize the IC: 5. Apply power to ADAU1701. Wait for PLL to lock. Load SigmaDSP program and parameters. Set up registers (including multipurpose pins and digital interfaces). Turn off the default muting of the converters, clear the data registers, and initialize the DAC setup register (see the Control Registers Setup section for specific settings). To only test analog audio pass-through (ADCs to DACs), skip Step 3 and Step 4 and use the default internal program. CONTROL REGISTERS SETUP The following registers must be set as described in this section to initialize the ADAU1701. These settings are the basic minimum settings needed to operate the IC with an analog input/output of 48 kHz. More registers may need to be set, depending on the application. See the RAMs and Registers section for additional settings. DSP Core Control Register (Address 2076) POWER-UP SEQUENCE Set Bits[4:2] (ADM, DAM, and CR) each to 1. The ADAU1701 has a built-in power-up sequence that initializes the contents of all internal RAMs on power-up or when the device is brought out of a reset. On the positive edge of RESET, the contents of the internal program boot ROM are copied to the internal program RAM memory, the parameter RAM is filled with values (all 0s) from its associated boot ROM, and all registers are initialized to 0s. The default boot ROM program copies audio from the inputs to the outputs without processing it (see Figure 13). In this program, serial digital Input 0 and Input 1 are output on DAC0 and DAC1 and serial digital Output 0 and Output 1. ADC0 and ADC1 are output on DAC2 and DAC3. The data memories are also zeroed at powerup. New values should not be written to the control port until the initialization is complete. DAC Setup Register (Address 2087) Table 11. Power-Up Time MCLKI Input 3.072 MHz (64 × fS) 11.289 MHz (256 × fS) 12.288 MHz (256 × fS) 18.432 MHz (384 × fS) 24.576 MHz (512 × fS) Init. Time 85 ms 23 ms 21 ms 16 ms 11 ms Max Program/ Parameter/Register Boot Time (I2C) 175 ms 175 ms 175 ms 175 ms 175 ms Total 260 ms 198 ms 196 ms 191 ms 186 ms The PLL start-up time lasts for 218 cycles of the clock on the MCLKI pin. This time ranges from 10.7 ms for a 24.576 MHz (512 × fS) input clock to 85.3 ms for a 3.072 MHz (64 × fS) input clock and is measured from the rising edge of RESET. Following the PLL startup, the duration of the ADAU1701 boot cycle is about 42 μs for a fS of 48 kHz. The user should avoid writing to or reading from the ADAU1701 during this start-up time. For an MCLK input of 12.288 MHz, the full initialization sequence (PLL startup plus boot cycle) is approximately 21 ms. As the device comes out of a reset, the clock mode is immediately set by the PLL_MODE0 and PLL_MODE1 pins. The reset is synchronized to the falling edge of the internal clock. Set Bits[0:1] (DS[1:0]) to 01. RECOMMENDED PROGRAM/PARAMETER LOADING PROCEDURE When writing large amounts of data to the program or parameter RAM in direct write mode, the processor core should be disabled to prevent unpleasant noises from appearing in the audio output. 1. 2. 3. 4. 5. Set Bit 3 and Bit 4 (active low) of the core control register to 1 to mute the ADCs and DACs. This begins a volume ramp-down. Set Bit 2 (active low) of the core control register to 1. This zeroes the SigmaDSP accumulators, the data output registers, and the data input registers. Fill the program RAM using burst mode writes. Fill the parameter RAM using burst mode writes. Deassert Bit 2 to Bit 4 of the core control register. DAC0 SDATA_OUT0 SDATA_IN0 DAC1 ADC0 DAC2 ADC1 DAC3 06412-013 1. 2. 3. 4. Table 11 lists typical times to boot the ADAU1701 into an operational state of an application, assuming a 400 kHz I2C clock loading a full program, parameter set, and all registers (about 8.5 kB). In reality, most applications do not fill the RAMs and therefore boot time (Column 3 of Table 11) is less. Figure 13. Default Program Signal Flow POWER REDUCTION MODES Sections of theADAU1701 chip can be turned on and off as needed to reduce power consumption. These include the ADCs, DACs, and voltage reference. The individual analog sections can be turned off by writing to the auxiliary ADC and power control register. By default, the ADCs, DACs, and reference are enabled (all bits set to 0). Each of these can be turned off by writing a 1 to the appropriate bits Rev. C | Page 17 of 52 ADAU1701 Data Sheet in this register. The ADC power-down mode powers down both ADCs, and each DAC can be powered down individually. The current savings is about 15 mA when the ADCs are powered down and about 4 mA for each DAC that is powered down. The voltage reference, which is supplied to both the ADCs and DACs, should only be powered down if all ADCs and DACs are powered down. The reference is powered down by setting both Bit 6 and Bit 7 of the control register. USING THE OSCILLATOR The ADAU1701can use an on-board oscillator to generate its master clock. The oscillator is designed to work with a 256 × fS master clock, which is 12.288 MHz for a fS of 48 kHz and 11.2896 MHz for a fS of 44.1 kHz. The crystal in the oscillator circuit should be an AT-cut, parallel resonator operating at its fundamental frequency. Figure 14 shows the external circuit recommended for proper operation. ADAU1701 OSCO C2 MCLKI SETTING MASTER CLOCK/PLL MODE The MCLKI input of theADAU1701feeds a PLL, which generates the 50 MIPS SigmaDSP core clock. In normal operation, the input to MCLKI must be one of the following: 64 × fS, 256 × fS, 384 × fS, or 512 × fS, where fS is the input sampling rate. The mode is set on PLL_MODE0 and PLL_MODE1 as described in Table 12. If the ADAU1701 is set to receive double-rate signals (by reducing the number of program steps per sample by a factor of 2 using the core control register), the master clock frequency must be 32 × fS, 128 × fS, 192 × fS, or 256 × fS. If the ADAU1701 is set to receive quad-rate signals (by reducing the number of program steps per sample by a factor of 4 using the core control register), the master clock frequency must be 16 × fS, 64 × fS, 96 × fS, or 128 × fS. On power-up, a clock signal must be present on the MCLKI pin so that the ADAU1701can complete its initialization routine. Table 12. PLL Modes Figure 14. Crystal Oscillator Circuit The 100 Ω damping resistor on OSCO gives the oscillator a voltage swing of approximately 2.2 V. The crystal shunt capacitance should be 7 pF. Its load capacitance should be about 18 pF, although the circuit supports values of up to 25 pF. The necessary values of the C1 and C2 load capacitors can be calculated from the crystal load capacitance as follows: C1 × C2 CL = + C stray C1 + C2 where Cstray is the stray capacitance in the circuit and is usually assumed to be approximately 2 pF to 5 pF. OSCO should not be used to directly drive the crystal signal to another IC. This signal is an analog sine wave, and it is not appropriate to use it to drive a digital input. There are two options for using the ADAU1701 to provide a master clock to other ICs in the system. The first, and less recommended, method is to use a high impedance input digital buffer on the OSCO signal. If this is done, minimize the trace length to the buffer input. The second method is to use a clock from the serial output port. Pin MP11 can be set as an output (master) clock divided down from the internal core clock. If this pin is set to serial output port (OUTPUT_BCLK) mode in the multipurpose pin configuration register (2081) and the port is set to master in the serial output control register (2078), the desired output frequency can also be set in the serial output control register with Bits[OBF] (see Table 48). MCLKI Input 64 × fS 256 × fS 384 × fS 512 × fS PLL_MODE0 0 0 1 1 PLL_MODE1 0 1 0 1 The clock mode should not be changed without also resetting the ADAU1701. If the mode is changed during operation, a click or pop can result in the output signals. The state of the PLL_MODEx pins should be changed while RESET is held low. The PLL loop filter should be connected to the PLL_LF pin. This filter, shown in Figure 15, includes three passive components— two capacitors and a resistor. The values of these components do not need to be exact; the tolerance can be up to 10% for the resistor and up to 20% for the capacitors. The 3.3 V signal shown in Figure 15 can be connected to the AVDD supply of the chip. Rev. C | Page 18 of 52 3.3V 475Ω 3.3nF 56nF ADAU1701 PLL_LF 06412-015 100Ω 06412-014 C1 If the oscillator is not utilized in the design, it can be powered down to save power. This can be done if a system master clock is already available in the system. By default, the oscillator is powered on. The oscillator powers down when a 1 is written to the OPD bit of the oscillator power-down register (see Table 59). Figure 15. PLL Loop Filter Data Sheet ADAU1701 The digital voltage of the ADAU1701 must be set to 1.8 V. The chip includes an on-board voltage regulator that allows the device to be used in systems without an available 1.8 V supply but with an available 3.3 V supply. The only external components needed in such instances are a PNP transistor, a resistor, and a few bypass capacitors. Only one pin, VDRIVE, is necessary to support the regulator. The recommended design for the voltage regulator is shown in Figure 16. The 10 µF and 100 nF capacitors shown in this configuration are recommended for bypassing, but are not necessary for operation. Each DVDD pin should have its own 100 nF bypass capacitor, but only one bulk capacitor (10 µF to 47 µF) is needed for both DVDD pins. With this configuration, 3.3 V is the main system voltage; 1.8 V is generated at the transistor’s collector, which is connected to the DVDD pins. VDRIVE is connected to the base of the PNP transistor. If the regulator is not used in the design, VDRIVE can be tied to ground. Two specifications must be considered when choosing a regulator transistor: The transistor’s current amplification factor (hFE or beta) should be at least 100, and the transistor’s collector must be able to dissipate the heat generated when regulating from 3.3 V to 1.8 V. The maximum digital current drawn from the ADAU1701 is 60 mA. The equation to determine the minimum power dissipation of the transistor is as follows: (3.3 V − 1.8 V) × 60 mA = 90 mW There are many transistors, such as the FZT953 from Zetex Semiconductors, with these specifications available in small SOT-23 or SOT-223 packages. 3.3V 10µF + 1kΩ 100nF ADAU1701 DVDD VDRIVE 06412-016 VOLTAGE REGULATOR Figure 16. Voltage Regulator Configuration Rev. C | Page 19 of 52 ADAU1701 Data Sheet AUDIO ADCs The ADAU1701 has two Σ-Δ ADCs. The signal-to-noise ratio (SNR) of the ADCs is 100 dB, and the THD + N is −83 dB. The stereo audio ADCs are current input; therefore, a voltageto-current resistor is required on the inputs. This means that the voltage level of the input signals to the system can be set to any level; only the input resistors need to be scaled to provide the proper full-scale current input. The ADC0 and ADC1 input pins, as well as ADC_RES, have an internal 2 kΩ resistor for ESD protection. The voltage seen directly on the ADC input pins is the 1.5 V common mode. The external resistor connected to ADC_RES sets the full-scale current input of the ADCs. The full range of the ADC inputs is 100 µA rms with an external 18 kΩ resistor on ADC_RES (20 kΩ total, because it is in series with the internal 2 kΩ). The only reason to change the ADC_RES resistor is if a sampling rate other than 48 kHz is used. The voltage-to-current resistors connected to ADC0/ADC1 set the full-scale voltage input of the ADCs. With a full-scale current input of 100 µA rms, a 2.0 V rms signal with an external 18 kΩ resistor (in series with the 2 kΩ internal resistor) results in an input using the full range of the ADC. The matching of these resistors to the ADC_RES resistor is important to the operation of the ADCs. For these three resistors, a 1% tolerance is recommended. The values of the resistors (internal plus external) in series with the ADC0 and ADC1 pins can be calculated as follows: R Input Total = (rms Input Voltage) × 10 kΩ × Table 13 lists the external and total resistor values for common signal input levels at a 48 kHz sampling rate. A full-scale rms input voltage of 0.9 V is shown in the table because a full-scale signal at this input level is equal to a full-scale output on the DACs. Table 13. ADC Input Resistor Values Full-Scale RMS Input Voltage (V) 0.9 1.0 2.0 ADC_RES Value (kΩ) 18 18 18 ADC0/ADC1 Resistor Value (kΩ) 7 8 18 Total ADC0/ADC1 Input Resistance (External + Internal) (kΩ) 9 10 20 Figure 17 shows a typical configuration of the ADC inputs for a 2.0 V rms input signal for a fS of 48 kHz. The 47 μF capacitors are used to ac-couple the signals so that the inputs are biased at 1.5 V. Either the ADC0 and/or ADC1 input pins can be left unconnected if that channel of the ADC is unused. ADAU1701 47µF 18kΩ ADC0 47µF 18kΩ 48,000 f S _ NEW Rev. C | Page 20 of 52 18kΩ ADC_RES 06412-017 ADC1 These calculations of resistor values assume a 48 kHz sample rate. The recommended input and current setting resistors scale linearly with the sample rate because the ADCs have a switched-capacitor input. The total value (2 kΩ internal plus external resistor) of the ADC_RES resistor with sample rate fS_NEW can be calculated as follows: Rtotal = 20 kΩ × 48,000 f S _ NEW Figure 17. Audio ADC Input Configuration Data Sheet ADAU1701 AUDIO DACs To properly initialize the DACs, the DS[1:0] bits in the DAC setup register (Address 2087) should be set to 01. 47µF DAC_OUT The DAC outputs can be filtered with either an active or a passive reconstruction filter. A single-pole, passive, low-pass filter with a 50 kHz corner frequency, as shown in Figure 18, is sufficient to filter the DAC out-of-band noise, although an active filter may provide better audio performance. Figure 19 560Ω FILTER_OUT 5.6nF Figure 18. Passive DAC Output Filter C8 470pF 47µF 604Ω FILTER_OUT + 150pF AD8606 3.3nF Figure 19. Active DAC Output Filter Rev. C | Page 21 of 52 49.9kΩ 06412-019 4.75kΩ 4.75kΩ DAC_OUT 06412-018 The DACs are in an inverting configuration. If a signal inversion from input to output is undesirable, it can be reversed either by using an inverting configuration for the output filter or by simply inverting the signal in the SigmaDSP program flow. shows a triple-pole, active, low-pass filter that provides a steeper roll-off and better stop band attenuation than the passive filter. In this configuration, the V+ and V− pins of the AD8606 op amp are set to AVDD and ground, respectively. + The ADAU1701 includes four Σ-Δ DACs. The SNR of the DAC is 104 dB, and the THD + N is −90 dB. A full-scale output on the DACs is 0.9 V rms (2.5 V p-p). ADAU1701 Data Sheet CONTROL PORTS exceed the range of single-byte addressing. All subsequent bytes (starting with Byte 3) contain the data, such as control port data, program data, or parameter data. The number of bytes per word depends on the type of data that is being written. The exact formats for specific types of writes are shown in Table 21 to Table 30. The ADAU1701 can operate in one of three control modes: • • • I2C control SPI control Self-boot (no external controller) The ADAU1701has both a 4-wire SPI control port and a 2-wire I2C bus control port. Each can be used to set the RAMs and registers. When the SELFBOOT pin is low at power-up, the part defaults to I2C mode but can be put into SPI control mode by pulling the CLATCH/WP pin low three times. When the SELFBOOT pin is set high at power-up, the ADAU1701 loads its program, parameters, and register settings from an external EEPROM on startup. The control port is capable of full read/write operation for all addressable memory and registers. Most signal processing parameters are controlled by writing new values to the parameter RAM using the control port. Other functions, such as mute and input/output mode control, are programmed by writing to the registers. All addresses can be accessed in a single-address mode or a burst mode. The first byte (Byte 0) of a control port write contains the 7-bit chip address plus the R/W bit. The next two bytes (Byte 1 and Byte 2) together form the subaddress of the memory or register location within the ADAU1701. This subaddress must be two bytes because the memory locations within the ADAU1701 are directly addressable and their sizes TheADAU1701 has several mechanisms for updating signal processing parameters in real time without causing pops or clicks. If large blocks of data need to be downloaded, the output of the DSP core can be halted (using the CR bit in the DSP core control register (Address 2076)), new data can be loaded, and then the device can be restarted. This is typically done during the booting sequence at startup or when loading a new program into RAM. In cases where only a few parameters need to be changed, they can be loaded without halting the program. To avoid unwanted side effects while loading parameters on the fly, the SigmaDSP provides the safeload registers. The safeload registers can be used to buffer a full set of parameters (for example, the five coefficients of a biquad) and then transfer these parameters into the active program within one audio frame. The safeload mode uses internal logic to prevent contention between the DSP core and the control port. The control port pins are multifunctional, depending on the mode in which the part is operating. Table 14 details these multiple functions. Table 14. Control Port Pins and SELFBOOT Pin Functions Pin SCL/CCLK SDA/COUT ADDR1/CDATA/WB CLATCH/WP ADDR0 I2C Mode SCL—input SDA—open-collector output ADDR1—input Unused input—tie to ground or IOVDD ADDR0—input SPI Mode CCLK—input COUT—output CDATA—input CLATCH—input ADDR0—input Rev. C | Page 22 of 52 Self-Boot SCL—output SDA—open-collector output WB—writeback trigger WP—EEPROM write protect, open-collector output Unused input—tie to ground or IOVDD Data Sheet ADAU1701 I2C PORT Addressing The ADAU1701supports a 2-wire serial (I C-compatible) microprocessor bus driving multiple peripherals. Two pins, serial data (SDA) and serial clock (SCL), carry information between the ADAU1701and the system I2C master controller. In I2C mode, theADAU1701 is always a slave on the bus, meaning it cannot initiate a data transfer. Each slave device is recognized by a unique address. The address byte format is shown in Table 15. The ADAU1701 slave addresses are set with the ADDR0 and ADDR1 pins. The address resides in the first seven bits of the I2C write. The LSB of this byte sets either a read or write operation. Logic Level 1 corresponds to a read operation, and Logic Level 0 corresponds to a write operation. Bit 5 and Bit 6 of the address are set by tying the ADDRx pins of the ADAU1701 to Logic Level 0 or Logic Level 1. The full byte addresses, including the pin settings and read/write (R/W) bit, are shown in Table 16. 2 Burst mode addressing, where the subaddresses are automatically incremented at word boundaries, can be used for writing large amounts of data to contiguous memory locations. This increment happens automatically after a single-word write unless a stop condition is encountered. The registers and RAMs in the ADAU1701 range in width from one to five bytes, so the autoincrement feature knows the mapping between subaddresses and the word length of the destination register (or memory location). A data transfer is always terminated by a stop condition. Both SDA and SCL should have 2.2 kΩ pull-up resistors on the lines connected to them. The voltage on these signal lines should not be more than IOVDD (3.3 V). Table 15. ADAU1701 I2C Address Byte Format Bit 0 0 Bit 1 1 Bit 2 1 Bit 3 0 Bit 4 1 Bit 5 ADDR1 Bit 6 ADDR0 Table 16. ADAU1701 I2C Addresses ADDR1 0 0 0 0 1 1 1 1 ADDR0 0 0 1 1 0 0 1 1 R/W 0 1 0 1 0 1 0 1 Slave Address 0x68 0x69 0x6A 0x6B 0x6C 0x6D 0x6E 0x6F Bit 7 R/W Initially, each device on the I2C bus is in an idle state monitoring the SDA and SCL lines for a start condition and the proper address. The I2C master initiates a data transfer by establishing a start condition, defined by a high-to-low transition on SDA while SCL remains high. This indicates that an address/data stream follows. All devices on the bus respond to the start condition and shift the next eight bits (the 7-bit address plus the R/W bit) MSB first. The device that recognizes the transmitted address responds by pulling the data line low during the ninth clock pulse. This ninth bit is known as an acknowledge bit. All other devices withdraw from the bus at this point and return to the idle condition. The R/W bit determines the direction of the data. A Logic 0 on the LSB of the first byte means the master writes information to the peripheral, whereas a Logic 1 means the master reads information from the peripheral after writing the subaddress and repeating the start address. A data transfer takes place until a stop condition is encountered. A stop condition occurs when SDA transitions from low to high while SCL is held high. Figure 20 shows the timing of an I2C write, and Figure 21 shows an I2C read. Stop and start conditions can be detected at any stage during the data transfer. If these conditions are asserted out of sequence with normal read and write operations, theADAU1701 immediately jumps to the idle condition. During a given SCL high period, the user should only issue one start condition, one stop condition, or a single stop condition followed by a single start condition. If an invalid subaddress is issued by the user, the ADAU1701 does not issue an acknowledge and returns to the idle condition. If the user exceeds the highest subaddress while in auto-increment mode, one of two actions is taken. In read mode, the ADAU1701 outputs the highest subaddress register contents until the master device issues a no acknowledge, indicating the end of a read. A no-acknowledge condition is where the SDA line is not pulled low on the ninth clock pulse on SCL. On the other hand, if the highest subaddress location is reached while in write mode, the data for the invalid byte is not loaded into any subaddress register, a no acknowledge is issued by the ADAU1701, and the part returns to the idle condition. Rev. C | Page 23 of 52 ADAU1701 Data Sheet SCL 1 0 SDA 1 START BY MASTER 0 1 0 ADDR SEL R/W ACK BY ADAU1701 ACK BY ADAU1701 FRAME 1 CHIP ADDRESS BYTE FRAME 2 SUBADDRESS BYTE 1 SCL (CONTINUED) ACK BY ADAU1701 FRAME 3 SUBADDRESS BYTE 2 ACK BY ADAU1701 FRAME 4 DATA BYTE 1 STOP BY MASTER Figure 20. I2C Write to ADAU1701 Clocking SCL SDA START BY MASTER 0 1 1 0 1 ADDR SEL R/W 0 ACK BY ADAU1701 ACK BY ADAU1701 FRAME 1 CHIP ADDRESS BYTE FRAME 2 SUBADDRESS BYTE 1 SCL (CONTINUED) SDA (CONTINUED) ADR SEL ACK BY ADAU1701 FRAME 3 SUBADDRESS BYTE 2 R/W ACK BY ADAU1701 REPEATED START BY MASTER FRAME 4 CHIP ADDRESS BYTE SCL (CONTINUED) ACK BY MASTER FRAME 5 READ DATA BYTE 1 ACK BY MASTER FRAME 6 READ DATA BYTE 2 2 Figure 21. I C Read from ADAU1701 Clocking Rev. C | Page 24 of 52 STOP BY MASTER 06412-021 SDA (CONTINUED) 06412-020 SDA (CONTINUED) Data Sheet ADAU1701 I2C Read and Write Operations master. The master then responds every ninth pulse with an acknowledge pulse to the ADAU1701. Figure 22 shows the timing of a single-word write operation. Every ninth clock, the ADAU1701 issues an acknowledge by pulling SDA low. Figure 25 shows the timing of a burst mode read sequence. This figure shows an example where the target read registers are two bytes. The ADAU1701 increments its subaddress every two bytes because the requested subaddress corresponds to a register or memory area with word lengths of two bytes. Other addresses may have word lengths ranging from one to five bytes. The ADAU1701 always decodes the subaddress and sets the autoincrement circuit so that the address increments after the appropriate number of bytes. Figure 23 shows the timing of a burst mode write sequence. This figure shows an example where the target destination registers are two bytes. The ADAU1701 knows to increment its subaddress register every two bytes because the requested subaddress corresponds to a register or memory area with a 2-byte word length. The timing of a single-word read operation is shown in Figure 24. Note that the first R/W bit is 0, indicating a write operation. This is because the subaddress still needs to be written to set up the internal address. After the ADAU1701acknowledges the receipt of the subaddress, the master must issue a repeated start command followed by the chip address byte with the R/W set to 1 (read). This causes the ADAU1701 SDA to reverse and begin driving data back to the CHIP ADDRESS, R/W = 0 AS SUBADDRESS HIGH AS SUBADDRESS LOW AS DATA BYTE 1 AS DATA BYTE 2 AS DATA BYTE N P 06412-022 S Figure 22 to Figure 25 use the following abbreviations: S = start bit P = stop bit AM = acknowledge by master AS = acknowledge by slave S CHIP ADDRESS, R/W = 0 AS SUBADDRESS HIGH SUBADDRESS LOW AS DATAWORD 1, BYTE 1 AS AS DATAWORD 1, BYTE 2 DATAWORD 2, BYTE 1 AS AS DATAWORD 2, BYTE 2 AS P 06412-023 Figure 22. Single Word I2C Write Format S CHIP ADDRESS, R/W = 0 AS SUBADDRESS HIGH AS SUBADDRESS LOW AS S CHIP ADDRESS, R/W = 1 AS DATA BYTE 1 AM DATA BYTE 2 AM DATA BYTE N P 06412-024 Figure 23. Burst Mode I2C Write Format S CHIP ADDRESS, R/W = 0 AS SUBADDRESS HIGH AS SUBADDRESS LOW AS S CHIP ADDRESS, R/W = 1 Figure 25. Burst Mode I2C Read Format Rev. C | Page 25 of 52 AS DATAWORD 1, BYTE 1 AM DATAWORD 1, BYTE 2 AM P 06412-025 Figure 24. Single-Word I2C Read Format ADAU1701 Data Sheet SPI PORT Table 17. ADAU1701 SPI Address Byte Format By default, the ADAU1701 is in I C mode, but it can be put into SPI control mode by pulling CLATCH/WP low three times. The SPI port uses a 4-wire interface, consisting of CLATCH, CCLK, CDATA, and COUT signals, and is always a slave port. The CLATCH signal should go low at the beginning of a transaction and high at the end of a transaction. The CCLK signal latches CDATA during a low-to-high transition. COUT data is shifted out of theADAU1701 on the falling edge of CCLK and should be clocked into a receiving device, such as a microcontroller, on the CCLK rising edge. The CDATA signal carries the serial input data, and the COUT signal is the serial output data. The COUT signal remains three-stated until a read operation is requested. This allows other SPI-compatible peripherals to share the same readback line. All SPI transactions have the same basic format shown in Table 18. A timing diagram is shown in Figure 3. All data should be written MSB first. The ADAU1701 cannot be taken out of SPI mode without a full reset. 2 Chip Address R/W The first byte of an SPI transaction includes the 7-bit chip address and a R/W bit. The chip address is set by the ADDR0 pin. This allows two ADAU1701s to share a CLATCH signal, yet still operate independently. When ADDR0 is low, the chip address is 0000000; when it is high, the address is 0000001 (see Table 17). The LSB of this first byte determines whether the SPI transaction is a read (Logic Level 1) or a write (Logic Level 0). Bit 0 0 Bit 1 0 Bit 2 0 Bit 3 0 Bit 4 0 Bit 5 0 Bit 6 ADDR0 Subaddress The 12-bit subaddress word is decoded into a location in one of the memories or registers. This subaddress is the location of the appropriate RAM location or register. The MSBs of the subaddress are zero-padded to bring the word to a full 2-byte length. Data Bytes The number of data bytes varies according to the register or memory being accessed. During a burst mode write, an initial subaddress is written followed by a continuous sequence of data for consecutive memory/register locations. The detailed data format for continuous mode operation is shown in Table 22 and Table 24 in the Read/Write Data Formats section. A sample timing diagram for a single-write SPI operation to the parameter RAM is shown in Figure 26. A sample timing diagram of a single-read SPI operation is shown in Figure 27. The COUT pin goes from three-state to being driven at the beginning of Byte 3. In this example, Byte 0 to Byte 2 contain the addresses and the R/W bit and subsequent bytes carry the data. Table 18. Generic Control Word Format Byte 0 chip_adr[6:0], R/W Byte 2 subadr[7:0] Byte 3 data Byte 4 1 data Continues to end of data. CLATCH CDATA BYTE 0 BYTE 1 BYTE 2 06412-026 CCLK BYTE 3 Figure 26. SPI Write to ADAU1701 Clocking (Single-Write Mode) CLATCH CCLK CDATA COUT BYTE 1 BYTE 0 BYTE 2 HIGH-Z DATA Figure 27. SPI Read from ADAU1701 Clocking (Single-Read Mode) Rev. C | Page 26 of 52 DATA HIGH-Z 06412-027 1 Byte 1 0000, subadr[11:8] Bit 7 R/W Data Sheet ADAU1701 SELF-BOOT EEPROM Format On power-up, the ADAU1701 can load a program and a set of parameters that have been saved in an external EEPROM. Combined with the auxiliary ADC and the multipurpose pins, this eliminates the need for a microcontroller in the system. The self-booting is accomplished by the ADAU1701 acting as a master on the I2C bus on startup, which occurs when the SELFBOOT pin is set high. The ADAU1701 cannot self-boot in SPI mode. The EEPROM data contains a sequence of messages. Each discrete message is one of the seven types defined in Table 19 and consists of a sequence of one or more bytes. The first byte identifies the message type. Bytes are written MSB first. Most messages are block write (0x01) types, which are used for writing to the ADAU1701 program RAM, parameter RAM, and control registers. The maximum necessary EEPROM size for program and parameters is 9248 bytes, or just over 8.5 kB. This does not include register settings or overhead bytes, but such factors do not add a significant number of bytes. This much memory is only needed if the program RAM (1024 × five bytes), parameter RAM (1024 × four bytes), and interface registers (8 × four bytes) are completely full. Most applications do not use the full program and parameter RAMs, so an 8 kB EEPROM should be sufficient. The body of the message following the message type should start with a 0x00 byte; this is the chip address. As with all other control port transactions, following the chip address is a 2-byte register/memory address field. A self-boot operation is triggered on the rising edge of RESET when the SELFBOOT and WP pins are set high. The ADAU1701reads the program, parameters, and register settings from the EEPROM. After the ADAU1701 finishes self-booting, additional messages can be sent to the ADAU1701 on the I2C bus, although this typically is not necessary in a self-booting application. The I2C device address is 0x68 for a write and 0x69 for a read in this mode. The ADDRx pins have different functions when the chip is in this mode, so the settings on them can be ignored. The ADAU1701 does not self-boot if WP is set low. Holding this pin low allows the EEPROM to be programmed in-circuit. The WP pin is pulled low (it typically has a resistor pull-up) to enable writes to the EEPROM, but this in turn disables the selfboot function until the WP pin is returned high. The ADAU1701 is a master on the I2C bus during self-boot and writeback. Although it is uncommon for an application using self-boot to also have a microcontroller connected to the control lines, care should be taken that no other device tries to write to the I2C bus during self-boot or writeback. The ADAU1701 generates SCL at 8 × fS; therefore, for a fS of 48 kHz, SCL runs at 384 kHz. SCL has a duty cycle of 3/8 in accordance with the I2C specification. The ADAU1701 reads from EEPROM Chip Address 0xA1. The LSBs of the addresses of some EEPROMs are pin configurable; in most cases, these pins should be tied low to set this address. Figure 28 shows an example of what should be stored in the EEPROM, starting with EEPROM Address 0. In this example, the interface registers are first set to control port write mode (Line 1), which is followed by 18 no-operation (no-op) bytes (Line 2 to Line 4) so that the interface register data appears on Page 2 of the EEPROM. Next follows the write header (Line 4) and then 32 bytes of interface register data (Line 5 to Line 8). Finally, the program RAM data, starting at ADAU1701 Address 0x04 0x00 is written (Line 9 to Line 11). In this example, the program length is 70 words, or 350 bytes, so 332 more bytes are included in the EEPROM but are not shown in Figure 28. Writeback A writeback occurs when the WB pin is triggered and data is written to the EEPROM from the ADAU1701. This function is typically used to save the volume setting and other parameter settings to the EEPROM just before power is removed from the system. A rising edge on the WB pin triggers a writeback when the device is in self-boot mode, unless a message to set the WB to the falling edge sensitive (0x05) is contained in the self-boot message sequence. Only one writeback takes place unless a message to set multiple writebacks (0x04) is contained in the self-boot message sequence. The WP pin is pulled low when a writeback is triggered to allow writing to the EEPROM. The ADAU1701 is only capable of writing back the contents of the interface registers to the EEPROM. These registers are usually set by the DSP program, but can also be written to directly after setting Bit 6 of the core control register. The parameter settings that should be saved are configured in SigmaStudio. Rev. C | Page 27 of 52 ADAU1701 Data Sheet The writeback function writes data from the ADAU1701 interface registers to the second page of the self-boot EEPROM, Address 32 to Address 63. Starting at EEPROM Address 26 (so that the interface register data begins at Address 32), the EEPROM should be programmed with six bytes—the message byte (0x01), two length bytes, the chip address (0x00), and the 2-byte subaddress for the interface registers (0x08 0x00). There must be a message to the DSP core control register to enable writing to the interface registers prior to the interface register data in the EEPROM. This should be stored in EEPROM Address 0. No-op messages (0x03) can be used in between messages to ensure that these conditions are met. The ADAU1701 writes to EEPROM Chip Address 0xA0. The LSBs of the addresses of some EEPROMs are pin configurable; in most cases, these pins should be tied low to set the address to 0xA0. The maximum number of bytes that is written back from the ADAU1701 is 35 (eight 4-byte interface registers plus three bytes of EEPROM-addressing overhead). With SCL running at 384 kHz, the writeback operation takes approximately 73 μs to complete after being triggered. Ensure that sufficient power is available to the system to allow enough time for a writeback to complete, especially if the WB signal is triggered from a falling power supply voltage. Table 19. EEPROM Message Types Message ID 0x00 0x01 Message Type End Write 0x02 0x03 0x04 0x05 0x06 Delay No operation executed Set multiple writeback Set WB to falling edge sensitive End and wait for writeback 0x01 0x00 WRITE 0x03 0x05 LENGTH 0x03 0x00 0x08 DEVICE ADDRESS 0x03 Following Bytes None Two bytes indicating message length followed by appropriate number of data bytes Two bytes for delay None None None None 0x03 0x1C CORE CONTROL REGISTER ADDRESS 0x03 0x00 0x40 CORE CONTROL REGISTER DATA 0x03 0x03 0x03 0x03 0x03 0x03 0x08 0x00 NO-OP BYTES 0x03 0x03 0x03 0x03 0x03 NO-OP BYTES 0x03 0x03 NO-OP BYTES 0x00 0x01 0x00 WRITE 0x00 0x00 0x23 LENGTH 0x00 0x00 DEVICE ADDRESS 0x00 INTERFACE REGISTER ADDRESS 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 INTERFACE REGISTER DATA 0x00 0x00 0x00 0x00 0x00 INTERFACE REGISTER DATA 0x00 0x00 0x00 0x00 0x00 INTERFACE REGISTER DATA 0x00 0x00 0x00 0x00 0x00 INTERFACE REGISTER DATA 0x01 0x001 WRITE 0x00 0x61 LENGTH 0x00 0x00 DEVICE ADDRESS 0x01 0x00 0x04 PROGRAM RAM ADDRESS 0x00 PROGRAM RAM DATA 0x00 0xE8 0x01 0x00 0x08 0x00 0x00 0x00 0x00 0x00 0x01 PROGRAM RAM DATA (CONTINUES FOR 332 MORE BYTES) Figure 28. EEPROM Data Example Rev. C | Page 28 of 52 06412-039 PROGRAM RAM DATA Data Sheet ADAU1701 SIGNAL PROCESSING The ADAU1701 is designed to provide all audio signal processing functions commonly used in stereo or multichannel playback systems. The signal processing flow is designed using the SigmaStudio software, which allows graphical entry and realtime control of all signal processing functions. with a range of 1.0 (minus 1 LSB) to −1.0. Figure 29 shows the maximum signal levels at each point in the data flow in both binary and decibel levels. Many of the signal processing functions are coded using full, 56-bit, double-precision arithmetic data. The input and output word lengths of the DSP core are 24 bits. Four extra headroom bits are used in the processor to allow internal gains of up to 24 dB without clipping. Additional gains can be achieved by initially scaling down the input signal in the DSP signal flow. DATA IN NUMERIC FORMATS DSP systems commonly use a standard numeric format. Fractional number systems are specified by an A.B format, where A is the number of bits to the left of the decimal point and B is the number of bits to the right of the decimal point. The ADAU1701 uses the same numeric format for both the parameter and data values. The format is as follows. Numerical Format: 5.23 1.23 (0dB) SERIAL PORT 1.23 (0dB) SIGNAL PROCESSING (5.23 FORMAT) 5.23 (24dB) DIGITAL CLIPPER 5.23 (24dB) 1.23 (0dB) 06412-028 4-BIT SIGN EXTENSION Figure 29. Numeric Precision and Clipping Structure PROGRAMMING On power-up, the ADAU1701default program passes the unprocessed input signals to the outputs (shown in Figure 13), but the outputs are muted by default (see the Power-Up Sequence section). There are 1024 instruction cycles per audio sample, resulting in about 50 MIPS available. The SigmaDSP runs in a stream-oriented manner, meaning that all 1024 instructions are executed each sample period. The ADAU1701 can also be set up to accept double- or quad-speed inputs by reducing the number of instructions per sample that are set in the core control register. The part can be easily programmed using SigmaStudio (Figure 30), a graphical tool provided by Analog Devices. No knowledge of writing line-level DSP code is required. More information about SigmaStudio can be found at www.analog.com. Linear range: −16.0 to (+16.0 − 1 LSB) Examples: 1000 0000 0000 0000 0000 0000 0000 = −16.0 1110 0000 0000 0000 0000 0000 0000 = −4.0 1111 1000 0000 0000 0000 0000 0000 = −1.0 1111 1110 0000 0000 0000 0000 0000 = −0.25 1111 1111 0011 0011 0011 0011 0011 = −0.1 1111 1111 1111 1111 1111 1111 1111 = (1 LSB below 0.0) 0000 0000 0000 0000 0000 0000 0000 = 0.0 0000 0000 1100 1100 1100 1100 1101 = 0.1 0000 0010 0000 0000 0000 0000 0000 = 0.25 0000 1000 0000 0000 0000 0000 0000 = 1.0 0010 0000 0000 0000 0000 0000 0000 = 4.0 0111 1111 1111 1111 1111 1111 1111 = (16.0 − 1 LSB). A digital clipper circuit is used between the output of the DSP core and the DACs or serial port outputs (see Figure 29). This clips the top four bits of the signal to produce a 24-bit output Rev. C | Page 29 of 52 06412-029 The serial port accepts up to 24 bits on the input and is signextended to the full 28 bits of the DSP core. This allows internal gains of up to 24 dB without internal clipping. Figure 30. SigmaStudio Screen Shot ADAU1701 Data Sheet RAMS AND REGISTERS Table 20. RAM Map and Read/Write Modes Memory Parameter RAM Program RAM 1 Size 1024 × 32 1024 × 40 Address Range 0 to 1023 (0x0000 to 0x03FF) 1024 to 2047 (0x0400 to 0x07FF) Read Yes Yes Write Yes Yes Write Modes Direct write 1 safeload write Direct write1 Internal registers should be cleared first to avoid clicks/pops. ADDRESS MAPS DATA RAM Table 20 shows the RAM map and Table 31 shows the ADAU1701 register map. The address space encompasses a set of registers and two RAMs: one holds signal processing parameters and one holds the program instructions. The program RAM and parameter RAM are initialized on power-up from on-board boot ROMs (see the Power-Up Sequence section). The ADAU1701 data RAM is used to store audio data words for processing. For the most part, this process is transparent to the user. The user cannot address this RAM space, which has a size of 2k words, directly from the control port. All RAMs and registers have a default value of all 0s, except for the program RAM, which is loaded with the default program (see the Initialization section). PARAMETER RAM The parameter RAM is 32 bits wide and occupies Address 0 to Address 1023. Each parameter is padded with four 0s before the MSB to extend the 28-bit word to a full 4-byte width. The parameter RAM is initialized to all 0s on power-up. The data format of the parameter RAM is twos complement, 5.23. This means that the coefficients can range from +16.0 (minus 1 LSB) to −16.0, with 1.0 represented by the binary word 0000 1000 0000 0000 0000 0000 0000 or by the hexadecimal word 0x00 0x80 0x00 0x00. The parameter RAM can be written using one of the two following methods: a direct read/write or a safeload write. Direct Read/Write The direct read/write method allows direct access to the program RAM and parameter RAM. This mode of operation is typically used when loading a new RAM using burst mode addressing. The clear registers bit in the core control register should be set to 0 using this mode to avoid any clicks or pops in the outputs. Note that this mode can be used during live program execution, but because there is no handshaking between the core and the control port, the parameter RAM is unavailable to the DSP core during control writes, resulting in clicks and pops in the audio stream. Safeload Write Up to five safeload registers can be loaded with the parameter RAM address/data. The data is then transferred to the requested address when the RAM is not busy. This method can be used for dynamic updates while live program material is playing through the ADAU1701. For example, a complete update of one biquad section can occur in one audio frame while the RAM is not busy. This method is not available for writing to the program RAM or control registers. Data RAM utilization should be considered when implementing blocks that require large amounts of data RAM space, such as delays. The SigmaDSP core processes delay times in one-sample increments; therefore, the total pool of delay available to the user equals 2048 multiplied by the sample period. For a fS of 48 kHz, the pool of available delay is a maximum of about 43 ms. In practice, this much data memory is not available to the user because every block in a design uses a few data memory locations for its processing. In most DSP programs, this does not significantly impact the total delay time. The SigmaStudio compiler manages the data RAM and indicates if the number of addresses needed in the design exceeds the maximum available. READ/WRITE DATA FORMATS The read/write formats of the control port are designed to be byte oriented. This allows easy programming of common microcontroller chips. To fit into a byte-oriented format, 0s are appended to the data fields before the MSB to extend the dataword to eight bits. For example, 28-bit words written to the parameter RAM are appended with four leading 0s to equal 32 bits (four bytes); 40-bit words written to the program RAM are not appended with 0s because they are already a full five bytes. These zero-padded data fields are appended to a 3-byte field consisting of a 7-bit chip address, a read/write bit, and an 11-bit RAM/register address. The control port knows how many data bytes to expect based on the address given in the first three bytes. The total number of bytes for a single-location write command can vary from four bytes (for a control register write) to eight bytes (for a program RAM write). Burst mode can be used to fill contiguous register or RAM locations. A burst mode write begins by writing the address and data of the first RAM or register location to be written. Rather than ending the control port transaction (by issuing a stop command in I2C mode or by bringing the CLATCH signal high in SPI mode after the data-word), as would be done in a single-address write, the next data-word can be immediately written without specifying its address. The ADAU1701 control port auto-increments the address of each write even across the boundaries of the different RAMs and registers. Table 22 and Table 24 show examples of burst mode writes. Rev. C | Page 30 of 52 Data Sheet ADAU1701 Table 21. Parameter RAM Read/Write Format (Single Address) Byte 0 chip_adr[6:0], W/R Byte 1 000000, param_adr[9:8] Byte 2 param_adr[7:0] Byte 3 0000, param[27:24] Bytes[4:6] param[23:0] Table 22. Parameter RAM Block Read/Write Format (Burst Mode) Byte 0 chip_adr[6:0], W/R Byte 1 000000, param_adr[9:8] Byte 2 param_adr[7:0] Byte 3 0000, param[27:24] Bytes[4:6] param[23:0] Bytes[7:10] Bytes[11:14] param_adr + 1 param_adr + 2 Bytes[8:12] Bytes[13:17] prog_adr + 1 prog_adr + 2 Table 23. Program RAM Read/Write Format (Single Address) Byte 0 chip_adr[6:0], W/R Byte 1 Byte 2 Bytes[3:7] 00000, prog_adr[10:8] prog_adr[7:0] prog[39:0] Table 24. Program RAM Block Read/Write Format (Burst Mode) Byte 0 chip_adr[6:0], W/R Byte 1 00000, prog_adr[10:8] Byte 2 prog_adr[7:0] Bytes[3:7] prog[39:0] Table 25. Control Register Read/Write Format (Core, Serial Out 0, Serial Out 1) Byte 0 chip_adr[6:0], W/R Byte 1 0000, reg_adr[11:8] Byte 2 reg_adr[7:0] Byte 3 data[15:8] Byte 4 data[7:0] Table 26. Control Register Read/Write Format (RAM Configuration, Serial Input) Byte 0 chip_adr[6:0], W/R Byte 1 0000, reg_adr[11:8] Byte 2 reg_adr[7:0] Byte 3 data[7:0] Table 27. Data Capture Register Write Format Byte 0 chip_adr[6:0], W/R 1 2 Byte 1 Byte 2 Byte 3 Byte 4 0000, data_capture_adr[11:8] data_capture_adr[7:0] 000, progCount[10:6] 1 progCount[5:0]1, regSel[1:0] 2 progCount[10:0] is the value of the program counter when the data capture occurs (the table of values is generated by the SigmaStudio compiler). regSel[1:0] selects one of four registers (see the 2074 to 2075 (0X081A to 0X081B)—Data Capture Registers section). Table 28. Data Capture (Control Port Readback) Register Read Format Byte 0 chip_adr[6:0], W/R Byte 1 0000, data_capture_adr[11:8] Byte 2 data_capture_adr[7:0] Bytes[3:5] data[23:0] Table 29. Safeload Address Register Write Format Byte 0 chip_adr[6:0], W/R Byte 1 0000, safeload_adr[11:8] Byte 2 safeload_adr[7:0] Byte 3 000000, param_adr[9:8] Byte 4 param_adr[7:0] Table 30. Safeload Data Register Write Format Byte 0 chip_adr[6:0], W/R Byte 1 0000, safeload_adr[11:8] Byte 2 safeload_adr[7:0] Byte 3 00000000 Rev. C | Page 31 of 52 Byte 4 0000, data[27:24] Bytes[5:7] data[23:0] ADAU1701 Data Sheet CONTROL REGISTER MAP Table 31. Register Map1 MSB Register Address No. of Hex Dec Bytes Name 0x0800 2048 4 Interface 0[31:16] Interface 0[15:0] 0x0801 2049 4 Interface 0[31:16] Interface 0[15:0] 0x0802 2050 4 Interface 0[31:16] Interface 0[15:0] 0x0803 2051 4 Interface 0[31:16] Interface 0[15:0] 0x0804 2052 4 Interface 0[31:16] Interface 0[15:0] 0x0805 2053 4 Interface 0[31:16] Interface 0[15:0] 0x0806 2054 4 Interface 0[31:16] Interface 0[15:0] 0x0807 2055 4 Interface 0[31:16] Interface 0[15:0] 0x0808 2056 2 GPIO pin setting 0x0809 2057 2 Auxiliary ADC Data 0 0x080A 2058 2 Auxiliary ADC Data 1 0x080B 2059 2 Auxiliary ADC Data 2 0x080C 2060 2 Auxiliary ADC Data 3 0x080D 2061 5 Reserved[39:32] Reserved[31:16] Reserved[15:0] 0x080E 2062 5 Reserved[39:32] Reserved[31:16] Reserved[15:0] 0x080F 2063 5 Reserved[39:32] Reserved[31:16] Reserved[15:0] 0x0810 2064 5 Safeload Data 0[39:32] Safeload Data 0[31:16] Safeload Data 0[15:0] 0x0811 2065 5 Safeload Data 1[39:32] Safeload Data 1[31:16] Safeload Data 1[15:0] 0x0812 2066 5 Safeload Data 2[39:32] Safeload Data 2[31:16] Safeload Data 2[15:0] 0x0813 2067 5 Safeload Data 3[39:32] Safeload Data 3[31:16] Safeload Data 3[15:0] 0x0814 2068 5 Safeload Data 4[39:32] Safeload Data 4[31:16] Safeload Data 4[15:0] 0x0815 2069 2 Safeload Address 0 0x0816 2070 2 Safeload Address 1 0x0817 2071 2 Safeload Address 2 0x0818 2072 2 Safeload Address 3 0x0819 2073 2 Safeload Address 4 0x081A 2074 2 Data Capture 0 0x081B 2075 2 Data Capture 1 0x081C 2076 2 DSP core control 0x081D 2077 1 Reserved 0x081E 2078 2 Serial output control 0x081F 2079 1 Serial input control D31 D30 D29 D28 D27 D26 D25 D24 D15 0 IF15 0 IF15 0 IF15 0 IF15 0 IF15 0 IF15 0 IF15 0 IF15 0 0 0 0 0 D14 0 IF14 0 IF14 0 IF14 0 IF14 0 IF14 0 IF14 0 IF14 0 IF14 0 0 0 0 0 D13 0 IF13 0 IF13 0 IF13 0 IF13 0 IF13 0 IF13 0 IF13 0 IF13 0 0 0 0 0 D12 0 IF12 0 IF12 0 IF12 0 IF12 0 IF12 0 IF12 0 IF12 0 IF12 0 0 0 0 0 D11 IF27 IF11 IF27 IF11 IF27 IF11 IF27 IF11 IF27 IF11 IF27 IF11 IF27 IF11 IF27 IF11 MP11 AA11 AA11 AA11 AA11 D10 IF26 IF10 IF26 IF10 IF26 IF10 IF26 IF10 IF26 IF10 IF26 IF10 IF26 IF10 IF26 IF10 MP10 AA10 AA10 AA10 AA10 D9 IF25 IF09 IF25 IF09 IF25 IF09 IF25 IF09 IF25 IF09 IF25 IF09 IF25 IF09 IF25 IF09 MP09 AA09 AA09 AA09 AA09 D8 IF24 IF08 IF24 IF08 IF24 IF08 IF24 IF08 IF24 IF08 IF24 IF08 IF24 IF08 IF24 IF08 MP08 AA08 AA08 AA08 AA08 RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD SD31 SD30 SD29 SD28 SD27 SD26 SD25 SD24 SD15 SD14 SD13 SD12 SD11 SD10 SD09 SD08 SD31 SD30 SD29 SD28 SD27 SD26 SD25 SD24 SD15 SD14 SD13 SD12 SD11 SD10 SD09 SD08 SD31 SD30 SD29 SD28 SD27 SD26 SD25 SD24 SD15 SD14 SD13 SD12 SD11 SD10 SD09 SD08 SD31 SD30 SD29 SD28 SD27 SD26 SD25 SD24 SD15 SD14 SD13 SD12 SD11 SD10 SD09 SD08 SD31 SD15 0 0 0 0 0 0 0 RSVD SD30 SD14 0 0 0 0 0 0 0 RSVD SD29 SD13 0 0 0 0 0 0 0 GD1 SD28 SD12 0 0 0 0 0 0 0 GD0 0 0 OLRP OBP SD27 SD11 SA11 SA11 SA11 SA11 SA11 PC09 PC09 RSVD SD26 SD10 SA10 SA10 SA10 SA10 SA10 PC08 PC08 RSVD SD25 SD09 SA09 SA09 SA09 SA09 SA09 PC07 PC07 RSVD SD24 SD08 SA08 SA08 SA08 SA08 SA08 PC06 PC06 AACW M/S OBF1 OBF0 OLF1 Rev. C | Page 32 of 52 D39 D23 D38 D22 D37 D21 D36 D20 D35 D19 D34 D18 D33 D17 LSB D32 D16 D7 IF23 IF07 IF23 IF07 IF23 IF07 IF23 IF07 IF23 IF07 IF23 IF07 IF23 IF07 IF23 IF07 MP07 AA07 AA07 AA07 AA07 RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD SD39 SD23 SD07 SD39 SD23 SD07 SD39 SD23 SD07 SD39 SD23 SD07 SD39 SD23 SD07 SA07 SA07 SA07 SA07 SA07 PC05 PC05 GPCW RSVD OLF0 0 D6 IF22 IF06 IF22 IF06 IF22 IF06 IF22 IF06 IF22 IF06 IF22 IF06 IF22 IF06 IF22 IF06 MP06 AA06 AA06 AA06 AA06 RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD SD38 SD22 SD06 SD38 SD22 SD06 SD38 SD22 SD06 SD38 SD22 SD06 SD38 SD22 SD06 SA06 SA06 SA06 SA06 SA06 PC04 PC04 IFCW RSVD FST 0 D5 IF21 IF05 IF21 IF05 IF21 IF05 IF21 IF05 IF21 IF05 IF21 IF05 IF21 IF05 IF21 IF05 MP05 AA05 AA05 AA05 AA05 RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD SD37 SD21 SD05 SD37 SD21 SD05 SD37 SD21 SD05 SD37 SD21 SD05 SD37 SD21 SD05 SA05 SA05 SA05 SA05 SA05 PC03 PC03 IST RSVD TDM 0 D4 IF20 IF04 IF20 IF04 IF20 IF04 IF20 IF04 IF20 IF04 IF20 IF04 IF20 IF04 IF20 IF04 MP04 AA04 AA04 AA04 AA04 RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD SD36 SD20 SD04 SD36 SD20 SD04 SD36 SD20 SD04 SD36 SD20 SD04 SD36 SD20 SD04 SA04 SA04 SA04 SA04 SA04 PC02 PC02 ADM RSVD MSB2 ILP D3 IF19 IF03 IF19 IF03 IF19 IF03 IF19 IF03 IF19 IF03 IF19 IF03 IF19 IF03 IF19 IF03 MP03 AA03 AA03 AA03 AA03 RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD SD35 SD19 SD03 SD35 SD19 SD03 SD35 SD19 SD03 SD35 SD19 SD03 SD35 SD19 SD03 SA03 SA03 SA03 SA03 SA03 PC01 PC01 DAM RSVD MSB1 IBP D2 IF18 IF02 IF18 IF02 IF18 IF02 IF18 IF02 IF18 IF02 IF18 IF02 IF18 IF02 IF18 IF02 MP02 AA02 AA02 AA02 AA02 RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD SD34 SD18 SD02 SD34 SD18 SD02 SD34 SD18 SD02 SD34 SD18 SD02 SD34 SD18 SD02 SA02 SA02 SA02 SA02 SA02 PC00 PC00 CR RSVD MSB0 M2 D1 IF17 IF01 IF17 IF01 IF17 IF01 IF17 IF01 IF17 IF01 IF17 IF01 IF17 IF01 IF17 IF01 MP01 AA01 AA01 AA01 AA01 RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD SD33 SD17 SD01 SD33 SD17 SD01 SD33 SD17 SD01 SD33 SD17 SD01 SD33 SD17 SD01 SA01 SA01 SA01 SA01 SA01 RS01 RS01 SR1 RSVD OWL1 M1 D0 IF16 IF00 IF16 IF00 IF16 IF00 IF16 IF00 IF16 IF00 IF16 IF00 IF16 IF00 IF16 IF00 MP00 AA00 AA00 AA00 AA00 RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD SD32 SD16 SD00 SD32 SD16 SD00 SD32 SD16 SD00 SD32 SD16 SD00 SD32 SD16 SD00 SA00 SA00 SA00 SA00 SA00 RS00 RS00 SR0 RSVD OWL0 M0 Default 0x0000 0x0000 0x0000 0x0000 0x0000 0x0000 0x0000 0x0000 0x0000 0x0000 0x0000 0x0000 0x0000 0x0000 0x0000 0x0000 0x0000 0x0000 0x0000 0x0000 0x0000 0x00 0x0000 0x0000 0x00 0x0000 0x0000 0x00 0x0000 0x0000 0x00 0x0000 0x0000 0x00 0x0000 0x0000 0x00 0x0000 0x0000 0x00 0x0000 0x0000 0x00 0x0000 0x0000 0x0000 0x0000 0x0000 0x0000 0x0000 0x0000 0x0000 0x0000 0x00 0x0000 0x00 Data Sheet ADAU1701 MSB Register Address Hex Dec 0x0820 2080 0x0821 2081 0x0822 2082 0x0823 0x0824 0x0825 0x0826 0x0827 1 2083 2084 2085 2086 2087 No. of Bytes Name 3 MP Pin Config. 0[23:16] MP Pin Config. 0[15:0] 3 MP Pin Config. 1[23:16] MP Pin Config. 1[15:0] 2 Auxiliary ADC and power control 2 Reserved 2 Auxiliary ADC enable 2 Reserved 2 Oscillator power-down 2 DAC setup LSB D39 D31 D30 D29 D28 D27 D26 D25 D24 D23 D15 D14 D13 D12 D11 D10 D9 D8 D7 MP53 MP33 MP32 MP31 MP30 MP23 MP22 MP21 MP20 MP13 MP113 MP93 MP92 MP91 MP90 MP83 MP82 MP81 MP80 MP73 RSVD RSVD RSVD RSVD RSVD RSVD FIL1 FIL0 AAPD D38 D22 D6 MP52 MP12 MP112 MP72 VBPD D37 D21 D5 MP51 MP11 MP111 MP71 VRPD D36 D20 D4 MP50 MP10 MP110 MP70 RSVD D35 D19 D3 MP43 MP03 MP103 MP63 D0PD D34 D18 D2 MP42 MP02 MP102 MP62 D1PD D33 D17 D1 MP41 MP01 MP101 MP61 D2PD D32 D16 D0 MP40 MP00 MP100 MP60 D3PD Default 0x00 0x0000 0x00 0x0000 0x0000 RSVD AAEN RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD OPD RSVD RSVD RSVD RSVD RSVD DS1 RSVD RSVD RSVD RSVD DS0 0x0000 0x0000 0x0000 0x0000 0x0000 RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD Shading indicates that registers do not fill these locations, so control bits do not exist in these locations. Rev. C | Page 33 of 52 ADAU1701 Data Sheet CONTROL REGISTER DETAILS 2048 TO 2055 (0x0800 TO 0x0807)—INTERFACE REGISTERS The interface registers are used in self-boot mode to save parameters that need to be written to the external EEPROM. The ADAU1701 then recalls these parameters from the EEPROM after the next reset or power-up. Therefore, system parameters such as volume and EQ settings can be saved during power-down and recalled the next time the system is turned on. There are eight 32-bit interface registers, which allow eight 28-bit (plus zero-padding) parameters to be saved. The parameters to be saved in these registers are selected in the graphical programming tools. These registers are updated with their corresponding parameter RAM data once per sample period. An edge, which can be set to be either rising or falling, triggers the ADAU1701 to write the current contents of the interface registers to the EEPROM. See the Self-Boot section for details. The user can write directly to the interface registers after the interface registers control port write mode (IFCW) in the DSP core control register has been set. In this mode, the data in the registers is written from the control port, not from the DSP core. Table 32. Interface Register Bit Map D31 D15 0 IF15 D30 D14 0 IF14 D29 D13 0 IF13 D28 D12 0 IF12 D27 D11 IF27 IF11 D26 D10 IF26 IF10 D25 D9 IF25 IF09 D24 D8 IF24 IF08 D23 D7 IF23 IF07 D22 D6 IF22 IF06 Table 33. Bit Name IF[27:0] Description Interface register 28-bit parameter Rev. C | Page 34 of 52 D21 D5 IF21 IF05 D20 D4 IF20 IF04 D19 D3 IF19 IF03 D18 D2 IF18 IF02 D17 D1 IF17 IF01 D16 D0 IF16 IF00 Default 0x0000 0x0000 Data Sheet ADAU1701 2056 (0x0808)—GPIO PIN SETTING REGISTER read from this register after setting the GPIO pin setting register control port write mode (GPCW) in the core control register. This register is updated once every LRCLK frame (1/fS). This register allows the user to set the GPIO pins through the control port. High or low settings can be directly written to or Table 34. GPIO Pin Setting Register Bit Map D15 0 D14 0 D13 0 D12 0 D11 MP11 D10 MP10 D9 MP09 D8 MP08 D7 MP07 D6 MP06 D5 MP05 D4 MP04 D3 MP03 Table 35. Bit Name MP[11:0] Description Setting of multipurpose pin when controlled through SPI or I2C Rev. C | Page 35 of 52 D2 MP02 D1 MP01 D0 MP00 Default 0x0000 ADAU1701 Data Sheet 2057 TO 2060 (0x0809 TO 0x080C)—AUXILIARY ADC DATA REGISTERS These registers hold the data generated by the 4-channel auxiliary ADC. The ADCs have eight bits of precision and can be extended to 12 bits if filtering is selected via Bits FIL[1:0] of the auxiliary ADC and power control register. The SigmaDSP program reads this data as a 1.11 format data-word with a range of 0 to 1.0. This data-word is mapped to the 5.23 format parameter word with the four MSBs and 12 LSBs set to 0. A full-scale code of 255 results in a value of 1.0. These registers can be written to directly if the auxiliary ADC data registers control port write mode (AACW) bit is set in the DSP core control register. Table 36. Auxiliary ADC Data Register Bit Map D15 0 D14 0 D13 0 D12 0 D11 AA11 D10 AA10 D9 AA09 D8 AA08 D7 AA07 D6 AA06 Table 37. Bit Name AA[11:0] Description Auxiliary ADC output data, MSB first Rev. C | Page 36 of 52 D5 AA05 D4 AA04 D3 AA03 D2 AA02 D1 AA01 D0 AA00 Default 0x0000 Data Sheet ADAU1701 After the address and data registers are loaded, set the initiate safeload transfer bit in the core control register to initiate the loading into RAM. Each of the five safeload registers takes one of the 1024 core instructions to load into the parameter RAM. The total program lengths should, therefore, be limited to 1019 cycles (1024 minus 5) to ensure that the SigmaDSP core always has at least five cycles available. The safeload is guaranteed to occur within one LRCLK period (21 μs for a fS of 48 kHz) of the initiate safeload transfer bit being set. 2064 TO 2068 (0x0810 TO 0x0814)—SAFELOAD DATA REGISTERS Many applications require real-time microcontroller control of signal processing parameters, such as filter coefficients, mixer gains, multichannel virtualizing parameters, or dynamics processing curves. When controlling a biquad filter, for example, all of the parameters must be updated at the same time. Doing so prevents the filter from executing with a mix of old and new coefficients for one or two audio frames, thus avoiding temporary instability and transients that may take a long time to decay. To accomplish this, the ADAU1701 uses safeload data registers to simultaneously load a set of five 28-bit values to the desired parameter RAM address. Five registers are used because a biquad filter uses five coefficients and, as previously mentioned, it is desirable to do a complete update in one transaction. The safeload logic automatically sends data to be loaded into RAM from only those safeload registers that have been written to since the last safeload operation. For example, if two parameters are to be updated in the RAM, only two of the five safeload registers must be written. When the initiate safeload transfer bit is asserted, only data from those two registers are sent to the RAM; the other three registers are not sent to the RAM and may hold old or invalid data. The first step in performing a safeload operation is writing the parameter address to one of the safeload address registers (2069 to 2073). The 10-bit data-word to be written is the address in parameter RAM to which the safeload is being performed. After this address is written, the 28-bit data-word can be written to the corresponding safeload data register (2064 to 2068). Table 38. Safeload Address and Data Register Mapping Safeload Register 0 1 2 3 4 The data formats for these writes are detailed in Table 29 and Table 30. Table 38 shows how each of the five address registers maps to its corresponding data register. Safeload Address Register 2069 2070 2071 2072 2073 Safeload Data Register 2064 2065 2066 2067 2068 Table 39. Safeload Registers Bit Map D31 D15 D30 D14 D29 D13 D28 D12 D27 D11 D26 D10 D25 D9 D24 D8 SD31 SD15 SD30 SD14 SD29 SD13 SD28 SD12 SD27 SD11 SD26 SD10 SD25 SD09 SD24 SD08 D39 D23 D7 SD39 SD23 SD07 D38 D22 D6 SD38 SD22 SD06 D37 D21 D5 SD37 SD21 SD05 D36 D20 D4 SD36 SD20 SD04 D35 D19 D3 SD35 SD19 SD03 D34 D18 D2 SD34 SD18 SD02 D33 D17 D1 SD33 SD17 SD01 D32 D16 D0 SD32 SD16 SD00 Default 0x00 0x0000 0x0000 Table 40. Bit Name SD[39:0] Description Safeload Data. Data (program, parameters, register contents) to be loaded into the RAMs or registers. 2069 TO 2073 (0x0815 TO 0x819)—SAFELOAD ADDRESS REGISTERS Table 41. Safeload Address Registers Bit Map D15 0 D14 0 D13 0 D12 0 D11 SA11 D10 SA10 D9 SA09 D8 SA08 D7 SA07 D6 SA06 D5 SA05 D4 SA04 D3 SA03 D2 SA02 D1 SA01 D0 SA00 Table 42. Bit Name SA[11:0] Description Safeload Address. Address of data that is to be loaded into the RAMs or registers Rev. C | Page 37 of 52 Default 0x0000 ADAU1701 Data Sheet 2074 TO 2075 (0x081A TO 0x081B)—DATA CAPTURE REGISTERS The captured data is in 5.19, twos complement data format, which comes from the internal 5.23 data-word with the four LSBs truncated. The ADAU1701 data capture feature allows the data at any node in the signal processing flow to be sent to one of two readable registers. This feature is useful for monitoring and displaying information about internal signal levels or compressor/limiter activity. The data that must be written to set up the data capture is a concatenation of the 10-bit program count index with the 2-bit register select field. The capture count and register select values that correspond to the desired point to be monitored in the signal processing flow can be found in a file output from the program compiler. The capture registers can be accessed by reading from Location 2074 and Location 2075. The format for writing and reading to the data capture registers is shown in Table 27 and Table 28. For each of the data capture registers, a capture count and a register select must be set. The capture count is a number between 0 and 1023 that corresponds to the program step number where the capture is to occur. The register select field programs one of four registers in the DSP core that transfers this information to the data capture register when the program counter reaches this step. Table 43. Safeload Data Registers Bit Map D15 0 D14 0 D13 0 D12 0 D11 PC09 D10 PC08 D9 PC07 D8 PC06 D7 PC05 D6 PC04 D5 PC03 Table 44. Bit Name PC[9:0] RS[1:0] Description 10-bit program counter address Select the register to be transferred to the data capture output RS[1:0] Register 00 Multiplier X input (Mult_X_input) 01 Multiplier Y input (Mult_Y_input) 10 Multiplier-accumulator output (MAC_out) 11 Accumulator feedback (Accum_fback) Rev. C | Page 38 of 52 D4 PC02 D3 PC01 D2 PC00 D1 RS01 D0 RS00 Default 0x0000 Data Sheet ADAU1701 2076 (0x081C)—DSP CORE CONTROL REGISTER Table 45. DSP Core Control Register Bit Map D15 RSVD D14 RSVD D13 GD1 D12 GD0 D11 RSVD D10 RSVD D9 RSVD D8 AACW D7 GPCW D6 IFCW D5 IST D4 ADM D3 DAM D2 CR D1 SR1 D0 SR0 Default 0x0000 Table 46. DSP Core Control Register Bit Name GD[1:0] AACW GPCW IFCW IST ADM DAM CR SR[1:0] Description GPIO Debounce Control. Sets debounce time of multipurpose pins that are set as GPIO inputs. GD[1:0] Time (ms) 00 20 01 40 10 10 11 5 Auxiliary ADC Data Registers Control Port Write Mode. Setting this bit allows data to be written directly to the auxiliary ADC data registers (2057 to 2060) from the control port. When this bit is set, the auxiliary ADC data registers ignore the settings on the multipurpose pins. GPIO Pin Setting Register Control Port Write Mode. When this bit is set, the GPIO pin setting register (2056) can be written to directly from the control port and this register ignores the input settings on the multipurpose pins. Interface Registers Control Port Write Mode. When this bit is set, data can be written directly to the interface registers (2048 to 2055) from the control port. In that state, the interface registers are not written from the SigmaDSP program. Initiate Safeload Transfer. Setting this bit to 1 initiates a safeload transfer to the parameter RAM. This bit is automatically cleared when the operation is complete. There are five safeload register pairs (address/data); only those registers that have been written since the last safeload event are transferred to the parameter RAM. Mute ADCs. This bit mutes the output of the ADCs. The bit defaults to 0 and is active low; therefore, it must be set to 1 to transmit audio signals from the ADCs. Mute DACs. This bit mutes the output of the DACs. The bit defaults to 0 and is active low; therefore, it must be set to 1 to transmit audio signals from the DACs. Clear Internal Registers to 0. This bit defaults to 0 and is active low. It must be set to 1 for a signal to pass through the SigmaDSP core. Sample Rate. These bits set the number of DSP instructions for every sample and the sample rate at which the ADAU1701 operates. At the default setting of 1×, there are 1024 instructions per audio sample. This setting should be used with sample rates such as 48 kHz and 44.1 kHz. At the 2× setting, the number of instructions per frame is halved to 512 and the ADCs and DACs nominally run at a 96 kHz sample rate. At the 4× setting, there are 256 instructions per cycle and the converters run at a 192 kHz sample rate. SR[1:0] Setting 00 1× (1024 instructions) 01 2× (512 instructions) 10 4× (256 instructions) 11 Reserved Rev. C | Page 39 of 52 ADAU1701 Data Sheet 2078 (0x081E)—SERIAL OUTPUT CONTROL REGISTER Table 47. Serial Output Control Register Bit Map D15 0 D14 0 D13 OLRP D12 OBP D11 M/S D10 OBF1 D9 OBF0 D8 OLF1 D7 OLF0 D6 FST D5 TDM D4 MSB2 D3 MSB1 D2 MSB0 D1 OWL1 D0 OWL0 Default 0x0000 Table 48. Bit Name OLRP OBP M/S OBF[1:0] OLF[1:0] FST TDM MSB[2:0] OWL[1:0] Description OUTPUT_LRCLK Polarity. When this bit is set to 0, the left-channel data is clocked when OUTPUT_LRCLK is low and the right-channel data is clocked when OUTPUT_LRCLK is high. When this bit is set to 1, the rightchannel data is clocked when OUTPUT_LRCLK is low and the left-channel data is clocked when OUTPUT_LRCLK is high. OUTPUT_BCLK Polarity. This bit controls on which edge of the bit clock the output data is clocked. Data changes on the falling edge of OUTPUT_BCLK when this bit is set to 0 and on the rising edge when this bit is set to 1. Master/Slave. This bit sets whether the output port is a clock master or slave. The default setting is slave; on power-up, the OUTPUT_BCLK and OUTPUT_LRCLK pins are set as inputs until this bit is set to 1, at which time they become clock outputs. OUTPUT_BCLK Frequency (Master Mode Only). When the output port is being used as a clock master, these bits set the frequency of the output bit clock, which is divided down from an internal 1024 × fS clock (49.152 MHz for a fS of 48 kHz). OBF[1:0] Setting 00 Internal clock/16 01 Internal clock/8 10 Internal clock/4 11 Internal clock/2 OUTPUT_LRCLK Frequency (Master Mode Only). When the output port is used as a clock master, these bits set the frequency of the output word clock on the OUTPUT_LRCLK pins, which is divided down from an internal 1024 × fS clock (49.152 MHz for a fS of 48 kHz). OLF[1:0] Setting 00 Internal clock/1024 01 Internal clock/512 10 Internal clock/256 11 Reserved Frame Sync Type. This bit sets the type of signal on the OUTPUT_LRCLK pins. When this bit is set to 0, the signal is a word clock with a 50% duty cycle; when this bit is set to 1, the signal is a pulse with a duration of one bit clock at the beginning of the data frame. TDM Enable. Setting this bit to 1 changes the output port from four serial stereo outputs to a single 8-channel TDM output stream on the SDATA_OUT0 pin (MP6). MSB Position. These three bits set the position of the MSB of data with respect to the LRCLK edge. The data output of theADAU1701 is always MSB first. MSB[2:0] Setting 000 Delay by 1 001 Delay by 0 010 Delay by 8 011 Delay by 12 100 Delay by 16 101 Reserved 111 Reserved Output Word Length. These bits set the word length of the output data-word. All bits following the LSB are set to 0. OWL[1:0] Setting 00 24 bits 01 20 bits 10 16 bits 11 Reserved Rev. C | Page 40 of 52 Data Sheet ADAU1701 2079 (0x081F)—SERIAL INPUT CONTROL REGISTER Table 49. Serial Input Control Register Bit Map D7 0 D6 0 D5 0 D4 ILP D3 IBP D2 M2 D1 M1 D0 M0 Default 0x00 Table 50. Bit Name ILP IBP M[2:0] Description INPUT_LRCLK Polarity. When this bit is set to 0, the left-channel data on the SDATA_INx pins is clocked when INPUT_LRCLK is low and the right-channel data is clocked when INPUT_LRCLK is high. When this bit is set to 1, the clocking of these channels is reversed. In TDM mode when this bit is set to 0, data is clocked in, starting with the next appropriate BCLK edge (set in Bit 3 of this register) after a falling edge on the INPUT_LRCLK pin. When this bit is set to 1 and the device is running in TDM mode, the input data is valid on the BCLK edge after a rising edge on the word clock (INPUT_LRCLK). INPUT_LRCLK can also operate with a pulse input, rather than a clock. In this case, the first edge of the pulse is used by the ADAU1701 to start the data frame. When this polarity bit is set to 0, a low pulse should be used; when the bit it set to 1, a high pulse should be used. INPUT_BCLK Polarity. This bit controls on which edge of the bit clock the input data changes and on which edge it is clocked. Data changes on the falling edge of INPUT_BCLK when this bit is set to 0 and on the rising edge when this bit is set at 1. Serial Input Mode. These two bits control the data format that the input port expects to receive. Bit 3 and Bit 4 of this control register override the settings of Bits[2:0]; therefore, all four bits must be changed together for proper operation in some modes. The clock diagrams for these modes are shown in Figure 32, Figure 33, and Figure 34. Note that for left-justified and right-justified modes, the LRCLK polarity is high and then low, which is the opposite of the default setting for ILP. When these bits are set to accept a TDM input, the ADAU1701 data starts after the edge defined by ILP. The ADAU1701 TDM data stream should be input on Pin SDATA_IN0. Figure 35 shows a TDM stream with a high-tolow triggered LRCLK and data changing on the falling edge of the BCLK. The ADAU1701 expects the MSB of each data slot to be delayed by one BCLK from the beginning of the slot, as it would in stereo I2S format. In TDM mode, Channel 0 to Channel 3 are in the first half of the frame, and Channel 4 to Channel 7 are in the second half. Figure 36 shows an example of a TDM stream running with a pulse word clock, which is used to interface to ADI codecs in auxiliary mode. To work in this mode with either the input or output serial ports, set the ADAU1701 to begin the frame on the rising edge of LRCLK, to change data on the falling edge of BCLK, and to delay the MSB position from the start of the word clock by one BCLK. M[2:0] Setting 000 I2 S 001 Left-justified 010 TDM 011 Right-justified, 24 bits 100 Right-justified, 20 bits 101 Right-justified, 18 bits 110 Right- justified, 16 bits 111 Reserved Rev. C | Page 41 of 52 ADAU1701 Data Sheet 2080 TO 2081 (0x0820 TO 0x0821)— MULTIPURPOSE PIN CONFIGURATION REGISTERS different MP pin. Table 53 lists the function of each nibble setting within the MP pin configuration registers. The MSB of each pin’s 4-bit configuration inverts the input to or output from the pin. The internal pull-up resistor (approximately 10 kΩ) of each MP pin is enabled when it is set as a digital input (either a GPIO input or a serial data port input). Each multipurpose pin can be set to different functions from these registers (2080 to 2081). The two 3-byte registers are broken up into 12 4-bit (nibble) sections that each control a Table 51. Register 2080 Bit Map D15 D14 D13 D12 D11 D10 D9 D8 MP33 MP32 MP31 MP30 MP23 MP22 MP21 MP20 D23 D7 MP53 MP13 D22 D6 MP52 MP12 D21 D5 MP51 MP11 D20 D4 MP50 MP10 D19 D3 MP43 MP03 D18 D2 MP42 MP02 D17 D1 MP41 MP01 D16 D0 MP40 MP00 Default 0x00 0x0000 D19 D3 MP103 MP63 D18 D2 MP102 MP62 D17 D1 MP101 MP61 D16 D0 MP100 MP60 Default 0x00 0x0000 Table 52. Register 2081 Bit Map D15 D14 D13 D12 D11 D10 D9 D8 MP93 MP92 MP91 MP90 MP83 MP82 MP81 MP80 D23 D7 MP113 MP73 D22 D6 MP112 MP72 D21 D5 MP111 MP71 Table 53. Bit Name MPx[3:0] Description Set the function of each multipurpose pin. MPx[3:0] Setting 1111 Auxiliary ADC input (see Table 62) 1110 Reserved 1101 Reserved 1100 Serial data port—inverted (see Table 64) 1011 Open-collector output—inverted 1010 GPIO output—inverted 1001 GPIO input, no debounce—inverted 1000 GPIO input, debounced—inverted 0111 N/A 0110 Reserved 0101 Reserved 0100 Serial data port (see Table 64) 0011 Open-collector output 0010 GPIO output 0001 GPIO input, no debounce 0000 GPIO input, debounced Rev. C | Page 42 of 52 D20 D4 MP110 MP70 Data Sheet ADAU1701 2082 (0x0822)—AUXILIARY ADC AND POWER CONTROL Table 54. Auxiliary ADC and Power Control Bit Map D15 RSVD D14 RSVD D13 RSVD D12 RSVD D11 RSVD D10 RSVD D9 FIL1 D8 FIL0 D7 AAPD D6 VBPD D5 VRPD D4 RSVD D3 D0PD D2 D1PD D1 D2PD D0 D3PD Default 0x0000 Table 55. Bit Name FIL[1:0] AAPD VBPD VRPD D0PD D1PD D2PD D3PD Description Auxiliary ADC filtering FIL[1:0] Setting 00 4-bit hysteresis (12-bit level) 01 5-bit hysteresis (12-bit level) 10 Filter and hysteresis bypassed 11 Low-pass filter bypassed ADC power-down (both ADCs) Voltage reference buffer power-down Voltage reference power-down DAC0 power-down DAC1 power-down DAC2 power-down DAC3 power-down 2084 (0x0824)—AUXILIARY ADC ENABLE Table 56. Auxiliary ADC Enable Bit Map D15 AAEN D14 RSVD D13 RSVD D12 RSVD D11 RSVD D10 RSVD D9 RSVD D8 RSVD D7 RSVD D6 RSVD D5 RSVD D4 RSVD D3 RSVD D2 RSVD D1 RSVD D0 RSVD Default 0x0000 D7 RSVD D6 RSVD D5 RSVD D4 RSVD D3 RSVD D2 OPD D1 RSVD D0 RSVD Default 0x0000 Table 57. Bit Name AAEN Description Enable the auxiliary ADC 2086 (0x0826)—OSCILLATOR POWER-DOWN Table 58. Oscillator Power-Down Bit Map D15 RSVD D14 RSVD D13 RSVD D12 RSVD D11 RSVD D10 RSVD D9 RSVD D8 RSVD Table 59. Bit Name OPD Description Oscillator Power Down. Power down the oscillator. Rev. C | Page 43 of 52 ADAU1701 Data Sheet 2087 (0x0827)—DAC SETUP To properly initialize the DACs, Bits DS[1:0] in this register should be set to 01. Table 60. DAC Setup Bit Map D15 RSVD D14 RSVD D13 RSVD D12 RSVD D11 RSVD D10 RSVD D9 RSVD D8 RSVD D7 RSVD D6 RSVD Table 61. Bit Name DS[1:0] Description DAC Setup. DS[1:0] 00 01 10 11 Setting Reserved Initialize DACs Reserved Reserved Rev. C | Page 44 of 52 D5 RSVD D4 RSVD D3 RSVD D2 RSVD D1 DS1 D0 DS0 Default 0x0000 Data Sheet ADAU1701 MULTIPURPOSE PINS The ADAU1701 has 12 multipurpose (MP) pins that can be individually programmed to be used as serial data inputs, serial data outputs, digital control inputs/outputs to and from the SigmaDSP core, or inputs to the 4-channel auxiliary ADC. These pins allow the ADAU1701 to be used with external ADCs and DACs. They also use analog or digital inputs to control settings such as volume control, or use output digital signals to drive LED indicators. Every MP pin has an internal 15 kΩ pull-up resistor. AUXILIARY ADC The ADAU1701 has a 4-channel, auxiliary, 8-bit ADC that can be used in conjunction with a potentiometer to control volume, tone, or other parameter settings in the DSP program. Each of the four channels is sampled at the audio sampling frequency (fS). Full-scale input on this ADC is 3.0 V, so the step size is approximately 12 mV (3.0 V/256 steps). The input resistance of the ADC is approximately 30 kΩ. Table 62 indicates which four MP pins are mapped to the four channels of the auxiliary ADC. The auxiliary ADC is enabled for those pins by writing 1111 to the appropriate portion of the multipurpose pin configuration registers. The auxiliary ADC is turned on by setting the AAEN bit of the auxiliary ADC enable register (see Table 57). Noise on the ADC input can cause the digital output to constantly change by a few LSBs. If the auxiliary ADC is used to control volume, this constant change causes small gain fluctuations. To avoid this, add a low-pass filter or hysteresis to the auxiliary ADC signal path by enabling either function in the auxiliary ADC and power control register (2082), as described in Table 55. The filter is enabled by default when the auxiliary ADC is enabled. When data is read from the auxiliary ADC registers, two bytes (12 bits of data, plus zero-padded LSBs) are available because of this filtering. AUX ADC INPUT PIN 20kΩ S2 1.8pF 10kΩ 06412-030 S1 Figure 31. Auxiliary ADC Input Circuit Figure 31 shows the input circuit for the auxiliary ADC. Switch S1 enables the auxiliary ADC and is set by Bit 15 of the auxiliary ADC enable register. The sampling switch, S2, operates at the audio sampling frequency. The auxiliary ADC data registers can be written to directly after AACW in the DSP core control register has been set. In this mode, the voltages on the analog inputs are not written into the registers, but rather the data in the registers is written from the control port. PVDD supplies the 3.3 V power for the auxiliary ADC analog input. The digital core of the auxiliary ADC is powered with the 1.8 V DVDD signal. Table 62. Multipurpose Pin Auxiliary ADC Mapping Multipurpose Pin MP0 MP1 MP2 MP3 MP4 MP5 MP6 MP7 MP8 MP9 MP10 MP11 Function N/A N/A ADC1 ADC2 N/A N/A N/A N/A ADC3 ADC0 N/A N/A GENERAL-PURPOSE INPUT/OUTPUT PINS The general-purpose input/output (GPIO) pins can be used as either inputs or outputs. These pins are readable and can be set either through the control interface or directly by the SigmaDSP core. When set as inputs, these pins can be used with push-button switches or rotary encoders to control DSP program settings. Digital outputs can be used to drive LEDs or external logic to indicate the status of internal signals and control other devices. Examples of this use include indicating signal overload, signal present, and button press confirmation. When set as an output, each pin can typically drive 2 mA. This is enough current to directly drive some high efficiency LEDs. Standard LEDs require about 20 mA of current and can be driven from a GPIO output with an external transistor or buffer. Because of issues that could arise from simultaneously driving or sinking a large current on many pins, care should be taken in the application design to avoid connecting high efficiency LEDs directly to many or all of the MPx pins. If many LEDs are required, use an external driver. When the GPIO pins are set as open-collector outputs, they should be pulled up to a maximum voltage of 3.3 V (the voltage on IOVDD). SERIAL DATA INPUT/OUTPUT PORTS The flexible serial data input and output ports of the ADAU1701 can be set to accept or transmit data in 2-channel format or in an 8-channel TDM stream. Data is processed in twos complement, MSB-first format. The left-channel data field always precedes the right-channel data field in the 2-channel streams. In TDM mode, Slot 0 to Slot 3 are in the first half of the audio frame, and Slot 4 to Slot 7 are in the second half of the frame. TDM mode allows fewer multipurpose pins to be used, freeing more pins for other functions. The serial modes are set in the serial output and serial input control registers. Rev. C | Page 45 of 52 ADAU1701 Data Sheet The serial data clocks need to be synchronous with the ADAU1701 master clock input. The input control register allows control of clock polarity and data input modes. The valid data formats are I2S, left-justified, right-justified (24-/20-/18-/16-bit), and 8-channel TDM. In all modes except for the right-justified modes, the serial port accepts an arbitrary number of bits up to a limit of 24. Extra bits do not cause an error, but they are truncated internally. Proper operation of the right-justified modes requires that there be exactly 64 BCLKs per audio frame. The TDM data is input on SDATA_IN0. The LRCLK in TDM mode can be input to the ADAU1701 either as a 50/50 duty cycle clock or as a bit-wide pulse. In TDM mode, the ADAU1701 can be a master for 48 kHz and 96 kHz data, but not for 192 kHz data. Table 63 lists the modes in which the serial output port can function. Table 63. Serial Output Port Master/Slave Mode Capabilities fS 48 kHz 96 kHz 192 kHz 2-Channel Modes (I2S, Left Justified, Right Justified) Master and slave Master and slave Master and slave 8-Channel TDM Master and slave Master and slave Slave only input port is set in the serial input control register (Table 50), and the configuration of the corresponding output port is controlled with the serial output control register (Table 48). The clocks of the input port function only as slaves, whereas the output port clocks can be set to function as either masters or slaves. The INPUT_LRCLK (MP4) and INPUT_BCLK (MP5) pins are used to clock the SDATA_INx (MP0 to MP3) signals, and the OUTPUT_LRCLK (MP10) and OUTPUT_BCLK (MP11) pins are used to clock the SDATA_OUTx (MP6 to MP9) signals. If an external ADC is connected as a slave to the ADAU1701, use both the input and output port clocks. The OUTPUT_LRCLK (MP10) and OUTPUT_BCLK (MP11) pins must be set to master mode and connected externally to the INPUT_LRCLK (MP4) and INPUT_BCLK (MP5) pins as well as to the external ADC clock input pins. The data is output from the external ADC into the SigmaDSP on one of the four SDATA_INx pins (MP0 to MP3). Connections to an external DAC are handled exclusively with the output port pins. The OUTPUT_LRCLK and OUTPUT_BCLK pins can be set to function as either masters or slaves, and the SDATA_OUTx pins are used to output data from the SigmaDSP to the external DAC. Table 65 describes the proper configurations for standard audio data formats. The output control registers allow the user to control clock polarities, clock frequencies, clock types, and data format. In all modes except for the right-justified modes (MSB delayed by 8, 12, or 16 bits), the serial port accepts an arbitrary number of bits up to a limit of 24. Extra bits do not cause an error, but are truncated internally. Proper operation of the right-justified modes requires the LSB to align with the edge of the LRCLK. The default settings of all serial port control registers correspond to 2-channel I2S mode. All register settings apply to both master and slave modes unless otherwise noted. The function of each multipurpose pin in serial data port mode is shown in Table 64. Pin MP0 to Pin MP5 support digital data input to theADAU1701, and Pin MP6 to Pin MP11 handle digital data output from the DSP. The configuration of the serial data Table 64. Multipurpose Pin Serial Data Port Functions Multipurpose Pin MP0 MP1 MP2 MP3 MP4 MP5 MP6 MP7 MP8 MP9 MP10 MP11 Function SDATA_IN0/TDM_IN SDATA_IN1 SDATA_IN2 SDATA_IN3 INPUT_LRCLK (slave only) INPUT_BCLK (slave only) SDATA_OUT0/TDM_OUT SDATA_OUT1 SDATA_OUT2 SDATA_OUT3 OUTPUT_LRCLK (master or slave) OUTPUT_BCLK (master or slave) Table 65. Data Format Configurations Format I2S (Figure 32) LRCLK Polarity Frame begins on falling edge LRCLK Type Clock BCLK Polarity Data changes on falling edge Left-Justified (Figure 33) Right-Justified (Figure 34) Frame begins on rising edge Frame begins on rising edge Clock Clock Data changes on falling edge Data changes on falling edge TDM with Clock (Figure 35) Frame begins on falling edge Clock Data changes on falling edge TDM with Pulse (Figure 36) Frame begins on rising edge Pulse Data changes on falling edge Rev. C | Page 46 of 52 MSB Position Delayed from LRCLK edge by 1 BCLK Aligned with LRCLK edge Delayed from LRCLK edge by 8, 12, or 16 BCLKs Delayed from start of word clock by 1 BCLK Delayed from start of word clock by 1 BCLK Data Sheet ADAU1701 LEFT CHANNEL LRCLK RIGHT CHANNEL BCLK LSB MSB LSB MSB 06412-031 SDATA 1/FS 2 Figure 32. I S Mode—16 Bits to 24 Bits per Channel MSB LSB MSB LSB 06412-032 SDATA RIGHT CHANNEL LEFT CHANNEL LRCLK BCLK 1/FS Figure 33. Left-Justified Mode—16 Bits to 24 Bits per Channel RIGHT CHANNEL SDATA MSB LSB MSB LSB 06412-033 LEFT CHANNEL LRCLK BCLK 1/FS Figure 34. Right-Justified Mode—16 Bits to 24 Bits per Channel LRCLK 256 BCLKs BCLK DATA 32 BCLKs SLOT 1 SLOT 2 SLOT 3 SLOT 4 SLOT 5 SLOT 6 SLOT 7 SLOT 8 LRCLK MSB–1 MSB–2 06412-034 BCLK MSB DATA Figure 35. TDM Mode LRCLK BCLK MSB TDM MSB TDM CH 0 8TH CH SLOT 0 SLOT 1 SLOT 2 SLOT 3 SLOT 4 SLOT 5 SLOT 6 SLOT 7 06412-035 SDATA 32 BCLKs Figure 36. TDM Mode with Pulse Word Clock Rev. C | Page 47 of 52 ADAU1701 Data Sheet LAYOUT RECOMMENDATIONS PARTS PLACEMENT The ADC input voltage-to-current resistors and the ADC current set resistor should be placed as close as possible to the 2, 3, and 4 input pins. All 100 nF bypass capacitors, which are recommended for every analog, digital, and PLL power/ground pair, should be placed as close as possible to the ADAU1701. The 3.3 V and 1.8 V signals on the board should also each be bypassed with a single bulk capacitor (10 μF to 47 μF). All traces in the crystal oscillator circuit (Figure 14) should be kept as short as possible to minimize stray capacitance. In addition, avoid long board traces connected to any of these components because such traces may affect crystal startup and operation. GROUNDING A single ground plane should be used in the application layout. Components in an analog signal path should be placed away from digital signals. Rev. C | Page 48 of 52 Data Sheet ADAU1701 TYPICAL APPLICATION SCHEMATICS SELF-BOOT MODE 06412-036 U1 ADAU1701 Figure 37. Self-Boot Mode Schematic Rev. C | Page 49 of 52 ADAU1701 Data Sheet I2C CONTROL 06412-037 U1 ADAU1701 Figure 38. I2C Control Schematic Rev. C | Page 50 of 52 Data Sheet ADAU1701 SPI CONTROL 06412-038 U1 ADAU1701 Figure 39. SPI Control Schematic Rev. C | Page 51 of 52 ADAU1701 Data Sheet OUTLINE DIMENSIONS 0.75 0.60 0.45 9.20 9.00 SQ 8.80 1.60 MAX 37 48 36 1 PIN 1 SEATING PLANE 0.20 0.09 7° 3.5° 0° 0.08 COPLANARITY (PINS DOWN) 25 12 13 VIEW A 0.50 BSC LEAD PITCH VIEW A 24 0.27 0.22 0.17 ROTATED 90° CCW COMPLIANT TO JEDEC STANDARDS MS-026-BBC 051706-A 0.15 0.05 7.20 7.00 SQ 6.80 TOP VIEW 1.45 1.40 1.35 Figure 40. 48-Lead Low-Profile Quad Flat Package [LQFP] (ST-48) Dimensions shown in millimeters ORDERING GUIDE Model 1 ADAU1701JSTZ ADAU1701JSTZ-RL EVAL-ADAU1401EBZ EVAL-ADAU1701MINIZ 1 Temperature Range 0°C to +70°C 0°C to +70°C Package Description 48-Lead LQFP 48-Lead LQFP in 13” Tape and Reel Evaluation Board Evaluation Board Z = RoHS Compliant Part. I2C refers to a communications protocol originally developed by Philips Semiconductors (now NXP Semiconductors). ©2007–2016 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners. D06412-0-5/16(C) Rev. C | Page 52 of 52 Package Option ST-48 ST-48
