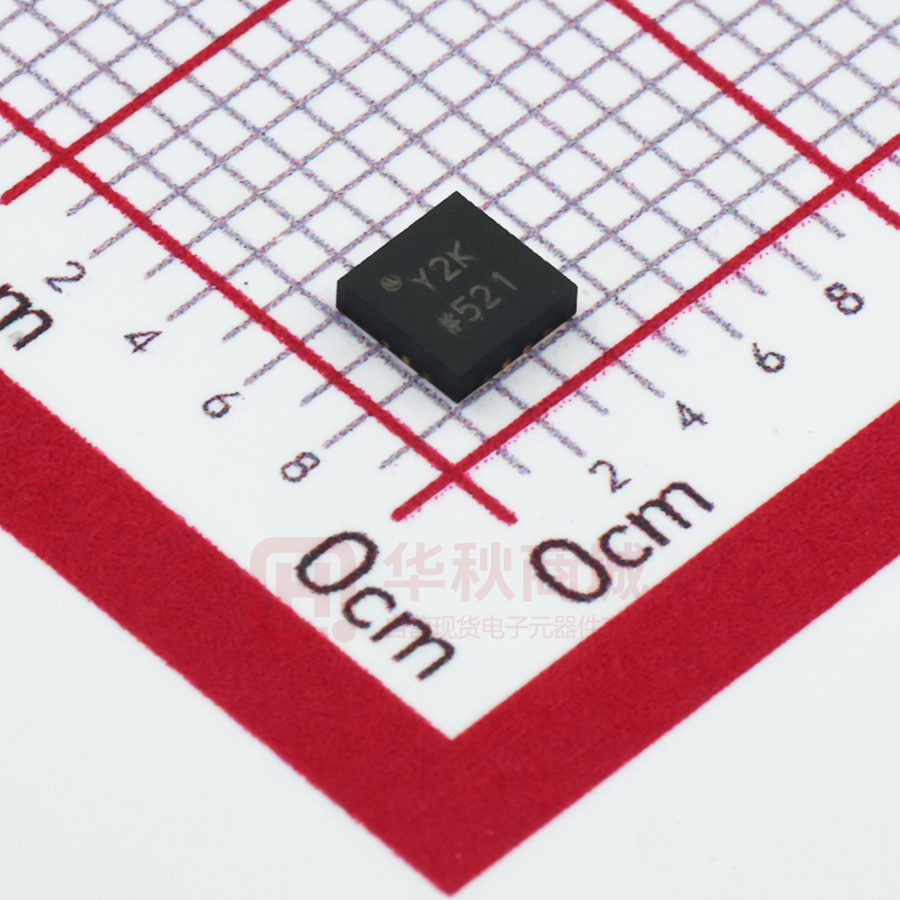

ADCLK944BCPZ-R7

2.5 V/3.3 V, Four LVPECL Outputs, SiGe Clock Fanout Buffer ADCLK944 FEATURES Operating frequency: 7.0 GHz Broadband random jitter: 50 fs rms On-chip input terminations Power supply (VCC − VEE): 2.5 V to 3.3 V FUNCTIONAL BLOCK DIAGRAM ADCLK944 Q0 VREF Q0 REFERENCE Q1 APPLICATIONS Q1 VT Q2 CLK Q2 CLK Q3 Q3 08770-001 Low jitter clock distribution Clock and data signal restoration Level translation Wireless communications Wired communications Medical and industrial imaging ATE and high performance instrumentation LVPECL Figure 1. GENERAL DESCRIPTION The ADCLK944 is an ultrafast clock fanout buffer fabricated on the Analog Devices, Inc., proprietary XFCB3 silicon germanium (SiGe) bipolar process. This device is designed for high speed applications requiring low jitter. The device has a differential input equipped with center-tapped, differential, 100 Ω on-chip termination resistors. The input can accept dc-coupled LVPECL, CML, 3.3 V CMOS (single-ended), and ac-coupled 1.8 V CMOS, LVDS, and LVPECL inputs. A VREF pin is available for biasing ac-coupled inputs. The ADCLK944 features four full-swing emitter-coupled logic (ECL) output drivers. For LVPECL (positive ECL) operation, bias VCC to the positive supply and VEE to ground. For ECL operation, bias VCC to ground and VEE to the negative supply. The ECL output stages are designed to directly drive 800 mV each side into 50 Ω terminated to VCC − 2 V for a total differential output swing of 1.6 V. The ADCLK944 is available in a 16-lead LFCSP and is specified for operation over the standard industrial temperature range of −40°C to +85°C. Rev. 0 Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Trademarks and registered trademarks are the property of their respective owners. One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. Tel: 781.329.4700 www.analog.com Fax: 781.461.3113 ©2010 Analog Devices, Inc. All rights reserved. ADCLK944 TABLE OF CONTENTS Features .............................................................................................. 1  ESD Caution...................................................................................5  Applications ....................................................................................... 1  Thermal Performance ...................................................................5  Functional Block Diagram .............................................................. 1  Pin Configuration and Function Descriptions..............................6  General Description ......................................................................... 1  Typical Performance Characteristics ..............................................7  Revision History ............................................................................... 2  Theory of Operation .........................................................................9  Specifications..................................................................................... 3  Clock Inputs ...................................................................................9  Clock Inputs and Outputs ........................................................... 3  Clock Outputs ................................................................................9  Timing Characteristics ................................................................ 3  PCB Layout Considerations ...................................................... 10  Power .............................................................................................. 4  Input Termination Options ....................................................... 11  Absolute Maximum Ratings............................................................ 5  Outline Dimensions ....................................................................... 12  Determining Junction Temperature .......................................... 5  Ordering Guide .......................................................................... 12  REVISION HISTORY 3/10—Revision 0: Initial Version Rev. 0 | Page 2 of 12 ADCLK944 SPECIFICATIONS Typical values are given for VCC − VEE = 3.3 V and TA = 25°C, unless otherwise noted. Minimum and maximum values are given for the full VCC − VEE = 3.3 V + 10% to 2.5 V − 5% and TA = −40°C to +85°C variation, unless otherwise noted. CLOCK INPUTS AND OUTPUTS Table 1. Parameter DC INPUT CHARACTERISTICS Input Common-Mode Voltage Input Differential Voltage Input Capacitance Input Resistance Single-Ended Mode Differential Mode Common Mode Input Bias Current DC OUTPUT CHARACTERISTICS Output Voltage High Level Output Voltage Low Level Output Voltage, Single-Ended Voltage Reference Output Voltage Output Resistance Symbol Min VICM VID CIN RIN VEE + 1.35 0.4 VOH VOL VO VREF Typ Max Unit Test Conditions/Comments VCC − 0.1 3.4 ±1.7 V between input pins 0.4 V V p-p pF 50 100 50 20 Ω Ω kΩ μA VCC − 1.26 VCC − 1.99 600 VCC − 0.76 VCC − 1.54 960 (VCC + 1)/2 250 VT open V V mV Load = 50 Ω to (VCC − 2.0 V) Load = 50 Ω to (VCC − 2.0 V) VOH − VOL, output static V Ω −500 μA to +500 μA TIMING CHARACTERISTICS Table 2. Parameter AC PERFORMANCE Maximum Output Frequency Symbol Output Rise/Fall Time Propagation Delay Temperature Coefficient Output-to-Output Skew 1 Part-to-Part Skew Additive Time Jitter Integrated Random Jitter Broadband Random Jitter 2 CLOCK OUTPUT PHASE NOISE Absolute Phase Noise fIN = 1 GHz tR tPD 1 2 Min Typ 6.2 7.0 35 70 50 100 75 Max 75 130 15 35 Unit Test Conditions/Comments GHz Differential output voltage swing > 0.8 V (see Figure 4) 20% to 80%, measured differentially VID = 1.6 V p-p ps ps fs/°C ps ps VID = 1.6 V p-p 26 50 fs rms fs rms BW = 12 kHz to 20 MHz, CLK = 1 GHz VID = 1.6 V p-p, 8 V/ns, VICM = 2 V −118 −135 −144 −150 −150 dBc/Hz dBc/Hz dBc/Hz dBc/Hz dBc/Hz Input slew rate > 1 V/ns (see Figure 11) 100 Hz offset 1 kHz offset 10 kHz offset 100 kHz offset >1 MHz offset The output-to-output skew is the difference between any two similar delay paths while operating at the same voltage and temperature. Measured at the rising edge of the clock signal; calculated using the SNR of the ADC method. Rev. 0 | Page 3 of 12 ADCLK944 POWER Table 3. Parameter POWER SUPPLY Supply Voltage Requirement Power Supply Current Negative Supply Current Positive Supply Current Power Supply Rejection 1 Output Swing Supply Rejection 2 1 2 Symbol Min VCC − VEE 2.375 IVEE IVEE IVCC IVCC PSRVCC PSRVCC Typ 35 37 139 138 −3 28 Change in tPD per change in VCC. Change in output swing per change in VCC. Rev. 0 | Page 4 of 12 Max Unit Test Conditions/Comments 3.63 V 3.3 V + 10% to 2.5 V − 5% Static VCC − VEE = 2.5 V ± 5% VCC − VEE = 3.3 V ± 10% VCC − VEE = 2.5 V ± 5% VCC − VEE = 3.3 V ± 10% 49 165 mA mA mA mA ps/V dB ADCLK944 ABSOLUTE MAXIMUM RATINGS DETERMINING JUNCTION TEMPERATURE Table 4. Parameter Supply Voltage VCC − VEE Input Voltage CLK, CLK CLK to CLK Input Termination, VT to CLK, CLK Input Current, CLK, CLK to VT Pin (CML, LVPECL Termination) Maximum Voltage on Output Pins Maximum Output Current Voltage Reference (VREF) Operating Temperature Ambient Range Junction Storage Temperature Range To determine the junction temperature on the application printed circuit board (PCB), use the following equation: Rating 6.0 V TJ = TCASE + (ΨJT × PD) VEE − 0.5 V to VCC + 0.5 V ±1.8 V ±2 V ±40 mA VCC + 0.5 V 35 mA VCC to VEE where: TJ is the junction temperature (°C). TCASE is the case temperature (°C) measured by the customer at the top center of the package. ΨJT is as indicated in Table 5. PD is the power dissipation. Values of θJA are provided for package comparison and PCB design considerations. θJA can be used for a first-order approximation of TJ using the following equation: −40°C to +85°C 150°C −65°C to +150°C TJ = TA + (θJA × PD) where TA is the ambient temperature (°C). Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Values of θJB are provided in Table 5 for package comparison and PCB design considerations. ESD CAUTION THERMAL PERFORMANCE Table 5. Parameter Junction-to-Ambient Thermal Resistance Still Air 0.0 m/sec Airflow Moving Air 1.0 m/sec Airflow 2.5 m/sec Airflow Junction-to-Board Thermal Resistance Moving Air 1.0 m/sec Airflow Junction-to-Case Thermal Resistance (Die-to-Heat Sink) Still Air 0.0 m/sec Airflow Junction-to-Top-of-Package Characterization Parameter Still Air 0.0 m/sec Airflow 1 Symbol Description θJA Per JEDEC JESD51-2 θJMA Per JEDEC JESD51-6 θJB Per JEDEC JESD51-8 θJC Per MIL-STD-883, Method 1012.1 Value 1 Unit 78 °C/W 68 61 °C/W °C/W 49 °C/W 1.5 °C/W 2.0 °C/W ΨJT Per JEDEC JESD51-2 Results are from simulations. The PCB is a JEDEC multilayer type. Thermal performance for actual applications requires careful inspection of the conditions in the application to determine whether they are similar to those assumed in these calculations. Rev. 0 | Page 5 of 12 ADCLK944 13 VCC 14 Q0 15 Q0 16 VEE PIN CONFIGURATION AND FUNCTION DESCRIPTIONS CLK 1 12 Q1 VT 2 ADCLK944 11 Q1 VREF 3 TOP VIEW (Not to Scale) 10 Q2 CLK 4 NOTES 1. EXPOSED PAD MUST BE CONNECTED TO VEE. 08770-002 VCC 8 Q3 7 Q3 6 VEE 5 9 Q2 Figure 2. Pin Configuration Table 6. Pin Function Descriptions Pin No. 1 2 3 4 5, 16 6, 7 8, 13 9, 10 11, 12 14, 15 Mnemonic CLK VT VREF CLK VEE Q3, Q3 VCC Q2, Q2 Q1, Q1 Q0, Q0 EPAD Description Differential Input (Positive). Center Tap. This pin provides the center tap of a 100 Ω input resistor for the CLK and CLK inputs. Reference Voltage. This pin provides the reference voltage for biasing ac-coupled CLK and CLK inputs. Differential Input (Negative). Negative Supply Pin. Differential LVPECL Outputs. Positive Supply Pin. Differential LVPECL Outputs. Differential LVPECL Outputs. Differential LVPECL Outputs. The exposed pad must be connected to VEE. Rev. 0 | Page 6 of 12 ADCLK944 TYPICAL PERFORMANCE CHARACTERISTICS VCC = 3.3 V, VEE = 0.0 V, VICM = VREF, TA = 25°C, clock outputs terminated at 50 Ω to VCC − 2 V, unless otherwise noted. CH1 300mV M 1.25ns 20.0GS/s A CH1 36.0mV IT 25.0ps/pt CH1 300mV Figure 3. LVPECL Differential Output Waveform at 200 MHz 1.55 1.4 3.3V 1.2 2.5V 1.0 0.8 0.6 0.4 0 1000 2000 3000 4000 5000 6000 7000 8000 FREQUENCY (MHz) Figure 4. Differential Output Voltage Swing vs. Frequency –40°C 1.45 1.40 1.35 1.30 2.2 2.4 2.6 2.8 3.0 3.2 3.4 3.6 3.8 POWER SUPPLY VOLTAGE (V) Figure 7. Differential Output Voltage Swing vs. Power Supply Voltage and Temperature, VID = 1.6 V p-p 140 80 85 PROPAGATION DELAY (ps) 130 90 DELAY 3.3V 95 100 105 DELAY 2.5V 120 110 2.5V 100 3.3V 90 0.3 0.5 0.7 0.9 DIFFERENTIAL INPUT VOLTAGE SWING (V) 1.1 08770-005 110 115 0.1 +85°C Figure 5. Propagation Delay vs. Differential Input Voltage Swing 80 1.0 1.5 2.0 2.5 3.0 DC COMMON-MODE VOLTAGE (VICM – VEE) 3.5 Figure 8. Propagation Delay vs. DC Common-Mode Voltage Rev. 0 | Page 7 of 12 08770-008 0 08770-004 0.2 +25°C 1.50 08770-009 DIFFERENTIAL OUTPUT VOLTAGE SWING (V) DIFFERENTIAL OUTPUT VOLTAGE SWING (V) IT 5.0ps/pt Figure 6. LVPECL Differential Output Waveform at 1000 MHz 1.6 PROPAGATION DELAY (ps) M 250ps 20.0GS/s A CH1 36.0mV 08770-006 1 08770-003 1 ADCLK944 160 300 140 250 –40°C +25°C +85°C 100 80 60 40 IVEE 2.625 2.970 3.300 3.630 POWER SUPPLY VOLTAGE (V) 0 –90 –110 –120 –130 ADCLK944 –150 –170 10 CLOCK SOURCE 100 1k 10k 100k 1M FREQUENCY OFFSET (Hz) 10M 100M 08770-011 PHASE NOISE (dBc/Hz) –100 –140 5 10 15 INPUT SLEW RATE (V/ns) Figure 9. Power Supply Current vs. Power Supply Voltage and Temperature, All Outputs Loaded (50 Ω to VCC − 2 V) –160 100 0 08770-010 0 2.500 150 50 20 2.375 200 Figure 10. Absolute Phase Noise Measured at 1 GHz with Agilent E5052B Rev. 0 | Page 8 of 12 Figure 11. Random Jitter vs. Input Slew Rate, VID Method 20 08770-012 CURRENT (mA) RANDOM JITTER (fs rms) IVCC 120 ADCLK944 THEORY OF OPERATION The ADCLK944 accepts a differential clock input and distributes it to all four LVPECL outputs. The maximum specified frequency is the point at which the output voltage swing is 50% of the standard LVPECL swing (see Figure 4). The device has a differential input equipped with center-tapped, differential, 100 Ω on-chip termination resistors. The input can accept dc-coupled LVPECL, CML, 3.3 V CMOS (single-ended, 3.3 V operation only), and ac-coupled 1.8 V CMOS, LVDS, and LVPECL inputs. A VREF pin is available for biasing ac-coupled inputs (see Figure 20 and Figure 21). Maintain the differential input voltage swing from approximately 400 mV p-p to no more than 3.4 V p-p. See Figure 18 through Figure 21 for various clock input termination schemes. Output jitter performance is significantly degraded by an input slew rate below 1 V/ns, as shown in Figure 11. The ADCLK944 is specifically designed to minimize added random jitter over a wide input slew rate range. Whenever possible, clamp excessively large input signals with fast Schottky diodes because attenuators reduce the slew rate. Input signal runs of more than a few centimeters should be over low loss dielectrics or cables with good high frequency characteristics. Figure 13 through Figure 16 depict various LVPECL output termination schemes. When dc-coupled, VCC of the receiving buffer should match VS_DRV. VS_DRV ADCLK944 VCC = VS_DRV Z0 = 50Ω 50Ω VCC – 2V LVPECL 50Ω 08770-014 CLOCK INPUTS Z0 = 50Ω Figure 13. DC-Coupled, 3.3 V LVPECL Thevenin-equivalent termination uses a resistor network to provide 50 Ω termination to a dc voltage that is below VOL of the LVPECL driver. In this case, VS_DRV on the ADCLK944 should equal VCC of the receiving buffer. Although the resistor combination shown in Figure 14 results in a dc bias point of VS_DRV − 2 V, the actual common-mode voltage is VS_DRV − 1.3 V because there is additional current flowing from the ADCLK944 LVPECL driver through the pull-down resistor. VS_DRV VS_DRV ADCLK944 50Ω VCC 127Ω 127Ω SINGLE-ENDED (NOT COUPLED) CLOCK OUTPUTS LVPECL 50Ω 83Ω 08770-015 83Ω The specified performance necessitates using proper transmission line terminations. The LVPECL outputs of the ADCLK944 are designed to directly drive 800 mV into a 50 Ω cable or into microstrip/stripline transmission lines terminated with 50 Ω referenced to VCC − 2 V, as shown in Figure 13. The LVPECL output stage is shown in Figure 12. The outputs are designed for best transmission line matching. If high speed signals must be routed more than a centimeter, either the microstrip or the stripline technique is required to ensure proper transition times and to prevent excessive output ringing and pulse-width-dependent propagation delay dispersion. Figure 14. DC-Coupled, 3.3 V LVPECL Far-End Thevenin Termination LVPECL Y-termination (see Figure 15) is an elegant termination scheme that uses the fewest components and offers both oddand even-mode impedance matching. Even-mode impedance matching is an important consideration for closely coupled transmission lines at high frequencies. Its main drawback is that it offers limited flexibility for varying the drive strength of the emitterfollower LVPECL driver. This can be an important consideration when driving long trace lengths but is usually not an issue. VS_DRV ADCLK944 VCC VCC = VS_DRV Z0 = 50Ω 50Ω 50Ω LVPECL 08770-016 50Ω Z0 = 50Ω Figure 15. DC-Coupled, 3.3 V LVPECL Y-Termination Q VS_DRV ADCLK944 VCC 0.1nF Q 200Ω Figure 12. Simplified Schematic Diagram of the LVPECL Output Stage LVPECL 200Ω Figure 16. AC-Coupled LVPECL with Parallel Transmission Line Rev. 0 | Page 9 of 12 08770-017 VEE 08770-013 100Ω DIFFERENTIAL 100Ω (COUPLED) 0.1nF TRANSMISSION LINE ADCLK944 The ADCLK944 buffer is designed for very high speed applications. Consequently, high speed design techniques must be used to achieve the specified performance. It is critically important to use low impedance supply planes for both the negative supply (VEE) and the positive supply (VCC) planes as part of a multilayer board. Providing the lowest inductance return path for switching currents ensures the best possible performance in the target application. The following references to the ground plane assume that the VEE power plane is grounded for LVPECL operation. Note that, for ECL operation, the VCC power plane becomes the ground plane. It is also important to adequately bypass the input and output supplies. Place a 1 μF electrolytic bypass capacitor within several inches of each VCC power supply pin to the ground plane. In addition, place multiple high quality 0.001 μF bypass capacitors as close as possible to each VCC supply pin, and connect the capacitors to the ground plane with redundant vias. Select high frequency bypass capacitors for minimum inductance and ESR. To improve the effectiveness of the bypass at high frequencies, minimize parasitic layout inductance. Also, avoid discontinuities along input and output transmission lines; such discontinuities can affect jitter performance. If the return is floated, the device exhibits a 100 Ω cross-termination, but the source must then control the common-mode voltage and supply the input bias currents. ESD/clamp diodes between the input pins prevent the application from developing excessive offsets to the input transistors. ESD diodes are not optimized for best ac performance. When a clamp is required, it is recommended that appropriate external diodes be used. Exposed Metal Paddle The exposed metal paddle on the ADCLK944 package is both an electrical connection and a thermal enhancement. For the device to function properly, the paddle must be properly attached to the VEE pins. When properly mounted, the ADCLK944 also dissipates heat through its exposed paddle. The PCB acts as a heat sink for the ADCLK944. The PCB attachment must provide a good thermal path to a larger heat dissipation area. This requires a grid of vias from the top layer of the PCB down to the VEE power plane (see Figure 17). The ADCLK944 evaluation board (ADCLK944/PCBZ) provides an example of how to attach the part to the PCB. In a 50 Ω environment, input and output matching have a significant impact on performance. The buffer provides internal 50 Ω termination resistors for both the CLK and CLK inputs. Normally, the return side is connected to the reference pin that is provided. Bypass the termination potential using ceramic capacitors to prevent undesired aberrations on the input signal due to parasitic inductance in the termination return path. If the inputs are dccoupled to a source, take care to ensure that the pins are within the rated input differential and common-mode voltage ranges. Rev. 0 | Page 10 of 12 VIAS TO VEE POWER PLANE 08770-018 PCB LAYOUT CONSIDERATIONS Figure 17. PCB Land for Attaching Exposed Paddle ADCLK944 INPUT TERMINATION OPTIONS VCC VREF VREF VT VT 50Ω CLK 50Ω 50Ω CLK CLK 50Ω CONNECT VT TO VCC. 08770-021 08770-019 CLK CONNECT VT TO VREF . Figure 20. AC Coupling Differential Signal Inputs, Such as LVDS Figure 18. Interfacing to CML Inputs VREF VT VREF 50Ω CLK VT VCC – 2V 50Ω CLK 50Ω 50Ω CLK 08770-020 CONNECT VT TO VCC − 2V. CONNECT VT, VREF , AND CLK TOGETHER. PLACE A BYPASS CAPACITOR FROM VT TO GROUND. ALTERNATIVELY, VT, VREF , AND CLK CAN BE CONNECTED TOGETHER, GIVING A CLEANER LAYOUT AND A 180° PHASE SHIFT. 08770-022 CLK Figure 21. Interfacing to AC-Coupled, Single-Ended Inputs Figure 19. Interfacing to PECL Inputs Rev. 0 | Page 11 of 12 ADCLK944 OUTLINE DIMENSIONS PIN 1 INDICATOR 3.10 3.00 SQ 2.90 0.30 0.25 0.18 0.50 BSC PIN 1 INDICATOR 16 13 1 12 EXPOSED PAD 1.60 1.50 SQ 1.40 9 0.80 0.75 0.70 4 8 0.25 MIN BOTTOM VIEW 0.05 MAX 0.02 NOM COPLANARITY 0.08 0.20 REF SEATING PLANE 5 FOR PROPER CONNECTION OF THE EXPOSED PAD, REFER TO THE PIN CONFIGURATION AND FUNCTION DESCRIPTIONS SECTION OF THIS DATA SHEET. 111808-A TOP VIEW 0.45 0.40 0.35 COMPLIANT TO JEDEC STANDARDS MO-220-WEED-6. Figure 22. 16-Lead Lead Frame Chip Scale Package [LFCSP_WQ] 3 mm × 3 mm Body, Very Very Thin Quad (CP-16-18) Dimensions shown in millimeters ORDERING GUIDE Model 1 ADCLK944BCPZ-R2 ADCLK944BCPZ-R7 ADCLK944BCPZ-WP ADCLK944/PCBZ 1 Temperature Range −40°C to +85°C −40°C to +85°C −40°C to +85°C Package Description 16-Lead LFCSP_WQ 16-Lead LFCSP_WQ 16-Lead LFCSP_WQ Evaluation Board Z = RoHS Compliant Part. ©2010 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners. D08770-0-3/10(0) Rev. 0 | Page 12 of 12 Package Option CP-16-18 CP-16-18 CP-16-18 Branding Code Y2K Y2K Y2K
