1 Ω Typical On Resistance, ±5 V, +12 V, +5 V, and +3.3 V, 4:1 Multiplexer ADG1604
FEATURES

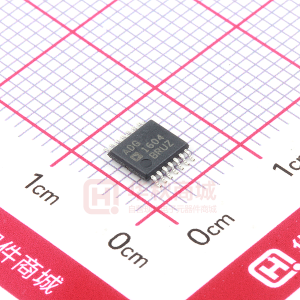

1 Ω typical on resistance 0.2 Ω on resistance flatness ±3.3 V to ±8 V dual supply operation 3.3 V to 16 V single supply operation No VL supply required 3 V logic-compatible inputs Rail-to-rail operation Continuous current per channel LFCSP package: 504 mA TSSOP package: 315 mA 14-lead TSSOP and 16-lead, 4 mm × 4 mm LFCSP
FUNCTIONAL BLOCK DIAGRAM
ADG1604
S1 S2 D S3 S4 1 OF 4 DECODER
07982-001
A0
A1
EN
Figure 1.
APPLICATIONS
Communication systems Medical systems Audio signal routing Video signal routing Automatic test equipment Data acquisition systems Battery-powered systems Sample-and-hold systems Relay replacements
GENERAL DESCRIPTION
The ADG1604 is a complementary metal-oxide semiconductor (CMOS) analog multiplexer and switches one of four inputs to a common output, D, as determined by the 3-bit binary address lines, A0, A1, and EN. Logic 0 on the EN pin disables the device. Each switch conducts equally well in both directions when on and has an input signal range that extends to the supplies. In the off condition, signal levels up to the supplies are blocked. All switches exhibit break-before-make switching action. Inherent in the design is low charge injection for minimum transients when switching the digital inputs. The ultralow on resistance of these switches make them ideal solutions for data acquisition and gain switching applications where low on resistance and distortion is critical. The on resistance profile is very flat over the full analog input range, ensuring excellent linearity and low distortion when switching audio signals. The CMOS construction ensures ultralow power dissipation, making the parts ideally suited for portable and batterypowered instruments.
PRODUCT HIGHLIGHTS
1. 2. 3. 4. 5. 6. 1.6 Ω maximum on resistance over temperature. Minimum distortion: THD + N = 0.007%. 3 V logic-compatible digital inputs: VINH = 2.0 V, VINL = 0.8 V. No VL logic power supply required. Ultralow power dissipation:
