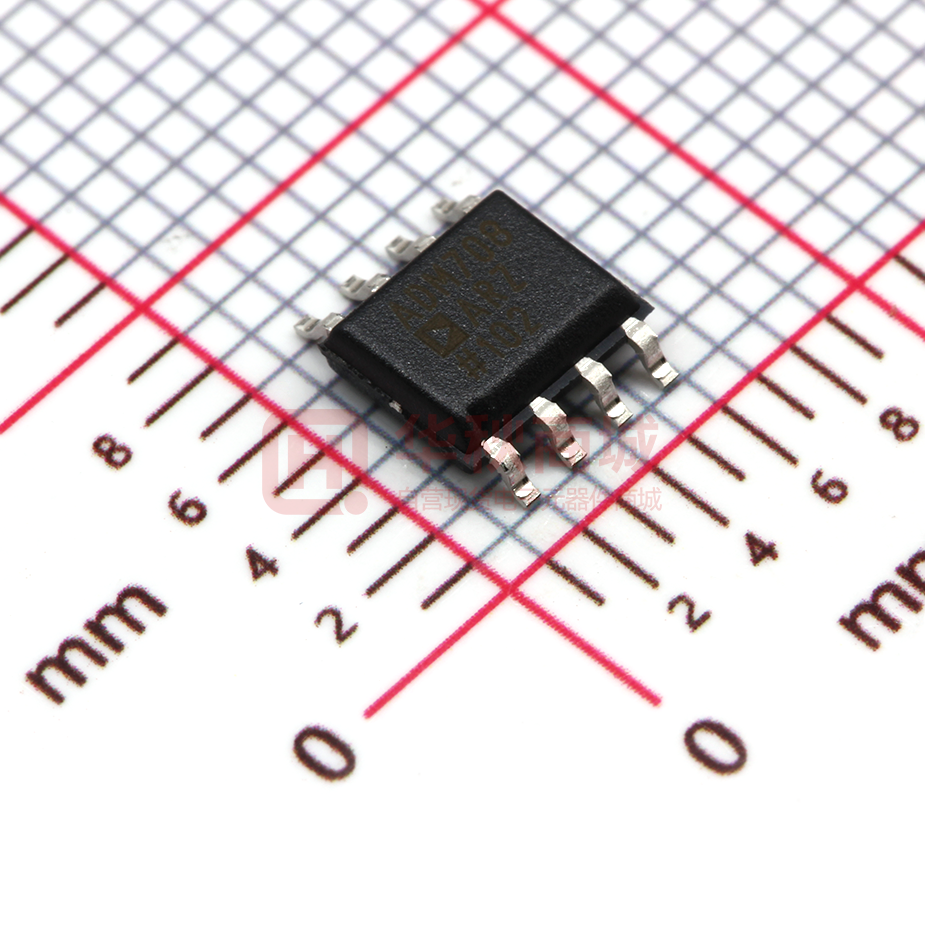

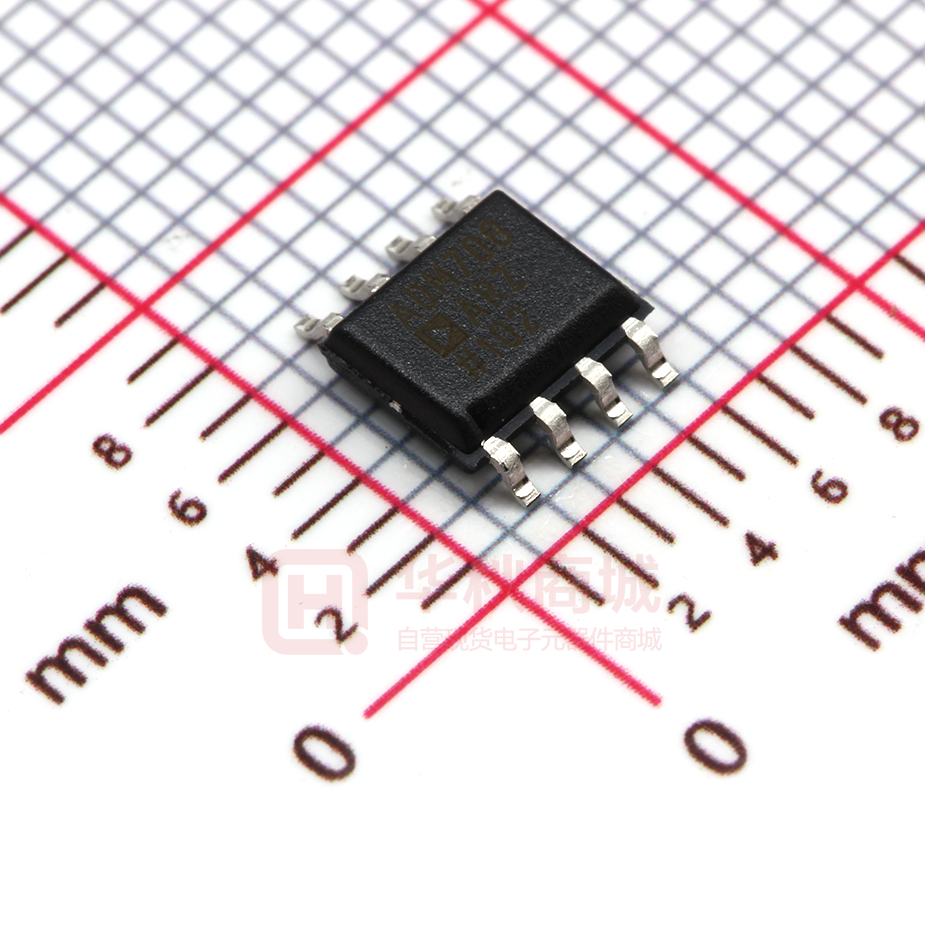

ADM708ARZ-REEL

ADM708ARZ-REEL

  • 厂商:

    AD(亚德诺)

  • 封装:

    SOIC8_150MIL

  • 描述:

    低成本微处理器监控电路

  • 数据手册
  • 价格&库存
ADM708ARZ-REEL 数据手册
Low Cost Microprocessor Supervisory Circuits ADM705/ADM706/ADM707/ADM708 Data Sheet FUNCTIONAL BLOCK DIAGRAMS Guaranteed RESET valid with VCC = 1 V 190 μA quiescent current Precision supply voltage monitor 4.65 V (ADM705/ADM707) 4.40 V (ADM706/ADM708) 200 ms reset pulse width Debounced TTL/CMOS manual reset input (MR) Independent watchdog timer (ADM705/ADM706) 1.60 sec timeout (ADM705/ADM706) Active high reset output (ADM707/ADM708) Voltage monitor for power fail or low battery warning Superior upgrade for MAX705 to MAX708 WATCHDOG INPUT (WDI) WATCHDOG TRANSITION DETECTOR VCC 250μA MR WATCHDOG TIMER RESET AND WATCHDOG TIMEBASE RESET GENERATOR VCC 4.65V* ADM705/ ADM706 POWER-FAIL INPUT (PFI) WATCHDOG OUTPUT (WDO) 1.25V RESET POWER-FAIL OUTPUT (PFO) * VOLTAGE REFERENCE = 4.65V (ADM705), 4.40V (ADM706) APPLICATIONS 00088-001 FEATURES Figure 1. ADM705/ADM706 Microprocessor systems Computers Controllers Intelligent instruments Critical microprocessor supply monitoring VCC 250μA RESET RESET GENERATOR VCC 4.65V* POWER-FAIL INPUT (PFI) RESET ADM707/ ADM708 POWER-FAIL OUTPUT (PFO) 1.25V * VOLTAGE REFERENCE = 4.65V (ADM707), 4.40V (ADM708) 00088-002 MR Figure 2. ADM707/ADM708 GENERAL DESCRIPTION The ADM705/ADM706/ADM707/ADM708 microprocessor supervisory circuits are suitable for monitoring 5 V power supplies/batteries and microprocessor activity. The ADM705/ADM706 provide power-supply monitoring circuitry that generate a reset output during power-up, powerdown, and brownout conditions. The reset output remains operational with VCC as low as 1 V. Independent watchdog monitoring circuitry is also provided. This is activated if the watchdog input has not been toggled within 1.60 sec. In addition, there is a 1.25 V threshold detector to warn of power failures, to detect low battery conditions, or to monitor an additional power supply. An active low, debounced manual reset input (MR) is also included. Rev. H The ADM705 and ADM706 are identical except for the reset threshold monitor levels, which are 4.65 V and 4.40 V, respectively. The ADM707 and ADM708 provide a similar functionality to the ADM705 and ADM706 and only differ in that a watchdog timer function is not available. Instead, an active high reset output (RESET) is available as well as the active low reset output (RESET). The ADM707 and ADM708 are identical except for the reset threshold monitor levels, which are 4.65 V and 4.40 V, respectively. All devices are available in narrow 8-lead PDIP and 8-lead SOIC packages. Document Feedback Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Trademarks and registered trademarks are the property of their respective owners. One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. Tel: 781.329.4700 ©2002–2016 Analog Devices, Inc. All rights reserved. Technical Support www.analog.com ADM705/ADM706/ADM707/ADM708 Data Sheet TABLE OF CONTENTS Features .............................................................................................. 1 Power Fail RESET Output ............................................................8 Applications ....................................................................................... 1 Manual Reset..................................................................................8 Functional Block Diagrams ............................................................. 1 Watchdog Timer (ADM705/ADM706) .....................................8 General Description ......................................................................... 1 Power Fail Comparator.................................................................8 Revision History ............................................................................... 2 Valid RESET Below 1 V VCC ........................................................9 Specifications..................................................................................... 3 Applications Information .............................................................. 10 Absolute Maximum Ratings ............................................................ 4 Monitoring Additional Supply Levels...................................... 10 ESD Caution .................................................................................. 4 Microprocessor with Bidirectional RESET ............................. 10 Pin Configurations and Function Descriptions ........................... 5 Outline Dimensions ....................................................................... 11 Typical Performance Characteristics ............................................. 6 Ordering Guide .......................................................................... 12 Circuit Information .......................................................................... 8 REVISION HISTORY 1/16—Rev. G to Rev. H Changes to Table 3 ............................................................................ 5 Changes to Power Fail Comparator Section and Figure 15 ........ 8 Changes to Figure 16 ........................................................................ 9 Changes to Figure 18 and Figure 20............................................. 10 Updated Outline Dimensions ....................................................... 12 Changes to Ordering Guide .......................................................... 12 3/08—Rev. F to Rev. G Changes to Applications .................................................................. 1 Changes to Table 2 ............................................................................ 4 Changes to Figure 9 .......................................................................... 6 Changes to Figure 10, Figure 11, and Figure 12 ........................... 7 Changes to Figure 14 ........................................................................ 8 Changes to Ordering Guide .......................................................... 12 7/06—Rev. D to Rev. E Added RM-8 (MSOP) Package ......................................... Universal Changes to Table 2.............................................................................4 Updated Outline Dimensions ....................................................... 12 Changes to Ordering Guide .......................................................... 12 11/05—Rev. C to Rev. D Updated Format .................................................................. Universal Deleted Figure 2.................................................................................4 Updated Outline Dimensions ....................................................... 11 Changes to Ordering Guide .......................................................... 12 8/02—Rev. B to Rev. C Removed RM-8 (µSOIC) Package .................................... Universal Updated N-8 and R-8 Packages .......................................................8 2/07—Rev. E to Rev. F Updated Format .................................................................. Universal Changes to Watchdog Timeout Period .......................................... 3 Replaced Pin Configurations and Function Descriptions Section .. 5 Rev. H | Page 2 of 12 Data Sheet ADM705/ADM706/ADM707/ADM708 SPECIFICATIONS VCC = 4.75 V to 5.5 V, TA = TMIN to TMAX, unless otherwise noted. Table 1. Parameter Min Typ Max Unit 190 5.5 250 V µA 4.75 4.50 V V mV ms V V V V V V sec ns Test Conditions/Comments POWER SUPPLY VCC Operating Voltage Range Supply Current 1.0 LOGIC OUTPUT Reset Threshold Reset Threshold Hysteresis RESET PULSE WIDTH RESET OUTPUT VOLTAGE 4.5 4.25 160 VCC − 1.5 4.65 4.40 40 200 280 0.4 0.3 0.3 RESET OUTPUT VOLTAGE VCC − 1.5 WATCHDOG TIMEOUT PERIOD (tWD) WDI Pulse Width (tWP) 1.00 50 1.60 0.4 2.25 ADM705/ADM707 ADM706/ADM708 ISOURCE = 800 µA ISINK = 3.2 mA VCC = 1 V, ISINK = 50 µA VCC = 1.2 V, ISINK = 100 µA ADM707/ADM708, ISOURCE = 800 µA ADM707/ADM708, ISINK = 1.2 mA VIL = 0.4 V, VIH = VCC × 0.8, WDI = VCC WATCHDOG INPUT WDI Input Threshold Logic Low Logic High WDI Input Current WDO OUTPUT VOLTAGE 0.8 3.5 −150 VCC − 1.5 50 −50 150 0.4 V V µA µA V V WDI = 0 V WDI = 0 V ISOURCE = 800 µA ISINK = 1.2 mA MANUAL RESET INPUT MR Pull-Up Current MR Pulse Width 100 150 250 600 µA ns 0.8 V V ns MR = 0 V MR INPUT THRESHOLD Logic Low Logic High 2.0 MR TO RESET OUTPUT DELAY POWER FAIL INPUT PFI Input Threshold PFI Input Current PFO OUTPUT VOLTAGE 250 1.2 −25 VCC − 1.5 1.25 +0.01 1.3 +25 0.4 Rev. H | Page 3 of 12 V nA V V ISOURCE = 800 µA ISINK = 3.2 mA ADM705/ADM706/ADM707/ADM708 Data Sheet ABSOLUTE MAXIMUM RATINGS TA = 25°C, unless otherwise noted. Table 2. Parameter VCC All Other Inputs Input Current VCC GND Digital Output Current Power Dissipation, N-8 PDIP θJA Thermal Impedance Power Dissipation, R-8 SOIC θJA Thermal Impedance Power Dissipation, RM-8 MSOP θJA Thermal Impedance Operating Temperature Range Industrial (Version A) Lead Temperature (Soldering, 10 sec) Vapor Phase (60 sec) Infrared (15 sec) Storage Temperature Range ESD Rating Rating −0.3 V to +6 V −0.3 V to VCC + 0.3 V 20 mA 20 mA 20 mA 727 mW 135°C/W 470 mW 110°C/W 900 mW 206°C/W Stresses at or above those listed under Absolute Maximum Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational section of this specification is not implied. Operation beyond the maximum operating conditions for extended periods may affect product reliability. ESD CAUTION −40°C to +85°C 300°C 215°C 220°C −65°C to +150°C >4.5 kV Rev. H | Page 4 of 12 Data Sheet ADM705/ADM706/ADM707/ADM708 MR 1 ADM705/ ADM706 VCC 2 GND 3 8 WDO 7 RESET 6 WDI TOP VIEW PFI 4 (Not to Scale) 5 PFO 00088-003 PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS Figure 3. ADM705/ADM706 PDIP/SOIC Pin Configuration MR 1 ADM707/ ADM708 VCC 2 8 RESET 7 RESET 6 NC TOP VIEW PFI 4 (Not to Scale) 5 PFO NC = NO CONNECT 00088-004 GND 3 Figure 4. ADM707/ADM708 PDIP/SOIC Pin Configuration RESET 2 ADM708 8 NC 7 PFO 6 PFI MR 3 TOP VIEW VCC 4 (Not to Scale) 5 GND NC = NO CONNECT 00088-005 RESET 1 Figure 5. ADM708 MSOP Pin Configuration Table 3. Pin Function Descriptions Pin Number ADM705/ ADM707/ ADM706 ADM708 ADM708 Mnemonic (PDIP, SOIC) (PDIP, SOIC) (MSOP) 1 1 3 MR VCC GND PFI 2 3 4 2 3 4 PFO 5 5 WDI 6 Not applicable NC 6 RESET Not applicable 7 Description Manual Reset Input. When this pin is taken below 0.8 V, a reset is generated. MR can be driven from TTL, CMOS logic, or from a manual reset switch as it is internally debounced. An internal 250 μA pull-up current holds the input high when floating. 4 5 V Power Supply Input. Place a 0.1 μF decoupling capacitor between the VCC and GND pins. 5 0 V Ground Reference for All Signals. 6 Power Fail Input. PFI is the noninverting input to the power fail comparator. When PFI is less than 1.25 V, PFO goes low. If unused, PFI must be connected to GND. 7 Power Fail Output. PFO is the output from the power fail comparator. It goes low when PFI is less than 1.25 V. Not Watchdog Input. WDI is a three-level input. If WDI remains either high or low for longer applicable than the watchdog timeout period, the watchdog output (WDO) goes low. The timer resets with each transition at the WDI input. Either a high to low or a low to high transition clears the counter. The internal timer is also cleared whenever reset is asserted. The watchdog timer is disabled when WDI is left floating or connected to a three-state buffer. 8 No Connect. 7 1 WDO 8 Not applicable RESET Not applicable 8 Logic Output. RESET goes low for 200 ms when triggered. It can be triggered either by VCC being below the reset threshold or by a low signal on the manual reset input (MR). RESET remains low whenever VCC is below the reset threshold (4.65 V in ADM705/ADM707, 4.40 V in ADM706/ADM708). It remains low for 200 ms after VCC goes above the reset threshold or MR goes from low to high. A watchdog timeout does not trigger RESET unless WDO is connected to MR. Not Watchdog Output. WDO remains low until the watchdog timer is cleared. WDO also applicable goes low during low line conditions. Whenever VCC is below the reset threshold, WDO goes low if the internal WDO remains low. As soon as VCC goes above the reset threshold, WDO goes high. 2 Logic Output. RESET is an active high output suitable for systems that use active high reset logic. It is the inverse of RESET. Rev. H | Page 5 of 12 ADM705/ADM706/ADM707/ADM708 Data Sheet TYPICAL PERFORMANCE CHARACTERISTICS A1 VCC VCC = 5V TA = 25°C 4.50V 1.3V 100 90 PFI 1.2V 4.4V PFO 10 0% RESET 500msH O 0V 00088-015 1V 00088-012 1V 500ns/DIV Figure 6. RESET Output Voltage vs. Supply Voltage A1 VCC Figure 9. PFI Comparator Deassertion Response Time 4.50V 5V 5V RESET RESET 100 90 RESET VCC = VRT TA = 25°C 10 0V 1V 500msH O 00088-016 1V 0V 00088-013 0% 100ns/DIV Figure 7. ADM707/ADM708 RESET Output Voltage vs. Supply Voltage VCC = 5V TA = 25°C Figure 10. RESET, RESET Assertion 5V 5V RESET 1.3V PFI RESET VCC = VRT TA = 25°C 1.2V 5V PFO 0V 0V 500ns/DIV 00088-017 00088-014 0V 100ns/DIV Figure 8. PFI Comparator Assertion Response Time Figure 11. RESET, RESET Deassertion Rev. H | Page 6 of 12 Data Sheet ADM705/ADM706/ADM707/ADM708 TA = 25°C 5V VCC 4V 5V 0V 00088-018 RESET 2μs/DIV Figure 12. ADM705/ADM707 RESET Response Time Rev. H | Page 7 of 12 ADM705/ADM706/ADM707/ADM708 Data Sheet CIRCUIT INFORMATION POWER FAIL RESET OUTPUT RESET is an active low output that provides a reset signal to the microprocessor whenever the VCC input is below the reset threshold. An internal timer holds RESET low for 200 ms after the voltage on VCC rises above the threshold. This functions as a power-on reset signal for the microprocessor. It allows time for both the power supply and the microprocessor to stabilize after power-up. The RESET output is guaranteed to remain valid (low) with VCC as low as 1 V. This ensures that the microprocessor is held in a stable shutdown condition as the power supply voltage ramps up. In addition to RESET, an active high RESET output is also available on the ADM707/ADM708. This is the complement of RESET and is useful for processors requiring an active high reset signal. The watchdog timer is cleared by either a high to low or a low to high transition on WDI. It is also cleared by RESET going low; therefore, the watchdog timeout period begins after RESET goes high. When VCC falls below the reset threshold, WDO is forced low, whether or not the watchdog timer has timed out. Normally, this generates an interrupt, but it is overridden by RESET going low. The watchdog monitor can be deactivated by floating the WDI. The WDO can then be used as a low line output because it goes low only when VCC falls below the reset threshold. tWP tWD tWD tWD WDI WDO VCC VRT VRT tRS tRS RESET MR EXTERNALLY DRIVEN LOW 00088-007 MR WDO Figure 13. RESET, MR, and WDO Timing WATCHDOG TIMER (ADM705/ADM706) The watchdog timer circuit can monitor the activity of the microprocessor to check that it is not stalled in an indefinite loop. An output line on the processor toggles the watchdog input (WDI) line. If this line is not toggled within the timeout period (1.60 sec), then the watchdog output (WDO) goes low. The WDO can be connected to a nonmaskable interrupt (NMI) on the processor; therefore, if the watchdog timer times out, an interrupt is generated. The interrupt service routine then rectifies the problem. RESET EXTERNALLY TRIGGERED BY MR RESET tRS Figure 14. Watchdog Timing POWER FAIL COMPARATOR The power fail comparator is an independent comparator that can monitor the input power supply. The comparator inverting input is internally connected to a 1.25 V reference voltage. The noninverting input is available at the PFI input. This input can monitor the input power supply via a resistive divider network. When the voltage on the PFI input drops below 1.25 V, the comparator output (PFO) goes low, indicating a power failure. For early warning of power failure, the comparator monitors the preregulator input by choosing an appropriate resistive divider network. The PFO output can interrupt the processor so a shutdown procedure is implemented before power is lost. As the voltage on the PFI pin is limited to VCC + 0.3 V, it is recommended to connect the PFI pin with a Schottky diode to the RESET pin as shown in Figure 15. This helps clamping the PFI pin voltage during device power up and operation. INPUT POWER If a RESET signal is required when a timeout occurs, the WDO must connect to the manual reset input (MR). R1 R2 1.25V POWER-FAIL PFI INPUT PFO RESET ADM705/ADM706/ ADM707/ADM708 Figure 15. Power Fail Comparator Rev. H | Page 8 of 12 POWER-FAIL OUTPUT RESET OUTPUT 00088-009 The manual reset input (MR) allows other reset sources, such as a manual reset switch, to generate a processor reset. The input is effectively debounced by the timeout period (200 ms typically). The MR input is TTL-/CMOS-compatible, so it can also be driven by any logic reset output. 00088-008 MANUAL RESET Data Sheet ADM705/ADM706/ADM707/ADM708 Adding Hysteresis to the Power Fail Comparator When PFO is low, Resistor R3 sinks current from the summing junction at the PFI pin. When PFO is high, Resistor R3 sources current into the PFI summing junction. This results in differing trip levels for the comparator. Further noise immunity can be achieved by connecting a capacitor between PFI and GND. The equations calculate the hysteresis are as follows: For increased noise immunity, hysteresis can be added to the power fail comparator. Because the comparator circuit is noninverting, hysteresis can be added by connecting a resistor between the PFO output and the PFI input as shown in Figure 16. 7V TO 15V INPUT POWER 5V ADP3367 VCC R1 1.25V – PFO R2  R3    VH  1.251   R1   R2  R3   TO MICROPROCESSOR NMI  1.25 VCC  1.25  VL  1.25  R1   R3  R2  + PFI R2 RESET ADM705/ADM706/ ADM707/ADM708 TO MICROPROCESSOR RESET R1  R2  V MID  1.25   R2  R3 VALID RESET BELOW 1 V VCC 5V VH 0V VL VIN Figure 16. Adding Hysteresis to the Power Fail Comparator ADM705/ADM706/ ADM707/ADM708 RESET GND R1 Figure 17. RESET Valid Below 1 V Rev. H | Page 9 of 12 00088-011 0V 00088-010 PFO The ADM705/ADM706/ADM707/ADM708 are guaranteed to provide a valid reset level with VCC as low as 1 V (see the Typical Performance Characteristics section). As VCC drops below 1 V, the internal transistor does not have sufficient drive to hold the voltage RESET at 0 V. A pull-down resistor can connect externally, as shown in Figure 17, to hold the line low if required. ADM705/ADM706/ADM707/ADM708 Data Sheet APPLICATIONS INFORMATION A typical application circuit is shown in Figure 18. The unregulated dc input supply is monitored using PFI via the resistive divider network. Resistor R1 and Resistor R2 must be selected so when the supply voltage drops below the desired level (such as 8 V), the voltage on PFI drops below the 1.25 V threshold, thereby generating an interrupt to the microprocessor. Monitoring the preregulator input provides additional time to execute an orderly shutdown procedure before power is lost. 7V TO 15V INPUT POWER MONITORING ADDITIONAL SUPPLY LEVELS It is possible to use the power fail comparator to monitor a second supply as shown in Figure 20. The two sensing resistors, R1 and R2, are selected so the voltage on PFI drops below 1.25 V at the minimum acceptable input supply. PFO can connect to MR so a reset is generated when the supply drops out of tolerance. In this case, if either supply drops out of tolerance, a reset is generated. VX 5V ADP3367 5V VCC RESET VCC R1 1.25V – MICROPROCESSOR PFO INTERRUPT + PFI R2 ADM705/ ADM706 R1 RESET RESET MICROPROCESSOR PFI RESET MR R2 GND PFO 00088-020 00088-022 ADM705/ADM706/ ADM707/ADM708 Figure 20. Monitoring 5 V and an Additional Supply, VX Figure 18. Typical Application Circuit Microprocessor activity is monitored using WDI. This is driven using an output line from the processor. The software routines toggle this line at least once every 1.60 seconds. If a problem occurs and this line is not toggled, WDO goes low and a nonmaskable interrupt is generated. This interrupt routine can clear the problem. If, in the event of inactivity on the WDI line, a system reset is required, WDO must connect to MR as shown in Figure 19. WDI 5V BUFFERED RESET MICROPROCESSOR I/O LINE VCC WDO GND ADM70x 00088-021 MR RESET To prevent contention for microprocessors with a bidirectional reset line, a current limiting resistor must be inserted between the ADM705/ADM706/ADM707/ADM708 RESET output pin and the microprocessor RESET pin. This limits the current to a safe level if there are conflicting output reset levels. A suitable resistor value is 4.7 kΩ. If the reset output is required for other uses, it must be buffered, as shown in Figure 21. RESET Figure 19. RESET From WDO GND MICROPROCESSOR RESET GND Figure 21. Bidirectional Input/Output RESET Rev. H | Page 10 of 12 00088-023 RESET ADM705/ ADM706 MICROPROCESSOR WITH BIDIRECTIONAL RESET Data Sheet ADM705/ADM706/ADM707/ADM708 OUTLINE DIMENSIONS 0.400 (10.16) 0.365 (9.27) 0.355 (9.02) 8 5 1 PIN 1 0.210 (5.33) MAX 0.150 (3.81) 0.130 (3.30) 0.115 (2.92) 4 0.280 (7.11) 0.250 (6.35) 0.240 (6.10) 0.100 (2.54) BSC 0.325 (8.26) 0.310 (7.87) 0.300 (7.62) 0.060 (1.52) MAX 0.195 (4.95) 0.130 (3.30) 0.115 (2.92) 0.015 (0.38) MIN 0.015 (0.38) GAUGE PLANE SEATING PLANE 0.022 (0.56) 0.018 (0.46) 0.014 (0.36) 0.430 (10.92) MAX 0.005 (0.13) MIN 0.014 (0.36) 0.010 (0.25) 0.008 (0.20) 0.070 (1.78) 0.060 (1.52) 0.045 (1.14) COMPLIANT TO JEDEC STANDARDS MS-001-BA CONTROLLING DIMENSIONS ARE IN INCHES; MILLIMETER DIMENSIONS (IN PARENTHESES) ARE ROUNDED-OFF INCH EQUIVALENTS FOR REFERENCE ONLY AND ARE NOT APPROPRIATE FOR USE IN DESIGN. CORNER LEADS MAY BE CONFIGURED AS WHOLE OR HALF LEADS. Figure 22. 8-Lead Plastic Dual-in-Line Package [PDIP] Narrow Body (N-8) Dimensions shown in inches and (millimeters) 5.00 (0.1968) 4.80 (0.1890) 8 4.00 (0.1574) 3.80 (0.1497) 1 5 4 1.27 (0.0500) BSC 0.25 (0.0098) 0.10 (0.0040) 6.20 (0.2440) 5.80 (0.2284) 1.75 (0.0688) 1.35 (0.0532) 0.51 (0.0201) COPLANARITY SEATING 0.31 (0.0122) 0.10 PLANE 0.50 (0.0196) × 45° 0.25 (0.0099) 8° 0.25 (0.0098) 0° 1.27 (0.0500) 0.40 (0.0157) 0.17 (0.0067) COMPLIANT TO JEDEC STANDARDS MS-012-AA CONTROLLING DIMENSIONS ARE IN MILLIMETERS; INCH DIMENSIONS (IN PARENTHESES) ARE ROUNDED-OFF MILLIMETER EQUIVALENTS FOR REFERENCE ONLY AND ARE NOT APPROPRIATE FOR USE IN DESIGN. Figure 23. 8-Lead Standard Small Outline Package [SOIC_N] (R-8) Dimensions shown in millimeters and (inches) Rev. H | Page 11 of 12 ADM705/ADM706/ADM707/ADM708 Data Sheet 3.20 3.00 2.80 3.20 3.00 2.80 8 1 5.15 4.90 4.65 5 4 PIN 1 IDENTIFIER 0.65 BSC 15° MAX 1.10 MAX 0.15 0.05 COPLANARITY 0.10 0.40 0.25 6° 0° 0.23 0.09 COMPLIANT TO JEDEC STANDARDS MO-187-AA 0.80 0.55 0.40 10-07-2009-B 0.95 0.85 0.75 Figure 24. 8-Lead Mini Small Outline Package [MSOP] (RM-8) Dimensions shown in millimeters ORDERING GUIDE Model 1 ADM705AN ADM705ANZ ADM705AR ADM705AR–REEL ADM705AR–REEL7 ADM705ARZ ADM705ARZ–REEL ADM705ARZ–REEL7 ADM706ANZ ADM706AR ADM706AR-REEL ADM706AR-REEL7 ADM706ARZ ADM706ARZ-REEL ADM706ARZ-REEL7 ADM707ANZ ADM707AR ADM707AR-REEL ADM707ARZ ADM707ARZ-REEL ADM708ANZ ADM708AR ADM708AR-REEL ADM708ARZ ADM708ARZ-REEL ADM708ARMZ ADM708ARMZ-REEL 1 Temperature Range −40°C to +85°C −40°C to +85°C −40°C to +85°C −40°C to +85°C −40°C to +85°C −40°C to +85°C −40°C to +85°C −40°C to +85°C −40°C to +85°C −40°C to +85°C −40°C to +85°C −40°C to +85°C −40°C to +85°C −40°C to +85°C −40°C to +85°C −40°C to +85°C −40°C to +85°C −40°C to +85°C −40°C to +85°C −40°C to +85°C −40°C to +85°C −40°C to +85°C −40°C to +85°C −40°C to +85°C −40°C to +85°C −40°C to +85°C −40°C to +85°C Package Description 8-Lead Plastic Dual-in-Line Package [PDIP] 8-Lead Plastic Dual-in-Line Package [PDIP] 8-Lead Standard Small Outline Package [SOIC_N] 8-Lead Standard Small Outline Package [SOIC_N] 8-Lead Standard Small Outline Package [SOIC_N] 8-Lead Standard Small Outline Package [SOIC_N] 8-Lead Standard Small Outline Package [SOIC_N] 8-Lead Standard Small Outline Package [SOIC_N] 8-Lead Plastic Dual-in-Line Package [PDIP] 8-Lead Standard Small Outline Package [SOIC_N] 8-Lead Standard Small Outline Package [SOIC_N] 8-Lead Standard Small Outline Package [SOIC_N] 8-Lead Standard Small Outline Package [SOIC_N] 8-Lead Standard Small Outline Package [SOIC_N] 8-Lead Standard Small Outline Package [SOIC_N] 8-Lead Plastic Dual-in-Line Package [PDIP] 8-Lead Standard Small Outline Package [SOIC_N] 8-Lead Standard Small Outline Package [SOIC_N] 8-Lead Standard Small Outline Package [SOIC_N] 8-Lead Standard Small Outline Package [SOIC_N] 8-Lead Plastic Dual-in-Line Package [PDIP] 8-Lead Standard Small Outline Package [SOIC_N] 8-Lead Standard Small Outline Package [SOIC_N] 8-Lead Standard Small Outline Package [SOIC_N] 8-Lead Standard Small Outline Package [SOIC_N] 8-Lead Mini Small Outline Package [MSOP] 8-Lead Mini Small Outline Package [MSOP] Z = RoHS Compliant Part. ©2002–2016 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners. D00088-0-1/16(H) Rev. H | Page 12 of 12 Package Option N-8 N-8 R-8 R-8 R-8 R-8 R-8 R-8 N-8 R-8 R-8 R-8 R-8 R-8 R-8 N-8 R-8 R-8 R-8 R-8 N-8 R-8 R-8 R-8 R-8 RM-8 RM-8 Branding M8F M8F
