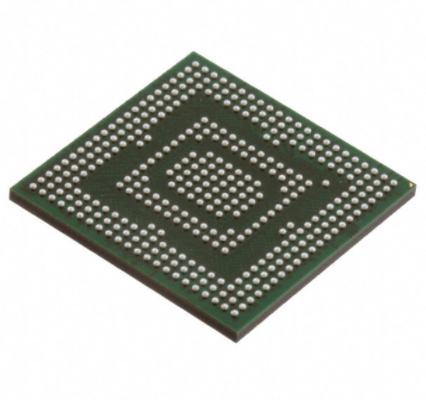

ADSP-BF609BBCZ-5

Blackfin Dual Core Embedded Processor ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 FEATURES MEMORY Dual-core symmetric high-performance Blackfin processor, up to 500 MHz per core Each core contains two 16-bit MACs, two 40-bit ALUs, and a 40-bit barrel shifter RISC-like register and instruction model for ease of programming and compiler-friendly support Advanced debug, trace, and performance monitoring Pipelined Vision Processor provides hardware to process signal and image algorithms used for pre- and co-processing of video frames in ADAS or other video processing applications Accepts a range of supply voltages for I/O operation. See Operating Conditions on Page 52 Off-chip voltage regulator interface 349-ball BGA package (19 mm × 19 mm), RoHS compliant Each core contains 148K bytes of L1 SRAM memory (processor core-accessible) with multi-parity bit protection Up to 256K bytes of L2 SRAM memory with ECC protection Dynamic memory controller provides 16-bit interface to a single bank of DDR2 or LPDDR DRAM devices Static memory controller with asynchronous memory interface that supports 8-bit and 16-bit memories 4 Memory-to-memory DMA streams, 2 of which feature CRC protection Flexible booting options from flash, SD EMMC, and SPI memories and from SPI, link port and UART hosts Memory management unit provides memory protection SYSTEM CONTROL BLOCKS PERIPHERALS EMULATOR TEST & CONTROL PLL & POWER MANAGEMENT FAULT MANAGEMENT EVENT CONTROL DUAL WATCHDOG 2× TWI 8× TIMER 1× COUNTER L2 MEMORY CORE 0 CORE 1 B B 148K BYTE PARITY BIT PROTECTED L1 SRAM INSTRUCTION/DATA 148K BYTE PARITY BIT PROTECTED L1 SRAM INSTRUCTION/DATA 2× PWM 32K BYTE ROM 256K BYTE ECCPROTECTED SRAM 3× SPORT 1× ACM 2× UART 112 GP I/O EMMC/RSI DMA SYSTEM 1× CAN 2× EMAC WITH 2× IEEE 1588 EXTERNAL BUS INTERFACES 2× SPI DYNAMIC MEMORY CONTROLLER STATIC MEMORY CONTROLLER CRC HARDWARE FUNCTIONS LPDDR DDR2 16 FLASH SRAM PIPELINED VISION PROCESSOR VIDEO SUBSYSTEM 4× LINK PORT 3× PPI PIXEL COMPOSITOR 16 USB 2.0 HS OTG Figure 1. Processor Block Diagram Blackfin and the Blackfin logo are registered trademarks of Analog Devices, Inc. Rev. A Document Feedback Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Trademarks and registered trademarks are the property of their respective owners. One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 U.S.A. Tel: 781.329.4700 ©2014 Analog Devices, Inc. All rights reserved. Technical Support www.analog.com ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 TABLE OF CONTENTS Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Operating Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Electrical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55 General Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Processor — Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . 59 Blackfin Processor Core . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 ESD Sensitivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59 Instruction Set Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Processor — Package Information . . . . . . . . . . . . . . . . . . . . . . . . . . . 59 Processor Infrastructure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Timing Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60 Memory Architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Output Drive Currents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102 Video Subsystem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Test Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103 Processor Safety Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Environmental Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105 Additional Processor Peripherals . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 ADSP-BF60x 349-Ball CSP_BGA Ball Assignments . . . . . . 106 Power and Clock Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 349-Ball CSP_BGA Ball Assignment (Numerical by Ball Number) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106 System Debug . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Development Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Additional Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Related Signal Chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 ADSP-BF60x Detailed Signal Descriptions . . . . . . . . . . . . . . . . . . . 19 349-Ball CSP_BGA Signal Descriptions . . . . . . . . . . . . . . . . . . . . . . . 23 GP I/O Multiplexing for 349-Ball CSP_BGA . . . . . . . . . . . . . . . . . 33 ADSP-BF60x Designer Quick Reference . . . . . . . . . . . . . . . . . . . . . . 37 349-Ball CSP_BGA Ball Assignment (Alphabetical by Pin Name) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108 349-Ball CSP_BGA Ball Configuration . . . . . . . . . . . . . . . . . . . 110 Outline Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111 Surface-Mount Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111 Automotive Products . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112 Ordering Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 REVISION HISTORY 2/14—Rev. 0 to Rev. A Added the system clock output specification and additional peripheral external clocks in Clock Related Operating Conditions on Page 53. These changes affect the following peripheral timing sections. Enhanced Parallel Peripheral Interface Timing . . . . . . . . . . . . . . 74 Link Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78 Serial Ports—External Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80 Serial Peripheral Interface (SPI) Port—Master Timing . . . . 86 Serial Peripheral Interface (SPI) Port—Slave Timing . . . . . . 88 ADC Controller Module (ACM) Timing . . . . . . . . . . . . . . . . . . . . . 96 Additional revisions include the following. Corrected S0SEL and S1SEL in Figure 8 Clock Relationships and Divider Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54 Revised the dynamic and static current tables CCLK Dynamic Current per core (mA, with ASF = 1) . . . . . . . . . . . . . . . . . . . . . . . . . . 57 Static Current—IDD_DEEPSLEEP (mA) . . . . . . . . . . . . . . . . . . . . . 58 Corrected the tWARE parameter in Asynchronous Page Mode Read . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64 Corrected the signal names in the following figures: DDR2 SDRAM Clock and Control Cycle Timing . . . . . . . . . . . 69 DDR2 SDRAM Controller Input AC Timing . . . . . . . . . . . . . . . . 70 Mobile DDR SDRAM Clock and Control Cycle Timing . . . 72 Added Figure 29 and updated Table 42 in Enhanced Parallel Peripheral Interface Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74 Corrected the tHSPIDM, tSDSCIM, tSPICLK, tHDSM, and tSPITDM specifications in Serial Peripheral Interface (SPI) Port—Master Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86 Corrected the tHDSPID specification in Serial Peripheral Interface (SPI) Port—Slave Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88 Corrected tSRDYSCKM1 in Serial Peripheral Interface (SPI) Port— SPI_RDY Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92 Revised all parameters in Timer Cycle Timing . . . . . . . . . . . . . . . 94 Corrected the timing diagram in ADC Controller Module (ACM) Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96 Removed TWI signals in footnote 3 in JTAG Test And Emulation Port Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101 Added models to Automotive Products . . . . . . . . . . . . . . . . . . . . . 112 Corrected the timing diagram in Bus Request/Bus Grant . 69 Rev. A | Page 2 of 112 | February 2014 ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 GENERAL DESCRIPTION The processors offer performance up to 500 MHz, as well as low static power consumption. Produced with a low-power and lowvoltage design methodology, they provide world-class power management and performance. By integrating a rich set of industry-leading system peripherals and memory (shown in Table 1), Blackfin processors are the platform of choice for next-generation applications that require RISC-like programmability, multimedia support, and leadingedge signal processing in one integrated package. These applications span a wide array of markets, from automotive systems to embedded industrial, instrumentation and power/motor control applications. Maximum Speed Grade (MHz)2 Maximum SYSCLK (MHz) ADSP-BF609 ADSP-BF608 ADSP-BF607 ADSP-BF606 1 8 2 3 2 1 3 1 1 2 2 1 4 2 Package Options 1 ADSP-BF609 ADSP-BF608 64K 16K 32K 32K 4K 256K 32K 500 250 349-Ball CSP_BGA VGA is 640 × 480 pixels per frame. HD is 1280 × 960 pixels per frame. Maximum speed grade is not available with every possible SYSCLK selection. BLACKFIN PROCESSOR CORE As shown in Figure 1, the processor integrates two Blackfin processor cores. Each core, shown in Figure 2, contains two 16-bit multipliers, two 40-bit accumulators, two 40-bit ALUs, four video ALUs, and a 40-bit shifter. The computation units process 8-, 16-, or 32-bit data from the register file. The compute register file contains eight 32-bit registers. When performing compute operations on 16-bit operand data, the register file operates as 16 independent 16-bit registers. All operands for compute operations come from the multiported register file and instruction constant fields. Each MAC can perform a 16-bit by 16-bit multiply in each cycle, accumulating the results into the 40-bit accumulators. Signed and unsigned formats, rounding, and saturation are supported. No 1 1 No N/A VGA 640 HD 1280 112 400 ADSP-BF607 ADSP-BF606 Processor Feature L1 Instruction SRAM L1 Instruction SRAM/Cache L1 Data SRAM L1 Data SRAM/Cache L1 Scratchpad L2 Data SRAM 128K L2 Boot ROM 2 Table 1. Processor Comparison Processor Feature Up/Down/Rotary Counters Timer/Counters with PWM 3-Phase PWM Units (4-pair) SPORTs SPIs USB OTG Parallel Peripheral Interface Removable Storage Interface CAN TWI UART ADC Control Module (ACM) Link Ports Ethernet MAC (IEEE 1588) Pixel Compositor (PIXC) Pipelined Vision Processor (PVP) Video Resolution1 Maximum PVP Line Buffer Size GPIOs Table 1. Processor Comparison (Continued) Memory (bytes, per core) The ADSP-BF60x processors are members of the Blackfin family of products, incorporating the Analog Devices/Intel Micro Signal Architecture (MSA). Blackfin processors combine a dual-MAC state-of-the-art signal processing engine, the advantages of a clean, orthogonal RISC-like microprocessor instruction set, and single-instruction, multiple-data (SIMD) multimedia capabilities into a single instruction-set architecture. The ALUs perform a traditional set of arithmetic and logical operations on 16-bit or 32-bit data. In addition, many special instructions are included to accelerate various signal processing tasks. These include bit operations such as field extract and population count, modulo 232 multiply, divide primitives, saturation and rounding, and sign/exponent detection. The set of video instructions include byte alignment and packing operations, 16-bit and 8-bit adds with clipping, 8-bit average operations, and 8-bit subtract/absolute value/accumulate (SAA) operations. Also provided are the compare/select and vector search instructions. For certain instructions, two 16-bit ALU operations can be performed simultaneously on register pairs (a 16-bit high half and 16-bit low half of a compute register). If the second ALU is used, quad 16-bit operations are possible. Rev. A | Page 3 of 112 | February 2014 ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 ADDRESS ARITHMETIC UNIT L3 B3 M3 I2 L2 B2 M2 I1 L1 B1 M1 I0 L0 B0 M0 SP FP P5 DAG1 P4 P3 DAG0 P2 32 32 P1 P0 TO MEMORY DA1 DA0 I3 32 PREG 32 RAB SD LD1 LD0 32 32 32 ASTAT 32 32 SEQUENCER R7.H R6.H R7.L R6.L R5.H R5.L R4.H R4.L R3.H R3.L R2.H R2.L R1.H R1.L R0.H R0.L 16 ALIGN 16 8 8 8 8 DECODE BARREL SHIFTER 40 40 A0 32 40 40 A1 LOOP BUFFER CONTROL UNIT 32 DATA ARITHMETIC UNIT Figure 2. Blackfin Processor Core The 40-bit shifter can perform shifts and rotates and is used to support normalization, field extract, and field deposit instructions. The program sequencer controls the flow of instruction execution, including instruction alignment and decoding. For program flow control, the sequencer supports PC relative and indirect conditional jumps (with static branch prediction), and subroutine calls. Hardware supports zero-overhead looping. The architecture is fully interlocked, meaning that the programmer need not manage the pipeline when executing instructions with data dependencies. The address arithmetic unit provides two addresses for simultaneous dual fetches from memory. It contains a multiported register file consisting of four sets of 32-bit index, modify, length, and base registers (for circular buffering), and eight additional 32-bit pointer registers (for C-style indexed stack manipulation). Blackfin processors support a modified Harvard architecture in combination with a hierarchical memory structure. Level 1 (L1) memories are those that typically operate at the full processor speed with little or no latency. At the L1 level, the instruction memory holds instructions only. The data memory holds data, and a dedicated scratchpad data memory stores stack and local variable information. In addition, multiple L1 memory blocks are provided, offering a configurable mix of SRAM and cache. The memory management unit (MMU) provides memory protection for individual tasks that may be operating on the core and can protect system registers from unintended access. The architecture provides three modes of operation: user mode, supervisor mode, and emulation mode. User mode has restricted access to certain system resources, thus providing a protected software environment, while supervisor mode has unrestricted access to the system and core resources. INSTRUCTION SET DESCRIPTION The Blackfin processor instruction set has been optimized so that 16-bit opcodes represent the most frequently used instructions, resulting in excellent compiled code density. Complex DSP instructions are encoded into 32-bit opcodes, representing fully featured multifunction instructions. Blackfin processors support a limited multi-issue capability, where a 32-bit instruction can be issued in parallel with two 16-bit instructions, allowing the programmer to use many of the core resources in a single instruction cycle. The Blackfin processor family assembly language instruction set employs an algebraic syntax designed for ease of coding and readability. The instructions have been specifically tuned to provide a flexible, densely encoded instruction set that compiles to Rev. A | Page 4 of 112 | February 2014 ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 a very small final memory size. The instruction set also provides fully featured multifunction instructions that allow the programmer to use many of the processor core resources in a single instruction. Coupled with many features more often seen on microcontrollers, this instruction set is very efficient when compiling C and C++ source code. In addition, the architecture supports both user (algorithm/application code) and supervisor (O/S kernel, device drivers, debuggers, ISRs) modes of operation, allowing multiple levels of access to core processor resources. The assembly language, which takes advantage of the processor’s unique architecture, offers the following advantages: • Seamlessly integrated DSP/MCU features are optimized for both 8-bit and 16-bit operations. • A multi-issue load/store modified-Harvard architecture, which supports two 16-bit MAC or four 8-bit ALU + two load/store + two pointer updates per cycle. • All registers, I/O, and memory are mapped into a unified 4G byte memory space, providing a simplified programming model. • Control of all asynchronous and synchronous events to the processor is handled by two subsystems: the Core Event Controller (CEC) and the System Event Controller (SEC). • Microcontroller features, such as arbitrary bit and bit-field manipulation, insertion, and extraction; integer operations on 8-, 16-, and 32-bit data-types; and separate user and supervisor stack pointers. • Code density enhancements, which include intermixing of 16-bit and 32-bit instructions (no mode switching, no code segregation). Frequently used instructions are encoded in 16 bits. PROCESSOR INFRASTRUCTURE The following sections provide information on the primary infrastructure components of the ADSP-BF609 processor. DMA Controllers The processor uses Direct Memory Access (DMA) to transfer data within memory spaces or between a memory space and a peripheral. The processor can specify data transfer operations and return to normal processing while the fully integrated DMA controller carries out the data transfers independent of processor activity. DMA transfers can occur between memory and a peripheral or between one memory and another memory. Each Memory-tomemory DMA stream uses two channels, where one channel is the source channel, and the second is the destination channel. All DMAs can transport data to and from all on-chip and offchip memories. Programs can use two types of DMA transfers, descriptor-based or register-based. Register-based DMA allows the processor to directly program DMA control registers to initiate a DMA transfer. On completion, the control registers may be automatically updated with their original setup values for continuous transfer. Descriptor-based DMA transfers require a set of parameters stored within memory to initiate a DMA sequence. Descriptor-based DMA transfers allow multiple DMA sequences to be chained together and a DMA channel can be programmed to automatically set up and start another DMA transfer after the current sequence completes. The DMA controller supports the following DMA operations. • A single linear buffer that stops on completion. • A linear buffer with negative, positive or zero stride length. • A circular, auto-refreshing buffer that interrupts when each buffer becomes full. • A similar buffer that interrupts on fractional buffers (for example, 1/2, 1/4). • 1D DMA – uses a set of identical ping-pong buffers defined by a linked ring of two-word descriptor sets, each containing a link pointer and an address. • 1D DMA – uses a linked list of 4 word descriptor sets containing a link pointer, an address, a length, and a configuration. • 2D DMA – uses an array of one-word descriptor sets, specifying only the base DMA address. • 2D DMA – uses a linked list of multi-word descriptor sets, specifying everything. CRC Protection The two CRC protection modules allow system software to periodically calculate the signature of code and/or data in memory, the content of memory-mapped registers, or communication message objects. Dedicated hardware circuitry compares the signature with pre calculated values and triggers appropriate fault events. For example, every 100 ms the system software might initiate the signature calculation of the entire memory contents and compare these contents with expected, pre calculated values. If a mismatch occurs, a fault condition can be generated (via the processor core or the trigger routing unit). The CRC is a hardware module based on a CRC32 engine that computes the CRC value of the 32-bit data words presented to it. Data is provided by the source channel of the memory-tomemory DMA (in memory scan mode) and is optionally forwarded to the destination channel (memory transfer mode). The main features of the CRC peripheral are: • Memory scan mode • Memory transfer mode • Data verify mode • Data fill mode • User-programmable CRC32 polynomial • Bit/byte mirroring option (endianness) • Fault/error interrupt mechanisms • 1D and 2D fill block to initialize array with constants. • 32-bit CRC signature of a block of a memory or MMR block. Rev. A | Page 5 of 112 | February 2014 ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 Event Handling The processor provides event handling that supports both nesting and prioritization. Nesting allows multiple event service routines to be active simultaneously. Prioritization ensures that servicing of a higher-priority event takes precedence over servicing of a lower-priority event. The processor provides support for five different types of events: • Emulation – An emulation event causes the processor to enter emulation mode, allowing command and control of the processor via the JTAG interface. • Reset – This event resets the processor. • Nonmaskable Interrupt (NMI) – The NMI event can be generated either by the software watchdog timer, by the NMI input signal to the processor, or by software. The NMI event is frequently used as a power-down indicator to initiate an orderly shutdown of the system. • Exceptions – Events that occur synchronously to program flow (in other words, the exception is taken before the instruction is allowed to complete). Conditions such as data alignment violations and undefined instructions cause exceptions. • Interrupts – Events that occur asynchronously to program flow. They are caused by input signals, timers, and other peripherals, as well as by an explicit software instruction. Core Event Controller (CEC) The CEC supports nine general-purpose interrupts (IVG15–7), in addition to the dedicated interrupt and exception events. Of these general-purpose interrupts, the two lowest-priority interrupts (IVG15–14) are recommended to be reserved for software interrupt handlers. For more information, see the ADSP-BF60x Processor Programmer’s Reference. System Event Controller (SEC) The SEC manages the enabling, prioritization, and routing of events from each system interrupt or fault source. Additionally, it provides notification and identification of the highest priority active system interrupt request to each core and routes system fault sources to its integrated fault management unit. Trigger Routing Unit (TRU) The TRU provides system-level sequence control without core intervention. The TRU maps trigger masters (generators of triggers) to trigger slaves (receivers of triggers). Slave endpoints can be configured to respond to triggers in various ways. Common applications enabled by the TRU include: • Automatically triggering the start of a DMA sequence after a sequence from another DMA channel completes • Software triggering • Synchronization of concurrent activities Pin Interrupts Every port pin on the processor can request interrupts in either an edge-sensitive or a level-sensitive manner with programmable polarity. Interrupt functionality is decoupled from GPIO operation. Six system-level interrupt channels (PINT0–5) are reserved for this purpose. Each of these interrupt channels can manage up to 32 interrupt pins. The assignment from pin to interrupt is not performed on a pin-by-pin basis. Rather, groups of eight pins (half ports) can be flexibly assigned to interrupt channels. Every pin interrupt channel features a special set of 32-bit memory-mapped registers that enable half-port assignment and interrupt management. This includes masking, identification, and clearing of requests. These registers also enable access to the respective pin states and use of the interrupt latches, regardless of whether the interrupt is masked or not. Most control registers feature multiple MMR address entries to write-one-to-set or write-one-to-clear them individually. General-Purpose I/O (GPIO) Each general-purpose port pin can be individually controlled by manipulation of the port control, status, and interrupt registers: • GPIO direction control register – Specifies the direction of each individual GPIO pin as input or output. • GPIO control and status registers – A “write one to modify” mechanism allows any combination of individual GPIO pins to be modified in a single instruction, without affecting the level of any other GPIO pins. • GPIO interrupt mask registers – Allow each individual GPIO pin to function as an interrupt to the processor. GPIO pins defined as inputs can be configured to generate hardware interrupts, while output pins can be triggered by software interrupts. • GPIO interrupt sensitivity registers – Specify whether individual pins are level- or edge-sensitive and specify—if edge-sensitive—whether just the rising edge or both the rising and falling edges of the signal are significant. Pin Multiplexing The processor supports a flexible multiplexing scheme that multiplexes the GPIO pins with various peripherals. A maximum of 4 peripherals plus GPIO functionality is shared by each GPIO pin. All GPIO pins have a bypass path feature – that is, when the output enable and the input enable of a GPIO pin are both active, the data signal before the pad driver is looped back to the receive path for the same GPIO pin. For more information, see GP I/O Multiplexing for 349-Ball CSP_BGA on Page 33. MEMORY ARCHITECTURE The processor views memory as a single unified 4G byte address space, using 32-bit addresses. All resources, including internal memory, external memory, and I/O control registers, occupy separate sections of this common address space. The memory portions of this address space are arranged in a hierarchical structure to provide a good cost/performance balance of some very fast, low-latency core-accessible memory as cache or SRAM, and larger, lower-cost and performance interface-accessible memory systems. See Figure 3 and Figure 4. Rev. A | Page 6 of 112 | February 2014 ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 Figure 3. ADSP-BF606 Internal/External Memory Map Rev. A | Page 7 of 112 | February 2014 ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 Figure 4. ADSP-BF607/ADSP-BF608/ADSP-BF609 Internal/External Memory Map Rev. A | Page 8 of 112 | February 2014 ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 Internal (Core-Accessible) Memory Booting The L1 memory system is the highest-performance memory available to the Blackfin processor cores. The processor has several mechanisms for automatically loading internal and external memory after a reset. The boot mode is defined by the SYS_BMODE input pins dedicated for this purpose. There are two categories of boot modes. In master boot modes, the processor actively loads data from parallel or serial memories. In slave boot modes, the processor receives data from external host devices. Each core has its own private L1 memory. The modified Harvard architecture supports two concurrent 32-bit data accesses along with an instruction fetch at full processor speed which provides high bandwidth processor performance. In each core a 64K-byte block of data memory partners with an 80K-byte memory block for instruction storage. Each data block is multibanked for efficient data exchange through DMA and can be configured as SRAM. Alternatively, 16K bytes of each block can be configured in L1 cache mode. The four-way set-associative instruction cache and the 2 two-way set-associative data caches greatly accelerate memory access performance, especially when accessing external memories. The L1 memory domain also features a 4K-byte scratchpad SRAM block which is ideal for storing local variables and the software stack. All L1 memory is protected by a multi-parity bit concept, regardless of whether the memory is operating in SRAM or cache mode. Outside of the L1 domain, L2 and L3 memories are arranged using a Von Neumann topology. The L2 memory domain is a unified instruction and data memory and can hold any mixture of code and data required by the system design. The L2 memory domain is accessible by both Blackfin cores through a dedicated 64-bit interface. It operates at SYSCLK frequency. The processor features up to 256K bytes of L2 SRAM which is ECC-protected and organized in eight banks. Individual banks can be made private to any of the cores or the DMA subsystem. There is also a 32K-byte single-bank ROM in the L2 domain. It contains boot code and safety functions. Static Memory Controller (SMC) The SMC can be programmed to control up to four banks of external memories or memory-mapped devices, with very flexible timing parameters. Each bank occupies a 64M byte segment regardless of the size of the device used, so that these banks are only contiguous if each is fully populated with 64M bytes of memory. Dynamic Memory Controller (DMC) The DMC includes a controller that supports JESD79-2E compatible double data rate (DDR2) SDRAM and JESD209A low power DDR (LPDDR) SDRAM devices. I/O Memory Space The processor does not define a separate I/O space. All resources are mapped through the flat 32-bit address space. Onchip I/O devices have their control registers mapped into memory-mapped registers (MMRs) at addresses near the top of the 4G byte address space. These are separated into two smaller blocks, one which contains the control MMRs for all core functions, and the other which contains the registers needed for setup and control of the on-chip peripherals outside of the core. The MMRs are accessible only in supervisor mode and appear as reserved space to on-chip peripherals. The boot modes are shown in Table 2. These modes are implemented by the SYS_BMODE bits of the reset configuration register and are sampled during power-on resets and softwareinitiated resets. Table 2. Boot Modes SYS_BMODE Setting 000 001 010 011 100 101 110 111 Boot Mode No boot/Idle Memory RSI0 Master SPI0 Master SPI0 Slave Reserved LP0 Slave UART0 Slave VIDEO SUBSYSTEM The following sections describe the components of the processor’s video subsystem. These blocks are shown with blue shading in Figure 1 on Page 1. Video Interconnect (VID) The Video Interconnect provides a connectivity matrix that interconnects the Video Subsystem: three PPIs, the PIXC, and the PVP. The interconnect uses a protocol to manage data transfer among these video peripherals. Pipelined Vision Processor (PVP) The PVP engine provides hardware implementation of signal and image processing algorithms that are required for co-processing and pre-processing of monochrome video frames in ADAS applications, robotic systems, and other machine applications. The PVP works in conjunction with the Blackfin cores. It is optimized for convolution and wavelet based object detection and classification, and tracking and verification algorithms. The PVP has the following processing blocks. • Four 5 × 5 16-bit convolution blocks optionally followed by down scaling • A 16-bit cartesian-to-polar coordinate conversion block • A pixel edge classifier that supports 1st and 2nd derivative modes • An arithmetic unit with 32-bit addition, multiply and divide Rev. A | Page 9 of 112 | February 2014 ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 • A 32-bit threshold block with 16 thresholds, a histogram, and run-length encoding • Two 32-bit integral blocks that support regular and diagonal integrals • An up- and down-scaling unit with independent scaling ratios for horizontal and vertical components • Input and output formatters for compatibility with many data formats, including Bayer input format The PVP can form a pipe of all the constituent algorithmic modules and is dynamically reconfigurable to form different pipeline structures. The PVP supports the simultaneous processing of up to four data streams. The memory pipe stream operates on data received by DMA from any L1, L2, or L3 memory. The three camera pipe streams operate on a common input received directly from any of the three PPI inputs. Optionally, the PIXC can convert color data received by the PPI and forward luma values to the PVP’s monochrome engine. Each stream has a dedicated DMA output. This preprocessing concept ensures careful use of available power and bandwidth budgets and frees up the processor cores for other tasks. The PVP provides for direct core MMR access to all control/status registers. Two hardware interrupts interface to the system event controller. For optimal performance, the PVP allows register programming through its control DMA interface, as well as outputting selected status registers through the status DMA interface. This mechanism enables the PVP to automatically process job lists completely independent of the Blackfin cores. Pixel Compositor (PIXC) • ITU-656 status word error detection and correction for ITU-656 receive modes and ITU-656 preamble and status word decode. • Optional packing and unpacking of data to/from 32 bits from/to 8 bits, 16 bits and 24 bits. If packing/unpacking is enabled, endianness can be configured to change the order of packing/unpacking of bytes/words. • RGB888 can be converted to RGB666 or RGB565 for transmit modes. • Various de-interleaving/interleaving modes for receiving/transmitting 4:2:2 YCrCb data. • Configurable LCD data enable (DEN) output available on Frame Sync 3. PROCESSOR SAFETY FEATURES The ADSP-BF60x processor has been designed for functional safety applications. While the level of safety is mainly dominated by the system concept, the following primitives are provided by the devices to build a robust safety concept. Dual Core Supervision The processor has been implemented as dual-core devices to separate critical tasks to large independency. Software models support mutual supervision of the cores in symmetrical fashion. Multi-Parity-Bit-Protected L1 Memories In the processor’s L1 memory space, whether SRAM or cache, each word is protected by multiple parity bits to detect the single event upsets that occur in all RAMs. This applies both to L1 instruction and data memory spaces. The pixel compositor (PIXC) provides image overlays with transparent-color support, alpha blending, and color space conversion capabilities for output to TFT LCDs and NTSC/PAL video encoders. It provides all of the control to allow two data streams from two separate data buffers to be combined, blended, and converted into appropriate forms for both LCD panels and digital video outputs. The main image buffer provides the basic background image, which is presented in the data stream. The overlay image buffer allows the user to add multiple foreground text, graphics, or video objects on top of the main image or video data stream. ECC-Protected L2 Memories Parallel Peripheral Interface (PPI) While parity bit and ECC protection mainly protect against random soft errors in L1 and L2 memory cells, the CRC engines can be used to protect against systematic errors (pointer errors) and static content (instruction code) of L1, L2 and even L3 memories (DDR2, LPDDR). The processors feature two CRC engines which are embedded in the memory-to-memory DMA controllers. CRC check sums can be calculated or compared on the fly during memory transfers, or one or multiple memory regions can be continuously scrubbed by single DMA work unit as per DMA descriptor chain instructions. The CRC engine also protects data loaded during the boot process. The processor provides up to three parallel peripheral interfaces (PPIs), supporting data widths up to 24 bits. The PPI supports direct connection to TFT LCD panels, parallel analog-to-digital and digital-to-analog converters, video encoders and decoders, image sensor modules and other general-purpose peripherals. The following features are supported in the PPI module: • Programmable data length: 8 bits, 10 bits, 12 bits, 14 bits, 16 bits, 18 bits, and 24 bits per clock. • Various framed, non-framed, and general-purpose operating modes. Frame syncs can be generated internally or can be supplied by an external device. Error correcting codes (ECC) are used to correct single event upsets. The L2 memory is protected with a Single Error CorrectDouble Error Detect (SEC-DED) code. By default ECC is enabled, but it can be disabled on a per-bank basis. Single-bit errors are transparently corrected. Dual-bit errors can issue a system event or fault if enabled. ECC protection is fully transparent to the user, even if L2 memory is read or written by 8-bit or 16-bit entities. CRC-Protected Memories Rev. A | Page 10 of 112 | February 2014 ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 Memory Protection The Blackfin cores feature a memory protection concept, which grants data and/or instruction accesses from enabled memory regions only. A supervisor mode vs. user mode programming model supports dynamically varying access rights. Increased flexibility in memory page size options supports a simple method of static memory partitioning. System Protection All system resources and L2 memory banks can be controlled by either the processor cores, memory-to-memory DMA, or the system debug unit (SDU). A system protection unit (SPU) enables write accesses to specific resources that are locked to any of four masters: Core 0, Core 1, Memory DMA, and the System Debug Unit. System protection is enabled in greater granularity for some modules (L2, SEC and GPIO controllers) through a global lock concept. Watchpoint Protection The primary purpose of watchpoints and hardware breakpoints is to serve emulator needs. When enabled, they signal an emulator event whenever user-defined system resources are accessed or a core executes from user-defined addresses. Watchpoint events can be configured such that they signal the events to the other Blackfin core or to the fault management unit. Dual Watchdog The two on-chip watchdog timers each may supervise one Blackfin core. Bandwidth Monitor All DMA channels that operate in memory-to-memory mode (Memory DMA, PVP Memory Pipe DMA, PIXC DMA) are equipped with a bandwidth monitor mechanism. They can signal a system event or fault when transactions tend to starve because system buses are fully loaded with higher-priority traffic. Signal Watchdogs The eight general-purpose timers feature two new modes to monitor off-chip signals. The Watchdog Period mode monitors whether external signals toggle with a period within an expected range. The Watchdog Width mode monitors whether the pulse widths of external signals are in an expected range. Both modes help to detect incorrect undesired toggling (or lack thereof) of system-level signals. Up/Down Count Mismatch Detection The up/down counter can monitor external signal pairs, such as request/grant strobes. If the edge count mismatch exceeds the expected range, the up/down counter can flag this to the processor or to the fault management unit. Fault Management The fault management unit is part of the system event controller (SEC). Any system event, whether a dual-bit uncorrectable ECC error, or any peripheral status interrupt, can be defined as being a “fault”. Additionally, the system events can be defined as an interrupt to the cores. If defined as such, the SEC forwards the event to the fault management unit which may automatically reset the entire device for reboot, or simply toggle the SYS_ FAULT output pins to signal off-chip hardware. Optionally, the fault management unit can delay the action taken via a keyed sequence, to provide a final chance for the Blackfin cores to resolve the crisis and to prevent the fault action from being taken. ADDITIONAL PROCESSOR PERIPHERALS The processor contains a rich set of peripherals connected to the core via several high-bandwidth buses, providing flexibility in system configuration as well as excellent overall system performance (see the block diagram on Page 1). The processors contain high-speed serial and parallel ports, an interrupt controller for flexible management of interrupts from the on-chip peripherals or external sources, and power management control functions to tailor the performance and power characteristics of the processor and system to many application scenarios. The following sections describe additional peripherals that were not described in the previous sections. Timers The processor includes several timers which are described in the following sections. General-Purpose Timers There is one GP timer unit and it provides eight general-purpose programmable timers. Each timer has an external pin that can be configured either as a pulse width modulator (PWM) or timer output, as an input to clock the timer, or as a mechanism for measuring pulse widths and periods of external events. These timers can be synchronized to an external clock input on the TMRx pins, an external clock TMRCLK input pin, or to the internal SCLK0. The timer units can be used in conjunction with the UARTs and the CAN controller to measure the width of the pulses in the data stream to provide a software auto-baud detect function for the respective serial channels. The timers can generate interrupts to the processor core, providing periodic events for synchronization to either the system clock or to external signals. Timer events can also trigger other peripherals via the TRU (for instance, to signal a fault). Core Timers Each processor core also has its own dedicated timer. This extra timer is clocked by the internal processor clock and is typically used as a system tick clock for generating periodic operating system interrupts. Watchdog Timers Each core includes a 32-bit timer, which may be used to implement a software watchdog function. A software watchdog can improve system availability by forcing the processor to a known state, via generation of a hardware reset, nonmaskable interrupt (NMI), or general-purpose interrupt, if the timer expires before Rev. A | Page 11 of 112 | February 2014 ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 being reset by software. The programmer initializes the count value of the timer, enables the appropriate interrupt, then enables the timer. Thereafter, the software must reload the counter before it counts to zero from the programmed value. This protects the system from remaining in an unknown state where software, which would normally reset the timer, has stopped running due to an external noise condition or software error. Serial ports operate in five modes: After a reset, software can determine if the watchdog was the source of the hardware reset by interrogating a status bit in the timer control register, which is set only upon a watchdog generated reset. ACM Interface 3-Phase PWM Units The Pulse Width Modulator (PWM) module is a flexible and programmable waveform generator. With minimal CPU intervention the PWM peripheral is capable of generating complex waveforms for motor control, Pulse Coded Modulation (PCM), Digital to Analog Conversion (DAC), power switching and power conversion. The PWM module has 4 PWM pairs capable of 3-phase PWM generation for source inverters for AC induction and DC brush less motors. • Standard DSP serial mode • Multichannel (TDM) mode • I2S mode • Packed I2S mode • Left-justified mode The ADC control module (ACM) provides an interface that synchronizes the controls between the processor and an analogto-digital converter (ADC). The analog-to-digital conversions are initiated by the processor, based on external or internal events. The ACM allows for flexible scheduling of sampling instants and provides precise sampling signals to the ADC. Figure 5 shows how to connect an external ADC to the ACM and one of the SPORTs. The two 3-phase PWM generation units each feature: • 16-bit center-based PWM generation unit SPORTx • Programmable PWM pulse width • Single update mode with option for asymmetric duty SPT_AD1 SPT_AD0 SPT_CLK SPT_FS ADSP-BF60x • Programmable dead time and switching frequency • Twos-complement implementation which permits smooth transition to full ON and full OFF states ACM ACM_CLK ACM_FS ACM_A[2:0] ACM_A3 ACM_A4 • Dedicated asynchronous PWM shutdown signal Link Ports Four DMA-enabled, 8-bit-wide link ports can connect to the link ports of other DSPs or processors. Link ports are bidirectional ports having eight data lines, an acknowledge line and a clock line. RANGE SGL/DIFF A[2:0] ADC CS ADSCLK DOUTA DOUTB Serial Ports (SPORTs) Three synchronous serial ports that provide an inexpensive interface to a wide variety of digital and mixed-signal peripheral devices such as Analog Devices’ AD183x family of audio codecs, ADCs, and DACs. The serial ports are made up of two data lines, a clock, and frame sync. The data lines can be programmed to either transmit or receive and each data line has a dedicated DMA channel. Serial port data can be automatically transferred to and from on-chip memory/external memory via dedicated DMA channels. Each of the serial ports can work in conjunction with another serial port to provide TDM support. In this configuration, one SPORT provides two transmit signals while the other SPORT provides the two receive signals. The frame sync and clock are shared. SPORT SELECT MUX Figure 5. ADC, ACM, and SPORT Connections The ACM synchronizes the ADC conversion process, generating the ADC controls, the ADC conversion start signal, and other signals. The actual data acquisition from the ADC is done by a peripheral such as a SPORT or a SPI. The processor interfaces directly to many ADCs without any glue logic required. General-Purpose Counters A 32-bit counter is provided that can operate in general-purpose up/down count modes and can sense 2-bit quadrature or binary codes as typically emitted by industrial drives or manual thumbwheels. Count direction is either controlled by a levelsensitive input pin or by two edge detectors. Rev. A | Page 12 of 112 | February 2014 ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 A third counter input can provide flexible zero marker support and can alternatively be used to input the push-button signal of thumb wheels. All three pins have a programmable debouncing circuit. Internal signals forwarded to each general-purpose timer enable these timers to measure the intervals between count events. Boundary registers enable auto-zero operation or simple system warning by interrupts when programmable count values are exceeded. Serial Peripheral Interface (SPI) Ports The processors have two SPI-compatible ports that allow the processor to communicate with multiple SPI-compatible devices. In its simplest mode, the SPI interface uses three pins for transferring data: two data pins (Master Output-Slave Input, MOSI, and Master Input-Slave Output, MISO) and a clock pin (serial clock, SPI_CLK). A SPI chip select input pin (SPI_SS) lets other SPI devices select the processor, and seven SPI chip select output pins (SPI_SEL7–1) let the processor select other SPI devices. The SPI select pins are reconfigured general-purpose I/O pins. Using these pins, the SPI port provides a full-duplex, synchronous serial interface, which supports both master/slave modes and multimaster environments. In a multi-master or multi-slave SPI system, the MOSI and MISO data output pins can be configured to behave as open drain outputs (using the ODM bit) to prevent contention and possible damage to pin drivers. An external pull-up resistor is required on both the MOSI and MISO pins when this option is selected. To help support the Local Interconnect Network (LIN) protocols, a special command causes the transmitter to queue a break command of programmable bit length into the transmit buffer. Similarly, the number of stop bits can be extended by a programmable inter-frame space. The capabilities of the UARTs are further extended with support for the Infrared Data Association (IrDA®) serial infrared physical layer link specification (SIR) protocol. TWI Controller Interface The processors include a 2-wire interface (TWI) module for providing a simple exchange method of control data between multiple devices. The TWI module is compatible with the widely used I2C bus standard. The TWI module offers the capabilities of simultaneous master and slave operation and support for both 7-bit addressing and multimedia data arbitration. The TWI interface utilizes two pins for transferring clock (TWI_SCL) and data (TWI_SDA) and supports the protocol at speeds up to 400k bits/sec. The TWI interface pins are compatible with 5 V logic levels. Additionally, the TWI module is fully compatible with serial camera control bus (SCCB) functionality for easier control of various CMOS camera sensor devices. Removable Storage Interface (RSI) The removable storage interface (RSI) controller acts as the host interface for multimedia cards (MMC), secure digital memory cards (SD), secure digital input/output cards (SDIO). The following list describes the main features of the RSI controller. • Support for a single MMC, SD memory, SDIO card When ODM is set and the SPI is configured as a master, the MOSI pin is three-stated when the data driven out on MOSI is a logic-high. The MOSI pin is not three-stated when the driven data is a logic-low. Similarly, when ODM is set and the SPI is configured as a slave, the MISO pin is three-stated if the data driven out on MISO is a logic-high. • Support for 1-bit and 4-bit SD modes The SPI port’s baud rate and clock phase/polarities are programmable, and it has integrated DMA channels for both transmit and receive data streams. • Card interface clock generation from SCLK0 • Support for 1-bit, 4-bit, and 8-bit MMC modes • Support for eMMC 4.3 embedded NAND flash devices • A ten-signal external interface with clock, command, and up to eight data lines • SDIO interrupt and read wait features Controller Area Network (CAN) UART Ports The processors provide two full-duplex universal asynchronous receiver/transmitter (UART) ports, which are fully compatible with PC-standard UARTs. Each UART port provides a simplified UART interface to other peripherals or hosts, supporting full-duplex, DMA-supported, asynchronous transfers of serial data. A UART port includes support for five to eight data bits, and none, even, or odd parity. Optionally, an additional address bit can be transferred to interrupt only addressed nodes in multi-drop bus (MDB) systems. A frame is terminates by one, one and a half, two or two and a half stop bits. The UART ports support automatic hardware flow control through the Clear To Send (CTS) input and Request To Send (RTS) output with programmable assertion FIFO levels. A CAN controller implements the CAN 2.0B (active) protocol. This protocol is an asynchronous communications protocol used in both industrial and automotive control systems. The CAN protocol is well suited for control applications due to its capability to communicate reliably over a network. This is because the protocol incorporates CRC checking, message error tracking, and fault node confinement. The CAN controller offers the following features: • 32 mailboxes (8 receive only, 8 transmit only, 16 configurable for receive or transmit). • Dedicated acceptance masks for each mailbox. • Additional data filtering on first two bytes. • Support for both the standard (11-bit) and extended (29bit) identifier (ID) message formats. Rev. A | Page 13 of 112 | February 2014 ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 • Support for remote frames. • Active or passive network support. • CAN wakeup from hibernation mode (lowest static power consumption mode). • Interrupts, including: TX complete, RX complete, error and global. An additional crystal is not required to supply the CAN clock, as the CAN clock is derived from a system clock through a programmable divider. 10/100 Ethernet MAC The processor can directly connect to a network by way of an embedded fast Ethernet media access controller (MAC) that supports both 10-BaseT (10M bits/sec) and 100-BaseT (100M bits/sec) operation. The 10/100 Ethernet MAC peripheral on the processor is fully compliant to the IEEE 802.3-2002 standard and it provides programmable features designed to minimize supervision, bus use, or message processing by the rest of the processor system. (PTP_TSYNC). This engine provides hardware assisted time stamping to improve the accuracy of clock synchronization between PTP nodes. The main features of the engine are: • Support for both IEEE 1588-2002 and IEEE 1588-2008 protocol standards • Hardware assisted time stamping capable of up to 12.5 ns resolution • Lock adjustment • Automatic detection of IPv4 and IPv6 packets, as well as PTP messages • Multiple input clock sources (SCLK0, RMII clock, external clock) • Programmable pulse per second (PPS) output • Auxiliary snapshot to time stamp external events USB 2.0 On-the-Go Dual-Role Device Controller • Flow control The USB 2.0 OTG dual-role device controller provides a lowcost connectivity solution for the growing adoption of this bus standard in industrial applications, as well as consumer mobile devices such as cell phones, digital still cameras, and MP3 players. The USB 2.0 controller allows these devices to transfer data using a point-to-point USB connection without the need for a PC host. The module can operate in a traditional USB peripheral-only mode as well as the host mode presented in the Onthe-Go (OTG) supplement to the USB 2.0 specification. • Station management: generation of MDC/MDIO frames for read-write access to PHY registers The USB clock (USB_CLKIN) is provided through a dedicated external crystal or crystal oscillator. Some standard features are: • Support and RMII protocols for external PHYs • Full duplex and half duplex modes • Media access management (in half-duplex operation) Some advanced features are: • Automatic checksum computation of IP header and IP payload fields of RX frames • Independent 32-bit descriptor-driven receive and transmit DMA channels The USB On-the-Go dual-role device controller includes a Phase Locked Loop with programmable multipliers to generate the necessary internal clocking frequency for USB. POWER AND CLOCK MANAGEMENT • TX DMA support for separate descriptors for MAC header and payload to eliminate buffer copy operations The processor provides four operating modes, each with a different performance/power profile. When configured for a 0 V internal supply voltage (VDD_INT), the processor enters the hibernate state. Control of clocking to each of the processor peripherals also reduces power consumption. See Table 5 for a summary of the power settings for each mode. • Convenient frame alignment modes Crystal Oscillator (SYS_XTAL) • 47 MAC management statistics counters with selectable clear-on-read behavior and programmable interrupts on half maximum value The processor can be clocked by an external crystal (Figure 6), a sine wave input, or a buffered, shaped clock derived from an external clock oscillator. If an external clock is used, it should be a TTL compatible signal and must not be halted, changed, or operated below the specified frequency during normal operation. This signal is connected to the processor’s SYS_CLKIN pin. When an external clock is used, the SYS_XTAL pin must be left unconnected. Alternatively, because the processor includes an on-chip oscillator circuit, an external crystal may be used. • Frame status delivery to memory through DMA, including frame completion semaphores for efficient buffer queue management in software • Advanced power management • Magic packet detection and wakeup frame filtering • Support for 802.3Q tagged VLAN frames • Programmable MDC clock rate and preamble suppression IEEE 1588 Support The IEEE 1588 standard is a precision clock synchronization protocol for networked measurement and control systems. The processor includes hardware support for IEEE 1588 with an integrated precision time protocol synchronization engine For fundamental frequency operation, use the circuit shown in Figure 6. A parallel-resonant, fundamental frequency, microprocessor grade crystal is connected across the SYS_CLKIN and XTAL pins. The on-chip resistance between SYS_CLKIN and the XTAL pin is in the 500 kΩ range. Further parallel resistors are typically not recommended. Rev. A | Page 14 of 112 | February 2014 ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 BLACKFIN BLACKFIN TO PLL CIRCUITRY TO USB PLL ȍ2 ȍ USB_CLKIN 5-12 pf1, 2 SYS_CLKIN SYS_XTAL ȍ * FOR OVERTONE OPERATION ONLY: 18 pF* NOTES: 1. CAPACITANCE VALUE SHOWN INCLUDES BOARD PARASITICS 2. VALUES ARE A PRELIMINARY ESTIMATE. 18 pF * Figure 7. External USB Crystal Connection NOTE: VALUES MARKED WITH * MUST BE CUSTOMIZED, DEPENDING ON THE CRYSTAL AND LAYOUT. PLEASE ANALYZE CAREFULLY. FOR FREQUENCIES ABOVE 33 MHz, THE SUGGESTED CAPACITOR VALUE OF 18pF SHOULD BE TREATED AS A MAXIMUM, AND THE SUGGESTED 5(6,67259$/8(6+28/'%(5('8&('72ȍ Figure 6. External Crystal Connection The crystal should be chosen so that its rated load capacitance matches the nominal total capacitance on this node. A series resistor may be added between the USB_CLKIN pin and the parallel crystal and capacitor combination, in order to further reduce the drive level of the crystal. The two capacitors and the series resistor shown in Figure 6 fine tune phase and amplitude of the sine frequency. The capacitor and resistor values shown in Figure 6 are typical values only. The capacitor values are dependent upon the crystal manufacturers’ load capacitance recommendations and the PCB physical layout. The resistor value depends on the drive level specified by the crystal manufacturer. The user should verify the customized values based on careful investigations on multiple devices over temperature range. The parallel capacitor and the series resistor shown in Figure 7 fine tune phase and amplitude of the sine frequency. The capacitor and resistor values shown in Figure 7 are typical values only. The capacitor values are dependent upon the crystal manufacturers’ load capacitance recommendations and the PCB physical layout. The resistor value depends on the drive level specified by the crystal manufacturer. The user should verify the customized values based on careful investigations on multiple devices over temperature range. A third-overtone crystal can be used for frequencies above 25 MHz. The circuit is then modified to ensure crystal operation only at the third overtone by adding a tuned inductor circuit as shown in Figure 6. A design procedure for third-overtone operation is discussed in detail in application note (EE-168) Using Third Overtone Crystals with the ADSP-218x DSP on the Analog Devices website (www.analog.com)—use site search on “EE-168.” Clock Generation USB Crystal Oscillator Writing to the CGU control registers does not affect the behavior of the PLL immediately. Registers are first programmed with a new value, and the PLL logic executes the changes so that it transitions smoothly from the current conditions to the new ones. The USB can be clocked by an external crystal, a sine wave input, or a buffered, shaped clock derived from an external clock oscillator. If an external clock is used, it should be a TTL compatible signal and must not be halted, changed, or operated below the specified frequency during normal operation. This signal is connected to the processor’s USB_CLKIN pin. Alternatively, because the processor includes an on-chip oscillator circuit, an external crystal may be used. For fundamental frequency operation, use the circuit shown in Figure 7. A parallel-resonant, fundamental frequency, microprocessor grade crystal is connected between the USB_CLKIN pin and ground. A load capacitor is placed in parallel with the crystal. The combined capacitive value of the board trace parasitic, the case capacitance of the crystal (from crystal manufacturer) and the parallel capacitor in the diagram should be in the range of 8 pF to 15 pF. The clock generation unit (CGU) generates all on-chip clocks and synchronization signals. Multiplication factors are programmed to the PLL to define the PLLCLK frequency. Programmable values divide the PLLCLK frequency to generate the core clock (CCLK), the system clocks (SYSCLK, SCLK0 and SCLK1), the LPDDR or DDR2 clock (DCLK) and the output clock (OCLK). This is illustrated in Figure 8 on Page 54. SYS_CLKIN oscillations start when power is applied to the VDD_ EXT pins. The rising edge of SYS_HWRST can be applied after all voltage supplies are within specifications (see Operating Conditions on Page 52), and SYS_CLKIN oscillations are stable. Clock Out/External Clock The SYS_CLKOUT output pin has programmable options to output divided-down versions of the on-chip clocks. By default, the SYS_CLKOUT pin drives a buffered version of the SYS_ CLKIN input. Clock generation faults (for example PLL unlock) may trigger a reset by hardware. The clocks shown in Table 3 can be outputs from SYS_CLKOUT. Rev. A | Page 15 of 112 | February 2014 ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 See Table 5 for a summary of the power settings for each mode. Table 3. Clock Dividers Clock Source CCLK (core clock) SYSCLK (System clock) SCLK0 (system clock for PVP, all peripherals not covered by SCLK1) SCLK1 (system clock for SPORTS, SPI, ACM) DCLK (LPDDR/DDR2 clock) OCLK (output clock) CLKBUF Divider By 4 By 2 None Table 5. Power Settings None By 2 Programmable None, direct from SYS_CLKIN Core Power On On On Off Deep Sleep Operating Mode—Maximum Dynamic Power Savings Power Management As shown in Table 4, the processor supports five different power domains, which maximizes flexibility while maintaining compliance with industry standards and conventions. There are no sequencing requirements for the various power domains, but all domains must be powered according to the appropriate Specifications table for processor operating conditions; even if the feature/peripheral is not used. Table 4. Power Domains Power Domain All internal logic DDR2/LPDDR USB Thermal diode All other I/O (includes SYS, JTAG, and Ports pins) fSYSCLK, fDCLK, fSCLK0, PLL Mode/State PLL Bypassed fCCLK fSCLK1 Full On Enabled No Enabled Enabled Active Enabled/ Yes Enabled Enabled Disabled Deep Sleep Disabled — Disabled Disabled Hibernate Disabled — Disabled Disabled VDD Range VDD_INT VDD_DMC VDD_USB VDD_TD VDD_EXT The dynamic power management feature of the processor allows the processor’s core clock frequency (fCCLK) to be dynamically controlled. The power dissipated by a processor is largely a function of its clock frequency and the square of the operating voltage. For example, reducing the clock frequency by 25% results in a 25% reduction in dynamic power dissipation. Full-On Operating Mode—Maximum Performance In the full-on mode, the PLL is enabled and is not bypassed, providing capability for maximum operational frequency. This is the power-up default execution state in which maximum performance can be achieved. The processor cores and all enabled peripherals run at full speed. Active Operating Mode—Moderate Dynamic Power Savings In the active mode, the PLL is enabled but bypassed. Because the PLL is bypassed, the processor’s core clocks and system clocks run at the input clock (SYS_CLKIN) frequency. DMA access is available to appropriately configured L1 memories. The deep sleep mode maximizes dynamic power savings by disabling the clocks to the processor core and to all synchronous peripherals. Asynchronous peripherals may still be running but cannot access internal resources or external memory. Hibernate State—Maximum Static Power Savings The hibernate state maximizes static power savings by disabling the voltage and clocks to the processor cores and to all of the peripherals. This setting signals the external voltage regulator supplying the VDD_INT pins to shut off using the SYS_ EXTWAKE signal, which provides the lowest static power dissipation. Any critical information stored internally (for example, memory contents, register contents, and other information) must be written to a non-volatile storage device prior to removing power if the processor state is to be preserved. Since the VDD_EXT pins can still be supplied in this mode, all of the external pins three-state, unless otherwise specified. This allows other devices that may be connected to the processor to still have power applied without drawing unwanted current. Reset Control Unit Reset is the initial state of the whole processor or one of the cores and is the result of a hardware or software triggered event. In this state, all control registers are set to their default values and functional units are idle. Exiting a full system reset starts with Core-0 only being ready to boot. Exiting a Core-n only reset starts with this Core-n being ready to boot. The Reset Control Unit (RCU) controls how all the functional units enter and exit reset. Differences in functional requirements and clocking constraints define how reset signals are generated. Programs must guarantee that none of the reset functions puts the system into an undefined state or causes resources to stall. This is particularly important when only one of the cores is reset (programs must ensure that there is no pending system activity involving the core that is being reset). For more information about PLL controls, see the “Dynamic Power Management” chapter in the ADSP-BF60x Blackfin Processor Hardware Reference. Rev. A | Page 16 of 112 | February 2014 ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 From a system perspective reset is defined by both the reset target and the reset source as described below. Target defined: • Hardware Reset – All functional units are set to their default states without exception. History is lost. • System Reset – All functional units except the RCU are set to their default states. • Core-n only Reset – Affects Core-n only. The system software should guarantee that the core in reset state is not accessed by any bus master. Source defined: • Hardware Reset – The SYS_HWRST input signal is asserted active (pulled down). • System Reset – May be triggered by software (writing to the RCU_CTL register) or by another functional unit such as the dynamic power management (DPM) unit (Hibernate) or any of the system event controller (SEC), trigger routing unit (TRU), or emulator inputs. • Core-n-only reset – Triggered by software. • Trigger request (peripheral). Voltage Regulation The processor requires an external voltage regulator to power the VDD_INT pins. To reduce standby power consumption, the external voltage regulator can be signaled through SYS_ EXTWAKE to remove power from the processor core. This signal is high-true for power-up and may be connected directly to the low-true shut-down input of many common regulators. While in the hibernate state, all external supply pins (VDD_EXT, VDD_USB, VDD_DMC) can still be powered, eliminating the need for external buffers. The external voltage regulator can be activated from this power down state by asserting the SYS_HWRST pin, which then initiates a boot sequence. SYS_EXTWAKE indicates a wakeup to the external voltage regulator. SYSTEM DEBUG The processor includes various features that allow for easy system debug. These are described in the following sections. System Watchpoint Unit The System Watchpoint Unit (SWU) is a single module which connects to a single system bus and provides for transaction monitoring. One SWU is attached to the bus going to each system slave. The SWU provides ports for all system bus address channel signals. Each SWU contains four match groups of registers with associated hardware. These four SWU match groups operate independently, but share common event (interrupt, trigger and others) outputs. System Debug Unit The System Debug Unit (SDU) provides IEEE-1149.1 support through its JTAG interface. In addition to traditional JTAG features, present in legacy Blackfin products, the SDU adds more features for debugging the chip without halting the core processors. DEVELOPMENT TOOLS Analog Devices supports its processors with a complete line of software and hardware development tools, including integrated development environments (which include CrossCore® Embedded Studio and/or VisualDSP++®), evaluation products, emulators, and a wide variety of software add-ins. Integrated Development Environments (IDEs) For C/C++ software writing and editing, code generation, and debug support, Analog Devices offers two IDEs. The newest IDE, CrossCore Embedded Studio, is based on the EclipseTM framework. Supporting most Analog Devices processor families, it is the IDE of choice for future processors, including multicore devices. CrossCore Embedded Studio seamlessly integrates available software add-ins to support real time operating systems, file systems, TCP/IP stacks, USB stacks, algorithmic software modules, and evaluation hardware board support packages. For more information visit www.analog.com/cces. The other Analog Devices IDE, VisualDSP++, supports processor families introduced prior to the release of CrossCore Embedded Studio. This IDE includes the Analog Devices VDK real time operating system and an open source TCP/IP stack. For more information visit www.analog.com/visualdsp. Note that VisualDSP++ will not support future Analog Devices processors. EZ-KIT Lite Evaluation Board For processor evaluation, Analog Devices provides wide range of EZ-KIT Lite® evaluation boards. Including the processor and key peripherals, the evaluation board also supports on-chip emulation capabilities and other evaluation and development features. Also available are various EZ-Extenders®, which are daughter cards delivering additional specialized functionality, including audio and video processing. For more information visit www.analog.com and search on “ezkit” or “ezextender”. EZ-KIT Lite Evaluation Kits For a cost-effective way to learn more about developing with Analog Devices processors, Analog Devices offer a range of EZKIT Lite evaluation kits. Each evaluation kit includes an EZ-KIT Lite evaluation board, directions for downloading an evaluation version of the available IDE(s), a USB cable, and a power supply. The USB controller on the EZ-KIT Lite board connects to the USB port of the user’s PC, enabling the chosen IDE evaluation suite to emulate the on-board processor in-circuit. This permits the customer to download, execute, and debug programs for the EZ-KIT Lite system. It also supports in-circuit programming of the on-board Flash device to store user-specific boot code, enabling standalone operation. With the full version of Rev. A | Page 17 of 112 | February 2014 ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 CrossCore Embedded Studio or VisualDSP++ installed (sold separately), engineers can develop software for supported EZKITs or any custom system utilizing supported Analog Devices processors. Software Add-Ins for CrossCore Embedded Studio Analog Devices offers software add-ins which seamlessly integrate with CrossCore Embedded Studio to extend its capabilities and reduce development time. Add-ins include board support packages for evaluation hardware, various middleware packages, and algorithmic modules. Documentation, help, configuration dialogs, and coding examples present in these add-ins are viewable through the CrossCore Embedded Studio IDE once the add-in is installed. For details on target board design issues including mechanical layout, single processor connections, signal buffering, signal termination, and emulator pod logic, see the EE-68: Analog Devices JTAG Emulation Technical Reference on the Analog Devices website (www.analog.com)—use site search on “EE-68.” This document is updated regularly to keep pace with improvements to emulator support. ADDITIONAL INFORMATION The following publications that describe the ADSP-BF606/ ADSP-BF607/ADSP-BF608/ADSP-BF609 processors (and related processors) can be ordered from any Analog Devices sales office or accessed electronically on our website: • Getting Started With Blackfin Processors Board Support Packages for Evaluation Hardware • ADSP-BF60x Blackfin Processor Hardware Reference Software support for the EZ-KIT Lite evaluation boards and EZExtender daughter cards is provided by software add-ins called Board Support Packages (BSPs). The BSPs contain the required drivers, pertinent release notes, and select example code for the given evaluation hardware. A download link for a specific BSP is located on the web page for the associated EZ-KIT or EZExtender product. The link is found in the Product Download area of the product web page. • Blackfin Processor Programming Reference Middleware Packages Analog Devices separately offers middleware add-ins such as real time operating systems, file systems, USB stacks, and TCP/IP stacks. For more information see the following web pages: • ADSP-BF60x Blackfin Processor Anomaly List RELATED SIGNAL CHAINS A signal chain is a series of signal-conditioning electronic components that receive input (data acquired from sampling either real-time phenomena or from stored data) in tandem, with the output of one portion of the chain supplying input to the next. Signal chains are often used in signal processing applications to gather and process data or to apply system controls based on analysis of real-time phenomena. For more information about this term and related topics, see the “signal chain” entry in the Glossary of EE Terms on the Analog Devices website. Analog Devices eases signal processing system development by providing signal processing components that are designed to work together well. A tool for viewing relationships between specific applications and related components is available on the www.analog.com website. • www.analog.com/ucos3 • www.analog.com/ucfs • www.analog.com/ucusbd • www.analog.com/lwip The Application Signal Chains page in the Circuits from the LabTM site (http:\\www.analog.com\circuits) provides: Algorithmic Modules To speed development, Analog Devices offers add-ins that perform popular audio and video processing algorithms. These are available for use with both CrossCore Embedded Studio and VisualDSP++. For more information visit www.analog.com and search on “Blackfin software modules”. Designing an Emulator-Compatible DSP Board (Target) • Graphical circuit block diagram presentation of signal chains for a variety of circuit types and applications • Drill down links for components in each chain to selection guides and application information • Reference designs applying best practice design techniques For embedded system test and debug, Analog Devices provides a family of emulators. On each JTAG DSP, Analog Devices supplies an IEEE 1149.1 JTAG Test Access Port (TAP). In-circuit emulation is facilitated by use of this JTAG interface. The emulator accesses the processor’s internal features via the processor’s TAP, allowing the developer to load code, set breakpoints, and view variables, memory, and registers. The processor must be halted to send data and commands, but once an operation is completed by the emulator, the DSP system is set to run at full speed with no impact on system timing. The emulators require the target board to include a header that supports connection of the DSP’s JTAG port to the emulator. Rev. A | Page 18 of 112 | February 2014 ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 ADSP-BF60x DETAILED SIGNAL DESCRIPTIONS Table 6 provides a detailed description of each signal. Table 6. Detailed Signal Descriptions Signal Name ACM_An ACM_CLK ACM_FS ACM_Tn CAN_RX CAN_TX CNT_DG Direction Output Output Output Input Input Output Input CNT_UD Input CNT_ZM Input DMC_Ann DMC_BAn Output Output DMC_CAS Output DMC_CK DMC_CK DMC_CKE DMC_CSn DMC_DQnn DMC_LDM Output Output Output Output I/O Output DMC_LDQS DMC_LDQS I/O I/O DMC_ODT Output DMC_RAS Output DMC_UDM Output DMC_UDQS DMC_UDQS I/O I/O DMC_WE Output Description ADC Control Signals Function varies by mode. Clock SCLK derived clock for connecting to an ADC. Frame Sync Typically used as an ADC chip select. External Trigger n Input for external trigger events. Receive Typically an external CAN transceiver's RX output. Transmit Typically an external CAN transceiver's TX input. Count Down and Gate Depending on the mode of operation this input acts either as a count down signal or a gate signal. Count Down: This input causes the GP counter to decrement. Gate: Stops the GP counter from incrementing or decrementing. Count Up and Direction Depending on the mode of operation this input acts either as a count up signal or a direction signal. Count Up: This input causes the GP counter to increment. Direction: Selects whether the GP counter is incrementing or decrementing. Count Zero Marker Input that connects to the zero marker output of a rotary device or detects the pressing of a push button. Address n Address bus. Bank Address Input n Defines which internal bank an ACTIVATE, READ, WRITE, or PRECHARGE command is being applied to on the dynamic memory. Also defines which mode registers (MR, EMR, EMR2, and/or EMR3) are loaded during the LOAD MODE REGISTER command. Column Address Strobe Defines the operation for external dynamic memory to perform in conjunction with other DMC command signals. Connect to the CAS input of dynamic memory. Clock (complement) Complement of DMC_CK. Clock Outputs DCLK to external dynamic memory. Clock enable Active high clock enables. Connects to the dynamic memory’s CKE input. Chip Select n Commands are recognized by the memory only when this signal is asserted. Data n Bidirectional data bus. Data Mask for Lower Byte Mask for DMC_DQ07:DMC_DQ00 write data when driven high. Sampled on both edges of the data strobe by the dynamic memory. Data Strobe for Lower Byte (complement) Complement of LDQS. Not used in single-ended mode. Data Strobe for Lower Byte DMC_DQ07:DMC_DQ00 data strobe. Output with Write Data. Input with Read Data. May be single-ended or differential depending on register settings. On-die Termination Enables dynamic memory termination resistances when driven high (assuming the memory is properly configured). ODT is enabled/disabled regardless of read or write commands. Row Address Strobe Defines the operation for external dynamic memory to perform in conjunction with other DMC command signals. Connect to the RAS input of dynamic memory. Data Mask for Upper Byte Mask for DMC_DQ15:DMC_DQ08 write data when driven high. Sampled on both edges of the data strobe by the dynamic memory. Data Strobe for Upper Byte (complement) Complement of UDQS. Not used in single-ended mode. Data Strobe for Upper Byte DMC_DQ15:DMC_DQ08 data strobe. Output with Write Data. Input with Read Data. May be single-ended or differential depending on register settings. Write Enable Defines the operation for external dynamic memory to perform in conjunction with other DMC command signals. Connect to the WE input of dynamic memory. Rev. A | Page 19 of 112 | February 2014 ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 Table 6. Detailed Signal Descriptions (Continued) Signal Name ETH_CRS Direction Input ETH_MDC ETH_MDIO ETH_PTPAUXIN Output I/O Input ETH_PTPCLKIN ETH_PTPPPS Input Output ETH_REFCLK ETH_RXDn ETH_TXDn ETH_TXEN JTG_EMU JTG_TCK JTG_TDI JTG_TDO JTG_TMS JTG_TRST LP_ACK Input Input Output I/O Output Input Input Output Input Input I/O LP_CLK I/O LP_Dn PPI_CLK PPI_Dnn PPI_FS1 I/O I/O I/O I/O PPI_FS2 I/O PPI_FS3 I/O PWM_AH PWM_AL PWM_BH PWM_BL PWM_CH PWM_CL PWM_DH PWM_DL PWM_SYNC Output Output Output Output Output Output Output Output Input PWM_TRIPn Px_nn Input I/O Description Carrier Sense/RMII Receive Data Valid Multiplexed on alternate clock cycles. CRS: Asserted by the PHY when either the transmit or receive medium is not idle. De-asserted when both are idle. RXDV: Asserted by the PHY when the data on RXDn is valid. Management Channel Clock Clocks the MDC input of the PHY. Management Channel Serial Data Bidirectional data bus for PHY control. PTP Auxiliary Trigger Input Assert this signal to take an auxiliary snapshot of the time and store it in the auxiliary time stamp FIFO. PTP Clock Input Optional external PTP clock input. PTP Pulse-Per-Second Output When the Advanced Time Stamp feature is enabled, this signal is asserted based on the PPS mode selected. Otherwise, PTPPPS is asserted every time the seconds counter is incremented. Reference Clock Externally supplied Ethernet clock. Receive Data n Receive data bus. Transmit Data n Transmit data bus. Transmit Enable When asserted indicates that the data on TXDn is valid. Emulation Output JTAG emulation flag. Clock JTAG test access port clock. Serial Data In JTAG test access port data input. Serial Data Out JTAG test access port data output. Mode Select JTAG test access port mode select. Reset JTAG test access port reset. Acknowledge Provides handshaking. When the link port is configured as a receiver, ACK is an output. When the link port is configured as a transmitter, ACK is an input. Clock When the link port is configured as a receiver, CLK is an input. When the link port is configured as a transmitter, CLK is an output. Data n Data bus. Input when receiving, output when transmitting. Clock Input in external clock mode, output in internal clock mode. Data n Bidirectional data bus. Frame Sync 1 (HSYNC) Behavior depends on PPI mode. See the PPI chapter in the processor hardware reference for more details. Frame Sync 2 (VSYNC) Behavior depends on PPI mode. See the PPI chapter in the processor hardware reference for more details. Frame Sync 3 (FIELD) Behavior depends on PPI mode. See the PPI chapter in the processor hardware reference for more details. Channel A High Side High side drive signal. Channel A Low Side Low side drive signal. Channel B High Side High side drive signal. Channel B Low Side Low side drive signal. Channel C High Side High side drive signal. Channel C Low Side Low side drive signal. Channel D High Side High side drive signal. Channel D Low Side Low side drive signal. PWM External Sync This input is for an externally generated sync signal. If the sync signal is internally generated no connection is necessary. Shutdown Input n When asserted the selected PWM channel outputs are shut down immediately. Position n General purpose input/output. See the GP Ports chapter in the processor hardware reference for programming information. Rev. A | Page 20 of 112 | February 2014 ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 Table 6. Detailed Signal Descriptions (Continued) Signal Name RSI_CLK RSI_CMD RSI_Dn SMC_ABEn Direction Output I/O I/O Output SMC_AMSn SMC_Ann SMC_AOE SMC_ARDY Output Output Output Input SMC_ARE SMC_AWE SMC_BG Output Output Output SMC_BGH Output SMC_BR SMC_Dnn SMC_NORCLK SMC_NORDV SMC_NORWT Input I/O Output Output Input SPI_CLK SPI_D2 SPI_D3 SPI_MISO I/O I/O I/O I/O SPI_MOSI I/O SPI_RDY SPI_SELn SPI_SS I/O Output Input SPT_ACLK I/O SPT_AD0 I/O SPT_AD1 I/O SPT_AFS I/O SPT_ATDV Output SPT_BCLK I/O SPT_BD0 I/O Description Clock The clock signal applied to the connected device from the RSI. Command Used to send commands to and receive responses from the connected device. Data n Bidirectional data bus. Byte Enable n Indicate whether the lower or upper byte of a memory is being accessed. When an asynchronous write is made to the upper byte of a 16-bit memory, SMC_ABE1 =0 and SMC_ABE0 =1. When an asynchronous write is made to the lower byte of a 16-bit memory, SMC_ABE1 =1 and SMC_ABE0 =0. Memory Select n Typically connects to the chip select of a memory device. Address n Address bus. Output Enable Asserts at the beginning of the setup period of a read access. Asynchronous Ready Flow control signal used by memory devices to indicate to the SMC when further transactions may proceed. Read Enable Asserts at the beginning of a read access. Write Enable Asserts for the duration of a write access period. Bus Grant Output used to indicate to an external device that it has been granted control of the SMC buses. Bus Grant Hang Output used to indicate that the SMC has a pending transaction which requires control of the bus to be restored before it can be completed. Bus Request Input used by an external device to indicate that it is requesting control of the SMC buses. Data n Bidirectional data bus. NOR Clock Clock for synchronous burst mode. NOR Data Valid Asserts for the duration of a synchronous burst mode read setup period. NOR Wait Flow control signal used by memory devices in synchronous burst mode to indicate to the SMC when further transactions may proceed. Clock Input in slave mode, output in master mode. Data 2 Used to transfer serial data in quad mode. Open drain in ODM mode. Data 3 Used to transfer serial data in quad mode. Open drain in ODM mode. Master In, Slave Out Used to transfer serial data. Operates in the same direction as SPI_MOSI in dual and quad modes. Open drain in ODM mode. Master Out, Slave In Used to transfer serial data. Operates in the same direction as SPI_MISO in dual and quad modes. Open drain in ODM mode. Ready Optional flow signal. Output in slave mode, input in master mode. Slave Select Output n Used in master mode to enable the desired slave. Slave Select Input Slave mode: acts as the slave select input. Master mode: optionally serves as an error detection input for the SPI when there are multiple masters. Channel A Clock Data and frame sync are driven/sampled with respect to this clock. This signal can be either internally or externally generated. Channel A Data 0 Primary bidirectional data I/O. This signal can be configured as an output to transmit serial data, or as an input to receive serial data. Channel A Data 1 Secondary bidirectional data I/O. This signal can be configured as an output to transmit serial data, or as an input to receive serial data. Channel A Frame Sync The frame sync pulse initiates shifting of serial data. This signal is either generated internally or externally. Channel A Transmit Data Valid This signal is optional and only active when SPORT is configured in multi-channel transmit mode. It is asserted during enabled slots. Channel B Clock Data and frame sync are driven/sampled with respect to this clock. This signal can be either internally or externally generated. Channel B Data 0 Primary bidirectional data I/O. This signal can be configured as an output to transmit serial data, or as an input to receive serial data. Rev. A | Page 21 of 112 | February 2014 ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 Table 6. Detailed Signal Descriptions (Continued) Signal Name SPT_BD1 Direction I/O SPT_BFS I/O SPT_BTDV Output SYS_BMODEn SYS_CLKIN SYS_CLKOUT Input Input Output SYS_EXTWAKE Output SYS_FAULT SYS_FAULT SYS_HWRST SYS_IDLEn SYS_NMI I/O I/O Input Output Input SYS_PWRGD Input SYS_RESOUT SYS_SLEEP Output Output SYS_TDA SYS_TDK Input Input SYS_XTAL TMR_ACIn TMR_ACLKn TMR_CLK TMR_TMRn TWI_SCL TWI_SDA UART_CTS UART_RTS UART_RX Output Input Input Input I/O I/O I/O Input Output Input UART_TX Output USB_CLKIN Input USB_DM USB_DP USB_ID I/O I/O Input USB_VBC Output USB_VBUS I/O Description Channel B Data 1 Secondary bidirectional data I/O. This signal can be configured as an output to transmit serial data, or as an input to receive serial data. Channel B Frame Sync The frame sync pulse initiates shifting of serial data. This signal is either generated internally or externally. Channel B Transmit Data Valid This signal is optional and only active when SPORT is configured in multi-channel transmit mode. It is asserted during enabled slots. Boot Mode Control n Selects the boot mode of the processor. Clock/Crystal Input Connect to an external clock source or crystal. Processor Clock Output Outputs internal clocks. Clocks may be divided down. See the CGU chapter in the processor hardware reference for more details. External Wake Control Drives low during hibernate and high all other times. Typically connected to the enable input of the voltage regulator controlling the VDD_INT supply. Complementary Fault Complement of SYS_FAULT. Fault Indicates internal faults or senses external faults depending on the operating mode. Processor Hardware Reset Control Resets the device when asserted. Core n Idle Indicator When low indicates that core n is in idle mode or being held in reset. Non-maskable Interrupt Priority depends on the core that receives the interrupt. See the processor hardware and programming references for more details. Power Good Indicator When high it indicates to the processor that the VDD_INT level is within specifications such that it is safe to begin booting upon return from hibernate. Reset Output Indicates that the device is in the reset state. Processor Sleep Indicator When low indicates that the processor is in the deep sleep power saving mode. Thermal Diode Anode May be used by an external temperature sensor to measure the die temperature. Thermal Diode Cathode May be used by an external temperature sensor to measure the die temperature. Crystal Output Drives an external crystal. Must be left unconnected if an external clock is driving CLKIN. Alternate Capture Input n Provides an additional input for WIDCAP, WATCHDOG, and PININT modes. Alternate Clock n Provides an additional time base for use by an individual timer. Clock Provides an additional global time base for use by all the GP timers. Timer n The main input/output signal for each timer. Serial Clock Clock output when master, clock input when slave. Serial Data Receives or transmits data. Clear to Send Flow control signal. Request to Send Flow control signal. Receive Receive input. Typically connects to a transceiver that meets the electrical requirements of the device being communicated with. Transmit Transmit output. Typically connects to a transceiver that meets the electrical requirements of the device being communicated with. Clock/Crystal Input This clock input is multiplied by a PLL to form the USB clock. See Universal Serial Bus (USB) On-The-Go—Receive and Transmit Timing for frequency/tolerance information. Data – Bidirectional differential data line. Data + Bidirectional differential data line. OTG ID Senses whether the controller is a host or device. This signal is pulled low when an A-type plug is sensed (signifying that the USB controller is the A device), but the input is high when a B-type plug is sensed (signifying that the USB controller is the B device). VBUS Control Controls an external voltage source to supply VBUS when in host mode. May be configured as open drain. Polarity is configurable as well. Bus Voltage Connects to bus voltage in host and device modes. Rev. A | Page 22 of 112 | February 2014 ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 349-BALL CSP_BGA SIGNAL DESCRIPTIONS The processors' pin definitions are shown in the table. The columns in this table provide the following information: • Signal Name: The Signal Name column in the table includes the Signal Name for every pin. • Description: The Description column in the table provides a verbose (descriptive) name for the signal. • Port: The General-Purpose I/O Port column in the table shows whether or not the signal is multiplexed with other signals on a general-purpose I/O port pin. • Pin Name: The Pin Name column in the table identifies the name of the package pin (at power-on reset) on which the signal is located (if a single function pin) or is multiplexed (if a general-purpose I/O pin). Table 7. ADSP-BF60x 349-Ball CSP_BGA Signal Descriptions Signal Name ACM0_A0 ACM0_A1 ACM0_A2 ACM0_A3 ACM0_A4 ACM0_CLK ACM0_FS ACM0_T0 ACM0_T1 CAN0_RX CAN0_TX CNT0_DG CNT0_UD CNT0_ZM DMC0_A00 DMC0_A01 DMC0_A02 DMC0_A03 DMC0_A04 DMC0_A05 DMC0_A06 DMC0_A07 DMC0_A08 DMC0_A09 DMC0_A10 DMC0_A11 DMC0_A12 DMC0_A13 DMC0_BA0 DMC0_BA1 DMC0_BA2 DMC0_CAS DMC0_CK DMC0_CKE DMC0_CK DMC0_CS0 Description ACM0 Address 0 ACM0 Address 1 ACM0 Address 2 ACM0 Address 3 ACM0 Address 4 ACM0 Clock ACM0 Frame Sync ACM0 External Trigger 0 ACM0 External Trigger 1 CAN0 Receive CAN0 Transmit CNT0 Count Down and Gate CNT0 Count Up and Direction CNT0 Count Zero Marker DMC Address 0 DMC Address 1 DMC Address 2 DMC Address 3 DMC Address 4 DMC Address 5 DMC Address 6 DMC Address 7 DMC Address 8 DMC Address 9 DMC Address 10 DMC Address 11 DMC Address 12 DMC Address 13 DMC Bank Address Input 0 DMC Bank Address Input 1 DMC Bank Address Input 2 DMC Column Address Strobe DMC Clock DMC Clock Enable DMC Clock (complement) DMC Chip Select 0 Rev. A | Page 23 of 112 | February 2014 Port F F F F F E E E G G G G G G Not Muxed Not Muxed Not Muxed Not Muxed Not Muxed Not Muxed Not Muxed Not Muxed Not Muxed Not Muxed Not Muxed Not Muxed Not Muxed Not Muxed Not Muxed Not Muxed Not Muxed Not Muxed Not Muxed Not Muxed Not Muxed Not Muxed Pin Name PF_14 PF_15 PF_12 PF_13 PF_10 PE_04 PE_03 PE_08 PG_05 PG_04 PG_01 PG_12 PG_11 PG_07 DMC0_A00 DMC0_A01 DMC0_A02 DMC0_A03 DMC0_A04 DMC0_A05 DMC0_A06 DMC0_A07 DMC0_A08 DMC0_A09 DMC0_A10 DMC0_A11 DMC0_A12 DMC0_A13 DMC0_BA0 DMC0_BA1 DMC0_BA2 DMC0_CAS DMC0_CK DMC0_CKE DMC0_CK DMC0_CS0 ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 Table 7. ADSP-BF60x 349-Ball CSP_BGA Signal Descriptions (Continued) Signal Name DMC0_DQ00 DMC0_DQ01 DMC0_DQ02 DMC0_DQ03 DMC0_DQ04 DMC0_DQ05 DMC0_DQ06 DMC0_DQ07 DMC0_DQ08 DMC0_DQ09 DMC0_DQ10 DMC0_DQ11 DMC0_DQ12 DMC0_DQ13 DMC0_DQ14 DMC0_DQ15 DMC0_LDM DMC0_LDQS DMC0_LDQS DMC0_ODT DMC0_RAS DMC0_UDM DMC0_UDQS DMC0_UDQS DMC0_WE ETH0_CRS ETH0_MDC ETH0_MDIO ETH0_PTPPPS ETH0_REFCLK ETH0_RXD0 ETH0_RXD1 ETH0_TXD0 ETH0_TXD1 ETH0_TXEN ETH1_CRS ETH1_MDC ETH1_MDIO ETH1_PTPPPS ETH1_REFCLK ETH1_RXD0 ETH1_RXD1 ETH1_TXD0 ETH1_TXD1 ETH1_TXEN ETH_PTPAUXIN Description DMC Data 0 DMC Data 1 DMC Data 2 DMC Data 3 DMC Data 4 DMC Data 5 DMC Data 6 DMC Data 7 DMC Data 8 DMC Data 9 DMC Data 10 DMC Data 11 DMC Data 12 DMC Data 13 DMC Data 14 DMC Data 15 DMC Data Mask for Lower Byte DMC Data Strobe for Lower Byte DMC Data Strobe for Lower Byte (complement) DMC On-die Termination DMC Row Address Strobe DMC Data Mask for Upper Byte DMC Data Strobe for Upper Byte DMC Data Strobe for Upper Byte (complement) DMC Write Enable EMAC0 Carrier Sense/RMII Receive Data Valid EMAC0 Management Channel Clock EMAC0 Management Channel Serial Data EMAC0 PTP Pulse-Per-Second Output EMAC0 Reference Clock EMAC0 Receive Data 0 EMAC0 Receive Data 1 EMAC0 Transmit Data 0 EMAC0 Transmit Data 1 EMAC0 Transmit Enable EMAC1 Carrier Sense/RMII Receive Data Valid EMAC1 Management Channel Clock EMAC1 Management Channel Serial Data EMAC1 PTP Pulse-Per-Second Output EMAC1 Reference Clock EMAC1 Receive Data 0 EMAC1 Receive Data 1 EMAC1 Transmit Data 0 EMAC1 Transmit Data 1 EMAC1 Transmit Enable EMAC0/EMAC1 PTP Auxiliary Trigger Input Rev. A | Page 24 of 112 | February 2014 Port Not Muxed Not Muxed Not Muxed Not Muxed Not Muxed Not Muxed Not Muxed Not Muxed Not Muxed Not Muxed Not Muxed Not Muxed Not Muxed Not Muxed Not Muxed Not Muxed Not Muxed Not Muxed Not Muxed Not Muxed Not Muxed Not Muxed Not Muxed Not Muxed Not Muxed C C C B B C C C C B E E E C G G E G G G C Pin Name DMC0_DQ00 DMC0_DQ01 DMC0_DQ02 DMC0_DQ03 DMC0_DQ04 DMC0_DQ05 DMC0_DQ06 DMC0_DQ07 DMC0_DQ08 DMC0_DQ09 DMC0_DQ10 DMC0_DQ11 DMC0_DQ12 DMC0_DQ13 DMC0_DQ14 DMC0_DQ15 DMC0_LDM DMC0_LDQS DMC0_LDQS DMC0_ODT DMC0_RAS DMC0_UDM DMC0_UDQS DMC0_UDQS DMC0_WE PC_05 PC_06 PC_07 PB_15 PB_14 PC_00 PC_01 PC_02 PC_03 PB_13 PE_13 PE_10 PE_11 PC_09 PG_06 PG_00 PE_15 PG_03 PG_02 PG_05 PC_11 ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 Table 7. ADSP-BF60x 349-Ball CSP_BGA Signal Descriptions (Continued) Signal Name ETH_PTPCLKIN GND JTG_EMU JTG_TCK JTG_TDI JTG_TDO JTG_TMS JTG_TRST LP0_ACK LP0_CLK LP0_D0 LP0_D1 LP0_D2 LP0_D3 LP0_D4 LP0_D5 LP0_D6 LP0_D7 LP1_ACK LP1_CLK LP1_D0 LP1_D1 LP1_D2 LP1_D3 LP1_D4 LP1_D5 LP1_D6 LP1_D7 LP2_ACK LP2_CLK LP2_D0 LP2_D1 LP2_D2 LP2_D3 LP2_D4 LP2_D5 LP2_D6 LP2_D7 LP3_ACK LP3_CLK LP3_D0 LP3_D1 LP3_D2 LP3_D3 LP3_D4 LP3_D5 Description EMAC0/EMAC1 PTP Clock Input Ground Emulation Output JTAG Clock JTAG Serial Data Input JTAG Serial Data Output JTAG Mode Select JTAG Reset LP0 Acknowledge LP0 Clock LP0 Data 0 LP0 Data 1 LP0 Data 2 LP0 Data 3 LP0 Data 4 LP0 Data 5 LP0 Data 6 LP0 Data 7 LP1 Acknowledge LP1 Clock LP1 Data 0 LP1 Data 1 LP1 Data 2 LP1 Data 3 LP1 Data 4 LP1 Data 5 LP1 Data 6 LP1 Data 7 LP2 Acknowledge LP2 Clock LP2 Data 0 LP2 Data 1 LP2 Data 2 LP2 Data 3 LP2 Data 4 LP2 Data 5 LP2 Data 6 LP2 Data 7 LP3 Acknowledge LP3 Clock LP3 Data 0 LP3 Data 1 LP3 Data 2 LP3 Data 3 LP3 Data 4 LP3 Data 5 Rev. A | Page 25 of 112 | February 2014 Port C Not Muxed Not Muxed Not Muxed Not Muxed Not Muxed Not Muxed Not Muxed B B A A A A A A A A B B A A A A A A A A E E F F F F F F F F E E F F F F F F Pin Name PC_13 GND JTG_EMU JTG_TCK JTG_TDI JTG_TDO JTG_TMS JTG_TRST PB_01 PB_00 PA_00 PA_01 PA_02 PA_03 PA_04 PA_05 PA_06 PA_07 PB_02 PB_03 PA_08 PA_09 PA_10 PA_11 PA_12 PA_13 PA_14 PA_15 PE_08 PE_09 PF_00 PF_01 PF_02 PF_03 PF_04 PF_05 PF_06 PF_07 PE_07 PE_06 PF_08 PF_09 PF_10 PF_11 PF_12 PF_13 ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 Table 7. ADSP-BF60x 349-Ball CSP_BGA Signal Descriptions (Continued) Signal Name LP3_D6 LP3_D7 PA_00 – PA_15 PB_00 – PB_15 PC_00 – PC_15 PD_00 – PD_15 PE_00 – PE_15 PF_00 – PF_15 PG_00 – PG_15 PPI0_CLK PPI0_D00 PPI0_D01 PPI0_D02 PPI0_D03 PPI0_D04 PPI0_D05 PPI0_D06 PPI0_D07 PPI0_D08 PPI0_D09 PPI0_D10 PPI0_D11 PPI0_D12 PPI0_D13 PPI0_D14 PPI0_D15 PPI0_D16 PPI0_D17 PPI0_D18 PPI0_D19 PPI0_D20 PPI0_D21 PPI0_D22 PPI0_D23 PPI0_FS1 PPI0_FS2 PPI0_FS3 PPI1_CLK PPI1_D00 PPI1_D01 PPI1_D02 PPI1_D03 PPI1_D04 PPI1_D05 PPI1_D06 PPI1_D07 Description LP3 Data 6 LP3 Data 7 PORTA Position 00 through PORTA Position 15 PORTB Position 00 through PORTB Position 15 PORTC Position 00 through PORTC Position 15 PORTD Position 00 through PORTD Position 15 PORTE Position 00 through PORTE Position 15 PORTF Position 00 through PORTF Position 15 PORTG Position 00 through PORTG Position 15 EPPI0 Clock EPPI0 Data 0 EPPI0 Data 1 EPPI0 Data 2 EPPI0 Data 3 EPPI0 Data 4 EPPI0 Data 5 EPPI0 Data 6 EPPI0 Data 7 EPPI0 Data 8 EPPI0 Data 9 EPPI0 Data 10 EPPI0 Data 11 EPPI0 Data 12 EPPI0 Data 13 EPPI0 Data 14 EPPI0 Data 15 EPPI0 Data 16 EPPI0 Data 17 EPPI0 Data 18 EPPI0 Data 19 EPPI0 Data 20 EPPI0 Data 21 EPPI0 Data 22 EPPI0 Data 23 EPPI0 Frame Sync 1 (HSYNC) EPPI0 Frame Sync 2 (VSYNC) EPPI0 Frame Sync 3 (FIELD) EPPI1 Clock EPPI1 Data 0 EPPI1 Data 1 EPPI1 Data 2 EPPI1 Data 3 EPPI1 Data 4 EPPI1 Data 5 EPPI1 Data 6 EPPI1 Data 7 Rev. A | Page 26 of 112 | February 2014 Port F F A B C D E F G E F F F F F F F F F F F F F F F F E E E E D D E E E E E B C C C C C C C C Pin Name PF_14 PF_15 PA_00 – PA_15 PB_00 – PB_15 PC_00 – PC_15 PD_00 – PD_15 PE_00 – PE_15 PF_00 – PF_15 PG_00 – PG_15 PE_09 PF_00 PF_01 PF_02 PF_03 PF_04 PF_05 PF_06 PF_07 PF_08 PF_09 PF_10 PF_11 PF_12 PF_13 PF_14 PF_15 PE_03 PE_04 PE_00 PE_01 PD_12 PD_15 PE_02 PE_05 PE_08 PE_07 PE_06 PB_14 PC_00 PC_01 PC_02 PC_03 PC_04 PC_05 PC_06 PC_07 ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 Table 7. ADSP-BF60x 349-Ball CSP_BGA Signal Descriptions (Continued) Signal Name PPI1_D08 PPI1_D09 PPI1_D10 PPI1_D11 PPI1_D12 PPI1_D13 PPI1_D14 PPI1_D15 PPI1_D16 PPI1_D17 PPI1_FS1 PPI1_FS2 PPI1_FS3 PPI2_CLK PPI2_D00 PPI2_D01 PPI2_D02 PPI2_D03 PPI2_D04 PPI2_D05 PPI2_D06 PPI2_D07 PPI2_D08 PPI2_D09 PPI2_D10 PPI2_D11 PPI2_D12 PPI2_D13 PPI2_D14 PPI2_D15 PPI2_D16 PPI2_D17 PPI2_FS1 PPI2_FS2 PPI2_FS3 PWM0_AH PWM0_AL PWM0_BH PWM0_BL PWM0_CH PWM0_CL PWM0_DH PWM0_DL PWM0_SYNC PWM0_TRIP0 PWM0_TRIP1 Description EPPI1 Data 8 EPPI1 Data 9 EPPI1 Data 10 EPPI1 Data 11 EPPI1 Data 12 EPPI1 Data 13 EPPI1 Data 14 EPPI1 Data 15 EPPI1 Data 16 EPPI1 Data 17 EPPI1 Frame Sync 1 (HSYNC) EPPI1 Frame Sync 2 (VSYNC) EPPI1 Frame Sync 3 (FIELD) EPPI2 Clock EPPI2 Data 0 EPPI2 Data 1 EPPI2 Data 2 EPPI2 Data 3 EPPI2 Data 4 EPPI2 Data 5 EPPI2 Data 6 EPPI2 Data 7 EPPI2 Data 8 EPPI2 Data 9 EPPI2 Data 10 EPPI2 Data 11 EPPI2 Data 12 EPPI2 Data 13 EPPI2 Data 14 EPPI2 Data 15 EPPI2 Data 16 EPPI2 Data 17 EPPI2 Frame Sync 1 (HSYNC) EPPI2 Frame Sync 2 (VSYNC) EPPI2 Frame Sync 3 (FIELD) PWM0 Channel A High Side PWM0 Channel A Low Side PWM0 Channel B High Side PWM0 Channel B Low Side PWM0 Channel C High Side PWM0 Channel C Low Side PWM0 Channel D High Side PWM0 Channel D Low Side PWM0 Sync PWM0 Shutdown Input 0 PWM0 Shutdown Input 1 Rev. A | Page 27 of 112 | February 2014 Port C C C C C C C C D D B D B B A A A A A A A A A A A A A A A A B B B B B F F F F F F F F E E F Pin Name PC_08 PC_09 PC_10 PC_11 PC_12 PC_13 PC_14 PC_15 PD_00 PD_01 PB_13 PD_06 PB_15 PB_00 PA_00 PA_01 PA_02 PA_03 PA_04 PA_05 PA_06 PA_07 PA_08 PA_09 PA_10 PA_11 PA_12 PA_13 PA_14 PA_15 PB_07 PB_08 PB_01 PB_02 PB_03 PF_01 PF_00 PF_03 PF_02 PF_05 PF_04 PF_07 PF_06 PE_08 PE_09 PF_11 ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 Table 7. ADSP-BF60x 349-Ball CSP_BGA Signal Descriptions (Continued) Signal Name PWM1_AH PWM1_AL PWM1_BH PWM1_BL PWM1_CH PWM1_CL PWM1_DH PWM1_DL PWM1_SYNC PWM1_TRIP0 PWM1_TRIP1 RSI0_CLK RSI0_CMD RSI0_D0 RSI0_D1 RSI0_D2 RSI0_D3 RSI0_D4 RSI0_D5 RSI0_D6 RSI0_D7 SMC0_A01 SMC0_A02 SMC0_A03 SMC0_A04 SMC0_A05 SMC0_A06 SMC0_A07 SMC0_A08 SMC0_A09 SMC0_A10 SMC0_A11 SMC0_A12 SMC0_A13 SMC0_A14 SMC0_A15 SMC0_A16 SMC0_A17 SMC0_A18 SMC0_A19 SMC0_A20 SMC0_A21 SMC0_A22 SMC0_A23 SMC0_A24 SMC0_A25 Description PWM1 Channel A High Side PWM1 Channel A Low Side PWM1 Channel B High Side PWM1 Channel B Low Side PWM1 Channel C High Side PWM1 Channel C Low Side PWM1 Channel D High Side PWM1 Channel D Low Side PWM1 Sync PWM1 Shutdown Input 0 PWM1 Shutdown Input 1 RSI0 Clock RSI0 Command RSI0 Data 0 RSI0 Data 1 RSI0 Data 2 RSI0 Data 3 RSI0 Data 4 RSI0 Data 5 RSI0 Data 6 RSI0 Data 7 SMC0 Address 1 SMC0 Address 2 SMC0 Address 3 SMC0 Address 4 SMC0 Address 5 SMC0 Address 6 SMC0 Address 7 SMC0 Address 8 SMC0 Address 9 SMC0 Address 10 SMC0 Address 11 SMC0 Address 12 SMC0 Address 13 SMC0 Address 14 SMC0 Address 15 SMC0 Address 16 SMC0 Address 17 SMC0 Address 18 SMC0 Address 19 SMC0 Address 20 SMC0 Address 21 SMC0 Address 22 SMC0 Address 23 SMC0 Address 24 SMC0 Address 25 Rev. A | Page 28 of 112 | February 2014 Port G G G E E E E E G G G G G G G G E E E E E Not Muxed Not Muxed A A A A A A A A A A B A A B A A A A B B B B B Pin Name PG_03 PG_02 PG_00 PE_15 PE_13 PE_12 PE_11 PE_10 PG_05 PG_06 PG_08 PG_06 PG_05 PG_03 PG_02 PG_00 PE_15 PE_13 PE_12 PE_10 PE_11 SMC0_A01 SMC0_A02 PA_00 PA_01 PA_02 PA_03 PA_04 PA_05 PA_06 PA_07 PA_08 PA_09 PB_02 PA_10 PA_11 PB_03 PA_12 PA_13 PA_14 PA_15 PB_06 PB_07 PB_08 PB_10 PB_11 ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 Table 7. ADSP-BF60x 349-Ball CSP_BGA Signal Descriptions (Continued) Signal Name SMC0_ABE0 SMC0_ABE1 SMC0_AMS0 SMC0_AMS1 SMC0_AMS2 SMC0_AMS3 SMC0_AOE SMC0_ARDY SMC0_ARE SMC0_AWE SMC0_BGH SMC0_BG SMC0_BR SMC0_D00 SMC0_D01 SMC0_D02 SMC0_D03 SMC0_D04 SMC0_D05 SMC0_D06 SMC0_D07 SMC0_D08 SMC0_D09 SMC0_D10 SMC0_D11 SMC0_D12 SMC0_D13 SMC0_D14 SMC0_D15 SMC0_NORCLK SMC0_NORDV SMC0_NORWT SPI0_CLK SPI0_D2 SPI0_D3 SPI0_MISO SPI0_MOSI SPI0_RDY SPI0_SEL1 SPI0_SEL2 SPI0_SEL3 SPI0_SEL4 SPI0_SEL5 SPI0_SEL6 SPI0_SEL7 SPI0_SS Description SMC0 Byte Enable 0 SMC0 Byte Enable 1 SMC0 Memory Select 0 SMC0 Memory Select 1 SMC0 Memory Select 2 SMC0 Memory Select 3 SMC0 Output Enable SMC0 Asynchronous Ready SMC0 Read Enable SMC0 Write Enable SMC0 Bus Grant Hang SMC0 Bus Grant SMC0 Bus Request SMC0 Data 0 SMC0 Data 1 SMC0 Data 2 SMC0 Data 3 SMC0 Data 4 SMC0 Data 5 SMC0 Data 6 SMC0 Data 7 SMC0 Data 8 SMC0 Data 9 SMC0 Data 10 SMC0 Data 11 SMC0 Data 12 SMC0 Data 13 SMC0 Data 14 SMC0 Data 15 SMC0 NOR Clock SMC0 NOR Data Valid SMC0 NOR Wait SPI0 Clock SPI0 Data 2 SPI0 Data 3 SPI0 Master In, Slave Out SPI0 Master Out, Slave In SPI0 Ready SPI0 Slave Select Output 1 SPI0 Slave Select Output 2 SPI0 Slave Select Output 3 SPI0 Slave Select Output 4 SPI0 Slave Select Output 5 SPI0 Slave Select Output 6 SPI0 Slave Select Output 7 SPI0 Slave Select Input Rev. A | Page 29 of 112 | February 2014 Port B B Not Muxed B B B Not Muxed Not Muxed Not Muxed Not Muxed B B Not Muxed Not Muxed Not Muxed Not Muxed Not Muxed Not Muxed Not Muxed Not Muxed Not Muxed Not Muxed Not Muxed Not Muxed Not Muxed Not Muxed Not Muxed Not Muxed Not Muxed B Not Muxed Not Muxed D D D D D D D D D C D C C D Pin Name PB_04 PB_05 SMC0_AMS0 PB_01 PB_04 PB_05 SMC0_AOE_NORDV SMC0_ARDY_NORWT SMC0_ARE SMC0_AWE PB_09 PB_12 SMC0_BR SMC0_D00 SMC0_D01 SMC0_D02 SMC0_D03 SMC0_D04 SMC0_D05 SMC0_D06 SMC0_D07 SMC0_D08 SMC0_D09 SMC0_D10 SMC0_D11 SMC0_D12 SMC0_D13 SMC0_D14 SMC0_D15 PB_00 SMC0_AOE_NORDV SMC0_ARDY_NORWT PD_04 PD_00 PD_01 PD_02 PD_03 PD_10 PD_11 PD_01 PD_00 PC_15 PD_09 PC_13 PC_12 PD_11 ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 Table 7. ADSP-BF60x 349-Ball CSP_BGA Signal Descriptions (Continued) Signal Name SPI1_CLK SPI1_D2 SPI1_D3 SPI1_MISO SPI1_MOSI SPI1_RDY SPI1_SEL1 SPI1_SEL2 SPI1_SEL3 SPI1_SEL4 SPI1_SEL5 SPI1_SEL6 SPI1_SEL7 SPI1_SS SPT0_ACLK SPT0_AD0 SPT0_AD1 SPT0_AFS SPT0_ATDV SPT0_BCLK SPT0_BD0 SPT0_BD1 SPT0_BFS SPT0_BTDV SPT1_ACLK SPT1_AD0 SPT1_AD1 SPT1_AFS SPT1_ATDV SPT1_BCLK SPT1_BD0 SPT1_BD1 SPT1_BFS SPT1_BTDV SPT2_ACLK SPT2_AD0 SPT2_AD1 SPT2_AFS SPT2_ATDV SPT2_BCLK SPT2_BD0 SPT2_BD1 SPT2_BFS SPT2_BTDV SYS_BMODE0 SYS_BMODE1 Description SPI1 Clock SPI1 Data 2 SPI1 Data 3 SPI1 Master In, Slave Out SPI1 Master Out, Slave In SPI1 Ready SPI1 Slave Select Output 1 SPI1 Slave Select Output 2 SPI1 Slave Select Output 3 SPI1 Slave Select Output 4 SPI1 Slave Select Output 5 SPI1 Slave Select Output 6 SPI1 Slave Select Output 7 SPI1 Slave Select Input SPORT0 Channel A Clock SPORT0 Channel A Data 0 SPORT0 Channel A Data 1 SPORT0 Channel A Frame Sync SPORT0 Channel A Transmit Data Valid SPORT0 Channel B Clock SPORT0 Channel B Data 0 SPORT0 Channel B Data 1 SPORT0 Channel B Frame Sync SPORT0 Channel B Transmit Data Valid SPORT1 Channel A Clock SPORT1 Channel A Data 0 SPORT1 Channel A Data 1 SPORT1 Channel A Frame Sync SPORT1 Channel A Transmit Data Valid SPORT1 Channel B Clock SPORT1 Channel B Data 0 SPORT1 Channel B Data 1 SPORT1 Channel B Frame Sync SPORT1 Channel B Transmit Data Valid SPORT2 Channel A Clock SPORT2 Channel A Data 0 SPORT2 Channel A Data 1 SPORT2 Channel A Frame Sync SPORT2 Channel A Transmit Data Valid SPORT2 Channel B Clock SPORT2 Channel B Data 0 SPORT2 Channel B Data 1 SPORT2 Channel B Frame Sync SPORT2 Channel B Transmit Data Valid Boot Mode Control 0 Boot Mode Control 1 Rev. A | Page 30 of 112 | February 2014 Port D E E D D E D D D D F F C D B B B B B B B B B B E D D E E E E E E E G G G G E G G G G G Not Muxed Not Muxed Pin Name PD_05 PE_01 PE_00 PD_14 PD_13 PE_02 PD_12 PD_15 PD_10 PD_09 PF_08 PF_09 PC_14 PD_12 PB_05 PB_09 PB_12 PB_04 PB_06 PB_08 PB_11 PB_10 PB_07 PB_12 PE_02 PD_15 PD_12 PE_05 PE_06 PE_04 PE_01 PE_00 PE_03 PE_07 PG_04 PG_09 PG_08 PG_01 PE_14 PG_10 PG_12 PG_11 PG_07 PG_06 SYS_BMODE0 SYS_BMODE1 ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 Table 7. ADSP-BF60x 349-Ball CSP_BGA Signal Descriptions (Continued) Signal Name SYS_BMODE2 SYS_CLKIN SYS_CLKOUT SYS_EXTWAKE SYS_FAULT SYS_FAULT SYS_HWRST SYS_IDLE0 SYS_IDLE1 SYS_NMI SYS_PWRGD SYS_RESOUT SYS_SLEEP SYS_TDA SYS_TDK SYS_XTAL TM0_ACI0 TM0_ACI1 TM0_ACI2 TM0_ACI3 TM0_ACI4 TM0_ACI5 TM0_ACI6 TM0_ACLK0 TM0_ACLK1 TM0_ACLK2 TM0_ACLK3 TM0_ACLK4 TM0_ACLK5 TM0_ACLK6 TM0_ACLK7 TM0_CLK TM0_TMR0 TM0_TMR1 TM0_TMR2 TM0_TMR3 TM0_TMR4 TM0_TMR5 TM0_TMR6 TM0_TMR7 TWI0_SCL TWI0_SDA TWI1_SCL TWI1_SDA UART0_CTS UART0_RTS Description Boot Mode Control 2 Clock/Crystal Input Processor Clock Output External Wake Control Fault Output Complementary Fault Output Processor Hardware Reset Control Core 0 Idle Indicator Core 1 Idle Indicator Non-maskable Interrupt Power Good Indicator Reset Output Processor Sleep Indicator Thermal Diode Anode Thermal Diode Cathode Crystal Output TIMER0 Alternate Capture Input 0 TIMER0 Alternate Capture Input 1 TIMER0 Alternate Capture Input 2 TIMER0 Alternate Capture Input 3 TIMER0 Alternate Capture Input 4 TIMER0 Alternate Capture Input 5 TIMER0 Alternate Capture Input 6 TIMER0 Alternate Clock 0 TIMER0 Alternate Clock 1 TIMER0 Alternate Clock 2 TIMER0 Alternate Clock 3 TIMER0 Alternate Clock 4 TIMER0 Alternate Clock 5 TIMER0 Alternate Clock 6 TIMER0 Alternate Clock 7 TIMER0 Clock TIMER0 Timer 0 TIMER0 Timer 1 TIMER0 Timer 2 TIMER0 Timer 3 TIMER0 Timer 4 TIMER0 Timer 5 TIMER0 Timer 6 TIMER0 Timer 7 TWI0 Serial Clock TWI0 Serial Data TWI1 Serial Clock TWI1 Serial Data UART0 Clear to Send UART0 Request to Send Rev. A | Page 31 of 112 | February 2014 Port Not Muxed Not Muxed Not Muxed Not Muxed Not Muxed Not Muxed Not Muxed G G Not Muxed Not Muxed Not Muxed G Not Muxed Not Muxed Not Muxed D G G D G D B B B B B B D D D G E G G G G G G G Not Muxed Not Muxed Not Muxed Not Muxed D D Pin Name SYS_BMODE2 SYS_CLKIN SYS_CLKOUT SYS_EXTWAKE SYS_FAULT SYS_FAULT SYS_HWRST PG_15 PG_14 SYS_NMI_RESOUT SYS_PWRGD SYS_NMI_RESOUT PG_15 SYS_TDA SYS_TDK SYS_XTAL PD_08 PG_14 PG_04 PD_07 PG_15 PD_06 PB_13 PB_10 PB_12 PB_09 PB_11 PB_06 PD_13 PD_14 PD_05 PG_13 PE_14 PG_04 PG_01 PG_08 PG_09 PG_07 PG_11 PG_12 TWI0_SCL TWI0_SDA TWI1_SCL TWI1_SDA PD_10 PD_09 ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 Table 7. ADSP-BF60x 349-Ball CSP_BGA Signal Descriptions (Continued) Signal Name UART0_RX UART0_TX UART1_CTS UART1_RTS UART1_RX UART1_TX USB0_CLKIN USB0_DM USB0_DP USB0_ID USB0_VBC USB0_VBUS VDD_DMC VDD_EXT VDD_INT VDD_TD VDD_USB VREF_DMC Description UART0 Receive UART0 Transmit UART1 Clear to Send UART1 Request to Send UART1 Receive UART1 Transmit USB0 Clock/Crystal Input USB0 Data – USB0 Data + USB0 OTG ID USB0 VBUS Control USB0 Bus Voltage VDD for DMC External VDD Internal VDD VDD for Thermal Diode VDD for USB VREF for DMC Rev. A | Page 32 of 112 | February 2014 Port D D G G G G Not Muxed Not Muxed Not Muxed Not Muxed Not Muxed Not Muxed Not Muxed Not Muxed Not Muxed Not Muxed Not Muxed Not Muxed Pin Name PD_08 PD_07 PG_13 PG_10 PG_14 PG_15 USB0_CLKIN USB0_DM USB0_DP USB0_ID USB0_VBC USB0_VBUS VDD_DMC VDD_EXT VDD_INT VDD_TD VDD_USB VREF_DMC ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 GP I/O MULTIPLEXING FOR 349-BALL CSP_BGA Table 8 through Table 14 identifies the pin functions that are multiplexed on the general-purpose I/O pins of the 349-ball CSP_BGA package. Table 8. Signal Multiplexing for Port A Signal Name PA_00 PA_01 PA_02 PA_03 PA_04 PA_05 PA_06 PA_07 PA_08 PA_09 PA_10 PA_11 PA_12 PA_13 PA_14 PA_15 Multiplexed Function 0 SMC0_A03 SMC0_A04 SMC0_A05 SMC0_A06 SMC0_A07 SMC0_A08 SMC0_A09 SMC0_A10 SMC0_A11 SMC0_A12 SMC0_A14 SMC0_A15 SMC0_A17 SMC0_A18 SMC0_A19 SMC0_A20 Multiplexed Function 1 PPI2_D00 PPI2_D01 PPI2_D02 PPI2_D03 PPI2_D04 PPI2_D05 PPI2_D06 PPI2_D07 PPI2_D08 PPI2_D09 PPI2_D10 PPI2_D11 PPI2_D12 PPI2_D13 PPI2_D14 PPI2_D15 Multiplexed Function 2 LP0_D0 LP0_D1 LP0_D2 LP0_D3 LP0_D4 LP0_D5 LP0_D6 LP0_D7 LP1_D0 LP1_D1 LP1_D2 LP1_D3 LP1_D4 LP1_D5 LP1_D6 LP1_D7 Multiplexed Function 1 PPI2_CLK PPI2_FS1 PPI2_FS2 PPI2_FS3 SMC0_ABE0 SMC0_ABE1 SPT0_ATDV PPI2_D16 PPI2_D17 Multiplexed Function 2 LP0_CLK LP0_ACK LP1_ACK LP1_CLK SPT0_AFS SPT0_ACLK Multiplexed Function Input Tap Table 9. Signal Multiplexing for Port B Signal Name PB_00 PB_01 PB_02 PB_03 PB_04 PB_05 PB_06 PB_07 PB_08 PB_09 PB_10 PB_11 PB_12 PB_13 PB_14 PB_15 Multiplexed Function 0 SMC0_NORCLK SMC0_AMS1 SMC0_A13 SMC0_A16 SMC0_AMS2 SMC0_AMS3 SMC0_A21 SMC0_A22 SMC0_A23 SMC0_BGH SMC0_A24 SMC0_A25 SMC0_BG ETH0_TXEN ETH0_REFCLK ETH0_PTPPPS SPT0_BTDV PPI1_FS1 PPI1_CLK PPI1_FS3 Multiplexed Function Input Tap TM0_ACLK4 SPT0_BFS SPT0_BCLK SPT0_AD0 SPT0_BD1 SPT0_BD0 SPT0_AD1 Rev. A | Page 33 of 112 | February 2014 TM0_ACLK2 TM0_ACLK0 TM0_ACLK3 TM0_ACLK1 TM0_ACI6 ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 Table 10. Signal Multiplexing for Port C Signal Name PC_00 PC_01 PC_02 PC_03 PC_04 PC_05 PC_06 PC_07 PC_08 PC_09 PC_10 PC_11 PC_12 PC_13 PC_14 PC_15 Multiplexed Function 0 ETH0_RXD0 ETH0_RXD1 ETH0_TXD0 ETH0_TXD1 ETH0_CRS ETH0_MDC ETH0_MDIO ETH1_PTPPPS SPI0_SEL7 SPI0_SEL6 SPI1_SEL7 SPI0_SEL4 Multiplexed Function 1 PPI1_D00 PPI1_D01 PPI1_D02 PPI1_D03 PPI1_D04 PPI1_D05 PPI1_D06 PPI1_D07 PPI1_D08 PPI1_D09 PPI1_D10 PPI1_D11 PPI1_D12 PPI1_D13 PPI1_D14 PPI1_D15 Multiplexed Function 2 Multiplexed Function Input Tap ETH_PTPAUXIN ETH_PTPCLKIN Table 11. Signal Multiplexing for Port D Signal Name PD_00 PD_01 PD_02 PD_03 PD_04 PD_05 PD_06 PD_07 PD_08 PD_09 PD_10 PD_11 PD_12 PD_13 PD_14 PD_15 Multiplexed Function 0 SPI0_D2 SPI0_D3 SPI0_MISO SPI0_MOSI SPI0_CLK SPI1_CLK SPI0_SEL5 SPI0_RDY SPI0_SEL1 SPI1_SEL1 SPI1_MOSI SPI1_MISO SPI1_SEL2 Multiplexed Function 1 PPI1_D16 PPI1_D17 Multiplexed Function 2 SPI0_SEL3 SPI0_SEL2 Multiplexed Function Input Tap TM0_ACLK7 TM0_ACI5 TM0_ACI3 TM0_ACI0 PPI1_FS2 UART0_TX UART0_RX UART0_RTS UART0_CTS SPI1_SEL4 SPI1_SEL3 PPI0_D20 SPT1_AD1 PPI0_D21 SPT1_AD0 Rev. A | Page 34 of 112 | February 2014 SPI0_SS SPI1_SS TM0_ACLK5 TM0_ACLK6 ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 Table 12. Signal Multiplexing for Port E Signal Name PE_00 PE_01 PE_02 PE_03 PE_04 PE_05 PE_06 PE_07 PE_08 PE_09 PE_10 PE_11 PE_12 PE_13 PE_14 PE_15 Multiplexed Function 0 SPI1_D3 SPI1_D2 SPI1_RDY SPT1_ATDV SPT1_BTDV PWM0_SYNC ETH1_MDC ETH1_MDIO ETH1_CRS ETH1_RXD1 Multiplexed Function 1 PPI0_D18 PPI0_D19 PPI0_D22 PPI0_D16 PPI0_D17 PPI0_D23 PPI0_FS3 PPI0_FS2 PPI0_FS1 PPI0_CLK PWM1_DL PWM1_DH PWM1_CL PWM1_CH SPT2_ATDV PWM1_BL Multiplexed Function 2 SPT1_BD1 SPT1_BD0 SPT1_ACLK ACM0_FS/SPT1_BFS ACM0_CLK/SPT1_BCLK SPT1_AFS LP3_CLK LP3_ACK LP2_ACK LP2_CLK RSI0_D6 RSI0_D7 RSI0_D5 RSI0_D4 TM0_TMR0 RSI0_D3 Multiplexed Function Input Tap ACM0_T0 PWM0_TRIP0 Table 13. Signal Multiplexing for Port F Signal Name PF_00 PF_01 PF_02 PF_03 PF_04 PF_05 PF_06 PF_07 PF_08 PF_09 PF_10 PF_11 PF_12 PF_13 PF_14 PF_15 Multiplexed Function 0 PWM0_AL PWM0_AH PWM0_BL PWM0_BH PWM0_CL PWM0_CH PWM0_DL PWM0_DH SPI1_SEL5 SPI1_SEL6 ACM0_A4 ACM0_A2 ACM0_A3 ACM0_A0 ACM0_A1 Multiplexed Function 1 PPI0_D00 PPI0_D01 PPI0_D02 PPI0_D03 PPI0_D04 PPI0_D05 PPI0_D06 PPI0_D07 PPI0_D08 PPI0_D09 PPI0_D10 PPI0_D11 PPI0_D12 PPI0_D13 PPI0_D14 PPI0_D15 Multiplexed Function 2 LP2_D0 LP2_D1 LP2_D2 LP2_D3 LP2_D4 LP2_D5 LP2_D6 LP2_D7 LP3_D0 LP3_D1 LP3_D2 LP3_D3 LP3_D4 LP3_D5 LP3_D6 LP3_D7 Rev. A | Page 35 of 112 | February 2014 Multiplexed Function Input Tap PWM0_TRIP1 ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 Table 14. Signal Multiplexing for Port G Signal Name PG_00 PG_01 PG_02 PG_03 PG_04 PG_05 PG_06 PG_07 PG_08 PG_09 PG_10 PG_11 PG_12 PG_13 PG_14 PG_15 Multiplexed Function 0 ETH1_RXD0 SPT2_AFS ETH1_TXD1 ETH1_TXD0 SPT2_ACLK ETH1_TXEN ETH1_REFCLK SPT2_BFS SPT2_AD1 SPT2_AD0 UART1_RTS SPT2_BD1 SPT2_BD0 UART1_CTS UART1_RX UART1_TX Multiplexed Function 1 PWM1_BH TM0_TMR2 PWM1_AL PWM1_AH TM0_TMR1 RSI0_CMD RSI0_CLK TM0_TMR5 TM0_TMR3 TM0_TMR4 SPT2_BCLK TM0_TMR6 TM0_TMR7 SYS_IDLE1 SYS_IDLE0 Multiplexed Function 2 RSI0_D2 CAN0_TX RSI0_D1 RSI0_D0 CAN0_RX PWM1_SYNC SPT2_BTDV SYS_SLEEP Rev. A | Page 36 of 112 | February 2014 Multiplexed Function Input Tap TM0_ACI2 ACM0_T1 PWM1_TRIP0 CNT0_ZM PWM1_TRIP1 CNT0_UD CNT0_DG TM0_CLK TM0_ACI1 TM0_ACI4 ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 ADSP-BF60x DESIGNER QUICK REFERENCE The table provides a quick reference summary of pin related information for circuit board design. The columns in this table provide the following information: • Reset Drive: The Reset Drive column in the table specifies the active drive on the signal when the processor is in the reset state. • Signal Name: The Signal Name column in the table includes the Signal Name for every pin. • Type: The Pin Type column in the table identifies the I/O type or supply type of the pin. The abbreviations used in this column are na (None), I/O (Digital input and/or output), a (Analog), s (Supply), and g (Ground). • Hiber Term: The Hibernate Termination column in the table specifies the termination present when the processor is in the hibernate state. The abbreviations used in this column are wk (Weak Keeper, weakly retains previous value driven on the pin), pu (Pull-up resistor), or pd (Pull-down resistor). • Driver Type: The Driver Type column in the table identifies the driver type used by the pin. The driver types are defined in Output Drive Currents on Page 102. • Hiber Drive: The Hibernate Drive column in the table specifies the active drive on the signal when the processor is in the hibernate state. • Int Term: The Internal Termination column in the table specifies the termination present when the processor is not in the reset or hibernate state. The abbreviations used in this column are wk (Weak Keeper, weakly retains previous value driven on the pin), pu (Pull-up resistor), or pd (Pulldown resistor). • Power Domain: The Power Domain column in the table specifies the power supply domain in which the signal resides. • Description and Notes: The Description and Notes column in the table identifies any special requirements or characteristics for the signal. If no special requirements are listed the signal may be left unconnected if it is not used. Also, for multiplexed general-purpose I/O pins, this column identifies the functions available on the pin. • Reset Term: The Reset Termination column in the table specifies the termination present when the processor is in the reset state. The abbreviations used in this column are wk (Weak Keeper, weakly retains previous value driven on the pin), pu (Pull-up resistor), or pd (Pull-down resistor). Table 15. ADSP-BF60x Designer Quick Reference Reset Term Reset Drive Hiber Term Hiber Drive Power Domain B Int Term none none none none none VDD_DMC I/O B none none none none none VDD_DMC DMC0_A02 I/O B none none none none none VDD_DMC DMC0_A03 I/O B none none none none none VDD_DMC DMC0_A04 I/O B none none none none none VDD_DMC DMC0_A05 I/O B none none none none none VDD_DMC DMC0_A06 I/O B none none none none none VDD_DMC DMC0_A07 I/O B none none none none none VDD_DMC DMC0_A08 I/O B none none none none none VDD_DMC DMC0_A09 I/O B none none none none none VDD_DMC DMC0_A10 I/O B none none none none none VDD_DMC Signal Name DMC0_A00 Type I/O DMC0_A01 Driver Type Rev. A | Page 37 of 112 | February 2014 Description and Notes Desc: DMC0 Address 0. Notes: No notes. Desc: DMC0 Address 1. Notes: No notes. Desc: DMC0 Address 2. Notes: No notes. Desc: DMC0 Address 3. Notes: No notes. Desc: DMC0 Address 4. Notes: No notes. Desc: DMC0 Address 5. Notes: No notes. Desc: DMC0 Address 6. Notes: No notes. Desc: DMC0 Address 7. Notes: No notes. Desc: DMC0 Address 8. Notes: No notes. Desc: DMC0 Address 9. Notes: No notes. Desc: DMC0 Address 10. Notes: No notes. ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 Table 15. ADSP-BF60x Designer Quick Reference (Continued) Reset Term Reset Drive Hiber Term Hiber Drive Power Domain B Int Term none none none none none VDD_DMC I/O B none none none none none VDD_DMC DMC0_A13 I/O B none none none none none VDD_DMC DMC0_BA0 I/O B none none none none none VDD_DMC DMC0_BA1 I/O B none none none none none VDD_DMC DMC0_BA2 I/O B none none none none none VDD_DMC DMC0_CAS I/O B none none none none none VDD_DMC DMC0_CK I/O C none none L none L VDD_DMC DMC0_CK I/O C none none L none L VDD_DMC DMC0_CKE I/O B none none L none L VDD_DMC DMC0_CS0 I/O B none none none none none VDD_DMC DMC0_DQ00 I/O B none none none none none VDD_DMC DMC0_DQ01 I/O B none none none none none VDD_DMC DMC0_DQ02 I/O B none none none none none VDD_DMC DMC0_DQ03 I/O B none none none none none VDD_DMC DMC0_DQ04 I/O B none none none none none VDD_DMC DMC0_DQ05 I/O B none none none none none VDD_DMC DMC0_DQ06 I/O B none none none none none VDD_DMC DMC0_DQ07 I/O B none none none none none VDD_DMC DMC0_DQ08 I/O B none none none none none VDD_DMC DMC0_DQ09 I/O B none none none none none VDD_DMC DMC0_DQ10 I/O B none none none none none VDD_DMC DMC0_DQ11 I/O B none none none none none VDD_DMC DMC0_DQ12 I/O B none none none none none VDD_DMC Signal Name DMC0_A11 Type I/O DMC0_A12 Driver Type Rev. A | Page 38 of 112 | February 2014 Description and Notes Desc: DMC0 Address 11. Notes: No notes. Desc: DMC0 Address 12. Notes: No notes. Desc: DMC0 Address 13. Notes: No notes. Desc: DMC0 Bank Address Input 0. Notes: No notes. Desc: DMC0 Bank Address Input 1. Notes: No notes. Desc: DMC0 Bank Address Input 2. Notes: For LPDDR, leave unconnected. Desc: DMC0 Column Address Strobe. Notes: No notes. Desc: DMC0 Clock. Notes: No notes. Desc: DMC0 Clock (complement). Notes: No notes. Desc: DMC0 Clock enable. Notes: No notes. Desc: DMC0 Chip Select 0. Notes: No notes. Desc: DMC0 Data 0. Notes: No notes. Desc: DMC0 Data 1. Notes: No notes. Desc: DMC0 Data 2. Notes: No notes. Desc: DMC0 Data 3. Notes: No notes. Desc: DMC0 Data 4. Notes: No notes. Desc: DMC0 Data 5. Notes: No notes. Desc: DMC0 Data 6. Notes: No notes. Desc: DMC0 Data 7. Notes: No notes. Desc: DMC0 Data 8. Notes: No notes. Desc: DMC0 Data 9. Notes: No notes. Desc: DMC0 Data 10. Notes: No notes. Desc: DMC0 Data 11. Notes: No notes. Desc: DMC0 Data 12. Notes: No notes. ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 Table 15. ADSP-BF60x Designer Quick Reference (Continued) Reset Term Reset Drive Hiber Term Hiber Drive Power Domain B Int Term none none none none none VDD_DMC I/O B none none none none none VDD_DMC DMC0_DQ15 I/O B none none none none none VDD_DMC DMC0_LDM I/O B none none none none none VDD_DMC DMC0_LDQS I/O C none none none none none VDD_DMC DMC0_LDQS I/O C none none none none none VDD_DMC DMC0_ODT I/O B none none none none none VDD_DMC DMC0_RAS I/O B none none none none none VDD_DMC DMC0_UDM I/O B none none none none none VDD_DMC DMC0_UDQS I/O C none none none none none VDD_DMC DMC0_UDQS I/O C none none none none none VDD_DMC DMC0_WE I/O B none none none none none VDD_DMC GND g na none none none none none na JTG_EMU I/O A none none none none none VDD_EXT JTG_TCK I/O na pd none none none none VDD_EXT JTG_TDI I/O na pu none none none none VDD_EXT JTG_TDO I/O A none none none none none VDD_EXT JTG_TMS I/O na pu none none none none VDD_EXT JTG_TRST I/O na pd none none none none VDD_EXT Signal Name DMC0_DQ13 Type I/O DMC0_DQ14 Driver Type Rev. A | Page 39 of 112 | February 2014 Description and Notes Desc: DMC0 Data 13. Notes: No notes. Desc: DMC0 Data 14. Notes: No notes. Desc: DMC0 Data 15. Notes: No notes. Desc: DMC0 Data Mask for Lower Byte. Notes: No notes. Desc: DMC0 Data Strobe for Lower Byte. Notes: For LPDDR, a 100k ohm pull-down resistor is required. Desc: DMC0 Data Strobe for Lower Byte (complement). Notes: For single ended DDR2, connect to VREF_DMC. For LPDDR, leave unconnected. Desc: DMC0 On-die termination. Notes: For LPDDR, leave unconnected. Desc: DMC0 Row Address Strobe. Notes: No notes. Desc: DMC0 Data Mask for Upper Byte. Notes: No notes. Desc: DMC0 Data Strobe for Upper Byte. Notes: For LPDDR, a 100k ohm pull-down resistor is required. Desc: DMC0 Data Strobe for Upper Byte (complement). Notes: For single ended DDR2, connect to VREF_DMC. For LPDDR, leave unconnected. Desc: DMC0 Write Enable. Notes: No notes. Desc: Ground. Notes: No notes. Desc: Emulation Output. Notes: No notes. Desc: JTG Clock. Notes: Functional during reset. Desc: JTG Serial Data Input. Notes: Functional during reset. Desc: JTG Serial Data Output. Notes: Functional during reset, threestate when JTG_TRST is asserted. Desc: JTG Mode Select. Notes: Functional during reset. Desc: JTG Reset. Notes: Functional during reset. ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 Table 15. ADSP-BF60x Designer Quick Reference (Continued) Reset Term Reset Drive Hiber Term Hiber Drive Power Domain A Int Term wk wk none wk none VDD_EXT I/O A wk wk none wk none VDD_EXT PA_02 I/O A wk wk none wk none VDD_EXT PA_03 I/O A wk wk none wk none VDD_EXT PA_04 I/O A wk wk none wk none VDD_EXT PA_05 I/O A wk wk none wk none VDD_EXT PA_06 I/O A wk wk none wk none VDD_EXT PA_07 I/O A wk wk none wk none VDD_EXT PA_08 I/O A wk wk none wk none VDD_EXT PA_09 I/O A wk wk none wk none VDD_EXT PA_10 I/O A wk wk none wk none VDD_EXT PA_11 I/O A wk wk none wk none VDD_EXT PA_12 I/O A wk wk none wk none VDD_EXT PA_13 I/O A wk wk none wk none VDD_EXT PA_14 I/O A wk wk none wk none VDD_EXT PA_15 I/O A wk wk none wk none VDD_EXT Signal Name PA_00 Type I/O PA_01 Driver Type Rev. A | Page 40 of 112 | February 2014 Description and Notes Desc: PA Position 0 | SMC0 Address 3 | EPPI2 Data 0 | LP0 Data 0. Notes: No notes. Desc: PA Position 1 | SMC0 Address 4 | EPPI2 Data 1 | LP0 Data 1. Notes: No notes. Desc: PA Position 2 | SMC0 Address 5 | EPPI2 Data 2 | LP0 Data 2. Notes: No notes. Desc: PA Position 3 | SMC0 Address 6 | EPPI2 Data 3 | LP0 Data 3. Notes: No notes. Desc: PA Position 4 | SMC0 Address 7 | EPPI2 Data 4 | LP0 Data 4. Notes: No notes. Desc: PA Position 5 | SMC0 Address 8 | EPPI2 Data 5 | LP0 Data 5. Notes: No notes. Desc: PA Position 6 | SMC0 Address 9 | EPPI2 Data 6 | LP0 Data 6. Notes: No notes. Desc: PA Position 7 | SMC0 Address 10 | EPPI2 Data 7 | LP0 Data 7. Notes: No notes. Desc: PA Position 8 | SMC0 Address 11 | EPPI2 Data 8 | LP1 Data 0. Notes: No notes. Desc: PA Position 9 | SMC0 Address 12 | EPPI2 Data 9 | LP1 Data 1. Notes: No notes. Desc: PA Position 10 | SMC0 Address 14 | EPPI2 Data 10 | LP1 Data 2. Notes: No notes. Desc: PA Position 11 | SMC0 Address 15 | EPPI2 Data 11 | LP1 Data 3. Notes: No notes. Desc: PA Position 12 | SMC0 Address 17 | EPPI2 Data 12 | LP1 Data 4. Notes: No notes. Desc: PA Position 13 | SMC0 Address 18 | EPPI2 Data 13 | LP1 Data 5. Notes: No notes. Desc: PA Position 14 | SMC0 Address 19 | EPPI2 Data 14 | LP1 Data 6. Notes: No notes. Desc: PA Position 15 | SMC0 Address 20 | EPPI2 Data 15 | LP1 Data 7. Notes: May be used to wake the processor from hibernate or deep sleep mode. ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 Table 15. ADSP-BF60x Designer Quick Reference (Continued) Reset Term Reset Drive Hiber Term Hiber Drive Power Domain A Int Term wk wk none wk none VDD_EXT I/O A wk wk none wk none VDD_EXT PB_02 I/O A wk wk none wk none VDD_EXT PB_03 I/O A wk wk none wk none VDD_EXT PB_04 I/O A wk wk none wk none VDD_EXT PB_05 I/O A wk wk none wk none VDD_EXT PB_06 I/O A wk wk none wk none VDD_EXT PB_07 I/O A wk wk none wk none VDD_EXT PB_08 I/O A wk wk none wk none VDD_EXT PB_09 I/O A wk wk none wk none VDD_EXT PB_10 I/O A wk wk none wk none VDD_EXT PB_11 I/O A wk wk none wk none VDD_EXT PB_12 I/O A wk wk none wk none VDD_EXT Signal Name PB_00 Type I/O PB_01 Driver Type Rev. A | Page 41 of 112 | February 2014 Description and Notes Desc: PB Position 0 | SMC0 NOR Clock | EPPI2 Clock | LP0 Clock. Notes: No notes. Desc: PB Position 1 | SMC0 Memory Select 1 | EPPI2 Frame Sync 1 (HSYNC) | LP0 Acknowledge. Notes: No notes. Desc: PB Position 2 | SMC0 Address 13 | EPPI2 Frame Sync 2 (VSYNC) | LP1 Acknowledge. Notes: No notes. Desc: PB Position 3 | SMC0 Address 16 | EPPI2 Frame Sync 3 (FIELD) | LP1 Clock. Notes: No notes. Desc: PB Position 4 | SMC0 Memory Select 2 | SMC0 Byte Enable 0 | SPORT0 Channel A Frame Sync. Notes: No notes. Desc: PB Position 5 | SMC0 Memory Select 3 | SMC0 Byte Enable 1 | SPORT0 Channel A Clock. Notes: No notes. Desc: PB Position 6 | SMC0 Address 21 | SPORT0 Channel A Transmit Data Valid | TIMER0 Alternate Clock 4. Notes: No notes. Desc: PB Position 7 | SMC0 Address 22 | EPPI2 Data 16 | SPORT0 Channel B Frame Sync. Notes: No notes. Desc: PB Position 8 | SMC0 Address 23 | EPPI2 Data 17 | SPORT0 Channel B Clock. Notes: No notes. Desc: PB Position 9 | SMC0 Bus Grant Hang | SPORT0 Channel A Data 0 | TIMER0 Alternate Clock 2. Notes: No notes. Desc: PB Position 10 | SMC0 Address 24 | SPORT0 Channel B Data 1 | TIMER0 Alternate Clock 0. Notes: No notes. Desc: PB Position 11 | SMC0 Address 25 | SPORT0 Channel B Data 0 | TIMER0 Alternate Clock 3. Notes: No notes. Desc: PB Position 12 | SMC0 Bus Grant | SPORT0 Channel B Transmit Data Valid | SPORT0 Channel A Data 1 | TIMER0 Alternate Clock 1. Notes: No notes. ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 Table 15. ADSP-BF60x Designer Quick Reference (Continued) Reset Term Reset Drive Hiber Term Hiber Drive Power Domain A Int Term wk wk none wk none VDD_EXT I/O A wk wk none wk none VDD_EXT PB_15 I/O A wk wk none wk none VDD_EXT PC_00 I/O A wk wk none wk none VDD_EXT PC_01 I/O A wk wk none wk none VDD_EXT PC_02 I/O A wk wk none wk none VDD_EXT PC_03 I/O A wk wk none wk none VDD_EXT PC_04 I/O A wk wk none wk none VDD_EXT PC_05 I/O A wk wk none wk none VDD_EXT PC_06 I/O A wk wk none wk none VDD_EXT PC_07 I/O A wk wk none wk none VDD_EXT PC_08 I/O A wk wk none wk none VDD_EXT PC_09 I/O A wk wk none wk none VDD_EXT PC_10 I/O A wk wk none wk none VDD_EXT PC_11 I/O A wk wk none wk none VDD_EXT PC_12 I/O A wk wk none wk none VDD_EXT Signal Name PB_13 Type I/O PB_14 Driver Type Rev. A | Page 42 of 112 | February 2014 Description and Notes Desc: PB Position 13 | EPPI1 Frame Sync 1 (HSYNC) | ETH0 Transmit Enable | TIMER0 Alternate Capture Input 6. Notes: No notes. Desc: PB Position 14 | EPPI1 Clock | ETH0 Reference Clock. Notes: No notes. Desc: PB Position 15 | EPPI1 Frame Sync 3 (FIELD) | ETH0 PTP Pulse-Per-Second Output. Notes: May be used to wake the processor from hibernate or deep sleep mode. Desc: PC Position 0 | EPPI1 Data 0 | ETH0 Receive Data 0. Notes: No notes. Desc: PC Position 1 | EPPI1 Data 1 | ETH0 Receive Data 1. Notes: No notes. Desc: PC Position 2 | EPPI1 Data 2 | ETH0 Transmit Data 0. Notes: No notes. Desc: PC Position 3 | EPPI1 Data 3 | ETH0 Transmit Data 1. Notes: No notes. Desc: PC Position 4 | EPPI1 Data 4 | ETH0 Receive Error. Notes: No notes. Desc: PC Position 5 | EPPI1 Data 5 | ETH0 Carrier Sense/RMII Receive Data Valid. Notes: No notes. Desc: PC Position 6 | EPPI1 Data 6 | ETH0 Management Channel Clock. Notes: No notes. Desc: PC Position 7 | EPPI1 Data 7 | ETH0 Management Channel Serial Data. Notes: No notes. Desc: PC Position 8 | EPPI1 Data 8. Notes: No notes. Desc: PC Position 9 | EPPI1 Data 9 | ETH1 PTP Pulse-Per-Second Output. Notes: No notes. Desc: PC Position 10 | EPPI1 Data 10. Notes: No notes. Desc: PC Position 11 | EPPI1 Data 11 | ETH PTP Auxiliary Trigger Input. Notes: No notes. Desc: PC Position 12 | SPI0 Slave Select Output b | EPPI1 Data 12. Notes: No notes. ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 Table 15. ADSP-BF60x Designer Quick Reference (Continued) Reset Term Reset Drive Hiber Term Hiber Drive Power Domain A Int Term wk wk none wk none VDD_EXT I/O A wk wk none wk none VDD_EXT PC_15 I/O A wk wk none wk none VDD_EXT PD_00 I/O A wk wk none wk none VDD_EXT PD_01 I/O A wk wk none wk none VDD_EXT PD_02 I/O A wk wk none wk none VDD_EXT PD_03 I/O A wk wk none wk none VDD_EXT PD_04 I/O A wk wk none wk none VDD_EXT PD_05 I/O A wk wk none wk none VDD_EXT PD_06 I/O A wk wk none wk none VDD_EXT PD_07 I/O A wk wk none wk none VDD_EXT PD_08 I/O A wk wk none wk none VDD_EXT PD_09 I/O A wk wk none wk none VDD_EXT PD_10 I/O A wk wk none wk none VDD_EXT PD_11 I/O A wk wk none wk none VDD_EXT Signal Name PC_13 Type I/O PC_14 Driver Type Rev. A | Page 43 of 112 | February 2014 Description and Notes Desc: PC Position 13 | SPI0 Slave Select Output b | EPPI1 Data 13 | ETH PTP Clock Input. Notes: No notes. Desc: PC Position 14 | SPI1 Slave Select Output b | EPPI1 Data 14. Notes: No notes. Desc: PC Position 15 | SPI0 Slave Select Output b | EPPI1 Data 15. Notes: May be used to wake the processor from hibernate or deep sleep mode. Desc: PD Position 0 | SPI0 Data 2 | EPPI1 Data 16 | SPI0 Slave Select Output b. Notes: No notes. Desc: PD Position 1 | SPI0 Data 3 | EPPI1 Data 17 | SPI0 Slave Select Output b. Notes: No notes. Desc: PD Position 2 | SPI0 Master In, Slave Out. Notes: No notes. Desc: PD Position 3 | SPI0 Master Out, Slave In. Notes: No notes. Desc: PD Position 4 | SPI0 Clock. Notes: No notes. Desc: PD Position 5 | SPI1 Clock | TIMER0 Alternate Clock 7. Notes: No notes. Desc: PD Position 6 | EPPI1 Frame Sync 2 (VSYNC) | ETH0 RMII Management Data Interrupt | TIMER0 Alternate Capture Input 5. Notes: May be used to wake the processor from hibernate or deep sleep mode. Desc: PD Position 7 | UART0 Transmit | TIMER0 Alternate Capture Input 3. Notes: No notes. Desc: PD Position 8 | UART0 Receive | TIMER0 Alternate Capture Input 0. Notes: No notes. Desc: PD Position 9 | SPI1 Slave Select Output b | UART0 Request to Send | SPI0 Slave Select Output b. Notes: No notes. Desc: PD Position 10 | SPI0 Ready | UART0 Clear to Send | SPI1 Slave Select Output b. Notes: No notes. Desc: PD Position 11 | SPI0 Slave Select Output b | SPI0 Slave Select Input. Notes: No notes. ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 Table 15. ADSP-BF60x Designer Quick Reference (Continued) Reset Term Reset Drive Hiber Term Hiber Drive Power Domain A Int Term wk wk none wk none VDD_EXT I/O A wk wk none wk none VDD_EXT PD_14 I/O A wk wk none wk none VDD_EXT PD_15 I/O A wk wk none wk none VDD_EXT PE_00 I/O A wk wk none wk none VDD_EXT PE_01 I/O A wk wk none wk none VDD_EXT PE_02 I/O A wk wk none wk none VDD_EXT PE_03 I/O A wk wk none wk none VDD_EXT PE_04 I/O A wk wk none wk none VDD_EXT PE_05 I/O A wk wk none wk none VDD_EXT PE_06 I/O A wk wk none wk none VDD_EXT PE_07 I/O A wk wk none wk none VDD_EXT PE_08 I/O A wk wk none wk none VDD_EXT PE_09 I/O A wk wk none wk none VDD_EXT Signal Name PD_12 Type I/O PD_13 Driver Type Rev. A | Page 44 of 112 | February 2014 Description and Notes Desc: PD Position 12 | SPI1 Slave Select Output b | EPPI0 Data 20 | SPORT1 Channel A Data 1 | SPI1 Slave Select Input. Notes: No notes. Desc: PD Position 13 | SPI1 Master Out, Slave In | TIMER0 Alternate Clock 5. Notes: No notes. Desc: PD Position 14 | SPI1 Master In, Slave Out | TIMER0 Alternate Clock 6. Notes: No notes. Desc: PD Position 15 | SPI1 Slave Select Output b | EPPI0 Data 21 | SPORT1 Channel A Data 0. Notes: No notes. Desc: PE Position 0 | SPI1 Data 3 | EPPI0 Data 18 | SPORT1 Channel B Data 1. Notes: No notes. Desc: PE Position 1 | SPI1 Data 2 | EPPI0 Data 19 | SPORT1 Channel B Data 0. Notes: No notes. Desc: PE Position 2 | SPI1 Ready | EPPI0 Data 22 | SPORT1 Channel A Clock. Notes: No notes. Desc: PE Position 3 | EPPI0 Data 16 | SPORT1 Channel B Frame Sync | ACM0 Frame Sync. Notes: No notes. Desc: PE Position 4 | EPPI0 Data 17 | SPORT1 Channel B Clock | ACM0 Clock. Notes: No notes. Desc: PE Position 5 | EPPI0 Data 23 | SPORT1 Channel A Frame Sync. Notes: No notes. Desc: PE Position 6 | SPORT1 Channel A Transmit Data Valid | EPPI0 Frame Sync 3 (FIELD) | LP3 Clock. Notes: No notes. Desc: PE Position 7 | SPORT1 Channel B Transmit Data Valid | EPPI0 Frame Sync 2 (VSYNC) | LP3 Acknowledge. Notes: No notes. Desc: PE Position 8 | PWM0 Sync | EPPI0 Frame Sync 1 (HSYNC) | LP2 Acknowledge | ACM0 External Trigger 0. Notes: No notes. Desc: PE Position 9 | EPPI0 Clock | LP2 Clock | PWM0 Shutdown Input. Notes: No notes. ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 Table 15. ADSP-BF60x Designer Quick Reference (Continued) Reset Term Reset Drive Hiber Term Hiber Drive Power Domain A Int Term wk wk none wk none VDD_EXT I/O A wk wk none wk none VDD_EXT PE_12 I/O A wk wk none wk none VDD_EXT PE_13 I/O A wk wk none wk none VDD_EXT PE_14 I/O A wk wk none wk none VDD_EXT PE_15 I/O A wk wk none wk none VDD_EXT PF_00 I/O A wk wk none wk none VDD_EXT PF_01 I/O A wk wk none wk none VDD_EXT PF_02 I/O A wk wk none wk none VDD_EXT Signal Name PE_10 Type I/O PE_11 Driver Type Rev. A | Page 45 of 112 | February 2014 Description and Notes Desc: PE Position 10 | PWM1 Channel D Low Side | RSI0 Data 6 | ETH1 Management Channel Clock. Notes: Has an optional internal pull-up resistor for use with RSI. See the RSI chapter in the processor hardware reference for more details. Desc: PE Position 11 | PWM1 Channel D High Side | ETH1 Management Channel Serial Data | RSI0 Data 7. Notes: Has an optional internal pull-up resistor for use with RSI. See the RSI chapter in the processor hardware reference for more details. Desc: PE Position 12 | PWM1 Channel C Low Side | RSI0 Data 5 | ETH1 RMII Management Data Interrupt. Notes: Has an optional internal pull-up resistor for use with RSI. See the RSI chapter in the processor hardware reference for more details. May be used to wake the processor from hibernate or deep sleep mode. Desc: PE Position 13 | PWM1 Channel C High Side | RSI0 Data 4 | ETH1 Carrier Sense/RMII Receive Data Valid. Notes: Has an optional internal pull-up resistor for use with RSI. See the RSI chapter in the processor hardware reference for more details. Desc: PE Position 14 | SPORT2 Channel A Transmit Data Valid | TIMER0 Timer 0 | ETH1 Receive Error. Notes: No notes. Desc: PE Position 15 | PWM1 Channel B Low Side | RSI0 Data 3 | ETH1 Receive Data 1. Notes: Has an optional internal pull-up resistor for use with RSI. See the RSI chapter in the processor hardware reference for more details. Desc: PF Position 0 | PWM0 Channel A Low Side | EPPI0 Data 0 | LP2 Data 0. Notes: No notes. Desc: PF Position 1 | PWM0 Channel A High Side | EPPI0 Data 1 | LP2 Data 1. Notes: No notes. Desc: PF Position 2 | PWM0 Channel B Low Side | EPPI0 Data 2 | LP2 Data 2. Notes: No notes. ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 Table 15. ADSP-BF60x Designer Quick Reference (Continued) Reset Term Reset Drive Hiber Term Hiber Drive Power Domain A Int Term wk wk none wk none VDD_EXT I/O A wk wk none wk none VDD_EXT PF_05 I/O A wk wk none wk none VDD_EXT PF_06 I/O A wk wk none wk none VDD_EXT PF_07 I/O A wk wk none wk none VDD_EXT PF_08 I/O A wk wk none wk none VDD_EXT PF_09 I/O A wk wk none wk none VDD_EXT PF_10 I/O A wk wk none wk none VDD_EXT PF_11 I/O A wk wk none wk none VDD_EXT PF_12 I/O A wk wk none wk none VDD_EXT PF_13 I/O A wk wk none wk none VDD_EXT PF_14 I/O A wk wk none wk none VDD_EXT PF_15 I/O A wk wk none wk none VDD_EXT PG_00 I/O A wk wk none wk none VDD_EXT PG_01 I/O A wk wk none wk none VDD_EXT Signal Name PF_03 Type I/O PF_04 Driver Type Rev. A | Page 46 of 112 | February 2014 Description and Notes Desc: PF Position 3 | PWM0 Channel B High Side | EPPI0 Data 3 | LP2 Data 3. Notes: No notes. Desc: PF Position 4 | PWM0 Channel C Low Side | EPPI0 Data 4 | LP2 Data 4. Notes: No notes. Desc: PF Position 5 | PWM0 Channel C High Side | EPPI0 Data 5 | LP2 Data 5. Notes: No notes. Desc: PF Position 6 | PWM0 Channel D Low Side | EPPI0 Data 6 | LP2 Data 6. Notes: No notes. Desc: PF Position 7 | PWM0 Channel D High Side | EPPI0 Data 7 | LP2 Data 7. Notes: No notes. Desc: PF Position 8 | SPI1 Slave Select Output b | EPPI0 Data 8 | LP3 Data 0. Notes: No notes. Desc: PF Position 9 | SPI1 Slave Select Output b | EPPI0 Data 9 | LP3 Data 1. Notes: No notes. Desc: PF Position 10 | ACM0 Address 4 | EPPI0 Data 10 | LP3 Data 2. Notes: No notes. Desc: PF Position 11 | EPPI0 Data 11 | LP3 Data 3 | PWM0 Shutdown Input. Notes: No notes. Desc: PF Position 12 | ACM0 Address 2 | EPPI0 Data 12 | LP3 Data 4. Notes: No notes. Desc: PF Position 13 | ACM0 Address 3 | EPPI0 Data 13 | LP3 Data 5. Notes: No notes. Desc: PF Position 14 | EPPI0 Data 14 | ACM0 Address 0 | LP3 Data 6. Notes: No notes. Desc: PF Position 15 | ACM0 Address 1 | EPPI0 Data 15 | LP3 Data 7. Notes: No notes. Desc: PG Position 0 | PWM1 Channel B High Side | RSI0 Data 2 | ETH1 Receive Data 0. Notes: Has an optional internal pull-up resistor for use with RSI. See the RSI chapter in the processor hardware reference for more details. Desc: PG Position 1 | SPORT2 Channel A Frame Sync | TIMER0 Timer 2 | CAN0 Transmit. Notes: No notes. ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 Table 15. ADSP-BF60x Designer Quick Reference (Continued) Reset Term Reset Drive Hiber Term Hiber Drive Power Domain A Int Term wk wk none wk none VDD_EXT I/O A wk wk none wk none VDD_EXT PG_04 I/O A wk wk none wk none VDD_EXT PG_05 I/O A wk wk none wk none VDD_EXT PG_06 I/O A wk wk none wk none VDD_EXT PG_07 I/O A wk wk none wk none VDD_EXT PG_08 I/O A wk wk none wk none VDD_EXT PG_09 I/O A wk wk none wk none VDD_EXT PG_10 I/O A wk wk none wk none VDD_EXT PG_11 I/O A wk wk none wk none VDD_EXT Signal Name PG_02 Type I/O PG_03 Driver Type Rev. A | Page 47 of 112 | February 2014 Description and Notes Desc: PG Position 2 | PWM1 Channel A Low Side | RSI0 Data 1 | ETH1 Transmit Data 1. Notes: Has an optional internal pull-up resistor for use with RSI. See the RSI chapter in the processor hardware reference for more details. Desc: PG Position 3 | PWM1 Channel A High Side | RSI0 Data 0 | ETH1 Transmit Data 0. Notes: Has an optional internal pull-up resistor for use with RSI. See the RSI chapter in the processor hardware reference for more details. Desc: PG Position 4 | SPORT2 Channel A Clock | TIMER0 Timer 1 | CAN0 Receive | TIMER0 Alternate Capture Input 2. Notes: May be used to wake the processor from hibernate or deep sleep mode. Desc: PG Position 5 | RSI0 Command | ETH1 Transmit Enable | PWM1 Sync | ACM0 External Trigger 1. Notes: Has an optional internal pull-up resistor for use with RSI. See the RSI chapter in the processor hardware reference for more details. Desc: PG Position 6 | RSI0 Clock | SPORT2 Channel B Transmit Data Valid | ETH1 Reference Clock | PWM1 Shutdown Input. Notes: No notes. Desc: PG Position 7 | SPORT2 Channel B Frame Sync | TIMER0 Timer 5 | CNT0 Count Zero Marker. Notes: No notes. Desc: PG Position 8 | SPORT2 Channel A Data 1 | TIMER0 Timer 3 | PWM1 Shutdown Input. Notes: No notes. Desc: PG Position 9 | SPORT2 Channel A Data 0 | TIMER0 Timer 4. Notes: No notes. Desc: PG Position 10 | UART1 Request to Send | SPORT2 Channel B Clock. Notes: No notes. Desc: PG Position 11 | SPORT2 Channel B Data 1 | TIMER0 Timer 6 | CNT0 Count Up and Direction. Notes: No notes. ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 Table 15. ADSP-BF60x Designer Quick Reference (Continued) Reset Term Reset Drive Hiber Term Hiber Drive Power Domain A Int Term wk wk none wk none VDD_EXT I/O A wk wk none wk none VDD_EXT PG_14 I/O A wk wk none wk none VDD_EXT PG_15 I/O A wk wk none wk none VDD_EXT SMC0_A01 I/O A wk wk none wk none VDD_EXT SMC0_A02 I/O A wk wk none wk none VDD_EXT SMC0_AMS0 I/O A pu pu none pu none VDD_EXT SMC0_AOE_ NORDV I/O A wk wk none wk none VDD_EXT SMC0_ARDY_ NORWT I/O na none none none none none VDD_EXT SMC0_ARE I/O A pu pu none pu none VDD_EXT SMC0_AWE I/O A pu pu none pu none VDD_EXT SMC0_BR I/O na none none none none none VDD_EXT SMC0_D00 I/O A wk wk none wk none VDD_EXT SMC0_D01 I/O A wk wk none wk none VDD_EXT SMC0_D02 I/O A wk wk none wk none VDD_EXT SMC0_D03 I/O A wk wk none wk none VDD_EXT SMC0_D04 I/O A wk wk none wk none VDD_EXT SMC0_D05 I/O A wk wk none wk none VDD_EXT Signal Name PG_12 Type I/O PG_13 Driver Type Rev. A | Page 48 of 112 | February 2014 Description and Notes Desc: PG Position 12 | SPORT2 Channel B Data 0 | TIMER0 Timer 7 | CNT0 Count Down and Gate. Notes: No notes. Desc: PG Position 13 | UART1 Clear to Send | TIMER0 Clock. Notes: No notes. Desc: PG Position 14 | UART1 Receive | SYS Core 1 Idle Indicator | TIMER0 Alternate Capture Input 1. Notes: No notes. Desc: PG Position 15 | UART1 Transmit | SYS Core 0 Idle Indicator | SYS Processor Sleep Indicator | TIMER0 Alternate Capture Input 4. Notes: No notes. Desc: SMC0 Address 1. Notes: No notes. Desc: SMC0 Address 2. Notes: No notes. Desc: SMC0 Memory Select 0. Notes: No notes. Desc: SMC0 NOR Data Valid | SMC0 Output Enable. Notes: No notes. Desc: SMC0 NOR Wait | SMC0 Asynchronous Ready. Notes: Requires an external pull-up resistor. Desc: SMC0 Read Enable. Notes: No notes. Desc: SMC0 Write Enable. Notes: No notes. Desc: SMC0 Bus Request. Notes: Requires an external pull-up resistor. Desc: SMC0 Data 0. Notes: No notes. Desc: SMC0 Data 1. Notes: No notes. Desc: SMC0 Data 2. Notes: No notes. Desc: SMC0 Data 3. Notes: No notes. Desc: SMC0 Data 4. Notes: No notes. Desc: SMC0 Data 5. Notes: No notes. ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 Table 15. ADSP-BF60x Designer Quick Reference (Continued) Reset Term Reset Drive Hiber Term Hiber Drive Power Domain A Int Term wk wk none wk none VDD_EXT I/O A wk wk none wk none VDD_EXT SMC0_D08 I/O A wk wk none wk none VDD_EXT SMC0_D09 I/O A wk wk none wk none VDD_EXT SMC0_D10 I/O A wk wk none wk none VDD_EXT SMC0_D11 I/O A wk wk none wk none VDD_EXT SMC0_D12 I/O A wk wk none wk none VDD_EXT SMC0_D13 I/O A wk wk none wk none VDD_EXT SMC0_D14 I/O A wk wk none wk none VDD_EXT SMC0_D15 I/O A wk wk none wk none VDD_EXT SYS_BMODE0 I/O na none none none none none VDD_EXT SYS_BMODE1 I/O na none none none none none VDD_EXT SYS_BMODE2 I/O na none none none none none VDD_EXT SYS_CLKIN a na none none none none none VDD_EXT SYS_CLKOUT I/O A none none L none none VDD_EXT SYS_EXTWAKE I/O A none none H none L VDD_EXT SYS_FAULT I/O A none none none none none VDD_EXT SYS_FAULT I/O A none none none none none VDD_EXT SYS_HWRST I/O na none none none none none VDD_EXT SYS_NMI_ RESOUT I/O A none none L none none VDD_EXT Signal Name SMC0_D06 Type I/O SMC0_D07 Driver Type Rev. A | Page 49 of 112 | February 2014 Description and Notes Desc: SMC0 Data 6. Notes: No notes. Desc: SMC0 Data 7. Notes: No notes. Desc: SMC0 Data 8. Notes: No notes. Desc: SMC0 Data 9. Notes: No notes. Desc: SMC0 Data 10. Notes: No notes. Desc: SMC0 Data 11. Notes: No notes. Desc: SMC0 Data 12. Notes: No notes. Desc: SMC0 Data 13. Notes: No notes. Desc: SMC0 Data 14. Notes: No notes. Desc: SMC0 Data 15. Notes: No notes. Desc: SYS Boot Mode Control 0. Notes: No notes. Desc: SYS Boot Mode Control 1. Notes: No notes. Desc: SYS Boot Mode Control 2. Notes: No notes. Desc: SYS Clock Input/Crystal Input. Notes: Active during reset. Desc: SYS Processor Clock Output. Notes: No notes. Desc: SYS External Wake Control. Notes: Drives low during hibernate and high all other times. Desc: SYS Fault. Notes: Open source, requires an external pull-down resistor. Desc: SYS Complementary Fault. Notes: Open drain, requires an external pull-up resistor. Desc: SYS Processor Hardware Reset Control. Notes: Active during reset. Desc: SYS Reset Output | SYS Nonmaskable Interrupt. Notes: Requires an external pull-up resistor. ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 Table 15. ADSP-BF60x Designer Quick Reference (Continued) Reset Term Reset Drive Hiber Term Hiber Drive Power Domain na Int Term none none none none none VDD_EXT a na none none none none none VDD_TD SYS_TDK a na none none none none none VDD_TD SYS_XTAL a na none none none none none VDD_EXT TWI0_SCL I/O D none none none none none VDD_EXT TWI0_SDA I/O D none none none none none VDD_EXT TWI1_SCL I/O D none none none none none VDD_EXT TWI1_SDA I/O D none none none none none VDD_EXT USB0_CLKIN a na none none none none none VDD_USB USB0_DM I/O F none none none none none VDD_USB Signal Name SYS_PWRGD Type I/O SYS_TDA Driver Type Rev. A | Page 50 of 112 | February 2014 Description and Notes Desc: SYS Power Good Indicator. Notes: If hibernate is not used or the internal Power Good Counter is used, connect to VDD_EXT. Desc: SYS Thermal Diode Anode. Notes: Active during reset and hibernate. If the thermal diode is not used, connect to ground. Desc: SYS Thermal Diode Cathode. Notes: Active during reset and hibernate. If the thermal diode is not used, connect to ground. Desc: SYS Crystal Output. Notes: Leave unconnected if an oscillator is used to provide SYS_CLKIN. Active during reset. State during hibernate is controlled by DPM_HIB_DIS. Desc: TWI0 Serial Clock. Notes: Open drain, requires external pullup resistor. Consult Version 2.1 of the I2C specification for the proper resistor value. If TWI is not used, connect to ground. Desc: TWI0 Serial Data. Notes: Open drain, requires external pullup resistor. Consult Version 2.1 of the I2C specification for the proper resistor value. If TWI is not used, connect to ground. Desc: TWI1 Serial Clock. Notes: Open drain, requires external pullup resistor. Consult Version 2.1 of the I2C specification for the proper resistor value. If TWI is not used, connect to ground. Desc: TWI1 Serial Data. Notes: Open drain, requires external pullup resistor. See the I2C-Bus Specification, Version 2.1,January 2000 for the proper resistor value. If TWI is not used, connect to ground. Desc: USB0 Clock/Crystal Input. Notes: If USB is not used, connect to ground. Active during reset. Desc: USB0 Data –. Notes: Pull low if not using USB. For complete documentation of hibernate behavior when USB is used, see the USB chapter in the processor hardware reference. ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 Table 15. ADSP-BF60x Designer Quick Reference (Continued) Reset Term Reset Drive Hiber Term Hiber Drive Power Domain F Int Term none none none none none VDD_USB I/O na none none none pu none VDD_USB USB0_VBC I/O E none none none wk none VDD_USB USB0_VBUS I/O G none none none none none VDD_USB VDD_DMC s na none none none none none na VDD_EXT s na none none none none none na VDD_INT s na none none none none none na VDD_TD s na none none none none none na VDD_USB s na none none none none none na VREF_DMC s na none none none none none na Signal Name USB0_DP Type I/O USB0_ID Driver Type Rev. A | Page 51 of 112 | February 2014 Description and Notes Desc: USB0 Data +. Notes: Pull low if not using USB. For complete documentation of hibernate behavior when USB is used, see the USB chapter in the processor hardware reference. Desc: USB0 OTG ID. Notes: If USB is not used, connect to ground. When USB is being used, the internal pull-up resistor that is present during hibernate is programmable. See the USB chapter in the processor hardware reference. Active during reset. Desc: USB0 VBUS Control. Notes: If USB is not used, pull low. Desc: USB0 Bus Voltage. Notes: If USB is not used, connect to ground. Desc: VDD for DMC. Notes: If the DMC is not used, connect to VDD_INT. Desc: External VDD. Notes: Must be powered. Desc: Internal VDD. Notes: Must be powered. Desc: VDD for Thermal Diode. Notes: If the thermal diode is not used, connect to ground. Desc: VDD for USB. Notes: If USB is not used, connect to VDD_ EXT. Desc: VREF for DMC. Notes: If the DMC is not used, connect to VDD_INT. ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 SPECIFICATIONS For information about product specifications please contact your ADI representative. OPERATING CONDITIONS Parameter Conditions Min Nominal Max Unit Internal Supply Voltage CCLK ≤ 500 MHz 1.19 1.25 1.32 V VDD_EXT1 External Supply Voltage 1.8 V I/O 1.7 1.8 1.9 V 1 External Supply Voltage 3.3 V I/O VDD_INT VDD_EXT VDD_DMC VDD_USB 2 3.13 3.3 3.47 V DDR2/LPDDR Supply Voltage 1.7 1.8 1.9 V USB Supply Voltage 3.13 3.3 3.47 V 3.13 3.3 3.47 V VDD_TD Thermal Diode Supply Voltage VIH3 High Level Input Voltage VDD_EXT = 3.47 V 2.1 V High Level Input Voltage VDD_EXT = 1.9 V 0.7 × VDD_EXT V VIH 3 VIHTWI 4, 5 High Level Input Voltage VIH_DDR26, 7 VIH_LPDDR 8 VDD_EXT = Maximum 0.7 × VVBUSTWI VDD_DMC = 1.9 V VDDR_REF + 0.25 VVBUSTWI V V VDD_DMC = 1.9 V 0.8 × VDD_DMC V 9 Differential Input Voltage VIX = 1.075 V 0.50 V VID_DDR29 Differential Input Voltage VIX = 0.725 V 0.55 V Low Level Input Voltage VDD_EXT = 3.13 V 0.8 V Low Level Input Voltage VDD_EXT = 1.7 V 0.3 × VDD_EXT V VID_DDR2 VIL 3 VIL 3 VILTWI 4, 5 VDD_EXT = Minimum 0.3 × VVBUSTWI V VIL_DDR26, 7 Low Level Input Voltage VDD_DMC = 1.7 V VDDR_REF – 0.25 V VIL_LPDDR8 VDD_DMC = 1.7 V 0.2 × VDD_DMC V TJ Junction Temperature TAMBIENT = 0°C to +70°C 0 +105 °C TJ Junction Temperature TAMBIENT = –40°C to +85°C –40 +105 °C TJ Junction Temperature TAMBIENT = –40°C to +105°C –40 +125 °C 1 Must remain powered (even if the associated function is not used). If not used, connect to 1.8 V or 3.3 V. 3 Parameter value applies to all input and bidirectional signals except TWI signals, DMC0 signals and USB0 signals. 4 Parameter applies to TWI signals. 5 TWI signals are pulled up to VBUSTWI. See Table 16. 6 Parameter applies to DMC0 signals in DDR2 mode. 7 VDDR_REF is the voltage applied to pin VREF_DMC, nominally VDD_DMC/2. 8 Parameter applies to DMC0 signals in LPDDR mode. 9 Parameter applies to signals DMC0_CK, DMC0_CK, DMC0_LDQS, DMC0_LDQS, DMC0_UDQS, DMC0_UDQS when used in DDR2 differential input mode. 2 Table 16. TWI_VSEL Selections and VDD_EXT/VBUSTWI VDD_EXT Nominal VBUSTWI Min VBUSTWI Nom VBUSTWI Max Unit 3.30 3.13 3.30 3.47 V TWI001 1.80 1.70 1.80 1.90 V TWI011 1.80 3.13 3.30 3.47 V TWI100 3.30 4.75 5.00 5.25 V TWI000 1 1 Designs must comply with the VDD_EXT and VBUSTWI voltages specified for the default TWI_DT setting for correct JTAG boundary scan operation during reset. Rev. A | Page 52 of 112 | February 2014 ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 Clock Related Operating Conditions Table 17 describes the core clock, system clock, and peripheral clock timing requirements. The data presented in the tables applies to all speed grades (found in Automotive Products on Page 112 and Ordering Guide on Page 112) except where expressly noted. Figure 8 provides a graphical representation of the various clocks and their available divider values. Table 17. Clock Operating Conditions Parameter Restriction fCCLK Core Clock Frequency fSYSCLK SYSCLK Frequency Min Typ fCCLK ≥ fSYSCLK 1 Max Unit 500 MHz 250 MHz 125 MHz fSCLK0 SCLK0 Frequency fSCLK1 SCLK1 Frequency fSYSCLK ≥ fSCLK1 125 MHz fDCLK DDR2/LPDDR Clock Frequency fSYSCLK ≥ fDCLK 250 MHz fOCLK Output Clock Frequency 125 MHz fSYSCLK ≥ fSCLK0 30 2, 3 fSYS_CLKOUTJ SYS_CLKOUT Period Jitter fPVPCLK PVP Clock Frequency 83.3 MHz fNRCLKPROG Programmed NOR Burst Clock 66.67 MHz fPCLKPROG Programmed PPI Clock When Transmitting Data and Frame Sync 83.3 MHz fPCLKPROG Programmed PPI Clock When Receiving Data or Frame Sync fPCLKEXT External PPI Clock When Receiving Data and Frame Sync4, 5 ±1 4, 5 fPCLKEXT External PPI Clock Transmitting Data or Frame Sync fLCLKTPROG Programmed Link Port Transmit Clock fLCLKREXT External Link Port Receive Clock4, 5 fSPTCLKPROG Programmed SPT Clock When Transmitting Data and Frame Sync % 62.5 MHz fPCLKEXT ≤ fSCLK0 83.3 MHz fPCLKEXT ≤ fSCLK0 58.8 MHz 83.3 MHz 83.3 MHz 83.3 MHz fLCLKEXT ≤ fSCLK0 fSPTCLKPROG Programmed SPT Clock When Receiving Data or Frame Sync 62.5 MHz fSPTCLKEXT External SPT Clock When Receiving Data and Frame Sync4, 5 fSPTCLKEXT ≤ fSCLK1 83.3 MHz fSPTCLKEXT External SPT Clock Transmitting Data or Frame Sync4, 5 fSPTCLKEXT ≤ fSCLK1 58.8 MHz fSPICLKPROG Programmed SPI Clock When Transmitting Data 83.3 MHz fSPICLKPROG Programmed SPI Clock When Receiving Data 75 MHz fSPICLKEXT External SPI Clock When Receiving Data4, 5 fSPICLKEXT ≤ fSCLK1 83.3 MHz fSPICLKEXT ≤ fSCLK1 58.8 MHz 62.5 MHz fSPICLKEXT External SPI Clock When Transmitting Data fACLKPROG Programmed ACM Clock 4, 5 1 The minimum frequency for SCLK0 applies only when the USB is used. 2 SYS_CLKOUT jitter is dependent on the application system design including pin switching activity, board layout, and the jitter characteristics of the SYS_CLKIN source. Due to the dependency on these factors the measured jitter may be higher or lower than this typical specification for each end application. 3 The value in the Typ field is the percentage of the SYS_CLKOUT period. 4 The maximum achievable frequency for any peripheral in external clock mode is dependent on being able to meet the setup and hold times in the AC timing specifications section for that peripheral. Pay particular attention to setup and hold times for VDD_EXT = 1.8 V which may preclude the maximum frequency listed here. 5 The peripheral external clock frequency must also be less than or equal to the fSCLK (fSCLK0 or fSCLK1) that clocks the peripheral. Table 18. Phase-Locked Loop Operating Conditions Parameter fPLLCLK Min 250 PLL Clock Frequency Rev. A | Page 53 of 112 | February 2014 Max 1000 Unit MHz ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 CSEL (1-32) SYSSEL (1-32) SYS_CLKIN PLL CCLK S0SEL (1-8) SCLK0 (PVP, ALL OTHER PERIPHERALS) S1SEL (1-8) SCLK1 (SPORTS, SPI, ACM) SYSCLK PLLCLK DSEL (1-32) DCLK OSEL (1-128) OCLK Figure 8. Clock Relationships and Divider Values Rev. A | Page 54 of 112 | February 2014 ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 ELECTRICAL CHARACTERISTICS Parameter VOH1 VOH1 VOH_DDR22 VOH_DDR23 VOH_LPDDR4 VOH_LPDDR5 VOH_LPDDR6 VOH_LPDDR7 VOL8 VOL8 VOL_DDR22 VOL_DDR23 VOL_LPDDR4 VOL_LPDDR5 VOL_LPDDR6 VOL_LPDDR7 IIH9 IIH_PD10 IIL11 IIL_PU12 IIH_USB013 IIL_USB013 IOZH14 IOZH15 IOZL16 IOZL_PU17 IOZH_TWI18 CIN19, 20 CIN_TWI18, 20 CIN_DDR20, 21 IDD_TD IDD_DEEPSLEEP22, 23 Test Conditions VDD_EXT = 1.7 V, IOH = –0.5 mA VDD_EXT = 3.13 V, IOH = –0.5 mA VDD_DMC = 1.70 V, IOH = –13.4 mA VDD_DMC = 1.70 V, IOH = –6.70 mA VDD_DMC = 1.70 V, IOH = –11.2 mA VDD_DMC = 1.70 V, IOH = –7.85 mA VDD_DMC = 1.70 V, IOH = –5.10 mA VDD_DMC = 1.70 V, IOH = –2.55 mA VDD_EXT = 1.7 V, IOL = 2.0 mA VDD_EXT = 3.13 V, IOL = 2.0 mA VDD_DMC = 1.70 V, IOL13.4 mA VDD_DMC = 1.70 V, IOL = 6.70 mA VDD_DMC = 1.70 V, IOL = 11.2 mA VDD_DMC = 1.70 V, IOL = 7.85 mA VDD_DMC = 1.70 V, IOL = 5.10 mA VDD_DMC = 1.70 V, IOL = 2.55 mA VDD_EXT = 3.47 V, VDD_DMC = 1.9 V, VDD_USB = 3.47 V, VIN = 3.47 V High Level Input Current with Pull- VDD_EXT = 3.47 V, VDD_DMC = 1.9 V, down Resistor VDD_USB = 3.47 V, VIN = 3.47 V Low Level Input Current VDD_EXT = 3.47 V, VDD_DMC = 1.9 V, VDD_USB = 3.47 V, VIN = 0 V Low Level Input Current with Pull-up VDD_EXT = 3.47 V, VDD_DMC = 1.9 V, Resistor VDD_USB = 3.47 V, VIN = 0 V High Level Input Current VDD_EXT = 3.47 V, VDD_DMC = 1.9 V, VDD_USB = 3.47 V, VIN = 3.47 V Low Level Input Current VDD_EXT = 3.47 V, VDD_DMC = 1.9 V, VDD_USB = 3.47 V, VIN = 0 V Three-State Leakage Current VDD_EXT = 3.47 V, VDD_DMC = 1.9 V, VDD_USB = 3.47 V, VIN = 3.47 V Three-State Leakage Current VDD_EXT = 3.47 V, VDD_DMC = 1.9 V, VDD_USB = 3.47 V, VIN = 1.9 V Three-State Leakage Current VDD_EXT = 3.47 V, VDD_DMC = 1.9 V, VDD_USB = 3.47 V, VIN = 0 V Three-State Leakage Current with VDD_EXT = 3.47 V, VDD_DMC = 1.9 V, Pull-up Resistor VDD_USB = 3.47 V, VIN = 0 V Three-State Leakage Current VDD_EXT = 3.47 V, VDD_DMC = 1.9 V, VDD_USB = 3.47 V, VIN = 5.5 V Input Capacitance TAMBIENT = 25°C Input Capacitance TAMBIENT = 25°C Input Capacitance TAMBIENT = 25°C VDD_TD Current VDD_TD = 3.3 V VDD_INT Current in Deep Sleep Mode fCCLK = 0 MHz fSCLK0/1 = 0 MHz High Level Output Voltage High Level Output Voltage High Level Output Voltage, ds = 00 High Level Output Voltage, ds = 10 High Level Output Voltage, ds = 00 High Level Output Voltage, ds = 01 High Level Output Voltage, ds = 10 High Level Output Voltage, ds = 11 Low Level Output Voltage Low Level Output Voltage Low Level Output Voltage, ds = 00 Low Level Output Voltage, ds = 10 Low Level Output Voltage, ds = 00 Low Level Output Voltage, ds = 01 Low Level Output Voltage, ds = 10 Low Level Output Voltage, ds = 11 High Level Input Current Min VDD_EXT – 0.40 VDD_EXT – 0.40 1.388 1.311 1.300 1.300 1.300 1.300 Rev. A | Page 55 of 112 | February 2014 Typical 4.9 8.9 5.8 Table 21 on Page 58 Max 0.400 0.400 0.312 0.390 0.400 0.400 0.400 0.400 10 Unit V V V V V V V V V V V V V V V V μA 110 μA 10 μA 100 μA 240 μA 100 μA 10 μA 10 μA 10 μA 100 μA 10 μA 6.7 9.9 6.6 1 pF pF pF μA mA ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 Parameter IDD_IDLE23 VDD_INT Current in Idle IDD_TYP23 VDD_INT Current IDD_HIBERNATE22, 24 Hibernate State Current IDD_HIBERNATE22, 24 Hibernate State Current Without USB IDD_INT23 VDD_INT Current Test Conditions Min fCCLK = 500 MHz ASFC0 = 0.14 (Idle) ASFC1 = 0 (Disabled) fSYSCLK = 250 MHz, fSCLK0/1 = 125 MHz fDCLK = 0 MHz (DDR Disabled) fUSBCLK = 0 MHz (USB Disabled) No PVP or DMA activity TJ = 25°C fCCLK = 500 MHz ASFC0 = 1.0 (Full-on Typical) ASFC1 = 0.86 (App) fSYSCLK = 250 MHz, fSCLK0/1 = 125 MHz fDCLK = 250 MHz fUSBCLK = 0 MHz (USB Disabled) DMA Data Rate = 124 MB/s Medium PVP Activity TJ = 25°C VDD_INT = 0 V, VDD_EXT = VDD_TD = VDD_USB = 3.3 V, VDD_DMC = 1.8 V, VREF_DMC = 0.9 V, TJ = 25°C, fCLKIN = 0 MHz VDD_INT = 0 V, VDD_EXT = VDD_TD = VDD_USB = 3.3 V, VDD_DMC = 1.8 V, VREF_DMC = 0.9 V, TJ = 25°C, fCLKIN = 0 MHz, USB protection disabled (USB0_PHY_CTL.DIS=1) fCCLK > 0 MHz fSCLK0/1 ≥ 0 MHz 1 Typical 137 Max Unit mA 357 mA 40 μA 10 μA See IDDINT_TOT equation on Page 57 mA Applies to all output and bidirectional signals except DMC0 signals, TWI signals and USB0 signals. Applies to all DMC0 output and bidirectional signals in DDR2 full drive strength mode. 3 Applies to all DMC0 output and bidirectional signals in DDR2 half drive strength mode. 4 Applies to all DMC0 output and bidirectional signals in LPDDR full drive strength mode. 5 Applies to all DMC0 output and bidirectional signals in LPDDR three-quarter drive strength mode. 6 Applies to all DMC0 output and bidirectional signals in LPDDR half drive strength mode. 7 Applies to all DMC0 output and bidirectional signals in LPDDR one-quarter drive strength mode. 8 Applies to all output and bidirectional signals except DMC0 signals and USB0 signals. 9 Applies to signals SMC0_ARDY, SMC0_BR, SYS_BMODE0–2, SYS_CLKIN, SYS_HWRST, SYS_PWRGD, JTG_TDI, and JTG_TMS. 10 Applies to signals JTG_TCK and JTG_TRST. 11 Applies to signals SMC0_ARDY, SMC0_BR, SYS_BMODE0–2, SYS_CLKIN, SYS_HWRST, SYS_PWRGD, JTG_TCK, and JTG_TRST. 12 Applies to signals JTG_TDI, JTG_TMS. 13 Applies to signal USB0_CLKIN. 14 Applies to signals PA0–15, PB0–15, PC0–15, PD0–15, PE0–15, PF0–15, PG0–15, SMC0_AMS0, SMC0_ARE, SMC0_AWE, SMC0_A0E, SMC0_A01–02, SMC0_D00–15, SYS_FAULT, SYS_FAULT, JTG_EMU, JTG_TDO, USB0_DM, USB0_DP, USB0_ID, USB0_VBC, USB0_VBUS. 15 Applies to DMC0_A[00:13], DMC0_BA[0:2], DMC0_CAS, DMC0_CS0, DMC0_DQ[00:15], DMC0_LQDS, DMC0_LDQS, DMC0_UDQS, DMC0_UDQS, DMC0_LDM, DMC0_UDM, DMC0_ODT, DMC0_RAS, and DMC0_WE. 16 Applies to signals PA0–15, PB0–15, PC0–15, PD0–15, PE0–15, PF0–15, PG0–15, SMC0_A0E, SMC0_A01–02, SMC0_D00–15, SYS_FAULT, SYS_FAULT, JTG_EMU, JTG_TDO, USB0_DM, USB0_DP, USB0_ID, USB0_VBC, USB0_VBUS, DMC0_A00–13, DMC0_BA0–2, DMC0_CAS, DMC0_CS0, DMC0_DQ00–15, DMC0_LQDS, DMC0_LDQS, DMC0_UDQS, DMC0_UDQS, DMC0_LDM, DMC0_UDM, DMC0_ODT, DMC0_RAS, DMC0_WE, and TWI signals. 17 Applies to signals SMC0_AMS0, SMC0_ARE, SMC0_AWE, and when RSI pull-up resistors are enabled, PE10–13, 15 and PG00, 02, 03, 05. 18 Applies to all TWI signals. 19 Applies to all signals, except DMC0 and TWI signals. 20 Guaranteed, but not tested. 21 Applies to all DMC0 signals. 22 See the ADSP-BF60x Blackfin Processor Hardware Reference Manual for definition of deep sleep and hibernate operating modes. 23 Additional information can be found at Total Internal Power Dissipation on Page 57. 24 Applies to VDD_EXT, VDD_DMC, VDD_USB and VDD_TD supply signals only. Clock inputs are tied high or low. 2 Rev. A | Page 56 of 112 | February 2014 ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 Total Internal Power Dissipation IDDINT_CCLK_DYN (mA) = Table 19 × (ASFC0 + ASFC1) Total power dissipation has two components: The dynamic current of the PVP is determined by selecting the appropriate use case from Table 22. 1. Static, including leakage current (deep sleep) 2. Dynamic, due to transistor switching characteristics for each clock domain IDDINT_PVP_DYN (mA) = Table 22 Clock Current Many operating conditions can also affect power dissipation, including temperature, voltage, operating frequency, and processor activity. The following equation describes the internal current consumption. The dynamic clock currents provide the total power dissipated by all transistors switching in the clock paths. The power dissipated by each clock domain is dependent on voltage (VDD_INT), operating frequency and a unique scaling factor. IDDINT_TOT = IDDINT_CCLK_DYN + IDDINT_SYSCLK_DYN + IDDINT_SCLK0_DYN + IDDINT_SCLK1_DYN + IDDINT_DCLK_DYN + IDDINT_USBCLK_DYN + IDDINT_DMA_DR_DYN + IDDINT_DEEPSLEEP + IDDINT_PVP_DYN IDDINT_SYSCLK_DYN (mA) = 0.187 × fSYSCLK (MHz) × VDD_INT (V) IDDINT_SCLK0_DYN (mA) = 0.217 × fSCLK0 (MHz) × VDD_INT (V) IDDINT_SCLK1_DYN (mA) = 0.042 × fSCLK1 (MHz) × VDD_INT (V) IDDINT_DEEPSLEEP is the only item present that is part of the static power dissipation component. IDDINT_DEEPSLEEP is specified as a function of voltage (VDD_INT) and temperature (see Table 21). IDDINT_DCLK_DYN (mA) = 0.024 × fDCLK (MHz) × VDD_INT (V) There are eight different items that contribute to the dynamic power dissipation. These components fall into three broad categories: application-dependent currents, clock currents and data transmission currents. IDDINT_USBCLK_DYN (mA) = 5 mA (if USB enabled) Application-Dependent Current The application-dependent currents include the dynamic current in the core clock domain and the dynamic current of the PVP. Core clock (CCLK) use is subject to an activity scaling factor (ASF) that represents application code running on the processor cores and L1/L2 memories (Table 20). The ASF is combined with the CCLK frequency and VDD_INT dependent data in Table 19 to calculate this portion. The dynamic component of the USB clock is a unique case. The USB clock contributes a near constant current value when used. Data Transmission Current The data transmission current represents the power dissipated when transmitting data. This current is expressed in terms of data rate. The calculation is performed by adding the data rate (MB/s) of each DMA and core driven access to peripherals and L2/external memory. This number is then multiplied by a coefficient and VDD_INT. The following equation provides an estimate of all data transmission current. IDDINT_DMA_DR_DYN(mA) = 0.0578 × data rate (MB/s) × VDD_INT (V) For details on using this equation see the related Engineer Zone material. Table 19. CCLK Dynamic Current per core (mA, with ASF = 1) 500 1.190 97.9 1.200 98.8 1.225 101.5 Voltage (VDD_INT) 1.250 1.275 103.9 106.7 450 88.6 89.5 91.9 94.1 96.7 98.9 100.6 400 79.3 80.1 82.2 84.3 86.5 88.6 90.1 350 70.0 70.7 72.5 74.4 76.3 78.3 79.4 300 60.6 61.2 63.0 64.6 66.3 68.0 69.1 250 51.3 51.8 53.2 54.7 56.3 57.6 58.5 200 42.0 42.4 43.6 44.8 46.0 47.2 48.2 150 32.5 32.9 34.0 34.8 35.9 37.0 37.4 100 23.2 23.5 24.2 25.0 25.7 26.5 26.9 fCCLK (MHz) Rev. A | Page 57 of 112 | February 2014 1.300 109.3 1.320 110.8 ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 Table 20. Activity Scaling Factors (ASF) IDDINT Power Vector IDD-PEAK IDD-HIGH IDD-FULL-ON-TYP IDD-APP IDD-NOP IDD-IDLE ASF 1.34 1.25 1.00 0.86 0.72 0.14 Table 21. Static Current—IDD_DEEPSLEEP (mA) –40 1.190 1.7 1.200 1.8 1.225 2.2 Voltage (VDD_INT) 1.250 1.275 2.5 2.7 –20 4.0 4.2 4.6 5.1 0 8.4 9.0 9.6 10.6 11.5 12.5 13.4 25 19.0 19.8 21.5 23.2 25.3 27.2 29.0 40 29.9 31.7 34.4 36.8 40.0 42.8 45.4 55 46.6 48.9 52.4 56.4 60.6 65.0 68.1 70 66.4 70.4 75.5 80.6 86.2 92.4 97.9 85 93.9 99.3 105.9 113.0 120.7 128.9 136.4 100 137.2 144.2 153.6 163.4 173.9 185.1 194.1 105 153.8 162.4 172.5 183.4 195.2 207.5 217.5 115 193.3 203.7 216.2 229.5 243.9 258.6 271.1 125 236.1 247.2 261.8 277.3 294.0 311.9 326.4 TJ (°C) 5.6 Table 22. IDDINT_PVP_DYN (mA) PVP Activity Level High Medium Low PVPSF (PVP Scaling Factor) 42.4 20 0 Rev. A | Page 58 of 112 | February 2014 1.300 3.1 1.320 3.4 6.2 6.8 ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 PROCESSOR — ABSOLUTE MAXIMUM RATINGS Stresses greater than those listed in Table 23 may cause permanent damage to the device. These are stress ratings only. Functional operation of the device at these or any other conditions greater than those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. 3 The individual values cannot be combined for analysis of a single instance of overshoot or undershoot. The worst case observed value must fall within one of the specified voltages, and the total duration of the overshoot or undershoot (exceeding the 100% case) must be less than or equal to the corresponding duty cycle. ESD SENSITIVITY ESD (electrostatic discharge) sensitive device. Charged devices and circuit boards can discharge without detection. Although this product features patented or proprietary protection circuitry, damage may occur on devices subjected to high energy ESD. Therefore, proper ESD precautions should be taken to avoid performance degradation or loss of functionality. Table 23. Absolute Maximum Ratings Parameter Internal Supply Voltage (VDD_INT) External (I/O) Supply Voltage (VDD_EXT) Thermal Diode Supply Voltage (VDD_TD) DDR2 Controller Supply Voltage (VDD_DMC) USB PHY Supply Voltage (VDD_USB) Input Voltage1, 2, 3 TWI Input Voltage2, 4 USB0_Dx Input Voltage5 USB0_VBUS Input Voltage5 DDR2 Input Voltage6 Output Voltage Swing IOH/IOL Current per Signal1 Storage Temperature Range Junction Temperature Under Bias Rating –0.33 V to 1.32 V –0.33 V to 3.63 V –0.33 V to 3.63 V –0.33 V to 1.90 V –0.33 V to 3.63 V –0.33 V to 3.63 V –0.33 V to 5.50 V –0.33 V to 5.25 V –0.33 V to 6.00 V –0.33 V to 1.90 V –0.33 V to VDD_EXT + 0.5 V 12.5 mA (max) –65°C to +150°C +125°C PROCESSOR — PACKAGE INFORMATION The information presented in Figure 9 and Table 25 provides details about package branding. For a complete listing of product availability, see Automotive Products on Page 112. a ADSP-BF609 tppZccc vvvvvv.x n.n #yyww country_of_origin B 1 Applies to 100% transient duty cycle. Applies only when VDD_EXT is within specifications. When VDD_EXT is outside specifications, the range is VDD_EXT ± 0.2 V. 3 For other duty cycles see Table 24. 4 Applies to balls TWI_SCL and TWI_SDA. 5 If the USB is not used, connect USB0_Dx and USB0_VBUS according to Table 15 on Page 37. 6 Applies only when VDD_DMC is within specifications. When VDD_DMC is outside specifications, the range is VDD_DMC ± 0.2 V. 2 Table 24. Maximum Duty Cycle for Input Transient Voltage1, 2 Maximum Duty Cycle (%)2 100 50 40 25 20 15 10 VIN Min (V)3 –0.33 –0.50 –0.56 –0.67 –0.73 –0.80 –0.90 VIN Max (V)3 3.63 3.80 3.86 3.97 4.03 4.10 4.20 Figure 9. Product Information on Package Table 25. Package Brand Information Brand Key ADSP-BF609 t pp Z ccc vvvvvv.x n.n yyww 1 Applies to all signal balls with the exception of SYS_CLKIN, SYS_XTAL, SYS_EXT_WAKE, USB0_DP, USB0_DM, USB0_VBUS, TWI signals, and DMC0 signals. 2 Applies only when VDD_EXT is within specifications. When VDD_EXT is outside specifications, the range is VDD_EXT ± 0.2 V. Rev. A | Page 59 of 112 | February 2014 Field Description Product Model Temperature Range Package Type RoHS Compliant Designation See Ordering Guide Assembly Lot Code Silicon Revision Date Code ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 TIMING SPECIFICATIONS Specifications are subject to change without notice. Clock and Reset Timing Table 26 and Figure 10 describe clock and reset operations. Per the CCLK, SYSCLK, SCLK0, SCLK1, DCLK, and OCLK timing specifications in Table 17 on Page 53, combinations of SYS_CLKIN and clock multipliers must not select clock rates in excess of the processor’s maximum instruction rate. Table 26. Clock and Reset Timing VDD_EXT 1.8 V/3.3 V Nominal Parameter Min Max Unit Timing Requirements fCKIN SYS_CLKIN Frequency (using a crystal)1, 2, 3 20 50 MHz fCKIN SYS_CLKIN Frequency (using a crystal oscillator)1, 2, 3 20 60 MHz 1 tCKINL SYS_CLKIN Low Pulse tCKINH SYS_CLKIN High Pulse1 tWRST SYS_HWRST Asserted Pulse Width Low 4 6.67 ns 6.67 ns 11 × tCKIN ns 1 Applies to PLL bypass mode and PLL non bypass mode. The tCKIN period (see Figure 10) equals 1/fCKIN. 3 If the CGU_CTL.DF bit is set, the minimum fCKIN specification is 40 MHz. 4 Applies after power-up sequence is complete. See Table 27 and Figure 11 for power-up reset timing. 2 tCKIN SYS_CLKIN tCKINL tCKINH tWRST SYS_HWRST Figure 10. Clock and Reset Timing Rev. A | Page 60 of 112 | February 2014 ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 Power-Up Reset Timing In Figure 11, VDD_SUPPLIES are VDD_INT, VDD_EXT, VDD_DMC, VDD_USB, and VDD_TD. Table 27. Power-Up Reset Timing Parameter Min Max Unit Timing Requirement tRST_IN_PWR SYS_HWRST Deasserted after VDD_INT, VDD_EXT, VDD_DMC, VDD_USB, VDD_TD, and SYS_ CLKIN are Stable and Within Specification RESET tRST_IN_PWR CLKIN V DD_SUPPLIES Figure 11. Power-Up Reset Timing Rev. A | Page 61 of 112 | February 2014 11 × tCKIN ns ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 Asynchronous Read Table 28. Asynchronous Memory Read (BxMODE = b#00) Parameter Timing Requirements tSDATARE DATA in Setup Before SMC0_ARE High tHDATARE DATA in Hold After SMC0_ARE High tDARDYARE SMC0_ARDY Valid After SMC0_ARE Low1, 2 Switching Characteristics tADDRARE SMC0_Ax/SMC0_AMSx Assertion Before SMC0_ ARE Low3 SMC0_AOE Assertion Before SMC0_ARE Low tAOEARE tHARE Output4 Hold After SMC0_ARE High5 tWARE SMC0_ARE Active Low Width6 tDAREARDY SMC0_ARE High Delay After SMC0_ARDY Assertion1 VDD_EXT 1.8 V/3.3 V Nominal Max Min Unit 8.2 0 (RAT – 2.5) × tSCLK0 – 17.5 (PREST + RST + PREAT) × tSCLK0 – 2 ns (RST + PREAT) × tSCLK0 – 2 RHT × tSCLK0 –2 ns ns RAT × tSCLK0 – 2 2.5 × tSCLK0 3.5 × tSCLK0 + 17.5 1 SMC0_BxCTL.ARDYEN bit = 1. RAT value set using the SMC_BxTIM.RAT bits. 3 PREST, RST, and PREAT values set using the SMC_BxETIM.PREST bits, SMC_BxTIM.RST bits, and the SMC_BxETIM.PREAT bits. 4 Output signals are SMC0_Ax, SMC0_AMS, SMC0_AOE, SMC0_ABEx. 5 RHT value set using the SMC_BxTIM.RHT bits. 6 SMC0_BxCTL.ARDYEN bit = 0. 2 SMC0_ARE SMC0_AMSx ns ns ns tWARE tHARE tADDRARE SMC0_Ax tAOEARE SMC0_AOE tDARDYARE tDAREARDY SMC0_ARDY tSDATARE SMC0_Dx (DATA) Figure 12. Asynchronous Read Rev. A | Page 62 of 112 | February 2014 tHDATARE ns ns ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 Asynchronous Flash Read Table 29. Asynchronous Flash Read Parameter Switching Characteristics tAMSADV SMC0_Ax (Address)/SMC0_AMSx Assertion Before SMC0_NORDV Low1 SMC0_NORDV Active Low Width2 tWADV tDADVARE SMC0_ARE Low Delay From SMC0_NORDV High3 tHARE Output4 Hold After SMC0_ARE High5 6 tWARE SMC0_ARE Active Low Width7 Min VDD_EXT 1.8 V/3.3 V Nominal Max PREST × tSCLK0 – 2 ns RST × tSCLK0 – 2 PREAT × tSCLK0 – 2 RHT × tSCLK0 – 2 RAT × tSCLK0 – 2 ns ns ns ns 1 PREST value set using the SMC_BxETIM.PREST bits. RST value set using the SMC_BxTIM.RST bits. 3 PREAT value set using the SMC_BxETIM.PREAT bits. 4 Output signals are SMC0_Ax, SMC0_AMS, SMC0_AOE. 5 RHT value set using the SMC_BxTIM.RHT bits. 6 SMC0_BxCTL.ARDYEN bit = 0. 7 RAT value set using the SMC_BxTIM.RAT bits. 2 SMC0_Ax SMC0_AMSx (NOR_CE) tAMSADV tWADV SMC0_NORDV tDADVARE Unit tWARE tHARE SMC0_ARE (NOR_OE) SMC0_Dx (DATA) READ LATCHED DATA Figure 13. Asynchronous Flash Read Rev. A | Page 63 of 112 | February 2014 ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 Asynchronous Page Mode Read Table 30. Asynchronous Page Mode Read VDD_EXT 1.8 V /3.3 V Nominal Parameter Switching Characteristics tAV SMC0_Ax (Address) Valid for First Address Min Width1 tAV1 SMC0_Ax (Address) Valid for Subsequent SMC0_Ax (Address) Min Width SMC0_NORDV Active Low Width2 tWADV tHARE Output3 Hold After SMC0_ARE High4 5 tWARE SMC0_ARE Active Low Width6, 7 Min Max Unit (PREST + RST + PREAT + RAT) × tSCLK0 – 2 PGWS × tSCLK0 – 2 ns ns RST × tSCLK0 – 2 RHT × tSCLK0 – 2 (RAT + (Nw – 1) × PGWS) × tSCLK0 – 2 ns ns ns 1 PREST, RST, PREAT and RAT values set using the SMC_BxETIM.PREST bits, SMC_BxTIM.RST bits, SMC_BxETIM.PREAT bits, and the SMC_BxTIM.RAT bits. RST value set using the SMC_BxTIM.RST bits. 3 Output signals are SMC0_Ax, SMC0_AMSx, SMC0_AOE. 4 RHT value set using the SMC_BxTIM.RHT bits. 5 SMC_BxCTL.ARDYEN bit = 0. 6 RAT value set using the SMC_BxTIM.RAT bits. 7 Nw = Number of 16-bit data words read. 2 READ LATCHED DATA SMC0_Ax (ADDRESS) READ LATCHED DATA READ LATCHED DATA READ LATCHED DATA tAV tAV1 tAV1 tAV1 A0 A0 + 1 A0 + 2 A0 + 3 SMC0_AMSx (NOR_CE) SMC0_AOE NOR_ADV tWADV tWARE SMC0_ARE (NOR_OE) tHARE SMC0_Dx (DATA) D0 D1 Figure 14. Asynchronous Page Mode Read Rev. A | Page 64 of 112 | February 2014 D2 D3 ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 Synchronous Burst Flash Read f SCLK0 f NRCLKPROG = ---------------------------( BCLK + 1 ) In synchronous burst mode the programmed NOR burst clock (fNRCLKPROG) frequency in MHz is set by the following equation where BCLK is a field in the SMC_BxCTL register that can be set from 0 to 3: 1 t NRCLKPROG = ------------------------------f NRPCLKPROG Table 31. Synchronous Burst AC Timing (BxMODE = b#11) Parameter Timing Requirements tNDS DATA-In Setup Before SMC0_NORCLK High tNDH DATA-In Hold After SMC0_NORCLK High tNWS WAIT-In Setup Before SMC0_NORCLK High WAIT-In Hold After SMC0_NORCLK High tNWH Switching Characteristics tNRCLS NOR_CLK Low Period1 tNRCHS NOR_CLK High Period1 tNRCLK NOR_CLK Period1 tNDO Output Delay After SMC0_NORCLK High2 Output Hold After SMC0_NORCLK High2 tNHO 1 2 Min VDD_EXT 1.8 V/3.3 V Nominal Max Unit 3 1.5 3 1.5 ns ns ns ns 0.5 × tNRCLKPROG – 1 0.5 × tNRCLKPROG – 1 tNRCLKPROG – 1 ns ns ns ns ns 6 0.8 See Table 17 on Page 53 in Clock Related Operating Conditions for details on the minimum period that may be programmed for tNRCLKPROG. Output = SMC0_Ax (address), SMC0_NORDV, SMC0_ARE, SMC0_AMSx (N0R_CE). Rev. A | Page 65 of 112 | February 2014 ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 SMC0_NORCLK tNRCLS tNDO tNDO tNRCLK tNRCHS SMC0_AMSx tNHO tNDO SMC0_ABE1-0 tNDO tNHO SMC0_Ax (ADDRESS) tNDH tNDH tNDS tNDS SMC0_Dx (DATA) Dn Dn+1 Dn+2 Dn+3 tNDO tNDO SMC0_NORDV SMC0_AOE tNWS tNWH SMC0_NORWT tNDO tNDO SMC0_ARE NOR_OE NOTE: SMC0_NORCLK dotted line represents a free running version of SMC0_NORCLK that is not visible on the SMC0_NORCLK pin. Figure 15. Synchronous Burst AC Interface Timing Rev. A | Page 66 of 112 | February 2014 ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 Asynchronous Write Table 32. Asynchronous Memory Write (BxMODE = b#00) Parameter Timing Requirement tDARDYAWE1 SMC0_ARDY Valid After SMC0_AWE Low2 Min VDD_EXT 1.8 V/3.3 V Nominal Max (WAT – 2.5) × tSCLK0 – 17.5 Switching Characteristics tENDAT DATA Enable After SMC0_AMSx Assertion tDDAT DATA Disable After SMC0_AMSx Deassertion tAMSAWE SMC0_Ax/SMC0_AMSx Assertion Before SMC0_AWE Low3 tHAWE Output4 Hold After SMC0_AWE High5 6 tWAWE SMC0_AWE Active Low Width2 tDAWEARDY1 SMC0_AWE High Delay After SMC0_ARDY Assertion –3 ns (PREST + WST + PREAT) × tSCLK0 – 2 ns ns ns WHT × tSCLK0 – 2 WAT × tSCLK0 – 2 2.5 × tSCLK0 ns ns ns 3 3.5 × tSCLK0 + 17.5 1 SMC_BxCTL.ARDYEN bit = 1. 2 WAT value set using the SMC_BxTIM.WAT bits. 3 PREST, WST, PREAT values set using the SMC_BxETIM.PREST bits, SMC_BxTIM.WST bits, SMC_BxETIM.PREAT bits, and the SMC_BxTIM.RAT bits. 4 Output signals are DATA, SMC0_Ax, SMC0_AMSx, SMC0_ABEx. 5 WHT value set using the SMC_BxTIM.WHT bits. 6 SMC_BxCTL.ARDYEN bit = 0. SMC0_AWE SMC0_ABEx SMC0_Ax tAMSAWE Unit tWAWE tHAWE SMC0_ARDY tDARDYAWE tDAWEARDY SMC0_AMSx SMC0_Dx (DATA) tDDAT tENDAT Figure 16. Asynchronous Write Rev. A | Page 67 of 112 | February 2014 ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 Asynchronous Flash Write Table 33. Asynchronous Flash Write Parameter Switching Characteristics tAMSADV SMC0_Ax/SMC0_AMSx Assertion Before ADV Low1 tDADVAWE SMC0_AWE Low Delay From ADV High2 tWADV NR_ADV Active Low Width3 tHAWE Output4 Hold After SMC0_AWE High5 6 tWAWE SMC0_AWE Active Low Width7 Min VDD_EXT 1.8 V/3.3 V Nominal Max Unit PREST × tSCLK0 – 2 PREAT × tSCLK0 – 2 WST × tSCLK0 – 2 WHT × tSCLK0 – 2 WAT × tSCLK0 – 2 ns ns ns ns ns 1 PREST value set using the SMC_BxETIM.PREST bits. PREAT value set using the SMC_BxETIM.PREAT bits. 3 WST value set using the SMC_BxTIM.WST bits. 4 Output signals are DATA, SMC0_Ax, SMC0_AMSx, SMC0_ABEx. 5 WHT value set using the SMC_BxTIM.WHT bits. 6 SMC_BxCTL.ARDYEN bit = 0. 7 WAT value set using the SMC_BxTIM.WAT bits. 2 NOR_A 25-1 (SMC0_Ax) NR_CE (SMC0_AMSx) tAMSADV tWADV NR_ADV (SMC0_AOE) tDADVAWE tWAWE tHAWE NR_WE (SMC0_AWE) NR_DQ 15-0 (SMC0_Dx) Figure 17. Asynchronous Flash Write All Accesses Table 34. All Accesses Parameter Switching Characteristic tTURN SMC0_AMSx Inactive Width Min VDD_EXT 1.8 V/3.3 V Nominal Max (IT + TT) × tSCLK0 – 2 Rev. A | Page 68 of 112 | February 2014 Unit ns ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 Bus Request/Bus Grant Table 35. Bus Request/Bus Grant Parameter Switching Characteristics tDBGBR SMC0_BG Delay After SMC0_BR tENGDAT DATA Enable After SMC0_BG Deassertion tDBGDAT DATA Disable After SMC0_BG Assertion VDD_EXT 1.8 V/3.3 V Nominal Max Min 2.5 × tSCLK0 –3 3.5 × tSCLK0 + 17.5 3 Unit ns ns ns SMC0_BR tDBGBR SMC0_BG tDBGDAT tENGDAT SMC0 DATA/ADDRESS CONTROL Figure 18. Bus Request/Bus Grant DDR2 SDRAM Clock and Control Cycle Timing Table 36. DDR2 SDRAM Read Cycle Timing, VDD_DMC Nominal 1.8 V Parameter Switching Characteristics tCK Clock Cycle Time (CL = 2 Not Supported) tCH Minimum Clock Pulse Width tCL Maximum Clock Pulse Width tIS Control/Address Setup Relative to DMC0_CK Rise tIH Control/Address Hold Relative to DMC0_CK Rise tCK 250 MHz Max Min 4 0.45 0.45 350 475 0.55 0.55 tCH tCL DMC0_CK DMC0_CK tIS tIH DMC0_Ax DMC0 CONTROL NOTE: CONTROL = DMC0_CS0, DMC0_CKE, DMC0_RAS, DMC0_CAS, AND DMC0_WE. ADDRESS = DMC0_A00-13, AND DMC0_BA0-1. Figure 19. DDR2 SDRAM Clock and Control Cycle Timing Rev. A | Page 69 of 112 | February 2014 Unit ns tCK tCK ps ps ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 DDR2 SDRAM Read Cycle Timing Table 37. DDR2 SDRAM Read Cycle Timing, VDD_DMC Nominal 1.8 V Parameter Timing Requirements tDQSQ tQH tRPRE tRPST 1 Min DMC0_DQS-DMC0_DQ Skew for DMC0_DQS and Associated DMC0_ DQ Signals DMC0_DQ, DMC0_DQS Output Hold Time From DMC0_DQS Read Preamble Read Postamble In order to ensure proper operation of the DDR2, all the DDR2 guidelines have to be strictly followed. tCK tCH tCL DMC0_CKx DMC0_CKx tAS tAH DMC0_Ax DMC0 CONTROL tRPRE tAC tDQSCK DMC0_DQSn DMC0_DQSn tDQSQ tDQSQ tQH tRPST tQH DMC0_DQx Figure 20. DDR2 SDRAM Controller Input AC Timing Rev. A | Page 70 of 112 | February 2014 250 MHz1 Max 0.35 1.6 0.9 0.4 Unit ns ns tCK tCK ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 DDR2 SDRAM Write Cycle Timing Table 38. DDR2 SDRAM Write Cycle Timing, VDD_DMC Nominal 1.8 V Parameter Switching Characteristics tDQSS2 DMC0_DQS Latching Rising Transitions to Associated Clock Edges tDS tDH tDSS tDSH tDQSH tDQSL tWPRE tWPST tIPW tDIPW 1 2 Last Data Valid to DMC0_DQS Delay DMC0_DQS to First Data Invalid Delay DMC0_DQS Falling Edge to Clock Setup Time DMC0_DQS Falling Edge Hold Time From DMC0_CK DMC0_DQS Input High Pulse Width DMC0_DQS Input Low Pulse Width Write Preamble Write Postamble Address and Control Output Pulse Width DMC0_DQ and DMC0_DM Output Pulse Width Min –0.15 0.15 0.3 0.25 0.25 0.35 0.35 0.35 0.4 0.6 0.35 250 MHz1 Max 0.15 In order to ensure proper operation of the DDR2, all the DDR2 guidelines have to be strictly followed. Write command to first DMC0_DQS delay = WL × tCK + tDQSS. DMC0_CK DMC0_CK tIPW DMC0_Ax DMC0 CONTROL tDSH tDSS tDQSS DMC0_LDQS DMC0_UDQS tWPRE tDQSL tDS tDH DMC0_LDM DMC0_UDM Figure 21. DDR2 SDRAM Controller Output AC Timing Rev. A | Page 71 of 112 | February 2014 tDQSH tDIPW tWPST Unit tCK ns ns tCK tCK tCK tCK tCK tCK tCK tCK ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 Mobile DDR SDRAM Clock and Control Cycle Timing Table 39. Mobile DDR SDRAM Read Cycle Timing, VDD_DMC Nominal 1.8 V Parameter Switching Characteristics tCK Clock Cycle Time (CL = 2 Not Supported) tCH Minimum Clock Pulse Width tCL Maximum Clock Pulse Width tIS Control/Address Setup Relative to DMC0_CK Rise tIH Control/Address Hold Relative to DMC0_CK Rise 200 MHz Max Min 5 0.45 0.45 1 1 tCK Unit ns tCK tCK ns ns 0.55 0.55 tCH tCL DMC0_CK DMC0_CK tIS tIH DMC0_Ax DMC0 CONTROL NOTE: CONTROL = DMC0_CS0, DMC0_CKE, DMC0_RAS, DMC0_CAS, AND DMC0_WE. ADDRESS = DMC0_A00-13, AND DMC0_BA0-1. Figure 22. Mobile DDR SDRAM Clock and Control Cycle Timing Mobile DDR SDRAM Read Cycle Timing Table 40. Mobile DDR SDRAM Read Cycle Timing, VDD_DMC Nominal 1.8 V Parameter Timing Requirements tQH DMC0_DQ, DMC0_DQS Output Hold Time From DMC0_DQS tDQSQ DMC0_DQS-DMC0_DQ Skew for DMC0_DQS and Associated DMC0_DQ Signals Read Preamble tRPRE tRPST Read Postamble 200 MHz Max Min 1.75 0.9 0.4 DMC0_CK tRPRE tRPST DMC0_DQS tQH DMC0_DQS (DATA) Dn Dn+1 Dn+2 tDQSQ Figure 23. Mobile DDR SDRAM Controller Input AC Timing Rev. A | Page 72 of 112 | February 2014 Dn+3 Unit 0.4 ns ns 1.1 0.6 tCK tCK ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 Mobile DDR SDRAM Write Cycle Timing Table 41. Mobile DDR SDRAM Write Cycle Timing, VDD_DMC Nominal 1.8 V Parameter Switching Characteristics tDQSS1 DMC0_DQS Latching Rising Transitions to Associated Clock Edges tDS Last Data Valid to DMC0_DQS Delay (Slew > 1 V/ns) tDH DMC0_DQS to First Data Invalid Delay (Slew > 1 V/ns) tDSS DMC0_DQS Falling Edge to Clock Setup Time tDSH DMC0_DQS Falling Edge Hold Time From DMC0_CK tDQSH DMC0_DQS Input High Pulse Width tDQSL DMC0_DQS Input Low Pulse Width tWPRE Write Preamble tWPST Write Postamble tIPW Address and Control Output Pulse Width tDIPW DMC0_DQ and DMC0_DM Output Pulse Width 1 Min 200 MHz Max 0.75 0.48 0.48 0.2 0.2 0.4 0.4 0.25 0.4 2.3 1.8 1.25 Write command to first DMC0_DQS delay = WL × tCK + tDQSS. DMC0_CK tDSS tDSH tDQSS DMC0_DQS0-1 tWPRE tDS tDQSL tDH tDQSH tWPST tDIPW DMC0_DQ0-15/ DMC0_DQM0-1 Dn Dn+1 Dn+2 Dn+3 tDIPW DMC0 CONTROL Write CMD NOTE: CONTROL = DMC0_CS0, DMC0_CKE, DMC0_RAS, DMC0_CAS, AND DMC0_WE. ADDRESS = DMC0_A00-13, AND DMC0_BA0-1. tIPW Figure 24. Mobile DDR SDRAM Controller Output AC Timing Rev. A | Page 73 of 112 | February 2014 Unit tCK ns ns tCK tCK tCK tCK tCK tCK ns ns ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 Enhanced Parallel Peripheral Interface Timing f SCLK0 f PCLKPROG = -------------------------------( VALUE + 1 ) The following tables and figures describe enhanced parallel peripheral interface timing operations. The POLC bits in the EPPI_CTL register may be used to set the sampling/driving edges of the EPPI clock. 1 t PCLKPROG = -----------------------f PCLKPROG When internally generated, the programmed PPI clock (fPCLKPROG) frequency in MHz is set by the following equation where VALUE is a field in the EPPI_CLKDIV register that can be set from 0 to 65535: When externally generated the EPPI_CLK is called fPCLKEXT: 1 t PCLKEXT = -------------------f PCLKEXT Table 42. Enhanced Parallel Peripheral Interface—Internal Clock Parameter Timing Requirements tSFSPI External FS Setup Before EPPI_CLK External FS Hold After EPPI_CLK tHFSPI tSDRPI Receive Data Setup Before EPPI_CLK tHDRPI Receive Data Hold After EPPI_CLK tSFS3GI External FS3 Input Setup Before EPPI_CLK Fall Edge in Clock Gating Mode tHFS3GI External FS3 Input Hold Before EPPI_CLK Fall Edge in Clock Gating Mode Switching Characteristics tPCLKW EPPI_CLK Width1 tPCLK EPPI_CLK Period1 tDFSPI Internal FS Delay After EPPI_CLK tHOFSPI Internal FS Hold After EPPI_CLK tDDTPI Transmit Data Delay After EPPI_CLK Transmit Data Hold After EPPI_CLK tHDTPI 1 VDD_EXT 1.8 V Nominal Max Min VDD_EXT 3.3 V Nominal Min 6.5 0 6.5 0 14 ns ns ns ns ns 0 0 ns 0.5 × tPCLKPROG – 1 tPCLKPROG – 1 0.5 × tPCLKPROG – 1 tPCLKPROG – 1 ns ns ns ns ns ns 3.5 –0.5 3.5 –0.5 3.5 –0.5 3.5 –0.5 DATA SAMPLED POLC[1:0] = 10 EPPI_CLK POLC[1:0] = 01 tDFSPI tPCLKW tHOFSPI tPCLK EPPI_FS1/2 tSDRPI Unit 7.9 0 7.9 0 15.4 See Table 17 on Page 53 in Clock Related Operating Conditions for details on the minimum period that may be programmed for tPCLKPROG. FRAME SYNC DRIVEN Max tHDRPI EPPI_D00-23 Figure 25. PPI Internal Clock GP Receive Mode with Internal Frame Sync Timing Rev. A | Page 74 of 112 | February 2014 ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 FRAME SYNC DRIVEN DATA DRIVEN DATA DRIVEN tPCLK POLC[1:0] = 11 EPPI_CLK POLC[1:0] = 00 tDFSPI tPCLKW tHOFSPI EPPI_FS1/2 tHDTPI tDDTPI EPPI_D00-23 Figure 26. PPI Internal Clock GP Transmit Mode with Internal Frame Sync Timing DATA SAMPLED / FRAME SYNC SAMPLED DATA SAMPLED / FRAME SYNC SAMPLED POLC[1:0] = 11 EPPI_CLK POLC[1:0] = 00 tSFSPI tPCLKW tHFSPI tPCLK EPPI_FS1/2 tSDRPI tHDRPI EPPI_D00-23 Figure 27. PPI Internal Clock GP Receive Mode with External Frame Sync Timing DATA DRIVEN / FRAME SYNC SAMPLED POLC[1:0] = 11 EPPI_CLK POLC[1:0] = 00 tSFSPI tHFSPI tPCLKW tPCLK EPPI_FS1/2 tDDTPI tHDTPI EPPI_D00-23 Figure 28. PPI Internal Clock GP Transmit Mode with External Frame Sync Timing EPPI_CLK tHFS3GI tSFS3GI EPPI_FS3 Figure 29. Clock Gating Mode with Internal Clock and External Frame Sync Timing Rev. A | Page 75 of 112 | February 2014 ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 Table 43. Enhanced Parallel Peripheral Interface—External Clock Parameter Timing Requirements tPCLKW EPPI_CLK Width1 EPPI_CLK Period1 tPCLK tSFSPE External FS Setup Before EPPI_CLK tHFSPE External FS Hold After EPPI_CLK tSDRPE Receive Data Setup Before EPPI_CLK tHDRPE Receive Data Hold After EPPI_CLK Switching Characteristics Internal FS Delay After EPPI_CLK tDFSPE tHOFSPE Internal FS Hold After EPPI_CLK tDDTPE Transmit Data Delay After EPPI_CLK tHDTPE Transmit Data Hold After EPPI_CLK 1 VDD_EXT 1.8 V Nominal Max Min (0.5 × tPCLKEXT) – 1.25 tPCLKEXT – 1.25 2 3.7 2 3.7 VDD_EXT 3.3 V Nominal Min Max (0.5 × tPCLKEXT) – 1.25 tPCLKEXT – 1.25 2 3.7 2 3.7 20.1 2.4 ns ns ns ns ns ns 15.3 2.4 20.1 2.4 15.3 2.4 Unit ns ns ns ns This specification indicates the minimum instantaneous width or period that can be tolerated due to duty cycle variation or jitter on the external EPPI_CLK. For the external EPPI_CLK ideal maximum frequency see the fPCLKEXT specification in Table 17 on Page 53. FRAME SYNC DRIVEN DATA SAMPLED POLC[1:0] = 10 EPPI_CLK POLC[1:0] = 01 tDFSPE tPCLKW tHOFSPE tPCLK EPPI_FS1/2 tSDRPE tHDRPE EPPI_D00-23 Figure 30. PPI External Clock GP Receive Mode with Internal Frame Sync Timing FRAME SYNC DRIVEN DATA DRIVEN DATA DRIVEN tPCLK POLC[1:0] = 11 EPPI_CLK POLC[1:0] = 00 tDFSPE tPCLKW tHOFSPE EPPI_FS1/2 tDDTPE tHDTPE EPPI_D00-23 Figure 31. PPI External Clock GP Transmit Mode with Internal Frame Sync Timing Rev. A | Page 76 of 112 | February 2014 ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 DATA SAMPLED / FRAME SYNC SAMPLED DATA SAMPLED / FRAME SYNC SAMPLED POLC[1:0] = 11 EPPI_CLK POLC[1:0] = 00 tSFSPE tPCLKW tHFSPE tPCLK EPPI_FS1/2 tSDRPE tHDRPE EPPI_D00-23 Figure 32. PPI External Clock GP Receive Mode with External Frame Sync Timing DATA DRIVEN / FRAME SYNC SAMPLED POLC[1:0] = 11 EPPI_CLK POLC[1:0] = 00 tSFSPE tHFSPE tPCLKW tPCLK EPPI_FS1/2 tDDTPE tHDTPE EPPI_D00-23 Figure 33. PPI External Clock GP Transmit Mode with External Frame Sync Timing Rev. A | Page 77 of 112 | February 2014 ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 Link Ports In the case where VALUE = 0, fLCLKTPROG = fSCLK0. For all settings of VALUE the following equation also holds: In link port receive mode the link port clock is supplied externally and is called fLCLKREXT: 1 t LCLKREXT = ----------------------f LCLKREXT 1 t LCLKTPROG = --------------------------f LCLKTPROG Calculation of link receiver data setup and hold relative to link clock is required to determine the maximum allowable skew that can be introduced in the transmission path length difference between LP_Dx (data) and LP_CLK. Setup skew is the maximum delay that can be introduced in LP_Dx relative to LP_CLK: (setup skew = tLCLKTWH min – tDLDCH – tSLDCL). Hold skew is the maximum delay that can be introduced in LP_CLK relative to LP_Dx: (hold skew = tLCLKTWL min – tHLDCH – tHLDCL). In link port transmit mode the programmed link port clock (fLCLKTPROG) frequency in MHz is set by the following equation where VALUE is a field in the LP_DIV register that can be set from 1 to 255: f SCLK0 f LCLKTPROG = -------------------------------( VALUE × 2 ) Table 44. Link Ports—Receive Parameter Timing Requirements tSLDCL Data Setup Before LP_CLK Low tHLDCL Data Hold After LP_CLK Low tLCLKIW LP_CLK Period1 LP_CLK Width Low1 tLCLKRWL tLCLKRWH LP_CLK Width High1 Switching Characteristic tDLALC LP_ACK Low Delay After LP_CLK Low2 1 2 VDD_EXT 1.8 V Nominal/3.3 V Nominal Max Min 2 3 tLCLKREXT – 1.5 (0.5 × tLCLKREXT) – 1.5 (0.5 × tLCLKREXT) – 1.5 Unit ns ns ns ns ns 1.5 × tSCLK0 + 4 2.5 × tSCLK0 + 12 ns This specification indicates the minimum instantaneous width or period that can be tolerated due to duty cycle variation or jitter on the external LP_CLK. For the external LP_CLK ideal maximum frequency see the fLCLKTEXT specification in Table 17 on Page 53 in Clock Related Operating Conditions. LP_ACK goes low with tDLALC relative to rise of LP_CLK after first byte, but does not go low if the receiver's link buffer is not about to fill. tLCLKIW tLCLKRWH tLCLKRWL LP_CLK tHLDCL tSLDCL LP_D7–0 IN tDLALC LP_ACK (OUT) Figure 34. Link Ports—Receive Rev. A | Page 78 of 112 | February 2014 ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 Table 45. Link Ports—Transmit Parameter Timing Requirements tSLACH LP_ACK Setup Before LP_CLK Low tHLACH LP_ACK Hold After LP_CLK Low Switching Characteristics Data Delay After LP_CLK High tDLDCH tHLDCH Data Hold After LP_CLK High tLCLKTWL1 LP_CLK Width Low 1 tLCLKTWH LP_CLK Width High tLCLKTW1 LP_CLK Period tDLACLK LP_CLK Low Delay After LP_ACK High 1 Min VDD_EXT 1.8 V Nominal Max Min 2 × tSCLK0 + 17.5 0 VDD_EXT 3.3 V Nominal Max 2 × tSCLK0 + 13.5 0 2.5 –1.5 0.4 × tLCLKTPROG 0.4 × tLCLKTPROG tLCLKTPROG – 1.2 tSCLK0 + 4 ns ns 2.5 0.6 × tLCLKTPROG 0.6 × tLCLKTPROG (2 × tSCLK0) + tLCLK + 10 –1.5 0.4 × tLCLKTPROG 0.4 × tLCLKTPROG tLCLKTPROG – 1.2 tSCLK0 + 4 0.6 × tLCLKTPROG 0.6 × tLCLKTPROG (2 × tSCLK0) + tLCLK + 10 See Table 17 on Page 53 in Clock Related Operating Conditions for details on the minimum period that may be programmed for tLCLKTPROG. tLCLKTWH tLCLKTWL LAST BYTE TRANSMITTED FIRST BYTE TRANSMITTED1 LP_CLK tDLDCH tHLDCH LP_Dx (DATA) OUT tSLACH tHLACH tDLACLK LP_ACK (IN) NOTES The tSLACH and tHLACH specifications apply only to the LP_ACK falling edge. If these specifications are met, LP_CLK would extend and the dotted LP_CLK falling edge would not occur as shown. The position of the dotted falling edge can be calculated using the tLCLKTWH specification. tLCLKTWH Min should be used for tSLACH and tLCLKTWH Max for tHLACH. Figure 35. Link Ports—Transmit Rev. A | Page 79 of 112 | February 2014 Unit ns ns ns ns ns ns ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 Serial Ports To determine whether communication is possible between two devices at clock speed n, the following specifications must be confirmed: 1) frame sync delay and frame sync setup and hold, 2) data delay and data setup and hold, and 3) serial clock (SPT_CLK) width. In Figure 36 either the rising edge or the falling edge of SPT_CLK (external or internal) can be used as the active sampling edge. When internally generated, the programmed SPORT clock (fSPTCLKPROG) frequency in MHz is set by the following equation where CLKDIV is a field in the SPORT_DIV register that can be set from 0 to 65535: f SCLK1 f SPTCLKPROG = ------------------------------------ ( CLKDIV + 1 ) When externally generated the SPORT clock is called fSPTCLKEXT: 1 t SPTCLKPROG = ----------------------------------f SPTCLKPROG 1 t SPTCLKEXT = -----------------------------f SPTCLKEXT Table 46. Serial Ports—External Clock VDD_EXT 1.8 V Nominal Parameter Timing Requirements tSFSE Frame Sync Setup Before SPT_CLK (Externally Generated Frame Sync in either Transmit or Receive Mode)1 tHFSE Frame Sync Hold After SPT_CLK (Externally Generated Frame Sync in either Transmit or Receive Mode)1 tSDRE Receive Data Setup Before Receive SPT_CLK1 tHDRE Receive Data Hold After SPT_CLK1 tSCLKW SPT_CLK Width2 tSPTCLK SPT_CLK Period2 Switching Characteristics tDFSE Frame Sync Delay After SPT_CLK (Internally Generated Frame Sync in either Transmit or Receive Mode)3 tHOFSE Frame Sync Hold After SPT_CLK (Internally Generated Frame Sync in either Transmit or Receive Mode)3 tDDTE Transmit Data Delay After Transmit SPT_CLK3 tHDTE Transmit Data Hold After Transmit SPT_CLK3 Min VDD_EXT 3.3 V Nominal Max Min Max Unit 2 2 ns 2.7 2.7 ns 2 2.7 (0.5 × tSPTCLKEXT) – 1.5 tSPTCLKEXT – 1.5 2 2.7 (0.5 × tSPTCLKEXT) – 1.5 tSPTCLKEXT – 1.5 ns ns ns ns 19.3 2 14.5 2 18.8 2 1 ns 14 2 ns ns ns Referenced to sample edge. 2 This specification indicates the minimum instantaneous width or period that can be tolerated due to duty cycle variation or jitter on the external SPT_CLK. For the external SPT_CLK ideal maximum frequency see the fSPTCLKEXT specification in Table 17 on Page 53 in Clock Related Operating Conditions. 3 Referenced to drive edge. Rev. A | Page 80 of 112 | February 2014 ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 Table 47. Serial Ports—Internal Clock Parameter Timing Requirements tSFSI Frame Sync Setup Before SPT_CLK (Externally Generated Frame Sync in either Transmit or Receive Mode)1 tHFSI Frame Sync Hold After SPT_CLK (Externally Generated Frame Sync in either Transmit or Receive Mode)1 tSDRI Receive Data Setup Before SPT_CLK1 Receive Data Hold After SPT_CLK1 tHDRI Switching Characteristics tDFSI Frame Sync Delay After SPT_CLK (Internally Generated Frame Sync in Transmit or Receive Mode)2 tHOFSI Frame Sync Hold After SPT_CLK (Internally Generated Frame Sync in Transmit or Receive Mode)2 tDDTI Transmit Data Delay After SPT_CLK2 tHDTI Transmit Data Hold After SPT_CLK2 tSCLKIW SPT_CLK Width3 tSPTCLK SPT_CLK Period3 Min VDD_EXT 1.8 V Nominal Max 16.8 VDD_EXT 3.3 V Nominal Min Max Unit 12 ns 0 –0.5 ns 4.8 1.5 3.4 1.5 3.5 –1 ns ns 3.5 –1 3.5 –1 0.5 × tSPTCLKPROG – 1.5 tSPTCLKPROG – 1.5 1 Referenced to the sample edge. Referenced to drive edge. 3 See Table 17 on Page 53 in Clock Related Operating Conditions for details on the minimum period that may be programmed for tSPTCLKPROG. 2 Rev. A | Page 81 of 112 | February 2014 ns 3.5 –1 0.5 × tSPTCLKPROG – 1.5 tSPTCLKPROG – 1.5 ns ns ns ns ns ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 DATA RECEIVE—INTERNAL CLOCK DRIVE EDGE DATA RECEIVE—EXTERNAL CLOCK SAMPLE EDGE DRIVE EDGE tSCLKIW SPT_A/BCLK (SPORT CLOCK) SPT_A/BCLK (SPORT CLOCK) tDFSI tDFSE tSFSI tHOFSI tHFSI tSFSE tHFSE tSDRE tHDRE tHOFSE SPT_A/BFS (FRAME SYNC) SPT_A/BFS (FRAME SYNC) tSDRI tHDRI SPT_A/BDx (DATA CHANNEL A/B) SPT_A/BDx (DATA CHANNEL A/B) DATA TRANSMIT—INTERNAL CLOCK DRIVE EDGE DATA TRANSMIT—EXTERNAL CLOCK SAMPLE EDGE DRIVE EDGE tSCLKIW SAMPLE EDGE tSCLKW SPT_A/BCLK (SPORT CLOCK) SPT_A/BCLK (SPORT CLOCK) tDFSI tDFSE tHOFSI tSFSI tHFSI tSFSE tHOFSE SPT_A/BFS (FRAME SYNC) SPT_A/BFS (FRAME SYNC) tDDTI tDDTE tHDTI SPT_A/BDx (DATA CHANNEL A/B) SAMPLE EDGE tSCLKW tHDTE SPT_A/BDx (DATA CHANNEL A/B) Figure 36. Serial Ports Rev. A | Page 82 of 112 | February 2014 tHFSE ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 Table 48. Serial Ports—Enable and Three-State Parameter Switching Characteristics tDDTEN Data Enable from External Transmit SPT_CLK1 Data Disable from External Transmit SPT_CLK1 tDDTTE tDDTIN Data Enable from Internal Transmit SPT_CLK1 tDDTTI Data Disable from Internal Transmit SPT_CLK1 1 Min VDD_EXT 1.8 V Nominal Max 1 VDD_EXT 3.3 V Nominal Min Max 1 18.8 –1 14 –1 2.8 2.8 Referenced to drive edge. DRIVE EDGE DRIVE EDGE SPT_CLK (SPORT CLOCK EXTERNAL) tDDTEN tDDTTE SPT_A/BDx (DATA CHANNEL A/B) DRIVE EDGE DRIVE EDGE SPT_CLK (SPORT CLOCK INTERNAL) tDDTIN tDDTTI SPT_A/BDx (DATA CHANNEL A/B) Figure 37. Serial Ports—Enable and Three-State Rev. A | Page 83 of 112 | February 2014 Unit ns ns ns ns ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 The SPT_TDV output signal becomes active in SPORT multichannel mode. During transmit slots (enabled with active channel selection registers) the SPT_TDV is asserted for communication with external devices. Table 49. Serial Ports—TDV (Transmit Data Valid) VDD_EXT 1.8 V Nominal Min Max Parameter Switching Characteristics tDRDVEN Data-Valid Enable Delay from Drive Edge of External Clock1 2 tDFDVEN Data-Valid Disable Delay from Drive Edge of External Clock1 tDRDVIN Data-Valid Enable Delay from Drive Edge of Internal Clock1 –1 Data-Valid Disable Delay from Drive Edge of Internal Clock1 tDFDVIN 1 Max 2 14 –1 3.5 DRIVE EDGE DRIVE EDGE SPT_CLK (SPORT CLOCK EXTERNAL) tDFDVEN SPT_A/BTDV DRIVE EDGE DRIVE EDGE SPT_CLK (SPORT CLOCK INTERNAL) tDRDVIN Min 18.8 Referenced to drive edge. tDRDVEN VDD_EXT 3.3 V Nominal tDFDVIN SPT_A/BTDV Figure 38. Serial Ports—Transmit Data Valid Internal and External Clock Rev. A | Page 84 of 112 | February 2014 3.5 Unit ns ns ns ns ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 Table 50. Serial Ports—External Late Frame Sync VDD_EXT 1.8 V Nominal Min Max Parameter Switching Characteristics tDDTLFSE Data Delay from Late External Transmit Frame Sync or External Receive Frame Sync with MCE = 1, MFD = 01 tDDTENFS Data Enable for MCE = 1, MFD = 01 0.5 1 VDD_EXT 3.3 V Nominal Min 18.8 0.5 The tDDTLFSE and tDDTENFS parameters apply to left-justified as well as standard serial mode, and MCE = 1, MFD = 0. DRIVE SAMPLE DRIVE SPT_A/BCLK (SPORT CLOCK) tHFSE/I tSFSE/I SPT_A/BFS (FRAME SYNC) tDDTE/I tDDTENFS SPT_A/BDx (DATA CHANNEL A/B) tHDTE/I 1ST BIT tDDTLFSE Figure 39. External Late Frame Sync Rev. A | Page 85 of 112 | February 2014 2ND BIT Max Unit 14 ns ns ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 Note that: Serial Peripheral Interface (SPI) Port—Master Timing • In dual mode data transmit the SPI_MISO signal is also an output. Table 51 and Figure 40 describe SPI port master operations. When internally generated, the programmed SPI clock (fSPICLKPROG) frequency in MHz is set by the following equation where BAUD is a field in the SPI_CLK register that can be set from 0 to 65535: • In quad mode data transmit the SPI_MISO, SPI_D2, and SPI_D3 signals are also outputs. • In dual mode data receive the SPI_MOSI signal is also an input. f SCLK1 f SPICLKPROG = ------------------------------ • In quad mode data receive the SPI_MOSI, SPI_D2, and SPI_D3 signals are also inputs. ( BAUD + 1 ) 1 t SPICLKPROG = --------------------------------f SPICLKPROG • To add additional frame delays see the documentation for the SPI_DLY register in the hardware reference manual. Table 51. Serial Peripheral Interface (SPI) Port—Master Timing VDD_EXT 3.3 V Nominal VDD_EXT 1.8 V Nominal Min Parameter Max Min Max Unit Timing Requirements tSSPIDM Data Input Valid to SPI_CLK Edge (Data Input 4.6 Setup) 3.2 ns tHSPIDM SPI_CLK Sampling Edge to Data Input Invalid 1.3 1.3 ns 0.5 × tSCLK1 – 2 0.5 × tSCLK1 – 2 ns 0.5 × tSPICLKPROG – 1.5 0.5 × tSPICLKPROG – 1.5 ns 0.5 × tSPICLKPROG – 1.5 0.5 × tSPICLKPROG – 1.5 ns Switching Characteristics tSDSCIM SPI_SEL low to First SPI_CLK Edge 1 tSPICHM SPI_CLK High Period tSPICLM SPI_CLK Low Period1 1 tSPICLK SPI_CLK Period tSPICLKPROG – 1.5 tSPICLKPROG – 1.5 ns tHDSM Last SPI_CLK Edge to SPI_SEL High (0.5 × tSCLK1 ) – 1.5 (0.5 × tSCLK1 ) – 1.5 ns tSPITDM Sequential Transfer Delay tSCLK1 – 1.5 tDDSPIDM SPI_CLK Edge to Data Out Valid (Data Out Delay) tHDSPIDM SPI_CLK Edge to Data Out Invalid (Data Out –1 Hold) 1 tSCLK1 – 1.5 2.6 –1 See Table 17 on Page 53 in Clock Related Operating Conditions for details on the minimum period that may be programmed for tSPICLKPROG. Rev. A | Page 86 of 112 | February 2014 ns 2.6 ns ns ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 SPI_SEL (OUTPUT) tSDSCIM tSPICLM tSPICHM tSPICLK tHDSM SPI_CLK (OUTPUT) tHDSPIDM tDDSPIDM DATA OUTPUTS (SPI_MOSI) tSSPIDM CPHA = 1 tHSPIDM DATA INPUTS (SPI_MISO) tHDSPIDM tDDSPIDM DATA OUTPUTS (SPI_MOSI) CPHA = 0 tSSPIDM tHSPIDM DATA INPUTS (SPI_MISO) Figure 40. Serial Peripheral Interface (SPI) Port—Master Timing Rev. A | Page 87 of 112 | February 2014 tSPITDM ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 Serial Peripheral Interface (SPI) Port—Slave Timing Table 52 and Figure 41 describe SPI port slave operations. Note that: • In quad mode data receive the SPI_MISO, SPI_D2, and SPI_D3 signals are also inputs. • In dual mode data transmit the SPI_MOSI signal is also an output. • In SPI slave mode the SPI clock is supplied externally and is called fSPICLKEXT: • In quad mode data transmit the SPI_MOSI, SPI_D2, and SPI_D3 signals are also outputs. 1 t SPICLKEXT = ----------------------------f SPICLKEXT • In dual mode data receive the SPI_MISO signal is also an input. Table 52. Serial Peripheral Interface (SPI) Port—Slave Timing VDD_EXT 1.8 V Nominal Parameter Min Max VDD_EXT 3.3 V Nominal Min Max Unit Timing Requirements tSPICHS SPI_CLK High Period1 tSPICLS SPI_CLK Low Period tSPICLK SPI_CLK Period1 1 (0.5 × tSPICLKEXT) – 1.5 (0.5 × tSPICLKEXT) – 1.5 ns (0.5 × tSPICLKEXT) – 1.5 (0.5 × tSPICLKEXT) – 1.5 ns tSPICLKEXT – 1.5 tSPICLKEXT – 1.5 ns tHDS Last SPI_CLK Edge to SPI_SS Not Asserted 5 5 ns tSPITDS Sequential Transfer Delay 0.5 × tSPICLK – 1.5 0.5 × tSPICLK – 1.5 ns tSDSCI SPI_SS Assertion to First SPI_CLK Edge 11.9 10.5 ns tSSPID Data Input Valid to SPI_CLK Edge (Data Input 2.0 Setup) 2.0 ns tHSPID SPI_CLK Sampling Edge to Data Input Invalid 1.6 1.6 ns Switching Characteristics tDSOE SPI_SS Assertion to Data Out Active tDSDHI tDDSPID tHDSPID SPI_CLK Edge to Data Out Invalid (Data Out 1.5 Hold) 1 0 18.8 0 SPI_SS Deassertion to Data High Impedance 0 16.3 0 SPI_CLK Edge to Data Out Valid (Data Out Delay) 18.8 1.5 14 ns 12.5 ns 14 ns ns This specification indicates the minimum instantaneous width or period that can be tolerated due to duty cycle variation or jitter on the external SPI_CLK. For the external SPI_CLK ideal maximum frequency see the fSPICLKTEXT specification in the Clock Related Operating Conditions table on Page 53. Rev. A | Page 88 of 112 | February 2014 ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 SPI_SS (INPUT) tSDSCI tSPICLS tSPICHS tHDS tSPICLK SPI_CLK (INPUT) tDSOE tDDSPID tDDSPID tHDSPID tDSDHI DATA OUTPUTS (SPI_MISO) CPHA = 1 tSSPID tHSPID DATA INPUTS (SPI_MOSI) tDSOE tHDSPID tDDSPID tDSDHI DATA OUTPUTS (SPI_MISO) CPHA = 0 tHSPID tSSPID DATA INPUTS (SPI_MOSI) Figure 41. Serial Peripheral Interface (SPI) Port—Slave Timing Rev. A | Page 89 of 112 | February 2014 tSPITDS ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 Serial Peripheral Interface (SPI) Port—SPI_RDY Slave Timing Table 53. SPI Port—SPI_RDY Slave Timing VDD_EXT 1.8 V/3.3 V Nominal Min Max Parameter Switching Characteristics tDSPISCKRDYSR SPI_RDY De-assertion from Valid Input SPI_CLK Edge in Slave Mode Receive 2.5 × tSCLK1 SPI_RDY De-assertion from Valid Input SPI_CLK Edge in Slave Mode Transmit 3.5 × tSCLK1 tDSPISCKRDYST 3.5 × tSCLK1 + 17.5 ns 4.5 × tSCLK1 + 17.5 ns tDSPISCKRDYSR SPI_CLK (CPOL = 0) CPHA = 0 SPI_CLK (CPOL = 1) SPI_CLK (CPOL = 0) CPHA = 1 SPI_CLK (CPOL = 1) SPI_RDY (O) Figure 42. SPI_RDY De-assertion from Valid Input SPI_CLK Edge in Slave Mode Receive (FCCH = 0) tDSPISCKRDYST SPI_CLK (CPOL = 1) CPHA = 0 SPI_CLK (CPOL = 0) SPI_CLK (CPOL = 1) CPHA = 1 SPI_CLK (CPOL = 0) SPI_RDY (O) Figure 43. SPI_RDY De-assertion from Valid Input SPI_CLK Edge in Slave Mode Transmit (FCCH = 1) Rev. A | Page 90 of 112 | February 2014 Unit ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 Serial Peripheral Interface (SPI) Port—Open Drain Mode Timing In Figure 44 and Figure 45, the outputs can be SPI_MOSI SPI_ MISO, SPI_D2, and/or SPI_D3 depending on the mode of operation. Table 54. SPI Port ODM Master Mode Timing Parameter Switching Characteristics tHDSPIODMM SPI_CLK Edge to High Impedance from Data Out Valid SPI_CLK Edge to Data Out Valid from High Impedance tDDSPIODMM Min VDD_EXT 1.8 V/3.3 V Nominal Max –1 0 tHDSPIODMM 6 Unit ns ns tHDSPIODMM SPI_CLK (CPOL = 0) SPI_CLK (CPOL = 1) OUTPUT (CPHA = 1) OUTPUT (CPHA = 0) tDDSPIODMM tDDSPIODMM Figure 44. ODM Master Table 55. SPI Port—ODM Slave Mode Parameter Timing Requirements tHDSPIODMS SPI_CLK Edge to High Impedance from Data Out Valid SPI_CLK Edge to Data Out Valid from High Impedance tDDSPIODMS Min 0 tHDSPIODMS SPI_CLK (CPOL = 0) SPI_CLK (CPOL = 1) OUTPUT (CPHA = 1) OUTPUT (CPHA = 0) tDDSPIODMS VDD_EXT 1.8 V/3.3 V Nominal Max tDDSPIODMS Figure 45. ODM Slave Rev. A | Page 91 of 112 | February 2014 11.5 tHDSPIODMS Unit ns ns ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 Serial Peripheral Interface (SPI) Port—SPI_RDY Timing SPI_RDY is used to provide flow control. The CPOL and CPHA bits are set in SPI_CTL, while LEADX, LAGX, and STOP are in SPI_DLY. Table 56. SPI Port—SPI_RDY Timing Parameter Timing Requirements tSRDYSCKM0 Minimum Setup Time for SPI_RDY De-assertion in Master Mode Before Last SPI_CLK Edge of Valid Data Transfer to Block Subsequent Transfer with CPHA = 0 tSRDYSCKM1 Minimum Setup Time for SPI_RDY De-assertion in Master Mode Before Last SPI_CLK Edge of Valid Data Transfer to Block Subsequent Transfer with CPHA = 1 Switching Characteristic tSRDYSCKM Time Between Assertion of SPI_RDY by Slave and First Edge of SPI_CLK for New SPI Transfer with CPHA = 0 and BAUD = 0 (STOP, LEADX, LAGX = 0) Time Between Assertion of SPI_RDY by Slave and First Edge of SPI_CLK for New SPI Transfer with CPHA = 0 and BAUD ≥ 1 (STOP, LEADX, LAGX = 0) Time Between Assertion of SPI_RDY by Slave and First Edge of SPI_CLK for New SPI Transfer with CPHA = 1 (STOP, LEADX, LAGX = 0) 1 Min VDD_EXT 1.8 V/3.3 V Nominal Max Unit (2.5 + 1.5 × BAUD1) × tSCLK1 + 17.5 ns (1.5 + BAUD1) × tSCLK1 + 17.5 ns 3 × tSCLK1 4 × tSCLK1 + 17.5 (4 + 1.5 × BAUD1) × tSCLK1 (5 + 1.5 × BAUD1) × tSCLK1 + ns 17.5 (3 + 0.5 × BAUD1) × tSCLK1 (4 + 0.5 × BAUD1) × tSCLK1 + ns 17.5 BAUD value set using the SPI_CLK.BAUD bits. tSRDYSCKM0 SPI_RDY SPI_CLK (CPOL = 0) SPI_CLK (CPOL = 1) Figure 46. SPI_RDY Setup Before SPI_CLK with CPHA = 0 Rev. A | Page 92 of 112 | February 2014 ns ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 tSRDYSCKM1 SPI_RDY SPI_CLK (CPOL = 0) SPI_CLK (CPOL = 1) Figure 47. SPI_RDY Setup Before SPI_CLK with CPHA = 1 tSRDYSCKM SPI_RDY SPI_CLK (CPOL = 0) SPI_CLK (CPOL = 1) Figure 48. SPI_CLK Switching Diagram after SPI_RDY Assertion, CPHA = x Rev. A | Page 93 of 112 | February 2014 ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 General-Purpose Port Timing Table 57 and Figure 49 describe general-purpose port operations. Table 57. General-Purpose Port Timing Parameter Timing Requirement tWFI General-Purpose Port Pin Input Pulse Width Min VDD_EXT 1.8 V/3.3 V Nominal Max 2 × tSCLK0 – 1.5 Unit ns tWFI GPIO INPUT Figure 49. General-Purpose Port Timing Timer Cycle Timing Table 58 and Figure 50 describe timer expired operations. The input signal is asynchronous in “width capture mode” and “external clock mode” and has an ideal maximum input fre- quency of (fSCLK0/4) MHz. The Period Value (VALUE) is the timer period assigned in the TMx_TMRn_PER register and can range from 2 to 232 – 1. Table 58. Timer Cycle Timing VDD_EXT 3.3 V Nominal VDD_EXT 1.8 V Nominal Min Parameter Max Min Max Unit Timing Requirements tWL Timer Pulse Width Input Low1 2 × tSCLK0 – 1.5 2 × tSCLK0 – 1.5 ns tWH Timer Pulse Width Input High1 2 × tSCLK0 – 1.5 2 × tSCLK0 – 1.5 ns tSCLK0 × VALUE – 1.5 tSCLK0 × VALUE – 1.5 ns Switching Characteristics tHTO 1 Timer Pulse Width Output This specification indicates the minimum instantaneous width that can be tolerated due to duty cycle variation or jitter for TMx signals in width capture and external clock modes. The ideal maximum frequency for TMx signals is listed in Timer Cycle Timing on this page. TMR OUTPUT tHTO TMR INPUT tWH, tWL Figure 50. Timer Cycle Timing Rev. A | Page 94 of 112 | February 2014 ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 Up/Down Counter/Rotary Encoder Timing Table 59. Up/Down Counter/Rotary Encoder Timing VDD_EXT 1.8 V Nominal Parameter Min Max VDD_EXT 3.3 V Nominal Min Max Unit Timing Requirement tWCOUNT Up/Down Counter/Rotary Encoder Input Pulse Width 2 × tSCLK0 2 × tSCLK0 ns CNT_UD CNT_DG CNT_ZM tWCOUNT Figure 51. Up/Down Counter/Rotary Encoder Timing Pulse Width Modulator (PWM) Timing Table 60 and Figure 52 describe PWM operations. Table 60. PWM Timing VDD_EXT 1.8 V Nominal Parameter Min Max VDD_EXT 3.3 V Nominal Min Max Unit Timing Requirement tES External Sync Pulse Width 2 × tSCLK0 ns Switching Characteristics tDODIS Output Inactive (OFF) After Trip Input1 tDOE Output Delay After External Sync1, 2 1 2 2 × tSCLK0 + 5.5 15 ns 5 × tSCLK0 + 14 ns PWM outputs are: PWMx_AH, PWMx_AL, PWMx_BH, PWMx_BL, PWMx_CH, and PWMx_CL. When the external sync signal is synchronous to the peripheral clock, it takes fewer clock cycles for the output to appear compared to when the external sync signal is asynchronous to the peripheral clock. For more information, see the ADSP-BF60x Blackfin Processor Hardware Reference. PWM_SYNC (AS INPUT) tES tDOE OUTPUT tDODIS PWM_TRIP Figure 52. PWM Timing Rev. A | Page 95 of 112 | February 2014 ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 ADC Controller Module (ACM) Timing Table 61 and Figure 53 describe ACM operations. When internally generated, the programmed ACM clock (fACLKPROG) frequency in MHz is set by the following equation where CKDIV is a field in the ACM_TC0 register and ranges from 1 to 255: 1 t ACLKPROG = -------------------------f ACLKPROG Setup cycles (SC) in Table 61 is also a field in the ACM_TC0 register and ranges from 0 to 4095. Hold Cycles (HC) is a field in the ACM_TC1 register that ranges from 0 to 15. f SCLK1 f ACLKPROG = -------------------------CKDIV + 1 Table 61. ACM Timing VDD_EXT 1.8 V/3.3 V Nominal Parameter Min Max Unit Timing Requirements tSDR SPORT DRxPRI/DRxSEC Setup Before ACMx_CLK 3 ns tHDR SPORT DRxPRI/DRxSEC Hold After ACMx_CLK 1.5 ns Switching Characteristics tSCTLCS ACM Controls (ACMx_A[4:0]) Setup Before Assertion of CS (SC + 1) × tSCLK1 – 3 ns tHCTLCS ACM Control (ACMx_A[4:0]) Hold After De-assertion of CS HC × tACLK + 0.1 ns tACLKW ACM Clock Pulse Width tACLK ACM Clock Period1 tHCSACLK tSCSACLK 1 1 (0.5 × tACLKPROG) – 1.5 ns tACLKPROG – 1.5 ns CS Hold to ACMx_CLK Edge –0.1 ns CS Setup to ACMx_CLK Edge tACLK – 3.5 ns See Table 17 on Page 53 in Clock Related Operating Conditions for details on the minimum period that may be programmed for tACLKPROG. CS CSPOL = 1/0 tSCSACLK ACM_CLK CLKPOL = 1/0 tACLK tACLKW tHCSACLK ACM CONTROLS t SCTLCS DRxPRI/ DRxSEC Figure 53. ACM Timing Rev. A | Page 96 of 112 | February 2014 tSDR tHDR t HCTLCS ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 Universal Asynchronous Receiver-Transmitter (UART) Ports—Receive and Transmit Timing The UART ports receive and transmit operations are described in the ADSP-BF60x Blackfin Processor Hardware Reference Manual. CAN Interface The CAN interface timing is described in the ADSP-BF60x Blackfin Processor Hardware Reference Manual. Universal Serial Bus (USB) On-The-Go—Receive and Transmit Timing Table 62 describes the USB On-The-Go receive and transmit operations. Table 62. USB On-The-Go—Receive and Transmit Timing VDD_USB 3.3 V Nominal Parameter Min Max Unit Timing Requirements fUSBS USB_XI Frequency 48 48 MHz fsUSB USB_XI Clock Frequency Stability –50 +50 ppm Rev. A | Page 97 of 112 | February 2014 ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 RSI Controller Timing Table 63 and Figure 54 describe RSI controller timing. Table 63. RSI Controller Timing Parameter Timing Requirements Input Setup Time tISU Input Hold Time tIH Switching Characteristics Clock Frequency Data Transfer Mode1 fPP Clock Low Time tWL tWH Clock High Time Clock Rise Time tTLH Clock Fall Time tTHL tODLY Output Delay Time During Data Transfer Mode Output Hold Time tOH 1 Min VDD_EXT 1.8 V Nominal Max 11 2 VDD_EXT 3.3 V Nominal Min Max Unit 9.6 2 41.67 8 8 ns ns 41.67 MHz ns ns ns ns ns ns 8 8 3 3 2.5 –1 3 3 2.5 –1 tPP = 1/fPP VOH (MIN) tPP RSI_CLK tTHL tISU tTLH tWL tIH VOL (MAX) tWH INPUT tODLY OUTPUT NOTES: 1 INPUT INCLUDES RSI_Dx AND RSI_CMD SIGNALS. 2 OUTPUT INCLUDES RSI_Dx AND RSI_CMD SIGNALS. Figure 54. RSI Controller Timing Rev. A | Page 98 of 112 | February 2014 tOH ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 10/100 Ethernet MAC Controller Timing Table 64 through Table 66 and Figure 55 through Figure 57 describe the 10/100 Ethernet MAC Controller operations. Table 64. 10/100 Ethernet MAC Controller Timing: RMII Receive Signal VDD_EXT 1.8 V/3.3 V Nominal Parameter1 Min Max Unit Timing Requirements tREFCLKF ETHx_REFCLK Frequency (fSCLK0 = SCLK0 Frequency) None 50 + 1% MHz tREFCLKW ETHx_REFCLK Width (tREFCLK = ETHx_REFCLK Period) tREFCLK × 35% tREFCLK × 65% ns tREFCLKIS Rx Input Valid to RMII ETHx_REFCLK Rising Edge (Data In Setup) 4 ns tREFCLKIH RMII ETHx_REFCLK Rising Edge to Rx Input Invalid (Data In Hold) 2.2 ns 1 RMII inputs synchronous to RMII REF_CLK are ERxD1–0, RMII CRS_DV, and ERxER. tREFCLK RMII_REF_CLK tREFCLKW ETHx_RXD1–0 ETHx_CRS ETHx_RXERR tREFCLKIS tREFCLKIH Figure 55. 10/100 Ethernet MAC Controller Timing: RMII Receive Signal Table 65. 10/100 Ethernet MAC Controller Timing: RMII Transmit Signal VDD_EXT 1.8 V/3.3 V Nominal Parameter1 Min Max Unit 14 ns Switching Characteristics tREFCLKOV RMII ETHx_REFCLK Rising Edge to Transmit Output Valid (Data Out Valid) tREFCLKOH RMII ETHx_REFCLK Rising Edge to Transmit Output Invalid (Data Out Hold) 1 2 RMII outputs synchronous to RMII REF_CLK are ETxD1–0. tREFCLK RMII_REF_CLK tREFCLKOH ETHx_TXD1–0 ETHx_TXEN tREFCLKOV Figure 56. 10/100 Ethernet MAC Controller Timing: RMII Transmit Signal Rev. A | Page 99 of 112 | February 2014 ns ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 Table 66. 10/100 Ethernet MAC Controller Timing: RMII Station Management VDD_EXT 1.8 V/3.3 V Nominal Parameter1 Min Max Unit Timing Requirements tMDIOS ETHx_MDIO Input Valid to ETHx_MDC Rising Edge (Setup) 14 ns tMDCIH ETHx_MDC Rising Edge to ETHx_MDIO Input Invalid (Hold) 0 ns Switching Characteristics tMDCOV ETHx_MDC Falling Edge to ETHx_MDIO Output Valid tMDCOH ETHx_MDC Falling Edge to ETHx_MDIO Output Invalid (Hold) 1 tSCLK0 + 5 tSCLK0 –1 ns ns ETHx_MDC/ETHx_MDIO is a 2-wire serial bidirectional port for controlling one or more external PHYs. ETHx_MDC is an output clock whose minimum period is programmable as a multiple of the system clock SCLK0. ETHx_MDIO is a bidirectional data line. ETHx_MDC (OUTPUT) tMDCOH ETHx_MDIO (OUTPUT) tMDCOV ETHx_MDIO (INPUT) tMDIOS tMDCIH Figure 57. 10/100 Ethernet MAC Controller Timing: RMII Station Management Rev. A | Page 100 of 112 | February 2014 ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 JTAG Test And Emulation Port Timing Table 67 and Figure 58 describe JTAG port operations. Table 67. JTAG Port Timing VDD_EXT 1.8 V Nominal Min Parameter Max VDD_EXT 3.3 V Nominal Min Max Unit Timing Requirements tTCK JTG_TCK Period 20 tSTAP JTG_TDI, JTG_TMS Setup Before JTG_TCK High 4 4 ns tHTAP JTG_TDI, JTG_TMS Hold After JTG_TCK High 4 4 ns tSSYS System Inputs Setup Before JTG_TCK High1 12 12 ns 1 20 ns tHSYS System Inputs Hold After JTG_TCK High 5 5 ns tTRSTW JTG_TRST Pulse Width (measured in JTG_TCK cycles)2 4 4 TCK Switching Characteristics JTG_TDO Delay from JTG_TCK Low tDTDO System Outputs Delay After JTG_TCK Low tDSYS 3 1 18 13.5 ns 22 17 ns System Inputs = DMC0_DQ00–15, DMC0_LDQS, DMC0_LDQS, DMC0_UDQS, DMC0_UDQS, PA_15–0, PB_15–0, PC_15–0, PD_15–0, PE_15–0, PF_15–0, PG_15–0, SMC0_ARDY_NORWT, SMC0_BR, SMC0_D15–0, SYS_BMODE0–2, SYS_HWRST, SYS_FAULT, SYS_FAULT, SYS_NMI_RESOUT, SYS_PWRGD, TWI0_SCL, TWI0_ SDA, TWI1_SCL, TWI1_SDA. 2 50 MHz Maximum. 3 System Outputs = DMC0_A00–13, DMC0_BA0–2, DMC0_CAS, DMC0_CK, DMC0_CK, DMC0_CKE, DMC0_CS0, DMC0_DQ00–15, DMC0_LDM, DMC0_LDQS, DMC0_LDQS, DMC0_ODT, DMC0_RAS, DMC0_UDM, DMC0_UDQS, DMC0_UDQS, DMC0_WE, JTG_EMU, PA_15–0, PB_15–0, PC_15–0, PD_15–0, PE_15–0, PF_ 15–0, PG_15–0, SMC0_AMS0, SMC0_AOE_NORDV, SMC0_ARE, SMC0_AWE, SMC0_A01, SMC0_A02, SMC0_D15–0, SYS_CLKOUT, SYS_FAULT, SYS_FAULT, SYS_NMI_RESOUT. tTCK JTG_TCK tSTAP tHTAP JTG_TMS JTG_TDI tDTDO JTG_TDO tSSYS tHSYS SYSTEM INPUTS tDSYS SYSTEM OUTPUTS Figure 58. JTAG Port Timing Rev. A | Page 101 of 112 | February 2014 ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 OUTPUT DRIVE CURRENTS Figure 59 through Figure 64 show typical current-voltage characteristics for the output drivers of the ADSP-BF60x Blackfin processors. The curves represent the current drive capability of the output drivers as a function of output voltage. 100 40 VDD_EXT = 1.9V @ – 40°C VDD_DMC = 1.9V @ – 40°C VDD_EXT = 1.8V @ 25°C VDD_EXT = 1.7V @ 125°C SOURCE CURRENT (mA) SOURCE CURRENT (mA) 20 VOH 0 VOL – 20 80 VDD_DMC = 1.8V @ 25°C 60 VDD_DMC = 1.7V @ 125°C 40 VOH 20 0 – 20 VOL – 40 – 60 – 40 – 80 0 0.5 1.0 1.5 2.0 0 0.5 SOURCE VOLTAGE (V) Figure 59. Driver Type A Current (1.8 V VDD_EXT) 2.0 100 VDD_EXT = 3.465V @ – 40°C VDD_DMC = 1.8V @ 25°C VDD_EXT = 3.135V @ 105°C 60 SOURCE CURRENT (mA) VOH 20 0 – 20 VOL – 40 VDD_DMC = 1.9V @ – 40°C 80 VDD_EXT = 3.30V @ 25°C 40 SOURCE CURRENT (mA) 1.5 Figure 61. Driver Type B Current (1.8 V VDD_DMC) 80 60 1.0 SOURCE VOLTAGE (V) – 60 VDD_DMC = 1.7V @ 125°C 40 VOH 20 0 – 20 VOL – 40 – 60 – 80 – 80 0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 0 0.5 SOURCE VOLTAGE (V) 1.0 1.5 SOURCE VOLTAGE (V) Figure 60. Driver Type A Current (3.3 V VDD_EXT) Figure 62. Driver Type C Current (1.8 V VDD_DMC) Rev. A | Page 102 of 112 | February 2014 2.0 ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 Output Enable Time Measurement 0 VDD_EXT = 1.9V @ – 40°C Output balls are considered to be enabled when they have made a transition from a high impedance state to the point when they start driving. VDD_EXT = 1.8V @ 25°C VDD_EXT = 1.7V @ 125°C SOURCE CURRENT (mA) –5 The output enable time tENA is the interval from the point when a reference signal reaches a high or low voltage level to the point when the output starts driving as shown on the right side of Figure 66. – 10 VOL – 15 REFERENCE SIGNAL – 20 0 0.5 1.0 1.5 2.0 SOURCE VOLTAGE (V) tDIS_MEASURED tDIS VOH (MEASURED) Figure 63. Driver Type D Current (1.8 V VDD_EXT) VOL (MEASURED) 0 tENA_MEASURED tENA VOH (MEASURED) ⴚ ⌬V VOH(MEASURED) VTRIP(HIGH) VOL (MEASURED) + ⌬V VTRIP(LOW) VOL (MEASURED) tDECAY VDD_EXT = 3.465V @ – 40°C tTRIP VDD_EXT = 3.30V @ 25°C SOURCE CURRENT (mA) VDD_EXT = 3.135V @ 125°C OUTPUT STOPS DRIVING – 20 OUTPUT STARTS DRIVING HIGH IMPEDANCE STATE Figure 66. Output Enable/Disable – 40 VOL – 60 0 1.0 2.0 3.0 4.0 SOURCE VOLTAGE (V) Figure 64. Driver Type D Current (3.3 V VDD_EXT) Time tENA is calculated as shown in the equation: TEST CONDITIONS All Timing Requirements appearing in this data sheet were measured under the conditions described in this section. Figure 65 shows the measurement point for AC measurements (except output enable/disable). The measurement point VMEAS is VDDEXT/2 or VDDMEM/2 for VDDEXT/VDDMEM (nominal) = 1.8 V/ 2.5 V/3.3 V. INPUT OR OUTPUT VMEAS The time tENA_MEASURED is the interval from when the reference signal switches to when the output voltage reaches VTRIP(high) or VTRIP(low). For VDDEXT/VDDMEM (nominal) = 1.8 V, VTRIP (high) is 1.05 V, and VTRIP (low) is 0.75 V. For VDDEXT/VDDMEM (nominal) = 2.5 V, VTRIP (high) is 1.5 V and VTRIP (low) is 1.0 V. For VDDEXT/VDDMEM (nominal) = 3.3 V, VTRIP (high) is 1.9 V, and VTRIP (low) is 1.4 V. Time tTRIP is the interval from when the output starts driving to when the output reaches the VTRIP(high) or VTRIP(low) trip voltage. VMEAS Figure 65. Voltage Reference Levels for AC Measurements (Except Output Enable/Disable) t ENA = t ENA_MEASURED – t TRIP If multiple balls (such as the data bus) are enabled, the measurement value is that of the first ball to start driving. Output Disable Time Measurement Output balls are considered to be disabled when they stop driving, go into a high impedance state, and start to decay from their output high or low voltage. The output disable time tDIS is the difference between tDIS_MEASURED and tDECAY as shown on the left side of Figure 66. t DIS = t DIS_MEASURED – t DECAY The time for the voltage on the bus to decay by ΔV is dependent on the capacitive load CL and the load current IL. This decay time can be approximated by the equation: t DECAY = ( C L ΔV ) ⁄ I L Rev. A | Page 103 of 112 | February 2014 ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 The time tDECAY is calculated with test loads CL and IL, and with ΔV equal to 0.25 V for VDDEXT/VDDMEM (nominal) = 2.5 V/3.3 V and 0.15 V for VDDEXT/VDDMEM (nominal) = 1.8V. Example System Hold Time Calculation To determine the data output hold time in a particular system, first calculate tDECAY using the equation given above. Choose ΔV to be the difference between the processor’s output voltage and the input threshold for the device requiring the hold time. CL is the total bus capacitance (per data line), and IL is the total leakage or three-state current (per data line). The hold time is tDECAY plus the various output disable times as specified in the Timing Specifications on Page 60. Capacitive Loading Output delays and holds are based on standard capacitive loads of an average of 6 pF on all pins (see Figure 67). VLOAD is equal to (VDD_EXT)/2. tRISE 14 tFALL RISE AND FALL TIMES (ns) The time tDIS_MEASURED is the interval from when the reference signal switches, to when the output voltage decays ΔV from the measured output high or output low voltage. 16 12 10 8 6 4 2 tFALL = 1.8V @ 25°C tRISE = 1.8V @ 25°C 0 0 50 100 150 200 250 LOAD CAPACITANCE (pF) Figure 68. Driver Type A Typical Rise and Fall Times (10%-90%) vs. Load Capacitance (VDD_EXT = 1.8 V) 14 TESTER PIN ELECTRONICS 50: VLOAD T1 DUT OUTPUT 45: 70: ZO = 50:(impedance) TD = 4.04 r 1.18 ns 50: 4pF 0.5pF RISE AND FALL TIMES (ns) tRISE 12 tFALL 10 8 6 4 2pF 2 400: tFALL = 3.3V @ 25°C tRISE = 3.3V @ 25°C 0 NOTES: THE WORST CASE TRANSMISSION LINE DELAY IS SHOWN AND CAN BE USED FOR THE OUTPUT TIMING ANALYSIS TO REFELECT THE TRANSMISSION LINE EFFECT AND MUST BE CONSIDERED. THE TRANSMISSION LINE (TD) IS FOR LOAD ONLY AND DOES NOT AFFECT THE DATA SHEET TIMING SPECIFICATIONS. 0 100 150 200 250 LOAD CAPACITANCE (pF) Figure 69. Driver Type A Typical Rise and Fall Times (10%-90%) vs. Load Capacitance (VDD_EXT = 3.3 V) ANALOG DEVICES RECOMMENDS USING THE IBIS MODEL TIMING FOR A GIVEN SYSTEM REQUIREMENT. IF NECESSARY, A SYSTEM MAY INCORPORATE EXTERNAL DRIVERS TO COMPENSATE FOR ANY TIMING DIFFERENCES. 1.4 tRISE DS = 10 Figure 67. Equivalent Device Loading for AC Measurements (Includes All Fixtures) 1.2 RISE AND FALL TIMES (ns) The graphs of Figure 68 through Figure 70 show how output rise and fall times vary with capacitance. The delay and hold specifications given should be derated by a factor derived from these figures. The graphs in these figures may not be linear outside the ranges shown. 50 1.0 tFALL DS = 10 0.8 tRISE DS = 00 0.6 tFALL DS = 00 0.4 0.2 tFALL = 1.8V @ 25°C tRISE = 1.8V @ 25°C 0 0 5 10 15 20 25 30 35 LOAD CAPACITANCE (pF) Figure 70. Driver Type B & C Typical Rise and Fall Times (10%-90%) vs. Load Capacitance (VDD_DMC = 1.8 V) Rev. A | Page 104 of 112 | February 2014 ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 ENVIRONMENTAL CONDITIONS In Table 68, airflow measurements comply with JEDEC standards JESD51-2 and JESD51-6. The junction-to-case measurement complies with MIL-STD-883 (Method 1012.1). All measurements use a 2S2P JEDEC test board. To determine the junction temperature on the application printed circuit board use: Thermal Diode T J = T CASE + ( Ψ JT × P D ) The processor incorporates a thermal diode to monitor the die temperature. The thermal diode is a grounded collector, PNP Bipolar Junction Transistor (BJT). The SYS_TDA ball is connected to the emitter and the SYS_TDK ball is connected to the base of the transistor. These balls can be used by an external temperature sensor (such as the ADM 1021A or the LM86 or others) to read the die temperature of the chip. where: TJ = Junction temperature (°C) TCASE = Case temperature (°C) measured by customer at top center of package. ΨJT = From Table 68 PD = Power dissipation (see Total Internal Power Dissipation on Page 57 for the method to calculate PD) Table 68. Thermal Characteristics Parameter θJA θJMA θJMA θJC ΨJT ΨJT ΨJT Condition 0 linear m/s air flow 1 linear m/s air flow 2 linear m/s air flow 0 linear m/s air flow 1 linear m/s air flow 2 linear m/s air flow Typical 16.7 14.6 13.9 4.41 0.11 0.24 0.25 Unit °C/W °C/W °C/W °C/W °C/W °C/W °C/W Values of θJA are provided for package comparison and printed circuit board design considerations. θJA can be used for a first order approximation of TJ by the equation: T J = T A + ( θ JA × P D ) The technique used by the external temperature sensor is to measure the change in VBE when the thermal diode is operated at two different currents. This is shown in the following equation: kT ΔV BE = n Q × ------ × In(N) q where: nQ = multiplication factor close to 1, depending on process variations k = Boltzmann’s constant T = temperature (°Kelvin) q = charge of the electron N = ratio of the two currents The two currents are usually in the range of 10 micro Amperes to 300 micro Amperes for the common temperature sensor chips available. Table 69 contains the thermal diode specifications using the transistor model. Note that Measured Ideality Factor already takes into effect variations in beta (Β). where: TA = Ambient temperature (°C) Values of θJC are provided for package comparison and printed circuit board design considerations when an external heat sink is required. Table 69. Thermal Diode Parameters—Transistor Model Symbol IFW1 IE nQ2, 3 RT2, 4 Parameter Forward Bias Current Emitter Current Transistor Ideality Series Resistance Min 10 10 Typ 1.006 2.8 1 Max 300 300 Unit μA μA Ω Analog Devices does not recommend operation of the thermal diode under reverse bias. 2 Not 100% tested. Specified by design characterization. 3 The ideality factor, nQ, represents the deviation from ideal diode behavior as exemplified by the diode equation: IC = IS × (exp(qVBE/nQkT– 1), where IS = saturation current, q = electrical charge, VBE = voltage across the diode, k = Boltzmann Constant, and T = absolute temperature (Kelvin). 4 The series resistance (RT) can be used for more accurate readings as needed. Rev. A | Page 105 of 112 | February 2014 ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 ADSP-BF60x 349-BALL CSP_BGA BALL ASSIGNMENTS The 349-Ball CSP_BGA Ball Assignment (Numerical by Ball Number) table lists the CSP_BGA package by ball number for the ADSP-BF609. The 349-Ball CSP_BGA Ball Assignment (Alphabetical by Pin Name) table lists the CSP_BGA package by signal. 349-BALL CSP_BGA BALL ASSIGNMENT (NUMERICAL BY BALL NUMBER) Ball No. A01 A02 A03 A04 A05 A06 A07 A08 A09 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 B01 B02 B03 B04 B05 B06 B07 B08 B09 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 Pin Name GND USB0_DM USB0_DP PB_10 PB_07 PA_14 PA_12 PA_10 PA_08 PA_06 PA_04 PA_02 PA_00 SMC0_A01 SMC0_D00 SMC0_AMS0 SMC0_D03 SMC0_D04 SMC0_D07 SMC0_D10 SMC0_AWE GND USB0_VBUS GND USB0_ID PB_11 PB_08 PA_15 PA_13 PA_11 PA_09 PA_07 PA_05 PA_03 PA_01 SMC0_A02 SMC0_D01 SMC0_D15 SMC0_D09 SMC0_D02 SMC0_D13 SMC0_D05 Ball No. B21 B22 C01 C02 C03 C04 C05 C06 C07 C08 C09 C10 C11 C12 C13 C14 C15 C16 C17 C18 C19 C20 C21 C22 D01 D02 D03 D11 D12 D20 D21 D22 E01 E02 E03 E05 E20 E21 E22 F01 F02 F03 Pin Name GND SMC0_AOE_NORDV USB0_CLKIN USB0_VBC GND PB_12 PB_09 PB_06 PB_05 PB_04 PB_03 PB_02 PB_01 PB_00 SMC0_BR SMC0_D06 SMC0_D12 SMC0_ARE SMC0_D08 SMC0_D11 SMC0_D14 GND TWI1_SCL TWI0_SCL JTG_TDI JTG_TDO JTG_TCK VDD_EXT GND SMC0_ARDY_NORWT TWI1_SDA TWI0_SDA JTG_TRST JTG_EMU JTG_TMS VDD_USB DMC0_CAS DMC0_DQ10 DMC0_DQ13 SYS_FAULT SYS_FAULT SYS_NMI_RESOUT Ball No. F06 F07 F08 F09 F10 F11 F12 F13 F14 F15 F16 F17 F20 F21 F22 G01 G02 G03 G06 G07 G08 G09 G10 G11 G12 G13 G14 G15 G16 G17 G20 G21 G22 H01 H02 H03 H06 H07 H16 H17 H20 H21 Pin Name VDD_EXT VDD_INT VDD_INT VDD_INT VDD_INT VDD_EXT VDD_EXT VDD_INT VDD_INT VDD_INT VDD_INT VDD_DMC DMC0_CS0 DMC0_DQ15 DMC0_DQ08 GND SYS_HWRST SYS_BMODE2 VDD_EXT VDD_EXT VDD_INT VDD_INT VDD_EXT VDD_EXT VDD_EXT VDD_EXT VDD_INT VDD_INT VDD_DMC VDD_DMC DMC0_UDM DMC0_UDQS DMC0_UDQS SYS_CLKIN SYS_XTAL SYS_BMODE1 VDD_EXT VDD_EXT VDD_DMC VDD_DMC DMC0_RAS DMC0_DQ09 Rev. A | Page 106 of 112 | February 2014 Ball No. H22 J01 J02 J03 J06 J09 J10 J11 J12 J13 J14 J17 J20 J21 J22 K01 K02 K03 K06 K08 K09 K10 K11 K12 K13 K14 K15 K17 K20 K21 K22 L01 L02 L03 L04 L06 L08 L09 L10 L11 L12 L13 Pin Name DMC0_DQ14 GND SYS_PWRGD SYS_BMODE0 VDD_EXT GND GND GND GND GND GND VDD_DMC DMC0_ODT DMC0_DQ12 DMC0_DQ11 PC_00 SYS_EXTWAKE PB_13 VDD_EXT GND GND GND GND GND GND GND GND VDD_DMC DMC0_LDM DMC0_LDQS DMC0_LDQS PC_02 PC_01 PB_14 VDD_EXT VDD_EXT GND GND GND GND GND GND ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 Ball No. L14 L15 L17 L19 L20 L21 L22 M01 M02 M03 M04 M06 M08 M09 M10 M11 M12 M13 M14 M15 M17 M19 M20 M21 M22 N01 N02 N03 N06 N08 N09 N10 N11 N12 N13 N14 N15 N17 N20 N21 N22 P01 P02 P03 P06 P09 P10 Pin Name GND GND VDD_DMC VREF_DMC DMC0_CK DMC0_DQ06 DMC0_DQ07 PC_04 PC_03 PB_15 GND VDD_EXT GND GND GND GND GND GND GND GND VDD_DMC GND DMC0_CK DMC0_DQ00 DMC0_DQ01 PC_06 PC_05 SYS_CLKOUT VDD_EXT GND GND GND GND GND GND GND GND VDD_DMC DMC0_WE DMC0_DQ04 DMC0_DQ03 PC_08 PC_07 PD_06 VDD_EXT GND GND Ball No. P11 P12 P13 P14 P17 P20 P21 P22 R01 R02 R03 R06 R07 R16 R17 R20 R21 R22 T01 T02 T03 T06 T07 T08 T09 T10 T11 T12 T13 T14 T15 T16 T17 T20 T21 T22 U01 U02 U03 U06 U07 U08 U09 U10 U11 U12 U13 Pin Name GND GND GND GND VDD_DMC DMC0_CKE DMC0_DQ02 DMC0_DQ05 PC_10 PC_09 PD_07 VDD_EXT VDD_EXT VDD_DMC VDD_DMC DMC0_BA2 DMC0_BA0 DMC0_A10 PC_12 PC_11 PD_08 VDD_EXT VDD_EXT VDD_INT VDD_INT VDD_EXT VDD_EXT VDD_EXT VDD_EXT VDD_INT VDD_INT VDD_DMC VDD_DMC DMC0_A03 DMC0_A07 DMC0_A12 PC_14 PC_13 PD_09 VDD_EXT VDD_INT VDD_INT VDD_INT VDD_INT VDD_EXT VDD_EXT VDD_INT Ball No. U14 U15 U16 U17 U20 U21 U22 V01 V02 V03 V20 V21 V22 W01 W02 W03 W11 W12 W20 W21 W22 Y01 Y02 Y03 Y04 Y05 Y06 Y07 Y08 Y09 Y10 Y11 Y12 Y13 Y14 Y15 Y16 Y17 Y18 Y19 Y20 Y21 Y22 AA01 AA02 AA03 AA04 Pin Name VDD_INT VDD_INT VDD_INT VDD_DMC DMC0_A09 DMC0_A05 DMC0_A01 PD_00 PC_15 PD_10 DMC0_BA1 DMC0_A13 DMC0_A11 PD_04 PD_01 PD_12 GND VDD_TD DMC0_A04 DMC0_A06 DMC0_A08 PD_03 PD_02 GND PD_15 PE_02 PE_05 PE_06 PE_07 PE_08 PE_09 SYS_TDK SYS_TDA PE_12 PE_10 PE_11 PG_09 PG_01 PG_04 PG_11 GND DMC0_A00 DMC0_A02 PD_11 GND PD_13 PE_00 Rev. A | Page 107 of 112 | February 2014 Ball No. AA05 AA06 AA07 AA08 AA09 AA10 AA11 AA12 AA13 AA14 AA15 AA16 AA17 AA18 AA19 AA20 AA21 AA22 AB01 AB02 AB03 AB04 AB05 AB06 AB07 AB08 AB09 AB10 AB11 AB12 AB13 AB14 AB15 AB16 AB17 AB18 AB19 AB20 AB21 AB22 Pin Name PE_03 PF_14 PF_12 PF_10 PF_08 PF_06 PF_04 PF_02 PF_00 PG_00 PE_15 PE_14 PG_05 PG_08 PG_07 PG_13 GND GND GND PD_05 PD_14 PE_01 PE_04 PF_15 PF_13 PF_11 PF_09 PF_07 PF_05 PF_03 PF_01 PE_13 PG_03 PG_06 PG_02 PG_12 PG_14 PG_15 PG_10 GND ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 349-BALL CSP_BGA BALL ASSIGNMENT (ALPHABETICAL BY PIN NAME) Pin Name DMC0_A00 DMC0_A01 DMC0_A02 DMC0_A03 DMC0_A04 DMC0_A05 DMC0_A06 DMC0_A07 DMC0_A08 DMC0_A09 DMC0_A10 DMC0_A11 DMC0_A12 DMC0_A13 DMC0_BA0 DMC0_BA1 DMC0_BA2 DMC0_CAS DMC0_CK DMC0_CKE DMC0_CK DMC0_CS0 DMC0_DQ00 DMC0_DQ01 DMC0_DQ02 DMC0_DQ03 DMC0_DQ04 DMC0_DQ05 DMC0_DQ06 DMC0_DQ07 DMC0_DQ08 DMC0_DQ09 DMC0_DQ10 DMC0_DQ11 DMC0_DQ12 DMC0_DQ13 DMC0_DQ14 DMC0_DQ15 DMC0_LDM DMC0_LDQS DMC0_LDQS DMC0_ODT DMC0_RAS DMC0_UDM DMC0_UDQS DMC0_UDQS DMC0_WE Ball No. Y21 U22 Y22 T20 W20 U21 W21 T21 W22 U20 R22 V22 T22 V21 R21 V20 R20 E20 M20 P20 L20 F20 M21 M22 P21 N22 N21 P22 L21 L22 F22 H21 E21 J22 J21 E22 H22 F21 K20 K22 K21 J20 H20 G20 G21 G22 N20 Pin Name GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND Ball No. A01 A22 AA02 AA21 AA22 AB01 AB22 B21 C20 D12 G01 J01 J09 J10 J11 J12 J13 J14 K08 K09 K10 K11 K12 K13 K14 K15 L08 L09 L10 L11 L12 L13 L14 L15 M04 M08 M09 M10 M11 M12 M13 M14 M15 M19 N08 N09 N10 Pin Name GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND JTG_EMU JTG_TCK JTG_TDI JTG_TDO JTG_TMS JTG_TRST PA_00 PA_01 PA_02 PA_03 PA_04 PA_05 PA_06 PA_07 PA_08 PA_09 PA_10 PA_11 PA_12 PA_13 PA_14 PA_15 PB_00 PB_01 PB_02 PB_03 PB_04 PB_05 PB_06 PB_07 PB_08 Rev. A | Page 108 of 112 | February 2014 Ball No. N11 N12 N13 N14 N15 P09 P10 P11 P12 P13 P14 W11 Y03 Y20 C03 B02 E02 D03 D01 D02 E03 E01 A13 B13 A12 B12 A11 B11 A10 B10 A09 B09 A08 B08 A07 B07 A06 B06 C12 C11 C10 C09 C08 C07 C06 A05 B05 Pin Name PB_09 PB_10 PB_11 PB_12 PB_13 PB_14 PB_15 PC_00 PC_01 PC_02 PC_03 PC_04 PC_05 PC_06 PC_07 PC_08 PC_09 PC_10 PC_11 PC_12 PC_13 PC_14 PC_15 PD_00 PD_01 PD_02 PD_03 PD_04 PD_05 PD_06 PD_07 PD_08 PD_09 PD_10 PD_11 PD_12 PD_13 PD_14 PD_15 PE_00 PE_01 PE_02 PE_03 PE_04 PE_05 PE_06 PE_07 Ball No. C05 A04 B04 C04 K03 L03 M03 K01 L02 L01 M02 M01 N02 N01 P02 P01 R02 R01 T02 T01 U02 U01 V02 V01 W02 Y02 Y01 W01 AB02 P03 R03 T03 U03 V03 AA01 W03 AA03 AB03 Y04 AA04 AB04 Y05 AA05 AB05 Y06 Y07 Y08 ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 Pin Name PE_08 PE_09 PE_10 PE_11 PE_12 PE_13 PE_14 PE_15 PF_00 PF_01 PF_02 PF_03 PF_04 PF_05 PF_06 PF_07 PF_08 PF_09 PF_10 PF_11 PF_12 PF_13 PF_14 PF_15 PG_00 PG_01 PG_02 PG_03 PG_04 PG_05 PG_06 PG_07 PG_08 PG_09 PG_10 PG_11 PG_12 PG_13 PG_14 PG_15 SMC0_A01 SMC0_A02 SMC0_AMS0 SMC0_AOE_NORDV SMC0_ARDY_NORWT SMC0_ARE SMC0_AWE Ball No. Y09 Y10 Y14 Y15 Y13 AB14 AA16 AA15 AA13 AB13 AA12 AB12 AA11 AB11 AA10 AB10 AA09 AB09 AA08 AB08 AA07 AB07 AA06 AB06 AA14 Y17 AB17 AB15 Y18 AA17 AB16 AA19 AA18 Y16 AB21 Y19 AB18 AA20 AB19 AB20 A14 B14 A16 B22 D20 C16 A21 Pin Name SMC0_BR SMC0_D00 SMC0_D01 SMC0_D02 SMC0_D03 SMC0_D04 SMC0_D05 SMC0_D06 SMC0_D07 SMC0_D08 SMC0_D09 SMC0_D10 SMC0_D11 SMC0_D12 SMC0_D13 SMC0_D14 SMC0_D15 SYS_BMODE0 SYS_BMODE1 SYS_BMODE2 SYS_CLKIN SYS_CLKOUT SYS_EXTWAKE SYS_FAULT SYS_FAULT SYS_NMI_RESOUT SYS_PWRGD SYS_HWRST SYS_TDA SYS_TDK SYS_XTAL TWI0_SCL TWI0_SDA TWI1_SCL TWI1_SDA USB0_CLKIN USB0_DM USB0_DP USB0_ID USB0_VBC USB0_VBUS VDD_DMC VDD_DMC VDD_DMC VDD_DMC VDD_DMC VDD_DMC Ball No. C13 A15 B15 B18 A17 A18 B20 C14 A19 C17 B17 A20 C18 C15 B19 C19 B16 J03 H03 G03 H01 N03 K02 F02 F01 F03 J02 G02 Y12 Y11 H02 C22 D22 C21 D21 C01 A02 A03 B03 C02 B01 F17 G16 G17 H16 H17 J17 Pin Name VDD_DMC VDD_DMC VDD_DMC VDD_DMC VDD_DMC VDD_DMC VDD_DMC VDD_DMC VDD_DMC VDD_DMC VDD_EXT VDD_EXT VDD_EXT VDD_EXT VDD_EXT VDD_EXT VDD_EXT VDD_EXT VDD_EXT VDD_EXT VDD_EXT VDD_EXT VDD_EXT VDD_EXT VDD_EXT VDD_EXT VDD_EXT VDD_EXT VDD_EXT VDD_EXT VDD_EXT VDD_EXT VDD_EXT VDD_EXT VDD_EXT VDD_EXT VDD_EXT VDD_EXT VDD_EXT VDD_EXT VDD_INT VDD_INT VDD_INT VDD_INT VDD_INT VDD_INT VDD_INT Rev. A | Page 109 of 112 | February 2014 Ball No. K17 L17 M17 N17 P17 R16 R17 T16 T17 U17 D11 F06 F11 F12 G06 G07 G10 G11 G12 G13 H06 H07 J06 K06 L04 L06 M06 N06 P06 R06 R07 T06 T07 T10 T11 T12 T13 U06 U11 U12 F07 F08 F09 F10 F13 F14 F15 Pin Name VDD_INT VDD_INT VDD_INT VDD_INT VDD_INT VDD_INT VDD_INT VDD_INT VDD_INT VDD_INT VDD_INT VDD_INT VDD_INT VDD_INT VDD_INT VDD_INT VDD_INT VDD_TD VDD_USB VREF_DMC Ball No. F16 G08 G09 G14 G15 T08 T09 T14 T15 U07 U08 U09 U10 U13 U14 U15 U16 W12 E05 L19 ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 349-BALL CSP_BGA BALL CONFIGURATION Figure 71 shows an overview of signal placement on the 349-ball CSP_BGA package. TOP VIEW 2 A1 BALL PAD CORNER 1 4 6 3 5 8 7 10 9 12 11 14 13 16 15 18 17 20 19 22 21 A B C D U E D F G D D D D J D D L D H K GND D M D N I/O SIGNALS D P R D D U D D D T VDD_EXT VDD_INT V T W Y AA AB D VDD_DMC T VDD_TD U VDD_USB BOTTOM VIEW 22 20 21 18 19 16 17 14 15 12 13 10 11 8 9 6 7 4 5 A1 BALL PAD CORNER 2 3 1 A B C D U E D F D D G D D H D J D D L K D M D D N D D R D D D U P T V T W Y AA AB Figure 71. 349-Ball CSP_BGA Ball Configuration Rev. A | Page 110 of 112 | February 2014 ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 OUTLINE DIMENSIONS Dimensions for the 19 mm × 19 mm CSP_BGA package in Figure 72 are shown in millimeters. A1 BALL CORNER 19.10 19.00 SQ 18.90 A1 BALL CORNER 22 20 18 16 14 12 10 8 6 4 2 21 19 17 15 13 11 9 7 5 3 1 A C G 16.80 BSC SQ J F H K L M N 0.80 BSC B D E P R T U W AA TOP VIEW 1.50 1.36 1.21 1.10 REF V Y AB BOTTOM VIEW DETAIL A DETAIL A 1.11 1.01 0.91 0.35 NOM 0.30 MIN SEATING PLANE 0.50 COPLANARITY 0.20 0.45 0.40 BALL DIAMETER COMPLIANT TO JEDEC STANDARDS MO-275-PPAB-2. Figure 72. 349-Ball Chip Scale Package Ball Grid Array [CSP_BGA] (BC-349-1) Dimensions shown in millimeters SURFACE-MOUNT DESIGN Table 70 is provided as an aid to Requirements for Surface-Mount PCB design. For industry-stan- Design and Land Pattern dard design recommendations, Standard. refer to IPC-7351, Generic Table 70. BGA Data for Use with Surface-Mount Design Package BC-349-1 Package Ball Attach Type Solder Mask Defined Rev. A | Page 111 of 112 | February 2014 Package Solder Mask Opening 0.4 mm Diameter Package Ball Pad Size 0.5 mm Diameter ADSP-BF606/ADSP-BF607/ADSP-BF608/ADSP-BF609 AUTOMOTIVE PRODUCTS The models in the following table are available with controlled manufacturing to support the quality and reliability requirements of automotive applications. Note that these automotive models may have specifications that differ from the commercial models and designers should review the product specifications section of this data sheet carefully. Contact your local ADI account representative for specific product ordering information and to obtain the specific Automotive Reliability reports for these models. Model1 ADBF606WCBCZ4xx ADBF607WCBCZ5xx ADBF608WCBCZ5xx ADBF609WCBCZ5xx 1 2 Max. Core Clock 400 MHz 500 MHz 500 MHz 500 MHz Temperature Range2 –40°C to +105°C –40°C to +105°C –40°C to +105°C –40°C to +105°C Package Description 349-Ball CSP_BGA 349-Ball CSP_BGA 349-Ball CSP_BGA 349-Ball CSP_BGA Package Option BC-349-1 BC-349-1 BC-349-1 BC-349-1 Z =RoHS compliant part. Referenced temperature is ambient temperature. The ambient temperature is not a specification. Please see Operating Conditions on Page 52 for the junction temperature (TJ) specification which is the only temperature specification. ORDERING GUIDE Model1 ADSP-BF606KBCZ-4 ADSP-BF606BBCZ-4 ADSP-BF607KBCZ-5 ADSP-BF607BBCZ-5 ADSP-BF608KBCZ-5 ADSP-BF608BBCZ-5 ADSP-BF609KBCZ-5 ADSP-BF609BBCZ-5 1 2 Max. Core Clock 400 MHz 400 MHz 500 MHz 500 MHz 500 MHz 500 MHz 500 MHz 500 MHz Temperature Range2 0°C to +70°C –40°C to +85°C 0°C to +70°C –40°C to +85°C 0°C to +70°C –40°C to +85°C 0°C to +70°C –40°C to +85°C Package Description 349-Ball CSP_BGA 349-Ball CSP_BGA 349-Ball CSP_BGA 349-Ball CSP_BGA 349-Ball CSP_BGA 349-Ball CSP_BGA 349-Ball CSP_BGA 349-Ball CSP_BGA Package Option BC-349-1 BC-349-1 BC-349-1 BC-349-1 BC-349-1 BC-349-1 BC-349-1 BC-349-1 Z =RoHS compliant part. Referenced temperature is ambient temperature. The ambient temperature is not a specification. Please see Operating Conditions on Page 52 for the junction temperature (TJ) specification which is the only temperature specification. ©2014 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners. D10659-0-02/14(A) Rev. A | Page 112 of 112 | February 2014
