EVAL-ADG2188EBZ

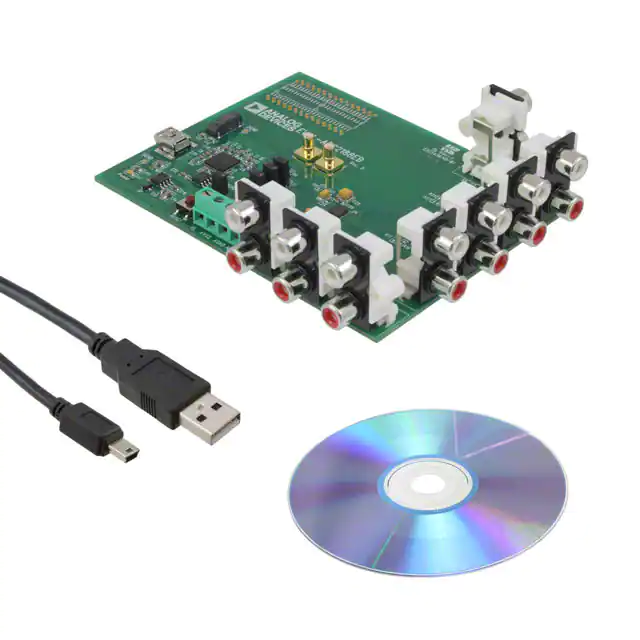

EVAL-ADG2188EBZ User Guide UG-915 One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com Evaluation Board for I2C CMOS 8 × 8 Analog Switch Array with Dual/Single Supplies FEATURES GENERAL DESCRIPTION Full-featured evaluation board for the ADG2188 Various link options USB port EVAL-ADG2188EBZ evaluation software for control of switches Functions with or without a PC This user guide describes the evaluation board for the ADG2188 I2C CMOS 8 × 8 analog switch array with dual/single supplies. The array is bidirectional, and, as a result, the rows and columns can configure as either inputs or outputs. Any number of combinations can be active at one time. EVALUATION KIT CONTENTS The ADG2188 has a maximum difference of 15 V between the VDD and VSS inputs. Therefore, take care to not to exceed the maximum of 15 V difference when connecting the power supplies. EVAL-ADG2188EBZ evaluation board EVAL-ADG2188EBZ evaluation software CD USB cable The evaluation board interfaces to the USB port of a PC. The evaluation software is available with the evaluation board that allows the user to easily program the ADG2188. The EVALADG2188EBZ can also be used as a standalone board. DOCUMENTS NEEDED ADG2188 data sheet SOFTWARE NEEDED Complete specifications for the ADG2188 are available in the ADG2188 data sheet available from Analog Devices, Inc., and should be consulted in conjunction with this data sheet when using the evaluation board. EVAL-ADG2188EBZ evaluation software CD EVALUATION BOARD BLOCK DIAGRAM POWER SUPPLY INPUTS USB CONNECTOR DGND VBUS CONTROLLER 3.3V LINEAR REGULATOR VL VSS VDD GND CY7C68013 SCA Y0 ADG2188 I/O I/O RESET X0 PLEASE SEE THE LAST PAGE FOR AN IMPORTANT WARNING AND LEGAL TERMS AND CONDITIONS. Rev. A | Page 1 of 12 Y7 X7 I/O Figure 1. I/O CMOS ANALOG SWITCH ARRAY 05978-001 SCL UG-915 EVAL-ADG2188EBZ User Guide TABLE OF CONTENTS Features .............................................................................................. 1 Link Options ..................................................................................3 Evaluation Kit Contents ................................................................... 1 Evaluation Board Software Quick Start Procedures .....................5 Documents Needed .......................................................................... 1 Software Installation .....................................................................5 Software Needed ............................................................................... 1 Software Operation .......................................................................5 General Description ......................................................................... 1 Evaluation Board Schematics and Artwork ...................................7 Evaluation Board Block Diagram ................................................... 1 Ordering Information .................................................................... 11 Revision History ............................................................................... 2 Bill of Materials ........................................................................... 11 Evaluation Board Hardware ............................................................ 3 Power Supplies .............................................................................. 3 REVISION HISTORY 4/16—Rev. 0 to Rev. A Changes to Features Section and General Description Section....... 1 Added Evaluation Kit Contents Section, Documents Needed Section, and Software Needed Section .......................................... 1 Changes to Evaluation Board Hardware Section Title, Power Supplies Section, and Table 1 .............................................. 3 Changes to Setup for Control Without a PC Section and Table 3 ................................................................................................ 4 Changes to Evaluation Board Software Quick Start Procedures Section, Software Installation Section, Software Operation Section, Setting the I2C Address Section and Figure 4 .................... 5 Added Reinitialize Software Section and Figure 2; Renumbered Sequentially................................................................ 5 Changes to LDSW (Load Switch) Section, RESET Function Section, and Figure 5 ........................................................................ 6 Added All On Function Section ..................................................... 6 Changes to Figure 7 .......................................................................... 8 Changes to Table 4 .......................................................................... 11 6/06—Revision 0: Initial Version Rev. A | Page 2 of 12 EVAL-ADG2188EBZ User Guide UG-915 EVALUATION BOARD HARDWARE POWER SUPPLIES • The EVAL-ADG2188EBZ can operate with single and dual supplies. The ADG2188 is specified to operate in single-supply mode at 12 V ± 10% operation. It is also specified to operate at ±5 V dual supply. To apply these supplies to the evaluation board, adhere to the following guidelines: • • The VL pin provides the digital supply for the ADG2188 and all digital circuitry on the board. This supply can be applied externally or the USB port can power the digital circuitry (Link 5 inserted). Note that in this case, the logic supply power is 3.3 V. The positive supply voltage (for example, 12 V) is applied between the AVDD and AGND inputs of the ADG2188 evaluation board. Note the maximum single supply the ADG2188 can handle is 15 V. In this case, the AVSS input must equal 0 V. The negative supply (for example, −5 V) is applied between the AVSS and AGND inputs for the negative supply (VSS) of the ADG2188. Note that the maximum voltage between AVDD and AVSS is 15 V. Both analog GND and digital GND inputs are provided on the board. The AGND and DGND planes are connected at one location on the evaluation board close to the ADG2188 It is recommended not to connect AGND and DGND elsewhere in the system to avoid ground loop problems. Each supply is decoupled to the relevant ground plane with 10 µF and 0.1 µF capacitors. Each device supply pin is also decoupled with a 10 µF and 0.1 µF capacitor pair to the relevant ground plane. LINK OPTIONS There are a number of links and switch options on the evaluation board that must be set for the required operating setup before using the board. The functions of these link options are described in Table 1. Table 1. Link Functions Link No. LK1 LK2 LK3 LK4 LK5 Function This link chooses the first LSB bit of the chip address on the USB I2C interface. Note the I2C address must be set before the evaluation board software is launched. When inserted, the address bit is set to 0. When removed, the address bit is set to 1. This link chooses the second LSB bit of the chip address on the USB I2C interface. Note the I2C must be set before the evaluation board software is launched. When inserted, the address bit is set to 0. When removed, the address bit is set to 1. This link chooses the third LSB bit of the chip address on the USB I2C interface. Note the I2C address must be set before the evaluation board software is launched. When inserted, the address bit is set to 0. When removed, the address bit is set to 1. This link selects whether the supply at VSS is sourced from ground or from AVSS the input. If sourced from ground, the evaluation board becomes a single supply system. Position A: VSS sourced from AVSS. Position B: VSS is connected to ground. This implies single-supply operation of the ADG2188. This link selects whether the logic supply power comes from the USB power (if connected to a PC) or from the user supplied VL (if used as a standalone unit). When inserted, logic power supply comes from USB supply power, that is, 3.3 V. When removed, logic power supply comes from the user supplied VL. Rev. A | Page 3 of 12 UG-915 EVAL-ADG2188EBZ User Guide Setup for PC Control Setup for Control Without a PC The default setup for the EVAL-ADG2188EBZ is controlled by the PC via the USB port. The default link options are listed in Table 2. The EVAL-ADG2188EBZ can also be used as a standalone board. This option is designed for a PC without a USB port or for users to use the I2C interface within the system being evaluated. Table 3 lists the link options that must be set to operate the evaluation board without a PC. Table 2. Default Link Options Link No. LK1 LK2 LK3 LK4 LK5 Option Inserted; therefore, the LSB is 0. Inserted; therefore, the second LSB is 0. Inserted; therefore, the third LSB is 0. Position A; therefore, the AVSS input supplies the power to the VSS pin. Inserted; therefore, logic power supply comes from USB power. Table 3. Link Options Setup for Control Without a PC Link No. LK1, LK2, LK3 LK4 LK5 Option User configurable. Does not affect whether the board is connected to a PC or not. Position A. Removed. SMB connectors are provided for the SDA and SCL inputs. Switches turn on and off via the I2C bus. The read/write procedures are provided in the ADG2188 data sheet and must be consulted when using this evaluation board in standalone mode. Rev. A | Page 4 of 12 EVAL-ADG2188EBZ User Guide UG-915 EVALUATION BOARD SOFTWARE QUICK START PROCEDURES If the ADG2188 evaluation board is not connected to the USB port when the software is launched, a Hardware Select dialog box displays, seen in Figure 3. Connect the evaluation board to the USB port of the PC, wait for a few seconds, click Rescan and then click Select. The ADG2188 evaluation kit includes self installing EVALADG2188EBZ evaluation software CD. Install the evaluation software before connecting the evaluation board to the USB port of the PC, ensuring the evaluation board is correctly recognized when connected to the PC. SOFTWARE INSTALLATION 1. Insert the evaluation software CD into the PC. The installation software launches automatically. If it does not, use Windows Explorer to locate the file setup.exe on the CD. Double-click the setup.exe file to begin the installation procedure. 2. At the software installation prompt, select a destination directory. By default, the directory is C:\Program Files\ Analog Devices\ADG2188. After the directory is selected, the installation procedure copies the files into the relevant directories on the hard drive. The installation program creates a program group called Analog Devices with a subgroup called ADG2188 in the Start menu of the taskbar. 3. After the installation of the evaluation software is complete, a welcome window displays for the installation of the ADI PAD Drivers. Click Install to install the drivers. 4. After installing the drivers, power up the ADG2188 evaluation board as described in the Power Supplies section and connect the board to the USB port of the PC using the supplied cable. 05978-103 To install the software, Figure 3. Hardware Select Dialog Box Reinitialize Software Click Reinitialize Software in the Configuration tab to reset the software to the default state. Reinitialize the software whenever the evaluation board is reconnected to the PC or if a new evaluation board isused. Setting the I2C Address The device address is set in the Device Address tab (shown in Figure 4). SOFTWARE OPERATION 05978-104 To launch the software, click Start > All Programs > Analog Devices > ADG2188 > ADG2188 Evaluation Software. The Configuration tab of the evaluation software displays as shown in Figure 2. 05978-102 Figure 4. Device Address Tab Figure 2. Configuration Tab Set the device address by clicking on the relevant bit. Click Set Device Address to update the device address in the software. Note the address set must correspond to the address set with the jumpers on the evaluation board and must be set before the evaluation board software begins to function. Rev. A | Page 5 of 12 UG-915 EVAL-ADG2188EBZ User Guide LDSW (Load Switch) If the load switch function in the Configuration tab is on, the switches can update simultaneously (for example, for RGB colors in video switching). Otherwise, if the load switch is off, the switch condition updates upon completion of each I2C write, that is, immediately upon clicking an LED button on the Analog Crosspoint Switch Control in the Configuration tab. The LED is green if the switch is on and is black if the switch is off. 05978-105 If the load switch is on, clicking an LED in Analog Crosspoint Switch Control stores the switch status temporarily until Update Switches is clicked. When an LED is clicked, a red LED indicates the switch turns on and a dark green LED indicates that the switch turns off. All switches update simultaneously upon clicking Update Switches. The red LEDs turn green and the dark green LED turns black, indicating the switches are on and off, respectively. Figure 5. Switch Status Tab Switch Status RESET Function To see what the status of the switch array is at any given time, click the Switch Status tab (shown in Figure 5). The green LED in the Analog Crosspoint Switch Status indicates that the switch is on and the black LED indicates the switch is off. There is a RESET button on the board that can reset the switch array. Alternatively, clicking Reset All (Off) in the Configuration tab of the software resets all switches. All On Function Clicking All On button in the Configuration tab of the software turns on all the switches. Rev. A | Page 6 of 12 EVAL-ADG2188EBZ User Guide UG-915 05978-005 EVALUATION BOARD SCHEMATICS AND ARTWORK Figure 6. Schematic of USB Controller Circuitry Rev. A | Page 7 of 12 EVAL-ADG2188EBZ User Guide 05978-006 UG-915 Figure 7. Schematic of ADG2188 Circuitry Rev. A | Page 8 of 12 UG-915 05978-007 EVAL-ADG2188EBZ User Guide 05978-008 Figure 8. Component Placement Drawing Figure 9. Component Side PCB Drawing Rev. A | Page 9 of 12 EVAL-ADG2188EBZ User Guide 05978-009 UG-915 Figure 10. Solder Side PCB Drawing Rev. A | Page 10 of 12 EVAL-ADG2188EBZ User Guide UG-915 ORDERING INFORMATION BILL OF MATERIALS Table 4. Component Listing Qty. Reference Designator 19 C1, C3, C5 to C9, C11, C15, C16, C18 to C22, C24, C26, C28, C30 2 C2, C29 3 C4, C13, C14 4 C12, C25, C27, C31 2 C10, C17 1 C23 1 D1 1 D4 1 J1 Description 0.1 µF, 50 V, X7R SMD ceramic capacitors, 0603 package Distributor FEC Part Number FEC 499-675 10 µF, TAJ_B, 16 V, SMD tantalum capacitors 10 µF, X5R ceramic capacitors, 0805 package 10 µF, TAJ_A, 6.3 V, SMD tantalum capacitors 22 pF, 50 V, X7R SMD ceramic capacitors, 0603 package 2.2 µF, 6.3 V, X5R SMD ceramic capacitors, 0603 package Diode SOT23 LED, 0805 package USB Mini-B connector FEC Digikey FEC FEC Digikey FEC FEC Digikey, Farnell 4 5 J2 K1 to K5 4-pin terminal block SIP-2P, 2-pin header and shorting shunts FEC FEC 16 R1 to R4, R12 to R21, R26, R27 R5, R6 R7 R8, R9 R10 R11 R28 to R31 RESET T1 to T5 U4 U2 U3 U5 SCL, SDA X2_X1, X2_X3, X4_X5, X6_X7, Y0_Y1, Y2_Y3, Y4_Y5, Y6_Y7 XTAL1 SMD resistors, 0603 package FEC FEC 498-737 490-1709-1-ND FEC 197-130 FEC 722-005 490-1552-1-ND FEC 304-9395 FEC 359-9681 FEC 476-8309, WM2499CT-ND FEC 151-787 FEC 511-705, FEC 150411 Not Inserted 75 Ω, SMD resistors, 0603 package 0 Ω, SMD resistor, 0603 package 2.2 kΩ, SMD resistors, 0603 package 10 kΩ, SMD resistor, 0603 package 1 kΩ, SMD resistor, 0603 package 10 kΩ, SMD resistors, 0603 package Push button switch, sealed 6 mm x 8 mm Test points 8 × 8 analog switch array 24LC64 USB microcontroller 3.3 V regulator 50 Ω straight SMB jacks Sockets, phono, printed circuit board (PCB), gold, one pair FEC FEC FEC FEC FEC FEC FEC Not applicable Analog Devices Digikey Cyprus Analog Devices FEC FEC FEC 357-1269 FEC 772-227 FEC 911-276 FEC 911-355 FEC 911-239 FEC 911-355 FEC177-807 Do not insert ADG2188YCP 24LC64-I/SN-ND CY7C68013-56LFC ADP3303AR-3.3 FEC 365-1228 FEC 382-4834 24 MHz, CM309S, SMD crystal FEC FEC 569-872 2 1 2 1 1 4 1 5 1 1 1 1 2 8 1 Rev. A | Page 11 of 12 UG-915 EVAL-ADG2188EBZ User Guide NOTES ESD Caution ESD (electrostatic discharge) sensitive device. Charged devices and circuit boards can discharge without detection. Although this product features patented or proprietary protection circuitry, damage may occur on devices subjected to high energy ESD. Therefore, proper ESD precautions should be taken to avoid performance degradation or loss of functionality. Legal Terms and Conditions By using the evaluation board discussed herein (together with any tools, components documentation or support materials, the “Evaluation Board”), you are agreeing to be bound by the terms and conditions set forth below (“Agreement”) unless you have purchased the Evaluation Board, in which case the Analog Devices Standard Terms and Conditions of Sale shall govern. Do not use the Evaluation Board until you have read and agreed to the Agreement. Your use of the Evaluation Board shall signify your acceptance of the Agreement. This Agreement is made by and between you (“Customer”) and Analog Devices, Inc. (“ADI”), with its principal place of business at One Technology Way, Norwood, MA 02062, USA. Subject to the terms and conditions of the Agreement, ADI hereby grants to Customer a free, limited, personal, temporary, non-exclusive, non-sublicensable, non-transferable license to use the Evaluation Board FOR EVALUATION PURPOSES ONLY. Customer understands and agrees that the Evaluation Board is provided for the sole and exclusive purpose referenced above, and agrees not to use the Evaluation Board for any other purpose. Furthermore, the license granted is expressly made subject to the following additional limitations: Customer shall not (i) rent, lease, display, sell, transfer, assign, sublicense, or distribute the Evaluation Board; and (ii) permit any Third Party to access the Evaluation Board. As used herein, the term “Third Party” includes any entity other than ADI, Customer, their employees, affiliates and in-house consultants. The Evaluation Board is NOT sold to Customer; all rights not expressly granted herein, including ownership of the Evaluation Board, are reserved by ADI. CONFIDENTIALITY. This Agreement and the Evaluation Board shall all be considered the confidential and proprietary information of ADI. Customer may not disclose or transfer any portion of the Evaluation Board to any other party for any reason. Upon discontinuation of use of the Evaluation Board or termination of this Agreement, Customer agrees to promptly return the Evaluation Board to ADI. ADDITIONAL RESTRICTIONS. Customer may not disassemble, decompile or reverse engineer chips on the Evaluation Board. Customer shall inform ADI of any occurred damages or any modifications or alterations it makes to the Evaluation Board, including but not limited to soldering or any other activity that affects the material content of the Evaluation Board. Modifications to the Evaluation Board must comply with applicable law, including but not limited to the RoHS Directive. TERMINATION. ADI may terminate this Agreement at any time upon giving written notice to Customer. Customer agrees to return to ADI the Evaluation Board at that time. LIMITATION OF LIABILITY. THE EVALUATION BOARD PROVIDED HEREUNDER IS PROVIDED “AS IS” AND ADI MAKES NO WARRANTIES OR REPRESENTATIONS OF ANY KIND WITH RESPECT TO IT. ADI SPECIFICALLY DISCLAIMS ANY REPRESENTATIONS, ENDORSEMENTS, GUARANTEES, OR WARRANTIES, EXPRESS OR IMPLIED, RELATED TO THE EVALUATION BOARD INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY, TITLE, FITNESS FOR A PARTICULAR PURPOSE OR NONINFRINGEMENT OF INTELLECTUAL PROPERTY RIGHTS. IN NO EVENT WILL ADI AND ITS LICENSORS BE LIABLE FOR ANY INCIDENTAL, SPECIAL, INDIRECT, OR CONSEQUENTIAL DAMAGES RESULTING FROM CUSTOMER’S POSSESSION OR USE OF THE EVALUATION BOARD, INCLUDING BUT NOT LIMITED TO LOST PROFITS, DELAY COSTS, LABOR COSTS OR LOSS OF GOODWILL. ADI’S TOTAL LIABILITY FROM ANY AND ALL CAUSES SHALL BE LIMITED TO THE AMOUNT OF ONE HUNDRED US DOLLARS ($100.00). EXPORT. Customer agrees that it will not directly or indirectly export the Evaluation Board to another country, and that it will comply with all applicable United States federal laws and regulations relating to exports. GOVERNING LAW. This Agreement shall be governed by and construed in accordance with the substantive laws of the Commonwealth of Massachusetts (excluding conflict of law rules). Any legal action regarding this Agreement will be heard in the state or federal courts having jurisdiction in Suffolk County, Massachusetts, and Customer hereby submits to the personal jurisdiction and venue of such courts. The United Nations Convention on Contracts for the International Sale of Goods shall not apply to this Agreement and is expressly disclaimed. ©2012–2016 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners. UG05978-0-4/16(A) Rev. A | Page 12 of 12
