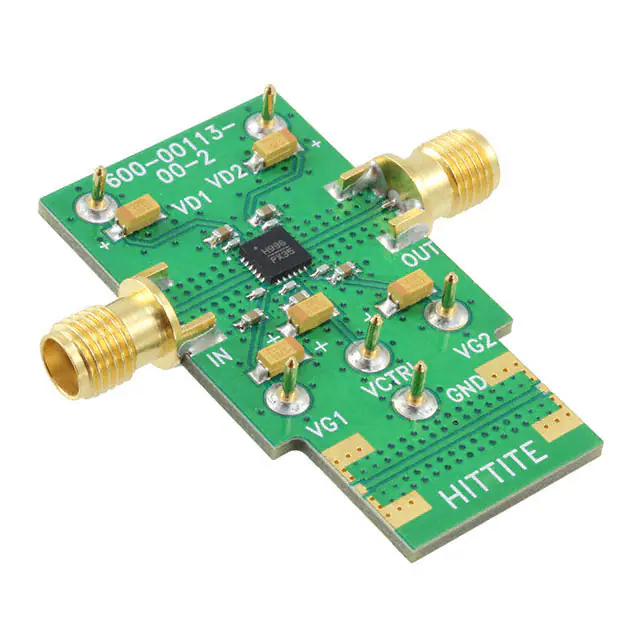

EVAL01-HMC996LP4E

HMC996LP4E v01.0112 Variable Gain Amplifier - SMT VARIABLE GAIN AMPLIFIER 5 - 12 GHz Typical Applications Features The HMC996LP4E is ideal for: Wide Gain Control Range: 22 dB • Point-to-Point Radio Single Control Voltage: -1 to -4.5V • Point-to-Multi-Point Radio Output IP3 @ Max Gain: +34 dBm Output P1dB: +22 dBm • EW & ECM Subsystems Low Noise Figure 2dB @ max gain • X-Band Radar No External Matching • Test Equipment & Sensors 24 Lead 4x4 mm SMT Package: 16 mm2 Functional Diagram General Description The HMC996LP4E is a GaAs PHEMT MMIC analog variable gain amplifier and / or driver amplifier which operates between 5 and 12 GHz. Ideal for microwave radio applications, the amplifier provides up to 18.5 dB of gain, output P1dB of up to +23 dBm, and up to +34 dBm of output IP3 at maximum gain, while requiring only 170 mA from a +5V supply. Gain control voltage pin (Vctrl) is provided to allow variable gain control up to 22 dB. Gain flatness is excellent making the HMC996LP4E ideal for EW, ECM and radar applications. The HMC996LP4E is housed in a RoHS compliant 4 x 4 mm QFN leadless package and is compatible with high volume surface mount manufacturing. Electrical Specifications, TA = +25°C, Vdd1, 2= 5V, Vctrl= -4.5V, Idd= 120 mA* Parameter Min. Frequency Range Gain Max. Min. 5 - 8.5 16 Gain Flatness 18.5 13 ±0.5 Gain Variation Over Temperature Gain Control Range Typ. 0.006 15 Noise Figure 22 15 2.5 Typ. Max. Units 8.5 - 12 GHz 16 dB ±1 dB 0.006 dB/ °C 20 dB 2 dB dB Input Return Loss 17 9 Output Return Loss 23 7 dB 23 dBm Output Power for 1 dB Compression (P1dB) 19 22 20 Saturated Output Power (Psat) 23 24 dBm Output Third Order Intercept (IP3) 34 34 dBm Total Supply Current (Idd) 120 120 mA *Set Vctrl = -4.5V and then adjust Vgg1, 2 between -2V to 0V to achieve Idd = 120 mA typical. 1 Information furnished by Analog Devices is believed to be accurate and reliable. However, no For price, 2delivery, and to placeChelmsford, orders: Analog MA Devices, Inc., For price, delivery and to place orders: Microwave Corporation, Elizabeth Drive, 01824 responsibility is assumed by Analog Devices for its use, nor for anyHittite infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 rights of third parties that may result from its use. Specifications subject to change without notice. No Phone: 978-250-3343 Fax: 978-250-3373 Phone: Order781-329-4700 On-line at www.hittite.com • Order online at www.analog.com license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Application Support: Phone: 1-800-ANALOG-D Trademarks and registered trademarks are the property of their respective owners. Application Support: Phone: 978-250-3343 or apps@hittite.com HMC996LP4E v01.0112 VARIABLE GAIN AMPLIFIER 5 - 12 GHz Gain vs. Control Voltage Range Gain vs. Control Voltage 25 Vctrl = -3.1V Vctlr = -3.4V 20 20 15 GAIN (dB) GAIN (dB) 15 5 GHz 6 GHz 8 GHz 10 GHz 11 GHz 12 GHz 10 5 Vctrl = -2.8V Vctrl = -2,5V Vctrl = -2.2V 0 10 5 0 -5 Vctrl = -1.6V -5 Vctrl = -1.9V Vctrl = -1.0V -10 -10 5 6 7 8 9 10 11 12 -4 -3.7 -3.4 FREQUENCY (GHz) -2.5 -2.2 -1.9 -1.6 -1.3 -1 Gain vs. Temperature 25 30 20 +25C +85C -40C 22 GAIN (dB) 10 S21 S11 S22 0 19 16 -10 13 -20 -30 10 4 5 6 7 8 9 10 11 12 5 13 6 7 FREQUENCY (GHz) 8 9 10 11 12 FREQUENCY (GHz) Input Return Loss vs. Temperature Output Return Loss vs. Temperature 0 0 +25C +85C -40C -5 RETURN LOSS (dB) -5 RETURN LOSS (dB) -2.8 CONTROL VOLTAGE (V) Broadband Gain & Return Loss RESPONSE (dB) -3.1 Variable Gain Amplifier - SMT 25 Vctrl = -4.5V -10 -15 -20 -25 +25C +85C -40C -10 -15 -20 -25 -30 -30 -35 5 6 7 8 9 FREQUENCY (GHz) 10 11 12 5 6 7 8 9 10 11 12 FREQUENCY (GHz) Information furnished by Analog Devices is believed to be accurate and reliable. However, no For price, 2delivery, and to placeChelmsford, orders: Analog MA Devices, Inc., For price, delivery and to place orders: Microwave Corporation, Elizabeth Drive, 01824 responsibility is assumed by Analog Devices for its use, nor for anyHittite infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 rights of third parties that may result from its use. Specifications subject to change without notice. No Phone: 978-250-3343 Fax: 978-250-3373 Phone: Order781-329-4700 On-line at www.hittite.com • Order online at www.analog.com license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Application Support: Phone: 1-800-ANALOG-D Trademarks and registered trademarks are the property of their respective owners. Application Support: Phone: 978-250-3343 or apps@hittite.com 2 HMC996LP4E v01.0112 VARIABLE GAIN AMPLIFIER 5 - 12 GHz Input Return Loss @ Control Voltage Extreme Output Return Loss @ Control Voltage Extreme -5 RETURN LOSS (dB) RETURN LOSS (dB) 0 -4.5 Volts -1.0 Volts -5 -10 -15 -20 -25 -4.5 Volts -1.0 Volts -10 -15 -20 -25 -30 -30 -35 5 6 7 8 9 10 11 12 5 6 8 9 10 12 Noise Figure vs. Control Voltage Noise Figure vs. Temperature 18 7 16 NOISE FIGURE (dB) 6 5 +25C +85C -40C 4 3 2 14 12 10 8 6 GHz 7 GHz 8 GHz 9 GHz 10 GHz 11 GHz 6 4 1 2 0 5 6 7 8 9 10 11 -4 12 -3.5 FREQUENCY (GHz) -3 -2.5 -2 -1.5 -1 CONTROL VOLTAGE (V) P1dB vs. Temperature Psat vs. Temperature 30 30 Vctrl = -4.5V Vctrl = -4.5V 25 25 20 Psat (dBm) P1dB (dBm) 11 FREQUENCY (GHz) 0 15 Vctrl = -1V 10 20 Vctrl = -1V 15 10 +25C +85C -40C 5 +25C +85C -40C 5 0 0 5 6 7 8 9 FREQUENCY (GHz) 3 7 FREQUENCY (GHz) NOISE FIGURE (dB) Variable Gain Amplifier - SMT 0 10 11 12 5 6 7 8 9 10 11 12 FREQUENCY (GHz) Information furnished by Analog Devices is believed to be accurate and reliable. However, no For price, 2delivery, and to placeChelmsford, orders: Analog MA Devices, Inc., For price, delivery and to place orders: Microwave Corporation, Elizabeth Drive, 01824 responsibility is assumed by Analog Devices for its use, nor for anyHittite infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 rights of third parties that may result from its use. Specifications subject to change without notice. No Phone: 978-250-3343 Fax: 978-250-3373 Phone: Order781-329-4700 On-line at www.hittite.com • Order online at www.analog.com license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Application Support: Phone: 1-800-ANALOG-D Trademarks and registered trademarks are the property of their respective owners. Application Support: Phone: 978-250-3343 or apps@hittite.com HMC996LP4E v01.0112 VARIABLE GAIN AMPLIFIER 5 - 12 GHz Reverse Isolation vs. Temperature Output IP3 vs. Temperature 0 40 +25C +85C -40C 30 -30 IP3 (dBm) ISOLATION (dB) -20 35 -40 -50 +25C +85C -40C 25 20 -60 15 -70 Vctrl=-1V, Pout=-14 dBm/tone -80 10 5 6 7 8 9 10 11 12 5 6 7 IP3 and Gain @ 6 GHz, Pin = -10 dBm 10 11 12 40 35 35 OIP3 GAIN IIP3 30 IP3 (dBm), GAIN (dB) IP3 (dBm), GAIN (dB) 9 IP3 and Gain @ 8 GHz, Pin = -10 dBm 40 25 20 15 10 5 0 -5 -4.5 8 FREQUENCY (GHz) FREQUENCY (GHz) OIP3 GAIN IIP3 30 25 20 15 10 5 Variable Gain Amplifier - SMT Vctrl=-4.5V, Pout=7 dBm/tone -10 0 -4 -3.5 -3 -2.5 -2 -1.5 -5 -4.5 -1 -4 -3.5 CONTROL VOLTAGE (V) -3 -2.5 -2 -1.5 -1 CONTROL VOLTAGE (V) IP3 and Gain @ 10 GHz, Pin = -10 dBm 40 IP3 (dBm), GAIN (dB) 35 OIP3 GAIN IIP3 30 25 20 15 10 5 0 -5 -4.5 -4 -3.5 -3 -2.5 -2 -1.5 -1 CONTROL VOLTAGE (V) Information furnished by Analog Devices is believed to be accurate and reliable. However, no For price, 2delivery, and to placeChelmsford, orders: Analog MA Devices, Inc., For price, delivery and to place orders: Microwave Corporation, Elizabeth Drive, 01824 responsibility is assumed by Analog Devices for its use, nor for anyHittite infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 rights of third parties that may result from its use. Specifications subject to change without notice. No Phone: 978-250-3343 Fax: 978-250-3373 Phone: Order781-329-4700 On-line at www.hittite.com • Order online at www.analog.com license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Application Support: Phone: 1-800-ANALOG-D Trademarks and registered trademarks are the property of their respective owners. Application Support: Phone: 978-250-3343 or apps@hittite.com 4 HMC996LP4E v01.0112 VARIABLE GAIN AMPLIFIER 5 - 12 GHz Bias Voltage Absolute Maximum Ratings Variable Gain Amplifier - SMT Drain Bias Voltage (Vdd1, 2) +5.5V Vdd1,2(V) Idd Total (mA) 120 mA Gate Bias Voltage (Vgg1, 2) -3 to 0V +5V Gain Control Voltage (Vctrl) -5 to 0V Vgg1,2 (V) Igg Total (mA) RF Power Input +20 dBm 0V to -2V
